Alereon AL5625 User Guide p.1/3
Alereon AL5625Mini-Dongle Users Guide
OVERVIEW
This document describes the usage of the AL5625. The AL5256 is used as a Wireless USB Host
Adapter. The AL5256 allows the user to connect various Wireless USB devices to a PC or other
device with USB capabilities.
Figure 1. AL5625 Mini-Dongle
![](/img.php?id=1399673&img=bg2.png)
Alereon AL5625 User Guide p.2/3
1.0 INSTALLATION
The AL5625 can be configured to operate in two modes. First, it can operate in driverless mode
which requires no drivers be installed. The installation process for this mode of operation is to
insert the AL5625 into an available USB port. The second option is Host Wire Adapter
(HWA) mode. This mode requires installation of the Wireless USB Manager.
1.1 Installing Wireless USB Manager for HWA mode
Alereon provides MSI based installers. Each installer is designated by the platform it supports in
the filename. For example,
• Setup_wusb_X86_XXXX.msi - indicates that this MSI is for 32 bit systems
• Setup_wusb_X64_XXXX.mdi - indicates that this MSI is for 64 bit systems
You can launch the installation process by double clicking the MSI package. Please follow the
following steps in order to install Alereon's Wireless USB Manager.
Note: Wireless USB Manager has a dependency on Microsoft .NET 2.0. you will have to install this software
manually before going through the setup or connect the PC to the internet and the setup will automatically
download this dependency from the internet.
•Use the intallation program to install the Wireles USB Manager

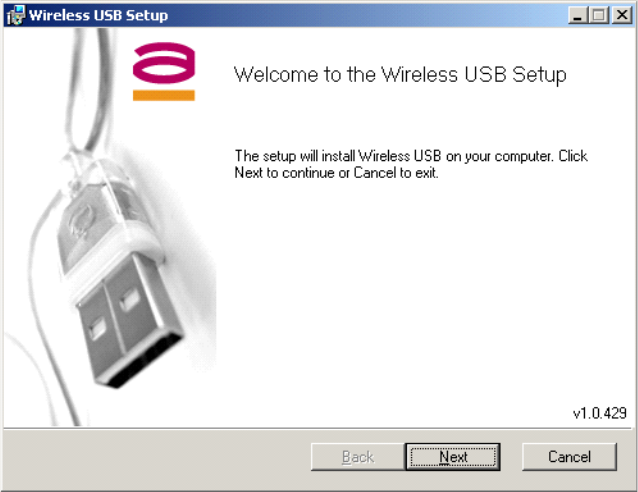

Figure 2. Wireless USB Installer
•More details of the Wireless USB Manager installation and usage can be found in the Wireless
USB Manager User’s Guide.
Alereon AL5625 User Guide p.3/3
1.2 FCC requirements for information to the user.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This device is authorized under 47 CFR 15.519 (the FCC Rules and Regulations). The operation
of this device is subject to the following restriction: This UWB device shall transmit only when it is
sending information to an associated receiver. This UWB device shall cease transmission within
10 seconds unless it receives an acknowledgement from the associated receiver that its
transmission is being received. An acknowledgement of reception must continue to be received
by the transmitting device at least every 10 seconds of operation or the UWB device must cease
transmitting.
Warning: Changes or modifications to this device not expressly approved by Alereon could void
the users authority to operate the device under the FCC Equipment Authorization The users
manual or instruction manual shall contain this information about interference control:
Electromagnetic Interference (EMI) is any signal or emission, radiated in free space or conducted
along power or signal leads, that endangers the function of radio navigation or other safety
service (the telephone and cellphones are considered to be safety services) or seriously
degrades, obstructs or repeatedly interrupts a licensed radio communications service. Radio
communications services include but are not limited to: AM/FM commercial broadcast, television,
cellular services, radar, air traffic control, pager and personal communications services
(PCS). These licensed services, along with unintentional radiators such as digital devices,
including computer systems, contribute to the electromagnetic environment.
Electromagnetic Compatibility (EMC) is the ability of items of electronic equipment to function
properly together in the electromagnetic environment. While this device has been designed and
determined to be compliant with regulatory agency limits for EMI, there is no guarantee that
interference will not occur in a particular installation. If this device does cause interference with
radio communications services, which can be determined by turning the device on and off, you
are encouraged to try to correct the interference by one or more of
the following measures:
•Re orient the receiving antenna
•Relocate the device with respect to the victim receiver
•Move the device away from the victim receiver
•Plug the device host into a different power outlet than the victim receiver so that the device
system and receiver are on separate branch circuits
If necessary, consult your system service representative or an experienced radio/television
technician for additional help in resolving interference.
