Anoto Korea PGD-601 USB Dongle User Manual EZ Dongle
Pen Generations, Inc. USB Dongle EZ Dongle

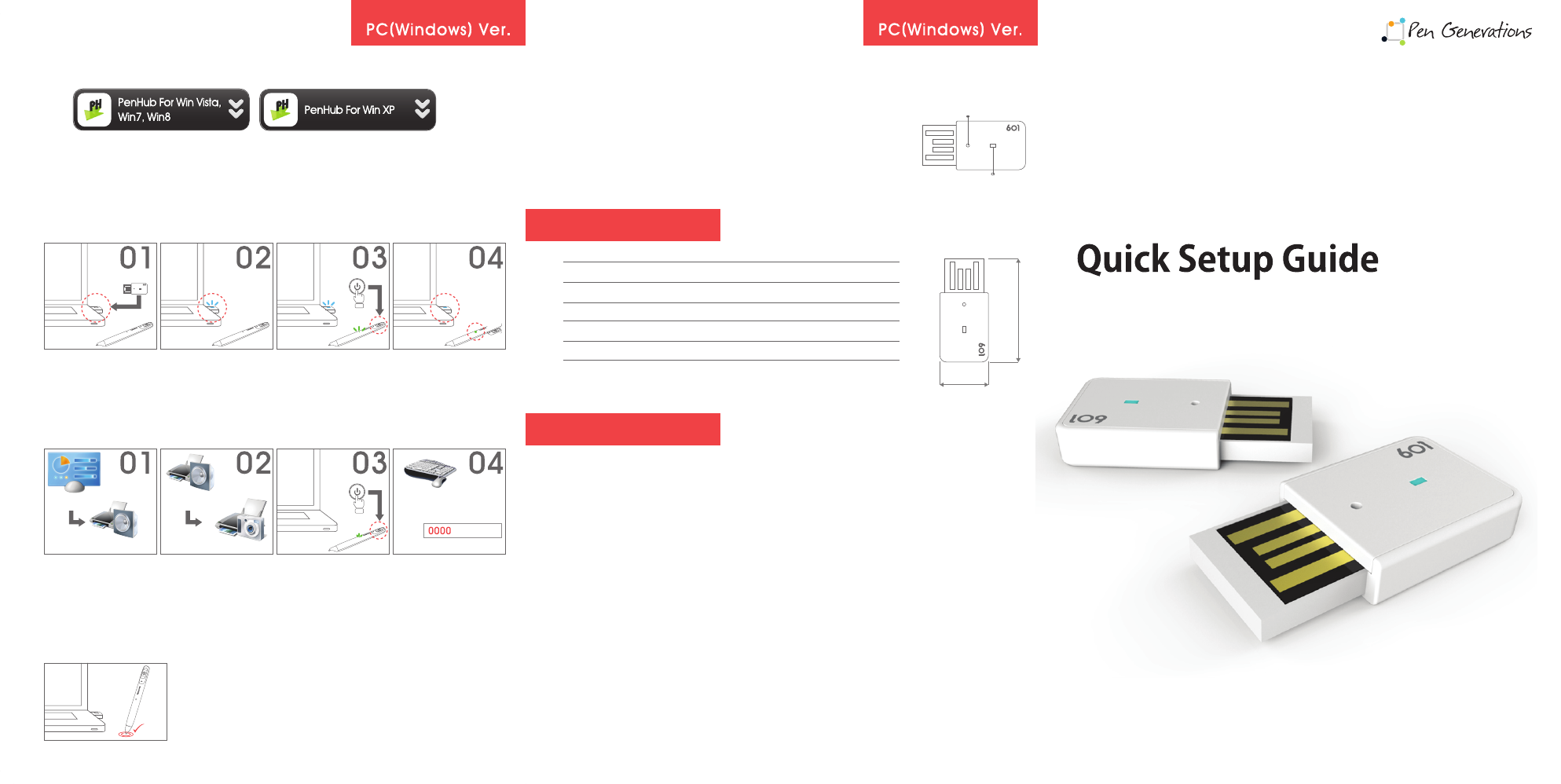

Users Manual
![](/img.php?id=2378148&img=bg1.png)
How to install the PC application
■Download the PenHub Software on the website(www.pengenerations.com)
How to Bluetooth pairing(Registering) in PC
■In case of using the EZ dongle
■In case of using the embedded Bluetooth of PC or using the common Bluetooth dongle
■ Using the pen for the rst time
- Some PC doesn’t support to connect Bluetooth pairing with pen directly. Please use the common
Bluetooth dongle or EZ dongle or the common Bluetooth dongle at this time.
- Please disable or delete the embedded Bluetooth hardware in the PC when common Bluetooth
dongle conict with the PC’s
ADP-601 can be easily connected with PC by tapping the pen tip on
the note or anything after Bluetooth registering.
( The top GREEN LED keeps turning on when ADP-601 is connected
to PC successfully.)
Control Panel
Tap
Hardware & Sound
Hardware & Sound
Add Bluetooth device
Select ADP-601RS
Input the PIN code as “0000”
Attach the EZ dongle
to the USB port.
Check the LED of EZ
dongle whether it is
blinking or not.
Turn on the
ADP-601 pen.
Check the LED of
EZ dongle and ADP-601
whether they keep
turning on.
- It takes longer time in WinXP than other OS because the .NET framework is also installed.
■Re-registration for using EZ dongle
RESET BUTTON
Model
Weight
Communication
Host Interface
Bluetooth Prole
Dimension
PGD - 601
2.4g
Bluetooth 2.0
USB 2.0(Type A)
HID (ADP-601 Proprietary)
7.0mm x 2.0mm x 1.2mm(L x W x D)
7.0mm
2.0mm
LED
- If user fail to do Bluetooth pairing repeatedly or try to use another ADP-601, please refer the
step in below;
A. Attach the EZ dongle to USB port of PC
B. Press the “RESET SWITCH” on the EZ dongle with a sharp things
such as pin. Then, the LED on EZ dongle start to blink quickly.
C. Turn on the ADP-601.
Specification
- Please keep this user’s guide in an easily accessible place and read through the complete
document before the dongle is used.
- Dongle only supports ADP-601 digital pen and has no memory inside.
- Do not open or disassemble the dongle, take special care not to damage.
- Do not drop the dongle or allow any other kind of strong impact.
- Consult your point of purchase if the dongle needs repair.
- Dongle may cause a choking hazard.
- Do not expose the dongle to water or any other uids. It is not waterproof or water resistant.
Do not leave it in damp conditions.
- Do not expose the dongle to extreme temperatures or direct sunlight.
- The dongle is intended for indoor usage.
- Clean with a dry cloth. Do not use water, soap, detergent or other chemicals which may deform
the dongle.
