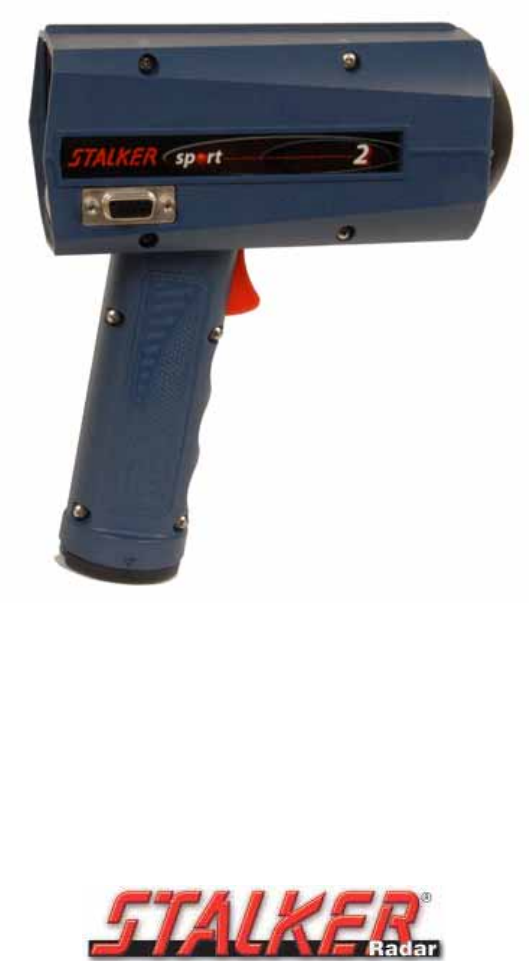

S
Sport2
Digital Sports Radar
Owner’s
Manual
Not intended for Law Enforcement use
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the manufacturer may void the user's right to operate the
equipment.
TABLE OF CONTENTS
SPORT2
Owner’s Manual
Table of Contents ............................................................................................................................ 1
Introduction...................................................................................................................................... 2
What IS Included ............................................................................................................................. 3
Quick START Instructions ............................................................................................................... 4
Controls and Indicators.................................................................................................................... 5
Detailed Instructions ........................................................................................................................ 7
Providing Power to the Sport2 .................................................................................................... 7
Turning the Transmitter ON and OFF ......................................................................................... 7
Using the Trigger to Lock Speeds............................................................................................... 7
The RECALL Key Function......................................................................................................... 7
The Peak Function ...................................................................................................................... 8
The Sport2 Operator Setup Menu............................................................................................... 8
The Sport 2 Option Setup Menu ................................................................................................. 9
Target Speed Settings............................................................................................................... 11
Recommended Settings ................................................................................................................ 12
Battery Information ........................................................................................................................ 13

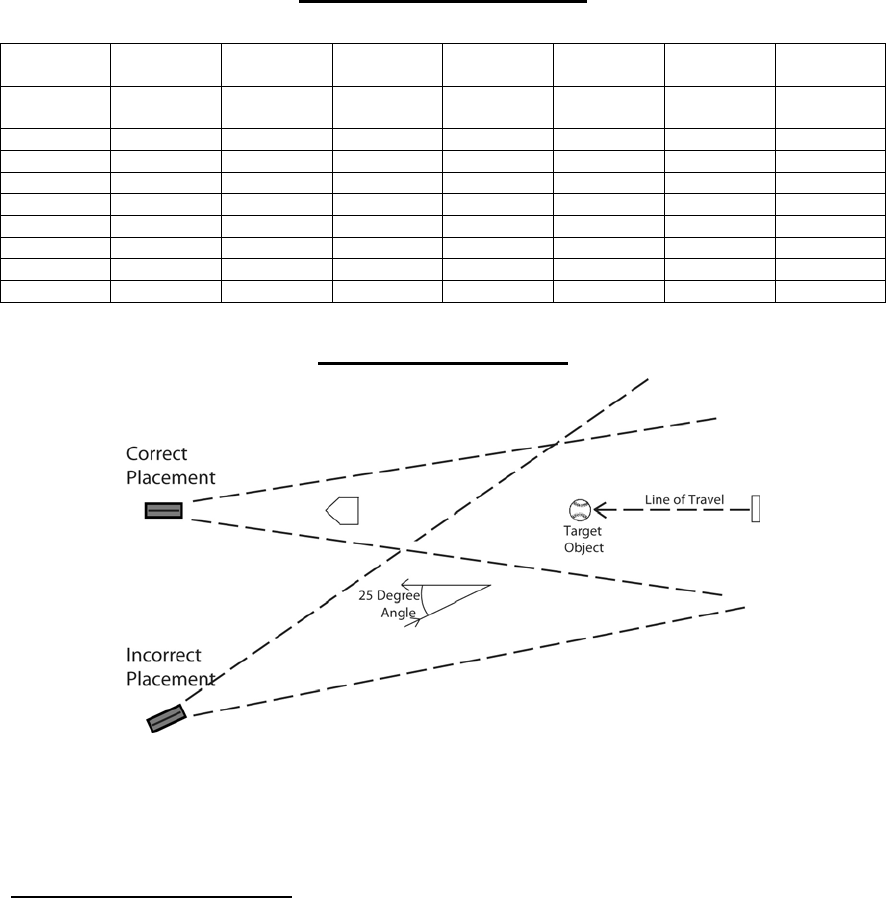

Angle Error..................................................................................................................................... 14
Interference Problems ................................................................................................................... 15
Sport2 Accessories....................................................................................................................... 16
Service Information........................................................................................................................ 17
Specifications................................................................................................................................. 18
S RADAR
2609 Technology Drive
Plano, TX 75074
1-888-STALKER
(972) 398-3760 Sales
(972) 398-3781 Fax
www.stalkerradar.com
S Sport2 Owner’s Manual
INTRODUCTION

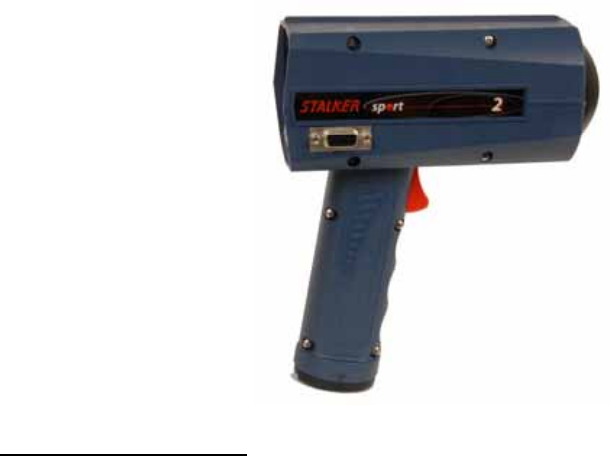

Congratulations! You have purchased the finest sports radar system available. The
Stalker Sport 2 K band sports radar is designed to measure the speed of a wide variety of objects
such as baseballs, carnival balls, cars, tennis, and just about anything that moves.
The Stalker Sport 2 radar sends out very high frequency radio waves and measures the change
in the frequency after it bounces off a moving object. This is commonly referred to as “Doppler
Radar.” This invisible radio wave is extremely low power (about 1/200th of a watt) and is
completely safe for close and continuous operation.
The Stalker Sport 2 is a true “digital” radar system. The Sport 2 converts the reflected microwave
signals into a digital stream of data. The gun’s own computer then processes this data stream
using sophisticated programming, to interpret, filter, and measure the speeds. This technology is
closely related to the compact digital disc and modern personal computers. This type of radar
system has the potential to provide substantially superior performance and accuracy over
conventional radar systems.
While the technology in the Stalker Sport 2 is extremely advanced, its operation is quite simple.
Reading through this manual will help you to take full advantage of the many features and
capabilities of the Stalker Sport 2 radar.
Have Fun!
2
![](/img.php?id=848923&img=bg5.png)
S Sport2 Owner’s Manual
WHAT IS INCLUDED
The components included with your radar are listed below. If you are missing any parts or if you
would like to upgrade your package, contact Stalker Radar at 1-888-782-5537.
SPORT2 PACKAGE
- K-Band Radar Gun
- Robust Battery Cover
- 6-AA NiMH Batteries (rechargeable)
- Wall Charger
- Radar Manual
- Hard Case
3
![](/img.php?id=848923&img=bg6.png)
S Sport2 Owner’s Manual
QUICK START INSTRUCTIONS
The S Sport 2 (Sport 2) has several features that allow the gun to work well in a wide
variety of applications. With some basic understanding, the gun is very simple to operate.
Basic Operation
1. Power is supplied by 6 NiMH batteries located in the handle.
2. Turn the gun ON by pressing the ON/OFF button.
3. Squeeze the trigger to begin operating (transmitting).
Important Settings
There are four buttons that control the radar gun functions. The blue buttons and the silver
buttons work together.
MENU (Blue Button) - This feature sets the configuration for the radar to look for specific types
of targets and certain speed ranges.
SELECT (Blue Button) – When the Menu button is selected, use the SELECT button to move to
the next option.
TRANSMIT (Silver Button) – Turns the transmitter on and off
RECALL (Silver Button) – Displays the last 5 speeds recorded and stored.
Turning the Transmitter ON and OFF
There are two ways to turn on the radar transmitter to begin operating.
Trigger Transmit - Pull the trigger to transmit. This is a default setting.
The Transmit Button - Press the silver Transmit button to toggle the transmitter ON or OFF.
PEAK
XMIT
* The XMIT icon displays when the gun IS transmitting.
* The XMIT icon does not display when the gun IS NOT transmitting.
4
![](/img.php?id=848923&img=bg7.png)
S Sport2 Owner’s Manual

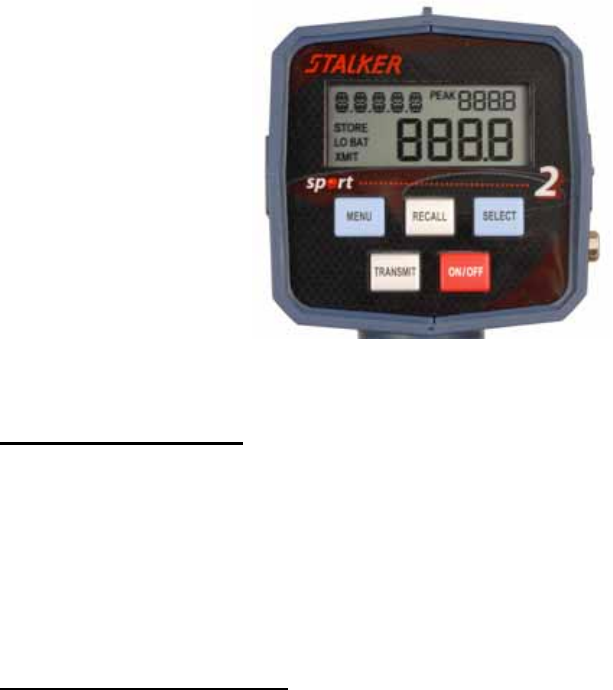

CONTROLS AND INDICATORS
LCD DISPLAY ICONS
STORE - Is on when recalling speeds from the RECALL queue.
LO BAT - Indicates the battery is low and needs recharging.
XMIT - Indicates the gun is transmitting and is able to take readings.
PEAK - Indicates the Peak Mode is on and the peak speeds are displayed.
LCD DISPLAY WINDOWS
MESSAGE - Messages display in the upper left corner, such as target type (ball) and units
(mph).
PEAK SPEED - Indicates the peak speed on the right side of the word PEAK.
LAST SPEED - Indicates the last speed in large numbers on the lower right.
5
![](/img.php?id=848923&img=bg8.png)
S Sport2 Owner’s Manual
9-PIN D CONNECTOR
The 9-Pin D Connector receives the following serial port signals. Pin 1 is on the top right, and pin
9 is on the bottom left.
1 AUX INPUT - Stopwatch trigger input or remote transmit input
2 RS-232 TX - Transmit data-stream
3 RS-232 RX - Receive (not used at this time)
4 6.6 V OUT - Output (limited to 50 mA)
5 GND - Ground
6 Charger Input – 120V AC Wall Charger
7 RS-485-A - Transmit data-stream
8 RS-485-B - Transmit data-stream
9 Voltage Input - External voltage input, 8VDC to 18 VDC
6
![](/img.php?id=848923&img=bg9.png)
S Sport2 Owner’s Manual
DETAILED INSTRUCTIONS
Providing Power to the Sport2
The Battery Handle – The handle contains a built in battery holder. The Sport2 comes with 6
NiMH rechargeable batteries. When fully charged, the battery handle powers the gun for about 4
1/2 hours of continuous transmitting. These rechargeable batteries use the included Wall Charger
to recharge. You may also use 6 alkaline batteries.
It is possible to supply power thru a 12V DC cigar cable attached to the 9-pin connector on the
side of the gun.
Turning the Transmitter ON and OFF
The radar transmitter must be turned ON to measure speed. There are two ways to transmit:
press the trigger or press the TRANSMIT button.
Trigger Transmit - Squeeze and hold the trigger in to transmit. The settings are Con
(continuous), SS (Start/Stop), and Loc (lock). Con is the default setting. These settings are
explained in the Options Menu topic.
When the trigger is released, it stops transmitting, and any readings that were on the readout are
left on the screen. Since the transmitter draws most of the power, trigger operating helps to save
battery life.
Press the TRANSMIT Button - The silver Transmit button toggles the transmitter ON and OFF.
Each time you push this button, it switches between transmit and hold. Using this button to turn
on the transmitter allows the gun to continually operate automatically,
without the need to press the trigger. MPH PEAK
XMIT
* The XMIT icon displays when the gun IS transmitting.
* The XMIT icon does not display when the gun IS NOT transmitting.
Using the Trigger to Lock Speeds
The trigger serves two functions. It can control the transmitter or it can be used as a speed
locking device.
When the gun is placed into continuous transmit mode using the silver
Transmit button or if the Trigger Option is Loc (lock),
the trigger does not affect the transmitter. Instead, MPH / LOCK
XMIT I 2 4.8
press the trigger to lock the currently displayed speed
while the LOCK icon displays.
Press the trigger a second time to unlock the readout.
THIS FUNCTION IS USEFUL IF THE OPERATOR
NEEDS TO MANUALLY HOLD READINGS.
The RECALL Key Function
The silver RECALL button redisplays the last five speed readings that were measured. If the peak
speed, last speed, and the locked speed are stored, then they display in an alternating flash
mode when the RECALL is pressed. The speeds display in the SPEED WINDOW.
The MESSAGE WINDOW flashes the Recall Number, speed units, REC 1-5 / MPH PEAK
/LOCK
STORE
XMIT
Target Type, and Loc (if on):
• Transmit ON displays REC 1-5 and MPH
• Transmit OFF displays REC 1-5 and Target Type
• Recall Lock speed displays REC 1-5 / MPH / LOCK speed
7
![](/img.php?id=848923&img=bga.png)
S Sport2 Owner’s Manual
The Peak Function
The Peak option activates the automatic top speed display in the PEAK SPEED WINDOW.
When the Peak mode is ON, the PEAK icon appears on the display and only the highest speeds
display. For example, when tracking a baseball pitch, the peak speed is the same as the release
speed since a ball only slows down after it is thrown. MPH PEAK
XMIT
* The PEAK icon and speed window displays when the Peak
option IS selected.
* The PEAK icon and speed window does not display when the Peak
option IS NOT selected.
The Sport2 Operator Setup Menu
OPERATOR MENU – Setting up the radar unit is fast and easy.
• Press the MENU key on the keypad to enter the OPERATOR MENU.
• Press the MENU key again to step through the menu items.
• Press the SELECT key to change the values.
• Press the trigger to exit the OPERATOR MENU.
The factory default for each setting is indicated by the bold underlined setting.
OPERATOR MENU
Menu Step Description
FEATURE
Step down by
pressing MENU
key
SETTINGS
Change using the
SELECT key
Menu Step
ORDER Description MESSAGE
WINDOW
Target Window
(bold indicates factory
default)
1 Range RANGE 1, 2, 3
2 Peak On/Off PEAK OFF, On
The Range Setting
The Range option affects the sensitivity (clocking distance) of the radar. The settings are:
3: Setting the range to 3 increases the gun’s sensitivity and lengthens the clocking
distance. It “looks” as far away as possible for targets and gives the gun the highest level
of performance. This is the default setting.
2: Setting the range to 2 sets the gun to a medium range in its clocking distance.
1: Setting the range to 1 decreases the gun’s sensitivity and shortens its clocking
distance. The 1 range setting is handy for clocking objects close to the gun and when you
want to restrict the gun from “seeing” objects farther out in the background.
8
![](/img.php?id=848923&img=bgb.png)
S Sport2 Owner’s Manual
The Sport 2 Option Setup Menu
OPTION MENU – Selecting the options is fast and easy. The Sport2 ships with the default
settings indicated in the chart.
• Press and hold the MENU key while in the OPERATOR MENU to enter the OPTION
MENU.
• Press the MENU key again to step through the menu items. The SELECT key
changes the value.
• Press the trigger to exit the OPTION MENU.
• Press and hold the MENU key to return to the OPERATOR MENU.
The factory default for each setting is indicated by the bold underlined setting.
OPTION MENU
Menu
Step Description LOCK/FAST
WINDOW Patrol Window
(bold indicates factory default)
1 Low Speed* LOW OFF, 5, 10, 15, 20, 30, 50
2 High Speed* HIGH OFF, 150, 300
3 Units MPH, KM/ H, KNOTS,
M/ S Unit
4 Resolution RES onES, tnth
5 Target Type TARGT bALL, CArn, CAr, tEnn
6 Holdover Delay CLEAR 0SEC, 1SEC, 2SEC, 3SEC, 4SEC,
OFF
7 Trigger Function TRIG Con, SS, Loc
8 Aux Trigger Function AUX StoP, trig
9 Stopwatch Mode STOP LAP, SPLt
10 Serial Port Speed BAUD 12, 96
11 Serial Port Format FOR -, A, AP
12 Reset RESET ES, no
13 Reset Confirmation** SURE? ES, no
*Low and High Speed settings are retained separately for each Target Type and each has its
own defaults. The available settings also depend on the type of units selected. Those shown
above are for the default BALL target type in MPH units. See the Target Speed Settings topic for
the speed ranges.
Resolution: Select onES to display speed in whole units, as 25 mph, or tnth to display speed
with tenths, as 25.6 mph.
Target Type: The target types available on the Sport 2 are Ball, Carnival, Car, and Tennis.
9
![](/img.php?id=848923&img=bgc.png)
S Sport2 Owner’s Manual
Holdover Delay: The time the speed reading is held after the target is lost and before the display
screen clears. If off, the speed displays until the next speed is acquired.
Trigger Function: The Trigger settings are Con (Continuous), SS (Start / Stop), and Loc (Lock).
The trigger settings function as follows:
Transmit Trigger Option Action
OFF Con Pull to transmit,
release to hold.
SS Pull and release to transmit,
Pull and release to hold.
ON Loc Pull to lock and release the speed.
Note: When the Loc setting is selected in the Option Menu, the Transmit function is
turned on the same as if the silver Transmit button is pressed. Clicking the trigger
locks and releases the speed.
Stopwatch Mode: This is available using the optional stopwatch cable. The stopwatch may be
set to lap or split timer. The timer displays in the MESSAGE WINDOW. Press and hold the
stopwatch trigger for 1 second to stop the timer and go back to radar mode.
Lap Timer: each press of the stopwatch trigger displays the time since the last trigger
press, and resets the timer to 0.00.00 in the background.
Split Timer: each press of the stopwatch trigger displays the current cumulative time.
Timer Display Under 10 minutes:
9.59.99 PEAK 8888
XMIT 8888
Timer Display Over 10 minutes:
99.59.9 PEAK 8888
XMIT 8888
Serial Port Format: The “-“ (dash) is for no serial output, the A format is for Target Speed, and
the AP format is for Peak Speed.
** The Reset Confirmation step displays when the Reset option is set to YES.
• If YES, then the confirmation SURE? displays.
• To reset all settings to the factory defaults, select YES and then pull the trigger to
exit.
• To not change the settings, select no and pull the trigger to exit.
10
![](/img.php?id=848923&img=bgd.png)
S Sport2 Owner’s Manual
Target Speed Settings
(bold indicates factory default)
Target Type = bALL
Units Low Speed Settings High Speed Settings
MPH OFF, 5, 10, 15, 20, 30, 50 OFF, 150, 300
KM/ H OFF, 10, 15, 25, 35, 50, 75 OFF, 250, 500
KNOTS OFF, 5, 10, 15, 20, 30, 50 OFF, 150, 300
M/ S OFF, 10, 20, 30, 50, 75, 100 OFF, 300, 600
Target Type = CArn
Units Low Speed Settings High Speed Settings
MPH OFF, 5, 10, 15, 20, 30, 50 OFF, 150, 300
KM/ H OFF, 10, 15, 25, 35, 50, 75 OFF, 250, 500
KNOTS OFF, 5, 10, 15, 20, 30, 50 OFF, 150, 300
M/ S OFF, 10, 20, 30, 50, 75, 100 OFF, 300, 600
Target Type = CAr
Units Low Speed Settings High Speed Settings
MPH OFF, 5, 10, 15, 20, 30, 50 OFF, 150, 300
KM/ H OFF, 10, 15, 25, 35, 50, 75 OFF, 250, 500
KNOTS OFF, 5, 10, 15, 20, 30, 50 OFF, 150, 300
M/ S OFF, 10, 20, 30, 50, 75, 100 OFF, 300, 600
Target Type = tEnn
Units Low Speed Settings High Speed Settings
MPH OFF, 5, 10, 15, 20, 30, 50 OFF, 150, 300
KM/ H OFF, 10, 15, 25, 35, 50, 75 OFF, 250, 500
KNOTS OFF, 5, 10, 15, 20, 30, 50 OFF, 150, 300
M/ S OFF, 10, 20, 30, 50, 75, 100 OFF, 300, 600
11
![](/img.php?id=848923&img=bge.png)
S Sport2 Owner’s Manual
RECOMMENDED SETTINGS
Settings for Baseball Scouts
It is important that the gun is set correctly when measuring baseballs. Check these settings.
Option Menu Speed Low 10 mph, High 150
Target Type: bALL
Range 3 Maximum sensitivity is needed
Peak ON/OFF ON This is for “out of the hand” numbers
Setting for Fastball Carnival Use
You can experiment with the Range setting depending upon what rides and motion is around the
gun.
Option Menu Speed Low 15 mph, High 150
Target Type: CArn
Range 3 Change to 1 or 2 if you track outside motion
Peak ON/OFF ON
Setting for Vehicle Racing
Using a low speed cutoff of 30 mph helps to ignore anyone walking around and other low speed
motion.
Option Menu Speed Low 30, High 300
Target Type: CAr
Range 3
Peak ON/OFF OFF
Setting for Tennis
Using a low speed cutoff of 50 mph helps to ignore anyone walking around and other low speed
motion.
Option Menu Speed Low 50, High 150
Range Target Type: tEnn
Peak ON/OFF ON
12
![](/img.php?id=848923&img=bgf.png)
S Sport2 Owner’s Manual
BATTERY INFORMATION
The Sport2 uses 6-AA NiMH rechargeable batteries or 6-AA disposable alkaline batteries. Open
the end cap on the handle to access the battery compartment. The batteries’ transmit time is
approximately 4.5 hours.
Operational Time on the Battery Handle
The Sport2 draws the most current when it is transmitting. So the run time depends upon how
often the gun is transmitting. The Sport2 also has a sleep mode to conserve battery life when it is
not being operated. The sleep mode is automatically initiated after about 10 seconds of inactivity
with no speed display. Squeezing the trigger or pressing any key immediately “wakes the gun”
and brings it back to operation.
Operational Status Run Time
Continuous Transmitting 4.5 Hours
Typical Trigger Operation 10-20 Hours
In Sleep Mode 38 Hours
Low Battery Warning
The LO BAT icon displays when the battery runs
low. The Sport2 operates for a short time after
this. Now is the time to recharge or change the batteries.
RECHARGE OR CHANGE THE BATTERIES IN THE HANDLE.
PEAK
LO BAT
888.8
DO NOT CHARGE THE BATTERY HANDLE UNTIL THE GUN DISPLAYS LO BAT.
Charging the Batteries
Plug the wall charger RS-232 pin connector into the RS-232 connector on the Battery Handle
when the Sport2 LO BAT indicator displays continuously. Then plug the wall charger into a 110-
120 volt wall outlet. The batteries should take about 12 hours to recharge.
NiMH batteries perform best when they are fully discharged
and then fully recharged.
Auto-Shutdown Feature
The Sport2 has a 30 minute time-out auto-shutdown feature. After 30 minutes of non-use, the
Sport2 automatically shuts off.
How To Save Battery Life
• Since the transmitter has the highest current draw, turn the transmitter off whenever you
are not taking readings.
• If you use the trigger to start and stop transmitting, it’s easy to save battery life.
• If you tripod mount the gun, (and use the silver XMIT button to transmit) then turn the
transmitter off between sessions.
13
![](/img.php?id=848923&img=bg10.png)
S Sport2 Owner’s Manual
ANGLE ERROR
The most common mistake made with all radar guns is trying to clock targets at angles.
All radar guns work on the Doppler principle and need to clock objects moving directly at or away
from the gun. Clocking at an angle with a stationary radar gun results in angle error, and the gun
displays a speed that is LOWER than the actual speed.
Cosine Angle Error Chart
0
Degrees 5
Degrees 10
Degrees 15
Degrees 30
Degrees 45
Degrees 90
Degrees
True
Speed 0%
Error 0.4%
Error 1.5%
Error 3.4%
Error 13.4%
Error 29.3%
Error 100%
Error
25.0 mph 25.0 mph 24.9 mph 24.6 mph 24.1 mph 21.7 mph 17.7 mph 0 mph
50.0 mph 50.0 mph 49.8 mph 49.2 mph 48.3 mph 43.3 mph 35.4 mph 0 mph
75.0 mph 75.0 mph 74.7 mph 73.9 mph 72.4 mph 65.0 mph 53.0 mph 0 mph
100.0 mph 100.0 mph 99.6 mph 98.5 mph 96.6 mph 86.6 mph 70.7 mph 0 mph
125.0 mph 125.0 mph 124.5 mph 123.1 mph 120.7 mph 108.3 mph 88.4 mph 0 mph
150.0 mph 150.0 mph 149.4 mph 147.7 mph 144.9 mph 129.9 mph 106.1 mph 0 mph
200.0 mph 200.0 mph 199.2 mph 197.0 mph 193.2 mph 173.2 mph 141.4 mph 0 mph
250.0 mph 250.0 mph 249.0 mph 246.2 mph 241.4 mph 216.5 mph 176.8 mph 0 mph
Radar Gun Placement
To get accurate readings, the radar gun must be placed in the line of travel of the target.
At slight angles, the error is very small, however at larger angles, the error becomes substantial.
Calculating Angle Errors
If you know the angle that you are clocking at, you can calculate the actual speed by taking the
radar reading and dividing by the cosine of the angle.
For example: if you are clocking at 30 degrees, and the gun displays 129.9 mph. Take 129.9 and
divide by the cosine of 30 degrees (0.866) to get a true speed of 150.0 mph.
14
![](/img.php?id=848923&img=bg11.png)
S Sport2 Owner’s Manual
INTERFERENCE PROBLEMS
Interference Frequencies
The S Sport2 radar transmits in the range of 24.15 GHz (24,150,000,000 Hz), using a
new K-band ACI design. The receiver is designed to read the Doppler frequency (the change in
frequency) in the range of 360 - 18,000 Hz. There are very few devices other than another radar
gun that could cause interference in a radar gun’s transmission frequency range. However, there
are a number of devices that could interfere with a radar gun in the receiver’s frequency range.
What Does Interference Do?
Interference can cause a radar gun to read random readings, or make it harder for the radar gun
to “see” the intended target.
Random readings are an obvious sign that there is interference. However, a loss of sensitivity can
be subtle. A common situation occurs when a large number of professional baseball scouts
operate many radar guns in close proximity.
A loss of sensitivity can cause the radar gun to be unable to “see” far enough away to get the ball
speed right when it leaves the pitchers hand. Then, as the ball gets closer to the plate, the radar
is able to get a reading, but only after the ball has slowed down. The result: the peak speed
registers lower than it actually is.
Sources of Interference
There are two main sources that can cause ghost (random) readings in radar guns: electrical
devices and objects that move or vibrate.
Electrical sources include television monitors, fluorescent lights, cellular phones, computers,
some radio transmitters, and power transformers. Moving or vibrating objects include
ventilation fans, motors, and blowing debris that can produce a nearly constant speed reading.
How to Eliminate Interference
If you are experiencing erroneous readings, try these solutions:
1. Change your position to change where the gun is aimed.
2. Lower the sensitivity by changing the Range on the Operator Menu to 1 (low setting).
3. Change the Option Menu Low Speed setting to a setting with a higher low speed cutoff if
the readings are at low speeds (often interference from nearby motors).
15
![](/img.php?id=848923&img=bg12.png)
S Sport2 Owner’s Manual
SPORT2 ACCESSORIES
The S Sport2 radar gun has a host of optional accessories. For current pricing and
availability, contact S Radar at (800) STALKER.
Accessories
Stopwatch Control Cable – a 4 foot cable with momentary switch that connects to the 9-Pin
serial port connector.
12VDC CIG Cable – Connects to the 9-Pin connector and plugs into a cigarette lighter socket.
RS-232 Serial Cable that connects to a 9 pin serial port on the side of the gun body for RS-232
data output.
RS-485 Serial Cable that connects to a 9 pin serial port on the side of the gun body for RS-485
data output.
16
![](/img.php?id=848923&img=bg13.png)
S Sport2 Owner’s Manual
SERVICE INFORMATION
A Check List Before Servicing the Sport2 Radar
Check the Settings - If you are having a problem with your Sport2, first make sure that the
settings are correct for your application. Read over pages 8 and 9 to make sure the Operator and
Options menus are set correctly.
Check the Battery - If the Sport2 does not turn on, the problem is usually with the batteries. Try
charging the batteries. If it still does not turn on, you could use a volt meter to see if the batteries
are producing at least 7.5 volts. You may need to order new batteries.
Call Customer Service - If the problem is not rectified with these steps, call Sport2 Radar
Customer Service at 877-STALKER for help. A service representative will determine if the gun
needs to be sent to the factory.
Address to the Factory Service Center
Sport2 Radar / Applied Concepts, Inc.
Attn. Repair Department
2609 Technology Drive
Plano, TX 75074
1-888-STALKER Toll Free
(972) 398-3760 Phone
(972) 398-3781 Fax
Warranty Information
The Sport2 radar is covered for 2 Full Years, Parts and Labor, against defects in workmanship,
parts, or materials, and is guaranteed to operate within specifications for that period (batteries are
guaranteed for the first 90 days only).
Sport2 Radar will repair or replace, at their option, any component or system found to be
defective. The customer is responsible for shipping the defective product to the factory (freight
prepaid), and Sport2 Radar will pay for the return shipping via UPS ground service back to the
customer. Any expedited air shipping charges are to be paid by the customer.
This full warranty does not cover damage due to dropping, water, salt, improper voltage, fire,
attempted repairs or modifications by an unauthorized service agent, or any other unusual
treatment.
17
S Sport2 Owner’s Manual
SPECIFICATIONS
S Sport2
PERFORMANCE SPECIFICATIONS
Speed Range 1 - 600 MPH
Accuracy + / - 1 MPH
Target Acquisition Time 0.046 Seconds (Ball Modes)
0.08 Seconds (Vehicle Modes)
Sample Rate 25 Speed Updates per Second
Max. Clocking Distances 4000 Feet - Passenger Car
(Estimated) 1500 Feet - Snowmobiles
1000 Feet - Watercraft
200 Feet - Baseballs
MICROWAVE SPECIFICATIONS
Operating Frequency 24.125 GHz (K Band) +/- 50 MHz
Polarization Circular Polarization
3 db Beam width 14 Degrees Nominal (15 Degrees Maximum)
Microwave Source Gunn-Effect Diode
Receive Type Schottky Barrier Mixer Diode
Power Output 10 Milliwatts Nominal
The STALKER SPORT2 Complies with Part 15 of the FCC rules.
FCC ID #IBQACMI005.
GENERAL SPECIFICATIONS
Product Type Stationary Doppler Radar
Computer Processor Motorola 563XX Family
Display Type Liquid Crystal
Operating Temperatures -20F to +120F
Storage Temperatures -40F to +140F
ELECTRICAL SPECIFICATIONS
Battery Capacity 7.5 VDC, 1.6 Ah, Ni-MH
Current Requirements Transmitting - 0.66 Amps
(At 7.5 Volts DC) Standby - 0.20 Amps
Sleep Mode - 0.04 Amps
PHYSICAL SPECIFICATIONS
Weight (Battery Handle) < 2 Pounds
Dimensions 8” H x 3” W x 6.5” L
Housing Material PVC
WARRANTY
On Radar Gun 2 Years, Parts and Labor
On Batteries 90 Days Replacement
18
S Sport2 Owner’s Manual
SERIAL COMMUNICATIONS PROTOCOL
An RS-2332 or RS-485 Serial Cable is required for data communications to speed display
boards, computers, and other electronic devices. The data connector is on the side of the unit.
Serial Port Connector 9-PIN D-CONN
Mating Connector RS232 or RS-485
Update Speed – 10 msec
Serial Port Signals:
1. Aux Input
2. RS-232 TX
3. RS-232 RX
4. 6.6 Volts (OUT)
5. GND
6. Charger Input
7. RS-485-A
8. RS-485-B
9. Voltage Input
BAUD Rate 9600 BAUD or 1200 BAUD
Data Format 8 Data Bits
No Parity
2 Stop Bits
19
S Sport2 Owner’s Manual
20
S Sport2 Owner’s Manual
21
![](/img.php?id=848923&img=bg18.png)
S Sport2 Owner’s Manual
The STALKER Sport Radar
is Manufactured by Applied Concepts, Inc.
Copyright © 2007 by Applied Concepts, Inc.
STALKER RADAR
2609 Technology Drive
Plano, TX 75074
1-888-STALKER
(972) 398-3760 Sales
(972) 398-3781 Fax
www.stalkerradar.com
Made in U.S.A. 011-XXXX-00 Rev A
22
