User manual
![](/img.php?id=2038812&img=bg1.png)
User Manual
Model number:AC97G4
![](/img.php?id=2038812&img=bg2.png)
● Don’t put the product in the vehicles,whose windows are closed.
● Don’t throw and crash the product strongly.Don’t vibrate the TFT screen, or it will be broken down or displays
abnormally.
● Don’t put the product in high temperature ,humid amd dusty environment
● Choose the suitable volume,turn down the volume or power off if you feel syrigmus arised from the high volume.
● Charge in the following case:
● A、The icon shows no charge.
● B、The operation system self-closing,shutdown after restarting-up.
● C、No response of the operation icon.
● Don’t stop abruptly during the player formatting、uploading and downloading,or lead to the error of software.
● As for the losses of internal storage leads by the damage、maintainance and other reasons, no responsibility
this company will bear,so please use according to the manual.
● Don’t remove the package without permission.Don’t clean the products by alcohol、thinningagent and Benzene
scrubbing stuff.
● Don’t use the products in the non-electronics areas(like the aeroplane)
● Don’t use the products when you are driving and walking ,or traffic accident will be arised.
● The USB only can be used to transfer data.
※ This company retain the right to improve products,no notice will be released when specification or design is
changed
※( No waterproof )
Warning:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE:
1, This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
2, This manual includes some important safety method and some information about how to use the
product correctly to avoid the unnecessary troubles.Before you use the product,please refer to the
manual carefully.
3, The socket-outlet shall be installed near the equipment and shall be easily accessible.
![](/img.php?id=2038812&img=bg3.png)
【Note】:All the pictures in this manual is for your reference! no notice will be
released when specification or appearance is changed!
1.Illustartion of appearance and button
2.First usage
2.1 battery management and charge
2.2 Connect the PC
3.Operation Model
3.1 Main Model description
3.2 Status bar describe
3.3 The usage of touch screen
3.4 basic setting
3.5 sound and realistic setting ring,inform and screen brightness
3.6 application
3.7 privacy
3.8 device memory
3.9 language and keyboard
3.10 the date and time
3.11 USB mode choice
3.12 APK installer(application installation tools)
3.13 settings
3.14 Play Store
3.15 How to use G-mail
3.16 How to use bluetooth
4.Installation
4.1 basic function
4.2 internet synchronization
4.3 buttons
4.4 labels
4.5 file path
4.6 progress bar
5. Installing the update tool
5.1 steps
5.2 internet synchronization
6.Help
7.Appendix:USB Device Install
8.Limited Warranty
9.Warranty Repairs
![](/img.php?id=2038812&img=bg4.png)

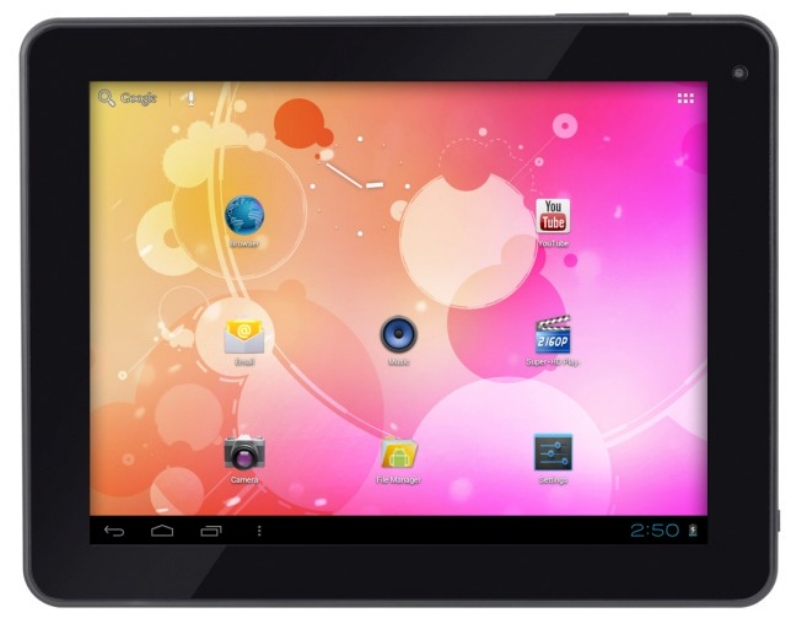

1.Illustartion of appearance and button
1.1 Touch screen
9.7Inch touch screen:to click、drag and other operation within the touch area
1.2 POWER
Power on : Press the button and the player show the start-uping picture then the machine show the menu:
Power off:Press the button MENU for 5 seconds,the system shows “Power off”,click the “Power Off”to end
system operation.
Screen lock :Press the button to lock or unlock the screen
【Note】: 1.In the case of low battery,the system will end automatically
2: After improperly shutdown,if you want to restart-up,the machine will scan and
repair disk ,in the case of this the screen will show the progress strip.
1.3 Return button
Press ESC to return the former operation for short time ,the menu to for a long time
1.4 Menu
Press the button”M”to popup the relevant “Menu”.
1.5 Volume
Press “+、 - ”to adjust the volume.
1.6 Headphone interface
Standard 3.5mm Headphone interface
1.7 Videos output interface
HDMI output interface;
1.8 TF-CARD
TF-CARD SLOT:CONNECT T-FLASHT STORAGE CARD;
1.9 USB
USB Interface:to connect computer to transfer the data,charge or connect U disk
![](/img.php?id=2038812&img=bg5.png)
1.10 Reset Key
In the case of software crash,by thin article to press RESET key,the machine will shutdown
【Note】:It isn’t recommended that use the RESET key often,or the machine system will be
damaged.
2、First usage
2.1 battery management and charge
When you use the machine for the first time ,please secure that the battery is full-charged:
Connect the charger the first time for at least 6 hours.
【Note】:Standard charge(input: AC110~240V 50/60Hz Max:500MA output:
DC5.0~5.5V/2.5A)needed.When connecting the charger, the battery icon shows
up for about 2 seconds. You can check the capacity by pressing shortly on the
on/off button.
When charge end,the battery icon will be green and stop running.
In order to
extend lifetime,it is suggested to recharge when battery level is low ;
【Note】: 1、If no usage for a long time,please recharge within a month to avoid damage to
the machine resulted from the exhaustion of battery.
2、After Power off,insert the charge,if the machine showes low battery、
charging,a short time is needed before the battery can support the machine to
start up.
2.2 Connect PC
Connect the PC and this machine by USB cable,then the machine shows USB has been connecting,
Press the 'Turn on USB storage” button and the PC will recognise the tablet as removable disk.
3.Operation Model
3.1 Main Model description

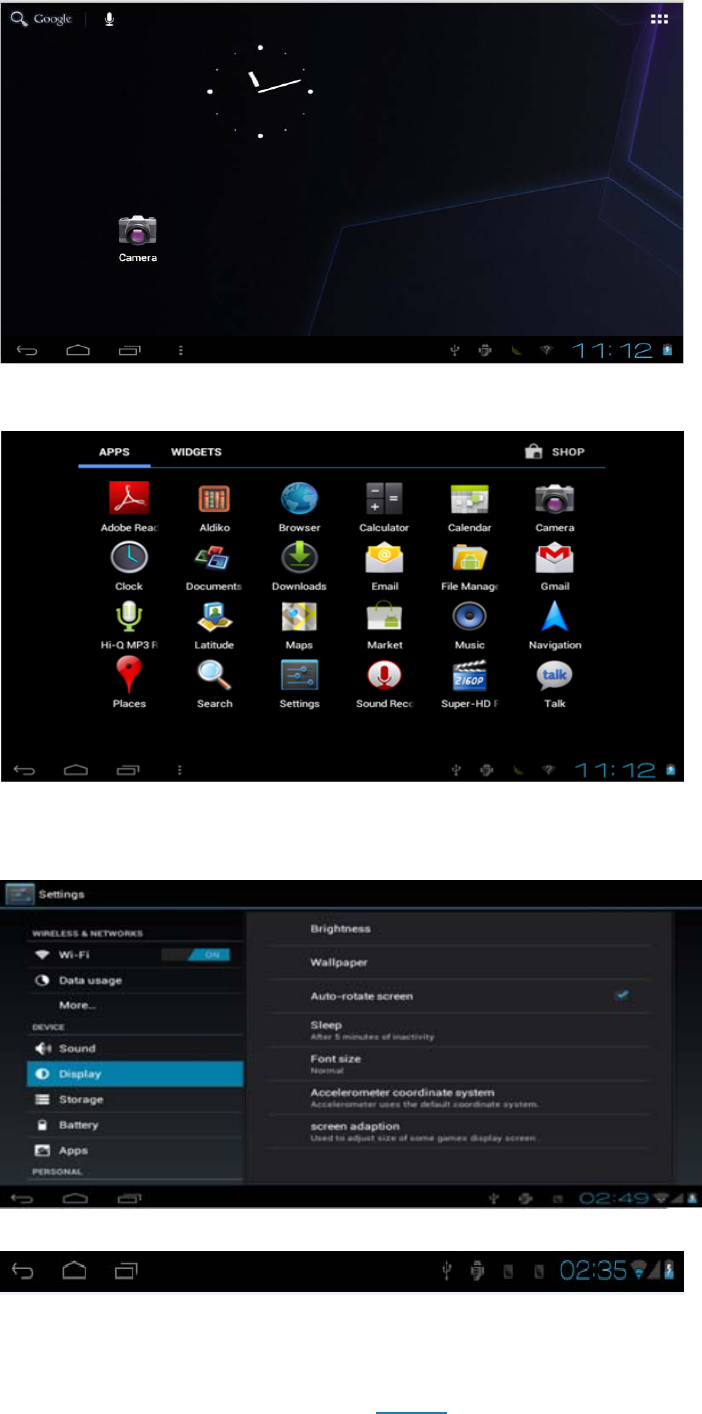

The model after turn on the machine:
![](/img.php?id=2038812&img=bg6.png)
On the main screen, you can :
Manage the software icon on the main screen:the icon becomes bigger after pressing the software icon for 3
seconds ,you can move it to anywhere you want
Delete icon:drag the icon to bin then the icon becomes red after press ing the software icon for 3 seconds
Press the touch screen then popup:add to “main page”window
Widgets;Wallpapers:
3.2 Status bar describe
● status bar is on the bottom of the screen
It shows main screen software、T-Flash card、the status of USB connection, the capacity of battery 、the
time 、return key, home key, etc.
3.3 The usage of touch screen
9,7inch touch screen The machine was allocated for the machine,Description for main touch screen,some
![](/img.php?id=2038812&img=bg7.png)
introduction about how to use the touch screen has included.
You can touch at the left corner to return the previous menu, to the main menu
In different application program,by touching return key the top of right corner,you can return the former
operation.
【Note】:software menu are equal to the menu of the machine
In different browser(file、music、media、picture browser,etc),you can drag the roll to make the file list can be
draged smoothly.
3. 4.basic settings
Setting :Click the settimg icon on the menu to setting

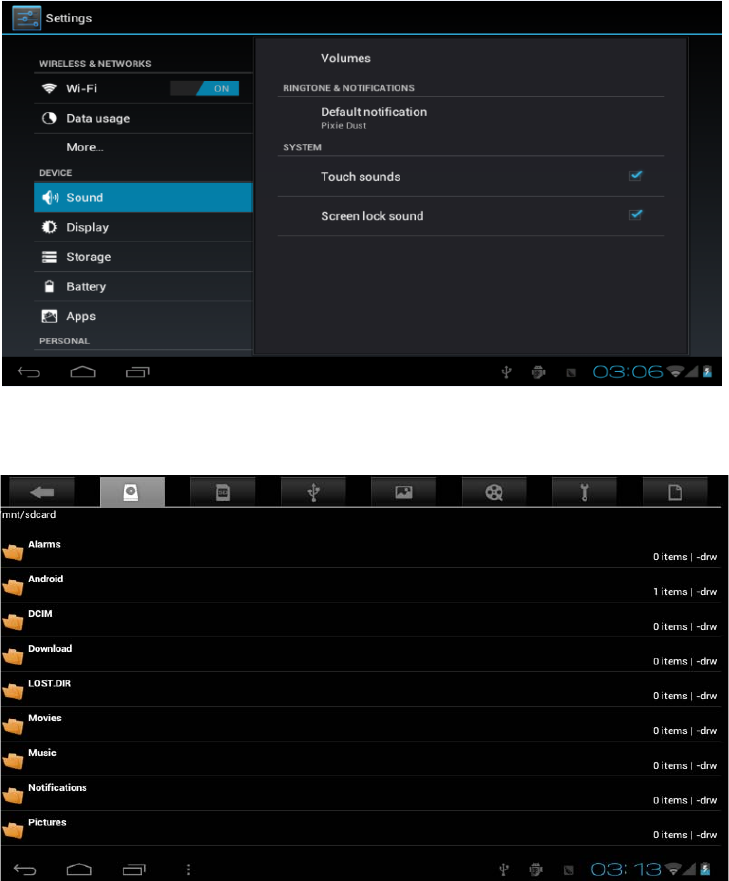

3.5 sound and realistic Settings ring, inform and screen brightness
Set up voice: adjust the media volume. Also can press and key to adjust the volume
Animation: open and close window display animations
Brightness: adjustment screen brightness, in stripes around the northeast high click to adjust brightness Settings
Screen standby: in the screen off automatically adjust delay before. 15 seconds, 30 seconds, 1 minute, 2 minutes,
10 minutes, never standby six time options can choose.
![](/img.php?id=2038812&img=bg8.png)
3.6 application
File Management
Choose the file and than the software or file ,if you want to delete the icon or the file,please long press to delete
Management application: management and delete the installation of applications
Development: set the application's development options

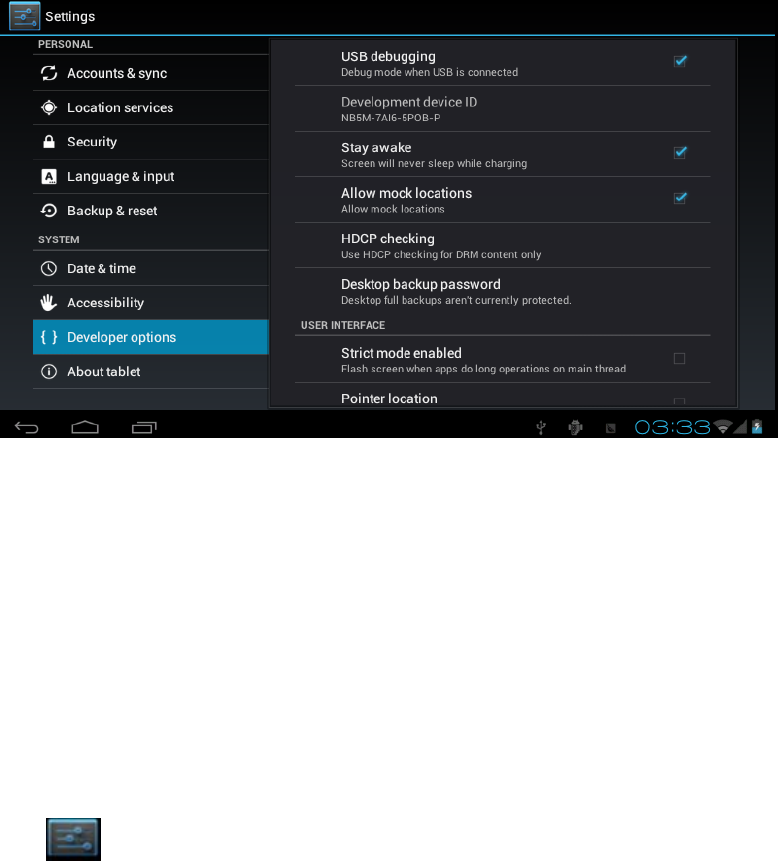

【 note 】 : when the firmware upgrade please close USB debug mode
3.7 Personal setting
![](/img.php?id=2038812&img=bg9.png)
3.8 device memory
Remove TF card, view of the available storage space
【 note 】 : please through the option of the "delete SD card" to remove security SD card, avoid hot plug pulled by
the equipment damage.
3.9 language and keyboard
Set up regional (language and regional), text input and automatic correction option;
![](/img.php?id=2038812&img=bga.png)
Choose regional: 54 species of national languages are available
Note: android system support of 54 species of language, the menu interface support and kind of language.
Android keyboard: Android keyboard Settings
The voice of the button
Automatic capital
Show Suggestions: automatic shows suggested word and input
Auto-complete: automatically Spaces and punctuation automatic insert emphasis on words
Google pinyin input method: Google pinyin input method Settings
Key voice/lenovo input
Note: the installation of software can install your own I/o, installation input method in this after setting for normal use
Equipment keyboard: built-in keyboard Settings
Automatic substitution: correct mistakes key input words
Automatic capital: the first of the sentence uppercase
Automatic punctuation: according to two times the blank space key to insert "."
The user dictionary: to users add words in the dictionary from the user in the dictionary and delete words

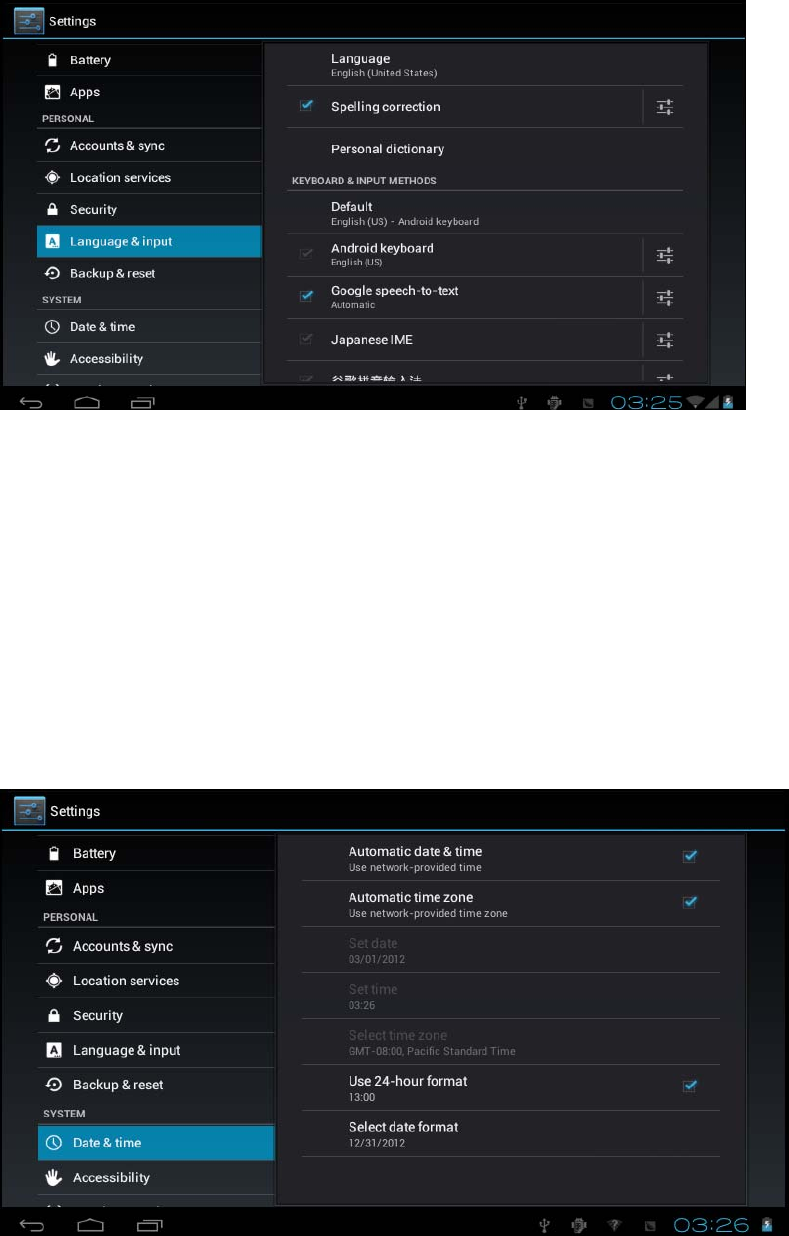

3.10 the date and time
Set the date, time, time zone and format
Set the date: into the date set interface set the date
Set time zone: in the select time zone interface set time zone
Set a time: in the time of show format
Choose date format: choose different date format to display the date
![](/img.php?id=2038812&img=bgb.png)
3.11 USB mode choice
Choose the USB work mode: OTG/HOST/SLAVE...... ...
USB: choose USB host mode in work, this mode can be mounted U plate and peripheral equipment
3.12 APK installer (application installation tools)
This machine is the third party support based on android platform application, the majority of applications from the
network can access, kao into the machine flash or SD card.
Click, pop-up Apk installer options: installation, management, quit three options.
Installation: click on the installation, into the Apk installation interface.
Corresponding Internal Memory dish and SD Card storage control.
Choose the inside of the APK format the installer, click on the installation, operation after the completion of the return
to the main interface, namely the corresponding software menu.
3.13 Settings
Tap application icon.
![](/img.php?id=2038812&img=bgc.png)

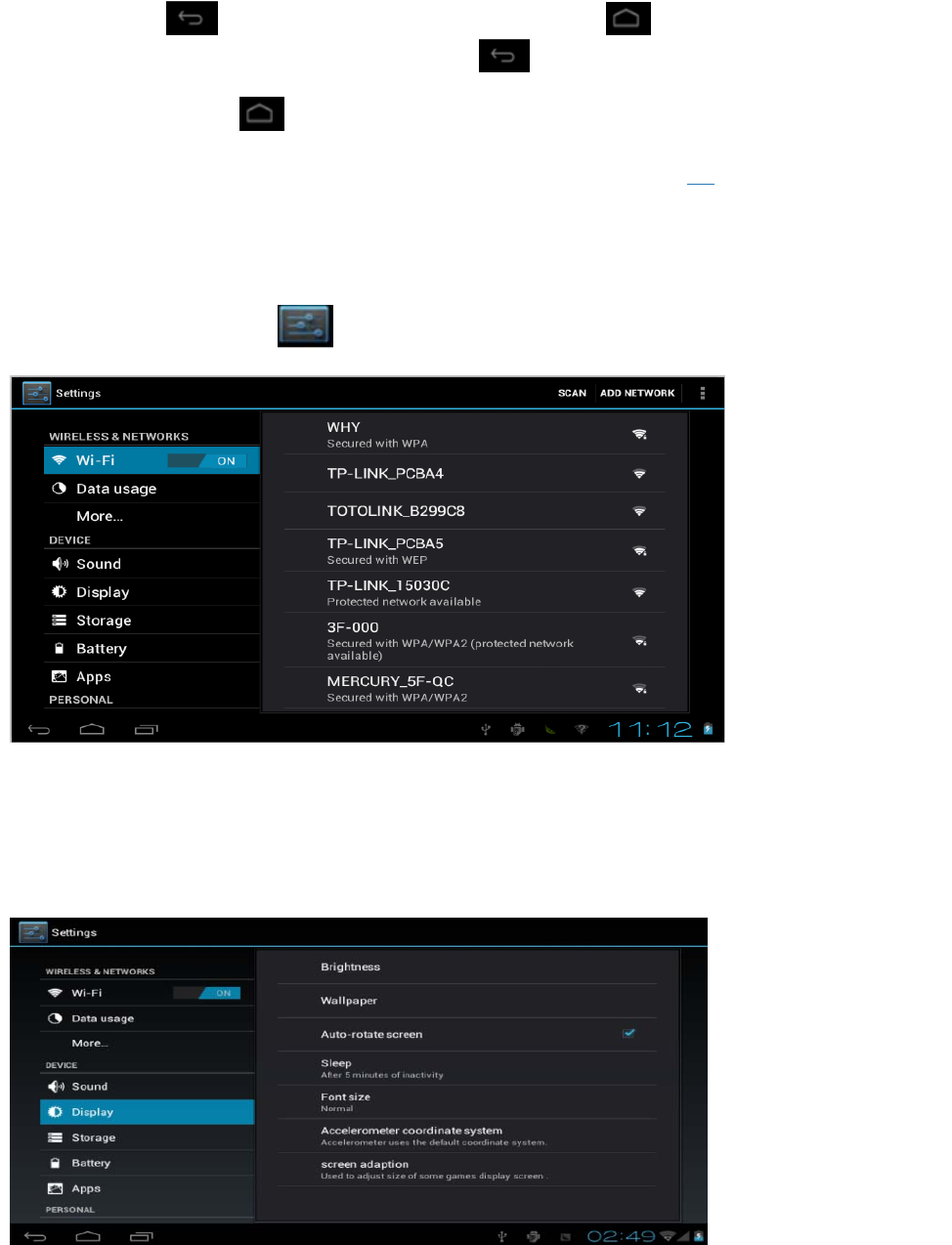

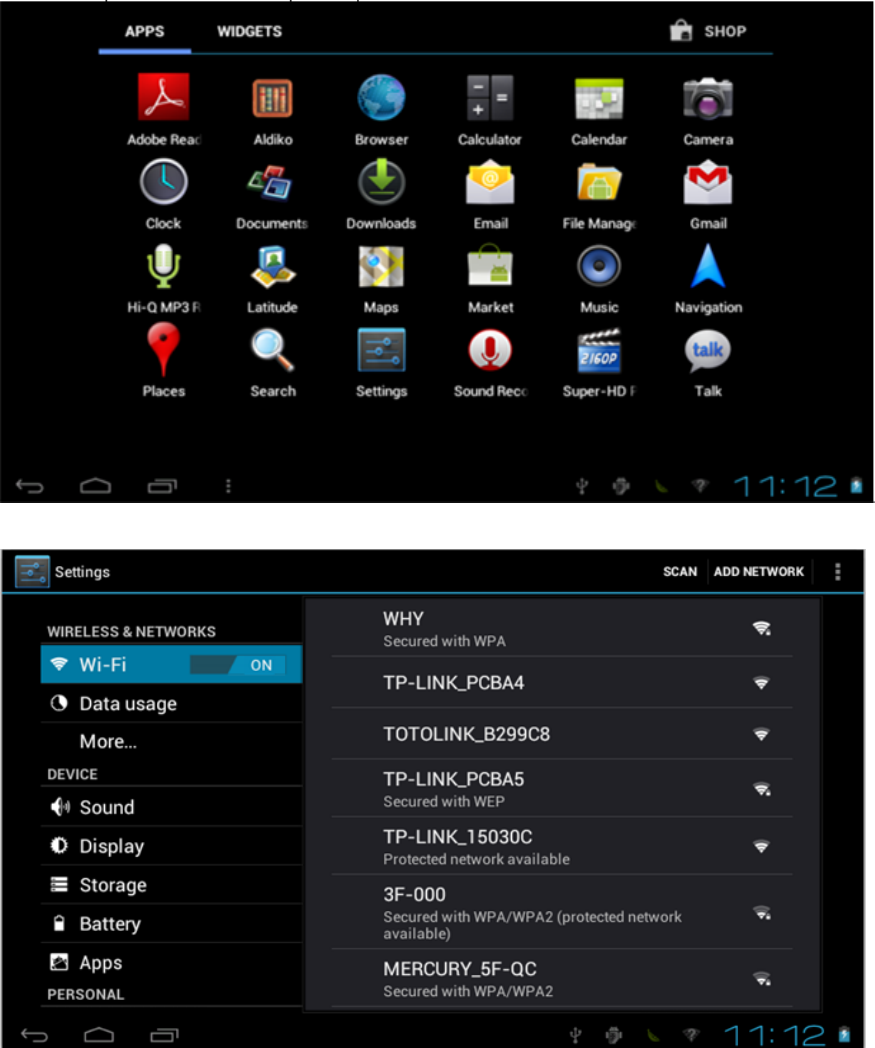

Tap “WIFI”to select the wifi address,
Then enter the password
![](/img.php?id=2038812&img=bgd.png)
If the appears,which shows the wifi is on,and you can use the wifi freely.
Appendix: The Optional parts and models
Parts name Parts type HUAWEI E220
HUAWEI E230
HUAWEI E180
HUAWEI E1550
HUAWEI E1630
HUAWEI E1750
HUAWEI E1782
HUAWEI E160
HUAWEI E1756
3G Wireless Network Card
WCDMA
HUAWEI E1820

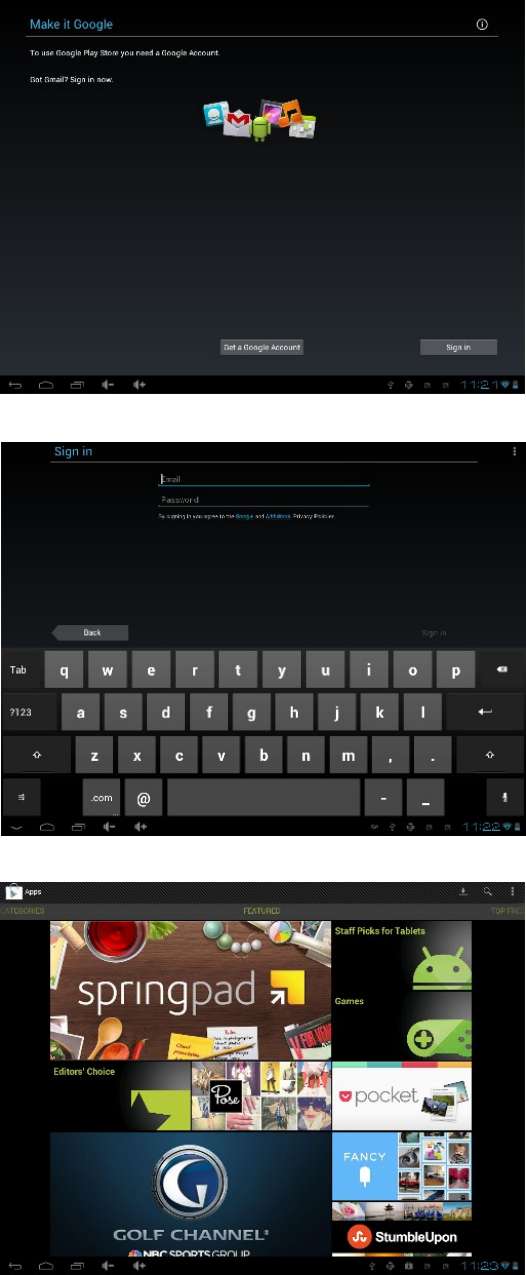

3.14 Play Store
1. the speed of network require over 1M
2 you should connect the network
3 you should sign in a Google account
4 click the , you will see the picture

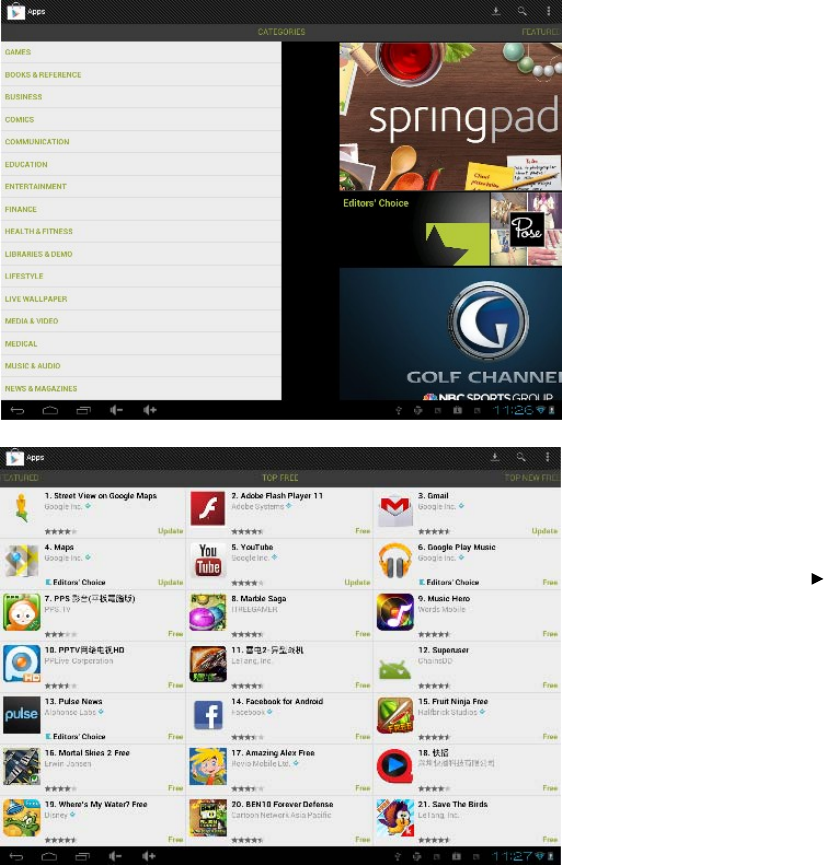

![](/img.php?id=2038812&img=bge.png)
4.1 Sign your E-mail account and password.
4.2 Then you will see the picture
![](/img.php?id=2038812&img=bgf.png)
4.3 Chose and download any of them you would like to play.

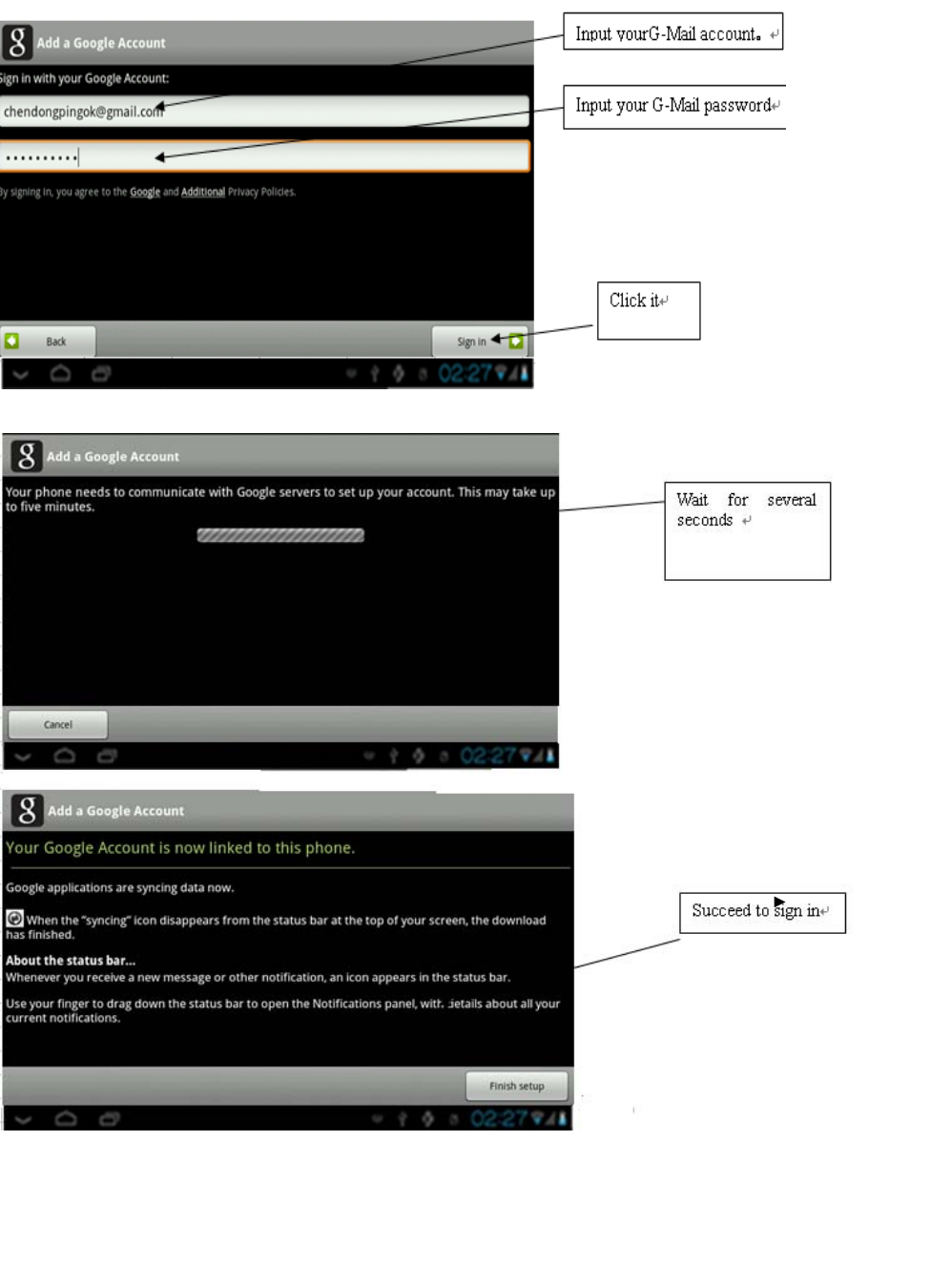

3.15 how to use G-mail
1. the speed of network require over 1M
2 .you should connect the network
3. click the G-mail on the desktop ,you will see the picture
![](/img.php?id=2038812&img=bg10.png)

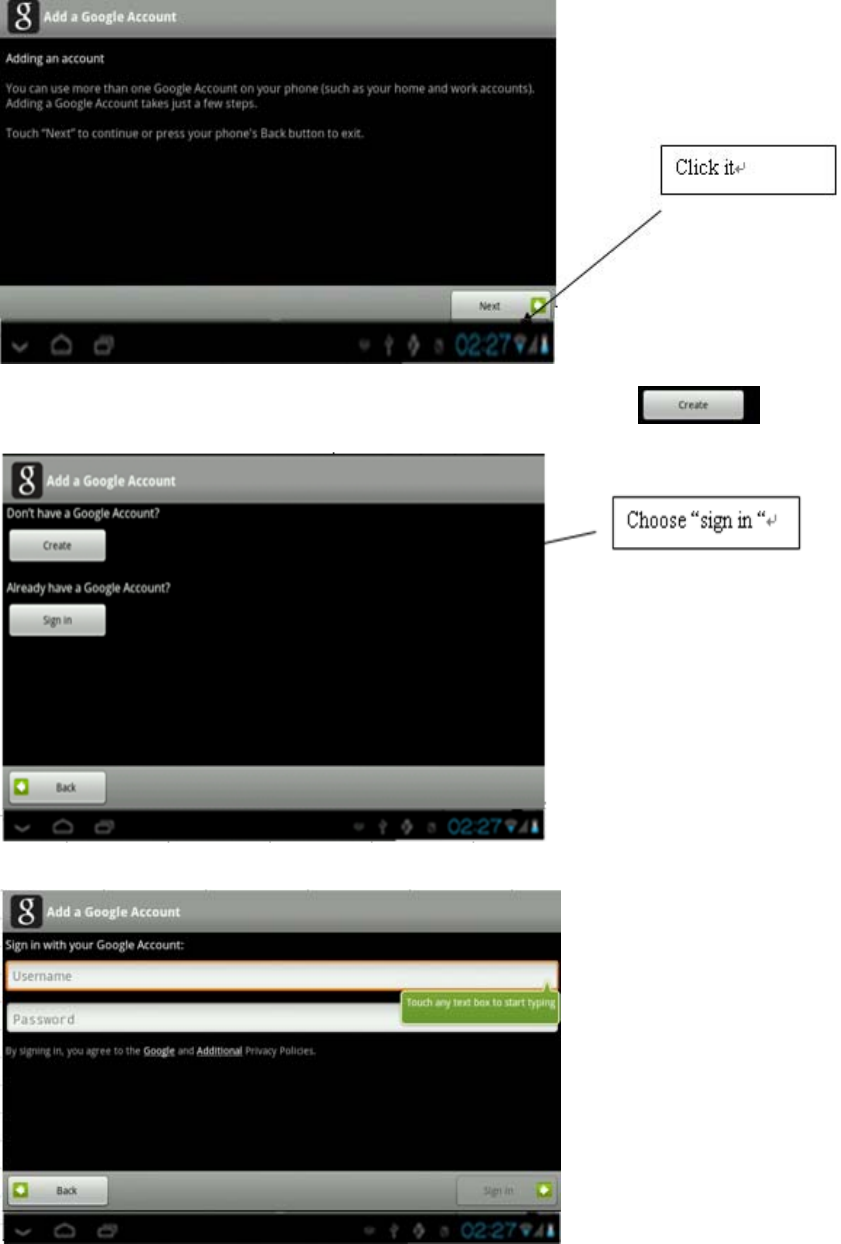

4 if you have not G-mail account , you should create an account, click
if you have an account, do it like the picture
![](/img.php?id=2038812&img=bg11.png)
5 when you go into the G-mail, then you can send the mail you want
6 when you do not use your G-mail, Exit G -mail account, enter setup-privacy-click restore the factory Settings will
delete your G-mali account
![](/img.php?id=2038812&img=bg12.png)
3.16 How to use bluetooth
If you want to contact bluetooth,click the “ ”then click the on or off.
4.Installation of the update tool
1Steps:
1. Obtain LiveSuitPack100_ex.exe file first. Then locate it to direction “D:\test”. As followed picture.
2 Double click LiveSuitPack100_ex.exe, which will install LiveSuit software automatically at the current
directory, please see the picture followed:
![](/img.php?id=2038812&img=bg13.png)
3 You can see a file named “LiveSuit.exe”. It is just “LiveSuit”, the software we need.
4.Double click LiveSuit.exe, it will run, please see the picture as below:
Note: You’d better install “LiveSuit” in the hard disk of your PC than in memory disk.eg :U disk.
14.1. Basic function
21 backup and query device information
2 Firmware upgrade
3 Upgrade LiveSuit itself (depends on network and server)
14.2. Software interface
![](/img.php?id=2038812&img=bg14.png)
3
Picture1: Software interface
4.3. Buttons
4Select IMG:Click the button to select the firmware used for upgrade.
Update:Click the button to start upgrade after identifying U disk once you insert.
NetSync:After the device has been inserted to PC, and recognized as U disk. Click the button to start
upgrade,
Help:Click the button for help.
Exit:Click the button to end and exit. Don't click the button when you are upgrading or inquiring the
information.
Minimize:click the button, LiveSuit will enter into the minimize window.
x:click the button to enter system tray mode
4.4. Lables
5Img:on the right side is the file path of firmware.
Progress:on the right side is the upgrading progress bar.
Welcome to LiveSuit:display the system state and result. The content will change in time.
4.5. File path
6Display the firmware path information you selected.
4.6. Progress bar
7Indicating the current upgrade progress
5. Installing the update tool
15.1. Steps
81 open the LiveSuit software.
2 select the firmware. (*.img)
3 the machine must be closed, press any key for a long time (except the power button, volume button and
HOME button),then connect the machine to PC, press the power button several times constantly for a long time
until the computer indicate that it find new equipment(the first time) or appear the window of clear machine
internal documents , then loosen any keys, according to the tips of the PC operation
Note: before connect the MID to the computer,press any keys(except the power button, volume button and HOME
![](/img.php?id=2038812&img=bg15.png)
button),you need press it for a long time until the PC machine have tips that find new equipment or appear the
window of clear machine internal documents,you can loosen the keys.
4 During upgrade, you will be asked to install the USB Driver twice. The driver file is “usbdrv.inf” in the folder
“usbDriver”,which is located at the installation path of “LiveSuit”(for more detail information please refer the to
“Appendix:USB Device Install”)
5 If you upgrade successfully, please pull out the device, then reset it.
6 if failed, please pull out the device, reset it. And do the upgrade again.
7 if upgrade failed so many times, please contact with the franchiser.
Notes: Please do not click the “ NetSync” or “ exit” button during upgrade.
15.2. Internet Synchronization
91 open the LiveSuit software
2 click “ Internet Synchronization” button to start the LiveSuit for upgrade. ( Notes: users must can visit the
internet)
Notes:During internet synchronization, please do not click “system upgrading” or “exit”.
6. Help
1User Guide
101 click “ Help” to open the help file.
2FAQ
1. warning: “ cann’t find the device”,
The problem maybe that device is not inserted to PC, or you should wait for a while.
2. You’d better backup the data in your device to a reliable memory device before upgrade.
3. The upgrade process may destroy the data in your device, please backup them first.
4. You should obtain our firmware from official web of the manufacturer rather than lawless webs.
5. Please contact the distributor for other problems.
7.Appendix:USB Device Install
If your PC has never been installed such USB Device, you need to do this. Please see the
following steps:
![](/img.php?id=2038812&img=bg16.png)
Select “ No, not this time”, click” next”
Select “Install from a list or specific location(Advanced), then click “ next”:
![](/img.php?id=2038812&img=bg17.png)
Click”brouse” to select location to search drivers , then Click “ next” :
Click :”Continue Anyway”:
![](/img.php?id=2038812&img=bg18.png)
Then
Click”Finish”
About 2 second later, Install Driver again
![](/img.php?id=2038812&img=bg19.png)
Click “Next”:
Select “Install from a list or specific location(Advanced), then click “ next”:
![](/img.php?id=2038812&img=bg1a.png)
Click”brouse” to select location to search drivers , then Click “ next” :
Click “Continue Anyway”:
![](/img.php?id=2038812&img=bg1b.png)
Click “Finish”
Caution
Risk of explosion if battery is replaced by an incorrect
type,dispose of used batteries according to the instructions
【 note 】 : some third party applications must have access to a TF card to run normally
Management: click on management, into the third party software interface
Click on the icon of the software and put into action interface:
Click on the icon of the software and put into Action (Action) interface:
Start: run the software
Export: export software to TF card
Uninstall: uninstall the software
Cancel (Cancel) : cancels operation
troubleshooting
Device can't boot
1 check the battery power
2 connection power adapter again after inspection
3 if device can not boot during charging, please contact the technical support.
Device powers down after startup
1 power is not enough, please charge
No sound
1 please check whether the volume set to 0
2 check the music file is damaged. Try playing other music to determine. If the file is damaged may lead to serious
noise or hop sounds
Can't copy files or can't play music files, etc
1 check the connection with the PC
2 confirm whether the storage space of memory is full
3 check the usb cable
Hardware configuration
Size: (long x width thick) 244x 192x 10.7 mm
CPU processor speed: Dual core, 1.6 GHz Max Cotex A9 processor with 3D accelerator
This machine capacity: 16GB
Memory: 1GB
Storage card: TF128M-16 G
Screen: 9.7’’ capacitive multi-touch screen
Resolution: 1024*768 pixels
Battery type and capacity: rechargeable polymer battery: 7600MA
USB: high speed USB2.0 OG connecting peripherals
Gravity sensor: 3 D
Support:Bluetooth&Wifi
The tape: built-in microphones head
Software configuration
Operating system: Andriod4.1
Video: MKV (h. 264 HP). AVI. RM/BMVB. FLV. MPEG-1/2
Music: MP3, WMA. APE, FLAC. AAC. AC3. WAV
Pictures: JPEG. BMP, GIF, PNG. TIF
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
