MV242 CDMA 1xEV-DO Rev. A USB Modem
Axesstel Inc.
CDMA 1xEV-DO Rev. A
USB Modem MV242
User Manual
![](/img.php?id=1333454&img=bg2.png)
CDMA 1xEVDO Rev. A USB Modem User Manual
Axesstel Inc.
Thank you for choosing Axesstel EVDO wireless network USB modem. No matter
where you are, this product can meet your multiple requirements at any time, such as
surfing on line with high-bit-rate, sending and receiving short message, phonebook
management, and voice. Applying this product properly can improve your working
efficiency, and further bring more value to you.
Warning:
Do not let the device spilled by rain or get wet.
Do not open the network card by yourself without permission. When
maintaining, please follow the instruction of professionals.
Do not plug or unplug the (U) SIM card when power is on.
Note:
Please comply with the rules of some special places, such as the hospital and
the plane.
Wireless interference on the network, the instability of the Internet, and other
factors, may influence the functions of the wireless network card.
For some versions of the operating system, there may be installation problems.
It is recommended you change the operation system to be that of the
mainstream brand and version.
The network card supports hot plug. If the computer is down, please shut down
the computer and reboot it.
Statement
When connecting the wireless network card to a notebook, the interface should
be in parallel with the computer interface. If product damage caused by the
improper operation, we will not bear any responsibility for all the consequences
arising therefrom.
When using the wireless network card, communication interruption and data
![](/img.php?id=1333454&img=bg3.png)
CDMA 1xEVDO Rev. A USB Modem User Manual
Axesstel Inc.
loss may occur, we will not undertake the responsibility and the indemnity for
damage.
![](/img.php?id=1333454&img=bg4.png)
CDMA 1xEVDO Rev. A USB Modem User Manual
iii
Contents
1 Overview ............................................................................................................ 1
2 Software Installation and Uninstallation ............................................................. 2
2.1 Installing the Software .................................................................... 2
2.2 Uninstalling the Software ................................................................ 2
3 Description of Terminal GUI .............................................................................. 2
3.1 Logging In to the Terminal .............................................................. 2
3.2 GUI Introduction .............................................................................. 3
4 Internet Service ................................................................................................. 3
4.1 Connection Management ................................................................ 3
4.2 Traffic Information ........................................................................... 4
5 SMS Service ...................................................................................................... 4
5.1 Creating a Message ........................................................................ 4
5.2 Sending a Message ........................................................................ 4
5.3 Replying a Message ....................................................................... 5
5.4 Forwarding a Message ................................................................... 5
5.5 Editing a Message .......................................................................... 5
5.6 Deleting a Message ........................................................................ 6
5.7 Resending a Message .................................................................... 6
5.8 Searching a Message ..................................................................... 6
6 Phonebook ........................................................................................................ 7
6.1 Phonebook Management Interface................................................. 7
6.2 Creating a Contact .......................................................................... 7
6.3 Editing a Contact ............................................................................ 7
6.4 Deleting a Contact .......................................................................... 8
6.5 Sending a Short Message .............................................................. 8
![](/img.php?id=1333454&img=bg5.png)
CDMA 1xEVDO Rev. A USB Modem User Manual
iv
6.6 Copying Phonebook Records to Local or (U) SIM Card ................. 8
6.7 Searching a Contact ....................................................................... 8
7 Phone ................................................................................................................ 9
7.1 Phone Management Interface ........................................................ 9
7.2 Outgoing calls ................................................................................. 9
7.3 Incoming calls ............................................................................... 10
8 Setting.............................................................................................................. 10
8.1 Choosing Language ...................................................................... 10
8.2 Enabling or Disabling PIN code .................................................... 10
8.3 Changing PIN Code ...................................................................... 11
8.4 Verifying PIN Code ....................................................................... 11
8.5 Using PUK to Unlock the (U) SIM Card ........................................ 11
8.6 Options ......................................................................................... 12
9 Help ................................................................................................................. 13
10 Mac OS X Installation ...................................................................................... 14
10.1 Installing the Application ............................................................... 14
10.2 Exit the Application ....................................................................... 14
11 Function Fields and Operation Introduction of Mac OS X ............................... 15
11.1 GUI Introduction ............................................................................ 15
11.2 Connecting to the Internet ............................................................ 15
11.3 Settings ......................................................................................... 17
11.3.1 PIN Settings ........................................................................ 17
11.3.2 Network Settings ................................................................. 17
11.3.3 Device Information .............................................................. 17
12 Mac OS X Help ................................................................................................ 17
13 FCC Warning ................................................................................................... 17
13.1 FCC Regulations .......................................................................... 17
![](/img.php?id=1333454&img=bg7.png)
EVDO USB Modem User Manual
1
1 Overview
The wireless network USB modem is a high-bit-rate data card, which is applicable to
network connection applications of CDMA 1xEV-DO Rev. A, and backward
compatible to CDMA 1 xEV-DO Rev.0 and CDMA 1x.
This wireless network card provides the following functions:
High-Speed Data Service
Sending and Receiving Short Message Service
Managing Phonebook
Voice Call
Features
Apply to 3G network environment
Provide high speed connection. Support transmission data rate of up to 7.2
Mbps at downlink and 5.76 Mbps at uplink.
Support mainstream operating systems including Windows XP, Vista, and
Win 7.
Support Mac OS X 10.4 version or above
Support connection of the USB interface. Support hot swappable.
Serve as the mobile memory, and support Micro SD card storage of up to 4
GB.
Humanized design of LED indicator, to indicate the status of the wireless
data terminal.
Built-in driver. Support automatic setup after startup.
![](/img.php?id=1333454&img=bg8.png)
EVDO USB Modem User Manual
2
2 Software Installation and Uninstallation
2.1 Installing the Software
Software installation is “Plug and Play”. Please follow the on-screen instructions to
finish the software installation. To install the software, do as follows:
Step1 Insert the wireless network card into the USB interface, and the following
page for selecting languages automatically appears. The default
language is English.
Step2 After selecting the proper language, click the OK button.
Step3 Click the Next > button to continue.
Step4 After choosing the installation folder, click the Next > button.
Step5 You can choose whether to add a shortcut icon on the desktop. Click the
Next > button to continue.
Step6 Click the Install button to begin the software installation.
Step7 Reboot the computer to finish the software installation.
2.2 Uninstalling the Software
To uninstall the software, do as follows:
Step1 Click Start > All Programs > 3G Modem Partner.
Step2 Click 3G Modem Partner Uninstall to finish the software uninstallation.
3 Description of Terminal GUI
3.1 Logging In to the Terminal
Double-click the shortcut icon of the terminal on the desktop to log in to the terminal.
Note: The working temperature of the phone is range from -10℃-55℃.
![](/img.php?id=1333454&img=bg9.png)
EVDO USB Modem User Manual
3
When you are required to enter the Personal Identification Number (PIN)
code, enter the correct PIN and click OK. If you fail to enter the correct PIN or
PIN Unblocking Key (PUK) code, the network-related functions would be
unavailable.
The (U) SIM card is supplied by the service provider. For more details, please
contact your service provider.
3.2 GUI Introduction
The main menus of the terminal are displayed as follows:
4 Internet Service
4.1 Connection Management
After finishing the network settings and the connection settings, you can access the
Internet via the terminal. To access the Internet, do as follows:
Step1 Click the connection icon
Step2 Select the correct access point in the drop-down list.
Step3 Click the Connect button to connect to the network.
Step4 Start the browser on your PC to view the Web pages.
Step5 After the connection is established, choose the Disconnect button to
disconnect from the network.
![](/img.php?id=1333454&img=bga.png)
EVDO USB Modem User Manual
4
4.2 Traffic Information
You can use the statistical function to check the network traffic. To view the traffic
information, do as follows:
Step1 Click the traffic icon to display the traffic interface.
Step2 View the current connection information: You can view the duration of the
current connection, uploaded/downloaded speed and data of the current
connection. You can also view the corresponding graphic traffic
information.
Note:
The statistical data of the traffic is only for your reference. The actual traffic
information is accounted on the basis of the traffic data collected by the operator.
5 SMS Service
Click the message icon to display the message interface.
5.1 Creating a Message
Step1 In the shortcut menu bar, click to display the text interface.
Step2 Enter the message content.
5.2 Sending a Message
There are two methods for entering the recipient number.
Enter the recipient number directly. For multiple numbers, each number
should be separated by ";".
![](/img.php?id=1333454&img=bgb.png)
EVDO USB Modem User Manual
5
Click the Send to button to display the interface for selecting phone numbers.
You can select a contact or press the Ctrl key or the Shift key to select
multiple contacts in the phonebook list, and then click the OK button.
Click the Send button to send the message. If message fails to send to the recipient,
this message will be saved in the outbox.
5.3 Replying a Message
To replay a message, do as follows:
Step1 Select a message in the inbox, and then click the Reply button in the
shortcut menu bar.
Step2 The recipient number will be automatically displayed in the number bar.
You can edit the recipient number.
Step3 Enter the replying message content, and then click the Send button.
5.4 Forwarding a Message
To forward a message, do as follows:
Step1 Select a message, and then click the Forward button in the shortcut
menu bar.
Step2 The message content is automatically displayed in the editing field. You
can edit the message content.
Step3 Enter the phone number of recipient that your message is forwarded to,
and then click the Send button.
5.5 Editing a Message
To edit a message, do as follows:
Step1 Enter the draft box. Select a message and then double-click the
message.
![](/img.php?id=1333454&img=bgc.png)
EVDO USB Modem User Manual
6
Step2 Edit the message content, and then click the Save button or the Send
button.
5.6 Deleting a Message
To delete a message, do as follows:
Step1 Select a message in the message list, or press the Ctrl key or the Shift
key to select multiple messages.
Step2 Click the Delete button in the shortcut menu bar.
Step3 Select the OK button in the dialog box to confirm the deletion operation.
Step4 The selected messages will be deleted from Local and you can not
recover it.
5.7 Resending a Message
To resend a message, do as follows:
Step1 On the outbox interface, select a message.
Step2 Click the Send button in the shortcut menu bar. If the message fails to
send, it will be sent again.
5.8 Searching a Message
Click the search icon . Enter the name, or phone number of the message sender,
or part of the message content in the text field.
Note:
You can enter part of the message content to search.
When you search a message, a list of the matched messages is updated
automatically according to the information entered. The matched messages
![](/img.php?id=1333454&img=bgd.png)
EVDO USB Modem User Manual
7
in the searched group are displayed. No result is displayed when no matched
message is found.
6 Phonebook
You can manage contacts in the phonebook conveniently with the terminal.
6.1 Phonebook Management Interface
Click the phonebook icon to display the phonebook
management interface.
The phonebook types include Local and (U) SIM card. You can manage the local
phonebook or the (U) SIM phonebook.
6.2 Creating a Contact
To create a contact, do as follows:
Step1 Click the New button in the shortcut menu bar to display the new
phonebook interface.
Step2 Enter the information, and the click the Save button. The new contact is
displayed in the list.
6.3 Editing a Contact
To edit a contact, do as follows:
Step1 Click the Edit button in the shortcut menu bar to display the interface for
editing the contact.
Step2 Edit the information, and then click the Save button to save the changed
![](/img.php?id=1333454&img=bge.png)
EVDO USB Modem User Manual
8
content.
6.4 Deleting a Contact
To delete a contact, do as follows:
Step1 In the phonebook list, select a contact or press the Ctrl key or the Shift
key to select multiple contact records.
Step2 Click the Delete button in the shortcut menu bar.
Step3 Select the OK button in the dialog box to confirm the deletion operation.
Step4 The selected phonebook record will be deleted and you can not recover
it.
6.5 Sending a Short Message
To send a message, do as follows:
Step1 Select a contact or press the Ctrl key or the Shift key to select multiple
contacts.
Step2 Click the Send button in the shortcut menu bar.
Step3 After editing the message, click the Send button.
6.6 Copying Phonebook Records to Local or (U) SIM
Card
To copy phonebook records to Local or (U) SIM card, do as follows:
Step1 Select a record or press the Ctrl key or the Shift key to select multiple
records.
Step2 Right-click and select the Copy to option.
Step3 Copy the records to Local or (U) SIM card.
6.7 Searching a Contact
![](/img.php?id=1333454&img=bgf.png)
EVDO USB Modem User Manual
9
To search a contact, do as follows:
Step1 Click .
Step2 Enter the key words of phonebook in the blank field of the shortcut menu
bar.
7 Phone
7.1 Phone Management Interface
In the main interface, you can click to open the telephone
management interface.
On the left side is the dial-up interface, and the right side is the call records
management interface which consists of three tab pages: Received, Missed,
Dialed.
7.2 Outgoing calls
Listed below are the several ways to make outgoing calls:
(1) In the dial-up interface enter the numbers via the number keys, then
click
(2) When the call records list is not blank, select one of the records, right
click the menu to choose “Call” option or click “Call” from the shortcut
menu. To hang up, click
![](/img.php?id=1333454&img=bg10.png)
EVDO USB Modem User Manual
10

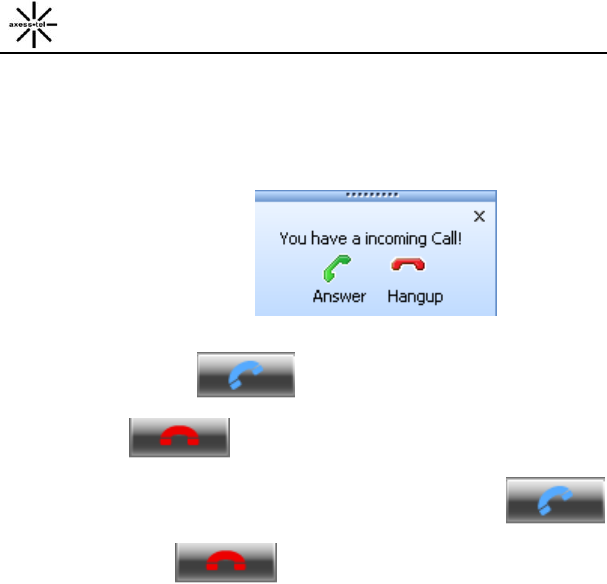

7.3 Incoming calls
When there is an incoming call,
If the telephone visual prompt function has been set up, the pop box as below will
appear in the lower right corner,
then click“Answer”or in the interface to answer the call, and click
“Hang up” or to hang up.
If the visual prompt function has not been set up, you can only click
to answer the call, click to hang up.
8 Setting
Click Tools on the main interface to display the drop-down menus. The drop-down
menus include different setting options of software.
8.1 Choosing Language
Choose Tools > Language to select the proper language. You may select English.
8.2 Enabling or Disabling PIN code
![](/img.php?id=1333454&img=bg11.png)
EVDO USB Modem User Manual
11
Choose Tools > PIN Manage to select Enable/Disable PIN in the drop-down list. To
enable or disable PIN code, do as follows:
Step1 Enter the correct PIN code.
Step2 After clicking the OK button, it will remind you to enable or disable PIN
code.
8.3 Changing PIN Code
To change PIN code, do as follows:
Step1 In the drop-down list, click the Modify PIN to display the interface for
changing PIN code.
Step2 Enter the original PIN code.
Step3 Enter the new PIN code and enter it again for confirmation. After finishing
setting, click the OK button.
Note:
Only if the PIN code is enabled can you change the PIN code.
8.4 Verifying PIN Code
After enabling PIN code protection, you need to enter the correct PIN code for using
the related network functions. To verify the PIN code, do as follows:
Step1 In the drop-down list, select Verify PIN.
Step2 Enter the correct PIN code
Step3 Click the OK button to finish PIN code verification.
8.5 Using PUK to Unlock the (U) SIM Card
To use PUK code to unlock the (U) SIM card, do as follows:
Step1 If the (U) SIM card is locked, run the terminal client and then the PUK
Unlock dialog box appears.
![](/img.php?id=1333454&img=bg12.png)
EVDO USB Modem User Manual
12
Step2 Enter the correct PUK code.
Step3 Enter the new PIN.
Step4 Click the OK button. The (U) SIM card is unlocked and the PIN is
changed.
8.6 Options
Choose Tools > Option to set other parameters.
General Settings
Message
For the message reminder, you can select the voice reminder or the audio reminder.
Telephone
Telephone prompting mode can be voice prompt or visual prompt as selected.
Profile Management
Enter the dial-up interface to display the connection profiles that are available.
- Creating a Profile
Step1 Click the New button to display the interface for adding a new
profile.
Step2 Enter APN and other parameters on the interface.
Step3 Click the Save button to add a profile to the profile list.
- Editing a Profile
Step1 Select a profile in the list.
Step2 Click the Edit button to display the interface for editing the
parameters.
Step3 After setting the parameters, click the Save button to save the
changes.
- Deleting a Profile
Step1 Select a profile in the list.
![](/img.php?id=1333454&img=bg13.png)
EVDO USB Modem User Manual
13
Step2 Click the Delete button and confirm the deletion operation.
- Setting the Default Profile
Step1 Select a profile in the list.
Step2 Click the Set as default button to set the selected profile to be the
default one. After finishing the settings, you can use this profile as
the default profile to establish connection.
Information
Display the device IMEI number.
9 Help
Select About 3G Modem Partner in the Help drop-down list to display the
information about software version.
![](/img.php?id=1333454&img=bg14.png)
EVDO USB Modem User Manual
14
10 Mac OS X Installation
10.1 Installing the Application
Connect the data card to your PC, and then system automatically displays the
corresponding CD. After opening the CD, double-click the application, and follow the
on-screen instructions to finish the installation.
Step1 Click the Continue button in the welcome page.
Step2 Click the Continue button in the license agreement page.
Step3 Click the Agree button to accept the terms of the license agreement.
Step4 Choose a folder for storing the MAC client terminal software, and then
click the Continue button.
Step5 After choosing the storing path of the MAC client terminal software, click
the Install button.
Step6 Enter the username and password for authentication, and then click the
OK button.
Step7 Click the Close button to finish the software installation.
Note:
If you have any problem with the installation process, please contact our customer
service department.
Step8 After finishing the installation, select Finder > Applications, and then the
application appears in the list. In that case, Modem can start to work
normally.
10.2 Exit the Application
Please exit the corresponding application first, and then unplug the data card.
![](/img.php?id=1333454&img=bg15.png)
EVDO USB Modem User Manual
15
11 Function Fields and Operation Introduction of
Mac OS X
11.1 GUI Introduction
The application interface of Mac PC includes function button field, and system
information field. You can realize the corresponding function in the corresponding
field.
Function Button Field
In this field, it provides multiple different buttons. You can perform corresponding
operation by selecting corresponding function button.
Internet: Connect to the Internet.
Setting: Set the working status of the application.
Dial record: View the related information of user operation, such as
ConnectName, StartingTime, DisconnectTime, Duration, Data Transport, and Data
Receive.
Help: Display the information provided by the system.
System Information Field
This field is used to display the system status and the related information.
: Display the network signal strength. The network signal strength includes 6
types of status form the weakest to the strongest .
11.2 Connecting to the Internet
![](/img.php?id=1333454&img=bg16.png)
EVDO USB Modem User Manual
16
If Modem connects to the Internet, you can view the Web pages.
Internet
If you want to connect to the Internet, do as follows:
Step1 Click the Internet icon.
Step2 In order to connect modem to the Internet correctly, you had better
configure the user network information first. You may save different
network settings of users in different files. User configuration information
includes Description, APN, Telephone Number, Account Name,
Password, Authentication Mode, and Save Username and Password. If
network can automatically acquire the server address, Modem can
acquire the IP information assigned by network. Please consult the ISP
that provides the (U) SIM card about the information above.
Note:
User configuration information may vary with the ISP and the network type.
Step3 Click the Connect button to start the Internet connection. After the
connection succeeds, all the traffic information, such as the connection
time, is displayed. While connecting to the Internet, you can click the
Cancel button to cancel the connection operation. If the connection
succeeds, the Connect button will change to be the Disconnect button.
Note:
Modem is provided with the (U) SIM card lock function. If you use the (U) SIM cards
provided by the other ISPs, you may not be able to access the Internet. If you have
any problem, please contact your ISP to ask for more support.
Disconnecting from the Internet
Click the Disconnect button to disconnect form the network. If you have
disconnected form the network, the Disconnect button will change to be the
Connect button.
![](/img.php?id=1333454&img=bg17.png)
EVDO USB Modem User Manual
17
Dial Record
Click the Dial Record icon to display the Dial Record page. In this page, you can
view the related information about user operation, such as ConnectName,
StartingTime, DisconnectTime, Duration, Data Transport, and Data Receive.
11.3 Settings
11.3.1 PIN Settings
PIN settings include enabling PIN protection, disabling PIN protection, and changing
PIN.
11.3.2 Network Settings
System automatically selects the network according to the user configuration rule and
the network status.
11.3.3 Device Information
You may view the information of manufacture, IMSI, Model ID, Firm Version, and
IMEI.
12 Mac OS X Help
Click the Help icon to display the help information.
13 FCC Warning
13.1 FCC Regulations
![](/img.php?id=1333454&img=bg18.png)
EVDO USB Modem User Manual
18
This device complies with part 15 of the FCC Rules. Operation is
subject to the condition that this device does not cause harmful
interference.
This USB Dongle complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
This USB Dongle has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
![](/img.php?id=1333454&img=bg19.png)
EVDO USB Modem User Manual
19
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user‘s authority to operate
the equipment.
The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
13.2 RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio
waves.
This USB Dongle is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by the
Federal Communications Commission of the U.S. Government.
The exposure standard for wireless device employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The
SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted
using standard operating positions accepted by the FCC with the
device transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest
certified power level, the actual SAR level of the USB Dongle while
operating can be well below the maximum value. This is because the
device is designed to operate at multiple power levels so as to use only
the poser required to reach the network. In general, the closer you are
to a wireless base station antenna, the lower the power output.
![](/img.php?id=1333454&img=bg1a.png)
EVDO USB Modem User Manual
20
The highest SAR value for the device as reported to the FCC when
tested for body, as described in this user guide, is 0.349 W/kg for
CDMA2000 BC0 band , 0.788 W/kg for CDMA2000 BC1 band.
While there may be differences between the SAR levels of various
USB Dongles and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this device with
all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this device is on file with
the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: PH7MV242.
For body operation, this device has been tested and meets the FCC RF
exposure guidelines for use the positions the device a minimum of 0.5
cm from the body. Use of other enhancements may not ensure
compliance with FCC RF exposure guidelines.
This USB dongle transmitter is approved for use in typical laptop
computers. To comply with FCC RF exposure requirements, this USB
dongle should not be used in other devices or certain laptop and tablet
computer configurations where the USB connectors on the host
computer are unable to provide or ensure the necessary operating
configurations intended for the device and its users or bystanders to
satisfy RF exposure compliance requirements. This transmitter must
![](/img.php?id=1333454&img=bg1b.png)
EVDO USB Modem User Manual
21
not be collocated or operating in conjunction with any other antenna or
transmitter.
