User MAnual
![](/img.php?id=1306273&img=bg1.png)
GmbH
Max-Eyth-Straße 16 Telefon: +49 7931 597-0 Kontakt:
97980 Bad Mergentheim Telefax: +49 7931 597-183 Service-Mobilecomputing@bartec.de
Deutschland
GmbH
Max-Eyth-Straße 16 Phone: +49 7931 597-0 Contact:
97980 Bad Mergentheim Fax: +49 7931 597-183 Service-Mobilecomputing@bartec.de
Deutschland
Appendix B: Supplement for User Manual
UL Class I Division 1
UL Classes I, II, III Division 1
Mobile Computer
MC 9090ex RFID / LF
MC 9090ex RFID / HF
MC 9090ex RFID / UHF
Type 17-A129-R.../H.…...
Version 1.00
Document no. 11-A119-7D0001_Supplement
Status: 01 October 2009
Technical data subject to change without notice!
![](/img.php?id=1306273&img=bg2.png)
Table of Contents
2
1 Product Description........................................................................................................................................................4
2 Safety Instructions..........................................................................................................................................................5
2.1 Electromagnetic Fields.....................................................................................................................................5
2.1.1 International ....................................................................................................................................................5
2.1.2 US and Canada...............................................................................................................................................5
2.2 Warnings for Use of Wireless Devices.............................................................................................................6
2.2.1 Radio Frequency Interference Requirements - FCC.......................................................................................6
2.2.2 Radio Frequency Interference Requirements - Canada..................................................................................6
3 Technical Data.................................................................................................................................................................7
3.1 RFID / LF Internal Module................................................................................................................................7
3.1.1 Explosion Protection .......................................................................................................................................7
3.1.2 General Data...................................................................................................................................................7
3.1.3 Radio Data Transmission RFID / LF Internal Module......................................................................................7
3.1.4 Standards Supported by Firmware..................................................................................................................8
3.2 RFID / LF External Module...............................................................................................................................9
3.2.1 Explosion Protection .......................................................................................................................................9
3.2.2 General Data...................................................................................................................................................9
3.2.3 Radio Data Transmission RFID / LF External Module.....................................................................................9
3.2.4 Standards Supported by Software ................................................................................................................10
3.3 RFID / HF External Module............................................................................................................................10
3.3.1 Explosion Protection .....................................................................................................................................10
3.3.2 General Data.................................................................................................................................................10
3.3.3 Radio Data Transmission RFID / HF External Module..................................................................................11
3.3.4 Standards Supported by Firmware................................................................................................................11
3.4 RFID / UHF External Modul............................................................................................................................12
3.4.1 Explosion Protection .....................................................................................................................................12
3.4.2 General Data.................................................................................................................................................12
3.4.3 Radio Data Transmission RFID / UHF External Module ...............................................................................12
3.5 RFID / UHF External Module + External Antenna..........................................................................................13
3.5.1 Explosion Protection .....................................................................................................................................13
3.5.2 General Data.................................................................................................................................................13
3.5.3 Radio Data Transmission RFID / UHF External Module + External Antenna................................................13
3.6 Notes re. Directives and Standards, Marking and In-Process Inspections.....................................................14

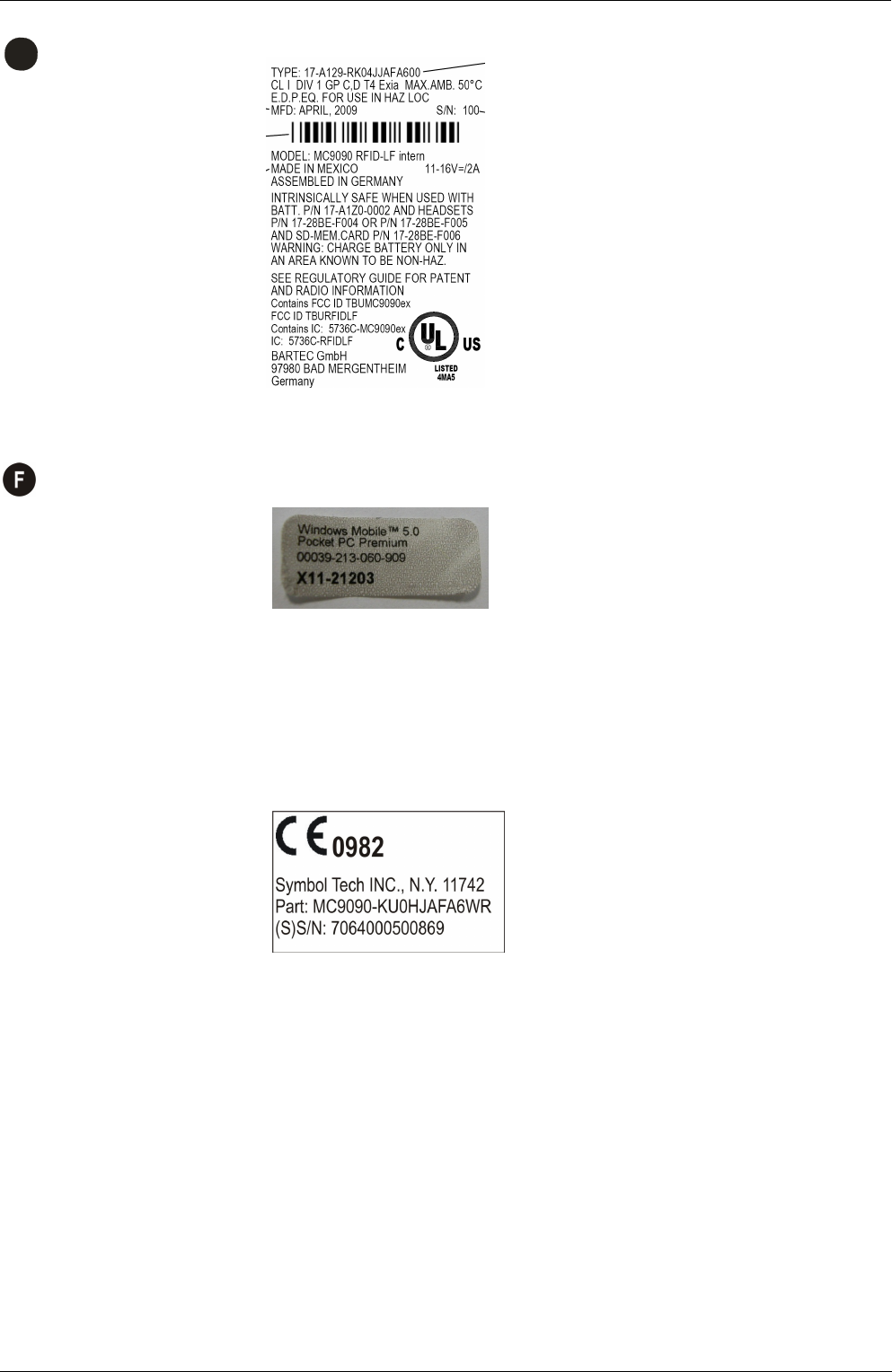

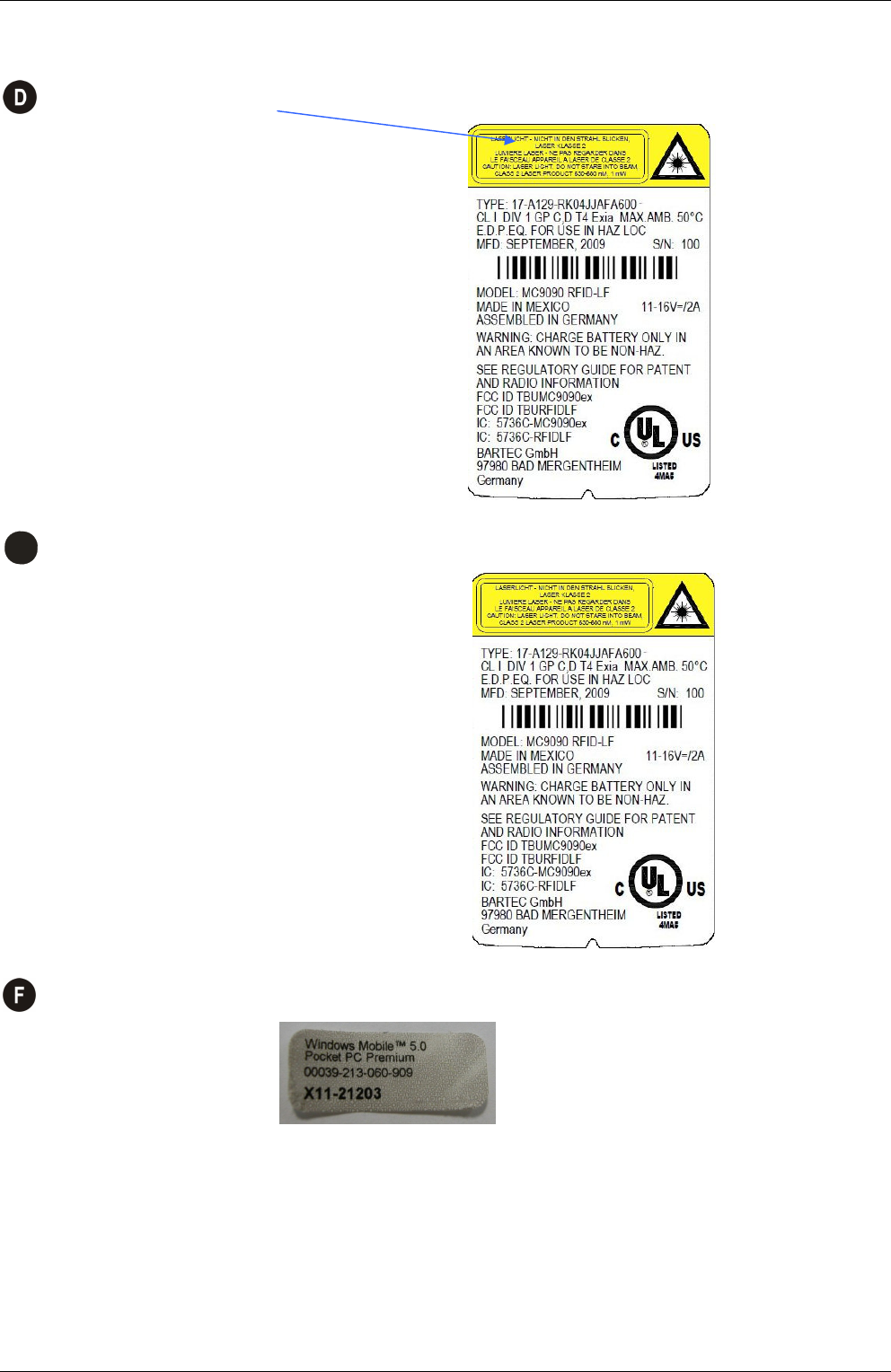

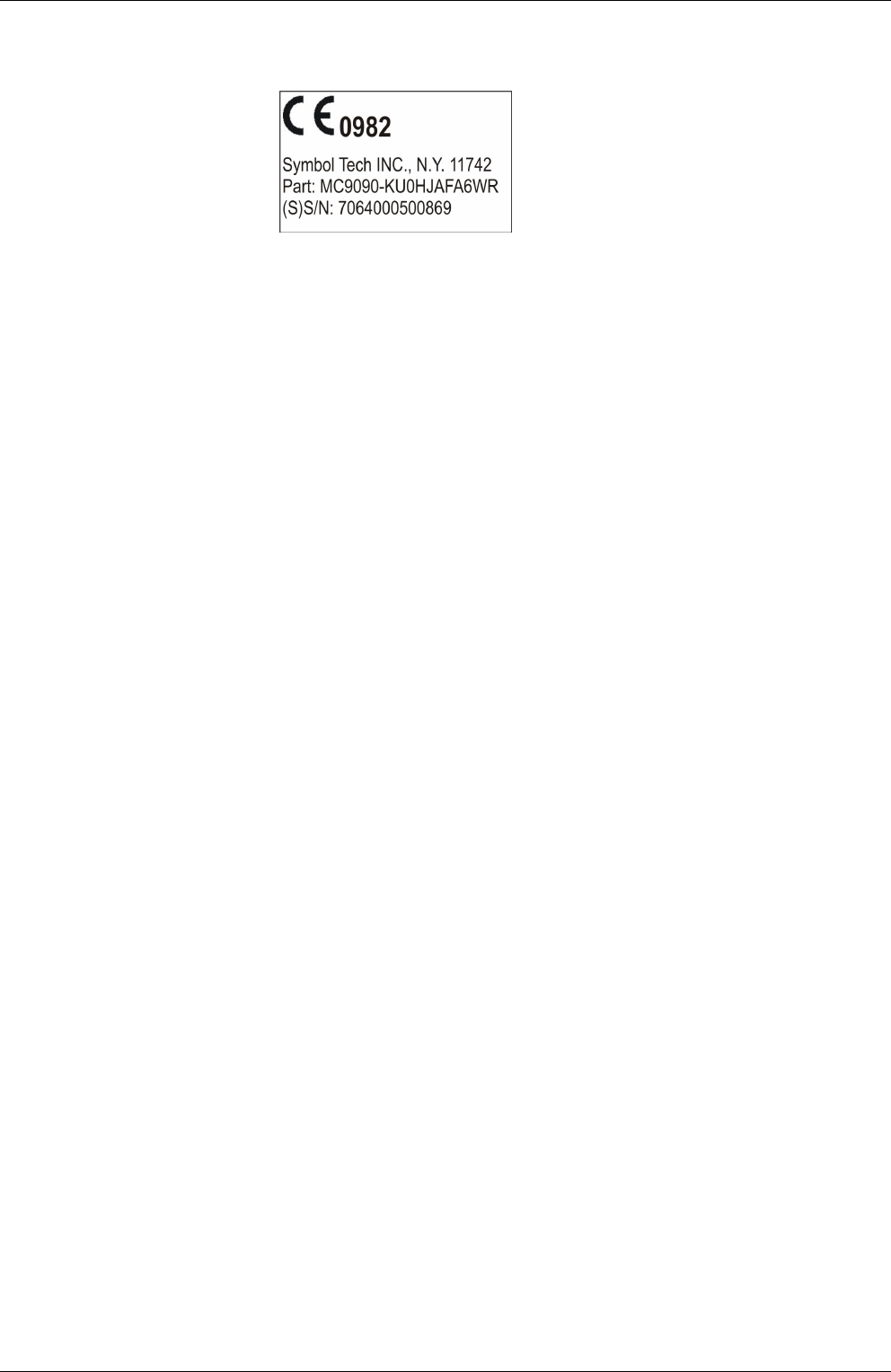

3.6.1 Product Marking Mobile Computer MC 9090ex RFID / LF internal (UL Class I Division 1).............................14

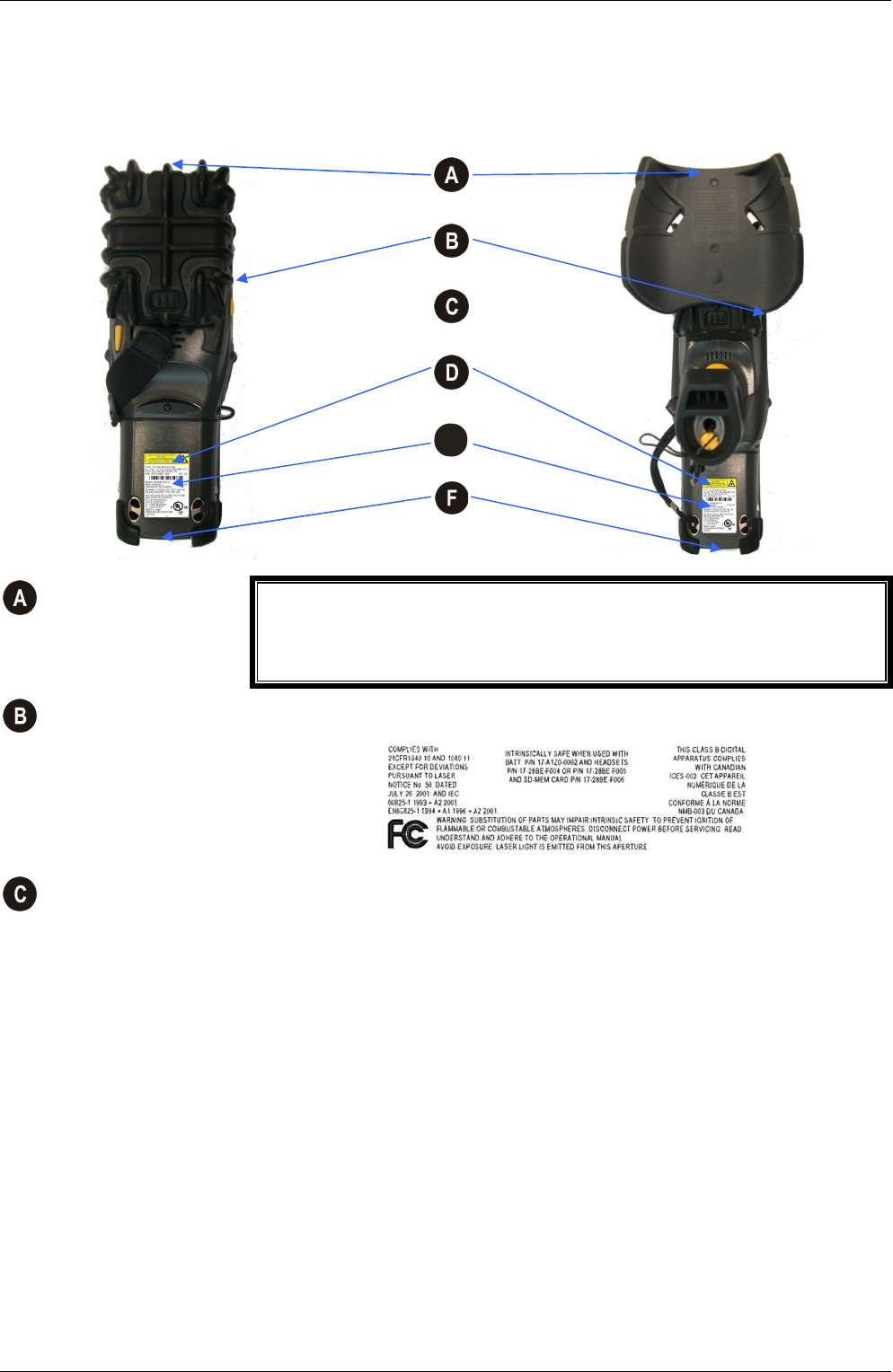

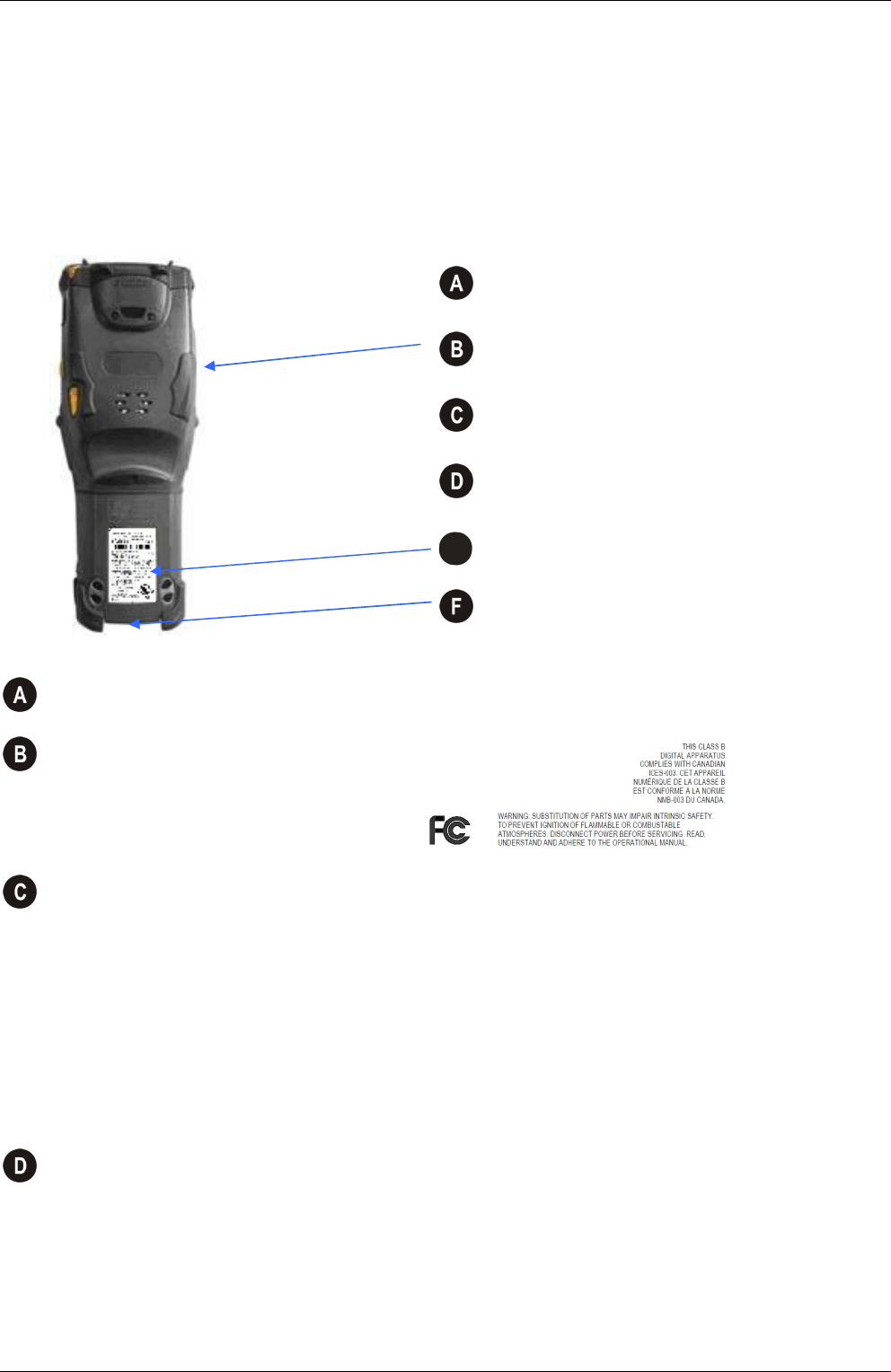

3.6.2 Product Marking Mobile Computer MC 9090ex RFID / LF / HF / UHF external (UL Class I Division 1).........16
![](/img.php?id=1306273&img=bg3.png)
Supplement for RFID
3
4 Commissioning .............................................................................................................................................................19
4.1 MC 9090 ex Manual and Software for Windows Mobile from Motorola ...........................................................19
4.2 MC9090ex RFID Documentation from BARTEC.............................................................................................19
4.3 MC9090ex RFID Software...............................................................................................................................19
5 Additional Information..................................................................................................................................................20
5.1 Order Numbers MC9090ex (UL Class I Division 1).........................................................................................20
5.2 Order Numbers MC9090ex (UL Classes I, II, III Division 1) ............................................................................21
Appendix - EC Declaration of Conformity and Type Examination Certificate
![](/img.php?id=1306273&img=bg4.png)
Supplement for RFID
4

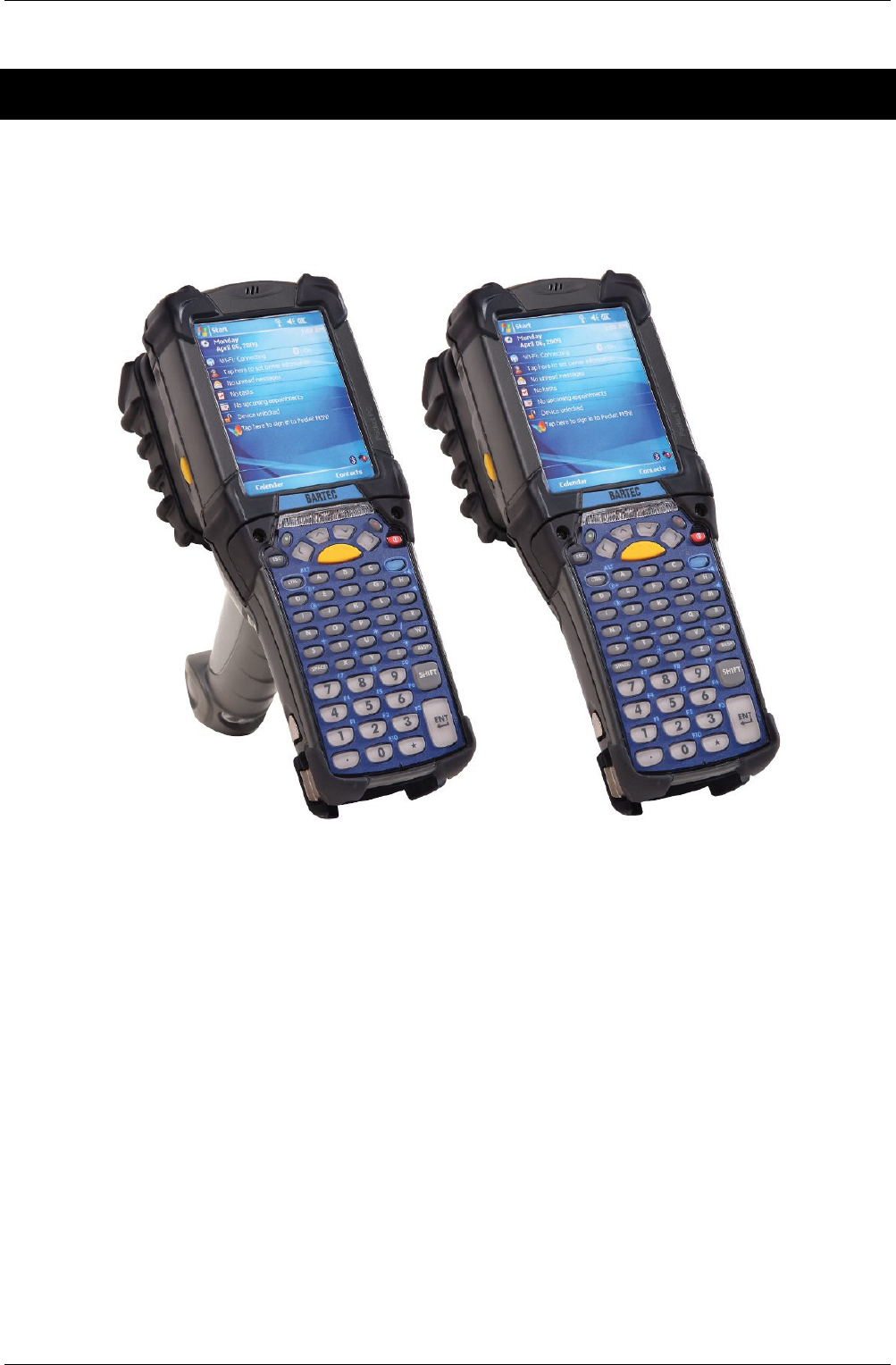

1 Product Description
The MC 9090ex RFID mobile computer is a compact portable device and is designed by BARTEC specially for use in
hazardous areas. Accordingly the extensive communication options, already standard in other areas, are available to the
user in hazardous areas also.
The MC 9090ex RFID mobile computer is available in two versions, with pistol grip (MC9090ex Gun) and without (MC9090ex
Brick). In these versions the MC9090ex is a compact unit for scanning bar codes and RFID tags reliably.
The scan trigger is ideally positioned on the device, which allows bar codes and RFID tags to be captured easily. The
integrated radio module ensures a real-time exchange of data with the host system.
The MC 9090ex RFID combines the advantages of the Microsoft Pocket PC Platform with the strengths of the Intel®
XScaleTM PXA270 processor with 624 MHz.
The large, easy-to-read 1/4 VGA colour display is equipped with touchscreen technology. The device works with the
IEEE802.11 a/b/g (direct sequence) radio standard.
![](/img.php?id=1306273&img=bg5.png)
Supplement for RFID
5
2 Safety Instructions
2.1.1 International
The device complies with internationally recognised standards covering human exposure to electromagnetic fields from
radio devices.
Reducing RF Exposure - Use Properly
Only operate the device in accordance with the instructions supplied.
2.1.2 US and Canada
Portable Devices
.
The Mobile Computer must be switched off before it may be carried on the body.
Co-Location Statement
To comply with the FCC RF exposure compliance requirement, the antenna used for this transmitter must not be co-located
or operating in conjunction with any other transmitter/antenna except those already approved in this filing.
2.1 Electromagnetic Fields
![](/img.php?id=1306273&img=bg6.png)
Supplement for RFID
6
Please observe all warning notices with regard to the usage of wireless devices.

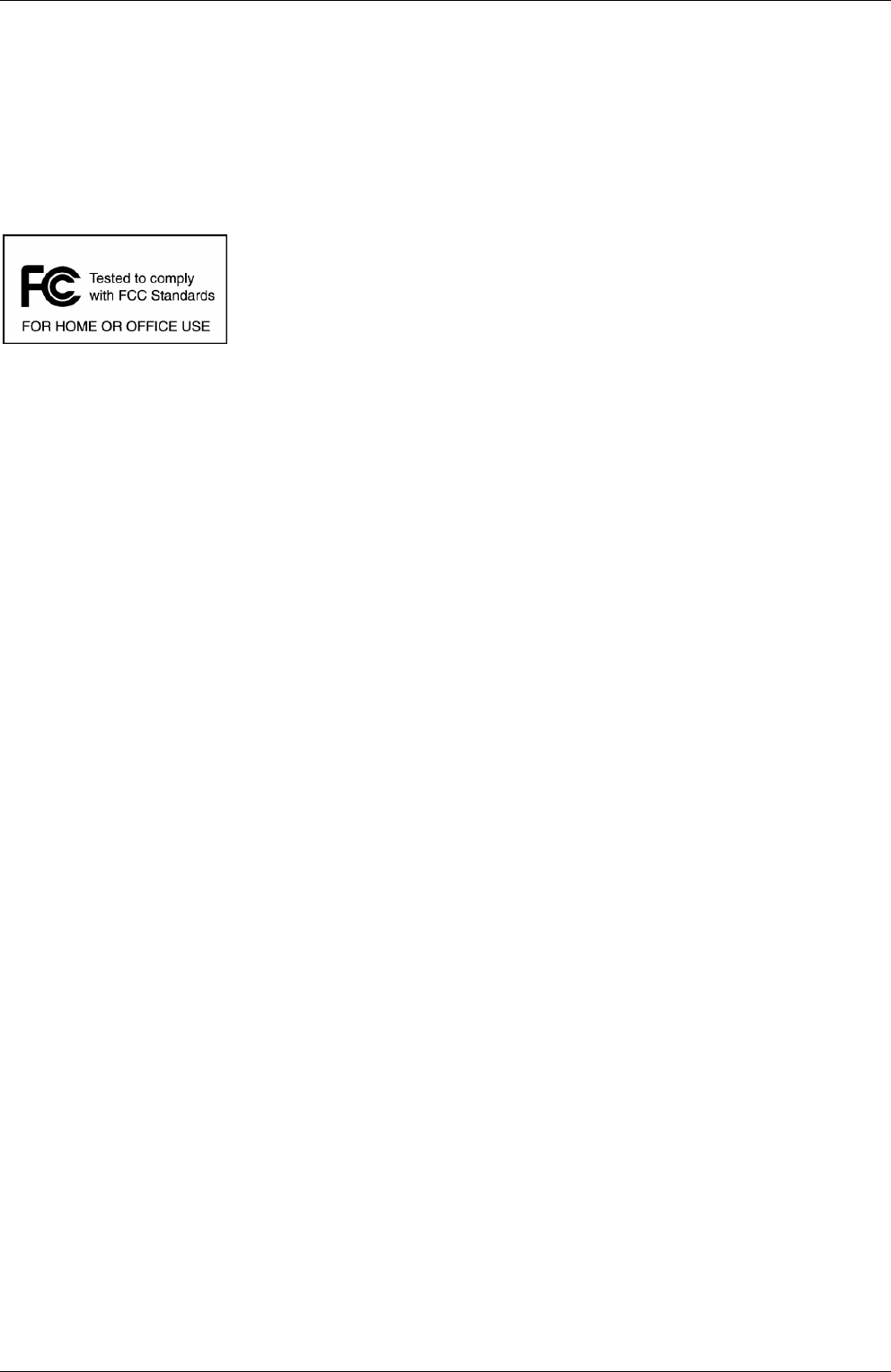

2.2.1 Radio Frequency Interference Requirements - FCC
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Note according to 15.21
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
2.2.2 Radio Frequency Interference Requirements - Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Radio Transmitters
This device complies with RSS 210 of Industry & Science Canada. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Label Marking: The Term "IC:" before the radio certification only signifies that "Industry Canada" technical specifications
were met.
2.2
Warnings for Use of Wireless Devices
![](/img.php?id=1306273&img=bg7.png)
Supplement for RFID
7
3 Technical Data
3.1.1 Explosion Protection
Types : 17-A129-R*04/H*******
Ex Protection Type Class I Division 1 Groups C und D
Certification : UL File E226123
Types : 17-A169-R*04/H*******
Ex Protection Type Class I Division 1 Groups C and D
Class II Division 1 Groups F and G
Class III Division 1
Certification : UL File E226123
3.1.2 General Data
Ambient Temperature : -20 °C to +40 °C -4 °F to +104 °F
Weight including battery : MC9090ex - K
approx. 700 g approx. 24 oz
MC9090ex - G
approx. 830 g approx. 29 oz
3.1.3 Radio Data Transmission RFID / LF Internal Module
Nominal writing distance : approx. 5 cm approx. 1.9 inch
Antenna : Integrated in the device
as ferrite antenna or air coil antenna
Frequency range : 125/134 kHz
Transmitting power : 100 mW ±2dB
3.1 RFID / LF Internal Module
![](/img.php?id=1306273&img=bg8.png)
Supplement for RFID
8
3.1.4 Standards Supported by Firmware
Firmware Version
Btrw-rw.V.1.40.frm
Firmware Version
Btrw-hdx.V.1.40.frm
Firmware Version
Btrw-ti.V.1.40.frm
HITAG S 256 HDX –RO EM 4450/4550
HITAG S 2 kbit HDX (Multipage) EM4xxx(UNIQUE)
HITAG 1 EM4xxx(UNIQUE) FDX-B
HITAG 2 FDX-B BDE
Q5 BDE ISO 11784/5 ISO Animal
ATA5567 ISO 11784/5 ISO Animal
EM4305
![](/img.php?id=1306273&img=bg9.png)
Supplement for RFID
9
3.2.1 Explosion Protection
Types : 17-A129-R**1/H*******
Ex Protection Type Class I Division 1 Groups C and D
Certification : UL File E226123
Types : 17-A169-R**1/H*******
Ex Protection Type Class I Division 1 Groups C and D
Class II Division 1 Groups F and G
Class III Division 1
Certification : UL File E226123
3.2.2 General Data
Ambient Temperature : -20 °C to +40 °C -4 °F to +104 °F
Dimensions (length x width x height) : MC9090ex - K
231 x 91 x 105 mm 9.1 “ x 3.6 “ x 4.1 “ (inches)
MC9090ex - G
231 x 91 x 193 mm 9.1 “ x 3.6 “ x 7.6 “
Weight including battery (UL) : MC9090ex - K
approx. 1040 g approx. 40 oz
MC9090ex - G
approx. 1170 g approx. 41 oz
3.2.3 Radio Data Transmission RFID / LF External Module
Nominal writing distance : approx. 5 cm approx. 1.9 “
Antenna : Integrated in the device
as ferrite antenna or air coil antenna
Frequency range : 125/134 kHz
Transmitting power : 100 mW ±2dB
3.2 RFID / LF External Module
![](/img.php?id=1306273&img=bga.png)
Supplement for RFID
10
3.2.4 Standards Supported by Software
Firmware Version
Btrw-rw.V.1.40.frm
Firmware Version
Btrw-hdx.V.1.40.frm
Firmware Version
Btrw-ti.V.1.40.frm
HITAG S 256 HDX -RO EM 4450/4550
HITAG S 2 kbit HDX (Multipage) EM4xxx(UNIQUE)
HITAG 1 EM4xxx(UNIQUE) FDX-B
HITAG 2 FDX-B BDE
Q5 BDE ISO 11784/5 ISO Animal
ATA5567 ISO 11784/5 ISO Animal
EM4305
3.3.1 Explosion Protection
Types : 17-A129-R**2/H*******
Ex Protection Type Class I Division 1 Groups C and D
Certification : UL File E226123
Types : 17-A169-R**2/H*******
Ex Protection Type Class I Division 1 Groups C and D
Class II Division 1 Groups F and G
Class III Division 1
Certification : UL File E226123
3.3.2 General Data
Ambient Temperature : -20 °C to +40 °C -4 °F to +104 °F
Dimensions (length x width x height) : MC9090ex –K
231 x 91 x 105 mm 9.1 “ x 3.6 “ x 4.1 “
MC9090ex –G
231 x 91 x 193 mm 9.1 “ x 3.6 “ x 7.6 “
Weight including battery (UL) : MC9090ex –K
approx. 1040 g approx. 40 oz
MC9090ex –G
approx. 1170 g approx. 41 oz
3.3 RFID / HF External Module
![](/img.php?id=1306273&img=bgb.png)
Supplement for RFID
11
3.3.3 Radio Data Transmission RFID / HF External Module
Supported standards : HF ISO 15693
HF ISO 14443
Nominal reading range : HF ISO 15693
approx. 7 cm to 12 cm approx. 2.75 “ to 4.72 “
HF ISO 14443
approx. 1 cm to 6 cm approx. 0.4 “ to 2.36 “
(with tags in cheque card format)
Nominal writing distance : HF ISO 15693
approx. 7 cm to 12 cm approx. 2.75 “ to 4.72 “
HF ISO 14443
approx. 1 cm to 6 cm approx. 0.4 “ to 2.36 “
(with tags in cheque card format)
Antenna : Integrated
Frequency range : 13.56 MHz
Transmitting power 250 mW ±2dB
3.3.4 Standards Supported by Firmware
ISO14443-A-compatible ISO14443-B-compatible ISO15693-compatible
e.g. mifare, mifare Ultra Light, my-d
proximity e.g. I-Code SLI, Tag-IT HFI, my-d
vicinity, STM LRI512
I-Code 1 (optional)
![](/img.php?id=1306273&img=bgc.png)
Supplement for RFID
12
3.4.1 Explosion Protection
Types : 17-A129-R**3/H*******
Ex Protection Type Class I Division 1 Groups C and D
Certification : UL File E226123
Types : 17-A169-R**3/H*******
Ex Protection Type Class I Division 1 Groups C and D
Class II Division 1 Groups F and G
Class III Division 1
Certification : UL File E226123
3.4.2 General Data
Ambient temperature : -20 °C to +40 °C -4 °F to +104 °F
Dimensions (length x width x height) : MC9090ex –K
231 x 91 x 105 mm 9.1” x 3.6” x 4.1”
MC9090ex –G
231 x 91 x 193 mm 9.1” x 3.6” x 7.6”
Weight including battery (UL) : MC9090ex –K
approx. 1040 g approx. 40 oz
MC9090ex –G
approx. 1170 g approx. 41 oz
3.4.3 Radio Data Transmission RFID / UHF External Module
Supported standards : EPC Class 1 Gen 2 Tag
Nominal reading range : approx. 30 cm to 50 cm approx. 11.8” to 19.6”
Nominal writing range : approx. 30 cm to 50 cm approx. 11.8” to 19.6”
Antenna : Integrated
Frequency range : 902.0 to 928.0 MHz (FCC CFR 47 Part 15.247) for USA
Transmitting power : 200 mW ±2dB
3.4 RFID / UHF External Modul
![](/img.php?id=1306273&img=bgd.png)
Supplement for RFID
13
3.5.1 Explosion Protection
Types : 17-A129-R**5/H*******
Ex Protection Type Class I Division 1 Groups C and D
Certification : UL File E226123
Types : 17-A169-R**5/H*******
Ex Protection Type Class I Division 1 Groups C and D
Class II Division 1 Groups F and G
Class III Division 1
Certification : UL File E226123
3.5.2 General Data
Ambient Temperature : -20 °C to +40 °C -4 °F to +104 °F
Dimensions (length x width x height) : MC9090ex –K
231 x 119 x 105 mm 9.1” x 4.7” x 4.1”
MC9090ex –G
231 x 119 x 193 mm 9.1” x 4.7” x 7.6”
Weight including battery (UL) : MC9090ex –K
approx. 1040 g approx. 40 oz
MC9090ex –G
approx. 1170 g approx. 41 oz
3.5.3 Radio Data Transmission RFID / UHF External Module + External Antenna
Supported standards : EPC Class 1 Gen 2 Tag
Nominal Reading Range : approx. 150 cm approx. 59”
Nominal Writing range : approx. 30 cm to 50 cm approx. 11.8” to 19.6”
Antenna : external (UPM Raflatac)
Frequency range : 902.0 to 928.0 MHz (FCC CFR 47 Part 15.247) for USA
Transmitting power : 200 mW ±2dB
3.5 RFID / UHF External Module + External Antenna
![](/img.php?id=1306273&img=bge.png)
Supplement for RFID
14
3.6.1 Product Marking Mobile Computer MC 9090ex RFID / LF internal (UL Class I Division 1)
MC 9090ex RFID / LF internal
E
Laser Warning No Scan Engine available!
FCC Testmark
CE and Ex
protection type
See type label
MC 9090 ex RFID / LF internal
Typ: 17-A129-… Class I Division 1, Groups C and D
Typ: 17-A169-…
Class I Division 1 Groups C and D
Class II Division 1 Groups F and G
Class III Division 1
Laser Warning No Scan Engine available!
3.6 Notes re. Directives and Standards, Marking and In-Process Inspections
![](/img.php?id=1306273&img=bgf.png)
Supplement for RFID
15
E
Type label
Labels in
battery compartment
Licence sticker for Windows MobileTM 5.0 Premium operating system
Label contains details on the Motorola device before it was modified by BARTEC
GmbH.
- CE sign and notified body used by Motorola
- Manufacturer Motorola (formerly Symbol Technologies Incorporation)
- Type number (part)
- Serial number ((S) S/N)
Important:
you will need to be able to quote type number and serial number if you make
enquiries directly to the Technical Support department at Motorola.
![](/img.php?id=1306273&img=bg10.png)
Supplement for RFID
16
3.6.2 Product Marking Mobile Computer MC 9090ex RFID / LF / HF / UHF external (UL Class I Division 1)
MC 9090ex RFID / LF / HF / UHF external
E
MC 9090ex RFID / LF / HF / UHF external
Laser Warning CAUTION - CLASS 3R LASER LIGHT WHEN OPEN. AVOID DIRECT EYE EXPOSURE.
ATTENTION - LUMIÈRE LASER DE CLASSE 3R, EN CAS D’OUVERTURE. EXPOSITION DANGEREUSE AU
FAISCEAU.
VORSICHT - LASERLICHT KLASSE 3R, WENN ABDECKUNG GEÖFFNET. DIREKTE BESTRAHLUNG DER
AUGEN VERMEIDEN.
Laser and FCC
Testmark
MC 9090ex RFID / LF / HF / UHF external
CE and Ex
protection type
See type label
MC 9090 ex RFID / LF / HF / UHF external
Typ: 17-A129-… Class I Division 1, Groups C and D
Typ: 17-A169-…
Class I Division 1 Groups C and D
Class II Division 1 Groups F and G
Class III Division 1
![](/img.php?id=1306273&img=bg11.png)
Supplement for RFID
17
Laser Warning
MC 9090 ex RFID / LF / HF / UHF external
E
Type label MC 9090 ex RFID / LF / HF / UHF external
Labels in
battery compartment
Licence sticker for Windows MobileTM 5.0 Premium operating system
Label contains details on the Motorola device before it was modified by BARTEC GmbH.
- CE sign and notified body used by Motorola
- Manufacturer Motorola (formerly Symbol Technologies Incorporation)
- Type number (part)
- Serial number ((S) S/N)
Important: you will need to be able to quote type number and serial number if you make
enquiries directly to the Technical Support department at Motorola.
![](/img.php?id=1306273&img=bg12.png)
Supplement for RFID
18
MC 9090 ex RFID/LF/HF/UHF external
![](/img.php?id=1306273&img=bg13.png)
Supplement for RFID
19
4 Commissioning
Link:
http://support.symbol.com/support/product/manuals.do
Mobile Computers
MC9090 WM
List of the available manuals and software downloads for the standard Motorola versions
Use the following link to access the available documentation and downloads.
If you have any further questions, please contact us directly under info@BARTEC.de.
Link to German homepage:
http://www.BARTEC.de/
Link to English homepage:
http://www.BARTEC.de/index_eng.htm
The software has been programmed as a demonstration program to test the devices.
The demonstration has been written into Open Source so that every operator with the development tools can
view and use the structure.
The DLL files and the demonstration program are available on request as downloads on a password-protected
page.
Password can be inquired from BARTEC at info@BARTEC.de.
4.1 MC 9090 ex
Manual and Software for Windows Mobile from Motorola
4.2 MC9090ex RFID Documentation from BARTEC
4.3 MC9090ex RFID Software
![](/img.php?id=1306273&img=bg14.png)
Supplement for RFID
20
5 Additional Information
1
7
-
A
1
2
9
-
R
_
_
_
/
H
C
_
F
A
_
_
Version ↓
MC9090ex –G gun G
MC9090ex –K brick K
Barcode Scanning ↓
None (only with LF internal)
SE1524 1-D long-range scan engine (only gun) J
SE950 1-D standard-range scan engine (only brick) A
SE4400 1-D/2-D imager engine K
RFID ↓
LF external module 1
HF external module 2
UHF (USA) external module 3
LF internal module (no scan engine) 4
UHF (USA) external module + external antenna 5
Keyboard ↓
28 keys, numeric A
33 keys, numeric L
43 keys, alphanumeric F
53 keys, alphanumeric E
53 keys, alphanumeric with layout for VT emulation G
53 keys, alphanumeric with layout for 3270 emulation H
53 keys, alphanumeric with layout for 5250 emulation J
SD cards ↓ ↓
Without SD card 0 0
With 512 MB SD card 0 1
With 1 GB SD card 0 2
With 2 GB SD card 0 3
For example: MC 9090ex –K RFID/LF without scan engine, internal RFID/LF module, 28 keys and
without SD card.
Type 17-A129-RK04/HCAFA600
5.1 Order Numbers MC9090ex (UL Class I Division 1)
![](/img.php?id=1306273&img=bg15.png)
Supplement for RFID
21
1
7
-
A
1
6
9
-
R
_
_
_
/
H
C
_
F
A
_
_
Version ↓
MC9090ex –G Gun G
MC9090ex –K Brick K
Barcode Scanning ↓
None (only with LF internal)
SE1524 1-D long-range scan engine (only gun) J
SE950 1-D standard-range scan engine (only brick) A
SE4400 1-D/2-D imager engine K
RFID ↓
LF external module 1
HF external module 2
UHF (USA) external module 3
LF internal module (no scan engine) 4
UHF (USA) external module + external antenna 5
Keyboard ↓
28 keys, numeric A
33 keys, numeric L
43 keys, alphanumeric F
53 keys, alphanumeric E
53 keys, alphanumeric with layout for VT emulation G
53 keys, alphanumeric with layout for 3270 emulation H
53 keys, alphanumeric with layout for 5250 emulation J
SD cards ↓ ↓
Without SD card 0 0
With 512 MB SD card 0 1
With 1 GB SD card 0 2
With 2 GB SD card 0 3
For example: MC 9090ex –G RFID/UHF with long-range scan engine, external RFID/UHF module,
53 keys and without SD card.
Type 17-A169-RGJ3/HCEFA600
5.2 Order Numbers MC9090ex (UL Classes I, II, III Division 1)
