Purpose of the Device
The BF-IDM06 RFID Reader is intended to read and write ISO15693 / ISO14443 compliant data
carriers via magnetic field communication.
Variability

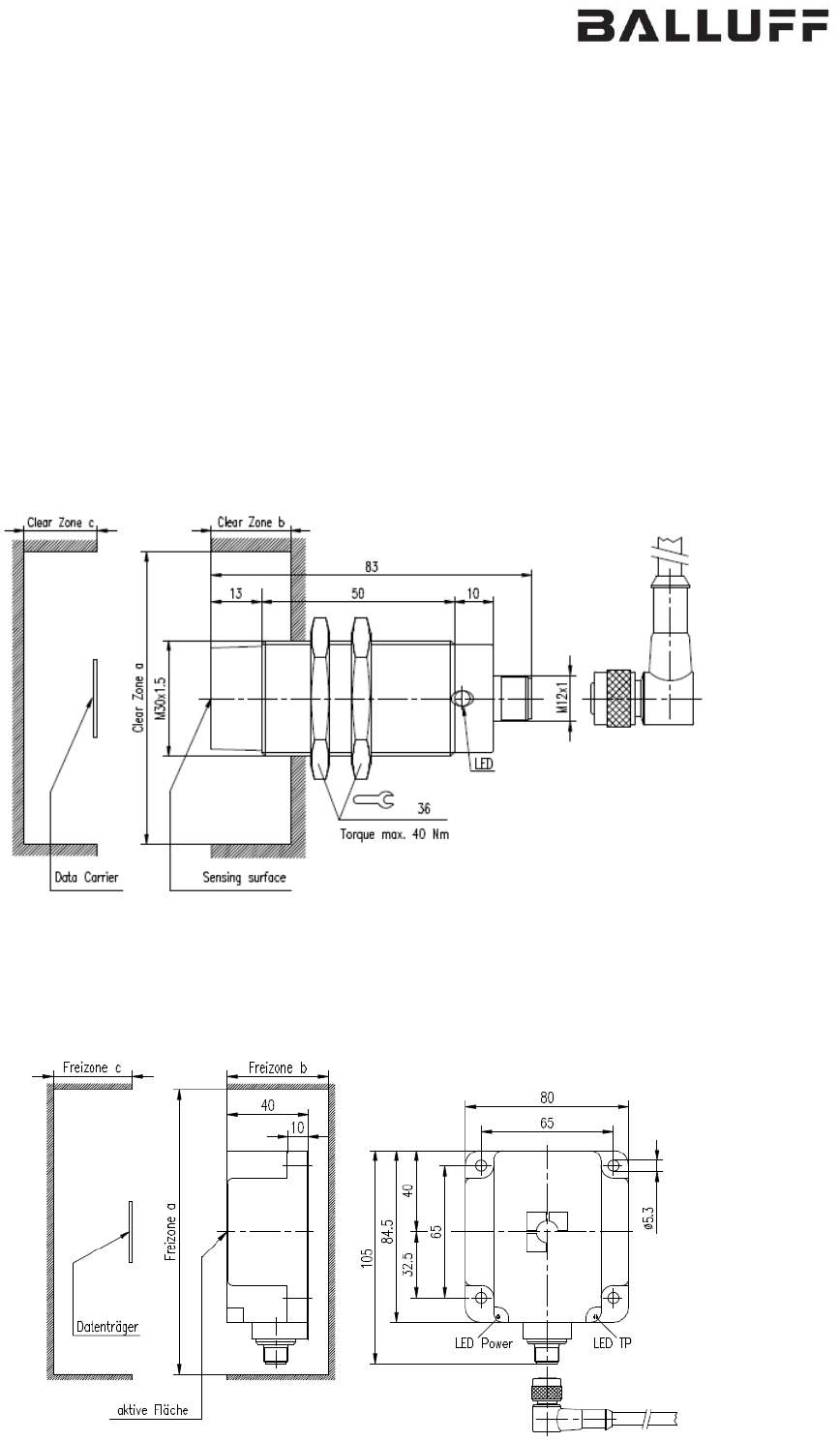

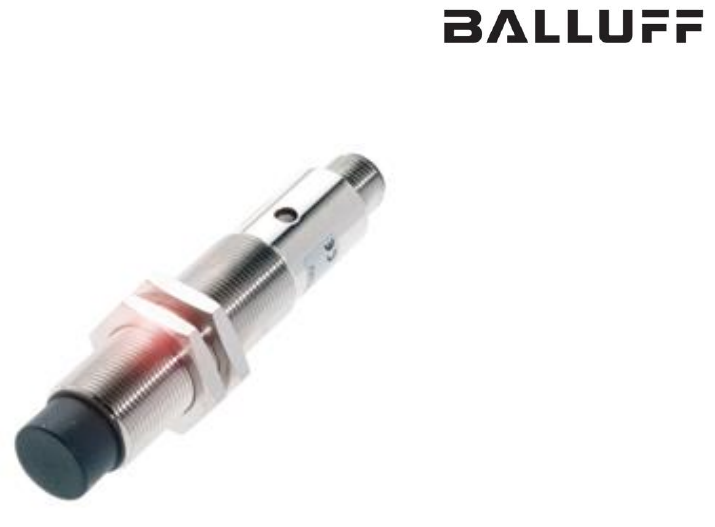

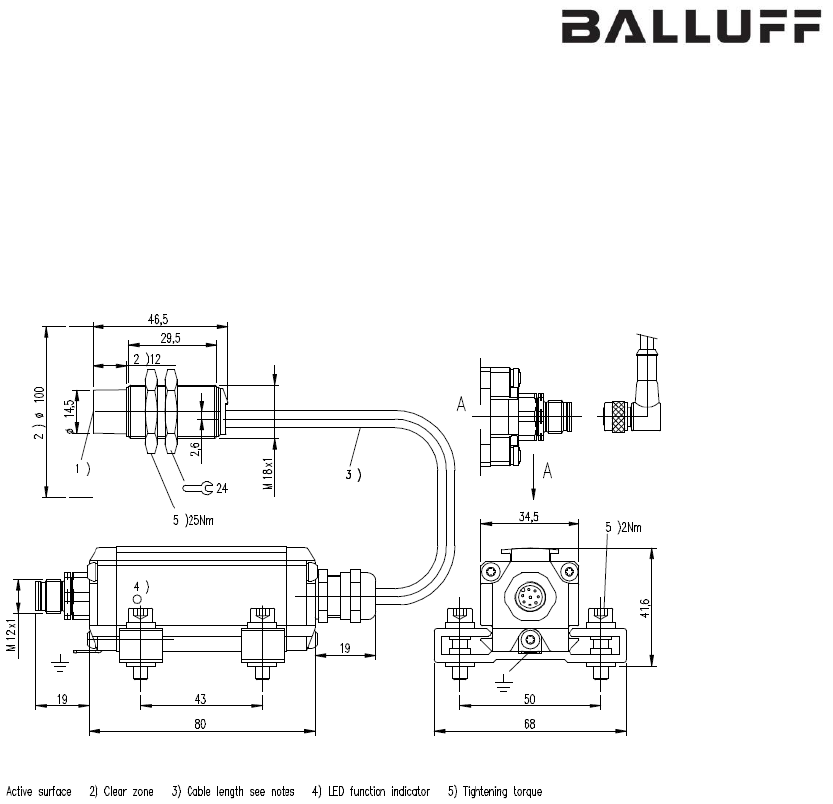

BF-IDM06 RFID Readers are available in different housings and shapes.
![](/img.php?id=3785478&img=bg3.png)
Model:
BF-IDM06 Operating Guide
RFID Reader
Connecting the Device
BF-IDM06 devices operate in combination with BIS M processor units when connected to one of
the ports labeled with "Head 1" or "Head 2". For the connection a shielded standard type 8-wire
cable M12 / A-coded is used.

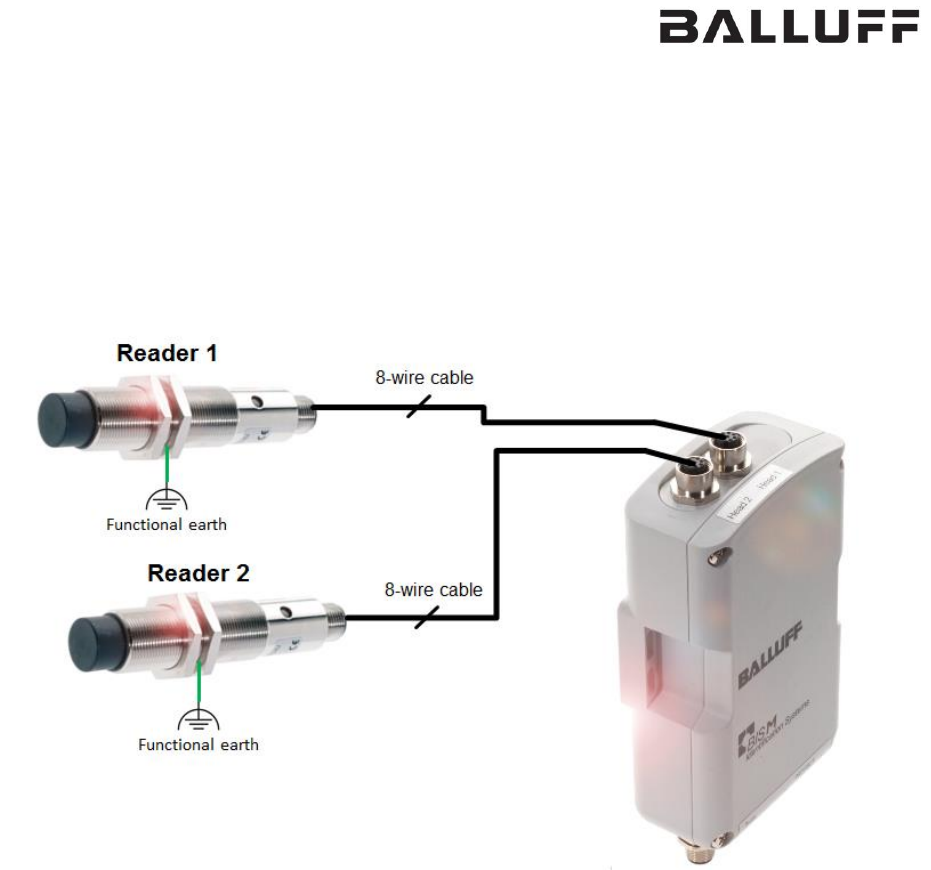

Picture 1: Example Application
To ensure reliable operation in strong EMC environments it is recommended to connect metal
housings or dedicated functional ground pins directly to installations ground. The ground
connection should be short and stable. Depending on the installation situation an indirect
ground connection using a RC combination may be required.
For further notes concerning the installation of the processor unit please refer to the operating
guide of the processor unit.
![](/img.php?id=3785478&img=bg4.png)
Model:
BF-IDM06 Operating Guide
RFID Reader
Installation notes
For proper operation at first a suitable mounting position has to be evaluated. The position
should respect the recommended clear zones as described. Furthermore, please note that
strong electrical or magnetic fields in the close environment may influence the RFID Reader.
Precise information concerning clear zones and distances are available on request.
For BF-IDM06 Readers are available in different housings respectively shapes different types of
installation may be considered.
a) Direct In-Hole mounting (Example):
Picture 2: Direct In-Hole mounting (Example)
b) Direct On-Wall mounting (Example):
Picture 3: Direct On-Wall mounting (Example)
![](/img.php?id=3785478&img=bg5.png)
Model:
BF-IDM06 Operating Guide
RFID Reader
c) Indirect On-Wall mounting using metal holder (Example):
Picture 3: Indirect On-Wall mounting using metal holder (Example):
![](/img.php?id=3785478&img=bg6.png)
Model:
BF-IDM06 Operating Guide
RFID Reader
Setup and Operation
For operation of BF-IDM06 Readers a BIS M type processor unit is needed. The processor unit
is used as gateway between higher level controllers and RFID Reader. Any communication
from and to data carriers respectively RFID Readers is managed by the processor unit.
Further information concerning the operation or parameterization of RFID Readers can be found
operating guide of the processor unit.
Status Indicators
The device will show its status using the 2 LEDs at the corners of the housing. In normal
operation state the meaning of these lights are as follows:
►Green light "Power" indicates that the device is connected to the processor unit and ready to
operate.
►Orange light "Tag present" indicates that a RFID tag has been detected in front of the
transceiver coil.
Electrical Data
Operating voltage (nominal)
24 V DC
Current draw (at +8 V DC)
≤ 200 mA
Operating Frequency
13.56 MHz
Active principle
Magnetic field
Maximum transmit power
1 W
Mechanical Data
Housing Material
Weight max. Metal / ABS-GF16 / PBT / PA12-GF30
400g
