Purpose of the Device
The BF-IDM26 RFID Reader is intended to read and write ISO15693 / ISO14443 compliant data
carriers via magnetic field communication.
Variability

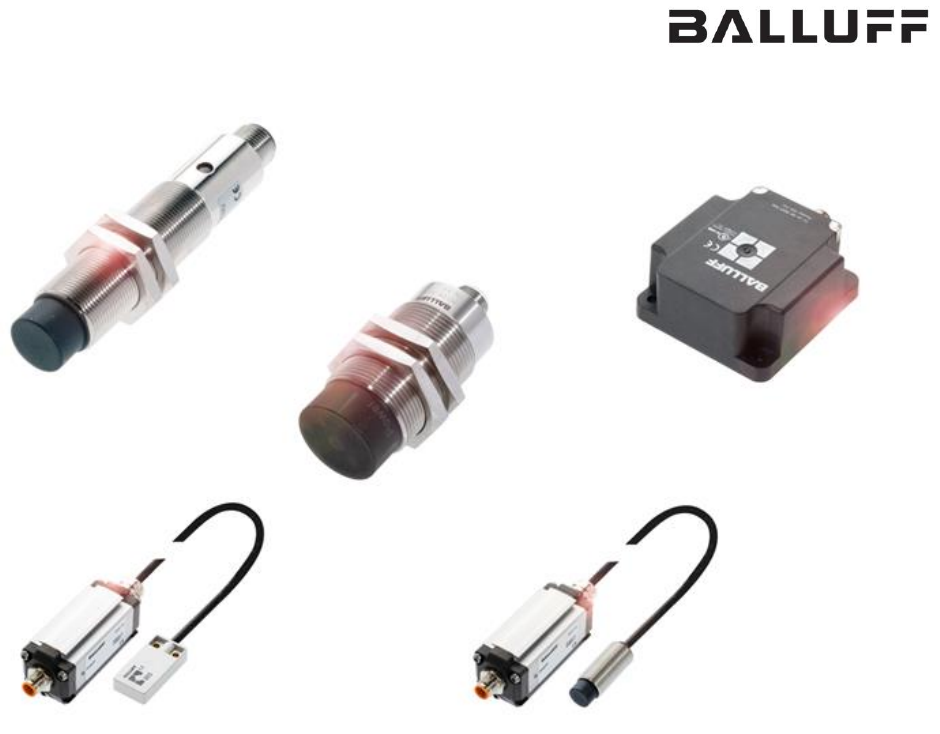

BF-IDM26 RFID Readers are available in different housings and shapes.
![](/img.php?id=3840947&img=bg4.png)
Model:
BF-IDM26 Operating Guide
RFID Reader
Connecting the Device
BF-IDM26 devices operate in combination with any IO-Link Master device. For the connection a
shielded standard type 4-wire cable M12 / A-coded is used.

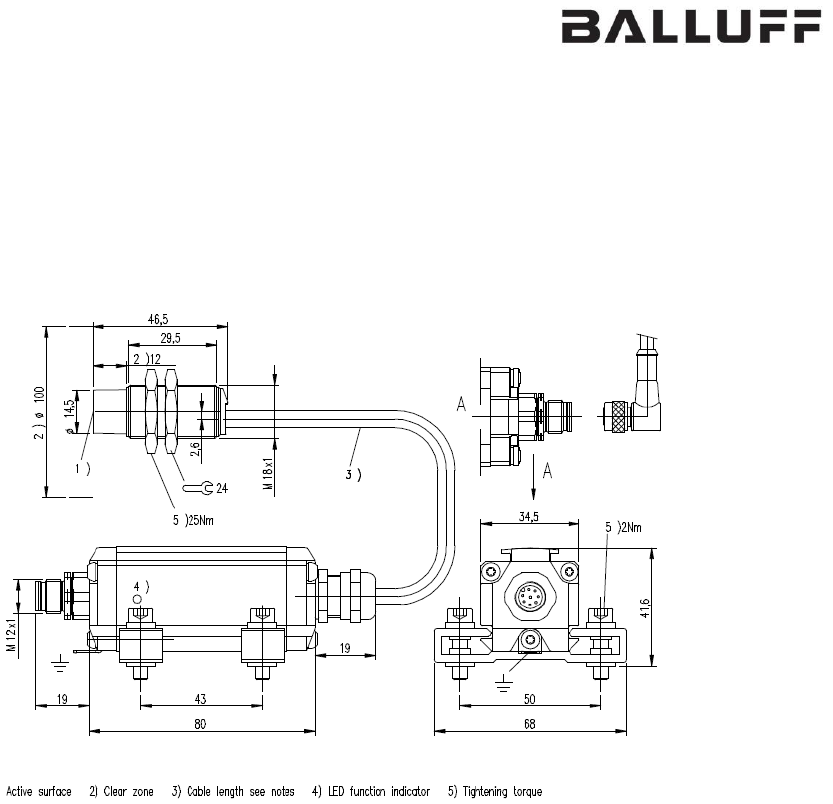

Picture 1: Example Application
To ensure reliable operation in strong EMC environments it is recommended to connect metal
housings or dedicated functional ground pins directly to installations ground. The ground
connection should be short and stable. Depending on the installation situation an indirect
ground connection using a RC combination may be required.
For further notes concerning the installation of the processor unit please refer to the operating
guide of the processor unit.
![](/img.php?id=3840947&img=bg5.png)
Model:
BF-IDM26 Operating Guide
RFID Reader
Installation notes
For proper operation at first a suitable mounting position has to be evaluated. The position
should respect the recommended clear zones as described. Furthermore, please note that
strong electrical or magnetic fields in the close environment may influence the RFID Reader.
Precise information concerning clear zones and distances are available on request.
For BF-IDM26 Readers are available in different housings respectively shapes different types of
installation may be considered.
a) Direct In-Hole mounting (Example):

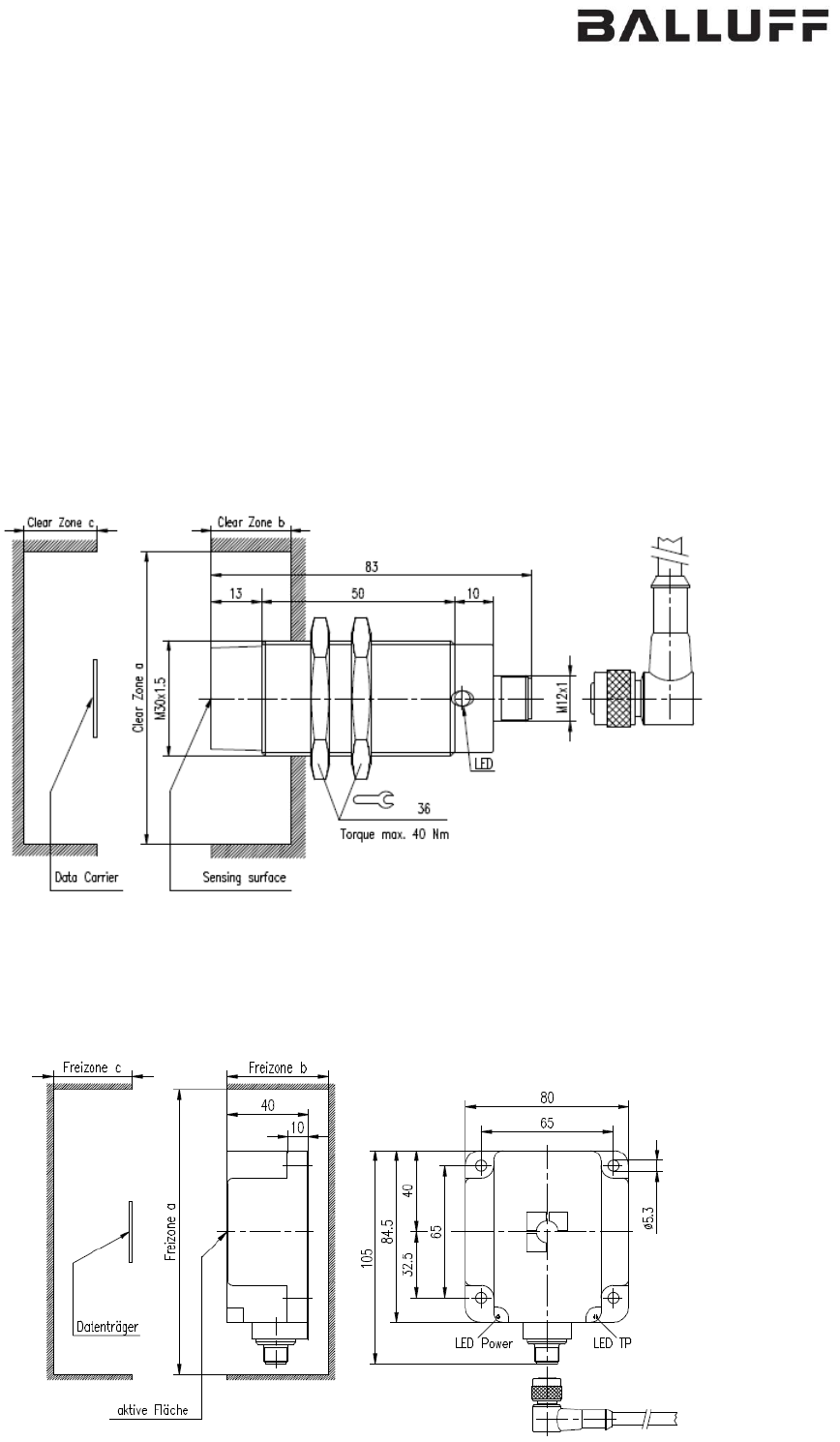

Picture 2: Direct In-Hole mounting (Example)
b) Direct On-Wall mounting (Example):
Picture 3: Direct On-Wall mounting (Example)
![](/img.php?id=3840947&img=bg6.png)
Model:
BF-IDM26 Operating Guide
RFID Reader
c) Indirect On-Wall mounting using metal holder (Example):
Picture 3: Indirect On-Wall mounting using metal holder (Example):
![](/img.php?id=3840947&img=bg7.png)
Model:
BF-IDM26 Operating Guide
RFID Reader
Setup and Operation
For operation of BF-IDM26 Readers a IO-Link Master device is needed. The Master is used as
gateway between higher level controllers and RFID Reader.
Status Indicators
The device will show its status using the 2 LEDs at the corners of the housing. In normal
operation state the meaning of these lights are as follows:
► Green light "Power" indicates that the device is connected to the processor unit and ready to
operate.
► Orange light "Tag present" indicates that a RFID tag has been detected in front of the
transceiver coil.
Electrical Data
Operating voltage (nominal)
+24 V DC
Current draw (at +24 V DC)
≤ 200 mA
Operating Frequency
13.56 MHz
Active principle
Magnetic field
Transmit power
Class 5
Mechanical Data
Housing Material
Metal / ABS-GF16 / PBT / PA12-GF30
Weight max.
400g
Ambient temperature
0…+70°C
