HS500E
READ/WRITE INDUSTRIAL ETHERNET ANTENNA
Escort Memory Systems’ Active Radio Frequency Identification Device
OPERATOR’S MANUAL
How to Install, Configure and Operate
Escort Memory Systems’
HS500E Industrial Ethernet Antenna
HS500E Industrial Ethernet Antenna - Operator’s Manual - P/N: 17-1305 REV 01.D (08-05)
![](/img.php?id=580816&img=bg3.png)
FCC COMPLIANCE NOTICE
FCC Part 15
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment uses, generates, and can radiate radio frequency energy and, if not
installed and used in accordance with these instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Users are cautioned that changes or modifications to the unit not expressly approved
by Escort Memory Systems may void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference that may cause undesired operation.
This product complies with CFR Title 21 Part 15.
![](/img.php?id=580816&img=bg4.png)
TABLE OF CONTENTS
TABLE OF CONTENTS
TABLE OF CONTENTS.............................................................................................4
CHAPTER 1: GETTING STARTED...........................................................................6
1.1 Introduction.............................................................................................................6
Company Background ................................................................................................................. 6
RFID Overview ............................................................................................................................ 6
1.2 About this Manual...................................................................................................7
Who Should Read this Manual?.................................................................................................. 7
HEX Notation............................................................................................................................... 7
1.3 HS500E Dimensions & Diagrams ..........................................................................8
CHAPTER 2: INTERFACING WITH THE HS500E..................................................11
2.1 MODBUS-TCP Interface........................................................................................12
2.2 Ethernet/IP Interface.............................................................................................14
2.3 TCP/IP Interface ....................................................................................................18

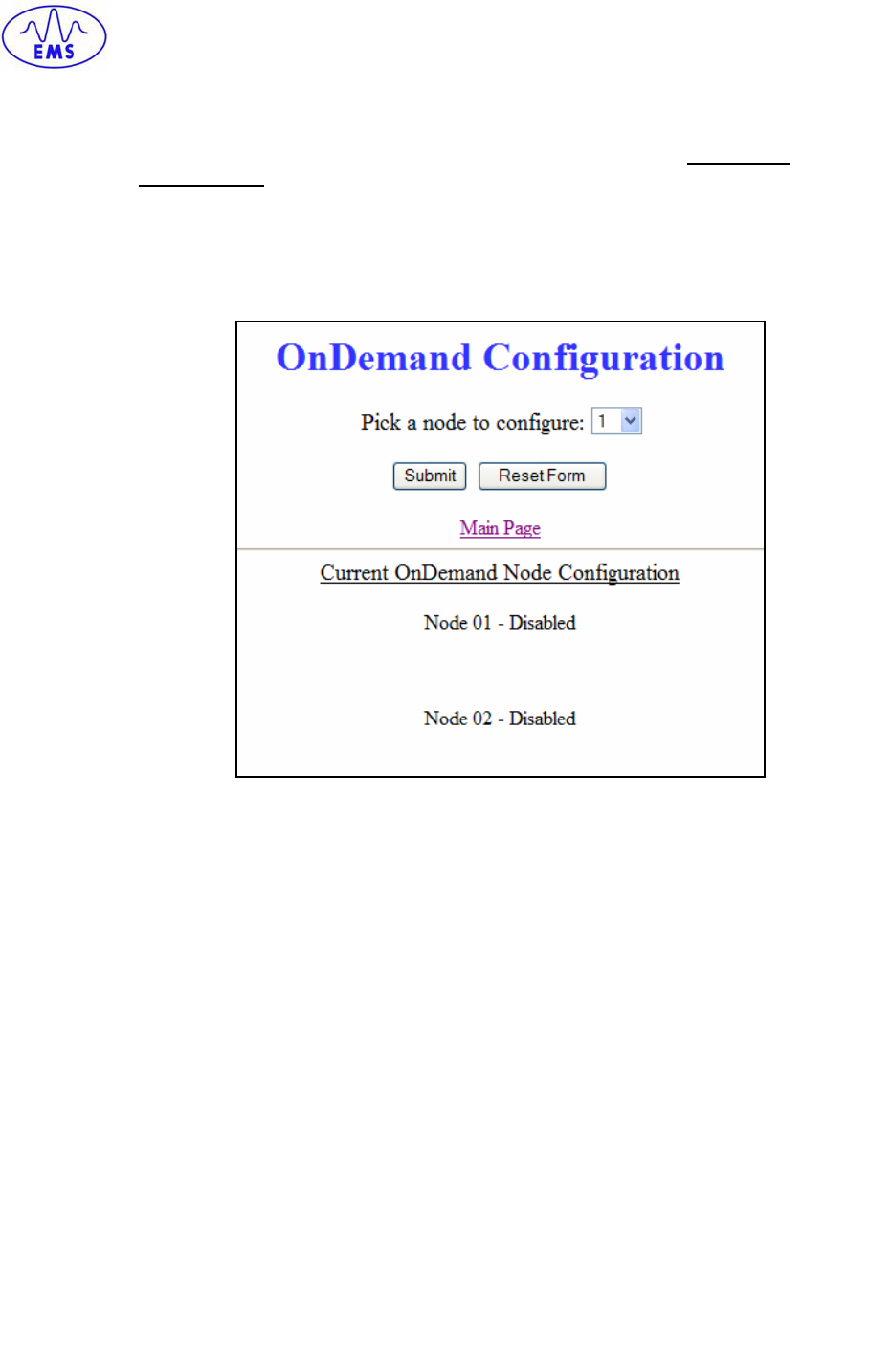

2.4 OnDemand Configuration ....................................................................................21
2.4.1 IP Configuration............................................................................................................. 22
2.4.2 OnDemand Configuration ............................................................................................. 23
2.4.3 Configuring the PLC...................................................................................................... 26
2.5 Checking Communication Status........................................................................27
2.5.1 Checking the OnDemand Status Page ......................................................................... 27

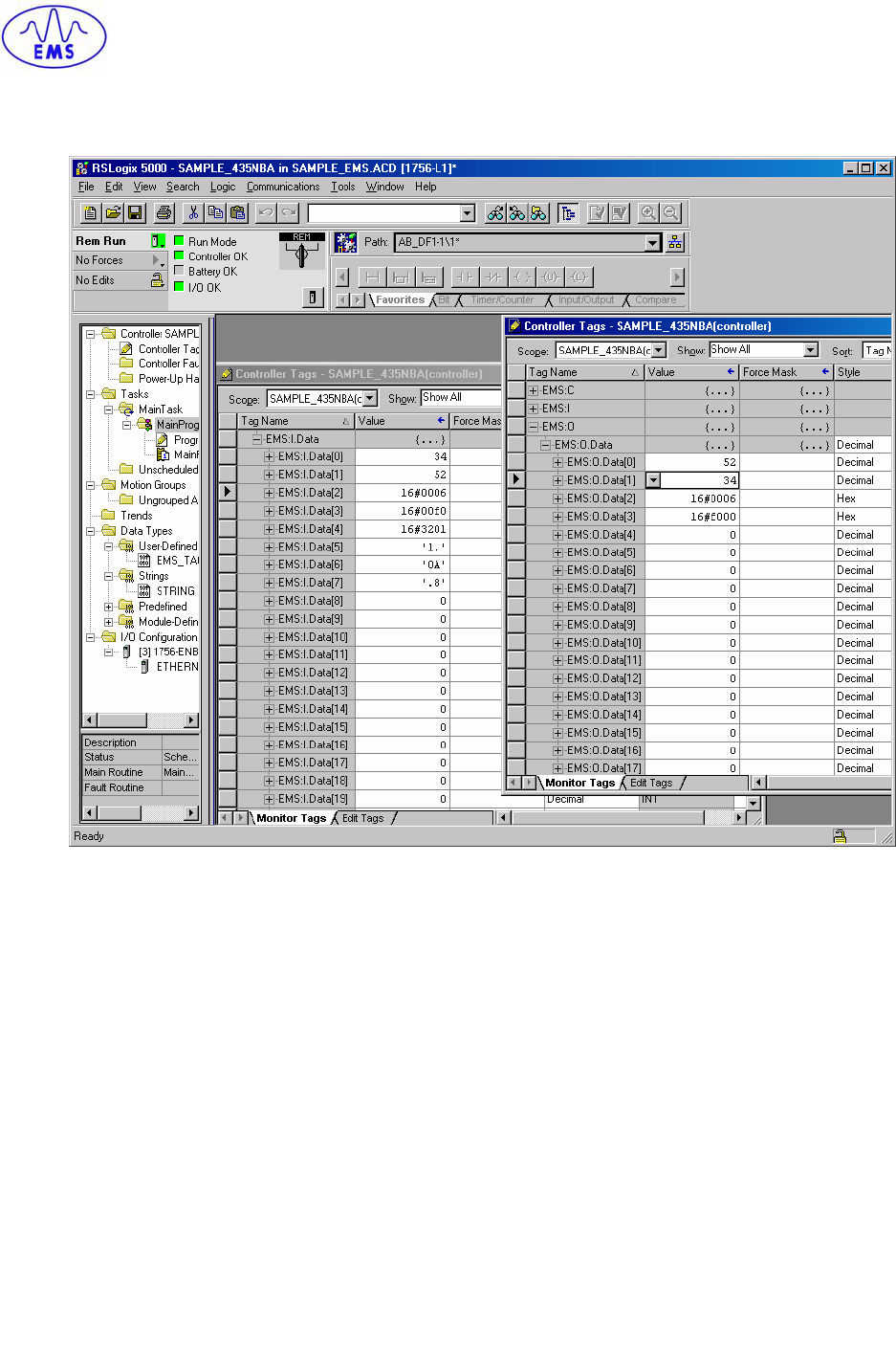

2.6 VERIFYING THE EXCHANGE OF DATA VIA RSLOGIX 5000.............................28
2.6.1 Handshaking ................................................................................................................. 29
2.6.2 Handshaking Example .................................................................................................. 29
CHAPTER 3: RFID COMMANDS............................................................................32
3.1 Command Structure .............................................................................................32
RFID Command Packet Structure ............................................................................................. 32
3.2 RFID Commands...................................................................................................33
RFID Commands Table.............................................................................................................33
Command 02: Read Data...............................................................................................34
Command 03: Write Data...............................................................................................36
Command 05: Fill Tag....................................................................................................38
Command F0: Read HS500E Information ....................................................................40
Command F1: Test LEDs / Read HS500E Information................................................42
Command F2: Start/Stop Repetitive Command ..........................................................44
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 4 OF 51
![](/img.php?id=580816&img=bg5.png)
TABLE OF CONTENTS
Command F3: Write IP Address....................................................................................46
Command F4: Reset Battery Counter Value................................................................47
CHAPTER 4: ERROR CODES ................................................................................48
Basic Error Types...........................................................................................................48
Overall Length Errors................................................................................................................. 48
Length Limits ............................................................................................................................. 48
Write Length Limit...................................................................................................................... 48
Timeout Fail Code ..................................................................................................................... 48
APPENDIX A: ASCII CHART..................................................................................49
EMS WARRANTY....................................................................................................51
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 5 OF 51
![](/img.php?id=580816&img=bg6.png)
CHAPTER 1: GETTING STARTED
CHAPTER 1: GETTING STARTED
This chapter contains an introduction to Escort Memory Systems and includes
general information relating to the HS500E Industrial Ethernet Antenna and common
uses for RFID technology.
1.1 INTRODUCTION
Welcome to the HS500E Industrial Ethernet Antenna - Operator’s Manual. This
manual will assist you in the installation, configuration and operation of Escort
Memory Systems’ HS500E Industrial Ethernet Antenna.

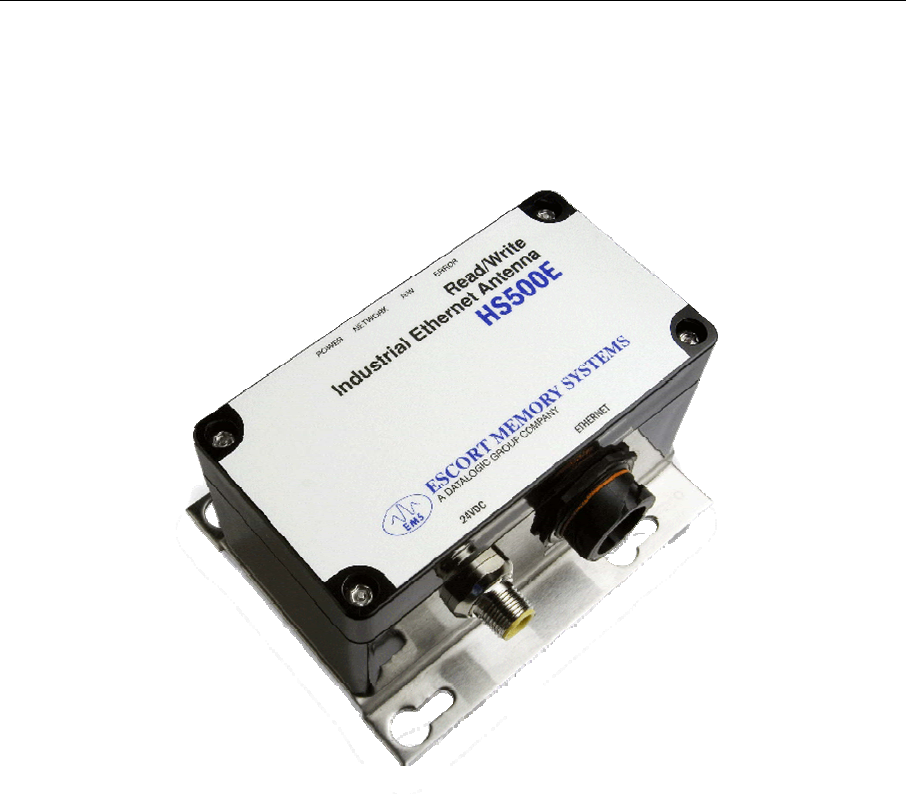

The HS500E Ethernet
Antenna is a complete
read/write Radio-
Frequency Identification
solution. It is designed
to be reliable and
rugged, in order to meet
and exceed the
requirements of the
industrial automation
industry. The HS500E
Ethernet Antenna
provides RFID data
collection and control
solutions to shop floor,
item-level tracking and
material handling
applications. Escort Memory Systems’ headquarters in
Scotts Valley, CA.
Company Background
Escort Memory Systems has long been an industry leader in providing Radio
Frequency Identification (RFID) devices, building a solid reputation by consistently
delivering an extended selection of quality, durable industrial RFID systems.
RFID Overview
The first step in most RFID systems involves attaching a tag to a product or its carrier.
The RFID tag acts as an electronic identifier, portable job sheet, or real-time tracking
database. Tags are identified, read and written to by issuing specific commands from
a Host computer. Tags can be read and written to through any nonconductive, non-
metallic material, while moving or standing still, in or out of the direct line of sight.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 6 OF 51
![](/img.php?id=580816&img=bg7.png)
CHAPTER 1: GETTING STARTED
1.2 ABOUT THIS MANUAL
This document provides guidelines and instructions on how to install and operate the
HS500E Industrial Ethernet Antenna. Also included are descriptions of the RFID
command set with instructions detailing how to issue commands from the Host
0E.
computer to the HS50
SIDE NOTE:
Occasionally throughout this manual, we refer to the HS500E
Industrial Ethernet Antenna as the HS500E, the HS500E
Antenna, the Industrial Antenna or just simply “the Antenna.”
Who Should Read this Manual?
Those who will be installing, configuring and operating the HS500E should read this
manual. This may include the following people:
• Hardware Installers
• System Integrators
• Project Managers
• IT Personnel
• System and Database Administrators
• Software Application Engineers
• Service and Maintenance Engineers
HEX Notation
In this manual, numbers expressed in Hexadecimal notation are prefaced with “0x”.
For example, the number "10" in decimal is expressed as "0x0A" in hexadecimal.
See Appendix A for a chart containing Hex values, ASCII characters and their
corresponding decimal integers.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 7 OF 51
![](/img.php?id=580816&img=bg8.png)
CHAPTER 1: GETTING STARTED
1.3 HS500E DIMENSIONS & DIAGRAMS

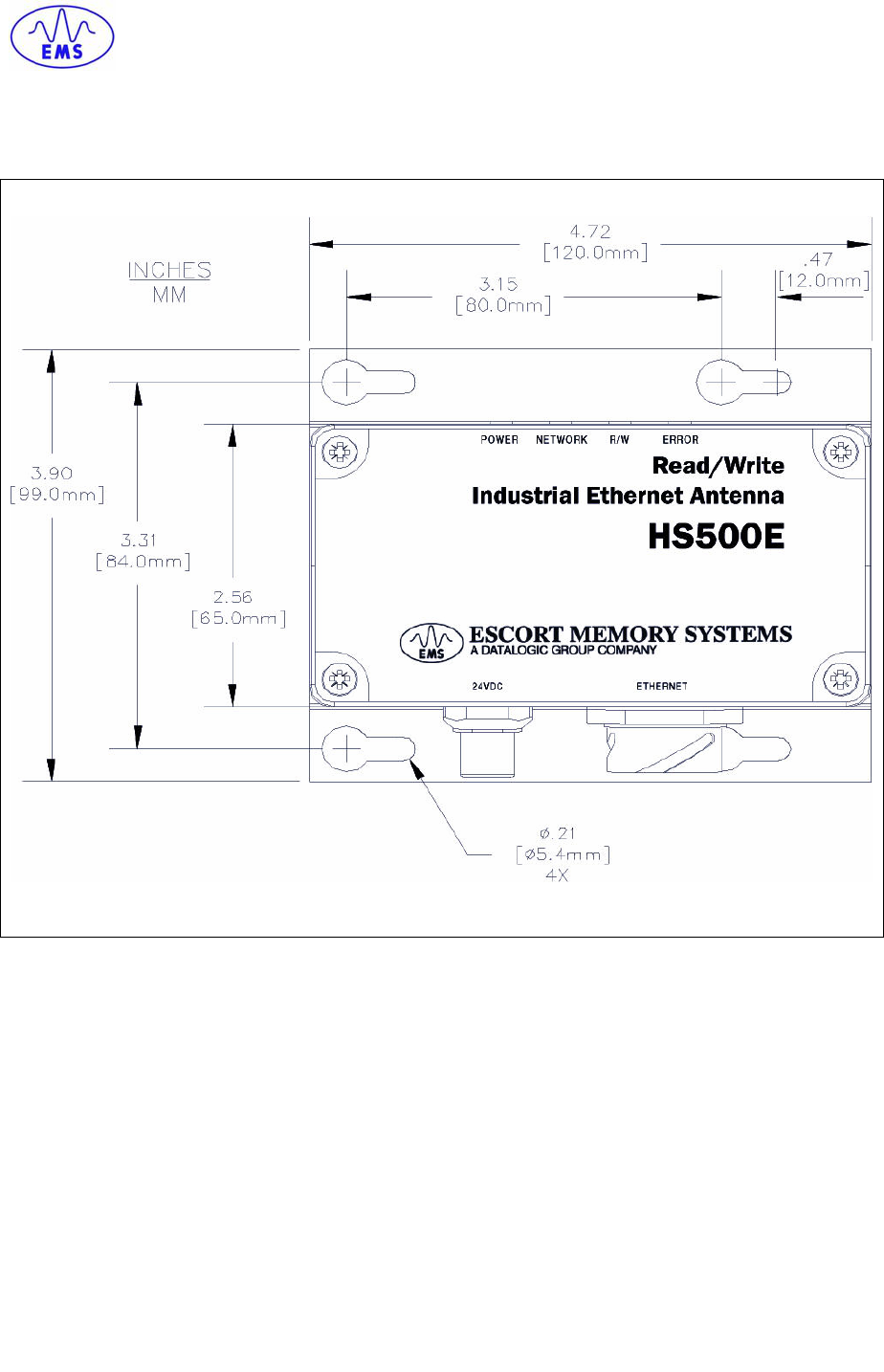

HS500E - Dimensions
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 8 OF 51
![](/img.php?id=580816&img=bg9.png)
CHAPTER 1: GETTING STARTED

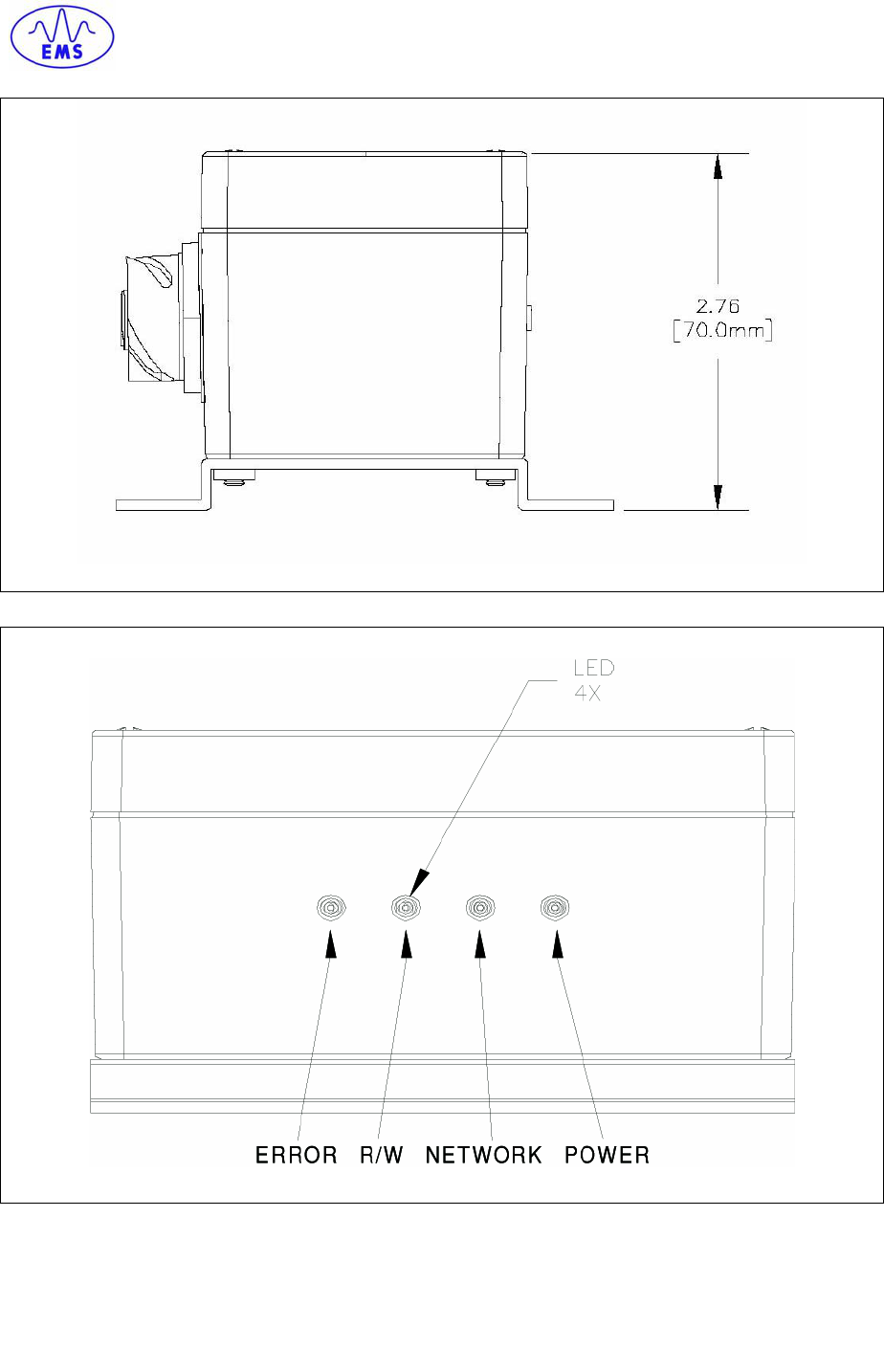

HS500E Side/Profile View
HS500E LEDs
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 9 OF 51
![](/img.php?id=580816&img=bga.png)
CHAPTER 1: GETTING STARTED

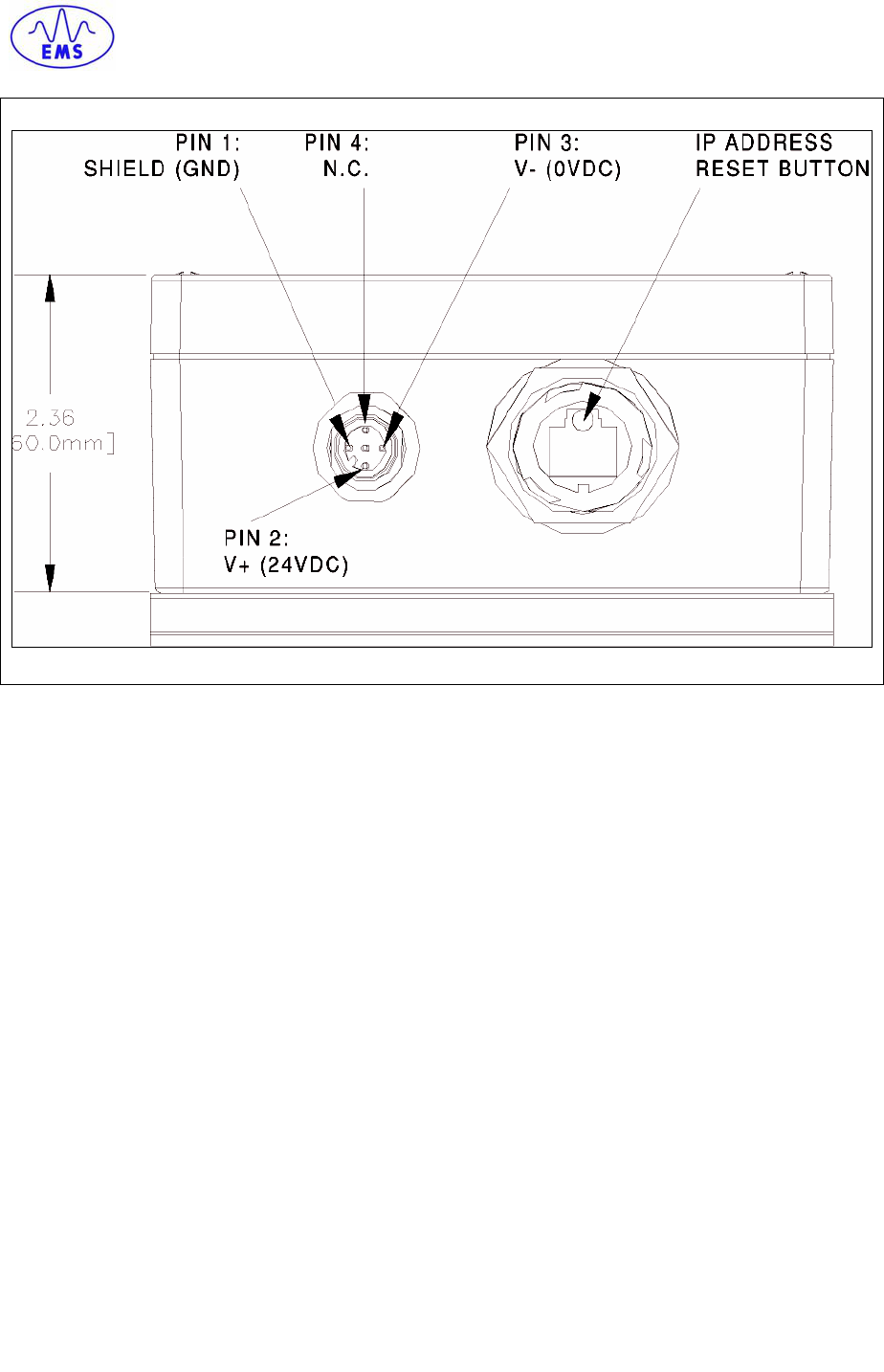

HS500E – Power & Ethernet Connections
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 10 OF 51
![](/img.php?id=580816&img=bgb.png)
CHAPTER 2: INTERFACING WITH THE HS500E
CHAPTER 2: INTERFACING WITH THE HS500E
The HS500E supports four different interface connections over Ethernet.
• MODBUS-TCP
• ETHERNET-IP
• TCP-IP
• OnDemand
The process of issuing commands and receiving responses depends on the interface
chosen and the Host computer that is connected to the HS500E.
This chapter contains a brief overview of how commands can be sent using the four
different interfaces listed above.
For additional information regarding the interface used by your particular RFID
application, please refer to the documentation for your Host software program.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 11 OF 51
![](/img.php?id=580816&img=bgc.png)
CHAPTER 2: INTERFACING WITH THE HS500E
2.1 MODBUS-TCP INTERFACE
Note: Maximum number of registers transferred to/from an RFID tag per command
issued = 125 Registers (250 Bytes).
Commands must be placed in the Holding Register Area of Node 1, starting at
address 40001. Most commands utilize 6 registers (double-byte values or words).
The Write Data command will require more words to transmit the data used for the
Write.
The first register, 40001, indicates the number of words in the Command Packet
(including the Overall Length). The command will trigger a response which will be
returned at Node Address 33 (Device ID 33), in registers 40001 and up. Below is an

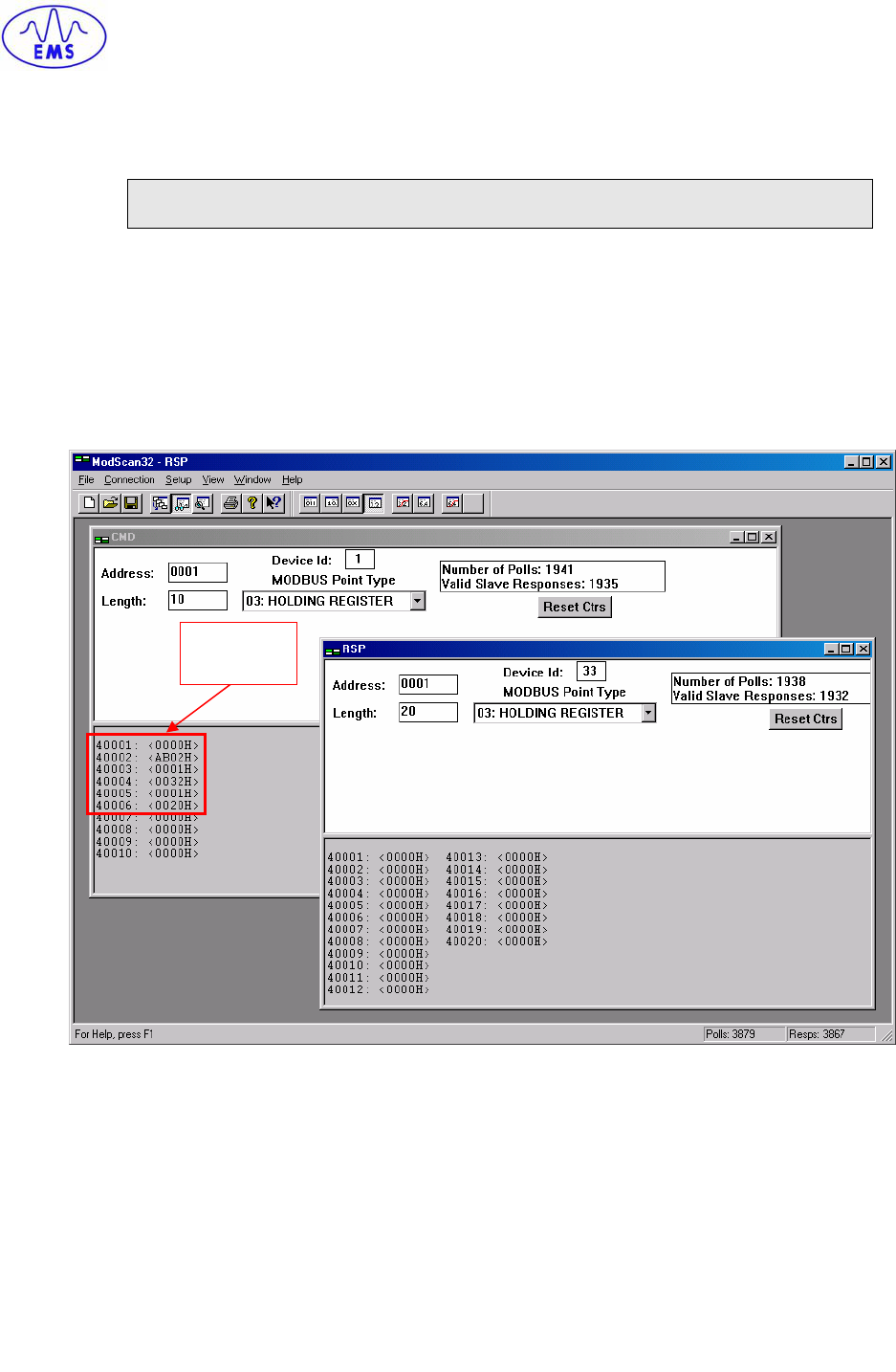

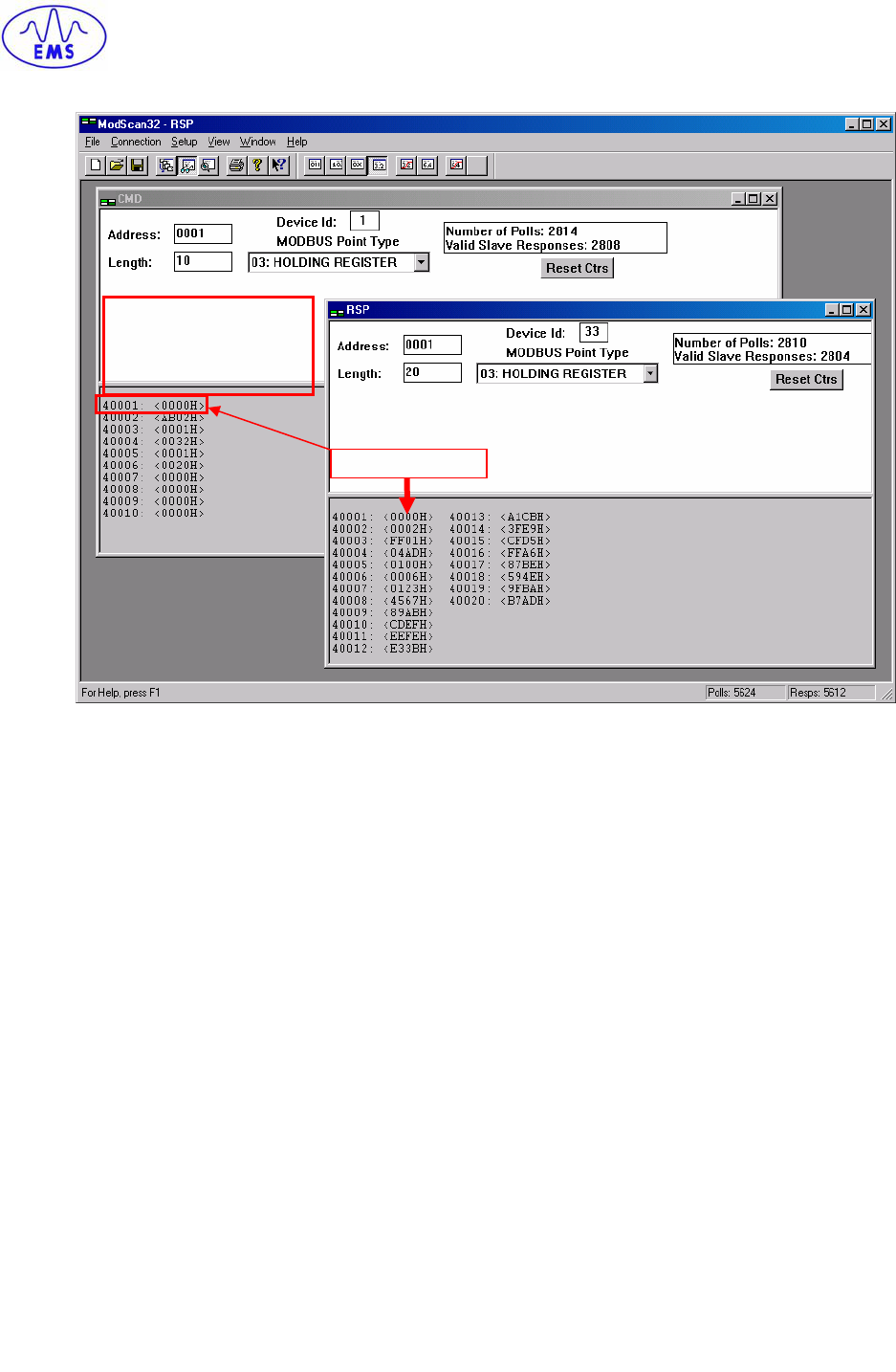

example taken from Modscan32, a utility that implements ModBus on a PC.
Input
The input area is highlighted in red. When the value of the 40001 register for Node
Address 1 transitions from 0 to a non-zero length, the command will be issued by the
Host and executed by the HS500E. The resulting response is reported in the output
area at Node Address 33 (Device ID 33).
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 12 OF 51
![](/img.php?id=580816&img=bgd.png)
CHAPTER 2: INTERFACING WITH THE HS500E
When the length is set at
40001, the command is
executed and the result
returned.

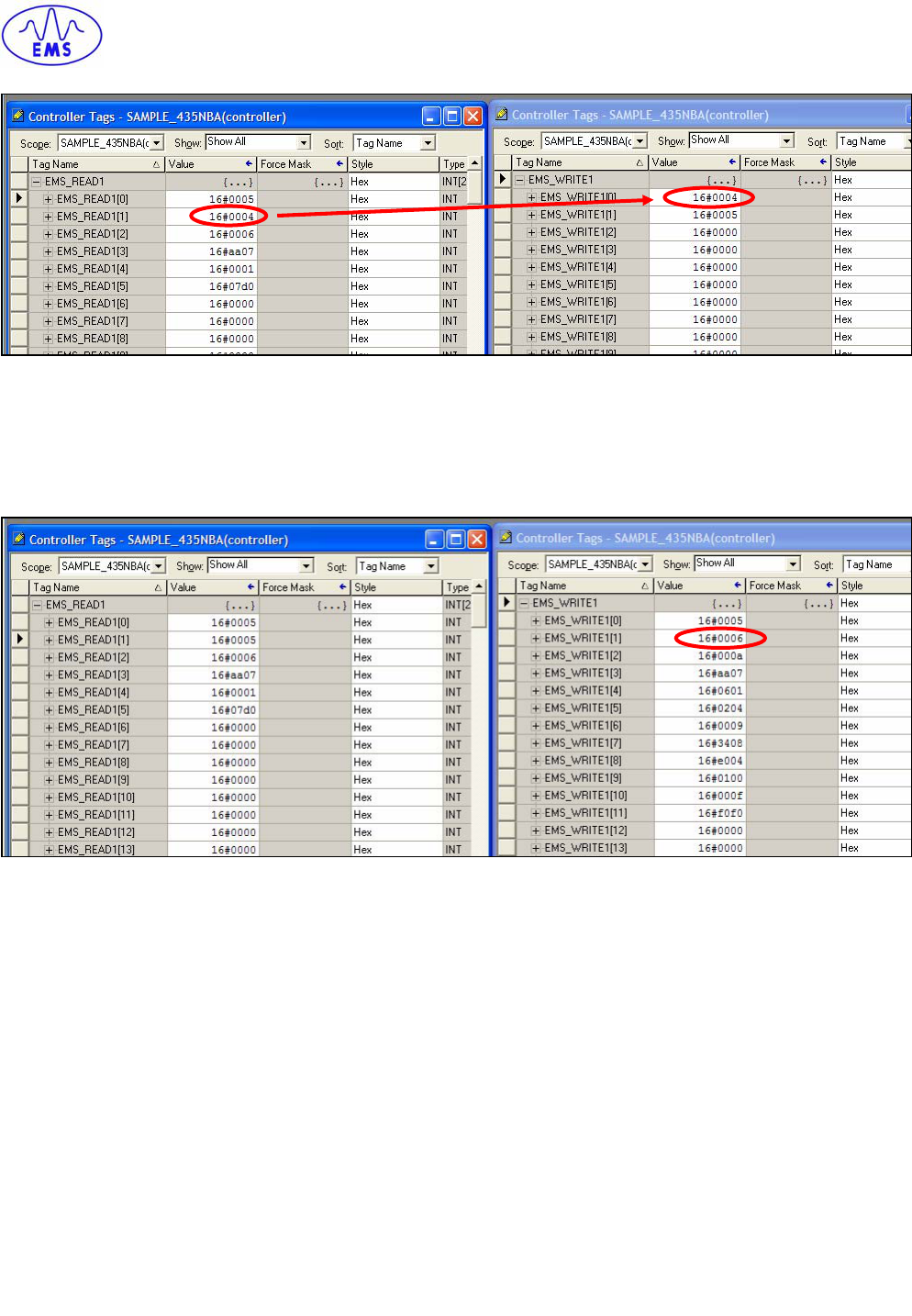

40001: <0006H>
When the command is completed, the HS500E will reset the length at 40001 of Node
Address 1 back to 0. This way a simple handshaking mechanism can be
implemented.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 13 OF 51
![](/img.php?id=580816&img=bge.png)
CHAPTER 2: INTERFACING WITH THE HS500E
2.2 ETHERNET/IP INTERFACE
The mechanism to send commands over Ethernet/IP is similar to that of MODBUS-
TCP. Commands must still be copied to the appropriate registers. However, the

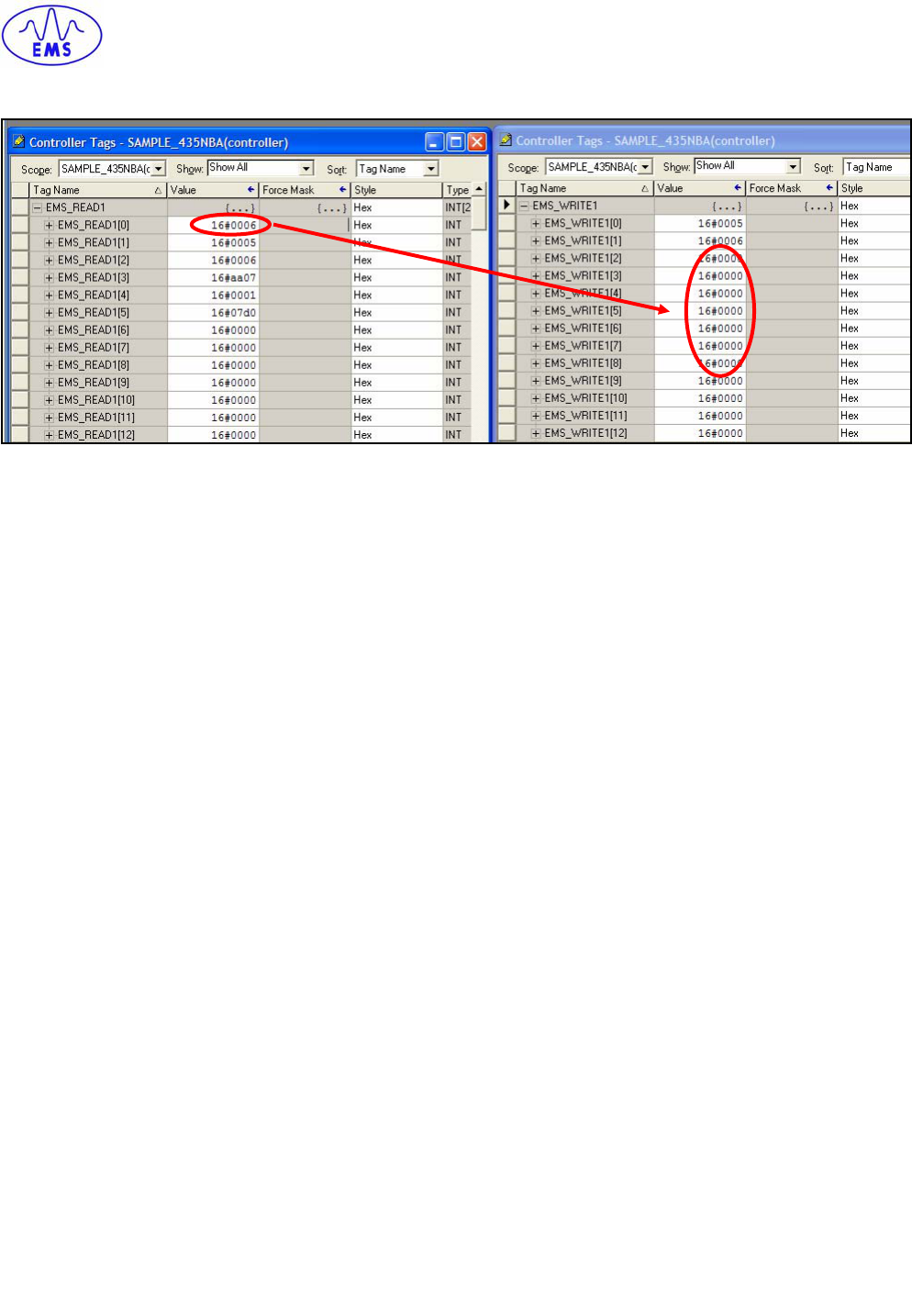

mechanism for handshaking is different. For example, in a ControlLogix environment,
commands must be written to the ControlLogix tags that are generated when the
HS500E is added to the I/O Configuration.

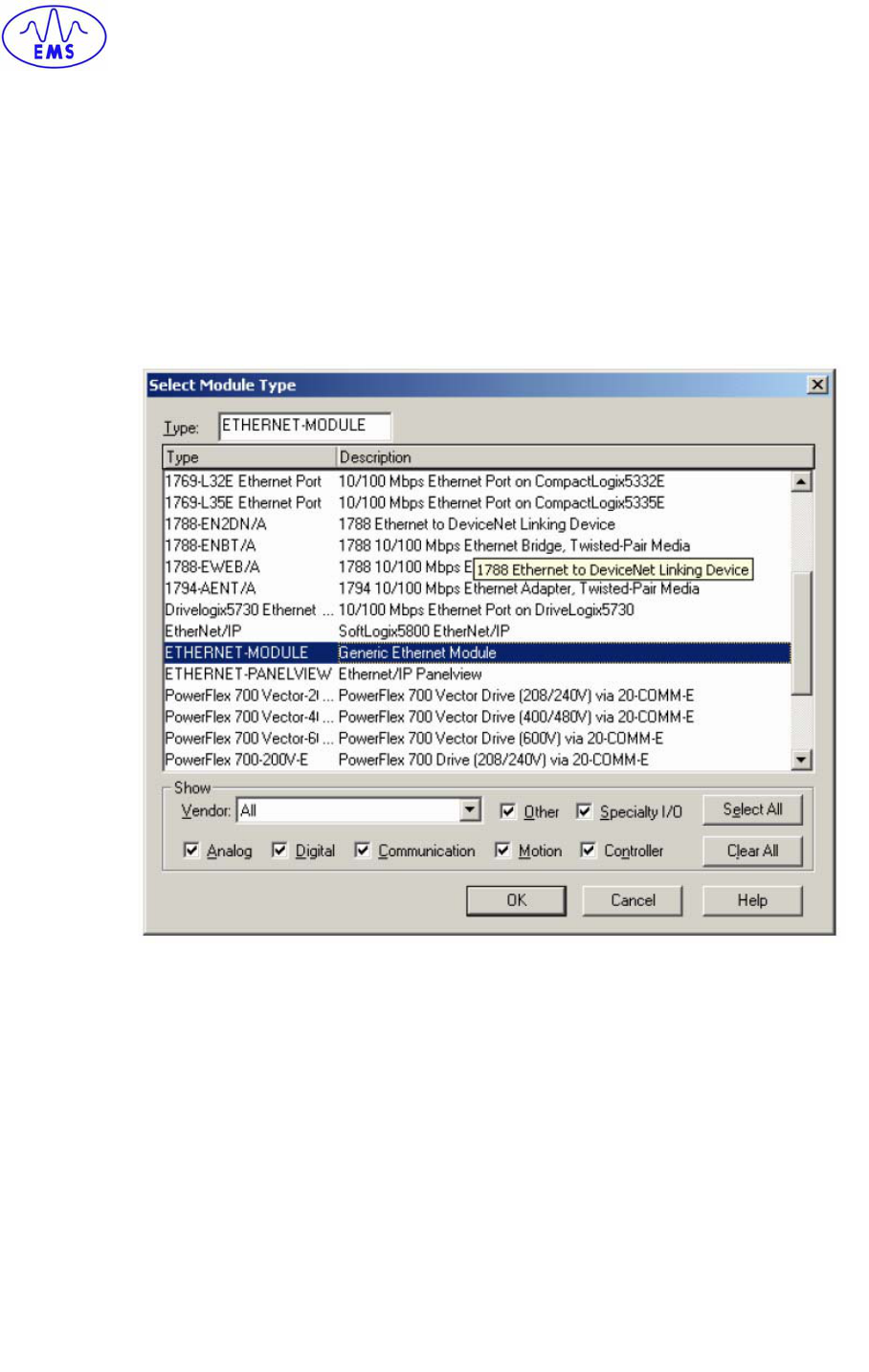

The first step is to add the HS500E to the ControlLogix PLC. To add the HS500E to
the PLC using RSLogix5000, right click on the Ethernet Bridge Device and select
“New Module…” Choose Generic Ethernet Module.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 14 OF 51
![](/img.php?id=580816&img=bgf.png)
CHAPTER 2: INTERFACING WITH THE HS500E

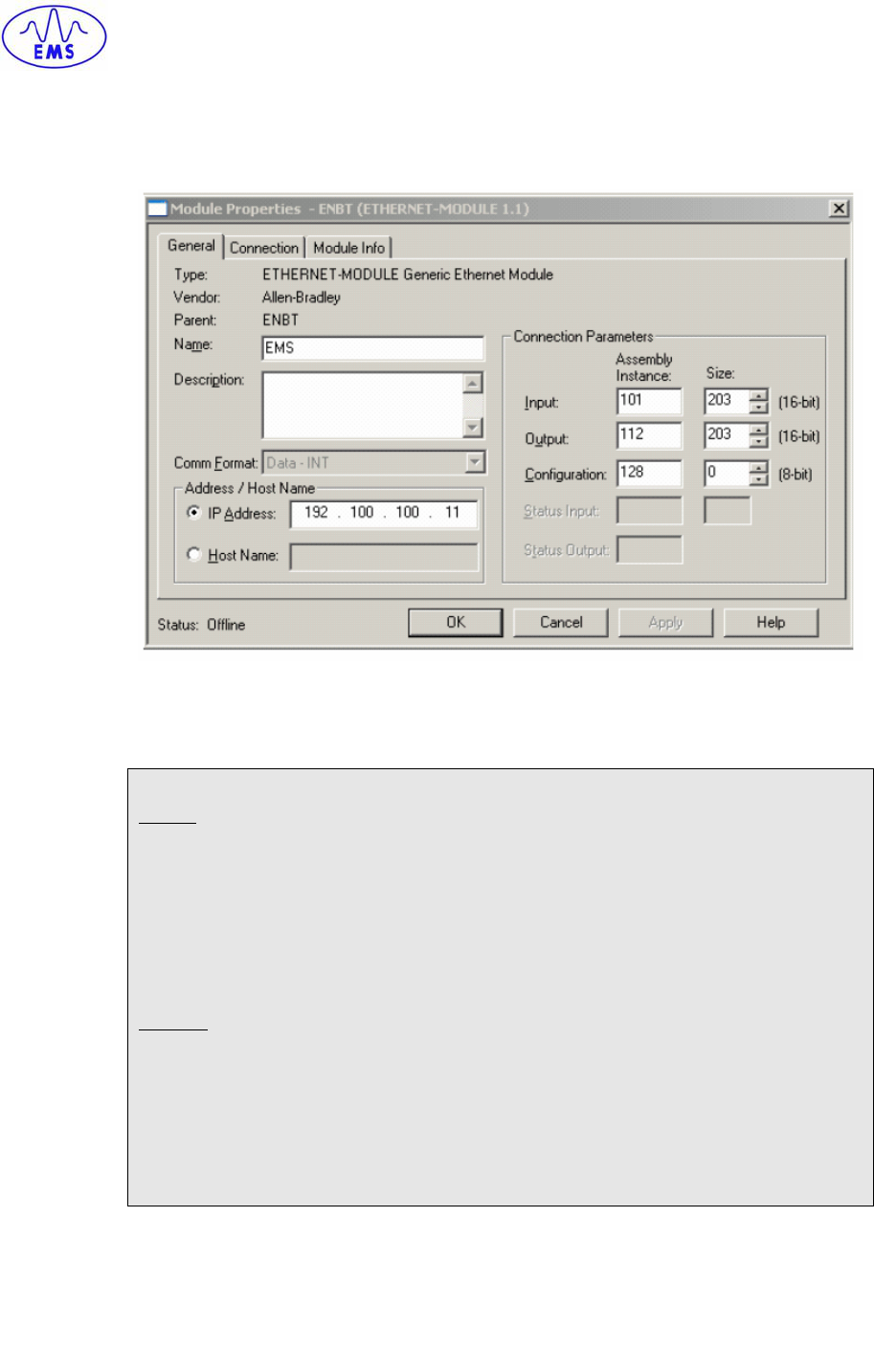

Assign a name to the new device. In the example below, the device has been named
EMS. Configure the IP Address to match the IP Address of the HS500E. Match the
Connection Parameters to the image below.
After clicking the OK button, there will be predefined tags containing the specified I/O
Information.
Predefined Tags
INPUT
EMS:I.Data [0] = Consume Data Sequence Number Handshake
EMS:I.Data [1] = Produce Data Sequence Number
EMS:I.Data [2] = Node 1 Serial Produce Data Size
EMS:I.Data [3-202] = Node 1 Serial Produce Data
OUTPUT
EMS:O.Data [0] = Produce Data Sequence Number Handshake
EMS:O.Data [1] = Consume Data Sequence Number
EMS:O.Data [2] = Node 1 Serial Consume Data Size
EMS:O.Data [3-202] = Node 1 Serial Consume Data
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 15 OF 51
![](/img.php?id=580816&img=bg10.png)
CHAPTER 2: INTERFACING WITH THE HS500E

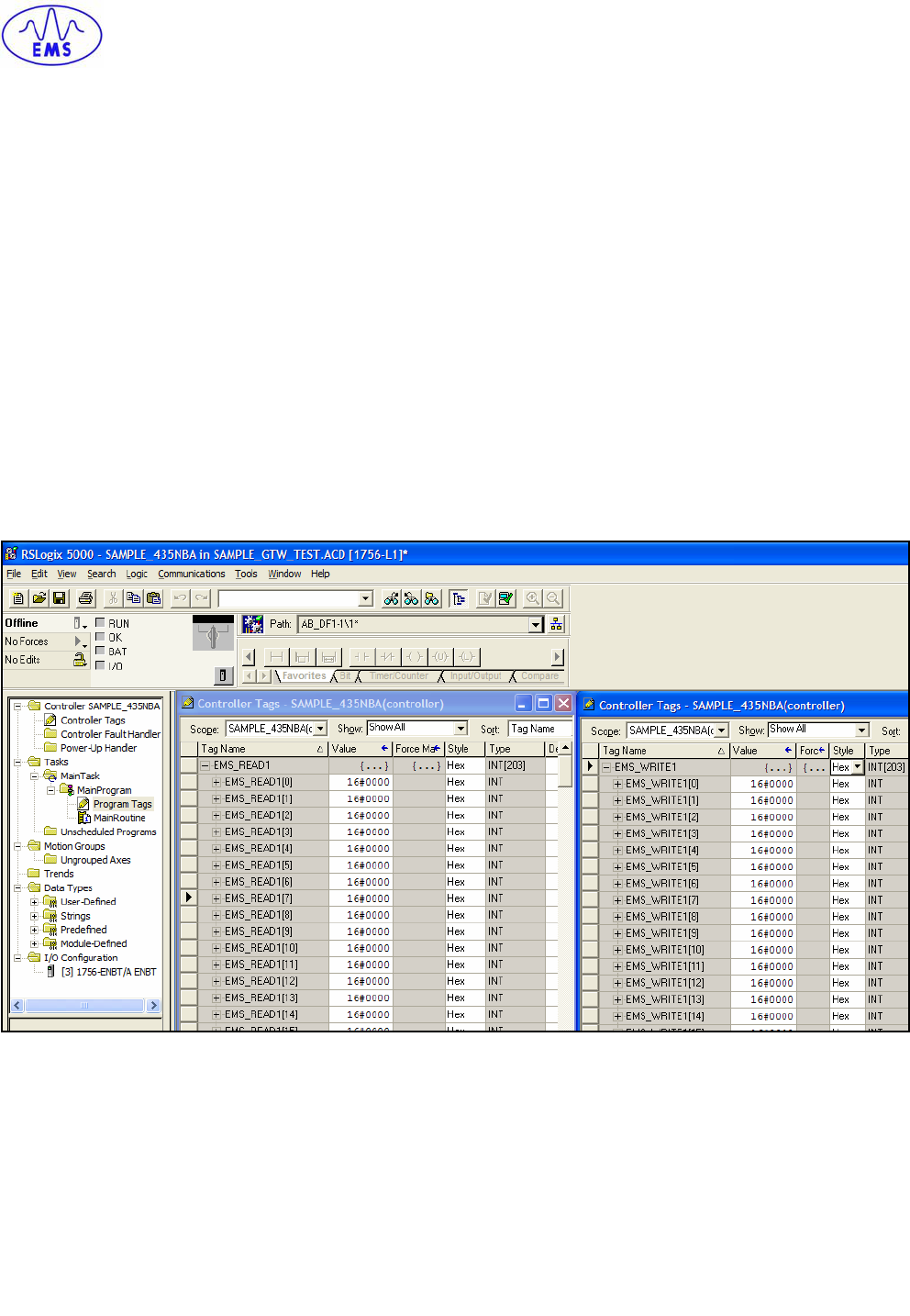

The image below displays the input and output tags during the execution of a
command:
Commands are placed into the O.Data structure, beginning at word 2, while their
corresponding responses can be located in the I.Data structure again beginning at
word 2. The data located at words 0 and 1 are used for handshaking.
The device that produces the information must increment the sequence number by
one for every data packet that is exchanged. The device that consumes the
information must echo the sequence number in the handshake location after the data
is processed. Valid sequence numbers are 1 to 65535, 0 is not allowed.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 16 OF 51
![](/img.php?id=580816&img=bg11.png)
CHAPTER 2: INTERFACING WITH THE HS500E
Below is a sample ladder logic program that sets up a timer to send a new request
every 1000ms. Every time a new message is sent, the command (0xF000) and
length (0x0006) are written to the I/O Data structure and the Consume Data
Sequence Number is incremented by 1. Note that if the Consume Data Sequence
Number reverts back to 0, the sequence number must be set to 1 (see rung 2 in the
image below). With each scan the PLC copies the Produce Data Sequence Number
to the Produce Data Sequence Number Handshake. This process is used to
acknowledge the receipt of the data from the HS500E.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 17 OF 51
![](/img.php?id=580816&img=bg12.png)
CHAPTER 2: INTERFACING WITH THE HS500E
2.3 TCP/IP INTERFACE
It is also possible to communicate with the HS500E through a standard TCP-IP
session. A session between the client software and the reader consists of a
connection setup, data transactions and the connection termination. The HS500E
acts as the server and the user must supply the client software.
All connections to the HS500E are initiated by client software only. If, for example, an
existing connection terminates unexpectedly, the HS500E will not attempt to contact
the client software to reestablish the connection. The client software is responsible
for opening, maintaining, and closing any TCP-IP session.
The client software must first establish a TCP socket connection to the Ethernet
Antenna on port 50200. After connecting successfully, communication between the
client software and the Ethernet Antenna can proceed. When communication with the
Ethernet Antenna is no longer necessary, it is the responsibility of the client
application to terminate the connection.
RFID Commands follow the format below:
<Data_Size><Data><Reserved_Fields><Checksum>
WHERE:
<Data_Size> = data length in number of words.
<Data> = words that comprise the command.
<Reserved_Fields> = will always be 0x00, 0x00
<Checksum> = 16-bit 2’s compliment of the sum of all bytes
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 18 OF 51
![](/img.php?id=580816&img=bg13.png)
CHAPTER 2: INTERFACING WITH THE HS500E
Example:
The string below is an example of a Read Data command sent to the HS500E:
0x00 0x06 0xAB 0x02 0x00 0x01 0x00 0x32 0x00 0x01 0x00 0x20 0x00 0x00 0xFE
0xF9
Note: the first 12 bytes are listed in the table below; the remaining 4 bytes are
reserved fields and checksum.
Command 02 - Read Data
Field Name MSB LSB Word Value
Overall Length 00 06 0006
Command ID Number AB 02 AB02
Node ID Number 00 01 0001
Timeout 00 32 0032
Start Address 00 01 0001
Read Length 00 20 0020
RFID Command Responses follow the format below:
<Data_Size><Data><Reserved_Field><Checksum>
WHERE:
<Data_Size> = data length in words.
<Data> = words of the command response.
<Reserved_Field> = N/A
<Checksum> = 16-bit 2’s compliment of the sum of all bytes.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 19 OF 51
![](/img.php?id=580816&img=bg14.png)
CHAPTER 2: INTERFACING WITH THE HS500E
2’s Compliment Example
Byte Value Sum
0 0x02 0x0002
1 0x00 0x0002
2 0x12 0x0014
3 0x34 0x0048
4 0x54 0x009E
5 0x78 0x0116
Description Binary Hexadecimal
SUM 0000 0001 0001 0110 0x0116
1’s Compliment 1111 1110 1110 1001 0xFEE9
2’s Compliment 1111 1110 1110 1010 0xFEEA
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 20 OF 51
![](/img.php?id=580816&img=bg15.png)
CHAPTER 2: INTERFACING WITH THE HS500E
2.4 ONDEMAND CONFIGURATION
After you have confirmed that the PC, HS500E and PLC can communicate, it is time
to use the HS500E’s built-in Web Server to configure the HS500E’s “OnDemand”
communications features. OnDemand links the Industrial Antenna to specific “Tags”
as defined in the ControlLogix PLC.
NOTE: the ControlLogix PLC refers to a “Tag” as a small block of internal memory
that is used to temporarily store outgoing (command) and incoming (response) data.
Within each tag, information is stored in two-byte segments, known as registers or
“words.”
OnDemand communications features are accessed through the HS500E’s built-in
Web Server.
1. Start by opening a Web browser on the PC.
2. In the URL address field, enter the Industrial Gateway’s IP address:
192.168.0.100
3. Press ENTER.
The OnDemand Website will be displayed.
To access the HS500E’s
OnDemand features, type
the HS500E’s IP address
into the URL Address field
(as depicted above) and
then press ENTER.

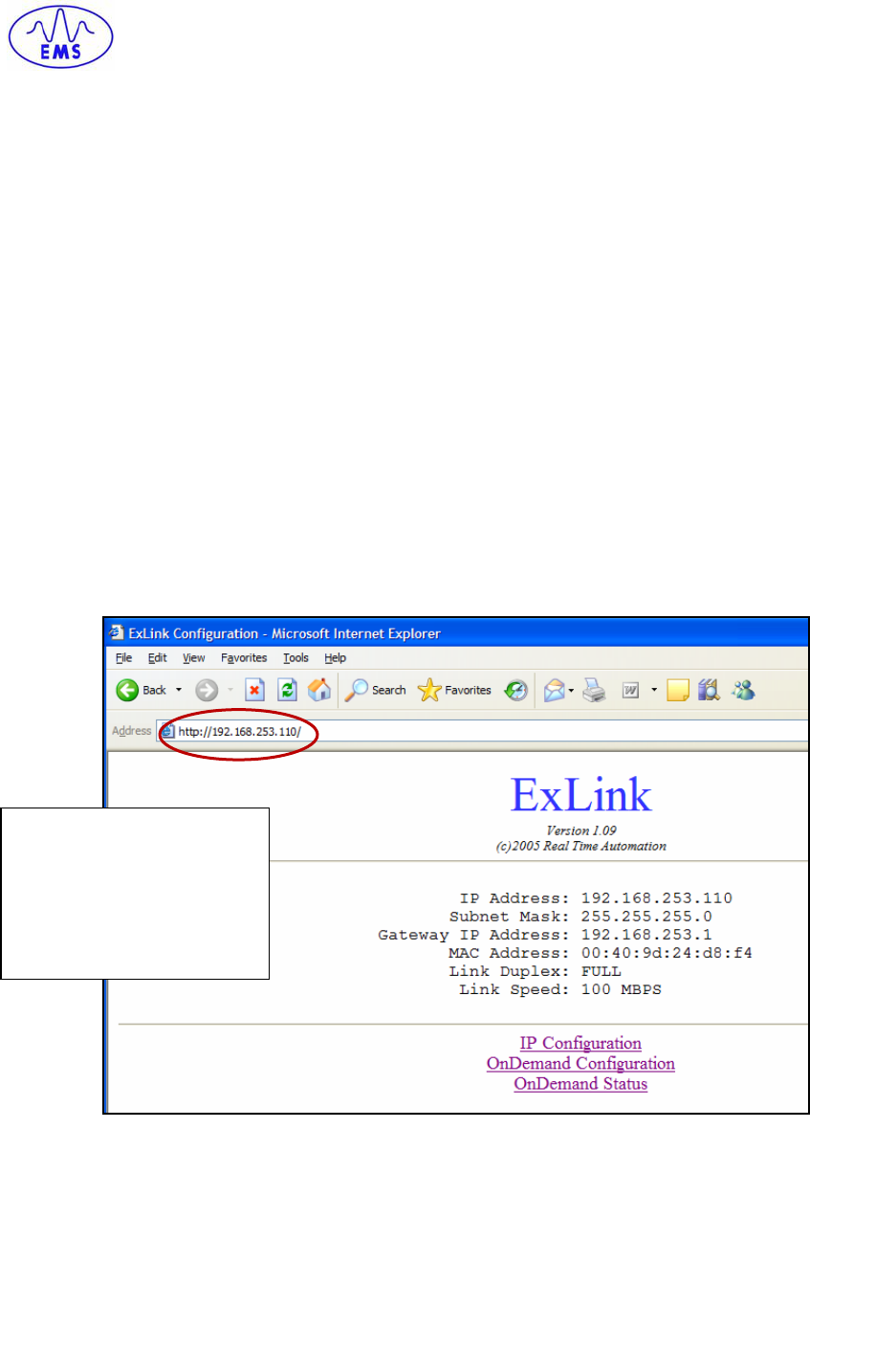

A screen shot of the HS500E’s OnDemand Website – Main Page
The Main Page of the OnDemand Website lists the IP address (and several other
network parameters) as currently stored on the HS500E.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 21 OF 51
![](/img.php?id=580816&img=bg16.png)
CHAPTER 2: INTERFACING WITH THE HS500E
There are three important links on this page. They are labeled:
• IP Configuration
• OnDemand Configuration
• OnDemand Status
2.4.1 IP Configuration
The IP Configuration page provides an option to modify and configure the HS500E’s
IP address, Subnet Mask and (Network) Gateway Address.
To modify the IP settings of the HS500E, go to the HS500E’s OnDemand Website
Main Page and click the IP Configuration link to arrive at the page displayed below.

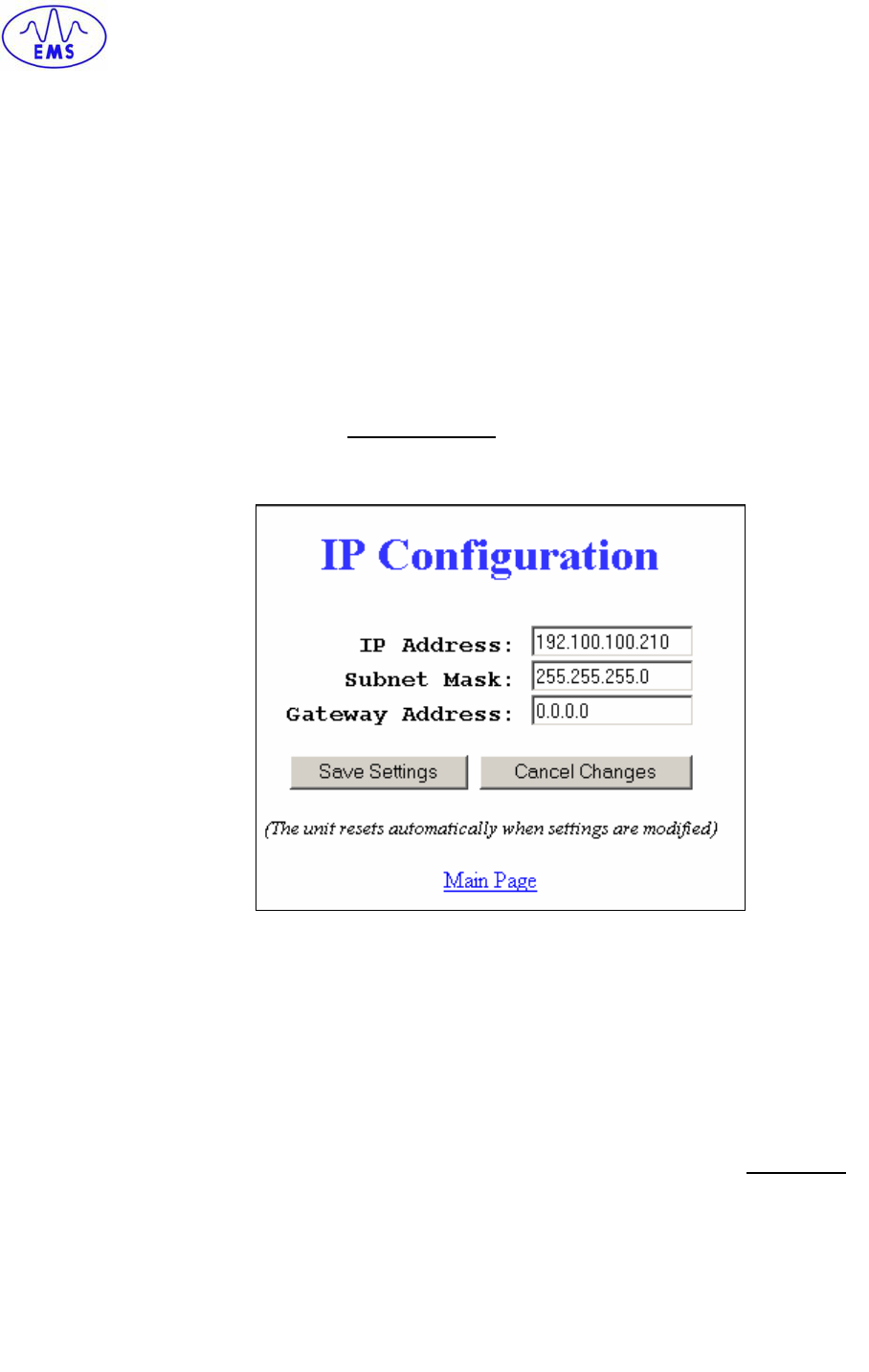

The OnDemand Website - IP Configuration Page
Enter the new IP configuration values in the fields provided.
Click the “Save Settings” button to store the configuration changes to the HS500E’s
flash memory.
Power will be automatically recycled to the unit at which time the HS500E will reset
and implement your IP configuration changes.
After the HS500E has completely restarted, you can view the new IP configuration by
opening a Web browser and entering the HS500E’s new IP address in the URL field.
To return to the OnDemand Website – Main Page, click the link labeled Main Page.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 22 OF 51
![](/img.php?id=580816&img=bg17.png)
CHAPTER 2: INTERFACING WITH THE HS500E
2.4.2 OnDemand Configuration
At the OnDemand Website – Main Page, Click the link labeled “OnDemand
Configuration.”
The OnDemand Configuration page will be displayed.
As noted, OnDemand is used to link the HS500E to specific tags defined in the
ControlLogix PLC. The OnDemand Configuration page allows you to modify the
settings of the HS500E’s Subnet Node.

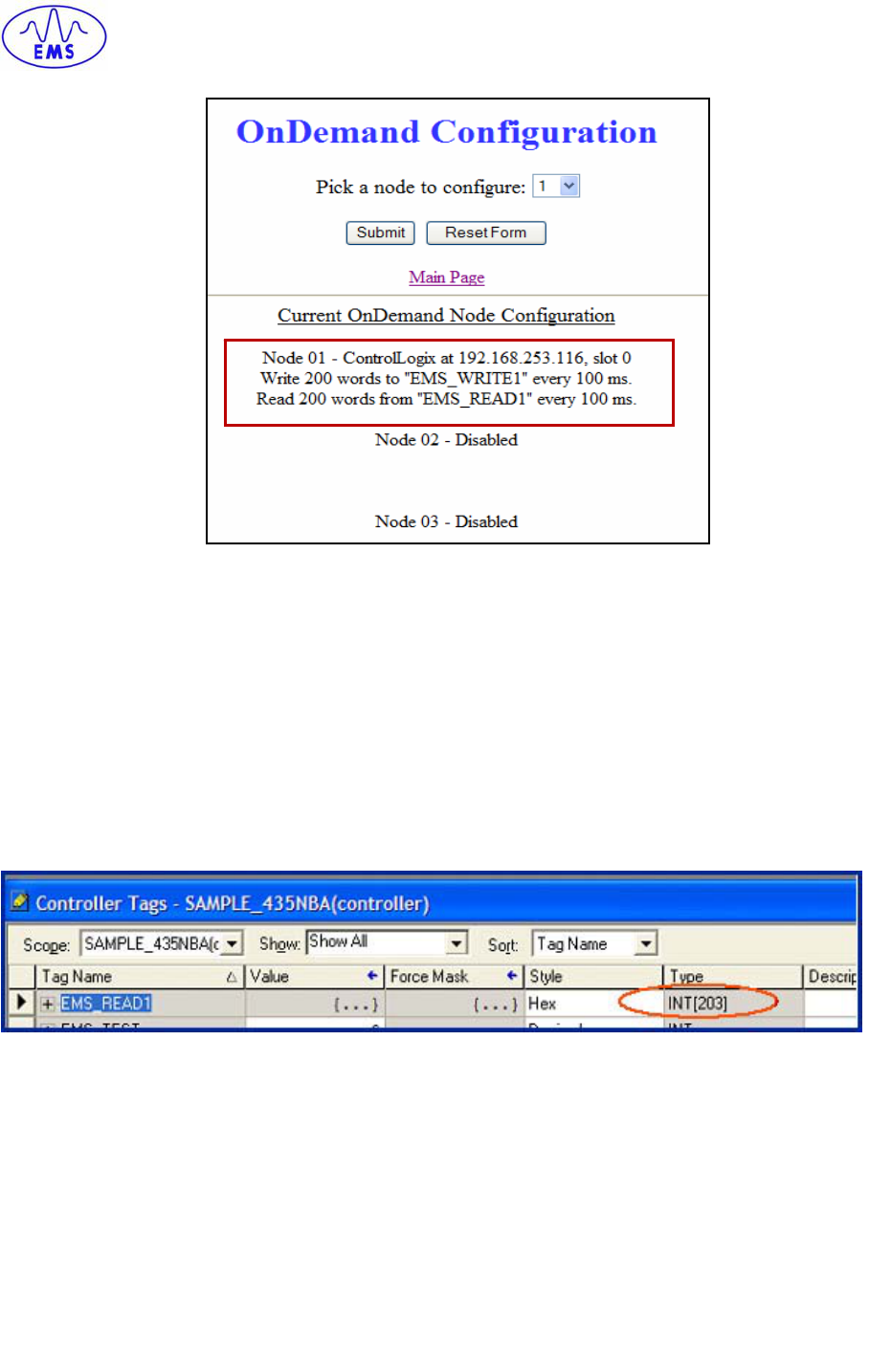

The OnDemand Website – OnDemand Configuration Page
Follow the steps below to modify the Node configuration settings for the HS500E:
At the OnDemand Configuration page, select Node 01 from the drop-down list. (Note
that Node 01 is selected in the image above).
Click Submit.
The OnDemand Node 01 Configuration Page will be displayed.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 23 OF 51
![](/img.php?id=580816&img=bg18.png)
CHAPTER 2: INTERFACING WITH THE HS500E

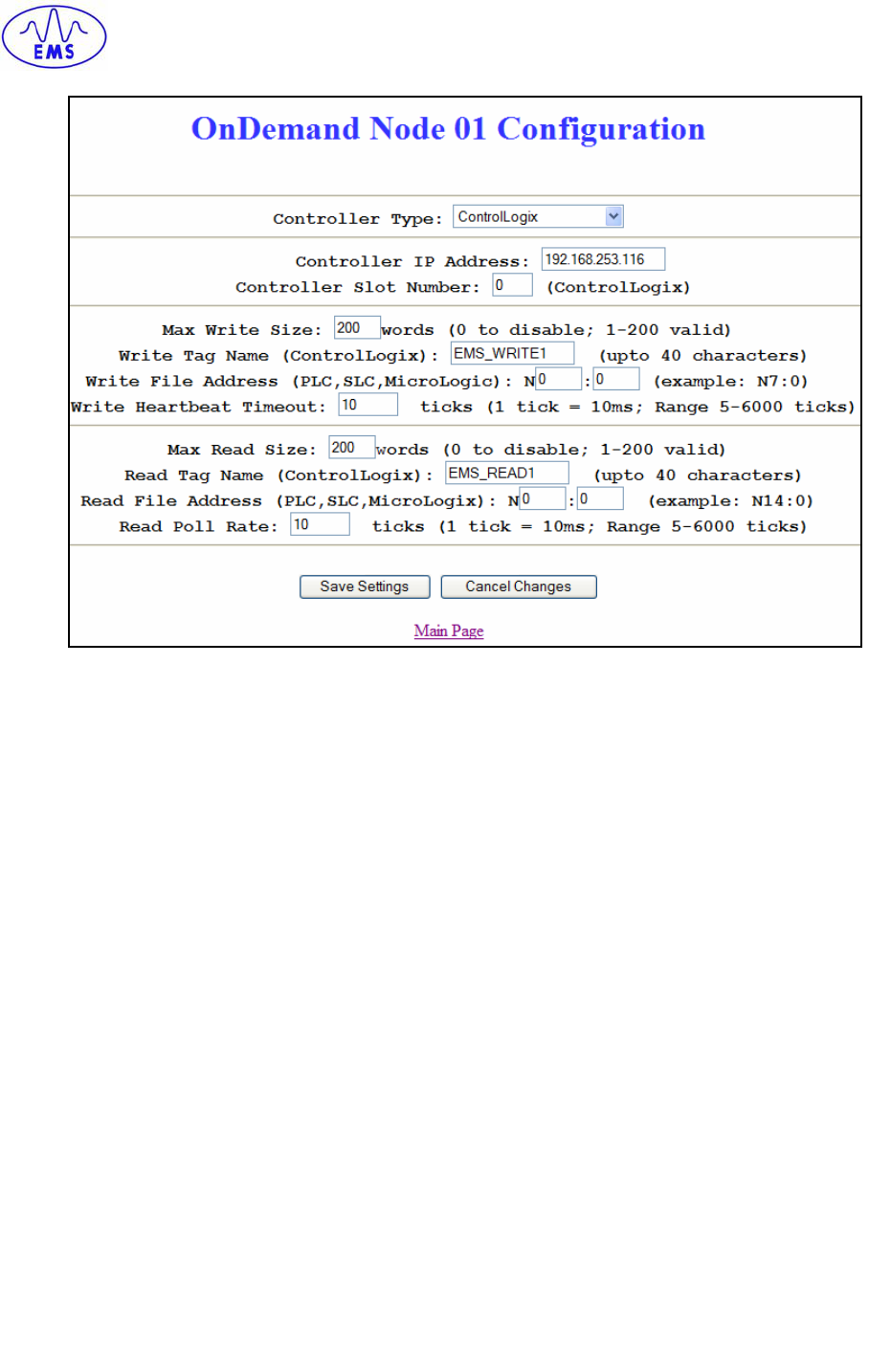

The OnDemand Node 01 Configuration Page
PLC Controller Settings
1. Select a Controller Type from the drop-down menu.
(Controller Type specifies the type of PLC that will be communicating with the
HS500E).
2. Enter the Controller’s IP address.
(Controller IP address is the IP address assigned to the PLC).
3. Enter the Controller’s Slot Number.
(Controller Slot Number indicates where in the PLC rack the CPU processor
module is installed; normally slot 0 for ControlLogix.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 24 OF 51
![](/img.php?id=580816&img=bg19.png)
CHAPTER 2: INTERFACING WITH THE HS500E
Write Settings
4. Specify the number of words (between 1 and 200) for the Max Write Size.
(The Max Write Size indicates the maximum number of 2-byte data “words” that
the HS500E will write to PLC memory each command-response cycle).
5. Specify a Write Tag Name that is 40 characters or less.
(The Write Tag Name refers to the name of the tag in the PLC where the
HS500E will write data).
6. Enter values for the Write File Address.
(The Write File Address indicates the specific memory location within the tag
where the HS500E will write data).
7. Enter a number between 5 and 6000 to indicate the number of ticks for the Write
Heartbeat Timeout. One tick equals 10ms.
Read Settings
8. Specify the number of words (between 1 and 200) for the Max Read Size.
(The Max Read Size is the maximum number of words the Industrial Antenna will
attempt to retrieve from PLC memory during a single command-response cycle).
9. Specify a Read Tag Name that is 40 characters or less.
(The Read Tag Name is the name assigned to the tag in the PLC where the
HS500E will retrieve data from).
10. Enter values for the Read File Address.
(The Read File Address is the specific memory location within the tag from which
the HS500E will retrieve command directed data).
11. Enter a value between 5 and 6000 to indicate the number of ticks for the Read
Poll Rate. One tick equals 10ms.
(Read Poll Rate indicates the frequency at which the HS500E will poll tags in
PLC memory. Polling is the act of repeatedly querying specific memory locations
for the presence of new data).
12. After you have entered the proper information on this page, click the “SAVE
SETTINGS” button.
Your changes will be stored and the OnDemand Configuration summary page
will be displayed.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 25 OF 51
![](/img.php?id=580816&img=bg1a.png)
CHAPTER 2: INTERFACING WITH THE HS500E
The OnDemand Website - OnDemand Configuration Summary
This page displays a brief configuration summary for the HS500E.
2.4.3 Configuring the PLC
Meanwhile, in your PLC program, define two tags using the same read tag name and
write tag name specified earlier (i.e. EMS_READ1 and EMS_WRITE1).
In most PLC programs, the defined tag must have the capacity to store an integer
array equal to the Max Size + 3 words. For example, if you previously specified 200
words for the Max Read, the capacity of the corresponding Read Tag in the PLC
must be able to store an array of 203 integers.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 26 OF 51
![](/img.php?id=580816&img=bg1b.png)
CHAPTER 2: INTERFACING WITH THE HS500E
2.5 CHECKING COMMUNICATION STATUS
2.5.1 Checking the OnDemand Status Page
After configuring the HS500E’s Node (via OnDemand) and defining the two “tags” in
the PLC, your next step is to check the communication status between the HS500E
and the PLC.
• Back at the OnDemand Website - Main Page, click the link labeled: “OnDemand
Status.” The OnDemand Status page will be displayed.
This message
indicates that
the PLC has
established a
connection with
Node 01 on the
HS500E.

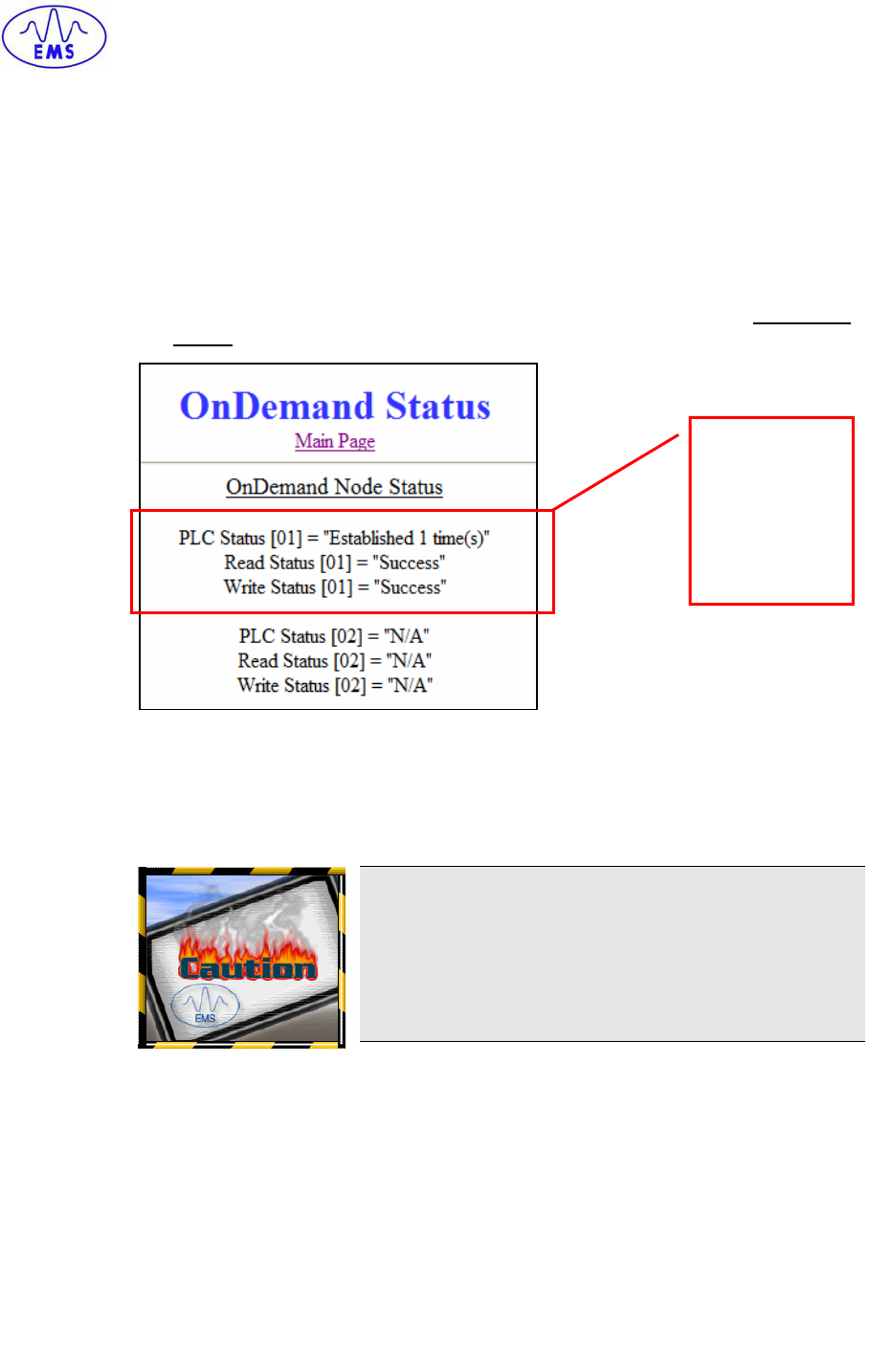

The OnDemand Website – OnDemand Status Page
The OnDemand Status page provides limited diagnostic information regarding the
connection status between the PLC and the HS500E. Using this page, however, you
can verify that a connection between the PLC and HS500E has been established
successfully.
CAUTION:
If the PLC and HS500E do not establish a successful
connection (as depicted in the image above) restart the
Ethernet/IP server on the PLC. If that does not resolve the
issue, try cycling power to the HS500E and verify that the
PLC and the 1756-ENBT module are functioning and that
Ethernet/IP services are running properly.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 27 OF 51
![](/img.php?id=580816&img=bg1c.png)
CHAPTER 2: INTERFACING WITH THE HS500E
2.6 VERIFYING THE EXCHANGE OF DATA VIA
RSLOGIX 5000
At this point, communication between the PLC and the HS500E should be properly
configured and a connection established. You can verify the exchange of information
between the two devices using RSLogix 5000.
Start the RSLogix program and (if you have not done so already) define two tags
(EMS_READ1 and EMS_WRITE1) using the same settings you specified earlier in
the OnDemand Configuration section of this guide.
• EMS_READ1 is the name of the tag in which the PLC will place commands
intended for HS500E (which is assigned to Node 01).
• EMS_WRITE1 is the name of the tag in which the HS500E will place PLC-bound
response data generated after the execution of a command.
NOTE: in RSLogix, “tag” refers to a small block of internal memory that is used to
temporarily store outgoing (command) and incoming (response) data. Within each
tag, information is stored in two-byte segments, known as registers or “words.”
A screen shot of RSLogix 5000
Most likely, you will not be required to add a new module under the 1756-ENBT entry
in RSLogix. Through the use of OnDemand communication, the Industrial Gateway
acts as an Ethernet/IP client and the PLC acts as the Ethernet/IP server. The
Gateway periodically reads from and writes to portions of the PLC memory directly
with no messaging instructions or polling required on the part of the PLC.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 28 OF 51
![](/img.php?id=580816&img=bg1d.png)
CHAPTER 2: INTERFACING WITH THE HS500E
EMS_Write1 [0] = (2) the counter is copied here by the HS500E to
ACK
EMS_Write1 [1] = (3) the HS500E increments this counter to signal
a response is available
EMS_Write1 [2] = Data Size
EMS_Write1 [3-202] = Data
OUTPUT (where commands are retrieved by the HS500E)
EMS_Read1 [0] = (4) the counter is copied here by PLC to ACK the
response
EMS_Read1 [1] = (1) PLC increments this counter after copying a
command
EMS_Read1 [2] = Data Size
EMS_Read1 [3-202] = Data
INPUT (where responses are written by the HS500E)
2.6.1 Handshaking
To ensure that messages to and from an HF-Series Controller are properly delivered
and received, a handshaking mechanism has been implemented that uses a pair of
dedicated words in the exchange. The first 2 words in each tag are dedicated to
handshaking.
When new information is generated, the producing device (data producer) increments
a counter, and the consuming device (data consumer) copies that same counter
value to another memory location to signal that the information has been processed.
2.6.2 Handshaking Example
The example below gives a simplified explanation of the handshaking scheme.
1. The PLC copies the command to the Output area and then increments the
counter in EMS_READ1 [1]
2. The counter in EMS_READ1 [1] is copied by the HS500E to EMS_WRITE1
[0] which acknowledges that it received of the command.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 29 OF 51
![](/img.php?id=580816&img=bg1e.png)
CHAPTER 2: INTERFACING WITH THE HS500E
3. The HS500E places the response in the write area and then increments the
counter in EMS_WRITE1 [1] which signals that there is new information for
the PLC (the RFID controller’s command response).
4. After the PLC has processed the response information, it copies the counter
found in EMS_WRITE1 [1] to the read area in EMS_READ1 [0] which signals
(to the HS500E) that the PLC has read the response data.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 30 OF 51
![](/img.php?id=580816&img=bg1f.png)
CHAPTER 2: INTERFACING WITH THE HS500E
5. The HS500E will clear its Write Areas by copying O’s to memory, after which
it will be ready to receive another command.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 31 OF 51
![](/img.php?id=580816&img=bg20.png)
CHAPTER 3: RFID COMMANDS
CHAPTER 3: RFID COMMANDS
3.1 COMMAND STRUCTURE
In general, RFID commands sent to the HS500E adhere to a 6-word (12-byte)
packet structure, where each word within the packet is comprised of 2-bytes, a Most
Significant Byte (MSB) and a Least Significant Byte (LSB).
RFID Command Packet Structure
Word # Description
01 Overall Length (the number of words in the Command Packet,
including the Overall Length field).
02 Command ID Number (example: 0xAB03 - Write Data Command).
See RFID Command Table below.
03 Node ID # (will always be 0x0001 for the HS500E)
04 Timeout Value (indicated in .10 second increments).
05 Start Address (the region of tag memory where the Read/Write
operation will begin).
06 Read/Write Length (the number of bytes that are to be
Read/Written beginning at the Start Address).
Note: Commands 02, 03 and 05 are prefixed with AB, as in AB03 (for Command 03).
Commands F0, F1, F3 and F4 are appended with 00, as in F300 (for Command F3).
Command F2 is appended with 02, 03 or 05, which designates the type of repetitive
command. For example, F202 indicates a Repetitive Read Data command.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 32 OF 51
![](/img.php?id=580816&img=bg21.png)
CHAPTER 3: RFID COMMANDS
3.2 RFID COMMANDS
The first three commands in the table below, Commands (AB) 02, 03 and 05, instruct
the HS500E to perform standard RFID operations such as data reads, writes and fills.
Commands F0 (00), F1, F3 and F4 are used to retrieve or modify information stored
internally within the HS500E Ethernet Antenna.
Command F2 is designed to continuously repeat one of the first three commands
(Continuous Read, Continuous Write, or Continuous Fill).
RFID Commands Table
Command
ID
Command
Name Description
0xAB02 Read Data Reads data from contiguous areas of an
RFID tag’s memory.
0xAB03 Write Data Writes data to contiguous areas of an RFID
tag’s memory.
0xAB05 Fill Tag Fills a specified area of a tag with a single
data byte value.
0xF000 Read HS500E
Info
Retrieves the software version number from
the Ethernet Antenna.
0xF100 Test LEDs /
Read HS500E
Info
Runs an LED test and retrieves the software
version number from the Ethernet Antenna.
0xF2(XX) Start/Stop
Repetitive
Command
Starts (or stops) the repetitive execution of a
command. (Where XX represents
Commands 02, 03 or 05 for repeating Read,
Write of Fill commands).
0xF300 Write IP
Address
Writes new IP address configuration settings
to the Ethernet Antenna.*
0xF400 Reset Battery
Counter Value
Resets the value of a tag’s Battery Counter.
* Note: Besides executing Command F3, the HS500E’s IP address configuration
settings can also be modified by accessing the unit’s internal Web browser and
integrated Web configuration pages (see section “2.4 - OnDemand Configuration”).
Through the use of a Web browser, one can directly access the HS500E’s internal
configuration parameters and manually modify the IP address settings of the HS500E.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 33 OF 51
![](/img.php?id=580816&img=bg22.png)
CHAPTER 3: RFID COMMANDS
COMMAND 02: READ DATA
DESCRIPTION
Command 02 instructs the Ethernet Antenna to Read Data from a contiguous area of
an RFID tag’s memory.
DISCUSSION
The Read Data command is used to read a specified number of bytes from
contiguous areas of tag memory. This command consists of the Overall Length
(OAL), the Command ID Number, a Timeout Value, a Start Address and Read
Length.
The minimum Read Length is 1 byte. If the Read Length extends beyond the last tag
address, an error will occur. The Timeout Value is measured in .10 second
increments and can have a minimum value of 1 (0x0001).
Note that tag address 0x0000 contains a 1-byte Battery Counter Value. To retrieve
this value, the Start Address should be set to 0x0000.
EXAMPLE
In the example below, the Ethernet Antenna will read 4-bytes from the tag beginning
at the address 0x0001. The Timeout value is set for 5 seconds (0x0032 = 50 decimal,
50 x .10 = 5 seconds) for the completion of this command.
Command from Host
Command 02: Read Data – Command Structure
Field Name MSB LSB Word Value
Overall Length (in words) 00 06 0006
[0xAB] + Command ID Number AB 02 AB02
MSB = reserved, always 0x00.
LSB = Node ID # (always 0x01 for the HS500E)
00 01 0001
Timeout Value (in .10 sec increments) 00 32 0032
Start Address 00 01 0001
Read Length 00 04 0004
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 34 OF 51
![](/img.php?id=580816&img=bg23.png)
CHAPTER 3: RFID COMMANDS
Response from HS500E
Command 02: Read Data – Response Structure
Field Name MSB LSB Word Value
Overall Length (in words) 00 08 0008
MSB =RF Error Counter
LSB = Command Echo
00 02 0002
MSB = Instance Counter
LSB = Node ID Echo
00 01 0001
RF Time XX XX XXXX
MSB = RF Retry Counter
LSB = Syntax Error Counter
01 01 0101
Total Time YY YY YYYY
Return Data (bytes 1, 2) Data Data DATA
Return Data (bytes 3,4) Data Data DATA
• RF Error Counter – the number of times that an RF transmission could not be
completed.
• Command Echo – the Command ID Number returned in the LSB of the second
word (this byte may also indicate an error code).
• Instance Counter - the first response following power-up will return an Instance
Counter value of 0xFF. Additional responses will increment this counter by one
(range: 0x00 to 0x7F).
• RF Time – the remaining portion of the Timeout Value after the completion of the
command.
• RF Retry Counter – the number of RF packets that required re-transmission to
successfully complete the given command.
• Syntax User Counter – the number of improperly formatted commands.
• Total Time – the interval of time required to complete the command and
response.
• Return Data – contains the data that was requested in the command. If an odd
number of bytes are retrieved, the LSB of the final Return Data word will contain
0x00.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 35 OF 51
![](/img.php?id=580816&img=bg24.png)
CHAPTER 3: RFID COMMANDS
COMMAND 03: WRITE DATA
DESCRIPTION
Command 03 instructs the Ethernet Antenna to Write Data to contiguous areas of an
RFID tag’s memory.
DISCUSSION
This command is used to write segments of data to contiguous addresses of tag
memory. The Write Data command consists of an Overall Length, the Command ID,
a Timeout Value, Start Address and Write Length, and the Data Byte Value(s) to be
written to the tag. When an odd number of bytes are to be written, the LSB of the final
Data Byte Value word must contain 0x00.
• Start Address: 0x0001 = Starts writing to the first accessible byte of tag memory
(byte 0x0000 is reserved for the Battery Counter byte).
• Write Length: 0x0001 = Shortest possible Write Length.
If the Write Length is set to 0, or extends past the last byte address of the tag, the
unit will generate an error code.
EXAMPLE
In this example, the Write Data command will instruct the HS500E to write the
specified 8 bytes to the tag beginning at the Start Address of 0x0001. A Timeout
value of 5 seconds is set for the completion of this command.
Command from Host
Command 03: Write Data – Command Structure
Field Name MSB LSB Word Value
Overall Length 00 0A 000A
[0xAB] + Command ID Number AB 03 AB03
MSB = reserved (always 0x00)
LSB = Node ID # (always 0x01)
00 01 0001
Timeout 00 32 0032
Start Address 00 01 0001
Write Length 00 08 0008
Data Byte Values (01, 02) 11 22 1122
Data Byte Values (03, 04) 33 44 3344
Data Byte Values (05, 06) 55 66 5566
Data Byte Values (07, 08) 77 88 7788
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 36 OF 51
![](/img.php?id=580816&img=bg25.png)
CHAPTER 3: RFID COMMANDS
Response from HS500E
Command 03: Write Data – Response Structure
Field Name MSB LSB Word Value
Overall Length 00 06 0006
MSB =RF Error Counter
LSB = Command ID Echo
00 03 0003
MSB = Instance Counter
LSB = Node ID Echo
00 01 0001
RF Time XX XX XXXX
MSB = RF Retry Counter
LSB = Syntax Error Counter
01 01 0101
Total Time YY YY YYYY
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 37 OF 51
![](/img.php?id=580816&img=bg26.png)
CHAPTER 3: RFID COMMANDS
COMMAND 05: FILL TAG
DESCRIPTION
Command 05 writes one byte of data across a specified range of tag memory.
DISCUSSION
This command is used to instruct the HS500E to write a particular data byte value to
all specified contiguous areas of tag memory beginning at the Start Address.
EXAMPLE
In this example, the Ethernet Antenna will write the ASCII character “D” (0x44) to 8-
bytes of tag memory starting at address 0x0001. A Timeout Value of 5 seconds is set
for the completion of this command.
Command from Host
Command 05: Fill Tag – Command Structure
Field Name MSB LSB Word Value
Overall Length 00 06 0006
[0xAB] + Command ID Number AB 05 AB05
MSB = Data Byte Value used for the fill.
LSB = Node ID # (always 0x01)
44 01 4401
Timeout Value 00 32 0032
Start Address 00 01 0001
Fill Length 00 08 0008
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 38 OF 51
![](/img.php?id=580816&img=bg27.png)
CHAPTER 3: RFID COMMANDS
Response from HS500E
Command 05: Fill Tag – Response Structure
Field Name MSB LSB Word Value
Overall Length 00 06 0006
MSB =RF Error Counter
LSB = Command ID Echo
00 05 0005
MSB = Instance Counter
LSB = Node ID Echo
00 01 0001
RF Time XX XX XXXX
MSB = RF Retry Counter
LSB = Syntax Error Counter
01 01 0101
Total Time YY YY YYYY
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 39 OF 51
![](/img.php?id=580816&img=bg28.png)
CHAPTER 3: RFID COMMANDS
COMMAND F0: READ HS500E INFORMATION
DESCRIPTION
Command F0 retrieves the currently installed software version number from the
HS500E.
DISCUSSION
This command queries the Ethernet Antenna’s flash memory and retrieves its
software version number.
EXAMPLE
In this example the software version number (1.0A.8) will be retrieved from the
EHS500E. (Note: the “period” between characters is also considered part of the
software version number).
Timeout Value, Start Address and Read/Write Length are not applicable for this
command, default value for each = 0x00, 0x00.
Command from Host
Command F0: Read HS500E Information – Command Structure
Field Name MSB LSB Word Value
Overall Length 00 06 0006
Command ID Number + [0x00] F0 00 F000
MSB = 0x00
LSB = Node ID #: (always 0x01)
00 01 0001
Timeout Value 00 00 0000
Start Address 00 00 0000
Read/Write Length 00 00 0000
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 40 OF 51
![](/img.php?id=580816&img=bg29.png)
CHAPTER 3: RFID COMMANDS
Response from HS500E
Command F0: Read HS500E Information – Response Structure
Field Name MSB LSB Word Value
Overall Length 00 06 0006
MSB =RF Error Counter
LSB = Command ID Echo
00 F0 00F0
MSB = Instance Counter
LSB = Node ID Echo
00 01 0001
Response Data (first word) 31 2E 312E
Response Data (second word) 30 41 3041
Response Data (third word) 2E 38 2E38
The software version number for this example is 1.0A.8, which is a Hex
representation of the ASCII string 31 2E 30 41 2E 38.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 41 OF 51
![](/img.php?id=580816&img=bg2a.png)
CHAPTER 3: RFID COMMANDS
COMMAND F1: TEST LEDS / READ HS500E
INFORMATION
DESCRIPTION
Command F1 tests the HS500E’s LEDs and also retrieves its software version
number.
DISCUSSION
This command causes the Ethernet Antenna’s LEDs to flash a coded diagnostic
pattern while also retrieving the installed software version number.
EXAMPLE
In this example the LEDs on the Ethernet Antenna will be tested and its software
version number will be retrieved. Timeout Value, Start Address and Read/Write
Length parameters are not applicable.
Command from Host
Command F1: Test LEDs / Read HS500E Information – Command
Structure
Field Name MSB LSB Word Value
Overall Length 00 06 0006
Command ID Number + [0x00] F1 00 F100
MSB = 0x00
LSB = Node ID # (always 0x01)
00 01 0001
Timeout Value 00 00 0000
Start Address 00 00 0000
Read/Write Length 00 00 0000
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 42 OF 51
![](/img.php?id=580816&img=bg2b.png)
CHAPTER 3: RFID COMMANDS
Response from HS500E
Command F1: Test LEDs / Read HS500E Information – Response
Structure
Field Name MSB LSB Word Value
Overall Length 00 06 0006
MSB =RF Error Counter
LSB = Command ID Echo
00 F1 00F1
MSB = Instance Counter
LSB = Node ID Echo
00 01 0001
Response Data (first word) 31 2E 312E
Response Data (second word) 30 41 3041
Response Data (third word) 2E 38 2E38
The software version number for this example is 1.0A.8, which is a Hex
representation of the ASCII string 31 2E 30 41 2E 38.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 43 OF 51
![](/img.php?id=580816&img=bg2c.png)
CHAPTER 3: RFID COMMANDS
COMMAND F2: START/STOP REPETITIVE COMMAND
DESCRIPTION
Command F2 repeatedly issues a specified RFID command.
DISCUSSION
This command will instruct the Ethernet Antenna to continuously repeat a specified
RFID command. Note that not all RFID commands support the ability to be
continuously repeated. Only Commands 02, 03 and 05 support continuous repetition.
To begin repeating a command, set the Overall Length to a value of 0x0006 or
greater. To stop this command, change the Overall Length to 0x0000 and re-issue
the command (or cycle power to the unit).
EXAMPLE
This example will instruct the Ethernet Antenna to repeatedly read 4-bytes of data
from address 0x0001 of the tag’s memory.
Command from Host
Command F2: Repeat Command (Read Data) – Command Structure
Field Name MSB LSB Word
Value
Overall Length 00 06 + number of
additional words (Write
and Fill Commands
only).
To stop, set LSB to
0x00.
0006
MSB = Repeat Command Flag (always
0xF2)
LSB = Command ID Number to be
repeated
F2 02 (03 or 05 for Write
and Fill Repeat) F202
MSB = 0x00 for this command when
second word = F202 or F203. MSB is
used to indicate Fill Data Byte Value
when second word is 0xF205.
LSB = Node Number – will always be
0x01 for the HS500E
00 01 0001
Timeout Value 00 32 0032
Start Address 00 01 0001
Read/Write Length 00 04 0004
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 44 OF 51
![](/img.php?id=580816&img=bg2d.png)
CHAPTER 3: RFID COMMANDS
Data Byte Value(s) for Write (only
applicable when word 2 is F203. ZZ ZZ ZZZZ
Response from HS500E
Command F2: Repeat Command (Read Data) – Response Structure
Field Name MSB LSB Word Value
Overall Length (in words) 00 08 0008
MSB =RF Error Counter
LSB = Command ID Echo
00 02 0002
MSB = Instance Counter
LSB = Node ID Echo
00 01 0001
RF Time XX XX XXXX
MSB = RF Retry Counter
LSB = Syntax Error Counter
YY YY YYYY
Total Time ZZ ZZ ZZZZ
Return Data (bytes 1, 2)* Data Data DATA
Return Data (bytes 3,4)* Data Data DATA
* Only applicable when word 2 in the command = F202 (Repeat Read Data)
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 45 OF 51
![](/img.php?id=580816&img=bg2e.png)
CHAPTER 3: RFID COMMANDS
COMMAND F3: WRITE IP ADDRESS
DESCRIPTION
Command F3 writes a new IP Address to the HS500E.
DISCUSSION
This command is used to assign a new IP Address to the HS500E.
Writing an IP Address to the HS500E
1. Run Command F3 as shown below (the R/W LED on the HS500E will blink
repeatedly for 15 - 20 seconds).
2. After blinking stops, cycle power to the unit (the R/W LED will again blink for 15 -
20 seconds).
3. After the R/W LED has stopped blinking (the second time), configure your Host
application (ModBus/TCP or Ethernet/IP) to connect to the new IP address (that
was assigned to the HS500E in step 1).
EXAMPLE
This example sets the IP Address of the HS500E to 192.168.253.115.
Command from Host
Command F3: Write IP Address – Command Structure
Field Name MSB LSB Word Value
Overall Length 00 06 0006
MSB = Command ID (0xF3)
LSB = 0x00 for this
command.
F3 00 F300
IP Address (first octet) 0x00 (always) C0 (192 decimal) 00C0
IP Address (second octet) 0x00 (always) A8 (168 decimal) 00A8
IP Address (third octet) 0x00 (always) FD (253 decimal) 00FD
IP Address (fourth octet) 0x00 (always) 73 (115 decimal) 0073
Response from HS500E
There is no response for Command F3 because as soon as the IP address is
changed on the HS500E, the existing TCP/IP session (and therefore the connection
with the Host) is terminated.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 46 OF 51
![](/img.php?id=580816&img=bg2f.png)
CHAPTER 3: RFID COMMANDS
COMMAND F4: RESET BATTERY COUNTER VALUE
DESCRIPTION
Command F4 resets the value of a tag’s Battery Counter to zero (0x00).
DISCUSSION
This command is used to reset the value of the Battery Counter when replacing the
batteries in a tag. The Battery Counter stores a one-byte value located at tag address
0x0000. To retrieve the Battery Counter Value, execute Command 02 and note the
value stored at address 0x0000 on the tag.
Clearing the Battery Counter Value does not add voltage to the battery. Falsifying
battery life by clearing the Battery Counter Value may lead to incorrect battery life
values. Reading address ZERO on the tag should be performed by only one station
in a typical assembly line. A tag should have its batteries replaced after it has
accumulated over 15 hours of use. When this value reaches 0x0F, battery life is in a
condition of decay and should be replaced.
Command from Host
Command F4: Reset Battery Counter Value – Command Structure
Field Name MSB LSB Word Value
Overall Length 00 06 0006
MSB = Command ID (0xF4)
LSB = 0x00 for this command.
F4 00 F400
MSB = 0x00
LSB = Node ID #: (0x01)
00 01 0001
Timeout Value* 00 00 0000
Start Address* 00 00 0000
Read/Write Length* 00 00 0000
* Not applicable for this command, set values to zero (0x00). This command uses a
hard coded Timeout Value of 2 seconds.
Response from HS500E
There is no response for this command.
Reset Battery Counter Error
The Reset Battery Counter command may appear to time-out or generate an error.
After executing Command F4, the user should read the tag at address 0x0000 to
confirm that the value of the Battery Counter was indeed reset to 0x00.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 47 OF 51
![](/img.php?id=580816&img=bg30.png)
CHAPTER 4: ERROR CODES
CHAPTER 4: ERROR CODES
The HS500E will generate an error response if it was unable to complete a command.
The MSB of the second word (Command Echo word) of the response will contain a 1-
byte error code indicating the error that was experienced.
BASIC ERROR TYPES
There are three basic types of error codes.
1. Component failure or damage that may inhibit module usage. An example of this
type of error can be a blown fuse.
2. User syntax command error (0x88). This type of error occurs when the user
issues an invalid command or attempts to read/write/fill to areas that are not
within the range of the tag memory limits.
3. RF response errors. This type of error can occur if the distance from the tag to
the antenna exceeds the RF range.
Overall Length Errors
0x89: Overall Length Errors:
1. User sends a command with an overall length value of less than 6 bytes.
2. User miscalculates overall length when executing a Write command (where
multiple Data Byte Values are to be written).
Length Limits
0x8D: Limits or boundaries concerning a Read/Write/Fill Length field were not
satisfied.
0x8F: TAG starting address and length conflict with one another. This can occur if
the user decides to read data near the end of the tag and specifies a length that
exceeds the remainder of the tag memory.
Write Length Limit
0x99: User attempts to write to the tag but does not provide the exact number of
bytes specified in the Write Length field.
Timeout Fail Code
0x9F: Timeout Value has been exceeded.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 48 OF 51
![](/img.php?id=580816&img=bg31.png)

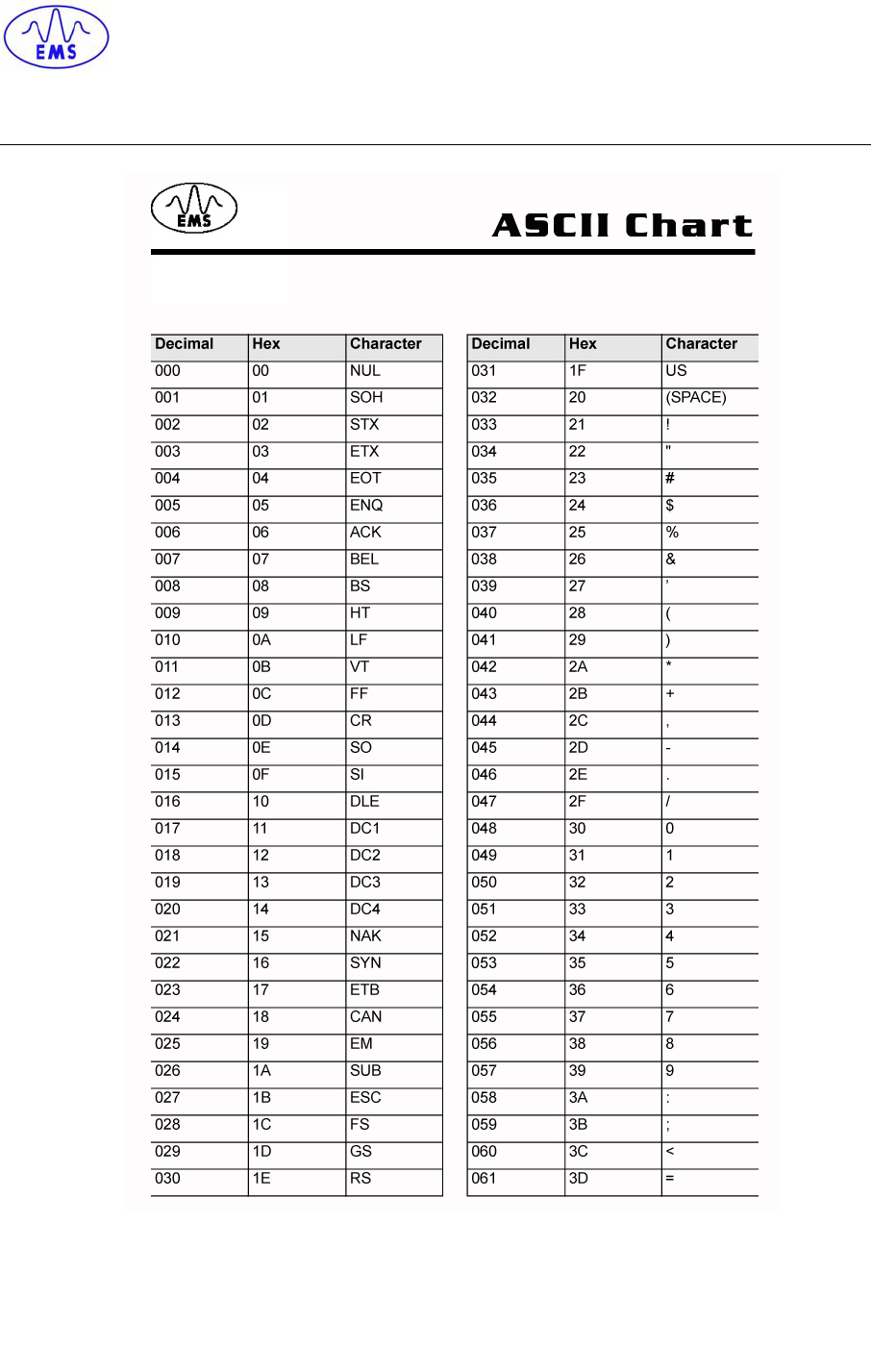

APPENDIX A: ASCII CHART
APPENDIX A: ASCII CHART
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 49 OF 51
![](/img.php?id=580816&img=bg32.png)

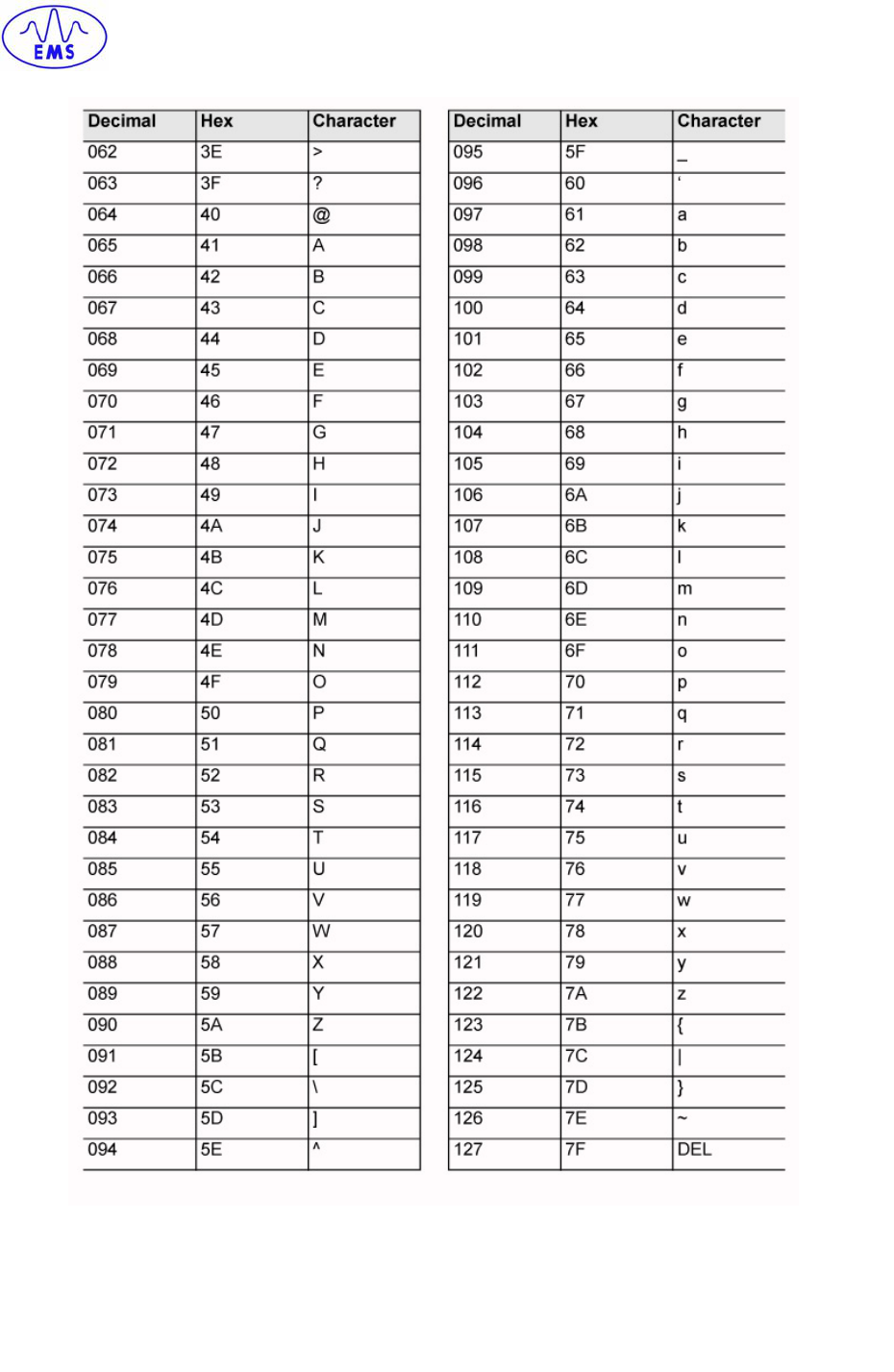

APPENDIX A: ASCII CHART
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 50 OF 51
![](/img.php?id=580816&img=bg33.png)
EMS WARRANTY
EMS WARRANTY
Escort Memory Systems warrants that all products of its own manufacturing conform to Escort
Memory Systems’ specifications and are free from defects in material and workmanship when
used under normal operating conditions and within the service conditions for which they were
furnished. The obligation of Escort Memory Systems hereunder shall expire one (1) year after
delivery, unless otherwise specified, and is limited to repairing, or at its option, replacing without
charge, any such product which in Escort Memory Systems’ sole opinion proves to be defective
within the scope of this Warranty. In the event Escort Memory Systems is not able to repair or
replace defective products or components within a reasonable time after receipt thereof, Buyers
shall be credited for their value at the original purchase price. Escort Memory Systems must be
notified in writing of the defect or nonconformity within the warranty period and the affected
product returned to Escort Memory Systems factory or to an authorized service center within
thirty (30) days after discovery of such defect or nonconformity. Shipment shall not be made
without prior authorization by Escort Memory Systems.
This is Escort Memory Systems' sole warranty with respect to the products delivered hereunder.
No statement, representation, agreement or understanding oral or written, made by an agent,
distributor, representative, or employee of Escort Memory Systems which is not contained in this
warranty, will be binding upon Escort Memory Systems, unless made in writing and executed by
an authorized Escort Memory Systems employee.
Escort Memory Systems makes no other warranty of any kind what so ever, expressed or
implied, and all implied warranties of merchantability and fitness for a particular use which
exceed the aforementioned obligation are here by disclaimed by Escort Memory Systems and
excluded from this agreement. Under no circumstances shall Escort Memory Systems be liable
to Buyer, in contract or in tort, for any special, indirect, incidental, or consequential damages,
expenses, losses or delay however caused. Equipment or parts which have been subject to
abuse, misuse, accident, alteration, neglect, unauthorized repair or installation are not covered
by warranty. Escort Memory Systems shall make the final determination as to the existence and
cause of any alleged defect. No liability is assumed for expendable items such as lamps and
fuses. No warranty is made with respect to equipment or products produced to Buyer’s
specification except as specifically stated in writing by Escort Memory Systems in the contract
for such custom equipment. This warranty is the only warranty made by Escort Memory
Systems with respect to the goods delivered hereunder, and may be modified or amended only
by a written instrument signed by a duly authorized officer of Escort Memory Systems and
accepted by the Buyer.
Extended warranties of up to four years are available for purchase for most Escort Memory
Systems products. Contact Escort Memory Systems or your distributor for more information.
Escort Memory Systems reserves the right to make modifications or improvements without prior
notification. Escort Memory Systems shall not be liable for technical or editorial errors or
omissions contained herein, nor for incidental or consequential damages resulting from the use
of this material. Product names mentioned herein are for identification purposes only and may
be trademarks and or registered trademarks of their respective companies.
Escort Memory Systems™ and the Escort Memory Systems logo are registered trademarks of
Escort Memory Systems, a Datalogic Group Company.
Copyright © 2005 Escort Memory Systems, ALL RIGHTS RESERVED.
HS500E – OPERATOR’S MANUAL P/N: 17-1305 REV 01.D (08-05) PAGE 51 OF 51
