International Business Machines Corporation WLAN Tablet PC Users Guide

Users Guide

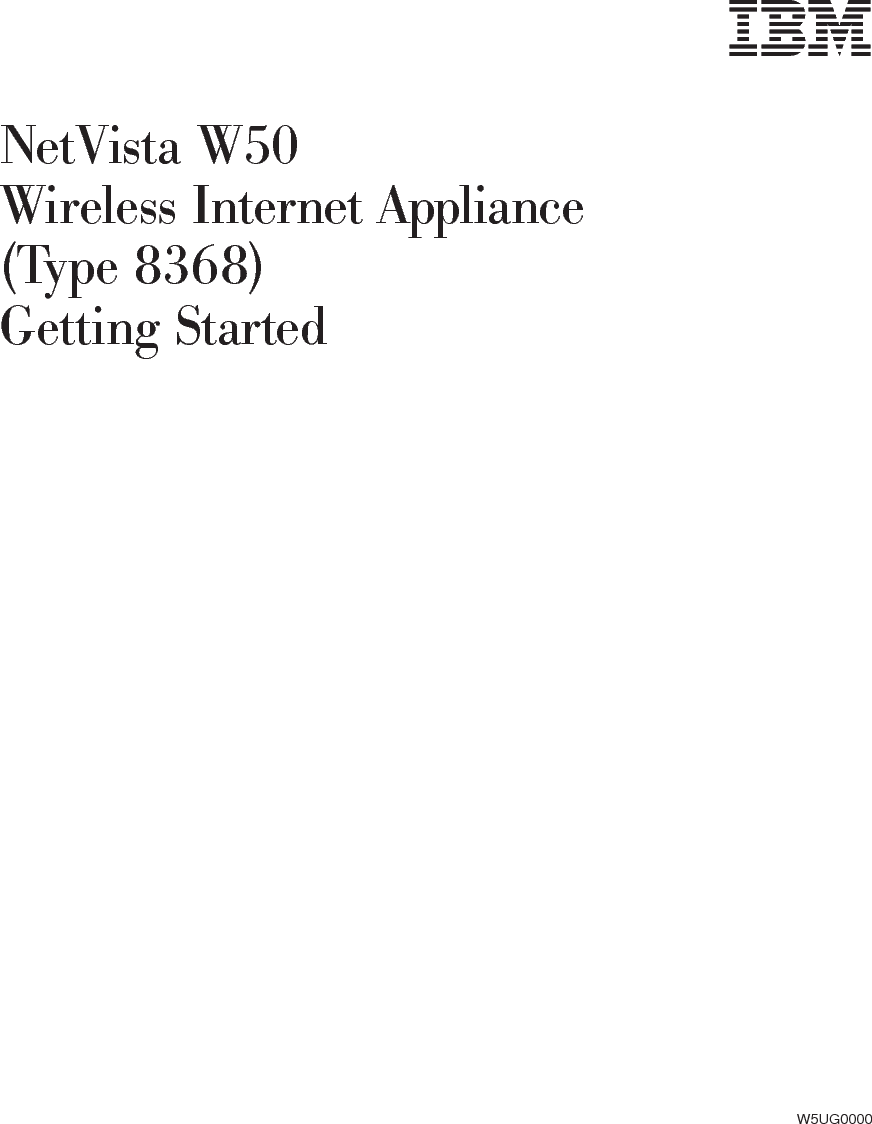

NetVista W50Wireless Internet Appliance(Type 8368)Getting StartedW5UG0000
NetVista W50Wireless Internet Appliance(Type 8368)Getting StartedW5UG0000
First Edition (November 2001)© Copyright International Business Machines Corporation 2001. All rights reserved.US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contractwith IBM Corp.

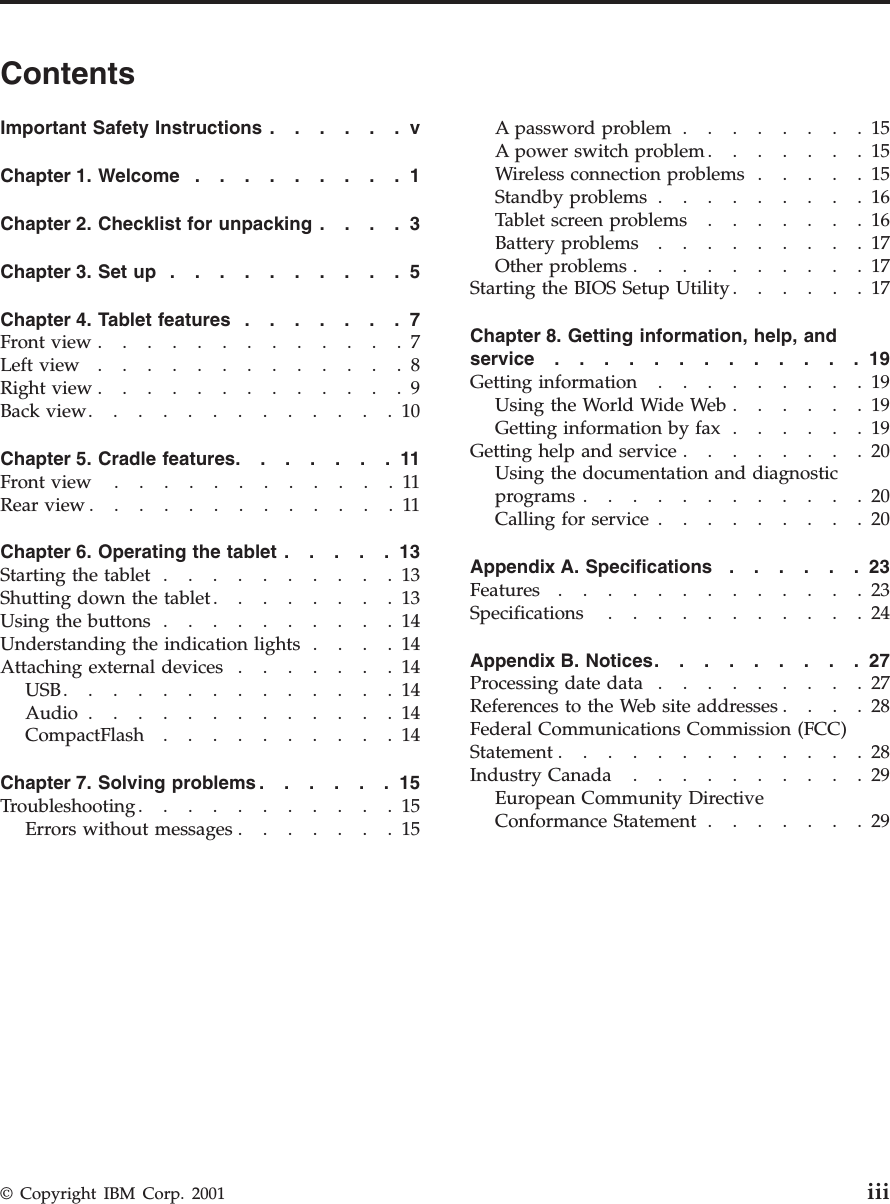

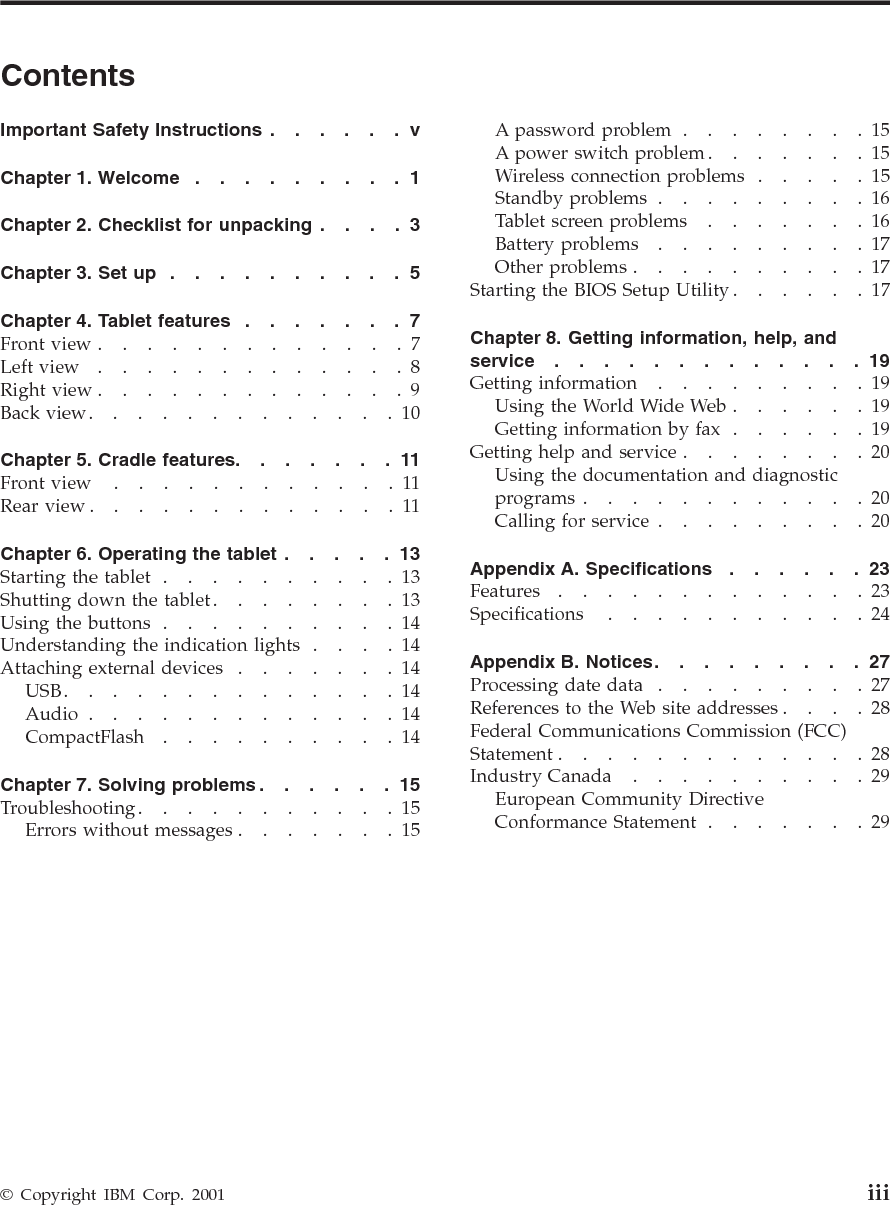

ContentsImportantSafetyInstructions......vChapter 1. Welcome .........1Chapter 2. Checklist for unpacking ....3Chapter 3. Set up ..........5Chapter 4. Tablet features .......7Frontview.............7Leftview.............8Rightview.............9Backview.............10Chapter 5. Cradle features.......11Frontview ............11Rearview.............11Chapter 6. Operating the tablet .....13Starting the tablet ..........13Shutting down the tablet ........13Usingthebuttons..........14Understanding the indication lights ....14Attachingexternaldevices.......14USB..............14Audio .............14CompactFlash..........14Chapter 7. Solving problems ......15Troubleshooting...........15Errors without messages .......15Apasswordproblem........15A power switch problem .......15Wireless connection problems .....15Standby problems .........16Tabletscreenproblems.......16Battery problems .........17Otherproblems..........17Starting the BIOS Setup Utility ......17Chapter 8. Getting information, help, andservice.............19Getting information .........19UsingtheWorldWideWeb......19Getting information by fax ......19Getting help and service ........20Using the documentation and diagnosticprograms............20Calling for service .........20Appendix A. Specifications ......23Features.............23Specifications ...........24Appendix B. Notices.........27Processing date data .........27References to the Web site addresses ....28Federal Communications Commission (FCC)Statement.............28Industry Canada ..........29European Community DirectiveConformance Statement .......29© Copyright IBM Corp. 2001 iii
iv NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

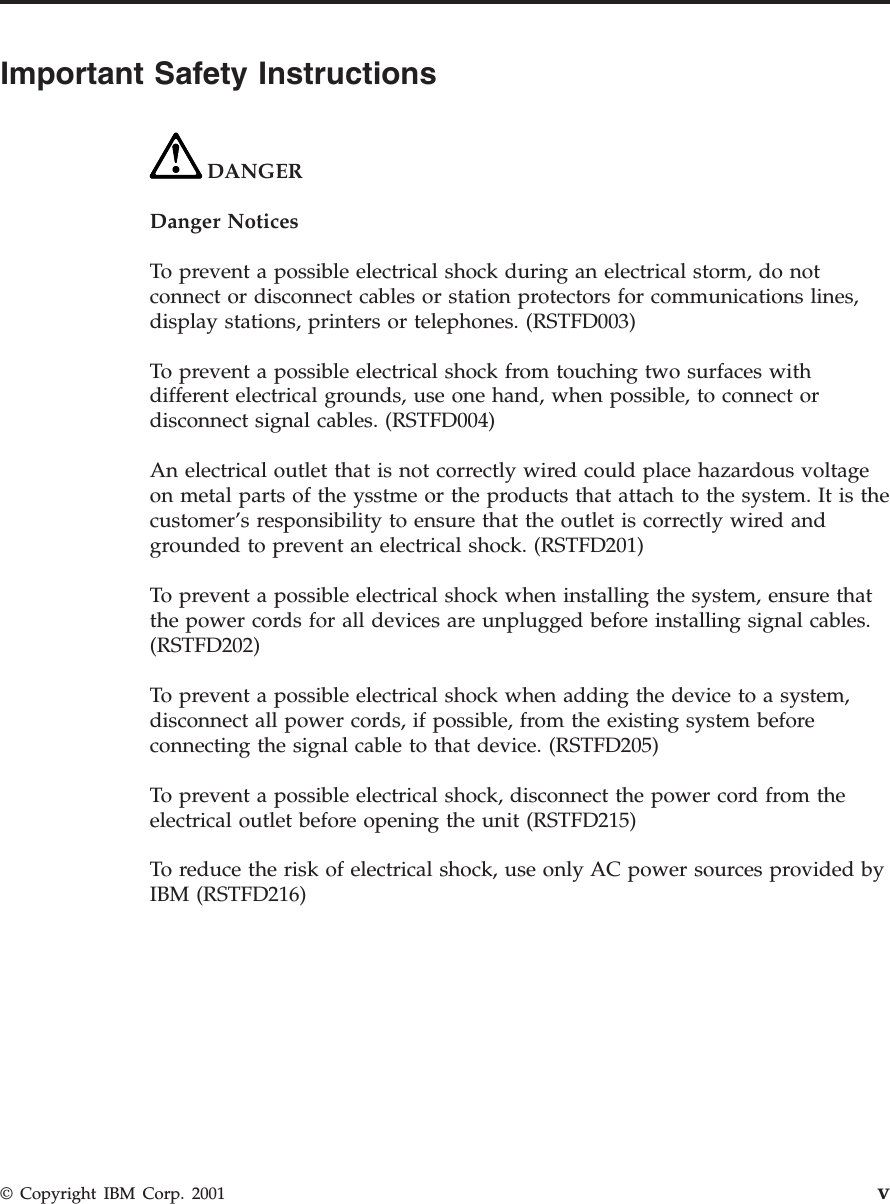

Important Safety InstructionsDANGERDanger NoticesTo prevent a possible electrical shock during an electrical storm, do notconnect or disconnect cables or station protectors for communications lines,display stations, printers or telephones. (RSTFD003)To prevent a possible electrical shock from touching two surfaces withdifferent electrical grounds, use one hand, when possible, to connect ordisconnect signal cables. (RSTFD004)An electrical outlet that is not correctly wired could place hazardous voltageon metal parts of the ysstme or the products that attach to the system. It is thecustomer’s responsibility to ensure that the outlet is correctly wired andgrounded to prevent an electrical shock. (RSTFD201)To prevent a possible electrical shock when installing the system, ensure thatthe power cords for all devices are unplugged before installing signal cables.(RSTFD202)To prevent a possible electrical shock when adding the device to a system,disconnect all power cords, if possible, from the existing system beforeconnecting the signal cable to that device. (RSTFD205)To prevent a possible electrical shock, disconnect the power cord from theelectrical outlet before opening the unit (RSTFD215)To reduce the risk of electrical shock, use only AC power sources provided byIBM (RSTFD216)© Copyright IBM Corp. 2001 v

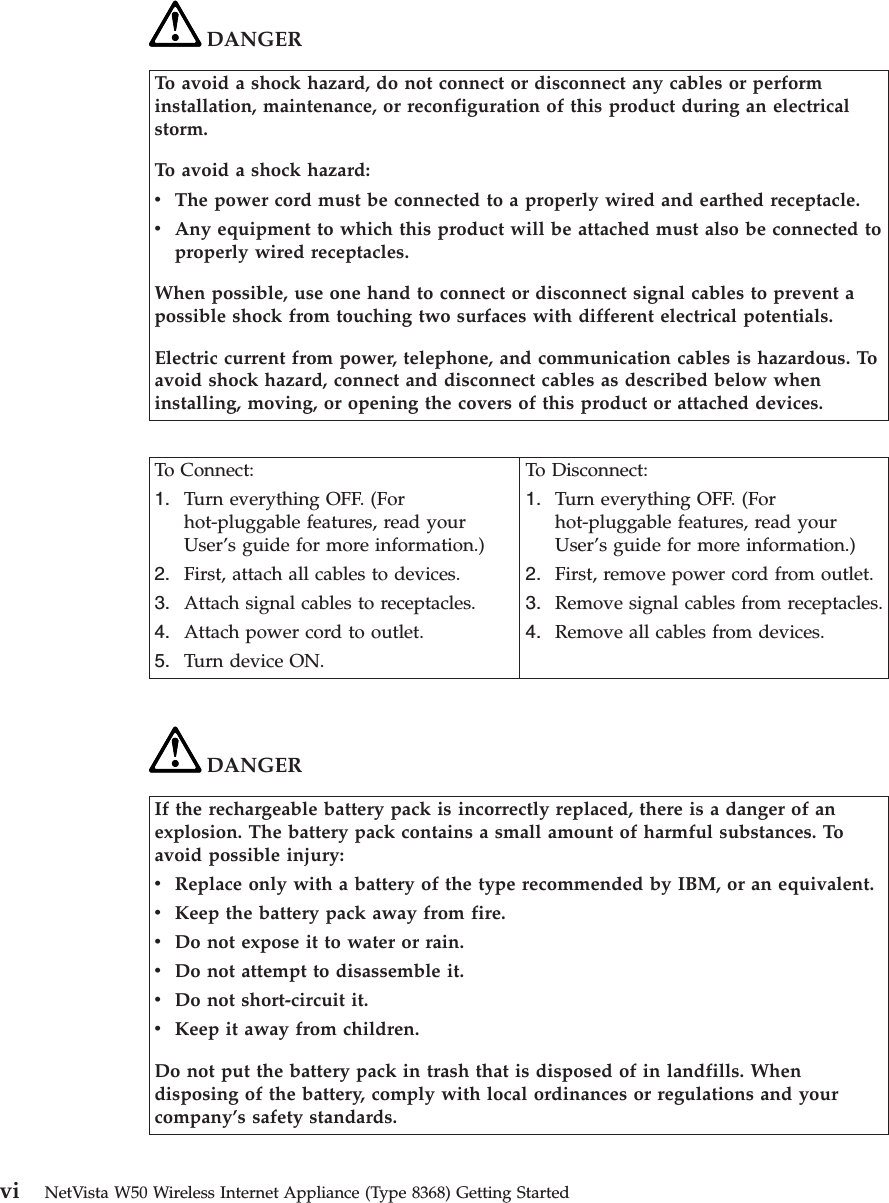

DANGERTo avoid a shock hazard, do not connect or disconnect any cables or performinstallation, maintenance, or reconfiguration of this product during an electricalstorm.To avoid a shock hazard:vThe power cord must be connected to a properly wired and earthed receptacle.vAny equipment to which this product will be attached must also be connected toproperly wired receptacles.When possible, use one hand to connect or disconnect signal cables to prevent apossible shock from touching two surfaces with different electrical potentials.Electric current from power, telephone, and communication cables is hazardous. Toavoid shock hazard, connect and disconnect cables as described below wheninstalling, moving, or opening the covers of this product or attached devices.To Connect:1. Turn everything OFF. (Forhot-pluggable features, read yourUser’s guide for more information.)2. First, attach all cables to devices.3. Attach signal cables to receptacles.4. Attach power cord to outlet.5. Turn device ON.To Disconnect:1. Turn everything OFF. (Forhot-pluggable features, read yourUser’s guide for more information.)2. First, remove power cord from outlet.3. Remove signal cables from receptacles.4. Remove all cables from devices.DANGERIf the rechargeable battery pack is incorrectly replaced, there is a danger of anexplosion. The battery pack contains a small amount of harmful substances. Toavoid possible injury:vReplace only with a battery of the type recommended by IBM, or an equivalent.vKeep the battery pack away from fire.vDo not expose it to water or rain.vDo not attempt to disassemble it.vDo not short-circuit it.vKeep it away from children.Do not put the battery pack in trash that is disposed of in landfills. Whendisposing of the battery, comply with local ordinances or regulations and yourcompany’s safety standards.vi NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

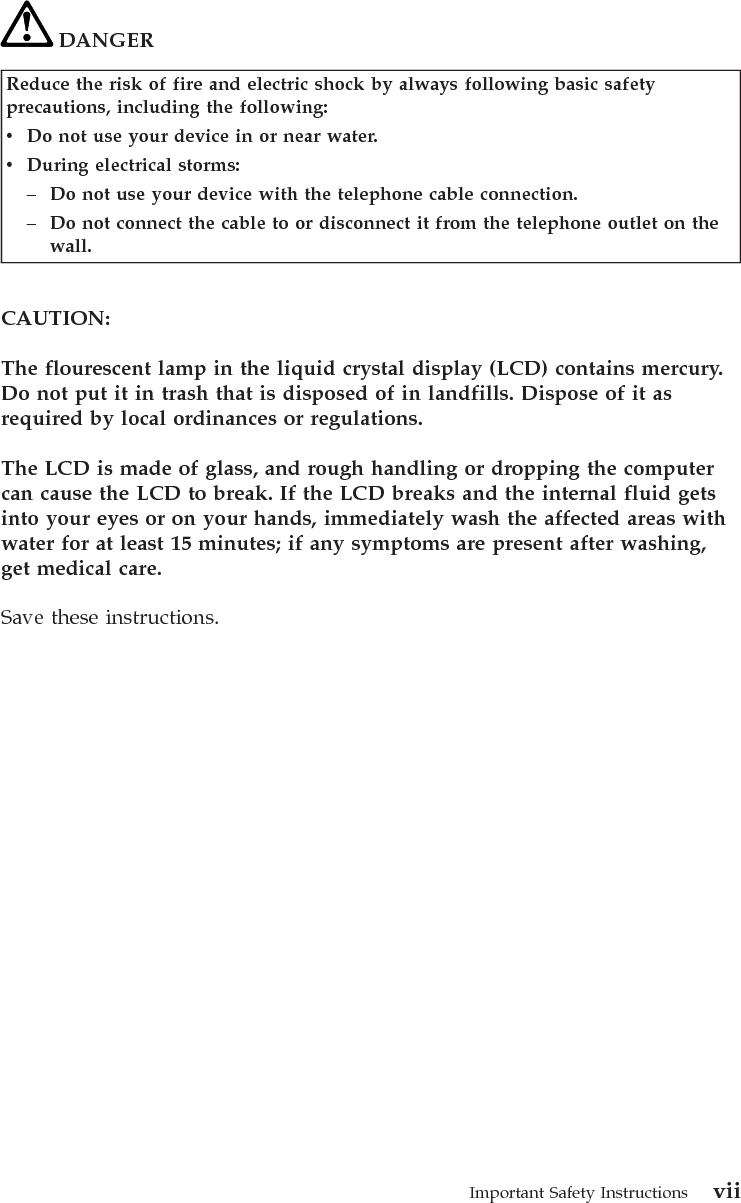

DANGERReduce the risk of fire and electric shock by always following basic safetyprecautions, including the following:vDo not use your device in or near water.vDuring electrical storms:–Do not use your device with the telephone cable connection.–Do not connect the cable to or disconnect it from the telephone outlet on thewall.CAUTION:The flourescent lamp in the liquid crystal display (LCD) contains mercury.Do not put it in trash that is disposed of in landfills. Dispose of it asrequired by local ordinances or regulations.The LCD is made of glass, and rough handling or dropping the computercan cause the LCD to break. If the LCD breaks and the internal fluid getsinto your eyes or on your hands, immediately wash the affected areas withwater for at least 15 minutes; if any symptoms are present after washing,get medical care.Save these instructions.Important Safety Instructions vii
viii NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

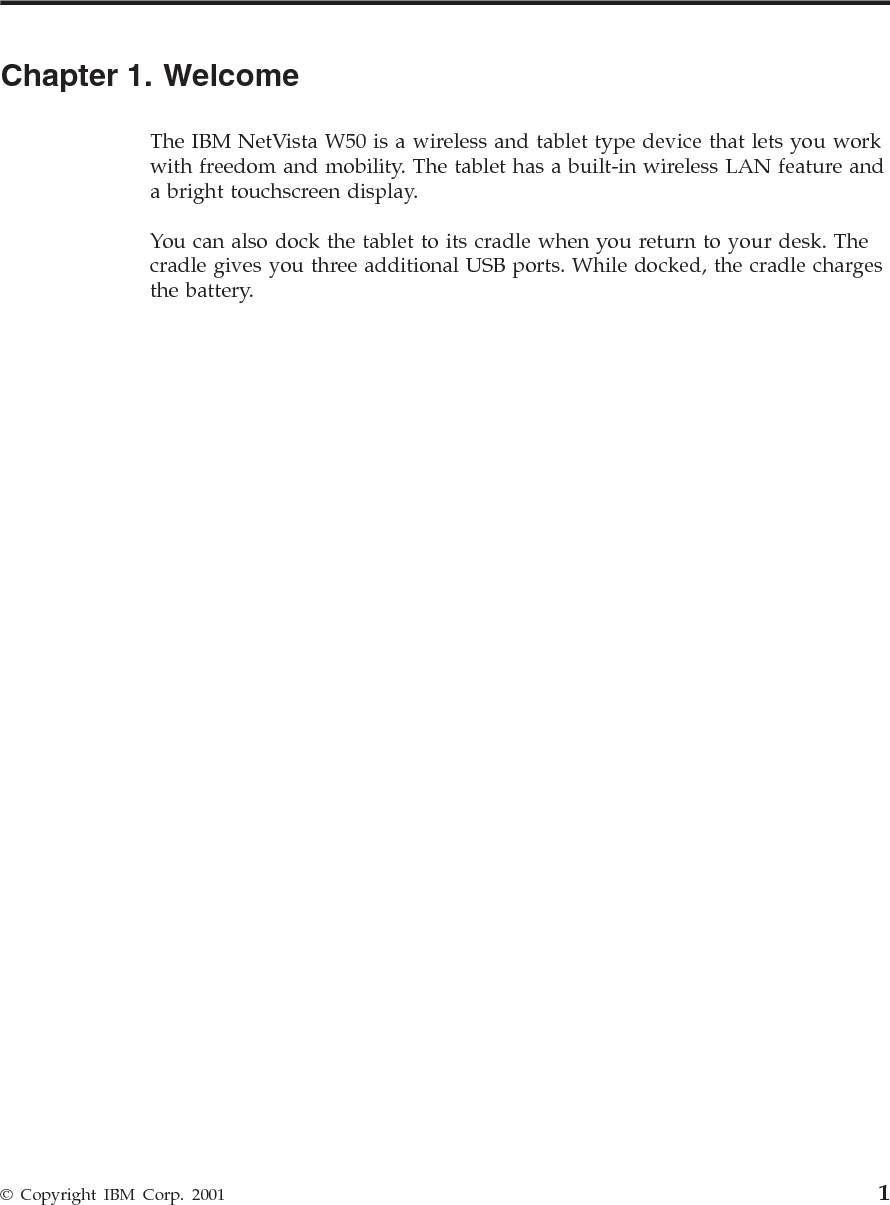

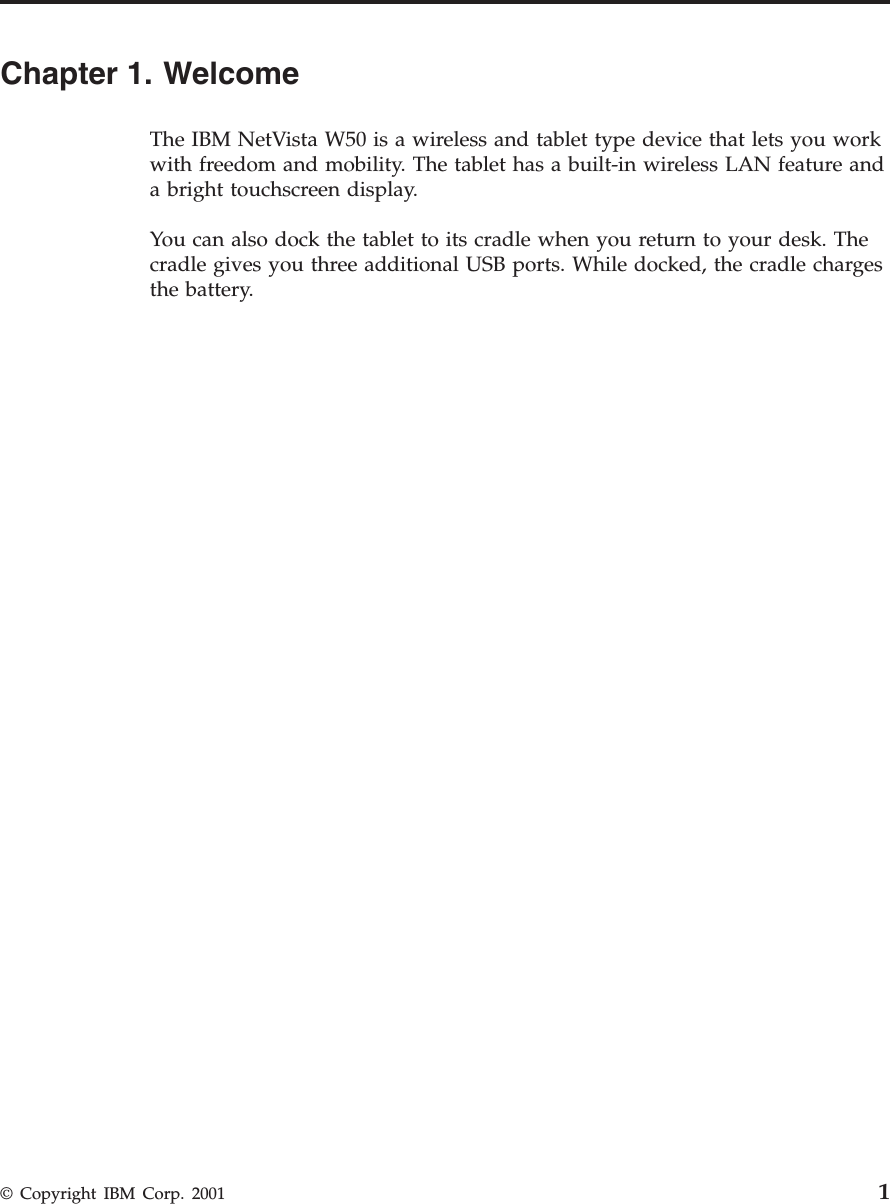

Chapter 1. WelcomeThe IBM NetVista W50 is a wireless and tablet type device that lets you workwith freedom and mobility. The tablet has a built-in wireless LAN feature anda bright touchscreen display.You can also dock the tablet to its cradle when you return to your desk. Thecradle gives you three additional USB ports. While docked, the cradle chargesthe battery.© Copyright IBM Corp. 2001 1
2NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

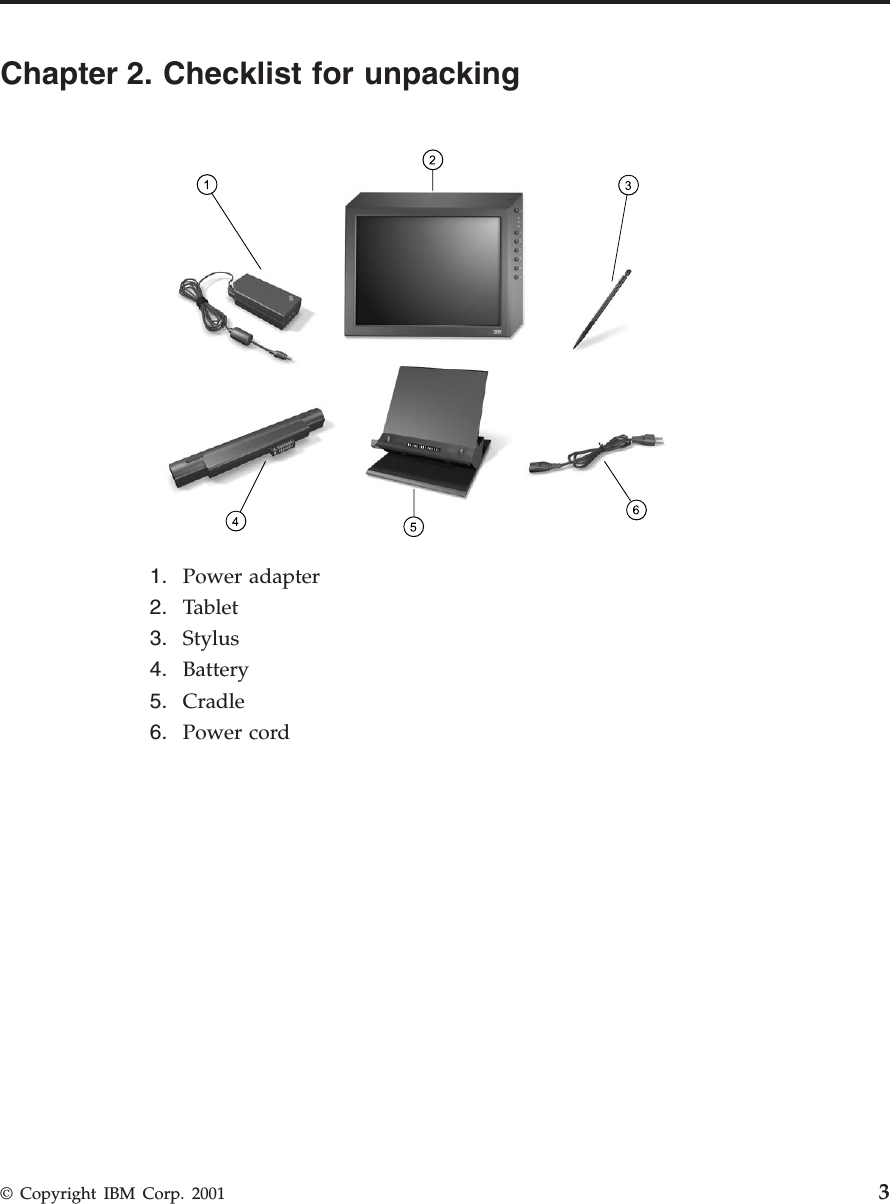

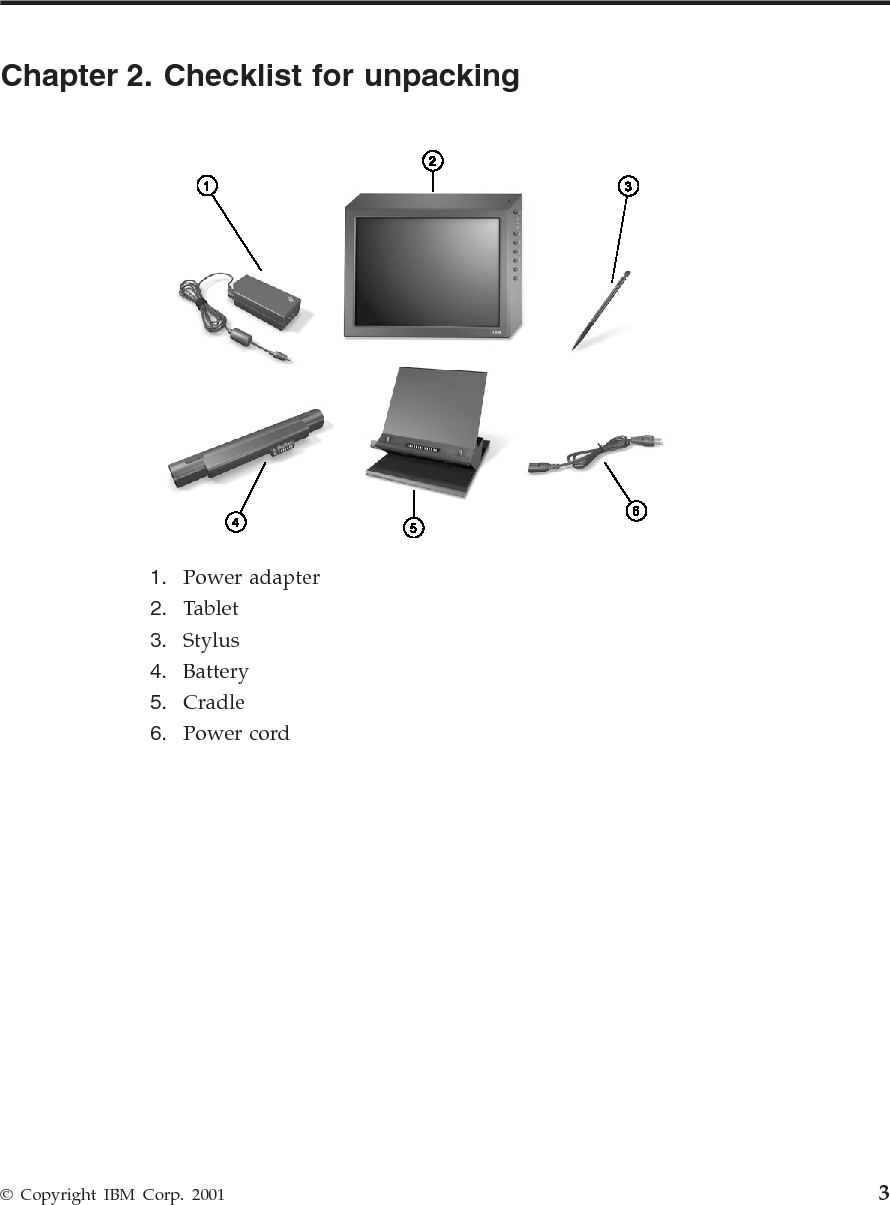

Chapter 2. Checklist for unpacking1. Power adapter2. Tablet3. Stylus4. Battery5. Cradle6. Power cord© Copyright IBM Corp. 2001 3
4NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

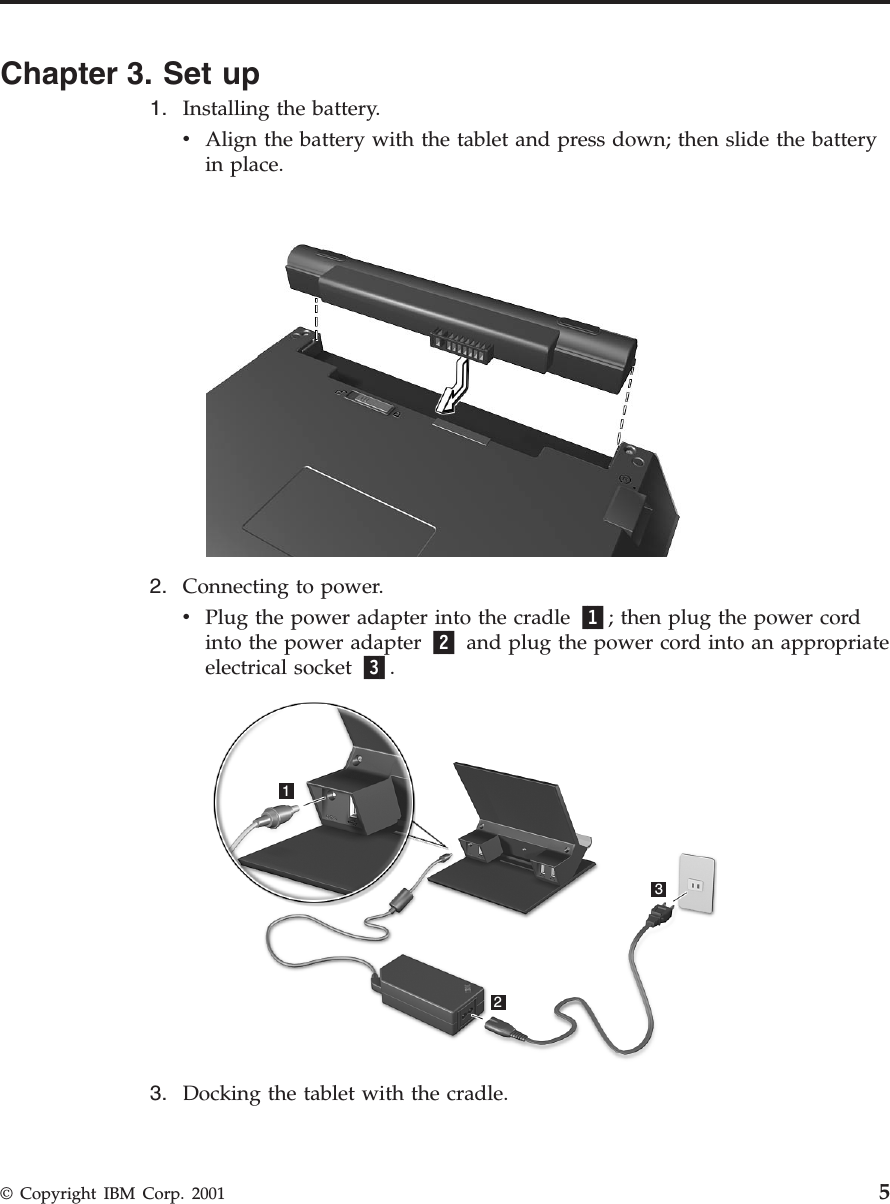

Chapter 3. Set up1. Installing the battery.vAlign the battery with the tablet and press down; then slide the batteryin place.2. Connecting to power.vPlug the power adapter into the cradle 1; then plug the power cordinto the power adapter 2 and plug the power cord into an appropriateelectrical socket 3.1233. Docking the tablet with the cradle.© Copyright IBM Corp. 2001 5

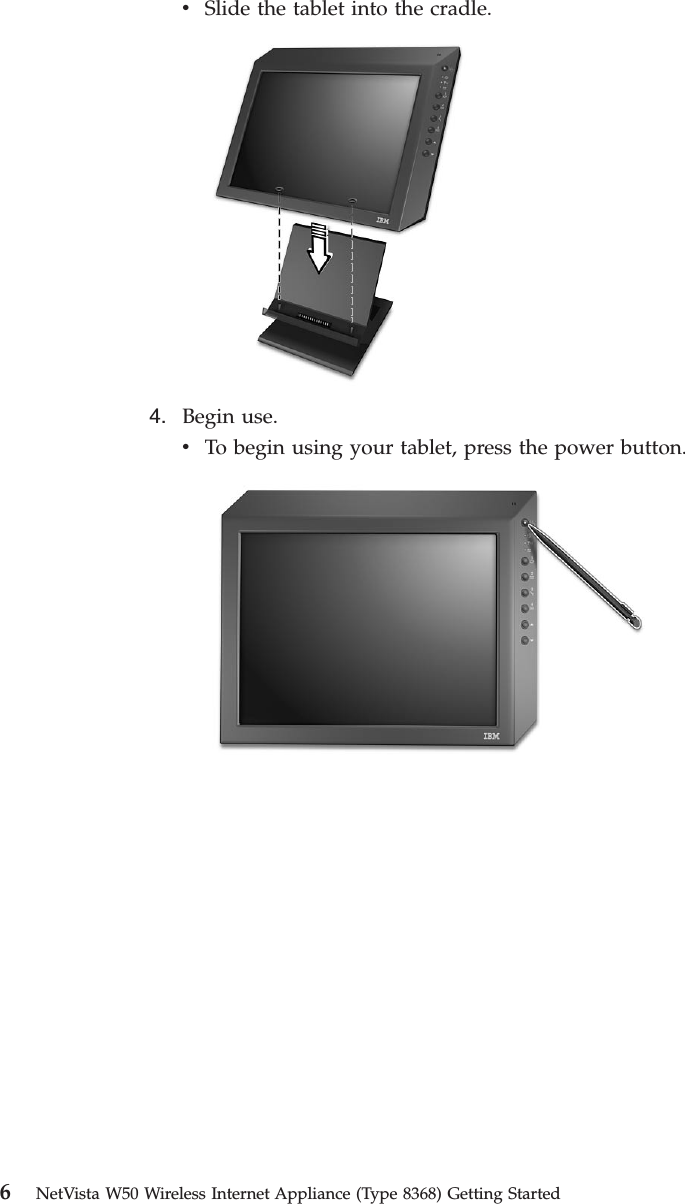

vSlide the tablet into the cradle.4. Begin use.vTo begin using your tablet, press the power button.6NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

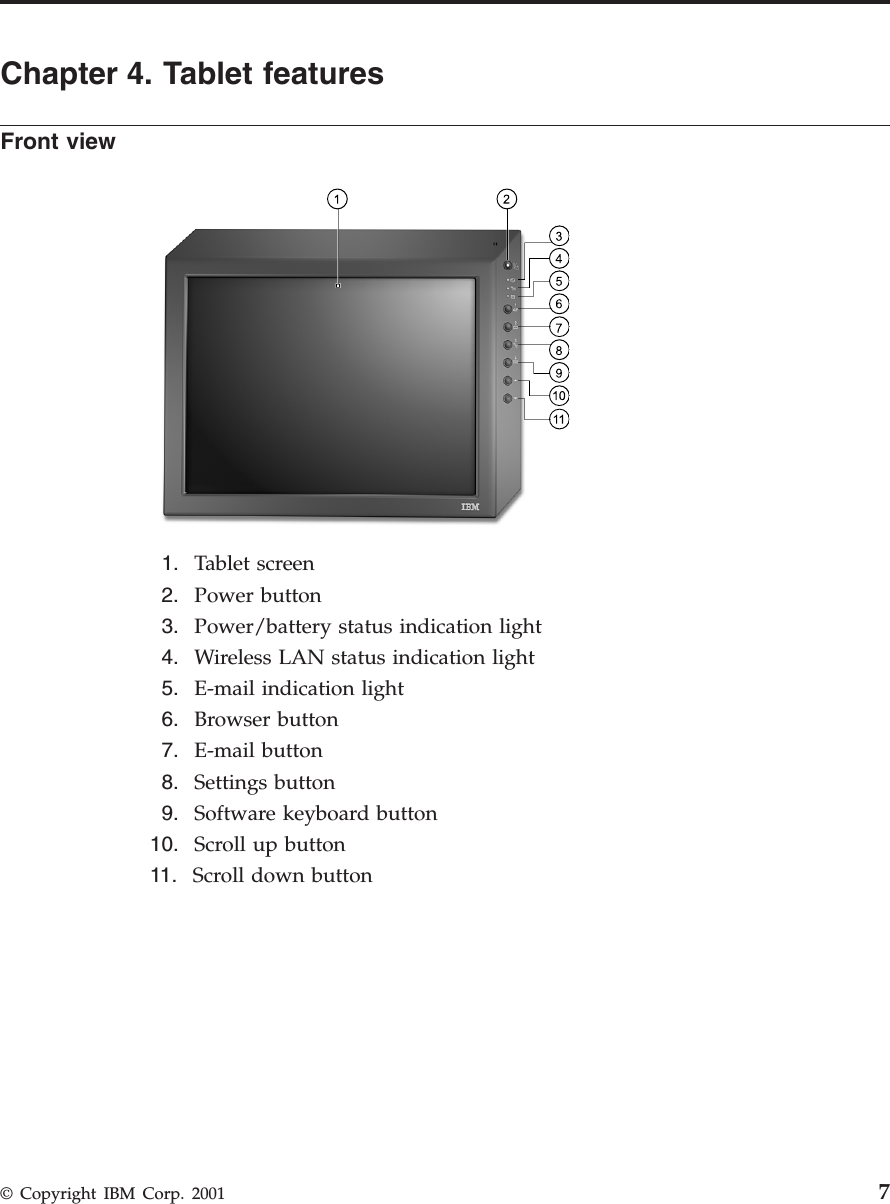

Chapter 4. Tablet featuresFront view1. Tablet screen2. Power button3. Power/battery status indication light4. Wireless LAN status indication light5. E-mail indication light6. Browser button7. E-mail button8. Settings button9. Software keyboard button10. Scroll up button11. Scroll down button© Copyright IBM Corp. 2001 7

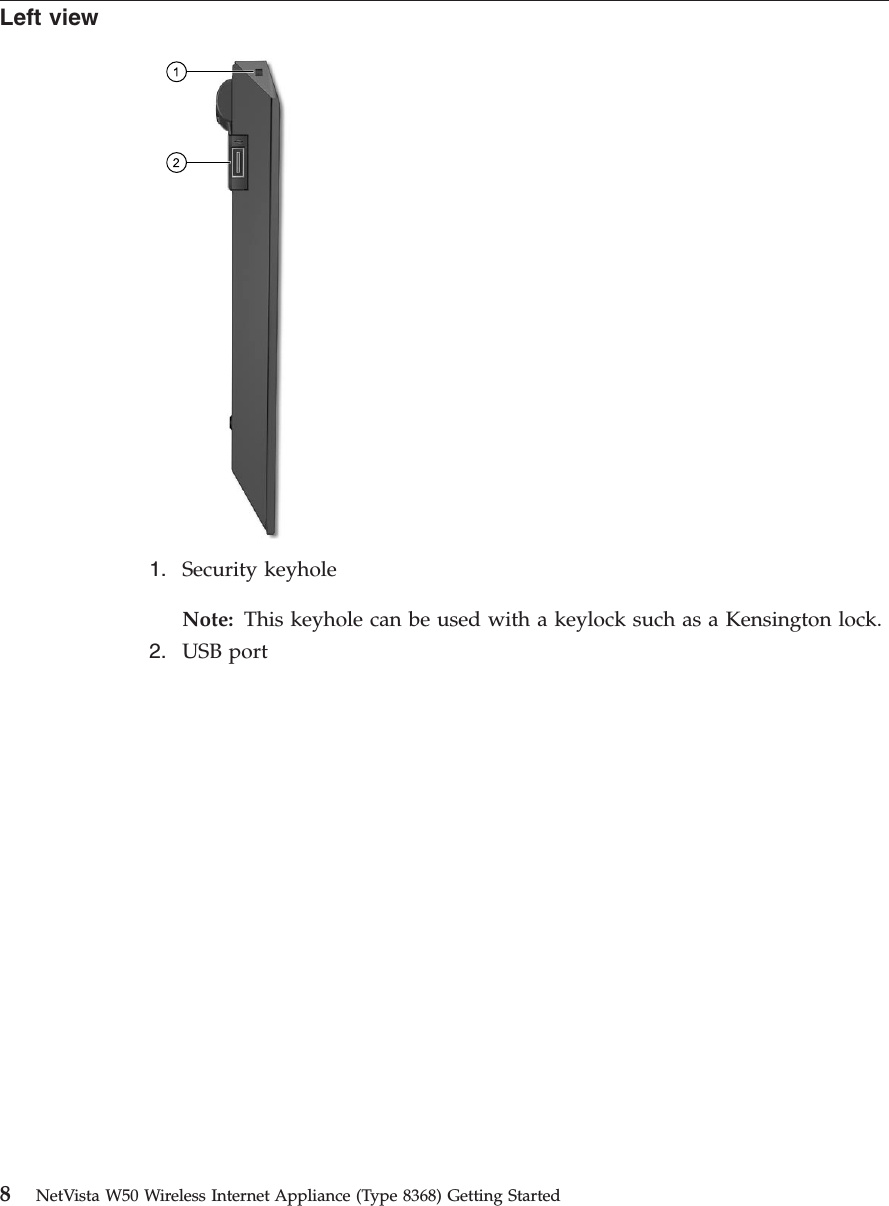

Left view1. Security keyholeNote: This keyhole can be used with a keylock such as a Kensington lock.2. USB port8NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

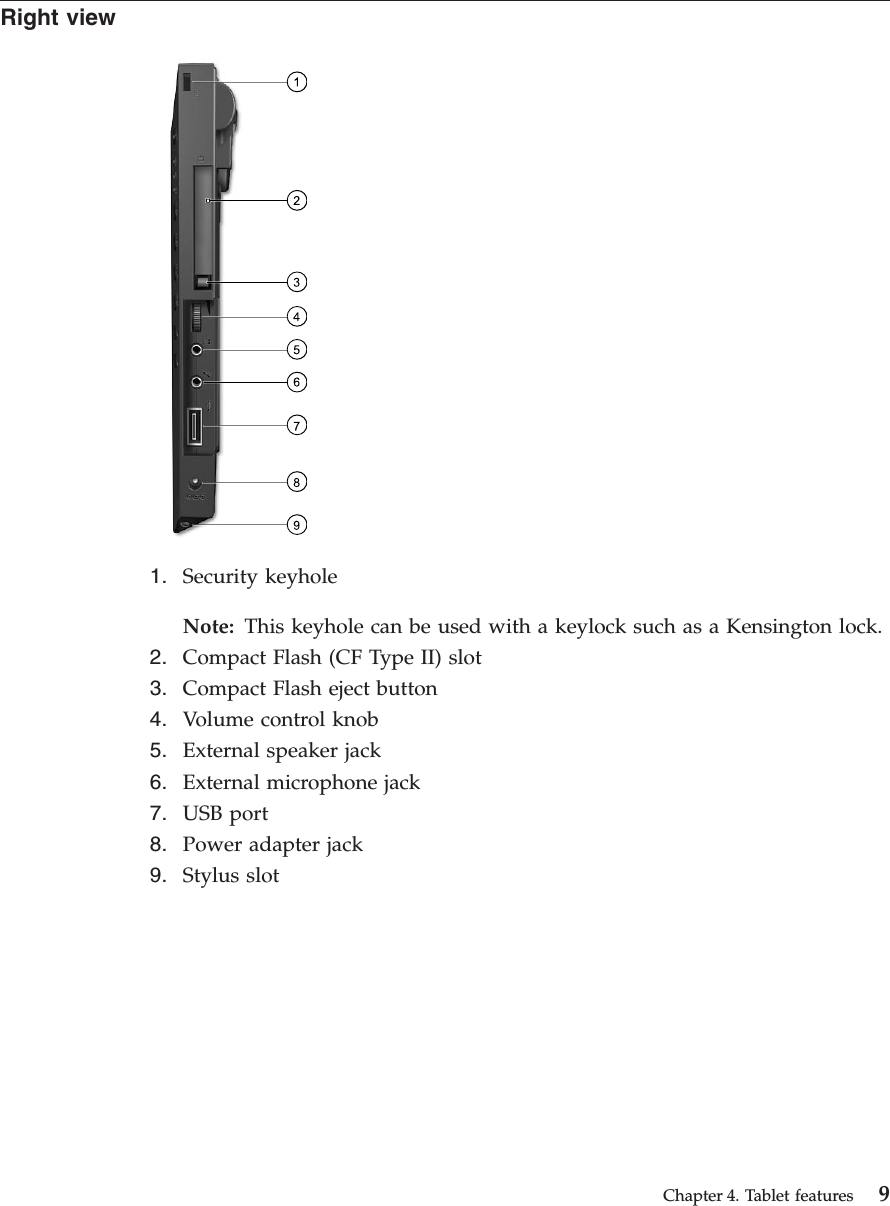

Right view1. Security keyholeNote: This keyhole can be used with a keylock such as a Kensington lock.2. Compact Flash (CF Type II) slot3. Compact Flash eject button4. Volume control knob5. External speaker jack6. External microphone jack7. USB port8. Power adapter jack9. Stylus slotChapter 4. Tablet features 9

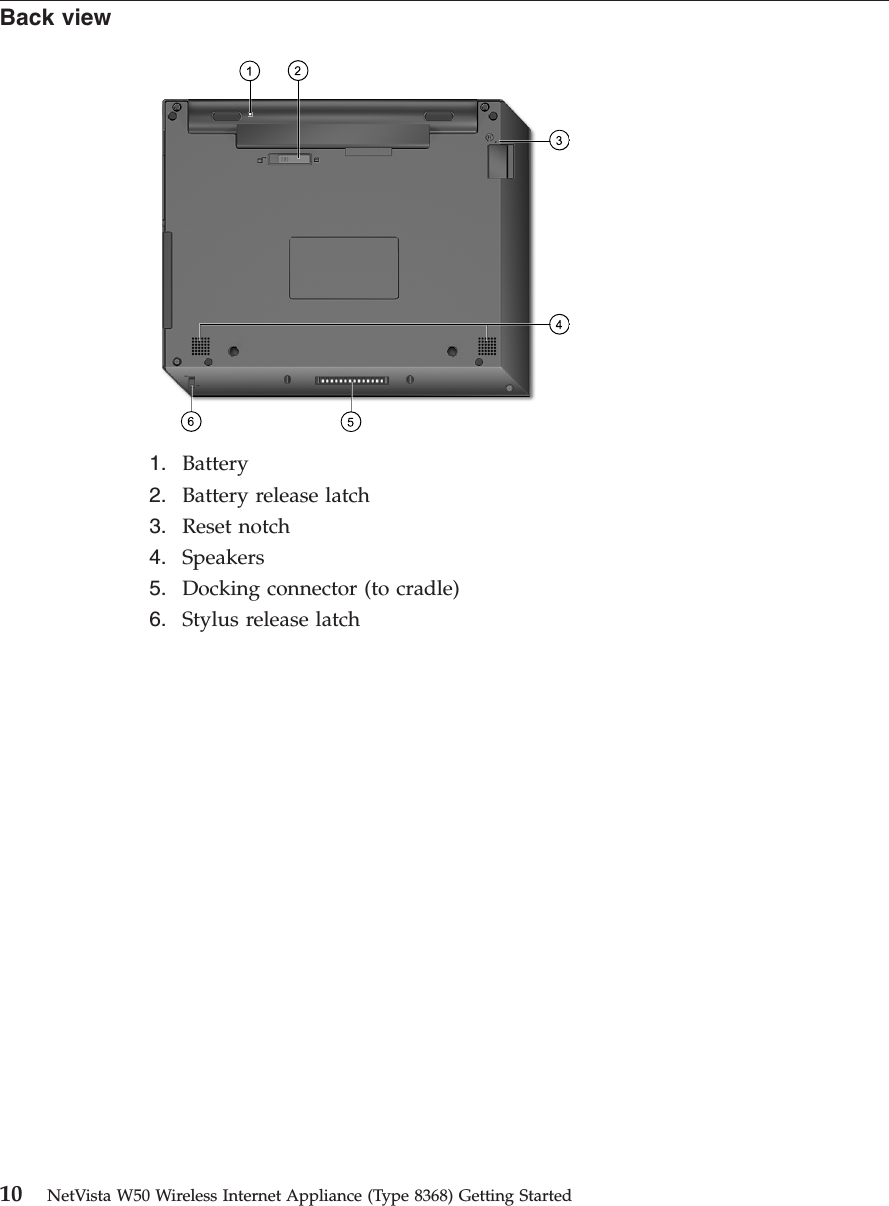

Back view1. Battery2. Battery release latch3. Reset notch4. Speakers5. Docking connector (to cradle)6. Stylus release latch10 NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

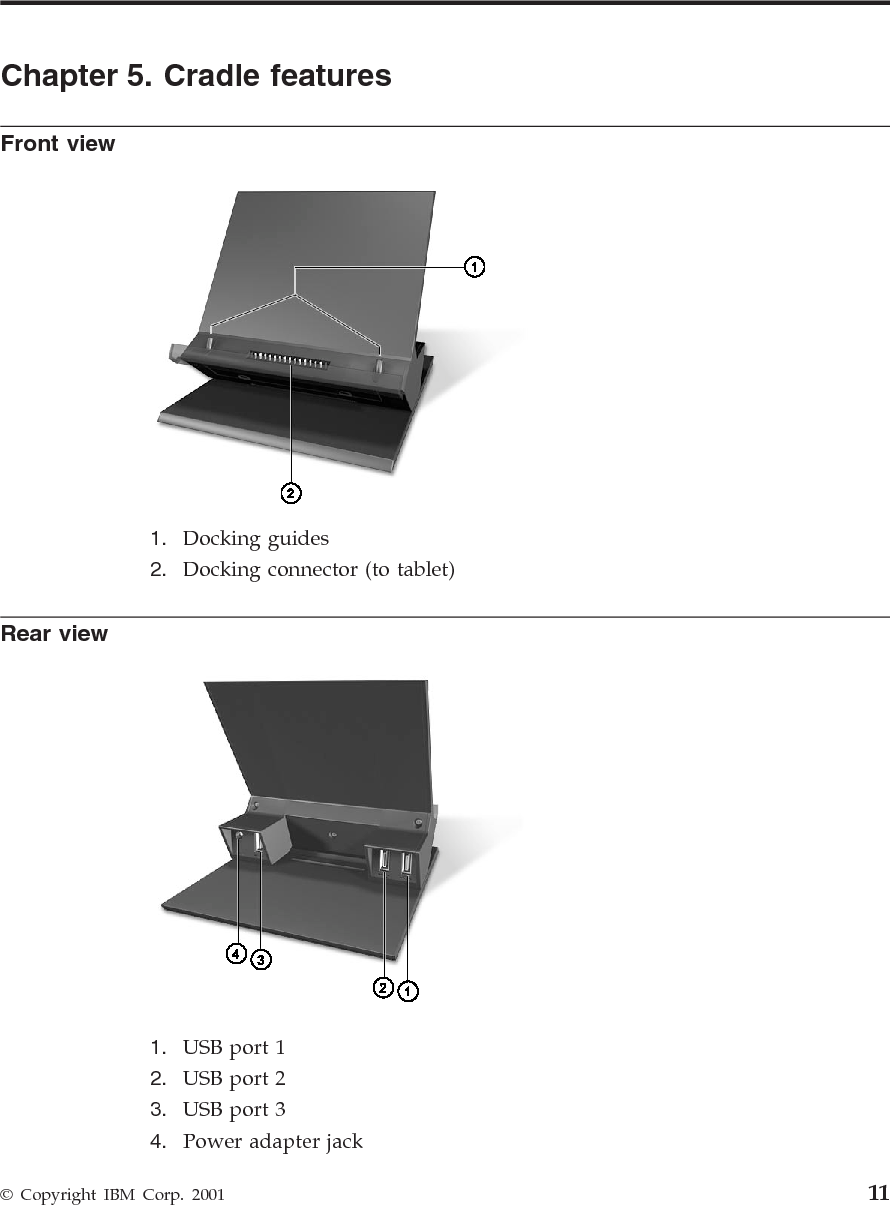

Chapter 5. Cradle featuresFront view1. Docking guides2. Docking connector (to tablet)Rear view1. USB port 12. USB port 23. USB port 34. Power adapter jack© Copyright IBM Corp. 2001 11
12 NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

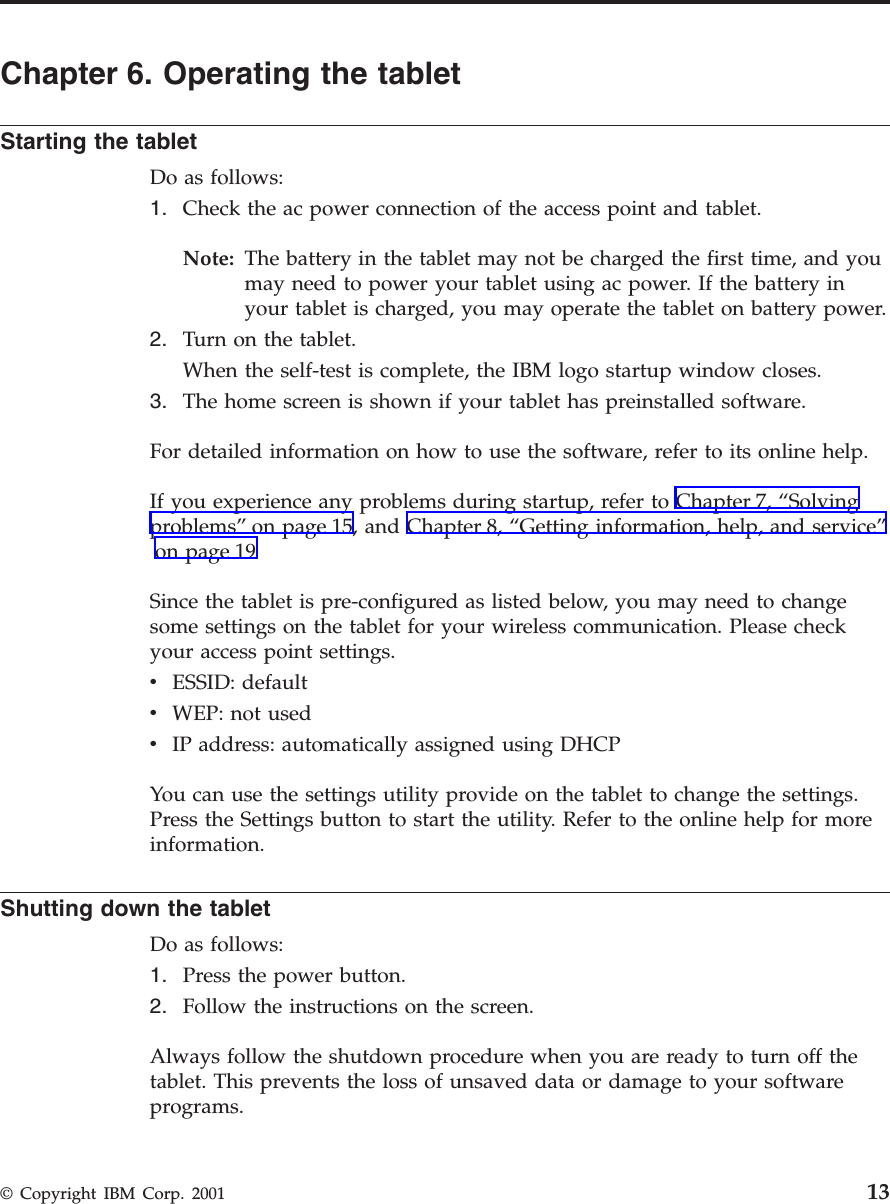

Chapter 6. Operating the tabletStarting the tabletDo as follows:1. Check the ac power connection of the access point and tablet.Note: The battery in the tablet may not be charged the first time, and youmay need to power your tablet using ac power. If the battery inyour tablet is charged, you may operate the tablet on battery power.2. Turn on the tablet.When the self-test is complete, the IBM logo startup window closes.3. The home screen is shown if your tablet has preinstalled software.For detailed information on how to use the software, refer to its online help.If you experience any problems during startup, refer to Chapter 7, “Solvingproblems”on page 15, and Chapter 8, “Getting information, help, and service”on page 19Since the tablet is pre-configured as listed below, you may need to changesome settings on the tablet for your wireless communication. Please checkyour access point settings.vESSID: defaultvWEP: not usedvIP address: automatically assigned using DHCPYou can use the settings utility provide on the tablet to change the settings.Press the Settings button to start the utility. Refer to the online help for moreinformation.Shutting down the tabletDo as follows:1. Press the power button.2. Follow the instructions on the screen.Always follow the shutdown procedure when you are ready to turn off thetablet. This prevents the loss of unsaved data or damage to your softwareprograms.© Copyright IBM Corp. 2001 13

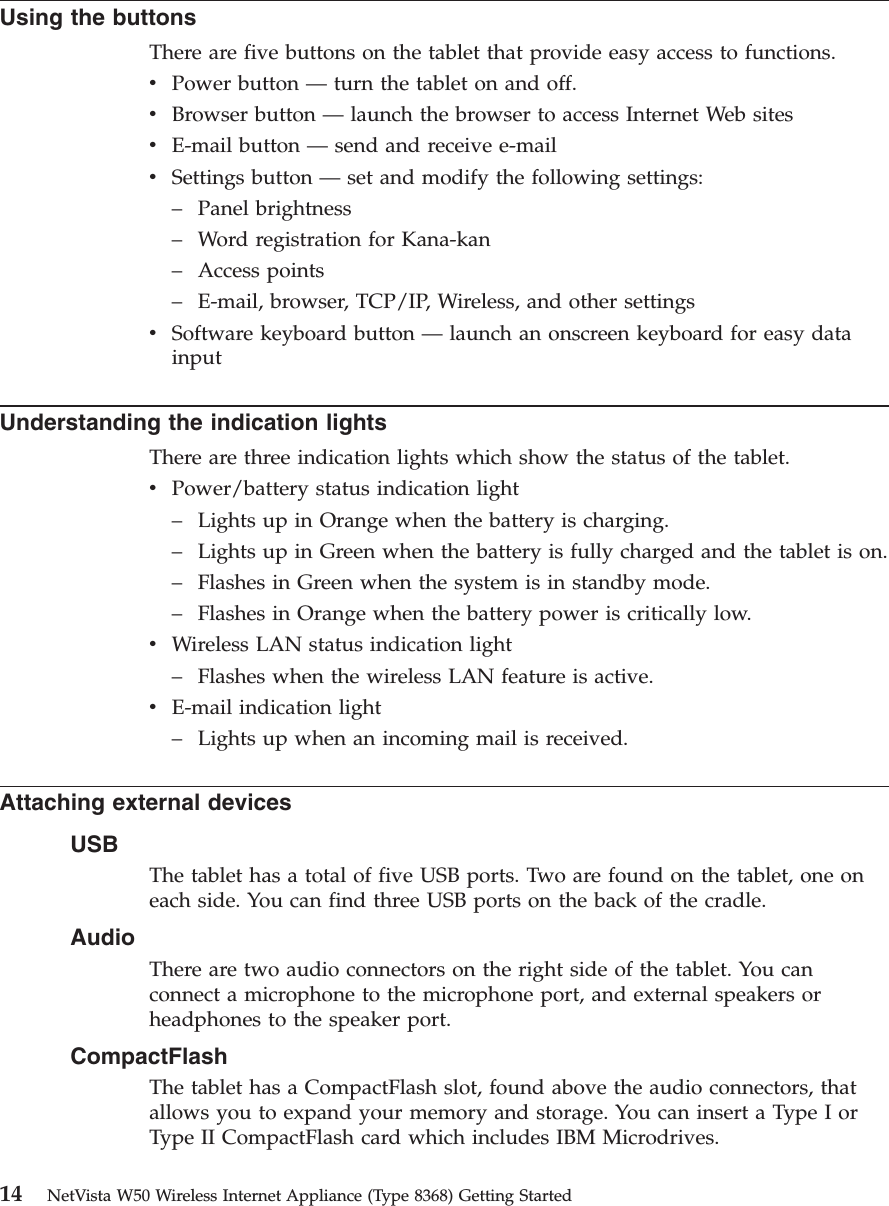

Using the buttonsThere are five buttons on the tablet that provide easy access to functions.vPower button —turn the tablet on and off.vBrowser button —launch the browser to access Internet Web sitesvE-mail button —send and receive e-mailvSettings button —set and modify the following settings:–Panel brightness–Word registration for Kana-kan–Access points–E-mail, browser, TCP/IP, Wireless, and other settingsvSoftware keyboard button —launch an onscreen keyboard for easy datainputUnderstanding the indication lightsThere are three indication lights which show the status of the tablet.vPower/battery status indication light–Lights up in Orange when the battery is charging.–Lights up in Green when the battery is fully charged and the tablet is on.–Flashes in Green when the system is in standby mode.–Flashes in Orange when the battery power is critically low.vWireless LAN status indication light–Flashes when the wireless LAN feature is active.vE-mail indication light–Lights up when an incoming mail is received.Attaching external devicesUSBThe tablet has a total of five USB ports. Two are found on the tablet, one oneach side. You can find three USB ports on the back of the cradle.AudioThere are two audio connectors on the right side of the tablet. You canconnect a microphone to the microphone port, and external speakers orheadphones to the speaker port.CompactFlashThe tablet has a CompactFlash slot, found above the audio connectors, thatallows you to expand your memory and storage. You can insert a Type I orType II CompactFlash card which includes IBM Microdrives.14 NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

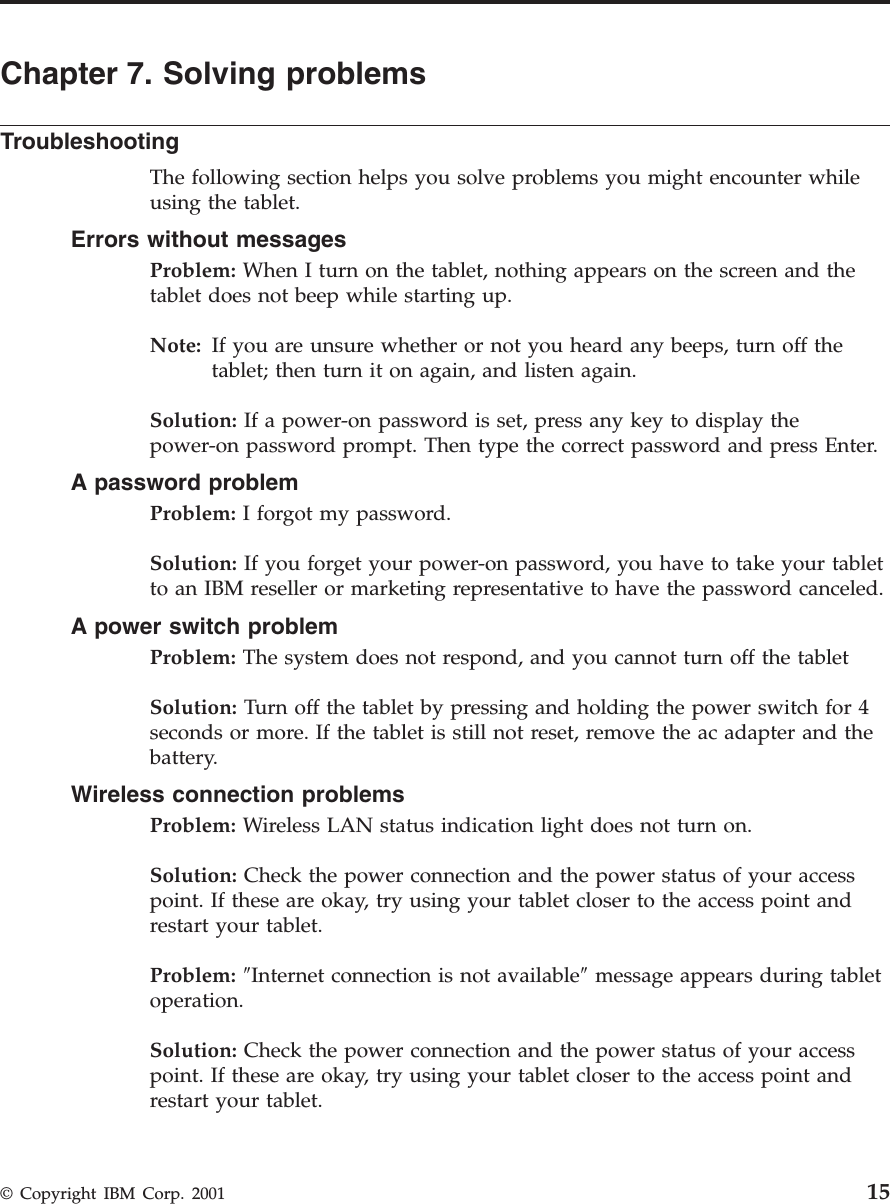

Chapter 7. Solving problemsTroubleshootingThe following section helps you solve problems you might encounter whileusing the tablet.Errors without messagesProblem: When I turn on the tablet, nothing appears on the screen and thetablet does not beep while starting up.Note: If you are unsure whether or not you heard any beeps, turn off thetablet; then turn it on again, and listen again.Solution: If a power-on password is set, press any key to display thepower-on password prompt. Then type the correct password and press Enter.A password problemProblem: I forgot my password.Solution: If you forget your power-on password, you have to take your tabletto an IBM reseller or marketing representative to have the password canceled.A power switch problemProblem: The system does not respond, and you cannot turn off the tabletSolution: Turn off the tablet by pressing and holding the power switch for 4seconds or more. If the tablet is still not reset, remove the ac adapter and thebattery.Wireless connection problemsProblem: Wireless LAN status indication light does not turn on.Solution: Check the power connection and the power status of your accesspoint. If these are okay, try using your tablet closer to the access point andrestart your tablet.Problem: ″Internet connection is not available″message appears during tabletoperation.Solution: Check the power connection and the power status of your accesspoint. If these are okay, try using your tablet closer to the access point andrestart your tablet.© Copyright IBM Corp. 2001 15

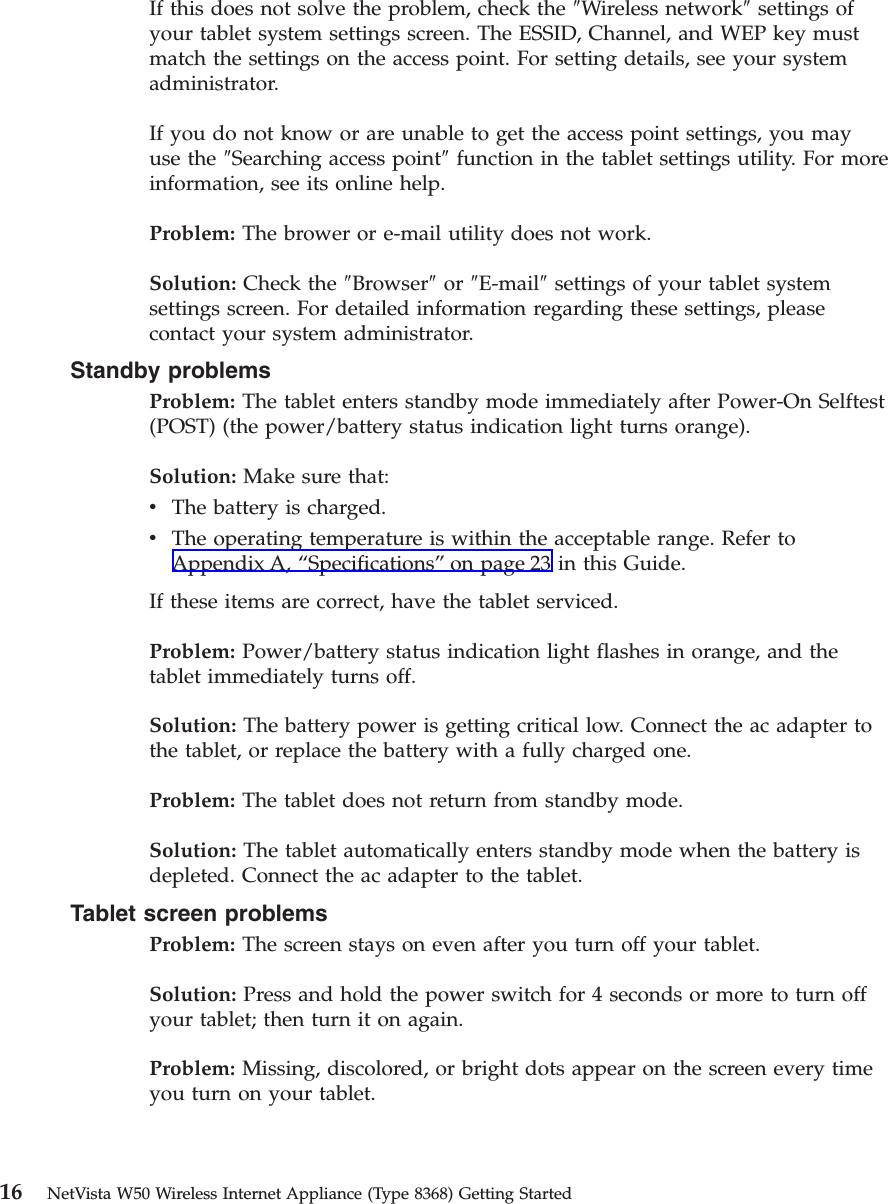

If this does not solve the problem, check the ″Wireless network″settings ofyour tablet system settings screen. The ESSID, Channel, and WEP key mustmatch the settings on the access point. For setting details, see your systemadministrator.If you do not know or are unable to get the access point settings, you mayuse the ″Searching access point″function in the tablet settings utility. For moreinformation, see its online help.Problem: The brower or e-mail utility does not work.Solution: Check the ″Browser″or ″E-mail″settings of your tablet systemsettings screen. For detailed information regarding these settings, pleasecontact your system administrator.Standby problemsProblem: The tablet enters standby mode immediately after Power-On Selftest(POST) (the power/battery status indication light turns orange).Solution: Make sure that:vThe battery is charged.vThe operating temperature is within the acceptable range. Refer toAppendix A, “Specifications”on page 23 in this Guide.If these items are correct, have the tablet serviced.Problem: Power/battery status indication light flashes in orange, and thetablet immediately turns off.Solution: The battery power is getting critical low. Connect the ac adapter tothe tablet, or replace the battery with a fully charged one.Problem: The tablet does not return from standby mode.Solution: The tablet automatically enters standby mode when the battery isdepleted. Connect the ac adapter to the tablet.Tablet screen problemsProblem: The screen stays on even after you turn off your tablet.Solution: Press and hold the power switch for 4 seconds or more to turn offyour tablet; then turn it on again.Problem: Missing, discolored, or bright dots appear on the screen every timeyou turn on your tablet.16 NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

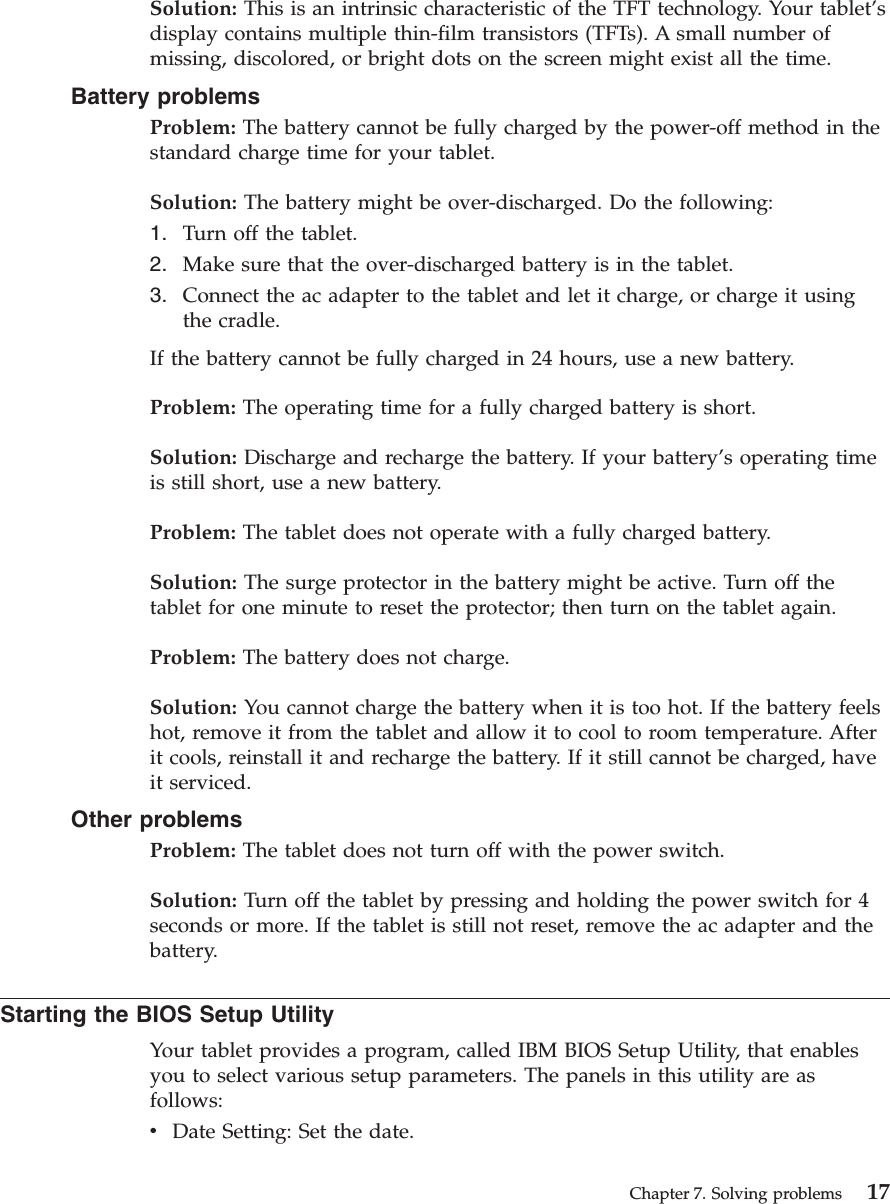

Solution: This is an intrinsic characteristic of the TFT technology. Your tablet’sdisplay contains multiple thin-film transistors (TFTs). A small number ofmissing, discolored, or bright dots on the screen might exist all the time.Battery problemsProblem: The battery cannot be fully charged by the power-off method in thestandard charge time for your tablet.Solution: The battery might be over-discharged. Do the following:1. Turn off the tablet.2. Make sure that the over-discharged battery is in the tablet.3. Connect the ac adapter to the tablet and let it charge, or charge it usingthe cradle.If the battery cannot be fully charged in 24 hours, use a new battery.Problem: The operating time for a fully charged battery is short.Solution: Discharge and recharge the battery. If your battery’s operating timeis still short, use a new battery.Problem: The tablet does not operate with a fully charged battery.Solution: The surge protector in the battery might be active. Turn off thetablet for one minute to reset the protector; then turn on the tablet again.Problem: The battery does not charge.Solution: You cannot charge the battery when it is too hot. If the battery feelshot, remove it from the tablet and allow it to cool to room temperature. Afterit cools, reinstall it and recharge the battery. If it still cannot be charged, haveit serviced.Other problemsProblem: The tablet does not turn off with the power switch.Solution: Turn off the tablet by pressing and holding the power switch for 4seconds or more. If the tablet is still not reset, remove the ac adapter and thebattery.Starting the BIOS Setup UtilityYour tablet provides a program, called IBM BIOS Setup Utility, that enablesyou to select various setup parameters. The panels in this utility are asfollows:vDate Setting: Set the date.Chapter 7. Solving problems 17

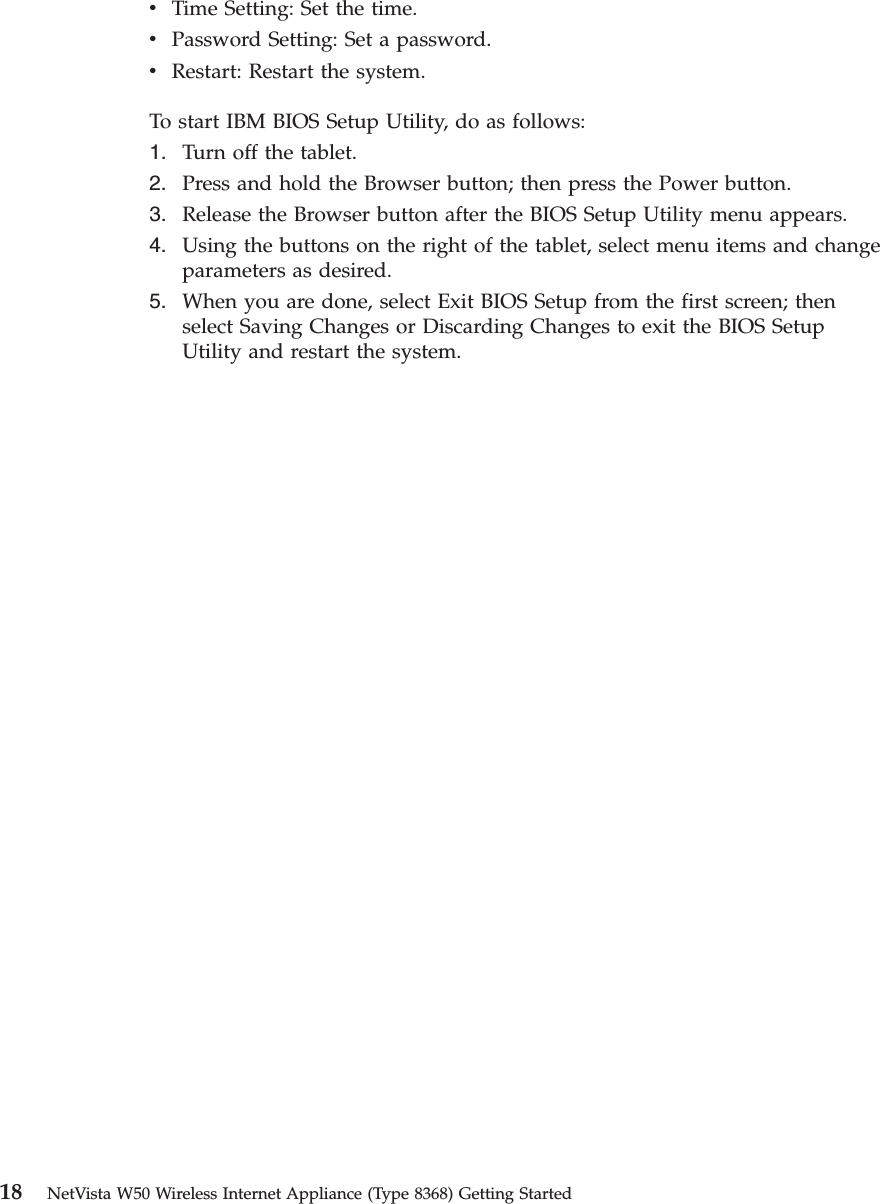

vTime Setting: Set the time.vPassword Setting: Set a password.vRestart: Restart the system.To start IBM BIOS Setup Utility, do as follows:1. Turn off the tablet.2. Press and hold the Browser button; then press the Power button.3. Release the Browser button after the BIOS Setup Utility menu appears.4. Using the buttons on the right of the tablet, select menu items and changeparameters as desired.5. When you are done, select Exit BIOS Setup from the first screen; thenselect Saving Changes or Discarding Changes to exit the BIOS SetupUtility and restart the system.18 NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

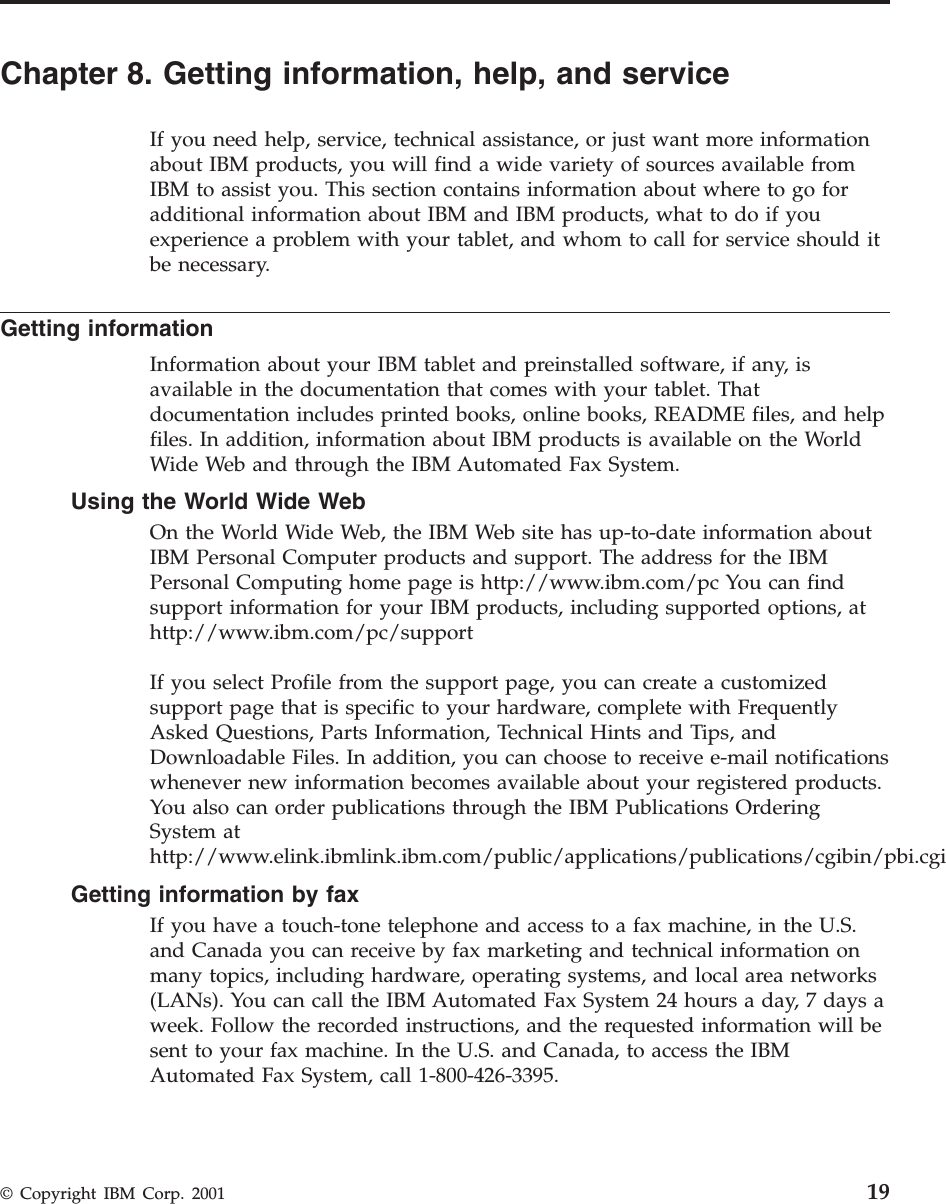

Chapter 8. Getting information, help, and serviceIf you need help, service, technical assistance, or just want more informationabout IBM products, you will find a wide variety of sources available fromIBM to assist you. This section contains information about where to go foradditional information about IBM and IBM products, what to do if youexperience a problem with your tablet, and whom to call for service should itbe necessary.Getting informationInformation about your IBM tablet and preinstalled software, if any, isavailable in the documentation that comes with your tablet. Thatdocumentation includes printed books, online books, README files, and helpfiles. In addition, information about IBM products is available on the WorldWide Web and through the IBM Automated Fax System.Using the World Wide WebOn the World Wide Web, the IBM Web site has up-to-date information aboutIBM Personal Computer products and support. The address for the IBMPersonal Computing home page is http://www.ibm.com/pc You can findsupport information for your IBM products, including supported options, athttp://www.ibm.com/pc/supportIf you select Profile from the support page, you can create a customizedsupport page that is specific to your hardware, complete with FrequentlyAsked Questions, Parts Information, Technical Hints and Tips, andDownloadable Files. In addition, you can choose to receive e-mail notificationswhenever new information becomes available about your registered products.You also can order publications through the IBM Publications OrderingSystem athttp://www.elink.ibmlink.ibm.com/public/applications/publications/cgibin/pbi.cgiGetting information by faxIf you have a touch-tone telephone and access to a fax machine, in the U.S.and Canada you can receive by fax marketing and technical information onmany topics, including hardware, operating systems, and local area networks(LANs). You can call the IBM Automated Fax System 24 hours a day, 7 days aweek. Follow the recorded instructions, and the requested information will besent to your fax machine. In the U.S. and Canada, to access the IBMAutomated Fax System, call 1-800-426-3395.© Copyright IBM Corp. 2001 19

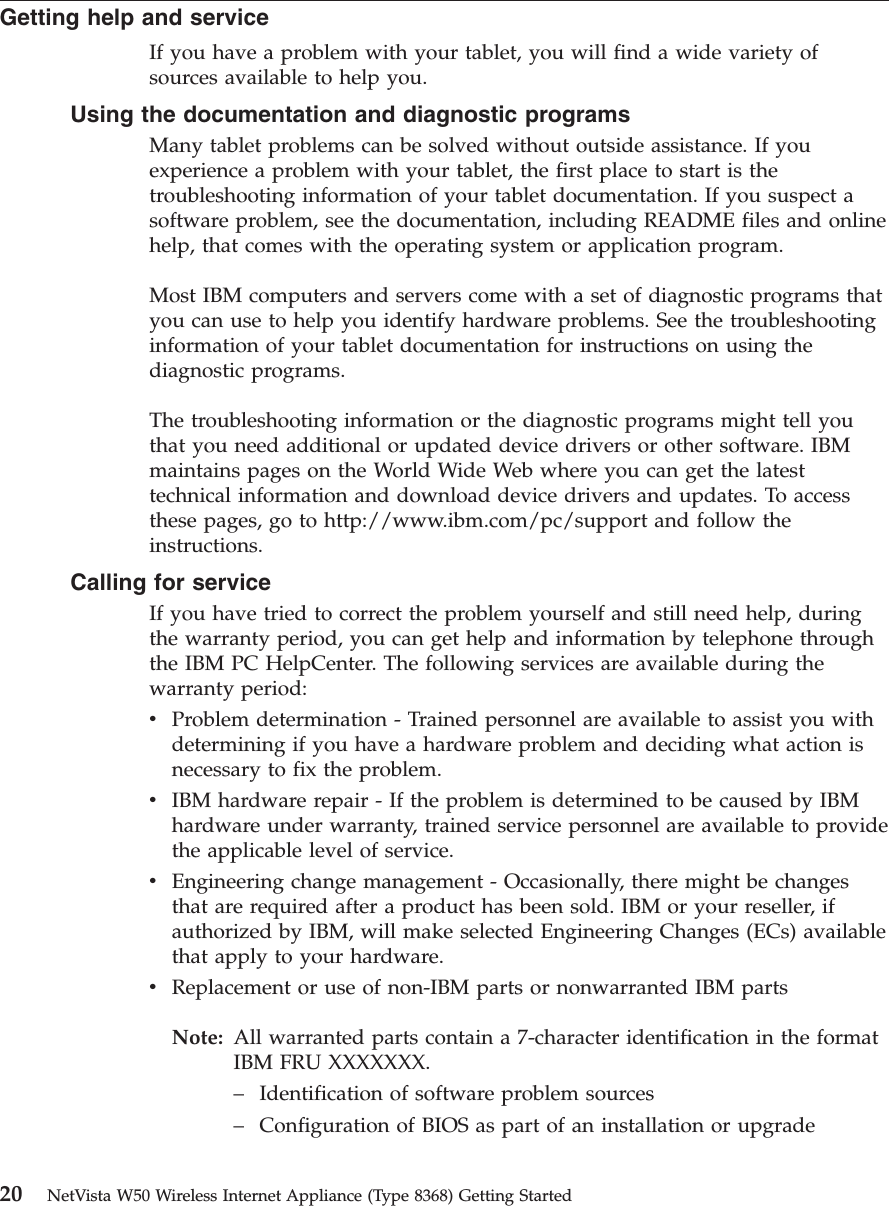

Getting help and serviceIf you have a problem with your tablet, you will find a wide variety ofsources available to help you.Using the documentation and diagnostic programsMany tablet problems can be solved without outside assistance. If youexperience a problem with your tablet, the first place to start is thetroubleshooting information of your tablet documentation. If you suspect asoftware problem, see the documentation, including README files and onlinehelp, that comes with the operating system or application program.Most IBM computers and servers come with a set of diagnostic programs thatyou can use to help you identify hardware problems. See the troubleshootinginformation of your tablet documentation for instructions on using thediagnostic programs.The troubleshooting information or the diagnostic programs might tell youthat you need additional or updated device drivers or other software. IBMmaintains pages on the World Wide Web where you can get the latesttechnical information and download device drivers and updates. To accessthese pages, go to http://www.ibm.com/pc/support and follow theinstructions.Calling for serviceIf you have tried to correct the problem yourself and still need help, duringthe warranty period, you can get help and information by telephone throughthe IBM PC HelpCenter. The following services are available during thewarranty period:vProblem determination - Trained personnel are available to assist you withdetermining if you have a hardware problem and deciding what action isnecessary to fix the problem.vIBM hardware repair - If the problem is determined to be caused by IBMhardware under warranty, trained service personnel are available to providethe applicable level of service.vEngineering change management - Occasionally, there might be changesthat are required after a product has been sold. IBM or your reseller, ifauthorized by IBM, will make selected Engineering Changes (ECs) availablethat apply to your hardware.vReplacement or use of non-IBM parts or nonwarranted IBM partsNote: All warranted parts contain a 7-character identification in the formatIBM FRU XXXXXXX.–Identification of software problem sources–Configuration of BIOS as part of an installation or upgrade20 NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

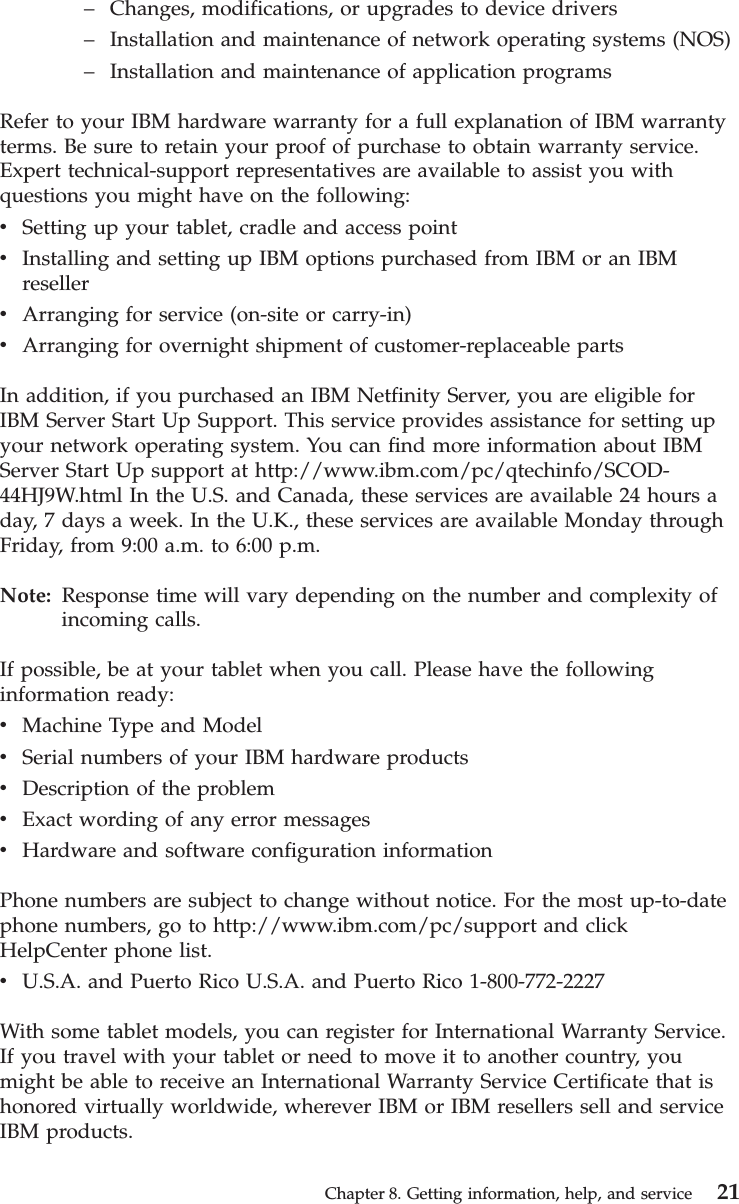

–Changes, modifications, or upgrades to device drivers–Installation and maintenance of network operating systems (NOS)–Installation and maintenance of application programsRefer to your IBM hardware warranty for a full explanation of IBM warrantyterms. Be sure to retain your proof of purchase to obtain warranty service.Expert technical-support representatives are available to assist you withquestions you might have on the following:vSetting up your tablet, cradle and access pointvInstalling and setting up IBM options purchased from IBM or an IBMresellervArranging for service (on-site or carry-in)vArranging for overnight shipment of customer-replaceable partsIn addition, if you purchased an IBM Netfinity Server, you are eligible forIBM Server Start Up Support. This service provides assistance for setting upyour network operating system. You can find more information about IBMServer Start Up support at http://www.ibm.com/pc/qtechinfo/SCOD-44HJ9W.html In the U.S. and Canada, these services are available 24 hours aday, 7 days a week. In the U.K., these services are available Monday throughFriday, from 9:00 a.m. to 6:00 p.m.Note: Response time will vary depending on the number and complexity ofincoming calls.If possible, be at your tablet when you call. Please have the followinginformation ready:vMachine Type and ModelvSerial numbers of your IBM hardware productsvDescription of the problemvExact wording of any error messagesvHardware and software configuration informationPhone numbers are subject to change without notice. For the most up-to-datephone numbers, go to http://www.ibm.com/pc/support and clickHelpCenter phone list.vU.S.A. and Puerto Rico U.S.A. and Puerto Rico 1-800-772-2227With some tablet models, you can register for International Warranty Service.If you travel with your tablet or need to move it to another country, youmight be able to receive an International Warranty Service Certificate that ishonored virtually worldwide, wherever IBM or IBM resellers sell and serviceIBM products.Chapter 8. Getting information, help, and service 21

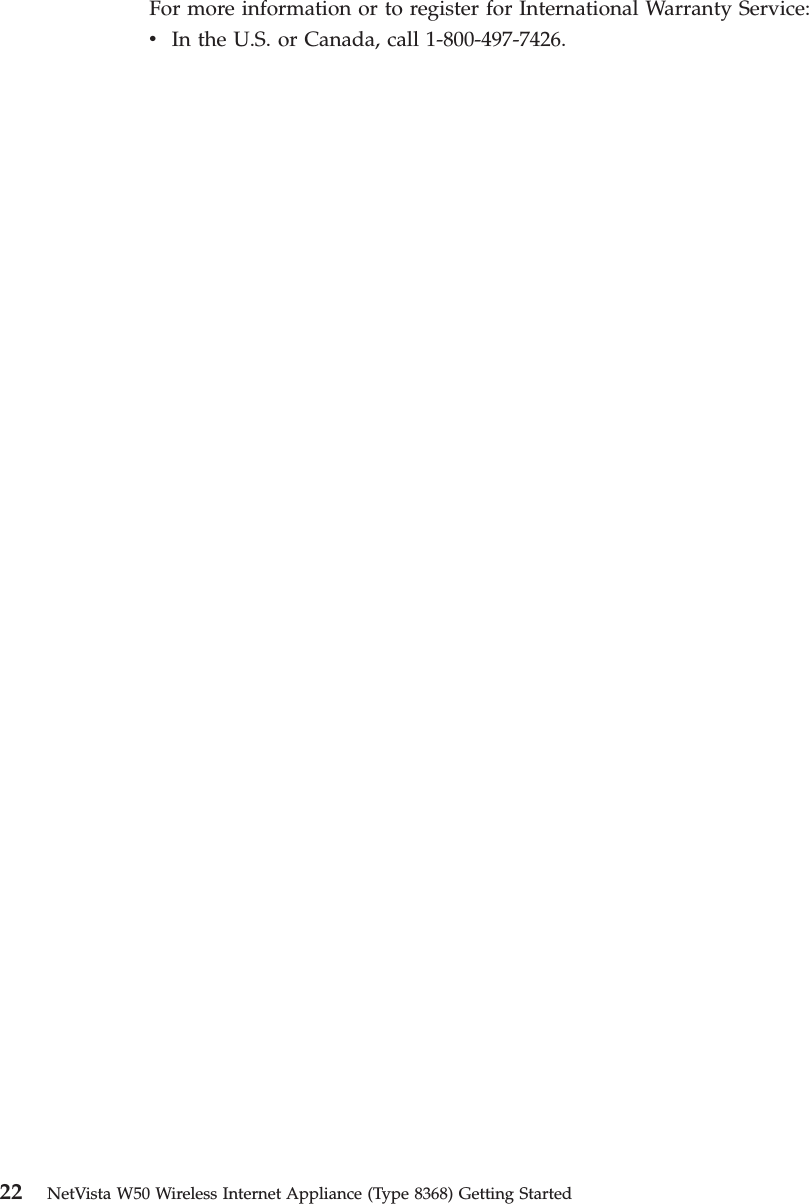

For more information or to register for International Warranty Service:vIn the U.S. or Canada, call 1-800-497-7426.22 NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

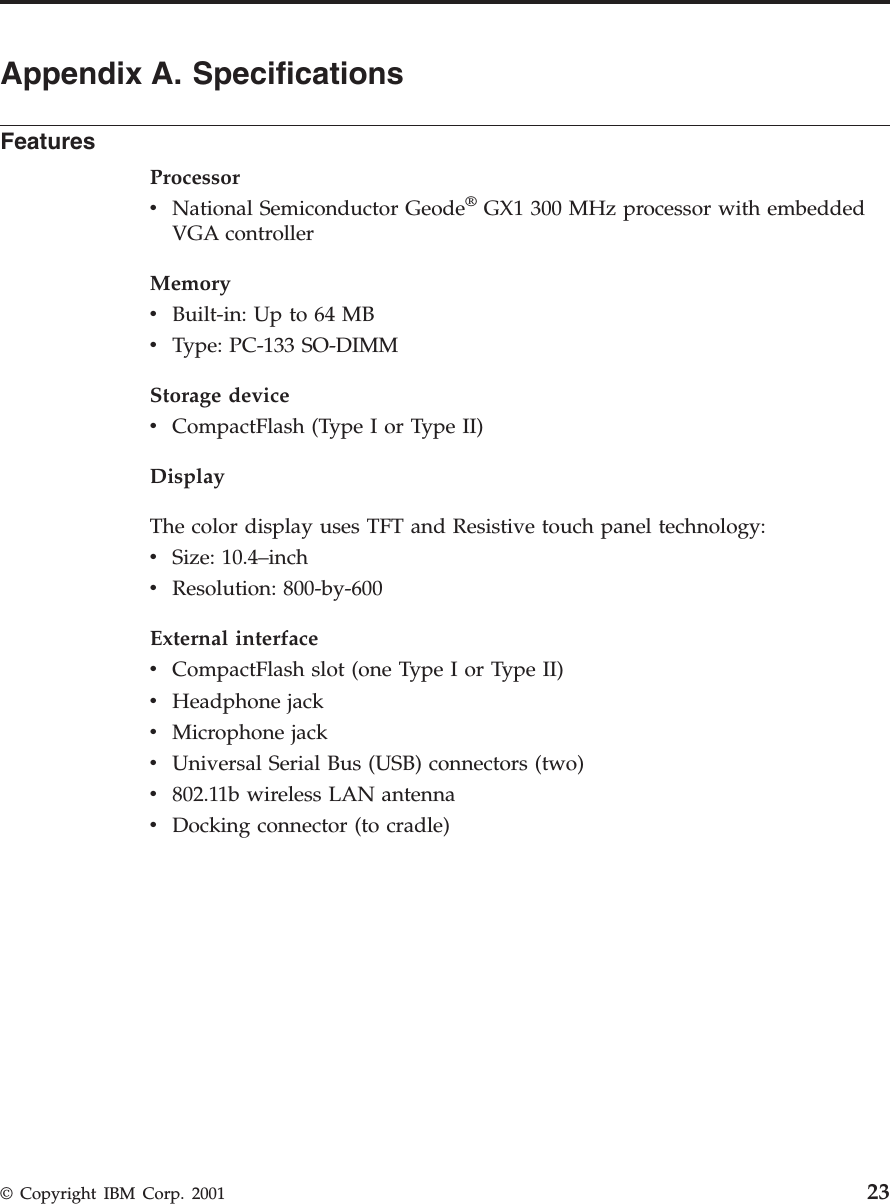

Appendix A. SpecificationsFeaturesProcessorvNational Semiconductor Geode®GX1 300 MHz processor with embeddedVGA controllerMemoryvBuilt-in: Up to 64 MBvType: PC-133 SO-DIMMStorage devicevCompactFlash (Type I or Type II)DisplayThe color display uses TFT and Resistive touch panel technology:vSize: 10.4–inchvResolution: 800-by-600External interfacevCompactFlash slot (one Type I or Type II)vHeadphone jackvMicrophone jackvUniversal Serial Bus (USB) connectors (two)v802.11b wireless LAN antennavDocking connector (to cradle)© Copyright IBM Corp. 2001 23

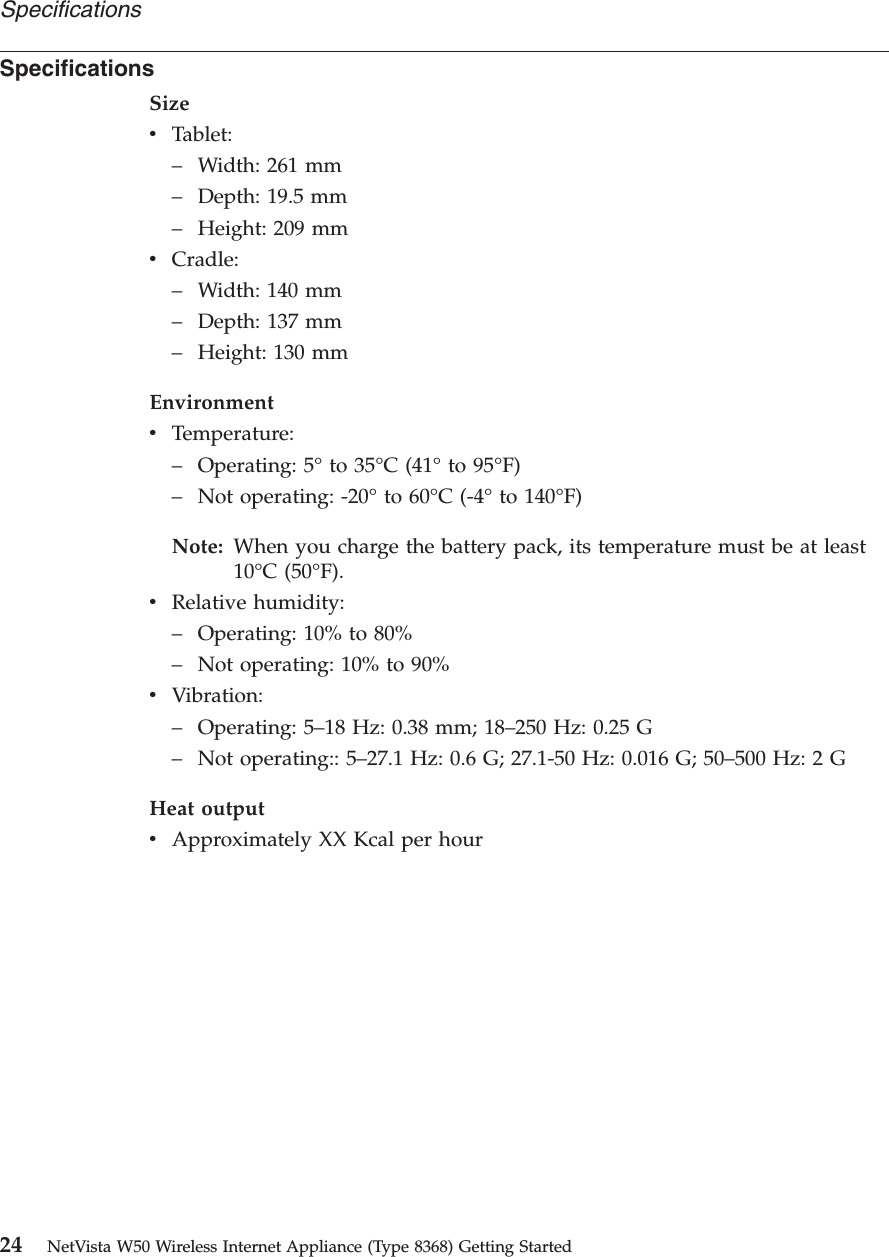

SpecificationsSizevTablet:–Width: 261 mm–Depth: 19.5 mm–Height: 209 mmvCradle:–Width: 140 mm–Depth: 137 mm–Height: 130 mmEnvironmentvTemperature:–Operating: 5°to 35°C (41°to 95°F)–Not operating: -20°to 60°C (-4°to 140°F)Note: When you charge the battery pack, its temperature must be at least10°C (50°F).vRelative humidity:–Operating: 10% to 80%–Not operating: 10% to 90%vVibration:–Operating: 5–18 Hz: 0.38 mm; 18–250 Hz: 0.25 G–Not operating:: 5–27.1 Hz: 0.6 G; 27.1-50 Hz: 0.016 G; 50–500 Hz: 2 GHeat outputvApproximately XX Kcal per hourSpecifications24 NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

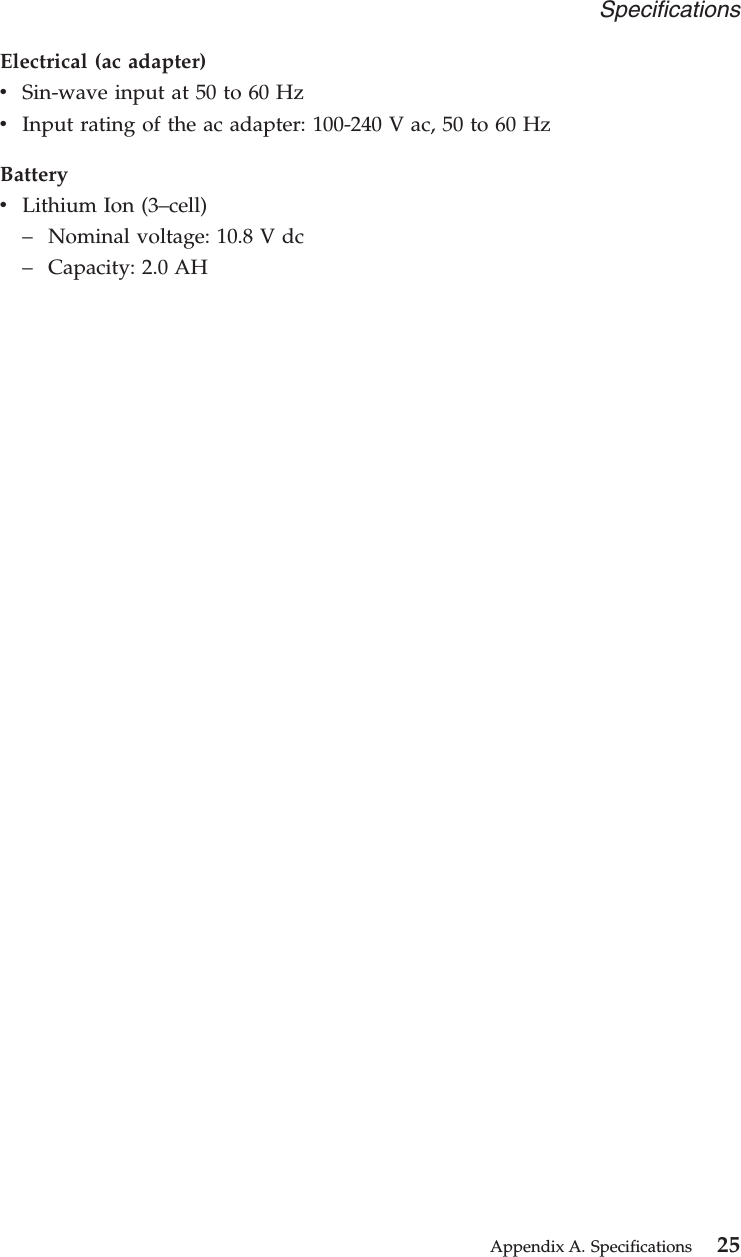

Electrical (ac adapter)vSin-wave input at 50 to 60 HzvInput rating of the ac adapter: 100-240 V ac, 50 to 60 HzBatteryvLithium Ion (3–cell)–Nominal voltage: 10.8 V dc–Capacity: 2.0 AHSpecificationsAppendix A. Specifications 25

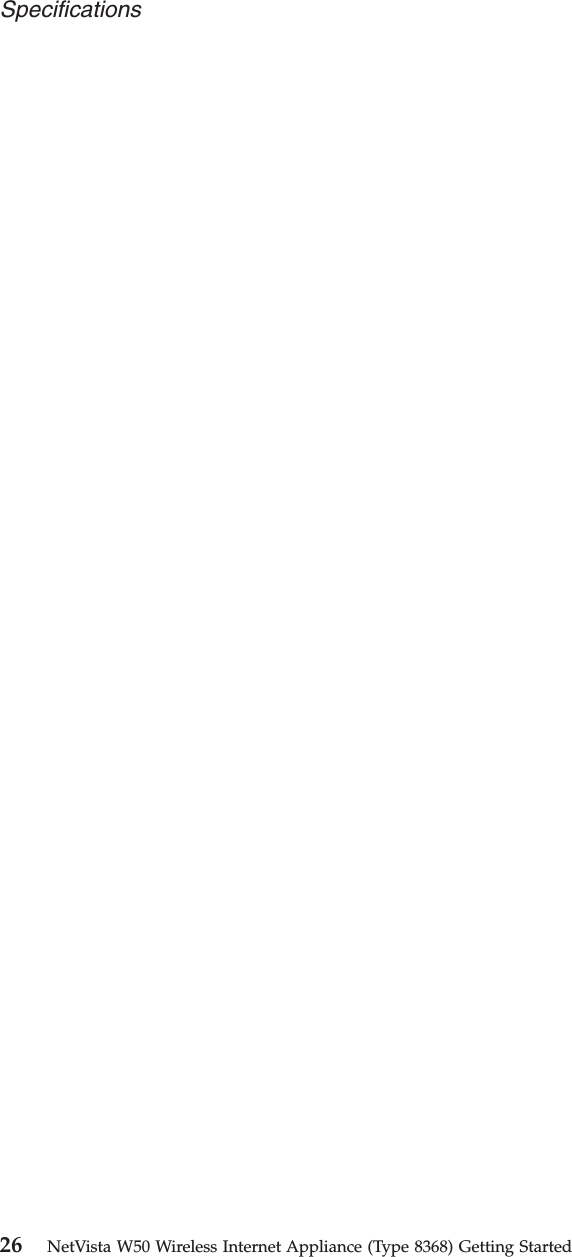

Specifications26 NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

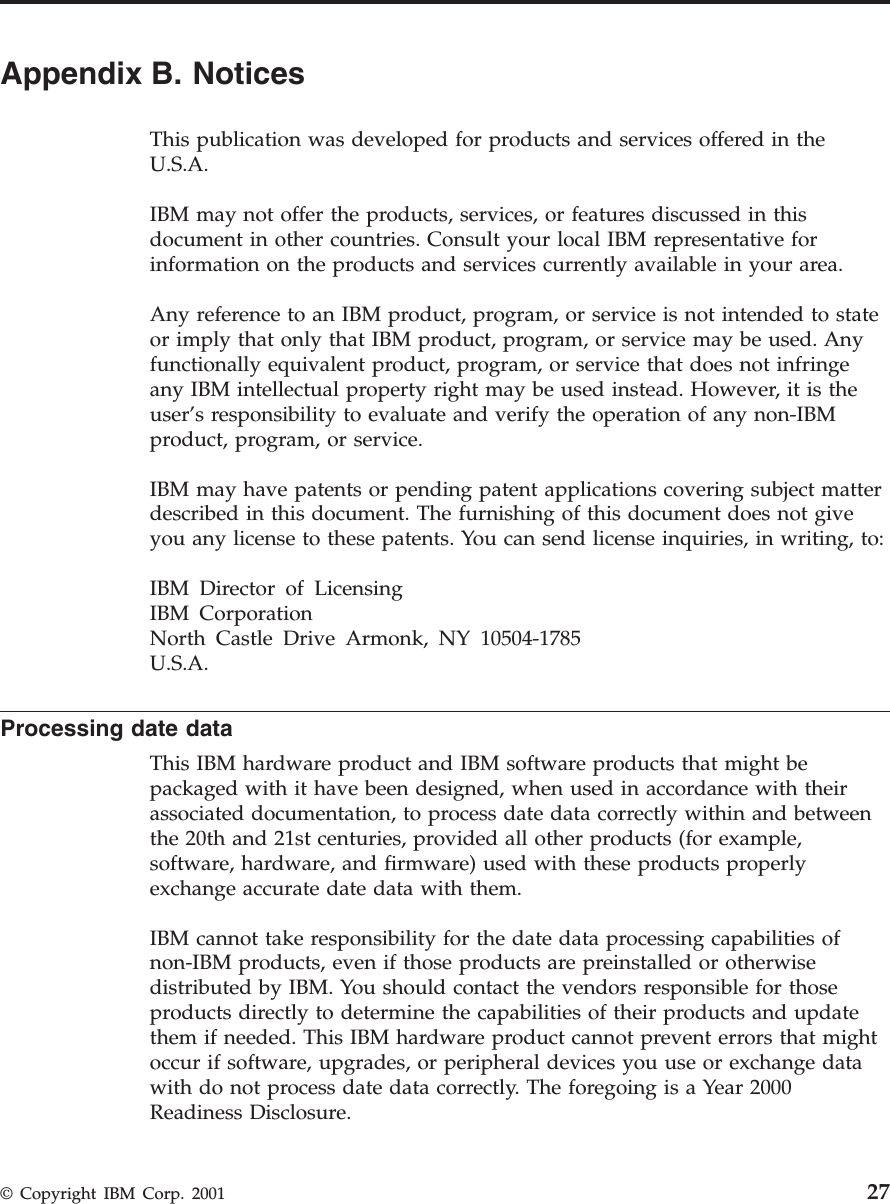

Appendix B. NoticesThis publication was developed for products and services offered in theU.S.A.IBM may not offer the products, services, or features discussed in thisdocument in other countries. Consult your local IBM representative forinformation on the products and services currently available in your area.Any reference to an IBM product, program, or service is not intended to stateor imply that only that IBM product, program, or service may be used. Anyfunctionally equivalent product, program, or service that does not infringeany IBM intellectual property right may be used instead. However, it is theuser’s responsibility to evaluate and verify the operation of any non-IBMproduct, program, or service.IBM may have patents or pending patent applications covering subject matterdescribed in this document. The furnishing of this document does not giveyou any license to these patents. You can send license inquiries, in writing, to:IBM Director of LicensingIBM CorporationNorth Castle Drive Armonk, NY 10504-1785U.S.A.Processing date dataThis IBM hardware product and IBM software products that might bepackaged with it have been designed, when used in accordance with theirassociated documentation, to process date data correctly within and betweenthe 20th and 21st centuries, provided all other products (for example,software, hardware, and firmware) used with these products properlyexchange accurate date data with them.IBM cannot take responsibility for the date data processing capabilities ofnon-IBM products, even if those products are preinstalled or otherwisedistributed by IBM. You should contact the vendors responsible for thoseproducts directly to determine the capabilities of their products and updatethem if needed. This IBM hardware product cannot prevent errors that mightoccur if software, upgrades, or peripheral devices you use or exchange datawith do not process date data correctly. The foregoing is a Year 2000Readiness Disclosure.© Copyright IBM Corp. 2001 27

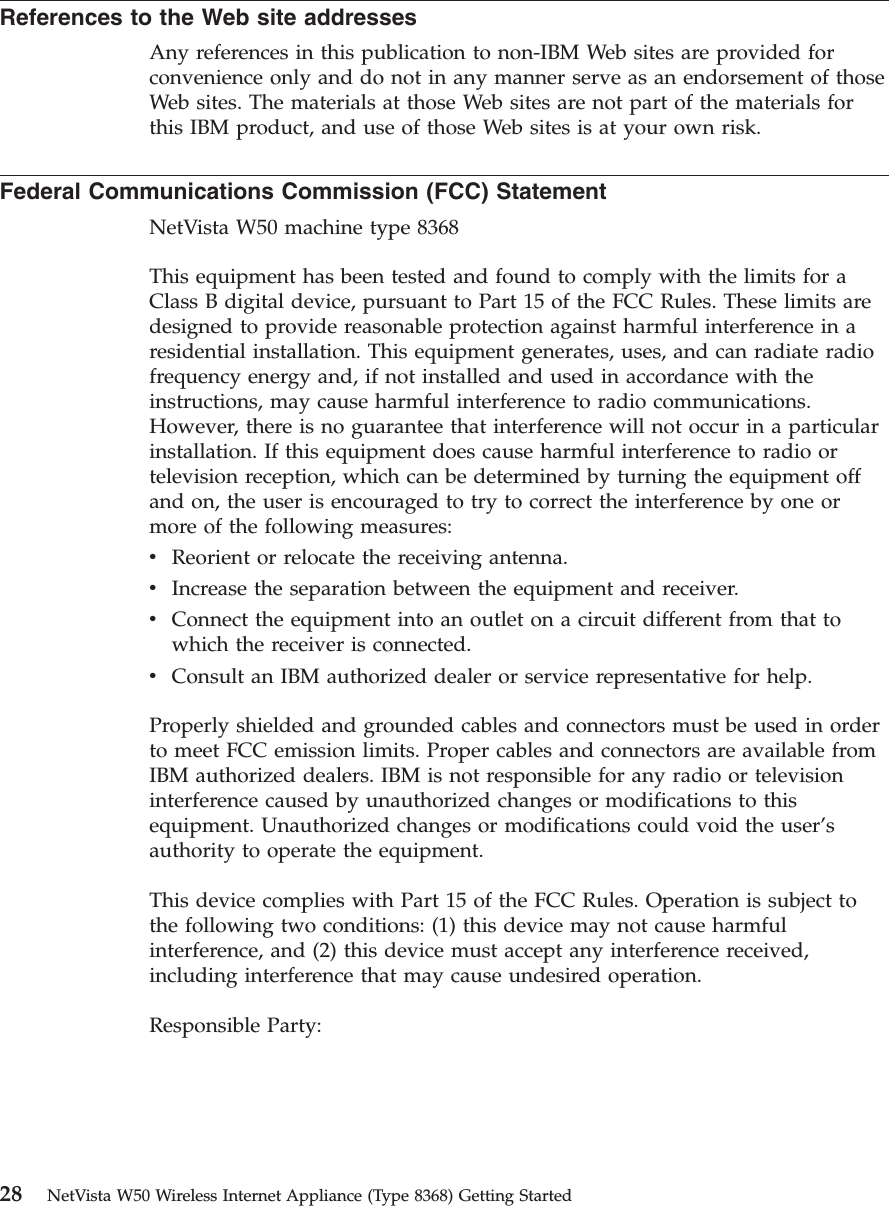

References to the Web site addressesAny references in this publication to non-IBM Web sites are provided forconvenience only and do not in any manner serve as an endorsement of thoseWeb sites. The materials at those Web sites are not part of the materials forthis IBM product, and use of those Web sites is at your own risk.Federal Communications Commission (FCC) StatementNetVista W50 machine type 8368This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses, and can radiate radiofrequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one ormore of the following measures:vReorient or relocate the receiving antenna.vIncrease the separation between the equipment and receiver.vConnect the equipment into an outlet on a circuit different from that towhich the receiver is connected.vConsult an IBM authorized dealer or service representative for help.Properly shielded and grounded cables and connectors must be used in orderto meet FCC emission limits. Proper cables and connectors are available fromIBM authorized dealers. IBM is not responsible for any radio or televisioninterference caused by unauthorized changes or modifications to thisequipment. Unauthorized changes or modifications could void the user’sauthority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject tothe following two conditions: (1) this device may not cause harmfulinterference, and (2) this device must accept any interference received,including interference that may cause undesired operation.Responsible Party:28 NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

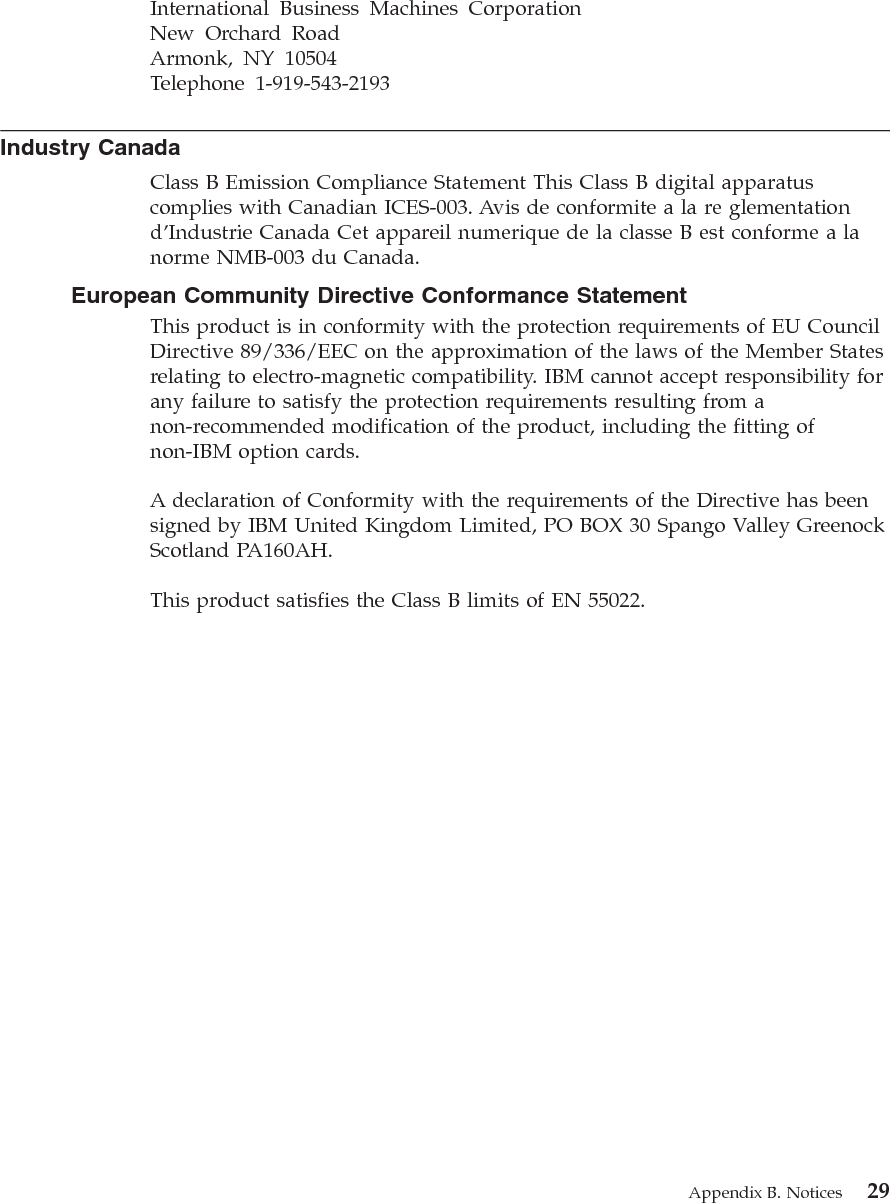

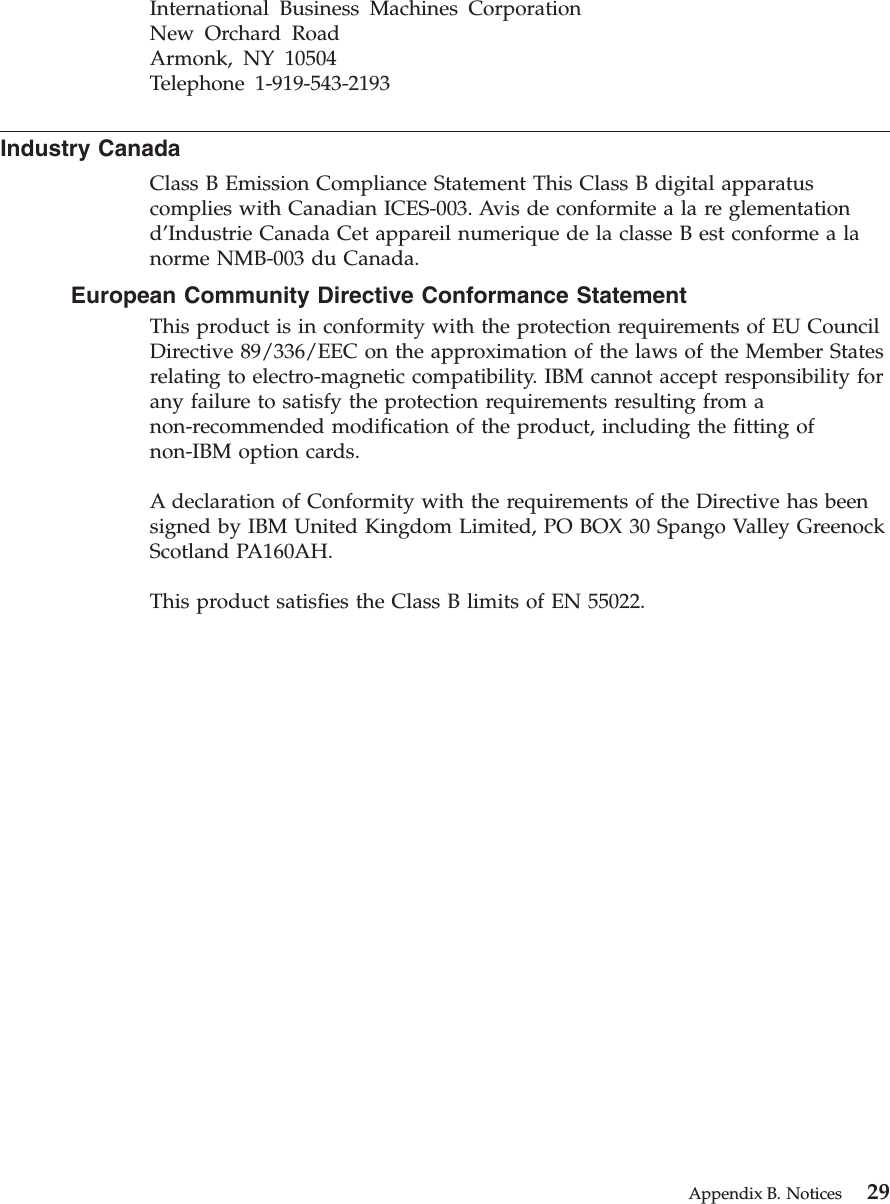

International Business Machines CorporationNew Orchard RoadArmonk, NY 10504Telephone 1-919-543-2193Industry CanadaClass B Emission Compliance Statement This Class B digital apparatuscomplies with Canadian ICES-003. Avis de conformite a la re glementationd’Industrie Canada Cet appareil numerique de la classe B est conforme a lanorme NMB-003 du Canada.European Community Directive Conformance StatementThis product is in conformity with the protection requirements of EU CouncilDirective 89/336/EEC on the approximation of the laws of the Member Statesrelating to electro-magnetic compatibility. IBM cannot accept responsibility forany failure to satisfy the protection requirements resulting from anon-recommended modification of the product, including the fitting ofnon-IBM option cards.A declaration of Conformity with the requirements of the Directive has beensigned by IBM United Kingdom Limited, PO BOX 30 Spango Valley GreenockScotland PA160AH.This product satisfies the Class B limits of EN 55022.Appendix B. Notices 29
30 NetVista W50 Wireless Internet Appliance (Type 8368) Getting Started

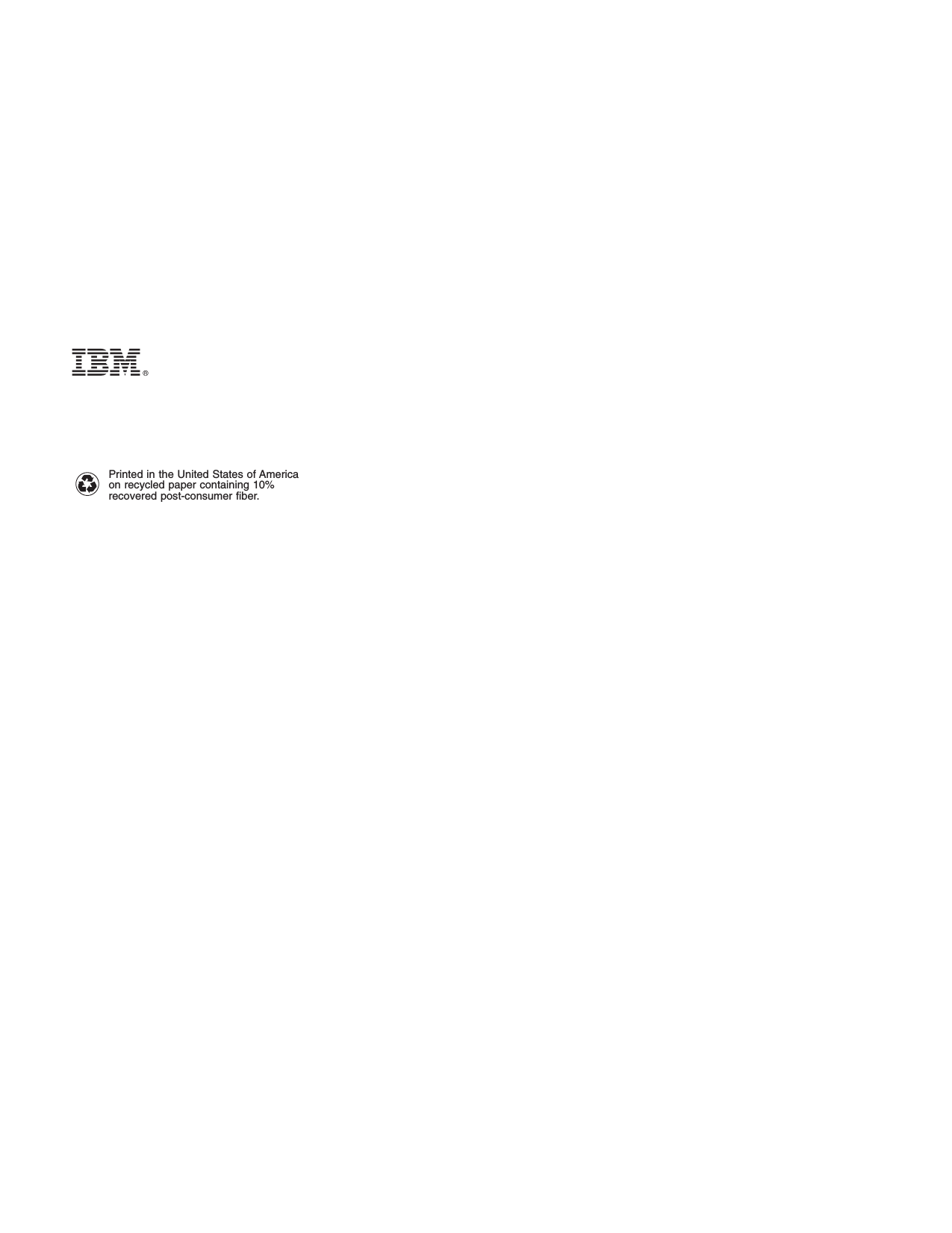

Printed in the United States of Americaon recycled paper containing 10%recovered post-consumer fiber.
