STARTER KIT USER’S GUIDE
The 6000939 XMODS Starter Kit
revs up your XMODS experience.
Please read this user’s guide before
building and using your new car.
PRECISION CONTROL!
WHAT’S UNDER
YOUR HOOD?
Awesome upgrades!
Page 12.
Adjust the trim from
your XMODS controller.
Page 10.
6000939_UG_EN 062013.indd 1 6/21/2013 1:17:06 PM
![](/img.php?id=2022310&img=bg2.png)
2
2
Contents
XMODS Custom RC Starter Kit...........................................................................3
Your Starter Kit Includes ..................................................................................................................................... 3
Assembling Your XMODS Custom RC ................................................................ 4
Assembling the Car Chassis ............................................................................................................................... 4
Installing Batteries in the Chassis .................................................................................................................... 6
Mounting the Car Body on the Chassis ......................................................................................................... 6
Setting Up Your Controller .................................................................................8
Installing the Battery ............................................................................................................................................ 8
Pairing Your Controller and the Car ................................................................................................................ 8
Driving Your Car and Adjusting Trim ............................................................................................................10
When You Finish Driving ..................................................................................10
XMODS Upgrades .............................................................................................12
FCC Information ................................................................................................14
Limited Warranty ..............................................................................................14
6000939_UG_EN 062013.indd 2 6/21/2013 1:17:07 PM
![](/img.php?id=2022310&img=bg3.png)
3
XMODS Custom RC Starter Kit
Your starter kit includes the following features:
UÊ Four-wheel spring suspension to provide improved handling over uneven surfaces
UÊ Decals to customize the body exterior
UÊ Multiple frequency bands that allow up to eight people to race
UÊ Digital proportional steering for optimal speed, acceleration, and maneuverability
To really get your motor running, customize your XMODS with optional upgrades for both performance and
looks, available at your local RadioShack store. Check out the line-up of XMODS upgrades available online at
www.RadioShack.com.
Your Starter Kit Includes
Screws (4)
Decal Sheet
User’s Guide
Battery Unit
Controller Car Body
Rear Unit
Front Unit
6000939_UG_EN 062013.indd 3 6/21/2013 1:17:12 PM
![](/img.php?id=2022310&img=bg4.png)
4
4
Assembling Your XMODS Custom RC
Assembling the Car Chassis

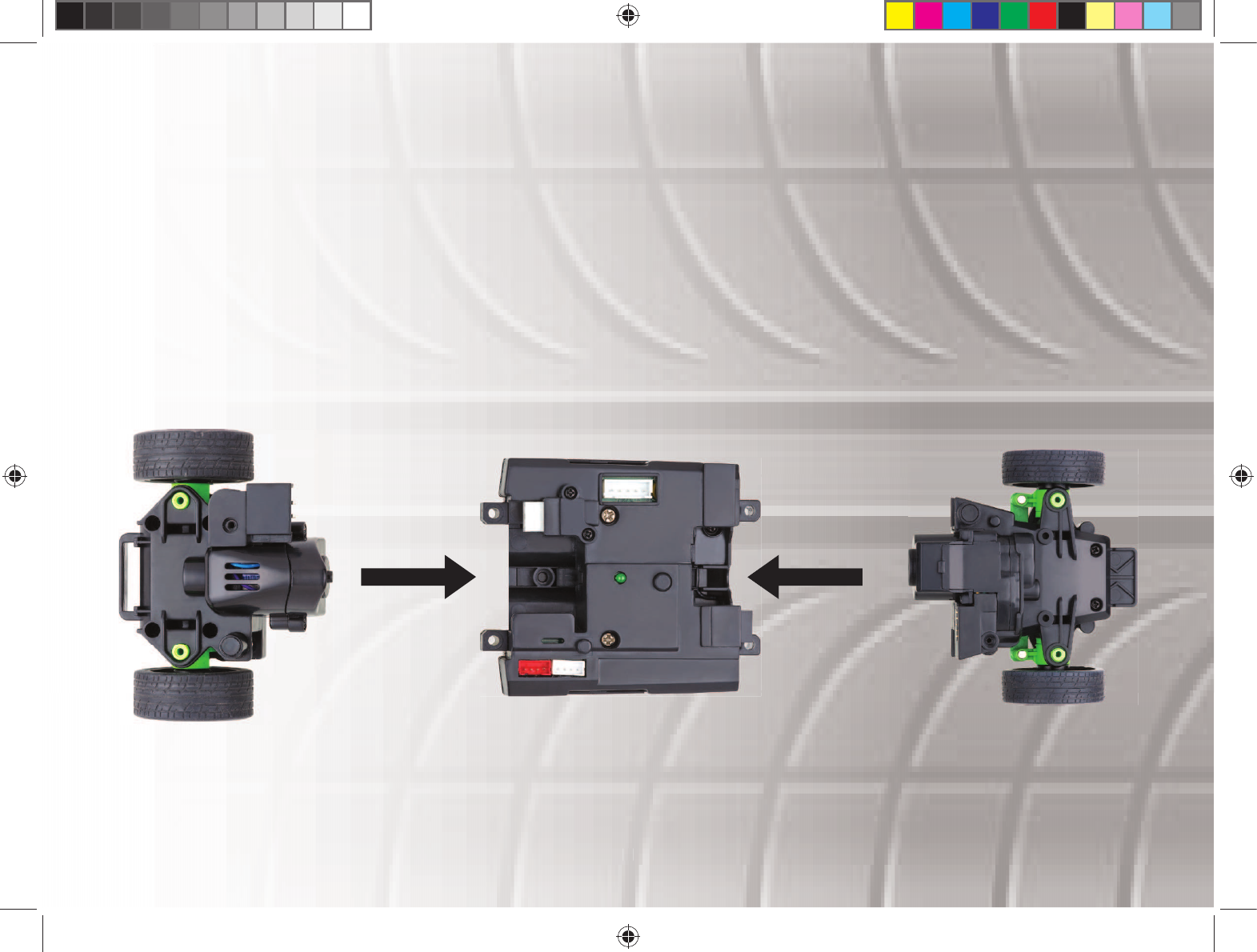

1. Connect the terminal of the Front Unit to the terminal of the Battery Unit, and secure them
with two screws.
2. Connect the terminal of the Rear Unit to the terminal of the Battery Unit, and secure them
with two screws.
6000939_UG_EN 062013.indd 4 6/21/2013 1:17:14 PM
![](/img.php?id=2022310&img=bg5.png)
5
5
6000939_UG_EN 062013.indd 5 6/21/2013 1:17:16 PM
![](/img.php?id=2022310&img=bg6.png)
6
6
6

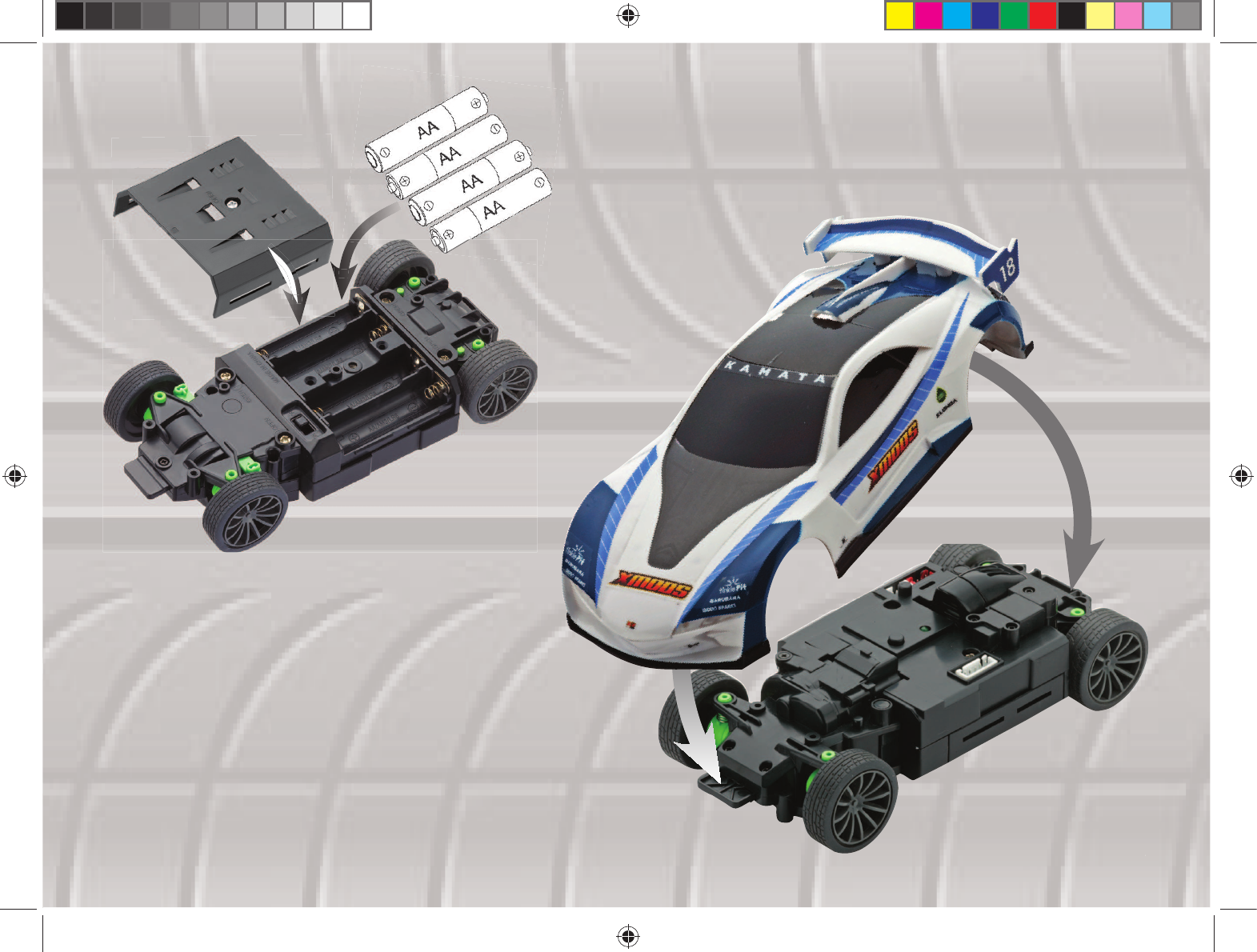

Installing Batteries in the Chassis
1. Make sure the power switch on the chassis is OFF.
2. Remove the screw on the battery compartment cover. Then carefully unlatch the battery compartment
cover and remove the cover.
3. Insert four AA batteries (not included) in the compartment, matching the polarity symbols (+ and –)
marked inside.
4. Replace the battery compartment cover and screw.
Battery Notes:
UÊ Dispose of old batteries promptly and properly. Do not burn or bury batteries.
UÊ Use only fresh batteries of the required size and recommended type.
UÊ Do not mix old and new batteries, different types of batteries (standard, alkaline, or rechargeable), or
rechargeable batteries of different capacities.
UÊ If you do not plan to use the vehicle for several days, remove the batteries. Batteries can leak chemicals
that can destroy electronic parts.
Mounting the Car Body on the Chassis
1. Insert the chassis tab into the slot inside the front bumper.
2. Lower the rear of the body so the tab near the back of the car body enters the slot behind the rear axle.
Press gently until you hear a click.
To remove the body from the chassis, press the tab from Step 2 gently toward the rear of the vehicle and lift
the rear part of the chassis. Gently slide the car body’s nose from the chassis.
6000939_UG_EN 062013.indd 6 6/21/2013 1:17:16 PM
![](/img.php?id=2022310&img=bg7.png)
7
6000939_UG_EN 062013.indd 7 6/21/2013 1:17:22 PM
![](/img.php?id=2022310&img=bg8.png)
8
8
8
Setting Up Your Controller
Installing the Battery
Your controller needs a 9V battery (not included). We recommend 9V alkaline batteries for best performance.
1. Make sure the power switch is OFF, and remove the screw on the battery compartment.
2. Place the 9V battery in the compartment, matching the polarity symbols (+ and –) marked inside.
3. Snap the cover back in place and replace the screw.
Battery Notes:
UÊ When you notice the LED is off or the range of your car decreases, replace the battery.
UÊ Dispose of old batteries promptly and properly. Do not burn or bury batteries.
UÊ Use only fresh batteries of the required size and recommended type.
UÊ If you do not plan to use the vehicle for several days, remove the battery. Batteries can leak chemicals that
can destroy electronic parts.
Pairing Your Controller and the Car
Your XMODS operates at a frequency of 2.4Ghz. Before driving the first time, you must pair the controller and car.
1. Turn on the controller.
2. Turn on the car (The power switch is under the chassis). The LED indicator on the car flashes slowly.
3. Press and hold the car pairing button for 3 seconds; the car LED flashes quickly. When the car LED stops
flashing, pairing is complete.
Note:
UÊ Your car and controller remain paired for future use, even when batteries are removed from the controller or
the car.
UÊ If the pairing failed, turn off the controller and the car, move closer, and then try again.
6000939_UG_EN 062013.indd 8 6/21/2013 1:17:22 PM
![](/img.php?id=2022310&img=bg9.png)
9
ON/OFF LED Indicator
LED Indicator
Pairing Button
6000939_UG_EN 062013.indd 9 6/21/2013 1:17:26 PM
![](/img.php?id=2022310&img=bga.png)
10
10
10

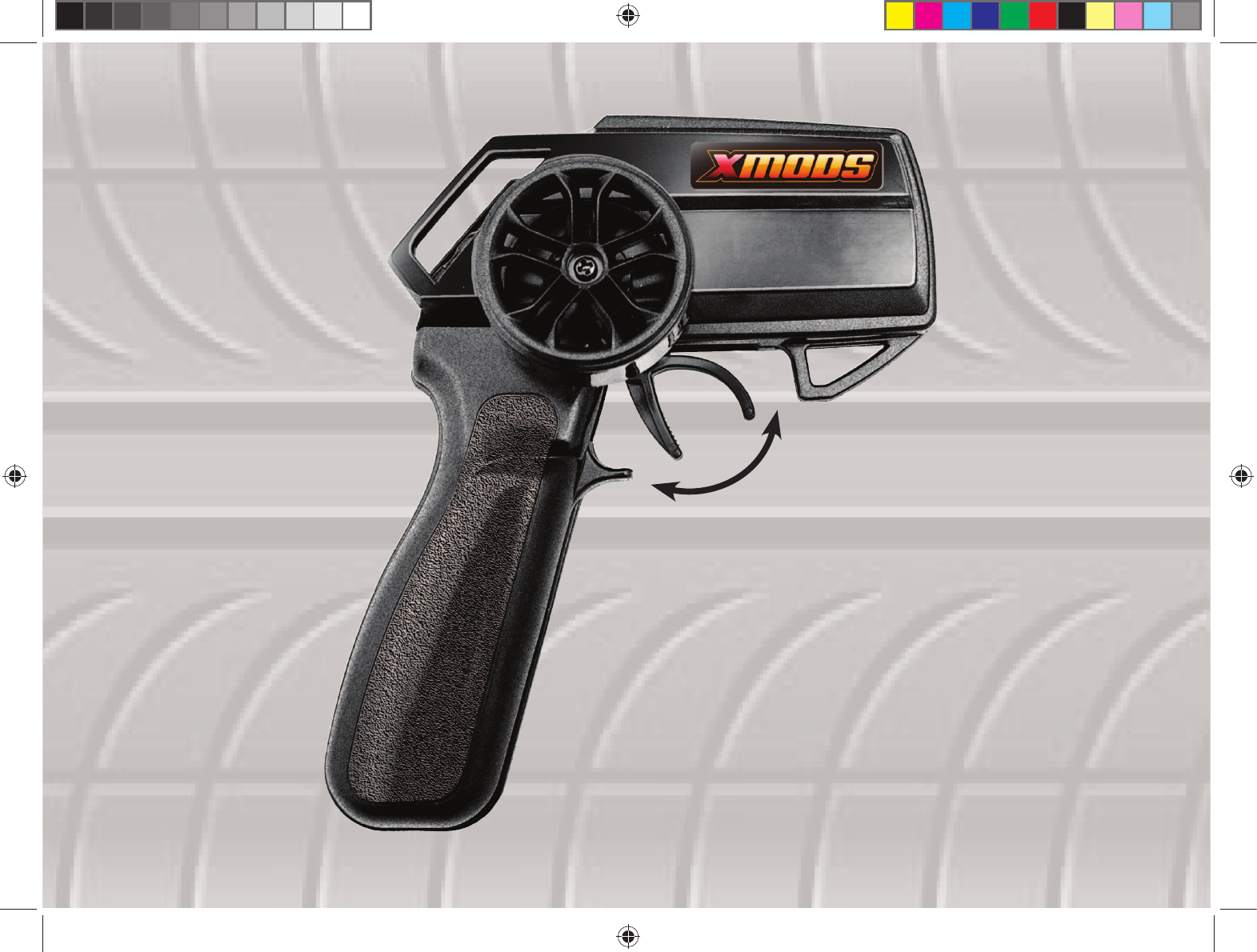

Driving Your Car and Adjusting Trim
