TABLE OF CONTENT
Introduction..........................................................................................................1
Overview of this User’s Guide............................................................................1
Product Features...................................................................................................2
Software Installation.............................................................................................3
Windows 98se/ME/2000/XP Utility and Driver Installation ................................3
Wireless Utility Setting.......................................................................................5
Technical Specifications......................................................................................17
![](/img.php?id=682353&img=bg6.png)
1
INTRODUCTION
Congratulations on your purchase of this 802.11b/g WLAN USB2.0 Mini Card
with PCI-E mini Card Form Factor.
This manual contains detailed instructions in operation of this product. Please keep
this manual for future reference.
802.11b/g WLAN USB2.0 Mini Card with PCI-E mini Card Form Factor, laptop
computer can communicate with another computer in a wireless way. Easy-to-use
utilities are bundled with PCI-E mini Card with Form Factor for configuration,
monitoring, and diagnosis purposes.
802.11b/g WLAN USB2.0 Mini Card with PCI-E mini Card Form Factor can
wirelessly transmit and receive data, minimizing the need for wired connections, at
a speed of up to fifty-four megabit per second.
This product provides users with an access to real-time information anywhere in
their organization. The mobility provides productivity and service, which are not
available under wired networks. 802.11b/g WLAN USB2.0 Mini Card with PCI-E
mini Card Form Factor configuration is easy to change from peer-to-peer networks,
suitable for a small number of users, to full infrastructure networks of thousands of
users that allow roaming around a broad area.
Overview of this User’s Guide
Introduction. 802.11b/g WLAN USB2.0 Mini Card with PCI-E mini Card Form
Factor Adapter and its features.
Software Installation. Tells how to setup the driver and the utility setting.
Technical Specifications. Lists the technical (general, physical and environmental)
specifications of the 802.11b/g WLAN USB2.0 Mini Card with PCI-E mini Card
Form Factor.
![](/img.php?id=682353&img=bg7.png)
2
PRODUCT FEATURES
u Compatible with IEEE 802.11g high rate standard to provide wireless Ethernet
speeds of 54Mbps data rate
u Universal Serial Bus Rev.2.0, 1.1, 1.0 specification
u PCI-E mini card form factor design with USB 2.0 interface for Notebook.
u Support two IPEX compatible antenna connectors with diversity.
u Dynamic data rate scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g
u Dynamic data rate scaling at 11, 5.5, 2 and 1Mbps for 802.11b
u Maximum reliability, throughput and connectivity with automatic data rate
switching
u Supports WMM QoS (Wi-Fi Multimedia Quality of Service)
u Supports wireless data encryption with 64/128-bit WEP standard for security
u Supports WPA, WPA2, WPA-PSK, WPA2-PSK
u Drivers support Windows 98se, 2000,ME and XP
u Type approval compliant with FCC Part 15.247 for US, ETS 300 328 for
Europe.
![](/img.php?id=682353&img=bg8.png)
3
SOFTWARE INSTALLATION
This section will lead you to install the driver and utility of the 802.11b/g WLAN
USB2.0 Mini Card with PCI-E mini Card Form Factor.
Windows 98se/ME/2000/XP Utility and Driver Installation

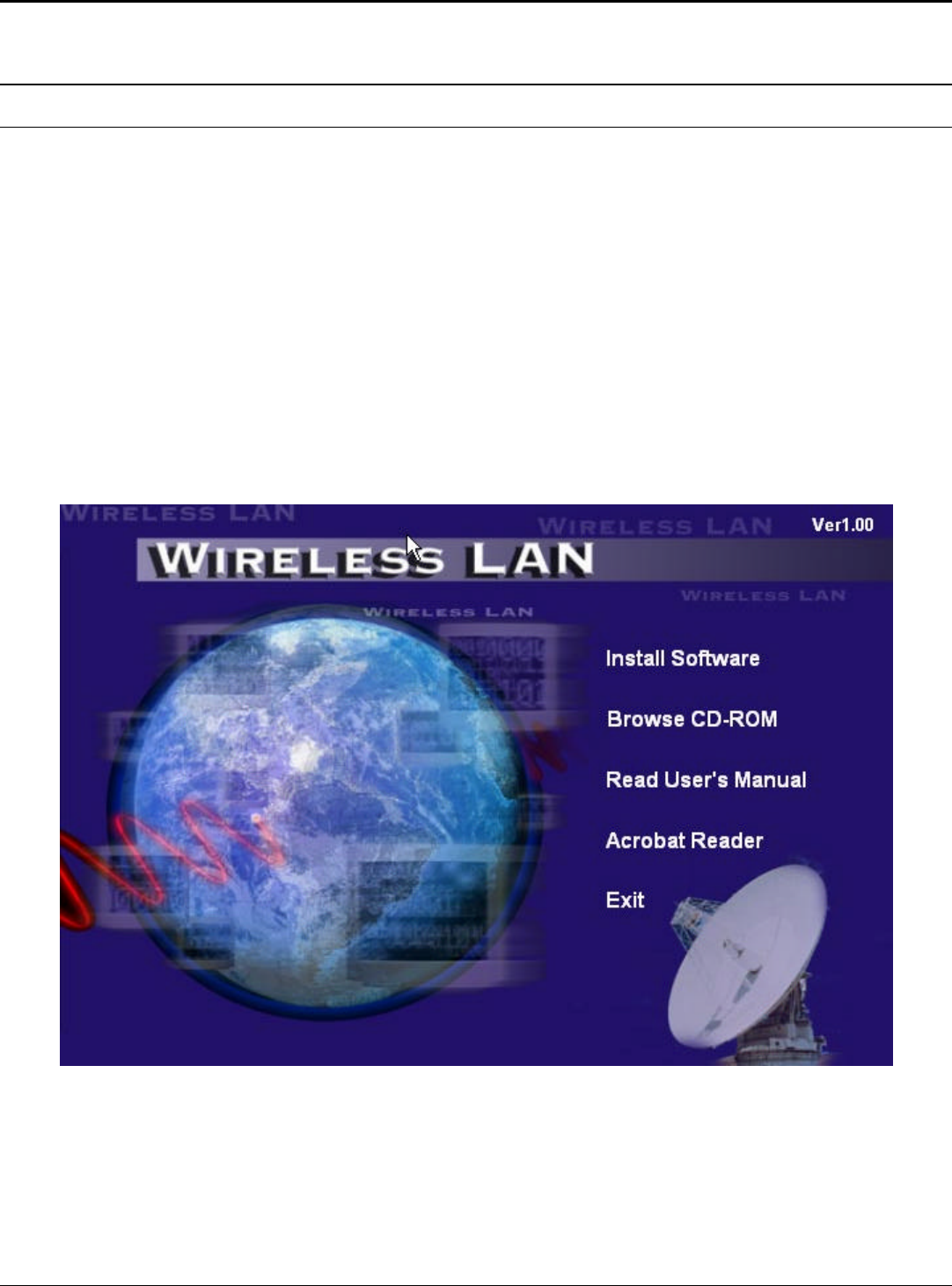

1. Insert the Wireless LAN USB 2.0 Adapter Driver & Utility CD-ROM into
computer’s CD-ROM Drive and it will automatically run a setup menu and
install the driver and the utility, for Win98se, please reboot the system to install
the driver to the system properly. In some specific setting on Windows system,
you may need to proceed the software manually, go to your Windows Start
menu and choose Run, type “D:\Utility\Setup.exe” in the dialog box (D:\ will
depend on where your CD-ROM drive is located) and click OK.
2. If you need to install the driver manually, refer each Windows OS to the
following CD-Rom directory path: D:\Drivers\<Windows OS>\SIS163U.INF.
Note: (D:\ will depends on where the CD-ROM drive is located and
<Windows OS> will depend on the Windows Operating System you are using).
3. The Install Shield Wizard screen will appear. Click “Next” to continue.
4. The installation program will help you to setup the Wireless Utility.
Be noted that the Windows XP have its own Wireless Utility; you can either
use the utility of Windows XP or the provided utility.
![](/img.php?id=682353&img=bg9.png)
4

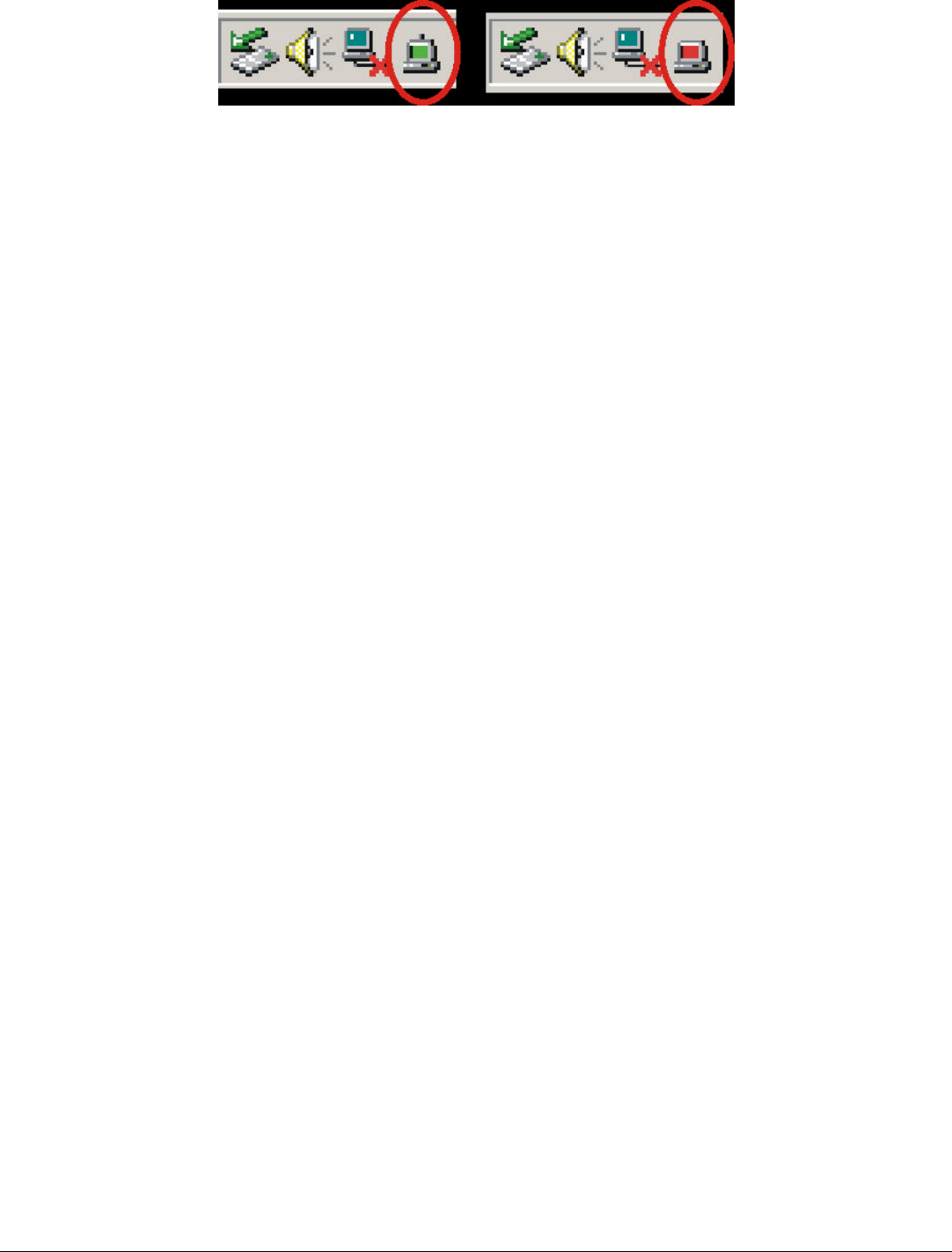

5. You will see the icon on the Windows task bar when you finish the installation.
When the icon in the toolbar represents in green color, it is properly connected
to the network and if it represents in red color, then it is not connected to the
network.
![](/img.php?id=682353&img=bga.png)
5
Wireless Utility Setting
With the software utility, users can configure all the functions provided by the
Wireless Monitor Utility. Double-click the utility icon that appears in the taskbar.
The Wireless Monitor Utility includes seven tabs: Status, Configuration, Advanced,
Profile, Network, Statistics and About.
Status

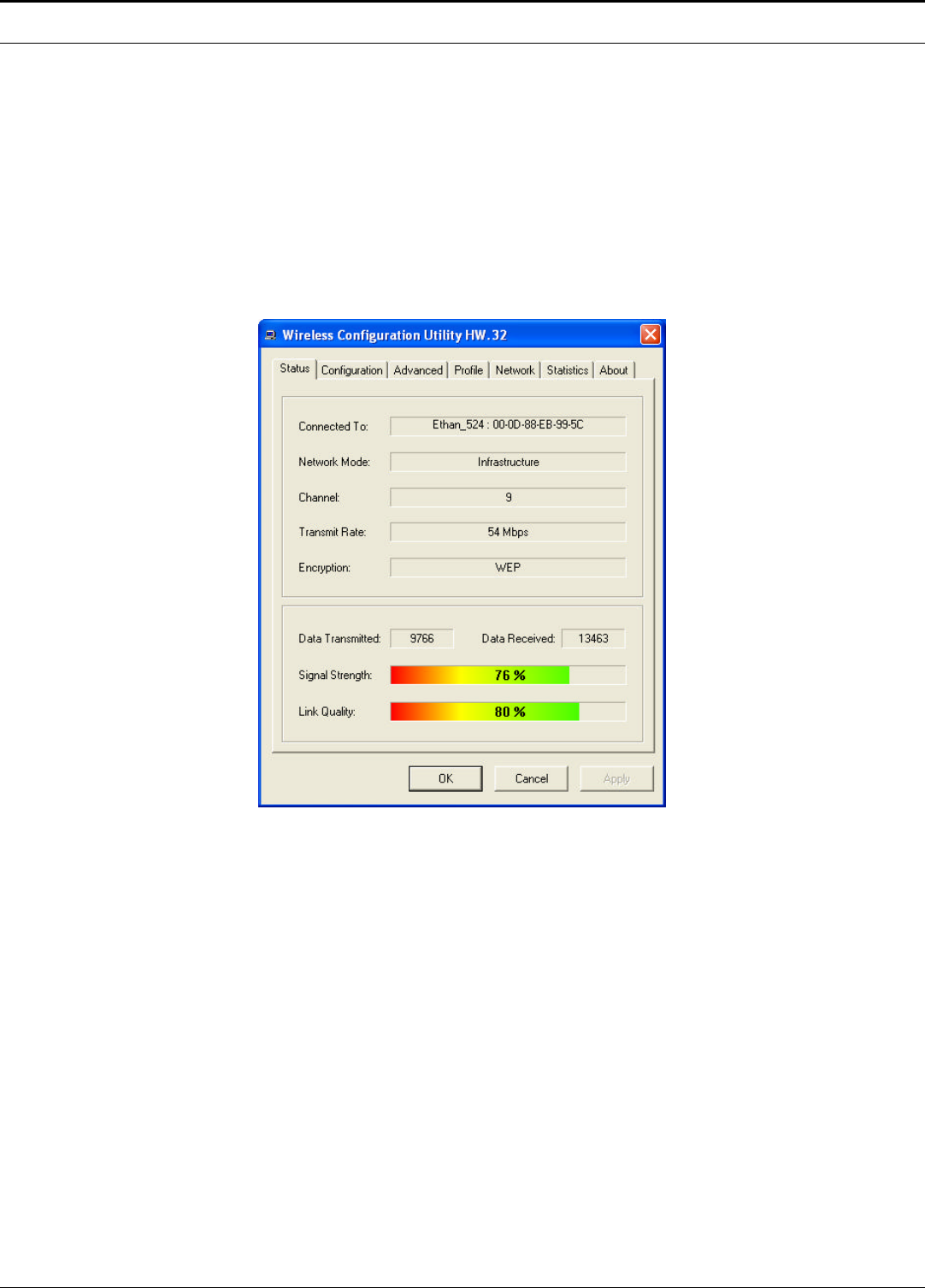

The Status screen shows you the status of the Wireless Adapter, it shows that where
the device is connected to, the Network mode, the Channel, the transmit rate and
the encryption mode.
There are two dialog boxes showing the data transmitted and the data received. The
two signal lines show the Signal Strength and the Link Quality of the device.
![](/img.php?id=682353&img=bgb.png)
6

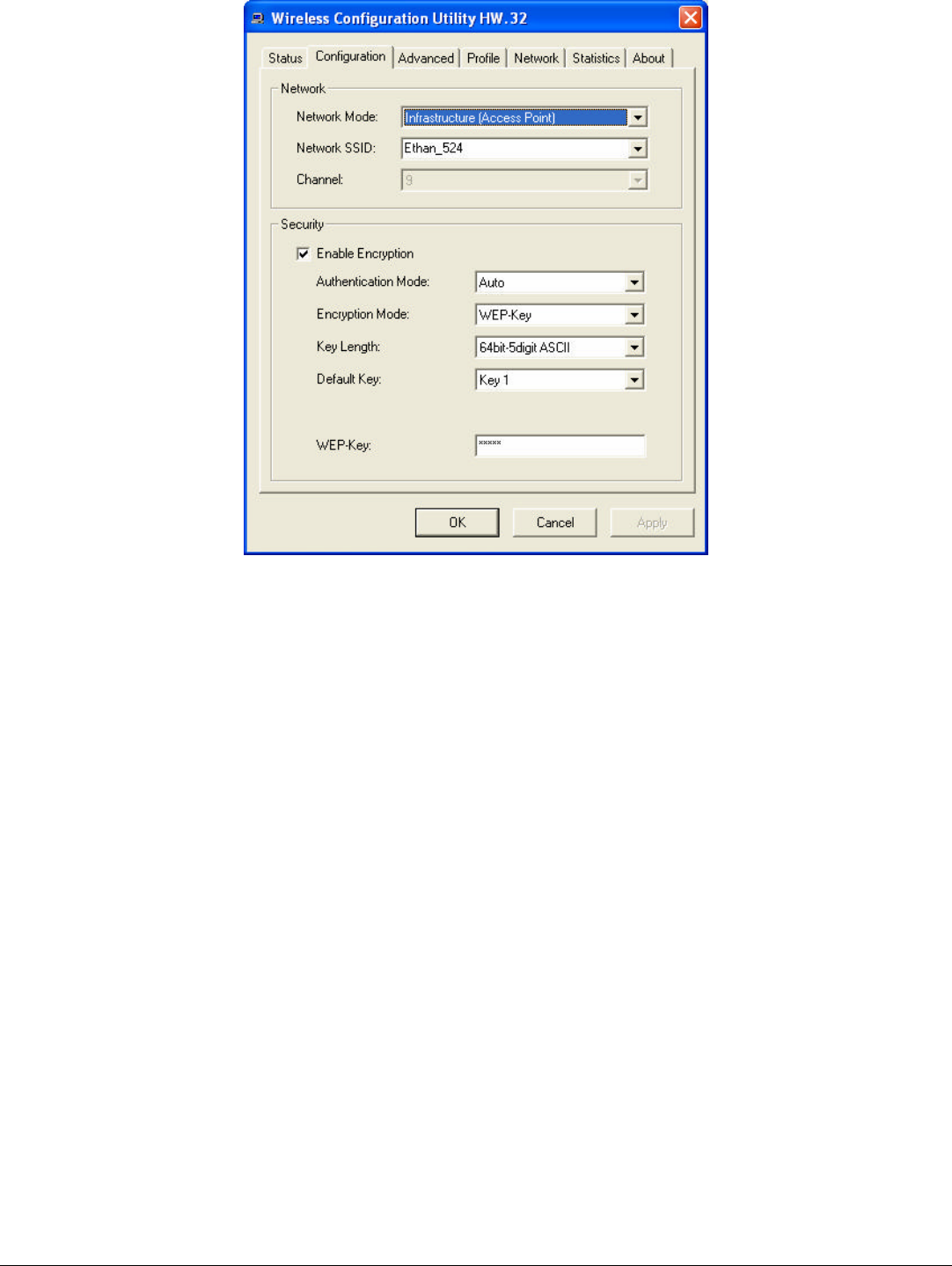

Configuration

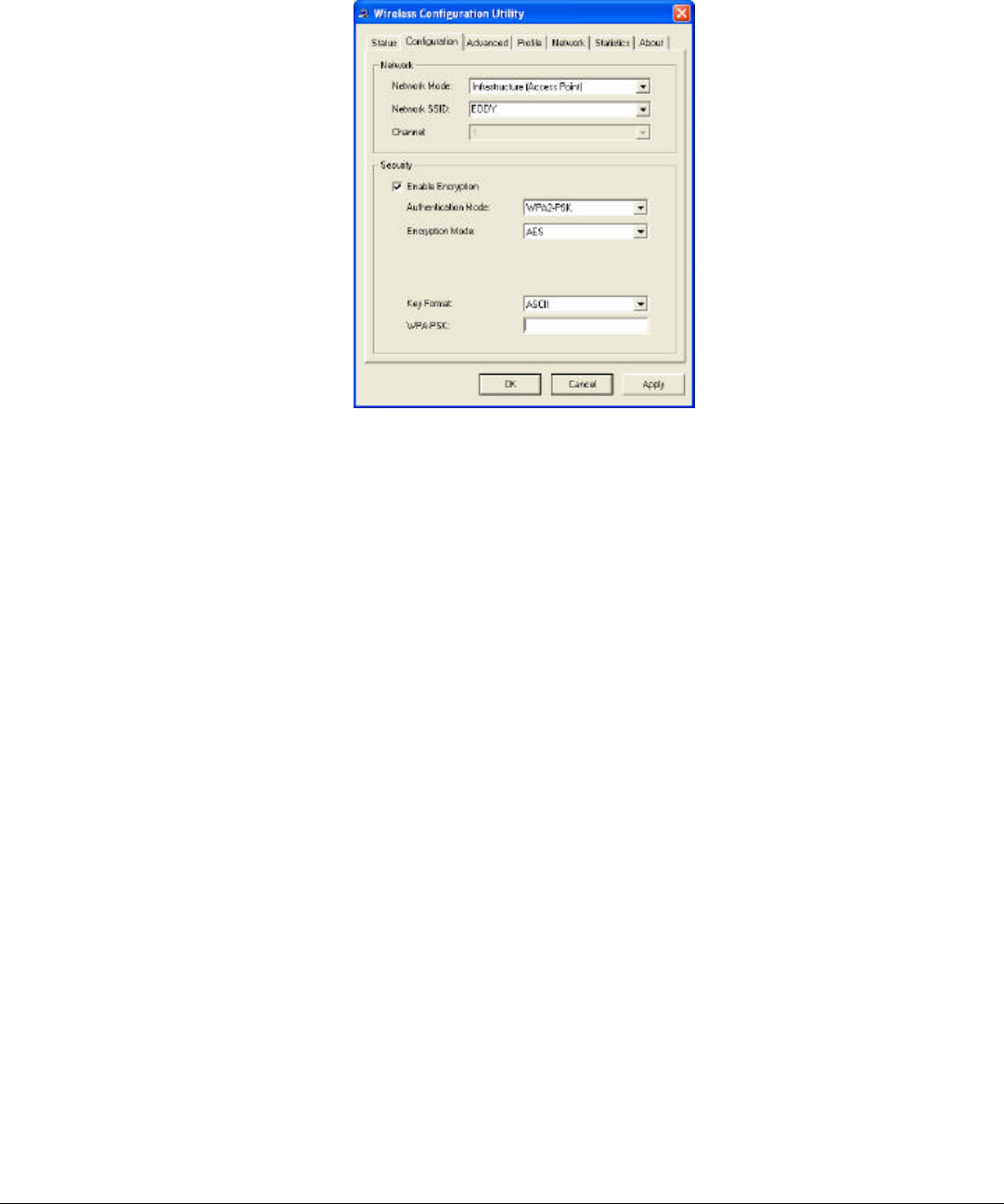

The Configuration function helps you to configure the Network and the Security.
Network: the setting of the Network mode, the SSID and the Channels.
Ø Network Mode:
If you want to connect with an Access Point, please set to “Infrastructure” mode. If
you have more stations and just want to set them as local network, please set the
mode to “Ad-Hoc” mode.
Ø Network SSID:
The SSID differentiates one Wireless LAN group name from another; so all access
points and all devices attempting to connect to a specific Wireless LAN group
name must use the same SSID. A device will not be permitted to join the BSS
unless it can provide the unique SSID.
If the SSID parameter is “ANY”, it will detect the strongest signal of the wireless
station.
Ø Channel:
It shows radio channel numbers that used for Wireless LAN networking.
The channel number can be set on channel 1~11only under the Ad-Hoc operation
mode. In Ad-Hoc mode stations, each station must have the same channel numbers
and SSID.
In Infrastructure mode, the Wireless USB Adapter will automatically detect the
channel number of the Access Point.
![](/img.php?id=682353&img=bgc.png)
7
Security: the setting of the Network Encryption.
This function is used to protect wireless communication from eavesdropping. A
secondary function of encryption is to prevent unauthorized access to a wireless
network, and it can be achieved by using the Encryption function.
Ø Enable Encryption: Enable or Disable the WLAN encryption on the WLAN
USB Adapter.
Ø Authentication Mode:
Auto: Will automatically adjust to the Authentication mode of the WLAN USB
Adapter.
Open System: with the same WEP key between the stations, the stations don’t
need to be authenticated, and this algorithm was set to default.
Shared Key: with the same WEP key between the stations in this
Authentication algorithm, this type will use packets with encryption by
transferring a challenge text which will be acknowledge by both side of the
stations. In order to choose which authentication algorithm will be used, you
must know which one the station supports this algorithm first.

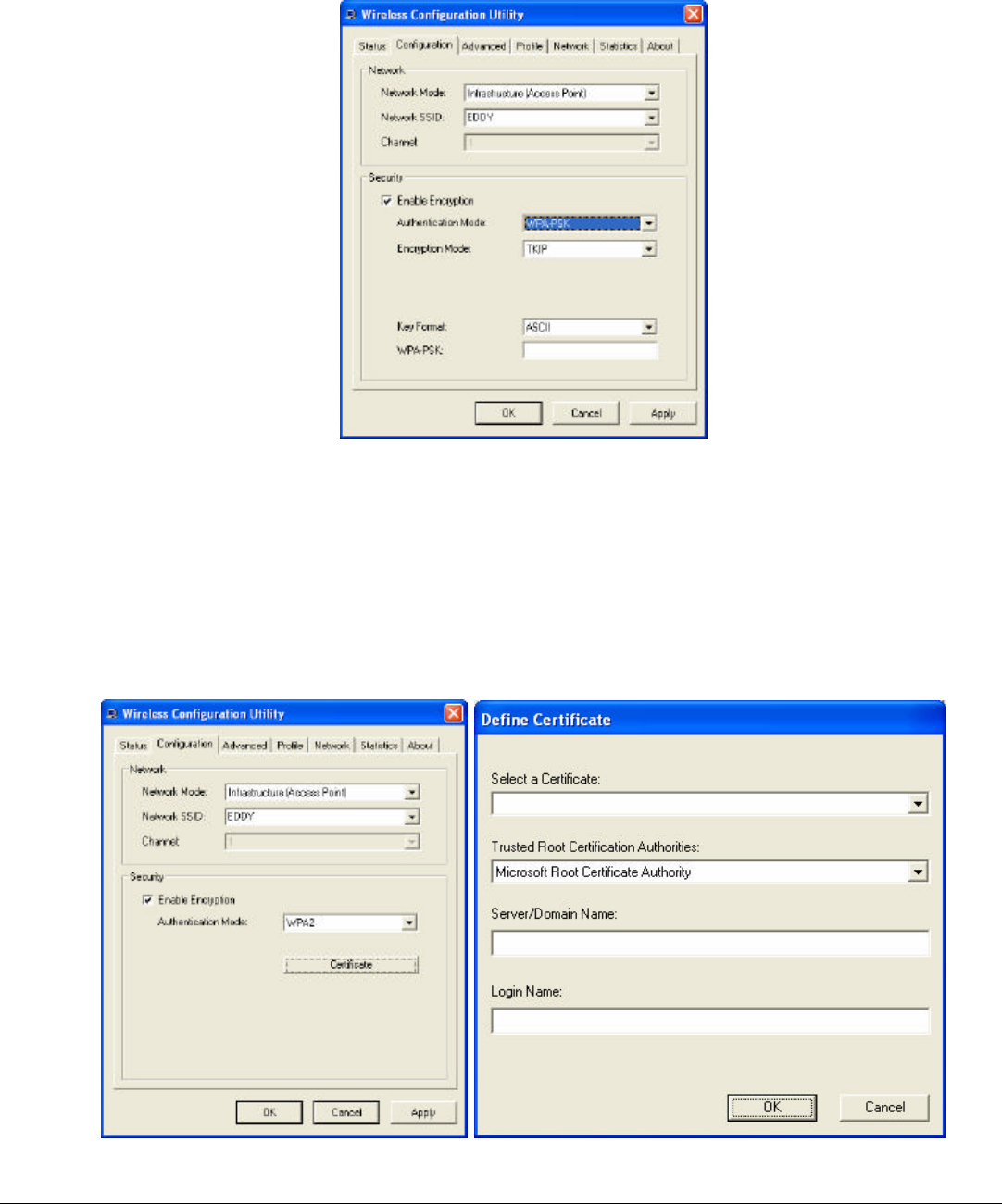

WPA: WPA (Wi-Fi Protected Access) security is selected, configuration is
enabled. Please click the “Certificate” button. The below window is pop up.
Then, please select the certificate that user wants to use and enter the server
name and login name.
![](/img.php?id=682353&img=bgd.png)
8
WPA-PSK: WPA-PSK (Wi-Fi Protected Access pre-shared key) is a simpler
version that does not support 802.1x and requires a separate RADIUS server for
mutual authentication.
Enter a Passphrase in the WPA-PSK dialog box. This Passphrase must be the
same on each computer that is connected to the wireless network.
WPA2: WPA2 (Wi-Fi Protected Access 2) is the second generation of WPA;
providing enterprise and consumer Wi-Fi user with a high level of assurance
that only authorized user can access their wireless networks. WPA2 is based on
the final IEEE802.11i amendment to the 802.11 standard and is eligible for
FIPS 140-2 compliant. WPA2 is select, configuration is enabled. Please click
the “Certificate” button. The below window is pop up. Then, please select the
certificate that user wants to use and enter the server name and login name.
![](/img.php?id=682353&img=bge.png)
9
WPA2-PSK: WPA-PSK2 (Wi-Fi Protected Access pre-shared key) is a simpler
version that does not support 802.1x and requires a separate RADIUS server for
mutual authentication.
Enter a Passphrase in the WPA2-PSK dialog box. This Passphrase must be the
same on each computer that is connected to the wireless network.
It is recommended to select “Auto” if you are not familiar with the setting.
Ø Encryption Mode:
There are two kinds of encryption mode, WEP encryption and WPA-
Passphrase..
Click the Enable Encryption to activate the security of the USB Adapter.
WEP-Key: WEP (Wired Equivalent Privacy) relies on a secret key that is
shared between a mobile station and a base station (Access Point).
WEP-Passphrase: the Passphrase in the dialog box helps you to create a group
of WEP key in the Key Setting.
Ø Default Key (Key 1 ~ Key 4):
You can type the key that you want to use from Key#1 to Key #4, and the key
that you type will be the encryption between the stations that you connected
with.
![](/img.php?id=682353&img=bgf.png)
10
Ø Key Length, Key Format and WEP Key:
If you select 64bit in Hex format, you must type 10 values in the following
range (0~F, hexadecimal), or 64bit in ASCII format, you must type 5 values in
the following range (0~9, A~Z and a~z Alphanumeric).
If you select 128bit in Hex format, you must type 26 values (0~F, hexadecimal),
or 128bit in ASCII format, you must type 13 values in the following range (0~9,
A~Z and a~z Alphanumeric).
Be sure that the USB Adapter and the wireless station were set in the same key.
Note: After all the settings are completed, click Apply to save the setting.
![](/img.php?id=682353&img=bg10.png)
11
Advanced
The Advanced settings help you to control the Wireless Adapter to adjust with
wireless devices in certain environment.
Ø Wireless Mode: (Ad-Hoc mode only)
If the USB WLAN adapter is work with Ad-Hoc mode, there are two functions for
users select, including 11B and 11G. The default setting is 11B, 11G, which is
interoperable with both 11B and 11G devices.
Ø Power Saving:
To set your Wireless Adapter as power saving mode, select “Off”, “Normal” or
“Maximum”.
Ø Preamble Type:
The usage of the preamble is to limit the packet size of the data to transmit. It is
recommended to choose the short preamble when the link quality is bad, it is to
prevent the wasting time of resending a long packet that is lost. The Default is Auto
which access short and long preamble.
Ø Fragment Threshold:
![](/img.php?id=682353&img=bg11.png)
12
Fragmentation Threshold is a way of transmitting the packets that will be
fragmented. Choose a setting within a range of 256 to 2432 bytes. It is
recommended to fragment the packet when the link quality is bad, it is to prevent
the wasting time of resending a long packet that is lost.
Ø RTS/CTS Threshold:
The RTS/CTS Threshold is a station initiates the process by sending a RTS frame,
the other ends receives the RTS and responds with a CTS frame, the station must
receive a CTS frame before sending the data frame. This is to prevent the collisions
by each station. Choose a setting within a range of 256 to 2432 bytes. It is
recommended limiting a long packet to prevent each station waiting too long to
transmit a data.
![](/img.php?id=682353&img=bg12.png)
13

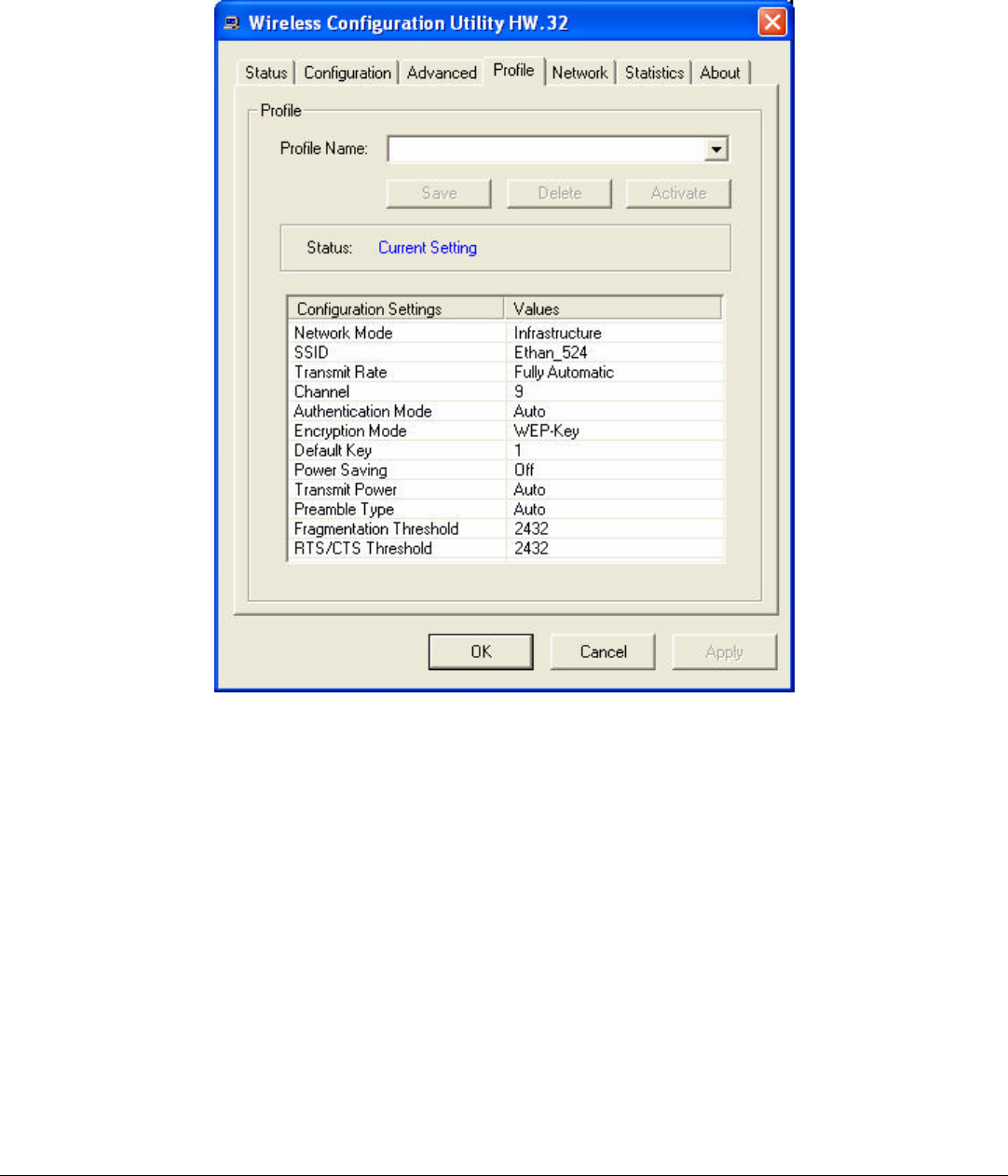

Profile
The Profile section allows you to set values for all parameters by selecting a
previously defined profile. Type a name in the Profile Name field to create a profile,
click “Save” and then click “Apply” when a profile is done. You can click “Delete”
if the profile is no longer used, to activate other profile, choose a profile name in
the Profile Name field and click Activate.
![](/img.php?id=682353&img=bg13.png)
14
Network
The screen shows all the Wireless devices around your Wireless Adapter. The
information of the wireless devices includes the SSID, MAC Address, Channels,
Signal, the Security type and the Network mode.
You can click the “Rescan” button to find the new wireless devices, and double-
click the device to choose the wireless station that you want to connect with.
![](/img.php?id=682353&img=bg14.png)
15

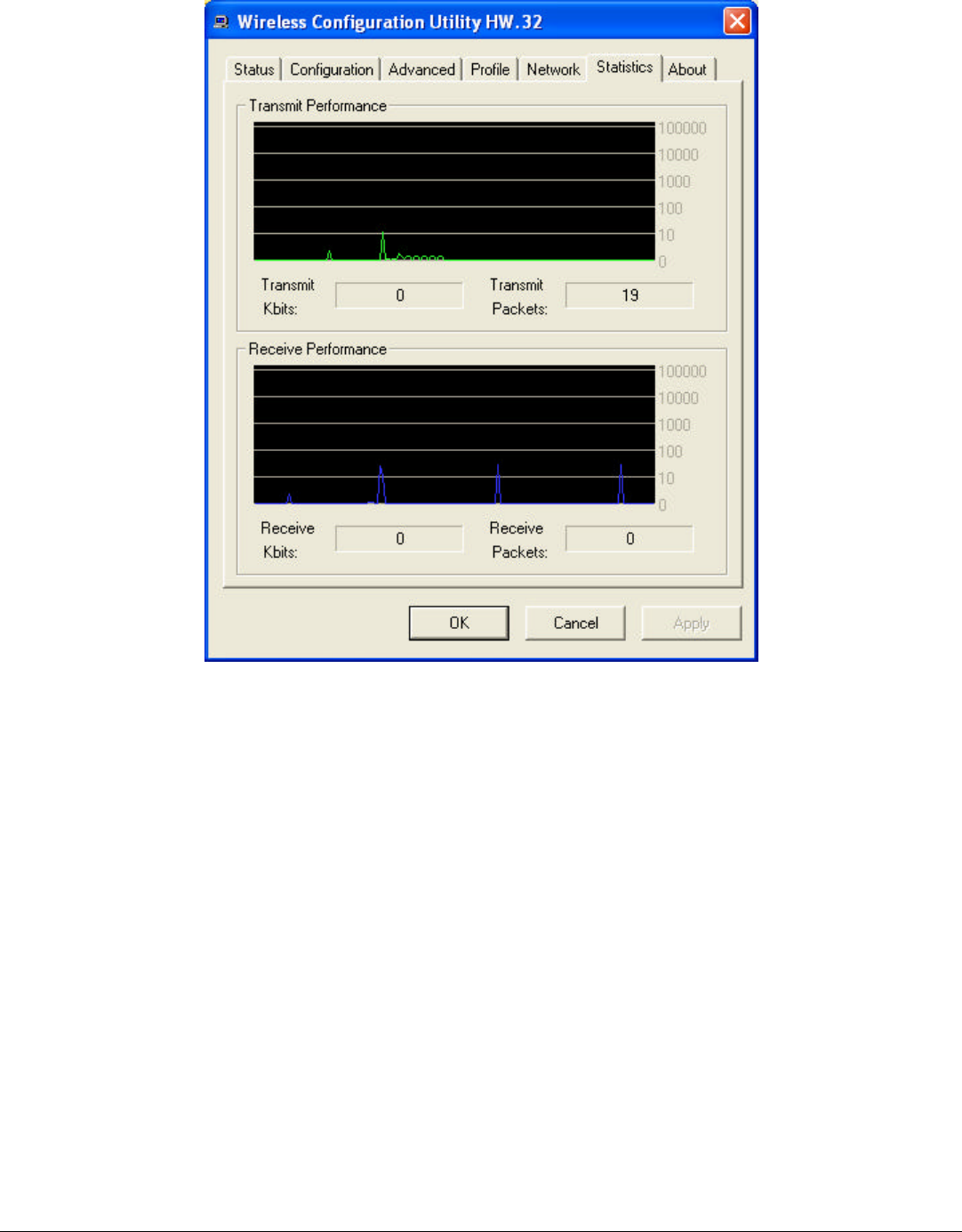

Statistics
The Statistics section shows the real-time transmit and receive packets of the
Wireless Adapter.
![](/img.php?id=682353&img=bg15.png)
16
About
The About section shows the Device Name, Regulatory Domain, Driver Version,
MAC Address and the Utility version.
![](/img.php?id=682353&img=bg16.png)
17
TECHNICAL SPECIFICATIONS
General
Standards IEEE 802.11g WLAN 20 mini card with PCI-E mini Card Form
Factor.
Radio Technology IEEE 802.11b Direct Sequence Spread Spectrum (DSSS)
IEEE 802.11g Orthogonal Frequency Division Multiplexing
(OFDM)
Data Transfer Rate 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54Mbps (auto sense)
*When plug the device in the USB 1.1/1.0 port, the real throughput
will be up to 6Mbps only when running 11Mbps or higher speed
Receiver Sensitivity 54Mbps: Typical -72dBm @ 10% PER (Packet Error Rate)
11Mbps: Typical -83dBm @ 8% PER (Packet Error Rate)
1Mbps: Typical -94dBm @ 8% PER (Packet Error Rate)
Frequency Range 2400 ~ 2483.5 MHz ISM band for Europe, USA and Taiwan
2400 ~2484 MHz ISM band for Japan
Modulation Schemes BPSK/QPSK/CCK/OFDM
Channels 1 ~ 11 channels (FCC, Taiwan and Canada)
1 ~ 13 channels (ETSI)
1 ~ 14 channels (Japan)
Media Access Protocol
CSMA/CA with ACK
Security 64/128-bits WEP Encryption
WPA, WPA2, WPA-PSK, WPA2-PSK
Antenna Support two IPEX compatible antenna connectors with diversity.
PIFA, 1.08dBi
Physical and Environmental
Driver Support Windows 98se, Windows 2000, Windows ME, Windows XP
Continuous Current
Consumption 350mA typ. for receive mode, 450mA typ. for transmit mode
Temperature Operating: 0° ~ 40° C, Storage: -10° ~ 70° C
Humidity 10% ~ 95% RH, no condensation
Dimensions 30 x 50.95 mm (W x H)
![](/img.php?id=682353&img=bg17.png)
18
Certifications FCC Part 15.247 for US, ETS 300 328 for Europe, LP0002 for
Taiwan, RSS-210 for Canada
