DATA PROJECTOR
XJ-H1600/XJ-H1650*
XJ-ST145*/XJ-ST155*
User’s Guide
zBe sure to read the precautions in the separate Setup Guide. For
details about setting up the projector, see the Setup Guide.
zBe sure to keep all user documentation handy for future
reference.
E
* USB Port Models
![](/img.php?id=1490759&img=bg2.png)
2
zDLP is a registered trademark of Texas Instruments of the United States.
zMicrosoft, Windows, and Windows Vista are registered trademarks or trademarks of Microsoft
Corporation in the United States and other countries.
zHDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
zXGA is a registered trademark of IBM Corporation of the United States.
zPJLink is a trademark applied for registration or is already registered in Japan, the United States
of America and other countries and areas.
zOther company and product names may be registered product names or trademarks of their
respective owners.
zPortions of this product are based in part on the work of the Independent JPEG Group.
zThe contents of this User’s Guide are subject to change without notice.
zCopying of this manual, either in part or its entirety is forbidden. You are allowed to use this
manual for your own personal use. Any other use is forbidden without the permission of CASIO
COMPUTER CO., LTD.
zCASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims from third
parties arising out of the use of this product or this manual.
zCASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to loss of
data due to malfunction or maintenance of this product, or any other reason.
zThe sample screens shown in this manual are for illustrative purposes only, and may not be
exactly the same as the screens actually produced by the product.
zUnless specifically stated otherwise, all illustrations in this manual show the XJ-H1650.
![](/img.php?id=1490759&img=bg3.png)
3
Contents
About this manual... ...............................................................................5
Projector Overview ......................................................... 6
Projector Features and Main Functions .................................................6
Remote Controller and Projector Keys...................................................8
Back Terminals.......................................................................................9
Operation During Projection ........................................ 10
Selecting the Input Source ...................................................................10
To select a different input source .............................................................................. 10
3D Input Mode ........................................................................................................... 11
Horizontal Flipping in the 3D Input Mode .................................................................. 12
Image Operations During Projection ....................................................13

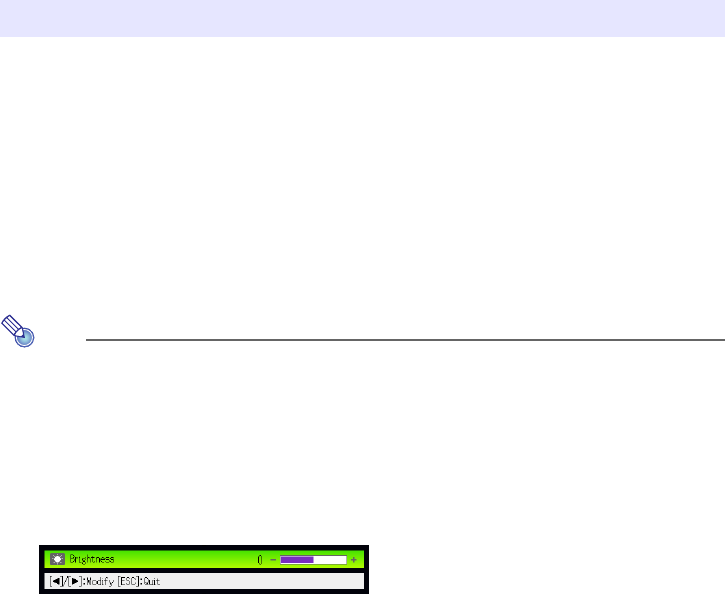

Adjusting Image Brightness....................................................................................... 13
Selecting the Color Mode .......................................................................................... 14
Zooming an Image..................................................................................................... 14
Momentarily Cutting Off the Input Source Image ...................................................... 15
Freezing an Image...................................................................................................... 15
Displaying a Pointer in the Projected Image.............................................................. 16
Changing the aspect ratio of the projected image .................................................... 17
Adjusting the Volume Level..................................................................18
To adjust the volume level ......................................................................................... 18
To mute the audio...................................................................................................... 18

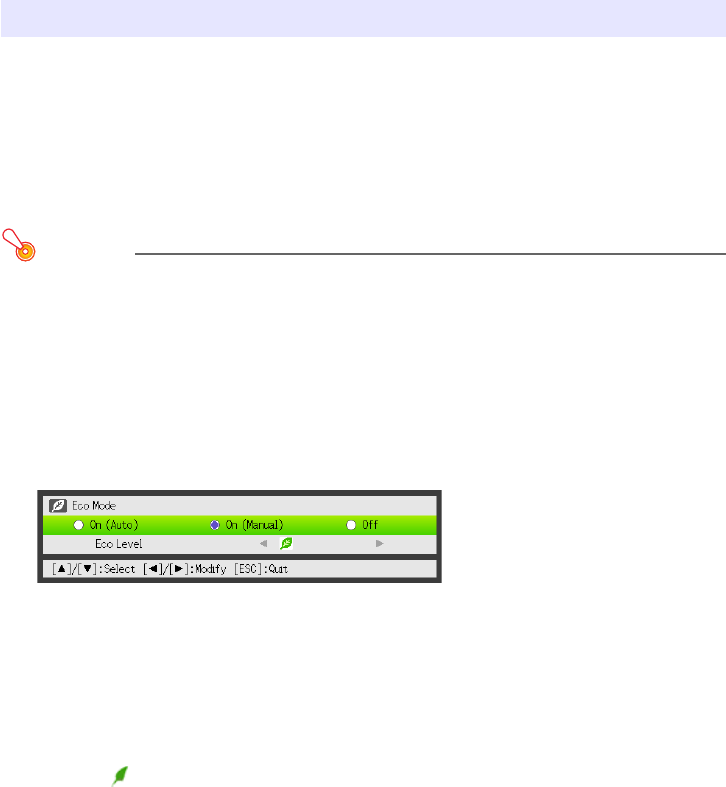

Eco Mode (Power Saving, Low Noise) .................................................19
To select the Eco Mode............................................................................................. 19

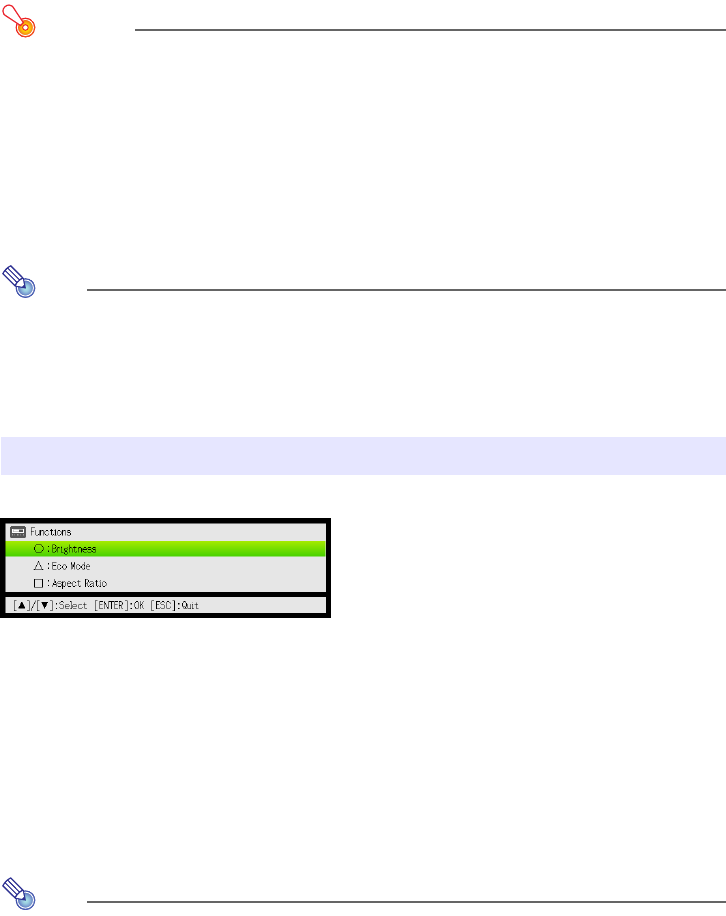

Using the [FUNC] Key ..........................................................................20
4
Configuring Advanced Projector Settings .................. 21

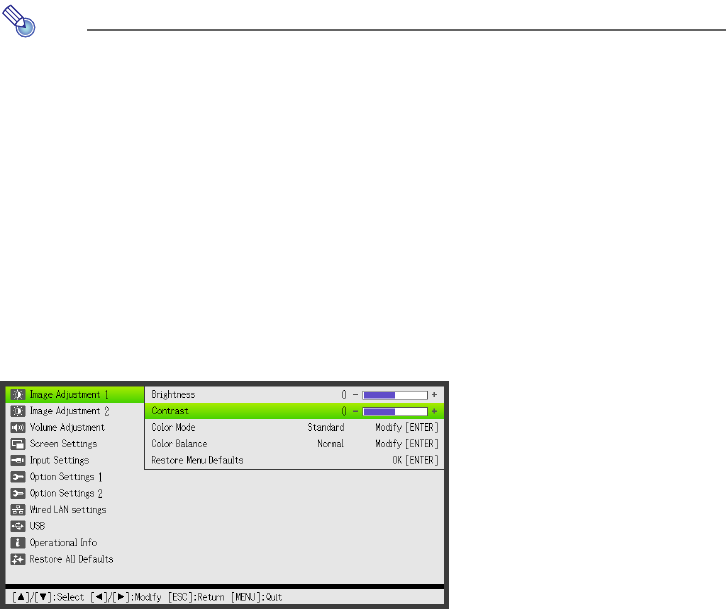

Basic Setup Menu Operations .............................................................21

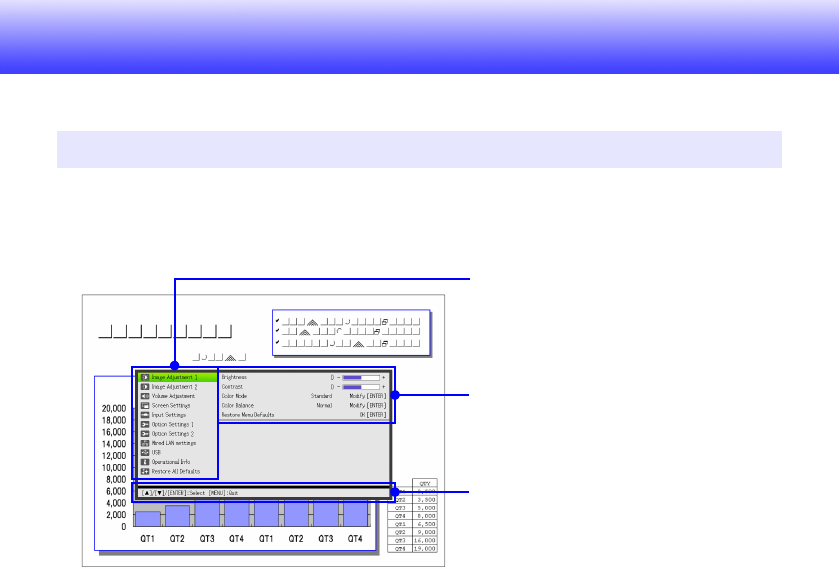

Displaying the Setup Menu........................................................................................ 21
Configuring Setup Menu Settings.............................................................................. 21
Basic Setup Menu Example....................................................................................... 22
Direct Power On......................................................................................................... 23
Password Protecting the Projector ......................................................24

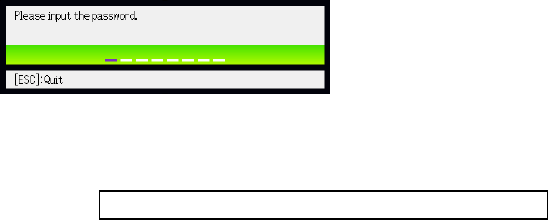

Inputting a Password................................................................................................. 24
Using the Password Feature...................................................................................... 24
Entering the Password when Turning On the Projector ............................................ 26

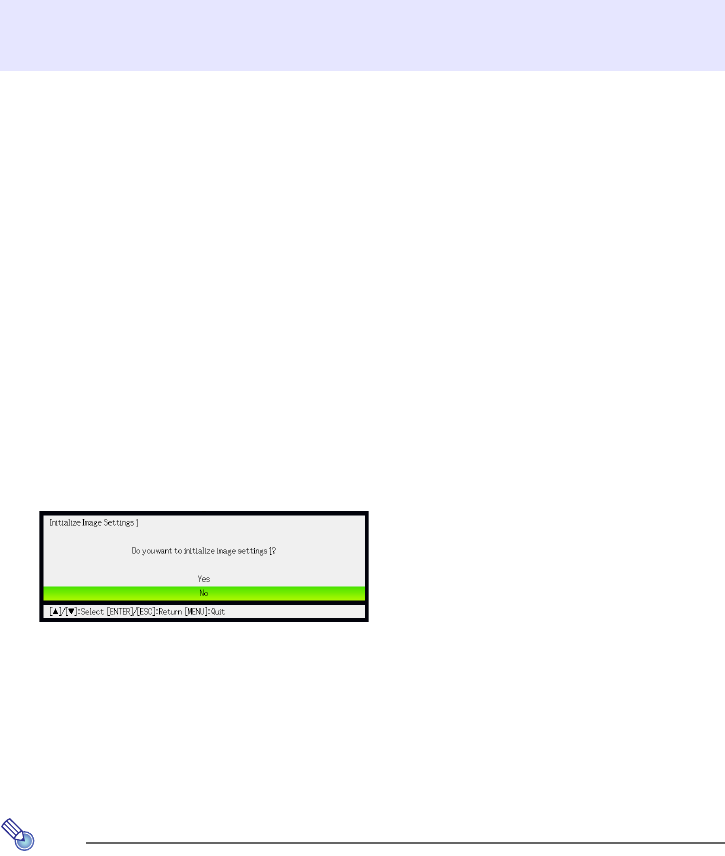

Restoring Projector Settings to Their Initial Factory Defaults ..............27
Setup Menu Contents ..........................................................................29
Image Adjustment 1 Main Menu................................................................................ 29
Image Adjustment 2 Main Menu................................................................................ 31
Volume Adjustment Main Menu................................................................................. 31
Screen Settings Main Menu....................................................................................... 32
Input Settings Main Menu.......................................................................................... 34
Option Settings 1 Main Menu .................................................................................... 35
Option Settings 2 Main Menu .................................................................................... 36
Wired LAN Settings Main Menu (USB Port Models Only) ......................................... 38
USB Settings Main Menu (USB Port Models Only) ................................................... 38
Operational Info Main Menu ...................................................................................... 39
Restore All Defaults Main Menu................................................................................. 39
Cleaning the Projector.................................................. 40
Cleaning the Projector Exterior ............................................................40
Cleaning the Lens.................................................................................40

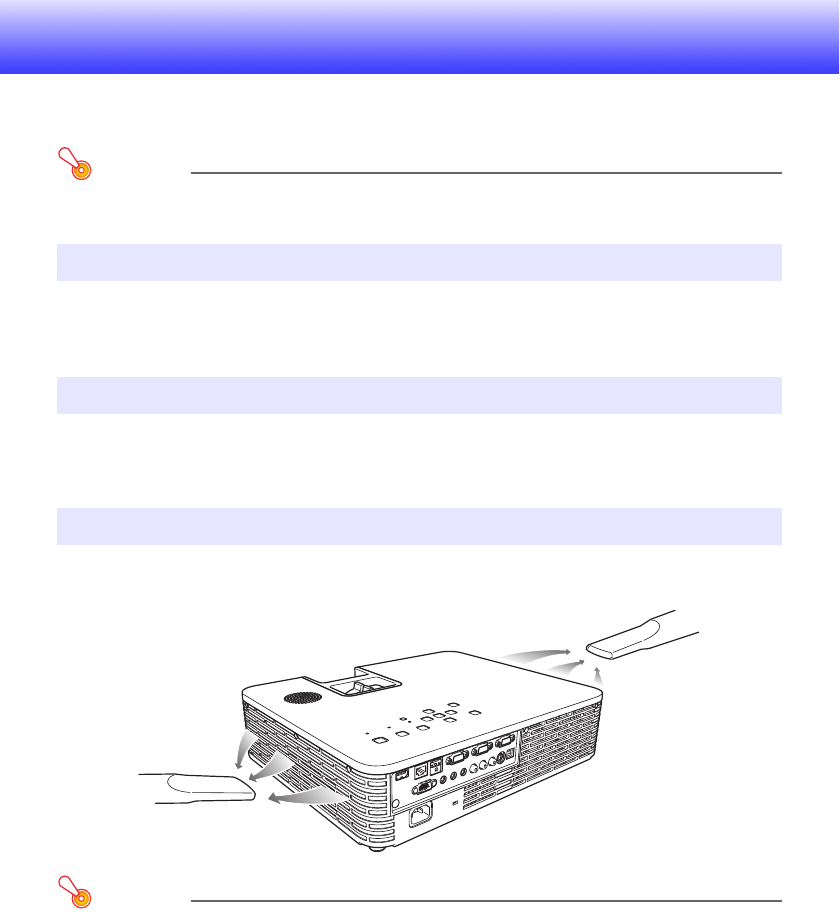

Cleaning the Vents ...............................................................................40
Error Indicators and Warning Messages .................... 41
![](/img.php?id=1490759&img=bg5.png)
5
Appendix ........................................................................ 44

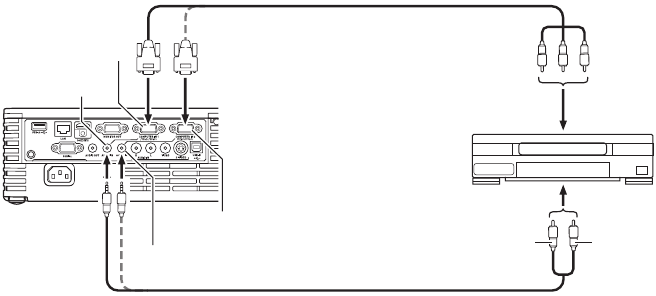

Connecting to a Video Device..............................................................44

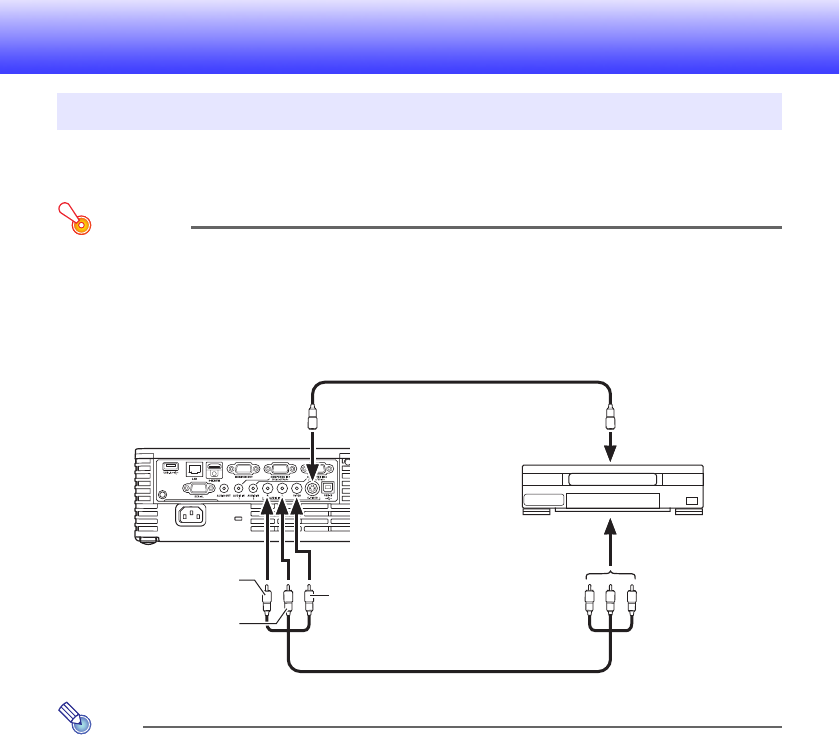

Connection to a composite video output or S-video output ..................................... 44
Connection to a component video output................................................................. 45

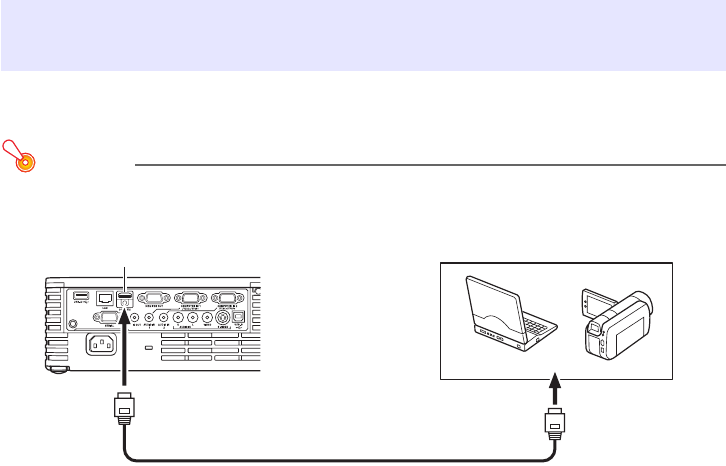

Connecting the HDMI Output of a Video Device or Computer to the
Projector ...............................................................................................46

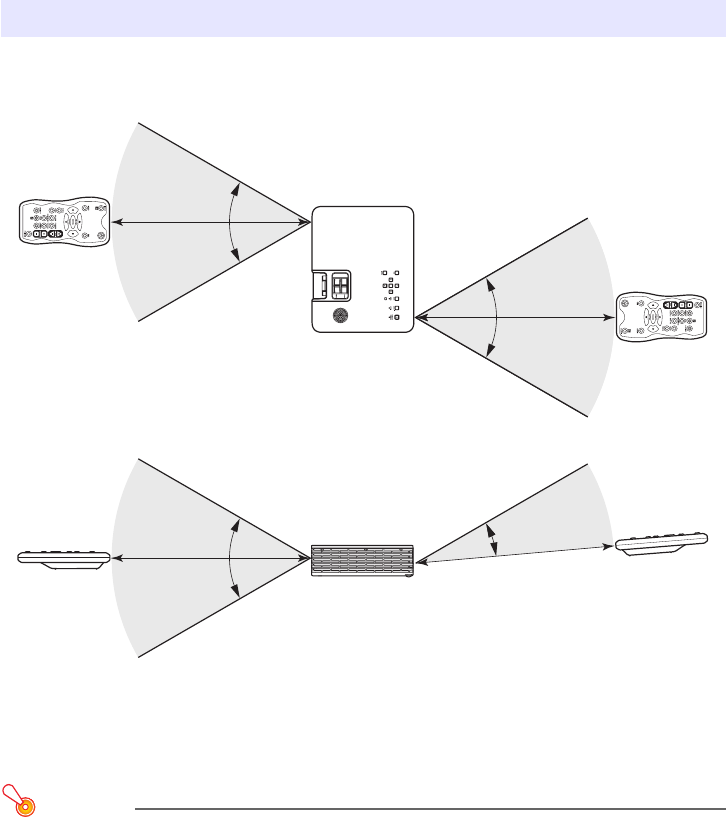

Remote Controller Signal Range..........................................................47

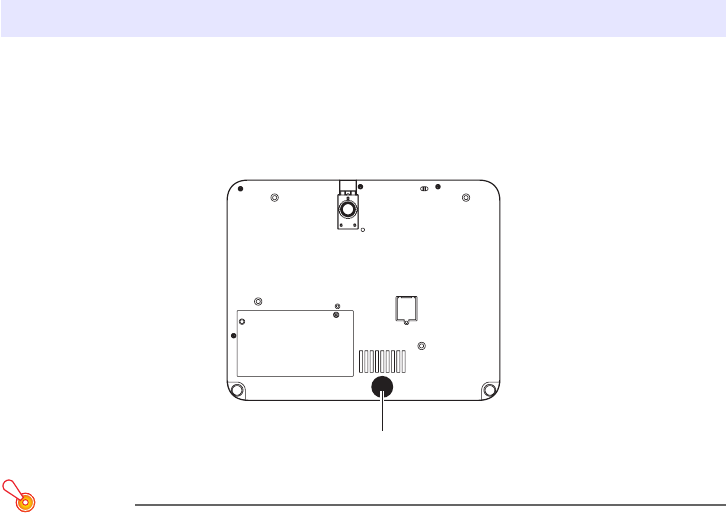

Hanging the Projector from a Ceiling ...................................................48
Projection Distance and Screen Size ...................................................49

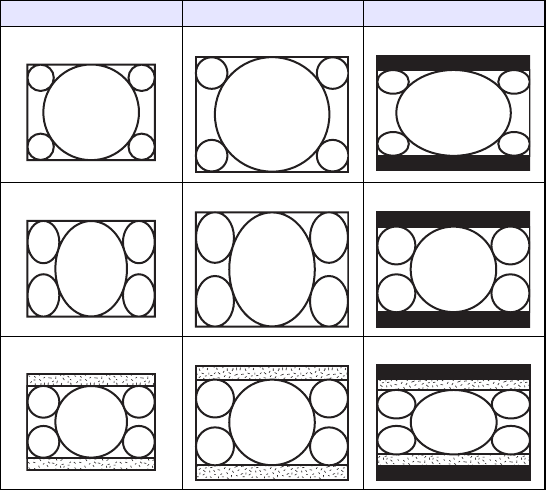

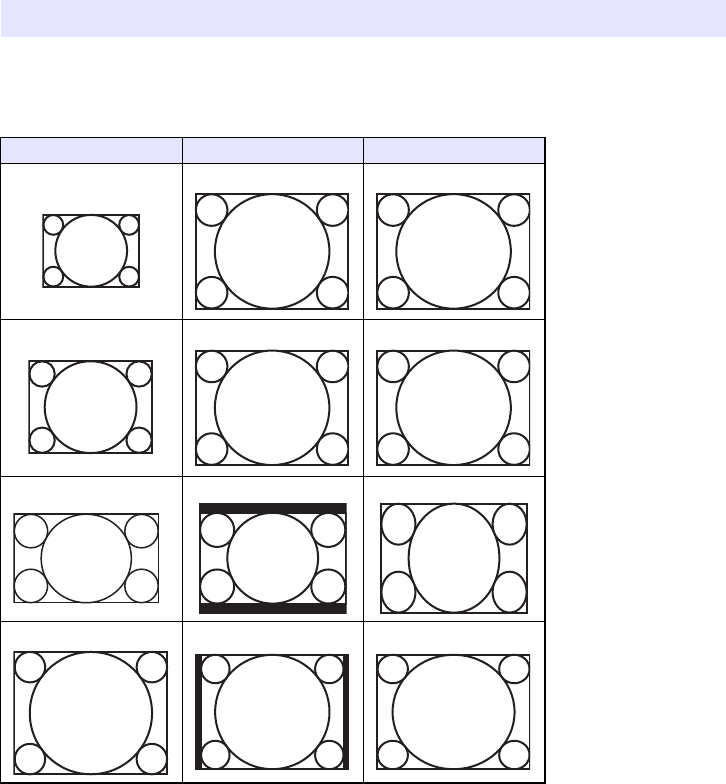

Aspect Ratio Setting and Projection Image .........................................50
Supported Signals................................................................................52
Using Wired LAN to Control the Projector
(XJ-H1650, XJ-ST145, XJ-ST155)........................................................55
Supported External Devices ...................................................................................... 55

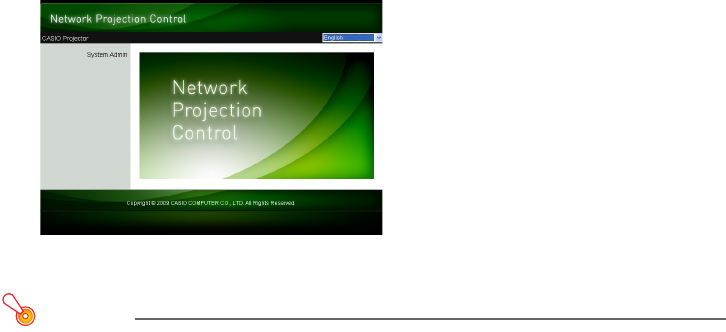

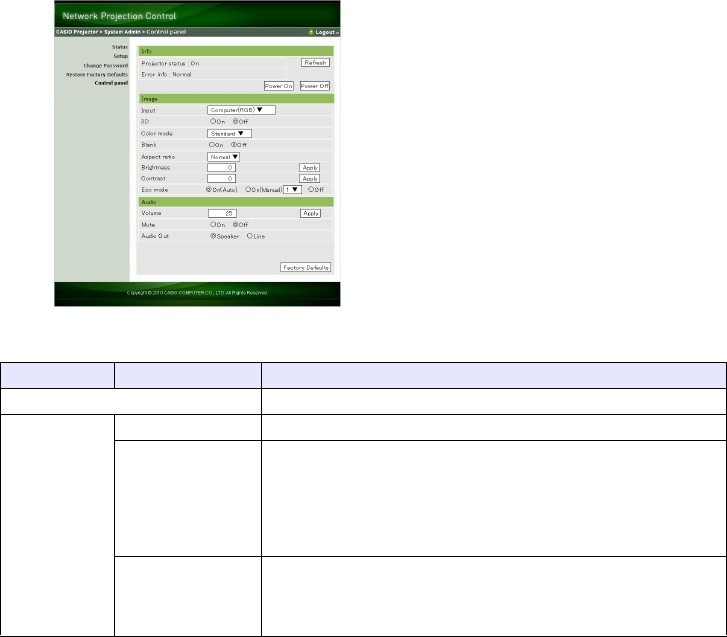

Controlling the Projector from a Computer ............................................................... 55
Projector RS-232C Control ..................................................................60

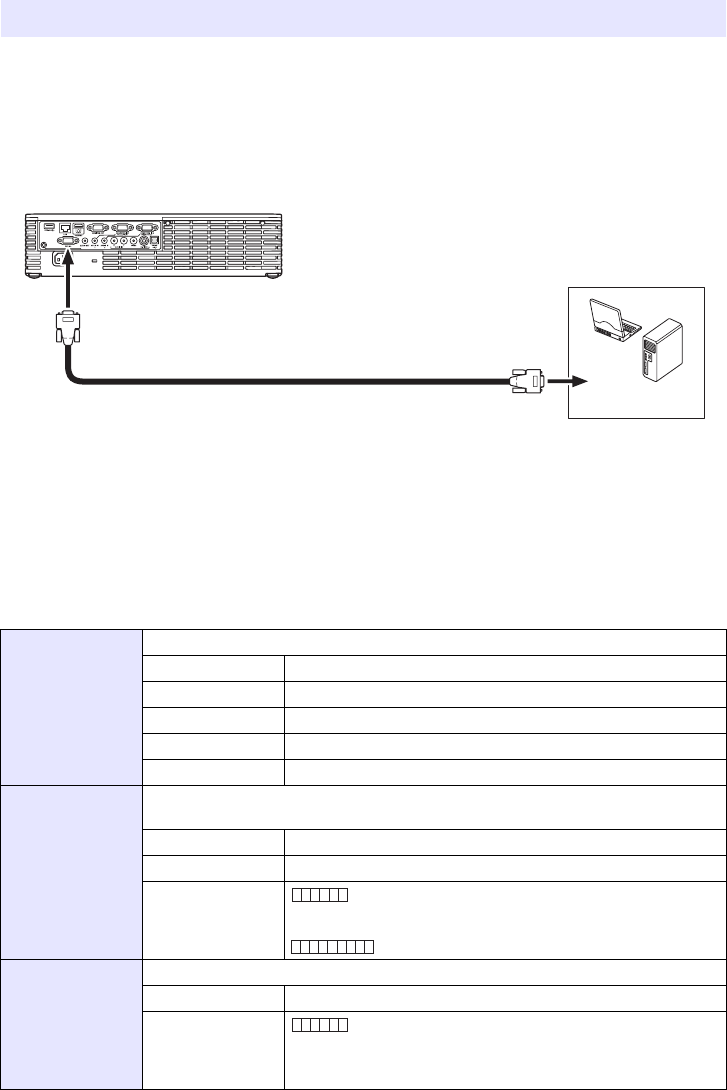

Connecting the Projector to a Computer................................................................... 60
Specifications.......................................................................................63
All of the operations in this manual are explained using the remote controller that comes with the
projector.
About this manual...
![](/img.php?id=1490759&img=bg6.png)
6
Projector Overview
This section describes the features of the projector, and explains the functions of the projector and
remote controller keys.
XJ-H1600/XJ-H1650/XJ-ST145/XJ-ST155
zMercury-free Hybrid Light Source:
A CASIO-original laser and LED hybrid light source delivers high luminance from 2500 to 3500
lumens. This projector does not use a mercury lamp, making it environmentally friendly.
zA wide selection of input sources:
Analog RGB, composite video, S-video, component video (Y·Cb·Cr, Y·Pb·Pr), and HDMI input
sources are supported.
zIntelligent Brightness Control function (Eco Mode):
The projector senses surrounding light levels and adjusts projection brightness automatically as
required for efficient low-power operation. (Requires “Eco Mode” setting to be set to “On (Auto)”.)
z3D image projection support:
Projection of a 3D image signal (60Hz/120Hz field sequential protocol) via one of three input
sources (analog RGB, composite video, S-video) is supported.

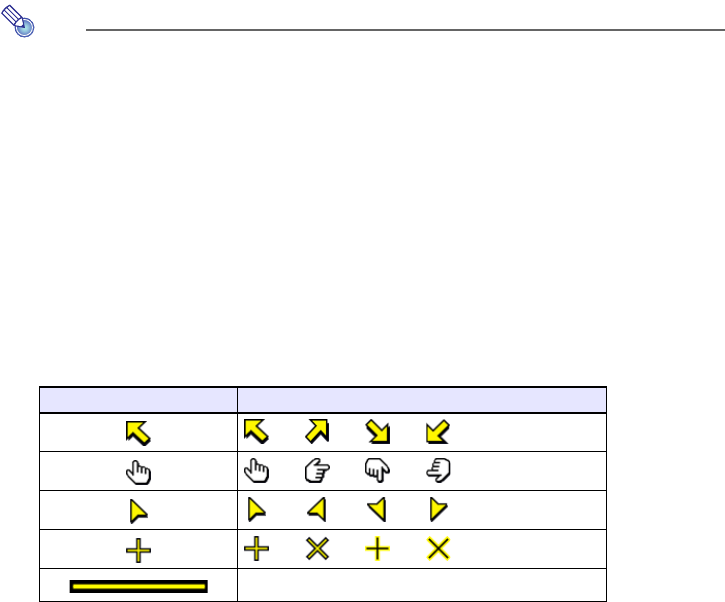

zPointer:
The remote controller can be used to select one of a variety of different pointers for use during
projection.
zDirect Power On:
The projector can be configured to turn on automatically and start projecting as soon as it is
plugged into a power outlet.
Projector Features and Main Functions
*Separately available 3D glasses (YA-G30) are required in order to view a projected 3D image in
3D. Also, separately available special software (CASIO 3D Converter) is required to project a 3D
image with the projector when a computer (analog RGB) is the input source.
7
XJ-H1650/XJ-ST145/XJ-ST155
zProjection of Data from USB Memory or a Memory Card without a Computer:
USB memory or a memory card (using a commercially available USB card reader) can be connected
directly to the projector’s USB-A port. The projector comes with special software for converting
PowerPoint presentation data to a format that can be stored to USB memory or a memory card and
projected without using a computer. Images and movies also can be projected directly from USB
memory or a memory card.
zInteractive Pointing Function:
You can use a separately available interactive pointer (YA-P10) to draw lines and figures directly on
an image being projected by the projector from a connected computer. You can also use the
pointer to perform mouse operations.
zMulti Projection Camera (YC-400, YC-430) Connection:
A CASIO Multi Projection Camera can be connected directly to the projector’s USB-A port for fine
resolution projection of documents and other images. Document camera capabilities allow
projection of data without going through a computer.
zGraphic Scientific Function Calculator Connection:
Certain CASIO graphic scientific calculator models can be connected directly to the projector’s
USB-A port for projection of the calculator screen contents.
zProjection of Computer Screen Contents via Wireless LAN:
The projector comes with a wireless LAN adapter. After a wireless LAN connection is established,
the contents of the computer screen can be sent to the projector for projection.
zSupport for Wireless projection from MobiShow:
You can install AWIND’s MobiShow (client software for wireless connection to a projector) on a
smartphone or mobile terminal, and then use the projector to project photographs and presentation
files stored in the smartphone or terminal memory.
zProjector operation via wired or wireless LAN:
Remote control of the projector is supported via a wired connection to the LAN port on the back or
the projector or via wireless LAN.
*Note that the type of terminal and the MobiShow version can limit certain functions or can even
make projection impossible.
![](/img.php?id=1490759&img=bg8.png)
8
Operations in this manual are presented based on the remote controller that comes with the projector.
Major operation keys are also provided on the projector unit, so the most of the same procedures can
also be performed directly on the projector.

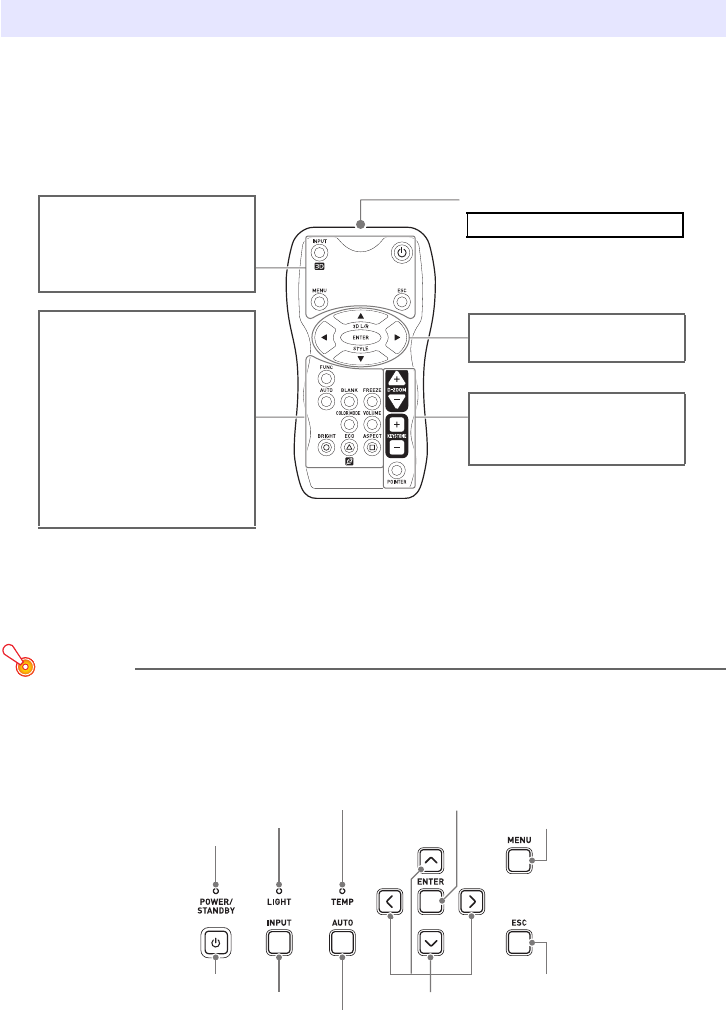

Remote Controller Keys
The remote controller does not come with batteries loaded. You need to load the two supplied
batteries before use.
Important!
To avoid running down the batteries, store the remote control unit so its keys are not pressed
inadvertently.
Projector Keys and Indicators
Remote Controller and Projector Keys
Remote control signal emitter
CLASS 1 LED PRODUCT
Cursor keys (S/T/W/X)
[ENTER] key ([STYLE] key)
[D-ZOOM +] [D-ZOOM –] keys
[KEYSTONE +] [KEYSTONE –] keys
[POINTER] key
[FUNC] key
[AUTO] key
[BLANK] key
[FREEZE] key
[COLOR MODE] key
[VOLUME] key
[BRIGHT] key ([O] key)
[ECO] key ([f] key)
[ASPECT] key ([Z] key)
[INPUT] key
[MENU] key
[P] (Power) key
[ESC] key
TEMP indicator
LIGHT indicator
[ENTER] key
POWER/STANDBY indicator
[MENU] key
[P] (Power) key [ESC] key
[INPUT] key Cursor keys (q/w/U/I)
[AUTO] key
![](/img.php?id=1490759&img=bg9.png)
9
1 USB-A port (XJ-H1650/XJ-ST145/XJ-ST155 only)
2 LAN port (XJ-H1650/XJ-ST145/XJ-ST155 only)
3 HDMI port
4 MONITOR OUT terminal
5 COMPUTER IN 1 terminal
6 COMPUTER IN 2 terminal
7 Remote control signal receiver
8 Power connector
9 SERIAL port*1
bk AUDIO OUT terminal
bl Anti-theft lock hole
bm AUDIO IN 1 terminal
bn AUDIO IN 2 terminal
bo AUDIO IN L/R terminals
bp VIDEO terminal
bq S-VIDEO terminal
br USB-B port*2 (XJ-H1650/XJ-ST145/XJ-ST155 only)
Back Terminals
*1 This terminal is for controlling the projector from an external device. It normally is not used. For
information about using control commands and other details, See “Projector RS-232C Control”
(page 60).
*2 This port is for USB connection between the projector and a computer when using the optionally
available interactive pointer (YA-P10).
87 9 bk bl bm bn bp bq brbo
123 4 5 6
![](/img.php?id=1490759&img=bga.png)
10
Operation During Projection
Turning on the projector initially causes the same input source that was selected the last time it was
turned off to be selected.
To select a different input source
1.
Press the [INPUT] key.
zThis displays the input source selection screen.
2.
Select either the Normal Input Mode or 3D Input Mode depending on the type of
image you want to project.
zFor details about the 3D Input Mode, see the explanation in the following section.
3.
Use the [T] and [S] keys to select the name of the input source you want to
select and then press the [ENTER] key.
zThe name of the input source you select appears in the upper right corner of the projection
screen for a few seconds.
zThe message “No signal input.” will appear if no input signal can be selected.
Note
The table below shows how the input source selection affects the projector’s MONITOR OUT
terminal and speaker (or AUDIO OUT terminal)*1 output signals.
Selecting the Input Source
When this input source is
selected:
The video input signal from this
terminal is output to the
MONITOR OUT terminal:
The audio input signal from this
terminal is output to the speaker
(or AUDIO OUT terminal):
Computer 1 COMPUTER IN 1*2AUDIO IN 1
Computer 2 COMPUTER IN 2*2AUDIO IN 2
S-video *2 *3AUDIO IN L/R
Video *2 *3AUDIO IN L/R
HDMI *2 *3HDMI
USB *2 *3USB
*1 Audio is output from either the speaker or AUDIO OUT terminal in accordance with the setup
menu “Option Settings 2 J Audio Output” setting.
*2 Output is proper only when the input signal is an RGB signal. Output is not guaranteed when
the input signal is a component signal.
*3 The video input signal is output from either Computer 1 or Computer 2, in accordance with
the last selected input source (COMPUTER IN 1 terminal or COMPUTER IN 2 terminal). For
example, even if the input source is switched from Computer 1 to S-video, the MONITOR
OUT terminal continues output the video input signal from COMPUTER IN 1.
![](/img.php?id=1490759&img=bgb.png)
11
3D Input Mode
Your projector supports projection of 3D images. To project a 3D image, first enter the projector’s 3D
input mode, and then select the input source.
Important!
zSeparately available 3D glasses (YA-G30) are required in order to view a projected 3D image in
3D.
zSeparately available special software (CASIO 3D Converter) is required to project a 3D image
with the projector when a computer (analog RGB) is the input source.
The input sources described below can be selected for projection in the 3D Input Mode.
Note
See “3D Signals (3D Input Mode)” (page 54) for a list of 3D image signals supported by this
projector.
Entering the 3D Input Mode
1.
Press the [INPUT] key to display the input source selection screen.
2.
Select Computer 1 (RGB), Computer 2 (RGB), S-video, or Video as the input
source.
3.
Use the [T] and [S] keys to move the highlighting to “To 3D input mode” and
then press the [ENTER] key.
zThis enters the 3D input mode and closes the input source selection screen.
Important!
zYou cannot select HDMI or USB as the input source in the 3D input mode. To use either of
these input sources, change the input source setting back to normal input mode.
zWhen Computer 1 (or Computer 2) is selected as the input source in the 3D input mode, a
component video signal input through the projector’s COMPUTER IN 1 (or COMPUTER IN 2)
terminal is treated as an RGB signal resulting in abnormal image projection.
zExcept when using the projector for 3D image projection, you should normally leave it in the
normal input mode.
Input Source Projection Conditions
Computer (Analog RGB) zAny of the following types of 3D image data played back using separately available
special software (CASIO 3D Converter).
– 2D image file converted to a 3D image file using CASIO 3D Converter
– Side-by-side 3D format files
zSignal with 60Hz/120Hz vertical scan frequency
Composite Video, S-video zField sequential 3D format files recorded with field sequential DVD software, etc.
zSignal with 60Hz vertical scan frequency
12
Returning to the Normal Input Mode from the 3D Input Mode
1.
Press the [INPUT] key to display the input source selection screen.
2.
Use the [T] and [S] keys to move the highlighting to “To normal input mode”
and then press the [ENTER] key.
zThis enters the normal input mode and closes the input source selection screen.
Horizontal Flipping in the 3D Input Mode
In side-by-side 3D, a full frame consists of two halves on the left and right for each eye. In rare cases,
the left and right images may be reversed, which causes a loss of 3D depth. If this happens, try using
the following procedure to swap the left and right images with each other.
To swap the left and right images
In the 3D input mode, press the [ENTER] key.
![](/img.php?id=1490759&img=bgd.png)
13
You can perform the following operations while projecting an image.
zImage brightness adjustment
zColor mode selection
zImage zooming
zMomentary cut off of the input source image and projection of a black or blue screen, or a logo
zImage freeze
zPointer display in the projected image
zAspect ratio switching
Adjusting Image Brightness
Note
(for USB port model users)
Use the setup menu (page 21) to adjust image brightness when the input source is an external
device connected to the USB-A port.
To adjust image brightness
1.
Press the [BRIGHT] key.
zThis displays the brightness adjustment window.
2.
Use the [W] and [X] keys to adjust image brightness.
3.
To hide the window, press the [ESC] key.
Image Operations During Projection
![](/img.php?id=1490759&img=bge.png)
14
Selecting the Color Mode
You can select from among various different color mode settings in accordance with image contents
and projection conditions.
Important!
zThe color mode cannot be selected in the following cases.
zThe color mode cannot be selected while “On” is selected for the setup menu “Option
Settings 2 J Interactive Pointer” setting. Though the color mode change operation may be
possible on some projector models, doing so may cause problems with the optional
interactive pointer (YA-P10) in some color modes.
To change the color mode
1.
Press the [COLOR MODE] key.
zThis displays the color mode selection window. The currently selected color mode is the one
whose button is selected (filled in).
2.
Use the [T] and [S] keys to move the highlighting to the color mode you want to
select, and then press the [ENTER] key.
zThis will select the button next to the highlighted color mode name.
zFor details on what each color mode does, see “Color Mode” under “Image Adjustment 1
Main Menu” on page 30.
3.
To hide the window, press the [ESC] key.
Zooming an Image
1.
Press the [D-ZOOM +] key.
zThis will enlarge the center of the projected image one step.
2.
To zoom in on the center of the projected image more, press the [D-ZOOM +]
key again. To zoom out, press the [D-ZOOM –] key.
zEach press of [D-ZOOM +] zooms in (increases the zoom factor), while [D-ZOOM –] zooms
out. Holding down either key continuously scrolls the zoom factor.
3.
While an image is zoomed, use the [S], [T], [W], and [X] keys to scroll the view
to other parts of the image.
4.
To exit the zoom operation, press the [ESC] key.
zWhen “Off” is selected for the Eco Mode setting (page 19)
zWhen the projector is in the 3D input mode. See “3D Input Mode” (page 11).
![](/img.php?id=1490759&img=bgf.png)
15
Momentarily Cutting Off the Input Source Image
1.
Press the [BLANK] key.
zThis temporarily cuts off the image from the input source and projects a black screen in its
place.
2.
To resume projection of the image from the input source, press the [BLANK] key
(or [ESC] key).
Note
You can specify projection of a black screen or blue screen, or a logo. For details, see “Blank
Screen” under “Screen Settings Main Menu” on page 33.
Freezing an Image
Pressing the [FREEZE] key freezes the projected image.
To freeze the projected image
1.
While an image is being projected from an input source, press the [FREEZE] key.
zThis will capture the image that is on the screen at the moment you press [FREEZE] and stores
it in projector memory. That image remains projected on the screen.
2.
To restore projection of the image from an input source, press the [ESC] key.
![](/img.php?id=1490759&img=bg10.png)
16
Displaying a Pointer in the Projected Image
You can select from among different pointer styles, including various arrow styles, for display in the
projected image. Pointers can be used during a presentation to indicate or highlight a specific part of
the image.
Note
Depending on the pointer style you are using, the pointer may not display properly when you are
using keystone correction. If this happens, use the [KEYSTONE +] and [KEYSTONE –] keys to
change the keystone correction value to zero.
To display a pointer in the image
1.
Press the [POINTER] key.
zThis will cause a pointer to appear in the image.
zYou also can use the setup menu to specify the pointer type that appears first when you press
the [POINTER] key. For details, see “Pointer” under “Option Settings 2 Main Menu” on
page 36.
2.
Use the cursor keys to move the pointer to the location you want.
zHolding down a cursor key moves the cursor at high speed.
3.
To modify the pointer as described below, press the [STYLE] key.
To select the pointer type
1.
Press the [POINTER] key to display the pointer.
2.
Keep pressing the [POINTER] key until the pointer you want is displayed.
zEach press of the [POINTER] key cycles through the available pointer types.
To clear the pointer from the image
Press the [ESC] key.
For this pointer type: Pressing [STYLE] will change it like this:
J J J
J J J
J J J
J J J
Toggle between flashing and not flashing
![](/img.php?id=1490759&img=bg11.png)
17
Changing the aspect ratio of the projected image
Press the [ASPECT] key to cycle through the aspect ratio settings for the projected image.
Available settings are as shown below. For details about the meaning of each setting, see the “Aspect
Ratio” setting under “Screen Settings Main Menu” on page 32.
Note
zWhen the input source is a component or an HDMI (DTV) signal with an aspect ratio of 16:9,
the aspect ratio is fixed at 16:9. In this case, pressing the [ASPECT] key will not change the
aspect ratio setting.
zFor details about how the aspect ratio setting affects the projected image, see “Aspect Ratio
Setting and Projection Image” (page 50).
zYou also can change the aspect ratio setting using the setup menu. For details, see “Aspect
Ratio” under “Screen Settings Main Menu” on page 32.
Important!
Note that enlarging or reducing the size of an image using the [ASPECT] key for commercial
purposes or public presentation may infringe on the legally protected copyright of the copyright
holder of the original material.
Input Source Pressing [ASPECT] will toggle between these settings:
Video, S-video, Component, HDMI (DTV) Normal
16:9
RGB, HDMI (PC) Normal
Full
![](/img.php?id=1490759&img=bg12.png)
18
You can use the remote controller keys to adjust the volume level of the audio that is output from the
projector’s speaker.
To adjust the volume level
1.
Press the [VOLUME] key.
zThis causes the [Volume] screen to appear on the projected image.
2.
Press the [X] key to increase the volume, or the [W] key to lower the volume.
3.
After the setting is the way you want, press the [ESC] key.
zThis causes the [Volume] screen to disappear.
Note
You also can use the setup menu to adjust the volume level. For details, see “Volume
Adjustment Main Menu” on page 31.
To mute the audio
1.
Press the [VOLUME] key.
2.
Press the [ENTER] key.
zThis stops output from the speaker.
3.
To restore the audio, press the [VOLUME] key again.
Adjusting the Volume Level
![](/img.php?id=1490759&img=bg13.png)
19
The following three Eco Mode settings are available to specify whether priority should be given to
low-power, low-noise operation or to projection brightness.
Important!
zWhile “On (Auto)” is selected as the Eco Mode setting, make sure that the brightness sensor
on the top of the projector is not blocked by anything.
zThe local environment and setup conditions affect the brightness sensor, so operation when
“On (Auto)” is selected for the Eco Mode depends on these factors.
To select the Eco Mode
1.
Press the [ECO] key.
zThis causes “Eco Mode” window to appear on the projection screen.
2.
Use the [W] and [X] keys to select the setting you want.
zIf you select “On (Manual)” here, go to step 3. If you select another setting, jump to step 4.
3.
Perform the following steps to adjust the “Eco Level” (the balance between
low-power, quiet operation and projection brightness).
4.
To hide the window, press the [ESC] key.
Eco Mode (Power Saving, Low Noise)
On (Auto) : A brightness sensor on the top of the projector senses surrounding light, and
automatically adjusts projection brightness and color accordingly. Brightness is
reduced for darker surroundings, which saves power and reduces operation noise.
On (Manual): Enables manual adjustment to balance the needs of low-power, quiet operation and
projection brightness.
Off : Give top priority to projection brightness.
1Press the [T] key to move the highlighting to the Eco Level.
2Use the [W] and [X] keys to adjust the Eco Level to the setting you want.
Fewer marks gives higher priority to projection brightness. A greater number gives high
priority to low-power, quiet operation.
![](/img.php?id=1490759&img=bg14.png)
20
Important!
zThe Eco Mode setting automatically changes to “Off” whenever the projector is in the 3D input
mode (“3D Input Mode”, page 11) or “On” is selected for the “Option Settings 2 J Interactive
Pointer” setting.
zThe “On (Auto)” setting cannot be selected for the Eco Mode while “On” is selected for
“Screen Settings J Ceiling Mount” on the setup menu. If the “Ceiling Mount” setting is
changed to “On” while “On (Auto)” is selected for the Eco Mode setting, the Eco Mode setting
will automatically change to “On (Manual)”.
zThe “On (Auto)” setting cannot be selected for the Eco Mode while “Rear” is selected for
“Screen Settings J Projection Mode” on the setup menu. If the “Projection Mode” setting is
changed to “Rear” while “On (Auto)” is selected for the Eco Mode setting, the Eco Mode
setting will automatically change to “On (Manual)”.
Note
zWhile “Off” is selected for the Eco Mode setting, you also can specify whether brightness or
color should be given emphasis. For details, see “Eco Off Mode” under “Image Adjustment 1
Main Menu” (page 30).
z(for USB port model users)
Use the setup menu (page 21) to select the Eco Mode when the input source is an external
device connected to the USB-A port.
Pressing the [FUNC] key displays the menu shown below.
You can use this menu to perform the operations described below.
zAdjust image brightness
Highlight “Brightness” and then press the [ENTER] key.
zTurn the Eco Mode on or off
Highlight “Eco Mode” and then press the [ENTER] key.
zSelect the aspect ratio of the projected image
Highlight “Aspect Ratio” and then press the [ENTER] key.
Note
(for USB port model users)
When the input source is an external device connected to the USB-A port, use the [FUNC], [O],
[f], and [Z] keys to control the connected device. For details, see the “USB Function Guide”
and “Wireless Function Guide” on the bundled CD-ROM.
Using the [FUNC] Key
J This performs the same operation as pressing the [BRIGHT] key (O key) described on page 13.
J This performs the same operation as pressing the [ECO] key (f key) described on page 19.
J This performs the same operation as pressing the [ASPECT] key (Z key) described on page 17.
![](/img.php?id=1490759&img=bg15.png)
21
Configuring Advanced Projector Settings
Your projector has a setup menu that you can use to configure advanced settings.
Displaying the Setup Menu
Pressing the [MENU] key displays the menu shown below in the center of the projection screen.
To exit the setup menu
Press the [MENU] key.
Configuring Setup Menu Settings
1.
Press the [MENU] key to display the setup menu.
2.
Use the [T] and [S] keys to select the main menu item you want by highlighting
it.
3.
Press the [ENTER] key.
4.
Use the [T] and [S] keys to select the sub-menu item you want by highlighting it.
5.
Perform the required operation on the selected sub-menu item screen.
zThe guidance text explains the operations you need to perform to configure each setting.
6.
To return to the main menu from the sub-menu, press the [ESC] key.
7.
To exit the setup menu, press the [MENU] key.
Basic Setup Menu Operations
Main menu
Pressing the [MENU] key displays the main menu.
The currently selected menu item is the one that is
highlighted.
Sub-menu
The sub-menu shows each individual setting under each
main menu item, and its current setting.
Guidance text
Guidance text provides a brief description of the main
key operations available for the operation you are
currently performing.
![](/img.php?id=1490759&img=bg16.png)
22
Basic Setup Menu Example
The procedure below shows how to configure the following three settings:
zImage Adjustment 1 J Contrast
zImage Adjustment 1 J Color Mode
zInput Settings J Signal Name Indicator
Note
zThe setup menu items that you can change depend on whether or not an image signal is being
input to the projector, and on the currently selected input source. Perform the procedure
below after starting projection of an image from an input source in the normal input mode. See
“3D Input Mode” on page 11 for information about how to do this.
zThis example covers basic steps only. For more detailed information, see “Setup Menu
Contents” on page 29.
To configure the “Image Adjustment 1 J Contrast” setting
1.
Press the [MENU] key to display the setup menu.
2.
“Image Adjustment 1” is initially selected on the main menu, so simply press the
[ENTER] key.
3.
Use the [T] key to select “Contrast”.
4.
Use the [W] (lighter) and [X] (darker) keys to adjust contrast.
![](/img.php?id=1490759&img=bg17.png)
23
To configure the “Image Adjustment 1 J Color Mode” setting
5.
Use the [T] key to select “Color Mode”.
6.
Press the [ENTER] key.
zThis displays the color mode menu.
7.
Use the [T] and [S] keys to select the color mode you want, and then press the
[ENTER] key.
8.
After selecting the color mode you want, press the [ESC] key.
To configure the “Input Settings J Signal Name Indicator” setting
9.
Press the [ESC] key.
10.
Use the [T] key to select “Input Settings”.
11.
Press the [ENTER] key.
12.
Use the [T] key to select “Signal Name Indicator”.
13.
Use the [W] and [X] keys to select “On” or “Off”.
14.
After you are finished, press the [MENU] key to exit the setup menu.
Direct Power On
You can configure the projector so it powers up automatically as soon as you plug it into a power
source. With this “Direct Power On” feature, you do not even need to press the [P] (Power) key. To
enable Direct Power On, display the setup menu, and then change the “Direct Power On” setting to
“On”.
Important!
When you have Direct Power On enabled, do not leave the projector plugged into an electrical
outlet while it is turned off. If you do, there is the chance that it (and the light source unit) might
turn on automatically when power is restored after being cut off by a power outage, tripping of a
breaker, etc.
Note
zDirect Power On causes the projector to turn on automatically as soon as it is plugged into a
power outlet. This greatly reduces the amount of time it takes until you are ready to start
projecting. Note, however, that the actual startup sequence (Standby State J Power On J
Projection Starts) that the projector performs is the same, regardless of whether Direct Power
On is enabled or disabled. The only difference is what triggers the sequence (plugging in or
pressing the [P] (Power) key).
zFor details about configuring the Direct Power On setting, see “Direct Power On” under
“Option Settings 1 Main Menu” on page 35.
![](/img.php?id=1490759&img=bg18.png)
24
The password feature lets you keep unauthorized individuals from using the projector. You can specify
whether password input is required whenever you turn on the projector, and you can specify and
change the password as required. Use the setup menu “Option Settings 1 J Power On Password”
setting to configure power on password settings.
Inputting a Password
The password of your projector is not really a “word” made up of letters, but rather a sequence of
remote controller key inputs. The following is the 8-key sequence that represents the initial factory
default password.
Using the Password Feature
Note the following precautions whenever you use the password feature.
zThe password feature protects against unauthorized use of the projector. Note that it is not an
anti-theft measure.
zYou will need to enter the initial factory default password the first time you use the projector after
turning on the password feature. Change the initial factory default password to a different one of
your choice as soon as possible after turning on the password feature.
zRemember that password operations are always performed using the remote controller, so you
should take care not to lose or misplace the remote controller.
zAlso note that you will not be able to input the password if the remote controller batteries are dead.
Replace the remote control batteries as soon as possible after it starts to go low.
If you forget your password...
You will not be able to use the projector if you forget the password for some reason. If you forget the
password, you will need to bring the following two items to your CASIO distributor to have the
password cleared. Note that you will be charged to have the password cleared.
Note that your CASIO distributor will not be able to clear the password of your projector unless you
bring both of the items listed above.
Also, keep the projector’s warranty in a safe place.
Important!
Having your password cleared using the procedure described above will return all of the settings
of your projector, except for the Light Time, to their initial factory defaults.
Password Protecting the Projector
[INPUT] [AUTO] [BLANK] [FREEZE] [S] [T] [W] [X]
1. Personal identification (original or copy of your driver’s license, employee I.D., etc.)
2. Projector unit
![](/img.php?id=1490759&img=bg19.png)
25
Keep a written record of your password!
You will not be able to use the projector if you forget its password. We strongly suggest that you keep
a written or other type of record of the password so you can look it up when necessary.
To change the password
1.
Press the [MENU] key to display the setup menu.
2.
Use the [T] key to select “Option Settings 1”, and then press the [ENTER] key.
3.
Use the [T] key to select “Power On Password”, and then press the [ENTER]
key.
zThis will display a dialog box prompting you to enter the current password.
4.
Enter the current password.
zIf the projector is still protected by the factory default password, perform the key operation
shown below to enter it.
5.
After entering the current password, press the [ENTER] key.
zThis displays the Power On Password setting screen.
6.
Use the [T] key to select “Change Password”, and then press the [ENTER] key.
zThis will display a dialog box prompting you to enter the new password.
7.
Enter a key sequence up to eight key operations long.
zYou can use any of the following keys as part of your password key sequence.
[INPUT], [AUTO], [BLANK], [FREEZE], [VOLUME], [COLOR MODE], [D-ZOOM +], [D-ZOOM –],
[KEYSTONE +], [KEYSTONE –], [MENU], [POINTER], [O], [f], [Z], [S], [T], [W], [X], [FUNC]
8.
After entering the new password, press the [ENTER] key.
zThis will display a dialog box prompting you to enter the same password again.
9.
Re-enter the same password key sequence you entered in step 7 and then press
the [ENTER] key.
zThe message “Your new password has been registered.” indicates that the password has
been changed. Press the [ESC] key.
zIf the password you entered in this step is different from the one you entered in step 7, the
message “The password you input is wrong.” appears. Press the [ESC] key to return to step 7.
[INPUT] [AUTO] [BLANK] [FREEZE] [S] [T] [W] [X]
![](/img.php?id=1490759&img=bg1a.png)
26
To turn password protection on and off
1.
Display the Power On Password setting screen by performing steps 1 through 5
of the procedure under “To change the password” on page 25.
zAt this time, make sure that “Power On Password” is selected on the Power On Password
setting screen.
2.
Use the [W] and [X] keys to select “On” or “Off”.
zChanging the power on password setting from “Off” to “On” causes the confirmation dialog
box shown below to appear.
Press the [ENTER] key to confirm that you want to turn on power on password protection, or
[ESC] to exit the dialog box without doing anything.
3.
After you are finished, press the [MENU] key to exit the setup menu.
Entering the Password when Turning On the Projector
When you turn on the projector while password protection is turned on will cause a password input
dialog box to appear on the projection screen. All projector operations will be accessible to you after
you input the correct password and press the [ENTER] key.
![](/img.php?id=1490759&img=bg1b.png)
27
You can use the procedures in this section to restore all of the settings on a particular main menu or all
of the settings on the setup menu to their initial factory defaults.
To restore all settings on a particular main menu to their initial factory
defaults
1.
Press the [MENU] key to display the setup menu.
2.
Use the [T] and [S] keys to select the main menu whose settings you want to
restore to their initial factory defaults.
zYou can select Image Adjustment 1, Image Adjustment 2, Volume Adjustment, Screen
Settings, Input Settings, Option Settings 1, or Option Settings 2.
3.
Press the [ENTER] key.
4.
Use the [T] key to select “Restore Menu Defaults”.
5.
Press the [ENTER] key.
zThis will display a confirmation screen like the screen shown below.
6.
Use the [S] key to select “Yes”.
7.
To restore the settings of the main menu to their initial defaults, press the
[ENTER] key.
zTo exit the operation without doing anything, press [ESC] instead of [ENTER].
8.
After you are finished, press the [MENU] key to exit the setup menu.
Note
zThe language setting and the password are not returned to their initial factory defaults if you
select Option Settings 1 in step 2.
zFor details about how the above procedure initializes settings, see the explanations of the
settings under “Setup Menu Contents” on page 29.
Restoring Projector Settings to Their Initial Factory
Defaults
28
To restore all settings on the setup menu to their initial factory defaults
1.
Press the [MENU] key to display the setup menu.
2.
Use the [T] key to select “Restore All Defaults” and then press the [ENTER] key.
3.
After confirming that “Restore All Defaults” sub-menu is selected, press the
[ENTER] key.
zThis displays a confirmation message asking if you want to initialize all settings.
4.
Use the [S] key to select “Yes”.
5.
To restore all settings on the setup menu to their initial defaults, press the
[ENTER] key.
zThis will restore all of the settings to their initial factory defaults, except for the Language,
Light Time, Unit Operating Time and password settings.
zTo exit the operation without doing anything, press [ESC] instead of [ENTER].
6.
After you are finished, press the [MENU] key to exit the setup menu.
![](/img.php?id=1490759&img=bg1d.png)
29
This section contains tables that provide detailed explanations of all of the items included on the setup
menu. The following describes the type of information that appears in each of the columns of the
tables.
Image Adjustment 1 Main Menu
Setup Menu Contents
Setting Name: This column shows the names of the settings as they appear on the sub-menu.
Input: This column shows the input source for which each setting is supported.
Input source names are abbreviated as follows:
R : RGB input
C : Component video input
V : Video or S-video input
H : HDMI (PC) input
D : HDMI (DTV) input
U : USB input (USB port models only)
The letter N indicates that the setting can be configured while there is no input signal.
Setting Unit: The setting unit indicates how a setting is stored.
“Source Specific” in this column indicates that separate settings can be stored for each
individual input source.
“Single” in this column indicates that a single setting is stored and applied, regardless of
the input source.
Description: This column provides details about the setting item and how to select it. The initial
default setting is indicated by an asterisk (*).
Setting Name Input Setting Unit Description
Brightness
RCVHDU
Source
Specific
Use this sub-menu to adjust the brightness of the projected image.
A larger value produces a brighter image.
Contrast
RCVHDU
Source
Specific
Use this sub-menu to adjust the contrast of the projected image.
A larger value produces a stronger contrast.
Sharpness
V
Source
Specific
Use this sub-menu to adjust the sharpness of the outlines in the
projected image. A larger value makes the image sharper, while a
smaller value makes it softer.
Saturation
V
Source
Specific
Use this sub-menu to adjust the color saturation of the projected
image. A larger value increases color saturation.
Tint
V
Source
Specific
Use this sub-menu to adjust the tint of the projected image.
A larger value makes the overall image more bluish, while a smaller
value makes the overall image more reddish. This setting is
supported only when the signal is NTSC or NTSC4.43.
![](/img.php?id=1490759&img=bg1e.png)
30
Color Mode
RCVHDU
Source
Specific
You can select from among various different color mode settings in
accordance with image contents and projection conditions.
Standard:
Use this setting when you want to highlight the colors of your
presentation.
Graphics:
Use this setting when you want photographs and graphics to
appear natural.
Theater:
Use this setting to bring out the dark portions of your images.
Blackboard:
Use this setting for easy viewing when projecting onto a
blackboard.
Game:
Use this setting to optimize hue and brightness.
Color Balance
RCVHDU
Source
Specific
This sub-menu lets you adjust the color balance of the projected
image.
Preset:
You can select from among three preset color balance settings:
Warm, Normal,* Cold.
Color:
You can adjust the intensity of red, green, and blue within the
range of –50 to +50. The intensity of a color increases along with
the setting value. Color settings can be adjusted individually only
when “Normal” is selected as the “Preset” setting.
Eco Off Mode
RCVHDUN
Single When “Off” is selected for “Option Settings 1 J Eco Mode”, you can
select either of the following projection image modes.
Bright:
Gives priority to brightness.
Normal:
Suppresses brightness slightly and gives priority to color balance.
Restore Menu
Defaults
RCVHDU
Source
Specific
Use this sub-menu to return all of the sub-menu items on the Image
Adjustment 1 main menu to their initial default
settings.
zRestoring menu defaults when there is no input signal will restore
defaults for the currently selected input source.
Setting Name Input Setting Unit Description
![](/img.php?id=1490759&img=bg1f.png)
31
Image Adjustment 2 Main Menu
About the “Signal Specific” Setting Unit
For the items that have “Signal Specific” in the “Setting Unit” column of the above table, the setting is
saved for the specific type of signal (XGA/60Hz, SXGA/60Hz, etc.) that is being input when the setting
is performed, and not for a specific input source.
Volume Adjustment Main Menu
Setting Name Input Setting Unit Description
Vertical
Position
RCV
Signal
Specific
Use this sub-menu to adjust the vertical position of the input source
image within the projection area.
Horizontal
Position
RCV
Signal
Specific
Use this sub-menu to adjust the horizontal position of the input
source image within the projection area.
Frequency
R
Signal
Specific
When vertical bands appear in the projected image while RGB is
selected as the input source, it means that the frequency setting is
not correct. When this happens, use this setting to adjust the
frequency manually.
Important!
If, for some reason, your manual frequency settings cause the
image input from the computer to disappear from the
projection, you can press the [AUTO] key to perform an auto
adjust operation, which should cause the image to appear.
Phase
R
Signal
Specific
When there is flickering in the projected image while RGB is
selected as the input source, it means that the phase setting is not
correct. When this happens, use this setting to adjust the phase
manually.
Restore Menu
Defaults
RCV
Source
Specific
Use this sub-menu to return all of the sub-menu items on the Image
Adjustment 2 main menu to their initial default settings.
zRestoring menu defaults will restore defaults for the current signal
type (XGA/60Hz, SXGA/60Hz, etc.) only.
Setting Name Input Setting Unit Description
Volume
RCVHDUN
Source
Specific
Use this sub-menu to adjust the volume level of the projector’s
speaker.
zChanging this setting when there is no input signal changes the
volume setting of the currently selected signal source.
Restore Menu
Defaults
RCVHDUN
Source
Specific
Use this sub-menu to return Volume to its initial default setting.
zRestoring menu defaults when there is no input signal will restore
defaults for the currently selected input source.
![](/img.php?id=1490759&img=bg20.png)
32
Screen Settings Main Menu
Setting Name Input Setting Unit Description
Keystone
Correction
RCVHDUN
Single Use this sub-menu to correct vertical keystoning of the projected
image.
Aspect Ratio
RCVHD
Source
Specific
Use this sub-menu to select an aspect ratio setting for the projected
image.
Input Source: RGB or HDMI (PC)
Normal*:
Projects at the projector’s maximum possible size while
maintaining the input signal aspect ratio.
Full:
Projects at the projector’s maximum possible size by enlarging or
reducing the input signal.
Input Source: Video, S-video, Component or
HDMI (DTV)
Normal*:
Projects at the projector’s maximum possible size while
maintaining the input signal aspect ratio.
16:9 :
This setting specifies a 16:9 aspect ratio, which is the same as a
movie screen, high-definition TV, etc. Using this setting when the
input signal is a 16:9 image that has been squeezed to a 4:3
image causes the image to be displayed with its normal 16:9
aspect ratio.
Note
zWhen the input source is a component or an HDMI (DTV)
signal with an aspect ratio of 16:9, the aspect ratio is fixed
at 16:9. The aspect ratio setting cannot be changed in this
case.
zFor details about projection screen display conditions for
different aspect ratio settings, see “Aspect Ratio Setting
and Projection Image” (page 50).
Important!
Note that enlarging or reducing the size of an image for
commercial purposes or public presentation may infringe on
the legally protected copyright of the copyright holder of the
original material.
Projection
Mode
RCVHDUN
Single Use this sub-menu to specify whether projection will be from the
front of the screen or the back of the screen.
Front*:
Select this option to project from the front of the screen.
Rear:
Select this option to project from the back of the screen. This
setting flips the front projected image horizontally.
Ceiling Mount
RCVHDUN
Single Use this sub-menu to configure the projector for use in an
installation in which it is positioned upside down.
On:
Flips the projected image horizontally and vertically.
Off*:
Projects a normal image.
![](/img.php?id=1490759&img=bg21.png)
33
Startup Screen
RCVHDUN
Single Use this sub-menu to specify whether or not a startup screen should
be projected whenever the projector is turned on.
Logo:
Select this option to project the projector’s built-in logo screen at
startup.
None*:
Select this option when you do not want to project a startup
screen.
No Signal
Screen
RCVHDUN
Single Use this sub-menu to specify what should be projected when there
is no input signal to the projector.
Blue*:
Select this option to project a blue screen.
Black:
Select this option to project a black screen.
Logo:
Select this option to project the projector’s built-in logo screen.
Blank Screen
RCVHDUN
Single Use this sub-menu to specify what should be projected after the
[BLANK] key is pressed.
Blue:
Select this option to project a blue screen.
Black*:
Select this option to project a black screen.
Logo:
Select this option to project the projector’s built-in logo screen.
Restore Menu
Defaults
RCVHDUN
Source
Specific
Use this sub-menu to return all of the sub-menu items on the Screen
Settings main menu to their initial default settings.
zRestoring menu defaults when there is no input signal will restore
defaults for the currently selected input source.
zNote that the “Keystone Correction”, “Projection Mode”, “Ceiling
Mount”, “Startup Screen”, “No Signal Screen”, and “Blank
Screen” settings are always returned to their initial defaults,
regardless of the currently selected input source.
Setting Name Input Setting Unit Description
![](/img.php?id=1490759&img=bg22.png)
34
Input Settings Main Menu
Setting Name Input Setting Unit Description
COMPUTER 1
Terminal/
COMPUTER 2
Terminal
RC N
Single Use this sub-menu to specify manually the type of signal being input
from the projector’s COMPUTER IN 1/COMPUTER IN 2 terminal.
Auto*:
Automatically detects the signal being input from the
COMPUTER IN 1/COMPUTER IN 2 terminal and configures the
appropriate input protocol.
RGB:
Select this option when a computer is connected to the
COMPUTER IN 1/COMPUTER IN 2 terminal. For details about
connecting a computer, see “Connecting a Computer to the
Projector” in the “Setup Guide”.
Component:
Select this setting when the projector’s COMPUTER IN 1/
COMPUTER IN 2 terminal is connected to the component video
output terminal of a video device using a commercially available
component video cable. For information about connection, see
“Connecting to a Video Device” (page 44).
Note
The setting of this item cannot be changed while the projector
is in the 3D input mode (“3D Input Mode”, page 11) or “On” is
selected for the “Option Settings 2 J Interactive Pointer”
setting.
Video Signal/
S-video Signal
V N
Single Use this sub-menu to specify manually the type of signal being input
from the projector’s VIDEO terminal or S-VIDEO terminal.
Auto*:
Select this setting to have the projector switch the video signal
system automatically in accordance with the input signal from the
video device that is connected to the VIDEO terminal or S-VIDEO
terminal.
NTSC / NTSC4.43 / PAL / PAL-M / PAL-N / PAL60 / SECAM:
Each setting selects the applicable video system. Use these
settings when you want to specify only one specific video signal
for the VIDEO terminal or S-VIDEO terminal.
Signal Name
Indicator
RCVHDUN
Single Use this sub-menu to specify whether or not the name of the
currently selected signal source should be displayed in the
projected image.
On*:
Select this option to turn on display of the name of the currently
selected signal source in the projected image.
Off:
Select this option to turn off display of the signal source name.
Restore Menu
Defaults
RCVHDUN
Source
Specific
Use this sub-menu to return all of the sub-menu items on the Input
Settings main menu to their initial default settings.
zRestoring menu defaults when there is no input signal will restore
defaults for the currently selected input source.
zNote that the “Signal Name Indicator” setting is always returned
to its initial default, regardless of the currently selected input
source.
![](/img.php?id=1490759&img=bg23.png)
35
Option Settings 1 Main Menu
Setting Name Input Setting Unit Description
Auto Keystone
Correction
RCVHDUN
Single Use this sub-menu to turn auto keystone correction on or off.
On*:
Select this option to turn on auto keystone correction.
Off:
Select this option to turn off auto keystone correction.
Auto Adjust
R N
Source
Specific
Use this sub-menu to select whether the projector should detect the
RGB input signal type (resolution, frequency) and adjust the
projection image accordingly (auto adjust).
1*:
Select this option to turn on auto adjust.
2:
Select this option to turn on auto adjust when a 1360 × 768 or
1400 × 1050 signal is not projected correctly.
3:
Select this option to turn on auto adjust when a 1366 × 768 signal
is not projected correctly.
Off:
Select this option to turn off auto adjust.
Eco Mode
RCVHDUN
Single See “Eco Mode (Power Saving, Low Noise)” (page 19).
Auto Power Off
RCVHDUN
Single Auto Power Off lets you specify the amount of time of projector
operation and input signal inactivity to be allowed before Auto
Power Off is triggered to turn off projector power automatically. Auto
Power Off can be disabled, if you want.
5 min, 10 min*, 15 min, 20 min, 30 min:
Time until Auto Power off is triggered.
Off:
Disables Auto Power Off.
Power On
Password
RCVHDUN
Single You can configure the projector to require input of a password
before operation is enabled. For details, see “Password Protecting
the Projector” on page 24.
Direct Power
On
RCVHDUN
Single Use this sub-menu to turn Direct Power On on or off. See “Direct
Power On” on page 23.
On:
Select this option to turn on Direct Power On.
Off*:
Select this option to turn off Direct Power On.
![](/img.php?id=1490759&img=bg24.png)
36
Option Settings 2 Main Menu
Language
RCVHDUN
Single Use this sub-menu to specify the language to use for messages,
setup menus, etc.
English / French / German / Italian / Spanish / Swedish /
Portuguese / Turkish / Russian / Chinese (Simplified) /
Chinese (Traditional) / Korean / Japanese
Note
(for USB port model users)
If you have Portuguese, Turkish, or Russian selected as the
projector’s language, selecting an external device connected
to the projector’s USB-A port as the input source will cause
some menus and messages to be displayed in English.
Restore Menu
Defaults
RCVHDUN
Single This sub-menu returns all of the sub-menu items on the Option
Settings 1 main menu to their initial default settings.
zThe language setting and the password are not returned to their
initial factory defaults.
zThe “Auto Adjust” item is returned to its initial default only when
RGB input is selected for the input source. All of the other items
are returned to their initial defaults regardless of the currently
selected input source.
Setting Name Input Setting Unit Description
Pointer
RCVHDUN
Single Use this sub-menu to specify the type of pointer that appears first
when you press the [POINTER] key.
Plug and Play
(USB port
models only)
RCVHDUN
Single Use this sub-menu to turn plug-and-play*1 on or off.
On*:
Select this option to turn on plug-and-play. This will allow the
projector detect when an external USB device is connected and
make that device the input source automatically.
Off:
Select this option to turn off plug-and-play.
Note
Regardless of the setting of this item, plug-and-play is
disabled while the projector is in the 3D input mode. See “3D
Input Mode” on page 11 for information.
Audio Out
RCVHDUN
Single Specifies whether the input audio signal should be output from the
projector’s built-in speaker or to the line output.
Speaker*:
Outputs the audio signal being input to the projector from the
speaker.
Line:
Outputs the audio signal being input to the projector from the
AUDIO OUT terminal.
Setting Name Input Setting Unit Description
![](/img.php?id=1490759&img=bg25.png)
37
High Altitude
RCVHDUN
Single Use this sub-menu to turn the high-altitude fan speed setting on or
off in accordance with the altitude of the area where you are using
the projector.
On:
Select this setting when using the projector in a high altitude
(1,500 to 3,000 meters above sea level) area where air is thin. This
setting increases cooling efficiency.
Off*:
Select this setting at normal altitudes (up to 1,500 meters).
Important!
Do not use this projector at altitudes greater than
3,000 meters above sea level.
Closed
Caption
V N
Single Specifies whether to display closed captions when projecting a
video signal that includes them.
Off*:
Closed captions not displayed.
CC1, CC2, CC3, CC4:
Indicates the current closed caption output setting (CC1, CC2,
CC3, CC4).
Note
Keystone correction does not affect displayed closed caption
text.
Interactive
Pointer
R H
Single Enables/disables operation of the optionally available interactive
pointer (YA-P10).
On:
Interactive pointer operation enabled.
Off*:
Interactive pointer operation disabled.
Important!
Select “On” for this item only when using an interactive
pointer. Select “Off” when you are not using it.
Note
Regardless of this setting, interactive pointer operation is
always disabled when the projector is in the 3D input mode
(page 11).
Restore Menu
Defaults
RCVHDUN
Single This sub-menu returns all of the sub-menu items on the Option
Settings 2 main menu to their initial default settings.
*1 When plug-and-play is turned on, the projector will make that device the input source
automatically. For details about plug-and-play, see “USB Function Guide” on the bundled
CD-ROM.
Setting Name Input Setting Unit Description
![](/img.php?id=1490759&img=bg26.png)
38
Wired LAN Settings Main Menu (USB Port Models Only)
USB Settings Main Menu (USB Port Models Only)
The USB Settings main menu is available only when there is an external device connected to the
USB-A port of the projector. For details, see “USB Function Guide” and “Wireless Function Guide” on
the bundled CD-ROM.
Setting Name Input Setting Unit Description
Remote on
RCVHDUN
Single Specifies whether the projector can be turned on via wired LAN
while the projector is in standby (projector off with power being
supplied).
Enable:
Power on enabled.
Disable*:
Power on disabled.
Important!
Initializing wired LAN settings or performing a “Restore All
Defaults” operation with the setup menu will cause this
setting to change to “Disable”. If you are operating the
projector using a wired LAN setting, be sure to change this
setting back to “Enable” after initialization.
PJLink
authentication
RCVHDUN
Single Enables and disables PJLink connection authentication.
Enable*:
PJLink connection authentication enabled.
Disable:
PJLink connection authentication disabled.
Wired LAN info
RCVHDUN
Single Displays the following information.
Projector name:
Name currently assigned to the projector.
MAC Address:
Fixed MAC address assigned to each individual projector.
IP Address:
Projector’s current IP address.
DHCP:
Projector’s current DHCP setting status (“Auto” or “Disable”).
The projector name, IP address, and DHCP settings can be
configured using the projector System Admin page, which can be
accessed on a computer connected by LAN to the projector. For
details, see the “Wireless Function Guide” on the CD-ROM that
comes with the projector.
Initialize wired
LAN settings
RCVHDUN
Single Use this sub-menu to return all of the sub-menu items on the wired
LAN main menu to their initial default settings.
![](/img.php?id=1490759&img=bg27.png)
39
Operational Info Main Menu
Restore All Defaults Main Menu
Setting Name Input Setting Unit Description
Input Signal
RCVHDUN
Source
Specific
This sub-menu item shows the currently selected input signal
(RGB, Component, Video, S-video, HDMI (PC), or HDMI (DTV)).
“- - - -” is indicated here when there is no input signal.
Signal Name
RCVHDU
Source
Specific
This sub-menu item shows the signal name of the signal being
input to the projector. For details about signal names, see “Signal
Name” under “Supported Signals” on page 52.
Resolution
R H
Source
Specific
This sub-menu item appears only when RGB is the input signal. It
shows the number of vertical and horizontal pixels of resolution of
the RGB or HDMI (PC) input signal.
Horizontal
Frequency
RCVHD
Source
Specific
This sub-menu item shows the horizontal frequency of the input
signal.
Vertical
Frequency
RCVHD
Source
Specific
This sub-menu item shows the vertical frequency of the input
signal.
Scan System
RC H D
Source
Specific
This sub-menu item appears only when RGB, Component,
HDMI (PC), or HDMI (DTV) is the input signal, and shows the scan
system of the input signal. The scan system is interlace or
non-interlace for an RGB or HDMI (PC) signal input, and interlace or
progressive for a component or HDMI (DTV) signal input.
Light Time
RCVHDUN
Single This sub-menu item shows the cumulative number of hours the
current light source unit has been used to date.
Setting Name Input Setting Unit Description
Unit Operating
Time
RCVHDUN
Single This sub-menu item shows the cumulative operating time of this
unit. This time cannot be initialized.
Restore All
Defaults
RCVHDUN
Single This sub-menu returns all sub-menu items on all main menus to
their initial default settings. This operation can be performed
regardless of the currently selected input source and regardless of
whether or not a signal is currently being input. For details about
this procedure, see “To restore all settings on the setup menu to
their initial factory defaults” on page 28.
![](/img.php?id=1490759&img=bg28.png)
40
Cleaning the Projector
Periodically clean the projector exterior, lens, intake vents, and intake-exhaust vents on a regular
basis.
Important!
Before cleaning the projector, be sure to unplug it from the power outlet and make sure it is
cooled down completely.
Wipe the exterior of the projector with a soft cloth that has been moistened in a weak solution of water
and a mild neutral detergent. Be sure to wring all excess moisture from the cloth before wiping.
Never use benzene, alcohol, thinner, or any other volatile agent for cleaning.
Carefully wipe the lens with a commercially available lens cloth or optical lens paper, like those for
eyeglasses or camera lenses. When cleaning the lens, do not apply undue force and take care to avoid
damaging the lens.
Dust and dirt tend to collect around the vents. Because of this, you should use a vacuum cleaner to
clean away accumulated dust and dirt periodically as shown below.
Important!
zContinued use of the projector after dust has accumulated around the vents can cause
overheating of internal components and lead to malfunction.
Cleaning the Projector Exterior
Cleaning the Lens
Cleaning the Vents
![](/img.php?id=1490759&img=bg29.png)
41
Error Indicators and Warning Messages
Warning messages and indicators let you know what the problem is when a projector error occurs.
When an error occurs, wait until the fan stops before unplugging the AC power cord. If you unplug the
AC power cord while the fan is still operating, an error may occur when you plug the AC power cord
back in.
Indicator/Error Message Description and Required Action
POWER : Green steady The projector’s internal temperature is very high. Press the [ESC] key to
clear the warning message and perform the following steps.
1Check for any blocking of the projector’s vents, and make sure that
there is sufficient space around the projector. See “Setup Precautions”
in the “Setup Guide”.
2If there is dust accumulated around the vents, turn off the projector and
remove it. See “Cleaning the Projector” (page 40).
LIGHT : –
TEMP : –
Message : Internal temperature is too
high. Check projector air
vents for blockage.
POWER : Amber flashing J
Amber steady
Power has turned off automatically due to internal overheating. Perform
the following steps.
1Check for any blocking of the projector’s vents, and make sure that
there is sufficient space around the projector. See “Setup Precautions”
in the “Setup Guide”.
2If there is dust accumulated around the vents, remove it. See “Cleaning
the Projector” (page 40).
If there is no problem with the projector’s vents, confirm that the POWER/
STANDBY indicator is lit amber (without flashing), and then turn power
back on again. If the error occurs again when you turn power back on,
contact your retailer or nearest authorized CASIO Service Center.
LIGHT : –
TEMP : –
Message : Internal temperature is too
high. The projector will
turn off.
POWER : Amber flashing J
Red steady
Power has turned off automatically due to a fan problem. Confirm that the
POWER/STANDBY indicator is lit red (without flashing) and that the fan
has stopped. After checking the POWER/STANDBY indicator, disconnect
the power cord from the projector and wait for all of the projector’s
indicators to go out. Next, reconnect the power cord and turn projector
power back on.
If the error occurs again when you turn power back on, contact your
retailer or nearest authorized CASIO Service Center.
LIGHT : Red steady
TEMP : Red steady
Message : There is a problem with
the fan. The projector will
turn off.
POWER : Amber flashing J
Red steady
Power has turned off automatically due to a system problem. After
confirming that the POWER/STANDBY indicator is lit red (without
flashing), disconnect the power cord from the projector and wait for all of
the projector’s indicators to go out. Next, reconnect the power cord and
turn the projector back on.
If the error occurs again when you turn power back on, contact your
retailer or nearest authorized CASIO Service Center.
LIGHT : –
TEMP : Red steady
Message : A system problem has
occurred. The projector
will turn off.
![](/img.php?id=1490759&img=bg2a.png)
42
POWER : Green steady A system problem has occurred, which may cause problems with some
functions. Turn off the projector, disconnect the power cord from the
projector and wait for all of the projector’s indicators to go out. Next,
reconnect the power cord and turn the projector back on.
If the error occurs again when you turn power back on, contact your
retailer or nearest authorized CASIO Service Center.
Press the [ESC] key to clear the warning message.
LIGHT : –
TEMP : –
Message : A system problem has
occurred. Normal
projection is not possible.
POWER : Green steady
LIGHT : –
TEMP : –
Message : There is some problem
with the system.
The audio function may
not operate correctly.
POWER : Green steady The USB or LAN connection was terminated because of a problem with
the USB port or LAN port. To use the USB or LAN function, turn off the
projector and then turn it back on again.
If the error occurs again when you turn power back on, contact your
retailer or nearest authorized CASIO Service Center.
Press the [ESC] key to clear the warning message.
LIGHT : –
TEMP : –
Message : Some problem occurred
with the USB port or LAN
terminal.
POWER : Amber flashing J
Red steady
The projector was turned off automatically due to some problem that was
probably caused by external digital noise or some other reason. Confirm
that the POWER/STANDBY indicator is lit red (without flashing). After
checking the POWER/STANDBY indicator, disconnect the power cord
from the projector and wait for all of the projector’s indicators to go out.
Next, reconnect the power cord and turn projector power back on.
If the error occurs again when you turn power back on, contact your
retailer or nearest authorized CASIO Service Center.
LIGHT : –
TEMP : Red steady
Message : –
POWER : Amber flashing J
Red steady
The projector was turned off automatically because the light source unit
turned off or did not turn on. After confirming that the POWER/STANDBY
indicator is lit red (without flashing), unplug the power cord. Wait for a
short while and then plug it back in and turn on the projector again.
If the error occurs again when you turn power back on, contact your
retailer or nearest authorized CASIO Service Center.
LIGHT : Red flashing
(0.5-second interval)
TEMP : Red flashing
(0.5-second interval)
Message : –
POWER : Amber flashing J
Red steady
Power has turned off automatically due to a projector memory error.
Confirm that the POWER/STANDBY indicator is lit red (without flashing).
After checking the POWER/STANDBY indicator, disconnect the power
cord from the projector and wait for all of the projector’s indicators to go
out. Next, reconnect the power cord and turn projector power back on.
If the error occurs again when you turn power back on, contact your
retailer or nearest authorized CASIO Service Center.
LIGHT : Not lit or red flashing
TEMP : Red flashing
(2-second interval)
Message : –
Indicator/Error Message Description and Required Action
![](/img.php?id=1490759&img=bg2b.png)
43
POWER : Amber flashing J
Red steady
Power has turned off automatically because the light source unit cover is
open. Perform the following steps.
1After confirming that the POWER/STANDBY indicator is lit red (without
flashing), disconnect the power cord from the projector.
2Check to make sure that the light source unit cover is closed.
3Plug the power cord back in and turn the projector back on again.
If the error occurs again when you turn power back on, contact your
retailer or nearest authorized CASIO Service Center.
LIGHT : –
TEMP : Amber flashing
(1-second interval)
Message : –
Indicator/Error Message Description and Required Action
![](/img.php?id=1490759&img=bg2c.png)
44
Appendix
The projector is able to project images from the composite video output, S-video output, or
component video output of a connected video device.
Important!
Always turn off the projector and the video device before connecting them.
Connection to a composite video output or S-video output
Note
Note that regardless of whether the image being projected is being input via the projector’s
S-VIDEO terminal or VIDEO terminal, the projector outputs audio that is input via the projector’s
AUDIO IN L/R terminals.
Connecting to a Video Device
To S-video output terminal
To video/audio output
terminal
Yellow: To VIDEO terminal
To S-VIDEO terminal
Red: To AUDIO IN R terminal
White: To AUDIO IN L terminal
Projector Video device
S-video cable (commercially available)
Pin plug type video/audio cable
(commercially available)
![](/img.php?id=1490759&img=bg2d.png)
45
Connection to a component video output
zComponent video output terminals come in 3-terminal sets: Y·Cb·Cr or Y·Pb·Pr. Be sure to match
the colors of the plugs on a component video cable with the colors of the terminals (Green: Y;
Blue: Cb/Pb; Red: Cr/Pr).
zNote that connection only to an analog component video output terminal is supported.
Connection to a digital output terminal is not supported.
Projector
AUDIO IN 1 terminal
COMPUTER IN 1 terminal
Stereo mini plug Ù Pin plug type audio cable
(commercially available)
Component video cable (commercially available)
To component video output
terminals
To AUDIO output terminals
Video device
RedWhite
AUDIO IN 2 terminal
COMPUTER IN 2 terminal
![](/img.php?id=1490759&img=bg2e.png)
46
The projector supports projection and output of HDMI video and audio output from a computer or
video device.
Important!
Turn off the projector and the computer or video device before connecting them.
zYou will need to obtain a commercially available HDMI cable with a connector that matches the
terminal of the output device on one end and a connector that matches the projector’s HDMI port
(HDMI Type A Socket) on the other end.
zFor information about HDMI video signal supported by the projector, see page 54.
zThe projector supports L-PCM 32kHz, 44.1kHz, and 48kHz HDMI audio signals.
Connecting the HDMI Output of a Video Device or
Computer to the Projector
Projector
HDMI port
To HDMI output terminal
Computer or video device
HDMI cable (commercially available)
![](/img.php?id=1490759&img=bg2f.png)
47
When performing an operation on the remote controller, point it at the remote control signal receiver
on the back or front of the projector. The following illustration shows the range of the remote controller
signal.
Remote Controller Range
The allowable distance between the remote controller and the projector is less when there is a sharp
angle between the remote controller and the remote control signal receiver.
Important!
To avoid running down the batteries, store the remote control unit so its keys are not pressed
inadvertently.
Remote Controller Signal Range
Front
±30 degrees max.
5 meters (16.4 feet)
max.
5 meters (16.4 feet) max.
Back
5 meters (16.4 feet)
max.
5 meters (16.4 feet)
max.
±30 degrees max.
±30 degrees max.
5 degrees to
30 degrees
![](/img.php?id=1490759&img=bg30.png)
48
The projector can be hung from a ceiling. When doing so, the projector should be turned upside down,
and secured to the ceiling. You also need to install a safety wire to ensure that the projector cannot fall
accidentally. To attach the safety wire, remove the sticker on the bottom of the projector and attach
the wire there.
For full details, contact the retailer where you purchased the projector.
Important!
zWhen hanging the projector from a ceiling, make sure that it is at least one meter away from
fire detectors, fire alarms, and other fire protection devices. Locating the projector too close to
a fire protection device creates the risk of mis-operation of the device due to warm air
exhausted from the projector. Also, avoid locating the projector close to fluorescent lights or
other strong light sources. Bright light can shorten the operating range of the remote controller
or even make remote control impossible. When selecting a location for the projector, be sure
to test for proper operation of the remote controller.
zThe vertical and horizontal orientation of the projected image is reversed from the normal
configuration when projecting from a projector hung from the ceiling. You need to change the
setup of the projector in order to correct for this. For details, see the “Ceiling Mount” option
under “Screen Settings Main Menu” (page 32).
Hanging the Projector from a Ceiling
Sticker
![](/img.php?id=1490759&img=bg31.png)
49
The following table shows the relationship between the distance and projected image size.
*h = Height from the center of the lens to the bottom edge of the projection screen.
Important!
Note that the distances provided above are for reference only.
Projection Distance and Screen Size
XJ-H1600/XJ-H1650 XJ-ST145/XJ-ST155
Projection Size Approximate Projection Distance Projection Size
Approximate
Projection
Distance
(m / feet)
h*
(cm / inch)
Screen
Size
Diagonal
(cm)
Minimum
Distance
(m / feet)
Maximum
Distance
(m / feet)
h*Screen
Size
Diagonal
(cm)
27 69 0.85/2.79 1.0/3.28 0 45 114 0.6/1.97 6/2.36
40 102 1.3/4.27 1.6/5.25 0 60 152 0.8/2.62 8/3.15
60 152 1.9/6.23 2.3/7.55 0 80 203 1.1/3.61 10/3.94
80 203 2.6/8.53 3.1/10.17 0 100 254 1.4/4.59 13/5.12
100 254 3.3/10.83 3.9/12.8 0 142 361 2.0/6.56 19/7.48
150 381 4.9/16.08 5.9/19.36 0
200 508 6.6/21.65 7.9/25.92 0
300 762 9.9/32.48 11.9/39.04 0
h*
![](/img.php?id=1490759&img=bg32.png)
50
The following shows how images are projected in accordance with the type of the input signal and the
aspect ratio setting of the projector.
Input source: RGB or HDMI (PC)
Aspect Ratio Setting and Projection Image
Input Signal Normal Full
SVGA (800 × 600)
XGA (1024 × 768)
WXGA (1280 × 800)
SXGA (1280 × 1024)
![](/img.php?id=1490759&img=bg33.png)
51
Input source: Video, S-video, component or HDMI (DTV)
Input Signal Normal 16:9
4:3 Aspect Image
Squeezed Image
Letter Box Image
![](/img.php?id=1490759&img=bg34.png)
52
Important!
Even if a signal is listed in the table below, it does not guarantee that you will be able to display
its images correctly.
RGB Signal
Supported Signals
Signal Name Resolution Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
VESA 640 × 480/60 640 × 480 31.5 60
640 × 480/72 640 × 480 37.9 73
640 × 480/75 640 × 480 37.5 75
640 × 480/85 640 × 480 43.3 85
800 × 600/56 800 × 600 35.2 56
800 × 600/60 800 × 600 37.9 60
800 × 600/72 800 × 600 48.1 72
800 × 600/75 800 × 600 46.9 75
800 × 600/85 800 × 600 53.7 85
1024 × 768/60 1024 × 768 48.4 60
1024 × 768/70 1024 × 768 56.5 70
1024 × 768/75 1024 × 768 60.0 75
1024 × 768/85 1024 × 768 68.7 85
1152 × 864/75 1152 × 864 67.5 75
1280 × 768/60 1280 × 768 47.8 60
1280 × 800/60 1280 × 800 49.7 60
1280 × 960/60 1280 × 960 60.0 60
1280 × 960/85 1280 × 960 85.9 85
1280 × 1024/60 1280 × 1024 64.0 60
1280 × 1024/75 1280 × 1024 80.0 75
1280 × 1024/85 1280 × 1024 91.1 85
1360 × 768/60*11360 × 768 47.7 60
1366 × 768/60*21366 × 768 47.7 60
1400 × 1050/A*11400 × 1050 65.3 60
1440 × 900/60 1440 × 900 55.9 60
1600 × 1200/60 1600 × 1200 75.0 60
1680 × 1050/60 1680 × 1050 65.3 60
Other 1152 × 864/70 1152 × 864 64.0 70
1400 × 1050/B*11400 × 1050 64.0 60
*1 If these signals do not project correctly, change the “Option Settings 1 J Auto Adjust” setting to “2”
(page 35).
*2 If this signal does not project correctly, change the “Option Settings 1 J Auto Adjust” setting to “3”
(page 35).
![](/img.php?id=1490759&img=bg35.png)
53
Component Signal
Video Signal, S-video Signal
Signal Name Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
HDTV 1080p/50 56.3 50
1080p/60 67.5 60
720p/50 37.5 50
720p/60 45.0 60
1080i/50 28.1 50
1080i/60 33.7 60
SDTV 576p/50 31.3 50
576i/50 16.6 50
480p/60 31.5 60
480i/60 15.7 60
Signal Name Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
NTSC 15.7 60
NTSC4.43 15.7 60
PAL 15.6 50
PAL-M 15.7 60
PAL-N 15.6 50
PAL60 15.7 60
SECAM 15.6 50
![](/img.php?id=1490759&img=bg36.png)
54
HDMI Signal
3D Signals (3D Input Mode)
Signal Name Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
640 × 480/60 31.5 60
800 × 600/60 37.9 60
1024 × 768/60 48.4 60
1280 × 768/60 47.8 60
1280 × 800/60 49.7 60
1280 × 960/60 60 60
1280 × 1024/60 64 60
1400 × 1050/60 65.3 60
SDTV (480p) 31.5 60
SDTV (576p) 31.25 50
HDTV (720p) (50) 37.5 50
HDTV (720p) (60) 45 60
HDTV (1080i) (50) 28.13 50
HDTV (1080i) (60) 33.75 60
HDTV (1080p) (50) 56.25 50
HDTV (1080p) (60) 67.5 60
Signal Name Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
RGB Signal 640 × 480/60 31.5 60
640 × 480/120 61.7 120
800 × 600/60 37.9 60
800 × 600/120 77.2 120
1024 × 768/60 48.4 60
1024 × 768/120 98.8 120
1280 × 768/60 47.8 60
1280 × 768/120 97.4 120
1280 × 800/60 49.7 60
1280 × 800/120 101.6 120
Video Signal NTSC 15.7 60
![](/img.php?id=1490759&img=bg37.png)
55
The projector can be controlled by a computer or other external device by connecting the device to
the projector’s LAN port.
Supported External Devices
This projector supports all commands of PJLink Class1 (Version 1.00).
http://pjlink.jbmia.or.jp/english/
Information about the types of external devices that can be connected to the LAN port and control the
projector, as well as the control commands supported for each external device will be published on
the CASIO website below as such information becomes available.
http://www.casio.com/support/
Controlling the Projector from a Computer
When the projector is linked to a computer over a wired or wireless LAN connection, you can use the
computer’s Web browser to access a Wireless Presentation System control panel to control the
projector.
To establish a wired LAN connection between the projector and a computer
1.
Connect the LAN port of the projector to the LAN hub or other network devices
to which the computer is connected.
zIn a configuration like the one in the illustration above, you should normally use straight type
LAN cables. If you are connecting the projector’s LAN port directly to the LAN port of a
computer, use a cross type LAN cable.
Using Wired LAN to Control the Projector
(XJ-H1650, XJ-ST145, XJ-ST155)
Projector
Computer
LAN hub
![](/img.php?id=1490759&img=bg38.png)
56
2.
Look up the projector’s IP address.
zPerform the following steps to look up the projector’s current IP address.
3.
On the computer, start up a Web browser.
4.
In the Web browser address bar, input the projector’s IP address and then press
the [Enter] key.
zIf the projectors current IP address is 192.168.100.10, for example, you would input:
“http://192.168.100.10”.
zThis displays the top page of the projector’s System Admin page.
zFor information about what you should do next, see “To control the projector using the
Wireless Presentation System control panel” (page 57).
Important!
Under initial default settings, the projector is configured to obtain its IP address automatically
from the DHCP server. This means that an IP address will be assigned automatically whenever
the projector is connected to a DHCP environment network.
Depending on the network environment being connected to, there may be cases where you will
need to assign a projector’s IP address manually. In such cases, you will need to configure
projector’s network settings.
If you are unable to display the projector’s System Admin page with your browser using the
above procedure, it may mean that there is some problem with your network settings. Refer to
the Wireless Function Guide on the CD-ROM that comes with the projector and establish a
wireless LAN connection between the projector and your computer. After configuring the
projector’s network settings, try performing the above procedure again. For details about the
projector’s network settings, see “To configure projector’s network settings and wireless LAN
connection settings” in the Wireless Function Guide.
1. Press the [MENU] key to display the setup menu.
2. Use the [T] and [S] keys to select “Wired LAN settings” and then press the [ENTER] key.
3. Use the [T] and [S] keys to select “Wired LAN info” and then press the [ENTER] key.
![](/img.php?id=1490759&img=bg39.png)
57
To control the projector using the Wireless Presentation System control
panel
1.
Depending on the type of LAN connection you are using, perform either of the
following operations to display the top page of the projector’s System Admin
page.
2.
Click “System Admin”. On the password input screen that appears, enter the
password.
zThe initial default password is “admin”.
3.
Click the [Login] button.
zThis logs in to the System Admin page and displays the Status screen.
4.
Click “Control Panel” on the left side of the screen.
zThis will display a control panel screen like the one shown below.
zThe table below explains the status information and the projector operations included on the
control panel screen.
Wired LAN Connection :“To establish a wired LAN connection between the projector and a
computer” (page 55)
Wireless LAN Connection : Steps 1 and 2 under “To log in to the projector’s System Admin
page” of the Wireless Function Guide on the CD-ROM that comes
with the projector
Group Item Description
Refresh (Button) Click to refresh the screen with the latest information.
Status Projector status Shows the projector’s current status as either “On” or “Standby”.
Error info Shows one of the following.
Normal: Operating normally.
Temperature error: Temperature error occurred.
Fan error: Fan error occurred.
Light error: Light source unit error occurred.
Other error: Error other than above occurred.
Power On/Power Off
(Buttons)
Turn the projector on/off.
[Power On] button operation is supported only when the projector is
connected to a computer of a wired LAN connection, and “Enable” is
selected for the “Remote on” setting (pages 38).
![](/img.php?id=1490759&img=bg3a.png)
58
Image Input Specifies the input source. The following are the available input source
options.
3D Puts the projector into the 3D input mode or normal input mode.
On: 3D input mode
Off: Normal input mode
zNote that this setting cannot be change while the currently selected
input source is “Computer 1 (Component)”, “Computer 2
(Component)”, “HDMI”, or “USB”.
Color mode Specifies the color mode.
zFor details about this setting, see “Selecting the Color Mode” (page
14).
Blank Selecting “On” for this setting temporarily blocks the image from the
input source. “Off” causes the image from the input source to be
projected.
zThe operation of this item is identical to that of the remote controller’s
[BLANK] key. For details, see “Momentarily Cutting Off the Input
Source Image” (page 15).
Aspect ratio Changes the aspect ratio of the projected image.
zFor details about this setting, see “Changing the aspect ratio of the
projected image” (page 17).
Brightness This corresponds to the “Image Adjustment 1 J Brightness” setting of
the setup menu. Input a value into the box and then click the [Apply]
button. This will change the projector’s “Brightness” setting accordingly.
Contrast This corresponds to the “Image Adjustment 1 J Contrast” setting of the
setup menu. Input a value into the box and then click the [Apply] button.
This will change the projector’s “Contrast” setting accordingly.
Eco Mode Switches the Eco mode.
zFor details about this setting, see “Eco Mode (Power Saving, Low
Noise)” (page 19).
Audio Volume Input a value into the box and then click the [Apply] button. This will
change the volume setting accordingly.
Mute Specifies the mute setting. Audio is output while “Off” is selected for this
setting, and muted when “On” is selected.
Audio Output Specifies either output from the projector’s speaker output or AUDIO
OUT terminal for audio.
Speaker: Audio output from the speaker
Line: Audio output from the AUDIO OUT terminal
Factory Defaults (Button) Clicking to return all control panel items, except for the “Projector status”
item, to their initial factory defaults.
Group Item Description
3D Off 3D On
Computer 1/2 (Auto) Computer 1/2 (RGB)
Computer 1/2 (RGB) Video
Computer 1/2 (Component) S-video
Video
S-video
HDMI
USB
![](/img.php?id=1490759&img=bg3b.png)
59
5.
After all of the settings are the way you want, click “Logout”.
Note
The “Status”, “Setup”, “Change Password”, and “Restore Factory Defaults” items along the left
side of the screen are mainly for accessing information and configuring settings related to
projector wireless LAN connection. You can access these items when connected over a wired
LAN as well. For details, see “System Admin Page Operations and Settings” in the “Wireless
Function Guide” on the CD-ROM that comes with the projector.
![](/img.php?id=1490759&img=bg3c.png)
60
You can use a commercially available serial cable (cross) to connect the projector to a computer and
control the projector from the computer.
Connecting the Projector to a Computer
Connect the projector to the computer as shown in the illustration below.
*A D-Sub 9-pin (male) type connector is standard for computer serial ports, but there may be cases
where the shape of a particular computer’s connector is different. For details about connecting a
commercially available serial cable to your computer, see the user documentation that comes with
it.
Using Control Commands
This section explains the commands that are used to control the projector from a computer.
Command Send Format
Projector RS-232C Control
Communication
Protocol
Configure your computer’s serial port with the following settings.
Data Rate 19200bps
Data Bit 8bit
Parity None
Stop Bit 1bit
Flow Control None
Read Command
Send this command when you want information about the current setup of the data
projector.
Send Format (<command name>?)
Receive Format (<applicable command setting range>,<current setting>)
Command Send
Example
sent from the computer to the projector.
4
returned from the projector to the computer.
Write Command
Send this command to control the data projector (power on/off, etc.) and to write data to it.
Send Format (<command name><setting value>)
Command Send
Example
sent from the computer to the projector.
4
Projector volume setting becomes 0 (mute).
Projector
Commercially available serial cable (cross)
Computer
Serial port (RS-232C)
D-Sub 9-pin (female)
Serial port*
D-Sub 9-pin (female)
(VOL ? )
(0-30,15)
(VOL 0 )
![](/img.php?id=1490759&img=bg3d.png)
61
zSee the “Command List” for details about command names and settings.
zAll commands use ASCII characters and decimal format integers.
zThe projector will return a question mark (?) when it is sent a command it cannot recognize. Also,
any command that attempts to set a value that is outside the applicable allowable range will be
ignored.
zIf the projector is performing a process initiated by a previously sent command, a projector key
operation, or a remote controller key operation, send of the next command must wait until the
projector completes the previous process.
Command List
zOnly the following functions are supported while the projector is turned off. Do not try to send any
other command to the projector.
zInput of a valid signal must be in progress in order to use a command to turn on blank screen or
change the aspect ratio.
R: Read enabled W: Write enabled
zPower on/off: Read
zPower on: Write
zGet light time: Read
Function Command
Name RW Setting Range
Power On/Off: PWR RW 0: Off, 1: On
Input Switching: 0: Switches the input source to the
COMPUTER 1 terminal and changes the
COMPUTER 1 terminal setting to RGB.
1: Switches the input source to
COMPUTER 1 terminal and changes the
COMPUTER 1 terminal setting to
component.
2: Switches the input source to Video.
3: Switches the input source to the
COMPUTER 2 terminal and changes the
COMPUTER 2 terminal setting to RGB.
4: Switches the input source to
COMPUTER 2 terminal and changes the
COMPUTER 2 terminal setting to
component.
5: Switches the input source to USB. This
setting is supported only when the
projector is equipped with a USB function
and the USB application is running.
6: Switches the input source to
COMPUTER 1 terminal and changes the
COMPUTER 1 terminal setting to Auto.
7: Switches the input source to HDMI.
9: Switches the input source to S-video.
10: Switches the input source to
COMPUTER 2 terminal and changes the
COMPUTER 2 terminal setting to Auto.
SRC RW 0: RGB1, 1: Component1,
2: Video, 3: RGB2,
4: Component2, 5: USB,
6: Auto1 (RGB/Component),
7: HDMI, 9: S-video,
10: Auto2 (RGB/Component)
Blank Screen: Switches the blank screen on or off. BLK RW 0: Off, 1: On
Volume: Specifies a value to adjust the volume level. This
setting is applied to the input source signal that is
currently being projected by the projector.
VOL RW 0-30
![](/img.php?id=1490759&img=bg3e.png)
62
Color Mode: Selects the color mode. PST RW 1: Graphics, 2: Theater,
3: Standard, 4: Blackboard,
5: Game
Aspect Ratio: Specifies the aspect ratio. ARZ RW 0: Normal*1, 1: 16:9,
2: Normal*2, 4: Full
Get Light Time: Gets the light time from the projector. LMP R 0- Unit: Hours
*1 Input source: RGB or HDMI (PC)
*2 Input source: Video, S-video, component or HDMI (DTV)
Function Command
Name RW Setting Range
![](/img.php?id=1490759&img=bg3f.png)
63
*XJ-H1650/XJ-ST145/XJ-ST155 only
zCASIO COMPUTER CO., LTD. makes no guarantees concerning the operation or suitability of any
USB device that you connect to the projector’s USB port.
zSpecifications are subject to change without notice.
Specifications
Model Name XJ-H1600 XJ-H1650 XJ-ST145 XJ-ST155
Brightness
(ANSI Lumens) 3500 2500 3000
Projection System DLP
DLP chip Size: 0.7 inch, Number of Pixels: XGA (1024 × 768)
Projection Lens Manual focus 1.2X manual optical zoom, manual focus
Light Source Laser and LED
Terminals
COMPUTER IN: RGB 15-pin mini D-Sub × 2 (Also used as component signal input terminal.)
MONITOR OUT: RGB 15-pin mini D-Sub × 1
VIDEO: RCA pin jack × 1
S-video: 4-pin mini DIN × 1
HDMI: HDMI type A terminal × 1
AUDIO IN: 3.5 φ stereo mini jack × 2, RCA pin jack × 2
AUDIO OUT: 3.5 φ stereo mini jack × 1
SERIAL: 9-pin D-Sub × 1
USB*: TYPE A terminal × 1, TYPE B terminal × 1
LAN*: RJ-45 terminal × 1
Display Languages English, French, German, Italian, Spanish, Swedish, Portuguese, Turkish, Russian,
Chinese (Simplified), Chinese (Traditional), Korean, Japanese
![](/img.php?id=1490759&img=bg40.png)
MA1103-A
