Chicony Electronics Co TG-1286 Wireless Touchpad User Manual
Chicony Electronics Co Ltd Wireless Touchpad
User Manual
![](/img.php?id=1888390&img=bg1.png)
─ 1 ─ ─ 2 ─
─ 3 ─ ─ 4 ─

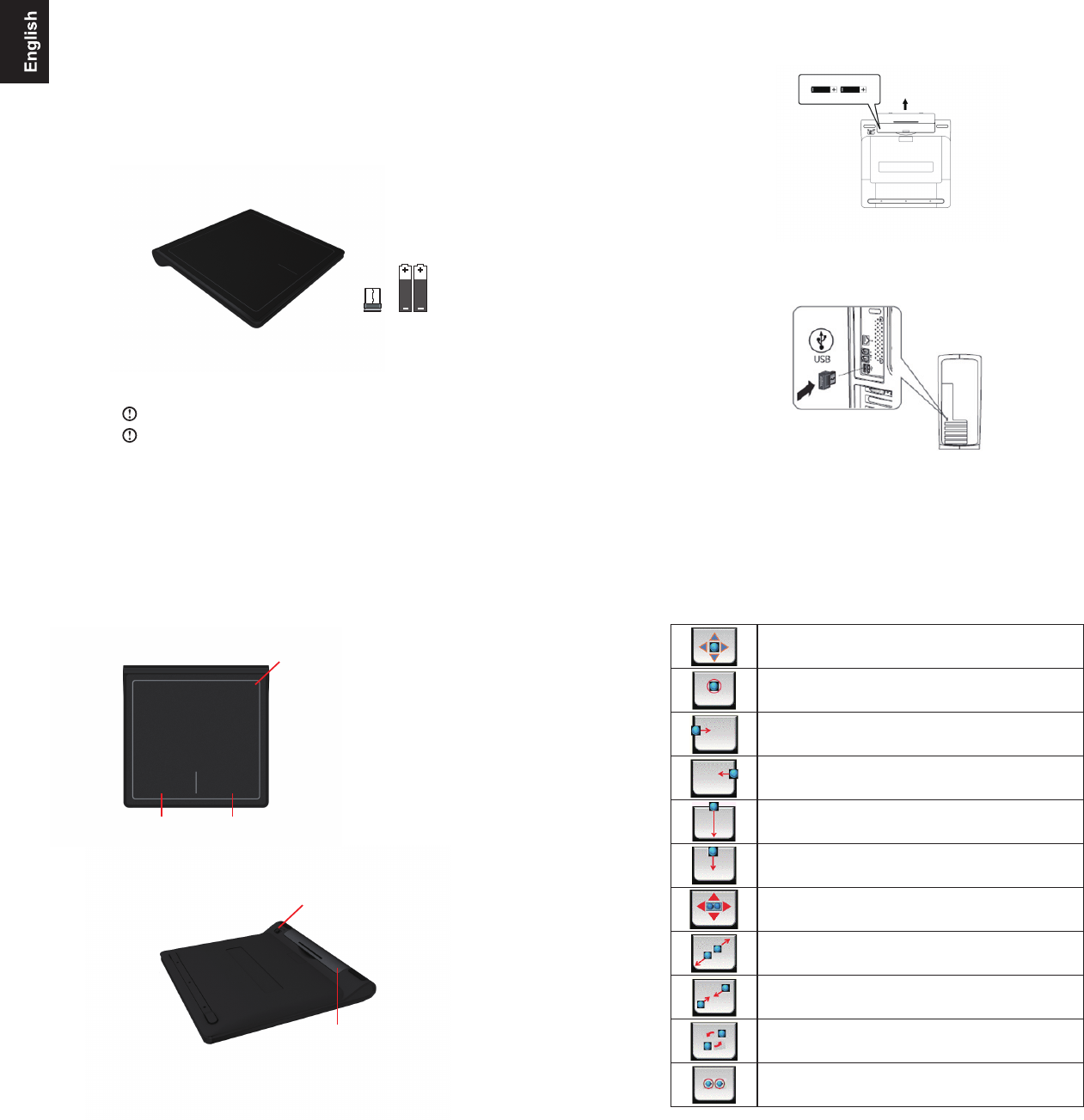

Setup: Wireless Touchpad
System Requirements
The following is a list of system requirements:
• One USB port (for the USB Receiver)
• Microsoft Windows 8.
Contents of the Box
Note: The USB receiver may be pre-installed on your computer.
Note: Insert documents vary according to shipping country's requirements.
Setting Up
Step 1: Setting up the Wireless Touchpad.
Step 2: Connect the USB Receiver to Computer.
If your keyboard and mouse are NOT working, please refer to Troubleshooting page.
Features: Wireless Touchpad
Front View
1 LED Indicator
Indicates the status of Power on and when battery is low.
White (solid) – Fade on = 1 sec.
On = 10 sec.
Fade off = 1 sec.
Amber (flashing) – Battery charge is < 15% power.
2 Right Click
3 Left Click
1
3 2
AAA
Back View
1 Power switch
2 Battery compartment
1
2
Gesture Functions
Cursor Moving, Left/Right/Up/Down
Tap, Open the App, the function as the mouse left button. Support
single and double click.
Left Edge swipe, Reveal all the open App, left edge to right side.
Right Edge swipe, Reveal start charm
Top Edge swipe, Close open App, from top edge to down side
Top Edge swipe, Reveal App Menu
Scroll up / down,
Tilt left / right, Navigation direction same as the finger move.
Zoom in, Zoom in picture/Windows 8 UI/Page and so on.
Zoom out, Zoom out picture/Windows 8 UI/Page and so on.
Rotate, All the supported rotated App, support 90° rotate.
2-finger tap, reveal App menu
![](/img.php?id=1888390&img=bg2.png)
─ 5 ─ ─ 6 ─
─ 7 ─ ─ 8 ─

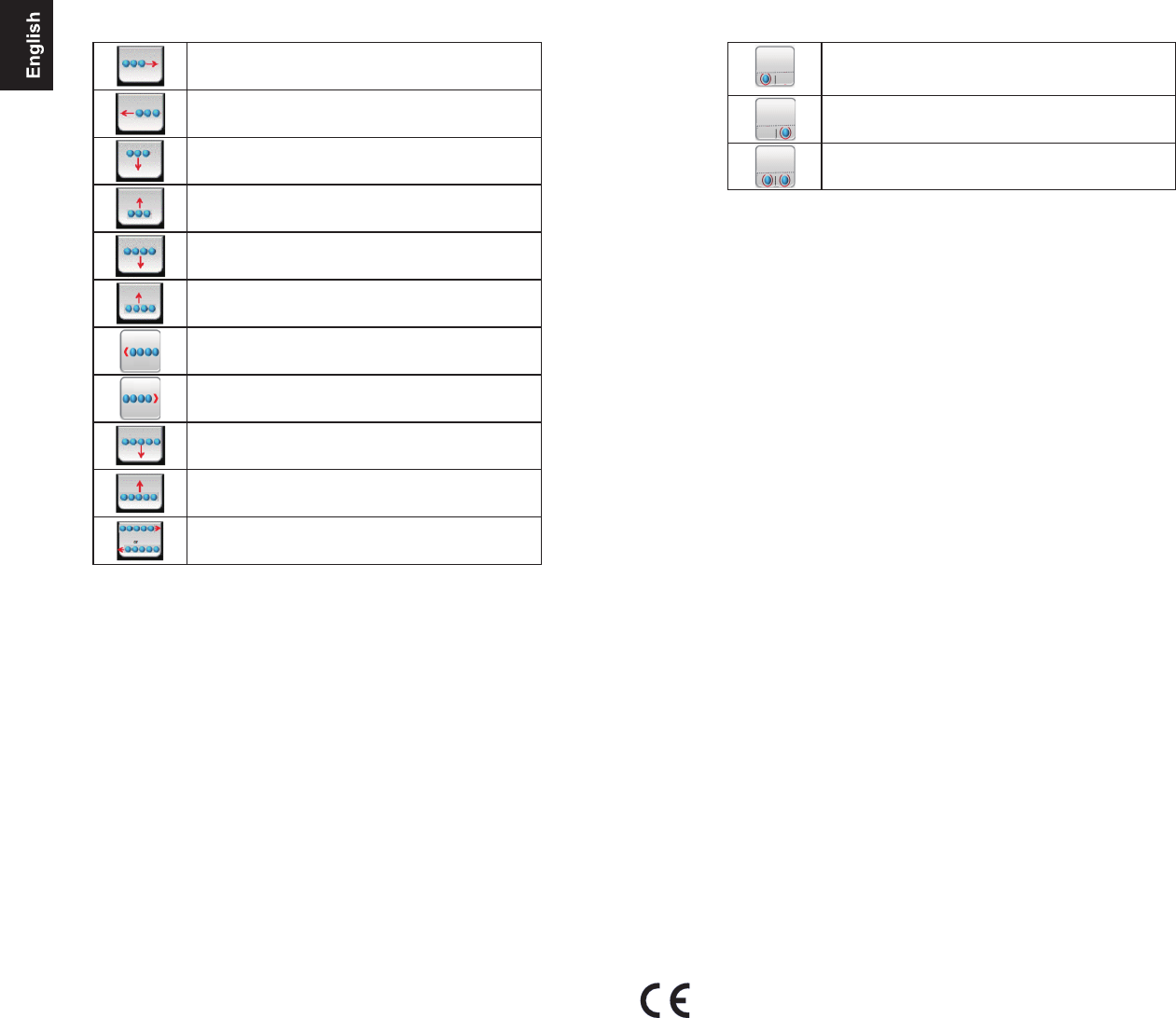

Gesture Functions
Page Forward
Page Backward
Page Down
Page Up
Display Desktop
Display Windows 8 UI
Lock the screen
Awitch Apps
Volume Down
Volume Up
Mute On/Off
Gesture Functions
Mouse Left Button
Mouse Right Button
Mouse Middle Button
Specifications: Wireless Touchpad
Electrical
Operating Voltage 2.0 V to 3.2 V
Battery life 3 months and above
Battery require 2 * AAA Alkaline
Physical Characteristics
Height 16 ± 0.4 mm
Length 131 ± 0.5 mm
Width 129 ± 0.5 mm
Weight 205g with batteries
Environmental
Operating temperature 0 °C to 40 °C
Storage temperature -40 °C to 65 °C
Operating humidity 90% maximum Relative Humidity, non condensing
Storage humidity 95% maximum Relative Humidity, non condensing
2.4 GHz Wireless
Radio transmission Bi-directional, Enhanced Shock Burst™
Range 10M without signal disturbance and no direction limit
Troubleshooting: Wireless Touchpad
If you have problems with your Touchpad:
• Check if the batteries are inserted in the correct orientation.
• Check if the Touchpad's power switch is set to on.
• Check if the drive is completely loaded.
• Please don't place it close to USB 3.0 devices.
• Remove and reinstall the batteries. The power status light fades on (solid white) for
about 1 second and on 10 seconds and then fades off 1 second.
• Remove and insert the USB receiver again.
• Restart your computer.
Insert the USB receiver into another USB port on your computer.
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) This device must accept any interference received, including interference that may
cause undesired operation.
CAUTION:
You are cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
Industry Canada Statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful in terference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence.
Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable,
et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
IMPORTANT BATTERY INFORMATION
● Keep batteries out of reach of children.
● Insert the batteries in the proper direction as indicated by the positive (+) and negative (-) markings in the battery chamber.
● Do not mix old and new batteries or batteries of different types (for example, carbon and alkaline batteries).
● Always remove old, weak, or worn-out batteries propmptly and recycle or proper disposal of them in
accordance with Local and National Disposal Regulations.
● If a battery leaks, remove all batteries and recycle or dispose of them in accordance with the battery manufacture's
instructions and Local and National Disposal Regulations. Before inserting new batteries, thoroughly clean
the compartment with a damp paper towel, or follow the battery manufacture's recommendations for cleanup.
If fluid from the battery comes into contact with skin or clothes, flush skin withwater immediately.
● Remove the batteries if your device is to be stored for an extended period of time without being used.
PRODUCT DISPOSAL INFORMATION
Dispose of this product in accordance with Local and National Disposal Regulations.
Statement of Compliance with EU Directive
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.
This device is a 2.4 GHz wideband transmission system (transceiver) intended for use in all EU
member states and EFTA countries.
