Climax Technology Co CP Emergency communicator (Call Point) User Manual CP 23
Climax Technology Co Ltd Emergency communicator (Call Point) CP 23
Users Manual
![](/img.php?id=2909898&img=bg1.png)
1
Call Point
(
(C
CP
P-
-2
23
3)
)

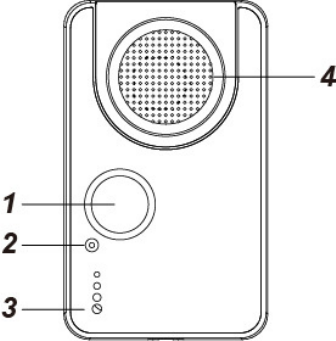

I. Identifying the Parts
1
1.
.
A
Ac
ct
ti
iv
ve
e
B
Bu
ut
tt
to
on
n
Press the Active Button once will activate the Control Panel, causing it to dial
emergency call or alarm. Once the button is pressed, the Green LED lights on for 3
sec and then becomes flashing to indicate alarm signal transmission to the Control
Panel is in progress. During signal transmission, the CP-23 will emit continuous
beeps.
When there is an incoming phone call, you can press the Active Button to answer it.
If the two way communication is enabled, CP-23 will stop emitting beeps. CP-23 will
open a remote two-way voice communication. The length of the communication
period is determined by the Control Panel.
To terminate both the reporting and the two-way communication, press and hold the
Active Button for 8 seconds. One long beep will be emitted.
2
2.
.
D
Du
ua
al
l
C
Co
ol
lo
ou
ur
r
R
Re
ed
d
&
&
G
Gr
re
ee
en
n
L
LE
ED
D
LED OFF: In Standby Mode
RED LED ON: Registering CP-23 to the Control Panel; CP-23 is triggered when low
on battery
RED LED FLASHES: Having transmitted a signal to the Control Panel; providing
two-way voice communication when CP-23 is low on battery
GREEN LED FLASHES: Having transmitted a signal to the Control Panel; providing
two-way voice communication
GREEN LED ON: Receiving a learning signal from the Control Panel; CP-23 is
triggered
3
3.
.
M
Mi
ic
cr
ro
op
ph
ho
on
ne
e
4
4.
.
S
Sp
pe
ea
ak
ke
er
r
II. Battery
CP-23 uses 2 x 1.5V AA lithium batteries as its power source. Please note: ALWAYS
replace battery with the correct size and voltage.
![](/img.php?id=2909898&img=bg2.png)
2
CP-23 features auto low battery detection. When battery voltage is low, CP-23 will send a
low battery signal to notify the Control Panel of its status. Its red LED will show 3 flashes
every 3 minutes until the battery is replaced.
If CP-23 is in the low battery status, when you press the Active Button to dial an
emergency call or alarm, the green and red LEDs will be turned on. CP-23 will emit
continuous beeps until two-way communication is opened. The green and red LEDs flash
during the two-way communciation.
<
<N
NO
OT
TE
E>
>
It is prohibited to learn-in the CP-23 to the Control Panel when the CP-23 is in low
battery status.
To replace the battery:
1. Open the back cover.
2. Remove the old batteries and press the Active Button several times to fully discharge.
3. Put a new batteries into the battery compartment.
4. Replace the back cover.
III. Learn In CP-23
For Medical Panels CTC-1052RV and CTC-1041RV:
Each CP-23 comes with a unique numeric code called “ID code”. The ID code enables the
Control Panel to identify the signal is transmitted from a particular CP-23. It at the same time
prevents interference from outside sources.
Step 1. Please refer to the Control Panel manual and put the Control Panel into Learning
Mode.
Step 2. Press and hold the CP-23 button for 8 seconds until you hear a long beep. The red
LED of CP-23 is turned on. CP-23 is now in learning mode.
Step 3. Now the LED of CP-23 turns from red to green. The green LED blinks. The Control
Panel will emit two quick beeps. Afterwards CP-23 will emit one beep and its green
LED will be turned on and then go off instantly. CP-23 has been successfully learned
in.
<
<N
NO
OT
TE
E>
>
You cannot learn in the same CP-23 twice.
Step 4. Check if CP-23 has been learned in successfully. Press the CP-23 button and you will
hear continuous beeps from CP-23. When CP-23 beeps, the Control Panel will
respond with one long beep to indicate that CP-23 is within the operation range.
Step 5. Exit the Control Panel out of Learning Mode. The Learning process is now complete.
<
<N
NO
OT
TE
E>
>
Re-learning is only required if the CP-23 is removed, but not required after battery
replacement. To remove CP-23, you have to remove it from the Control Panel.
For Mobile Pers Base Stations and MX Control Panels:
Step 1. Please refer to the Mobile Pers manual or the MX manual and put the Base
Station/Control Panel in learning mode.
Step 2. Press the green reset button on the Base Station/Control Panel once to learn
![](/img.php?id=2909898&img=bg3.png)
3
CP-23 into Zone 1.
Press the red help button on the Base Station/Control Panel once to learn CP-23
into Zone 2.
Press no button on the Base Station/Control Panel to learn CP-23 into Zone
3~Zone 100.
Step 3. Press and hold the CP-23 button for 8 seconds until you hear a long beep. The
red LED of CP-23 is turned on. CP-23 is now in learning mode. Now the LED of
CP-23 turns from red to green. The green LED blinks. The Base Station/Control
Panel will emit two quick beeps. CP-23 will emit one beep about 5 seconds later
and its green LED will be turned on and then go off instantly. CP-23 has been
successfully learned in.
<
<N
NO
OT
TE
E>
>
You cannot learn in the same CP-23 twice.
Step 4. Check if CP-23 has been learned in successfully. Press the button on CP-23 and you
will hear continuous beeps from CP-23. When CP-23 beeps, the Base
Station/Control Panel will respond with a long beep to indicate that CP-23 is within
the operation range.
Step 5. Please refer to the Mobile Pers manual or the MX manual to put the Base
Station/Control Panel out of learning mode. The learning process is now complete.
<
<N
NO
OT
TE
E>
>
To remove CP-23, you have to remove it from the Base Station/Control Panel.
F
FO
OR
R
A
AL
LA
AR
RM
M
P
PA
AN
NE
EL
L
O
OR
R
C
CT
TC
C-
-1
10
06
68
8R
RV
V:
:
Step 1. Please refer to the Control Panel manual and put the Control Panel into the learning
mode.
Step 2. Press and hold the CP-23 button for 8 seconds until you hear a long beep. The red
LED of CP-23 is turned on. CP-23 is now in learning mode.
Step 3. Now the LED of CP-23 turns from red to green. After 5 to 20 seconds, the Control
Panel will display a message of CP-23, indicating the Control Panel receives a learn
code form CP-23. Press the Ok button on the main unit or configuration webpage to
learn in CP-23. Afterwards CP-23 will emit one beep and its green LED will be turned
on and then go off instantly. CP-23 has been successfully learned in.
<
<N
NO
OT
TE
E>
>
You cannot learn in the same CP-23 twice.
Step 4. To check if the CP-23 is successfully learnt in, enable the Control Panel to get into
the Walk Test Mode first and press the CP-23 ACTIVE button. If you hear
continuous beeps from CP-23 and meanwhile the Control Panel responds with a
long beep, showing CP-23 message on LCD or configuration webpage respectively.
It indicates that the CP-23 is successfully learnt in. If not, the learning process fails.
Reset CP-23 first and then repeat Step 2 accordingly.
Step 5. Exit the Control Panel out of Learning Mode. The Learning process is now complete.
<
<N
NO
OT
TE
E>
>
Re-learning is only required if the CP-23 is removed, but not required after battery
replacement. To remove CP-23, you have to remove it from the Control Panel first and
then reset it to factory default.
4
IV. Mounting CP-23
CP-23 has 2 knockouts on the inside of the back cover for wall mounting. To mount CP-23, follow
the below steps:
Step 1. Remove the back cover.
Step 2. Break through the knockout on the inside the back cover.
Step 3. Use the holes as template to drill holes on the wall.
Step 4. Insert the wall plug.
Step 5. Screw the back cover onto the wall plug
Step 6. Replace the front cover on the back cover.
.
Changes or modifications to the equipment not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The
antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
