1
SR-15ZBS Wireless Indoor Siren
Introduction
SR-15ZBS is a ZigBee wireless Indoor Siren. It is capable of raising alarm upon receiving alarm signal
from the coordinator in the ZigBee network when an alarm is activated. During the alarm, the Indoor
Siren will sound alarm with its built-in siren and also flash the strobe light to attract attention.
The Indoor Siren utilizes ZigBee technology for wireless signal transmission. ZigBee is a wireless
communication protocol that is reliable and has low power consumption and high transmission efficiency.
Based on IEEE802.15.4 standard, ZigBee allows a large amount of devices to be included in a network
and coordinated for data exchange and signal transmission
The Indoor Siren Serves as an end device in the ZigBee network. It can be included in the ZigBee
network to receive alarm signal, but cannot permit any other ZigBee device to join the network through
the Indoor Siren.

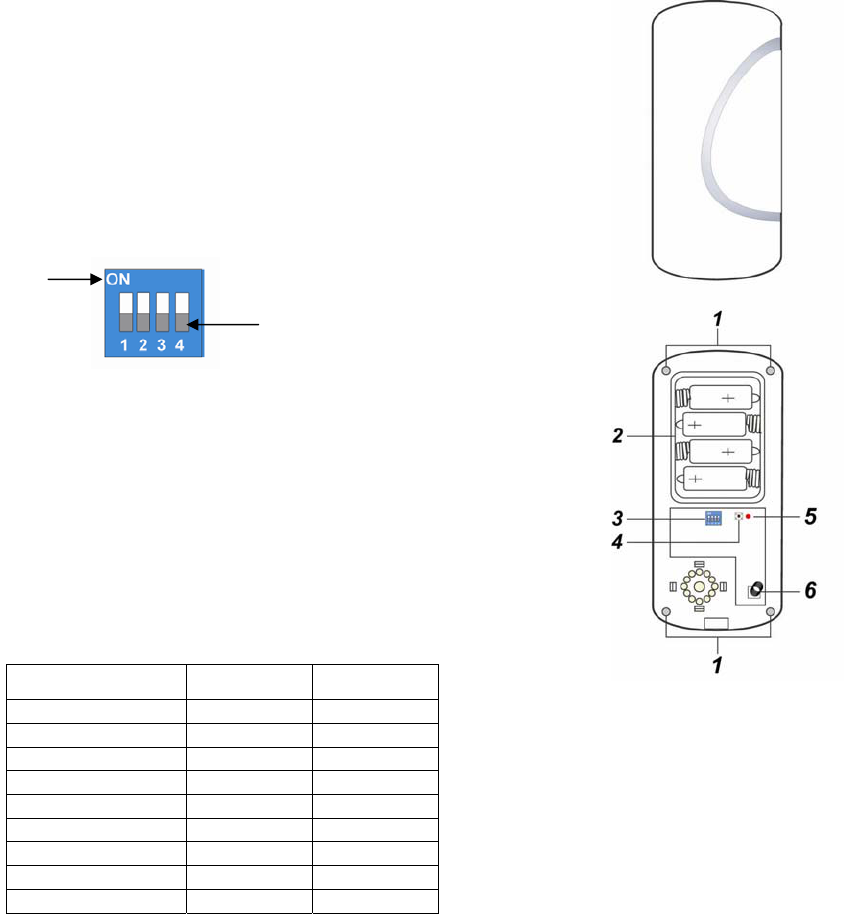

Parts Identification
1. Mounting Holes X 4
2. Battery Compartment
The Indoor Siren is powered by four 1.5V D-cell alkaline battery.
3. Function Switch Block
The 1-3 DIP Switches can be turned ON/OFF to determine Alarm
Length, please see later section.
The DIP Switches 5-7 are reserved.
4. Function Button
5. Red LED
The LED indicator lights up in the following conditions:
- Continuous quick flashes
The Indoor Siren is alarming.
- Two quick flashes
The Indoor Siren has successfully joined a ZigBee network.
- Flashes once every 20 minutes:
The Indoor Siren has lost connection to its current ZigBee network.
The LED also flashes differently according to Siren status (with
different siren audio), please refer to the following table:
S
Si
ir
re
en
n
A
Au
ud
di
io
oL
LE
ED
D
I
In
nd
di
ic
ca
at
ti
io
on
n
Arm 1 beep 1 flash
Home 1 beep 1 flash
Disarm 2 beeps 2 flashes
Arm(Low Battery) 3 beeps 3 flashes
Home(Low Battery) 3 beeps 3 flashes
Disarm (Low Battery) 4 beeps 4 flashes
Arm (Tamper) 5 beeps 5 flashes
Home (Tamper) 5 beeps 5 flashes
Disarm (Tamper) 6 beeps 6 flashes
6. Tamper Switch
The Tamper switch will be activated when the Indoor Siren is
removed from the mounted surface or has its cover opened.
ON
OFF
![](/img.php?id=2575426&img=bg2.png)
2
Features
z
z
A
Al
la
ar
rm
m
A
Ac
ct
ti
iv
va
at
ti
io
on
n
When an alarm is activated, the Indoor Siren will activate its siren and LED light according to
different alarm types:
z Burglar and Emergency alarm: Continuous alarm and LED flash
z Fire alarm: 2-second alarm with1-second interval and continuous LED flash
z
z
A
Al
la
ar
rm
m
L
Le
en
ng
gt
th
h
S
Se
et
tt
ti
in
ng
g
z When the Indoor Siren receives an alarm signal via ZigBee network, it will activate alarm
according to the alarm length set by the system control panel.
z If the Indoor Siren receives an alarm signal, but the alarm length duration is not defined by the
system control panel, the Indoor Siren will activate alarm according to Dip Switch setting:
SW1 SW2 SW3 SW4 Siren Duration
ON OFF
OFF OFF 3 minutes
OFF ON OFF OFF 5 minutes
ON ON OFF OFF 10 minutes
z
z
B
Ba
at
tt
te
er
ry
y
a
an
nd
d
L
Lo
ow
w
B
Ba
at
tt
te
er
ry
y
D
De
et
te
ec
ct
ti
io
on
n
The Indoor Siren uses four 1.5V alkaline D-cell batteries as its power source. The battery is
included in the package. Open the battery compartment then insert the batteries to power up the
Indoor Siren.
The Indoor Siren features Low Battery Detection function. When the battery voltage is low, the
Indoor Siren will transmit Low Battery signal to the coordinator in ZigBee network.
When changing battery, after removing the old battery, press the Tamper Switch twice to fully
discharge before inserting new battery
z
z
T
Ta
am
mp
pe
er
r
P
Pr
ro
ot
te
ec
ct
ti
io
on
n
The Indoor Siren is protected by a tamper switch which is compressed against the front cover when
the cover is closed. Whenever the Indoor Siren front cover is opened, the tamper switch will be
activated. The Indoor Siren will send a tamper open signal to system control panel and activate
alarm immediately according to duration set by the Dip Switches.
z
z
S
Su
up
pe
er
rv
vi
is
si
io
on
n
The Indoor Siren will transmit a supervision signal to report its condition regularly according to user
setting. The factory default interval is 30 minutes. The user can also press the Function Button
once to transmit a supervision signal manually.
ZigBee Network Setup
z
z
Z
Zi
ig
gB
Be
ee
e
D
De
ev
vi
ic
ce
e
G
Gu
ui
id
de
el
li
in
ne
e
ZigBee is a wireless communication protocol that is reliable and has low power consumption and
high transmission efficiency. Based on IEEE802.15.4 standard, ZigBee allows a large amount of
devices to be included in a network and coordinated for data exchange and signal transmission.
Due to the fundamental structure of ZigBee network, ZigBee device will actively seek and join
network after powering on. Since performing a task in connecting network may consume some
power, it is required to follow the instructions to avoid draining battery of a ZigBee device
- Ensure your ZigBee network router or coordinator is powered on before inserting battery into the
ZigBee device.
- Ensure the ZigBee network router or coordinator is powered on and within range while a ZigBee
device is in use.
- Do not remove a ZigBee device from the ZigBee network router or coordinator without removing
the battery from a ZigBee device.
z
z
J
Jo
oi
in
ni
in
ng
g
t
th
he
e
Z
Zi
ig
gB
Be
ee
e
N
Ne
et
tw
wo
or
rk
k
As a ZigBee device, the Indoor Siren needs to join a ZigBee network to send and receive alarm
signal. Please follow the steps bellow to join the Indoor Siren into the ZigBee network. Joining
ZigBee network is only allowed during the first 3 minutes of powering up the Siren. If the
Siren has been powered on for more than 3 minutes, please remove and reinsert power to
power on Siren again.
1. Insert the batteries.
2. Press and hold the function button for 10 seconds within 3 minutes after powering up the
Siren then release to join ZigBee network. Please make sure the permit-to-join feature on the
![](/img.php?id=2575426&img=bg3.png)
3
router or coordinator of your ZigBee network is enabled.
3. If the Siren successfully joins a ZigBee network, the LED Indicator will flash twice to confirm.
4. After joining the ZigBee network, the Indoor Siren will be registered in the security system in the
network automatically. Please check the security system control panel or CIE (Control and
Indicating Equipment) to confirm if joining and registration is successful.
5. After joining the ZigBee network, if the Indoor Siren loses connection to the current ZigBee
network, the LED indicator will flash every 20 minutes. Please check your ZigBee network
condition and Indoor Siren signal range to correct the condition.
z
z
F
Fa
ac
ct
to
or
ry
y
R
Re
es
se
et
t
If you want to remove the Indoor Siren from current network and join a new network, you need to
use the Factory Reset function to clear the Indoor Siren for its stored setting and actively search for
a ZigBee network. To perform Factory Reset:
1. Press and hold the function button for 10 seconds, then release the button within 3 minutes
after powering up the Bellbox.
2. The Indoor Siren has been reset to factory default setting with all its previous network
information removed. It will now actively search for available ZigBee network again and join the
network automatically.
3. If the Indoor Siren successfully joins a ZigBee network, the LED will flash twice to indicate.
Installation
z
z
I
In
ns
st
ta
al
ll
la
at
ti
io
on
n
G
Gu
ui
id
de
el
li
in
ne
e
z The Indoor Siren is designed to be mounted on a flat surface with fixing screws and plugs
provided.
z The base has 4 mounting holes for you to screw the Indoor Siren onto the wall.
z
z
M
Mo
ou
un
nt
ti
in
ng
g
t
th
he
e
I
In
nd
do
oo
or
r
S
Si
ir
re
en
n
1. Use the 4 mounting holes as template, drill holes on the wall.
2. Insert the wall plugs if fixing it into plaster or brick.
3. Screw the base into the wall plugs.
4. Screw the cover back onto its base.
z
z
U
Us
si
in
ng
g
I
In
nd
do
oo
or
r
S
Si
ir
re
en
n
w
wi
it
th
h
Z
Zi
ig
gB
Be
ee
e
R
Ro
ou
ut
te
er
r
IMPORTANT NOTE
If the Indoor Siren installation location is away from your system control panel and requires ZigBee
routers to improve signal strength. DO NOT use a ZigBee Router without backup battery. A ZigBee
router without battery will be powered down during AC power failure and the Indoor Siren
connected to the router will lose connection with ZigBee network. You should plan your Indoor
Siren installation location using only ZigBee router with backup battery.
Appendix
(The Appendix information is for developers only.)
z
z
I
In
nd
do
oo
or
r
S
Si
ir
re
en
n
C
Cl
lu
us
st
te
er
r
I
ID
D
Device ID: IAS Warning Device: 0x0403
Endpoint: 0x01
Server Side Client Side
Mandatory
Basic (0x0000) None
Identify(0x0003)
IAS Zone(0x0500)
IAS WD(0x0502)
Optional
None None
z
z
A
At
tt
tr
ri
ib
bu
ut
te
e
o
of
f
B
Ba
as
si
ic
c
C
Cl
lu
us
st
te
er
r
I
In
nf
fo
or
rm
ma
at
ti
io
on
n
Identifier Name Type Range Access Default
Mandatory
/ Optional
![](/img.php?id=2575426&img=bg4.png)
4
0x0000 ZCLVersion Unsigned
8-bit integer 0x00 –0xff Read
only 0x01 M
0x0001 ApplicationVersion Unsigned
8-bit integer 0x00 –
0xff Read
only 0x00 O
0x0003 HWVersion Unsigned
8-bit integer 0x00 –0xff Read
only 0 O
0x0004 ManufacturerName Character
String 0 – 32 bytes Read
only Climax
Technology O
0x0005 ModelIdentifier Character
String 0 – 32 bytes Read
only (Model Version) O
0x0006 DateCode Character
String 0 – 16 bytes Read
only O
0x0007 PowerSource 8-bit 0x00 –0xff
Read
only M
0x0010 LocationDescription Character
String 0 – 32 bytes Read /
Write O
0x0011 PhysicalEnvironment 8-bit 0x00 –0xff
Read /
Write 0x00 O
0x0012 DeviceEnabled Boolean 0x00 –0x01
Read /
Write 0x01 M
z
z
A
At
tt
tr
ri
ib
bu
ut
te
e
o
of
f
I
Id
de
en
nt
ti
if
fy
y
C
Cl
lu
us
st
te
er
r
I
In
nf
fo
or
rm
ma
at
ti
io
on
n
Identifier Name Type Range Access Default
Mandatory
/ Optional
0x0000 IdentifyTime Unsigned
16-bit integer 0x00 –0xffff Read /
Write 0x0000 M
z
z
A
At
tt
tr
ri
ib
bu
ut
te
e
o
of
f
I
IA
AS
S
Z
Zo
on
ne
e
C
Cl
lu
us
st
te
er
r
I
In
nf
fo
or
rm
ma
at
ti
io
on
n
Identifier Name Type Range Access Default
Mandatory
/ Optional
0x0001 ZoneState 8-bit
Enumeration All Read
only 0x00 M
0x0002 ZoneType 8-bit
Enumeration All Read
only M
0x0003 ZoneStatus 16-bit bitmap All Read
only 0x00 M
0x0010 IAS_CIE_ADDRESS IEEE
ADDRESS Valid 64bit
IEEE address Read /
Write M
0x0011 ZONE_ID Unsigned
8-bit integer All Read
only 0xFF M
z
z
A
At
tt
tr
ri
ib
bu
ut
te
e
o
of
f
I
IA
AS
S
W
WD
D
C
Cl
lu
us
st
te
er
r
I
In
nf
fo
or
rm
ma
at
ti
io
on
n
Identifier Name Type Range Access Default
Mandatory
/ Optional
0x0000 MaxDuration Unsigned
16-bit integer 0x00 –0xfffe Read /
Write 240 M
5
