911702 Rev. 7.04 15November2013
AIRAVE 2.5 and 2.5+
User Guide
©2013 Sprint. Sprint and the logo are trademarks of Sprint. Other marks are trademarks of their
respective owners.
Important Messages
Important Messages
IMPORTANT: Sprint’s policies often do not apply to third-party applications. Third-party
applications may access your personal information or require Sprint to disclose your customer
information to the third-party application provider. To find out how a third-party application will
collect, access, use, or disclose your personal information, check the application provider’s
policies, which can usually be found on their website. If you aren’t comfortable with the third-
party application’s policies, don’t use the application.
![](/img.php?id=2171767&img=bg3.png)
i
Table of Contents
Introduction ................................................................................................................................ 3
Getting Started ........................................................................................................................... 4
Check What’s in the Box ........................................................................................................ 4
Set up at a glance .................................................................................................................. 4
Setting up Your AIRAVE™ ..................................................................................................... 5
External GPS Antenna Setup ................................................................................................. 8
When is Your AIRAVE Ready for Use? .................................................................................. 9
Setting up Optional Components ..............................................................................................10
PC or LAN Router Setup .......................................................................................................10
Configuring AIRAVE™ Router ...............................................................................................11
Adding Your ISP User Name and Password .............................................................................12
Using Your AIRAVE™ ...............................................................................................................15
How AIRAVE Works ..............................................................................................................15
Your Broadband Connection Speed ...................................................................................15
How Calls and Data Go Over the Internet ..........................................................................16
Maintenance ..........................................................................................................................16
Ventilation ..........................................................................................................................16
Cleaning ............................................................................................................................16
Troubleshooting ........................................................................................................................17
Troubleshooting Installation Problems ...................................................................................17
Troubleshooting Slow Connection When Laptop is Connected to the AIRAVE™ ..................18
Troubleshooting Voice Quality Issues ....................................................................................19

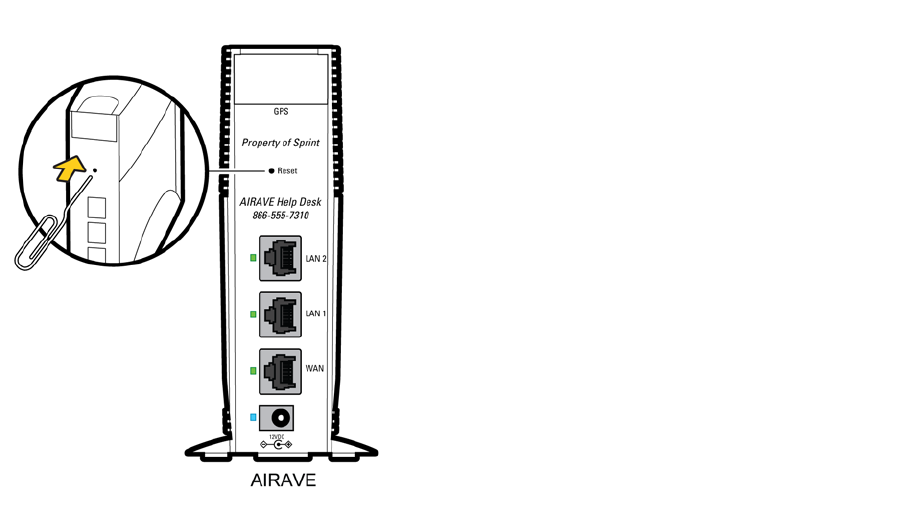

Resetting the AIRAVE ...........................................................................................................20
LED Quick Reference ............................................................................................................21
Using LEDs ...........................................................................................................................22
FAQs .....................................................................................................................................25
Why does the AIRAVE™ need a GPS antenna?................................................................25
Why does the AIRAVE™ need an external GPS antenna? ................................................25
What happens to the AIRAVE™ if there is a power outage or if you lose Internet access? 25
Can you move the AIRAVE™ to another location? ............................................................25
ii
How do I know if my phone is connecting through the AIRAVE™? ....................................25
I have a DSL modem and cannot connect to the Internet ...................................................25
Getting Help ..........................................................................................................................26
Safety Information .....................................................................................................................27
General Precautions ..............................................................................................................27
FCC Information ....................................................................................................................28
! FCC Radiation Exposure Statement ................................................................................28
FCC Part 15 .......................................................................................................................28
![](/img.php?id=2171767&img=bg5.png)
3
Introduction
This User Guide introduces you to the SPRINT® AIRAVE™ service and all its features. It’s
divided into four sections:
● Getting Started page 4
● Setting up Optional Components page 10
● Using Your AIRAVE™ page 15
● Troubleshooting page 17
● Safety Information page 27
Throughout this guide, you’ll find tips and techniques that help you make the most of your new
device and service. The Table of Contents and Index also help you quickly locate specific
information. It is important that you read each section and note any special requirements.
However, if you’d like to get right to a specific feature, simply locate that section in the Table of
Contents and go directly to that page. Follow the instructions in that section, and you’ll be ready
to use your AIRAVE in no time.
WARNING: Please read the safety information on page 27 to learn about how to safely use
your device. Failure to read and follow the safety information in this user guide
may result in serious bodily injury, death, or property damage.
![](/img.php?id=2171767&img=bg6.png)
4
Getting Started

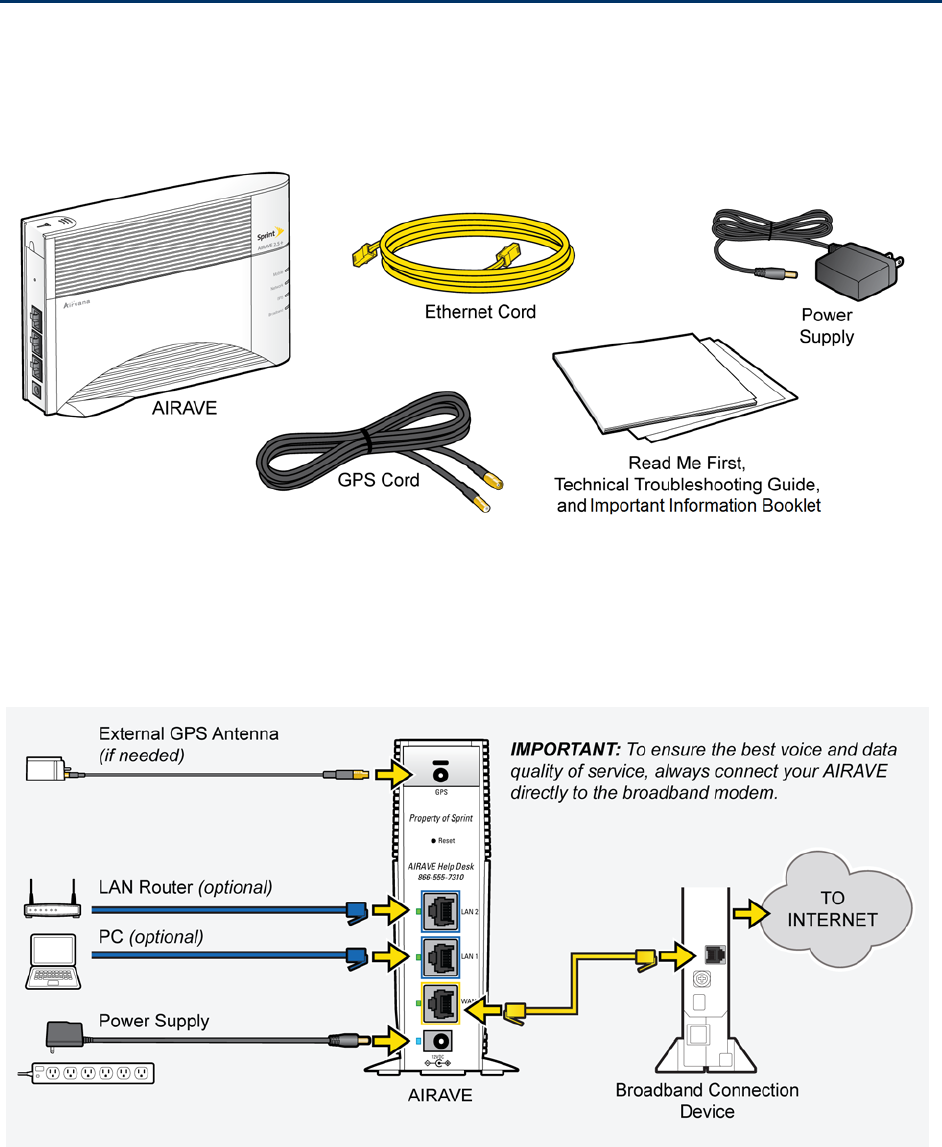

Check What’s in the Box
Ensure that the following items are in the box:
Tip: See the Read Me First for detailed illustrations on setting up your AIRAVE.
Set up at a glance
![](/img.php?id=2171767&img=bg7.png)
5
Setting up Your AIRAVE™
1. Disconnect the power from all devices on your network.
Note: This includes your cable or DSL modem and router.

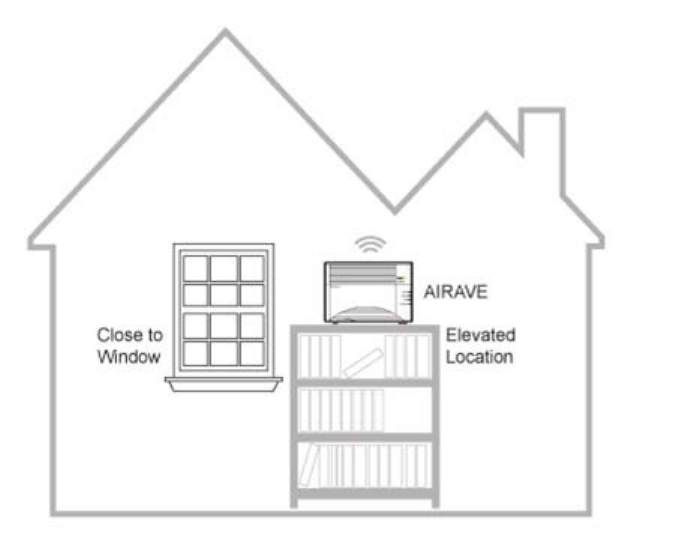

2. Place your AIRAVE close to a window and in a central location. For best results, place the
AIRAVE in an elevated location, such as the top of a bookshelf or tall cabinet.
Note: In large homes, the external GPS antenna can be used to allow the AIRAVE to be
placed in a more central location. This allows the AIRAVE to provide even coverage
throughout the home.

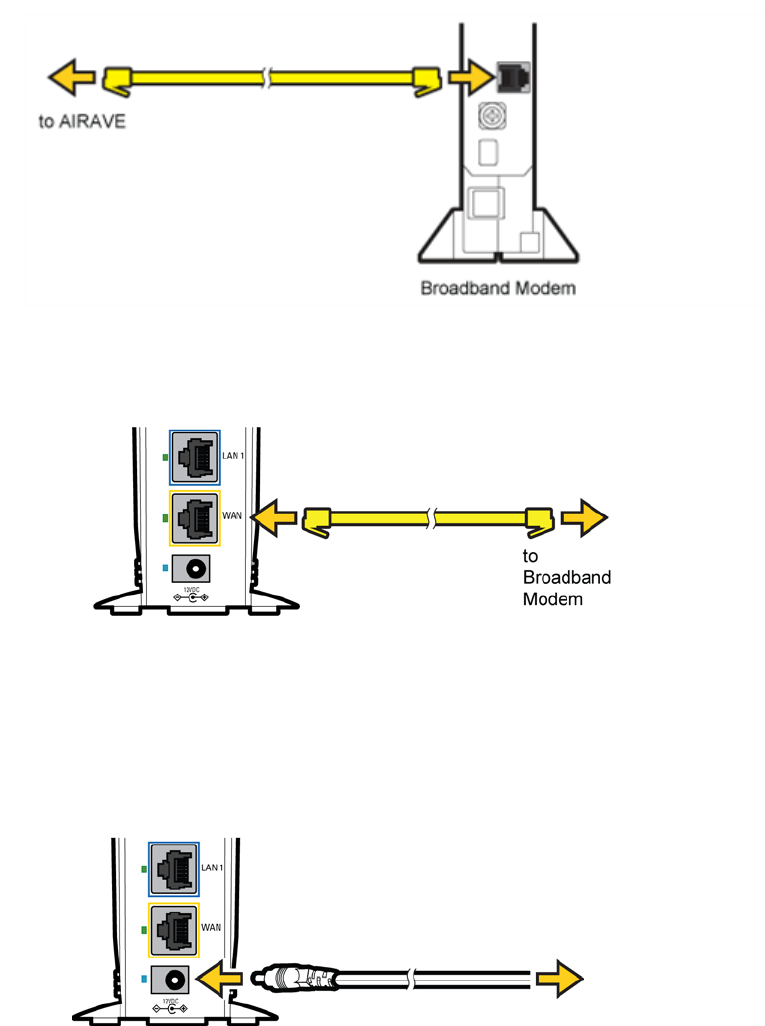

3. Connect one end of the yellow Ethernet cable to an available LAN port on your broadband
modem.
![](/img.php?id=2171767&img=bg8.png)
6
4. Connect the other end of the Ethernet cable to your AIRAVE’s yellow WAN port.
5. Turn on your cable or DSL modem.
Important Wait a couple of minutes for the cable or DSL modem to fully initialize before
continuing.
6. Plug the power supply connector into the black power port on your AIRAVE.
![](/img.php?id=2171767&img=bg9.png)
7
7. Plug the other end into an available electrical outlet. Sprint recommends a surge protector
power strip.
![](/img.php?id=2171767&img=bga.png)
8

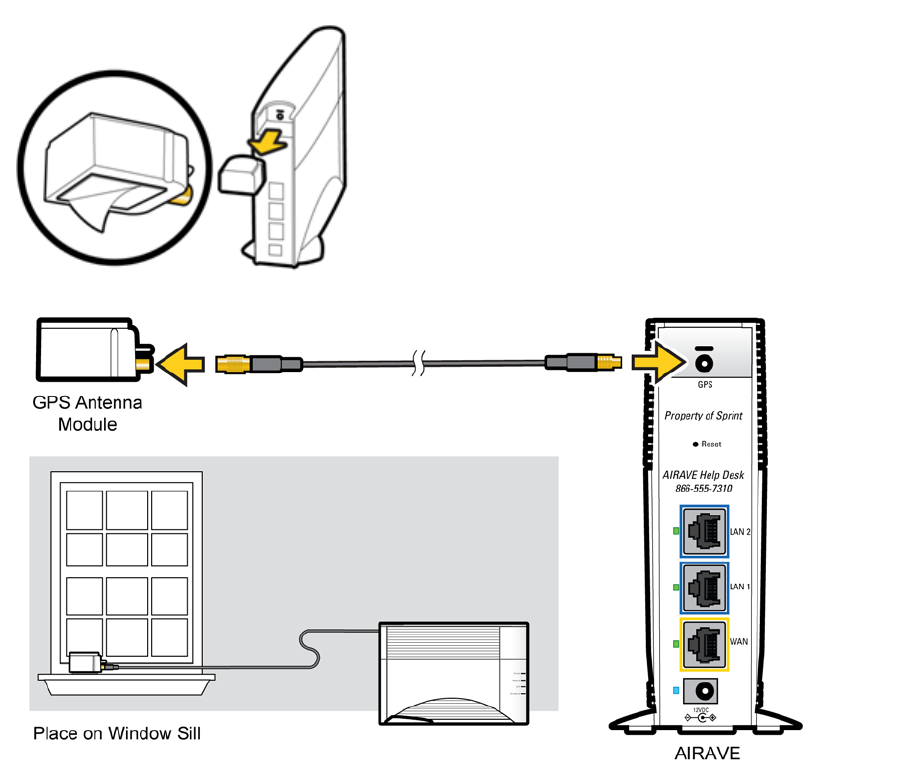

External GPS Antenna Setup
Use the external GPS antenna if your AIRAVE’s internal antenna does not gain a signal for GPS
lock (indicated by a solid red GPS LED for more than 40 minutes, solid green indicates GPS
lock). Connect the external GPS antenna to your device’s GPS connection port.
Note: After initial installation GPS may take 30-40 minutes to get a GPS fix.
1. Remove the GPS antenna module from the back of the AIRAVE. Connect the GPS cord to
the antenna module and the AIRAVE. (See inset in drawing.)
2. Remove the red paper backing from the tape on the GPS antenna.
3. Place the external GPS antenna horizontally on a clean, flat surface, preferably on a window
sill or as close to a window as possible and above the window sill. The antenna works best
in an open area where it can easily pick up signals.
Note: Be sure to place the GPS antenna module tape-side down on a window sill.
![](/img.php?id=2171767&img=bgb.png)
9
When is Your AIRAVE Ready for Use?
After installing and turning on your AIRAVE for the first time, AIRAVE goes through an
automated setup sequence. See the table below.
During this time, the device’s green LEDs will be solid for a few seconds, and then all LEDs,
except the Broadband LED, will turn off until the software loads. This process may take up to 2
hours.
When the Broadband, GPS, Network, and Mobile LEDs are solid green, your AIRAVE is ready
for use.
Note: For a summary of LED status indicators, see LED Quick Reference. For complete
descriptions of LED states, see Using LEDs.
Tip: You will hear three short beeps when placing or answering calls on your wireless phone
if you are within range of the AIRAVE.
The following table shows the LED startup sequence.
Broadband
GPS
Network
Mobile
AIRAVE State
Solid Green
Solid Green
Solid Green
Solid Green
Initial hardware test (5-10 seconds)
Solid Green
Off
Off
Off
Software loading (25 seconds or less)
Solid Green
Blinking Red
Blinking Red
Blinking Red
Software loaded and Services Started
Solid Green
Blinking Red
Blinking Red
Blinking Red
WAN port connected over local network
Solid Green
Blinking Red
Blinking Red
Blinking Red
WAN port connected
IPsec tunnel up
Solid Green
Solid Green
Solid Green
Blinking Red
WAN port connected
GPS time fix available
IPsec tunnel up
Solid Green
Solid Green
Solid Green
Solid Green
WAN port connected
GPS time fix available
IPsec tunnel up
OneX service up
![](/img.php?id=2171767&img=bgc.png)
10
Setting up Optional Components

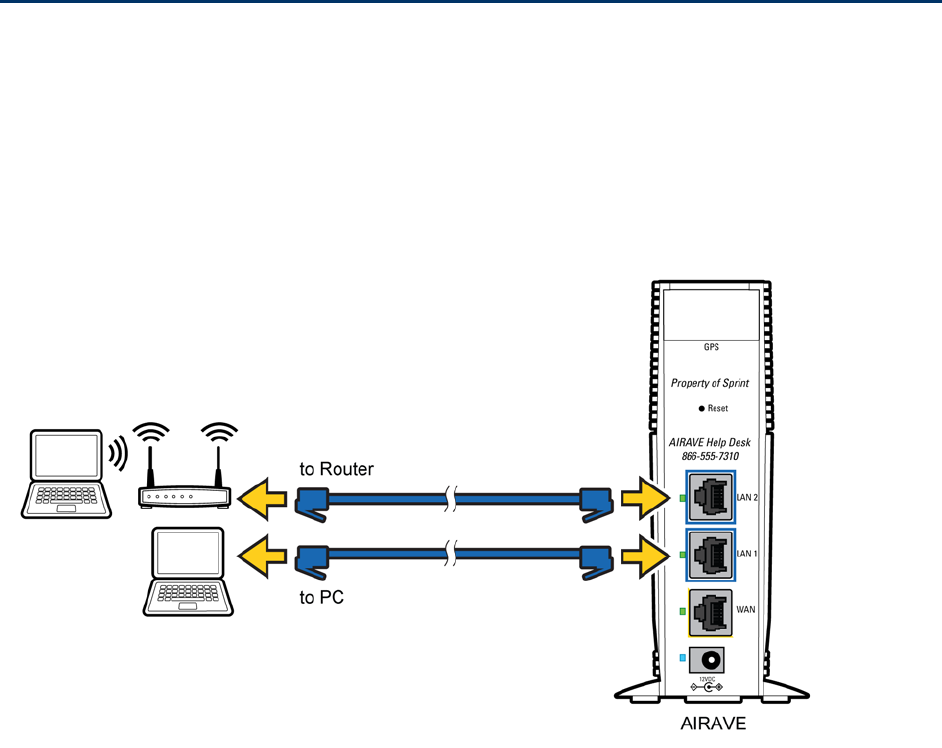

PC or LAN Router Setup
Connect any devices that you have, such as a PC or a LAN router, to the AIRAVE’s blue LAN
ports.
Tip: To ensure the best voice and data quality of service, always connect the LAN router to
your AIRAVE. Do not connect it to the broadband connection device.
![](/img.php?id=2171767&img=bgd.png)
11
Configuring AIRAVE™ Router
Your AIRAVE contains a built-in router. Usually, you can plug your AIRAVE into your broadband
connection device, such as a cable modem, DSL modem or FiOS (a high-speed, fiber optic
broadband Internet service), without performing any additional steps. However, you may need
to configure the built-in router to work with your ISP modem or connection device.
The following table lists typical ISP setups and actions to take so that the built-in router works
with your existing ISP setup.
Broadband
connection device
LED display pattern
Symptom
Action to take
Cable modem
Broadband and Mobile
solid green
Not applicable
(working properly)
Not applicable
DSL modem
Broadband LED
blinking red
Cannot access
Internet
Go to “Adding Your ISP
User name and
Password”
DSL modem with
built-in router
Broadband LED
blinking red
Mobile LED blinking
red
Cannot access
Internet
Cannot make a
mobile phone call
through the
AIRAVE
See FAQ.
If the problem persists,
contact Customer Support
as described in “Getting
Help”
Cable modem with
built-in router
FiOS
![](/img.php?id=2171767&img=bge.png)
12
Adding Your ISP User Name and Password
If you are using a DSL modem and your device cannot connect to the Internet, you may need to
enter your Internet service provider (ISP) account user name and password so that the AIRAVE
can connect to the Internet.
Tip: Before you begin, obtain your ISP user name and password. Contact your ISP if you do
not have this information.
1. Ensure that your PC is networked with the AIRAVE.
2. Enter the following IP address in your Web browser:
192.168.17.1

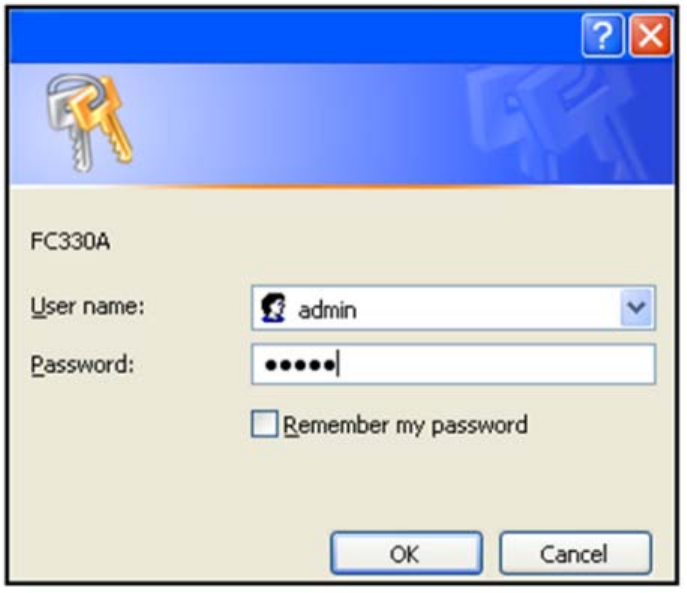

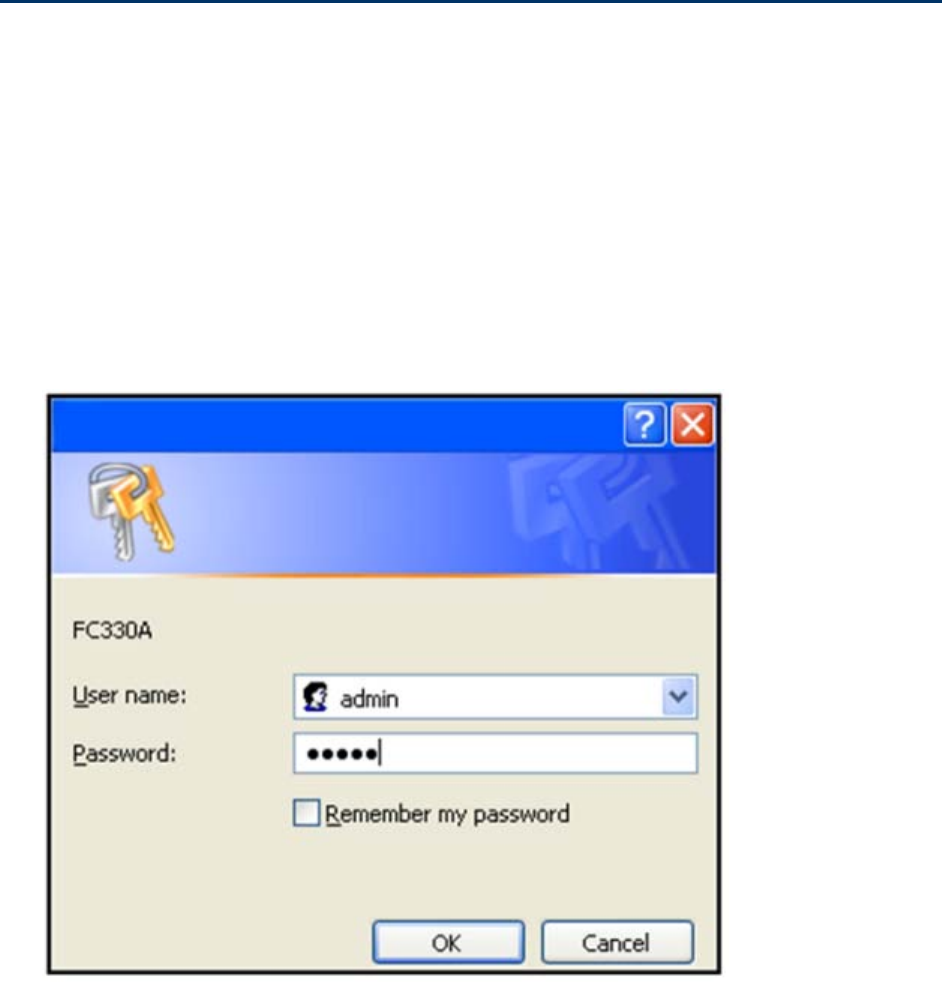

The login dialog box appears.
3. Enter “admin” in both the User name and Password boxes and click OK.
![](/img.php?id=2171767&img=bgf.png)
13

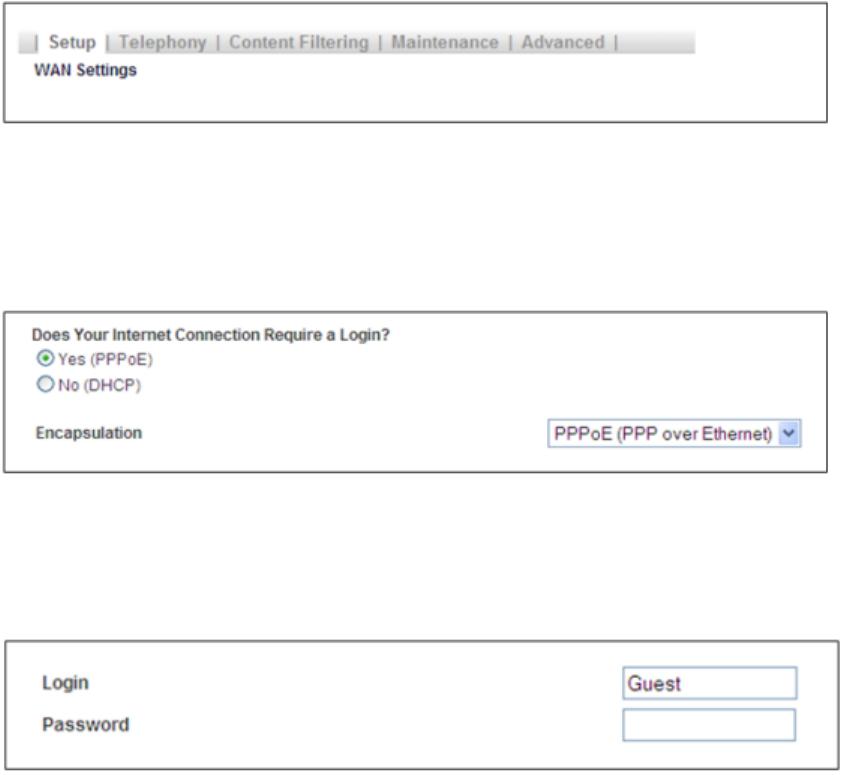

4. Click the Setup tab on the Router status page menu bar. Click WAN Settings.
5. Ensure that Yes (PPPoE) is selected.
6. Enter your ISP user name in the Login box (overwrite “Guest”) and your password in the
Password box. Click OK.
![](/img.php?id=2171767&img=bg10.png)
14

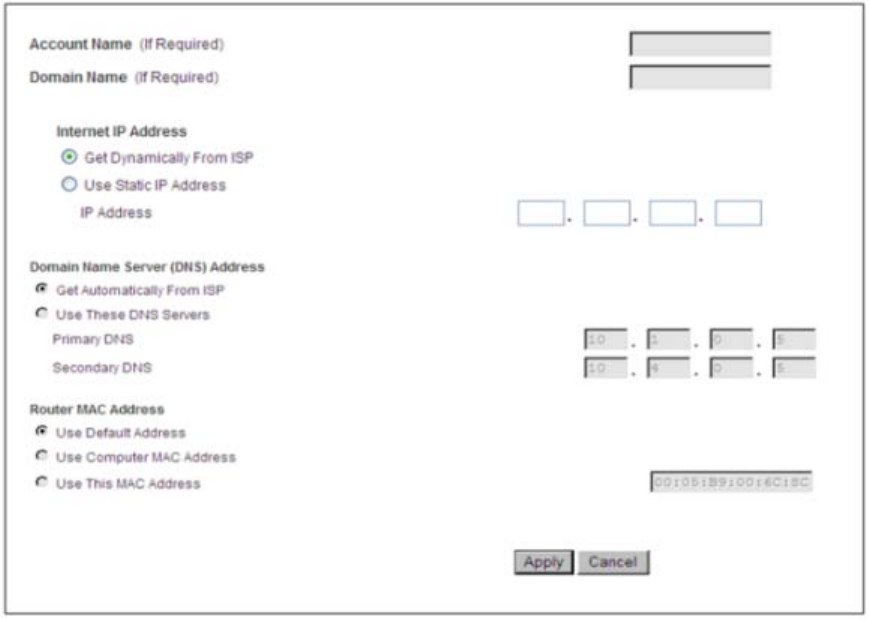

7. Accept the defaults in other fields on the screen and click Apply.
When the Broadband LED is solid green your Internet connection is available. If setting up
PPPoE takes more than 15 minutes at startup, the Broadband LED will turn solid red. Once the
PPPoE connection is set up, the LED turns solid green. If the LED remains solid red, contact
your ISP.
![](/img.php?id=2171767&img=bg11.png)
15
Using Your AIRAVE™
How AIRAVE Works

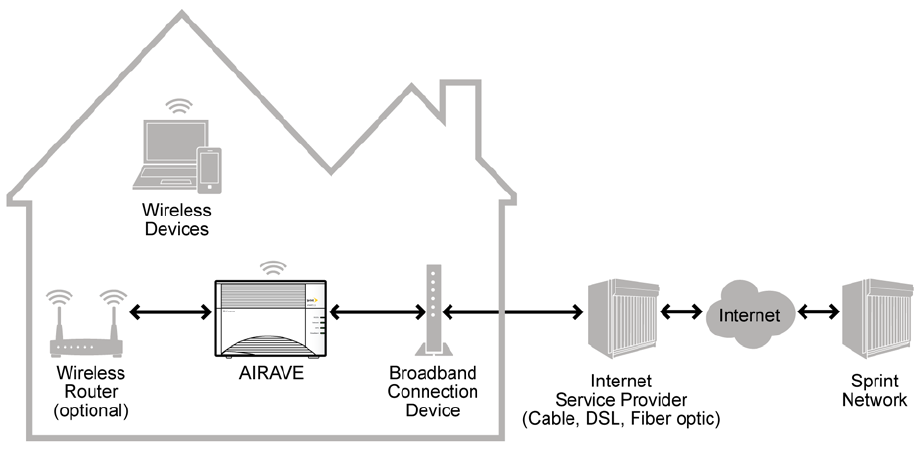

The AIRAVE™ is a femtocell, a personal base station with a radio unit that is similar to a cell
tower radio. The base station uses a low-power antenna to transmit voice and data cellular
signals in your home or small office.
Base stations give you better cellular coverage, which means a stronger signal and improved
voice quality. A strong signal can extend battery life. Also, data applications on Smartphones,
such as mobile email devices, work faster.
The AIRAVE connects to Sprint’s network through your broadband Internet connection.
Outgoing calls go from the AIRAVE over a secure connection to Sprint’s network; incoming calls
reverse this route.
Your Broadband Connection Speed
The AIRAVE’s actual transmission speed is only as fast as your maximum broadband
connection speed. Internet congestion, the number of users on your provider’s network, and
other factors can decrease your actual broadband connection speed. Individual bandwidth
needs vary per customer. Sprint recommends a minimum of 300 kbps (both upstream and
downstream) for voice services and 3 Mbps downstream and 1.8 Mbps upstream for data
services.
The following table shows recommended bandwidth by usage type:
Usage Type
Recommended Download
Speed Recommended Upload Speed
Wireless Call
800 kbps
800 kbps
Wireless Data
Up to 3 Mbps per session
Up to 1.8 Mbps per session
![](/img.php?id=2171767&img=bg12.png)
16
How Calls and Data Go Over the Internet
Maintenance
With normal use, your AIRAVE is maintenance-free. Follow the recommendations below to
ensure that it runs optimally.
Ventilation
Your AIRAVE has ventilation slots that work best if you don’t block the flow of air to them. Keep
your device at least 2 inches (5 cm) from walls and other surfaces to ensure proper air flow.
Cleaning
Dust your AIRAVE occasionally to keep air vents clear of debris. Do not use liquid cleaners.
![](/img.php?id=2171767&img=bg13.png)
17
Troubleshooting
Troubleshooting Installation Problems
If your Broadband turns solid red after 15 minutes, reversing the order of turning on the AIRAVE
and your cable or DSL modem can often resolve this problem. To reverse the order, follow
these procedures:
1. Unplug all cables and power cords from all devices. You can unplug devices in any order.
2. Connect all Ethernet and GPS cables as described in “Setting up Your AIRAVE™”
(page Setting up Your AIRAVE™).
Important: Do not connect any power cords at this point in the procedure.
3. Plug the AIRAVE into a power strip.
4. Wait 4 minutes.
5. Plug your cable or DSL modem into an electrical outlet.
Tip: You may want to consult your cable or DSL modem documentation for any special
procedures for connecting a device directly to your cable or DSL modem.
If the Broadband LED turns solid red after 15 minutes, call Customer Support as described in
Getting Help.
![](/img.php?id=2171767&img=bg14.png)
18
Troubleshooting Slow Connection When Laptop is
Connected to the AIRAVE™
If you are experiencing slow Internet speeds when your laptop is connected to the LAN port of
your AIRAVE, you may need to change the bandwidth speed on your AIRAVE.
1. Connect your laptop to the LAN port of your AIRAVE and disable WiFi.
2. In a Web browser on your laptop, go to a Web site to test the uplink speed.
Note: Contact Customer Care for the URL to a recommended Web site. See Getting Help for
Customer Care contact information.
3. Run a speed test on your uplink speed. Note the maximum speed value.
4. In a Web browser, enter the following IP address:
HTTP://192.168.17.1
5. Enter the User name and Password.
User name: admin
Password: admin

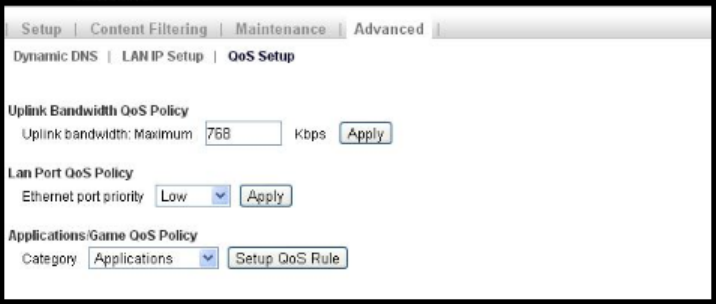

6. In the Advanced tab, click QoS Setup.
![](/img.php?id=2171767&img=bg15.png)
19
7. Change the Uplink bandwidth: Maximum to the value recorded from the uplink test and click
Apply.
8. If the problem persists, check the QoS setting in your home router. Ensure that the AIRAVE
has the highest priority. See the home router’s user manual for instructions.
9. If the problem persists, contact your Internet Service Provider.
Troubleshooting Voice Quality Issues
First, make sure your AIRAVE is close to a window in a central location. If it is not close to a
window, try moving it. After moving the AIRAVE, if you are still experiencing choppy or jittery
voice calls, Contact Customer Care. See Getting Help for Customer Care contact information.
![](/img.php?id=2171767&img=bg16.png)
20
Resetting the AIRAVE
If your AIRAVE was operating properly for an extended period and the Mobile LED suddenly
starts blinking red, the AIRAVE may have a problem requiring a reset. To reset the AIRAVE,
push the Reset button for at least 10 seconds (as shown in the drawing below).
After resetting, your AIRAVE goes through an automated setup sequence. During this time, the
device’s green LEDs will be solid for a few seconds, and then all LEDs will turn off until the
software loads. The reset process may take 30-45 minutes.
After resetting the AIRAVE, if the failure persists, contact Customer Care. See Getting Help on
page 26.
![](/img.php?id=2171767&img=bg17.png)
21

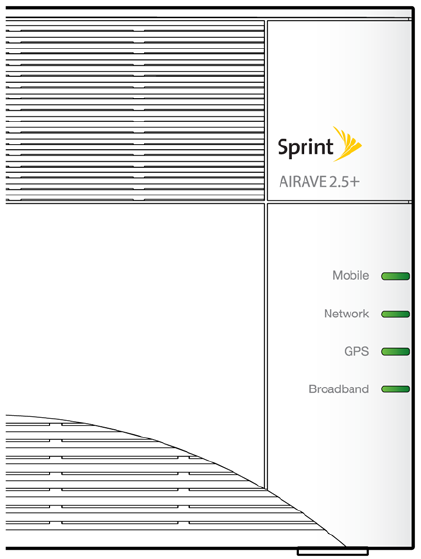

LED Quick Reference
Mobile
• Solid green: Ready
• Solid red: Hardware problem
• Blinking red: Service error
• Off: No service, service disabled, no power, or
LED malfunction
Network
• Solid green: Ready
• Solid red: AIRAVE is not connected router/modem
for more than 15 minutes
• Blinking red to solid red: Service error
• Off: No power or LED malfunction
GPS
• Solid green: Ready
• Blinking red: Acquiring a lock
• Solid red: GPS lock not available
• Off: No power or LED malfunction
Broadband
• Solid green: Connected to the Internet
• Solid red: AIRAVE is not connected to router/modem
for more than 15 minutes
• Blinking red: Service error
•
Off: No power or LED malfunction
Note: For complete descriptions of LED states, see Using LEDs.
![](/img.php?id=2171767&img=bg18.png)
22
Using LEDs
Use the LEDs to troubleshoot your device.
LED
Display
pattern Action to take
Mobile
Solid green
Service is up.
Solid red
Hardware problem. Call Customer Support as
described in Getting Help.
Blinking red
Service has not come up since startup or has gone
down. If service has gone down, try resetting the
AIRAVE as described in Resetting the AIRAVE. If
this problem persists, call Customer Support as
described in Getting Help.
Off
If the LED turns off after turning on from either a
blinking red or solid green state, AIRAVE is not
activated. Call Customer Support as described in
Getting Help.
Network
Solid green
None. Ready.
Blinking red to
solid red
Service has not come up since startup or has gone
down. If this problem persists, call Customer Support
as described in Getting Help.
Blinking red Network connection has gone down or has not come
up since startup, for 15 minutes or less.
Solid red
If all LEDs are solid red there is a hardware problem.
Call Customer Support as described in Getting Help.
Off
LED malfunction. Call Customer Support as
described in Getting Help.
GPS
Solid green
None. GPS is ready.
![](/img.php?id=2171767&img=bg19.png)
23
Blinking red
GPS is trying to acquire a lock. Perform the following
steps. If GPS fix was not achieved after GPS restart
(either at power-up or after recovery from an error),
then the GPS LED turns solid red after more than 30
minutes.
If you have not already done so, connect the external
GPS antenna to your device.
If the external GPS antenna is already connected,
move it to a different location, as close to a window
as possible.
If this problem persists, call Customer Support as
described in Getting Help.
Solid red
GPS fix is not available for more than 30 minutes.
If you have not already done so, connect the external
GPS antenna to your device.
If the external GPS antenna is already connected,
move it to a different location, as close to a window
as possible.
If this problem persists, call Customer Support as
described in Getting Help.
If all LEDs are solid red there is a hardware problem.
If this problem persists, call Customer Support as
described in Getting Help.
Broadband
Solid green
None. Connected to the Internet.
Solid red
AIRAVE is not connected to the router/modem for
more than 15 minutes.
If all LEDs are solid red there is a hardware problem.
Call Customer Support as described in Getting Help.
![](/img.php?id=2171767&img=bg1a.png)
24
Blinking red
Service error.
Check if your broadband modem or broadband router
has a problem. Reset your broadband connection
device. If the problem with the broadband device
persists, contact your Internet service provider (ISP).
Ensure that the AIRAVE’s router is correctly
configured to access the Internet service. See
“Configuring AIRAVE™ Router” (page 9).
Restart the device by turning the power off and on.
If this problem persists, call Customer Support as
described in Getting Help.
Off
The LED is not working or the unit has no power. If
this problem persists, call Customer Support as
described in Getting Help.
All Solid red
The AIRAVE cannot pass a hardware self-test. Call
Customer Support as described in Getting Help.
![](/img.php?id=2171767&img=bg1b.png)
25
FAQs
Why does the AIRAVE™ need a GPS antenna?
The AIRAVE has a GPS antenna so that it can:
● Synchronize properly with the rest of Sprint’s network.
● Determine and select the correct radio frequencies available in your area so that the
AIRAVE uses the correct ones.
Why does the AIRAVE™ need an external GPS antenna?
Your device needs the external antenna only when the internal GPS antenna cannot lock on to
sufficient satellite signals. The external antenna lets the AIRAVE lock on to the greatest number
of satellites.
What happens to the AIRAVE™ if there is a power outage or if
you lose Internet access?
The AIRAVE needs both a broadband Internet connection and a constant power supply to work.
During a power outage your wireless phone or device will immediately switch to the Sprint
network.
Can you move the AIRAVE™ to another location?
Yes, you can move your device to another location within the Sprint network. However, to move
your device to a different address, you must first update your service address by logging into
your account on www.sprint.com.
How do I know if my phone is connecting through the AIRAVE™?
By dialing *99 on your wireless phone, an audio message will confirm if you are in range of the
AIRAVE. Also, you will hear three short beeps on your wireless phone before making and
receiving calls.
I have a DSL modem and cannot connect to the Internet
If you are using a DSL modem and your AIRAVE cannot connect to the Internet, you may need
to enter your Internet service provider (ISP) account user name and password so that the
AIRAVE can connect to the Internet. See Adding Your ISP User Name and Password.
26
Getting Help
If you need help with your AIRAVE, contact Sprint Customer Care.
● Online (sprint.com/airave)
● For activation and technical issues dedicated AIRAVE Help Desk (1-866-556-7310)
● For billing and other questions (1-888-211-4727)
![](/img.php?id=2171767&img=bg1d.png)
27
Safety Information
General Precautions
● Dust the AIRAVE occasionally to keep air vents clear of debris. Do not wash it.
● The AIRAVE has ventilation slots that work best if you don’t block them. Keep the
AIRAVE at least 2 inches (5 cm) from walls and other surfaces to ensure proper air flow.
● Do not operate the AIRAVE in an extremely dusty or humid environment.
● Avoid placing the AIRAVE near radiators or other heating sources.
● Avoid locating the AIRAVE where it could be exposed to direct sunlight for prolonged
periods.
● Do not connect the AIRAVE to a power strip containing an excessive number of other
devices.
● Although your AIRAVE is quite sturdy, it is a complex piece of equipment and can be
broken. Avoid dropping, hitting, bending, or sitting on it.
● Do not immerse the AIRAVE in water or get it wet. If your device does get wet, unplug it
immediately until it dries.
● Do not allow children to play with the AIRAVE. They could hurt themselves and others or
damage the device.
Note: For the best care of your AIRAVE, only Sprint-authorized personnel should service your
device and accessories. Failure to do so may be dangerous and void your warranty.
![](/img.php?id=2171767&img=bg1e.png)
28
FCC Information
! FCC Radiation Exposure Statement
Important: Changes or modifications not expressly approved by Airvana LLC could void
your authority to operate the equipment.
This device complies with FCC’s RF radiation exposure limits set forth for an uncontrolled
environment under the following conditions:
● This device should be installed and operated such that a minimum separation distance
of 8 inches (20 cm) is maintained between the radiator (antenna) and the user’s or
nearby person’s body at all times.
● This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
For more information, see the publication Femtocells and Health at
http:// www.femtoforum.org or visit the FCC website at www.fcc.gov.
FCC Part 15
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This device generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the
device off and on, the user is encouraged to try to correct the interference by one of the
following measures:
● Re-orient or relocate the receiving antennas of other devices.
● Increase the separation between the AIRAVE and other device receivers.
● Connect the AIRAVE into an outlet on a circuit different from that to which the other
device receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
![](/img.php?id=2171767&img=bg1f.png)
29
Index
AIRAVE
External GPS Antenna, 8
External GPS Antenna; Antenna, GPS, 25
FAQ, 25
Help, 26
Internet, 16
Location, 25
Placement, 27
Safety Information, 28
Broadband
Connection Speed, 15
Modems;Cable Modem;DSL Modem;FiOS
Connection Device, 10
DSL Modem, 12
FCC Information, 28
Internet Service Provider (ISP)
User Name
Password;Password;User Name
Internet Service Provider (ISP), 12
Ethernet Cable
Port
Connection Device;Modems, 5
LAN
Port
LAN, 10
LAN
Router, 10
LEDs
Troubleshooting, 22, 23
LEDs
Broadband, 14
Mobile, 9
Quick Reference, 21
Port
LAN
Port, 5
Power Outage, 25
Troubleshooting
Installation Problems, 17
LEDs, 23
