Controlled Entry Distributors 318LIPW2KC ENTRY REMOTE CONTROL User Manual IS TM23DCCUK
Controlled Entry Distributors, Inc. ENTRY REMOTE CONTROL IS TM23DCCUK
User Manual
![](/img.php?id=2103408&img=bg1.png)
CONTENTS
1A - General information
1B - Technical specifications
1C - Main components
1 - TRANSMITTER OVERVIEW
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS

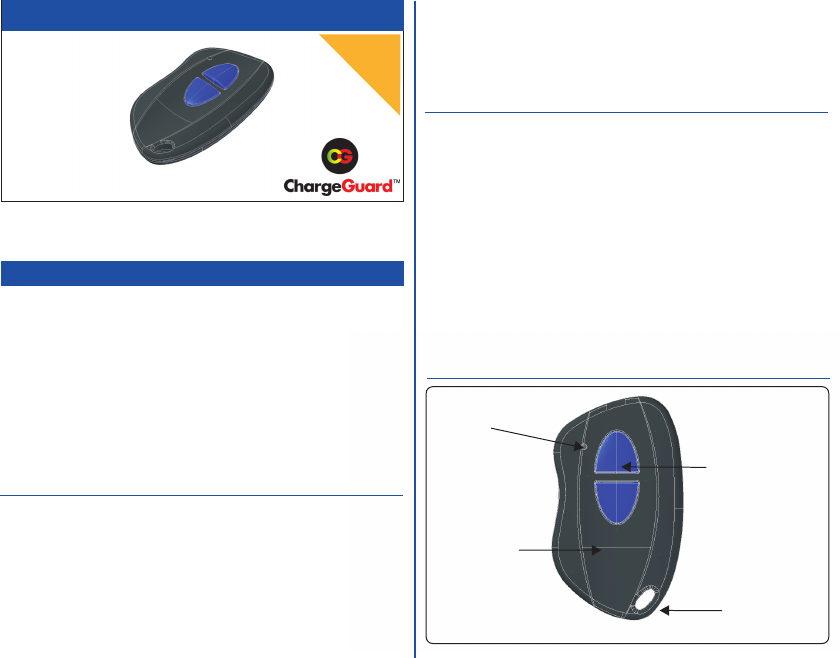

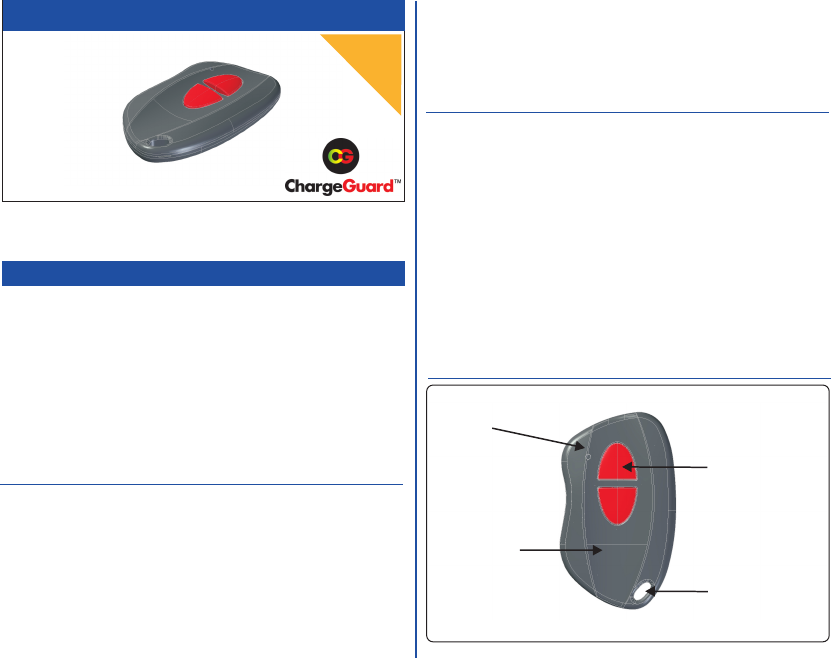

1C - Main components
tri-color
LED
Key
holder
ring
RED
push-button
6 - TROUBLESHOOTING
318DOPW2KC MONARCH
Dark grey
case
Fig. 2
Manual
with Patented
TM
ChargeGuard
Circuit
Patent
Pending
1B - Technical specifications
Operating frequency 318 MHz
Number of keys: 2
Battery : 2 x 3V lithium batteries CR2016
Battery life: 18 ÷ 24 months
Number combinations : 16,384
Protocol : MicroCLIK compatible
Different Facilities codes 64
Operating temperature: -20°F÷+131°F (-20°C÷+55°C)
Overall dimensions: 2.4”x1.4”x0.51” (61x36x13 mm)
Weight: 0.49 oz. (14 gr.)
The Community Controls - 318R receiver which operates with this
transmitter has a Wiegand 26 bit output and can operate any type of
access control system equipped with the same protocol. The CR 2016
lithium batteries of the transmitter have a shelf life of about 6 months.
The product fully complies with Part 15 of FCC Regulations and the
European Directives 99/5/CE, 89/336/CEE, 73/23/CEE.
1A - General information
The Community Controls - Monarch 318DOPW2KC transmitter is a 2
key chain style mini transmitter operating at 318 MHz. It has been
designed for use with programmable telephone entry, security, and
access control systems operating with a 318 MHz frequency receiver.
The protocol is MicroCLIK compatible and the code sent by the
transmitter includes a 14 bit security code which allows up to 16384
code combinations and 6 bits of facility code, which allows up to 64
facility codes .
Thank you for choosing a Community Controls product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2004 by Community Controls
Community
Controls
![](/img.php?id=2103408&img=bg2.png)
2 - NUMBERING

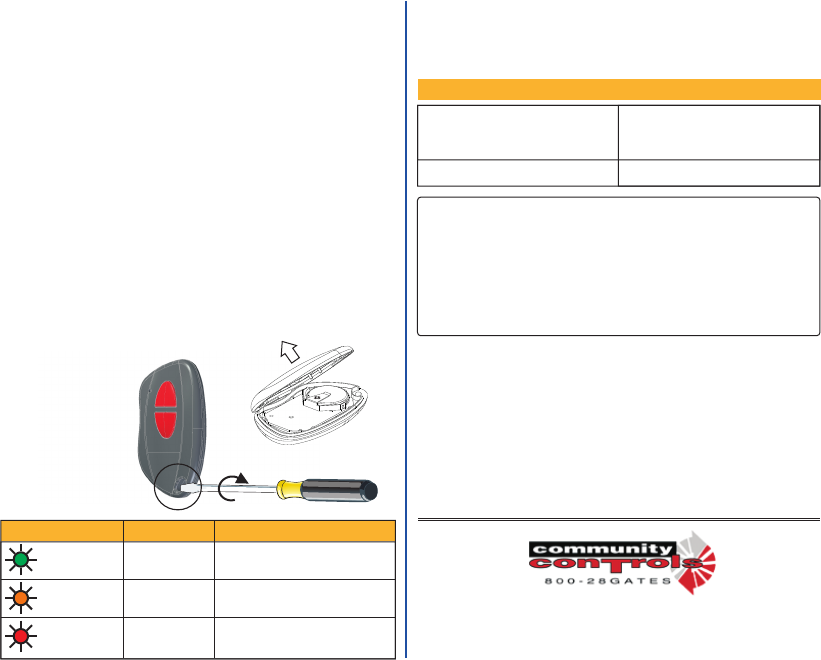

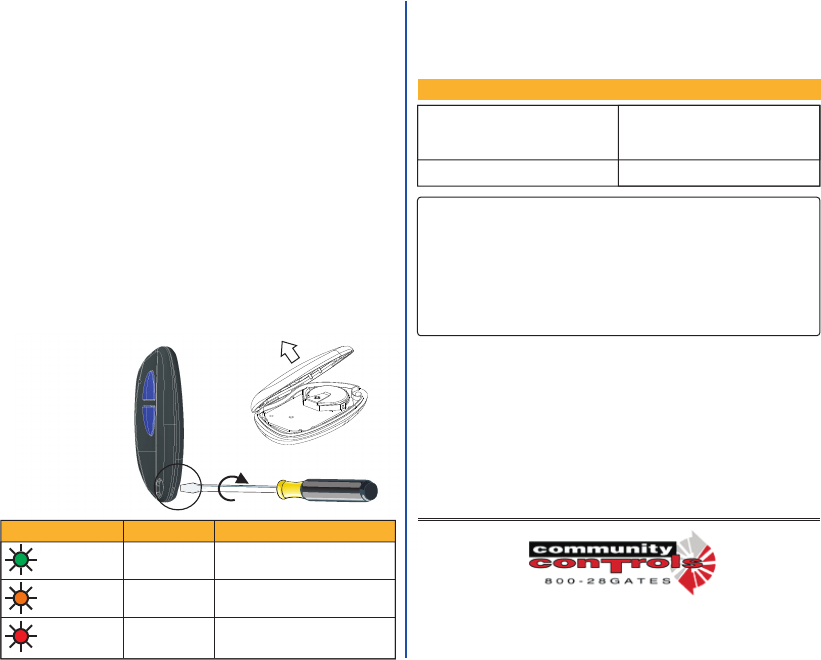

To access the battery open the case with a screwdriver acting on the slot between
the cover and the bottom and remove the bottom, as shown in fig. 3a and 3b.
Slide out the old batteries and replace them with the new ones [CR2016]
respecting the polarity, with the positive (+) side upward.
NOTE: Please dispose of the batteries properly according to local laws and
regulations. Test proper battery installation by verifying that the LED illuminates
when the button is pushed.
5 - BATTERY ACCESS
3 - PROGRAMMING
Each transmitter is manufactured and sold with a different factory-set serial
number .
The transmitter must be programmed into your system memory.
Your own installer or reseller will provide you the necessary instructions for your
system.
4 - OPERATION
A - Firmly depress the button until the small red LED illuminates.
B - After the LED has illuminated, release the button.
If the device you are attempting to activate does not respond, repeat steps A and B
or consult section 7 ( Troubleshooting ) of this manual.
Fig. 3a
Fig. 3b
6 - BATTERY STATUS
Led GREEN Normal level ~6000 pulses [*] - Normal range
Led ORANGE Attention level Max 300 pulses - Low range[*]
Led RED Low level Replace battery - No range
Led color Battery level TX Status
The warranty period of Community Controls 318 transmitters is 24 months,
beginning from the manufacturing date of the transmitter. During this period, if the
product does operate correctly, due to a defective component, the product will be
repaired or replaced at the sole discretion of Community Controls.
The warranty does not extend to the transmitter case which can be damaged by
conditions outside the control of Community Controls or to battery life.
WARRANTY
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part. 15 of the
Notice
Any changes or modification to equipment not expressly
approved by could void the manufacturer’s warranty.
Community Controls
Community Controls
The system does not receive the
transmitter signal.
The transmitter LED is ON
Check to verify the transmitter is
programmed into your system
PROBLEM SOLUTION
The operating range is reduced Replace the transmitter batteries
7 - TROUBLESHOOTING
[ * ] : Depends on batteries type and operating conditions . Batteries life calculated
with 1-sec pulses.
2500 South 3850 West, Suite A - Salt Lake City, Utah 84120
www.communitycontrols.com - sales@communitycontrols.com
Community Controls - Type : 318DOPW2KC
FCC ID : SU7318LIPW2KC
IS-TM23DTSUK Rev. 0 del 21.02.2013
![](/img.php?id=2103408&img=bg3.png)
CONTENTS
1A - General information
1B - Technical specifications
1C - Main components
1 - TRANSMITTER OVERVIEW
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
1B - Technical specifications
Operating frequency 318 MHz
Number of keys: 2
Battery : 2 x 3V lithium batteries CR2016
Battery life: 18 ÷ 24 months
Number combinations : 65,536
Protocol : Linear compatible
Different Facilities codes 16
Operating temperature: -20°F÷+131°F (-20°C÷+55°C)
Overall dimensions: 2.4”x1.4”x0.51” (61x36x13 mm)
Weight: 0.49 oz. (14 gr.)
1C - Main components
tri-color
LED
Key
holder
ring
Blue
push-button
6 - TROUBLESHOOTING
318LIPW2KC MONARCH
Dark grey
case
Fig. 2
1A - General information
The Community Controls - Monarch 318LIPW2KC transmitter is a 2-
button key chain style mini transmitter operating at 318 MHz. It has
been designed for use with programmable telephone entry, security,
and access control systems operating with a 318 MHz frequency
receiver. The code sent by the transmitter includes a 16 bit security code
which allows up to 65,536 code combinations and 4 bits of facility code
which allows up to 16 facility codes .
The Community Controls - 318R receiver which operates with this
transmitter has a Wiegand 26 bit output and can operate any type of
access control system equipped with the same protocol. The CR 2016
lithium batteries of the transmitter have a shelf life of about 6 months.
The product fully complies with Part 15 of FCC Regulations and the
European Directives 99/5/CE, 2006/95/CE, 2004/108/CE.
Manual
with Patented
TM
ChargeGuard
Circuit
Patent
Pending
Thank you for choosing a Community Controls product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2004 by Community Controls
Community
Controls
![](/img.php?id=2103408&img=bg4.png)
2 - NUMBERING
To access the battery open the case with a screwdriver acting on the slot between
the cover and the bottom and remove the bottom, as shown in fig. 3a and 3b.
Slide out the old batteries and replace them with the new ones [CR2016]
respecting the polarity, with the positive (+) side upward.
NOTE: Please dispose of the batteries properly according to local laws and
regulations. Test proper battery installation by verifying that the LED illuminates
when the button is pushed.
5 - BATTERY ACCESS
3 - PROGRAMMING
Each transmitter is manufactured and sold with a different factory-set serial
number .
The transmitter must be programmed into your system memory.
Your own installer or reseller will provide you the necessary instructions for your
system.
4 - OPERATION
A - Firmly depress the button until the small red LED illuminates.
B - After the LED has illuminated, release the button.
If the device you are attempting to activate does not respond, repeat steps A and B
or consult section 7 ( Troubleshooting ) of this manual.
Fig. 3a
Fig. 3b
6 - BATTERY STATUS
Led GREEN Normal level ~6000 pulses [*] - Normal range
Led ORANGE Attention level Max 300 pulses - Low range[*]
Led RED Low level Replace battery - No range
Led color Battery level TX Status
The warranty period of Community Controls 318 transmitters is 24 months,
beginning from the manufacturing date of the transmitter. During this period, if the
product does operate correctly, due to a defective component, the product will be
repaired or replaced at the sole discretion of Community Controls.
The warranty does not extend to the transmitter case which can be damaged by
conditions outside the control of Community Controls or to battery life.
WARRANTY
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part. 15 of the
Notice
Any changes or modification to equipment not expressly
approved by could void the manufacturer’s warranty.
Community Controls
Community Controls
The system does not receive the
transmitter signal.
The transmitter LED is ON
Check to verify the transmitter is
programmed into your system
PROBLEM SOLUTION
The operating range is reduced Replace the transmitter batteries
7 - TROUBLESHOOTING
[ * ] : Depends on batteries type and operating conditions . Batteries life calculated
with 1-sec pulses.
2500 South 3850 West, Suite A - Salt Lake City, Utah 84120
www.communitycontrols.com - sales@communitycontrols.com
Community Controls - Type : 318LIPW2KC
FCC ID : SU7318LIPW2KC
IS-TM23LCCUK Rev. 0 del 05.03.2013
