Controlled Entry Distributors 418ELPW2KC ENTRY REMOTE CONTROL User Manual CC Monarch2 418ELPW2K
Controlled Entry Distributors, Inc. ENTRY REMOTE CONTROL CC Monarch2 418ELPW2K
User Manual
![](/img.php?id=2107208&img=bg1.png)
Community
Controls
Community Controls product .
© 2013 by Community Controls®.
Community Controls®
The Community Controls®
CONTENTS
1A - General information
1B - Technical specifications
1C - Main components
1 - TRANSMITTER OVERVIEW
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
1B - Technical specifications
Operating frequency 418 MHz
Number of keys: 2
Battery : 2 x 3V lithium batteries CR2016
Battery life: 18 ÷ 24 months
Number combinations : 65,536
Protocol : Elite compatible
Different F acilities codes 256
Operating temperature: -20°F÷+131°F (-20°C÷+55°C)
Overall dimensions: 2.4”x1.4”x0.51” (61x36x13 mm)
Weight: 0.49 oz. (14 gr.)

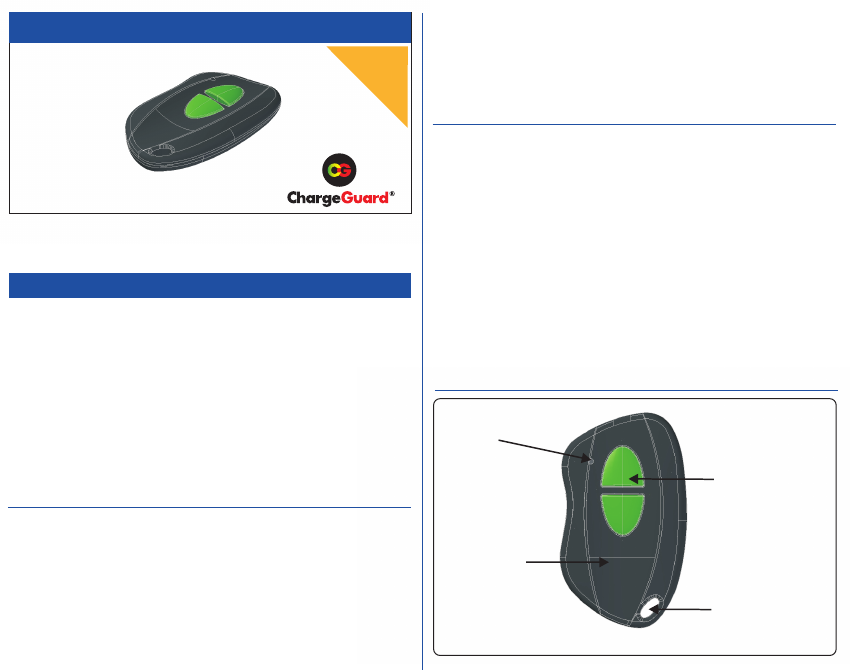

1C - Main components
Red
LED
Key
holder
ring
Green
push-button
6 - TROUBLESHOOTING
Manual
418ELPW2KC MONARCH
Dark grey
case
Fig. 2
1A - General information
The Monarch 418ELPW2KC transmitter is a 2-
key chain style mini transmitter operating at 418 MHz. It has been
designed for use with programmable telephone entry, security, and
access control systems operating with a 418 MHz frequency receiver.
The code sent by the transmitter includes a 16 bit security code which
allows up to 65,536 code combinations and 8 bits of facility code which
allows up to 256 facility codes .
The - 418R receiver which operates with this
transmitter has a Wiegand 26 bit output and can operate any type of
access control system equipped with the same protocol. The CR 2016
lithium batteries of the transmitter have a shelf life of about 6 months.
The product fully complies with Part 15 of FCC Regulations and the
European Directives 99/5/CE, 89/336/CEE, 73/23/CEE.
Thank you for choosing a
Please read this manual carefully before using the product.
Made in Italy. Copyright
Community Controls® product.
with Patented®
ChargeGuard
Circuit
Community
Controls®
![](/img.php?id=2107208&img=bg2.png)
Community Controls®
Community Controls®.
Community Controls®
Community Controls® - T
ype : 418ELPW2KC
COMMUNITY CONTROLS®
2500 South 3850 West, Suite A
Salt Lake City, UT 84120
(800) 284-2837 - (866) 867-3637 Fax
www.communitycontrols.com
2 - NUMBERING 6 - TROUBLESHOOTING
PROBLEM SOLUTION
The operating range is reduced
Check to verify the
transmitter is programmed
into your system
Replace the transmitter
batteries

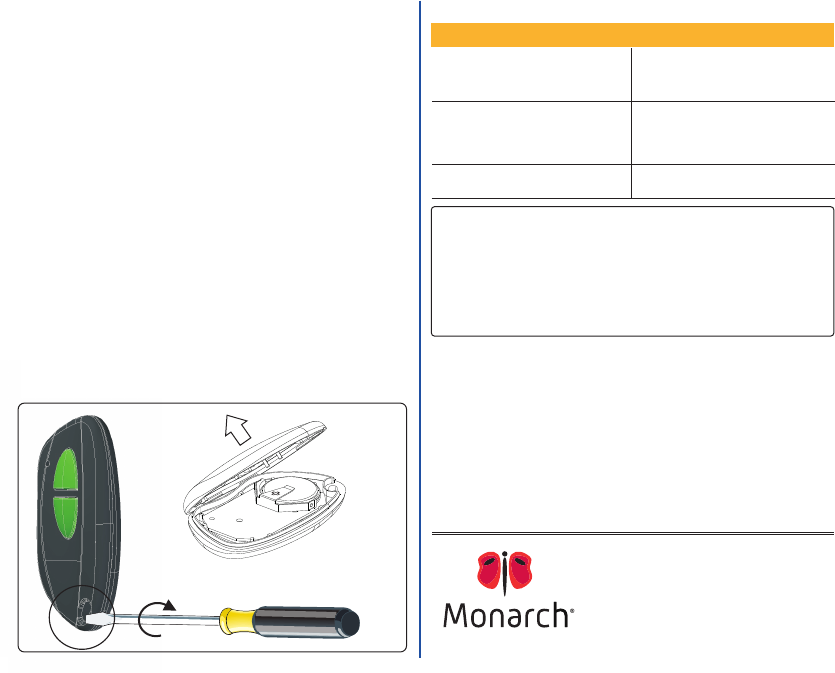

To access the battery open the case with a screwdriver acting on the slot between
the cover and the bottom and remove the bottom, as shown in fig. 3a and 3b.
Slide out the old batteries and replace them with the new ones [CR2016]
respecting the polarity, with the positive (+) side upward.
NOTE: Please dispose of the batteries properly according to local laws and
regulations.
Test proper battery installation by verifying that the red LED illuminates when
the button is pushed.
5 - BATTERY ACCESS
3 - PROGRAMMING
Each transmitter is manufactured and sold with a different factory- set serial
number .
The transmitter must be programmed into your system memory.
Your own installer or reseller will provide you the necessary instructions for your
system.
Replace the transmitter
batteries
The warranty period of 418 transmitters is 24 months,
beginning from the manufacturing date of the transmitter. During this period, if the
product does operate correctly, due to a defective component, the product will be
repaired or replaced at the sole discretion of
The warranty does not extend to the transmitter case which can be damaged by
conditions outside the control of or to battery life.
WARRANTY
FCC ID : SU7418ELPW2KC
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part. 15 of the
Notice
The system does not receiver the
transmitter signal.
The transmitter LED is ON
The system does not receiver the
transmitter signal.
The transmitter LED will not light
4 - OPERATION
A - Firmly depress the button until the small red LED illuminates.
B - After the LED has illuminated, release the button.
If the device you are attempting to activate does not respond, repeat steps A and B
or consult section 6 ( Troubleshooting ) of this manual.
Fig. 3a
Fig. 3b
Any changes or modifications not expressly approved by Community Controls®
could void the user’s authority to operate this equipment.
