User Manual
for the
Cubic Transportation Systems, Inc.
Tri-Reader
®
3
Document Number: 4400-46001
Revision: A.00
Date: December 2, 2008
![](/img.php?id=1347936&img=bg2.png)
December 2, 2008 Tri-Reader 3 User Manual
This document contains proprietary and confidential information originated or owned by Cubic. Neither this document nor the
information disclosed herein shall be reproduced or transferred to other documents or used or disclosed to others for
manufacturing or any other purposes except as specifically authorized in writing by Cubic.
4400-46001.A.0
0
ii
Proprietary Notice
The information disclosed herein contains proprietary rights of Cubic® Transportation Systems, Inc. (Cubic).
Neither this document nor the information disclosed herein shall be reproduced or transferred to other
documents. Nor shall the information be used or disclosed to others for manufacturing or any other purposes
except as specifically authorized in writing by Cubic.
Copyright© 2010 Cubic Corporation. All rights reserved.
TRADEMARKS
Cubic® is a registered trademark of Cubic Corporation.
GO CARD® is a registered trademark of Cubic Transportation Systems, Inc.
Tri-Reader® is a registered trademark of Cubic Transportation Systems, Inc.
Federal Communications Commission Notices
The following Federal Communications Commission (FCC) notices apply:
1. The user is cautioned that changes or modifications to the Tri-Reader that are not expressly approved by
Cubic could void the user's authority to operate this equipment.
2. “NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.”
Cubic Transportation Systems, Inc.
5650 Kearny Mesa Road
San Diego, CA 92111 USA
![](/img.php?id=1347936&img=bg3.png)
4400-46001.A.00 Tri-Reader 3 User Manual
This document contains proprietary and confidential information originated or owned by Cubic. Neither this document nor the
information disclosed herein shall be reproduced or transferred to other documents or used or disclosed to others for
manufacturing or any other purposes except as specifically authorized in writing by Cubic.
December 2, 200
8
iii
REVISION STATUS
Revision Date Description
A.00 02 Dec 08 Initial release
Author Date Program Manager Date
Thomas Busch-Sorensen Brian Monk
Received by Configuration Management Date Technical Editor Date
Elizabeth Gray
![](/img.php?id=1347936&img=bg4.png)
December 2, 2008 Tri-Reader 3 User Manual
This document contains proprietary and confidential information originated or owned by Cubic. Neither this document nor the
information disclosed herein shall be reproduced or transferred to other documents or used or disclosed to others for
manufacturing or any other purposes except as specifically authorized in writing by Cubic.
4400-46001.A.0
0
iv
THIS PAGE INTENTIONALLY BLANK
![](/img.php?id=1347936&img=bg5.png)
4400-46001.A.00 Tri-Reader 3 User Manual
This document contains proprietary and confidential information originated or owned by Cubic. Neither this document nor the
information disclosed herein shall be reproduced or transferred to other documents or used or disclosed to others for
manufacturing or any other purposes except as specifically authorized in writing by Cubic.
December 2, 200
8
v
CONTENTS
1. INTRODUCTION ....................................................................................................................................... 1
1.1 PURPOSE AND SCOPE .................................................................................................................. 1
1.2 OVERVIEW ...................................................................................................................................... 1
1.3 ACRONYMS AND ABBREVIATIONS .............................................................................................. 1
2. TRI-READER COMPONENTS ................................................................................................................. 2
2.1 TRI-READER 3 ANTENNA TYPE .................................................................................................... 2
2.2 TRI-READER 3 INTERFACE TO HOST UNIT ................................................................................. 2
2.3 RF COMMUNICATION ..................................................................................................................... 2
2.3.1 RF Field Strength ............................................................................................................... 3
2.3.2 Modulation Types .............................................................................................................. 3
2.4 TRI-READER 3 PRINTED CIRCUIT BOARD SIZE ......................................................................... 3
2.5 TRI-READER 3 PHYSICAL INTERFACES ...................................................................................... 3
3. NOTICES .................................................................................................................................................. 5
3.1 FEDERAL COMMUNICATIONS COMMISSION NOTICE ............................................................... 5
Figures
Figure 1-1. Tri-Reader 3 Antenna ................................................................................................................. 2
Tables
Table 1-1. J3 Pinouts .................................................................................................................................... 4
Table 1-2. J5 Pinouts .................................................................................................................................... 4
![](/img.php?id=1347936&img=bg6.png)
December 2, 2008 Tri-Reader 3 User Manual
This document contains proprietary and confidential information originated or owned by Cubic. Neither this document nor the
information disclosed herein shall be reproduced or transferred to other documents or used or disclosed to others for
manufacturing or any other purposes except as specifically authorized in writing by Cubic.
4400-46001.A.0
0
vi
THIS PAGE INTENTIONALLY BLANK
![](/img.php?id=1347936&img=bg7.png)
4400-46001.A.00 Tri-Reader 3 User Manual
This document contains proprietary and confidential information originated or owned by Cubic. Neither this document nor the
information disclosed herein shall be reproduced or transferred to other documents or used or disclosed to others for
manufacturing or any other purposes except as specifically authorized in writing by Cubic.
December 2, 200
8
1
1. INTRODUCTION
The Cubic Transportation Systems, Inc. (Cubic) Tri-Reader® 3 serves as the front end for a remote ticketing
device used for automated fare collection (AFC) in public transportation systems (e.g., bus, rail, subway, etc.).
It can be used in ticket validators, ticket vending machines, gates, and other AFC equipment. This equipment
can be on board vehicles or in fixed ground locations. The Tri-Reader 3 will be responsible for direct
communication with a contactless smart card (CSC), which is a type of radio frequency (RF) tag. The design
caters for at least three types of CSC, namely ISO14443 Type A, Type B, and GO CARD®.
1.1 PURPOSE AND SCOPE
This document provides an overview of Cubic’s Tri-Reader 3 operation, including components and required
Federal Communications Commission (FCC) notices.
1.2 OVERVIEW
Interpretation of the information stored on the CSC, as well as the processing of the revenue collection
transaction, will be done by the Tri-Reader 3 itself, based on faretables and hotlists provided by the host
computer.
The firmware on the Tri-Reader 3 is designed to be updated in-system using FLASH-based technology. It will
therefore be possible to cater, within limits, for different CSC types and configurations—if required in the
future.
The communications is as follows:
1. The Tri-Reader 3 will power the CSC through radiation by an induced RF field.
2. By sequencing through the communication protocols for the different cards, it will detect the card
type by checking for the associated response.
3. Once the card type and therefore its communication mechanism is known, the Tri-Reader 3 will
read and write data on the card according to the fare rules in the faretables.
4. The Tri-Reader 3 will pass data to and from the CSC by using the appropriate protocol for
modulation and demodulation of the signal.
1.3 ACRONYMS AND ABBREVIATIONS
AFC automated fare collection
CSC contactless smart card
FCC Federal Communications Commission
hot list A list of smart cards, downloaded to revenue equipment, flagging the cards due to various
types of misuse, loss, or failure to collect. Patron may be notified to replace card or card may
be rejected at device or permanently disabled.
LED light emitting diode
RF radio frequency
RTD remote ticketing device
Vdc Volts, direct current
![](/img.php?id=1347936&img=bg8.png)
December 2, 2008 Tri-Reader 3 User Manual
This document contains proprietary and confidential information originated or owned by Cubic. Neither this document nor the
information disclosed herein shall be reproduced or transferred to other documents or used or disclosed to others for
manufacturing or any other purposes except as specifically authorized in writing by Cubic.
4400-46001.A.0
0
2
2. TRI-READER COMPONENTS
2.1 TRI-READER 3 ANTENNA TYPE
The Tri-Reader 3 is a loop antenna with a diameter of 78 mm.

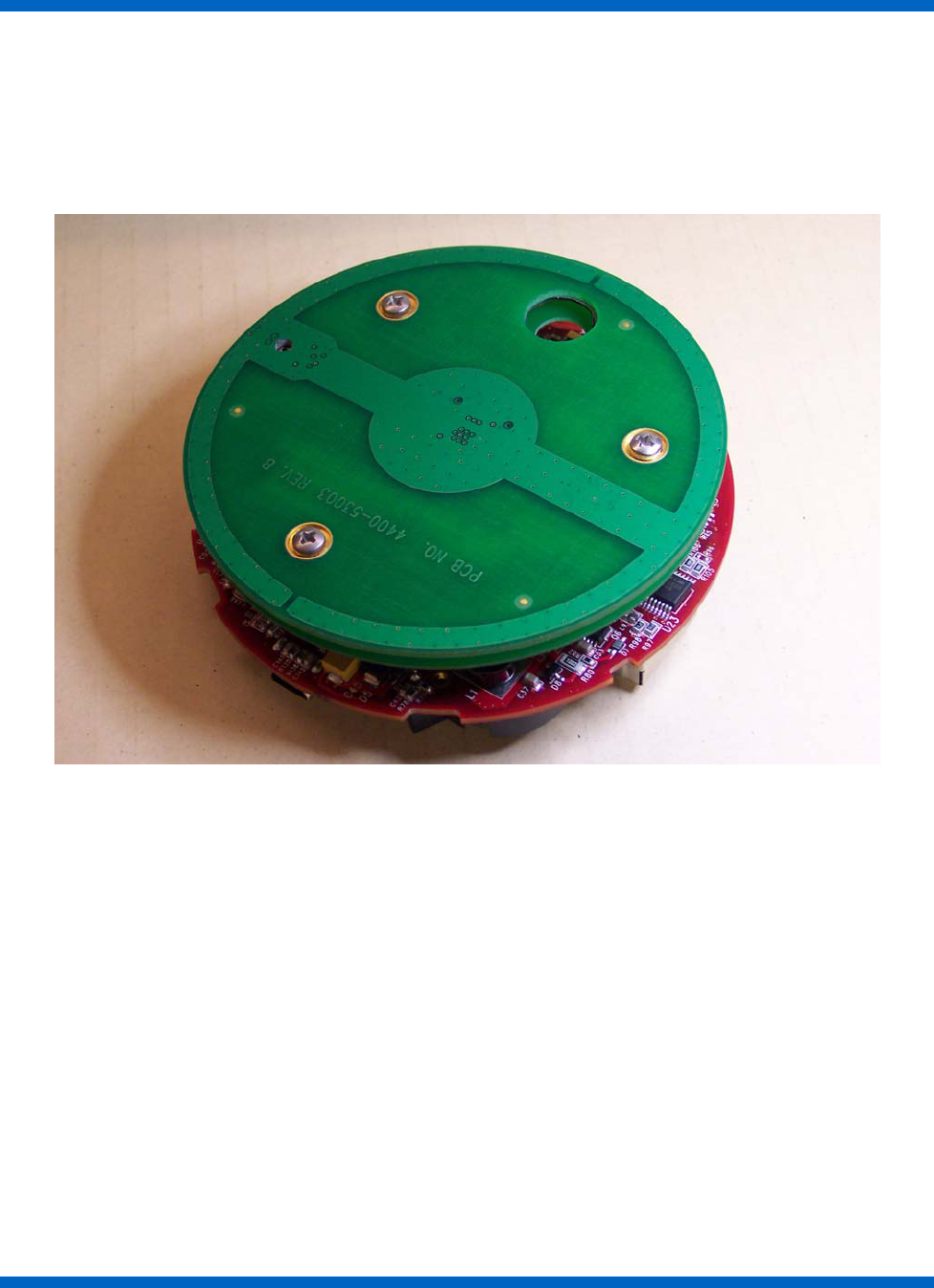

Figure 2-1. Tri-Reader 3 Antenna
2.2 TRI-READER 3 INTERFACE TO HOST UNIT
There will be a one-to-one (RS-422/RS-232) link between the Tri-Reader 3 and the host unit. The Tri-Reader
3 will operate as a single Remote Ticketing Device (RTD). A shielded RJ45 connector connects the Tri-
Reader 3 to the host unit. This link is for the serial data.
2.3 RF COMMUNICATION
All RF communication between the Tri-Reader 3 and the CSC will be accomplished at a carrier frequency of
13.56 MHz according to modulation/demodulation schemes for ISO 14443 Type A, ISO 14443 Type B, and/or
GO CARD requirements. At a minimum, the RF field will be able to power up to three CSCs in close
proximity. The transmitter antenna is tuned to its resonance during production. The modulation/demodulation
scheme will also be automatically selected by the local controller.
![](/img.php?id=1347936&img=bg9.png)
4400-46001.A.00 Tri-Reader 3 User Manual
This document contains proprietary and confidential information originated or owned by Cubic. Neither this document nor the
information disclosed herein shall be reproduced or transferred to other documents or used or disclosed to others for
manufacturing or any other purposes except as specifically authorized in writing by Cubic.
December 2, 200
8
3
2.3.1 RF Field Strength
The magnetic field strength is approximately 9 A/m in the center of the antenna and falls off by the third power
of the distance. The electric field strength is determined by the voltage applied to the coil as well as the
efficiency of the antenna as a radiator. The effective applied voltage is approximately 12 Vrms, but the
antenna is fitted with a balanced shield, reducing the apparent common mode voltage to 0.
2.3.2 Modulation Types
The signals for communication between the Tri-Reader 3 and the CSC will differ between card types. In some
cases, data will be modulated onto a carrier only, while in others a subcarrier will also be present. The
modulation schemes used for communication also differ from one card type to another as described below:
CSC Type A: Reader-to-card, ASK 100% modified miller, 106 kb, 212 kb and 424 kb.
Card-to-reader, ASK - Manchester, load modulation—subcarrier fc/16,
847.5 kHz, 106 kb, 212 kb and 424 kb.
CSC Type B: Reader-to-card, ASK 10% modulation index NRZ, 106 kb. Card-to-reader,
BPSK-NRZ load modulation subcarrier fc/16, 847.5 kHz, 106 kb.
Type GO CARD: Reader-to-card, ASK 8% modulation index NRZ, 115.2 kb. Card-to-reader,
ASK-NRZ load modulation, 115.2 kb.
2.4 TRI-READER 3 PRINTED CIRCUIT BOARD SIZE
The Tri-Reader 3 consists of an 86.5 mm diameter circular digital board, an 82 mm diameter circular analog
controller board and an 83 mm diameter antenna board. Thickness, including components and antenna
board, is 17 mm, except for the RJ45 connector which extends 10 mm above the components on the back of
the board, giving a maximum thickness of 27 mm.
2.5 TRI-READER 3 PHYSICAL INTERFACES
The following physical interfaces apply to the Tri-Reader 3:
1. The Tri-Reader 3 is powered from 8 to 24 Vdc. It can draw a maximum current of 1.5A (at startup)
and dissipates up to 2.8 watts. This can be supplied either via an expansion connector (J8) or it can
be tapped from the host communication cable, in which case it will come in on the RJ45 serial
comms connector (see the pinouts below).
2. The Tri-Reader 3 comms can be set to be either RS-232 or RS-422/485 levels. RS-232 mode is
selected by software.
3. The Tri-Reader 3 has automatic baud rate detection between 9,600 bps and 921,600 bps.
4. If RS-232 is used, only two of the four comms lines on the RJ45 connector are required. Pin 2 on
the RJ45 connector is the Tri-Reader 3 receive line (232Rx) and should be connected to the host
computer Tx output (pin 3 on a normal DB9). Pin 6 on the RJ45 connector is the Tri-Reader 3
transmit (232Tx) line and should be connected to the host computer Rx input (pin 2 on a normal
DB9).
![](/img.php?id=1347936&img=bga.png)
December 2, 2008 Tri-Reader 3 User Manual
This document contains proprietary and confidential information originated or owned by Cubic. Neither this document nor the
information disclosed herein shall be reproduced or transferred to other documents or used or disclosed to others for
manufacturing or any other purposes except as specifically authorized in writing by Cubic.
4400-46001.A.0
0
4
5. If RS-422 or RS-485 is used, 485RxL must be taken to the host transmit low, 485RxH must be
taken to the host transmit high, 485TxL must be taken to the host receive low, and 485TxH must be
taken to the host receive high.
6. The Tri-Reader 3 has an onboard tri-color LED indicator. In addition to this it has a connector (J3)
for interface to external LEDs. Table 2-1 provides the J3 pinouts.
7. The RJ45 communications connector is a shielded type that is mounted in the J5 position. It mates
to any standard RJ45 cable connector. Table 2-2 provides the J5 pinouts.
Table 2-1. J3 Pinouts
Pin Number Name Description
1 V4p65 Supply voltage for external LEDs
2 GND Power supply ground
3 EXTLED0 Open drain output for external LED
4 EXTLED1 Open drain output for external LED
5 EXTLED2 Open drain output for external LED
6 EXTLED3 Open drain output for external LED
7 GND Power supply ground
8 +VBATEXT Connection for external battery
Table 2-2. J5 Pinouts
Pin Number Name Description
1 485RxH Tri-Reader 3 RS-422/RS-485 receive high
2 232Rx_485RxL Tri-Reader 3 RS-232 receive or RS-422/RS-485 receive low
3 485TxH Tri-Reader 3 RS-422/RS-485 transmit high
4 +VINPUT Power supply input (8 to 24 Vdc)
5 GND Power supply ground
6 232Tx_485TxL Tri-Reader 3 RS-232 transmit or RS-422/RS-485 transmit low
7 +VINPUT Power supply input (8 to 24 Vdc)
8 GND Power supply ground
![](/img.php?id=1347936&img=bgb.png)
4400-46001.A.00 Tri-Reader 3 User Manual
This document contains proprietary and confidential information originated or owned by Cubic. Neither this document nor the
information disclosed herein shall be reproduced or transferred to other documents or used or disclosed to others for
manufacturing or any other purposes except as specifically authorized in writing by Cubic.
December 2, 200
8
5
3. NOTICES
3.1 FEDERAL COMMUNICATIONS COMMISSION NOTICE
In addition to the FCC notice on the back of the title page, the following notices apply:
IMPORTANT FCC NOTICE
When the Tri-Reader 3 is installed into a device, such that the FCC ID number on the Tri-Reader 3 is not
visible from the outside of the device, an additional label must be provided. This additional label must be
placed on the outside of the device so as to be visible before installation of the device.
This label must show the following wording:
“Contains FCC ID: LVCTR03”
This must be a permanent label that has a life expectancy at least equal to that of the life of the equipment to
which it is attached. The text must be legible, with good contrast and a minimum of 8 point type size.
This is a mandatory legal requirement of the FCC. Failure to provide such marking invalidates the FCC’s
authorization for operation of the Tri-Reader 3.
![](/img.php?id=1347936&img=bgc.png)
December 2, 2008 Tri-Reader 3 User Manual
This document contains proprietary and confidential information originated or owned by Cubic. Neither this document nor the
information disclosed herein shall be reproduced or transferred to other documents or used or disclosed to others for
manufacturing or any other purposes except as specifically authorized in writing by Cubic.
4400-46001.A.0
0
6
THIS PAGE INTENTIONALLY BLANK
