03.01.01 © ‘2000 deister electronic GmbH Page 1/15
Wiring and Installation Instructions PRM 5
PRM 5
Wiring and
Installation Instructions
V 1.0 12/00
![](/img.php?id=132844&img=bg2.png)
03.01.01 © ‘2000 deister electronic GmbH Page 2/15
Wiring and Installation Instructions PRM 5
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Information to user:
Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment
© Copyright 2000 by deister electronic GmbH
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by
any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of deister electronic
GmbH.
deister electronic GmbH reserves the right to make changes to any and all parts of this documentation without obligation to notify
any person or entity of such changes.
December 2000
deister electronic GmbH
Hermann-Bahlsen-Str. 11 - 13
D-30890 Barsinghausen
Phone: (+49) (0) (51 05) 5 16-01
Fax: (+49) (0) (51 05) 5 16-2 17
E-Mail: info@deister-electronic.de
![](/img.php?id=132844&img=bg3.png)
03.01.01 © ‘2000 deister electronic GmbH Page 3/15
Wiring and Installation Instructions PRM 5
Contents
1 Technical Data
2 Wiring Diagram
2.1 PRM 5 Wiegand 2-wire
2.2 PRM 5 Magstripe Emulation
2.3 PRM 5 RS 232
2.4 PRM 5 RS 485
2.5 Supervised F2F

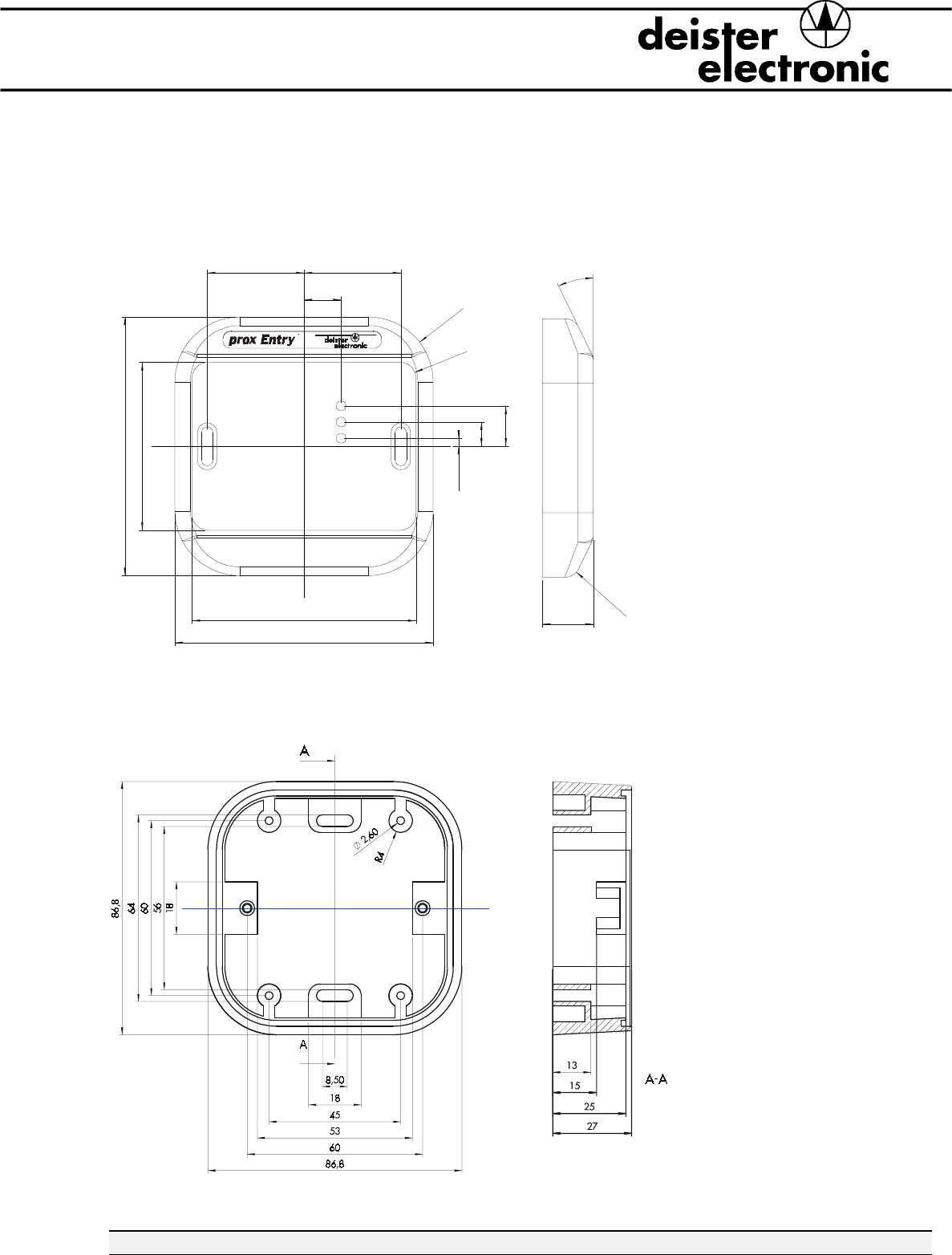

3 Mechanical Dimensions
3.1 PRM 5 Reader
3.2 Surface Spacer AP5
3.3 Flush Mounting Bezel FM5
4 Communications Protocol
4.1 Wiegand Standard
4.2 Data/Clock
4.3 Magstripe Emulation
4.3.1 Magstripe Interface according to ISO 7811/2-1995 - Track 2
4.4 Protocol for PRM 5 with RS 232/RS 485 Interface
(no Partyline protocol)
5 Installation
5.1 PRM 5 Reader
6 Interface
6.1 Indicators
6.2 Magstripe Emulation
6.3 Wiegand/Data/Clock
7 Appendix
7.1 Supervised F2F
![](/img.php?id=132844&img=bg4.png)
03.01.01 © ‘2000 deister electronic GmbH Page 4/15
Wiring and Installation Instructions PRM 5
1 Technical Data
Mounting: 1. Flush mounting in non-metallic surfaces
2. Surface mounting using an AP5 spacer
3. Mounting on single-gang electrical box using fixing plate FM 5
Material: ASA plastic housing; polyurethane encapsulated electronics
Housing dimensions: 80 x 80 x 16 mm
Temperature range: -25...+70 °C
Power supply: 8...30 V DC <100 mA
Electrical protection: Reverse polarity diode protection on power lines;
high-speed transient voltage suppressor diodes on data lines
Protection type: IP 65 (IEC 529)
Frequency: 13.56 MHz
Approvals: CE, EN 300 330 (European post)
Reading distance: Up to 3 cm (depending on installation and transponder type)
Data output mode: 1. One transmission per activity
2. Cyclical transmission
Interface: 1. Wiegand 2-wire (open collector)
2. Data/Clock (open collector)
3. Magstripe emulation (open collector)
4. RS 232
5. RS 485
6. F2F Supervised
Electrical connection: 12 position plug-in strip connector with screw terminals
Beeper: External control
Red LED: External control
Green LED: External control
Yellow LED: Indicates power to the reader
![](/img.php?id=132844&img=bg5.png)
03.01.01 © ‘2000 deister electronic GmbH Page 5/15
Wiring and Installation Instructions PRM 5

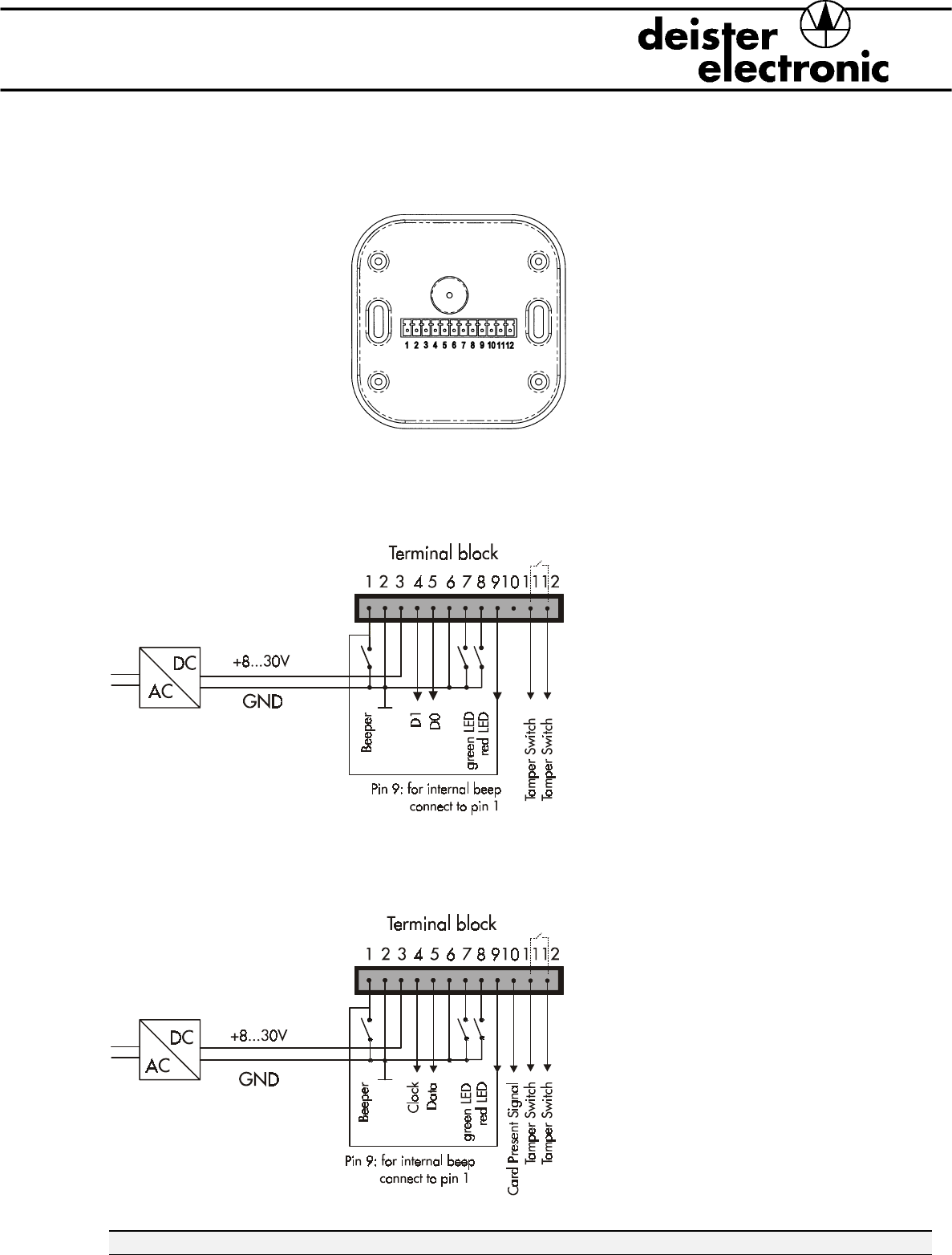

2 Wiring Diagram
Rear view of the reader
2.1 PRM 5 Wiegand 2-wire
2.2 PRM 5 Magstripe Emulation
![](/img.php?id=132844&img=bg6.png)
03.01.01 © ‘2000 deister electronic GmbH Page 6/15
Wiring and Installation Instructions PRM 5

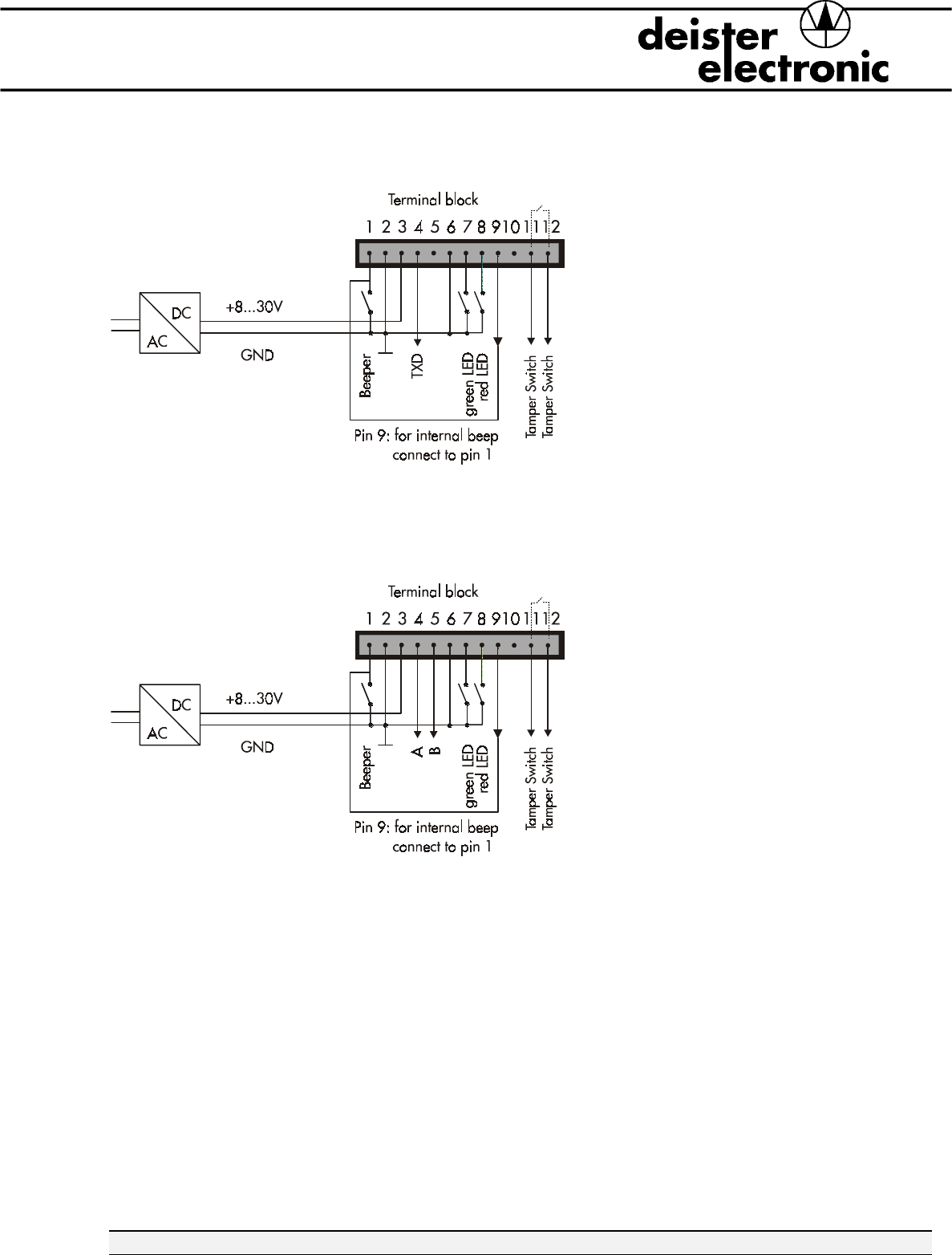

2.3 PRM 5 RS 232
RXD can be connected to Pin 5, but without any function.
2.4 PRM 5 RS 485
![](/img.php?id=132844&img=bg7.png)
03.01.01 © ‘2000 deister electronic GmbH Page 7/15
Wiring and Installation Instructions PRM 5

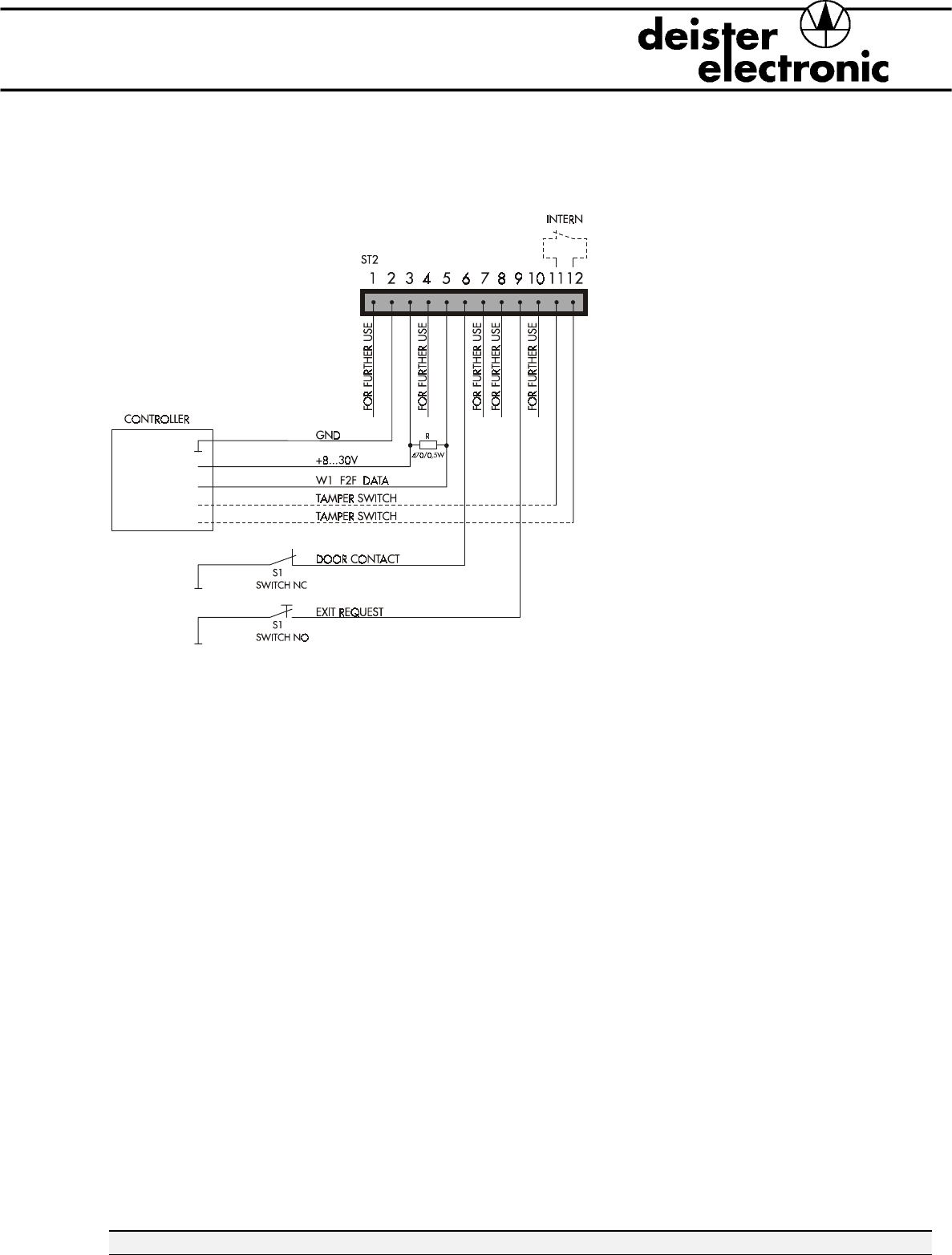

2.5 Supervised F2F
![](/img.php?id=132844&img=bg8.png)
03.01.01 © ‘2000 deister electronic GmbH Page 8/15
Wiring and Installation Instructions PRM 5
3 Mechanical Dimensions
3.1 PRM 5 Reader
R
30 30
11,50
7,50
12,50
2,50
69,50
80
52
80
R5
R20
26°
15,80
R4,75
All dimensions in mm
3.2 Surface Spacer AP5
All dimensions in mm
![](/img.php?id=132844&img=bg9.png)
03.01.01 © ‘2000 deister electronic GmbH Page 9/15
Wiring and Installation Instructions PRM 5

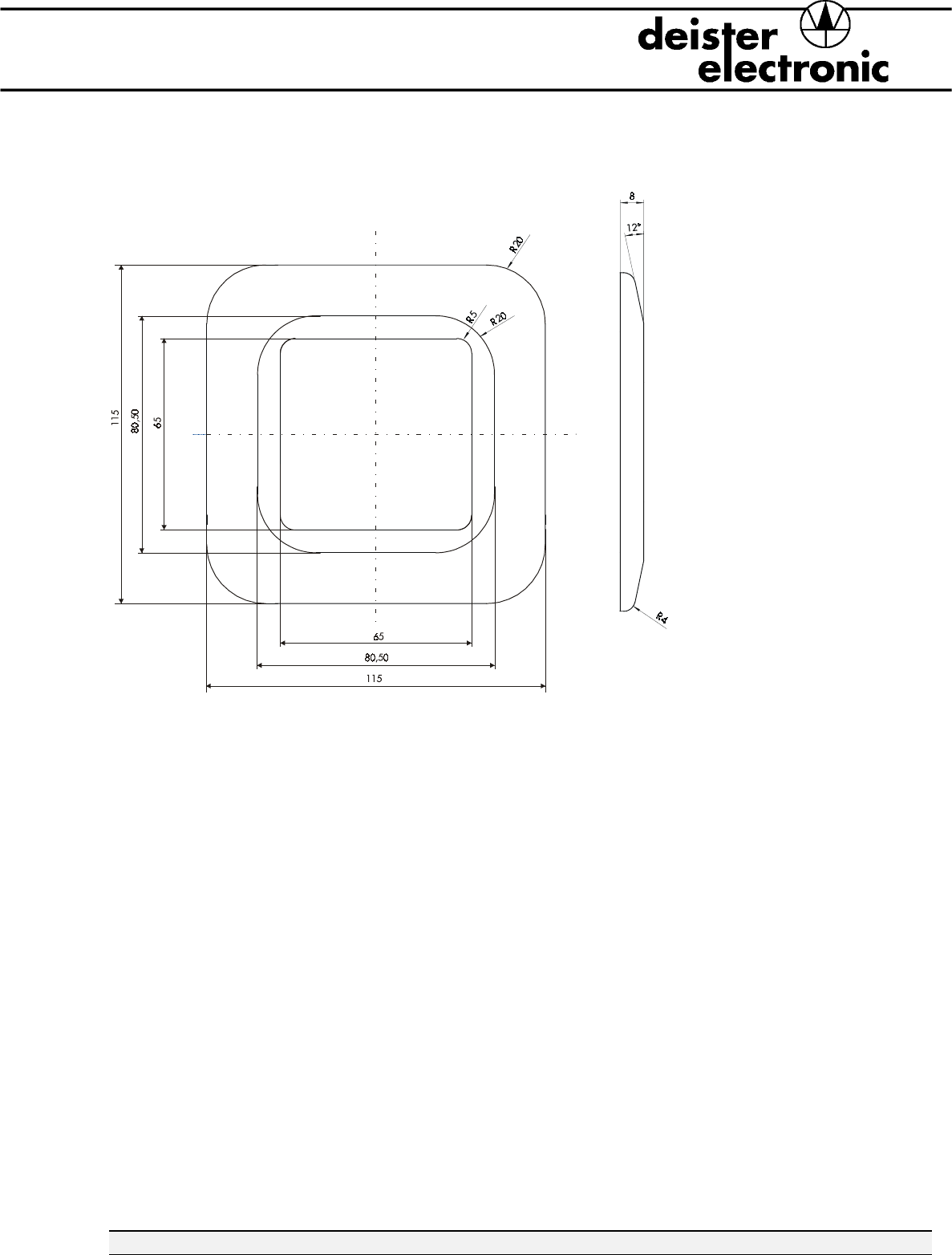

3.3 Flush Mounting Bezel FM5
All dimensions in mm
![](/img.php?id=132844&img=bga.png)
03.01.01 © ‘2000 deister electronic GmbH Page 10/15
Wiring and Installation Instructions PRM 5

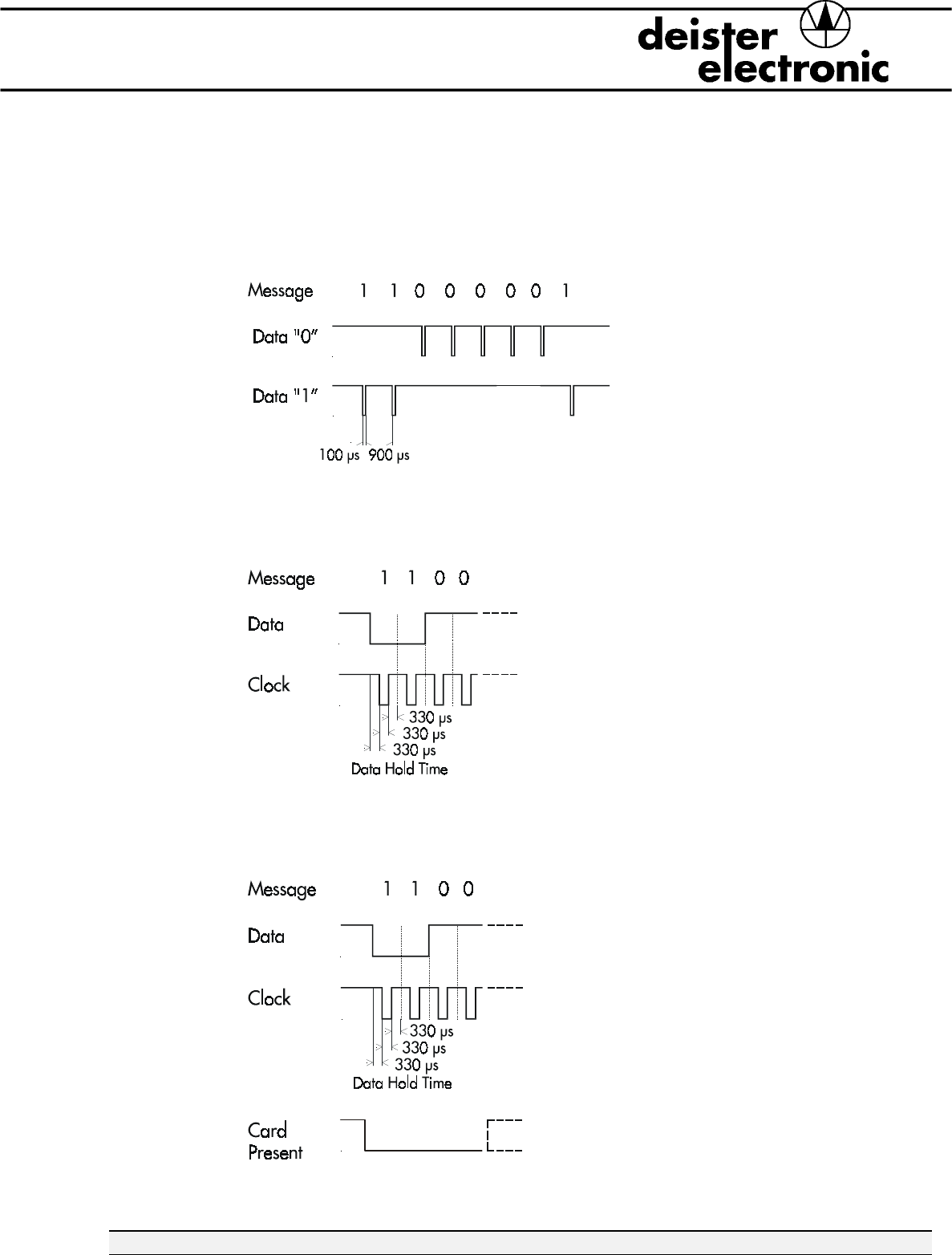

4 Communications Protocol
4.1 Wiegand Standard
4.2 Data/Clock
4.3 Magstripe Emulation
![](/img.php?id=132844&img=bgb.png)
03.01.01 © ‘2000 deister electronic GmbH Page 11/15
Wiring and Installation Instructions PRM 5
4.3.1 Magstripe Interface according to ISO 7811/2-1995 - Track 2
Data Encoding Table
Value Bitpattern Meaning
0 0 0 0 0-1 “0”
1 1 0 0 0-0 “1”
2 0 1 0 0-0 “2”
3 1 1 0 0-1 “3”
4 0 0 1 0-0 “4”
5 1 0 1 0-1 “5”
6 0 1 1 0-1 “6”
7 1 1 1 0-0 “7”
8 0 0 0 1-0 “8”
9 1 0 0 1-1 “9”
10 (Ahex) 0 1 0 1-1 unused character
11 (Bhex) 1 1 0 1-0 start sentinel (start character)
12 (Chex) 0 0 1 1-1 unused character
13 (Dhex) 1 0 1 1-0 field separator
14 (Ehex) 0 1 1 1-0 unused character
15 (Fhex) 1 1 1 1-1 end sentinel (stop character)
The least significant bit of every digit is sent first; the fifth bit is an odd parity bit for each group of 4 data
bits.
The complete message always looks as follows:
left edge - start - data characters - end - LRC - right edge
The LRC is calculated by the following procedure:
Each of the 4 bits in the LRC character is an even parity bit of the equivalent bits in the telegram including
start and stop sentinel; i. e. the first LRC bit is an even parity bit for all the least significant bits in the tele-
gram and the 4th bit of the LRC is the even parity of all the most significant bits.
The fifth bit is the odd parity of the 4 LRC bits (it is not calculated over all the parity bits).
On magstripe cards the space left and right of the information (edge) is filled with an unknown number of
zero bits (this is not a valid character as the parity is invalid). As most terminals need some of the zero bits
(known as ‘‘clocking bits’’ too) and do not care about additional zero bits, deister decided to send 16 zero bits
at the left edge as well as to the right edge.
![](/img.php?id=132844&img=bgc.png)
03.01.01 © ‘2000 deister electronic GmbH Page 12/15
Wiring and Installation Instructions PRM 5
The parity bits, the start and end characters, the LRC and the zero bits at the edge are generated automati-
cally by the reader.
On the one hand, they do not require space in the transponders (therefore we can encode 16 digits for the
user), on the other hand this means that there will be a problem if one of the fields is missing.
Example:
The short information ‘‘86’’ would be transmitted as follows:
0000000000000000-11010-00010-01101-11111-01011-0000000000000000
edge start “8” “6” stop LRC edge
A ‘‘1’’-bit is transmitted as a logic low level; the falling as well as the rising edge of the clock pulse may be
used to clock in data.

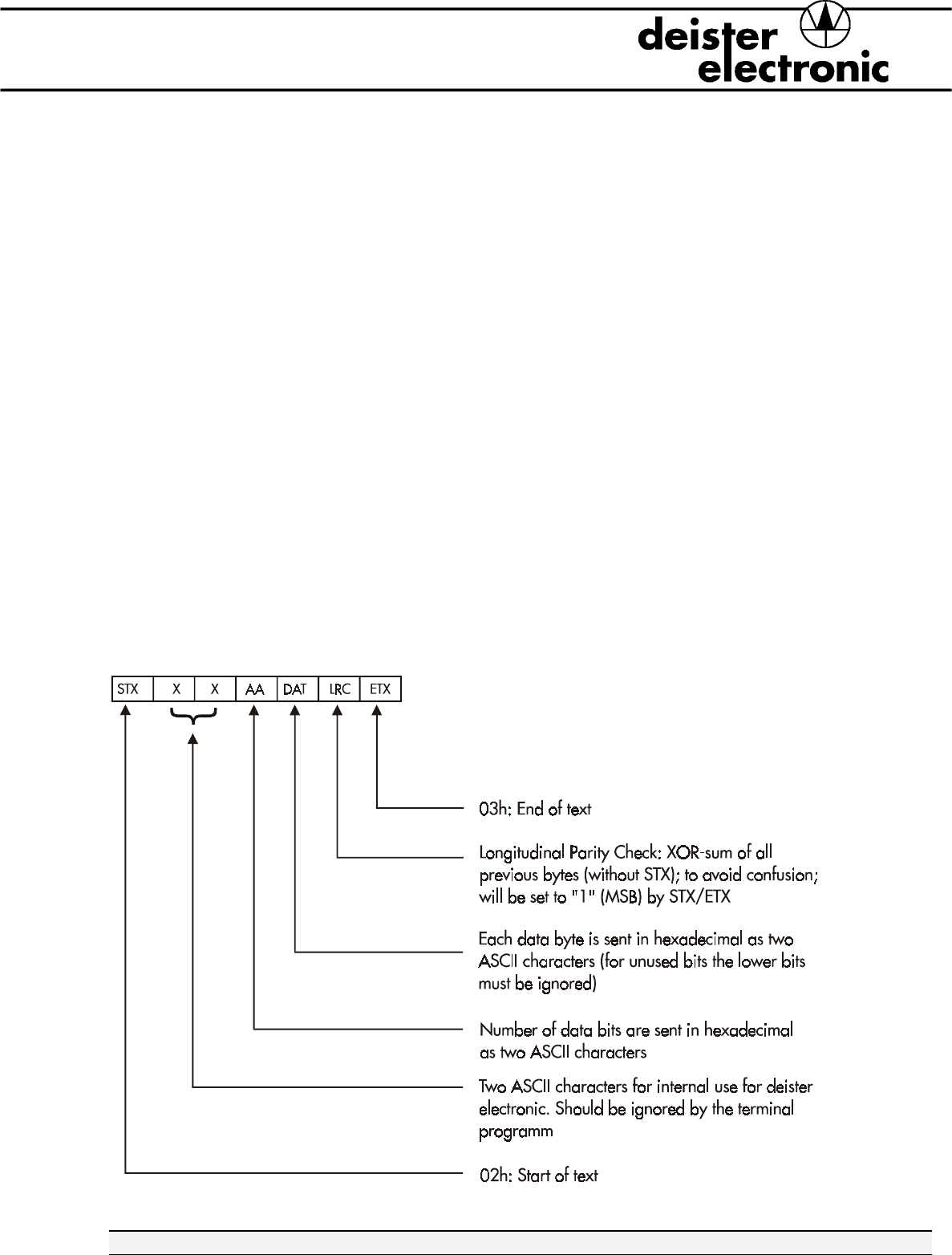

4.4 Protocol for PRM 5 with RS 232/RS 485 Interface
(no Partyline protocol)
The interface is operated using 9600 baud, 8 data bits, 2 stop bits and no parity bit.

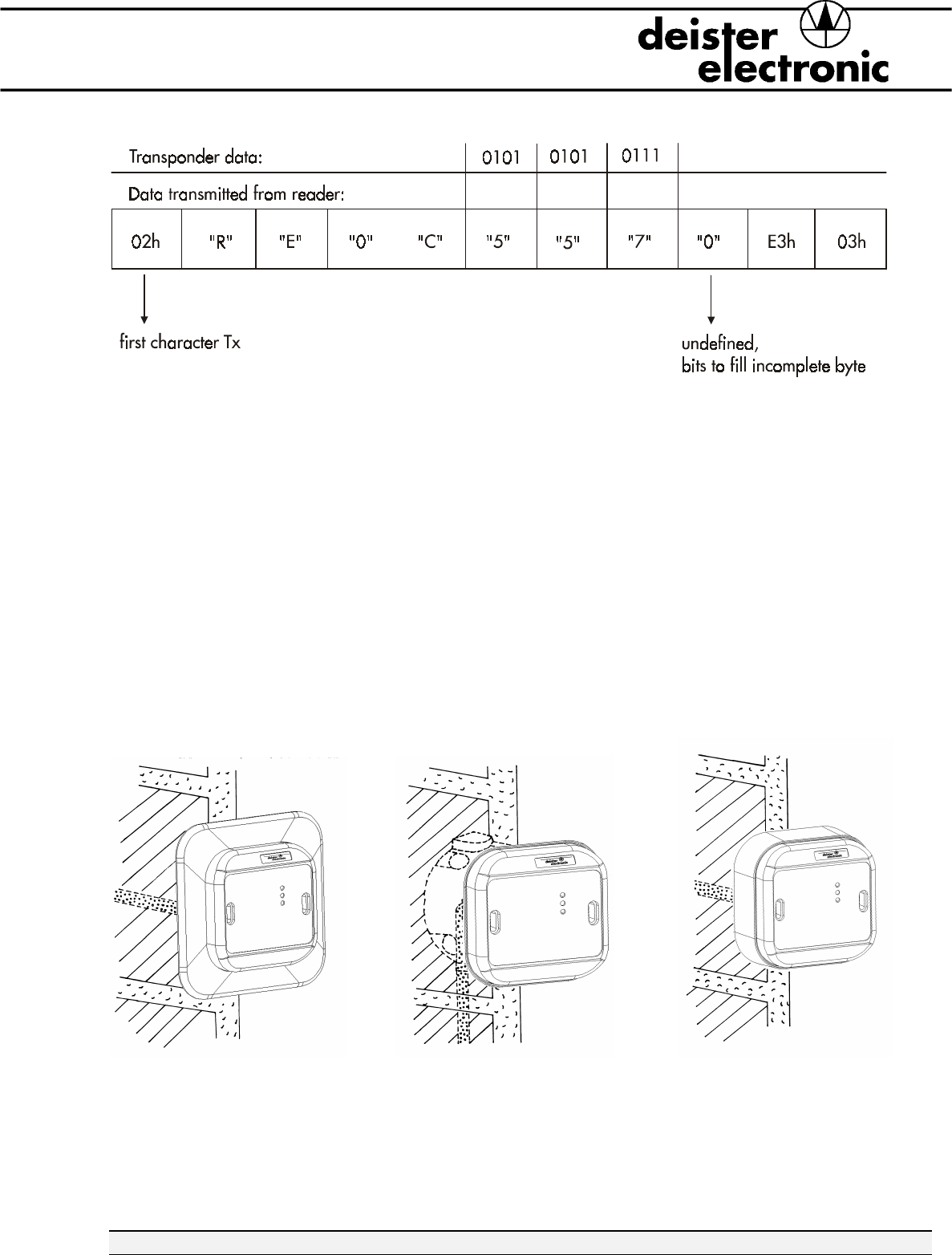

Message Format: Example
![](/img.php?id=132844&img=bgd.png)
03.01.01 © ‘2000 deister electronic GmbH Page 13/15
Wiring and Installation Instructions PRM 5
Calculation of the parity:
LRC = 80h OR [52h Å 45h Å 30h Å 43h Å 35h Å 35h Å 37h Å 30h] = E3h
(‘‘Å’’ means Exlusive-OR)
5 Installation
5.1 PRM 5 Reader
The PRM 5 reader can be surface mounted using an AP 5 spacer, or flush mounted direct to an European
round style back box.
Flush mounted with FM5 bezel Flush mounted directly with a Surface mounted with AP5 spacer
European round back box
![](/img.php?id=132844&img=bge.png)
03.01.01 © ‘2000 deister electronic GmbH Page 14/15
Wiring and Installation Instructions PRM 5
6 Installation

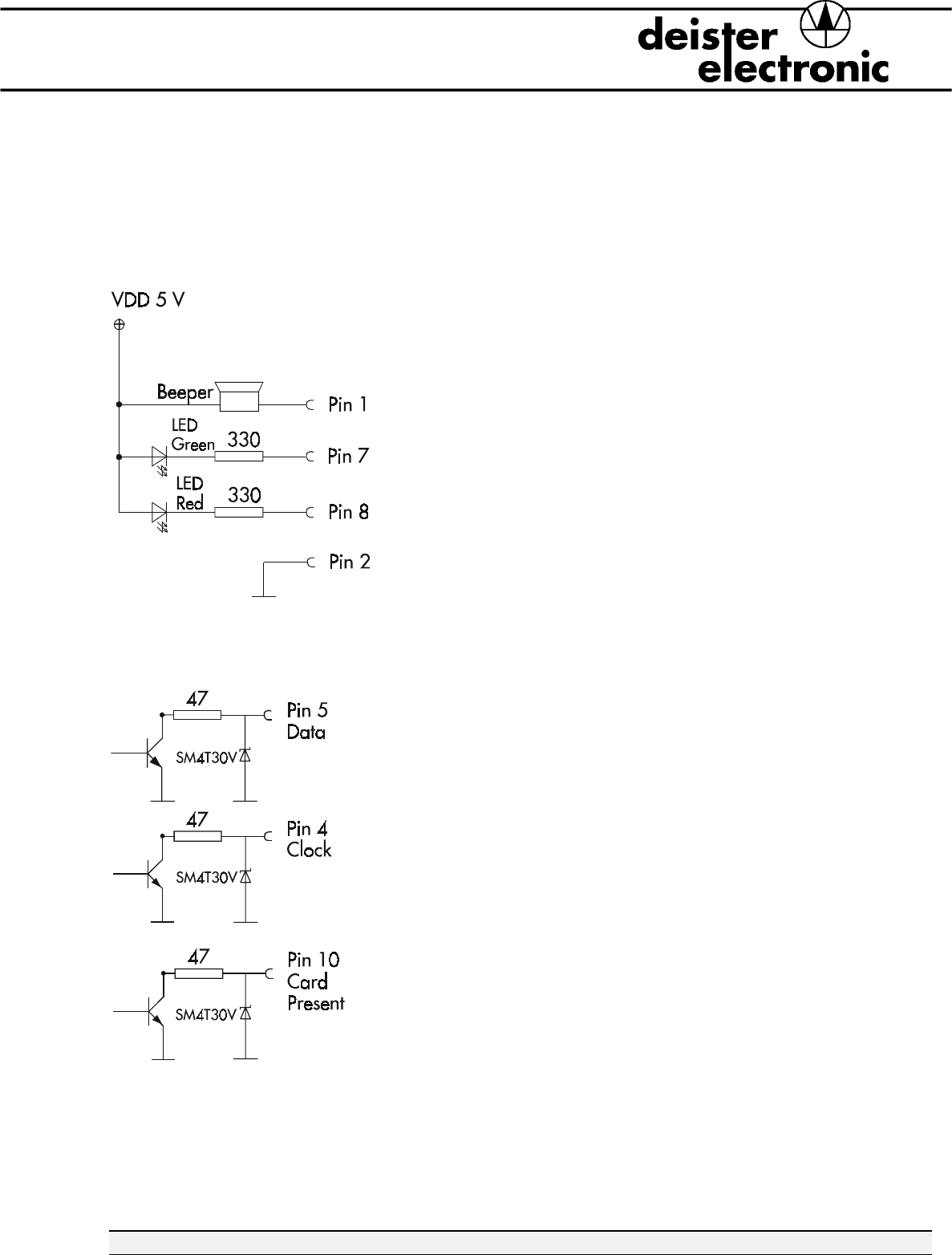

6.1 Indicators
6.2 Magstripe Emulation
Function of LED’s and beeper (except Supervised F2F
protocol):
Yellow LED:
Reader is operational. Momentarily flashes
during the reading of a card.
Green LED, red LED, beeper:
The function of these indicators is dependant on how
they are connected to the controller.
![](/img.php?id=132844&img=bgf.png)
03.01.01 © ‘2000 deister electronic GmbH Page 15/15
Wiring and Installation Instructions PRM 5

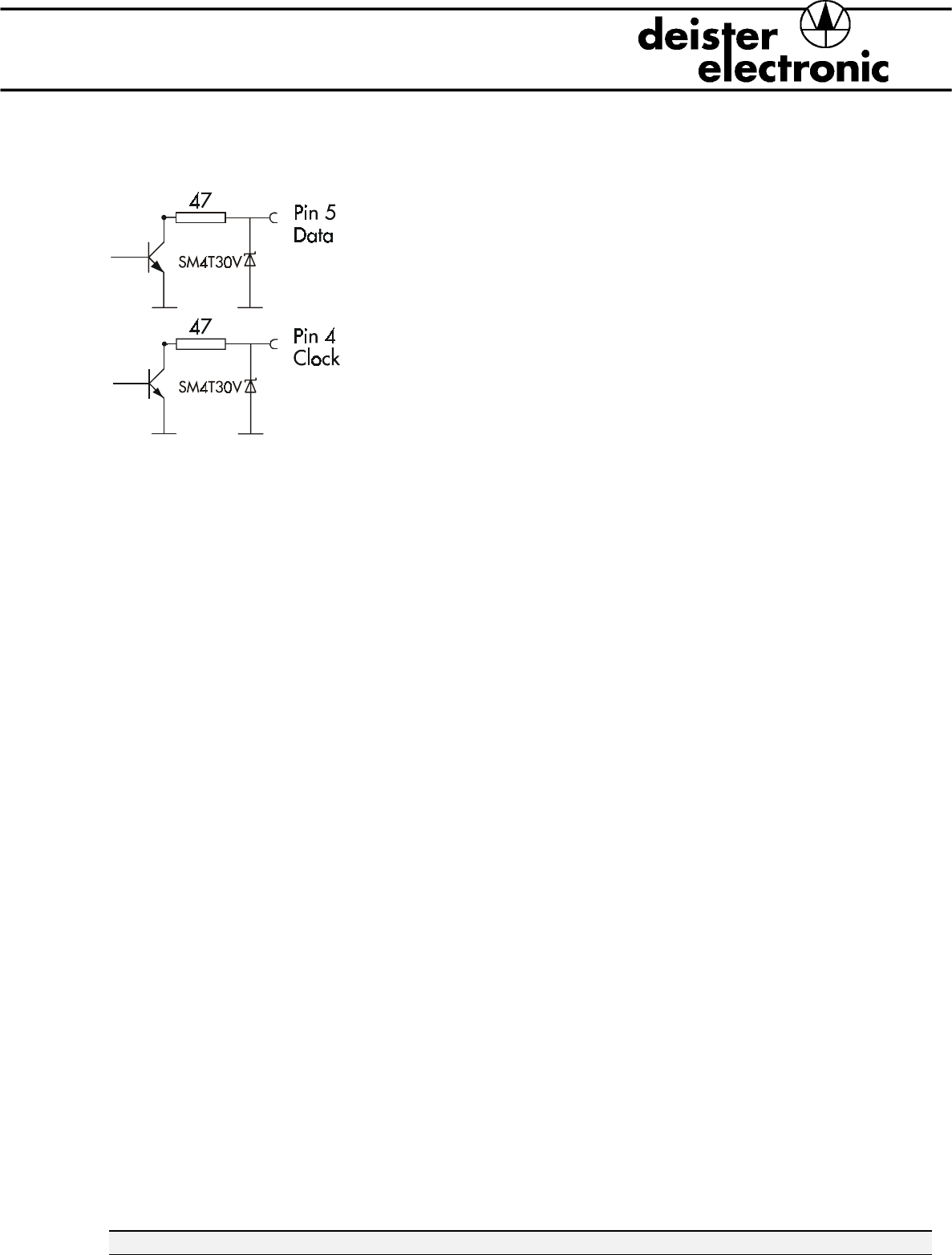

6.3 Wiegand/Data/Clock
)
7 Appendix
7.1 Supervised F2F
It is possible to switch between native and compatible mode using special programming cards.
Note:
For all interfaces except RS 232/485 the pull-ups must be connected to the clock and
data lines.
