Vigor2862 Series
VDSL2 Security Firewall
Quick Start Guide
Version: 1.0
Firmware Version: V3.8.5_RC3a
(For future update, please visit DrayTek web site)
Date: December 28, 2016
![](/img.php?id=3583273&img=bg3.png)
i
Intellectual Property Rights (IPR) Information
Copyrights © All rights reserved. This publication contains information that is protected
by copyright. No part may be reproduced, transmitted, transcribed, stored in
a retrieval system, or translated into any language without written permission
from the copyright holders.
Trademarks The following trademarks are used in this document:
Microsoft is a registered trademark of Microsoft Corp.
Windows, Windows 95, 98, Me, NT, 2000, XP, Vista, 7, 8 and Explorer are
trademarks of Microsoft Corp.
Apple and Mac OS are registered trademarks of Apple Inc.
Other products may be trademarks or registered trademarks of their
respective manufacturers.
Safety Instructions and Approval
Safety
Instructions
Read the installation guide thoroughly before you set up the router.
The router is a complicated electronic unit that may be repaired only be
authorized and qualified personnel. Do not try to open or repair the
router yourself.
Do not place the router in a damp or humid place, e.g. a bathroom.
Do not stack the routers.
The router should be used in a sheltered area, within a temperature
range of +5 to +40 Celsius.
Do not expose the router to direct sunlight or other heat sources. The
housing and electronic components may be damaged by direct sunlight or
heat sources.
Do not deploy the cable for LAN connection outdoor to prevent electronic
shock hazards.
Keep the package out of reach of children.
When you want to dispose of the router, please follow local regulations on
conservation of the environment.
Warranty We warrant to the original end user (purchaser) that the router will be free
from any defects in workmanship or materials for a period of two (2) years
from the date of purchase from the dealer. Please keep your purchase receipt
in a safe place as it serves as proof of date of purchase. During the warranty
period, and upon proof of purchase, should the product have indications of
failure due to faulty workmanship and/or materials, we will, at our discretion,
repair or replace the defective products or components, without charge for
either parts or labor, to whatever extent we deem necessary tore-store the
product to proper operating condition. Any replacement will consist of a new
or re-manufactured functionally equivalent product of equal value, and will
be offered solely at our discretion. This warranty will not apply if the product
is modified, misused, tampered with, damaged by an act of God, or subjected
to abnormal working conditions. The warranty does not cover the bundled or
licensed software of other vendors. Defects which do not significantly affect
the usability of the product will not be covered by the warranty. We reserve
the right to revise the manual and online documentation and to make changes
from time to time in the contents hereof without obligation to notify any
person of such revision or changes.
![](/img.php?id=3583273&img=bg4.png)
ii
European Community Declarations
Manufacturer: DrayTek Corp.
Address: No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu
County, Taiwan 303
Product: Vigor2862 Series
DrayTek Corp. declares that Vigor2862 Series of routers are in compliance with the
following essential requirements and other relevant provisions of RED 2014/53/EC ErP
2009/125/EC and RoHS 2011/65/EU.
The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive
2004/108/EC by complying with the requirements set forth in EN55022/Class B and
EN55024/Class B.
The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EC by
complying with the requirements set forth in EN60950-1.
This product is designed for DSL and 2.4GHz /5GHz WLAN network throughout the EC region.
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device may accept any interference received, including interference that may cause
undesired operation.
Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter.
DrayTek Vigor2862 series VDSL2/ADSL2+ routers are compliant with 47 C.F.R. Part 68.
More update, please visit www.draytek.com.
FCC ID:VGY2862
Contains FCC ID:XMR2016EC25A
![](/img.php?id=3583273&img=bg5.png)
iii
Be a Registered Owner
Web registration is preferred. You can register your Vigor router via http://www.draytek.com.
Firmware & Tools Updates
Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded.
Please consult the DrayTek web site for more information on newest firmware, tools and
documents. http://www.draytek.com
LTE: Band II , Ⅳ , Ⅻ
3G: Band II, V
2.4G WLAN: 2412MHz - 2462 MHz
5G WLAN: Band 1, 4
Operation Frequency
iv
T
Ta
ab
bl
le
e
o
of
f
C
Co
on
nt
te
en
nt
ts
s
1. Introduction........................................................................................................... 1
2. Package Content .................................................................................................. 2
3. Panel Explanation................................................................................................. 3
4. Hardware Installation ........................................................................................... 4
5. Software Configuration ...................................................................................... 5
5.1 Quick Start Wizard for Network Connection............................................................................. 5
6. Customer Service ............................................................................................... 11
![](/img.php?id=3583273&img=bg7.png)
1
1
1.
.I
In
nt
tr
ro
od
du
uc
ct
ti
io
on
n
Vigor2862 series is a VDSL2 router with multi-subnet for secure and efficient
workgroup management. It integrates IP layer QoS, NAT session/bandwidth
management to help users control works well with large bandwidth.
By adopting hardware-based VPN platform and hardware encryption of
AES/DES/3DES, and hardware key hash of SHA-1/MD5, the router increases the
performance of VPN greatly and offers several protocols (such as
IPSec/PPTP/L2TP) with up to 32 VPN tunnels.
The object-based design used in SPI (Stateful Packet Inspection) firewall allows
users to set firewall policy with ease. CSM (Content Security Management)
provides users control and management in IM (Instant Messenger) and P2P (Peer
to Peer) more efficiency than before. In addition, DoS/DDoS prevention and
URL/Web content filter strengthen the security outside and control inside.
Vigor2862 series supports USB interface for connecting USB printer to share
printing function, 3G/4G USB modem for network connection, connectivity for
network FTP service, or thermometer for monitoring the temperature change.
Vigor2862 “B” series can enhance the transmission rate and enlarge the
bandwidth by combining two standard VDSL2 lines, thus it is able to provide low
line prices instead of expensive leased lines. Meanwhile, the speed of existing
connection established for customers can be increased.
![](/img.php?id=3583273&img=bg8.png)
2
2
2.
.P
Pa
ac
ck
ka
ag
ge
e
C
Co
on
nt
te
en
nt
t

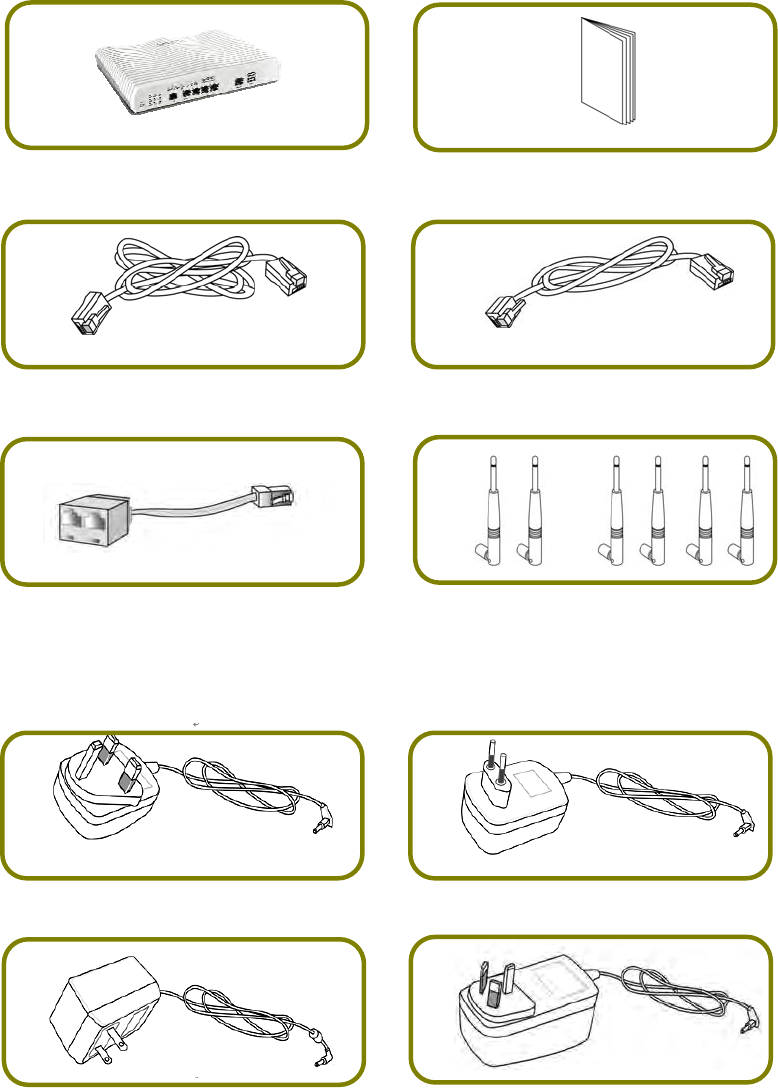

Take a look at the package content. If there is anything missed or damaged,
please contact DrayTek or dealer immediately.
Vigor Router Quick Start Guide
RJ-45 to RJ-45 Cable
(Annex B) RJ-11 to RJ-45 Cable (Annex B)
RJ-11 to RJ-11 Cable (Annex A)
or
Y Cable (B models) Antenna (n or ac models)
The type of the power adapter depends on the country that the router will be
installed. * The maximum power consumption is 30 Watt.
UK-type Power Adapter EU-type Power Adapter
USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter
![](/img.php?id=3583273&img=bg9.png)
3
3.
.P
Pa
an
ne
el
l
E
Ex
xp
pl
la
an
na
at
ti
io
on
n

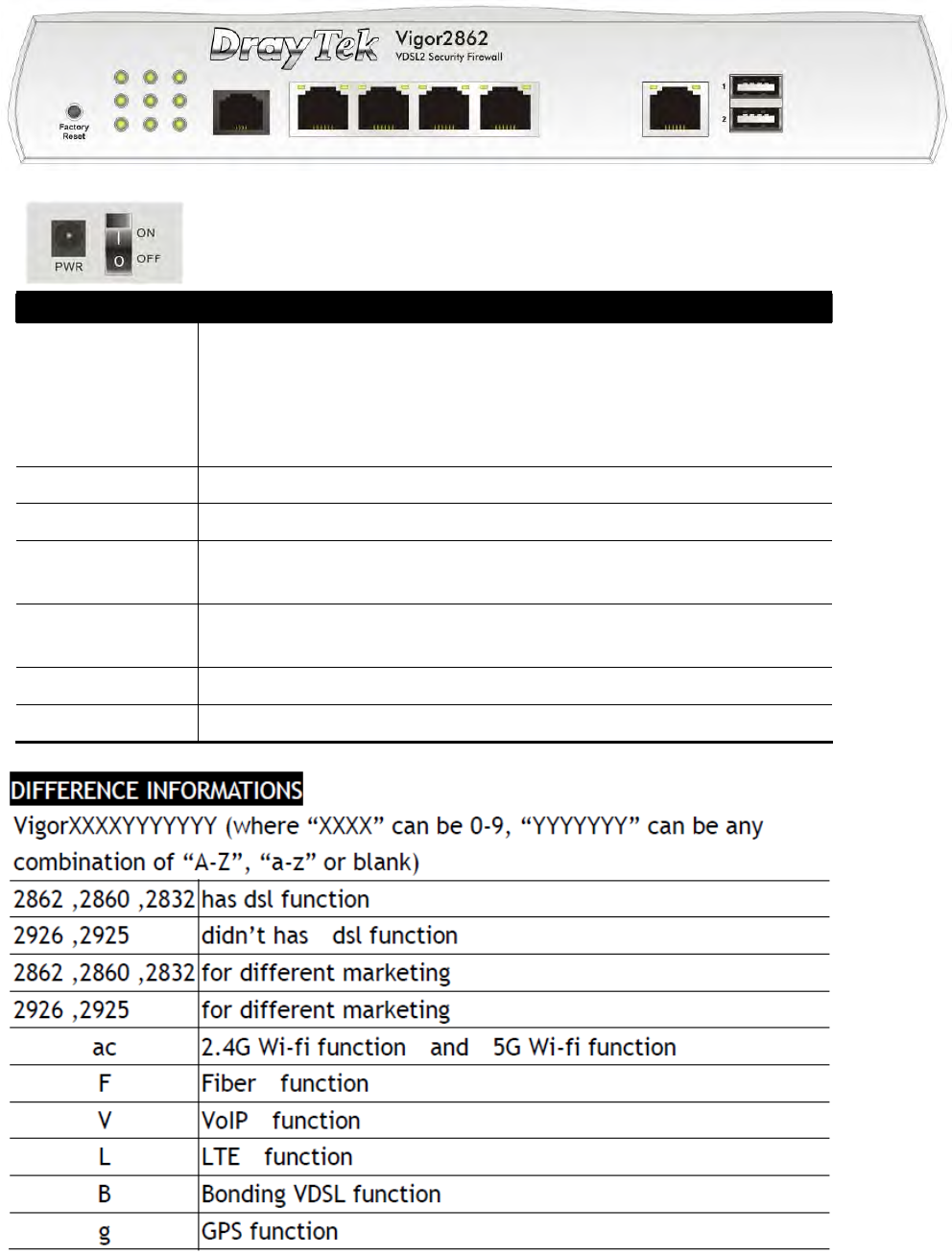

Vigor2862 Series
Switch on Rear Side
Interface Description
Factory Reset Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for more than
5 seconds. When you see the ACT LED begins to blink
rapidly than usual, release the button. Then the router will
restart with the factory default configuration.
DSL Connecter for accessing the Internet.
LAN Connecters for local network devices.
WAN Connecter for local network devices or modem for
accessing Internet.
USB Port Connecter for a USB device (for 3G/4G USB Modem or
printer or thermometer).
PWR Connecter for a power adapter.
ON/OFF Power Switch.
3
![](/img.php?id=3583273&img=bga.png)
4
4
4.
.H
Ha
ar
rd
dw
wa
ar
re
e
I
In
ns
st
ta
al
ll
la
at
ti
io
on
n

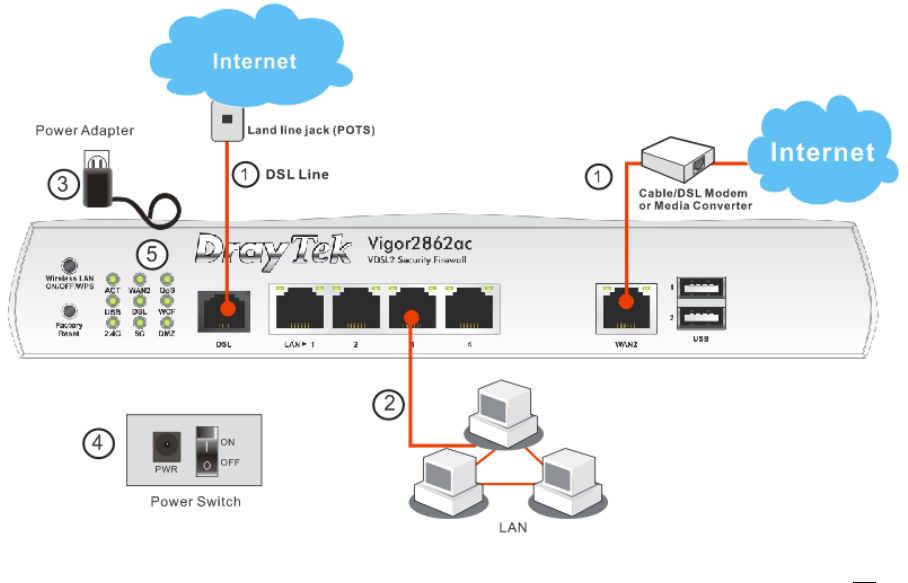

This section will guide you to install the router through hardware connection and
configure the router’s settings through web browser.
Before starting to configure the router, you have to connect your devices
correctly. (For the hardware connection, we take “ac” model as an example.)
1. Connect the DSL interface to the land line jack with a DSL line cable, or
Connect the cable Modem/DSL Modem/Media Converter to the WAN port of
router with Ethernet cable (RJ-45).
2. Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of the
router and the other end of the cable (RJ-45) into the Ethernet port on your
computer.
3. Connect one end of the power adapter to the router’s power port on the
rear panel, and the other side into a wall outlet.
4. Power on the device by pressing down the power switch on the rear panel.
5. The system starts to initiate. After completing the system test, the ACT LED
will light up and start blinking. (For the detailed information of LED status,
please refer to section 3. Panel Explanation)
![](/img.php?id=3583273&img=bgb.png)
5
5
5.
.S
So
of
ft
tw
wa
ar
re
e
C
Co
on
nf
fi
ig
gu
ur
ra
at
ti
io
on
n

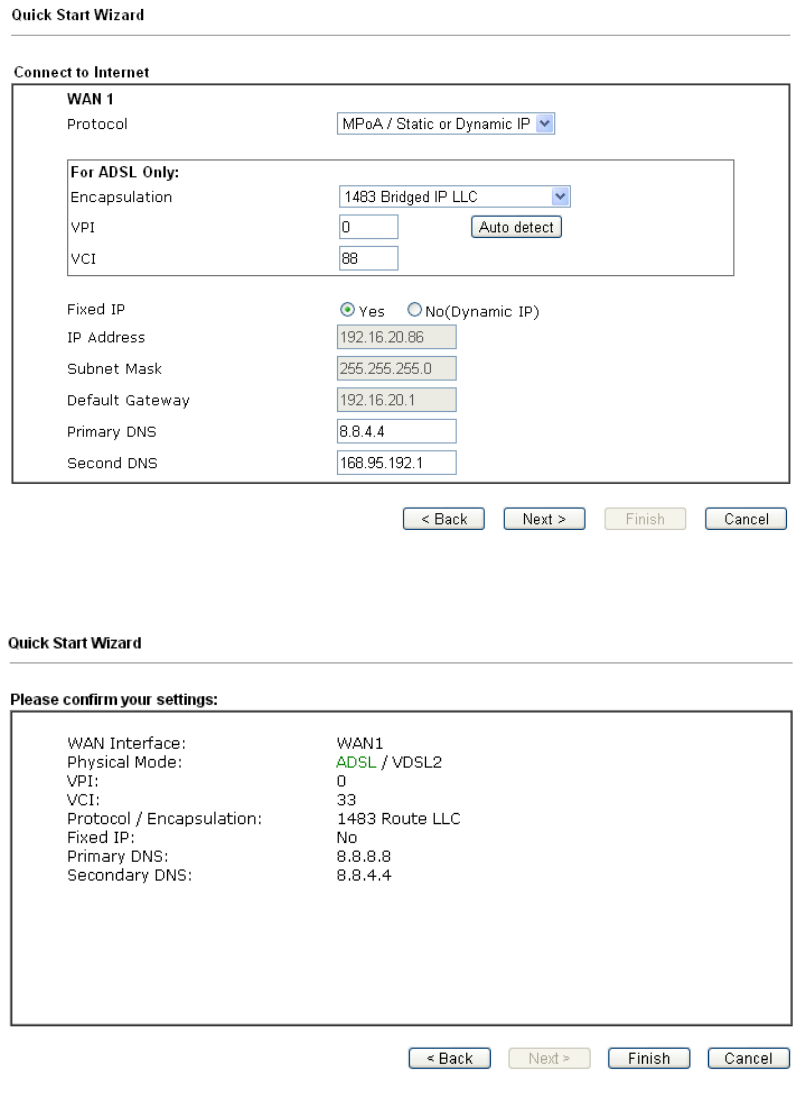

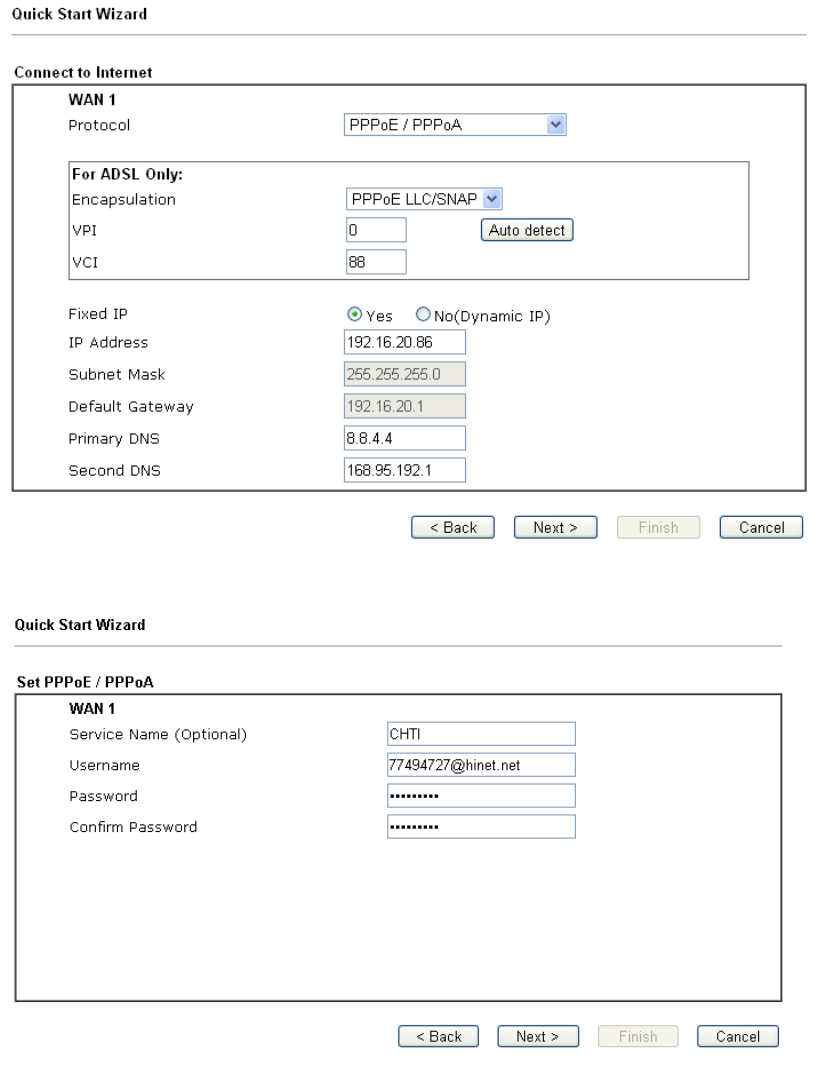

To access Internet, please finish basic configuration after completing the
hardware installation.
5
5.
.1
1
Q
Qu
ui
ic
ck
k
S
St
ta
ar
rt
t
W
Wi
iz
za
ar
rd
d
f
fo
or
r
N
Ne
et
tw
wo
or
rk
k
C
Co
on
nn
ne
ec
ct
ti
io
on
n
The Quick Start Wizard is designed for you to easily set up your router for
Internet access. You can directly access the Quick Start Wizard via Web
Configurator. Make sure your PC connects to the router correctly.
Note You may either simply set up your computer to get IP dynamically from
the router or set up the IP address of the computer to be the same
subnet as the default IP address of Vigor router 192.168.1.1. For the
detailed information, please refer to - Trouble Shooting of the user’s
guide.

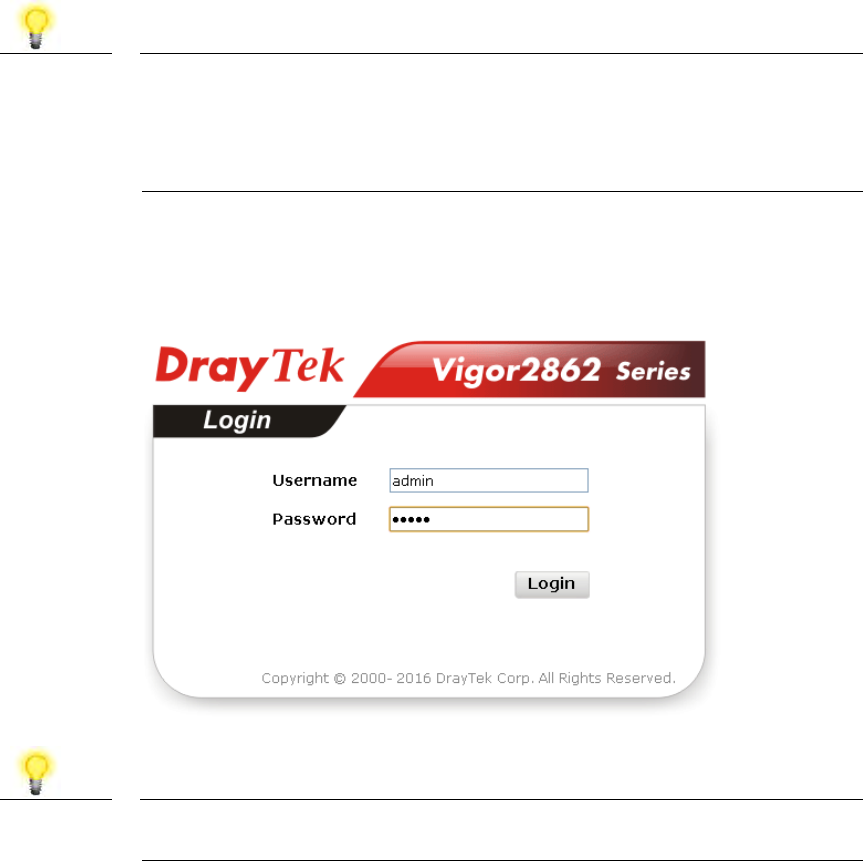

Open a web browser on your PC and type http://192.168.1.1. A pop-up window
will open to ask for username and password. Please type “admin/admin” as the
Username/Password and click Login.
Note If you fail to access to the web configuration, please go to “Trouble
Shooting” on User’s Guide for detecting and solving your problem.
![](/img.php?id=3583273&img=bgc.png)
6
Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard.
Note The home page will change slightly in accordance with the router you
have.
If your router can be under an environment with high speed NAT, the
configuration provide here can help you to deploy and use the router quickly.

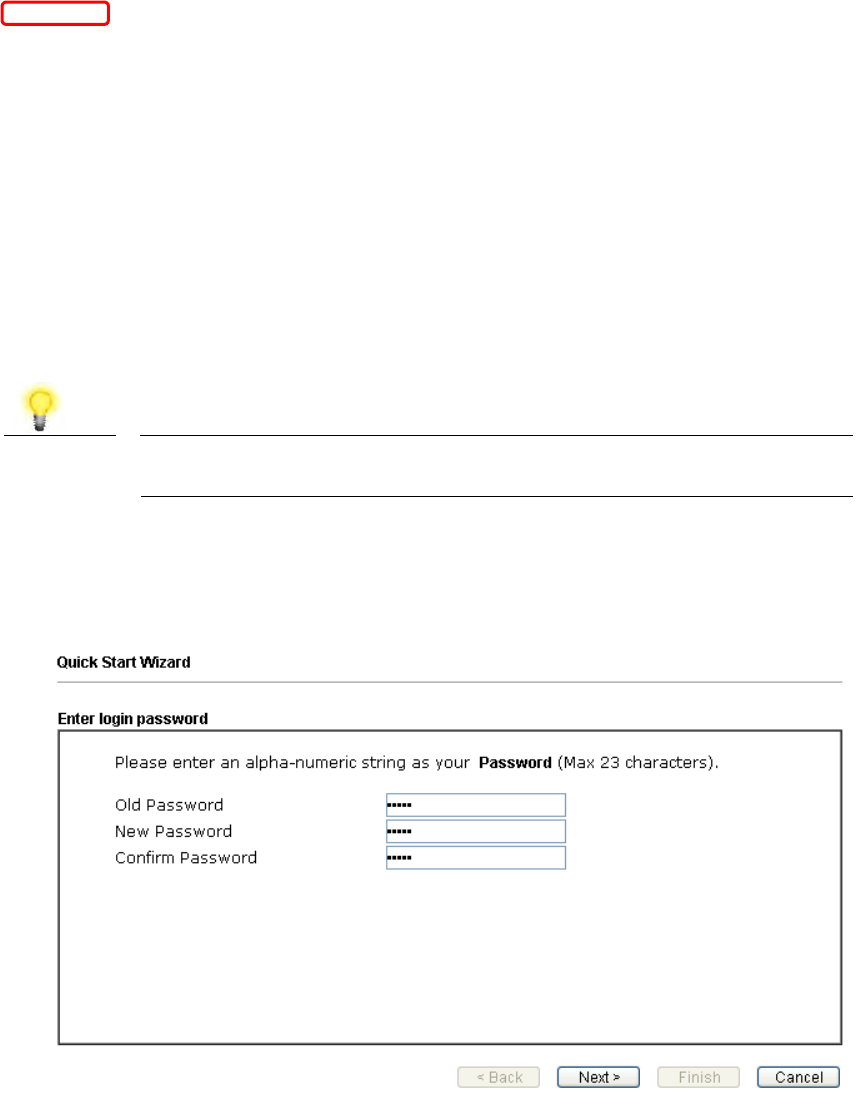

The first screen of Quick Start Wizard is entering login password. After typing
the password, please click Next.

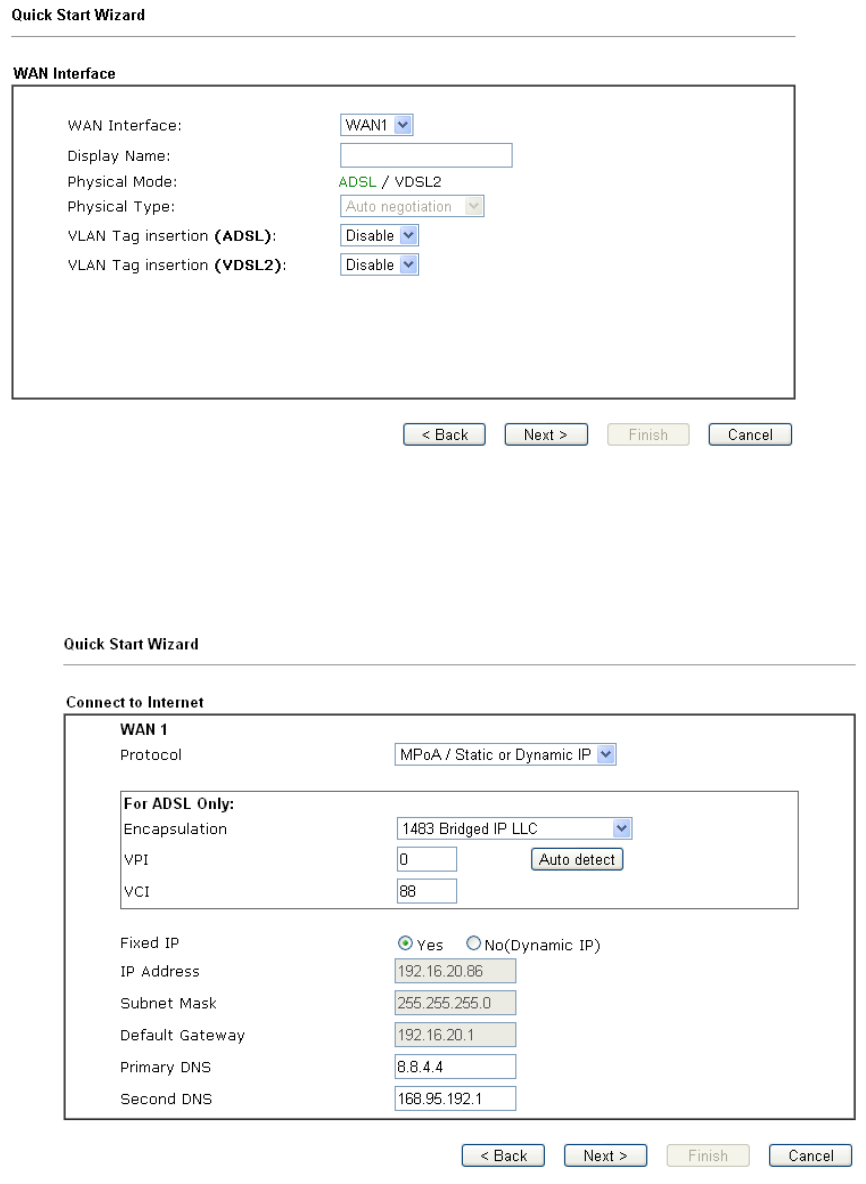

On the next page as shown below, please select the WAN interface that you use.
If DSL interface is used, please choose WAN1; if Ethernet interface is used,
please choose WAN2; if 3G USB modem is used, please choose WAN3 or WAN4.
![](/img.php?id=3583273&img=bgd.png)
7
Then click Next for next step. WAN1, WAN2, WAN3 and WAN4 will bring up
different configuration page. Here, we take WAN1 (ADSL/VDSL2) as an example.
Click Next to go to the following page. You have to select the appropriate
Internet access type according to the information from your ISP. For example,
you should select PPPoE mode if the ISP provides you PPPoE interface. In
addition, the field of For ADSL Only will be available only when ADSL is detected.
Then click Next for next step.
P
PP
PP
Po
oE
E/
/P
PP
PP
Po
oA
A
1. Choose WAN1 as WAN Interface and click the Next button; you will get the
following page.
![](/img.php?id=3583273&img=bge.png)
8
2. After finished the above settings, simply click Next.
3. Please manually enter the Username/Password provided by your ISP. Then
click Next for viewing summary of such connection.
![](/img.php?id=3583273&img=bgf.png)
9
4. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then,
the system status of this protocol will be shown.
5. Now, you can enjoy surfing on the Internet.
![](/img.php?id=3583273&img=bg10.png)
10
M
MP
Po
oA
A
/
/
S
St
ta
at
ti
ic
c
o
or
r
D
Dy
yn
na
am
mi
ic
c
I
IP
P
1. Choose WAN1 as WAN Interface and click the Next button; you will get the
following page.
2. Please type in the IP address/mask/gateway information originally provided
by your ISP. Then click Next for viewing summary of such connection.
3. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then,
the system status of this protocol will be shown.
4. Now, you can enjoy surfing on the Internet.
11
6
6.
.C
Cu
us
st
to
om
me
er
r
S
Se
er
rv
vi
ic
ce
e
If the router cannot work correctly after trying many efforts, please contact your
dealer for further help right away. For any questions, please feel free to send
e-mail to support@draytek.com.
