User’s Manual
TOSHIBA WT110
![](/img.php?id=1455695&img=bg2.png)
TOSHIBA WT110
User’s Manual 2
Table of Contents
Getting Started & Grand Tour
Equipment checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
System Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Grand Tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Basic Operations
Using the Touch Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the touch keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Changing the Screen Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Wireless communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Computer Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Heat dispersal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Utilities & Advanced Usage
Utilities and Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Special features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using TOSHIBA Tablet Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
TOSHIBA DeskBand Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
TOSHIBA Button Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
TOSHIBA Disc Creator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Using the TOSHIBA Sleep Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Using the TOSHIBA Face Recognition . . . . . . . . . . . . . . . . . . . . . . . . . 39
HW Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
TOSHIBA PC Health Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Hardware & Options Operation
Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Optional devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
TOSHIBA Tablet Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Troubleshooting
Problem solving process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Hardware and system checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
TOSHIBA support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
![](/img.php?id=1455695&img=bg3.png)
TOSHIBA WT110
User’s Manual 3
Specifications
Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Wireless information
Wireless LAN Interoperability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Bluetooth wireless technology Interoperability . . . . . . . . . . . . . . . . . 78
CAUTION about Wireless Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Wireless Devices and your health . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Radio Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Device Authorization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Radio approvals for wireless devices . . . . . . . . . . . . . . . . . . . . . . . . . 85
Regulatory information
Copyright. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
AVC/H.264 License Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
FCC information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
CE compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Working environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Additional environments not related to EMC. . . . . . . . . . . . . . . . . . . . 91
REACH - Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Following information is only valid for EU-member States:. . . . . . . . 91
Canadian regulatory information (Canada only) . . . . . . . . . . . . . . . . . 92
Canada – Industry Canada (IC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
![](/img.php?id=1455695&img=bg4.png)
User’s Manual 4
Getting Started & Grand Tour
This chapter provides an equipment checklist, grand tour of your device
and basic information to start using your device.
Equipment checklist
Carefully unpack your computer, taking care to save the box and packaging
materials for future use.
Hardware
Check to make sure you have all the following items:
■TOSHIBA WT110 Tablet
■AC adaptor and power cord (2-pin plug or 3-pin plug)
■Battery pack (installed in the computer)
Documentation
■TOSHIBA WT110 User Information Guide
■Instruction Manual for Safety and Comfort
If any of the items are missing or damaged, contact your dealer
immediately.
Software
The following Windows® operating system and utility software are
preinstalled.
■Windows 7
■TOSHIBA Recovery Media Creator
■TOSHIBA Assist
■TOSHIBA ConfigFree™
■TOSHIBA Disc Creator
■TOSHIBA Face Recognition
■TOSHIBA eco Utility
■TOSHIBA Bulletin Board
Some of the features described in this manual may not function properly if
you use an operating system that was not pre-installed by TOSHIBA.
![](/img.php?id=1455695&img=bg5.png)
User’s Manual 5
Getting Started & Grand Tour
■TOSHIBA ReelTime
■TOSHIBA Media Controller
■Online Manual
■TOSHIBA WT110 User's Manual (This manual)
* You may not have all the softwares listed above depending on the model
you purchased.
Getting Started
This section provides basic information to start using your device. It covers
the following topics:
■Connecting the AC adaptor
■Turning on the power
■Starting up for the first time
■Turning off the power
■Restarting the computer
Connecting the AC adaptor
The AC adaptor can automatically adjust to any voltage ranging from 100 to
240 volts and to a frequency of either 50 or 60 hertz, enabling you to use
this product in almost all country/region. The adaptor converts AC power to
DC power and reduces the voltage supplied to this device.
(Sample Illustration) The AC adaptor (2-pin plug)
■Use a virus-check program and make sure it is updated regularly.
■Never format storage media without checking its content - formatting
destroys all stored data.
■It is a good idea to periodically back up main storage device to external
media. General storage media is not durable or stable over long
periods of time and under certain conditions may result in data loss.
■Before you install a device or application, save any data in memory to
the solid state drive or other storage media. Failure to do so may result
in the loss of data.
![](/img.php?id=1455695&img=bg6.png)
User’s Manual 6
Getting Started & Grand Tour
(Sample Illustration) The AC adaptor (3-pin plug)
Attach the AC adaptor when you need to charge the battery or you want to
operate from AC power. It is also the fastest way to get started, because
the battery pack will need to be charged before you can operate from
battery power.
■Depending on the model, either a 2-pin or 3-pin adaptor/power lead will
be bundled with the device.
■Do not use a 3-pin to 2-pin conversion plug.
■The supplied power cord conforms to safety rules and regulations in
the region the device is bought and should not be used outside of this
region. In order to use the adaptor/device in other regions, you should
please buy a power cord that conforms to the safety rules and
regulations in that particular region.
■Always use the TOSHIBA AC adaptor that was included with your
device, or use AC adaptors specified by TOSHIBA to avoid any risk of
fire or other damage to the device. Use of an incompatible AC adaptor
could cause fire or damage to the device possibly resulting in serious
injury. TOSHIBA assumes no liability for any damage caused by use of
an incompatible adaptor.
■Never plug the AC adaptor into a power source that does not
correspond to both the voltage and the frequency specified on the
regulatory label of the unit. Failure to do so could result in a fire or
electric shock, possibly resulting in serious injury.
■Always use or purchase power cables that comply with the legal
voltage and frequency specifications and requirements in the country of
use. Failure to do so could result in a fire or electric shock, possibly
resulting in serious injury.
■The supplied power cord conforms to safety rules and regulations in
the region the device is bought and should not be used outside this
region. For use in other regions, please buy power cords that conform
to safety rules and regulations in the particular region.
■Do not use a 3-pin to 2-pin conversion plug.
![](/img.php?id=1455695&img=bg7.png)
User’s Manual 7
Getting Started & Grand Tour
1. Connect the power cord to the AC adaptor.
2. Connect the AC adaptor’s DC output plug to the DC IN 19V jack on the
button of the device.
3. Plug the power cord into a live wall outlet - the Power indicator on the
display panel of the device should glow.
Turning on the power
This section describes how to turn on the power - the Power indicator will
then indicate the status.
Press and hold the computer's power button for two or three seconds.

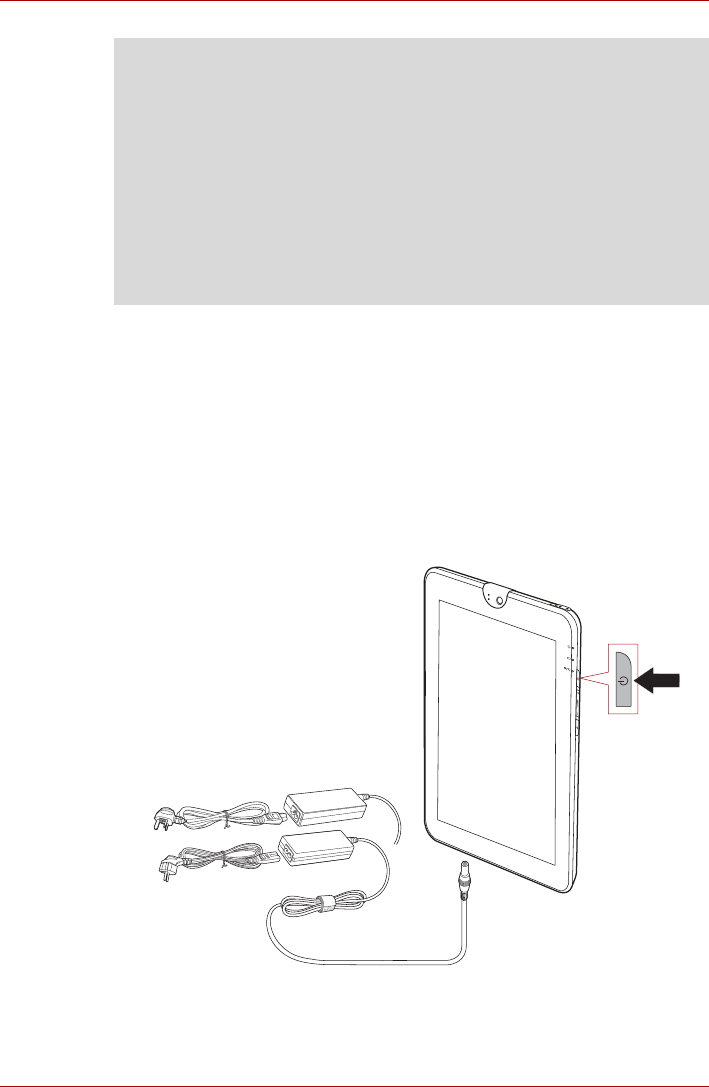

(Sample Illustration) Turn on the device
■When you connect the AC adaptor to the device, always follow the
steps in the exact order as described in the User’s Manual. Connecting
the power cable to a live electrical outlet should be the last step
otherwise the adaptor DC output plug could hold an electrical charge
and cause an electrical shock or minor bodily injury when touched. As
a general safety precaution, avoid touching any metal parts.
■Never place your device or AC adaptor on a wooden surface, furniture,
or any other surface that could be marred by exposure to heat since
the device base and AC adaptor's surface increase in temperature
during normal use.
■Always place your device or AC adaptor on a flat and hard surface that
is resistant to heat damage.
2 PIN
3 PIN
![](/img.php?id=1455695&img=bg8.png)
User’s Manual 8
Getting Started & Grand Tour
Starting up for the first time
The Windows 7 Startup Screen will be the first screen displayed when you
turn on the power. Follow the on-screen instructions on each screen in
order to properly install the operating system.
Turning off the power
The power can be turned off in one of three modes, either Shut Down
Mode, Hibernation Mode or Sleep Mode.
Shut Down Mode
When you turn off the power in Shut Down Mode no data will be saved and
the device will boot to the operating system's main screen the next time it is
turned on.
1. If you have entered data, either save it to flash memory or to other
storage media.
2. Tap Start.
3. Tap the Shut down button ( ).
4. Turn off any peripheral devices connected to your computer.
Sleep Mode
If you have to interrupt your work, you are able to turn off the power without
exiting from your software by placing the computer into Sleep Mode. In this
mode data is maintained in the computer's main memory so that when you
turn on the power again, you can continue working right where you have
left off.
When it is displayed, be sure to read the Software License Terms
carefully.
■Never turn off the power while an application is running. Doing so could
cause loss of data.
■Never turn off the power, disconnect an external storage device or
remove storage media during data read/write. Doing so can cause data
loss.
■In any emergency case, you can also press the power button for about
six seconds to force power off.
Do not turn the device or peripheral devices back on immediately - wait a
short period to avoid any potential damage.
![](/img.php?id=1455695&img=bg9.png)
User’s Manual 9
Getting Started & Grand Tour
Benefits of Sleep Mode
The Sleep Mode feature provides the following benefits:
■Restore the previous working environment more rapidly than the
Hibernation Mode feature does.
■Save power by shutting down the system when the computer receives
no input or hardware access for the time period set by the System
Sleep Mode feature.
■Allow the use of the panel power off feature.
Executing Sleep Mode
You can enter Sleep Mode in one of three ways:
■Tap Start, tap the arrow icon ( ) and then select Sleep
from the menu.
When you have to turn off your computer aboard an aircraft or in places
where electronic devices are regulated or controlled, always completely
shut down the computer. This includes turning off any wireless
communication functionalities, and canceling settings that reactivate the
computer automatically, such as a timer recording function. Failure to
completely shut down the computer in this way could allow the operating
system to reactivate and run pre-programmed tasks or preserve unsaved
data, which could interfere with aviation or other systems, possibly causing
serious injury.
■Before entering Sleep Mode, be sure to save your data.
■Do not install or remove a memory module while the computer is in
Sleep Mode. The computer or the memory module could be damaged.
■Do not remove the battery pack while the computer is in Sleep Mode
(unless the computer is connected to an AC power source). Otherwise,
data in memory could be lost.
■When the AC adaptor is connected, the computer will go into Sleep
Mode according to the settings in the Power Options (to access it, Start
→ Control Panel → System and Security → Power Options).
■To restore the operation of the computer from Sleep Mode, press and
hold the power button or any key on the keyboard for a short amount of
time. Please note that keyboard keys can only be used if the Wake-up
on Keyboard option is enabled within the HW Setup utility.
■If the computer enters Sleep Mode while a network application is
active, the application might not be restored when the computer is next
turned on and the system returns from Sleep Mode.
■To prevent the computer from automatically entering Sleep Mode,
disable Sleep Mode within the Power Options (to access it, Start →
Control Panel → System and Security → Power Options).
■To use the Hybrid Sleep function, configure it in the Power Options.
![](/img.php?id=1455695&img=bga.png)
User’s Manual 10
Getting Started & Grand Tour
■Press the power button. Please note that this feature must be enabled
within the Power Options (to access it, tap Start → Control Panel →
System and Security → Power Options).
When you turn the power back on, you can continue where you have left
when you shut down the computer.
Sleep Mode limitations
Sleep Mode will not function under the following conditions:
■Power is turned back on immediately after shutting down.
■Memory circuits are exposed to static electricity or electrical noise.
Hibernation Mode
The Hibernation Mode feature saves the contents of memory to the solid
state drive when the computer is turned off so that the next time when it is
turned on, the previous state is restored. Please note that the Hibernation
Mode feature does not save the status of any peripheral devices connected
to the computer.
Benefits of Hibernation Mode
The Hibernation Mode feature provides the following benefits:
■Save data to the solid state drive when the computer automatically
shuts down because of a low battery condition.
■You can return to your previous working environment immediately when
you turn on the computer.
■Save power by shutting down the system when the computer receives
no input or hardware access for the time period set by the System
Hibernate feature.
■Allow the use of the panel power off feature.
■When the computer is in Sleep Mode, the power indicator will blink
amber.
■If you are operating the computer on battery power, you can lengthen
the overall operating time by turning it off into Hibernation Mode - Sleep
Mode will consume more power while the computer is off.
■Save your data. While entering Hibernation Mode, the computer saves
the contents of memory to the solid state drive. However, for safety
sake, it is better to save your data manually.
■Data will be lost if you remove the battery or disconnect the AC adaptor
before the save is completed.
■Do not install or remove a memory module while the computer is in
Hibernation Mode. Otherwise, data will be lost.
![](/img.php?id=1455695&img=bgb.png)
User’s Manual 11
Getting Started & Grand Tour
Starting Hibernation Mode
To enter Hibernation Mode, follow the steps below.
1. Tap Start.
2. Tap the arrow icon ( ) and then select Hibernate
from the menu.
Automatic Hibernation Mode
The computer can be configured to enter Hibernation Mode automatically
when you press the power button or close the lid. In order to define these
settings, you can follow the steps as described below:
1. Tap Start and tap the Control Panel.
2. Tap System and Security and tap Power Options.
3. Tap Choose what the power button does or Choose what closing
the lid does.
4. Enable the desired Hibernation Mode settings for When I press the
power button and When I close the lid.
5. Tap the Save changes button.
Data save in Hibernation Mode
When you turn off the power in Hibernation Mode, the computer will take a
moment to save the current data in memory to the solid state drive.
After you turn off the computer, and the content of memory has been saved
to the solid state drive, turn off the power to any peripheral devices.
Restarting the computer
Certain conditions require that you reset the computer, for example if:
■You change certain computer settings.
■An error occurs and the computer does not respond to your keyboard
commands.
If you need to restart the computer, there are three ways that can be
achieved:
■Tap Start, tap the arrow icon ( ) and then select
Restart from the menu.
■Tap the SAS button (once) to display the menu window, then select
Restart from the Shut down options.
■Press the power button and hold it down for five seconds. Once the
computer has turned itself off, wait between ten and fifteen seconds
before turning the power on again by pressing the power button.
Do not turn the computer or devices back on immediately. Wait a moment
to let all capacitors fully discharge.
![](/img.php?id=1455695&img=bgc.png)
User’s Manual 12
Getting Started & Grand Tour
System Recovery
This section describes the creation of Recovery Media and their use.
Creating Recovery Media
This section describes how to create Recovery Media.
A recovery image of the software on your computer is stored on the solid
state drive, and can be copied to either DVD or USB Flash Memory by
using the following steps:
1. Select either blank DVD or USB Flash Memory.
The application will allow you to choose from a variety of different media
onto which the recovery image can be copied including DVD-R, DVD-R
DL, DVD-RW, DVD+R, DVD+R DL, DVD+RW and USB Flash Memory.
2. Turn on your computer and allow it to load the Windows 7 operating
system from the solid state drive as normal.
3. Insert the first blank disc into the external optical disc drive, or Insert the
USB Flash Memory into one available USB port.
4. Double-tap the Recovery Media Creator icon on the Windows 7
desktop, or select the application from Start Menu.
■Be sure to connect the AC adaptor when you create Recovery Media.
■Be sure to close all other software programs except the Recovery
Media Creator.
■Do not run software such as screen savers which can put a heavy load
on the CPU.
■Operate the computer at full power.
■Do not use power-saving features.
■Do not write to the media when the virus check software is running.
Wait for it to finish, then disable virus detection programs including any
software that checks files automatically in the background.
■Do not use utilities, including those intended to enhance solid state drive
access speed. They may cause unstable operation and damage data.
■Do not shut down/log off or Sleep/Hibernate while writing or rewriting
the media.
■Set the computer on a level surface and avoid places subjected to
vibrations such as airplanes, trains, or cars.
■Do not use on an unstable surface such as a stand.
■You can use DVD media when you connected the external ODD.
■Please note that some of the above media may not be compatible with
the external optical disc drive connected into your computer. You
should therefore verify the optical disc drive supports the blank media
you have chosen before proceeding.
■USB Flash Memory will be formatted and all the data in the USB Flash
Memory will be lost when proceeding.
![](/img.php?id=1455695&img=bgd.png)
User’s Manual 13
Getting Started & Grand Tour
5. After Recovery Media Creator starts, select the type of media and the
title you wish to copy, and then tap the Create button.
Restoring the pre-installed software from the Recovery solid state
drive/created Recovery Media
A portion of the total solid state drive space is configured as a hidden
recovery partition. This partition stores files which can be used to restore
pre-installed software in the event of a problem.
If you subsequently set up your solid state drive again, do not change,
delete or add partitions in a manner other than specified in the manual,
otherwise you may find that space for the required software is not available.
In addition, if you use a third-party partitioning program to reconfigure the
partitions on your solid state drive, you may find that it becomes impossible
to setup your computer.
If the pre-installed files are damaged, you are able to either use the
Recovery Media you have created or the solid state drive recovery process
to restore the computer to the state it was in when you originally received it.
To perform this restoration, follow the steps below:
1. Turn off your computer.
2. Turn on your computer - when the TOSHIBA Leading Innovation
>>> logo screen appears, press the Keyboard button to enter TOSHIBA
Setup Manager.
3. Use the Keyboard button (emulating as arrow keys) to select the
appropriate option according to your actual status, and press the Home
button(emulating as ENTER key) to proceed.
4. Follow the on-screen instructions. You can operating by directly
touching the screen now.
When the sound mute feature has been activated, be sure to disable this to
allow sounds to be heard before starting the restore process.
When you reinstall the Windows operating system, the solid state drive will
be reformatted and all data will be lost.
To restore from the Recovery Media, load the recovery disc into the
external ODD or insert the recovery USB Flash Memory into the USB port.
For the buttons location, please refer to Grand Tour.
When drivers/utilities are installed, you can setup the respective
drivers/utilities from the following place. To open the setup files, tap Start
→ All Programs → TOSHIBA → Applications and Drivers.
![](/img.php?id=1455695&img=bge.png)
User’s Manual 14
Getting Started & Grand Tour
Turning the LCD off/on
You can turn the LCD off (while the system is still on) in the following ways:
■Press the power button.
■Set the screen timeout in the Power Options.
To turn the LCD on:
■Press the power button again.
Grand Tour
The following figures show the grand tour of your device.
Please handle your product carefully to avoid scratching or damaging the
surface.
6
411
12
11
21
22
321
7
8
9
15
16
14
13
10
5
20 19 1718
![](/img.php?id=1455695&img=bgf.png)
User’s Manual 15
Getting Started & Grand Tour
*Provided with some models.

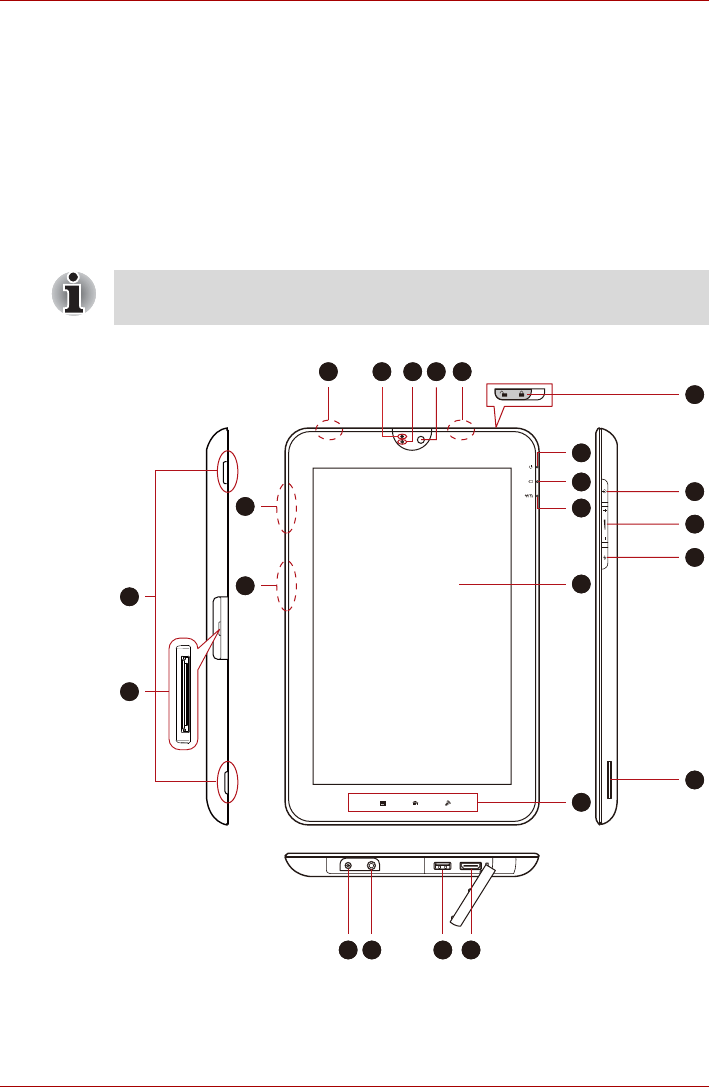

(Sample Illustration) Grand tour of the device
1. Web Camera LED 12. Bluetooth antenna (not shown)*
2. Microphone 13. Power button
3. Web Camera 14. Volume down/up buttons
4. Wireless LAN antennas (not shown)* 15. Orientation lock switch
5. Battery cover lock 16. SD card slot
6. Power indicator 17. HDMI out port
7. Battery indicator 18. Universal Serial Bus (USB) 2.0 port
8. Wi-Fi/3G indicator 19. Headphone/Microphone combo jack
9. Display screen 20. DC IN 19V jack
10. Operation buttons 21. Docking interface
11. 3G antennas (not shown)* 22. Speakers
Web Camera LED The Web Camera LED will glow blue when the
Web Camera is in operation.
Microphone A built-in microphone allows you to import and
record sounds for your application.
Web Camera (front) Web Camera (front) is a device that allows you
to record video or take photographs with your
product.
Wireless LAN
antennas
Some models are equipped with Wireless LAN
antennas.

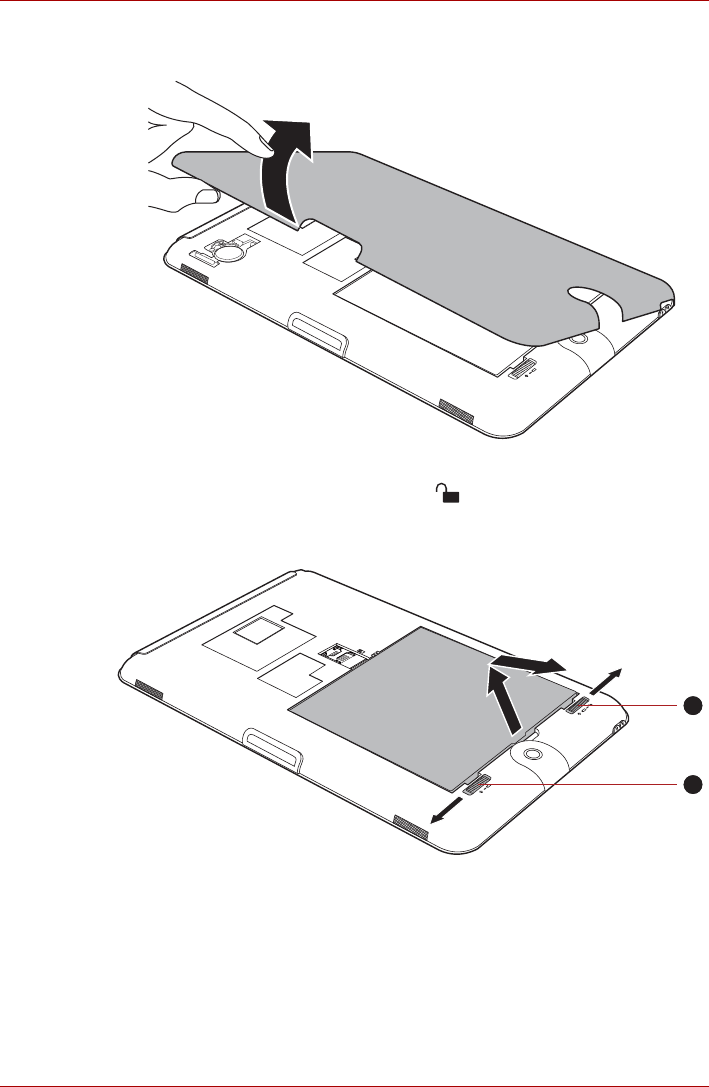

Battery cover lock Slide this lock to the unlock ( ) position in
order to remove the battery cover.
Power indicator The Power indicator normally glows white when
the computer is turned on. However, if you turn
the computer off into Sleep Mode, this indicator
will flash white - approximately two second on,
two seconds off - both while the system is
shutting down and while it remains turned off.
Battery indicator The Battery indicator shows the status of the DC
IN and battery's charge - white indicates the
battery is fully charged while the power is being
correctly supplied from the AC power adaptor.
For details, please refer to Power conditions
section.
Wi-Fi/3G indicator This indicator glows amber when the
communication function is used.
![](/img.php?id=1455695&img=bg10.png)
User’s Manual 16
Getting Started & Grand Tour
Display screen 29.5 cm (11.6”) LCD screen, 16 million colors, is
configured with the following resolution
depending on the model you have purchased:
■HD, 1366 horizontal x 768 vertical pixels
Please be aware that, when the computer is
operating on the AC adaptor, the image
displayed on the internal screen will be
somewhat brighter than when it operates on
battery power. This difference in brightness
levels is intended to save power when operating
on batteries.
Operation buttons There are three operation buttons provided on
the display panel:
Keyboard button ( ) This button functions
differently depending on the number of the times
you press it.
Press once: To open or close touch keyboard.
Press twice quickly: To open or close writing pad.
Home button ( ) This button functions
differently depending on the number of the times
you press it.
Press once: To show Media Consumption.
Press twice quickly: To launch TOSHIBA Flash
Cards.
Press and hold: To hide Media Consumption.
SAS button ( ) The function of this button is
equivalent to pressing Ctrl + Alt + Del on a
standard computer.
3G antennas Some models are equipped with the 3G
antennas.
Bluetooth antenna Some models are equipped with a Bluetooth
antenna.
Power button Press this button to turn the device's power on
and off.
Volume down/up
buttons
Press these buttons to increase or decrease the
volume.
![](/img.php?id=1455695&img=bg11.png)
User’s Manual 17
Getting Started & Grand Tour
Orientation lock switch
Slide this switch to lock/unlock automatic rotation
of the screen orientation.
SD card slot This slot lets you insert an SD™/SDHC™/SDXC™
memory card and miniSD™/microSD™ Card.
Please refer to the SD card slot section in
"Hardware & Options Operation" chapter for
details.
Keep foreign metal objects, such as screws, staples and paper clips, out of
the SD card slot. Foreign metal objects can create a short circuit, which
can cause damage and fire, possibly resulting in serious injury.
HDMI out port HDMI out port can connect with Type A
connector HDMI cable.
You can send video and audio signals via HDMI
cable. In addition to this, you can send and
receive control signals via it.
Please refer to the HDMI device section in
"Hardware & Options Operation" chapter for
details.
Universal Serial Bus
(USB 2.0) port
One Universal Serial Bus port, which complies to
the USB 2.0 standard, is provided. The port with
the icon ( ) has Sleep and Charge function.
Please refer to the USB device section in
"Hardware & Options Operation" chapter for
details.
Keep foreign metal objects, such as screws, staples and paper clips, out of
the USB port. Foreign metal objects can create a short circuit, which can
cause damage and fire, possibly resulting in serious injury.
Please note that it is not possible to confirm the operation of all functions of
all USB devices that are available. In view of this it may be noted that some
functions associated with a specific device might not operate properly.
![](/img.php?id=1455695&img=bg12.png)
User’s Manual 18
Getting Started & Grand Tour
Headphone/
Microphone combo
jack
A 3.5 mm mini headphone/microphone combo
jack enables connection of a monaural
microphone or a stereo headphone.
Both the internal and external microphones will be disabled if you use a
headset other than a 4-pin headset headphone.
DC IN 19V jack The AC adaptor connects to this jack in order to
power the device and charge its internal
batteries. Please note that you should only use
the model of AC adaptor supplied with the device
at the time of purchase - using the wrong AC
adaptor can cause damage to the device.
Docking interface The interface enables the connection of an
optional dock described in Hardware & Options
Operation chapter.
Speakers The speakers emit sound generated by your
software as well as audio alarms, such as low
battery condition, generated by the system.
![](/img.php?id=1455695&img=bg13.png)
User’s Manual 19
Getting Started & Grand Tour
Power conditions
The device's operating capability and battery charge status are affected by
different power conditions, including whether an AC adaptor is connected,
whether a battery pack is installed and what the charge level is for that
battery.
The LED in the table below refers to the Battery indicator.
Power on
Power off
(no operation)
AC
adaptor
not
connected
Battery fully
charged
• Operate
• No charge
• White
• No charge
• LED: Off
Battery partially
charged or no
charge
• Operate
• Charge
• Amber
• Operate
• Quick charge
• LED: Off
No battery
installed • LED: Off • LED: Off
AC
adaptor
connected
Battery fully
charged
• Operate
• LED: Off
Battery partially
charged or no
charge
• Operate
• LED: Amber
No battery
installed
• No operation
• LED: Off
![](/img.php?id=1455695&img=bg14.png)
User’s Manual 20
Basic Operations
This chapter describes the basic operations of your device.
Using the Touch Screen
You can use your finger to manipulate icons, buttons, menu items, the
onscreen keyboard, and other items on the touch screen. You can also
change the screen’s orientation.
■Tap
Simply tap your finger on the touch screen to act on items on the
screen, such as application icons, to type letters and symbols using the
onscreen keyboard, or to tap onscreen buttons.
■Double tap
Quickly tap your finger twice on icons or folders on the touch screen to
open applications or file folders.
■Tap & hold
Tap & hold your finger on the screen one and more seconds and lift
your finger to open a right-click menu.
■Drag
Tap & hold an item for a moment and then, without lifting your finger,
move your finger on the screen until you reach the target position.
■Pinch
Pinch two fingers together or apart to zoom out or in when viewing
photo, web page, email or folder.
■Slide
Quickly move your finger across the surface of the screen, without
pausing when first touching (instead of dragging an item) to scroll the
web page, email or folder.
Using the touch keyboard
You can use the touch keyboard to enter text when writing a mail, filling a
table and so on. The following table describes this option.
Touch keyboard The touch keyboard is like a standard keyboard,
but you enter text by tapping the keys with your
tablet pen (or your fingers, if touch input is
available on your computer).
![](/img.php?id=1455695&img=bg15.png)
User’s Manual 21
Basic Operations
Changing the Screen Orientation
You can change the screen orientation to Portrait mode by rotating the
device sideways. The screen orientation automatically changes according
to the rotation angle detected.
You can also lock the auto rotation and use the device always in Portrait or
Landscape mode.
Locking screen rotation
Slide the Screen rotation lock switch to lock position, a red indication will
be shown.
Unlocking screen rotation
Switch the Screen rotation lock switch to unlock position, the red
indication will be hidden.
Wireless communications
The computer’s wireless communication function supports some wireless
communication devices.
Only some models are equipped with both Wireless LAN and Bluetooth
functions.

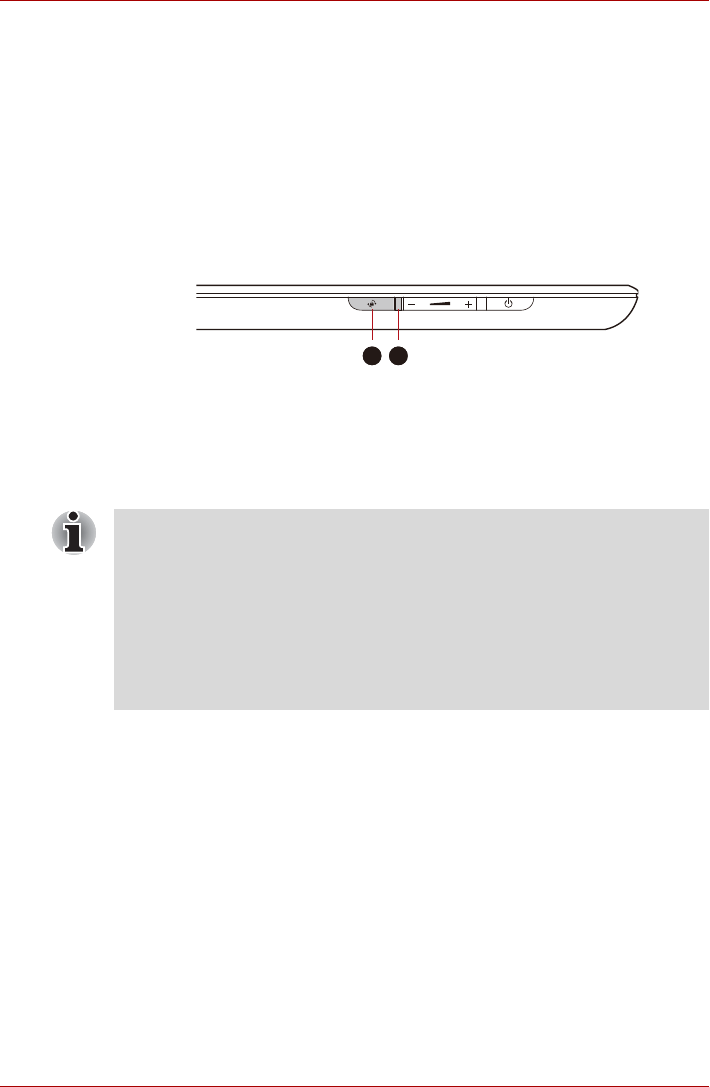

1. Screen rotation lock switch 2. Red indication
1 2
■Always make sure to keep the Web camera on the top ( landscape
mode ) or on the left (Portrait mode ) while rotating the screen. Avoid
having direct contact with the other edges of the hand held device while
the wireless device is turned on and transmitting. Only factories
installed wireless transmitter can be used with this hand held device to
satisfy RF exposure compliance.
■In the Portrait mode, some drivers/utilities may not perform install and
uninstall operation. If it occurs, switch to the Landscape mode to
proceed.
![](/img.php?id=1455695&img=bg16.png)
User’s Manual 22
Basic Operations
Wireless LAN
The Wireless LAN is compatible with other LAN systems based on Direct
Sequence Spread Spectrum / Orthogonal Frequency Division Multiplexing
radio technology that complies with the IEEE802.11 Wireless LAN standard.
■Frequency Channel Selection of 5GHz for IEEE 802.11a or/and
IEEE802.11n
■Frequency Channel Selection of 2.4GHz for IEEE 802.11b/g or/and
IEEE802.11n
■Roaming over multiple channels
■Card power management
■Wired Equivalent Privacy (WEP) data encryption based on an 128-bit
encryption algorithm
■Wi-Fi Protected AccessTM (WPATM)
■Do not use the Wireless LAN (Wi-Fi) or Bluetooth functionalities near a
microwave oven or in areas subject to radio interference or magnetic
fields. Interference from a microwave oven or other source can disrupt
Wi-Fi or Bluetooth operation.
■Turn all wireless functionalities off when near a person who may have a
cardiac pacemaker implant or other medical electric device. Radio
waves may affect pacemaker or medical device operation, possibly
resulting in serious injury. Follow the instruction of your medical device
when using any wireless functionality.
■Always turn off wireless functionality if the computer is near automatic
control equipment or appliances such as automatic doors or fire
detectors. Radio waves can cause malfunction of such equipment,
possibly resulting in serious injury.
■It may not be possible to make a network connection to a specified
network name using the ad hoc network function.
If this occurs, the new network(*) will have to be configured for all
computers connected to the same network in order to re-enable
network connections.
* Please be sure to use new network name.
The transmission speed over the wireless LAN, and the distance over
which the wireless LAN can reach, may vary depending on surrounding
electromagnetic environment, obstacles, access point design and
configuration, client design and software/hardware configurations. The
transmission rate described is the theoretical maximum speed as specified
under the appropriate standard - the actual transmission speed will be
lower than the theoretical maximum speed.
![](/img.php?id=1455695&img=bg17.png)
User’s Manual 23
Basic Operations
Setting
1. Please make sure that the Wireless Communication function is
turned on.
2. Tap Start → Control Panel → Network and Internet → Network and
Sharing Center.
3. Tap Set up a new connection or network.
4. Follow the wizard. You will need the name of the wireless network
together with security settings. Consult the documentation
accompanied with your router or ask your wireless network
administrator for the settings.
Security
■TOSHIBA strongly recommend that you enable encryption functionality,
otherwise your computer will be open to illegal access by an outsider
using a wireless connection. If this occurs, the outsider may illegally
access your system, eavesdrop, or cause the loss or destruction of
stored data.
■TOSHIBA is not liable for the loss of data due to eavesdropping or
illegal access through the wireless LAN and the damage thereof.
Bluetooth wireless technology
Bluetooth wireless technology eliminates the need for cables, such as
desktop computers, between your PC and other electronic devices,
example of printers and mobile phones.
You cannot use the computer's built-in Bluetooth functions and an external
Bluetooth adaptor simultaneously. For reference, Bluetooth wireless
technology has the following features:
Worldwide operation
The Bluetooth radio transmitter and receiver operate in the 2.4GHz band,
which is license-free and compatible with radio systems in most countries
in the world.
Radio links
You can easily establish links between two or more devices, with these
links being maintained even if the devices are not within a line-of-sight of
each other.
Security
Two advanced security mechanisms ensure a high level of security:
■Authentication prevents access to critical data and makes it impossible
to falsify the origin of a message.
■Encryption prevents eavesdropping and maintains link privacy.
![](/img.php?id=1455695&img=bg18.png)
User’s Manual 24
Basic Operations
Bluetooth Stack for Windows by TOSHIBA
Please note that this software is specifically designed for the following
operating systems:
■Windows 7
Information regarding the use of this software with these operating systems
is listed below, with further details being contained with the electronic help
files supplied with the software.
Release Notes related to the Bluetooth Stack for Windows
by TOSHIBA
1. Fax application software:
Please be aware that there is some fax application software that you
cannot use on this Bluetooth Stack.
2. Multi-user considerations:
The use of Bluetooth is not supported in a multi-user environment. This
means that, when you use Bluetooth, other users that are logged into
the same computer will not be able to use this type of functionality.
Product Support:
The latest information regarding operating system support, language
support or available upgrades can be found on our web site
http://www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe or
www.pcsupport.toshiba.com in the United States.
Computer Handling
This section explains computer handling and maintenance.
Cleaning the computer
To help ensure long, trouble-free operation, keep the computer free of dust
and dirt, and use care with all liquids around it.
■Be careful not to spill liquids into the computer. If the computer does get
wet, turn the power off immediately and let the computer dry completely
- in these circumstance you should get the computer inspected by an
authorized service provider in order to assess the scope of any
damage.
■Clean the plastics of the computer using a slightly water dampened cloth.
■You can clean the display screen by spraying a small amount of glass
cleaner onto a soft, clean cloth and then wiping the screen gently with
the cloth.
This Bluetooth Stack is based on the Bluetooth Version
1.1/1.2/2.0+EDR/2.1+EDR/3.0/3.0+HS specification. However, TOSHIBA
cannot confirm the compatibility between any computing products and/or
other electronic devices that use Bluetooth, other than TOSHIBA notebook
computers.
![](/img.php?id=1455695&img=bg19.png)
User’s Manual 25
Basic Operations
Moving the computer
While the computer is designed for flexible day-to-day usage you should
exercise a few simple precautions when moving it in order to help ensure
trouble-free operation.
■Turn off (shut down) the computer.
■Disconnect the AC adaptor and all peripherals before moving the
computer.
■Before carrying your computer, shut it down, disconnect the AC adaptor
and allow it to cool down - a failure to follow this instruction may result in
minor heat injury.
■Be careful not to subject the computer to impact or shock - a failure to
follow this instruction could result in damage to computer, computer
failure or loss of data.
■Never transport your computer with any cards installed - this may cause
damage to either the computer and/or the card resulting in product
failure.
■Always use a suitable carry case when transporting the computer.
■When carrying your computer, be sure to hold it securely so that it does
not fall or hit anything.
■Do not carry your computer by holding any of its protruding elements.
Heat dispersal
To protect against overheating, the processor is equipped with an internal
temperature sensor which activates a cooling fan or lowers the processing
speed if the computer's internal temperature rises to a certain level. You are
able to select whether to control this temperature by either turning on the
fan first, then if necessary lowering the processor speed, or by lowering the
processor speed first, then if necessary turning on the fan. Both of these
functions are controlled through the Power Options.
When the processor's temperature falls within normal range, the fan will be
turned off and the processor operation returned to its standard speed.
Never spray cleaner directly onto the computer or let liquid run into any
part of it. Never use harsh or caustic chemical products to clean the
computer.
If the processor's temperature reaches an unacceptably high level with
either setting, the computer automatically shuts down to prevent any
damage. In this instance all unsaved data in memory will be lost.
![](/img.php?id=1455695&img=bg1a.png)
User’s Manual 26
Utilities & Advanced Usage
This chapter describes the utlities and special features in this computer,
and the advanced usage of some utilites.
Utilities and Applications
This section describes the pre-installed utilities that come with the
computer and details how to start them. For further information on their
operation, you may refer to each utility's online manual, help files or
README.TXT file (if applicable).
TOSHIBA PC
Diagnostic Tool
The TOSHIBA PC Diagnostic Tool will
display basic system configuration
information and allow the functionality of
some of the computer's builtin hardware
devices to be tested.
TOSHIBA Face
Recognition
TOSHIBA Face Recognition uses a face
verification library to verify the face data of
users when they login to Windows. If the
verification is successful, the user will be
logged into Windows automatically. The user
can thus avoid having to enter a password or
the like, which makes the login process
easier.
For more information, please refer to Using
the TOSHIBA Face Recognition section in
“Utilities & Advanced Usage" chapter.
Bluetooth Stack for
Windows by
Toshiba
This software enables communication
between the computer and external
Bluetooth devices such as printers and
mobile phones.
Bluetooth functions cannot be used in models that do not have a Bluetooth
module installed.
TOSHIBA Assist TOSHIBA Assist is a graphical user interface that
provides access to specific tools, utilities and
applications that make the use and configuration
of the computer easier.
![](/img.php?id=1455695&img=bg1b.png)
User’s Manual 27
Utilities & Advanced Usage
TOSHIBA ConfigFree TOSHIBA ConfigFree is a suite of utilities that
improve the ease and control of communication
devices and network connections, help in the
identification of communication problems and
allow the creation of profiles if you need to switch
between different locations and communication
networks. To access this utility, tap Start → All
Programs → TOSHIBA → ConfigFree.
TOSHIBA eco Utility This PC is equipped with "eco mode". This mode
slightly lowers performance of some devices to
reduce electric power consumption. You can
realize measurable power savings by using it
continuously. TOSHIBA eco Utility helps you
monitor your power savings by showing
approximate real time power consumption.
Furthermore, it shows approximate accumulated
power consumption and approximate
accumulated power savings when using eco
mode daily, weekly, and monthly. You can track
power savings by using eco mode continuously.
TOSHIBA Disc
Creator
You can create CDs and DVDs in a number of
formats including audio CDs that can be played
on a standard CD player, and data CD/DVDs
which can store copies of the files and folders on
your computer's solid state drive. This software
can be used on models connected with a CDRW/
DVD-ROM drive, DVD-R/-RW drive,
DVD±R/±RW drive or DVD Super Multi drive.
To start this utility, tap Start → All Programs →
TOSHIBA → CD&DVD Applications → Disc
Creator.
TOSHIBA HDD/SSD
Alert Utility
This utility includes wizard functions to monitor
the Disk Drive operating status and execute the
system backup.
To access the utility, tap Start → All Programs
→ TOSHIBA → Utilities → HDD SSD Alert.
![](/img.php?id=1455695&img=bg1c.png)
User’s Manual 28
Utilities & Advanced Usage
TOSHIBA Service
Station
This application allows your computer to
automatically search for TOSHIBA software
updates or other alerts from TOSHIBA that are
specific to your computer system and its
programs. When enabled, this application
periodically transmits to our servers a limited
amount of system information, which will be
treated in strict accordance with the rules and
regulations as well as applicable data protection
law.
To access this utility, tap Start → All Programs
→ TOSHIBA → Utilities → Service Station.
TOSHIBA Bulletin
Board
Bulletin Board is a convenient place to pin things
to visually organize in a fun and creative way.
Simply drag and drop your favorite pictures, files
or notes to pin them on the Board. You can use it
to create thumbnail shortcuts, reminders, to-do
list and so on according to your personal style.
Press the Home button to launch the Bulletin
Board.
You can also access this utility by tapping Start
→ All Programs → TOSHIBA → TOSHIBA
Bulletin Board.
TOSHIBA ReelTime This application is a graphical history/indexing
tool that enables you to view recently accessed
files in a fun and easy-to-use format. View and
scroll through your history of opened or imported
files via thumbnails in an intuitive user interface.
To access this utility, tap Start → All Programs
→ TOSHIBA → TOSHIBA ReelTime.
TOSHIBA Sync
Utility
This utility can help you synchronize files and
Office Outlook® emails.
With this utility, you can synchronize files
between two PCs or between a PC and a
removable storage device.
To access this utility, tap Start → All Programs
→ TOSHIBA → Utilities → Sync Utility.
For more information, please refer to the
TOSHIBA Sync Utility Help.
![](/img.php?id=1455695&img=bg1d.png)
User’s Manual 29
Utilities & Advanced Usage
Special features
The following features are either unique to TOSHIBA computers or are
advanced features which make the computer more convenient to use.
Access each function using the following procedures.
*1 To access the Power Options, tap Start → Control Panel → System
and Security → Power Options.
TOSHIBA Media
Controller
This application allows you to control your music,
pictures and videos by streaming content to any
compatible device in your home.
To access this utility, tap Start → All Programs
→ TOSHIBA → TOSHIBA Media Controller →
TOSHIBA Media Controller.
For more information, please refer to the
TOSHIBA Media Controller Help.
HW Setup This utility allows you to customize your
hardware settings according to the way you work
with the computer and the peripherals you use.
TOSHIBA Button
Support
TOSHIBA Button Support can update and assign
other applications to the function keys.
TOSHIBA Tablet
Keyboard
This utility provides a virtual keyboard, enabling
you to enter charatcers, numbers and symbols.
For more information, please refer to the
TOSHIBA Tablet Keyboard section in this
chapter.
TOSHIBA Tablet
Touch Pad
This utility provides a virtual touchpad with two
control buttons.
For more information, please refer to the
TOSHIBA Tablet Touch Pad section in this
chapter.
TOSHIBA Tablet
Piano
This utility provides a virtual piano playing with
fingers tapping.
For more information, please refer to the
TOSHIBA Tablet Piano section in this chapter.
Display automatic
power off *1 This feature automatically cuts off power to the
computer's display panel when there is no
keyboard input for a specified time, with power
being restored the next time a key is pressed.
This can be specified in the Power Options.
![](/img.php?id=1455695&img=bg1e.png)
User’s Manual 30
Utilities & Advanced Usage
System automatic
Sleep/Hibernation
Mode *1
This feature automatically shuts down the system
into either Sleep Mode or Hibernation Mode
when there is no input or hardware access for a
specified time. This can be specified in the Power
Options.
Power on password Password security - user password is available to
prevent unauthorized access to your computer.
Intelligent power
supply *1 A microprocessor in the computer's intelligent
power supply detects the battery's charge,
automatically calculates the remaining battery
capacity and protects electronic components
from abnormal conditions such as a voltage
overload from the AC adaptor. This can be
specified in the Power Options.
Battery save mode *1 This feature lets you configure the computer in
order to save battery power. This can be
specified in the Power Options.
Low battery
automatic
Hibernation Mode*1
When battery power is exhausted to the point
that computer operation cannot be continued, the
system automatically enters Hibernation Mode
and shuts itself down. This can be specified in
the Power Options.
Heat dispersal *1 To protect against overheating, the processor
has an internal temperature sensor so that, if the
computer's internal temperature rises to a certain
level, the cooling fan is turned on or the
processing speed is lowered. This can be
specified in the Power Options.
Hibernation Mode This feature lets you turn off the power to the
computer without exiting from your software. The
contents of main memory are automatically
saved to the solid state drive so that when you
next turn the power on again, you can continue
working right where you left off. Refer to the
Turning off the power section in "Getting Started
& Grand Tour" chapter, for more details.
Sleep Mode If you have to interrupt your work, you can use
this feature to allow you to turn off power to the
computer without exiting from your software.
Data is maintained in the computer's main
memory so that when you next turn on the power,
you can continue working right where you left off.
![](/img.php?id=1455695&img=bg1f.png)
User’s Manual 31
Utilities & Advanced Usage
Using TOSHIBA Tablet Feature
The TOSHIBA Tablet feature includes with the following function(s):
■TOSHIBA Tablet Keyboard
■TOSHIBA Tablet Touch Pad
■TOSHIBA Tablet Piano
TOSHIBA Tablet Keyboard
This device is provided with a TOSHIBA Tablet Keyboard - a virtual
keyboard enables users to enter characters, numbers, and symbols.
Launching Tablet Keyboard
1. Tap Start → All Programs → TOSHIBA → Utilities → Tablet
Keyboard. Then the Tablet Keyboard appears.
2. Tap where you desire to enter text on the Windows screen, and enter
text by finger-tapping the keyboard directly.
3. Tap the cross icon on the upper right corner of the Tablet Keyboard
when finished entering the text.
USB Wakeup
function
This function restores the computer from Sleep
Mode depending on the external devices
connected to the USB ports.
For example, if a mouse or USB keyboard is
connected to a USB port, clicking the mouse
button or pressing the keyboard will wakeup the
computer.
TOSHIBA PC Health
Monitor
The TOSHIBA PC Health Monitor application
proactively monitors a number of system
functions such as power consumption, battery
health and system cooling, informing you of
significant system conditions. This application
recognizes the system and individual component
serial numbers and will track specific activities
related to their usage.
Refer to TOSHIBA PC Health Monitor section in
"Utilities & Advanced Usage" chapter.
■Up to two keys can be tapped simultaneously.
■Tapping Ctrl+Alt+Del keys is not available on the Tablet keyboard. To
perform this action, tap the SAS button instead.
■Ctrl, Alt and Shift keys are set to toggle mode respectively. Tap it once
to set the function ON (as if the key is being held on a standard
computer), and tap it again to release the function.
■Some key functions may not be performed on the Tablet Keyboard, e.g.
some key combinations or shortcut keys.
![](/img.php?id=1455695&img=bg20.png)
User’s Manual 32
Utilities & Advanced Usage
Switching Keyboard Layouts
This Tablet Keyboard is provided with several layouts. You can tap the
keyboard icon in the application bar on the Tablet Keyboard to toggle.
TOSHIBA Tablet Touch Pad
This device is provided with a TOSHIBA Tablet Touch Pad - a virtual touch
pad with two control buttons.
Launching Tablet Touch Pad
To launching Tablet Touch Pad, tap Start → All Programs → TOSHIBA →
Utilities → Tablet Touch Pad.
Haptics Feedback
You can select to enable the vibration haptics feedback whenever you tap a
key on the Slate Keyboard or the Slate touch pad.
To access the Haptics Feedback by one of the following ways:
■On the Tablet Keyboard window, tap Settings → Haptics Feedback
Settings.
■On the Tablet Touch Pad window, tap Settings → Haptics Feedback
Settings.
Settings can be performed in the following Haptics Feedback Settings
window.
The Tablet Keyboard supports TouchSense® Technology licensed from
Immersion Corporation.
![](/img.php?id=1455695&img=bg21.png)
User’s Manual 33
Utilities & Advanced Usage
TOSHIBA Tablet Piano
To launching Tablet Piano, tap Start → All Programs → TOSHIBA →
Utilities → Tablet Piano. You can play the Tablet Piano with fingers
tapping.
Tap the musical instrument icons at the top of the Tablet Piano to change
the tone of it.
TOSHIBA Tablet Piano provides several instrument tones as below:
■Piano
■Trumpet
■Electronic piano
■Saxophone
■Drum
TOSHIBA DeskBand Utility
TOSHIBA DeskBand Utility presents other TOSHIBA utilities on it. You can
access the applications and utilities by touching the icon on the TOSHIBA
DeskBand.
Starting the TOSHIBA DeskBand Utility
The TOSHIBA DeskBand Utility will automatically start when Window
starup.

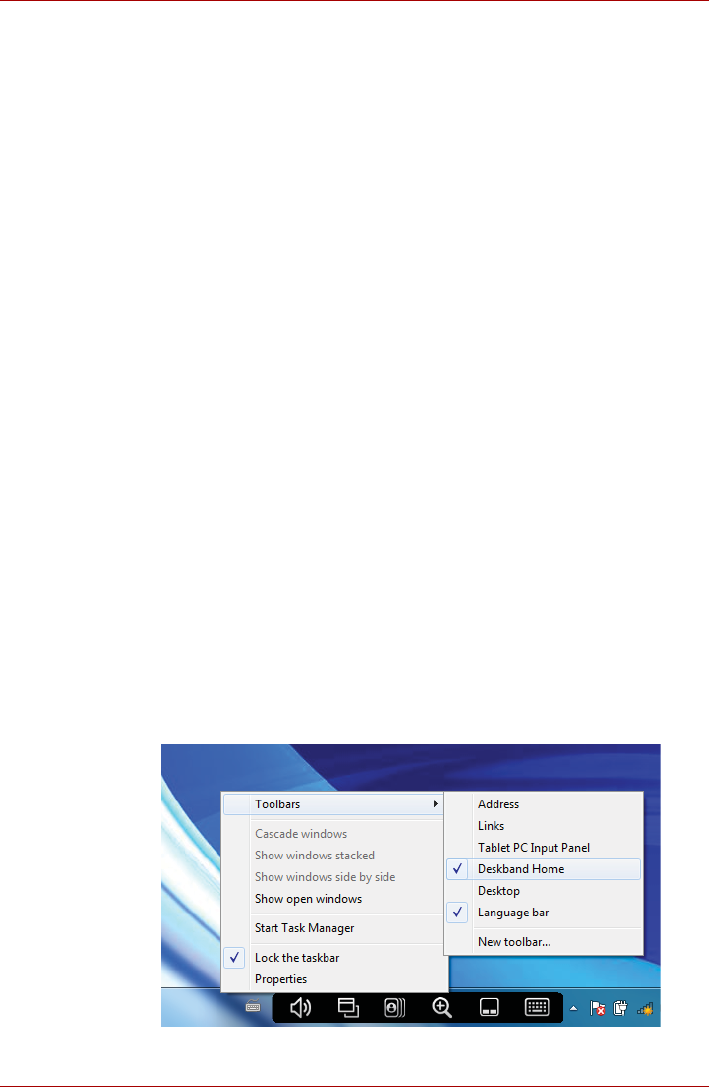

Enabling/Disabling the TOSHIBA DeskBand Utility
You can enable or disable the TOSHIBA DeskBand Utility in the following
way:
■Right-click the Taskbar, then choose the Taskbar option, seslect the
DeskBand Home option to display the DeskBand Utility and clear the
option to hide the utility.
.
![](/img.php?id=1455695&img=bg22.png)
User’s Manual 34
Utilities & Advanced Usage
Applications
■Orientation Lock Indicator
Showing the current orientation lock status.
■Audio Enhancer
Tapping the to enable or disable the audio enhancement effect.
■Video Enhancer
Tapping the to enable or disable the video enhancement effect.
■Window Switcher
Tapping the to display or hide the Windows switcher.
■Flash Cards
Tapping the to launch the TOSHIBA Flash Cards.
■Zoom Funtion
Tapping the to enter TOSHIBA Zoom module.
You can launch the zoom function by the steps below.
1. If you tap the magnifying glass icon on the Tablet Taskbar and tap the
Windows screen, the zoom window will appear around where you
tapped.
2. Tap anywhere except the zoom window to close it.
■Tablet Touchpad
Tapping the to launch TOSHIBA SW Touchpad.
■Tablet Keyboard
Tapping the to launch TOSHIBA SW Keyboard.
If the related utility is not installed, the icon will not be shown on DeskBand
bar.
If there are more than eight tasks, the tasks will be paged with eight tasks
every page. You can drag the thumbanils to scroll to next page.
For more details about TOSHIBA Tablet Touchpad and TOSHIBA Tablet
Keyboard, please refer to TOSHIBA Tablet Touch Pad and TOSHIBA
Tablet Keyboard.
![](/img.php?id=1455695&img=bg23.png)
User’s Manual 35
Utilities & Advanced Usage
TOSHIBA Button Support
You can update and assign other applications to the function buttons using
the TOSHIBA Button Support utility.
You can open TOSHIBA Button Support by the following way:
■Click Start → All Programs → TOSHIBA → Utilities → TOSHIBA
Assist, and then click the OPTIMIZE tab in the TOSHIBA Assist
window. In the OPTIMIZE tab page, click TOSHIBA Button Support.
The TOSHIBA Button Support dialog box will appear. Follow the following
steps to assign a function to the selected button.
1. In the Button Name list, select one of the following function button
name such as KB button, Home button and so on.
2. Click Browse, select the application you would like to assign to the
button, and then click Open. The “Description” and “Target Path” of the
selected application will appear.
TOSHIBA Disc Creator
Please be aware of the following limitations when you use the TOSHIBA
Disc Creator:
■DVD Video cannot be created using TOSHIBA Disc Creator.
■DVD Audio cannot be created using TOSHIBA Disc Creator.
■You cannot use TOSHIBA Disc Creator's “Audio CD” function to record
music to DVD-R, DVD-R (Dual Layer), DVD-RW, DVD+R, DVD+R
(Double Layer) or DVD+RW media.
■Do not use the “Disc Backup” function of TOSHIBA Disc Creator to
copy DVD Video or DVD-ROM material that has copyright protection.
![](/img.php?id=1455695&img=bg24.png)
User’s Manual 36
Utilities & Advanced Usage
■DVD-RAM discs cannot be backed up using the “Disc Backup” function
of TOSHIBA Disc Creator.
■You cannot back up CD-ROM, CD-R or CD-RW media to DVD-R, DVD-
R (Dual Layer) or DVD-RW media using the “Disc Backup” function of
TOSHIBA Disc Creator.
■You cannot back up CD-ROM, CD-R or CD-RW media to DVD+R,
DVD+R (Double Layer) or DVD+RW media using the “Disc Backup”
function of TOSHIBA Disc Creator.
■You cannot back up DVD-ROM, DVD Video, DVD-R, DVD-R (Dual
Layer), DVD-RW, DVD+R, DVD+R (Double Layer) or DVD+RW to CD-
R or CD-RW media using the “Disc Backup” function of TOSHIBA Disc
Creator.
■TOSHIBA Disc Creator cannot record in packet format.
■You might not be able to use the “Disc Backup” function of TOSHIBA
Disc Creator to back up a DVD-R, DVD-R (Dual Layer), DVD-RW,
DVD+R, DVD+R (Double Layer) or DVD+RW disc that was made with
other software on a different optical media recorder.
■If you add data to a DVD-R, DVD-R (Dual Layer), DVD+R or DVD+R
(Double Layer) disc that you have already recorded to, you might not be
able to read the added data under some circumstances. For example, it
cannot be read under 16-bit operating systems, such as Windows 98SE
and Windows Me, while in Windows NT4 you will need Service Pack 6
or later, and in Windows 2000, you will need Service Pack 2. In addition
to this, some DVD-ROM and DVD-ROM / CD-R/RW drives cannot read
this added data regardless of the operating system.
■TOSHIBA Disc Creator does not support recording to DVD-RAM discs -
to achieve this you should use Windows Explorer or another similar
utility.
■When you back up a DVD disc, be sure that the source drive supports
recording to DVD-R, DVD-R (Dual Layer), DVD-RW, DVD+R, DVD+R
(Double Layer) or DVD+RW media - if this is not the case then the
source disc might not be backed up correctly.
■When you back up a DVD-R, DVD-R (Dual Layer), DVD-RW, DVD+R,
DVD+R (Double Layer) or DVD+RW disc, be sure to use the same type
of disc.
■You cannot partially delete any data written to a CD-RW, DVD-RW or
DVD+RW disc.
![](/img.php?id=1455695&img=bg25.png)
User’s Manual 37
Utilities & Advanced Usage
Data Verification
To verify that data has been written or rewritten correctly to a data CD/DVD
you should follow the steps below before you begin the write/rewrite
process:
1. Click Start → All Programs → TOSHIBA → CD&DVD Applications
→ Disc Creator to access the TOSHIBA Disc Creator utility.
2. Display the setting dialog box by one of the following two steps:
■Tap t h e Recording settings button ( ) for writing on the main
toolbar in the Data CD/DVD mode.
■Select Settings for Each Mode → Data CD/DVD in the Settings
menu.
3. Mark the Verify Written Data check box.
4. Select File Open or Full Compare mode.
5. Tap the OK button.
How to learn more about TOSHIBA Disc Creator
Please refer to the Help files for additional TOSHIBA Disc Creator
information.
Using the TOSHIBA Sleep Utility
The TOSHIBA Sleep Utility is used for changing settings of Sleep and
Charge function.
Sleep and Charge
Your computer can supply USB bus power (DC5V) to the USB port even
when the power of the computer is turned OFF. “Power OFF” includes
Sleep Mode, Hibernation Mode or shutdown state.
This function can be used for ports that support the Sleep and Charge
function (hereinafter called “compatible ports”).
Compatible ports are USB ports that have the ( ) symbol icon.
You can use the “Sleep and Charge function” to charge certain USB-
compatible external devices such as mobile phones or portable digital
music players.
However, the “Sleep and Charge function” may not work with certain
external devices even if they are compliant with the USB specification. In
those cases, turn the power of the computer ON to charge the device.
![](/img.php?id=1455695&img=bg26.png)
User’s Manual 38
Utilities & Advanced Usage
Starting the TOSHIBA Sleep Utility
To start the utility, tap Start → All Programs → TOSHIBA → Utilities →
Sleep Utility.
Enabling Sleep and Charge
This utility can be used to enable and disable the Sleep and Charge
function.
Select the Enable Sleep and Charge check box to enable this function for
the compatible USB ports. The default state is disabled.
■When Sleep and Charge function is enabled, USB bus power (DC5V)
will be supplied to compatible ports even when the power of the
computer is turned OFF.
USB bus power (DC5V) is similarly supplied to the external devices
which are connected to the compatible ports. However, some external
devices cannot be charged solely by supplying USB bus power
(DC5V).
As for the specifications of the external devices, please contact the
device manufacturer or check the specifications of the external devices
thoroughly before use.
■Using the sleep and charge function to charge external devices will
take longer than charging the devices with their own chargers.
■If Sleep and Charge function is enabled, the computer’s battery will
discharge during hibernation or when the computer is turned off. It is
recommended that you connect the AC adaptor to the computer when
enabling the Sleep and Charge function.
■External devices connected to the USB bus power (DC5V) function that
interfaces with the power ON/OFF of the computer may always be in
an operational state.
■When there is a current overflow of the external devices connected to
the compatible ports, USB bus power (DC5V) supply may be stopped
for safety reasons.
■When Sleep and Charge function is enabled, the USB Wakeup function
does not work for compatible ports.
In that case, if there is a USB port that does not have the Sleep and
Charge function-compatible icon ( ), attach the mouse or keyboard to it.
If all USB ports have the Sleep and Charge function-compatible icon
( ), change to disable Sleep and Charge function.
The USB Wakeup function will now work, but the Sleep and Charge
function will be disabled.
Metal paper clips or hair pins/clips will generate heat if they come into
contact with USB ports. Do not allow USB ports to come into contact with
metal products, for example when carrying the computer in your bag.
![](/img.php?id=1455695&img=bg27.png)
User’s Manual 39
Utilities & Advanced Usage
Power supply mode settings
Your PC has multiple charging modes so that many different USB devices
can be supported for Sleep and Charge function. Auto Mode (Default) is
suitable for a wide range of digital audio players.
However, determining which mode is suitable for your USB device is
unknown without trying. Try each mode, using the following procedure,
from Auto Mode to Alternate Mode to find the suitable mode for your USB
device to charge.
This function may not be able to be used with some connected external
devices even if the appropriate mode is selected. In this situation, clear the
“Enable Sleep and Charge” check box and stop using this function.
Battery Settings
This utility can be used to specify the lower limit of remaining battery life for
Sleep and Charge. Move the slider bar to specify the lower limit. If the
remaining battery life falls below the setting, the Sleep and Charge function
will be stopped. Clearing the “Enable under Battery Mode” check box sets
the utility to only charge when the AC adaptor is connected.
Using the TOSHIBA Face Recognition
TOSHIBA Face Recognition uses a face verification library to verify the face
data of users when they log in to Windows. The user can thus avoid having
to enter a password or the like, which makes the login process easier.
■TOSHIBA Face Recognition does not guarantee the correct
identification of a user. Changes to the likeness of a registrant, such as
hair style changes, wearing a cap, or wearing glasses may effect the
recognition rates when such changes occur after the registrant had
registered.
■TOSHIBA Face Recognition may incorrectly recognize faces that are
similar to a registrant.
■For high security purposes, TOSHIBA Face Recognition is not a
suitable substitute for Windows passwords. When security is a high
priority, use your established Windows passwords to log in.
■Bright background light and/or shadows may prevent a registrant from
being recognized correctly. In that case, log in using your Windows
password. If recognition of a registrant fails repeatedly, refer to your
computer documentation to learn ways to improve recognition
performance.
■TOSHIBA Face Recognition records face data in a log when face
recognition fails. When transferring ownership or disposing of your
computer, please uninstall the application or delete all the logs created
by the application. For details on how to do this, see help file.
■TOSHIBA Face Recognition can be used only in Windows Vista and
Windows 7.
![](/img.php?id=1455695&img=bg28.png)
User’s Manual 40
Utilities & Advanced Usage
Disclaimer
Toshiba does not guarantee that the face recognition utility technology will
be completely secure or error-free. Toshiba does not guarantee that the
face recognition utility will accurately screen out unauthorized users at all
times. Toshiba is not liable for any failure or damage that might arise out of
the use of the face recognition software or utility.
TOSHIBA, ITS AFFILIATES AND SUPPLIERS SHALL HAVE NO
RESPONSIBILITY FOR DAMAGE TO OR LOSS OF ANY BUSINESS,
PROFITS, PROGRAMS, DATA, NETWORK SYSTEMS OR REMOVABLE
STORAGE MEDIA ARISING OUT OF OR RESULTING FROM THE USE
OF THE PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY
THEREOF.
How to register the Face Recognition Data
Take a picture for facial verification purposes, and register the data needed
when you log in. To register the data needed when you log in, follow the
steps as described below:
1. To launch this utility, tap Start → All Programs → TOSHIBA →
Utilities → Face Recognition.
■The Registration screen is displayed for a logged-in user whose
face has not been registered.
■The Management screen is displayed for a logged-in user whose
face has already been registered.
2. Tap Run as administrator in lower left of the Management screen,
and then tap the Register button. The Registration screen is
displayed.
■If you wish to practice, tap on the Next button in the Registration
screen.
■If you do not wish to practice, tap on the Skip button in the
Registration screen.
3. Tap the Next button to start the guide. Please follow the guide to
practice.
■Tap t h e Back button to practice the guide once more.
4. Tap the Next button to start image-capturing process.
5. Adjust the position of your face so that it fits within the face-shaped
frame.
6. Once your face has been positioned properly, the recording will
commence.
Start moving your neck very slightly to the left and right, and then move
your neck down and up.
![](/img.php?id=1455695&img=bg29.png)
User’s Manual 41
Utilities & Advanced Usage
7. Registration will end after you have repeatedly moved your neck left,
right, down and up.
When the register succeeds, below message will be displayed on the
screen:
“Registration successful. Now we’ll do the
verification test. Click the Next button.”
Tap the Next button to perform the verification test.
8. Perform the verification test. Face the screen as you do when you
register.
■If verification fails, tap the Back button and re-register. Please refer
to step 5 to step 7.
9. If verification is successful, tap the Next button and register an account.
10. Register the account.
Fill in all the fields.
11. The Management screen is displayed.
The registered account name will be displayed. Tapping on it will cause
the captured image of your face to be displayed on the left.
How to Delete the Face Recognition Data
Delete image data, account information, and personal record data created
during registration. To delete the Face Recognition Data, follow the steps
as described below:
1. To launch this utility, tap Start → All Programs → TOSHIBA →
Utilities → Face Recognition.
The Management screen is displayed.
2. Select a user which is displayed in the Management screen.
3. Tap the Delete button. “You are about to delete the user
data. Would you like to continue?” will be displayed on the
screen.
■If you do not want the data to be deleted, tap the No button and you
will then be returned to the Management screen.
■Tapping on the Yes button will remove the selected user from the
Management screen.
How to launch the help file
For further information on this utility, please refer to help file.
■To launch the help file, tap the Help icon in the Management screen.
Windows Logon via TOSHIBA Face Recognition
This section explains how to login to Windows with TOSHIBA Face
Recognition. Two authentication modes are provided.
■1:N Mode Login screen: If the face authentication tile is selected by
default, you can log in without using the keyboard or mouse.
![](/img.php?id=1455695&img=bg2a.png)
User’s Manual 42
Utilities & Advanced Usage
■1:1 Mode Login screen: This mode is essentially the same as AUTO
mode, but the Select Account screen will appear before the Display
Captured Image screen, and you will need to select the user account
to be authenticated in order to start the authentication process.
1:N Mode Login screen
1. Turn on the computer.
2. The Select Tiles screen will be displayed.
3. Select Start face recognition ().
4. “Please face the camera” will be displayed.
5. Verification will be performed. If the authentication is successful, the
image data taken in step 4 will be faded in and placed over one another.
■If an error occurs during authentication, you will be returned to the
Select Tiles screen.
6. The Windows Welcome screen will be displayed, and will be logged in
automatically to Windows.
1:1 Mode Login screen
1. Turn on the computer.
2. The Select Tiles screen will be displayed.
3. Select Start face recognition ().
4. The Select Account screen will be displayed.
5. Select the account, and tap the arrow button.
6. “Please face the camera” will be displayed.
7. Verification will be performed. If the authentication is successful, the
image data taken in step 6 will be faded in and placed over one another.
■If an error occurs during authentication, you will be returned to the
Select Tiles screen.
8. The Windows Welcome screen will be displayed, and will be logged in
automatically to Windows.
■If authentication was successful, but an authentication error
subsequently occurred during the login to Windows, you will be
asked to provide your account information.
HW Setup
This chapter explains how to use TOSHIBA HW Setup program to
configure your computer and how to set passwords.
TOSHIBA HW Setup allows you to configure settings for General,
Password, Display, Boot Priority, USB.
If the supervisor password is set, access to the TOSHIBA HW Setup
program can be prevented when the user password is used to log on to the
computer.
![](/img.php?id=1455695&img=bg2b.png)
User’s Manual 43
Utilities & Advanced Usage
Accessing HW Setup
To start the utility, tap the Windows Start button → All Programs →
TOSHIBA → Utilities → HWSetup.
HW Setup window
The HW Setup window contains the following tabs: General, Password,
Display, Boot Priority, Keyboard, USB, LAN and SATA.
There are also three buttons: OK, Cancel and Apply.
General
This window displays the BIOS/EC version and contains two buttons:
Default and About.
Setup
This field displays the installed BIOS version, date and EC version.
Password
User Password
This option allows you to set or reset the user password for power on.
To enter a user password:
1. Select Registered to display the following prompt:
Enter Password:
Enter a password of up to 10 characters. The character string you enter
is displayed as a string of asterisks. For example, if you enter a
password consisting of four characters, the display is shown as:
Enter Password: ****
OK Accepts your changes and closes the HW Setup
window.
Cancel Closes the window without accepting your
changes.
Apply Accepts all your changes without closing the HW
Setup window.
Default Returns all HW Setup values to the factory
settings.
About Displays the HW Setup version.
Not Registered Changes or remove the password. (Default)
Registered Sets the password. A dialogue box will appear to
allow you to set the password.
![](/img.php?id=1455695&img=bg2c.png)
User’s Manual 44
Utilities & Advanced Usage
2. Tap the OK button. The following message appears, allowing you to
verify the password.
Verify Password:
3. If character strings match, the password is registered tap OK button. If
they do not match, the following message appears. You must repeat
from step 1.
Entry Error!!!
To delete a user password:
1. Select Not Registered to display the following prompt:
Enter Password:
2. Enter the currently registered password. The character string you enter
is displayed as a string of asterisks.
Enter Password: ****
3. Tap the OK button. If the character string you enter matches the
registered password, the password option is reset and the display
changes to:
Not registered
If they do not match, the following message appears. You must repeat
step 1.
Incorrect Password.
4. Follow the same procedures described in the earlier section, How to set
the password, to set a new user password.
Display
This tab allows you to customize your computer’s display settings for either
the internal LCD screen or for an external monitor.
Power On Display
Allows you to set the display to be used when the computer is booted.
■If you enter the password incorrectly three times in a row, the computer
need to shut off.
■You will not be able to access the password option in the HW Setup. In
this case you must turn the power off and back on to retry the
procedure.
Auto-Selected Selects an external monitor if one is connected,
otherwise, it selects the internal LCD display
(Default).
System LCD only Selects the internal LCD, even if an external
monitor is connected.
![](/img.php?id=1455695&img=bg2d.png)
User’s Manual 45
Utilities & Advanced Usage
Boot Priority
Boot Speed
This feature allows you to select system boot-up speed.
USB
Legacy USB Support
Use this option to enable or disable USB Legacy Emulation. If your
operating system does not support USB, you can still use a USB mouse
and keyboard by setting the USB Legacy Emulation item to enabled.
TOSHIBA PC Health Monitor
The TOSHIBA PC Health Monitor application proactively monitors a
number of system functions such as power consumption, battery health
and the system cooling, informing you of significant system conditions. This
application recognizes the system and individual component serial
numbers, and will track specific activities related to the computer and their
usage.
The collected information includes device operation time and number of
actuations or status changes (i.e.: number of power button and FN key
combination uses, AC adaptor, battery, LCD, SSD, sound volume and USB
information), date of initial system use, and also computer and device
usage (i.e.: power settings, battery temperature and recharging, CPU,
memory, backlight illumination time, and temperatures for various devices).
The stored data uses a very small portion of the total hard disk capacity,
approximately 10MB or less per year.
This information is used to identify and provide a notification of system
conditions which may effect the performance of your Toshiba computer. It
may also be used to help diagnose problems should the computer require
service by Toshiba or Toshiba's authorized service providers. Additionally,
Toshiba may also use this information for quality assurance analysis.
Fast Reduces system boot-up time. System can boot
only from the built-in SSD and only internal LCD
and keyboard are supported during the boot
process.
Normal System boots up at normal speed. (Default)
Enabled Enables the USB Legacy Emulation. (Default)
Disabled Disables the USB Legacy Emulation.
![](/img.php?id=1455695&img=bg2e.png)
User’s Manual 46
Utilities & Advanced Usage
Subject to the use restrictions above, the SSD data logged may be
transferred to entities located outside of your country or region of residence
(e.g., European Union). Those countries may or may not have the same
data protection laws or data protection levels as required by your home
country or region.
Once enabled, you may disable the TOSHIBA PC Health Monitor at any
time by uninstalling the software via Uninstall a program in the Control
Panel. Doing so will automatically delete all collected information from the
SSD.
The TOSHIBA PC Health Monitor software does not extend or modify
Toshiba's obligations under its standard limited warranty in any way.
Toshiba's standard limited warranty terms and limitations apply.
Starting the TOSHIBA PC Health Monitor
The TOSHIBA PC Health Monitor can be started using the following
methods:
■Tap Start → All Programs → TOSHIBA → Utilities → PC Health
Monitor.
■Tap the icon ( ) in the notification area, then tap the “Enable PC
Health Monitor...” message the first time you run the application
and “Run PC Health Monitor...” every time thereafter.
No matter which method is used, the TOSHIBA PC Health Monitor
explanation screen will be displayed.
Tapping Next will display the PC Health Monitor Software Notice
& Acceptance screen. Please carefully read the information displayed.
Selecting ACCEPT and tapping OK will enable the program. By enabling
the TOSHIBA PC Health Monitor software, you agree with these terms and
conditions and to the use and sharing of the collected information. Once
the program is enabled, the TOSHIBA PC Health Monitor screen is
displayed, and the program will begin monitoring system functions and
collecting information.
![](/img.php?id=1455695&img=bg2f.png)
User’s Manual 47
Hardware & Options Operation
This chapter identifies the various components and the hardware of the
device - it is recommended that you become familiar with each before you
operate the device.
Hardware
This section describes the hardwares of your device.
The actual specifications may vary depending on the model you
purchased.
Processor
Memory
■Please handle your device carefully to avoid scratching or damaging
the surface.
■This device cannot be used as a mobile phone.
■Content that is copyright protected or has limited access rights, cannot
be played on this device.
CPU Your device is equipped with an Intel® Processor.
Memory on board This device is equipped with a 2GB memory on
board.
Solid state drive This device is equipped with a solid state drive
(SSD).
![](/img.php?id=1455695&img=bg30.png)
User’s Manual 48
Hardware & Options Operation
Power
Display
The device's internal display panel supports high-resolution video graphics
and can be set to a wide range of viewing angles for maximum comfort and
readability.
Multimedia
Communications
Battery pack The device is powered by one detachable
lithium-ion battery pack.
AC adaptor The AC adaptor provides power to the system
and recharges the batteries when they are low. It
comes with a detachable power cord which will
either have a 2-pin or 3-pin plug enclosure.
As the AC adaptor is universal, it can receive a
range of AC voltages from 100 to 240 volts,
however you should note that the output current
varies among different models. Using the wrong
adaptor can damage your device.
Display panel 29.5 cm (11.6”) LCD screen, 16 million colors, is
configured with the following resolution:
■HD, 1366 horizontal x 768 vertical pixels
Graphics controller The graphics controller maximizes display
performance.
Web Camera Web Camera is a device that allows you to
record video or take photographs with your
device. You can use it for video chatting or video
conferences using a communication tool.
Bluetooth Some models have Bluetooth wireless
communication function which eliminates the
need for cables between electronic devices such
as computers, printers and mobile phones. When
it is enabled, Bluetooth provides the wireless
personal area network environment which is safe
and trustworthy, that is quick and easy.
Wireless LAN The device is equipped with a Wireless LAN
module that is compatible with other Wireless
LAN systems based on Direct Sequence Spread
Spectrum/Orthogonal Frequency Division
Multiplexing radio technology that complies with
the IEEE 802.11 Standard.
![](/img.php?id=1455695&img=bg31.png)
User’s Manual 49
Hardware & Options Operation
CAUTION
Bluetooth™ and Wireless LAN devices operate within the same radio
frequency range and may interfere with one another. If you use Bluetooth™
and Wireless LAN devices simultaneously, you may occasionally
experience a less than optimal network performance or even lose your
network connection.
If you should experience any such problem, immediately turn off either one
of your Bluetooth™ or Wireless LAN.
Please visit the following website:
In Europe visit http://www.toshiba-europe.com/computers/tnt/bluetooth.htm
In the United States visit http://www.pc.support.global.toshiba.com
Battery
This section explains battery types, use, recharging methods and handling.
Battery pack
This section explains battery pack use, recharging methods and handling.
When the AC adaptor is not connected, the device's main power source is
a removable lithium ion battery pack. You can purchase additional battery
packs for extended use of the device away from an AC power source
although you should not change the battery pack while the AC adaptor is
connected.
Before you remove the battery pack, save your data and shut down the
device.
Real Time Clock (RTC) battery
The Real Time Clock (RTC) battery provides power for the internal real
time clock and calendar function and also maintains the system
configuration while the computer is turned off. If the RTC battery becomes
completely discharged, the system will lose this information and the real
time clock and calendar will stop working.
You can change the Real Time Clock settings in the Date and Time screen
of Windows. To access it, tap Start → Control Panel → Clock, Language
and Region → Date and Time.
Care and use of the battery pack
This section provides the important safety precautions in order to handle
your battery pack properly.
Refer to the enclosed Instruction Manual for Safety and Comfort for
detailed precautions and handling instructions.
3G Some models are equipped with a 3G module.
FCC compliance and Industry Canada (IC) compliance does not apply to
this product with a 3G module installed.
![](/img.php?id=1455695&img=bg32.png)
User’s Manual 50
Hardware & Options Operation
Charging the batteries
When the power in the battery pack becomes low, the Battery indicator will
blink amber to indicate that only a few minutes of battery power remain.
You must recharge a battery pack when it becomes discharged.
Procedures
To recharge a battery pack while it is installed in the device, connect the AC
adaptor to the DC IN 19V jack and plug the other end into a working outlet.
Battery charging notice
The battery may not begin charging immediately under the following
conditions:
■The battery is extremely hot or cold (if the battery is extremely hot, it
might not charge at all). To ensure the battery charges to its full
capacity, you should charge it at room temperature of between 5°C to
35°C (41°F to 95°F).
■The battery is nearly completely discharged. In this instance you should
leave the AC adaptor connected for a few minutes and the battery
should begin charging.
■Make sure the battery is securely installed in the device before
attempting to charge the battery pack. Improper installation could
generate smoke or fire, or cause the battery pack to rupture.
■Keep the battery pack out of reach of infants and children. It can cause
injury.
■The lithium ion battery pack can explode if not replaced, used, handled
or disposed of properly. Dispose of the battery as required by local
ordinances or regulations. Use only batteries recommended by
TOSHIBA as replacements.
■The device’s RTC battery is a lithium battery and should be replaced
only by your dealer or by a TOSHIBA service representative. The
battery can explode if not properly replaced, used, handled or
disposed. Dispose of the battery as required by local ordinances or
regulations.
■Charge the battery pack only in an ambient temperature between 5 and
35 degrees Celsius. Otherwise, the electrolyte solution might leak,
battery pack performance might deteriorate and the battery life might
be shortened.
■Never install or remove the battery pack without first turning off the
power and disconnecting the AC adaptor. Never remove the battery
pack while the device is in Suspend Mode. Data could be lost.
Use only the device connected to an AC power source, a TOSHIBA Tablet
NAS Dock, a TOSHIBA Tablet USB Cradle or a TOSHIBA Tablet Cradle to
charge the battery pack. Never attempt to charge the battery pack with any
other charger.
![](/img.php?id=1455695&img=bg33.png)
User’s Manual 51
Hardware & Options Operation
The Battery indicator may show a rapid decrease in battery operating time
when you try to charge a battery under the following conditions:
■The battery has not been used for a long time.
■The battery has completely discharged and been left in the device for a
long time.
■A cool battery is installed in a warm device.
In such cases you should follow the steps as detailed below:
1. Fully discharge the battery by leaving it in the device with the power on
until the system automatically turns itself off.
2. Connect the AC adaptor to the DC IN 19V jack of the device, and to a
wall outlet that is supplying power.
3. Charge the battery until the Battery indicator glows white.
Repeat these steps two or three times until the battery recovers normal
capacity.
Charging time
The following table shows the approximate time required to fully charge a
discharged battery.
Charging time (hours)
Battery life
The following table shows the approximate battery life of a fully charged
battery.
Battery life
Battery type Power on Power off
Battery pack (23Wh, 6 cell) about 5 about 3.5
Please be aware that the charging time when the device is on is affected
by ambient temperature, the temperature of the device and how you are
using the device - if you make heavy use of external devices for example,
the battery might scarcely charge at all during operation.
Battery type Time
Battery pack (23Wh, 6 cell) about 7 ~ 20 hours (in use)
about 5 days (Suspend Mode)
Please be aware that the battery life will be affected by how you are using
the device.
![](/img.php?id=1455695&img=bg34.png)
User’s Manual 52
Hardware & Options Operation
Replacing the Battery Pack
Please be aware that the battery pack is classified as a consumable item.
The operating life of the battery pack will gradually reduce through
repeated charging and discharging, and will need to be replaced when it
reaches the end of its operating life. In addition to this, you might also
replace a discharged battery pack with a charged spare when you are
operating your device away from an AC power source for an extended
period of time.
This section explains how to remove and install the battery pack, and
begins with the removal process which is detailed through the following
steps.
Removing the battery pack
To remove a discharged battery, follow the steps as detailed below:
1. Save your work.
2. Turn the device's power off.
3. Remove all cables and peripherals that are connected to the device.
4. Turn the device upside down.
5. Slide the cover lock into its unlock ( ) position.
6. Slide your finger under the cover recess and lift this corner up first.

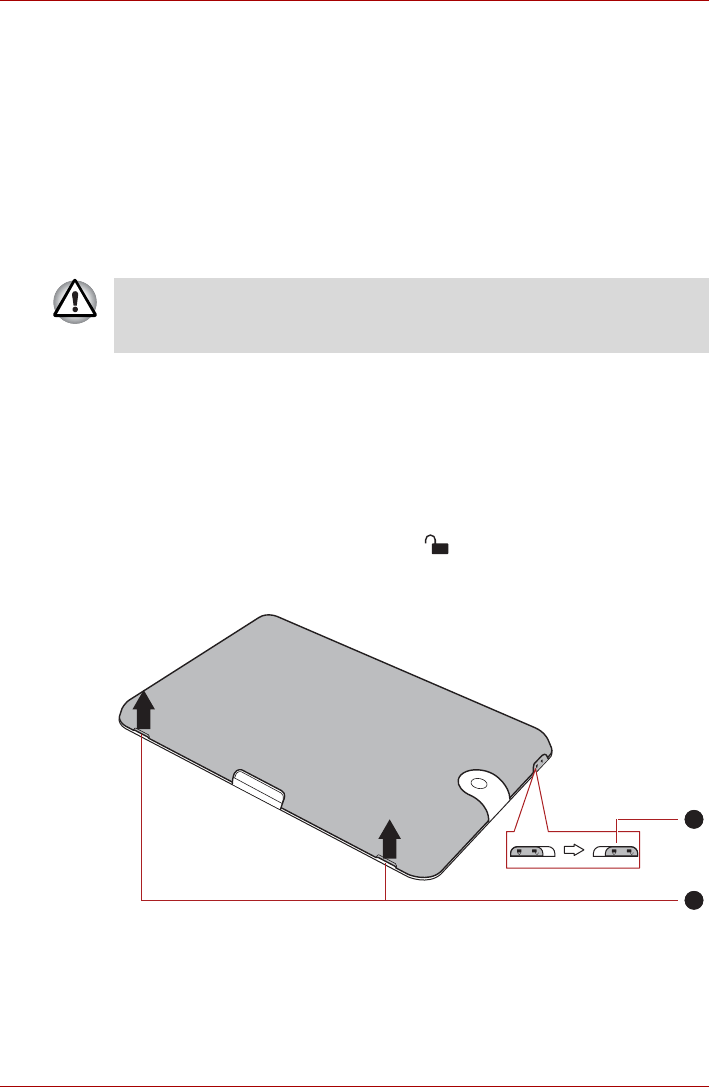

(Sample Illustration) Removing the cover-1
Do not touch the battery release latch while holding the device or the
battery pack might fall out due to the unintentional release of the battery
release latch and cause injuries.
1. Cover lock 2. Cover recess
1
2
![](/img.php?id=1455695&img=bg35.png)
User’s Manual 53
Hardware & Options Operation
7. Lift the cover up according to the following figure and then remove the
cover.
(Sample Illustration) Removing the cover-2
8. Slide the battery lock into its unlock ( ) position.
9. Slide and hold the battery release latch to disengage the battery pack
and then lift it up to remove it from the device.
(Sample Illustration) Removing the battery pack
1. Battery lock 2. Battery release latch
1
2
![](/img.php?id=1455695&img=bg36.png)
User’s Manual 54
Hardware & Options Operation
Installing the battery pack
To install a battery pack, follow the steps as detailed below:
1. Align the connectors of the battery pack with that of the device and
gently insert the battery pack into the device at about a 30 degree
angle.
(Sample Illustration) Installing the battery pack
2. Ensure that the battery pack is securely in place and the battery lock is
in its lock ( ) position.
3. Seat the cover in place and slide the cover lock to its lock ( ) position.
Optional devices
Optional devices can expand your device's capabilities and its versatility.
This section describes the connection or installation of the following
devices:
Cards
■SD card slot
■Secure Digital™ (SD) Card (SD memory card, SDHC memory card,
SDXC memory card, miniSD Card, microSD Card)
■MultiMediaCard
■SIM card slot
Peripheral devices
■USB device
■HDMI device
■TOSHIBA Tablet NAS Dock
■TOSHIBA Tablet USB Cradle
■TOSHIBA Tablet Cradle
![](/img.php?id=1455695&img=bg37.png)
User’s Manual 55
Hardware & Options Operation
SD card slot
The device is equipped with an SD card slot that can accommodate some
kinds of memory media with various memory capacities so that you can
easily transfer data from devices, such as digital cameras and Personal
Digital Assistants.
Memory media
This section provides the important safety precautions in order to handle
your memory media.
Points to note about the SD/SDHC/SDXC memory card
SD/SDHC/SDXC memory cards comply with SDMI (Secure Digital Music
Initiative), which is a technology adopted to prevent unlawful copy or
playback of digital music. For this reason, you cannot copy or playback
protected material on another device or other device, and you may not
reproduce any copyrighted material except for your personal enjoyment.
Below is a simple explanation for distinguishing SD memory cards from
SDHC and SDXC memory cards.
■SD, SDHC and SDXC memory cards appear the same externally.
However, the logo on SD, SDHC and SDXC memory cards is different,
so pay careful attention to the logo when purchasing.
■The maximum capacity of SD memory cards is 2GB. The maximum
capacity of SDHC memory cards is 32GB.
■This memory media slot supports the following memory media.
■Secure Digital (SD) Card (SD memory card, SDHC memory card,
SDXC memory card, miniSD Card, microSD Card)
■Please note that an adaptor is required to use miniSD/microSD Card.
■Please note that not all memory media have been tested and verified to
work correctly. Therefore, it is not possible to guarantee that all
memory media will operate properly.
■Please note that Ultra High Speed (UHS-I) function is not supported.
■The slot does not support Magic Gate functions.
■The SD memory card logo is ( ).
■The SDHC memory card logo is ( ).
■The SDXC memory card logo is ( ).
Card Type Capacities
SD 8MB, 16MB, 32MB, 64MB, 128MB, 256MB,
512MB, 1GB, 2GB
SDHC 4GB, 8GB, 16GB, 32GB
SDXC 64GB
![](/img.php?id=1455695&img=bg38.png)
User’s Manual 56
Hardware & Options Operation
Memory media format
New media cards are formatted according to specific standards. If you wish
to reformat a media card, be sure to do so with a device that uses media
cards.
Formatting an SD/SDHC/SDXC memory card
SD/SDHC/SDXC memory cards are sold already formatted in conformity to
specific standards. If you reformat an SD/SDHC/SDXC memory card, be
sure to reformat it with a device such as digital camera or digital audio
player that uses the SD/SDHC/SDXC memory cards, not with the format
command provided within Windows.
Media care
Observe the following precautions when handling the card.
Card care
■Do not twist or bend cards.
■Do not expose cards to liquids or store in humid areas or lay media
close to containers of liquid.
■Do not touch the metal part of a card or expose it to liquids or let it get
dirty.
■After using card, return it to its case.
■The card is designed so that it can be inserted only one way. Do not try
to force the card into the slot.
■Do not leave a card partially inserted in the slot. Press the card until you
hear it click into place.
Memory card care
■Set the write-protect switch to the lock position, if you do not want to
record data.
■Memory cards have a limited lifespan, so it is important to backup
important data.
■Do not write to a card if the battery power is low. Low power could affect
writing accuracy.
■Do not remove a card while read/write is in progress.
About the write-protect
The following memory media have a function for protect.
■SD Card (SD memory card, SDHC memory card, SDXC memory card)
Should you need to format all areas of the memory card, including the
protected area, you will need to obtain an appropriate application that
applies the copy protection system.
For more details on using memory cards, see manuals accompanying the
cards.
![](/img.php?id=1455695&img=bg39.png)
User’s Manual 57
Hardware & Options Operation
Inserting a memory media
The following instructions apply to all types of supported media devices. To
insert a memory media, follow the steps as detailed below:
1. Turn the memory media so that the contacts (metal areas) are face
down.
2. Insert the memory media into the memory media slot on the right side of
the device.
3. Push the memory media gently to ensure a firm connection is made.
(Sample Illustration) Inserting a memory media
Removing a memory media
The following instructions apply to all types of supported media devices. To
remove a memory media, follow the steps as detailed below:
1. Make sure all file operations are finished.
2. Tap the Safely Remove Hardware and Eject Media icon on the
Windows Taskbar.
3. Tap Eject Media.
4. Push the memory media until you hear a click and pull it out of the slot.
Set the write-protect switch to the lock position, if you do not want to record
data.
1. SD card slot 2. Memory media
2
1
■Make sure memory media is oriented properly before you insert it. If
you insert the media in wrong direction, you may not be able to remove
it.
■When inserting memory media, do not touch the metal contacts. You
could expose the storage area to static electricity, which can destroy
data.
■Do not turn the device off or switch to Suspend Mode while files are
being copied - doing so may cause data to be lost.
![](/img.php?id=1455695&img=bg3a.png)
User’s Manual 58
Hardware & Options Operation

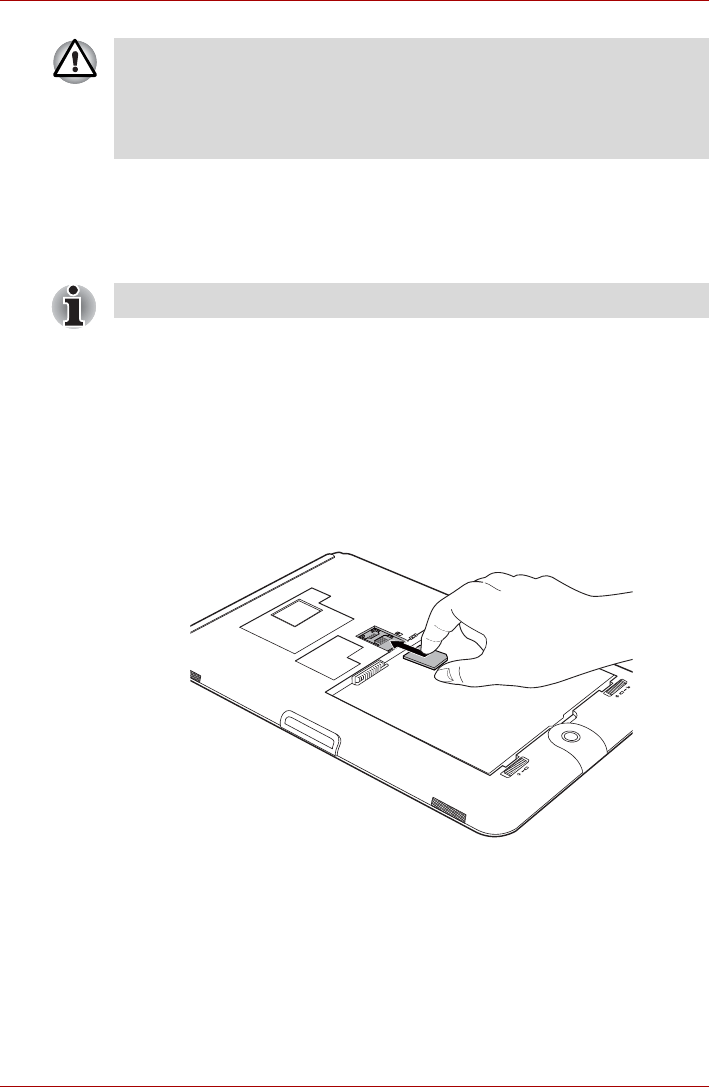

SIM card slot
This device is equipped with a SIM card slot that allows you to assemble a
SIM card from your wireless service provider to use your provider’s mobile
networks for transmitting data.
Inserting a SIM card
To insert a SIM card, follow the steps as detailed below:
1. Turn off your device. Remove the cover and the battery pack as
described in the Removing the battery pack section.
2. Locate the SIM card slot beside the battery pack slot.
3. Slide your SIM card into the SIM card slot with your finger as shown on
the figure below.
You can slide the SIM card with your finger in the opposite direction to
remove the SIM card.
(Sample Illustration) Inserting a SIM card
4. Install the battery pack and the cover in place.
Now you can power on your device to use your provider’s mobile
networks.
USB device
This device is equipped with a USB port that complies with USB 2.0
standard.
■Do not remove the memory media while the device is in Suspend
mode. The device could become unstable or data in the memory media
could be lost.
■Do not remove only the miniSD/microSD Card while leaving the
adaptor in the memory media slot.
This section only applies to models with 3G modules.
![](/img.php?id=1455695&img=bg3b.png)
User’s Manual 59
Hardware & Options Operation

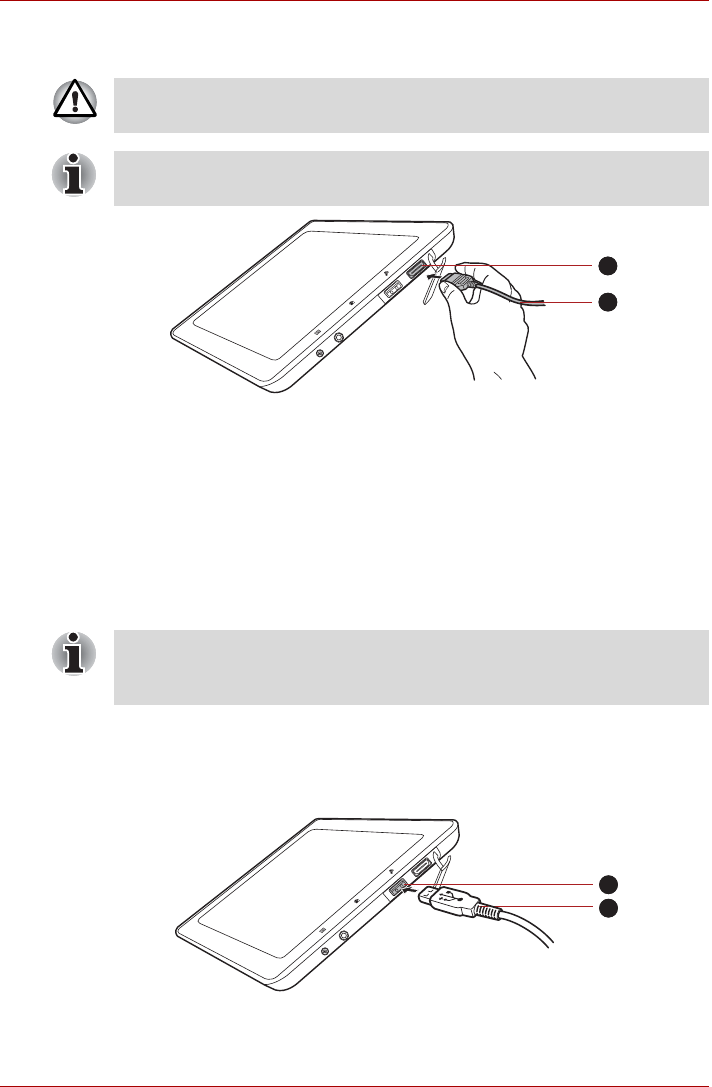

To connect a USB device, plug the device’s connector into the USB port on
your device.
(Sample Illustration) Connecting a USB device
HDMI device
The device is equipped with an HDMI out port that can send video by
connecting with external devices. 1080p, 720p, 576p and 480p signal
formats are supported, but actually available signal format depends on
each HDMI device.
To connect external devices, follow the steps as detailed below:
1. Plug one end of the HDMI cable into the HDMI port of the HDMI
device.
2. Plug the other end of the HDMI cable into the HDMI out port on your
device.
(Sample Illustration) Connecting a HDMI cable
Make sure the connector is properly aligned with the socket. Do not try to
force the connection, doing so can damage the connecting pins.
As the port operation of all USB devices has not been confirmed, some
USB devices may not function properly.
1. USB port 2. USB connector
1
2
As the port operation of all HDMI (High-Definition Multimedia Interface)
monitors has not been confirmed, some HDMI monitors may not function
properly.
1. HDMI out port 2. HDMI cable
1
2
![](/img.php?id=1455695&img=bg3c.png)
User’s Manual 60
Hardware & Options Operation
TOSHIBA Tablet Dock
Your device can accommodate some kinds of docks providing extra ports
and network-attached storage (NAS) function, so that you can charge the
battery.
Using the TOSHIBA Tablet Dock
Connecting the AC adaptor
1. Connect the power cord to the AC adaptor.
(Sample Illustration) Connecting the power cord to the AC adaptor (2-pin plug)
Please connect or disconnect an HDMI device to or from the computer
under the following conditions:
■The computer is turned on.
■The computer is completely turned off.
Do not do so when the computer is in Sleep Mode or Hibernation Mode.
■When you connect a television or external monitor to the HDMI port,
the display output device is set to HDMI.
■When you unplug the HDMI cable and re-plug it, please wait at least 5
seconds before you re-plug the HDMI cable again.
Dock Type Feature
TOSHIBA Tablet NAS
Dock
■Power supply and battery charge
■Built in speaker
■Extra ports
■NAS function
TOSHIBA Tablet USB
Cradle
■Power supply and battery charge
■Extra ports
TOSHIBA Tablet Cradle ■Power supply and battery charge
![](/img.php?id=1455695&img=bg3d.png)
User’s Manual 61
Hardware & Options Operation
(Sample Illustration) Connecting the power cord to the AC adaptor (3-pin plug)
2. Connect the AC adaptor’s DC output plug to the DC IN 19V jack on the
back of the dock.
3. Plug the power cord into a live wall outlet.

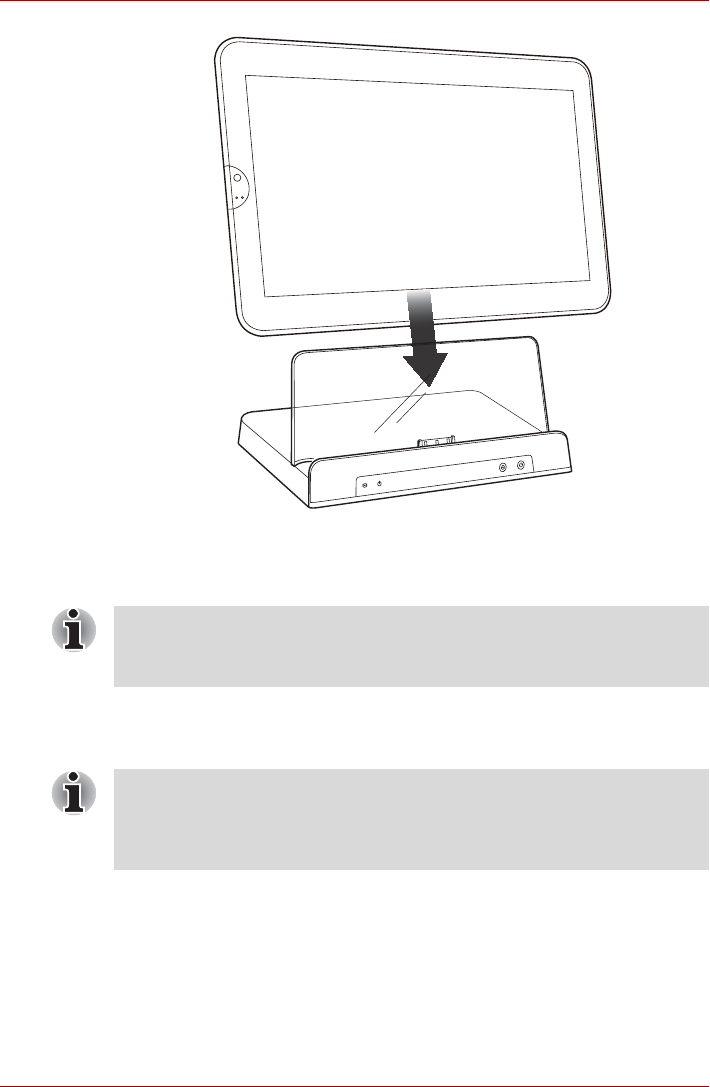

Connecting the TOSHIBA Tablet NAS Dock
1. Turn on the TOSHIBA Tablet.
2. Align the docking interface on the left side of your device with the
docking connector on the dock.
Either a 2-pin or 3-pin adaptor/cord will be included with the computer
depending on the model.
The AC adaptor is only equipped with TOSHIBA Tablet NAS Dock.
■You must connect the AC adaptor before you connect to the dock.
■When the dock is connected to your device, you can not use the follow-
ing ports on your device: DC IN 19V jack and HDMI out port.
![](/img.php?id=1455695&img=bg3e.png)
User’s Manual 62
Hardware & Options Operation
(Sample Illustration) Connect your device with the dock
3. Press the Power button on the front side of the dock and a notice of
docking will appear on the Windows Taskbar of your device.
To disconnect your device by using following steps:
1. Press the Undock button on the front side of the dock to undock your
device.
2. Wait for a notice of undocking appears on the Windows Taskbar and
remove your device from the dock.
Docking the TOSHIBA Tablet NAS Dock via WLAN
You are able to dock the TOSHIBA Tablet NAS Dock via a wireless local
area network (WLAN).
1. Turn on the TOSHIBA Tablet.
2. Connect your device to a wireless local area network.
■The Power indicator blinks orange while starting the dock. Then you
must wait for several minutes until the Power indicator blinks white.
■You can use the USB ports and HDMI port after the power supplied.
■Make sure the HDD indicators is off. If you press the Undock button
while a disk is being accessed, you may lose data or damage the disk.
■Never remove your device from the dock without pressing the Undock
button. Doing so could cause loss of data.
![](/img.php?id=1455695&img=bg3f.png)
User’s Manual 63
Hardware & Options Operation

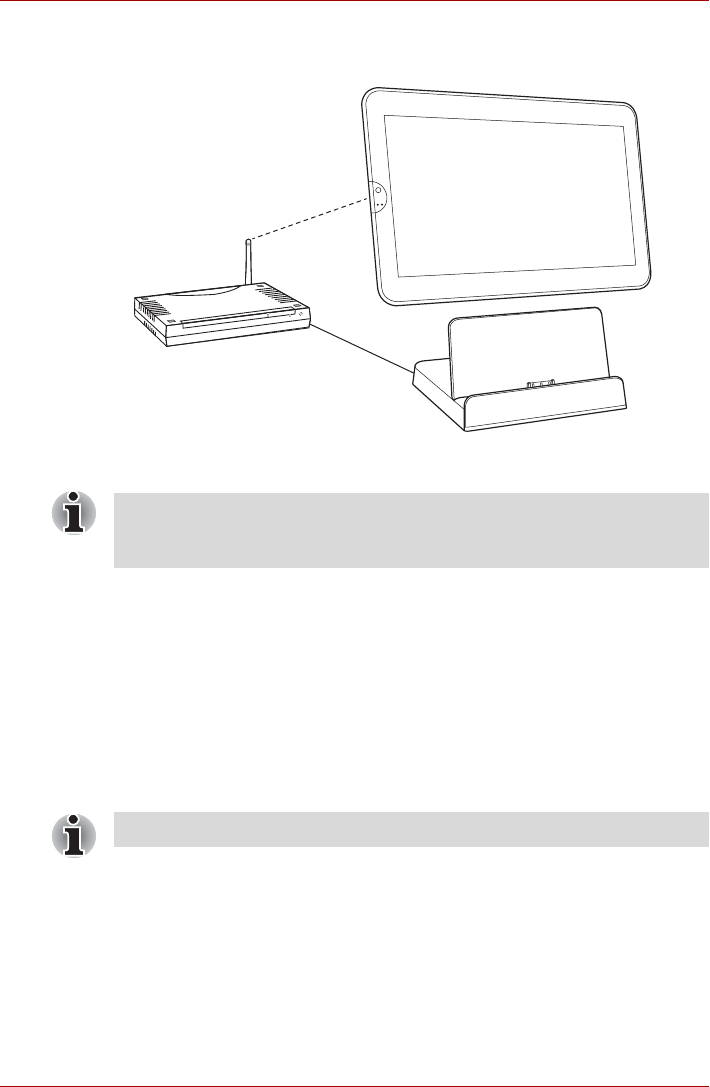

3. Press the Power button on the front side of the dock without connecting
the device.
(Sample Illustration) Connect your device via WLAN
To connect to a WLAN by setting your WLAN firstly:
1. Please make sure that the Wireless Communication function is
turned on.
2. Tap Start → Control Panel → Network and Internet → Network and
Sharing Center.
3. Tap Set up a new connection or network.
4. Follow the wizard. You will need the name of the wireless network
together with security settings. Consult the documentation
accompanied with your router or ask your wireless network
administrator for the settings.
Make sure that your device is connected to the network via wireless while
the TOSHIBA Tablet NAS Docking is connected to the network via LAN
cable.
A notice of docking will appear on the Windows Taskbar of your device.
![](/img.php?id=1455695&img=bg40.png)
User’s Manual 64
Hardware & Options Operation
Connecting the TOSHIBA Tablet USB Cradle / TOSHIBA
Tablet Cradle
1. Turn on the TOSHIBA Tablet.
2. Align the docking interface on the left side of your device with the
docking connector on the dock.
(Sample Illustration) Connect your device with the dock
A notice of docking will appear on the Windows Taskbar of your device.
To disconnect your device, remove your device following the connector
direction.
The Grand Tour of the dock
The following figures show the buttons and ports on the dock.
■You must connect the AC adaptor before you connect to the dock.
■When the dock is connected to your device, you can not use the follow-
ing ports on your device: DC IN 19V jack and HDMI out port.
![](/img.php?id=1455695&img=bg41.png)
User’s Manual 65
Hardware & Options Operation

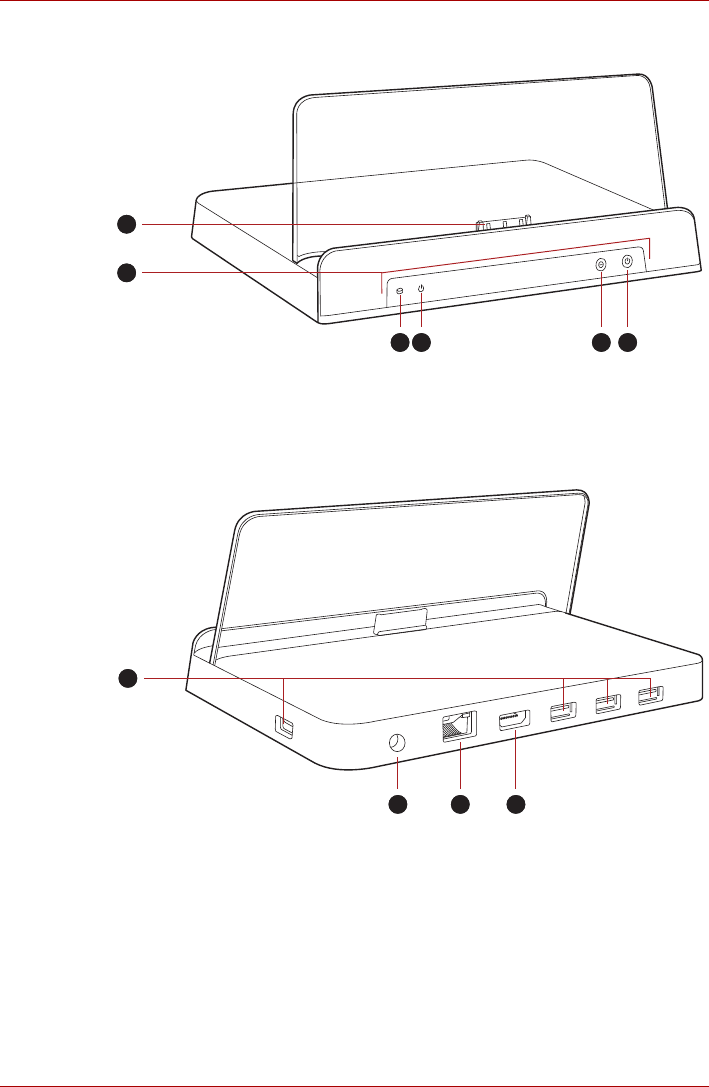

TOSHIBA Tablet NAS Dock
(Sample Illustration) Front of the dock
(Sample Illustration) Back of the dock
1. Docking connector 2. Speakers
3. HDD indicator 4. Power indicator
5. Undock button 6. Power button
1. Universal Serial Bus 2.0 port 2. DC IN 19V jack
3. LAN jack 4. HDMI out port
1
2
5 643
1
432
![](/img.php?id=1455695&img=bg42.png)
User’s Manual 66
Hardware & Options Operation
TOSHIBA Tablet USB Cradle
(Sample Illustration) Front of the dock
(Sample Illustration) Back of the dock
1. Docking connector
1.DC IN 19V jack 2.Headphone jack
3. Universal Serial Bus 2.0 port 4. HDMI out port
1
3 421
![](/img.php?id=1455695&img=bg43.png)
User’s Manual 67
Hardware & Options Operation
TOSHIBA Tablet Cradle
(Sample Illustration) Front of the dock
(Sample Illustration) Back fo the dock
1. Docking connector
1. DC IN 19V jack 2. Headphone jack
1
21
Docking connector TOSHIBA Tablet connects the dock via docking
connector.
Speakers The speakers emit sound generated by your
software as well as audio alarms, such as low
battery condition, generated by the system.
HDD indicator The HDD indicator glows white whenever the
device is accessing the built-in hard disk drive or
optical disc drive device.
![](/img.php?id=1455695&img=bg44.png)
User’s Manual 68
Hardware & Options Operation
Using TOSHIBA Network Attached Storage Utility
This utility is only for TOSHIBA Tablet NAS dock.
You are able to access TOSHIBA Tablet NAS Dock easily by using Network
Attached Storage Utility.
To launch Network Attached Storage Utility, tap Start → All Programs →
TOSHIBA → Utilities → TOSHIBA Network Attached Storage Utility.
Power indicator The Power indicator normally glows white when
the dock is turned on. However, this indicator will
glow orange while starting the dock.
Undock button Press this button to Undocking your device. For
details, please refer to Connecting the AC
adaptor section.
Power button Press this button to turn the dock on and off.
Universal Seral Bus
2.0 port
Four Universal Serial Bus ports, which comply to
the USB 2.0 standard, are provided.
DC IN 19V jack The AC adaptor connects to this jack in order to
power the device and charge its internal
batteries. Please note that you should only use
the model of AC adaptor supplied with the device
at the time of purchase - using the wrong AC
adaptor can cause damage to the device.
LAN jack This jack lets you connect to a LAN. The adaptor
has built-in support for Ethernet LAN (10
megabits per second, 10BASE-T), Fast Ethernet
LAN (100 megabits per second, 100BASE-TX).
Some models are equipped with a Gigabit
Ethernet LAN (1000 megabits per second,
1000BASE-T).
HDMI out port HDMI out port can connect with Type A
connector HDMI cable.
HDMI cable can send video and audio signals. In
addition to this, it can send and receive control
signals.
■You must dock the device to a NAS Dock before you use TOSHIBA
Network Attached Storage Utility.
■Refer to Using the TOSHIBA Tablet Dock section in this chapter for
details.
![](/img.php?id=1455695&img=bg45.png)
User’s Manual 69
Hardware & Options Operation
(Sample Illustration) TOSHIBA Network Attached Storage window
Managing files in a NAS Dock
You are able to create sync copies of outlook or local files in a NAS Dock
and restore them through it.
To manage files in a NAS Dock through following steps.
1. Tap File Management button.
2. Double tap File Syncronize icon to launch TOSHIBA Sync Utility.
3. Tap Add Task button to add an outlook sync task, a local file sync task
or a bidirectional task and tap Start button to do sync operation.
Accessing Shared files in a NAS Dock
The internal hard disk drive of a NAS Dock will be shared via the local area
network.
To access shared files in a NAS Dock through following steps.
1. Tap File Management button.
2. Double tap File Share icon to open a shared directory window and
access the folders and files in this directory.
Please refer to the help file of TOSHIBA Sync Utility to learn more
information by tapping Help button.
Please entry admin in User Name textbox and leave Password textbox
empty if the login screen appears.
![](/img.php?id=1455695&img=bg46.png)
User’s Manual 70
Hardware & Options Operation
(Sample Illustration) Login sreen setup
Using File Transfer Protocol (FTP) function
The NAS Dock can setup a FTP Server conveniently. You are able to
access the FTP Server with your TOSHIBA Tablet device or other
computers in the same local area network.
To access the FTP site on the NAS Dock through following steps.
1. Tap File Management button.
2. Double tap FTP icon to browse the FTP site on the NAS Dock.
Accessing Internet via a NAS Dock
You are able to accessing internet via a NAS Dock pluging in the network
cable.
To acceccing Internet via a NAS Dock through following steps.
1. Plug an ethernet network cable in the LAN jack on the back of the NAS
Dock.
2. Tap Start → All Programs → TOSHIBA → Utilities → TOSHIBA
Network Attached Storage Utility to launch Network Attached Storage
Utility.
3. Tap Setting button.
4. Double tap Access Internet via Dock icon.
A notice window will appear and tap Yes to confirm. The network will
disconnect temporarily.
![](/img.php?id=1455695&img=bg47.png)
User’s Manual 71
Hardware & Options Operation
Optional accessories
You are able to add a number of options and accessories in order to make
your device even more powerful and convenient to use. For reference, the
following list details some of the items that are available from your reseller
or TOSHIBA dealer:
Universal AC
Adaptor
If you frequently use your device at more than
one site, it may be convenient to purchase an
additional AC adaptor to be kept at each site in
order to remove the need to always carry the
adaptor with you.
Battery Pack An additional battery pack can be purchased for
use as either a spare or replacement.
TOSHIBA Tablet NAS
Dock
The TOSHIBA Tablet NAS Dock provides the
ports available on your device in addition to a
HDMI out port, four Universal Serial Bus ports
(USB 2.0), a LAN jack and a DC IN 19V jack. It
also provides you the network attached storage
function for your TOSHIBA Tablet device.
TOSHIBA Tablet USB
Cradle
The TOSHIBA Tablet NAS Dock provides the
ports available on your device in addition to a
HDMI out port, two Universal Serial Bus ports
(USB 2.0), a Headphone jack and a DC IN 19V
jack.
TOSHIBA Tablet
Cradle
The TOSHIBA Tablet Cradle provides the power
charging for your TOSHIBA Tablet device.
![](/img.php?id=1455695&img=bg48.png)
User’s Manual 72
Troubleshooting
TOSHIBA have designed this device for durability, however, should
problems occur you are able to use the procedures detailed in this chapter
to help determine the cause.
All users should become familiar with this chapter as knowing what might
go wrong can help prevent problems from occurring in the first place.
Problem solving process
Resolving problems will be much easier if you observe the following
guidelines:
■Stop immediately when you recognize a problem exists as taking further
action may result in data loss or damage, or you may destroy valuable
problem related information that can help solve the problem.
■Observe what is happening - write down what the system is doing and
what actions you performed immediately before the problem occurred.
Please also be aware that the questions and procedures described in this
chapter are meant only as a guide, they are not definitive problem solving
techniques. In reality many problems can be solved simply, but a few may
require help from your reseller, dealer or service provider - if you find you
need to consult others, be prepared to describe the problem in as much
detail as possible.
Preliminary checklist
You should always consider the simplest solution first - the items detailed in
this checklist are easy to fix and yet can cause what appears to be a
serious problem:
■Make sure you turn on all peripheral devices before you turn on the
device - this includes any other external device you are using.
■Before you attach an external device you should first turn the device off,
then when you turn your device back on again it will recognize the new
device.
■Make sure all optional accessories are configured properly in the
device's setup program (please refer to the documentation included
with the optional accessories for further information on its installation
and configuration).
■Check all cables to ensure they are correctly and firmly attached to the
device - loose cables can cause signal errors.
![](/img.php?id=1455695&img=bg49.png)
User’s Manual 73
Troubleshooting
■Inspect all connecting cables for loose wires and all connectors for
loose pins.
Always try to make detailed notes of your observations and keep them in a
permanent error log - this will help you to describe your problems to your
reseller, dealer or service provider. In addition, if a problem recurs, the log
you have made will help to identify the problem faster.
Hardware and system checklist
This section discusses problems caused by your device’s hardware or
attached peripherals. Basic problems may occur in the following areas:
Internal display panel
Apparent device's display panel problems may be related to the device's
setup and configuration.
Memory Card
■Internal display panel
■Memory Card
■USB device
■Sound system
■External monitor
■Wireless LAN
■Bluetooth
Problem Procedure
Markings appear on the
device's display panel.
These marks may have come from contact with
the touch screen. You should try to remove the
marks by gently wiping the display panel with a
clean dry cloth or, if this fails, with a good quality
LCD screen cleaner. In this latter instance you
should always follow the instructions with the
screen cleaner and always ensure you let the
display panel dry properly before closing it.
Problems above remain
unresolved or other
problems occur
You should initially refer to the documentation
supplied with you software to determine if it is
this that is causing the problems.
If you are still unable to resolve the problem,
contact your reseller, dealer or service provider.
Problem Procedure
Memory Card error
occurs
Remove the Memory Card from the device and
then reinsert it in order to ensure it is firmly
connected.
If the problem persists, then you should refer to
the documentation supplied with your Memory
card for further information.
![](/img.php?id=1455695&img=bg4a.png)
User’s Manual 74
Troubleshooting
USB device
In addition to the information in this section, please also refer to the
documentation supplied with your USB device.
Sound system
In addition to the information in this section, please also refer to the
documentation supplied with your audio device.
External monitor
Please also refer to the documentation supplied with your monitor for
further information.
You cannot write to a
Memory Card
Remove the Memory Card from the device and
check to ensure that it is not write protected.
You cannot read a file Check to ensure the required file is actually on
the Memory Card that is inserted into the device.
If you are still unable to resolve the problem,
contact your reseller, dealer or service provider.
Problem Procedure
Problem Procedure
USB device does not
work
Remove the USB device from the device and
then reconnect it in order to ensure it is firmly
attached.
Problem Procedure
No sound is heard Adjust the volume.
Check the software volume settings.
Please check to see if Mute is turned to Off
Check to make sure the headphone connection
is secure.
Problem Procedure
Monitor does not turn
on
After confirming that the monitor's power switch
is on, you should check the connections to make
sure that the power cord/adaptor is firmly
connected to the monitor and to a working power
outlet.
No display Try adjusting the contrast and brightness controls
on the external monitor.
![](/img.php?id=1455695&img=bg4b.png)
User’s Manual 75
Troubleshooting
Wireless LAN
If the following procedures do not restore LAN access, consult your LAN
administrator.
Bluetooth
TOSHIBA support
If you require any additional help using your computer or if you are having
problems operating the computer, you may need to contact TOSHIBA for
additional technical assistance.
Before you call
Some problems you experience may be related to software or the operating
system so it is important that you investigate other sources of assistance
first. Before contacting TOSHIBA, try the following:
■Review troubleshooting sections in the documentation supplied with
your software and/or peripheral devices.
■If a problem occurs when you are running software applications, consult
the software documentation for troubleshooting suggestions and
consider calling the software company's technical support department
for assistance.
■Consult the reseller or dealer from where you purchased your computer
and/or software - they are your best resource for current information
and support.
Display error occurs Check that the cable connecting the external
monitor to the device is firmly attached.
If you are still unable to resolve the problem,
contact your reseller, dealer or service provider.
Problem Procedure
Problem Procedure
Cannot access
Wireless LAN
Make sure the device's Wireless communication
functionality is set to on.
If problems persist, contact your LAN
administrator.
Problem Procedure
Cannot access
Bluetooth device
Check to ensure the device's Wireless
Communication functionality is set to on.
![](/img.php?id=1455695&img=bg4c.png)
User’s Manual 76
Troubleshooting
TOSHIBA technical support
If you are still unable to solve the problem and suspect that it is hardware
related, visit TOSHIBA technical support website
http://www.toshiba.co.jp/worldwide/.
![](/img.php?id=1455695&img=bg4d.png)
User’s Manual 77
Specifications
This appendix summarizes the device’s technical specifications.
Physical Dimensions
Environmental Requirements
Power Requirements
Size 196 (w) x 296 (d) x 14.2 (h) millimeters
(not including parts that extend beyond the main
body).
Conditions Ambient temperature Relative humidity
Operating 5°C (41°F) to 40°C (104°F) 0% to 85%
(noncondensing)
Non-operating -30°C (-22°F) to 60°C
(140°F)
0% to 90%
(noncondensing)
Conditions Altitude (from sea level)
Operating 0 to 10,000 feet (3,048
meters)
Non-operating 0 to 40,000 feet (12,192
meters)
AC adaptor 100-240 volts AC
50 or 60 hertz (cycles per second)
Device 19V DC
![](/img.php?id=1455695&img=bg4e.png)
User’s Manual 78
Wireless information
Wireless LAN Interoperability
The Wireless LAN is compatible with other LAN systems Direct Sequence
Spread Spectrum (DSSS) /Orthogonal Frequency Division Multiplexing
(OFDM) radio technology, and is compliant to:
■The IEEE 802.11 Standard on Wireless LANs (Revision a/b/g/n or
b/g/n), as defined and approved by the Institute of Electrical and
Electronics Engineers.
■The Wireless Fidelity (Wi-Fi®) certification as defined by the Wi-Fi
Alliance®.
The “Wi-Fi CERTIFIED™” logo is a certification mark of the Wi-Fi
Alliance®.
Bluetooth wireless technology Interoperability
Bluetooth™ Cards from TOSHIBA are designed to be interoperable with
any product with Bluetooth wireless technology that is based on Frequency
Hopping Spread Spectrum (FHSS) radio technology, and is compliant to:
■Bluetooth Specification Ver. 3.0+HS or Ver. 3.0 (depending on the
model you purchased), as defined and approved by the Bluetooth
Special Interest Group.
■Logo certification with Bluetooth wireless technology as defined by the
Bluetooth Special interest Group.
![](/img.php?id=1455695&img=bg4f.png)
User’s Manual 79
Wireless information
CAUTION about Wireless Devices
Wireless Devices and your health
Wireless products, like other radio devices, emit radio frequency
electromagnetic energy. The level of energy emitted by Wireless products
however is far much less than the electromagnetic energy emitted by
wireless devices like for example mobile phones.
Because Wireless products operate within the guidelines found in radio
frequency safety standards and recommendations, TOSHIBA believes
Wireless products is safe for use by consumers. These standards and
recommendations reflect the consensus of the scientific community and
result from deliberations of panels and committees of scientists who
continually review and interpret the extensive research literature.
In some situations or environments, the use of Wireless products may be
restricted by the proprietor of the building or responsible representatives of
the organization. These situations may for example include:
■Using the Wireless products equipment on board of airplanes, or
■In any other environment where the risk of interference to other devices
or services is perceived or identified as harmful.
If you are uncertain of the policy that applies on the use of wireless devices
in a specific organization or environment (e.g. airports), you are
encouraged to ask for authorization to use the Wireless device prior to
turning on the equipment.
The wireless devices have not completed verification of connection and
operation with all devices which are using the Wireless LAN or Bluetooth
radio technology.
Bluetooth and Wireless LAN devices operate within the same radio
frequency range and may interfere with one another. If you use Bluetooth
and Wireless LAN devices simultaneously, you may occasionally
experience a less than optimal network performance or even lose your
network connection.
If you should experience any such problem, immediately turn off either one
of your Bluetooth or Wireless LAN.
Please visit http://www.pc.support.global.toshiba.com, if you have any
questions about using Wireless LAN or Bluetooth Card from TOSHIBA.
In Europe visit http://www.toshiba-europe.com/computers/tnt/bluetooth.htm
Your Bluetooth product is not compatible with devices using Bluetooth
Version 1.0B specifications.
![](/img.php?id=1455695&img=bg50.png)
User’s Manual 80
Wireless information
Radio Regulatory Information
The Wireless device is must be installed and used in strict accordance with
the manufacturer’s instructions as described in the user documentation that
comes with the product. This product complies with the following radio
frequency and safety standards.
Europe
Restrictions for Use of 2400.0-2483.5MHz Frequencies in
Europe
Restrictions for Use of 5150-5350MHz Frequencies in Europe
France: Outdoor use
limited to 10mW
e.i.r.p. within the
band 2454-
2483.5MHz
Military Radiolocation use.Refarming
of the 2.4GHz band has been
ongoing in recent years to allow
current relaxed regulation Full
implementation planned 2012.
Italy: - For private use, a general
authorization is required if
WAS/RLAN’s are used outside own
premises. For public use, a general
authorization is required.
Luxembourg: Implemented General authorization required for
network and service supply.
Norway: Implemented This subsection does not apply for
the geographical area within a radius
of 20 km from the centre of Ny-
Alesund.
Russian
Federation:
- Only for indoor applications.
Italy: - For private use, a general
authorization is required if
WAS/RLAN’s are used outside own
premises.
Luxembourg: Implemented General authorization required for
network and service supply.
![](/img.php?id=1455695&img=bg51.png)
User’s Manual 81
Wireless information
Restrictions for Use of 5470-5725MHz Frequencies in Europe
To remain in conformance with European spectrum usage laws for
Wireless LAN operation, the above 2.4GHz and 5GHz channel limitations
apply for outdoor usage. The user should use the wireless LAN utility to
check the current channel of operation. If operation is occurring outside of
the allowable frequencies for outdoor use, as listed above, the user must
contact the applicable national spectrum regulator to request a license for
outdoor operation.
Russian
Federation:
Limited e.i.r.p 100mW. Permitted to use only
for indoor applications, closed
industrial and warehouse areas, and
on board aircraft.
1. Permitted to use for local
networks of aircraft crew service
communications on board aircraft
in area of the airport and at all
stages of flight.
2. Permitted to use for public
wireless access local networks
on board aircraft during a flight at
the altitude not less than 3000m.
Italy: - For private use, a general
authorization is required if
WAS/RLAN’s are used outside own
premises.
Luxembourg: Implemented General authorization required for
network and service supply
Russian
Federation:
Limited e.i.r.p 100mW. Permitted to use only
for indoor applications, closed
industrial and warehouse areas, and
on board aircraft.
1. Permitted to use for local
networks of aircraft crew service
communications on board aircraft
in area of the airport and at all
stages of flight.
2. Permitted to use for public
wireless access local networks on
board aircraft during a flight at the
altitude not less than 3000m.
![](/img.php?id=1455695&img=bg52.png)
User’s Manual 82
Wireless information
Canada - Industry Canada (IC)
This device complies with RSS 210 of Industry Canada. Operation is
subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of this device.
The term “IC” before the equipment certification number only signifies that
the Industry Canada technical specifications were met.
USA-Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
Refer to the FCC information section for the detailed information.
Caution: Exposure to Radio Frequency Radiation
The radiated output power of the Wireless device is far below the FCC
radio frequency exposure limits. Nevertheless, the Wireless device shall be
used in such a manner that the potential for human contact during normal
operation is minimized.
In the usual operating configuration, the distance between the antenna and
the user should not be less than 20cm. Please refer to the computer user’s
manual for the details regarding antenna location.
The installer of this radio equipment must ensure that the antenna is
located or pointed such that it does not emit RF field in excess of Health
Canada limits for the general population; consult Safety Code 6, obtainable
from Health Canada’s website www.hc-sc.gc.ca
Caution: Radio Frequency Interference Requirements
This device is restricted to indoor use due to its operation in the 5.15 to
5.25GHz frequency range.
Taiwan
Article 12 Without permission granted by the NCC, any
company, enterprise, or user is not allowed to
change frequency, enhance transmitting power
or alter original characteristic as well as
performance to an approved low power
radiofrequency devices.
![](/img.php?id=1455695&img=bg53.png)
User’s Manual 83
Wireless information
Using this equipment in Japan
In Japan, the frequency bandwidth of 2,400MHz to 2,483.5MHz for second
generation low-power data communication systems such as this equipment
overlaps that of mobile object identification systems (premises radio station
and specified low-power radio station).
1. Important notice
The frequency bandwidth of this equipment may operate within the same
range as industrial devices, scientific devices, medical devices, microwave
ovens, licensed radio stations and non-licensed specified low-power radio
stations for mobile object identification systems (RFID) used in factory
production lines (Other Radio Stations).
1. Before using this equipment, ensure that it does not interfere with any of
the equipment listed above.
2. If this equipment causes RF interference to other radio stations,
promptly change the frequency being used, change the location of use,
or turn off the source of emissions.
3. Contact an authorized TOSHIBA service provider if you have problems
with interference caused by this product to Other Radio Stations.
2. Indication for Wireless LAN
The indication shown below appears on this equipment.
(1) 2.4 : This equipment uses a frequency of 2.4GHz.
(2) DS : This equipment uses DS-SS modulation.
(3) OF : This equipment uses OFDM modulation.
(4) 4 : The interference range of this equipment is less than
40m.
(5) :This equipment uses a frequency bandwidth from
2,400MHz to 2,483.5MHz. It is possible to avoid the
band of mobile object identification systems.
Article 14 The low power radio-frequency devices shall not
influence aircraft security and interfere legal
communications;
If found, the user shall cease operating
immediately until no interference is achieved.
The said legal communications means radio
communications is operated in compliance with
the Telecommunications Act.
The low power radio-frequency devices must be
susceptible with the interference from legal
communications or ISM radio wave radiated
devices.
![](/img.php?id=1455695&img=bg54.png)
User’s Manual 84
Wireless information

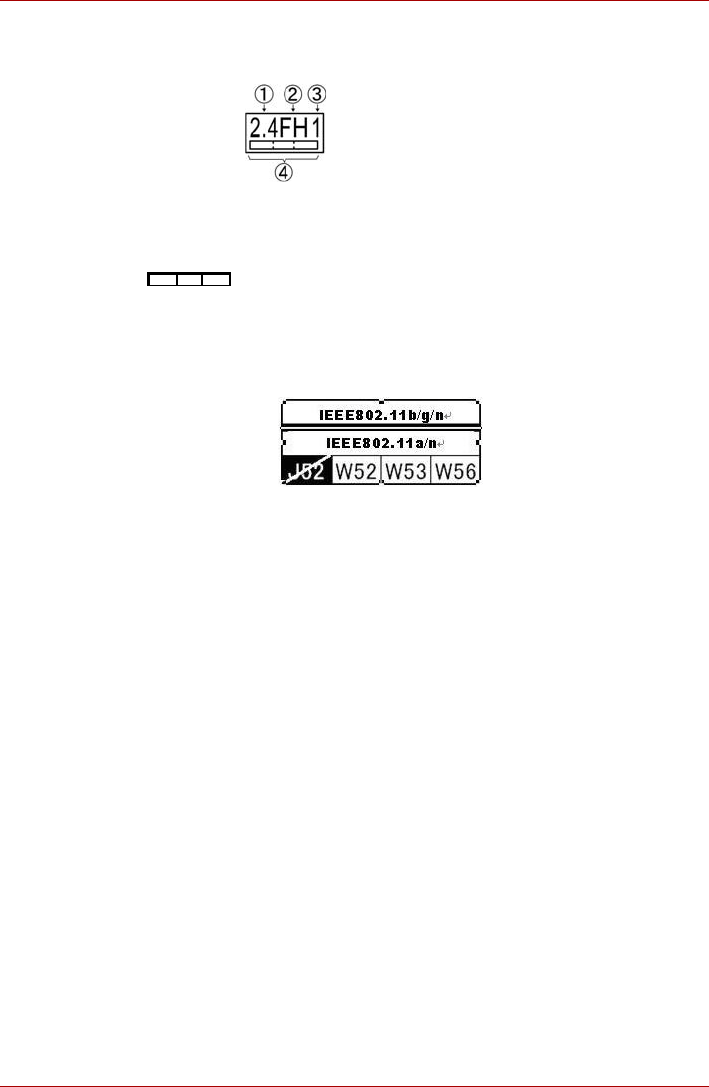

3. Indication for Bluetooth
The indication shown below appears on this equipment.
(1) 2.4 : This equipment uses a frequency of 2.4 GHz.
(2) FH : This equipment uses FH-SS modulation.
(3) 1 : The interference range of this equipment is less than 10 m.
(4) : This equipment uses a frequency bandwidth from 2,400
MHz to 2,483.5 MHz. It is impossible to avoid the band of
mobile object identification systems.
4. About the JEITA
5GHz Wireless LAN supports W52/W53/W56 Channel.
Device Authorization
This device obtains the Technical Regulation Conformity Certification and it
belongs to the device class of radio equipment of low-power data
communication system radio station stipulated in the Telecommunications
Business Law of Japan.
■Atheros Atheros WB263 Wireless Network Adapter b/g/n (b/g) module
The Name of the radio equipment: AR6003
DSP Research, Inc.
Approval Number: xxxxxxxxxx
■Atheros Atheros WB263 Wireless Network Adapter b/g/n (b/g) module
The Name of the radio equipment: AR6003+AR3012
DSP Research, Inc.
Approval Number: xxxxxxxxxx
The following restrictions apply:
■Do not disassemble or modify the device.
■Do not install the embedded wireless module into other device.
When using the wireless device in any country or region, refer to the
section Approved Countries/Regions for use in the online manual.
![](/img.php?id=1455695&img=bg55.png)
User’s Manual 85
Wireless information
Radio approvals for wireless devices
Approved Countries/Regions for the Atheros
®
AR6003 Wireless
Network Adapter b/g/n (b/g) Wireless LAN
This equipment is approved to the radio standard by the countries/regions
in the following table.
As of Mar. 2011
Do not use this equipment in the countries/regions which are not listed in
the table below.
■Available channel of Peer-to-peer connection by ad-hoc mode is Ch1-
Ch11.
■Connection with an access point by the Infrastructure mode is Ch1-
Ch13.
Albania Australia Austria Azerbaijan
Argentina Bahrain Belgium Bolivia
Bosnia and
Herzegovina
Bulgaria Canada Cambodia
Chile China Colombia Costa Rica
Croatia Cyprus Czech Republic Denmark
Dominican Republic Ecuador Egypt El Salvador
Estonia Finland France Germany
Ghana Greece Guatemala Hong Kong
Hungary Iceland India Indonesia
Ireland Italy Japan Jordan
Kazakhstan Kenya Kuwait Kyrgyzstan
Latvia Lebanon Liechtenstein Lithuania
Luxembourg Macedonia Malaysia Malta
Mexico Monaco Montenegro Netherlands
New Zealand Norway Oman Panama
Pakistan Papua New Guinea Paraguay Peru
Philippines Poland Portugal Puerto Rico
Qatar Romania Saudi Arabia Serbia
Singapore Slovak Republic Slovenia South Africa
South Korea Spain Sri Lanka Sweden
Switzerland Taiwan Thailand Turkey
UAE UK Ukraine USA
![](/img.php?id=1455695&img=bg56.png)
User’s Manual 86
Wireless information
Approved Countries/Regions for the Atheros
®
AR6003 Wireless
Network Adapter b/g/n (b/g) Wireless LAN
This equipment is approved to the radio standard by the countries/regions
in the following table.
As of Mar. 2011
Uruguay Venezuela Vietnam Yemen
Zimbabwe
Do not use this equipment in the countries/regions which are not listed in
the table below.
■Available channel of Peer-to-peer connection by ad-hoc mode is Ch1-
Ch11.
■Connection with an access point by the Infrastructure mode is Ch1-
Ch13.
Albania Australia Austria Azerbaijan
Argentina Bahrain Belgium Bolivia
Bosnia and
Herzegovina
Bulgaria Canada Cambodia
Chile China Colombia Costa Rica
Croatia Cyprus Czech Republic Denmark
Dominican Republic Ecuador Egypt El Salvador
Estonia Finland France Germany
Ghana Greece Guatemala Hong Kong
Hungary Iceland India Indonesia
Ireland Italy Japan Jordan
Kazakhstan Kenya Kuwait Kyrgyzstan
Latvia Lebanon Liechtenstein Lithuania
Luxembourg Macedonia Malaysia Malta
Mexico Monaco Montenegro Netherlands
New Zealand Norway Oman Panama
Pakistan Papua New Guinea Paraguay Peru
Philippines Poland Portugal Puerto Rico
Qatar Romania Saudi Arabia Serbia
Singapore Slovak Republic Slovenia South Africa
South Korea Spain Sri Lanka Sweden
Switzerland Taiwan Thailand Turkey
![](/img.php?id=1455695&img=bg57.png)
User’s Manual 87
Wireless information
UAE UK Ukraine USA
Uruguay Venezuela Vietnam Yemen
Zimbabwe
![](/img.php?id=1455695&img=bg58.png)
User’s Manual 88
Regulatory information
Copyright
© 2010 by TOSHIBA Corporation. All rights reserved. Under the copyright
laws, this manual cannot be reproduced in any form without the prior
written permission of TOSHIBA. No patent liability is assumed, with respect
to the use of the information contained herein.
TOSHIBA WT110 User’s Manual
First edition March 2011
Disclaimer
This manual has been validated and reviewed for accuracy. The
instructions and descriptions it contains are accurate for this device at the
time of this manual’s production. However, succeeding devices and
manuals are subject to change without notice. TOSHIBA assumes no
liability for damages incurred directly or indirectly from errors, omissions or
discrepancies between this device and the manual.
Trademarks
Windows, Microsoft and Windows logo are registered trademarks of
Microsoft Corporation.
Bluetooth is a trademark owned by its proprietor and used by TOSHIBA
under license.
ConfigFree is a trademark of Toshiba Corporation.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Secure Digital and SD are trademarks of SD Card Association.
TouchSense is a trademark of Immersion Corporation.
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
Other trademarks and registered trademarks not listed above may be used
in this manual.
![](/img.php?id=1455695&img=bg59.png)
User’s Manual 89
Regulatory information
AVC/H.264 License Notice
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO
LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A
CONSUMER TO (i)ENCODE VIDEO IN COMPLIANCE WITH THE AVC
STANDARD ("AVC VIDEO") AND/OR (ii)DECODE AVC VIDEO THAT WAS
ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-
COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS
GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG
LA,L.L.C. SEE HTTP://WWW.MPEGLA.COM
FCC information
FCC notice "Declaration of Conformity Information"
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
■Reorient or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
■Consult the dealer or an experienced radio/TV technician for help.
FCC conditions
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference.
Only peripherals complying with the FCC class B limits may be attached to
this equipment. Operation with non-compliant peripherals or peripherals
not recommended by TOSHIBA is likely to result in interference to radio
and TV reception. Shielded cables must be used between the external
devices and the TOSHIBA WT100 device’s Universal Serial Bus (USB 2.0)
ports, HDMI port and microphone/headphone jack. Changes or
modifications made to this equipment, not expressly approved by
TOSHIBA or parties authorized by TOSHIBA could void the user’s
authority to operate the equipment.
![](/img.php?id=1455695&img=bg5a.png)
User’s Manual 90
Regulatory information
2. This device must accept any interference received, including
interference that may cause undesired operation.
Contact
Address: TOSHIBA America Information Systems, Inc.
9740 Irvine Boulevard
Irvine, California 92618-1697
Telephone: (949) 583-3000
Caution: Exposure to Radio Frequency Radiation.
The radiated output power of the Wireless LAN is far below the FCC radio
frequency exposure limits. Nevertheless, the Wireless LAN shall be used in
such a manner that the potential for human contact during normal operation
is minimized.
In the usual operating configuration, the distance between the antenna and
the user should not be less than 20cm. Please refer to the "Grand Tour"
section in this manual for the details regarding antenna location.
The installer of this radio equipment must ensure that the antenna is
located or pointed such that it does not emit RF field in excess of Health
Canada limits for the general population; consult Safety Code 6, obtainable
from Health Canada’s website.
CE compliance
This product is CE marked in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC. Responsible for CE
marking is Toshiba Europe GmbH, Hammfelddamm 8, 41460 Neuss,
Germany. A copy of the official Declaration of Conformity can be obtained
from following website: http://epps.toshiba-teg.com.
Working environment
The Electromagnetic Compliance (EMC) of this product has been verified
typically for this product category for a so called Residential, Commercial &
Light Industry Environment. Any other working environment has not been
verified by Toshiba and the use of this product in these working
environments is maybe restricted or cannot be recommended. Possible
consequences of the use of this product in non verified working
environments can be: Disturbances of other products or of this product in
the nearby surrounding area with temporarily malfunction or data
loss/corruption as result. Example of non verified working environments
and related advices:
Industrial environment (e.g. where 3-phase 380V mains is being used
mainly): Danger of disturbances of this product due to possible strong
electromagnetic fields especially near to big machinery or power units.
![](/img.php?id=1455695&img=bg5b.png)
User’s Manual 91
Regulatory information
Medical environment: The compliance to the Medical Product Directive has
not been verified by Toshiba, therefore this product cannot be used as a
medical product without further verification. The use in usual office
environments e.g. in hospitals should be no problem if there is no restriction
by the responsible administration.
Automotive environment: Please search the owner instructions of the
related vehicle for advices regarding the use of this product (category).
Aviation environment: Please follow the instructions of the flight personnel
regarding restrictions of use.
Additional environments not related to EMC
Outdoor use: As a typical home/office equipment this product has no
special resistance against ingress of moisture and is not strong shock
proofed.
Explosive atmosphere: The use of this product in such special working
environment (Ex) is not allowed.
REACH - Compliance Statement
The new European Union (EU) chemical regulation, REACH (Registration,
Evaluation, Authorization and Restriction of Chemicals), entered into force
on 1 June 2007. Toshiba will meet all REACH requirements and is
committed to provide our customers with information about the chemical
substances in our products according to REACH regulation.
Please consult the following website www.toshiba-
europe.com/computers/info/reach for information about the presence in our
articles of substances included on the candidate list according to article
59(1) of Regulation (EC) No 1907/2006 („REACH“) in a concentration
above 0.1 % weight by weight.
Following information is only valid for EU-member States:
Disposal of products
The crossed out wheeled dust bin symbol indicates that products must be
collected and disposed of separately from household waste. Integrated
batteries and accumulators can be disposed of with the product. They will
be separated at the recycling centres.
The black bar indicates that the product was placed on the market after
August 13, 2005.
By participating in separate collection of products and batteries, you will
help to assure the proper disposal of products and batteries and thus help
to prevent potential negative consequences for the environment and
human health.
For more detailed information about the collection and recycling
programmes available in your country, please visit our website
(http://eu.computers.toshiba-europe.com) or contact your local city office or
the shop where you purchased the product.
![](/img.php?id=1455695&img=bg5c.png)
User’s Manual 92
Regulatory information
Disposal of batteries and/or accumulators
Canadian regulatory information (Canada only)
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the Radio Interference
Regulation of the Canadian Department of Communications.
Note that Canadian Department of Communications (DOC) regulations
provide, that changes or modifications not expressly approved by
TOSHIBA Corporation could void your authority to operate this equipment.
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la class B respecte toutes les exgences du
Règlement sur le matériel brouileur du Canada.
Canada – Industry Canada (IC)
This device complies with RSS 210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of this device.
The term "IC" before the equipment certification number only signifies that
the Industry Canada technical specifications were met.
The crossed out wheeled dust bin symbol indicates that batteries and/or
accumulators must be collected and disposed of separately from
household waste.
If the battery or accumulator contains more than the specified values of
lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery
Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury
(Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust
bin symbol.
By participating in separate collection of batteries, you will help to assure
the proper disposal of products and batteries and thus help to prevent
potential negative consequences for the environment and human health.
For more detailed information about the collection and recycling
programmes available in your country, please visit our website
(http://eu.computers.toshiba-europe.com) or contact your local city office or
the shop where you purchased the product.
These symbols may not stick depending on the country and region where
you purchased.
