E Core Technology HL2002A Speaker Trio User Manual
ECORE TECHNOLOGY COMPANY LIMITED Speaker Trio
User Manual
![](/img.php?id=1859081&img=bg1.png)
speaker trio
UserGuide_SpeakerTrio_Final2.indd 1 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bg2.png)
2
Thank you for purchasing the be¯m wireless Speaker Trio. Our
speaker will bring you a new found freedom from wires while
delivering an incredible sound. The Speaker Trio is compatible with
all devices enabled with Bluetooth© technology... which is currently
a lot of devices!
Make sure to read through the following directions, fully charge your
device and perform the initial Bluetooth© syncing process and you
should be up and running in no time. If you have any problems stop
on by bemwireless.com for the answers to all your questions.
Package Contents
Speaker Trio speakers x 3
Speaker Trio base unit x 1
Aux cable x 1
Power adapter x 1
User manual x 1
Compatibility
• All devices enabled with Bluetooth© technology including:
iPhones, iPads, iPods, Smartphones, Laptops, Tablets and more.
• Also compatible with any device that has a standard 3.5mm
earphone jack such as MP3 players, PSP, Mobile phones, etc
Product Overview
UserGuide_SpeakerTrio_Final2.indd 2 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bg3.png)
3
Product Interface
dc in 5v aux in aux out
123 4 5
3
4
2
1
6
1. Bluetooth© Indicator
2. Power Button
3. DC Input (12V)
4. Aux In
5. Aux Out
6. Charging Contact
Base
Speaker
1. Volume Up
2. Volume Down
3. Power Button
4. Charging Contact
UserGuide_SpeakerTrio_Final2.indd 3 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bg4.png)
4
We know you’re excited to experience your new be¯m wireless
Speaker Trio. These two easy steps will get you up and running
quickly.
Step 1: Charge It
Connect your Speaker Trio base to an outlet using the included
power adapter. Place the speakers onto the charging area of the
base. The red backlight will slowly flash during charging and goes out
when it has reached a complete charge (Approx. 3.5 hours).
Getting Started
UserGuide_SpeakerTrio_Final2.indd 4 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bg5.png)
5
Step 2: Connect It
There are two options for connecting to your Speaker Trio - wirelessly
by Bluetooth© or wired using the included aux cable.
• Connect Wirelessly
Turn the power on each of the 3 speakers followed by
powering on the base unit. Once the base is powered on
the Bluetooth© indicator will light and a tone confirming
that the unit is currently in paring mode will sound. Go to
the Bluetooth© settings on your
mobile phone, tablet or computer
to find the device named “Speaker
Trio”. When asked for a password
enter “0000”. A tone will be sound
to confirm the device has paired
successfully. Next time the Speaker
Trio and connected device will pair
automatically. After completing this
step you are ready to start playing
audio from your connected device.
• Direct Connection
The Speaker Trio can also be connected to any device that has
a headphone jack or line out using the included aux cable.
.
UserGuide_SpeakerTrio_Final2.indd 5 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bg6.png)
6
Power on / Power off
Speakers: Press the power button to turn the speaker on. The white
light on the base will light up to signify the unit is on. Press the power
button again to turn off the speaker and the white base light will also
go out.
Base : Press the power button to turn on the base of Speaker Trio.
The Bluetooth© indicator will light up to signify the unit is on and
ready to be paired. Press the power button again to turn off the base
and the Bluetooth indicator light will go out.
Please note, always make sure to rst turn on the speakers before
turning on the base unit.
Play modes
Bluetooth mode: play an audio signal from the connected Bluetooth©
device.
AUX mode: play an audio signal from the connected "wired" device.
Please note, if an Aux cable is connected to the speaker it will not
play music from Bluetooth© connected devices.
Audio Use
Follow the above connection steps to pair a Bluetooth© device with
the Speaker Trio. At this point you can send any kind of audio signal
to your speaker (music, video, gaming, etc.). Just use your device as
normal and the audio will play through your Speaker Trio.
Operation Details
UserGuide_SpeakerTrio_Final2.indd 6 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bg7.png)
7
Controls
Pressing the + and - buttons will increase or decrease the volume
on the Speaker Trio. Please note that this will not effect the volume
levels on the connected device.
Connection
Laptop / notebook / PC
As the Bluetooth© versions for these types of devices varies greatly,
the connection methods will differ as well. If you can not connect
with the Speaker Trio using the previous method instructed you
may need to install a new version of the Bluetooth© driver. Please
reference the instructions of device for details.

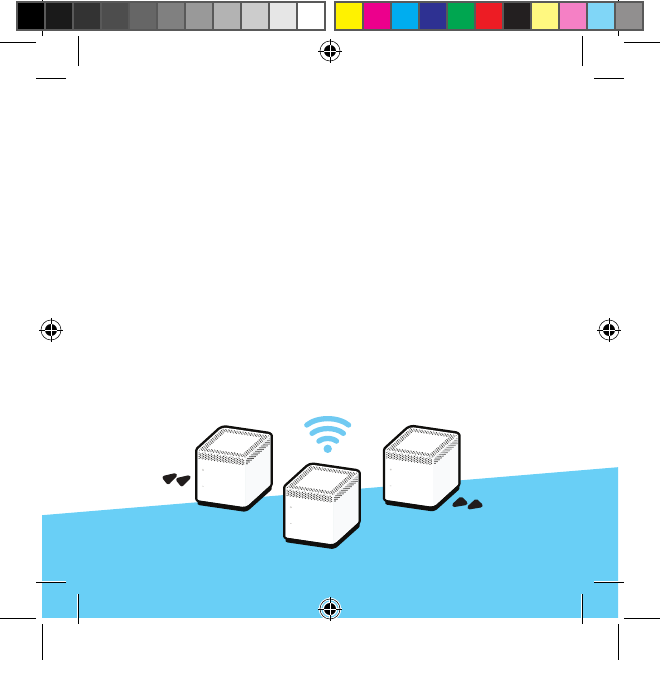

Speaker Placement
The 3 individual speakers can be removed from the Speaker Trio base
to be set anywhere you like. Approximate range is 115ft away from
the base. The Speaker Trio uses 2.4gHz signal so you're free to put
the speakers where you like!
UserGuide_SpeakerTrio_Final2.indd 7 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bg8.png)
8
AUX out
The Speaker Trio can also be used as a "bridge" to wirelessly connect
you devices to other speakers not enabled with Bluetooth©.
Plug one end of the supplied Aux cable to the “AUX OUT” port in the
back of unit and plug the other end of the cable to an “AUX IN” or
"Line In" port on any other speaker system
Please note, volume + & volume - on the Speaker Trio lose function
on this occasion and only the connected Bluetooth© device or the
connected speaker itself can control the volume.
Charging
Connect your Speaker Trio base to an outlet using the included
power adapter. Place the speakers onto the charging area of the
base. The red backlight will slowly flash during charging and goes out
when it has reached a complete charge (Approx. 3.5 hours).
Charging Indicator Light Modes
• Red LED / Flashing Fast: Battery is low, charge the unit soon.
• Red LED / Flashing Slow: Speaker Trio is charging
• Red LED / Turned Off: Battery is fully charged
Note: if the unit has not been used in the past 7 days please charge
for 10 minutes before using the Speaker Trio.
Operation Details (cont.)
UserGuide_SpeakerTrio_Final2.indd 8 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bg9.png)
9
Troubleshooting
Issue: Pairing is unsuccessfully after multiple attempts
Solution:
• Check if the Bluetooth© indicator light is on. If the indicator
light is off, please press the power button to turn the unit on.
If the Bluetooth© indicator light still doesn’t come on after
pressing the power button, please charge the unit.
• Check for other Bluetooth© devices around the surroundings
that may interfere with searching and turn devices off.
• Power off and then power on the unit to restart the Bluetooth©
function of the unit or your Bluetooth device
• Unplug any cables plugged into the AUX IN, restart all devices
and then attempt pairing again.
Issue: Interference or static during playback
Solution:
• Make sure the working distance is approximately 25-40 ft.
• Avoid using the device between concrete or other building
structures that may interfere with the signal.
• Please check if the battery level of the unit and the Bluetooth©
device and charge if necessary.
For more troubleshooting help go to http://bemwireless.com
UserGuide_SpeakerTrio_Final2.indd 9 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bga.png)
10
For questions, comments or to purchase more be¯m wireless products
go to: bemwireless.com
You can also follow us at:
facebook.com/bemwireless
twitter.com/bemwirelessco
youtube.com/bemwireless
More Info
UserGuide_SpeakerTrio_Final2.indd 10 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bgb.png)
11
Please follow the instructions below for cleaning your Speaker Trio
• Power off the unit
• Use a soft, dry, lint-free cloth and wipe gently
• Do not use alcohol, benzene, thinners or other chemical
detergents as these can cause the casing to be warped or
discolored
Storage
• Power off the Speaker Trio If the unit will not be used for an
extended period of time.
• Do not set the unit in a damp environment, high temperatures
or in direct sunlight.
FCC STATEMENT
Maintenance
UserGuide_SpeakerTrio_Final2.indd 11 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bgc.png)
12
1. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
FCC Statement
UserGuide_SpeakerTrio_Final2.indd 12 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bgd.png)
13
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
be¯m wireless
http://bemwireless.com/
be¯m wireless LLC.
1725 Kilkenny Ct.
Woodstock, IL. USA
Made in China
Technical Parameters
Note: All specifications are subject to change without notice.
Product Name: Speaker Trio
Model: HL2002A
Power Supply: 5V 2.4A
Battery capacity: 3.7V 1800mAh
Output power: 2W X 3
Bluetooth Profile Supported: A2DP, AVRCP
Working range: up to 25-40ft, 8-12m
Working atmosphere: 0˚C-40˚C / 20%-90%RH
UserGuide_SpeakerTrio_Final2.indd 13 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bge.png)
14
This product is specially designed based on the full attention to
safety; in order to make sure the accident-free operation, please
abide the guidelines listed below:
• Always position the unit on a stable and level surface. Unstable
surface can cause the unit to topple and fall, resulting in
possible damage or injury
• Do not drop, unpack, open, beat, curve, prink and burn the unit
• Avoid using the unit nearby basins or sinks where it may come
in contact with water
• Do not place any ware with full water on the top of the unit,
such as vase, glass, pot, and please avoid placing candle on the
speaker surface as well
• Protect the using of the unit from any overheating devices
(such as radiator, heating installation, cooking stove or other
heating devices)
• Regardless of what reasons cause the unit damage, please ask
for the maintenance personnel to repair
• If you want to do the cleaning, please turn off the unit and
unplug the power cable from the outlet first
• Set the volume properly to prevent injury to the unit and your
personal health
Safety Instructions
UserGuide_SpeakerTrio_Final2.indd 14 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bgf.png)
15
Correct Disposal of this product. This marking
indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent
possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly
to promote the sustainable reuse of material resources.
To return your used device, please use the return and
collection systems or contact the retailer where the
product was purchased. They can take this product for
environmental safe recycling.
WARNING:
• The battery (battery or batteries or battery pack) shall not be
exposed to excessive heat such as sunshine, fire or the like.
• No naked flame sources, such as lighted candles, should be
placed on the apparatus.
• CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
Safety Instructions (cont.)
UserGuide_SpeakerTrio_Final2.indd 15 10/24/12 4:33 PM
![](/img.php?id=1859081&img=bg10.png)
UserGuide_SpeakerTrio_Final2.indd 16 10/24/12 4:33 PM
