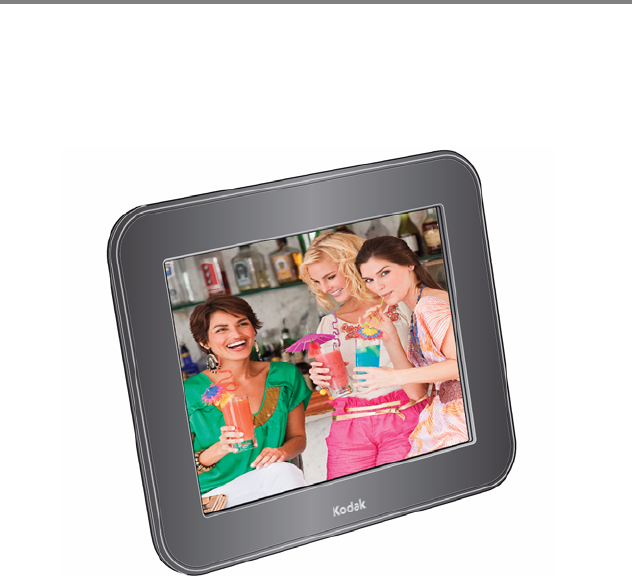

Eastman Kodak PUL1030 Kodak PULSE Digital Frame User Manual urg 01092
Eastman Kodak Company Kodak PULSE Digital Frame urg 01092
Users Manual
![](/img.php?id=1329931&img=bg2.png)
Eastman Kodak Company
Rochester, New York 14650
© Eastman Kodak Company, 2010
All screen images are simulated.
Kodak and Pulse are trademarks of Eastman Kodak Company.
P/N 4H6784_en
![](/img.php?id=1329931&img=bg4.png)
ii www.kodak.com/go/support
Product features
Touch screen icons/buttons
1 Play—start a slide show.
2 Collage—start a revolving five-picture slide show.
3 Information—view picture information.
4 Delete—remove pictures from the frame.
5 Copy—copy pictures from a memory card or USB device to your frame’s internal memory
(only appears if a memory card or USB device is inserted).
6 Transition Time—change how long each picture stays on the screen and the type of
transition between pictures.
7 Friends—view pictures grouped according to the friends who sent them (you can also view
pictures on an inserted memory card or USB device).
8 Previous/Next—view the previous/next picture on the frame.
9 Health Check—check/fix your network connection (only appears if there is a network
connection problem).
1 72 653 4
8 8
9
![](/img.php?id=1329931&img=bg5.png)
www.kodak.com/go/support iii
Table of contents 1
1 Getting started ......................................................................................1
Attaching the power cable ............................................................................1
Turning your frame on and off.......................................................................2
Setting your language ...................................................................................3
Connecting to your wireless network.............................................................3
Activating your frame....................................................................................9
Adding pictures to your frame .....................................................................10
2 Viewing pictures ..................................................................................11
Viewing pictures from internal memory........................................................11

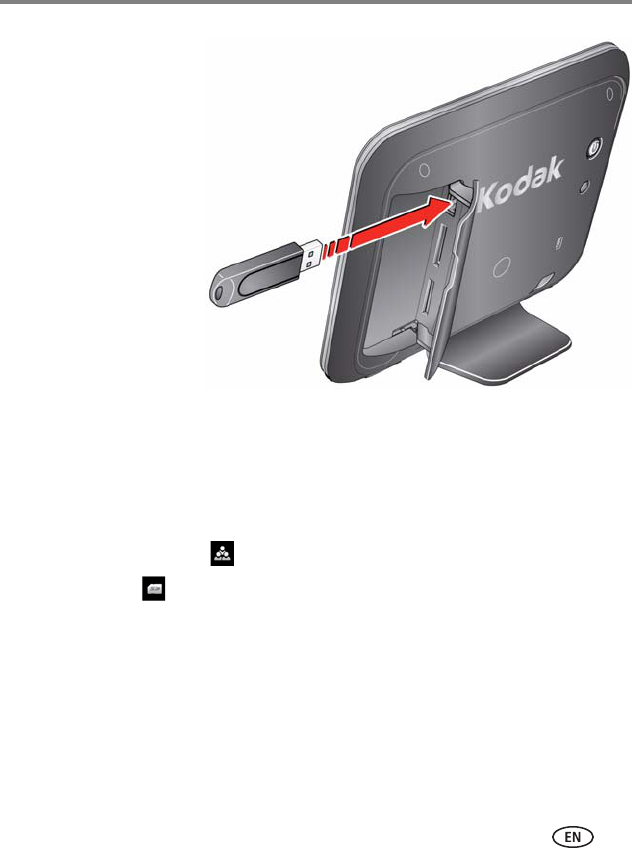

Viewing pictures from a memory card or USB device ....................................12
Navigating through your pictures.................................................................14
Changing play speed and transition type .....................................................15

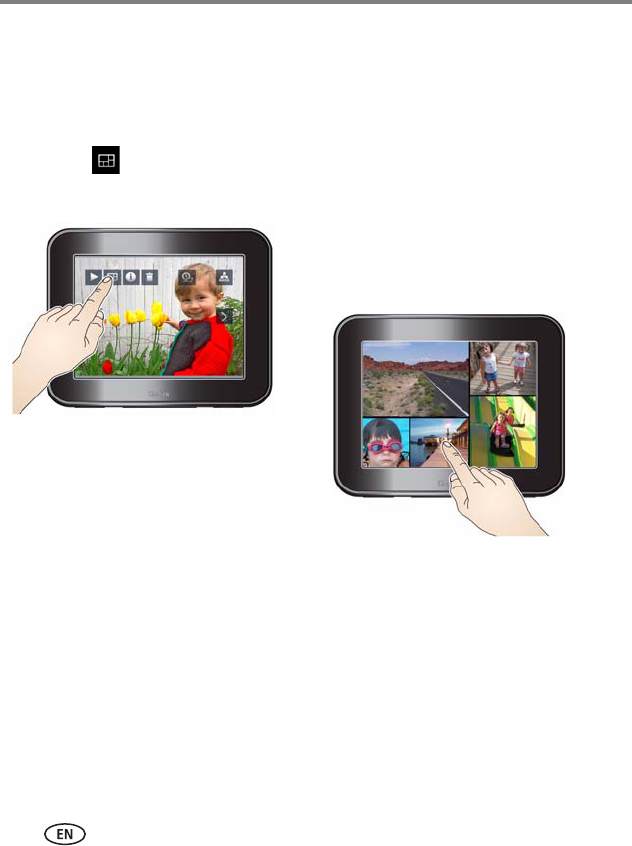

Viewing pictures as a collage.......................................................................16
3 Doing more with your frame ...............................................................17
Using your online account ...........................................................................17
Receiving and viewing pictures from friends.................................................18
Deleting pictures.........................................................................................20
Copying pictures to internal memory............................................................21
Maintaining your frame...............................................................................22
4 Troubleshooting and support ..............................................................24
Getting help on your digital frame ...............................................................24
Picture frame problems ...............................................................................25
Learning more about your frame..................................................................26
![](/img.php?id=1329931&img=bg6.png)
iv www.kodak.com/go/support
Table of contents
5 Appendix .............................................................................................27
Digital frame specifications..........................................................................27
Important safety instructions .......................................................................28
Additional care and maintenance ................................................................30
Limited warranty .........................................................................................30
Regulatory compliance and advisory ............................................................32
![](/img.php?id=1329931&img=bg7.png)
www.kodak.com/go/support 1
1Getting started
Attaching the power cable
NOTE: The frame automatically turns on when you plug it in for the first time.
CAUTION:
Do not use this power cable with other devices, including digital
cameras.
Your power cable may look
different from the one pictured.
If more than one plug is
included, use the plug for
your type of power outlet.
![](/img.php?id=1329931&img=bg8.png)
2www.kodak.com/go/support
Getting started
Turning your frame on and off
NOTE: The frame automatically turns on when you plug it in for the first time.
Press the power button to turn the frame on or off.
NOTE: Your frame is configured to save energy by automatically turning off at night and turning on in the
morning. You can change on/off times or to disable this feature: after you create your free online
account and activate your frame (see page 9), sign in to your account at
www.kodakpulse.com
, then click the Frame Settings tab.
Power button
![](/img.php?id=1329931&img=bg9.png)
Getting started
www.kodak.com/go/support 3
Setting your language
The language screen appears the first time you turn on your frame. Touch your
language.
NOTE: If someone else set up your frame, your language may already be selected, and the language screen
may not appear.
Once your language is set, you can only change it
through the KODAK PULSE Web site. After you
create your free online account and activate your
frame (see page 9), sign in to your account at
www.kodakpulse.com, then click the Frame Settings
tab.
Connecting to your wireless network
When you connect your frame to the Internet over your wireless network, you can
perform a host of activities including adding pictures from your computer to your
frame, receiving pictures from friends, changing frame settings, and more.
NOTE: If you are not sure you have a wireless network, ask the person who set up your network.
Using the network setup wizard
When you first set up of your frame, the network setup wizard appears.
NOTE: If someone else set up your frame, your screen may show fewer steps.
1Touch Start.
Touch Back to go to the language screen or touch
Exit to dismiss wireless setup and go to the slide
show view (see Chapter 2, Viewing pictures).
Available wireless networks are listed.
If your wireless network is not shown, see page 5.
![](/img.php?id=1329931&img=bga.png)
4www.kodak.com/go/support
Getting started
2Touch your network.
If your router supports Wi-Fi Protected Setup (WPS),
see page 6.
If your network is secure, when prompted,
choose your Wi-Fi security type, then enter the
security code for your network using the on-screen
keyboard:
NOTE: Security codes are case-sensitive.
■Touch to switch between upper and lower
case characters.
■Touch to enter numbers and special
characters.
■When finished, touch OK.
If you do not know your security type or security
code, ask the person who set up your network.
The frame scans for your wireless network. A message
appears when it has successfully connected.
![](/img.php?id=1329931&img=bgb.png)
Getting started
www.kodak.com/go/support 5
If your wireless network is not shown
Move your frame closer to the router, then touch Refresh.
If your wireless network is still not shown, your network name (SSID) may not be
broadcast. To enter it manually:
1Touch Non-Broadcast.
The on-screen keyboard appears.
2Enter your SSID. If you do not know your SSID, ask
the person who set up your network.
NOTE: SSIDs are case-sensitive.
If your network is secure, when prompted,
choose your Wi-Fi security type, then enter the
security code for your network.
NOTE: Security codes are case-sensitive.
3When finished, touch OK.
![](/img.php?id=1329931&img=bgc.png)
6www.kodak.com/go/support
Getting started
If your router supports Wi-Fi Protected Setup (WPS)
After you choose your network, the WPS screen appears.
Press the WPS button on your router to automatically connect to your wireless
network.
■If your network is secure, touch Specify security code, then enter the
security code for your network. If you do not know your security code, ask the
person who set up your network.
■If a PIN is required for your network, touch Advanced PIN, then enter your
PIN. (The PIN is commonly found on the router itself). If you do not know your PIN,
ask the person who set up your network.
To open the network setup wizard later
1On the back of the frame, press the Health Check
button.
2On the touch screen, after the network status check
is complete, touch Network.
NOTE: You can also touch
Fix it
if it is displayed. If you do this,
follow the on-screen instructions.
Health
Check button
![](/img.php?id=1329931&img=bgd.png)
Getting started
www.kodak.com/go/support 7
3Touch Network Setup Wizard.
4Touch Start.
NOTE: If someone else set up your frame, your screen may show
fewer steps.
Available wireless networks are listed.
Advanced network setup
To modify advanced network settings, including DHCP, IP address, subnet mask,
gateway, DNS address, and proxy information, see To open the network setup wizard
later, page 6, then touch Advanced network setup.
To clear all network settings, touch Remove from Network.
![](/img.php?id=1329931&img=bge.png)
8www.kodak.com/go/support
Getting started
Is your frame already set up?
No, I need to set up my frame.
No problem, it’s simple! After connecting to your wireless network, all you need to do
is activate your frame (see page 9) then add pictures (see page 10).
Yes , someone else set up my frame, or I already activated my frame on my
www.kodakpulse.com account.
Good news: setup just became easier! After connecting to your network, you may be
asked to verify your information. Touch OK on the frame if the information shown is
correct, or Not Me if the information is incorrect.
If you touch OK, a welcome screen appears. If pictures have already been added to
your frame, a Play option is available. Touch Play to view the pictures.
To add more pictures to your frame, see page 10.
For more information on viewing pictures on your frame, see page 11.
If you touch Not Me, a confirmation screen appears. Touching Not Me again deletes
all pictures on the frame, and the frame is removed from the current online account.
You can then set up your frame from the beginning, starting with Activating your
frame, page 9.
![](/img.php?id=1329931&img=bgf.png)
Getting started
www.kodak.com/go/support 9
Activating your frame
The activation screen appears the first time you connect to your wireless network (see
page 3). Activating your frame is the first step in being able to add pictures from your
computer to your frame using a free Web-based application. In addition, you can set
up your account so that you and your friends can email pictures to your frame. You
can even add pictures to your frame from KODAK Gallery or from FACEBOOK Social
Network accounts.
NOTE: If someone else set up your frame or if you added your frame to your
www.kodakpulse.com
account, your frame may already be activated and the activation screen may not appear.
You can activate multiple frames on your account.
1Write down and save the activation code from your
screen.
NOTE: You can also find a12-character activation code beneath the
serial number on the product packaging. Either activation
code may be used.
2On your computer, go to www.kodakpulse.com to
create a new account or to sign in to your existing
account. Follow the instructions and enter your
activation code when prompted.
The frame communicates with the Web server to verify
your account information.
![](/img.php?id=1329931&img=bg10.png)
10 www.kodak.com/go/support
Getting started
Adding pictures to your frame
After you activate your frame (see page 9), use your free online account to add
pictures stored on your computer to your frame.
1On your computer, go to www.kodakpulse.com, then create an account or sign in
to your existing account.
If your frame has not been activated, do so now (see page 9).
IMPORTANT:
Your frame must be activated before you can add pictures from your
computer.
2Follow the instructions to choose pictures to add to your frame. Or, invite guests to
add pictures to your frame.Click Help for more information.
NOTE: You can also copy pictures from a memory card or USB device to your frame’s internal memory (see
page 21).
![](/img.php?id=1329931&img=bg11.png)
www.kodak.com/go/support 11
2Viewing pictures
Pictures play from the frame’s internal memory when no card or USB device is
inserted.
Pictures play from a memory card or USB device when one is inserted in the frame.
NOTE: Your frame contains pre-loaded sample pictures, which play only when there are no other pictures
loaded (from a memory card, USB device, or internal memory). Sample pictures cannot be deleted.
To exit the sample picture slide show, add pictures to your frame (see page 10) insert a memory card
or USB device (see page 12), or press the Health Check button on the back of your frame (see
page 25).
Viewing pictures from internal memory
■Turn on the frame. If this is the first time, see Chapter 1, Getting started.
If no memory card or USB device is inserted, the pictures in your frame’s internal
memory play automatically.
If you are currently viewing pictures from a memory card or USB
device, remove the memory card or USB device, or:
aTouch the screen to display menu options.
bTouch the friends button .
cTouch Play All .
The pictures in your frame’s internal memory play.
![](/img.php?id=1329931&img=bg12.png)
12 www.kodak.com/go/support
Viewing pictures
Viewing pictures from a memory card or USB
device
Turn on the frame. Insert a memory card or connect a USB device with pictures.
MULTIMEDIA Card (MMC)
To insert a card, push it firmly into the slot until it stops.
To remove a card, pull it out of the slot.
*IMPORTANT:
Do not insert an MS Duo
or MS PRO Duo card in the top slot. It
may be difficult to remove.
XD-Picture Card
SECURE DIGITAL (SD), SECURE DIGITAL High
Capacity (SDHC)
Bottom slot:
MS Duo, MS PRO Duo
MEMORY STICK (MS), MS PRO
Top slot*:
![](/img.php?id=1329931&img=bg13.png)
Viewing pictures
www.kodak.com/go/support 13
Your pictures start playing automatically.
If you are currently viewing pictures from internal memory, remove then
reinsert the memory card or USB device, or:
aTouch the screen to display menu options.
bTouch the friends button .
cTouch Play All .
NOTE: The appearance of the Play All button differs depending on what type of media is installed.
The pictures on your memory card or USB device play.
Supported USB devices include a flash drive,
card reader, hard drive*, etc.
USB devices and cables are sold separately.
* External hard drives must be self-powered
and formatted as FAT32.
![](/img.php?id=1329931&img=bg14.png)
14 www.kodak.com/go/support
Viewing pictures
Navigating through your pictures
Previous picture Next picture
Play
Touch < or >, or swipe your finger left or right across the screen to navigate through
your pictures.
Touch the play button to start the slide show. To stop the slide show, touch the
screen.
Touch the screen to display menu options.
Touch the information button for picture information.
Information
![](/img.php?id=1329931&img=bg15.png)
Viewing pictures
www.kodak.com/go/support 15
Changing play speed and transition type
Change how long each picture stays on the screen and the type of transition between
pictures.
3 seconds, wipe—pictures change every 3 seconds, with wipe transition.
10 seconds, fade (default)—pictures change every 10 seconds, with fade
transition.
10 seconds, zoom & pan—pictures are presented with a slow zooming and
panning effect, with fading transitions every 10 seconds.
30 seconds, fade—pictures change every 30 seconds, with fade transition.
30 minutes, fade—pictures change every 30 minutes, with fade transition.
Smart—pictures change every 3 seconds initially, but if the screen has not been
touched, transition times gradually increase, up to 30 minute intervals.
1. Touch the screen to display
menu options, then touch the
transition time button .
2. Select a transition type (see below).
![](/img.php?id=1329931&img=bg16.png)
16 www.kodak.com/go/support
Viewing pictures
Viewing pictures as a collage
View a revolving five-picture slide show.
Touch the screen to display menu
options, then touch the collage
button .
To exit collage mode, touch a picture.
Five pictures randomly appear on the
screen and change every few seconds.
The picture appears full screen.
![](/img.php?id=1329931&img=bg17.png)
www.kodak.com/go/support 17
3Doing more with your frame
Using your online account
After you create your free online account and activate your frame (see page 9), use
the features on www.kodakpulse.com to:
- add a new KODAK PULSE Digital Frame to
your account
- add/remove pictures to/from your frame
- assign an email address to your frame - invite guests to add pictures to your frame
- allow pictures to be added from your KODAK
Gallery account
- allow pictures to be added from FACEBOOK
Social Network accounts that you choose
- change frame settings, including time zone,
on/off times, slide show transitions, language,
and account information
- learn more about your frame
![](/img.php?id=1329931&img=bg18.png)
18 www.kodak.com/go/support
Doing more with your frame
Receiving and viewing pictures from friends
Receiving pictures from friends
When your frame receives new pictures from a friend (see page 10), the pictures are
added to your frame, and a message appears.
Touch Play Now to view the new pictures as a slide show. When the slide show is
finished, touch Play Again to see them again, or touch Done to quit.
Touch Play Later to view the new pictures randomly in a slide show with the pictures
already on your frame.
Viewing pictures from friends
1Touch the screen to display menu options, then
touch the friends button .
A list of all the friends who have shared pictures with
you is displayed.
NOTE: A red dot appears on the friends button when new pictures have been added to
your frame.
![](/img.php?id=1329931&img=bg19.png)
Doing more with your frame
www.kodak.com/go/support 19
2Touch the name of the friend whose pictures you
want to view.
NOTE:
A red dot appears next to friends who have
recently added new pictures to your frame.
Or, to view the pictures sent from all friends, touch
Play All .
To view the most recent pictures sent from all
friends, touch Play Recent .
The pictures are displayed as a slide show.
3When the slide show is finished, touch Play Again
to see them again, or touch Done to quit.
NOTE: A red dot appears with
Play Recent
when new
pictures have recently been added to your
frame.
![](/img.php?id=1329931&img=bg1a.png)
20 www.kodak.com/go/support
Doing more with your frame
Deleting pictures
You can delete pictures from your frame’s internal memory, or from an inserted
memory card or USB device.
IMPORTANT:
To avoid deleting pictures from an inserted memory card or USB device,
remove it before deleting pictures from your frame.
1Navigate to the picture you want to delete, then
touch the delete button .
2Touch Delete Picture to confirm deletion.
The selected picture is deleted.
To exit without deleting, touch Cancel.
You can delete multiple pictures from your frame’s internal memory through the
KODAK PULSE Web site. After you create your free online account and activate your
frame (see page 9), sign in to your account at www.kodakpulse.com, then click the All
Pictures tab.
![](/img.php?id=1329931&img=bg1b.png)
Doing more with your frame
www.kodak.com/go/support 21
Copying pictures to internal memory
Copy pictures from a memory card or USB device to your frame’s internal memory.
NOTE: Copying
to
a memory card or USB device is not supported.
1Insert a memory card or USB device (see page 12).
The pictures start playing.
2Touch the screen to display menu options, then
touch the copy button .
CAUTION:
Removing a card or disconnecting a
device while copying may damage
your card, pictures, or device.
3To copy the currently displayed picture, touch
Current Picture.
To copy all of the pictures on the card or USB
device, touch All Pictures.
The selected pictures are copied to the frame’s internal
memory.
To exit without copying, touch Cancel.
NOTE: The copies added to the frame are automatically resized to a
lower resolution (smaller size). Full resolution is unnecessary
for viewing and quickly fills up the frame’s memory.
![](/img.php?id=1329931&img=bg1c.png)
22 www.kodak.com/go/support
Doing more with your frame
Maintaining your frame
Cleaning your frame
IMPORTANT:
Always disconnect the power before cleaning. Do not use water, cleaning
solutions, or other adhesives on the frame or any of its parts.
Gently wipe the frame and screen with the included cleaning cloth. For fingerprints
on the frame, apply light pressure.
Checking your frame information
Use About to check the:
1On the back of the frame, press the Health Check
button.
2After the network connection test, touch About.
- serial number - name of your frame account
- firmware version - admin name on your frame account
- MAC address - owner name on your frame account
Health
Check button
![](/img.php?id=1329931&img=bg1d.png)
Doing more with your frame
www.kodak.com/go/support 23
Checking your firmware
Firmware is the software that runs on your frame. Your frame automatically prompts
you when new firmware becomes available. Follow the on-screen instructions to
install it.
To check your firmware or to check for new updates at any time:
1Follow the instructions under Checking your frame information, page 22.
2Touch Check for frame updates to check for new firmware.
If the New Update Available option is displayed, new firmware is available for
download. Touch this option to start the update.
CAUTION:
Do not turn off the frame during the update. Doing so can
permanently damage your frame!
The firmware upgrade screen appears on your frame as the new firmware is
downloaded and installed.
![](/img.php?id=1329931&img=bg1e.png)
24 www.kodak.com/go/support
4Troubleshooting and support
For step-by-step product support, go to www.kodak.com/go/pulseframesupport, then
select Step-by-Step Solutions & Repair.
Getting help on your digital frame
Help button
Touch the Help button (available on most screens), to learn more about the
features on the screen you are viewing.
Wireless network connection problems
If there is a problem with your wireless network connection, the Health Check button
appears. Touch this button to run a connection test. If a problem exists, it is
described on the screen.
Press the Fix it button to start the Network Setup Wizard. Or, press the wireless
button to manually change advanced network settings. Follow the on-screen
instructions.
![](/img.php?id=1329931&img=bg1f.png)
Troubleshooting and support
www.kodak.com/go/support 25
Checking your network connection
To check the status of your network connection at
any time, press the Health Check button on the
back of your frame.
Picture frame problems
Health
Check button
If... Try one or more of the following
The frame does not
turn on.
■Make sure the power cable that was included with your frame is
connected securely (see page 1).
■Unplug the power cable for 5 seconds, then reconnect the cable. If
the frame does not turn on automatically, press the power button.
I cannot exit the
sample picture slide
show.
■Add pictures to your frame (see page 10).
■Insert a memory card or USB device (see page 12).
■Press the Health Check button on the back of your frame (see
page 25).
The frame turns on or
off by itself.
■The energy saver schedule is enabled. To change on/off times or to
disable this feature, go to www.kodakpulse.com, sign in to your
account, then click the Frame Settings tab.
The frame freezes or
doesn’t work properly.
■Unplug the power cable for 5 seconds, then reconnect the cable.
Press and hold the power button (for about 2 seconds), then
release.
My frame activation
code is no longer
displayed.
■To show the activation code again, press the Health Check button
on the back of the frame, then touch Fix it.
![](/img.php?id=1329931&img=bg20.png)
26 www.kodak.com/go/support
Troubleshooting and support
Learning more about your frame
Nothing happens
when a memory card
or USB device is
connected.
■Insert a certified SD, SDHC, MMC, XD, or MS card, with images,
into the upper designated card slot, then push to seat it (see
page 12).
■Insert a certified MS Duo or MS PRO Duo card, with images, into
the lower designated card slot only, then push to seat it (see
page 12).
NOTE: Do not insert an MS Duo or MS PRO Duo card in the top slot. It may be
difficult to remove.
■Make sure the USB device is connected securely (see page 12).
■Make sure the file format of your pictures is supported (see
page 27).
NOTE: Pictures may take a longer time to display when the files are large or
when using a large capacity memory card or other connected device.
www.kodakpulse.com Activate your frame
Change advanced settings
Manage your account
View Help
www.kodak.com/go/pulseframe Learn more about your frame
www.kodak.com/go/pulseframesupport Interactive tutorials
Frequently asked questions
Downloads
Product registration
If... Try one or more of the following
![](/img.php?id=1329931&img=bg21.png)
www.kodak.com/go/support 27
5Appendix
Digital frame specifications
For more specifications, go to www.kodak.com/go/digitalframesupport.
KODAK PULSE Digital Frame
Color display
7 in. (17.8 cm)
Frame
7 in. (17.8 cm) diagonal digital touch screen LCD, 800 x 600 pixels, 4:3 aspect
ratio, 5.6 x 4.2 in. (14.2 x 10.6 cm) active area
10 in. (26 cm)
Frame
10.4 in. (26.4 cm) diagonal digital touch screen LCD, 800 x 600 pixels, 4:3
aspect ratio, 8.3 x 6.2 in. (21.1 x 15.8 cm) active area
Internal storage capacity
512 MB–pictures added to frame are compressed to optimize storage, with no noticeable
impact on image quality
Power supply
7 in. (17.8 cm)
Frame
Manufacturer, Model #: Malata MPA-05015, EIAJ class 2 DC plug
Input: 100-240V AC 50/60 Hz. Output: 5V DC 1.5 Amp
10 in. (26 cm)
Frame
Manufacturer, Model #: Malata MPA-520, EIAJ class 2 DC plug
Input: 100-240V AC 50/60 Hz. Output: 5V DC 2.0 Amp
Communication with USB devices
USB 2.0 High Speed Type A
Wi-Fi wireless network compatibility
Certified compatibility with 802.11 b/g speed routers
![](/img.php?id=1329931&img=bg22.png)
28 www.kodak.com/go/support
Appendix
Important safety instructions
CAUTION:
Do not disassemble this product; there are no user-serviceable
parts inside. Refer servicing to qualified service personnel.
KODAK AC Adapters and Battery Chargers are intended for indoor
use only. The use of controls, adjustments, or procedures other
than those specified herein may result in exposure to shock
and/or electrical or mechanical hazards. If the LCD breaks, do not
touch the glass or liquid. Contact Kodak customer support.
CAUTION:
When using this product, it should be installed and operated with
a minimum distance of 7.9 in. (20 cm) for 2.4 GHz operations
between the radiator and your body. This transmitter must not be
Other features
Picture formats JPEG, EXIF 2.2
Memory cards
(see page 12)
Top card slot: SD, SDHC, MMC, XD, MS, MS PRO
Bottom card slot: MS Duo, MS PRO Duo
Temperature Operating: 32 to 104°F (0 to 40°C)
Storage: -25 to 160°F (-32 to 71°C)
7 in. (17.8 cm) Frame
Size 7.5 x 6.1 x 1 in. (19.1 x 15.6 x 2.5 cm)
Weight 1 lb (490 g) with AC adapter
10 in. (26 cm) Frame
Size 10.6 x 9 x 1 in. (27 x 22.9 x 2.5 cm)
Weight 2.1 lb (1047 g)
KODAK PULSE Digital Frame
![](/img.php?id=1329931&img=bg23.png)
Appendix
www.kodak.com/go/support 29
collocated or operated in conjunction with any other antenna or
transmitter.
■The use of an accessory that is not recommended by Kodak may cause fire, electric
shock, or injury. For approved accessories, visit www.kodak/go/accessories.
■Use only the AC adapter that was packaged with your frame. Use of other AC
adapters may damage the frame and void your warranties.
■Do not place frame near open flame sources such as lighted candles or heaters.
■Do not expose this product to liquid, moisture, or extreme temperatures.
![](/img.php?id=1329931&img=bg24.png)
30 www.kodak.com/go/support
Appendix
Additional care and maintenance
■Do not allow chemicals, such as lotions, to contact painted surfaces.
■Service agreements are available in some countries. Contact a dealer of KODAK
Products for more information.
■For digital frame disposal or recycling information, contact your local authorities. In
the US, visit the Electronics Industry Alliance at www.eiae.org or visit
www.kodak.com/go/digitalframesupport.
Limited warranty
Kodak warrants KODAK Consumer Electronic Products and Accessories (“Products”),
excluding batteries, to be free from malfunctions and defects in both materials and
workmanship for one year from the date of purchase. Retain the original dated sales
receipt. Proof of the date of purchase will be required with any request for warranty
repair.
Limited warranty coverage
Warranty service is only available from within the country where the Products were
originally purchased. You may be required to ship Products, at your expense, to the
authorized service facility for the country where the Products were purchased. Kodak
will repair or replace Products if they fail to function properly during the warranty
period, subject to any conditions and/or limitations stated herein. Warranty service
will include all labor as well as any necessary adjustments and/or replacement parts. If
Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the
purchase price paid for the Product provided the Product has been returned to Kodak
along with proof of the purchase price paid. Repair, replacement, or refund of the
purchase price are the sole remedies under the warranty. If replacement parts are
used in making repairs, those parts may be remanufactured, or may contain
remanufactured materials. If it is necessary to replace the entire Product, it may be
replaced with a remanufactured Product. Remanufactured Products, parts and
materials are warranted for the remaining warranty term of the original Product, or 90
days after the date of repair or replacement, whichever is longer.
![](/img.php?id=1329931&img=bg25.png)
Appendix
www.kodak.com/go/support 31
Limitations
This warranty does not cover circumstances beyond Kodak's control. This warranty
does not apply when failure is due to shipping damage, accident, alteration,
modification, unauthorized service, misuse, abuse, use with incompatible accessories
or attachments, failure to follow Kodak's operation, maintenance or repacking
instructions, failure to use items supplied by Kodak (such as adapters and cables), or
claims made after the duration of this warranty. Kodak makes no other express or
implied warranty for this product, and disclaims the implied warranties of
merchantability and fitness for a particular purpose. In the event that the exclusion of
any implied warranty is ineffective under the law, the duration of the implied warranty
will be one year from the purchase date or such longer period as required by law. The
option of repair, replacement, or refund is Kodak's only obligation. Kodak will not be
responsible for any special, consequential or incidental damages resulting from the
sale, purchase, or use of this product regardless of the cause. Liability for any special,
consequential or incidental damages (including but not limited to loss of revenue or
profit, downtime costs, loss of the use of the equipment, cost of substitute
equipment, facilities or services, or claims of your customers for such damages
resulting from the purchase use or failure of the Product), regardless of cause or for
breach of any written or implied warranty is expressly disclaimed.
Your rights
Some states or jurisdictions do not allow exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
Some states or jurisdictions do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you. This warranty gives you specific
rights, and you may have other rights which vary from state to state or by jurisdiction.
![](/img.php?id=1329931&img=bg26.png)
32 www.kodak.com/go/support
Appendix
Outside the United States and Canada
In countries other than the United States and Canada, the terms and conditions of
this warranty may be different. Unless a specific Kodak warranty is communicated to
the purchaser in writing by a Kodak company, no warranty or liability exists beyond
any minimum requirements imposed by law, even though defect, damage, or loss may
be by negligence or other act.
Regulatory compliance and advisory
FCC compliance and advisory
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed or used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures: 1) reorient
or relocate the receiving antenna; 2) increase the separation between the equipment
and the receiver; 3) connect the equipment to an outlet on a circuit different from that
to which the receiver is connected; 4) consult the dealer or an experienced radio/TV
technician for additional suggestions.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. Where shielded
interface cables have been provided with the product or specified additional
components or accessories elsewhere defined to be used with the installation of the
product, they must be used in order to ensure compliance with FCC regulation.
KODAK PULSE Digital Frame, model W730/W1030
![](/img.php?id=1329931&img=bg27.png)
Appendix
www.kodak.com/go/support 33
FCC and Industry Canada
This device complies with Industry Canada RSS-210 and FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Canadian DOC statement
DOC Class B Compliance—This Class B digital apparatus complies with Canadian
ICES-003.
Observation des normes-Classe B—Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
ENERGY STAR®
ENERGY STAR® qualified product.
![](/img.php?id=1329931&img=bg28.png)
34 www.kodak.com/go/support
Appendix
European Declaration of Conformity
Hereby, Eastman Kodak Company declares that this KODAK Product is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
This digital picture frame (KODAK PULSE Digital Frame) transmits in 10 dBm. In
France, the power level is limited to 10 dBm in outdoor environments, per regulations.
When in France, use the wireless functions of this device indoors only.
A copy of the Declaration of Conformity can be found at
www.kodak.com/go/declarationofconformity.
Australian C-Tick
Waste Electrical and Electronic Equipment labeling
In Europe: For human/environmental protection, it is your responsibility to dispose of
this equipment at a collection facility established for this purpose (separate from
municipal waste). For more information, contact your retailer, collection facility, or
appropriate local authorities; or visit www.kodak.com/go/recycle.
Product weight with adapter: 7 in. frame, 490 g / 10 in. frame, 1047 g
N137
![](/img.php?id=1329931&img=bg29.png)
Appendix
www.kodak.com/go/support 35
Russian GOST-R
Notice
When this digital frame is connected to a wireless network, it is possible to view
images and other content directly from the Internet.
Eastman Kodak Company, its subsidiaries and affiliates do not control and are not
responsible for any content displayed or viewed.
Eastman Kodak Company
Rochester, New York 14650
![](/img.php?id=1329931&img=bg2a.png)
36 www.kodak.com/go/support
Index 1
A
AC adapter
connecting, 1
safety information, 28
specifications, 27
account name, checking on frame, 22
activation
code,9,25
frame, 9, 25
adding pictures to frame, 10
admin name, checking on frame, 22
B
button
collage, ii, 16
copy, ii, 21
delete, ii, 20
fix it, 24
friends, ii, 18
health check (back
panel),i,6,22,25
health check (icon), ii, 24
help, 24
information, ii
play, ii
power, i, 2
previous/next, ii
transition time, ii
C
card, memory
slots, i, 12
supported types, 12, 28
viewing pictures from, 12
care/maintenance, 22, 30
cleaning frame, 22
collage
button, ii, 16
viewing pictures as, 16
connector
power, i, 1
USB, i, 13
copy
button, ii, 21
pictures to internal memory, 21
D
delete
button, ii, 20
pictures, 20
disposal, recycling, 30
F
file formats, supported, 28
firmware, checking version/updating, 23
fix it button, 24
friends
button, ii, 18
receiving pictures from, 18
viewing pictures from, 18
H
health check
button (back panel), i, 6, 22, 25
![](/img.php?id=1329931&img=bg2b.png)
www.kodak.com/go/support 37
Index
button (icon), ii, 24
help
button, 24
on screen, 24
support URLs, 26
with frame problems, 25
with wireless network
connection, 24
I
information
button, ii, 14
getting more on frame, 24
getting more on Web, 26
picture, 14
internal memory
capacity, 27
copying to, 21
viewing pictures from, 11
K
keyboard, on-screen, 4
L
language, setting, 3
M
MAC address, checking, 22
maintenance/care, 22, 30
memory card
slots, i, 12
supported types, 12, 28
viewing pictures from, 12
N
navigating through pictures, 14
network, wireless. See wireless network
new pictures, 18
O
owner name, checking on frame, 22
P
pictures
adding to frame, 10
copying to internal memory, 21
deleting, 20
information, viewing, 14
navigating through, 14
new pictures notification, 18
playback speed, 15
sample, pre-loaded, 11
viewing as collage, 16
viewing from internal memory, 11
viewing from memory card, 12
viewing from USB device, 13
viewing new pictures, 18
viewing pictures from friends, 18
play
button, ii, 14
speed and transition type,
changing, 15
playing/viewing pictures, 11—16, 18
power
auto on/off (energy saver), 2, 25
button, i, 2
connecting, 1
connector, i, 1
![](/img.php?id=1329931&img=bg2c.png)
38 www.kodak.com/go/support
Index
problems, 25
supply, specifications, 27
previous/next button, ii, 14
problem
with frame, 25
with wireless network
connection, 24
R
recycling, disposal, 30
regulatory compliance, 32
S
safety information, 28
screen
cleaning, 22
icons/buttons, ii
serial number, checking, 22
slide show
changing transition speed/type, 15
exiting sample pictures, 25
starting and stopping, 14
specifications, frame, 27
speed, changing transition time, 15
storage capacity, internal memory, 27
T
transition time
button, ii, 15
changing speed and transition
type, 15
troubleshooting and support, 24—25
U
updating firmware, 23
USB
connector, i, 13
device, viewing pictures from, 13
type, 27
V
viewing pictures
as collage, 16
from friends, 18
from internal memory, 11
from memory card, 12
from USB device, 13
new, 18
W
warranty, 30
Web
account, using, 17
frame activation, 9, 25
getting more information from, 26
wireless network
advanced settings, 7
compatibility, 27
connecting to, 3
help, 24
non-broadcast/not shown, 5
security code,4,5,6
security type, selecting, 4, 5, 6
setup wizard, 3
WPS routers, 6
