Edimax Technology Co Ltd Wireless Project Server
User Manual
wireless projector server User Manual
Version 0.27
For Edimax
Table of Contents
Chapter I Product Introduction..................................................................................7
1-1 Package Contents........................................................................................8
1-3 Highlights.....................................................................................................10
1-4 Part Names .................................................................................................11

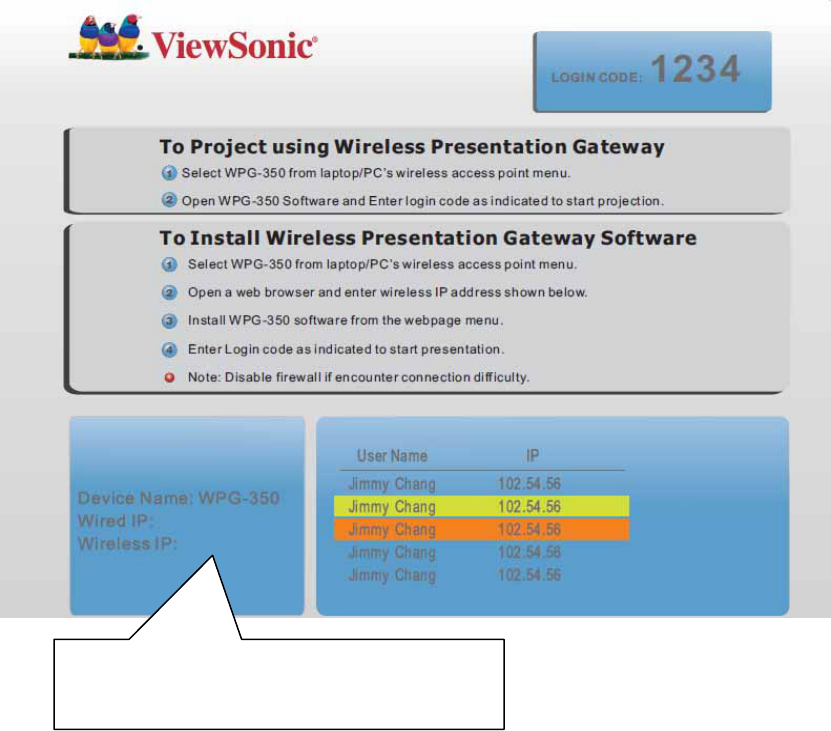

2-1 Check the IP address of WPS..................................................................16

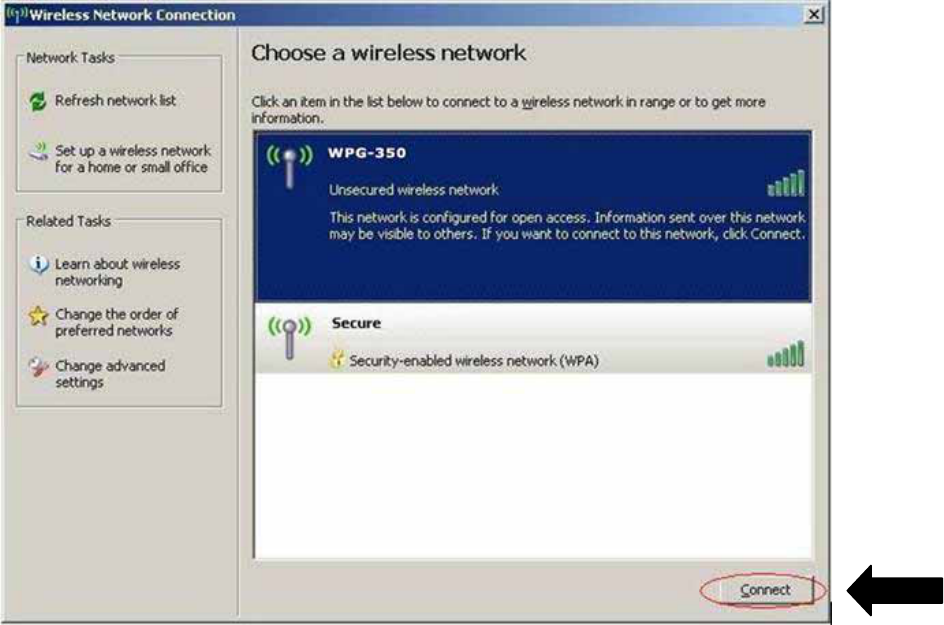

2-2 Connect to WPS by wireless network.....................................................17
2-3-1 Windows XP IP address setup:..........................................................19

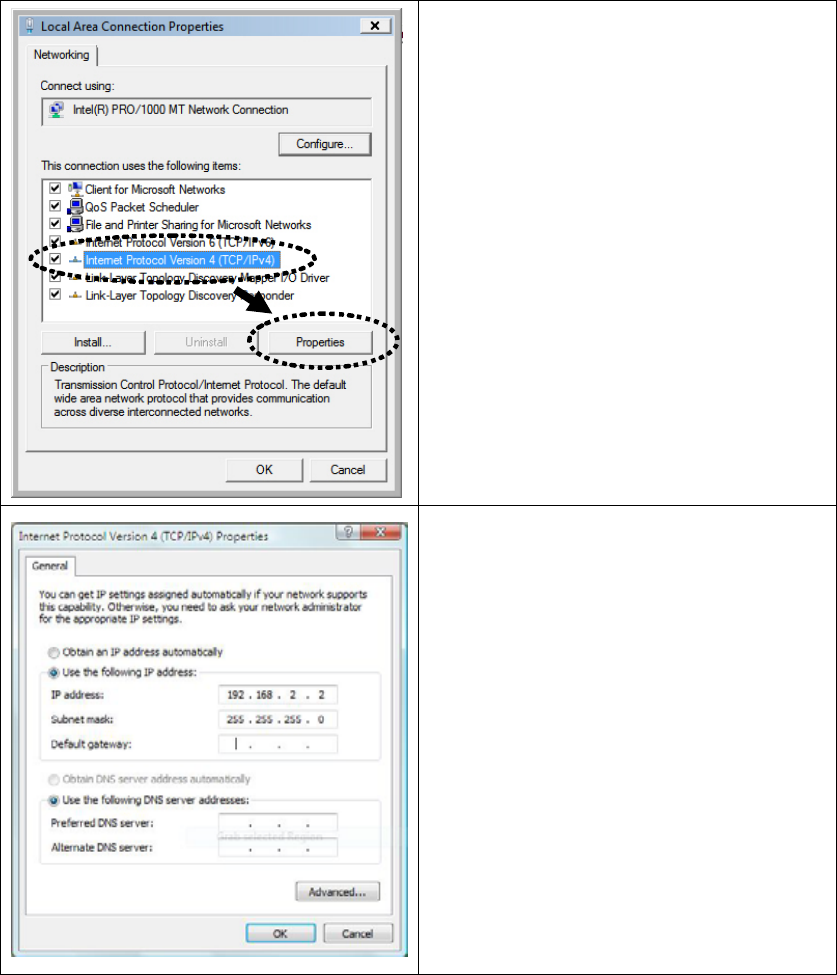

2-3-2 Windows Vista IP address setup:.......................................................20

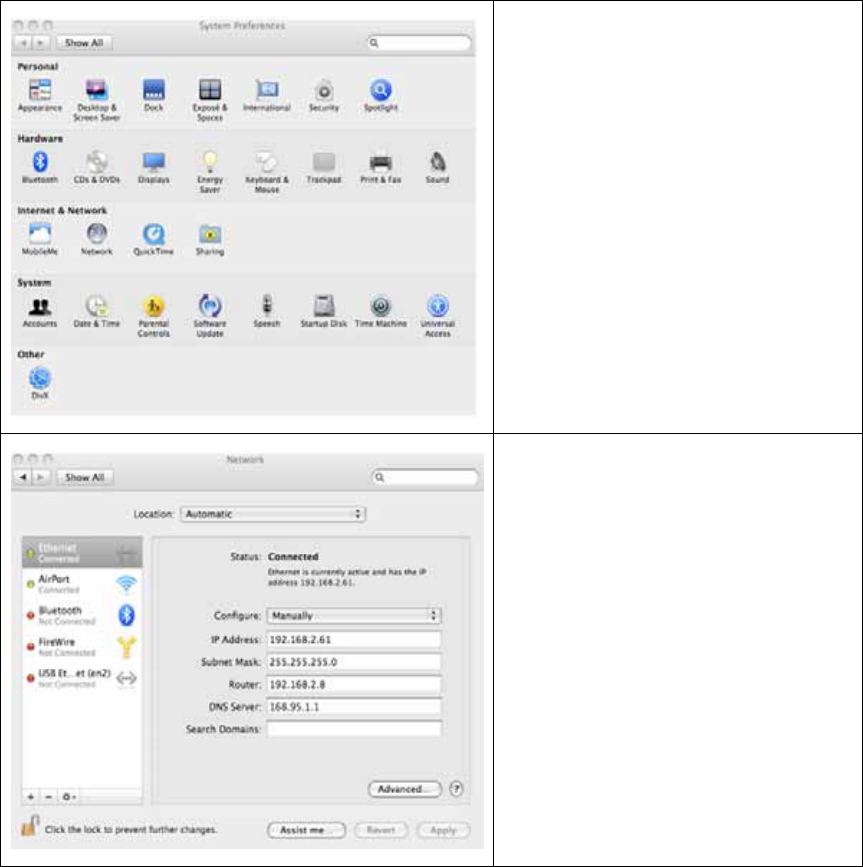

2-3-3 Macintosh IP address setup:.............................................................21
Chapter III Using Application Software (PC Version) ..........................................22

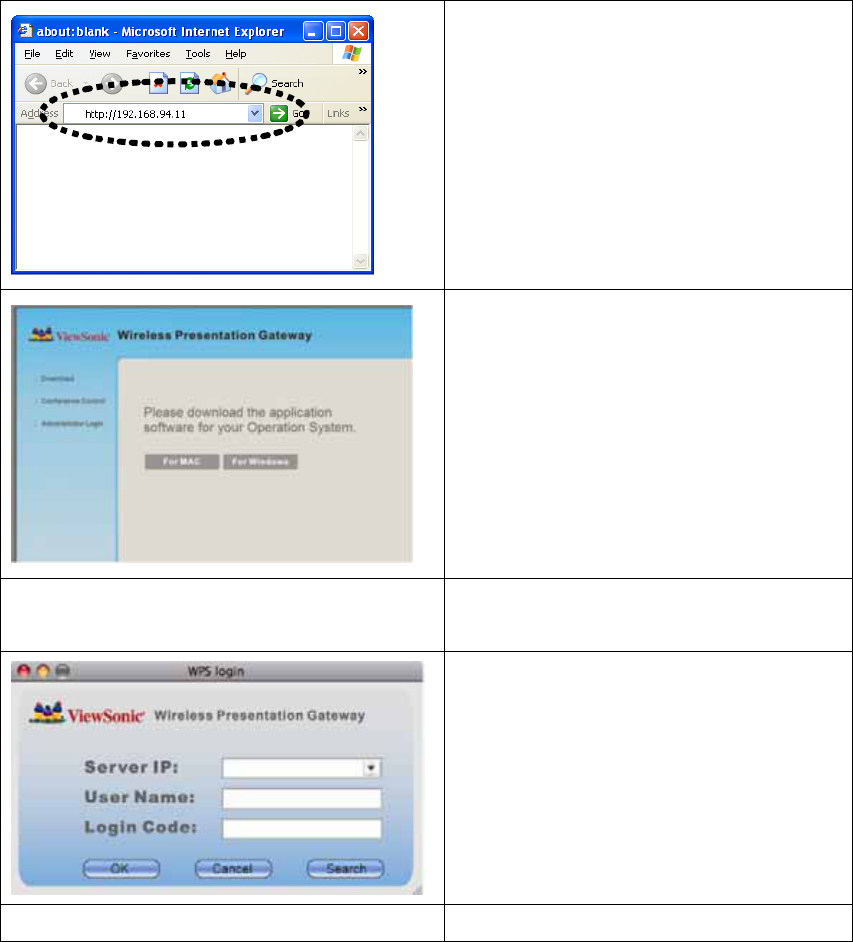

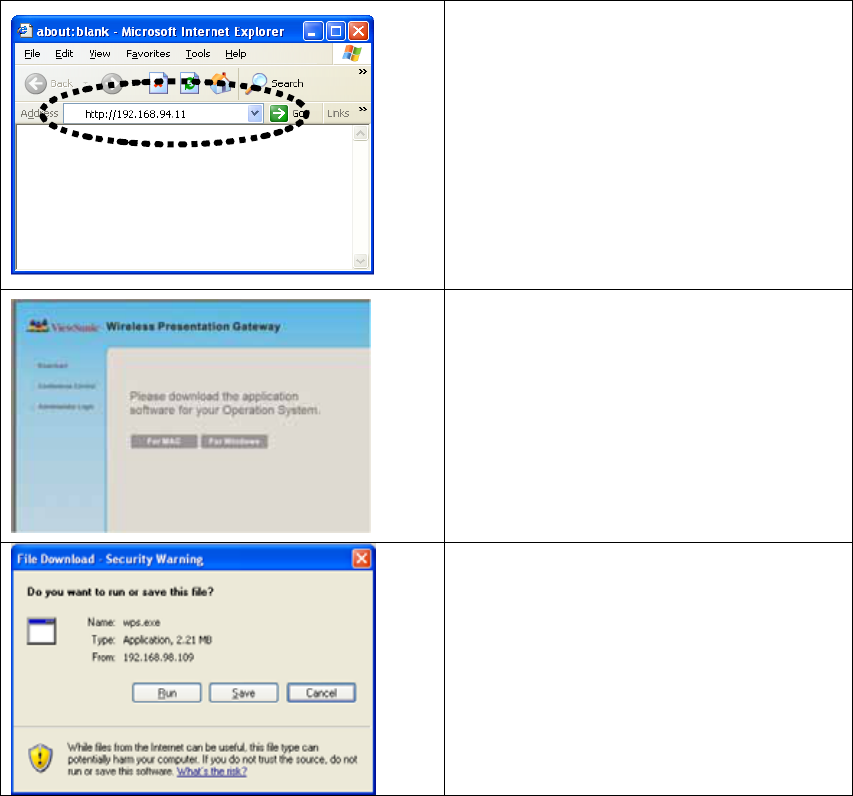

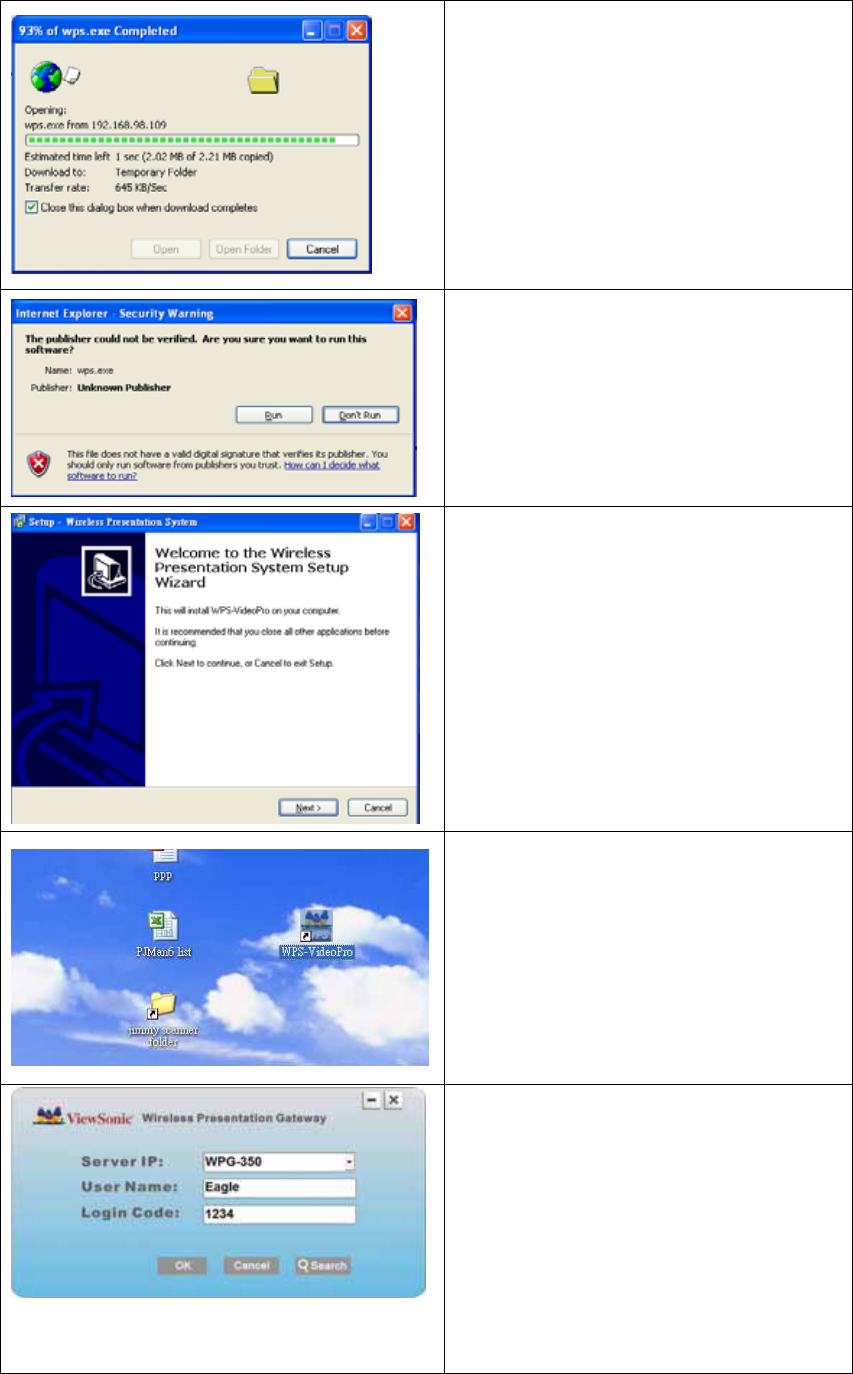

3-1 Download and Install Application Software ............................................22
3-2 Launch Application Software and Login..................................................25

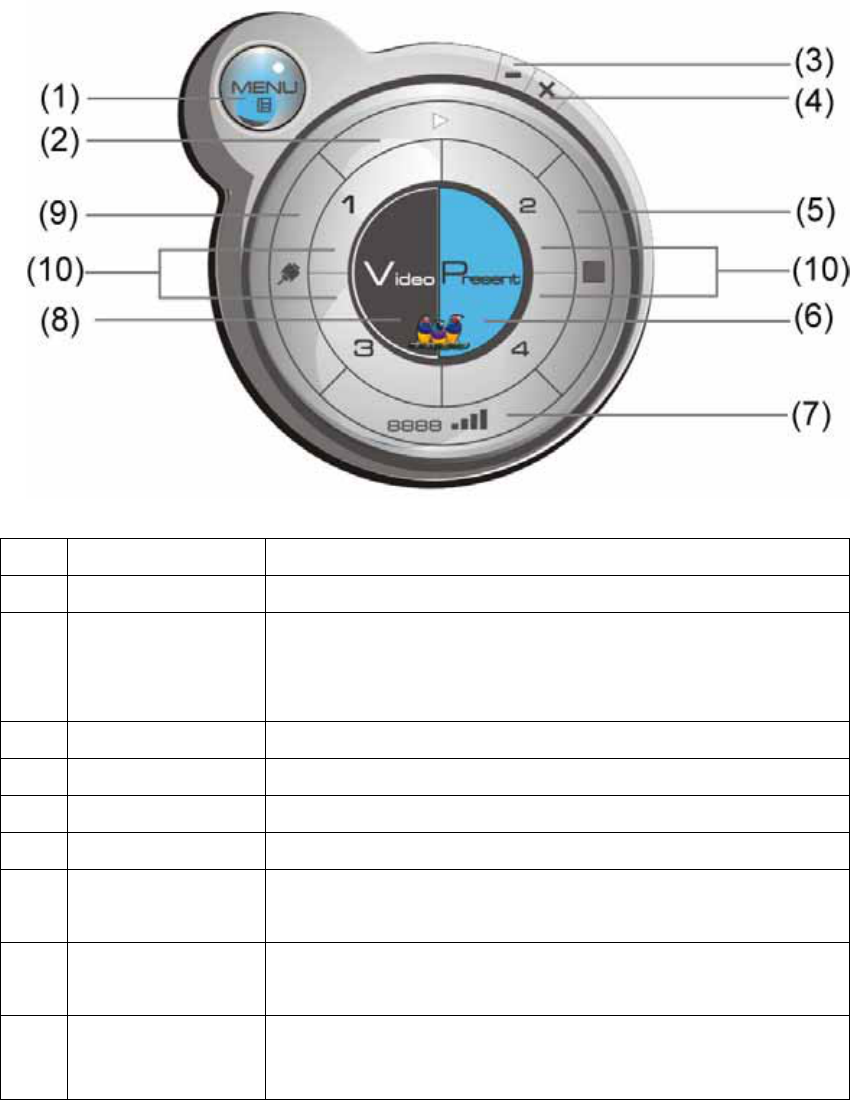

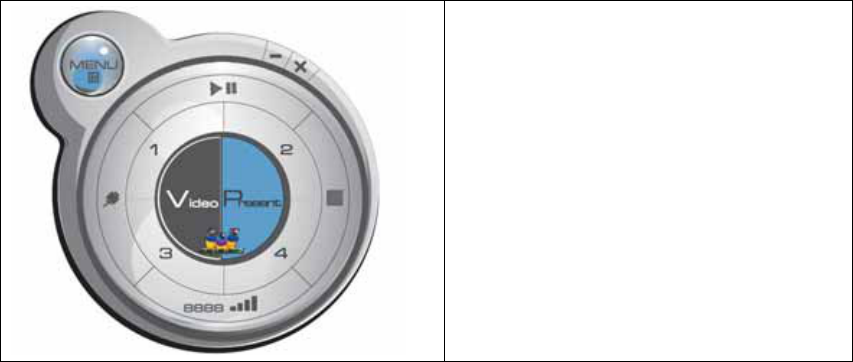

3-2-1 Use icon on application software..................................................26

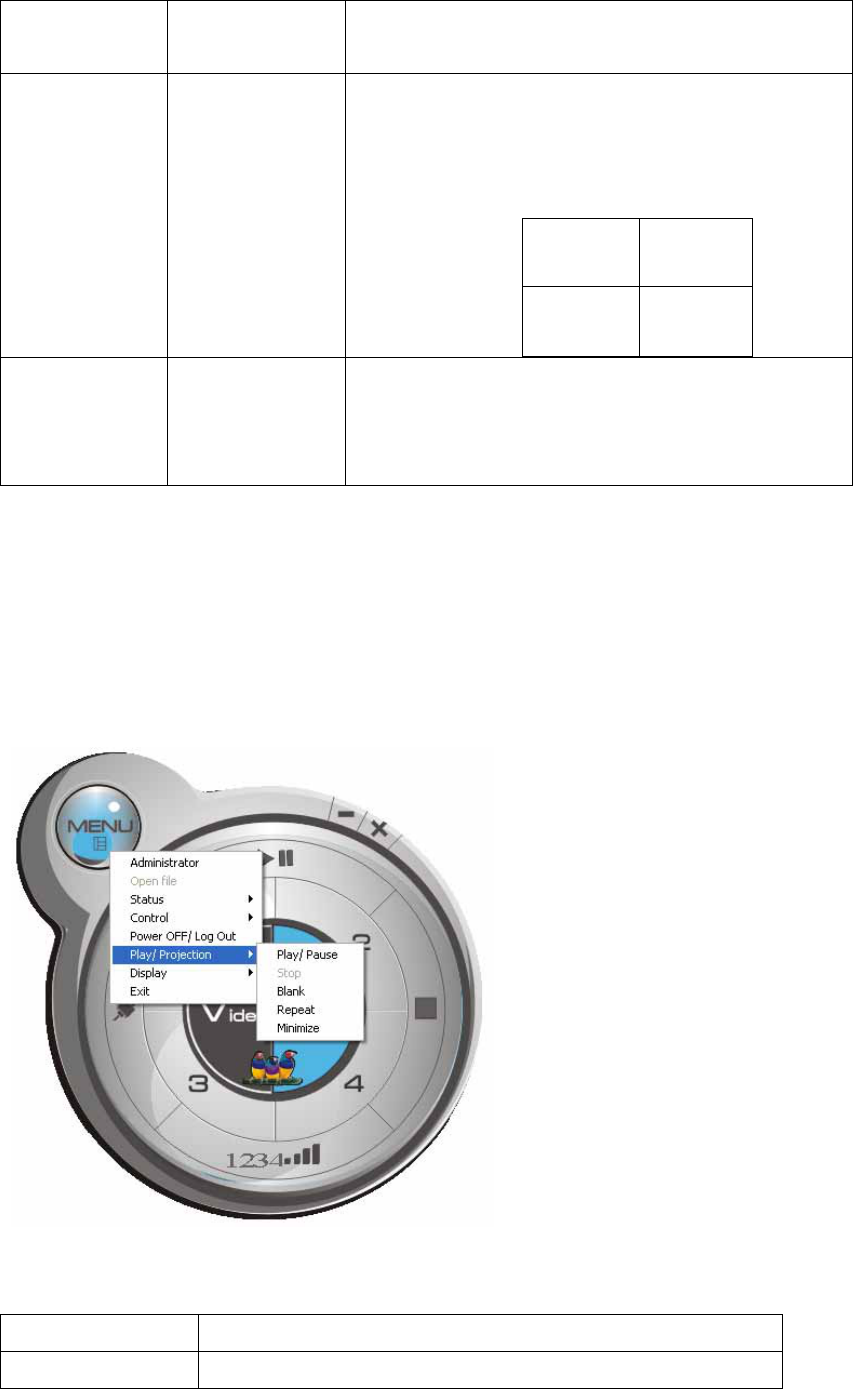

3-2-2 Menu List..........................................................................................27

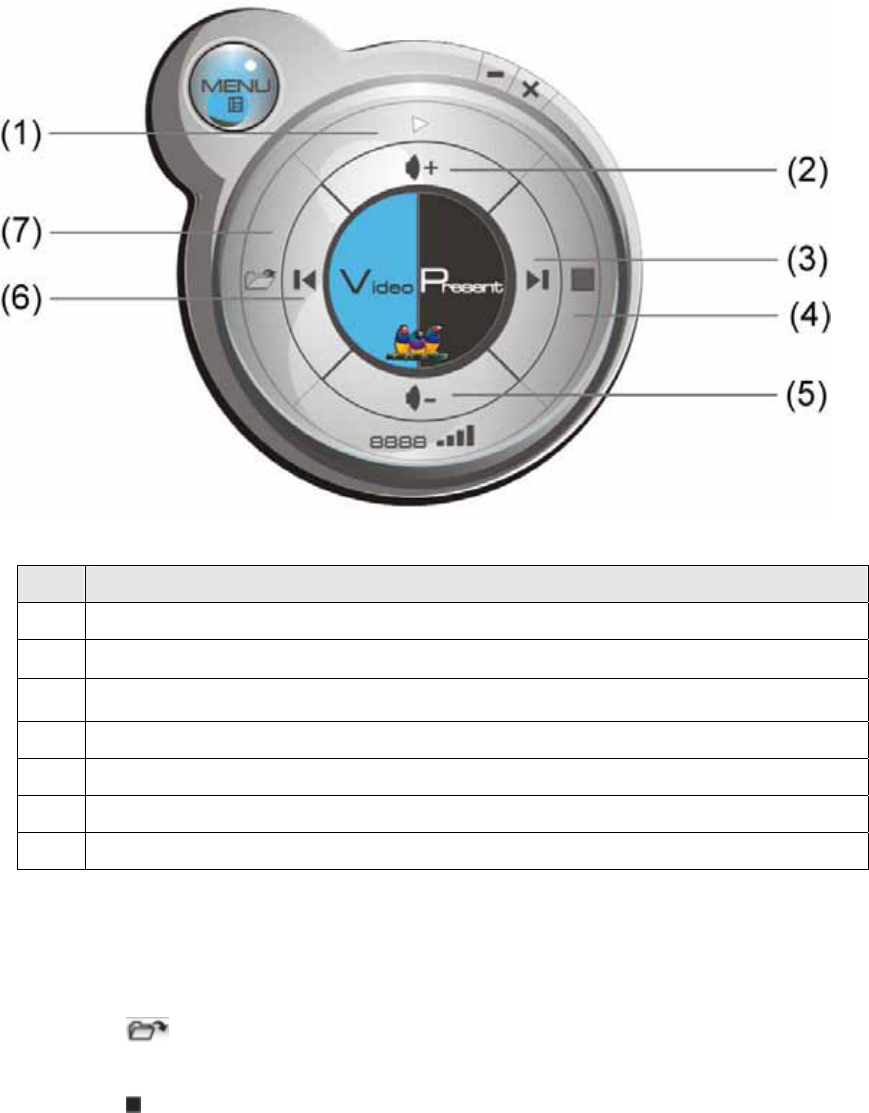

3-3 Video playback (PC Version)....................................................................29
3-4 Quarter Split Screen...................................................................................30
Chapter IV Using Application Software (MAC Version).......................................31
4-1 Download and Install Application Software ............................................31

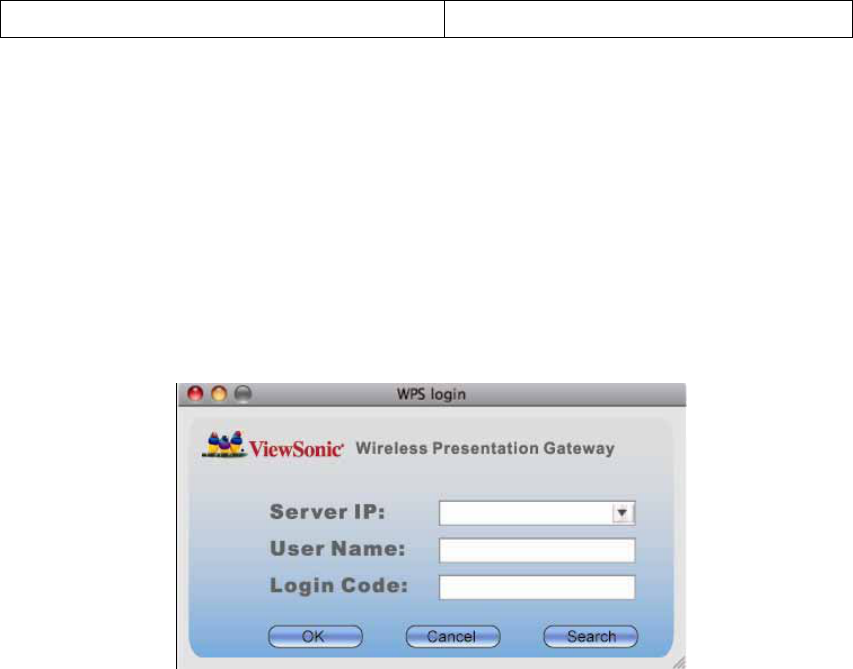

4-2 Launch Application Software and Login (MAC Version) ......................32

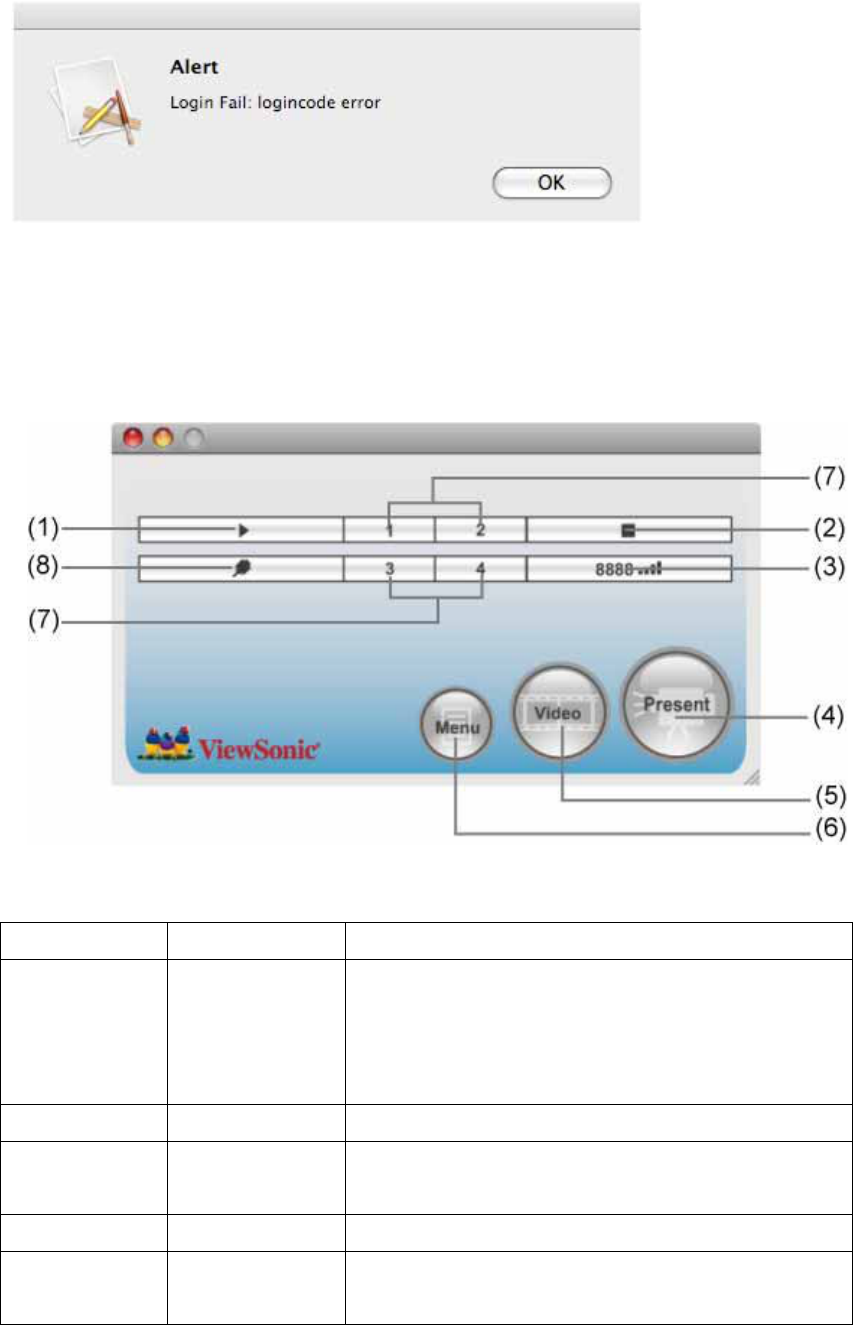

4-2-1 Use icon on application software..................................................33
4-2-2 Menu List..........................................................................................34

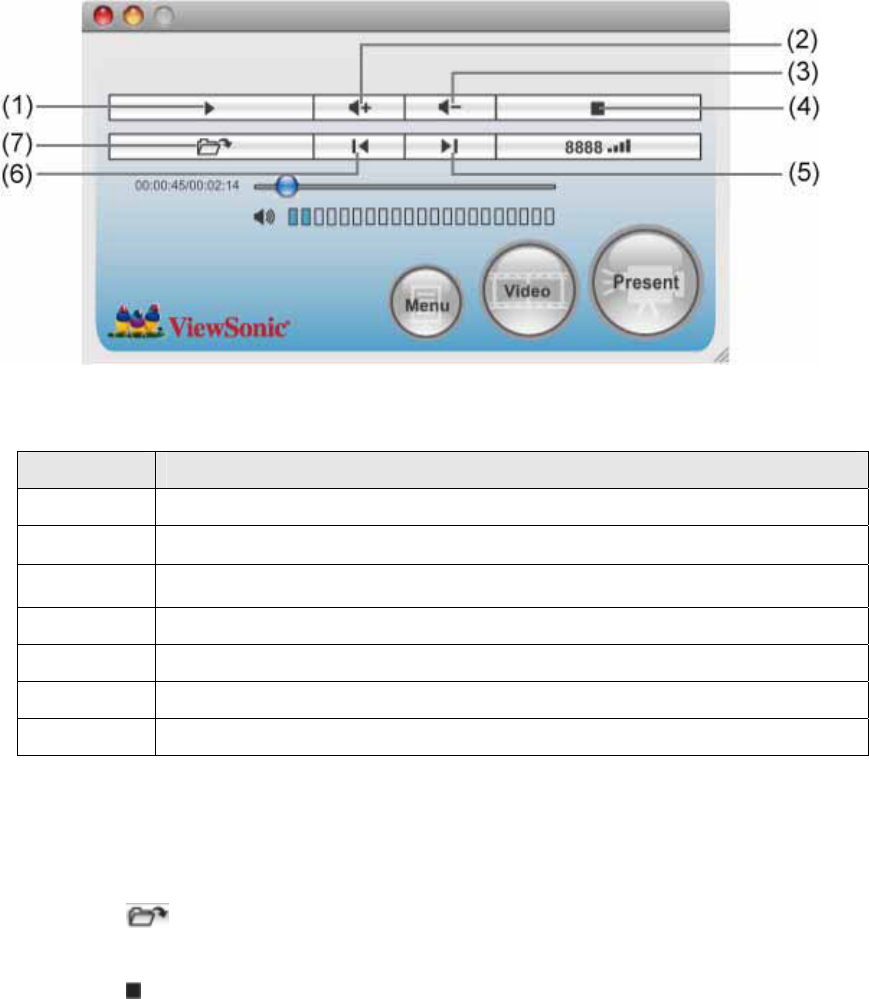

4-3 Video playback............................................................................................36
4-4 Quarter Split Screen (MAC Version) .......................................................37
Chapter V Configure WPS.......................................................................................38

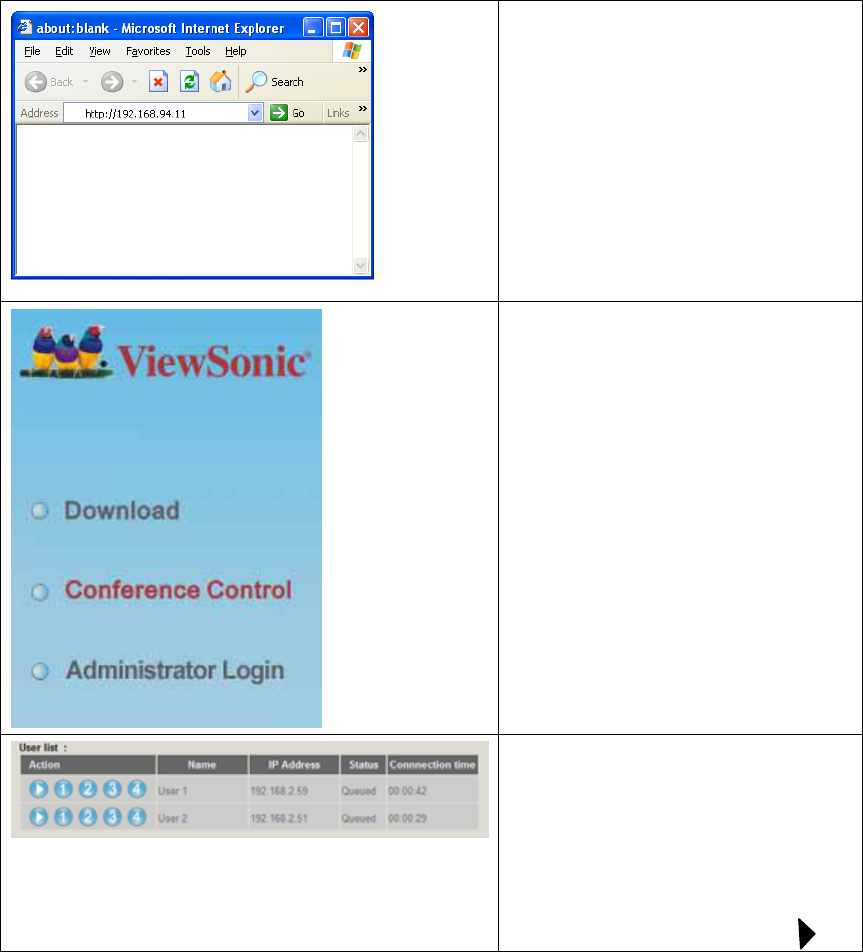

5-1 Conference Control....................................................................................38
5-2 Connect to Web Configuration Menu......................................................39

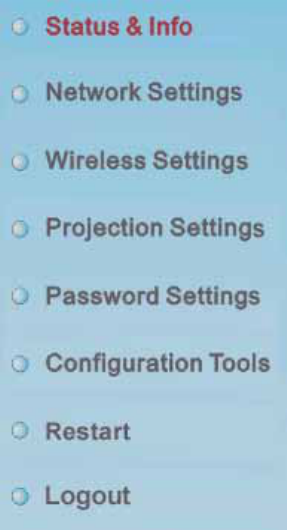

5-3 Status & Info................................................................................................41
5-4 Network Settings ........................................................................................41

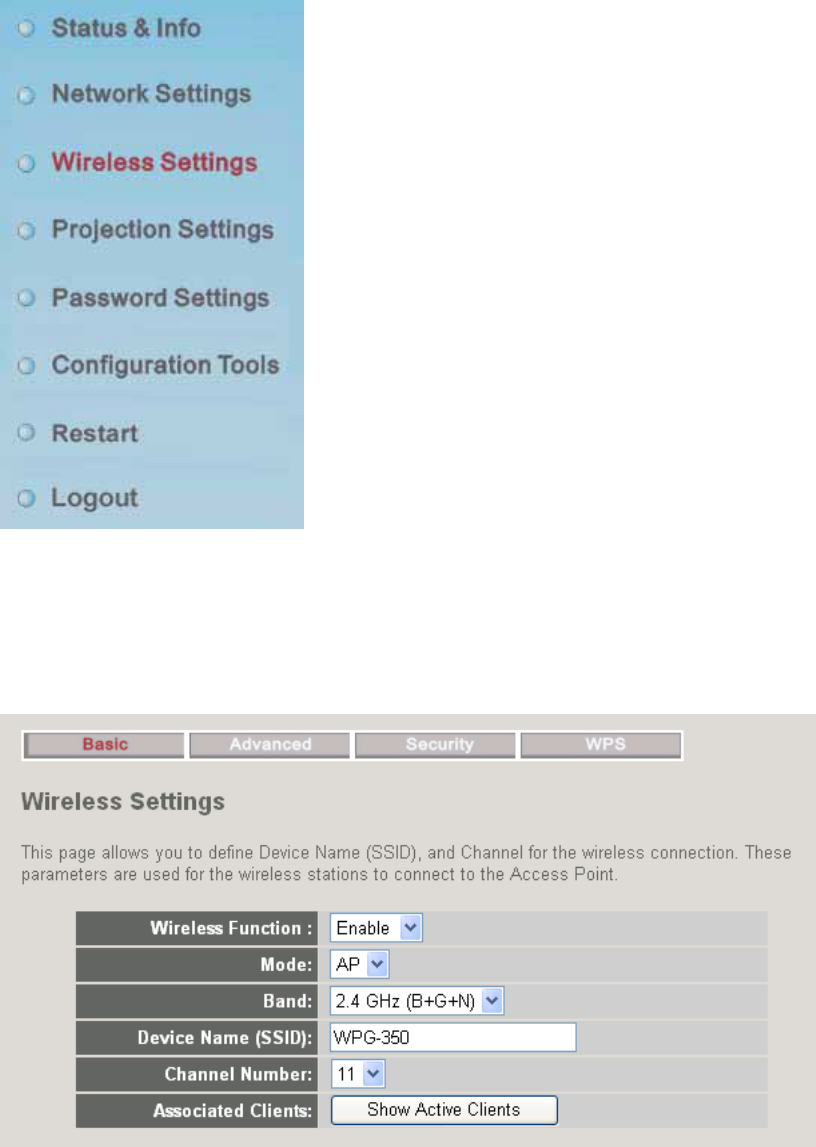

5-5 Wireless Settings........................................................................................44
5-5-1 ‘Basic’ Settings...................................................................................44

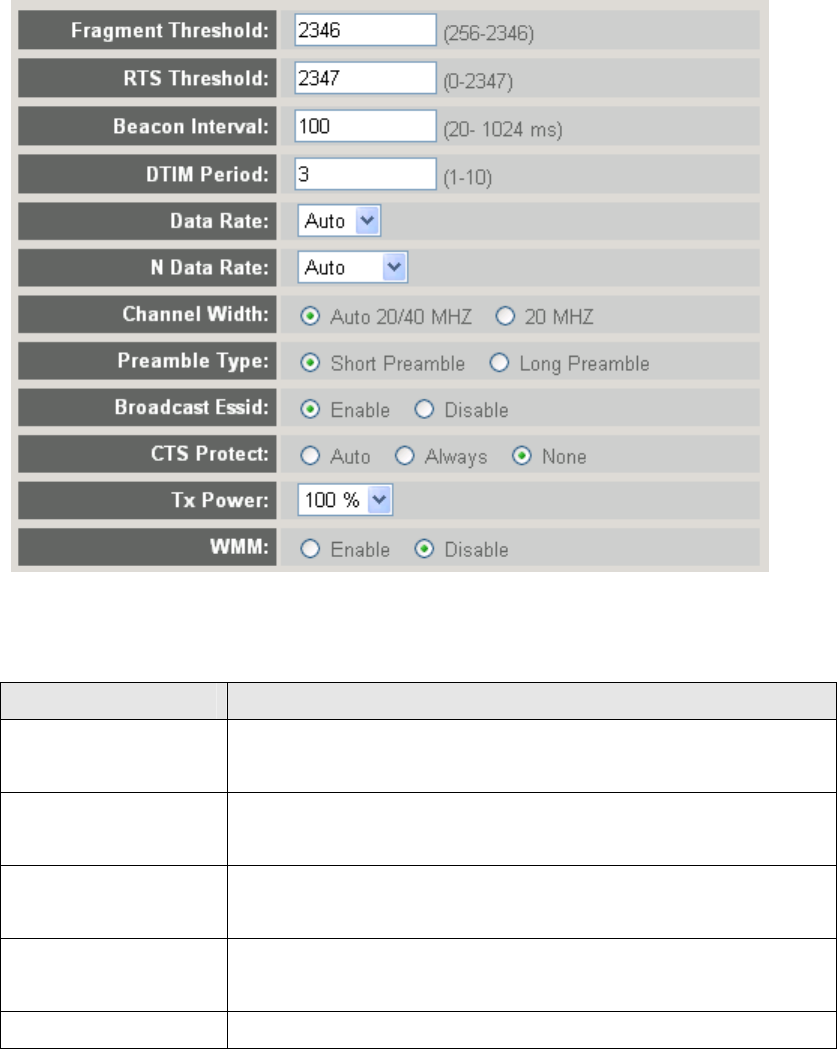

5-5-2 ‘Advanced’ Settings ............................................................................46

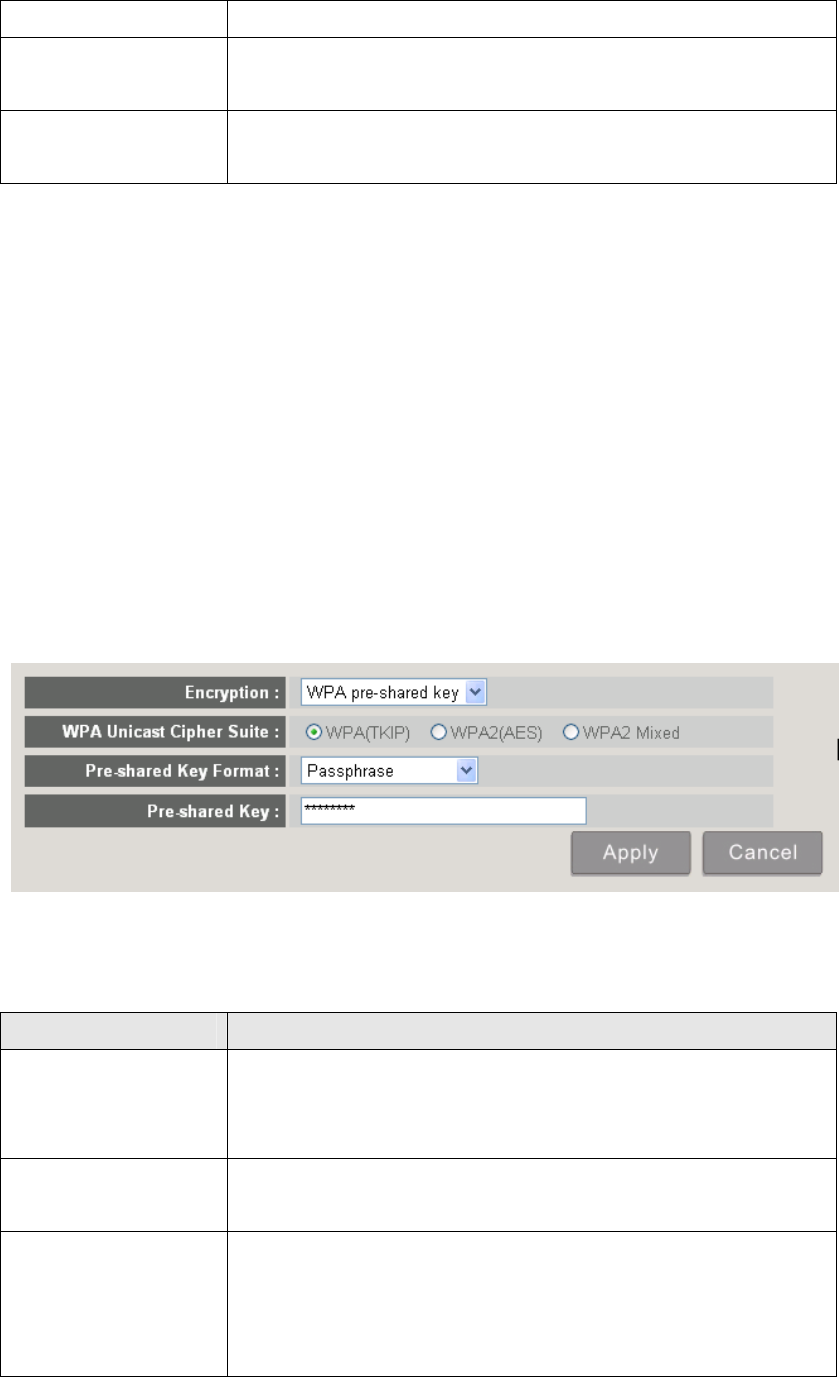

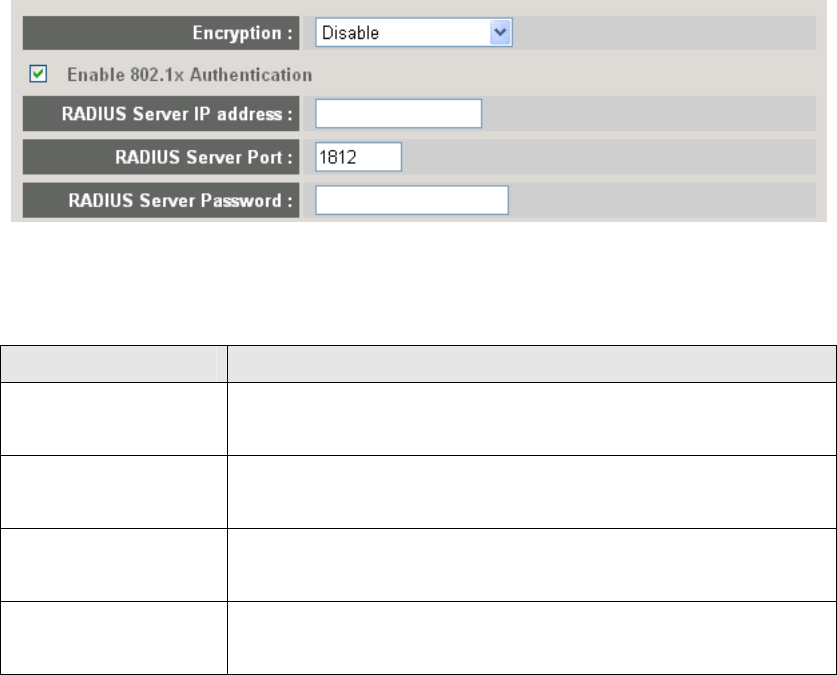

5-5-3 ‘Security’ Settings..............................................................................47

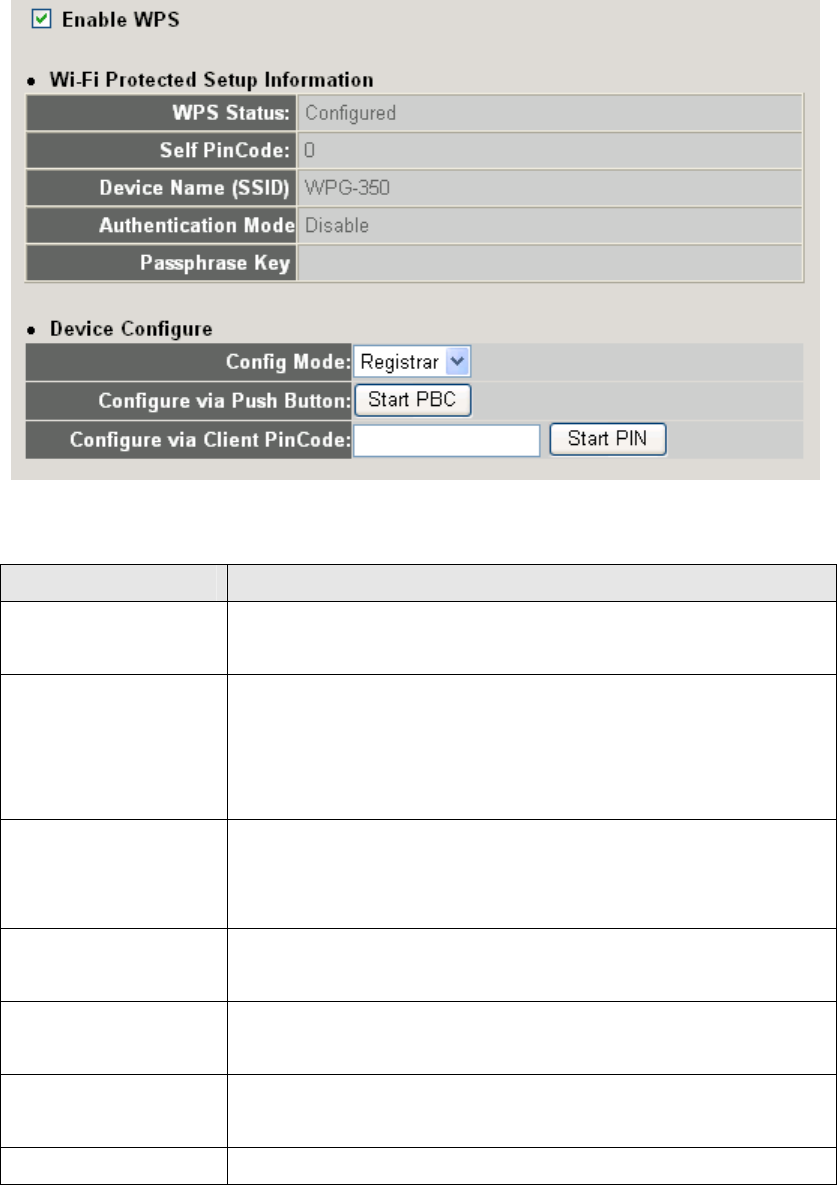

5-5-4 ‘WPS’ Settings...................................................................................53

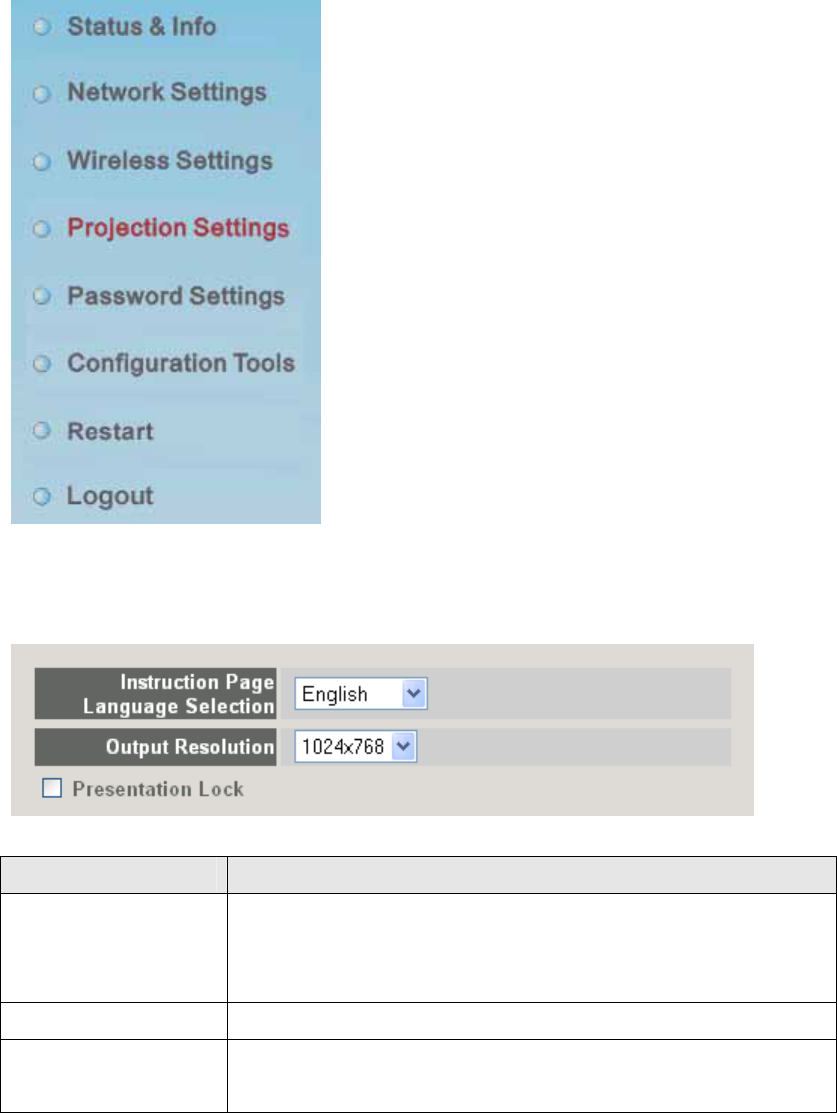

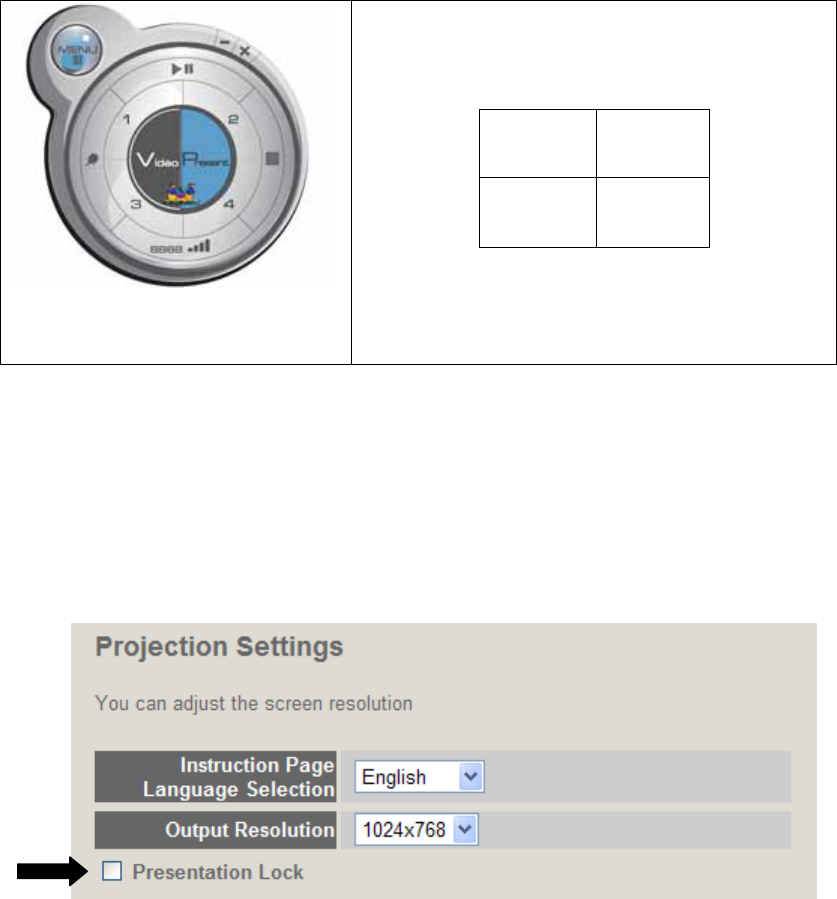

5-6 Projection Setting .......................................................................................55

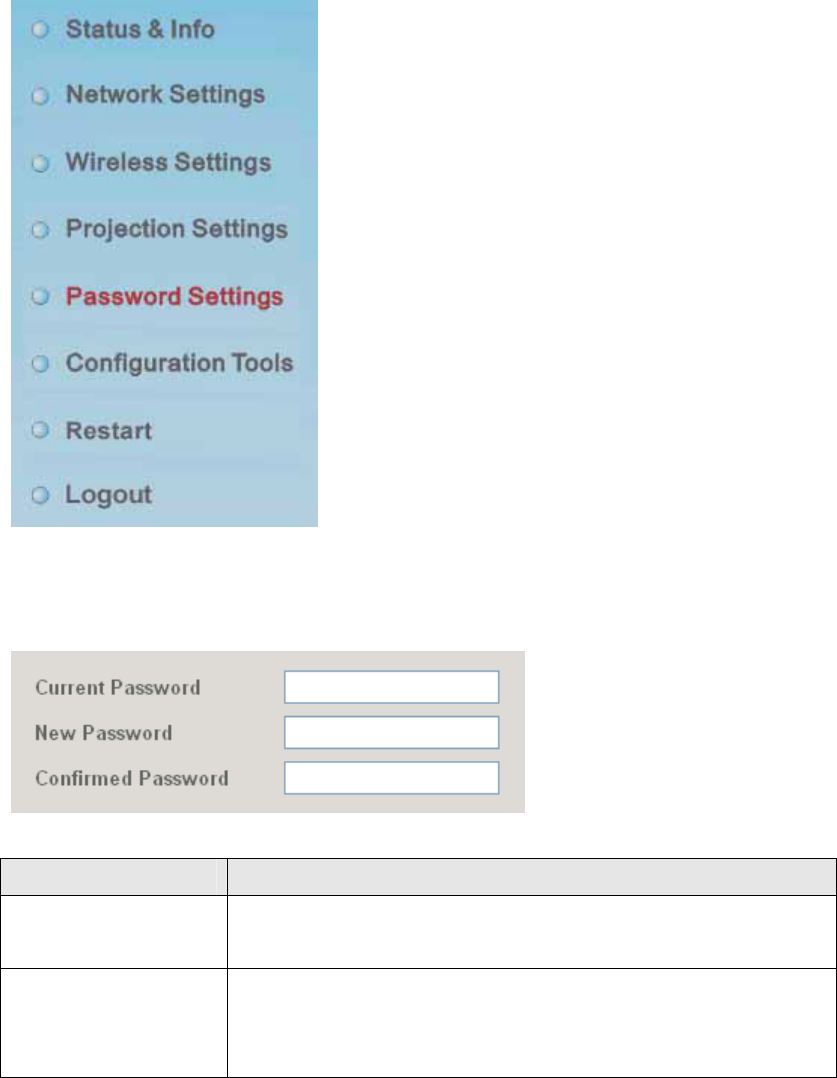

5-7 Password Setting .......................................................................................56
5-8 Configuration Tools ....................................................................................57

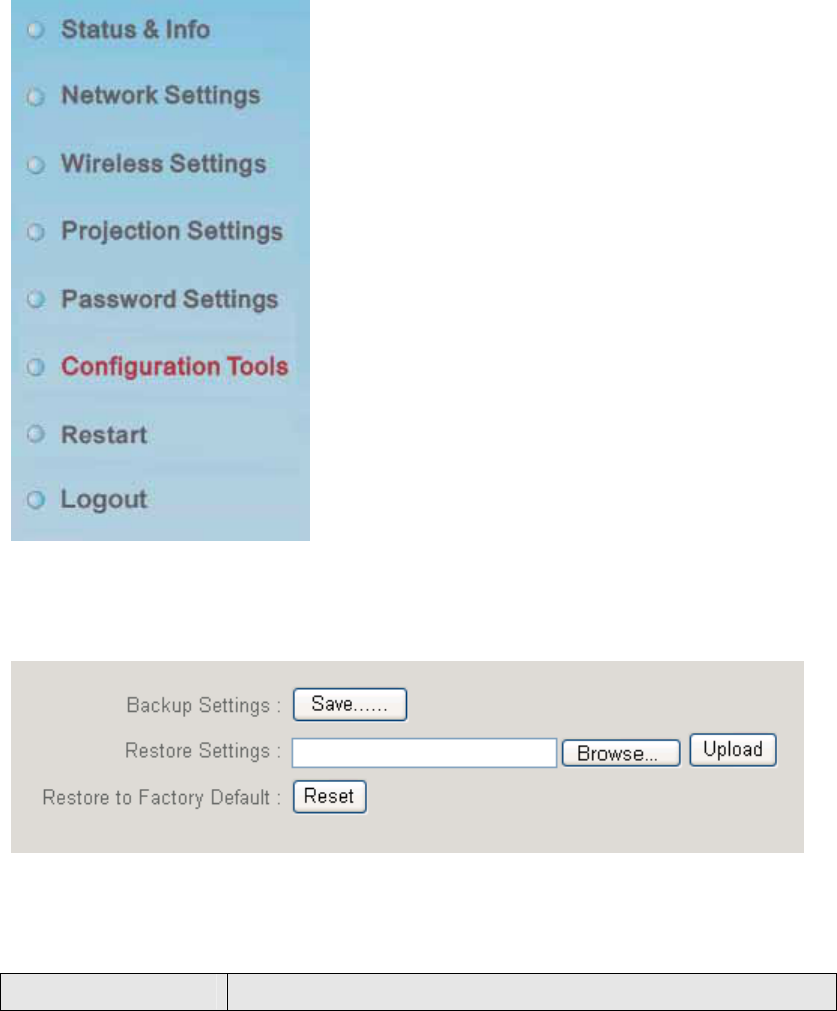

5-8-1 Configuration Tools...........................................................................57

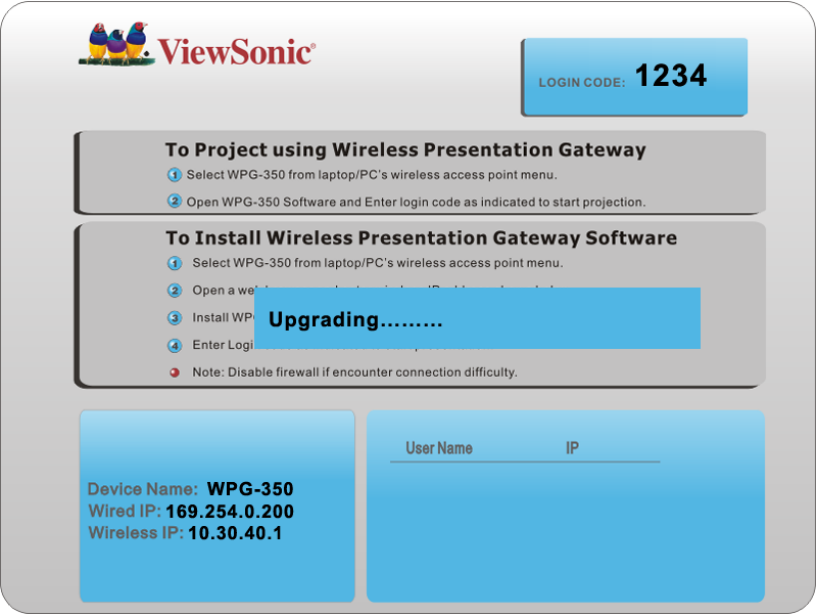

5-8-2 Firmware Upgrade ............................................................................58

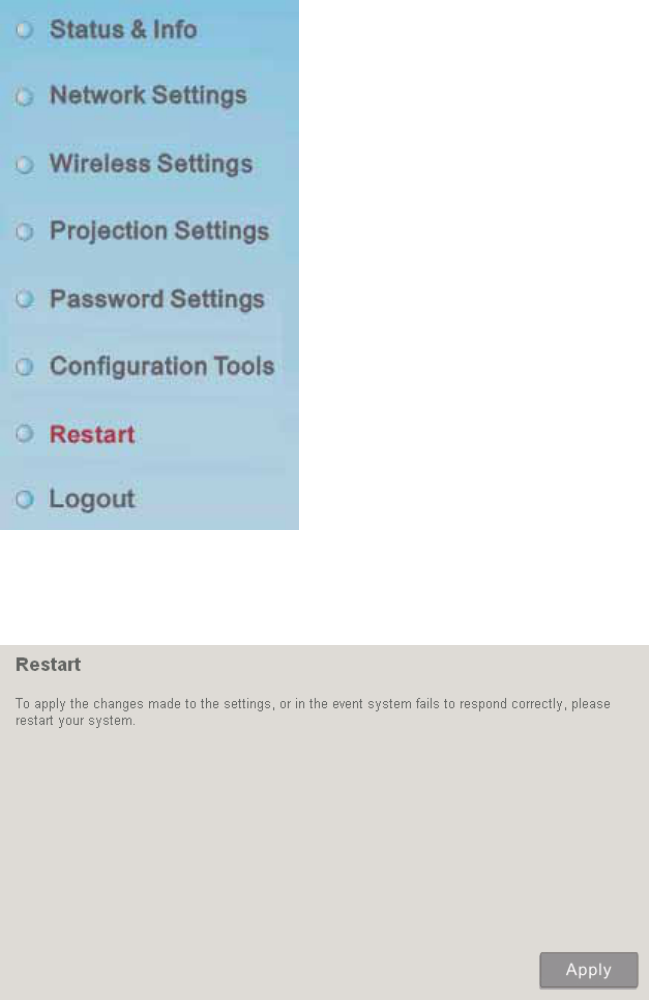

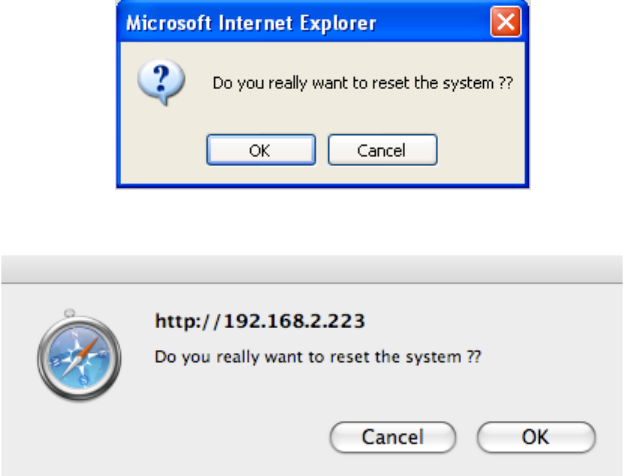

5-9 Restart..........................................................................................................60
5-10 Logout ........................................................................................................62
Chapter VI Appendix..............................................................................................63
6-1 Hardware Specification..............................................................................63
6-2 Troubleshooting ..........................................................................................65
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
z Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
FCC/IC Radiation Exposure Statement:
This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for
successful communication"
"This device has been designed to operate with an antenna having a maximum gain of 2 dBi.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The
required antenna impedance is 50 ohms."
“To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
permitted for successful communication.
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
Country Code selection feature to be disabled for products marketed to the US/CANADA
This Class [B] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
Important Safety Instructions
1. Do not place the product near water or in humid and / or hot environment, like
bathroom or kitchen. Please refer to the specification of the environment.
2. This product is designed to be used indoor.
3. Avoid swallowing any parts, components, or accessory of this product.
4. If this product is dropped into water when it’s powered on, DO NOT
ATTEMPT TO RETRIEVE BACK BY YOURSELF! Switch the electrical power
switch off first, and call a qualified electrical technician for help.

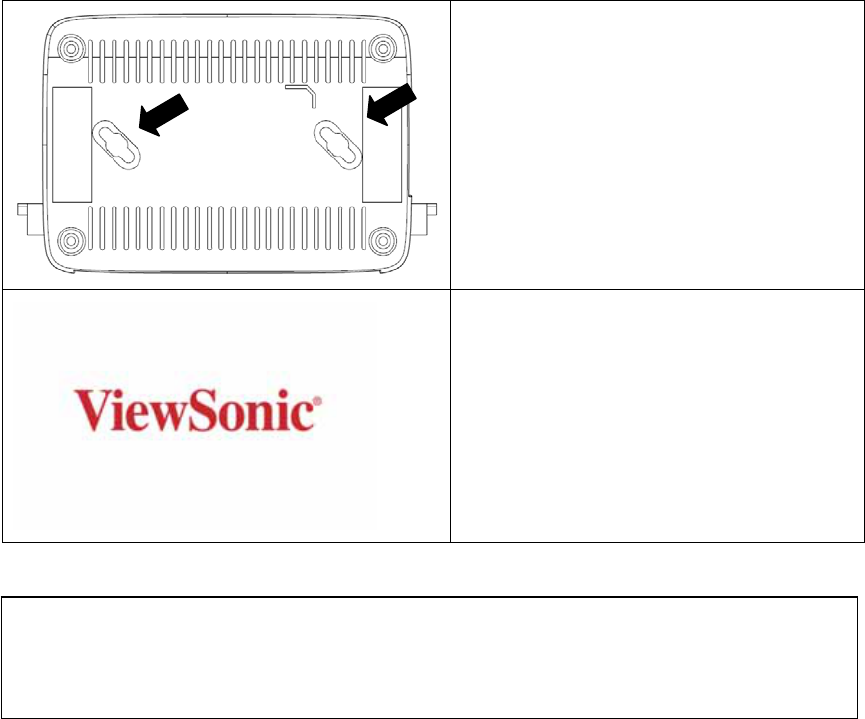

5. If to hang this product, please make sure placement is properly secured.
Misplacement would cause falling and damage this product and injury to
people!
6. Do not drag any connected cord with force; the terminal and cord will be
damaged.
7. Only use dry cloth with water to clean this product; do not use alcohol or
other chemical solution to clean this product.
8. Do not repair, disassemble, or modify the product; if the product is not
working properly, please contact the dealer of purchase.
9. Do not put the product and / or A/C adapter directly on paper, cloth, or other
flammable materials. After hours of use, this product will become hot, and may
cause flammable materials placed under it to burn.
10. Do not cover the product with cloth or any material; the product will become
overheat and cause malfunction, even cause fire.
11. When the product is powered on, do not connect or disconnect any
connection cable.
12. If not using the product for a long time, please unplug A/C adapter from wall
socket, and remove the battery inside remote controller.
Chapter I Product Introduction
![](/img.php?id=1176006&img=bg8.png)
Congratulations on your purchase of Edimax wireless projector server
WP-S1201. This section introduces you to the WP-S1201 (referred to as the
WPS in this user guide).

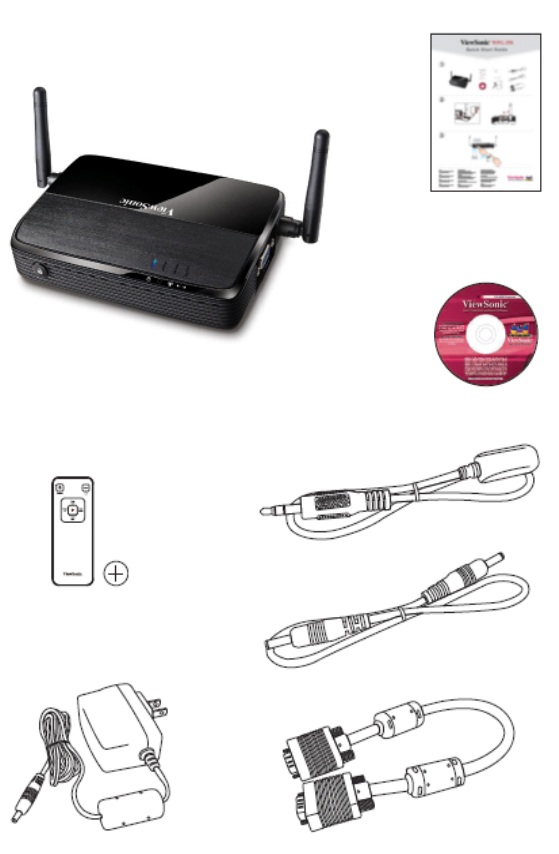

1-1 Package Contents
(1) WP-S1201
(2) AC adapter
(3) Remote controller
(4) IR receiver extension cord
(5) AC adapter extension cord
(6) VGA cord
(7) Quick Installation Guide
(8) Software CD-ROM
![](/img.php?id=1176006&img=bg9.png)
1-2 Requirements
PC CPU
Speed
Intel Pentium 4/1.5 GHz or higher
(Recommend Intel Core 2 Duo CPU For Video Playback
Mode)
Memory 512 MB of RAM or higher
(Recommend 1GB of RAM For Video Playback Mode)
Operating
System
Windows XP 32 bit or above
(Recommend Windows XP 32 bit)
MAC OS X 10.4 and 10.5
(Both PowerPC / Intel Version)
Network
100Mbps Wired Fast Ethernet /
11Mbps 802.11b wireless Ethernet
(Recommend 54Mbps 802.11g wireless Ethernet)
![](/img.php?id=1176006&img=bga.png)
1-3 Highlights
Thanks again for choosing the product. This product allows multiple users to
connect to the same projector by wired or wireless network and avoiding the
hassle of using VGA cable.
Features
802.11 b/g/n Wireless compatibility.
Supports both Wireless and Ethernet connectivity
VGA connections
Conference control
Supports multiple users at the same time with Quarter split screen
WPS (Wi-Fi Protected Setup)
Output Resolution: 1024x768 or 800x600.
Upgrade software via the Internet.
Network security.
Presentation remote
Video capture, to capture screen image for projection.
*This function will be available in Q4, 2009 via upgrade through Internet.
![](/img.php?id=1176006&img=bgb.png)

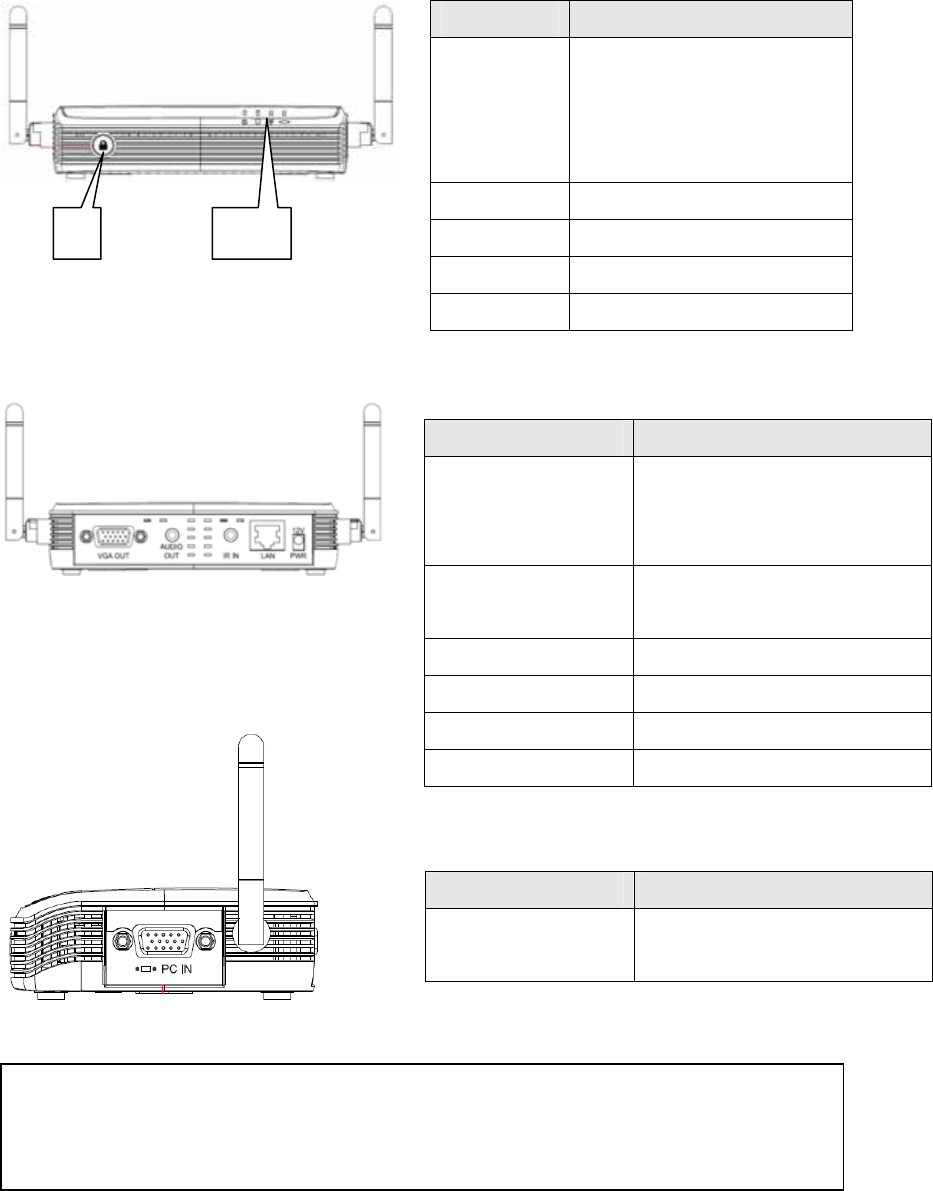

1-4 Part Names
Front View
Back View
Side View
Item No. Description
1 WPS: Single Click when the
device is ON.
Turn On: Single Click when
the device is OFF.
2 ‘POWER’ LED
3 ‘LAN’ LED
4 ‘WIRELESS’ LED
5 ‘PC IN’ LED
Name Description
12V Connect to A/C adapter /
Edimax projector’s D/C
power outlet
LAN 10/100Mbps fast Ethernet
port
IR IN Connect to IR receiver
Audio Out Stereo audio output
VGA OUT VGA video output
Antenna Receives wireless signal.
Name Description
PC IN Connect to computer’s
VGA output port
1 2 - 5
Note:
1) WPS stands for Wi-Fi Protected Setup.
![](/img.php?id=1176006&img=bgc.png)
Remote Controller
Item No. Description
1
Power
Stand-by mode on/off
2
Login
Show user list: Single Click.
2
WPS: Press and hold for 3
seconds.
3
Prev. user
Move up to select user for
presentation
4
Next user
Move down to select user for
presentation
5
Page up
Go to previous page
6
Page
down
Go to next page
7
Confirm
Confirm selected user for
presentation
8
Battery
Lid
Press battery lid and push it
downward by your thumb to open
battery compartment
9
IR LED
Infrared signal transmitter
1 2
3
5 7 6
4
8
9
Note:
1) Remote controller effective distance is 7 meters. This distance will be shortened
in some environments, or when the battery is low.
2) If there’s strong light source near WPS and / or remote controller, remote
controller may not be able to function properly.
![](/img.php?id=1176006&img=bgd.png)
1-5 Initial Setup
Connection Overview

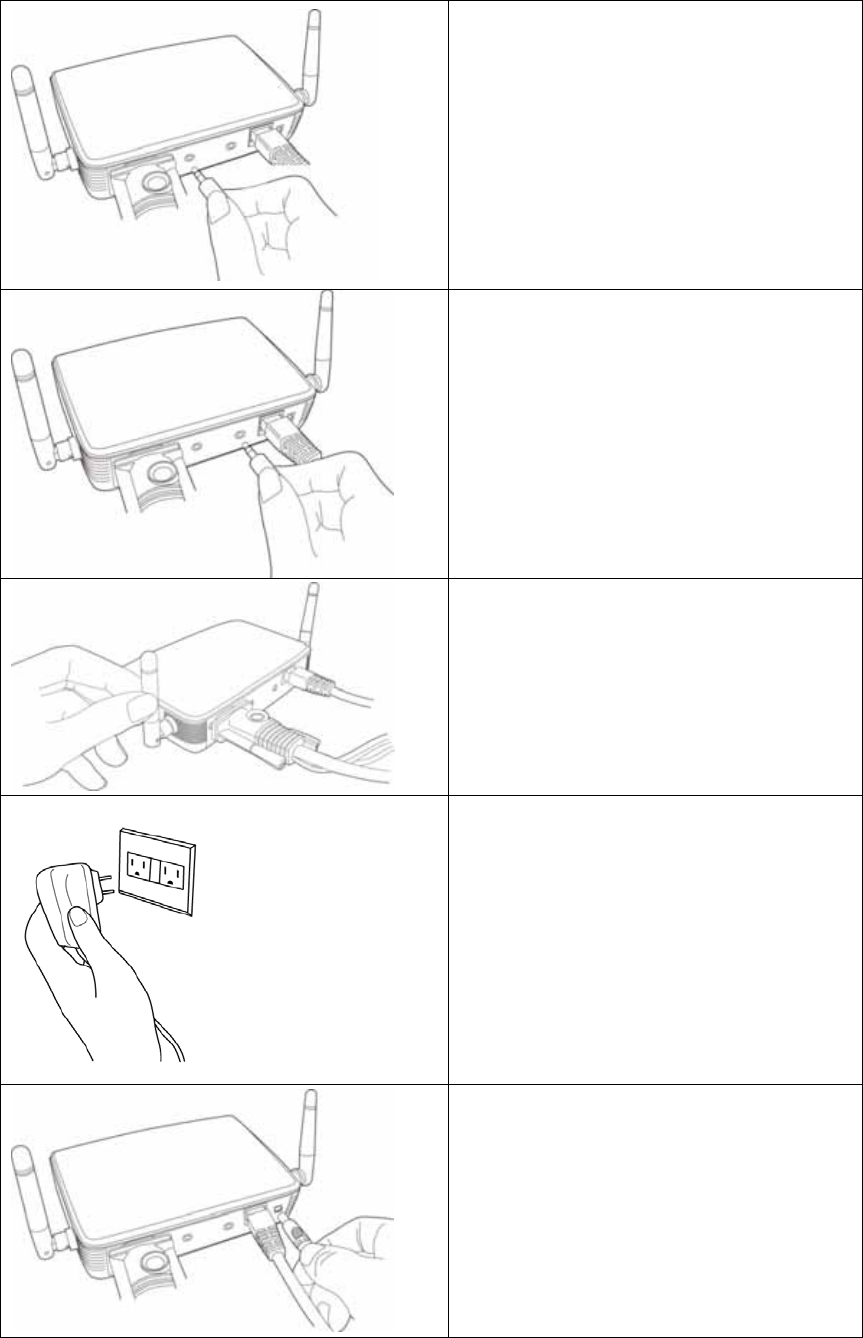

Step-by-step setup instructions
Connect one end of the VGA cable to
the external display, and the other to
WPS VGA-out port locates at back.
Connect the Ethernet cable to the
LAN port
![](/img.php?id=1176006&img=bge.png)
Connect audio cable to WPS
Audio-out Port locate at the back,
and the other end to an external
amplifier / speaker.
Connect the IR receiver extending
cable to ‘IR IN’ port located at the
back of WPS, and place the IR
receiver at a place where you can
point the remote controller to it easily
Adjust the antennas so they are
perpendicular to the ground.
Connect the A/C power adapter to
the electrical outlet on the wall.
Connect A/C power adapter to the
power jack labeled as ‘12V’ at the
back of WPS.
![](/img.php?id=1176006&img=bgf.png)
To fix the product placement, please
use two wall mount holes located at
the back of the product.

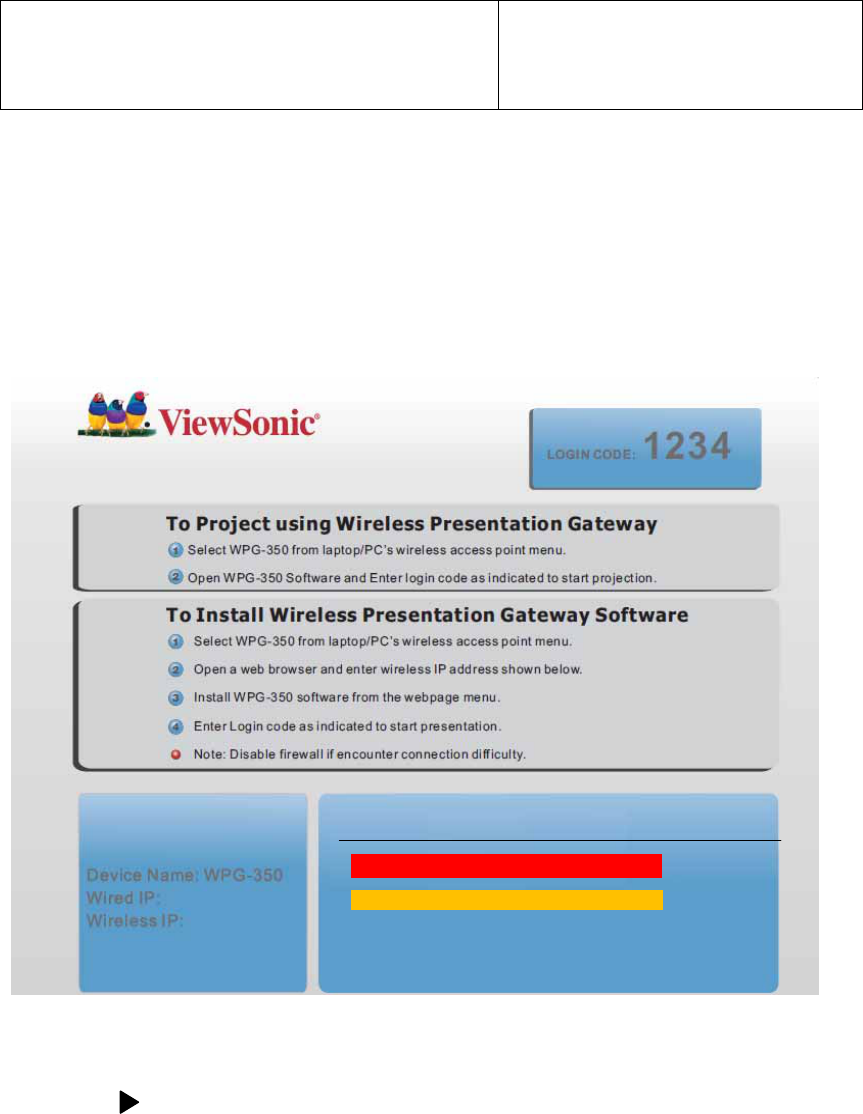

If you can see this start screen
display on projector, indicates
WS-1201 is working and all
connection cables are correctly
connected.
Note:
DO NOT USE VELCRO STICKER ALONE TO FIX THE PRODUCT ON THE
WALL!
![](/img.php?id=1176006&img=bg10.png)
Chapter II Using WPS
2-1 Check the IP address of WPS
When WPS is powered on, check the connected display, you can find the IP
address and login code Instruction Page:
You can connect to WPS by the IP address of the connection type you’re using
(wired / wireless).
The IP Address (Wireless / Wired Ethernet)
of the device.
192.168.0.1
10.30.40.1
![](/img.php?id=1176006&img=bg11.png)
2-2 Connect to WPS by wireless network
Use your computer’s Wireless Network Connection window to access an
available wireless network. Select the device from the list. Click Connect. The
default device name is WP-S1201.
Note: If using a wireless client other than Windows, the screen above may look
differently. For more details, see your PC user guide.
2-3 Manual Network Connection Setting
If there’s no DHCP server available on your LAN, please follow the following
instructions to set the IP address of the computer.
If the operating system of your computer is….
Windows XP - please go to section 2-3-1
Windows Vista - please go to section 2-3-2
Macintosh - please go to section 2-5-4
![](/img.php?id=1176006&img=bg13.png)
2-3-1 Windows XP IP address setup:
Click ‘Start’ from windows toolbar
locate at bottom, open control panel,
then select Network and Internet
Connections, click Network
Connections, and then double-click
Local Area Connection, Local Area
Connection Status window will
appear, and then click ‘Properties’
Select ‘Use the following IP address’,
then input the following settings in
respective field:
IP address: 192.168.0.x (where x is
an integer greater or less than 200, if
there’s more than one computer need
to use this WPS on the same
network, each computer should use
an unique number)
Subnet Mask: 255.255.255.0
Click ‘OK’ when finish.
![](/img.php?id=1176006&img=bg14.png)
2-3-2 Windows Vista IP address setup:
Click ‘Start’ from windows toolbar
locate at bottom to select control
panel. Click View Network Status
and Tasks, then click Manage
Network Connections. Right-click
Local Area Netwrok, then select
‘Properties’. Local Area
Connection Properties window will
appear, select ‘Internet Protocol
Version 4 (TCP / Ipv4), and then click
‘Properties’
Select ‘Use the following IP address’,
then input the following settings in
respective field:
IP address: 192.168.0.x (where x is
an integer greater or less than 200, if
there’s more than one computer need
to use this WPS on the same
network, every computer should use
an unique number)
Subnet Mask: 255.255.255.0
Click ‘OK’ when finish.
![](/img.php?id=1176006&img=bg15.png)
2-3-3 Macintosh IP address setup:
Select ‘System Preferences’,
and double-click ‘Network’.
Select ‘Manually’ in ‘Configure’
field, then input the following
settings in respective field:
IP address: 192.168.0.x (where
x is an integer greater or less
than 200, if there’s more than
one computer need to use this
WPS on the same network,
every computer should use an
unique number)
Subnet Mask: 255.255.255.0
![](/img.php?id=1176006&img=bg16.png)
Chapter III Using Application Software (PC Version)
3-1 Download and Install Application Software
Before any computer can use the WPS, application software must be installed
first. Please follow instructions to download and install WPS application
software:
Use the web browser to connect to
the IP address shown on WPS
(Wireless / Wired IP address)
WPS’s IP address is shown at the
Instruction page.
Click ‘For Windows’ button to
download application software.
A window is prompted, to execute,
please check “run”, or “save” to save
application software for future
usage.
![](/img.php?id=1176006&img=bg17.png)
Please be patient when your
computer is downloading application
software:
After application software download
is complete, click ‘Run’.
Click ‘Next’ to continue.
A new icon will appear.
Double click the icon to launch login
window, ‘Server IP’ will be
determined automatically, please
input a user name (login window
uses your computer’s name by
default), and input login code as
displayed on upper-right of
WP-1201’s display.
![](/img.php?id=1176006&img=bg18.png)
If login code is correct, application
software will appear.
![](/img.php?id=1176006&img=bg19.png)
3-2 Launch Application Software and Login
Double-click on application software to launch WPS’s application software.
Application software will search for WPS connected to local area network when
it starts, WPS s device name will be displayed at ‘Server IP’ field:
Please input a unique user name (used to identify each WPS user and should
not be the same as other users) in ‘User Name’ field, and input the login code
as shown on WPS’s Instruction page. When you’re ready, click ‘OK’ button to
continue.
Application software will use your computer’s name as user name. You can use
this name, or input any user name in ‘User Name’ field, and input the login code
as shown on WPS’s Instruction page. When you’re ready, click ‘OK’ button to
continue.
Login code must match with the one display on WPS’s Instruction page, else
following message would appear. Click “OK” to enter the login code again.
![](/img.php?id=1176006&img=bg1a.png)
3-2-1 Use icon on application software
No. Name Function Description
1 Menu Access menu list.
2 Play / Pause Start / pause presentation. When pausing a
progressing presentation, the displaying image will
freeze; press play button again to resume
3 Minimize Minimizes Application Software window
4 Close Closes Application Software window
5 Stop Stop a progressing presentation
6 Present Switches to present mode
7 Login code /
Signal
Displays login code (4-digit number)
and wireless signal strength
8 Video playback Starts video playback mode
9 VGA switch Switch display source (display the image from your
computer’s display or from ‘VGA IN’ connector)
![](/img.php?id=1176006&img=bg1b.png)
10
‘1’ to ‘4’ Quarter split display control. Click number 1 to 4 to
start / stop presentation of corresponding quarter
split display area.
1 2
3 4
3-2-2 Menu List
Besides the buttons, you can also click ‘Menu’ button to access menu list.
Item Name Function Description
Administrator Go to ‘ADMIN’ page of web menu
Open File Open a video file for video playback (in video
playback mode)
Status System / IP Address: check the system status and
the IP address of WPS
![](/img.php?id=1176006&img=bg1c.png)
Signal Status: check the status of wireless
connection.
About: check the version of application software:
Control VGA1: Displays your computer’s display content on
projector
VGA2: Display ‘VGA IN’ port’s display content on
projector
Search**: Automatically select an active content
source
The content source being used currently will have a
check mark in front of it.
Power Off / Log
Out
Stop using application software and logout.
Play / Projection Play: start presentation
Pause: Pause presentation
Stop: stop a progressing presentation
Blank: blank displaying image (all black)
Repeat: Repeat video playback (in video playback
mode)
Minimize: minimizes application software
Display Display: Show the name / SSID of WPS
Output resolution: changes display resolution and
you can click “Follow Desktop” to equivalent to
output based on original user desktop resolution
setting.
The resolution being used currently will have a check
mark in front of it.
Exit Close menu list
![](/img.php?id=1176006&img=bg1d.png)
3-3 Video playback (PC Version)
When you click ‘Video’ button in application software, the user interface will
change and look as follow:
To start video playback:
1. Click ‘Video’ button
2. Click (7) to open video file.
3. Video will start playing automatically.
4. Click (4) to stop playing video.
No. Description
1 Playback / Pause
2 Volume up
3 Fast forward (for 10 seconds)
4 Stop video play
5 Volume down
6 Rewind (for 10 seconds)
7 Open video file
![](/img.php?id=1176006&img=bg1e.png)
3-4 Quarter Split Screen
When there is more than one presenter, you can use this function to display up
to 4 presenter’s content to present on display screen simultaneously.
To use Quarter Split Function, please login to WPS, and select a key (1 to 4) to
present:
Number 1 to 4 correspond to different area
of display screen:
1 2
3 4
When you click a number, your content will
be displayed in corresponding Quarter-Split
display area
To show content in full-screen mode, simply click ‘Play’ button; to resume to
Quarter-Split display, simply click number key 1 to 4.
NOTE: When ‘Presentation Lock’ is checked, no one will be able to interrupt a
progressing presentation.
![](/img.php?id=1176006&img=bg1f.png)
Chapter IV Using Application Software (MAC Version)
4-1 Download and Install Application Software
Before any computer can use the WPS, application software must be installed
first. Please follow instructions to download and install WPS application
software:
Use safari or IE web browser to
connect to the IP address shown on
WPS (Wireless / Wired IP address)
WPS’s IP address is shown at the
Instruction page.
Click ‘For MAC’ button to download
application software.
Double-click application software
icon to launch application software.
You’ll see application software now.
‘Server IP’ will be determined
automatically, please input a user
name (login window uses your
computer’s name by default), and
input login code as displayed on
upper-right of WP-S1201’s display.
If login code is correct, application
![](/img.php?id=1176006&img=bg20.png)
software will appear.
4-2 Launch Application Software and Login (MAC Version)
Double-click on application software to launch WPS’s application software.
Application software will search for WPS connected to local area network when
it starts, WPS’s device name will be displayed at ‘Server IP’ field:
Please input a unique user name (used to identify each WPS user and should
not be the same as other users) in ‘User Name’ field, and input the login code
as shown on WPS’s Instruction page. When you’re ready, click ‘OK’ button to
continue.
Application software will use your computer’s name as user name. You can use
this name, or input any user name in ‘User Name’ field, and input the login code
as shown on WPS’s Instruction page. When you’re ready, click ‘OK’ button to
continue.
Login code must match with the one display on WPS’s Instruction page, else
following message would appear. Click “OK” to enter the login code again.
![](/img.php?id=1176006&img=bg21.png)
4-2-1 Use icon on application software
No. Name Function Description
1 Play / Pause Start / pause presentation. When pausing a
progressing presentation, the displaying
image will freeze; press play button again to
resume
2 Stop Stop a progressing presentation
3 Login code /
Signal
Displays login code (4-digit number)
and wireless signal strength
4 Present Switches to present mode
5 Video
playback
Starts video playback mode
![](/img.php?id=1176006&img=bg22.png)
6 Menu Access menu list
7 ‘1’ to ‘4’ Quarter split display control. Click number 1
to 4 to start / stop presentation of
corresponding quarter split display area.
1 2
3 4
8
VGA Switch Switch display source (display the image from
your computer’s display or from ‘VGA IN’
connector)
4-2-2 Menu List
Besides the buttons, you can also click ‘Menu’ button to access menu list.
(NO MAC SW**)
Item Name Function Description
Administrator Go to ‘ADMIN’ page of web menu
![](/img.php?id=1176006&img=bg23.png)
Open File Open a video file for video playback (in video
playback mode)
Status System / IP Address: check the system status and
the IP address of WPS.
Signal Status: check the status of wireless
connection.
About: check the version of application software:
Control VGA1: Displays your computer’s display content on
projector
VGA2: Display ‘VGA IN’ port’s display content on
projector
Search**: Automatically select an active content
source
The content source being used currently will have a
check mark in front of it.
Power Off / Log
Out
Stop using application software and logout.
Play / Projection Play: start presentation
Pause: stop presentation
Stop: stop a progressing presentation
Blank: blank displaying image (all black)
Repeat: Repeat video playback (in video playback
mode)
Minimize: minimizes application software
Display Display: Show the name / SSID of WPS.
Change resolution: changes display resolution and
you can click “Follow Desktop” to equivalent to
output based on original user desktop resolution
setting.
The resolution being used currently will have a check
mark in front of it.
Exit Close menu list
![](/img.php?id=1176006&img=bg24.png)
4-3 Video playback
When you click ‘Video’ button in application software, the user interface will
change and look as follow:
To start video playback:
1. Click ‘Video’ button
2. Click (7) to open video file.
3. Video will start playing automatically.
4. Click (4) to stop playing video.
No. Description
1 Playback / Pause
2 Volume up
3 Volume down
4 Stop video play
5 Fast forward (for 10 seconds)
6 Rewind (for 10 seconds)
7 Open video file
![](/img.php?id=1176006&img=bg25.png)
4-4 Quarter Split Screen (MAC Version)
When there is more than one presenter, you can use this function to display up
to 4 presenter’s content to present on display screen simultaneously.
To use Quarter Split Function, please login to WPS, and select a key (1 to 4) to
present:
Number 1 to 4 correspond to different area
of display screen:
1 2
3 4
When you click a number, your content will
be displayed in corresponding Quarter-Split
display area
To show content in full-screen mode, simply click ‘Play’ button; to resume to
Quarter-Split display, simply click number key 1 to 4.
NOTE: When ‘Presentation Lock’ is checked, no one will be able to interrupt a
progressing presentation.
![](/img.php?id=1176006&img=bg26.png)
Chapter V Configure WPS
5-1 Conference Control
When there is more than one presentation login to WPS, you can control the
content from different presenter via Conference Control webpage.
Use the web browser to connect
to the IP address of WPS
(Wireless / Wired IP address).
WPS’s IP address can be found
at the lower-left corner of
Instruction page (refer to
chapter 2-1).
Click ‘Conference Control’ from
WPS’s web user interface.
All users currently logged in will
be displayed here. To select a
user’s display content in certain
area of Quarter-Split Display,
click number 1 to 4; to display in
full-screen, click button of the
![](/img.php?id=1176006&img=bg27.png)
presenting user. To stop a
progressing presentation, click
█
To select user by remote controller:
When there is more than one connected application software, you can also use
remote controller to select one of them to display the content (same as
‘Conference control’ function described in last chapter). Press ‘Login’ button on
remote control.
You can use ‘Prev.’ and ‘Next’ button on the remote controller to move the bar,
then click button to select the presenting user.
5-2 Connect to Web Configuration Menu
10.30.40.1
192.168.0.1
User Name IP
TOM 192.168.0.10
J
ERRY 1
9
2.1
68
.
0
.2
0
![](/img.php?id=1176006&img=bg28.png)
Use the web browser to connect to the IP
address of WPS (Wireless / Wired IP
address). WPS’s IP address can be found
at the lower-left corner of Instruction page
(refer to chapter 2-1).
Click ‘Administrator Login’ link on the left.
Please input ‘admin’ as username. For 1st
time login you don’t have to input
password, just click ‘OK’ to continue. You
can change password after login.
If you set password before, please input
password in ‘Password’ field.
![](/img.php?id=1176006&img=bg29.png)
5-3 Status & Info
Displays system information, like system software version and IP address.
Many useful information can be obtained here when you need help about
system configuration and firmware upgrade.
5-4 Network Settings
![](/img.php?id=1176006&img=bg2a.png)
Displays and configures the network settings.
Item Description
Obtain an IP address
automatically
WPS will obtain an IP address from DHCP server
automatically.
Use the following IP
address
Set WPS IP address manually. Fill the fields below to
setup IP address.
![](/img.php?id=1176006&img=bg2b.png)
DNS Server Please input the IP address of the DNS (Domain
Name Service) server.
Click ‘Apply’ button to save the settings.
NOTE: When the configuration settings are changed, you must restart the
network connection. You can restart the network connection by clicking
“Restart” on the web configuration menu.
![](/img.php?id=1176006&img=bg2c.png)
5-5 Wireless Settings
Configures wireless network settings.
5-5-1 ‘Basic’ Settings
![](/img.php?id=1176006&img=bg2d.png)
Displays and configures the wireless settings.
Item Description
Wireless Function Select ‘Enable’ to enable wireless network function;
‘Disable’ to disable it.
Mode Select wireless mode. Only AP (Access Point) mode is
supported.
Band Select the wireless band. Available options are:
2.4GHz (B) - 802.11b clients only.
2.4GHz (N) - 802.11 Draft-n clients only.
2.4GHz (B+G) - 802.11b and 802.11n clients.
2.4GHz (G) - 802.11g clients only.
2.4GHz (B+G+N) - 802.11b, 802.11g, and 802.11n
clients.
Device Name
(SSID)
Input the Device Name of presentation gateway here.
Default is ‘WP-S1201”.
Channel Number Select the wireless channel number: 1 to 13. (1 to 11 in
certain version of product)

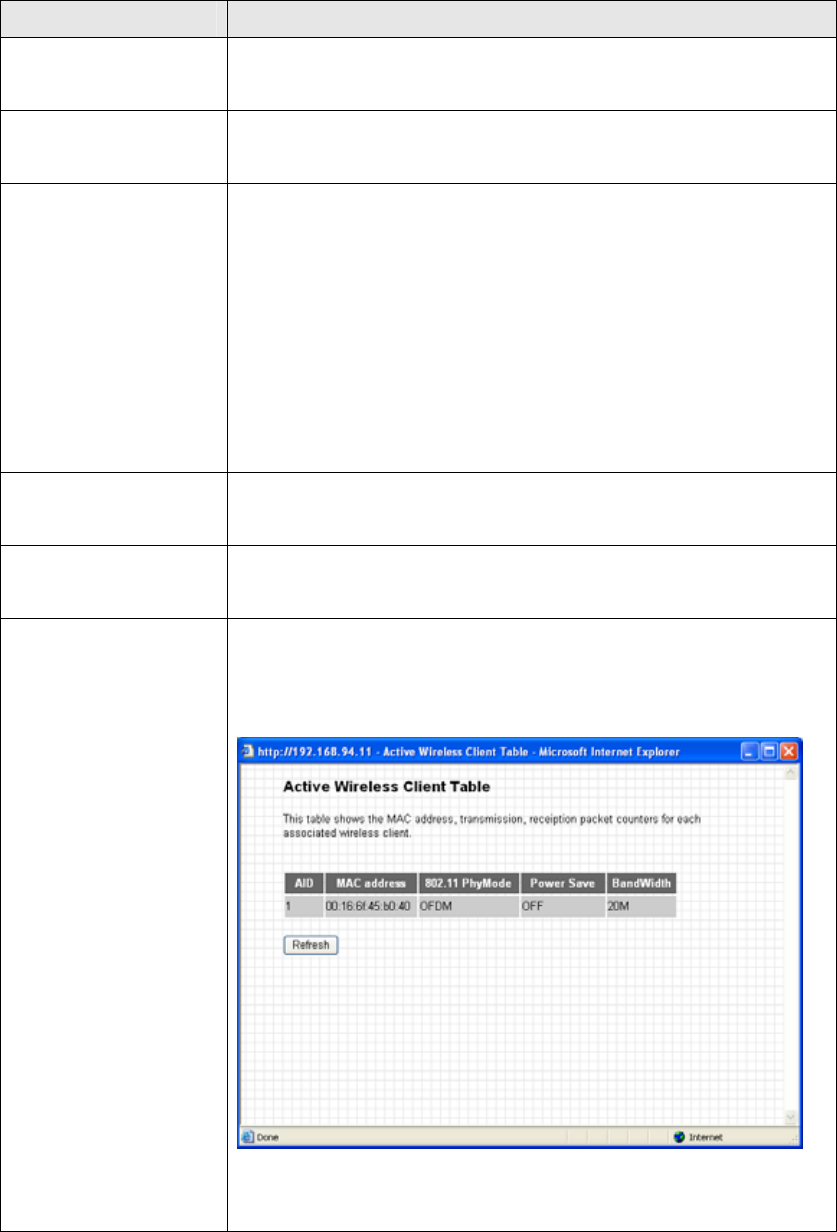

Associated Client Shows all connected wireless clients (wired clients will
not be displayed here).
Click ‘Refresh’ button to reload list.
Click ‘Apply’ button to save the settings.
![](/img.php?id=1176006&img=bg2e.png)
NOTE: When the configuration settings are changed, you must restart the
network connection. You can restart the network connection by clicking
“Restart” on the web configuration menu.
5-5-2 ‘Advanced’ Settings
Display and configures the advanced settings.
Item Description
Fragment
Threshold
Set the Fragment threshold of wireless radio.
Default value is 2346.
RTS Threshold Set the RTS threshold of wireless radio. Default value
is 2347.
Beacon Interval Set the beacon interval of wireless radio. Default value
is 100.
DTIM Period Set the DTIM period of wireless radio. Default value is
3.
Data Rate Change data transfer rate. Default value is ‘Auto’ and
![](/img.php?id=1176006&img=bg2f.png)
it’s recommended to use default setting.
N Data Rate Same as above, but only for 802.11n clients.
Channel Width Set channel width of wireless radio. Default setting is
‘Auto 20/40 MHz’.
Preamble Type Set the type of preamble of wireless radio, Default
setting is ‘Short Preamble’.
Broadcast Device
Name (SSID)
Decide if the product will broadcast its own device
name or not. You can hide the device name of this
product (set the option to ‘Disable’)
CTS Protect Enable to reduce the chance of radio signal collisions
between 802.11b and 802.11g wireless access points.
It’s recommended to set this option to ‘Auto’ or ‘Always’.
Tx Power You can set the output power of wireless radio.
Turbo Mode Enhances the data transfer rate of network. Default
setting is “Enable”.
WMM Wi-Fi MultiMedia Quality of Service is a set of features for
Wi-Fi networks that improve the user experience for audio,
video, and voice applications by prioritizing data
traffic. Default setting is “Disable”.
Click ‘Apply’ button to save the settings.
NOTE: When the configuration settings are changed, you must restart the
network connection. You can restart the network connection by clicking
“Restart” on the main menu.
5-5-3 ‘Security’ Settings
5-5-3-1 Encryption: Disabled
Disables wireless encryption. Other people may intercept the content of
presentation if wireless data is not encrypted, and this will allow everyone to
connect to this product, unless 802.1x authentication is enabled.
![](/img.php?id=1176006&img=bg30.png)
Display and configures the encryption settings.
Item Description
Enable 802.1x
Authentication
Check this box to enable 802.1x authentication.
RADIUS Server IP
address
IP address of RADIUS authentication server here.
RADIUS Server
Port
Port number of radius server here.
RADIUS Server
Password
Password of radius server.
Click ‘Apply’ button to save the settings.
NOTE: When the configuration settings are changed, you must restart the
network connection. You can restart the network connection by clicking
“Restart” on the main menu.
5-5-3-2 Encryption: WEP
Enable WEP encryption. Wireless clients must support WEP encryption and
know the encryption key you set here.
![](/img.php?id=1176006&img=bg31.png)
Display and configures the encryption settings.
Item Description
Key Length Select WEP key length (64 bit or 128 bit), longer WEP
key provides better security. Recommend to select
‘128-bit’ for better security.
Key Format Select key format: ASCII or Hex.
ASCII: 5 characters (64 bit key length) / 13 characters
(128 bit key length)
HEX: 10 characters (64 bit key length) / 26 characters
(128 bit key length)
Default Tx Key You can set up to four sets of WEP key and decide
which key is being used by default here. Default setting
is ‘1’
Encryption Key 1
to 4
Input WEP key characters here. Use any
alphanumerical characters (0-9, a-z, and A-Z) if you
select ‘ASCII’ key format, and use characters 0-9, a-f,
and A-F for HEX
Enable 802.1x
Authentication
Enables 802.1x authentication. You don’t have to check
this box if you don’t have 802.1x authentication server.
RADIUS Server IP IP address of RADIUS authentication server.
![](/img.php?id=1176006&img=bg32.png)
address
RADIUS Server
Port
Port number of radius server, from 1 to 65535. Default
setting is 1812.
RADIUS Server
Password
Password of radius server, up to 64 characters.
Click ‘Apply’ button to save the settings.
NOTE: When the configuration settings are changed, you must restart the
network connection. You can restart the network connection by clicking
“Restart” on the main menu.
5-5-3-3 Encryption: WPA pre-shared key
Enable WEP encryption. Wireless clients must support WPA encryption and
know the encryption passphrase you set here.
Display and configures the encryption settings.
Item Description
WPA Unicast
Cipher Suite
Select the type of WPA cipher suite. Select ‘WPA (TKIP)
for maximum compatibility and WPA2 (AES) / WPA2
Mixed for better security.
Pre-shared Key
Format
Select the type of pre-shared key: Passphrase or HEX
characters.
Pre-shared Key Input WPA Passphrase here.
Passphrase: 8 or more alphanumerical characters, up
to 63 characters
Hex: 64 characters (0-9, a-f, and A-F)
![](/img.php?id=1176006&img=bg33.png)
Click ‘Apply’ button to save the settings.
NOTE: When the configuration settings are changed, you must restart the
network connection. You can restart the network connection by clicking
“Restart” on the main menu.
5-5-3-4 Encryption: WPA RADIUS
Enable WPA encryption with RADIUS authentication support. The client must
support WPA encryption and you need to provide the setting of RADIUS server
here.
Display and configures the encryption settings.
Item Description
WPA Unicast
Cipher Suite
Select the type of WPA cipher suite. Select ‘WPA (TKIP)
for maximum compatibility and WPA2 (AES) / WPA2
Mixed for better security.
RADIUS Server IP
address
IP address of your Radius authentication server.
RADIUS Server
Port
Port number of your Radius authentication server.
Default setting is 1812.
RADIUS Server
Password
Password of your Radius authentication.
Click ‘Apply’ button to save the settings.
NOTE: When the configuration settings are changed, you must restart the
network connection. You can restart the network connection by clicking
“Restart” on the main menu.
![](/img.php?id=1176006&img=bg35.png)
5-5-4 ‘WPS’ Settings
In this menu, you can use WPS (Wi-Fi Protected Setup) to setup secure
wireless connections quickly and easily with WPS-compatible wireless clients.
Display and configures the WPS setting.
Item Description
Enable WPS Check this box to enable WPS functionality; uncheck to
disable WPS.
WPS Status Displays WPS configuration status: Configured (WPS
ready), or Unconfigured. If you set wireless security as
described in previous section already, WPS status will
be ‘Configured’.
Self PinCode Displays WPS self pin code. This code will be used
when pin-style WPS pairing mode is being used, and
WPS wireless clients will need to know this code.
Device Name
(SSID)
Displays the device name of this WPS.
Authentication
Mode
Displays current wireless authentication mode.
Passphrase Key Here uses asterisk mark ( * ) to show WPA passphrase
key.
Config Mode Select WPS configuration mode: ‘Registrar’ and
![](/img.php?id=1176006&img=bg36.png)
‘Enrollee’. Default and recommend setting: Registrar.
Configure via Push
Button
Click “Start PBC” to handshake with other device with
WPS function.
NOTE 1: When WPS is in ‘Registrar mode’, another
wireless device must set to ‘Enrollee’ mode; and vice
versa.
NOTE 2: When no WPS connection is established
within 2 minutes, this mode will be turned off.
NOTE 3: You can also press ‘WPS’ button located on
the front of wireless projector server to enter WPS
mode, too.
Configure via
Client PinCode
Input the PIN code (up to 8 characters) of the
WPS-enabled device here, then click ‘Start PIN’ button,
then WPS will establish connection with it automatically.
![](/img.php?id=1176006&img=bg37.png)
5-6 Projection Setting
Displays and configures the projection setting.
Item Description
Instruction Page
Language
Selection
Select the displaying language.
Resolution Select output resolution for projection.
Presentation lock Check this box to prevent other users to interrupt
current presentation.
Click ‘Apply’ button to save the settings.
NOTE: When the configuration settings are changed, you must restart the
![](/img.php?id=1176006&img=bg38.png)
network connection. You can restart the network connection by clicking
“Restart” on the main menu.
5-7 Password Setting
Displays and configures the password setting.
Item Description
Current Password Input current password here.
New Password /
Confirmed
Password
New Password: Enter new password.
Confirmed Password: Confirmed the new entered
password.
Click ‘Apply’ button to save the settings.
![](/img.php?id=1176006&img=bg39.png)
NOTE: When the configuration settings are changed, you must restart the
network connection. You can restart the network connection by clicking
“Restart” on the main menu.
5-8 Configuration Tools
5-8-1 Configuration Tools
Allows you to backup / restore the setting of WPS.
Displays and configures the configuration tools.
Item Description
![](/img.php?id=1176006&img=bg3a.png)
Backup Settings Click ‘Save…’ button to save wireless projector server’s
current setting as a file and store it on your computer.
Restore Settings Click ‘Browse…’ button to select a previously-saved
configuration file stored in your computer’s folder.
Reset Reset all settings of wireless projector server back to
factory default settings.
5-8-2 Firmware Upgrade
Upgrade the firmware of this WPS.

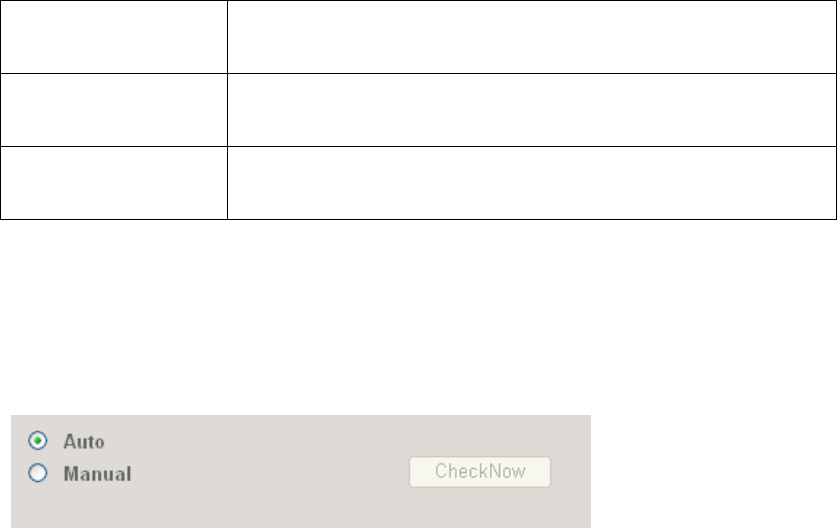

If WPS connects to Internet and you wish it to upgrade firmware automatically,
select ‘Auto’; WPS will download latest firmware and upgrade automatically.
When you set this setting to ‘Manual’, WPS will detect new firmware on Internet
automatically, and you’ll see a prompt message on OSD menu. If you wish to
upgrade firmware, you can click ‘Check Now’ button to proceed.
Note: it’s recommended to use wired Ethernet connection to perform
firmware upgrade.
When firmware is upgrading, you’ll see the following message:
![](/img.php?id=1176006&img=bg3b.png)
WPS will restart automatically after upgrade is complete, please be patient.
![](/img.php?id=1176006&img=bg3c.png)
5-9 Restart
Restart WPS when the device is not working properly or to apply changes made
on web configuration menu.
Note: Restart takes about 60 seconds.
Click ‘Apply’ to restart the WPS
![](/img.php?id=1176006&img=bg3d.png)
(PC)
(MAC)
Click ‘OK’ to restart the WPS, or click ‘Cancel’ to abort.
![](/img.php?id=1176006&img=bg3e.png)
5-10 Logout
If you wish to logout from web configuration menu, click ‘Logout’.
![](/img.php?id=1176006&img=bg3f.png)
Chapter VI Appendix
6-1 Hardware Specification
Product name WP-S1201
Power Supply External power supply (12V DC, 1A)
Dimensions 133.4 x 92.4 x 31.08mm
Weight 200g
VGAConnector:
VGAOUT‐‐‐‐‐‐D‐sub15pinminix1(Black)x1
PCIN‐‐‐‐‐‐‐‐‐‐‐‐D‐sub15pinminix1(Blue)x1
Audio Output Interface:
3.5mm jack x 1
Wired Network Interface :
10/100Mbps auto-sensing/auto-cross-over Ethernet port x 1
Connectivity
Wireless Network Interface :
Built-in 802.11b/g/n
Output Resolution 1024 x 768, 800x600
Environmental Requirements Operating Temperature: 0 ~ 40°C
Operating Humidity: 5 ~ 85%, non-condensing
Storage Temperature: 0 ~ 50°C
Storage Humidity: 5 ~ 85%, non-condensing
SupportedOS:
1. WindowsXP32/63‐bit(SP2orhigher)
2. WindowsVista32/63‐bit(SP1orhigher)
3. MACOS10.4/10.5(BothPowerPC/IntelVersion)
Operating System
SupportedWebbrowsers:
1. MicrosoftInternetExplorer6.0(SP2)orhigher
2. Mozilla’sFirefox3.0orlater
3. Safari
Approvals CE, FCC, IC, UL/cUL, NCC, C-TICK, RoHS-compliant
Software wireless projector server software application
Support Video Format H.261
H.263
MPEG1
WMV7 (supported by calling dlls provide by WMP10)
![](/img.php?id=1176006&img=bg40.png)
WMV8 (supported by calling dlls provide by WMP10)
MPEG4 (Used Xvid codec to Support Mpeg4 Part 2
Advanced Simple Profile)
Microsoft MPEG-4 v1/v2(supported by calling dlls provide by
WMP10)
Support Audio Format PCM
ADPCM
WMVA1 (supported by calling dlls provide by WMP10)
WMVA2 (supported by calling dlls provide by WMP10)
**Not support AAC and MP3**
6-2 Troubleshooting
Scenario: Can’t connect to wireless projector server
Solution:
1. Check the LED lights located at the front of WPS. If ‘Power’ LED does not
light, do the following check:
z Check the connection of A/C adapter, and if the electrical outlet you used
with A/C adapter is functioning properly.
z Press ‘Power’ button on remote controller to see if ‘Power’ LED lights now.
2. Check the network connection.
3. Make sure you connected to correct IP address.
4. If you’re using wireless network, make sure you connected to correct device.
5. If you’re using wireless network, check the WEP / WPA password.
Scenario: Remote controller does not work
Solution: 1. Replace the battery of remote controller with a new one (CR-2032
lithium battery).
2. Please point the IR transmitter (located at the top of remote controller) to the
IR receiver of WPS.
3. Make sure the IR receiver of WPS (labeled as ‘Remote’) is not blocked by
any object.
4. If there’s strong / fluorescent light source near IR transmitter / receiver,
remote controller may not be able to function properly.
5. If the distance between IR transmitter / receiver is longer than 7 meters,
remote controller may not working properly.
6. Make sure the IR extending cable is correctly inserted to ‘IR IN’ jack at the
back of WPS, not ‘AUDIO OUT’ jack.
Scenario: No image displayed on WPS’s display
Solution:
1. Check the connection between video display and WPS.
2. Make sure the video display you’re using supports the video output mode you
selected (in VGA mode).
3. Make sure the video display is switched on.
Scenario: I hear noise when WPS is operating.
Solution: If you smell something strange or even see smoke come out from
WPS, unplug the A/C adapter (if possible), and return the WPS back to dealer
of purchase immediately.
