Edimax Technology Co 9512100913 802.11n Wireless LAN MFP/Printer Server User Manual USer Manual
Edimax Technology Co Ltd 802.11n Wireless LAN MFP/Printer Server USer Manual
USer Manual
Print Server
User’s Manual
Version: 1.0
(Sep. 2009)
COPYRIGHT
Copyright ©2007/2008 by this company. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of this company.
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
This equipment must be installed and operated in accordance with provided
instructions and a minimum 20 cm spacing must be provided between computer
mounted antenna and person’s body (excluding extremities of hands, wrist and
feet) during wireless modes of operation.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an
uncontrolled environment. In order to avoid the possibility of exceeding the FCC
radio frequency exposure limits, human proximity to the antenna shall not be less
than 20cm (8 inches) during normal operation.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF
THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio
equipment and telecommunication terminal Equipment and the mutual
recognition of their conformity (R&TTE)
The R&TTE Directive repeals and replaces in the directive 98/13/EEC
(Telecommunications Terminal Equipment and Satellite Earth Station Equipment)
As of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who
install and use it. However, special attention must be paid to the dangers of
electric shock and static electricity when working with electrical equipment. All
guidelines of this and of the computer manufacture must therefore be allowed at
all times to ensure the safe use of the equipment.
EU Countries Intended for Use
The ETSI version of this device is intended for home and office use in Austria,
Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy,
Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United
Kingdom.
The ETSI version of this device is also authorized for use in EFTA member
states: Iceland, Liechtenstein, Norway, and Switzerland.
EU Countries Not intended for use
None.
DISCLAIMER
This company makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties, merchantability or fitness for any particular purpose. Any software
described in this manual is sold or licensed "as is". Should the programs prove
defective following their purchase, the buyer (and not this company, its distributor,
or its dealer) assumes the entire cost of all necessary servicing, repair, and any
incidental or consequential damages resulting from any defect in the software.
Further, this company reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation to notify any
person of such revision or changes.
Contents
1. INTRODUCTION ................................................................. 1
1.1 Product Introduction ......................................................... 2
1.2 Product Package ............................................................. 3

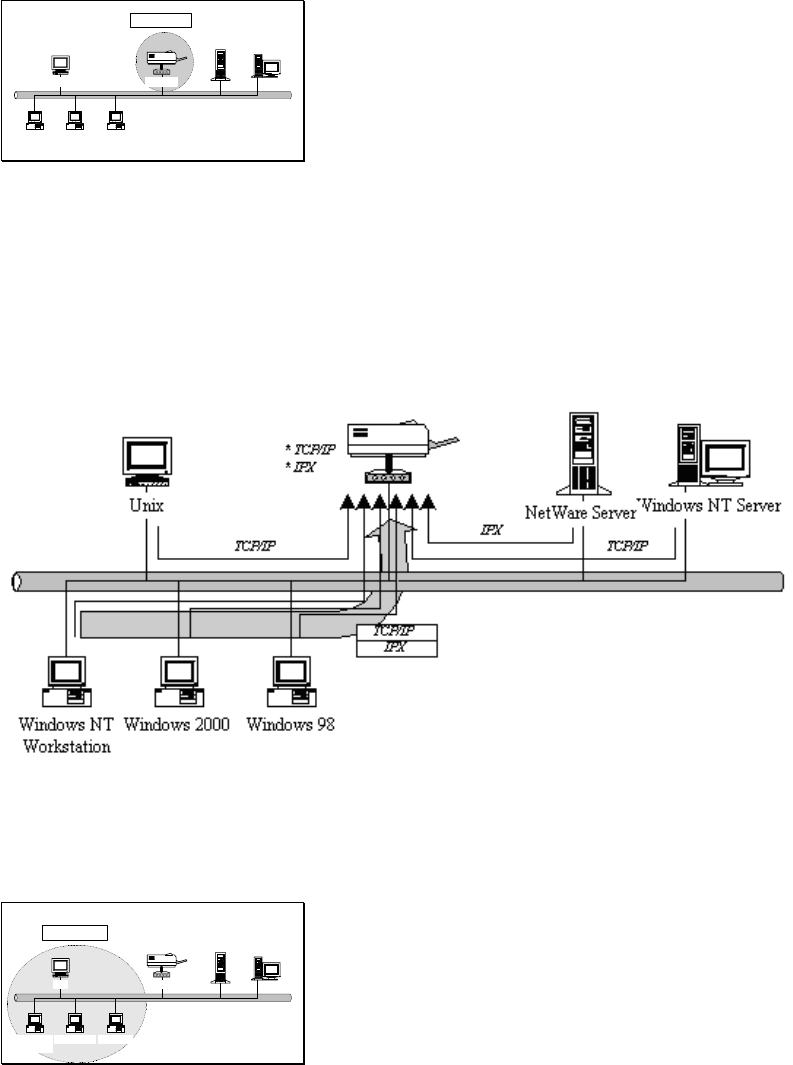

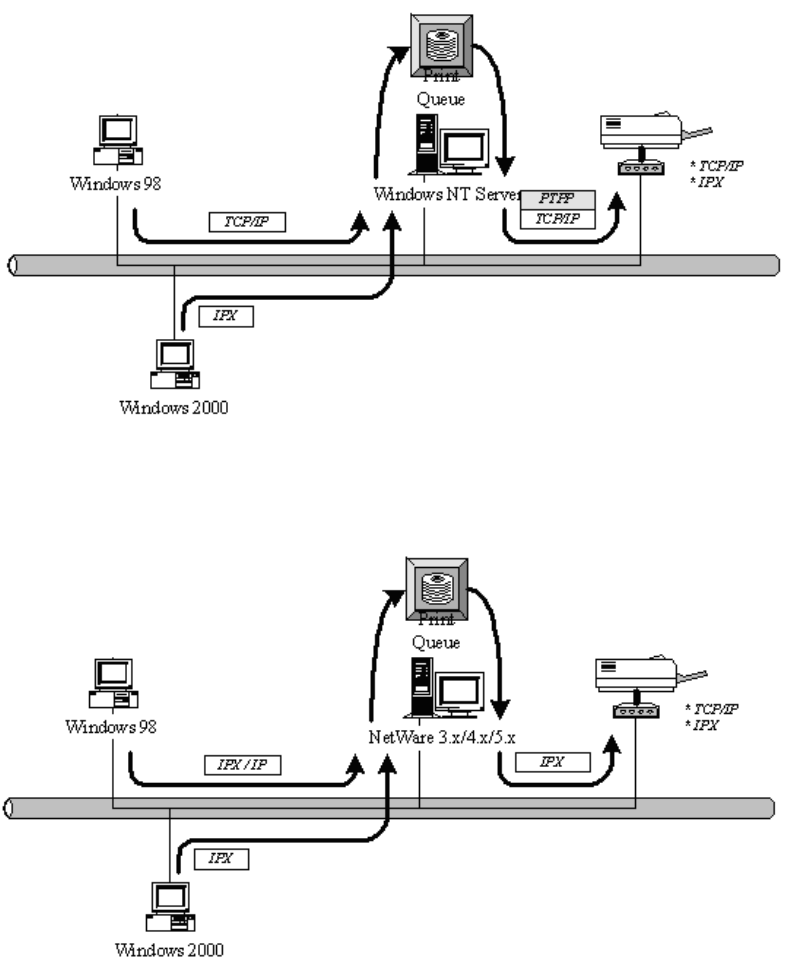

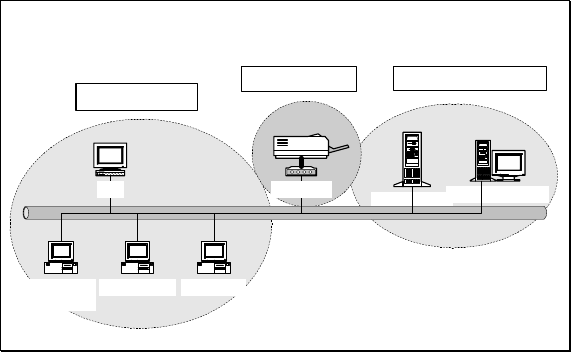

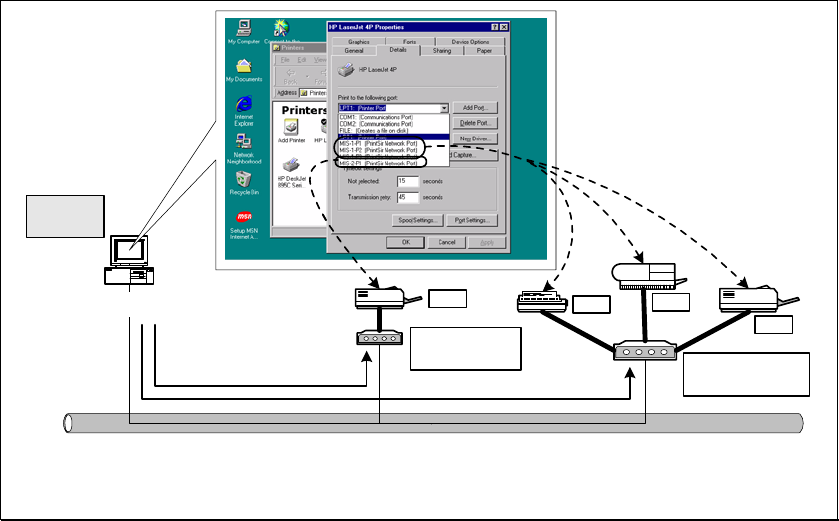

1.3 Network Printing Architecture .......................................... 4
1.3.1 Print Server Network Functions ..................................................... 5
1.3.2 Network Printing Functions for Clients ......................................... 5
1.3.3 Network Printing Functions for Network Server ........................... 8
1.4 Network Printing Environment ......................................... 9
1.5 Contents of the User’s Manual ...................................... 11
1.6 Firmware & Printing Function ........................................ 13
2. HARDWARE INSTALLATION ......................................... 14
3. WINDOWS PEER-TO-PEER NETWORK ........................ 15
3.1 System Architecture ....................................................... 16

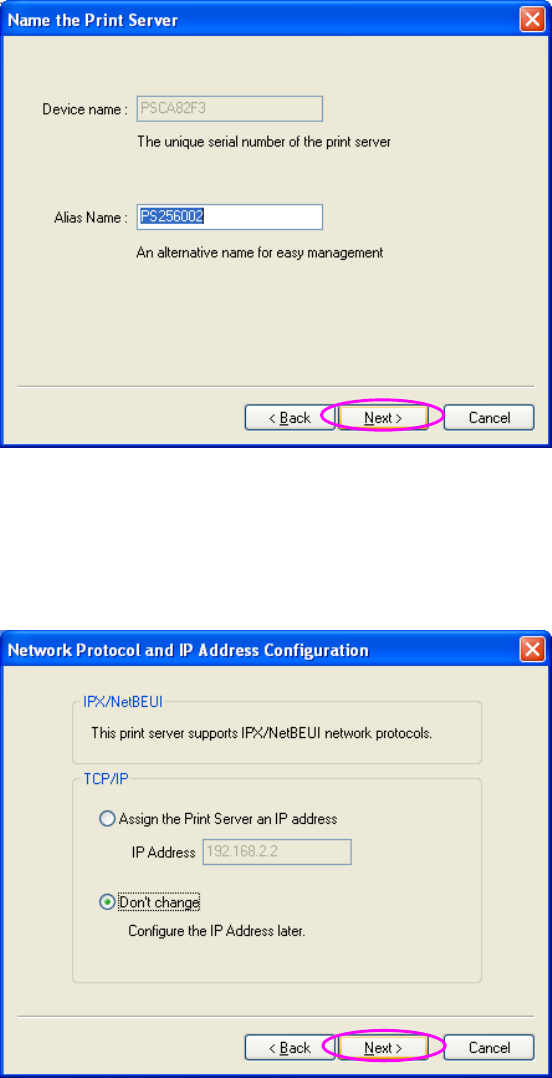

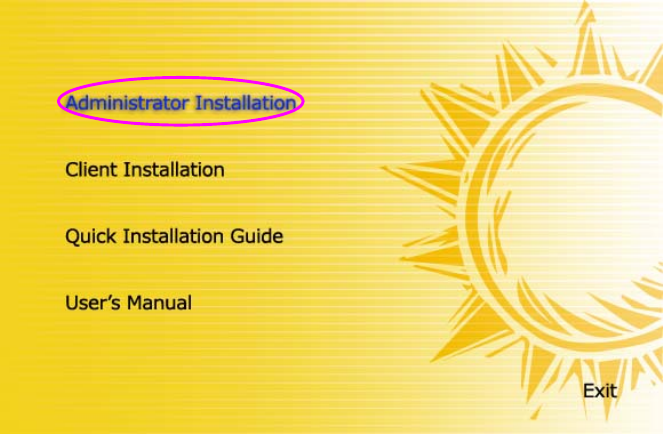

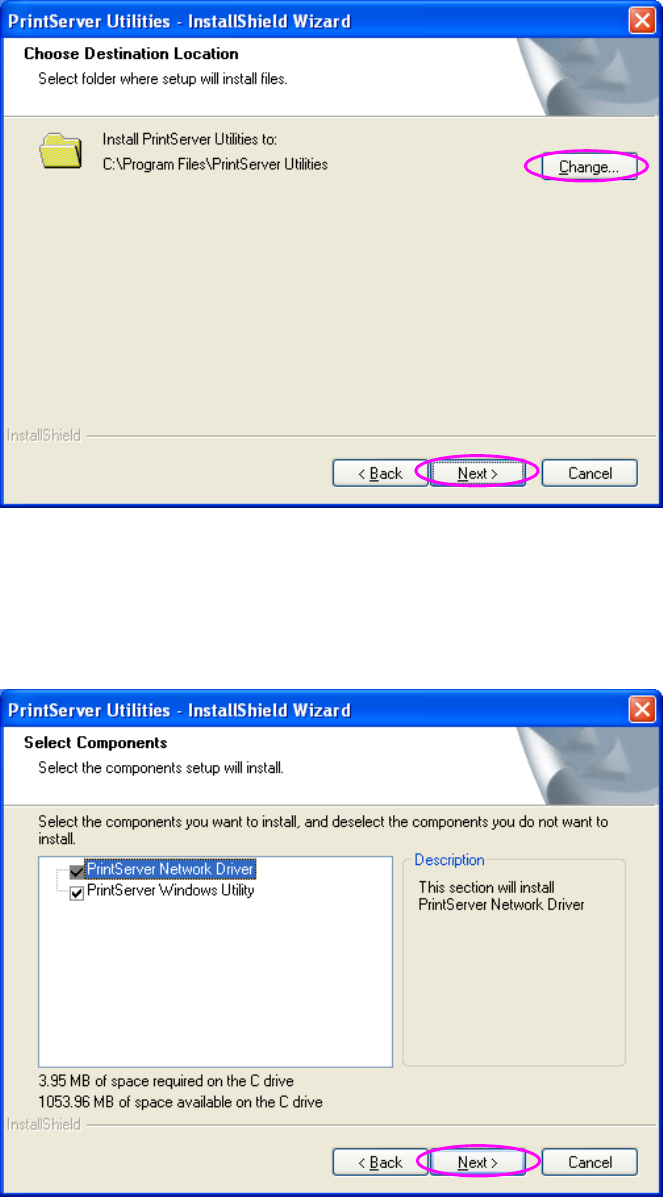

3.2 Administrator Installation and Setup .............................. 18
3.3 Administrator Utilities ..................................................... 26
3.4 Client Installation and Setup .......................................... 27
3.5 Client Utilities ................................................................. 33

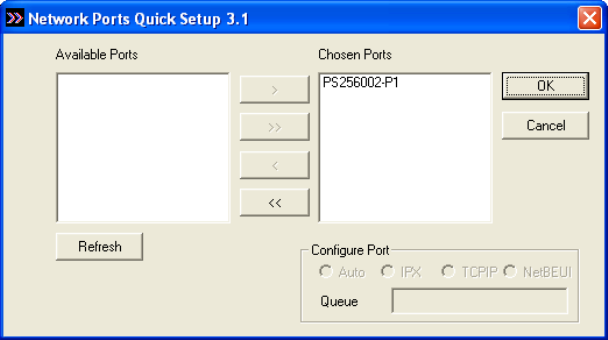

3.5.1 Network Ports Quick Setup ......................................................... 33

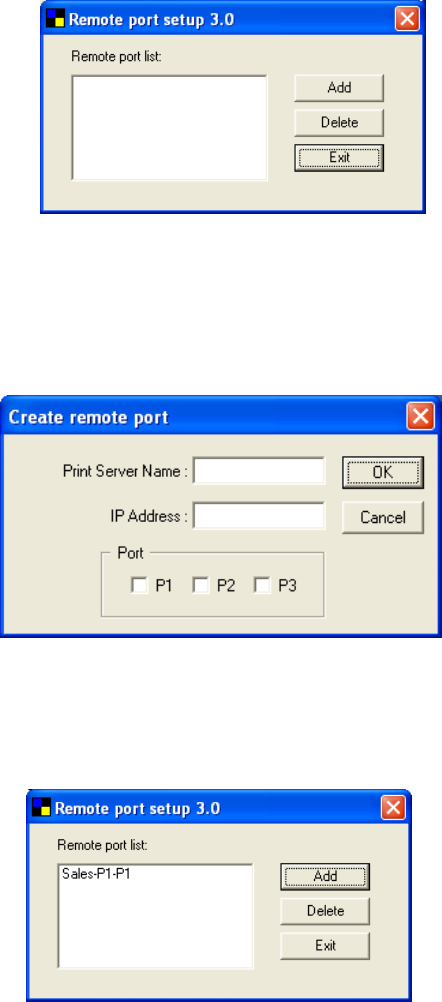

3.5.2 Remote Ports (Utility) .................................................................. 35

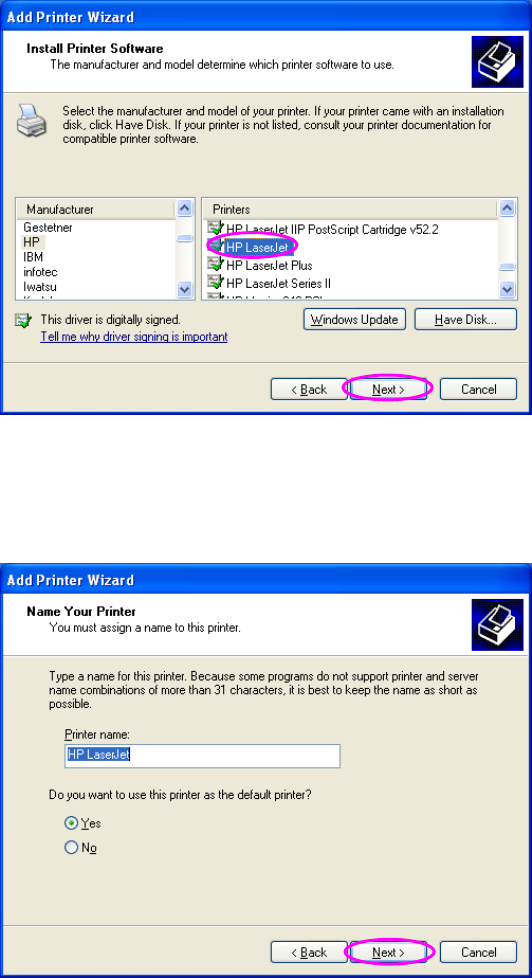

3.6 Windows Add Printer Procedure .................................... 38

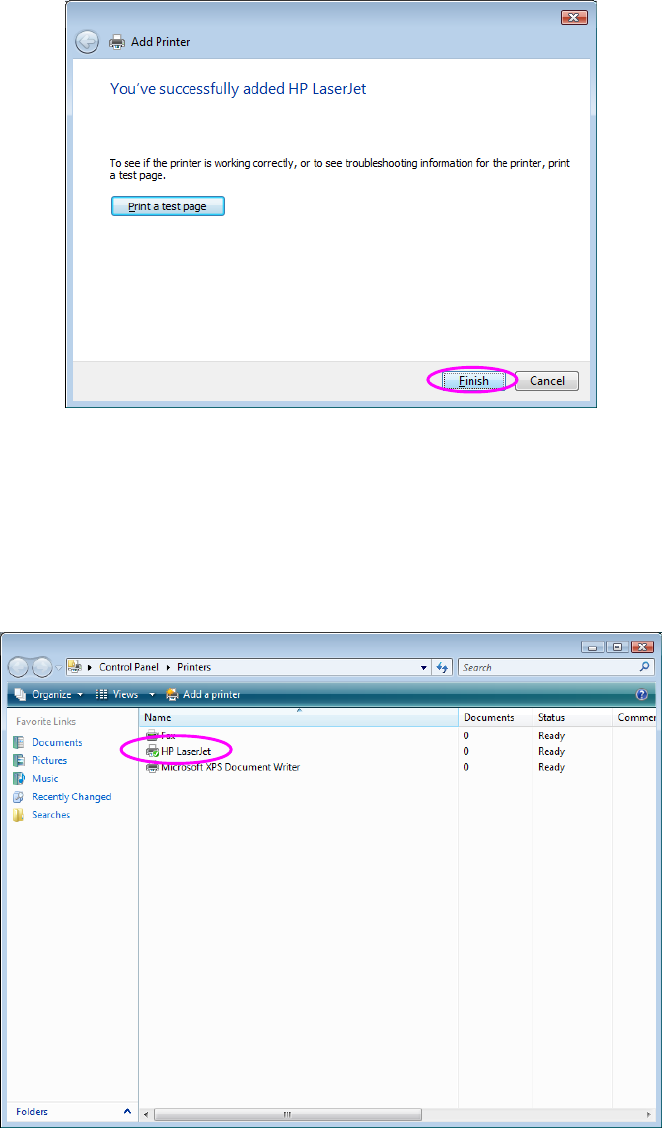

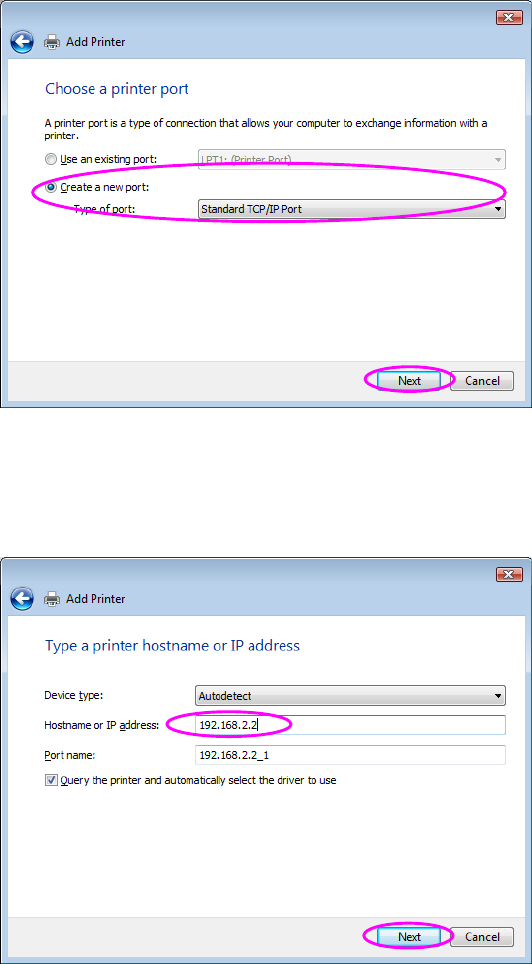

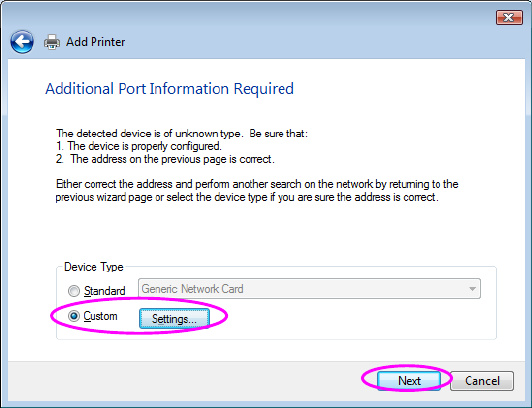

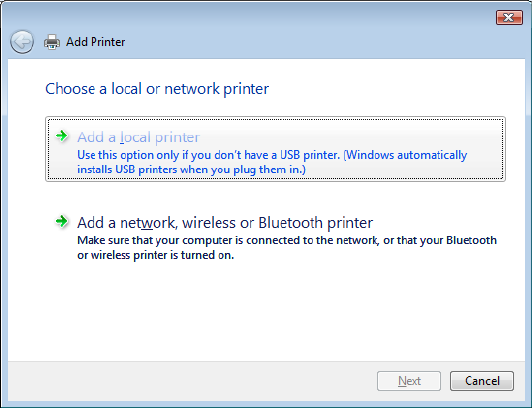

3.6.1 Windows Vista and 7 ................................................................... 38

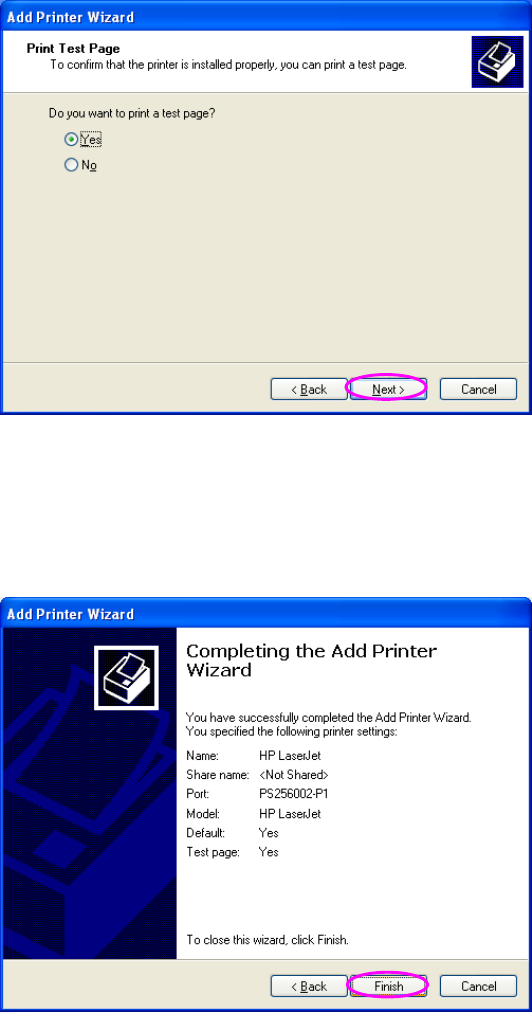

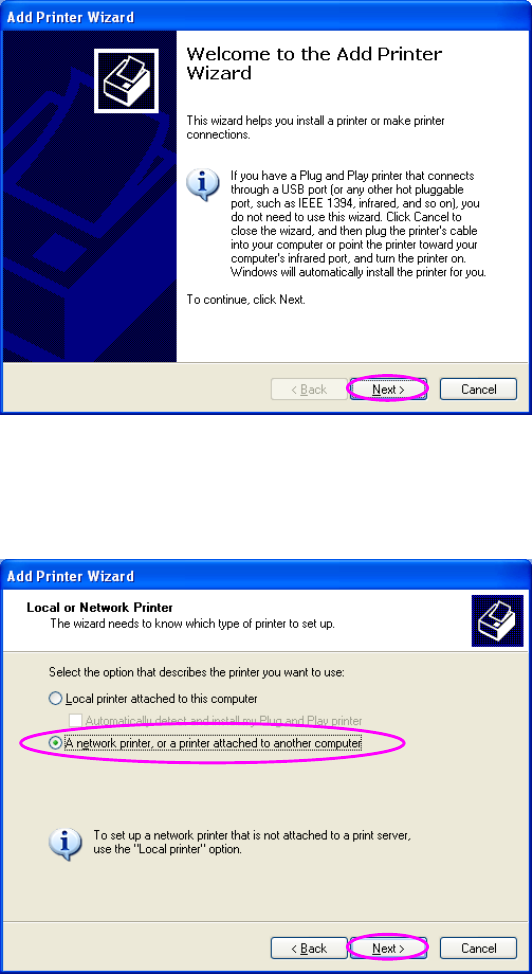

3.6.2 Windows XP ................................................................................ 42
4. WINDOWS NT/2000/2003 NETWORK ............................. 47

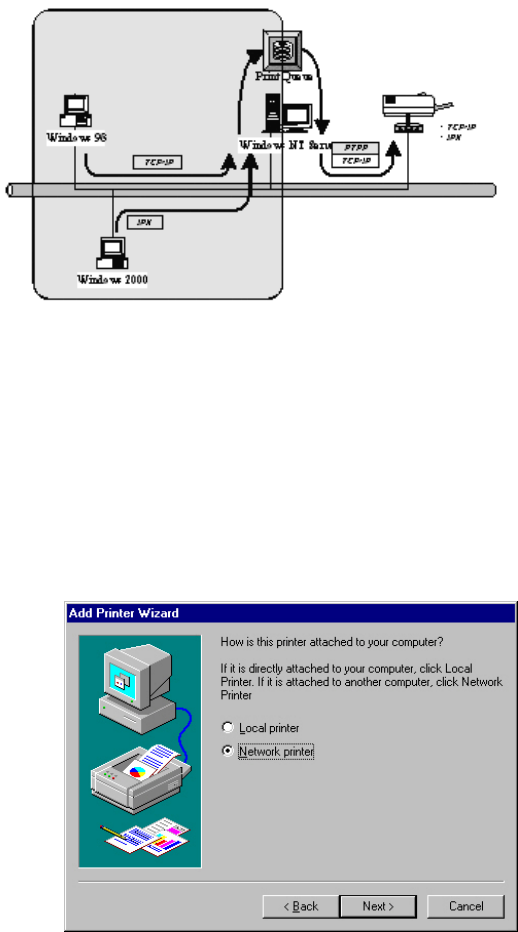

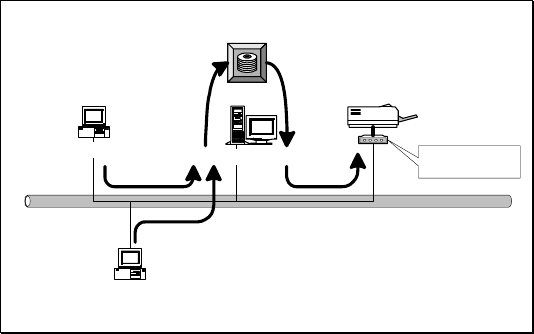

4.1 System Architecture ....................................................... 48
4.2 Windows NT/2000/2003 Server Installation and Setup . 49
4.3 User Installation and Setup ............................................ 51
5. NETWARE NETWORK .................................................... 52
5.1 System Architecture ....................................................... 53
5.2 NetWare 3.x/4.x/5.x Installation & Setup ....................... 55

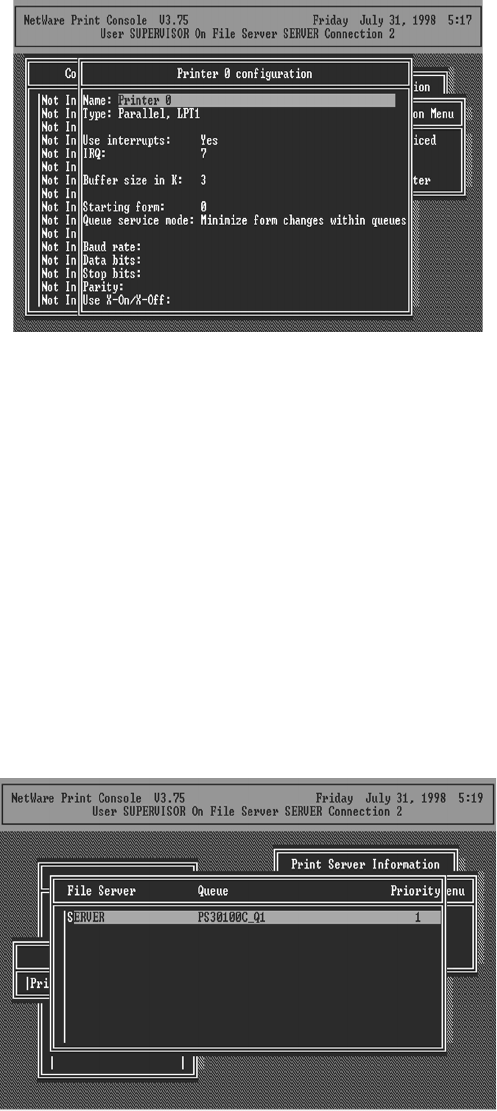

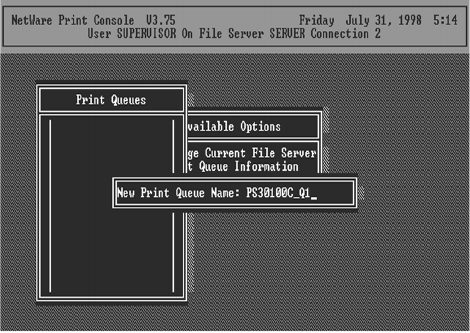

5.2.1 Installation Using PCONSOLE ................................................... 55
6. UNIX SYSTEM NETWORK .............................................. 59
6.1 Introduction .................................................................... 60
6.2 Enable Print Server’s TCP/IP Support ........................... 61
6.3 Setup Print Server’s IP Address .................................... 62
6.3.1 DHCP ........................................................................................... 62
6.3.2 BOOTP ........................................................................................ 62
6.4 Verify Print Server’s IP Address .................................... 65
6.5 Configure Remote LPD Printing on the Host ................. 66
7. CONFIGURATION UTILITY ............................................. 69
7.1 Introduction .................................................................... 70
7.2 Search for All Available Print Server .............................. 72
7.3 Status of Print Server ..................................................... 73
7.4 Setup the Print Server ................................................... 75
7.5 General Configuration .................................................... 77
7.6 TCP/IP Configuration ..................................................... 78
7.7 Netware Print Server Configuration ............................... 80
7.8 AppleTalk Configuration ................................................ 81
7.9 SNMP Configuration ...................................................... 82
7.10 SMB Configuration ......................................................... 83

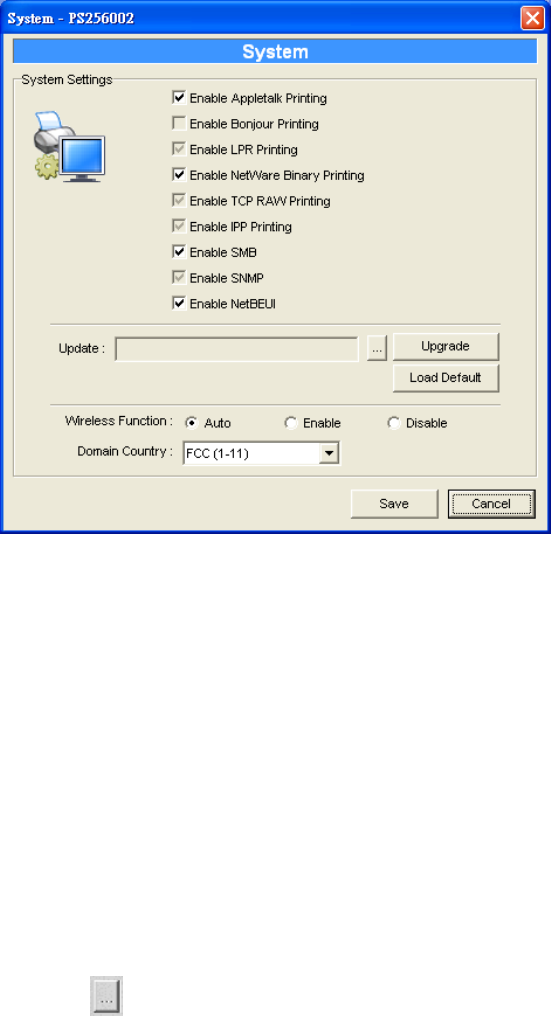

7.11 System Configuration .................................................... 84

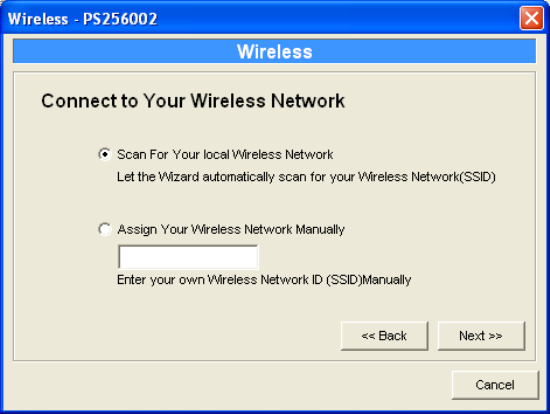

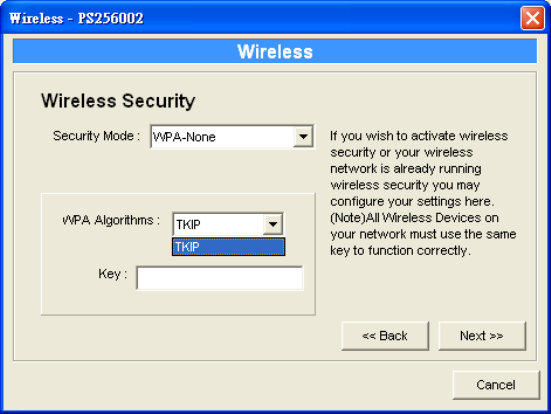

7.12 Wireless Configuration ................................................... 87

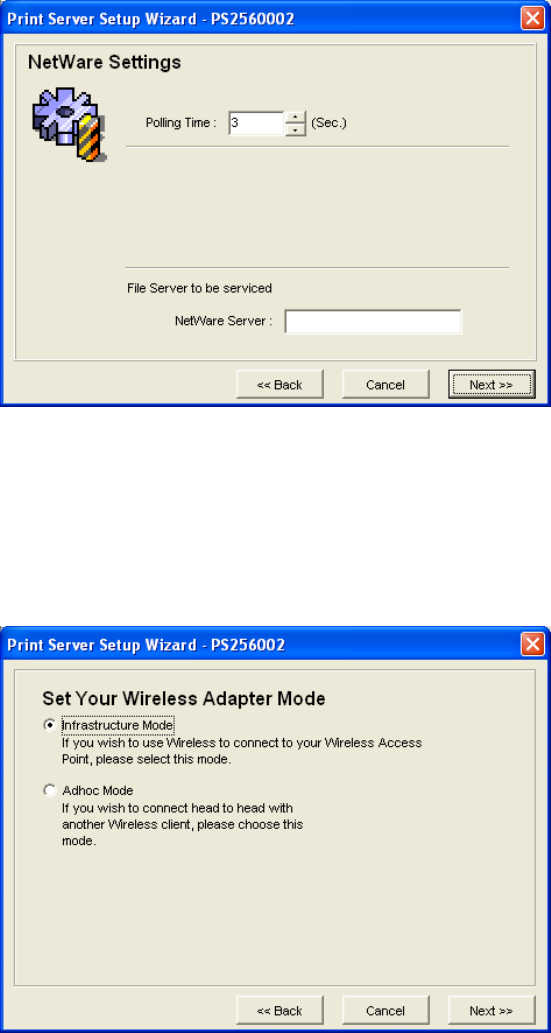

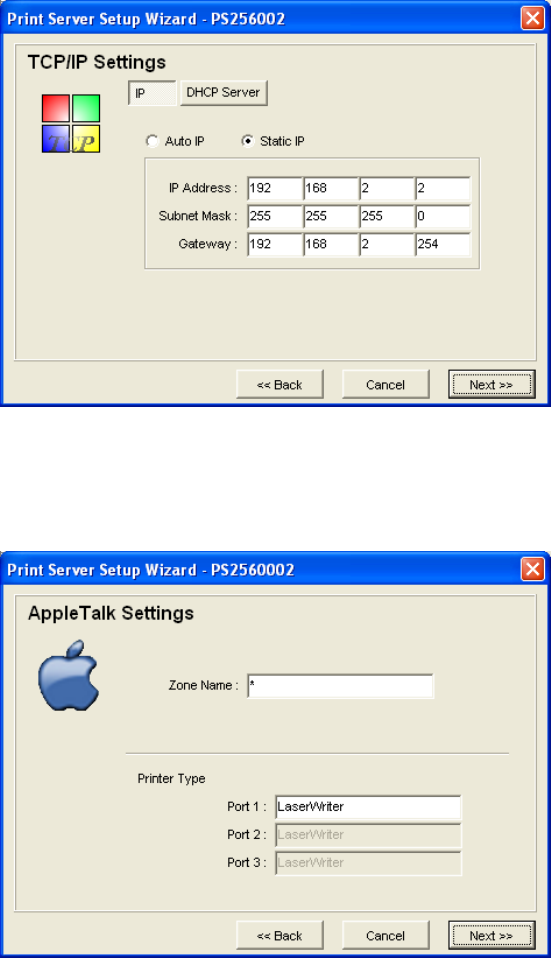

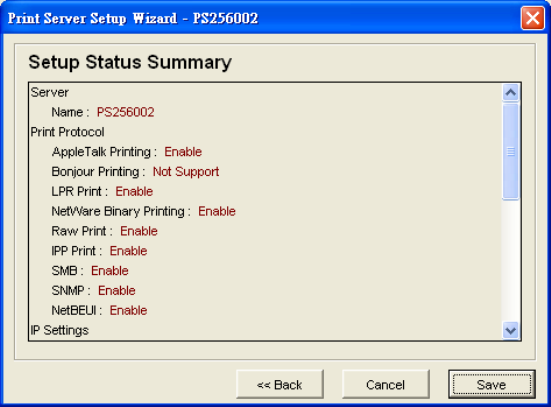

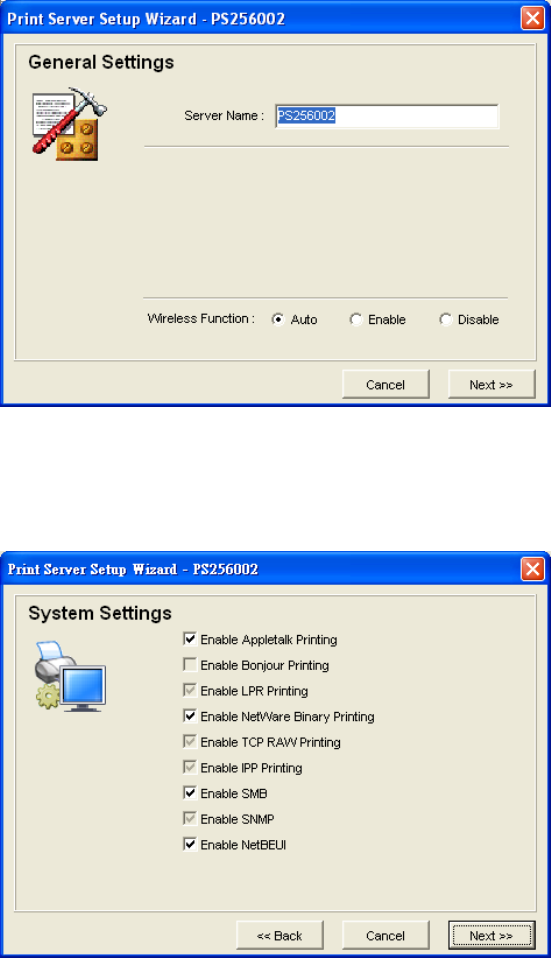

7.13 Wizard ............................................................................ 98

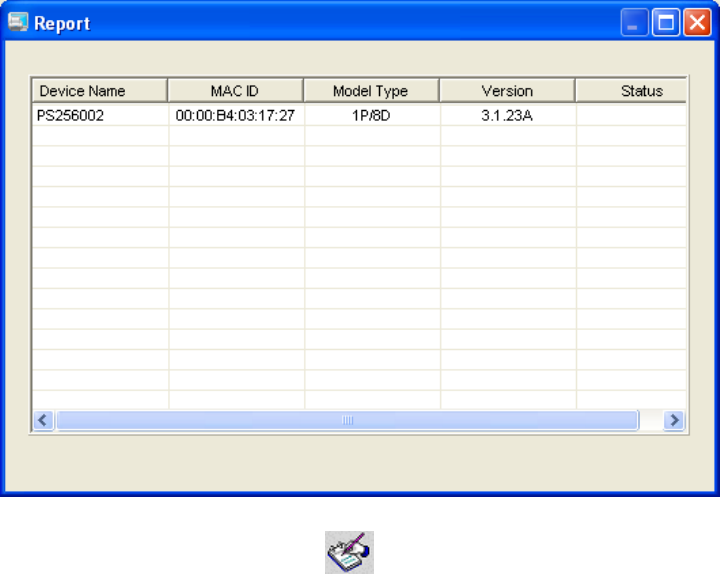

7.14 Report .......................................................................... 103
8. WEB MANAGEMENT ..................................................... 104
8.1 Introduction .................................................................. 105
8.2 Login ............................................................................ 106

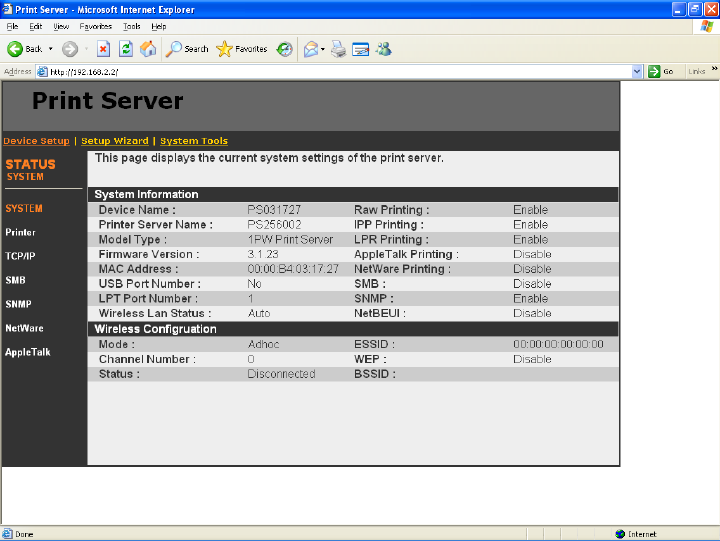

8.3 Device Status ............................................................... 107
8.3.1 System ........................................................................................ 107
8.3.2 Printer ......................................................................................... 108
8.3.3 TCP/IP........................................................................................ 109

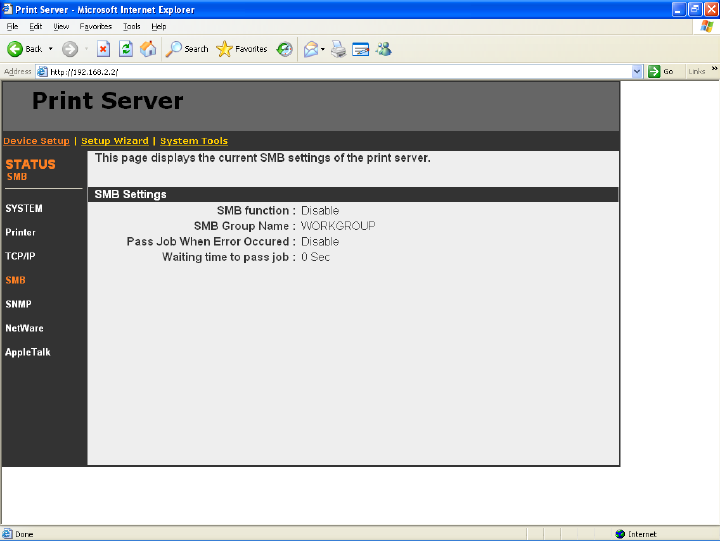

8.3.4 SMB ........................................................................................... 110
8.3.5 SNMP ......................................................................................... 111

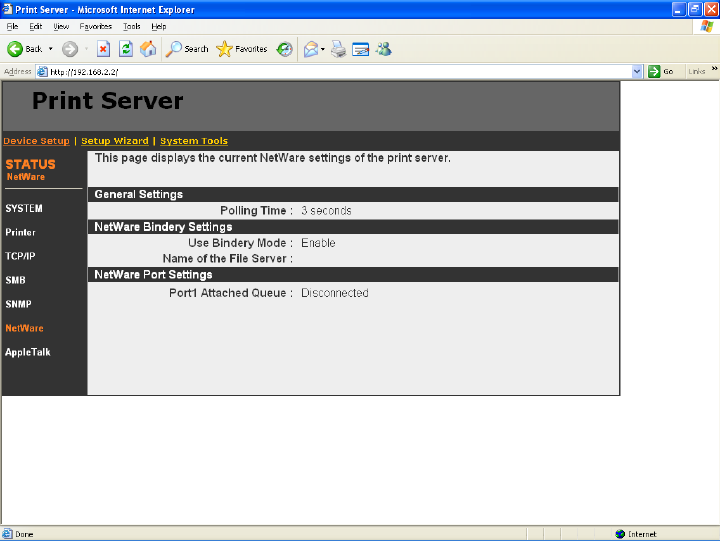

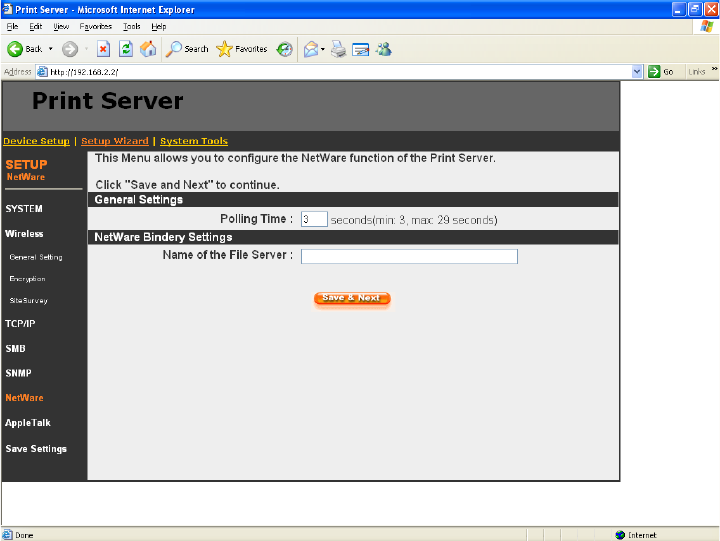

8.3.6 NetWare ..................................................................................... 112
8.3.7 AppleTalk .................................................................................. 113
8.4 Setup Wizard ............................................................... 114
8.4.1 System ........................................................................................ 114

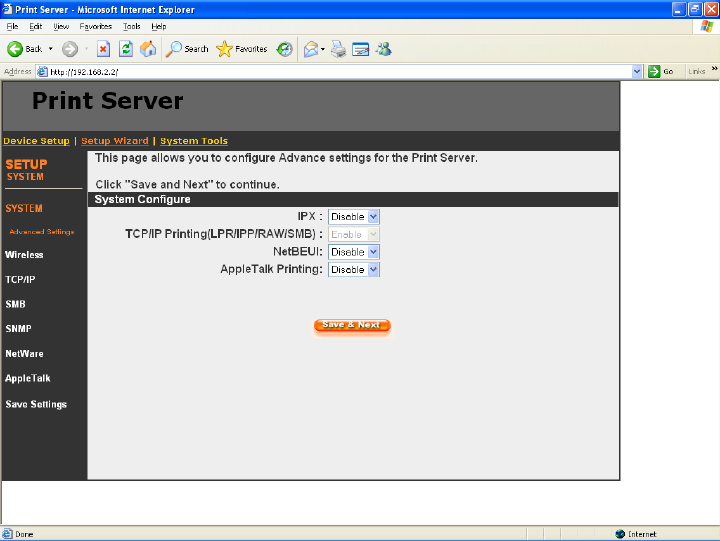

8.4.1.1 Advanced Settings ................................................................... 115
8.4.2 Wireless...................................................................................... 116

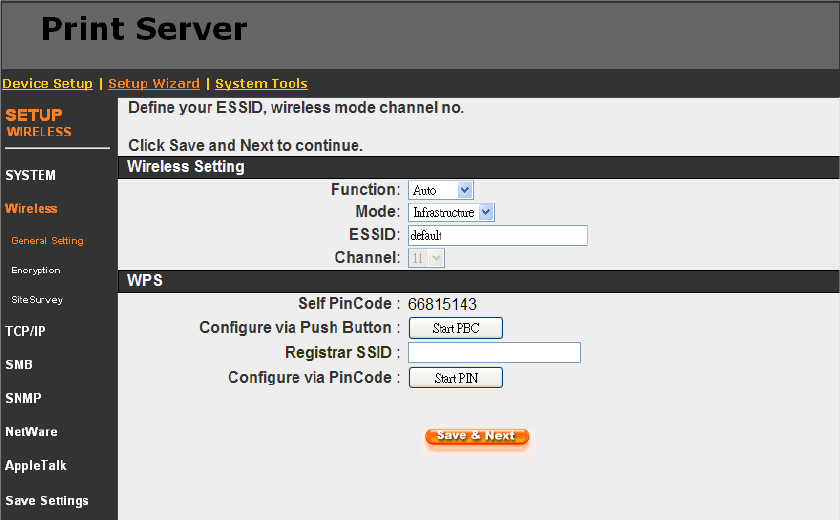

8.4.2.1 General Setting ......................................................................... 116

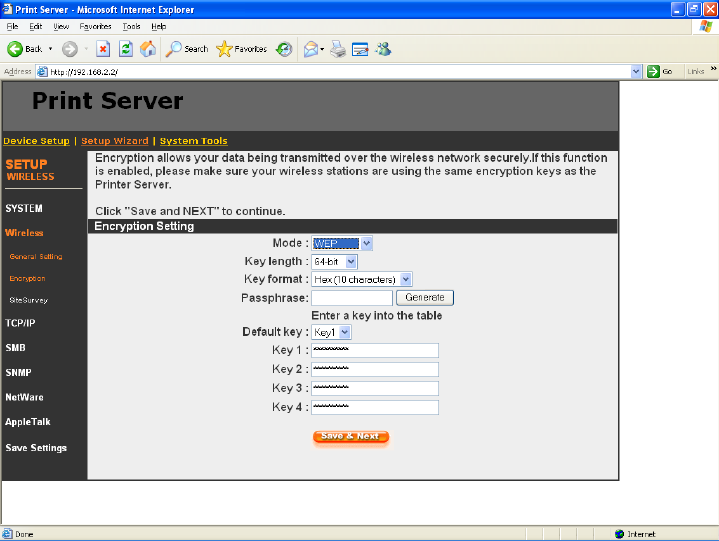

8.4.2.2 Encryption ................................................................................ 120
8.4.2.3 Site Survey ............................................................................... 124
8.4.3 TCP/IP........................................................................................ 125
8.4.4 SMB ........................................................................................... 126
8.4.5 SNMP ......................................................................................... 127
8.4.6 NetWare ..................................................................................... 128

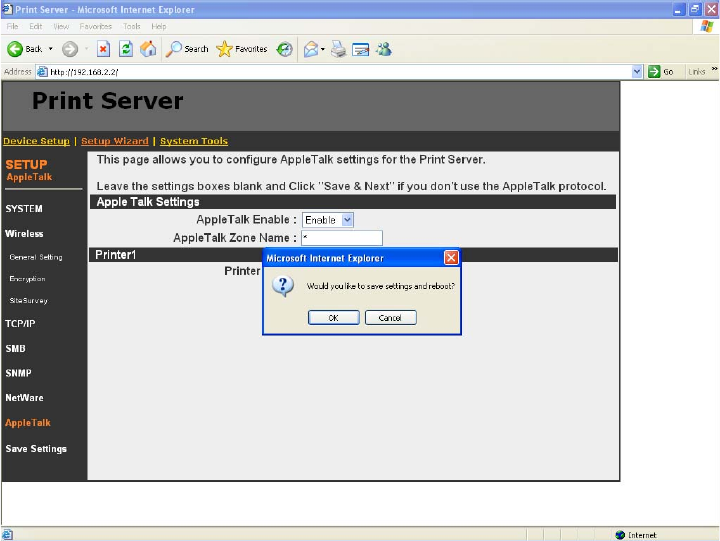

8.4.7 AppleTalk .................................................................................. 129
8.4.8 Save Settings .............................................................................. 130
8.5 System Tools ............................................................... 131

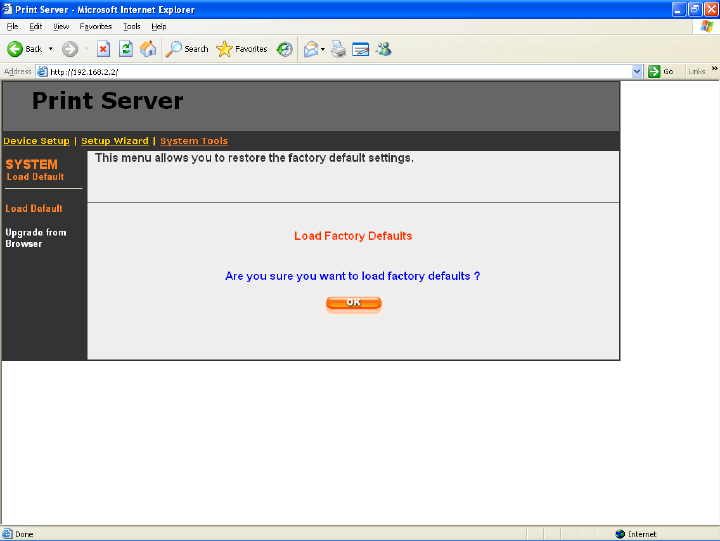

8.5.1 Load Default .............................................................................. 131

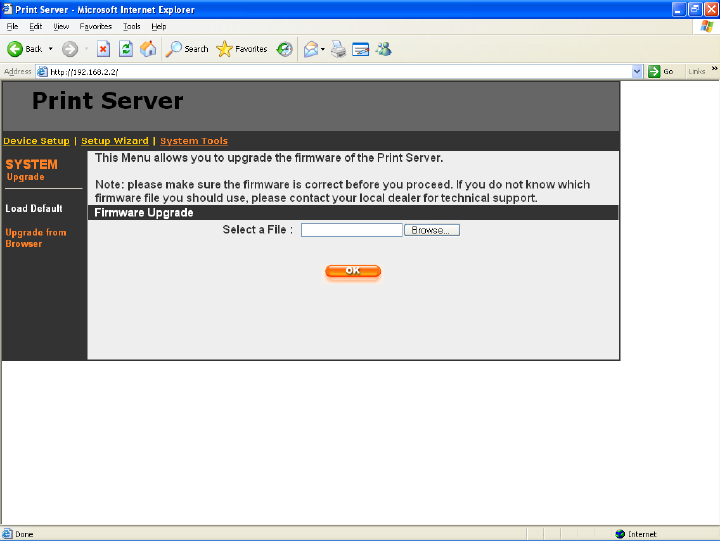

8.5.2 Upgrade Firmware from Browser .............................................. 132
9. IPP PRINTING ................................................................. 133
9.1 Introduction .................................................................... 134
9.2 System Setup ................................................................ 135
9.2.1 Print Server Side ........................................................................ 135

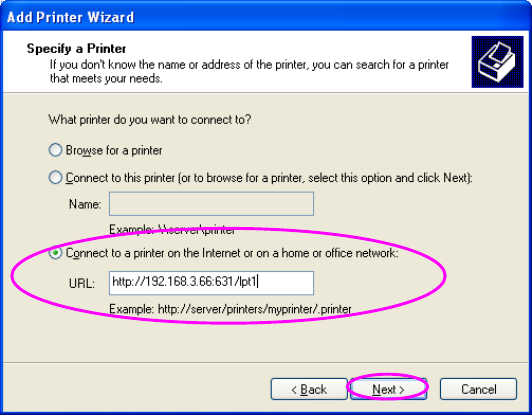

9.2.2 Client Side .................................................................................. 135
10. LPR PRINTING .............................................................. 140
10.1 Introduction ................................................................ 141
10.2 Standard LPR Settings in Windows XP ..................... 142

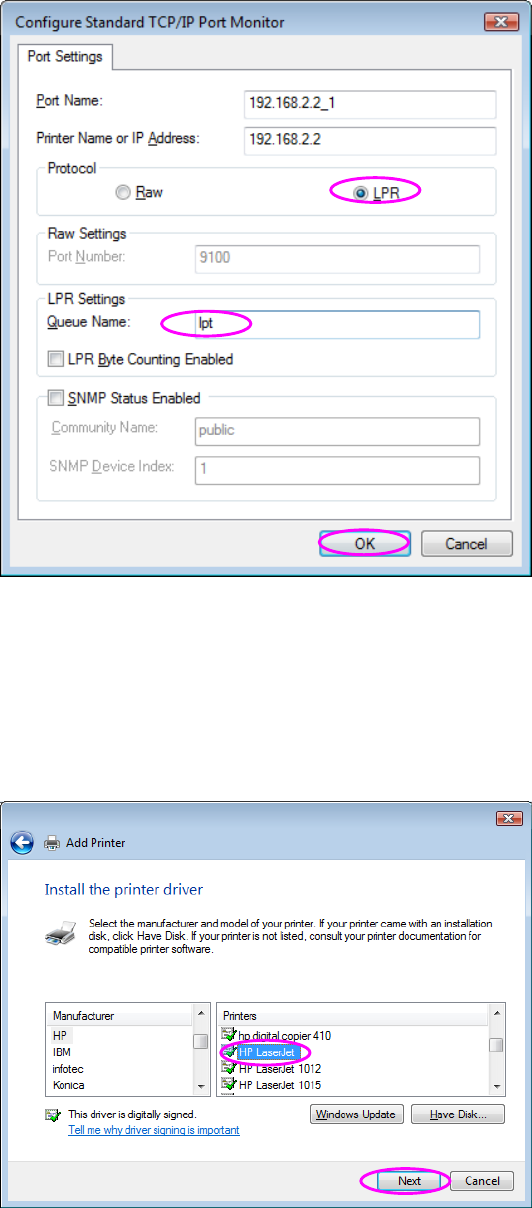

10.3 Standard LPR Settings in Windows Vista and 7 ........ 149

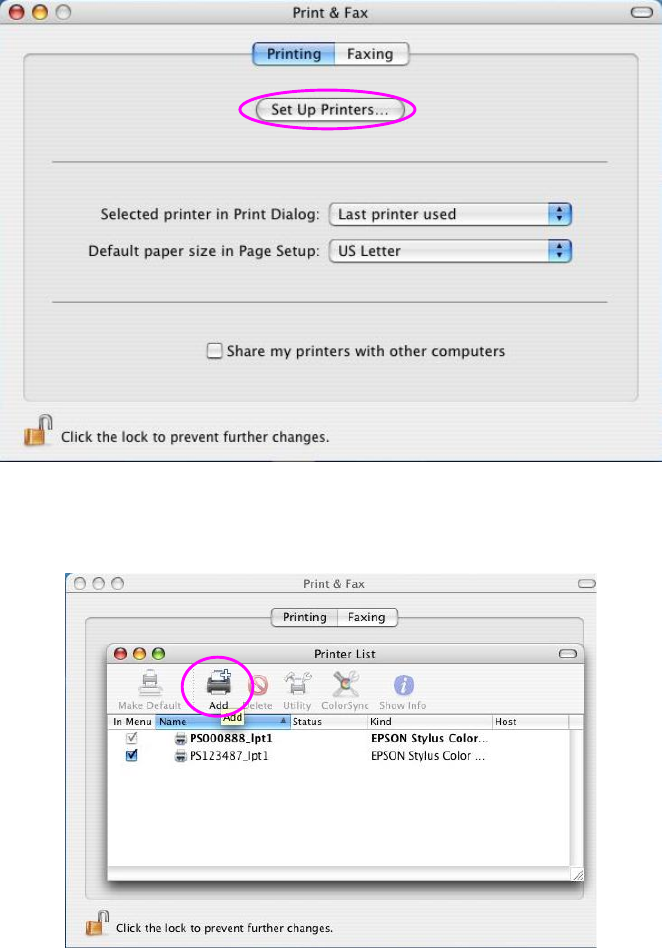

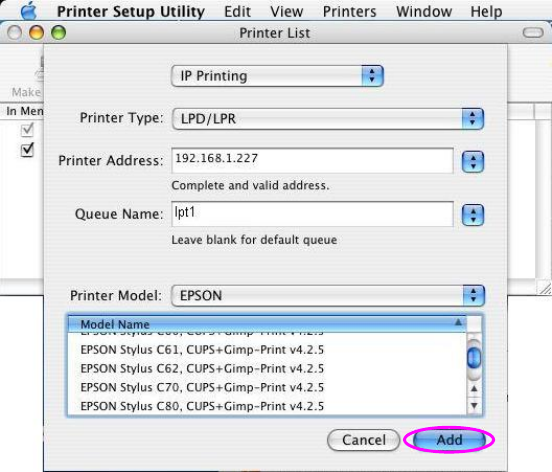

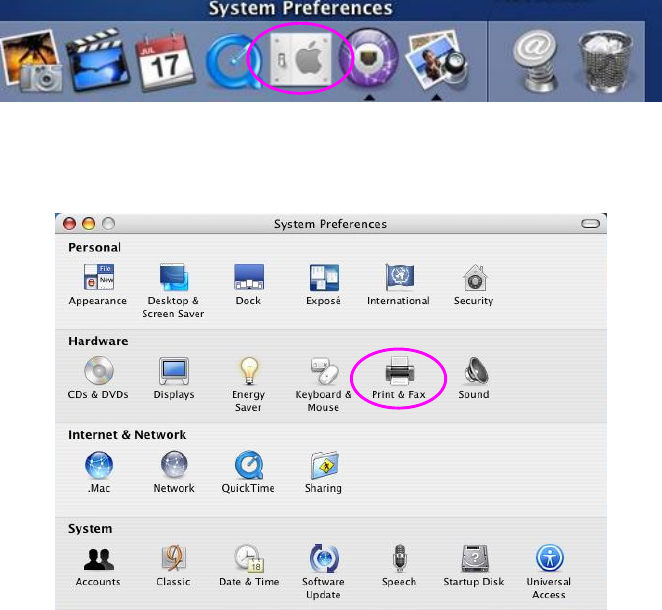

10.4 Standard LPR Settings in MAC OS 10.x ................... 155
10.4.1 MAC 10.4.x ............................................................................. 155
10.4.2 MAC 10.3.x ............................................................................. 156

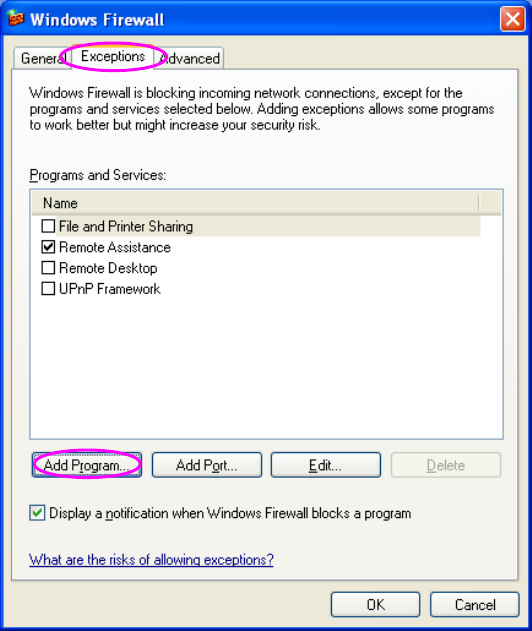

11. WINDOWS XP SP2 SETUP .......................................... 160
1
1. Introduction
2
1.1 Product Introduction
Thank you for purchasing and using our print server.
This print server allows your printer to become a shared
device on the network. It offers printing flexibility and
manageability on your Local Area Network at an extremely
low cost and with an absolute minimum setup and
maintenance required.
This print server provides IEEE 802.11n/g/b wireless
LAN (up to 300Mbps data transfer rate), an Ethernet
network port (10/100Mbps Ethernet) and one print port for
printer.
This print server supports IPX/SPX, NetBEUI, TCP/IP
and AppleTalk protocols. It is the best network printing
solutions for various common network operating systems
such as Windows 98SE/Me/NT/2000/XP/2003/Vista/7,
NetWare, Unix/Linux and MAC OS, etc.
With the help of Installation Wizard, you can easily
and instantly complete the settings for the printing
environment, and start enjoying the fantastic features
provided by the print server.
In the following chapters, we will introduce in detail
the printing features, installation methods, and system
configuration for different network environments.
If you would like to set up and install print server
quickly, please refer to the Quick Installation Guide that
comes along with this print server.
3
1.2 Product Package
This package contains the following components:
One Print Server
One Antenna
One Power Adapter
One Quick Installation Guide
One CD-ROM (Including all the software utilities,
drivers and User’s Manual)
![](/img.php?id=1245741&img=bgc.png)
4
1.3 Network Printing Architecture
This section illustrates how print server functions and
operates on the network. Before you install and use print
server, it is strongly recommended that you read this
section completely, and select only the chapters you need
according to your network operating system by “Contents
of the User’s Manual” in next section.
This section will first introduce the role every
component plays in the network-printing environment.
Print Server
Client User
Network Server (optional)
Windows NT Server
NetWare Server
Windows 98Windows NT
Workstation Windows 2000
Unix Print Server
Network Printing Environment
Print Server
Client User Network Server
![](/img.php?id=1245741&img=bgd.png)
5
1.3.1 Print Server Network Functions
Windows NT Server
NetWare Server
Windows 98Windows NT
Workstation Windows 2000
Unix Print Server
Print Server
Because print server supports IPX/SPX, NetBEUI,
TCP/IP and AppleTalk network protocols, any networked
computer can directly print to the print server from any of
its installed protocol.
1.3.2 Network Printing Functions for Clients
Windows NT Server
NetWare Server
Windows 98Windows NT
Workstation Windows 2000
Unix Print Server
Client User
![](/img.php?id=1245741&img=bge.png)
6
Common operating systems for clients are classified as
following:
Windows 98SE/Me/NT/2000/XP/2003/Vista/7
Our print server system provides PTPP (Peer-to-Peer
Printing) driver and utilities for Windows
98SE/Me/NT/2000/XP/2003/Vista users. PTPP (Peer-to-
Peer Printing) supports TCP/IP protocol.

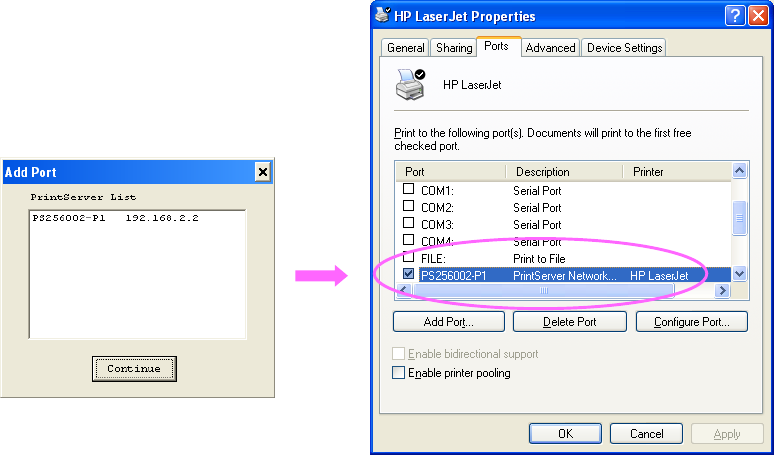

In the client installation procedure, after PTPP (Peer-
to-Peer Printing Driver) is installed into Windows, the
system will automatically (manual configuration is also
allowed) search all the print servers on the network, and

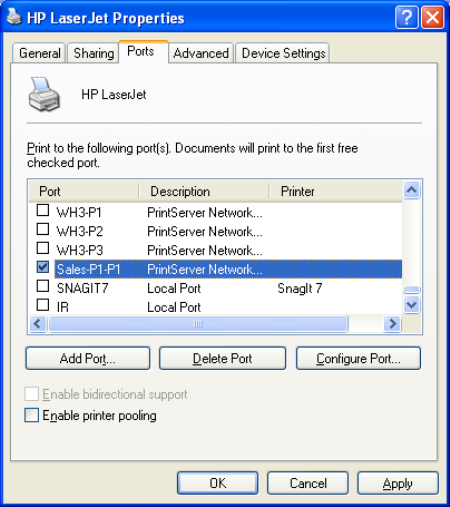

then add their printing ports into Windows’ printing port
(see below).
![](/img.php?id=1245741&img=bgf.png)
7
Windows 98
PTPP
Print Server
MIS-2
P1 P2
P3
P1
Print Server
MIS-1
UNIX / Linux
UNIX (include HP/UX, SCO Unix, SunOS, Solaris,
Unixware DECUnix, IBM AIX and others) and Linux use
the system-standard LPR to print through print server.
MAC OS
MAC OS can use the system-standard AppleTalk
network to print through print server.
![](/img.php?id=1245741&img=bg10.png)
8
1.3.3 Network Printing Functions for Network Server
Windows NT Server
NetWare Server
Windows 98Windows NT
Workstation Windows 2000
Unix Print Server
Network Server
Common network servers are classified as following:
Windows NT/2000/2003
Our print server system provides PTPP (Peer-to-Peer
Printing) driver and utilities for Windows NT/2000/2003.
After PTPP is installed, the server can directly print
through print server. Adding this printing function into
Windows NT/2000/2003 Server allows print queue, user
authority management, and many other advanced features to
be used.
NetWare 3.x/4.x/5.x
In NetWare environment, print server offers various
printing modes like print queue, remote printer, etc.
![](/img.php?id=1245741&img=bg11.png)
9
1.4 Network Printing Environment
Common network environment are classified as
following:

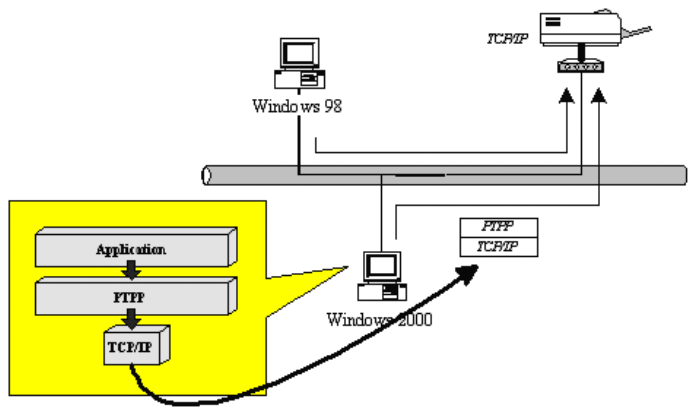

Windows Peer-to-Peer Network
The client’s PTPP driver will use TCP/IP protocol to
print through print server.
Windows NT/2000/2003 Network
Network printing function will become available after
PTPP driver is installed into Windows NT/2000/2003.
Adding this printing function into Windows NT/2000/2003
Server allows print queue, user authority management, and
many other advanced features to be used.
![](/img.php?id=1245741&img=bg12.png)
10
NetWare Network (see below)
11
1.5 Contents of the User’s Manual
Chapter 2 explains print server’s hardware installation
and configuration. It is strongly recommended for you to
read.
The following chapters introduce:
Chapter 3. Windows Peer-to-Peer Network
Chapter 4. Windows NT/2000/2003 Server-Based
Network
Chapter 5. NetWare Network
Chapter 6. UNIX System Network
You may select the appropriate chapters and sections
to read depending on your network printing’s requirement.
Chapter 7 and chapter 8 introduce print server’s
management and configuration utilities on Windows and
Web Browser’s environment respectively. You may select
the appropriate management utility according to the
administrator’s computer platform.
Chapter 9 introduces Print Server’s IPP Printing
function and setup procedure. The IPP Printing provides a
convenient way to print documents across the Internet by
the IPP protocol.
12

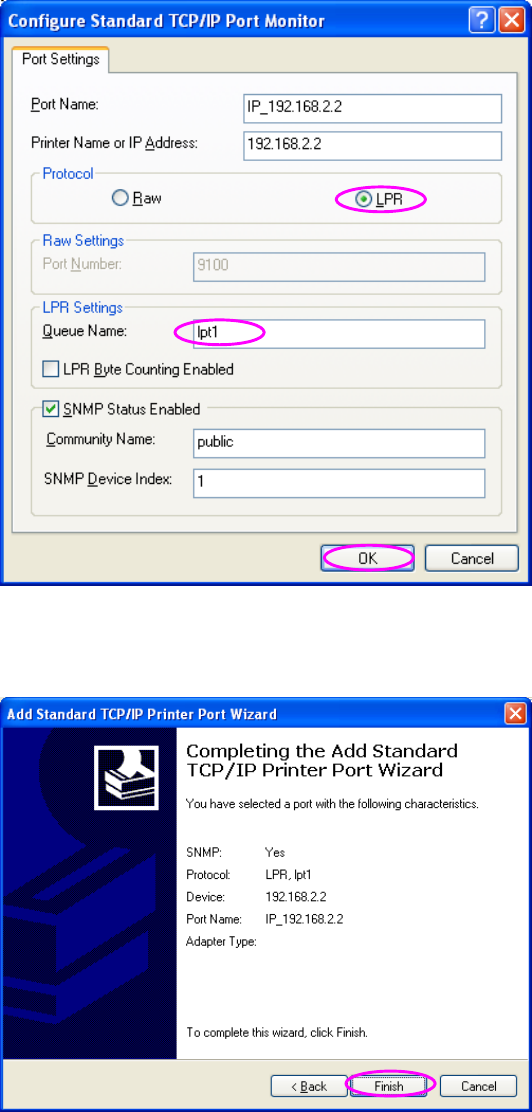

Chapter 10 introduces Print Server’s LPR Printing
function and Windows XP/Vista/7 and MAC OS 10.x
standard setup procedures. The LPR Printing (Line Printer
Remote technology) allows users to connect to printers via
TCP/IP for printing sharing.
Chapter 11 introduces how to deal with the problem
that if you can’t find any print server listed on the
“Available Ports” in “Network Ports Quick Setup” in
Windows XP SP2.
13
1.6 Firmware & Printing Function
The print server provides a complete network printing
solution. The feature set is listed below:
PTPP (Peer-to-Peer-Printing)
TCP/IP (LPR)
IPP Printing
NetWare Bindery Printing
AppleTalk

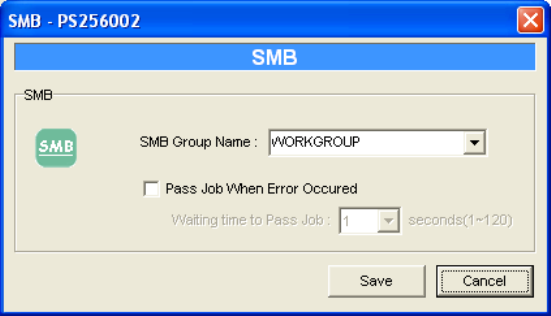

SMB Printing
14
2. Hardware Installation
1. Unpack the print server package and verify that all
the items listed in the section 1.2 are provided.
2. Connect the print server to the printer you want to
share on the network.
3. Connect the print server to your network by attached
the network cable to the UTP port of the print server.
4. Connect the power adapter to the print server. The
print server will perform the Power-On-Self-Test (POST)
after it is powered on. During the POST, the Status and
Ready LEDs will be on. When the LEDs are unlighted, the
print server is ready.
NOTE1: MUST use the power adapter shipped with the print
server, do NOT use any other power adapter from any
sources.
NOTE2: To prevent the compatibility problem between print
server and a few printer, it is recommended that you
power on the print server before the printer.
15
3. Windows Peer-to-Peer
Network
![](/img.php?id=1245741&img=bg18.png)
16
3.1 System Architecture
Print server supports Windows Peer-to-Peer network
printing mode, which is suitable for most medium and small
network environments. Through quick and simple
installation procedure, users can immediately enjoy the
convenience of network printing.
Installation procedure is separated into following two
parts:
1. Administrator Installation and Setup (refer to
section 2 for more detailed information).
System administrators must:
y Install administrator’s utilities into his/her
computer.
y Configure print server from administrator’s
configuration utility.
17
2. Client Installation and Configuration (refer to
section 3 for more detailed information).
Client users must install Windows PTPP driver (Peer-
to-Peer Printing) for network printing.
In addition, after PTPP is installed, the system will
automatically search for all print servers on the network,
and add the printing port of the print servers into Windows’
printing port (refer to Network Printing Architecture in
section 1.4 for more detailed information).
![](/img.php?id=1245741&img=bg1a.png)
18
3.2 Administrator Installation and Setup
The Administrator Installation can be performed on
Windows 98SE/Me/NT/2000/XP/2003/Vista/7 with the
same user interface. Before the installation, please verify
that your network protocol is installed on your PC (TCP/IP,
IPX and/or NetBEUI). It will be helpful in your installation
process.
1. Insert the CD shipped along with the print server
into your CD-ROM drive. The Autorun.exe program should
be executed automatically. If not, run Autorun.exe
manually from CD-ROM drive’s root directory.
2. The “Installation Manager” will be displayed on the
screen as following. Click “Administrator Installation”.
![](/img.php?id=1245741&img=bg1b.png)
19

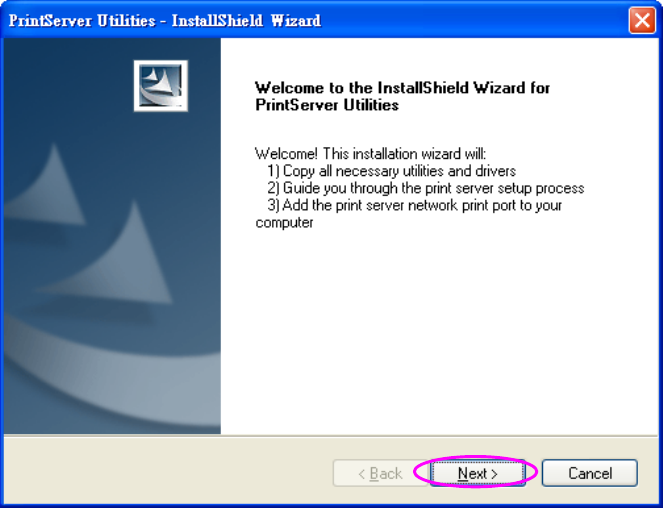

3. The “Print Server Utilities” window will be
displayed. Click “Next”.
4. Click “Next” to install the utilities in the default
folder or click “Change” to specify the destination folder
where you would like to install the utilities.
![](/img.php?id=1245741&img=bg1c.png)
20
5. Select the components you want to install. It is
highly recommended to install all provided components.
Click “Next” to continue.
![](/img.php?id=1245741&img=bg1d.png)
21

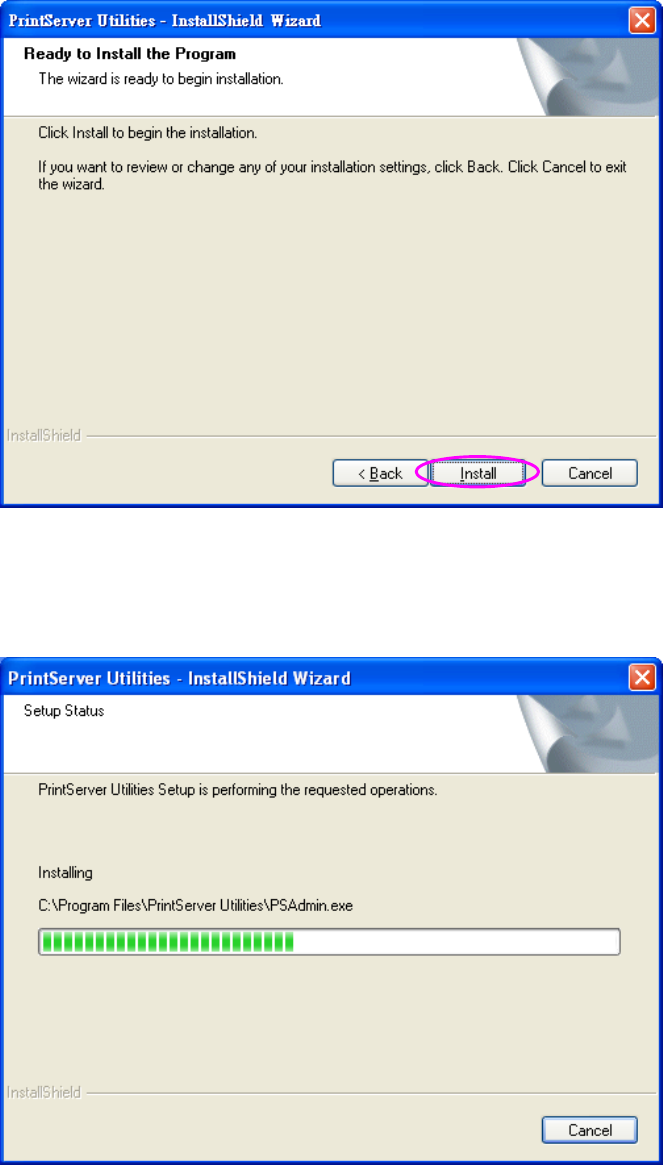

6. Click “Install”.
7. The system will start to install the utilities
automatically.
![](/img.php?id=1245741&img=bg1e.png)
22

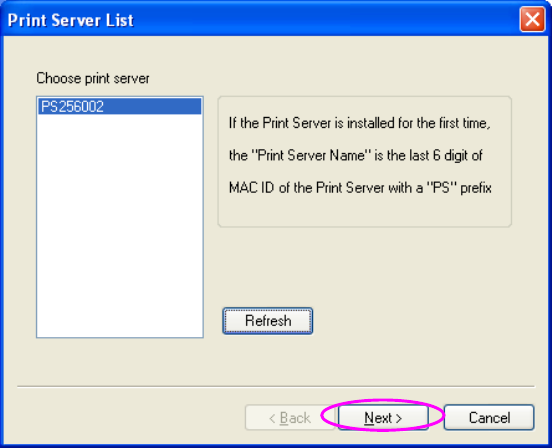

8. You have completed the installation phase and
prepare to configure the Print Server. The “Choose Print
Server” will list all Print Servers within the network. Select
the Print Server you would like to configure and click
“Next”.
NOTE 1: If this is the first time you configure the Print Server,
the “Print Server Name” is the last 6-digit of MAC ID
with prefix “PS”. Please check the MAC ID on the
print server.
NOTE 2: The list can only display the devices from the same
manufacturer.
![](/img.php?id=1245741&img=bg1f.png)
23
9. Specify a recognizable name for the Print Server
and click “Next”.
10. Specify the IP Address for the Print Server
manually or click “Next” to keep default IP Address, i.e.
192.168.2.2.
![](/img.php?id=1245741&img=bg20.png)
24
11. The configuration summary is displayed in the
window. Now, you have completed the Print Server setup.
Click “Finish” and your system will add network port of the
Print Server to your PC automatically.
12. The Administrator Installation procedure is totally
completed. Click “Finish”.
![](/img.php?id=1245741&img=bg21.png)
25
The Administrator Installation Program have executed
the installation procedure that performs the following tasks:
Install all utilities and drivers to the
administrator’s PC.
Configure the print server (including the print
server name and network protocol)
Add the network port of the print server to the
administrator’s PC.
If you want to print from this administrator’s PC to the
print server, all you need to do is to perform Windows’
standard “Add Printer” procedure (please refer to Section
3.6).
![](/img.php?id=1245741&img=bg22.png)
26
3.3 Administrator Utilities
After Administrator Installation is completed, there
will be four utilities in print server’s Program folder.
Network Ports Quick Setup – Add the network
ports of print servers within the network to your PC.
Print Server Configuration – Allows you to
configure the print server’s IP Address, network
protocols and other advanced functions. Please
refer to Chapter 7 for the detail instruction of the
configuration.
Remote Ports – Add the network port of remote
printer server to your PC.
Uninstall – Assistant for removing all installed
administrator software.
![](/img.php?id=1245741&img=bg23.png)
27
3.4 Client Installation and Setup
The Client Installation can be performed on Windows
98SE/Me/NT/2000/XP/2003/Vista/7 with the same user
interface. Before the installation procedure, please confirm
that your PC has connected to the network and installed at
least one network protocol.
1. Insert the CD shipped along with the print server
into your CD-ROM drive. The Autorun.exe program should
be executed automatically. If not, run Autorun.exe
manually from CD-ROM drive’s root directory.
2. The "Installation Manager" will be displayed on the
screen as follows. Click “Client Installation”.
![](/img.php?id=1245741&img=bg24.png)
28
3. The “Print Server Utilities” window will be
displayed. Click “Next”.
4. Click “Next” to install the utilities in the default
folder or click “Change” to specify the destination folder
where you would like to install the utilities.
![](/img.php?id=1245741&img=bg25.png)
29
5. Click “Install”
![](/img.php?id=1245741&img=bg26.png)
30
6. The system will start to install the utilities
automatically.
7. Now, the installation procedure is completed, you
are ready to set up the client’s computer. All network ports
of the Print Servers detected on the network will be added
to your PC automatically, click “Continue”.
Note that if there are no print servers detected in the
network currently, please click “Continue” to finish the
installation. Please refer to Section 3.5.1 to add network
ports of print servers manually.
![](/img.php?id=1245741&img=bg27.png)
31
8. The Client Installation procedure is completed.
Click “Finish”.
32
After the installation, you have completed the
following tasks:
Install all utilities and drivers to the client’s PC.
Add all the print server’s network ports of the
network to the client’s PC.
You can then perform the Windows’ standard “Add
Printer” procedure to add network printers to your PC.
Please refer to Section 3.6.
![](/img.php?id=1245741&img=bg29.png)
33
3.5 Client Utilities
After Client Installation is completed, there will be
three tools in print server’s Program folder.
Network Ports Quick Setup
Remote Ports
Uninstall Network Driver
The Uninstall Network Driver will assist you in
removing all installed client software. The other two tools
are described as follows.
3.5.1 Network Ports Quick Setup
Network Ports Quick Setup Utility offers a very
simple method to add or remove print server’s printer port
from the client’s computer.
![](/img.php?id=1245741&img=bg2a.png)
34
During the client’s installation procedure, the system
will automatically search for all print servers on the
network, and add them into the printer ports of the client’s
computer (see below).
If you have just installed another new print server in
the network, you must run this program first. This program
will search for new print servers and allow you to add the
new network printer port into client’s computer
conveniently. Perform the standard Add Printer procedure,
then you can print directly to the printer through the newly
installed print server.
![](/img.php?id=1245741&img=bg2b.png)
35
Please be aware that Network Ports Quick Setup Utility
can only detect and configure all print servers on the same
network, it cannot search and configure print servers on
other subnets across network segments. You must use
Remote Ports Utility described in the next section to
manage remote (across network segments) print servers.
Select the network ports in the “Available Ports” list
and click “>” to add ports. If you want to add all available
ports, please click “>>”. To cancel some of the network
ports or all ports from the “Chosen Ports” list, please click
“<” or “<<”.
3.5.2 Remote Ports (Utility)
Remote Ports Utility offers a convenient way for you
to manage and add printer port of the remote print server.
From the assistant of this utility, you can print to other
print servers outside the subnet across network segment.
However, please note that this function only supports
TCP/IP network protocol.
Please follow the procedures described below:
![](/img.php?id=1245741&img=bg2c.png)
36
Step1. Run Remote Ports Utility. Clicks “Add” to
add a remote print port.
Step2. Enter print server’s name, IP address, select
used ports, and enter LPR queue name of each
port. Click “Ok”.
Step3. The new remote print port is displayed as
follows.
In order to use the remote printing function, you will
have to proceed with normal Add Printer procedure and
![](/img.php?id=1245741&img=bg2d.png)
37
select your printer port as the newly added remote printer
port.
![](/img.php?id=1245741&img=bg2e.png)
38
3.6 Windows Add Printer Procedure
After adding a “Network Port” of the print server to
your PC by Administrator or Client Installation Program,
you can follow the procedures described in the following
sections to add printer to the Windows.
3.6.1 Windows Vista and 7
The following “Add Printer” steps are running in
Windows Vista or 7.
1. Click “Start”, select “Settings\Printers”.
2. Click “Add a Printer”.
3. The “Add Printer” wizard is displayed. Select “Add
a local printer”.
![](/img.php?id=1245741&img=bg2f.png)
39

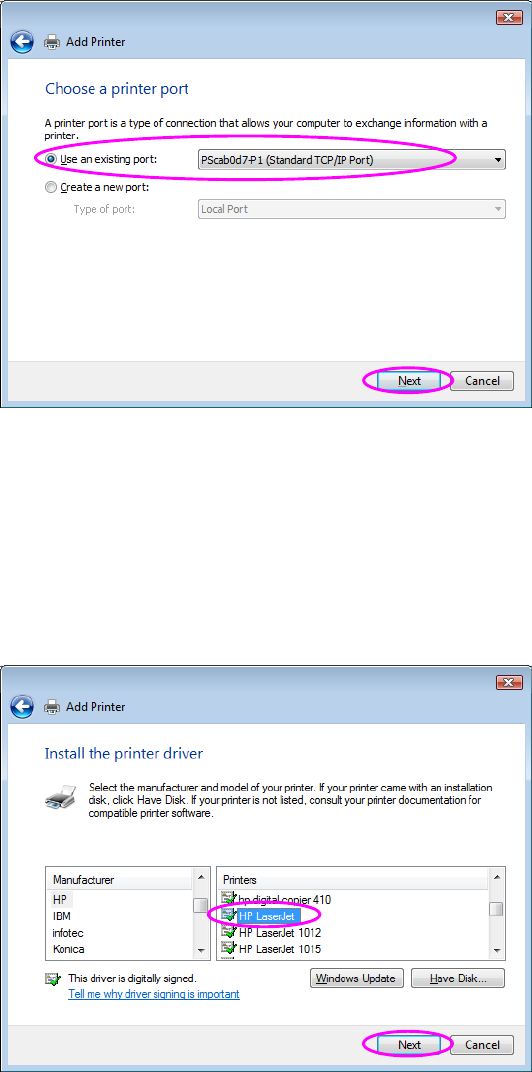

4. Choose the suitable printer port which was created
by the installation process and click “Next”.
5. Select the printer manufacturer and the printer
model and click “Next”. If your printer is not in the
list, click “Have Disk…” to install the driver of the
printer. After installation, the printer model will be
added to the list.
![](/img.php?id=1245741&img=bg30.png)
40

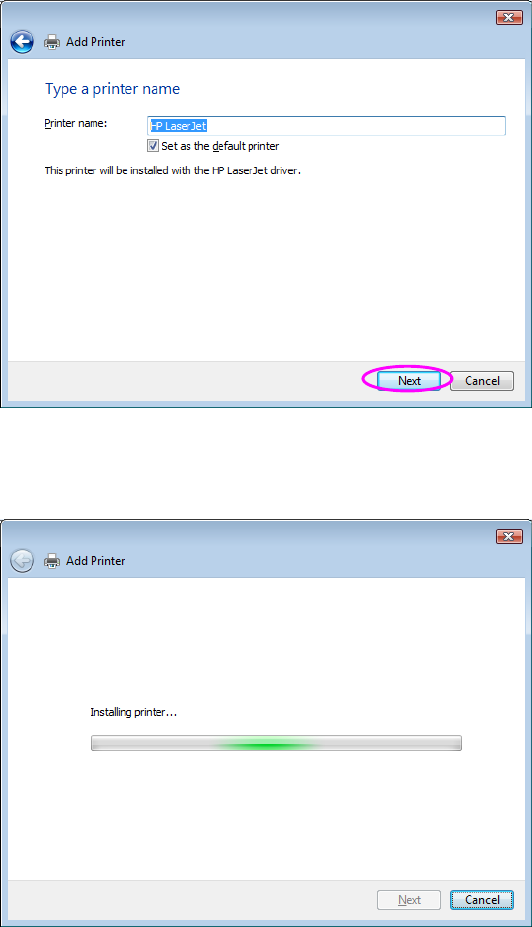

6. Name your printer and set the default printer, click
“Next”.
7. The printer drivers are being installed.
![](/img.php?id=1245741&img=bg31.png)
41
8. It is recommended to print a test page. Click
“Finish”.
9. The printer is added to “Printers” page, you have
added the printer to your computer successfully.
Now you can start to print from your computer to
the print server.
![](/img.php?id=1245741&img=bg32.png)
42
3.6.2 Windows XP
The following “Add Printer” steps are running in
Windows XP, the steps in other Operating Systems such as
Windows 98SE/Me/2000 are similar.
1. Click “Start”, choose “Settings” and select “Printers
and Faxes”.
2. Click “Add a Printer”.
3. The “Add Printer Wizard” is displayed. Click
“Next”.
![](/img.php?id=1245741&img=bg33.png)
43
4. Select “Local printer attached to this computer” and
make sure that “Automatically detect and install my
Plug and Play printer” is not selected. Click “Next”.
5. Choose the suitable “Print Server Network Port”
which was created by the Administrator Installation
or Client Installation process and click “Next”.
![](/img.php?id=1245741&img=bg34.png)
44
6. Select a suitable printer manufacturer and the
printer model and click “Next”. If your printer is not
in the list, click “Have Disk…” to install the driver
of the printer. After installation, the printer model
will be added to the list.
7. Name your printer and setup the default printer,
click “Next”.
![](/img.php?id=1245741&img=bg35.png)
45
8. Choose to print the test page or not. It is
recommended to print a test page. Click “Next”.

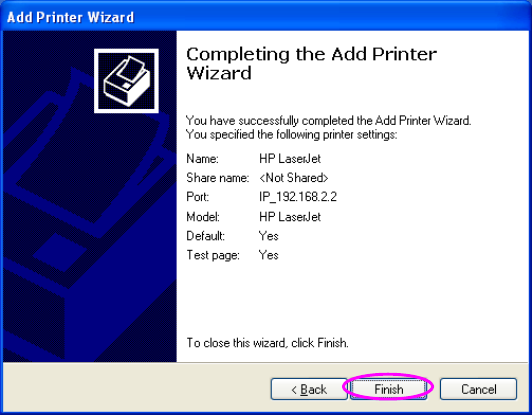

9. You have added the printer to the PC successfully.
The information of the printer is displayed in the
windows. Click “Finish”.
Now you can start to print from your PC to the print
server.
46
47
4. Windows NT/2000/2003
Network
![](/img.php?id=1245741&img=bg38.png)
48
4.1 System Architecture
In Windows network environment, other than the Peer-
to-Peer network printing architecture described in the
previous chapter, we also offer the Server-Based Printing
architecture for Windows NT/2000/2003 server. Only one
Windows NT/2000/2003 is required to have Windows PTPP
(Peer-to-Peer Printing) driver installed and share the
printing service on the network. Other network users can
simply connect to the server and access the shared printer
(see below).
![](/img.php?id=1245741&img=bg39.png)
49
4.2 Windows NT/2000/2003 Server
Installation and Setup
Please follow the procedures described below for
installation and construct a peer-to-peer connection (PTPP)
between Windows NT/2000/2003 Server and Print Server.
Step1.
If this is your first time installing print server, please
install the administrator software on Windows
NT/2000/2003 server first. Refer to section 3.2 for
installation instructions.
If your network has already installed a working print
server and your Windows NT/2000/2003 server has not yet
installed the PTPP driver, please install the client software.
Refer to section 3.4 and 3.5 for installation instructions.
Step2.
Please add/configure the Peer-to-Peer Printing of the
Windows NT/2000/2003 network printer and verify that you
can print from Windows NT/2000/2003 to the print server
by the installed PTPP driver.
50
Step3.
Share the above server’s printer to the network by
performing the standard Windows printer sharing process.
![](/img.php?id=1245741&img=bg3b.png)
51
4.3 User Installation and Setup
After server side’s installation is completed, client side
will be able to find the server’s shared printer in Network
Neighborhood. You only need to perform Window’s
standard Add New Printer procedure, select “Network
Printer” shown in the screen below, and complete the
configurations afterwards to access the shared printer.
52
5. NetWare Network
![](/img.php?id=1245741&img=bg3d.png)
53
5.1 System Architecture
We implement NetWare printer sharing functionality
into the print server itself, thus allowing one or more
printers attached by a print server to be connected to the
network. We have developed the print server to support
NetWare print server.
Embedded print server, which emulates the “queue
management functionality” of NetWare print server,
PSERVER program running on the NetWare server. A user
first prints a job at a workstation, the job is routed to a
NetWare server, the NetWare server stores the job in a
print queue and then the print server gets the print job from
the queue to printers.
Netware Server
Windows 98
Windows 2000
Print Queue
Print Server
Compare with NetWare printing functionality, the
advantages of embedding the NetWare network printing
functionality in the print server include:
Installation is easier and quicker.
Network management is easier.
54
Printing performance is enhanced.
Relieve NetWare file server’s burden.
Relieve the need of a workstation running the
remote printer utility.
Improve productivity by locating the printer near
the workgroup.
Each print server should log into a NetWare server
before servicing the print jobs. Each print server will
occupy a user account with which it can log into the
NetWare server.
![](/img.php?id=1245741&img=bg3f.png)
55
5.2 NetWare 3.x/4.x/5.x Installation &
Setup
Once your print server is connected to your Ethernet
network, you can set it up for use with your networking
software.
5.2.1 Installation Using PCONSOLE
5.2.1.1 Configuring as Print Server Mode
1. Run the NetWare PCONSOLE program.
2. Change the current file server, if necessary, using
the Change Current File Server menu selection.
3. Choose the Print Queue Information menu selection.
4. Press the Insert key to add a new print queue.
5. Type in a print queue name, such as “PQ” or “Q1”.
6. You have now successfully created the print queue
that your print server will serve. Press the Escape
![](/img.php?id=1245741&img=bg40.png)
56
key until the Available Options main menu is
displayed.
7. Select Print Server Information.
8. Press the Insert key to add a new NetWare print
server object. The print server name can be
identical to the PSxxxxxx name printed on the
label of the print server.
9. Press Enter to select the newly created print server.
10. Select Print Server Configuration.
11. Select Printer Configuration.
12. Select Printer 0 (or Printer 1, Printer 2), and press
Enter, then select LPT1 (or LPT2, LPT3) in the
Type field. If your print server is with only one
port, you do not need to configure this Type field.
![](/img.php?id=1245741&img=bg41.png)
57
13. Press Escape, and answer Yes to the Save
Changes question.
14. Select Queues Serviced by Printer, then select
Printer 0 (or Printer 1, Printer 2) and press Enter.
15. Press Insert and add your newly created print
queue to the list of queues serviced by the printer.
Enter a priority number for the queue service, or
press Enter to accept the default.
16. Repeatedly press Escape to exit the PCONSOLE
program.
58
17. Reset the print server to have the changes take
effect.
NOTE: If the print server you have is with multiple
printer connectors, you may create multiple print queues
and printer objects.
Your print server should now be ready to use. You
should be able to redirect printing to your print server
using a CAPTURE command such as the one shown in the
previous section.
59
6. UNIX System Network
60
6.1 Introduction
The print server is available for TCP/IP printing by
Unix LPD (Line Printer Daemon) protocol. The LPD
protocol originated with Unix release is based on the BSD
version of Unix and supported under most versions of Unix.
This chapter explains how to configure the print server
for TCP/IP operation, and how to modify configuration
files on your Unix system to allow printing to the print
server. The configuration examples in this manual follow
the syntax for BSD based Unix systems. Please refer to the
related system documentation for the correct syntax of your
systems.
To configure the print server for LPD printing, perform
the procedures below:
1. Enable Print Server’s TCP/IP Support.
2. Set up Print Server’s IP address.
3. Verify Print Server’s IP Address.
4. Configure remote LPD printing on the host.
5. Print a test page.
In the next sections, we will describe these five
procedures step by step.
61
6.2 Enable Print Server’s TCP/IP Support
The default configuration of the print server is with
TCP/IP support enabled. Anyway, you can configure the
print server to enable TCP/IP support using the
configuration program.
62
6.3 Setup Print Server’s IP Address
The print server must have a unique IP address in order
to be recognized by the network.
You can set up the IP address on the various Unix
systems using any one of the following methods:
1. DHCP (Dynamic Host Configuration Protocol)
2. BOOTP (Bootstrap Protocol)
The print server will use the last three methods to
obtain its IP address automatically if its IP address is
configured as Auto (0.0.0.0).
6.3.1 DHCP
There are many Unix systems that support DHCP
protocol, and the procedures to configure the DHCP server
database are different. This manual does not describe the
DHCP server configuration on the Unix systems. It is
highly recommended that the DHCP server should be
located on the same network as the print server.
6.3.2 BOOTP
If you have the BOOTP daemon, bootpd, running on
your UNIX system that is accessible by the print server,
you can use the BOOTP protocol to set up the IP address of
the print server. We recommend that the BOOTP server
should be located on the same subnet as the print server. If
you use Network Information Services (NIS) in your system,
you may need to rebuild the NIS map with the BOOTP
63
services before doing the following BOOTP configuration.
To rebuild the NIS map, please refer to your system
documentation.
To configure the IP address data for the BOOTP server,
you will need to log in the host of BOOTP server as the
superuser (root). Perform the following steps to add address
entries,
1. Optionally, assign a name corresponding to the
print server’s IP address. You can add this address to the
/etc/hosts file, by adding a line such as:
203.66.191.12 pserver
2. Add an entry to the host’s /etc/bootptab file, similar
to the following:
hostname:\
:ht=1:\
:ha=print_server_ethernet_address:\
:ip=print_server_ip_address:
Lines should be indented with tabs.
Where hostname is the device name of a print server,
the ht=1 tag specifies the hardware type is Ethernet, the
ha= tag specifies the Ethernet address of a print server,
which is the Node ID located on the print server. The ha tag
must be preceded by the ht tag. The ip= tag should
correspond to the IP address you want to assign to the print
server.
64
For example, a print server with the following
configuration:
Node ID: 0000B4010101 (this implies Ethernet
address is 0000B4010101),
IP address: 203.66.191.12
The entry for this print server in the /etc/bootptab file
should be:
PS010101:\
:ht=1:\
:ha=0000B4010101:\
:ip=203.66.191.12:
65
6.4 Verify Print Server’s IP Address
To verify that your print server is responding to the
newly assigned IP address using a PING command:
ping ip-address
66
6.5 Configure Remote LPD Printing on the
Host
The procedure you use to configure your Unix host(s)
to allow printing to your network remote print server varies
between different varieties of Unix. The procedure below
can be used for Unix variants that are related to BSD Unix,
such as SunOS or Linux. For other versions of Unix,
consult your system documentation, keeping in mind that:
1. The print server should be treated as a BSD
networked print server host.
2. The host name should be the name (or IP address)
that you have assigned to the print server.
3. The printer name (or queue name) on the remote
host should be lpt1, lpt2 or lpt3, the name of the printer
port on the print server.
You will need to perform the tasks below, logged in as
the superuser (root). To configure your Unix host for
printing,
1. Optionally, assign a name corresponding to the
print server’s IP address. You can add this address to the
/etc/hosts file, by adding a line such as:
203.66.191.186 pserver
2. Create a spool directory for the printer in the same
directory where spool directories are normally kept on the
machine, such as /var/spool or /var/spool/lpd:
67
mkdir /var/spool/lpd/pserverd
chown daemon /var/spool/lpd/pserverd
chgrp daemon /var/spool/lpd/pserverd
chmod 775 /var/spool/lpd/pserverd
3. Add an entry to the host’s /etc/printcap file, similar
to the following:
printer-name:\
:lp=:\
:rm=203.66.191.186:\
:rp=lpt1:\
:lf=/var/spool/lpd/pserverd.log:\
:sd=/var/spool/lpd/pserverd:\
:mx#0:
Lines should be indented with tabs. More than one
printer name can be used, with variants separated by
vertical bars (name1|name2).
The rm= entry should correspond to the IP address you
have assigned to the print server. You can also use a host
name if you have assigned one in the /etc/hosts file.
The sd= entry should correspond to the spool directory
you created in the previous step.
The rp= entry should correspond to the port name of
the remote printer. The values should be one of lpt1, lpt2 or
lpt3 depends on the printer port.
68
The print server should now be available for printing
from your Unix host.
69
7. Configuration Utility
70
7.1 Introduction
This chapter introduces print server’s system
configuration utility in Windows environment. This utility
is automatically installed during Windows Administrator
Utility installation procedure - refer to section 3.2 and 3.3.
This utility provides the most complete management
and configuration functions on the print server side. This
utility only provides configuration functions for print
server itself; it does not include configuration functions for
client side or other file server or NetWare server in the
network environment.
The Configuration Utility provides the following
configuration and management functions:
Search Print Server: Search All Available Printer
Servers on the Network.
Print Server Status: Display Print Server Network
Status.
General Configuration: General Information of
print server.
TCP/IP Configuration: IP Address and DHCP
Server Configuration.

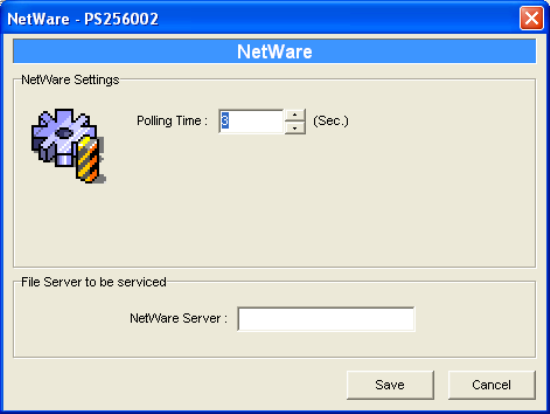

NetWare Configuration: NetWare Printing
Configuration.
AppleTalk Configuration: AppleTalk Protocol
Setting.
71

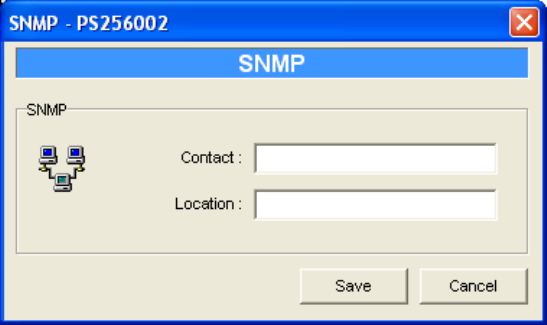

SNMP Configuration: SNMP Information
Configuration.
SMB: Configure the SMB Group Name.
System Configuration: Print Server Network
Ability Setting and Firmware Upgrade.

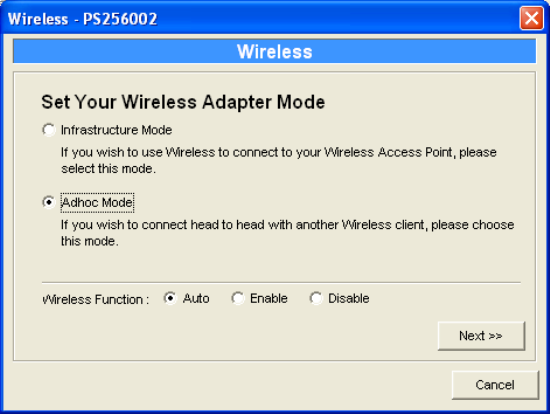

Wireless Configuration: Wireless LAN
Configuration.
Setup Wizard: Guide You Through All the
Settings.
Report: List the Status of All Available Print
Servers on the Network.
We will explain each function separately in the
following section.
![](/img.php?id=1245741&img=bg50.png)
72

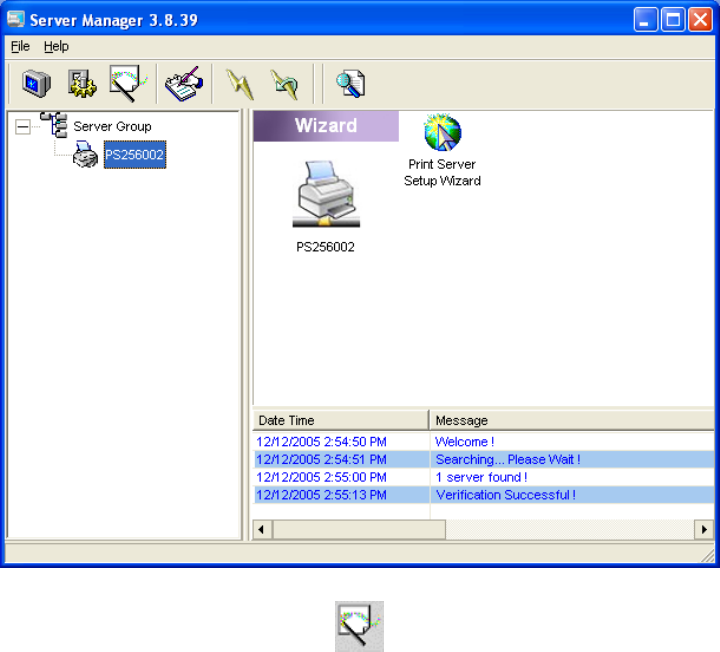

7.2 Search for All Available Print Server
Every time when you run print server’s configuration
utility, click the “Search” icon on the tool bar. The
configuration utility will delay for several seconds because
the utility is using system’s available network protocols to
search for all print servers on the network. All available
print servers will be listed under “Server Group” on the left
side of the window.
You must select the print server you would like to
configure from the list. The system will, at the same time,
display the selected print server’s status on the right side of
the window.
![](/img.php?id=1245741&img=bg51.png)
73

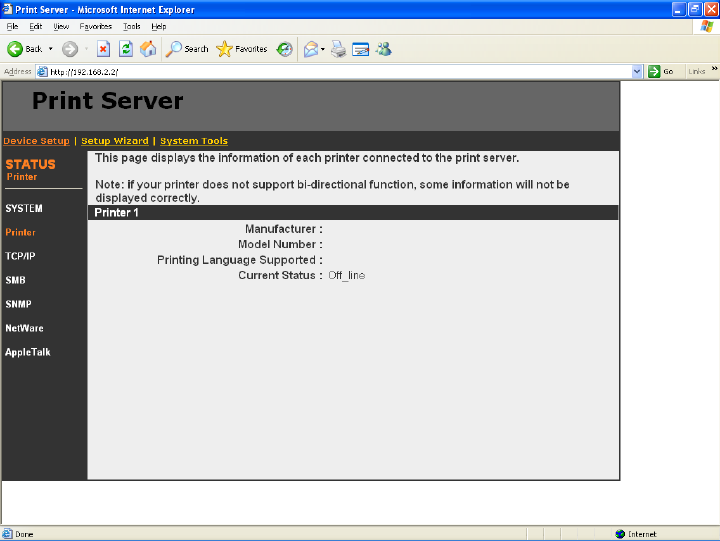

7.3 Status of Print Server
Click “Status” icon on the tool bar, the status of the
current selected print server will be showed on the right
side of the window.
The information of the print server displayed are MAC
ID, Model Type, Firmware Version, status of each printer
port, NetWare file server name, NetWare file server polling
interval, NetWare printer queue names, IP address, subnet
mask, default gateway, AppleTalk printer type, AppleTalk
zone and print server printing ability…etc.
You can refresh the print server’s status by pressing
the “Refresh” button .
![](/img.php?id=1245741&img=bg52.png)
74
You can restart the print server by pressing the
“Reboot” button .
![](/img.php?id=1245741&img=bg53.png)
75
7.4 Setup the Print Server
Click “Setup” icon on the tool bar, the setup items
of the current selected print server will be showed on the
right side of the window.
Double click one of the icons to set up the selected
print server. A screen will pop up to verify “User Name”
and “Password” of the print server. The default values are
as follows.
y User Name: admin
y Password: 1234
![](/img.php?id=1245741&img=bg54.png)
76
![](/img.php?id=1245741&img=bg55.png)
77

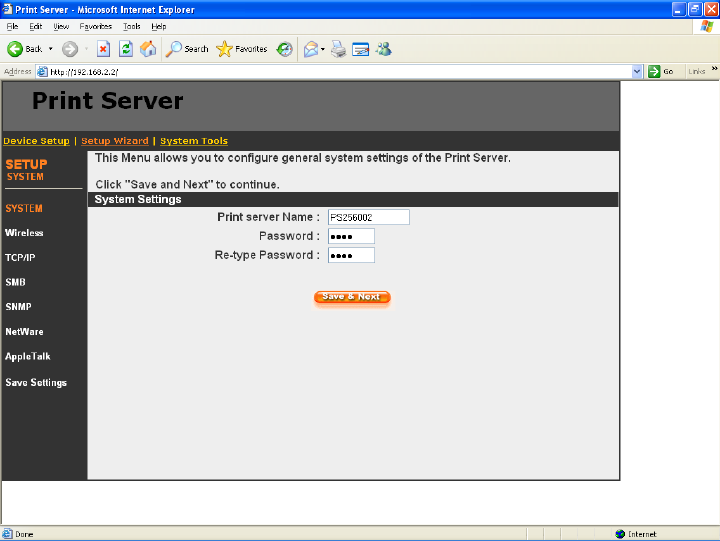

7.5 General Configuration
Double Click “General” icon and the General
configuration window will pop-up.
You can see basic print server information in this page.
You also can configure the “Server Name”, “User Name”
and “Password” here.
Server Name, the name of the print server. You can
use this name to identify the print server when you are
searching for the print server by the administration and
client utilities.
User Name / Password is used to authenticate the
administrator by the Web administration tool.
![](/img.php?id=1245741&img=bg56.png)
78
7.6 TCP/IP Configuration
Double Click “TCP/IP” icon and the TCP/IP
configuration window will pop-up.
You can configure the print server to automatically get
IP from DHCP server or manually specify static IP. The
print server also has a built-in DHCP server. You can
enable this DHCP server and let it manages IP for you.
79
Click the “IP” button to enter the IP setting page. If
you need the print server to automatically get an IP from
DHCP server, select “Auto IP”. You also can select “Static
IP” to manually assign “IP Address”, “Subnet Mask” and
“Gateway” for the print server.
Click the “DHCP Server” button to enter the DHCP
server’s setting page. You can “Enable/Disable” the DHCP
server or set “Auto” and assign a range of IP addresses here.
The DHCP server is disabled by default. If Auto is selected,
the DHCP Server of print server will be enabled only when
there is no other DHCP Server within the network. When
“Enable” or “Auto” is selected, you have to configure
“Starting Address”, “Range”, “Subnet Mask”, “Gateway”
and “DNS”. The print server will assign a unique IP for
each client.
![](/img.php?id=1245741&img=bg58.png)
80
7.7 Netware Print Server Configuration
Double Click “NetWare” icon and the NetWare
configuration window will pop-up.
This print server supports NetWare Bindery Printing
method. The print server periodically polls the NetWare
server printer queues for printing jobs. You have to assign
the NetWare server name, print server polling interval and
the name of queue on the NetWare server for each printer
port.
Polling Time is the polling interval of the print server
for waiting printing jobs on the NetWare server.
NetWare Server is the name of the NetWare file
server that provides printer queues.
![](/img.php?id=1245741&img=bg59.png)
81
7.8 AppleTalk Configuration
Double Click “AppleTalk” icon and the AppleTalk
configuration window will pop-up.
AppleTalk is a data communication protocol often used
by Macintoshes. The print server can use these parameters
to join the AppleTalk network and share the printer to other
AppleTalk workstations. You have to setup the “Zone
Name” and “Printer Type” for each printer port of this print
server.
Zone Name: Print server has to join zones of
AppleTalk before it can be shared to other workstations.
Only workstations in the same zone can share the printer. If
you want to share the printer to all workstations in all
Zones, you should enter only “*” in the “Zone Name” field.
Printer Type, the type of printer attached to each
printer port. You can get the printer type from the
manufacturer of the printer.
![](/img.php?id=1245741&img=bg5a.png)
82

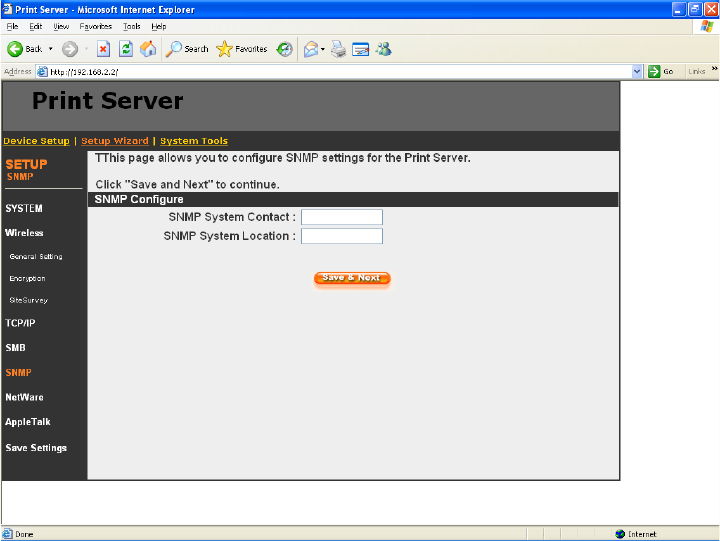

7.9 SNMP Configuration
Double Click “SNMP” icon and the SNMP
configuration window will pop up.
Contact: You can enter the print server administrator’s
contact information here. This information will be
displayed in the SNMP management tool.
Location: You can enter the installed location of the
print server here. This information will be displayed in the
SNMP management tool.
![](/img.php?id=1245741&img=bg5b.png)
83
7.10 SMB Configuration
SMB Group Name, the name of SMB group that this
print server belongs to. All PC should join the same group
before they can use this print server by SMB protocol.
Pass Job when Error Occurred: When the printer is
interrupted because of paper out or off line while printing,
user can set the interval time to bypass the current printing
job. Or the printing document will not be printed
completely or with unformatted messages. The range is
from 1 to 120 seconds.
![](/img.php?id=1245741&img=bg5c.png)
84
7.11 System Configuration
Double Click “System” icon and the System
configuration window will pop-up.
In the System configuration page, you can select to
enable/disable each printing or management protocol,
assign name for each printer port of this print server,
upgrade the new firmware for this print server, and
enable/disable wireless function.
Upgrade Firmware: You can use this “Upgrade
Firmware” tool to update the newest firmware of the print
server. Click “ ” button and select the correct firmware in
your PC. After selecting the firmware file, click the
“Upgrade” button to finish the firmware update process.
85
Note that before you upgrade the firmware please make
sure that the IP Address settings of the print server are in
the same network as your computer.
Load Default: If you want to reset the Print Server to
default factory settings, please click “Load Default”.
Wireless Function: You can select “Auto”, Enable” or
“Disable” to manually configure the wireless function.
y Auto – “Auto” is the default setting of the print server. At this
mode, the print server will automatically decide to enable or
disable the wireless function. When the print server starts up, it
will auto-detect if the LAN port is connected to an active
network by an Ethernet cable. If this is the case, the print
server will run in Ethernet mode. If the print server is not
connected to an active network by Ethernet cable, the print
server will run in wireless LAN mode.
Users can plug the Ethernet cable to the print server at the first,
after configuring the print server features and wireless settings;
they can unplug the Ethernet cable to enable the wireless
connection. It makes the configuration much easier without
creating the wireless connection in advance.
Note: After you have set the wireless function, please remove
the Ethernet cable and then re-plug the power jack of the print
server to activate the wireless connection.
y Enable – Enable wireless function only, the print server’s
wireless LAN will be always enabled and Ethernet will be
always disabled.
86
y Disable – Disable the wireless function, the print server’s
wireless LAN will be always disabled and Ethernet will be
always enabled.
Domain Country: The wireless channels are different
from country to country. Generally, the channels are from 1
to 11 in USA and from 1 to 13 in Europe. The operating
channel will be set to the print server before importing. If
you are in different country, please make sure you have set
the available channels according to your location.
![](/img.php?id=1245741&img=bg5f.png)
87
7.12 Wireless Configuration
If you want to use the print server through wireless
LAN, please set up the print server through Ethernet first
and make sure your wireless LAN setting is correct. After
setting the wireless LAN, unplug the Ethernet cable and
restart the print server, then you can start to use the print
server through wireless LAN. If the wireless configuration
does not work, please plug the Ethernet cable again, restart
the print server and configure the print server through
Ethernet until the wireless LAN settings are correct.
The default settings of the print server wireless
function are as follows.
y Mode: Ad-Hoc
y SSID: Default
y Channel: 11
Double Click “Wireless” icon and the wireless
configuration window will pop-up.
88
If you use access point to build up wireless network,
you have to select “Infrastructure Mode”. If you do not
have any access point and want to use peer-to-peer
connection to build up wireless network, you have to select
“Ad-Hoc Mode”.
For the “Wireless Function” setting, you can select
“Auto”, Enable” or “Disable” to manually configure the
wireless function of the print server.
y Auto – “Auto” is the default setting of the print server. At this
mode, the print server will automatically decide to enable or
disable the wireless function. When the print server starts up, it
will auto-detect if the LAN port is connected to an active
network by an Ethernet cable. If this is the case, the print
server will run in Ethernet mode. If the print server is not
connected to an active network by Ethernet cable, the print
server will run in wireless LAN mode.
Users can plug the Ethernet cable to the print server at the first,
after configuring the print server features and wireless settings;
they can unplug the Ethernet cable to enable the wireless
connection. It makes the configuration much easier without
creating the wireless connection in advance.
Note: After you have set the wireless function, please remove
the Ethernet cable and then re-plug the power jack of the print
server to activate the wireless connection.
y Enable – Enable wireless function only, the print server’s
wireless LAN will be always enabled and Ethernet will be
always disabled.
![](/img.php?id=1245741&img=bg61.png)
89
y Disable – Disable the wireless function, the print server’s
wireless LAN will be always disabled and Ethernet will be
always enabled.
After selecting the operation modes of the wireless
function and setting the wireless function, click “Next” to
go to further detailed configuration.
Infrastructure Mode:
In the Infrastructure mode, you have to let the print
server associate with an access point. You let the print
server scan for an available access point automatically or
manually assign the SSID of the access point you want to
use.
If you select to let the print server scan for an
available access point, the following window will pop up.
![](/img.php?id=1245741&img=bg62.png)
90
The list is the scanned available access points. Select
an access point in the list and click “Next”. If you cannot
find the access point that you want to use, click “Scan” to
let the print server scan again.
Ad Hoc Mode:
![](/img.php?id=1245741&img=bg63.png)
91
In the Ad-Hoc mode, you can let the print server
automatically associate with other wireless station or
manually assign the SSID of your wireless network. You
can let the print server automatically select the channel that
is the same with the peer or manually assign a channel.
If you select to let the print server scan for an active
wireless station, the following window will pop up.
The list is the scanned active wireless stations. Select a
wireless station in the list and click “Next”. If you cannot
find the wireless station that you want the print server to
communicate with, click “Scan” to let the print server scan
again.
![](/img.php?id=1245741&img=bg64.png)
92
Both “Infrastructure” and “Ad-Hoc” mode have to go
through the following procedure:
This print server supports WEP and WPA-PSK security
mode. If you want to use WEP encryption to protect your
wireless network, you have to select “WEP(ASCII)” or
“WEP(HEX)”. If you want to use WPA-PSK, you have to
select “WPA-shared key” or “WPA-None” specified for Ad
Hoc mode. The wireless security setting should be the same
with other wireless devices in the same network.
![](/img.php?id=1245741&img=bg65.png)
93
WEP Security Mode:
You can select “64 bit” or “128 bit” length and
“Hexadecimal” or “ASCII” format for the encryption key.
Longer key length can provide stronger security but worth
communication performance.
Enter four key values by following the rules below and
select one key as the default key.
![](/img.php?id=1245741&img=bg66.png)
94
y PassPhrase – A passphrase simplifies the WEP encryption
process by automatically generating the WEP encryption keys
for the print server. This setting is only valid when the security
mode is in “WEP(HEX)”.
y Key 1 to Key 4 – If the key length is 64-bit, enter 10-digit Hex
values or 5-digit ASCII values as the encryption keys. For
example: “0123456aef“ or “Guest“.
If the key length is 128-bit, enter 26-digit Hex values or 13-
digit ASCII values as the encryption keys. For example:
“01234567890123456789abcdef“ or “administrator“.
WPA-shared key or WPA-None Security Mode:
![](/img.php?id=1245741&img=bg67.png)
95
“WPA-shared key” (for an infrastructure network) or
“WPA-None” (enables WPA security for your ad hoc
network) requires users to set the advanced encryption
methods, i.e. TKIP and enter a set of shared key.
y TKIP – TKIP (Temporal Key Integrity Protocol) changes the
temporal key every 10,000 packets. This insures much greater
security than the standard WEP security.
y Shared Key – Enter 8 to 63 digits of ASCII format to be the
key for the authentication within the network.
When you finish configuring the wireless security,
click “Next” to go to next step.
![](/img.php?id=1245741&img=bg68.png)
96
You can select to let the print server automatically
obtain IP settings with DHCP client or manually assign the
IP settings.
If you manually assign the IP settings, you have to
enter IP address, subnet mask and default gateway address.
When you finish configuring the IP settings, click
“Next” to confirm the IP Address configuration.
97
Click “Save” to save the wireless configuration.
![](/img.php?id=1245741&img=bg6a.png)
98
7.13 Wizard
Click “Wizard” icon on the tool bar, the setup
wizard item of the current selected print server will be
showed on the right side of the window.
Double click the “Print Server Setup Wizard” the setup
wizard will guide you through all the setup process.
![](/img.php?id=1245741&img=bg6b.png)
99
Step 1: Set up the name of this print server and select
to enable or disable the wireless function.
Step 2: Select to enable required printing protocol.
Please refer to section 7.11 for detail information.
![](/img.php?id=1245741&img=bg6c.png)
100
Step 3: Setup the IP of this print server and the DHCP
server. Please refer to section 7.6 for detail information.
Step 4: Setup the AppleTalk printing. Please refer to
section 7.8 for detail information.
![](/img.php?id=1245741&img=bg6d.png)
101
Step 5: Setup the NetWare printing. Please refer to
section 7.7 for detail information.
Step 6: Select the Wireless Adapter mode and complete
wireless LAN settings. The other procedures are the same
with “Wireless” Setting in “Setup” screen. Please refer to
section 7.12 for detail information.
![](/img.php?id=1245741&img=bg6e.png)
102
Step 7: Click “Save” to finish setting. Please reboot
the print server to let these settings take effect.
![](/img.php?id=1245741&img=bg6f.png)
103
7.14 Report
Click “Report” icon on the tool bar, the Report
window will pop up.
The report lists basic information of all available print
servers on the network. The information includes Device
Name, MAC ID, Model Type and Firmware Version of the
print server.
104
8. Web Management
105
8.1 Introduction
Print server can be configured and managed on the
Web. Through Local Area Network, or even Internet,
administrator can easily configure and manage print
server’s various main functions in browsers. Simply enter
print server’s IP address into your browser’s address field
to manage a print server by print server’s built-in Web
Server.
The default IP Address, User Name and Password
settings of the Print server are as follows.
y IP Address: 192.168.2.2
y User Name: Admin
y Password: 1234
![](/img.php?id=1245741&img=bg72.png)
106
8.2 Login
You may use any Web Browser to review the status or
configure the settings of the print server. After entering the
IP address of the print server, a login page display. You
have to enter correct “User Name” and “Password” before
going to the Web Management pages.
Notes: Default User Name is “admin”, default
password is “1234”.
![](/img.php?id=1245741&img=bg73.png)
107
8.3 Device Status
8.3.1 System
System Information includes “Device Name”, “Print
Server Name”, “Model Type”, “Firmware Version”, “MAC
Address”, “Wireless LAN Configuration” and the protocols
enabled status, etc.
![](/img.php?id=1245741&img=bg74.png)
108
8.3.2 Printer
This page lists information of printers connected to all
printer ports.
![](/img.php?id=1245741&img=bg75.png)
109
8.3.3 TCP/IP
This page lists all TCP/IP settings of the print server
including “IP Address”, “Subnet Mask” and “Gateway”. It
also lists DHCP server setting.
![](/img.php?id=1245741&img=bg76.png)
110
8.3.4 SMB
This page lists the SMB group and the pass job interval
time settings of the print server.
![](/img.php?id=1245741&img=bg77.png)
111
8.3.5 SNMP
This page lists the SNMP settings of the print server. It
includes the settings of “SNMP System Contact” and
“SNMP System Location”.
![](/img.php?id=1245741&img=bg78.png)
112
8.3.6 NetWare
This page lists NetWare settings, including “Polling
Time”, “Use Bindery Mode”, “Name of the File Server” and
“Port Attached Queue”.
![](/img.php?id=1245741&img=bg79.png)
113
8.3.7 AppleTalk
This page lists AppleTalk settings, including
“AppleTalk Zone Name” and “Printer Type” of printers
connected to all print ports.
![](/img.php?id=1245741&img=bg7a.png)
114
8.4 Setup Wizard
8.4.1 System
You can change the print server name and password of
the print server from here.
Print Server Name, the name of the print server. You
can use this name to identify the print server when you are
searching for the print server by the administration and
client utilities.
Password, enter the password you want to change to
the print server. The password can be up to 7-digit
alphanumeric format. The default password is “1234”.
Re-type Password, enter the password you want to
change to the print server again.
![](/img.php?id=1245741&img=bg7b.png)
115
8.4.1.1 Advanced Settings
You can enable/disable the printing protocols from the
screen. To enable the function, please select “Enable”; to
disable the function, please select “Disable”.
![](/img.php?id=1245741&img=bg7c.png)
116
8.4.2 Wireless
If you want to use the print server through wireless
LAN, please set up the print server through Ethernet first
and make sure your wireless LAN setting is correct. After
setting the wireless LAN, unplug the Ethernet cable and
restart the print server, then you can start to use the print
server through wireless LAN. If the wireless configuration
does not work, please plug the Ethernet cable again, restart
the print server and configure the print server through
Ethernet until the wireless LAN settings are correct.
8.4.2.1 General Setting
You can enable/disable the wireless function and set
parameters that are used for the wireless stations to connect
to this print server from here. The parameters include
“Function”, “Mode”, “ESSID” and “Channel Number”. You
can manually set the parameters of wireless LAN in this
117
page or use the “Site Survey” function to automatically
search for an available access point and associate with it.
Wireless Setting
Function is for user to disable, enable or let the print
server auto select to connect to the wired or wireless
network.
y Auto – “Auto” is the default setting of the print server. At this
mode, the print server will automatically decide to enable or
disable the wireless function. When the print server starts up, it
will auto-detect if the LAN port is connected to an active
network by an Ethernet cable. If this is the case, the print
server will run in Ethernet mode. If the print server is not
connected to an active network by Ethernet cable, the print
server will run in wireless LAN mode.
Users can plug the Ethernet cable to the print server at the first,
after configuring the print server features and wireless settings;
they can unplug the Ethernet cable to enable the wireless
connection. It makes the configuration much easier without
creating the wireless connection in advance.
Note: After you have set the wireless function, please remove
the Ethernet cable and then re-plug the power jack of the print
server to activate the wireless connection.
y Enable – Enable wireless function only, the print server’s
wireless LAN will be always enabled and Ethernet will be
always disabled.
118
y Disable – Disable the wireless function, the print server’s
wireless LAN will be always disabled and Ethernet will be
always enabled.
Mode is the operation mode of wireless station. You
can choose ether “Ad Hoc” or “Infrastructure” mode. If you
do not have any access point and want to use peer-to-peer
connection, you have to choose “Ad Hoc” mode. If you
have an access point as the wireless LAN infrastructure,
you have to choose “Infrastructure” mode.
ESSID is the unique name identified by in a wireless
LAN. The ID prevents the unintentional merging of two co-
located WLANs. Please make sure that the ESSID of all
stations and access points in the same WLAN network are
the same.
Channel Number is the channel number of your
wireless LAN. Please make sure that the channel number of
all stations and access points in the same WLAN network
are the same.
Wi-Fi Protected Setup (WPS)
Wi-Fi Protected Setup (WPS) is the latest wireless
network technology which makes wireless network setup
become very simple. If you have WPS-enabled wireless
access point, and you want to establish a secure connection
to it, you don’t have to configure the wireless access point
and setup data encryption by yourself. All you have to do is
to go to the WPS setup page of this print server, click a
button, and then press a specific button or enter a set of 8-
digit code on the wireless access point you wish to
establish a secure connection - just three simple steps!
119
This wireless print server is compatible with WPS. To
use this function, the wireless access point you wish to
connect to must support WPS function too. Now, please
follow the following instructions to establish secure
connection between WPS-enabled wireless access point
you’re your wireless network card.
Self Pincode is the Here displays the WPS pin code
used to connect to WPS-enabled wireless access points.
You have to input this number into the WPS enabled access
point to establish WPS connection.
Configure via Push Button Click this button and this
camera will enter PBC-style WPS connection state for 120
seconds. Please push ‘Start PBC’ button on the wireless
access point you wish to connect within 120 seconds to
establish WPS connection (The remaining time will be
displayed on the button).
If connection can not be established after 120 seconds,
you’ll be prompted by a message box, and you can press
‘Start PBC’ button to try again
Registrar SSID type in the SSID of the AP you want
to connect to.
Configure via PinCode If you have wireless access
point’s WPS PIN code, you can input it here and press
‘Start PIN’ button to start to establish PIN-style WPS
connection.
![](/img.php?id=1245741&img=bg80.png)
120
8.4.2.2 Encryption
This print server supports WEP and WPA-PSK security
mode. If you want to use WEP encryption to protect your
wireless network, you have to select “WEP”. If you want to
use WPA-PSK, you have to select “WPA-PSK” (for an
infrastructure network or “WPA-NONE” (enables WPA
security for an ad hoc network). The wireless security
setting should be the same with other wireless devices in
the same network.
WEP Security Mode:
y Key Length – You can choose “64-bit” to use WEP with 64-
bit key length encryption or choose “128-bit” to use WEP with
128-bit key length encryption. The longer key length can
provide better security but worse transmission throughput.
121
y Key Format – You may select to use ASCII Characters
(alphanumeric format) or Hexadecimal digits (in the "A-F",
"a-f" and "0-9" range) to be the WEP Key.
y PassPhrase – A passphrase simplifies the WEP encryption
process by automatically generating the WEP encryption keys
for the print server.
y Default Key – Select one of the four keys to encrypt your data.
Only the key you select it in the “Default key” will take effect.
y Key 1 – Key 4 – The WEP keys are used to encrypt data
transmitted within the wireless network. Fill the text box by
following the rules below.
64-bit WEP: input 10-digit Hex values (in the "A-F", "a-f" and
"0-9" range) or 5-digit ASCII character as the encryption keys.
For example: “0123456aef“ or “Guest“.
128-bit WEP: input 26-digit Hex values (in the "A-F", "a-f"
and "0-9" range) or 10-digit ASCII characters as the
encryption keys. For example:
“01234567890123456789abcdef“ or “administrator“.
![](/img.php?id=1245741&img=bg82.png)
122
WPA-PSK Security Mode:
“WPA-shared key” (for an infrastructure network)
requires users to set the advanced encryption methods, i.e.
TKIP and enter a set of shared key.
y TKIP – TKIP (Temporal Key Integrity Protocol) changes the
temporal key every 10,000 packets. This insures much greater
security than the standard WEP security.
y WPA Pre-Shared Key – Enter 8 to 63 digits of ASCII format
to be the key for the authentication within the network.
![](/img.php?id=1245741&img=bg83.png)
123
WPA2-PSK Security Mode:
y Pre-Shared Key Format– Seles the type of pre-shared key, you
can select passphrase (8 or more alphanumerical characters, up
to 63), or Hex (64 characters of 0-9, and a-f).
y Pre-Shared Key –Enter 8 to 63 digits of ASCII format to be
the key for authentication within the network.
When you finish configuring the wireless security,
click “Save & Next” to confirm the configuration.
![](/img.php?id=1245741&img=bg84.png)
124
8.4.2.3 Site Survey
You can use this “Site Survey” function to search for
available access points in you location. In the list is the
information of all available access points or wireless
stations, includes SSID, BSSID, Channel, Type, Encryption
and Signal Strength. You can select one wireless device in
the list for this print server to associate with or you have to
use General Setting to manually setup the wireless
parameters.
Select: click the radio button in the “Select” column,
and then click “Submit”. The print server will be connected
to the wireless device you have selected.
Refresh: click “Refresh” to update the list.
![](/img.php?id=1245741&img=bg85.png)
125
Next Page: go to next web page.
Sumbit: Click “Submit” to confirm the connection
with the wireless device.
There is also a “WLAN Function” setting for you to
setup Auto/Disable/Enable wireless function of the print
server here. Please refer to section 8.4.2.1 to know more
about the setting.
8.4.3 TCP/IP
You can configure the print server to automatically get
IP from DHCP server or manually specify static IP. The
print server also has a built-in DHCP server. You can
enable this DHCP server and let it manages IP for you.
If you need the print server to automatically get an IP
from DHCP server, select “Enable Obtain TCP/IP Settings
![](/img.php?id=1245741&img=bg86.png)
126
Automatically (Use DHCP/ BOOTP)”. You also can select
“Disable Use the following TCP/IP Settings” to manually
assign “IP Address”, “Subnet Mask” and “Gateway” for the
print server.
You can enable/disable or set auto for the print
server’s DHCP server. The DHCP server is disabled by
default. If the DHCP Server is enabled or set Auto, you
have to assign a range of IP addresses here. Fill in the
“Start IP”, “Range”, “DNS”, “Subnet Mask” and “Gateway”,
and the print server will assign a unique IP for each client.
Note that when “Auto” is selected, the DHCP Server of the
print server will be enabled only when there is no other
DHCP Server within the network.
8.4.4 SMB
![](/img.php?id=1245741&img=bg87.png)
127
You can enable/disable the SMB protocol from here. If
SMB is enabled, enter the “SMB Group Name” to specify
the SMB group that this print server belongs to. All PC
should join the same group before they can use this print
server by SMB protocol.
“Pass Job When Error Occurred” is for you to set the
interval time for bypassing the current printing job in order
to avoid the printing job is not printed completely while the
printer is interrupted unexpectedly because of paper out or
off line.
8.4.5 SNMP
The print server supports SNMP configuration. If it is
enabled, please set up the following parameters.
![](/img.php?id=1245741&img=bg88.png)
128
SNMP System Contact: You can enter the print server
administrator’s contact information here. This information
will be displayed in the SNMP management tool.
SNMP System Location: You can enter the installed
location of the print server here. This information will be
displayed in the SNMP management tool.
8.4.6 NetWare
This print server supports NetWare Bindery Printing
method. The print server periodically polls the NetWare
server printer queues for printing jobs. You have to assign
the NetWare server name, print server polling interval and
the name of queue on the NetWare server for each printer
port.
![](/img.php?id=1245741&img=bg89.png)
129
Polling Time is the polling interval of the print server
for waiting printing jobs on the NetWare server.
Name of the File Server is the name of the NetWare
file server that provides printer queues.
8.4.7 AppleTalk
AppleTalk is a data communication protocol often used
by Macintoshes. The print server can use these parameters
to join the AppleTalk network and share the printer to other
AppleTalk workstations. You have to select to enable or
disable AppleTalk, and setup the “Zone Name” and “Printer
Type” for each printer port of this print server.
AppleTalk Enable: Enable or disable “AppleTalk”.
AppleTalk Zone Name: Print server has to join zones
of AppleTalk before it can be shared to other workstations.
![](/img.php?id=1245741&img=bg8a.png)
130
Only workstations in the same zone can share the printer. If
you want to share the printer to all workstations in all
Zones, you should enter only “*” in the “Zone Name” field.
Printer Type, the type of printer attached to each
printer port. You can get the printer type from the
manufacturer of the printer.
8.4.8 Save Settings
You can click the “Save Settings” to save the settings
and restart the system.
![](/img.php?id=1245741&img=bg8b.png)
131
8.5 System Tools
8.5.1 Load Default
You can use this page to restore the factory default
settings. All of your previous setup will be cleared.
![](/img.php?id=1245741&img=bg8c.png)
132
8.5.2 Upgrade Firmware from Browser
You can upgrade new firmware for this print server in
this page. Click “Browse” to select the new firmware in
your storage and then click “OK”, the firmware will be
updated in several minutes.
Be aware that if you have started upgrading firmware,
you have to follow all the upgrading steps or the print
server can’t turn back to normal configuration.
133
9. IPP Printing
134
9.1 Introduction
IPP (Internet Printing Protocol) Printing provides a
convenient way of remote printing service by TCP/IP. The
print server can support IPP printing by default. It is
needless to do any setting. Any PC that can support IPP
printing, for example Windows 2000/XP, can directly uses
the print server by IP. By using the IPP printing, you can
share the printer to all the PC’s that can access the print
server by IP. You can even share your printer to Internet
users.
135
9.2 System Setup
9.2.1 Print Server Side
It is needless to do any setting on the print server side.
Make sure the print server has correct IP settings. If you
want to share the printers to Internet users, you have to set
a real IP to the print server. You also have to make sure
that any gateway, router or firewall does not block IPP
protocol if you have these gateway devices installed in your
network.
9.2.2 Client Side
You only need to perform Window’s standard Add New
Printer procedure.
Step1. Click “Start”, choose “Settings” and select
“Printers and Faxes”.
Step2. Click “Add a Printer”.
![](/img.php?id=1245741&img=bg90.png)
136
Step3. The “Add Printer Wizard” is displayed. Click
“Next”.
Step4. Select “A network printer, or a printer
attached to another computer”. Click “Next”.
![](/img.php?id=1245741&img=bg91.png)
137
Step5. Select “Connect to a printer on the Internet or
on a home or office network” and enter the
URL of print server. The URL format is
“http://IP:631/Port Name”. The IP should be
the print server’s IP. The number 631 is IPP
standard port number. Port Name is the port
name of print server that your printer is
connected to. The default port name is “lpt1”.
One example of the URL is
http://192.168.3.66:631/lpt1. After entering the
URL of print server, click “Next”.
![](/img.php?id=1245741&img=bg92.png)
138
Step6. Select a suitable printer manufacturer and the
printer model and click “Next”. If your printer
is not in the list, click “Have Disk…” to install
the driver of the printer. After installation, the
printer model will be added to the list.
Step7. Choose to set the print whether as a default
printer or not. Click “Next”.
![](/img.php?id=1245741&img=bg93.png)
139

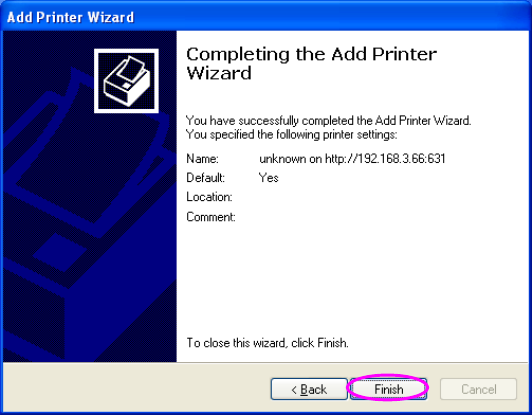

Step8. You have added the network printer to the PC
successfully. The information of the printer is
displayed in the windows. Click “Finish”.
140
10. LPR Printing
141
10.1 Introduction
LPR Printing (Line Printer Remote technology) allows
users to connect to printers via TCP/IP for printing sharing.
The computer with Windows 98SE/Me/NT/2000/XP/2003,
Windows Vista and 7 and MAC OS 10.x Operating Systems
can use the protocol to share printing in the network. Print
Server can support LPR printing by default.
If you install the Print Server in Windows
98SE/Me/NT, the Print Server provides a tool “Network
Ports Quick Setup” that helps to add the LPR protocol to
users’ computer easily. Please refer to Section 3.5.1.
To configure the LPR setting in Windows
2000/XP/Vista/7 and MAC OS 10.x, please follow the
procedures describe in the following sections.
![](/img.php?id=1245741&img=bg96.png)
142
10.2 Standard LPR Settings in Windows
XP
To configure the LPR setting in Windows XP, please
follow the steps below. The LPR setup procedures in
Windows 2000 and 2003 are similar.
1. Click “Start”, choose “Settings” and select “Printers and
Faxes”.
2. Click “Add a Printer”.
3. The “Add Printer Wizard” is displayed. Click “Next”.
![](/img.php?id=1245741&img=bg97.png)
143
4. Select “Local Printer attached to this computer” and
click “Next”.
5. Choose “Create a new port” and “Standard TCP/IP Port”.
Click “Next”.
![](/img.php?id=1245741&img=bg98.png)
144
6. Please make sure that the Print Server and the Printer
have turned on and connected to the network correctly
before you continue. Click “Next”.
7. Enter the IP Address of the Print Server in the “Printer
Name or IP Address”. Click “Next”.
![](/img.php?id=1245741&img=bg99.png)
145

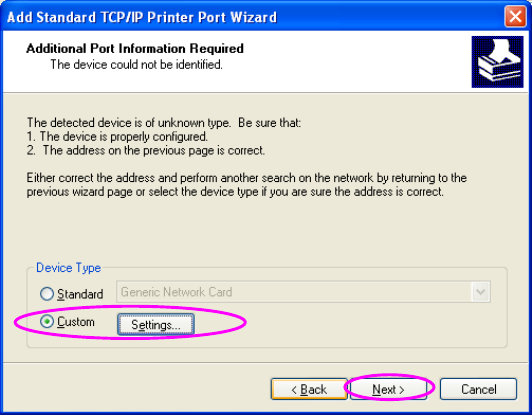

8. Select “Custom” and click “Settings”. When you have
finished the settings at step 9, click “Next” to continue.
9. Select “LPR” and enter “lpt1” in the “Queue Name”,
click “OK”. By default the queue name of the Print
Server is “lpt1”.
![](/img.php?id=1245741&img=bg9a.png)
146
10. Click “Finish”.
![](/img.php?id=1245741&img=bg9b.png)
147
11. Select a suitable printer manufacturer and the
printer model and click “Next”. If your printer is not in
the list, click “Have Disk…” to install the driver of the
printer. After installation, the printer model will be
added to the list.
12. Choose to set the print whether as a default printer
or not. Click “Next”.
![](/img.php?id=1245741&img=bg9c.png)
148
13. You have added the network printer to the PC
successfully. The information of the printer is displayed
in the windows. Click “Finish”.
![](/img.php?id=1245741&img=bg9d.png)
149
10.3 Standard LPR Settings in Windows
Vista and 7
To configure the LPR setting in Windows Vista and 7,
please follow the steps below.
1. Click “Start”, select “Settings\Printers”.
2. Click “Add a Printer”.
3. The “Add Printer” wizard is displayed. Select “Add a
local printer”.
![](/img.php?id=1245741&img=bg9e.png)
150
4. Choose “Create a new port” and select “Standard TCP/IP
Port”. Click “Next”.
5. Enter the IP Address of the Print Server in the
“Hostname or IP address” field. Click “Next”.
![](/img.php?id=1245741&img=bg9f.png)
151
6. Select “Custom” and click “Settings”. When you have
finished the settings at step 7, click “Next” to continue.
7. Select “LPR” and enter “lpt1” in the “Queue Name”,
click “OK”. By default the queue name of the Print
Server is “lpt1”.
![](/img.php?id=1245741&img=bga0.png)
152
8. Select the printer manufacturer and the printer model
and click “Next”. If your printer is not in the list, click
“Have Disk…” to install the driver of the printer. After
installation, the printer model will be added to the list.
![](/img.php?id=1245741&img=bga1.png)
153
9. Name your printer and set the default printer, click
“Next”.
10. The printer drivers are being installed.
![](/img.php?id=1245741&img=bga2.png)
154
11. It is recommended to print a test page. Click
“Finish”.
12. The printer is added to “Printers” page, you have
added the printer to your computer successfully. Now
you can start to print from your computer to the print
server.
155
10.4 Standard LPR Settings in MAC OS
10.x
10.4.1 MAC 10.4.x
To enable LPR Printing in Macintosh 10.4.x, please
follow the procedures below.
1. Open Print and Fax from the System Preferences.
2. With the Printing tab selected, click the “Add” button.
3. When the Printer Browser opens, select “IP Printer”.
4. In the “IP Printer” screen, please configure as below.
Protocol: Select Line Printer Daemon - LPD as the
Protocol.
IP Address: Set the address to the Print Server’s IP
Address, for example: 192.168.2.2.
Queue: Set the queue name to lpt1.
Name: You can designate a name for the printer.
Location: You can enter the location of the printer.
Printer: Select the printer model that is attached to the
Print Server.
5. Click “Add” to complete the printer installation.
![](/img.php?id=1245741&img=bga4.png)
156
10.4.2 MAC 10.3.x
To enable LPR Printing in Macintosh 10.3.x, please
follow the procedures below.
1. In the Desktop, click “System Preferences”.
2. Click “Print & Fax”.
![](/img.php?id=1245741&img=bga5.png)
157
3. From the “Print & Fax” screen, click “Set Up Printers…”.
4. Click “Add” to add the new Print Server through TCP/IP.
![](/img.php?id=1245741&img=bga6.png)
158
5. Enter the “Printer Type”, “Printer Address” and “Queue
Name” and select the “Printer Model” to setup the Print
Server. Click “Add” to continue.
Printer Type: LPD/LPR
Printer Address: Input the IP Address of the Print Server
Queue Name: The queue name of the Print Server is “lpt1”.
Printer Model: Select the Printer Model that is attached to
the Print Server.
![](/img.php?id=1245741&img=bga7.png)
159

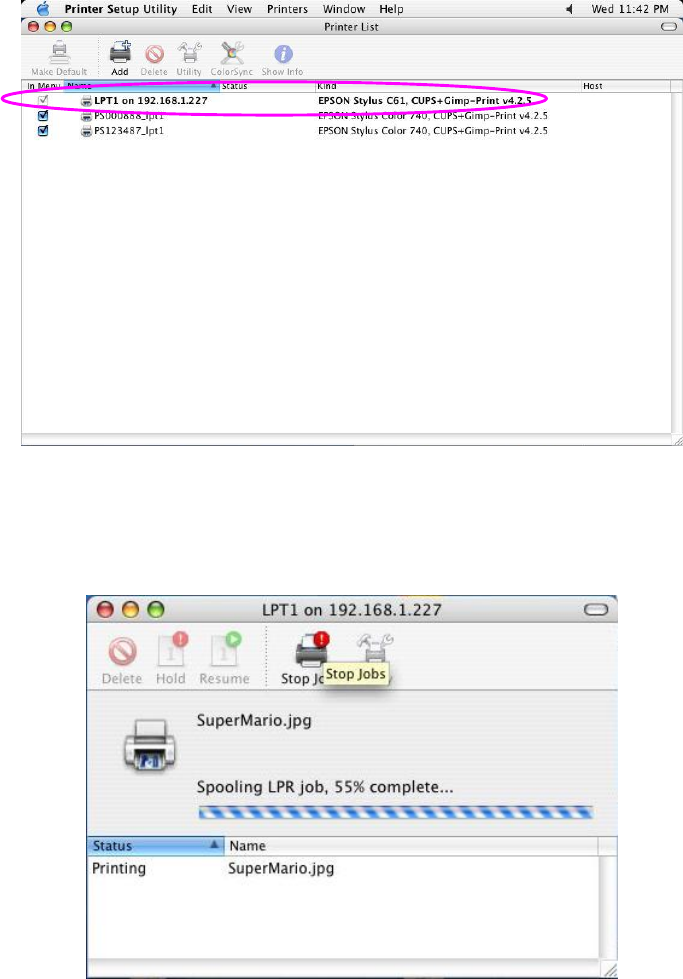

6. The Print Server is installed completely. You can see it
in the “Printer List”.
7. You can print a file to check whether the Print Server is
installed successfully.
![](/img.php?id=1245741&img=bga8.png)
160
11. Windows XP SP2 Setup
In Windows XP SP2, XP SP2’s firewall would block
the unknown communications. This print server has allowed
the communications data passed through the XP SP2’s
firewall.
In case that you do not find any print server listed on
the “Available Ports” in “Network Ports Quick Setup”,
please follow the steps below.
Step1. Click “Start”, choose “Settings” and select
“Network Connections”.
Step2. Right click “Local Area Connection” and
select “Properties”.
![](/img.php?id=1245741&img=bga9.png)
161
Step3. Select “Advanced” tab and click “Settings…”.
![](/img.php?id=1245741&img=bgaa.png)
162
Step4. Select “Exceptions” tab and click “Add
Program…”.
![](/img.php?id=1245741&img=bgab.png)
163

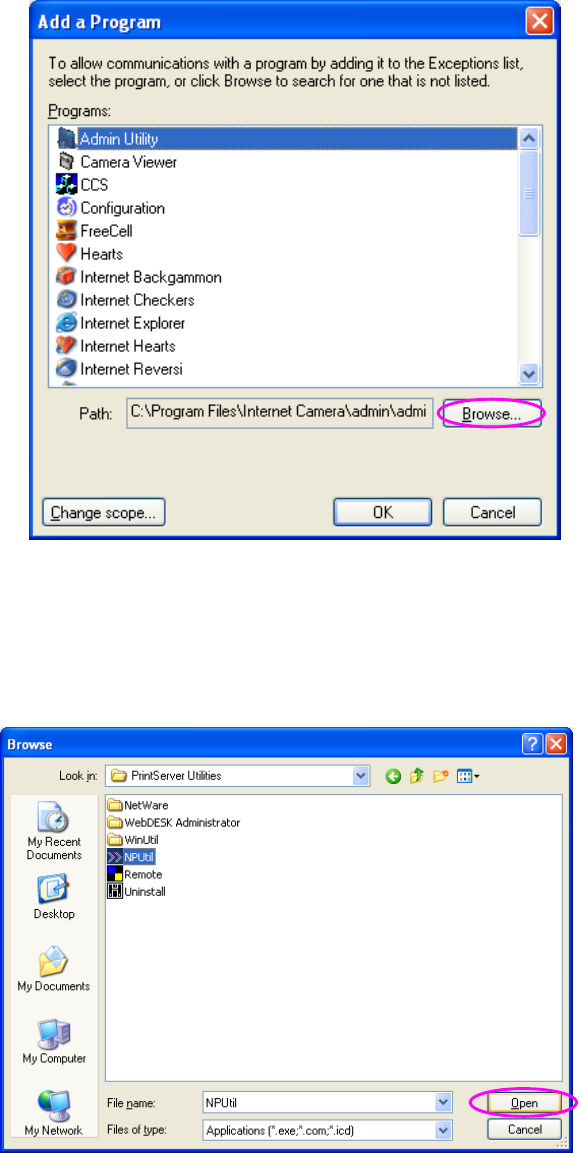

Step5. Click “Browse” to add a new program.
Step6. Open the “NPUtil” file from “C:\Program
Files\PrintServer Utilities” (where C:\ is the
system drive).
![](/img.php?id=1245741&img=bgac.png)
164
Step7. A new program “Network Ports Quick Setup”
is displayed in the list, click “Ok”.
![](/img.php?id=1245741&img=bgad.png)
165
Step8. Click “Ok”. You have completed the setting.
The Windows XP SP2 will allow the incoming
network connections activated by the program.
