1
EW-7288APC
User Manual
04-2014 / v1.0
2
CONTENTS
I. Product Information .............................................................................. 4
I-1. Package Contents .......................................................................................................... 4
I-2. LED Status ...................................................................................................................... 5
I-3. Back Panel ...................................................................................................................... 6
I-4. Safety Information ......................................................................................................... 7
II. Installation ............................................................................................ 8
II-1. Access Point Mode....................................................................................................... 10
II-2. Wi-Fi Bridge Mode ....................................................................................................... 12
II-6. WPS Setup .................................................................................................................... 17
II-7. Reset to Factory Default Settings ................................................................................ 17
III. Browser Based Configuration Interface ................................................. 19
III-1. Login ............................................................................................................................. 19
III-2. Save Settings ................................................................................................................ 21

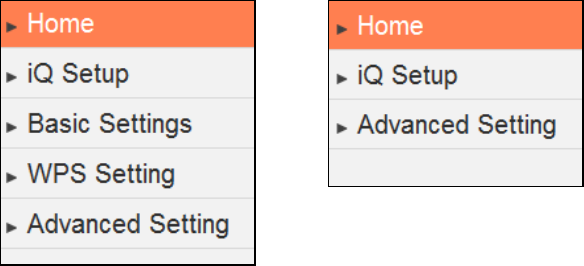

III-3. Main Menu .................................................................................................................. 22

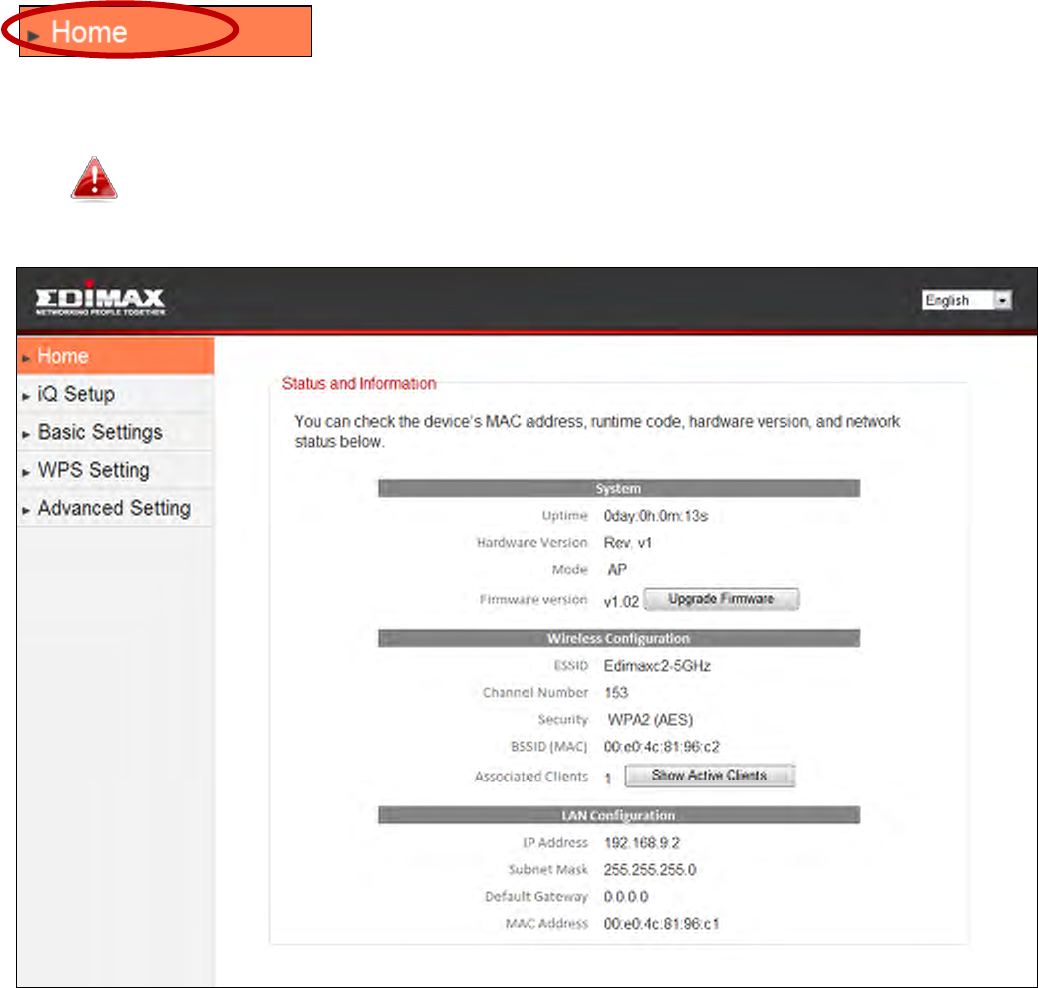

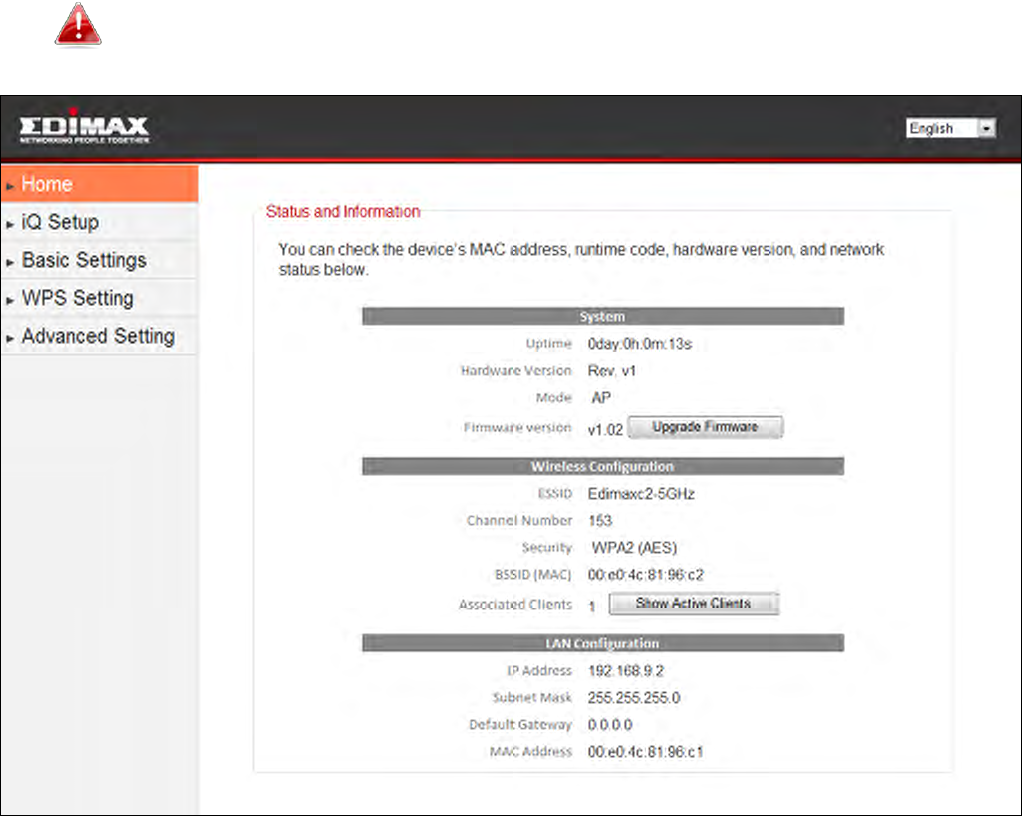

III-3-1. Home............................................................................................................................ 23
III-3-2. iQ Setup ....................................................................................................................... 24
III-3-3. Basic Settings ............................................................................................................... 27
III-3-4. WPS Setting .................................................................................................................. 29
III-3-5. Advanced Setting ......................................................................................................... 31
III-3-5-1. Security ........................................................................................................................ 33
III-3-5-1-1. Disable ......................................................................................................................... 34
III-3-5-1-2. WEP .............................................................................................................................. 34
III-3-5-1-3. WPA Pre-Shared Key .................................................................................................... 35
III-3-5-2. MAC Filtering ............................................................................................................... 35
III-3-5-3. Password Settings ........................................................................................................ 38
III-3-5-4. Administration Utility .................................................................................................. 38
III-3-5-5. Configuration Tools...................................................................................................... 40
IV. Appendix ............................................................................................. 42
IV-1. Configuring your IP address ......................................................................................... 42
IV-1-1. How to check that your computer uses a dynamic IP address ................................... 43
IV-1-1-1. Windows XP ................................................................................................................. 43
IV-1-1-2. Windows Vista ............................................................................................................. 45
IV-1-1-3. Windows 7 ................................................................................................................... 47

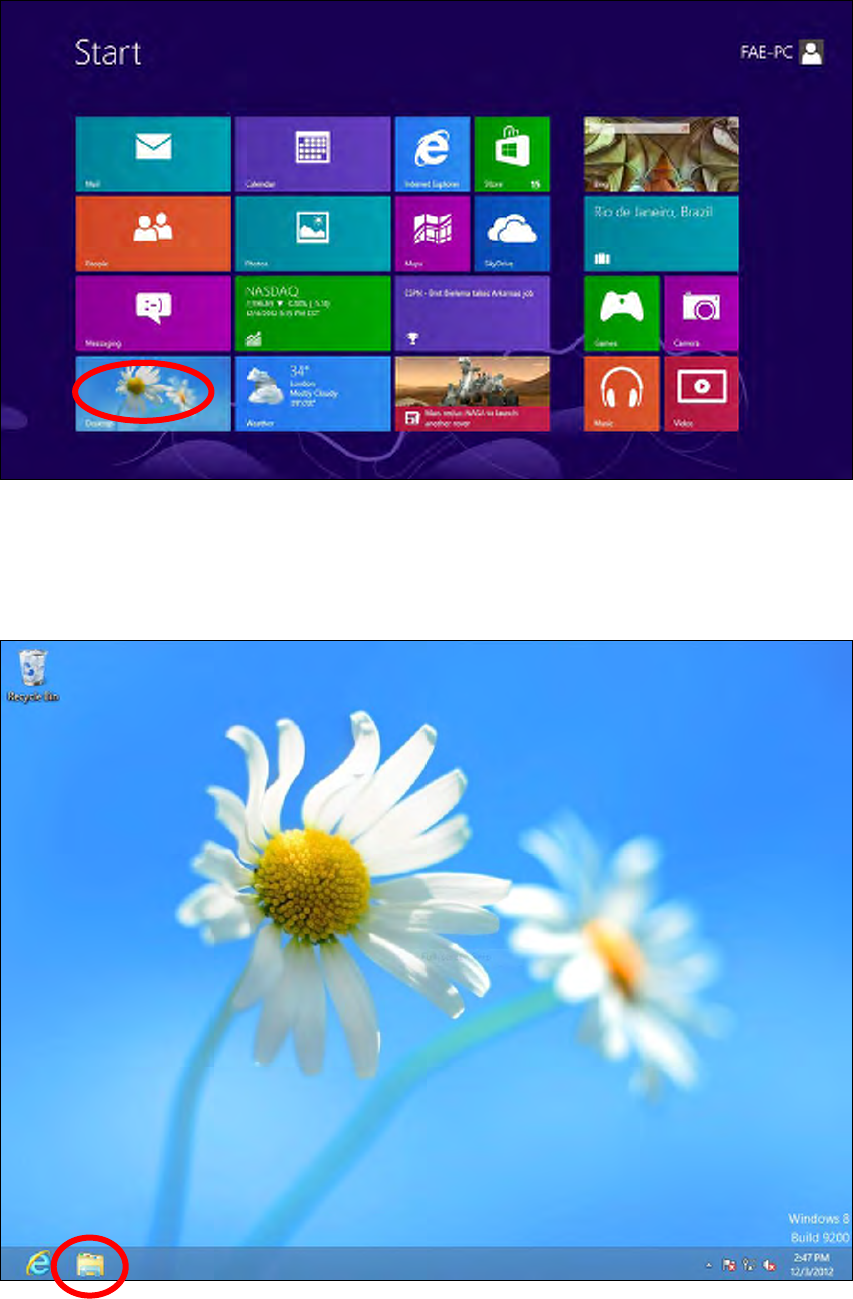

IV-1-1-4. Windows 8 ................................................................................................................... 50
3
IV-1-1-5. Mac OS ......................................................................................................................... 54

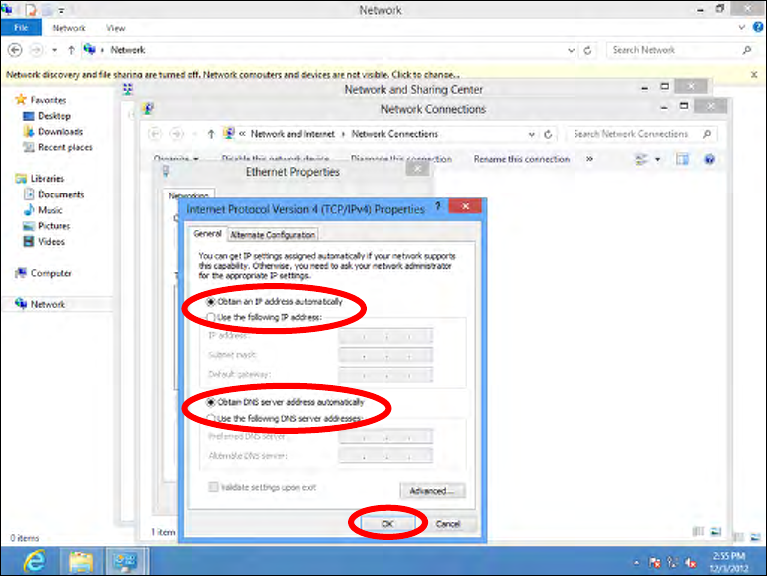

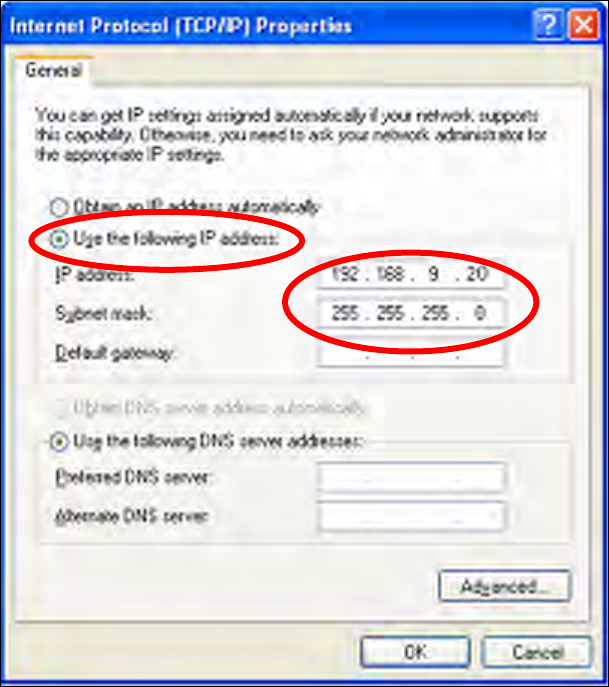

V-1-2. How to modify the IP address of your computer ........................................................ 56
V-1-2-1. Windows XP ................................................................................................................. 56
V-1-2-2. Windows Vista ............................................................................................................. 58
V-1-2-3. Windows 7 ................................................................................................................... 59
V-1-2-4. Windows 8 ................................................................................................................... 64
V-1-2-5. Mac .............................................................................................................................. 68

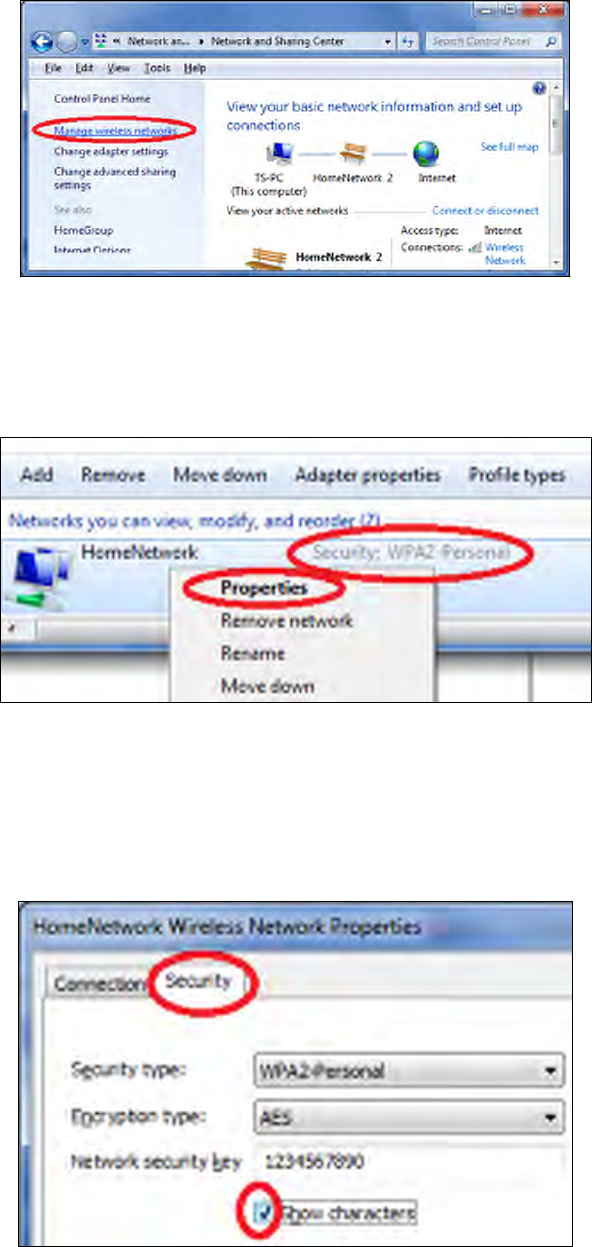

V-1-3. How to Find Your Network Security Key ..................................................................... 71
V-1-3-1. Windows 7 & Vista ....................................................................................................... 71

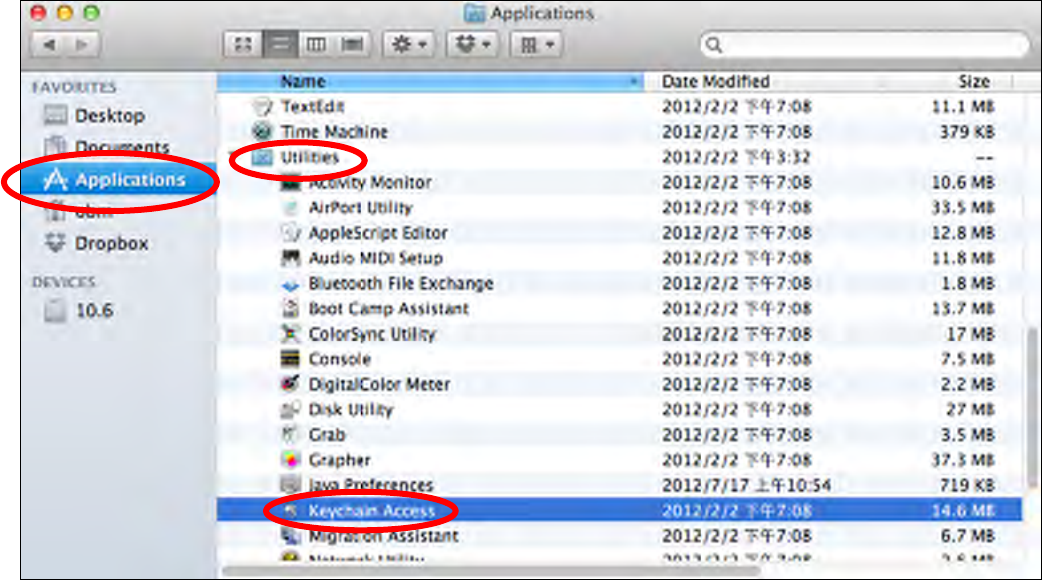

V-1-3-2. Mac .............................................................................................................................. 73
V-1-4. How to Find Your Router’s IP Address ......................................................................... 76
V-1-4-1. Windows XP, Vista & 7 ................................................................................................. 76
V-1-4-2. Windows 8 ................................................................................................................... 78
V-1-4-3. Mac .............................................................................................................................. 81
V-2. Connecting to a Wi-Fi network .................................................................................... 83
IV-3. Troubleshooting ........................................................................................................... 85
![](/img.php?id=2274377&img=bg4.png)
4
I. Product Information

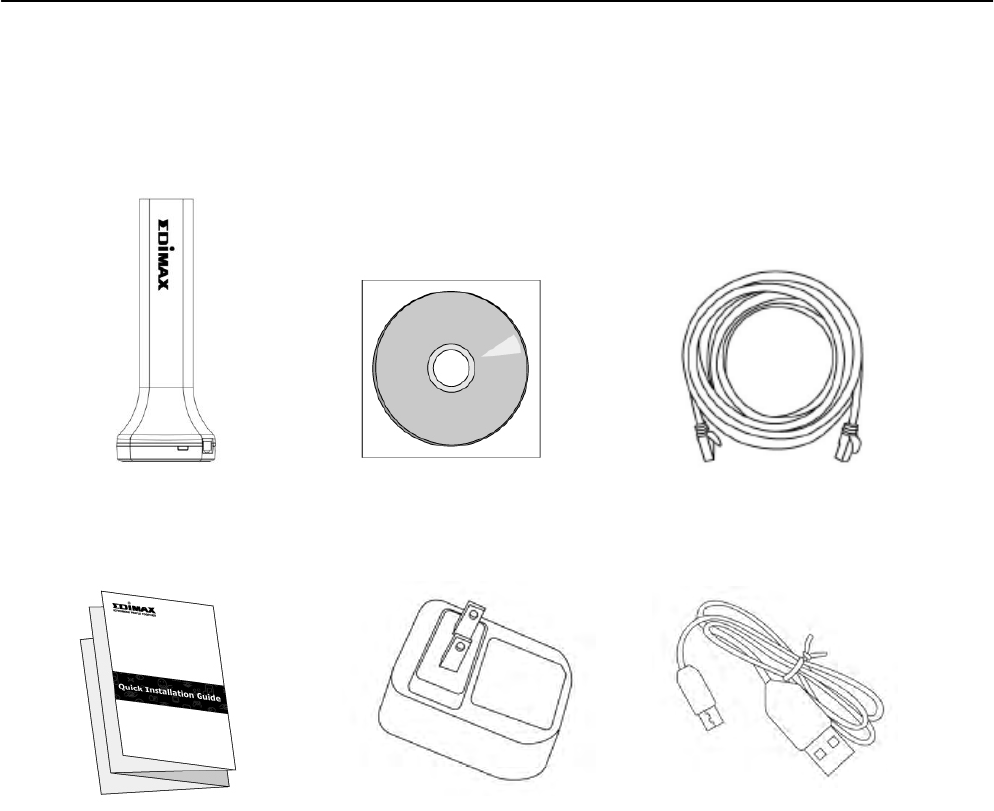

I-1. Package Contents
Before you start using this product, please check if there is anything missing in
the package, and contact your dealer to claim the missing item(s):
Quick Installation Guide
CD-ROM
USB Cable
Power Adapter
Ethernet Cable
EW-7288APC
C
![](/img.php?id=2274377&img=bg5.png)
5
I-2. LED Status
LED
Color
LED Status
Description
White
On
EW-7288APC is powered on.
Purple
Flashing
EW-7288APC is booting up,
resetting or upgrading firmware.
Red
On
WPS/Reset button has been
pressed for 10 seconds.
Flashing
Internet is disconnected.
Green
On
Wi-Fi is in standby mode or no
data transmission from wireless
clients.
Bright Green
On
EW-7288APC is ready after booting
and Ethernet cable is connected or
Wi-Fi is active and transmitting
data.
Blue
On
Indicates a successful WPS
connection (displays on for 5
minutes).
Flashing
WPS in progress: waiting for
connection.
Off
Off
EW-7288APC is off or in LED off
mode.
![](/img.php?id=2274377&img=bg6.png)
6

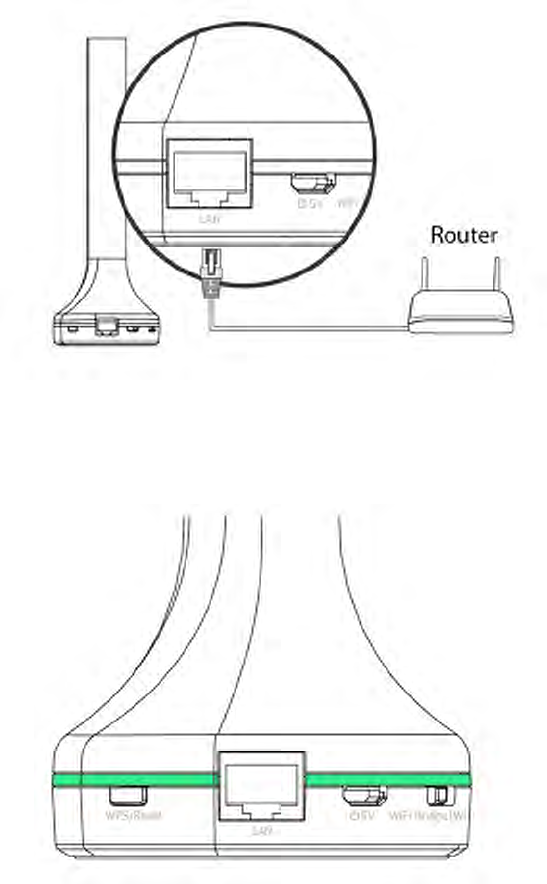

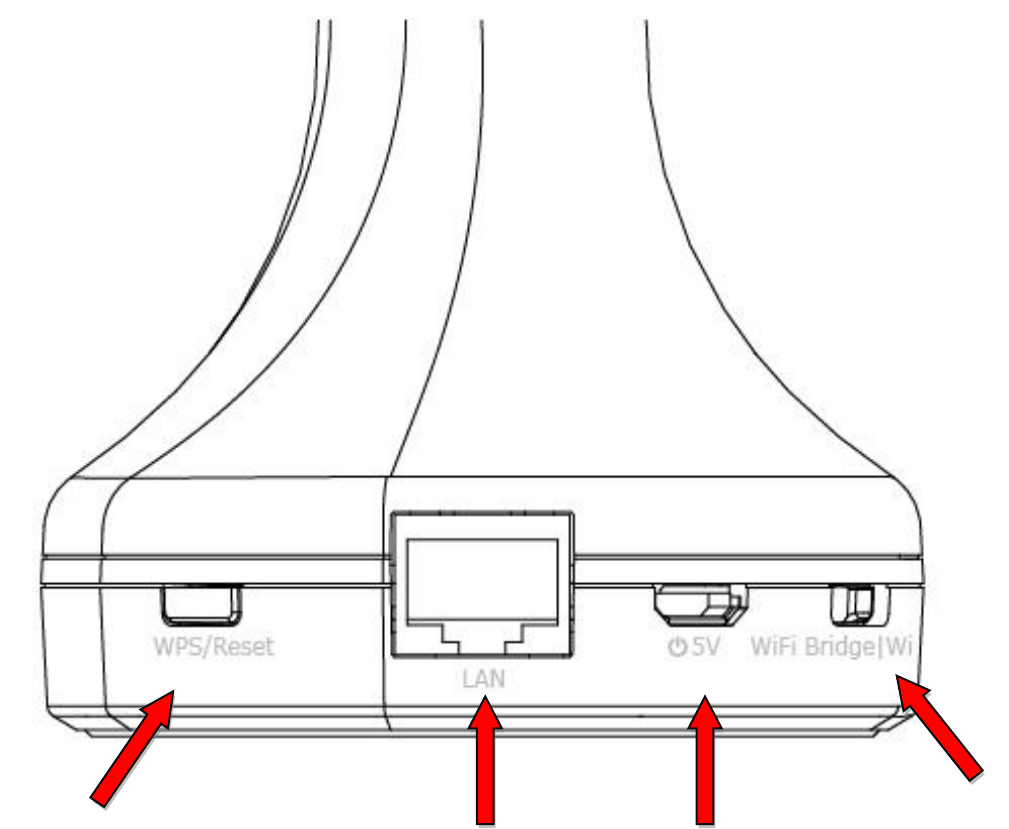

I-3. Back Panel
LAN Port
Mode Switch
WPS/Reset Button
Power Port
7
I-4. Safety Information
In order to ensure the safe operation of the device and its users, please read
and act in accordance with the following safety instructions.
1. The device is designed for indoor use only; do not place it outdoors.
2. Do not place the device in or near hot/humid places, such as a kitchen or
bathroom.
3. Do not pull any connected cable with force; carefully disconnect it from the
EW-7288APC.
4. Handle the device with care. Accidental damage will void the warranty of
the device.
5. The device contains small parts which are a danger to small children under
3 years old. Please keep the device out of reach of children.
6. Do not place the device on paper, cloth, or other flammable materials. The
device may become hot during use.
7. There are no user-serviceable parts inside the device. If you experience
problems with the device, please contact your dealer of purchase and ask
for help.
8. The device is an electrical device and as such, if it becomes wet for any
reason, do not attempt to touch it without switching the power supply off.
Contact an experienced electrical technician for further help.
![](/img.php?id=2274377&img=bg8.png)
8
II. Installation

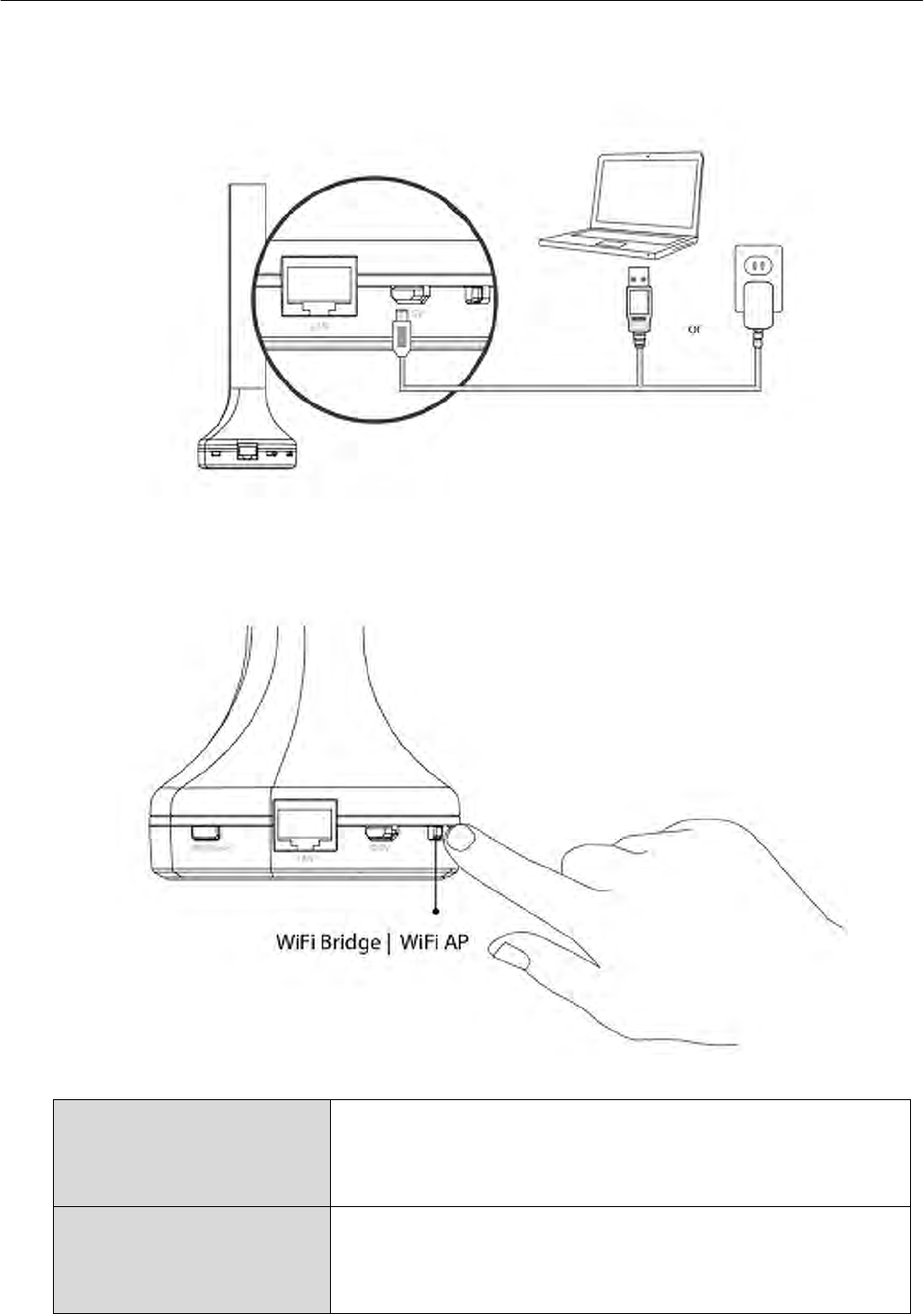

1. Plug in the EW-7288APC using either the included power adapter or USB
cable.
2. Use the switch on the base of the EW-7288APC to select access point
mode or Wi-Fi bridge mode.
Access Point Mode
The device connects to an existing router via
Ethernet cable and provides 5GHz wireless
Internet access for your network devices.
Wi-Fi Bridge Mode
The device connects to a network device for
example: TV, gaming console, or media player via
Ethernet cable and acts as a wireless receiver,
![](/img.php?id=2274377&img=bg9.png)
9
allowing the network device to join your existing
Wi-Fi network. The device also repeats the 5GHz
wireless signal for extended range for other
network devices.
3. Ensure the LED is on and flashing red. Refer to the appropriate following
chapter for more guidance on each mode.
![](/img.php?id=2274377&img=bga.png)
10
II-1. Access Point Mode
1. Connect the EW-7288APC to your router using an Ethernet cable.
2. Ensure the LED is on and green.

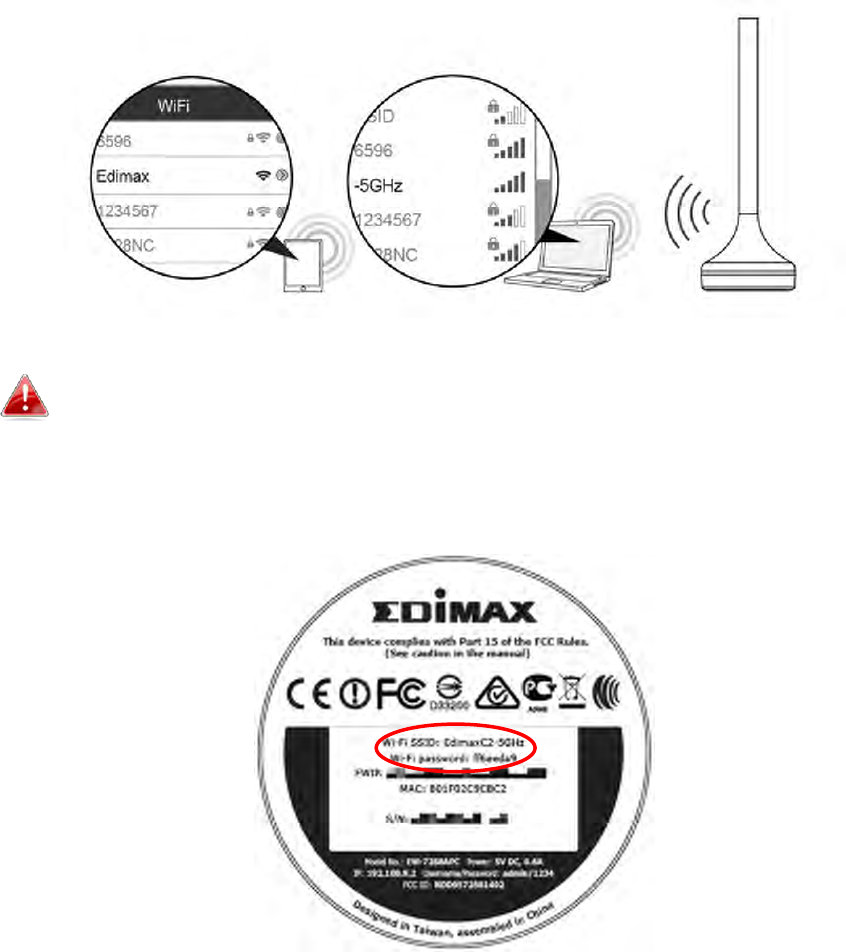

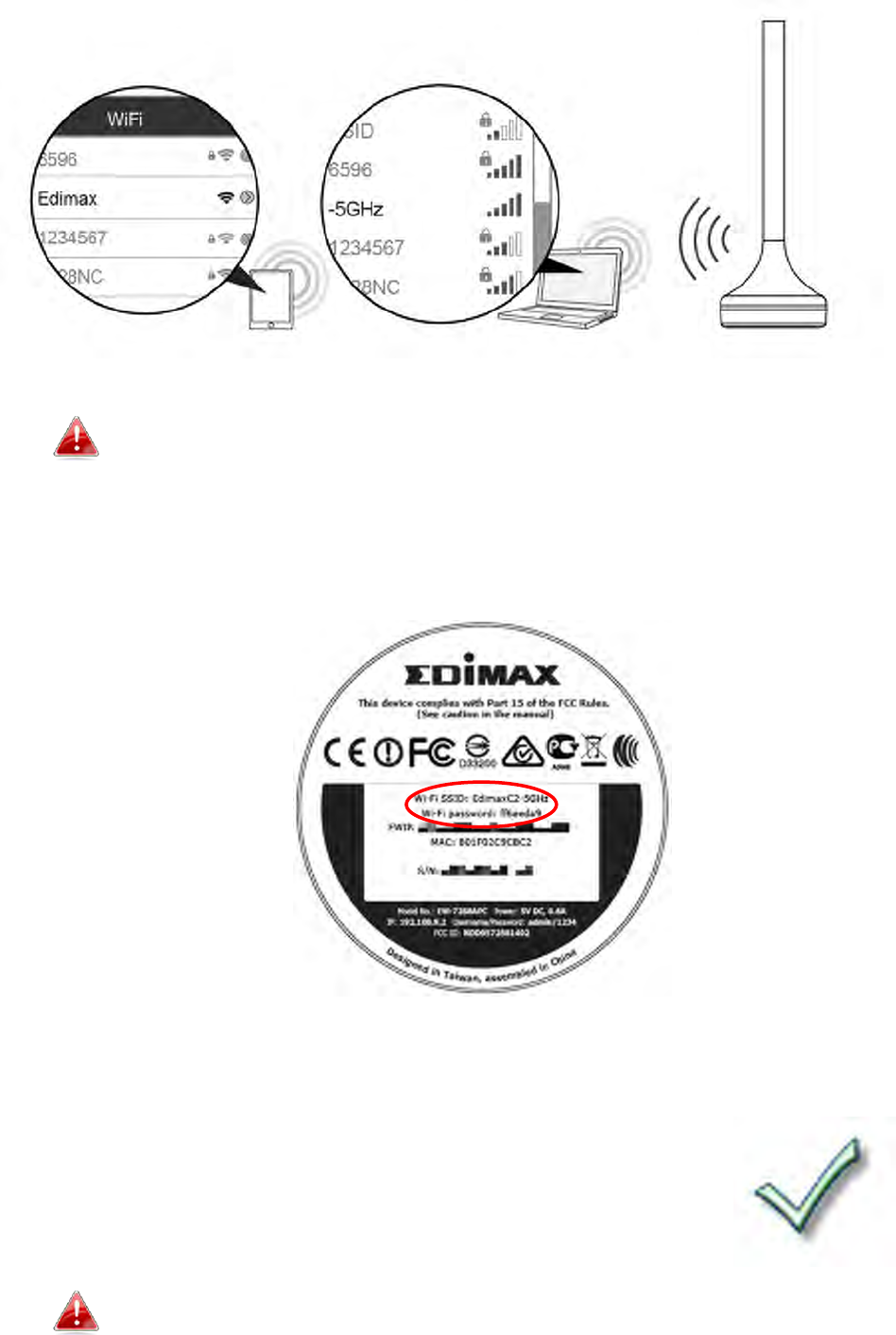

3. Use a Wi-Fi device (e.g. computer, tablet, smartphone) to search for a
Wi-Fi network with the SSID Edimax**-5GHz and connect to it.
![](/img.php?id=2274377&img=bgb.png)
11

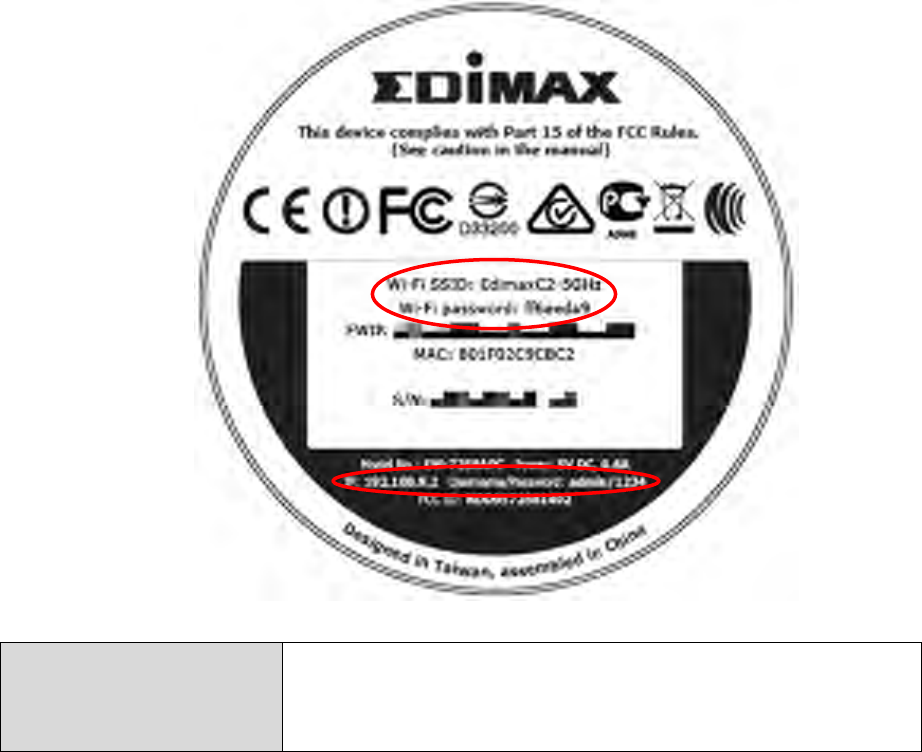

Two characters of the SSID (Edimax**-5GHz) will be unique
numbers according to your device e.g.”Edimaxc2-5GHz”. These
unique numbers are the last two characters of the EW-7288APC’s
MAC address, which is displayed along with the full SSID on the
label on the underside of the EW-7288APC.
4. Enter the Wi-Fi password which is displayed on the label on the underside
of the EW-7288APC (see above).
5. Once you are connected, you can browse the Internet
as usual. Setup is complete.
To configure the EW-7288APC’s settings e.g. change the SSID and
password, go to http://edimax**.setup in a browser. Refer to
![](/img.php?id=2274377&img=bgc.png)
12
Browser Based Configuration Interface in the following pages for
more help.
II-2. Wi-Fi Bridge Mode
1. Use a Wi-Fi device (e.g. computer, tablet, smartphone) to search for a
Wi-Fi network with the SSID Edimax**-5GHz and connect to it.
Two characters of the SSID (Edimax**-5GHz) will be unique
numbers according to your device e.g.”Edimaxc2-5GHz”. These
unique numbers are the last two characters of the EW-7288APC’s
MAC address, which is displayed along with the full SSID on the
label on the underside of the EW-7288APC.
2. Enter the Wi-Fi password which is displayed on the label on the underside
of the EW-7288APC (see above).

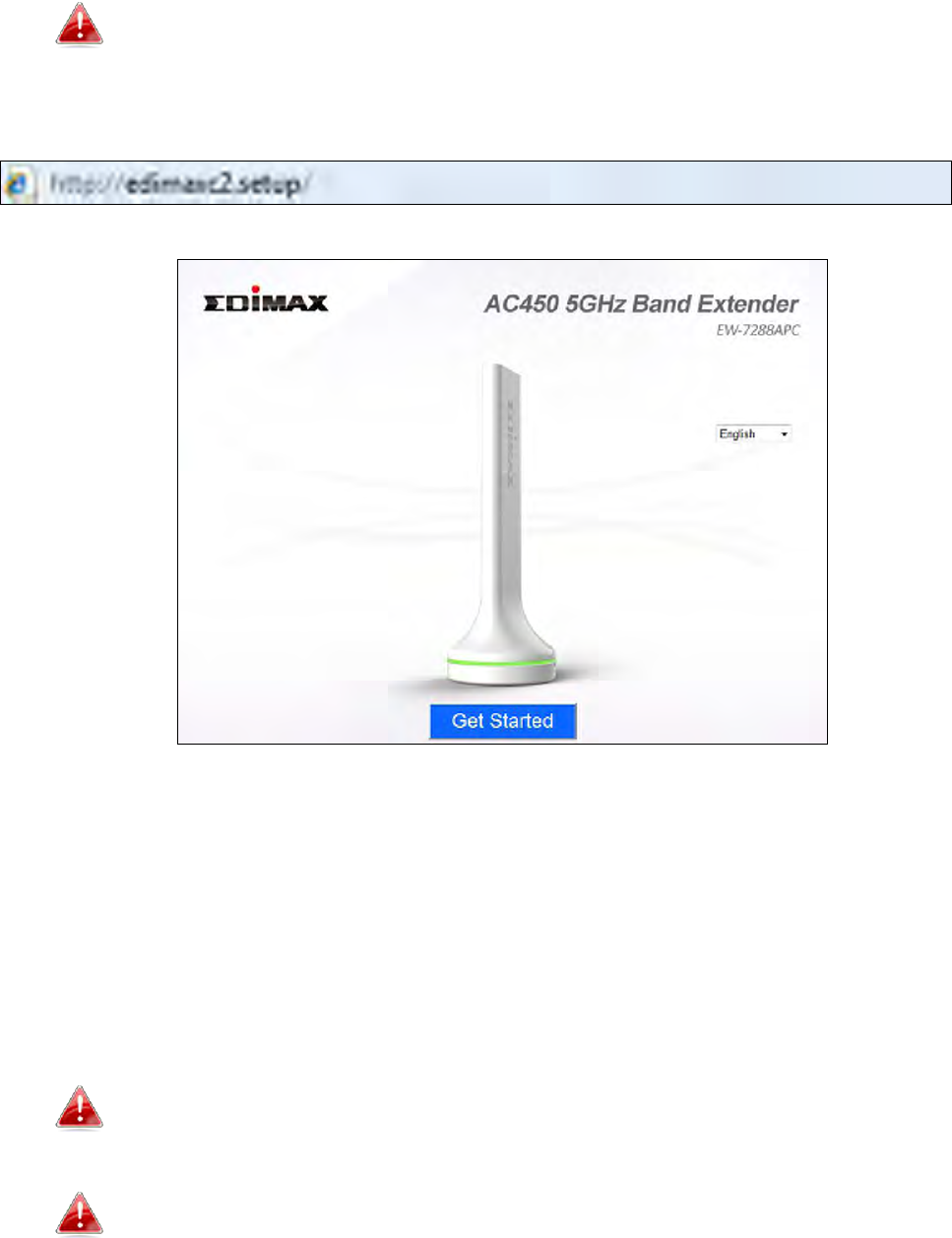

3. Open a web browser and if you do not automatically arrive at the “Get
Started” screen shown below, enter the URL http://edimax**.setup and
click “Get Started” to begin the setup process.
![](/img.php?id=2274377&img=bgd.png)
13
** are the last two characters of the EW-7288APC’s MAC address
(see above). You can also use the device’s default IP address
192.168.9.2
4. Please read the on screen instructions about selecting a good location for
your EW-7288APC and then click “NEXT” to continue. You can check your
signal strength on the next page.

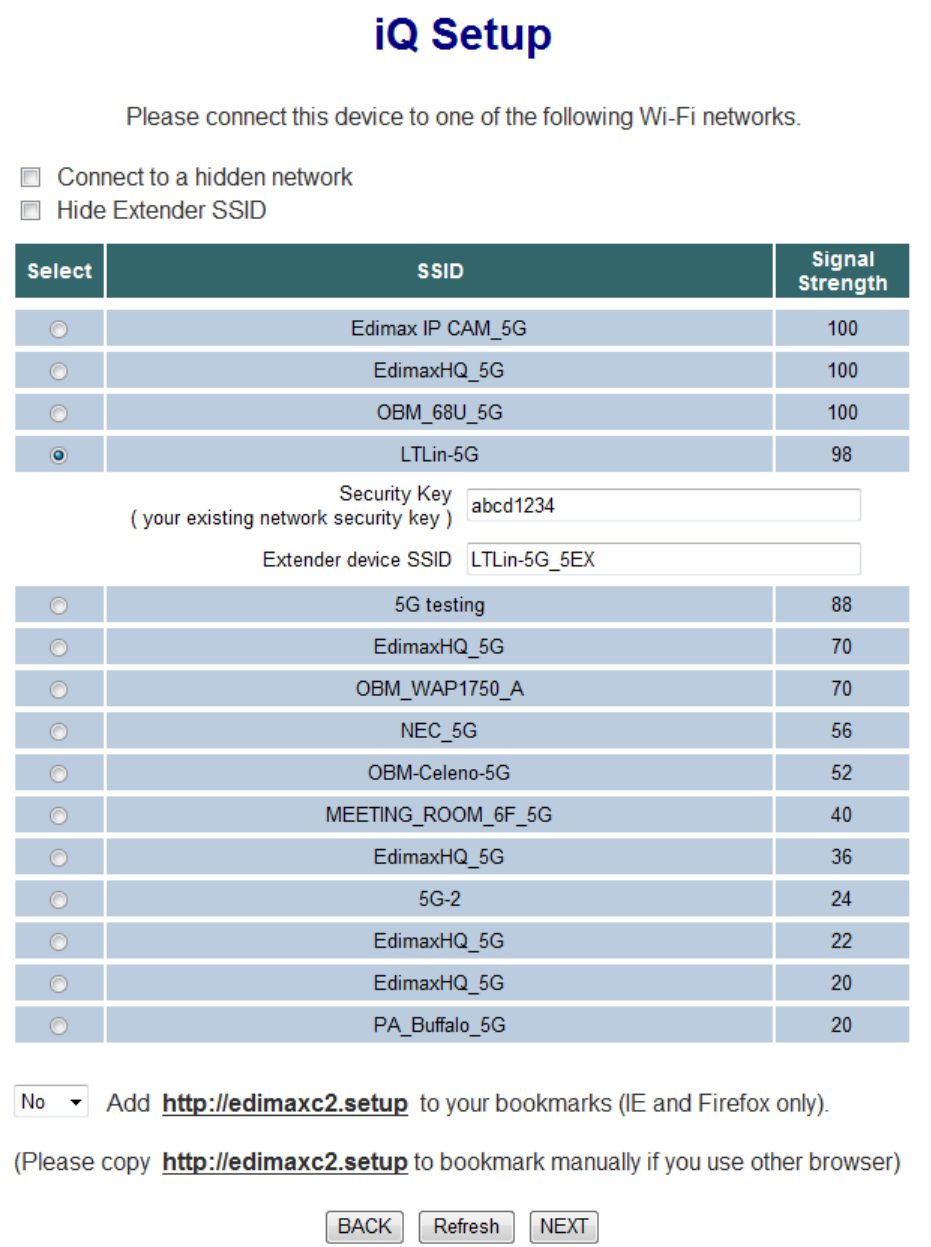

5. Select your 5GHz Wi-Fi network from the list and enter the security
key/password. You can also enter a new Wi-Fi network name (SSID) if you
wish. Click “Next” to continue.

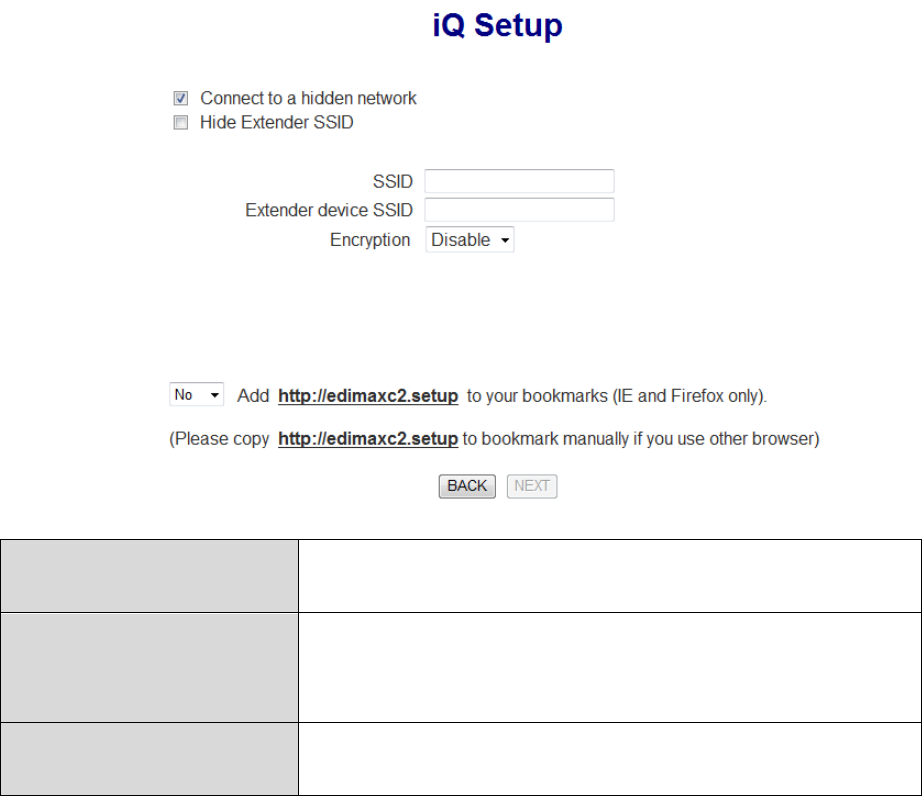

Check the box “Connect to a hidden network” if you wish to
connect to a hidden SSID and manually enter the details.
Check the box “Hide Extender SSID” if you wish to keep the
EW-7288APC’s SSID hidden.
![](/img.php?id=2274377&img=bge.png)
14

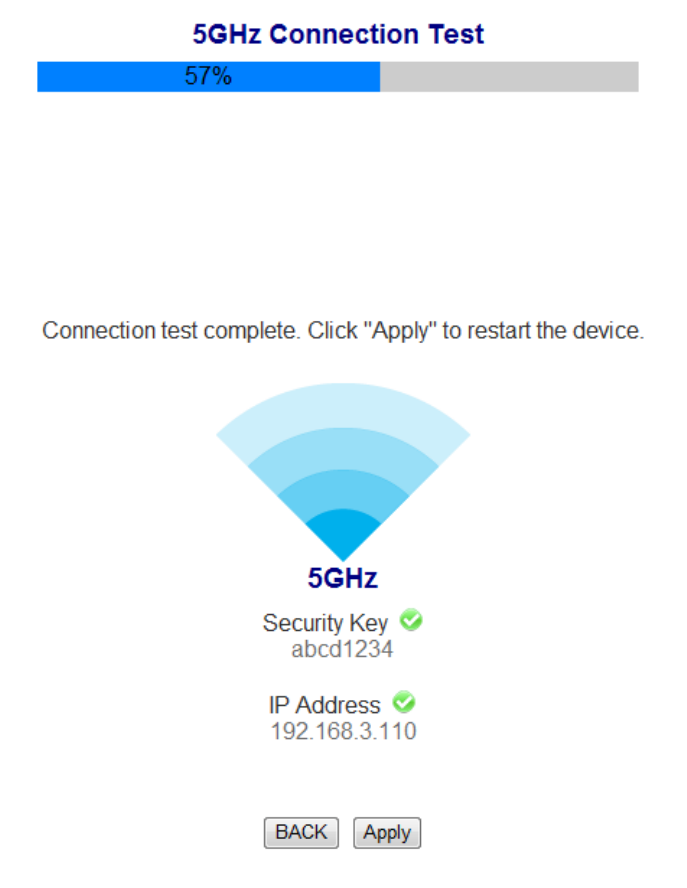

6. Please wait while the EW-7288APC tests the connection.
![](/img.php?id=2274377&img=bgf.png)
15

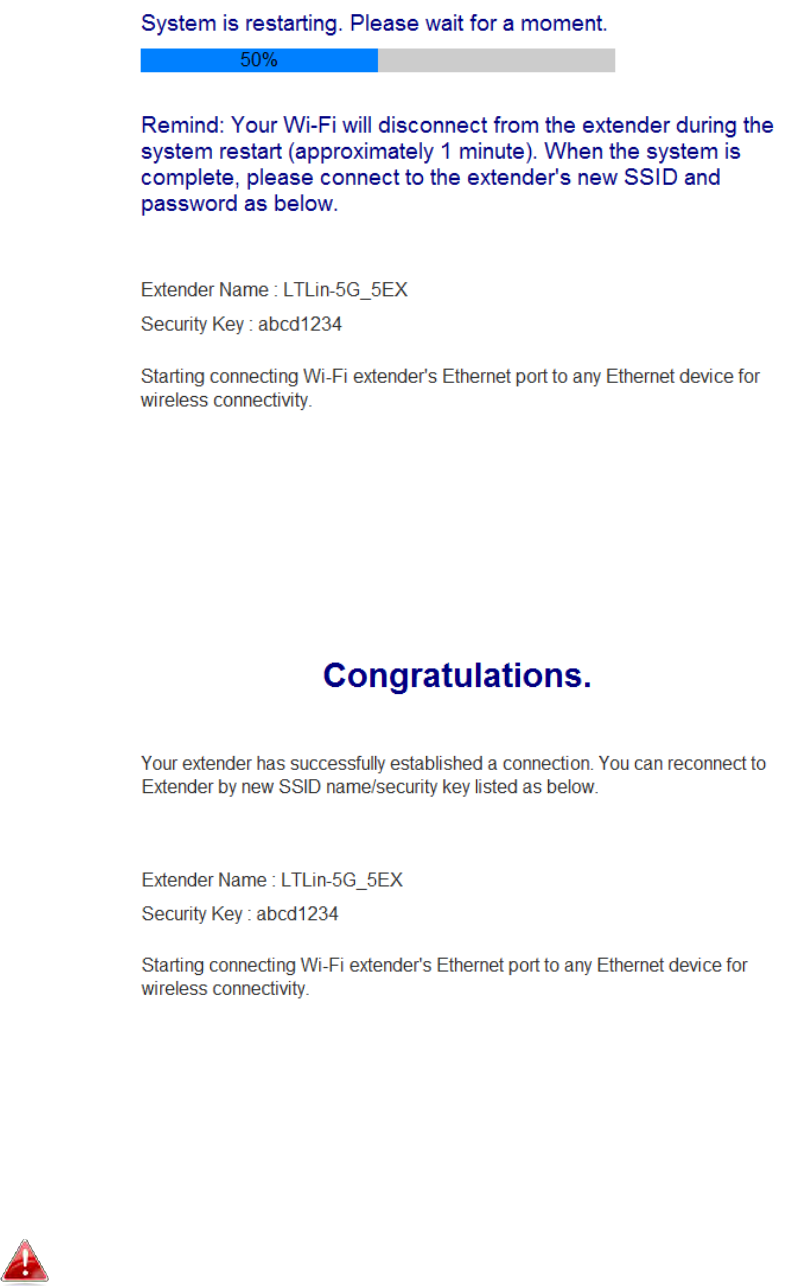

7. When the connection test is complete, click “Apply” to restart the
extender.
8. Please wait a moment until the EW-7288ACP is ready.
![](/img.php?id=2274377&img=bg10.png)
16

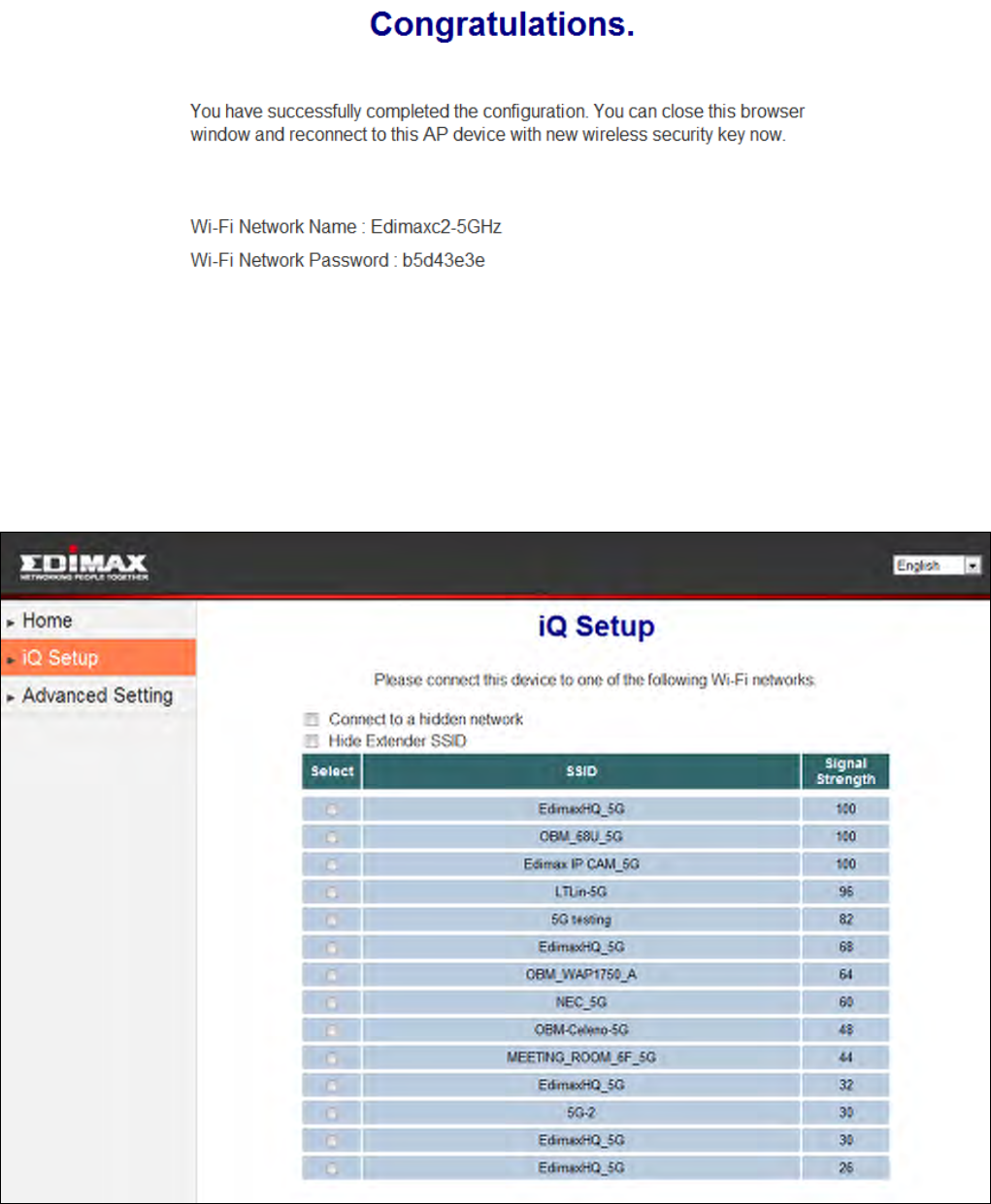

9. A final congratulations screen will indicate that setup is complete. The
EW-7288APC is working and ready for use - the LED should display on and
green.
10. Please close the browser window. You can now connect to the
EW-7288APC’s new SSID on a wireless device within range such as a
computer, smartphone or tablet.
The password for your EW-7288APC’s SSID is the same as for your
router’s SSID.

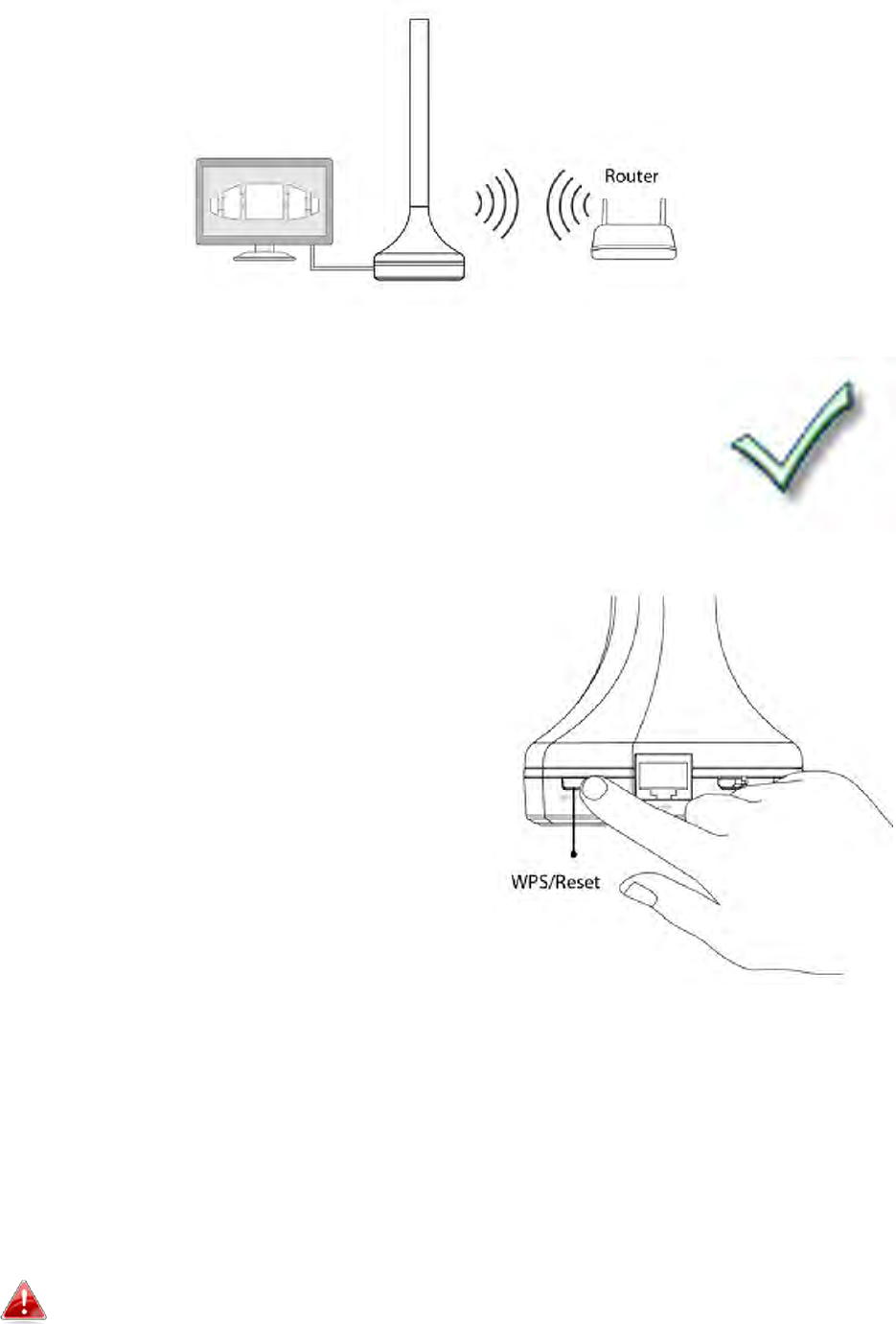

11. To use the EW-7288APC as a wireless bridge for a wired network
device, simply connect the EW-7288APC to your network device’s Ethernet
port.
![](/img.php?id=2274377&img=bg11.png)
17
For more advanced configurations, use the browser based
configuration interface (refer to III. Browser Based
Configuration Interface)
II-6. WPS Setup
In access point mode, if your wireless
device/client supports WPS (Wi-Fi Protected
Setup) then you can use this method to
connect to the EW-7288APC’s Wi-Fi
network. In Wi-Fi bridge mode, you can use
WPS to connect your EW-7288APC to your
existing 5GHz Wi-Fi.
1. Press the WPS button on the
EW-7288APC for 2 – 5 seconds to
activate WPS. The LED will flash blue to
indicate that WPS is active.
2. Within two minutes, press the WPS button on the wireless device/client
(access point mode) or wireless router/access point (Wi-Fi bridge mode) to
activate its WPS.
3. The devices will establish a connection. The LED will display on and blue to
indicate a successful connection.
Please check the instructions for your wireless device for how long
you need to hold down its WPS button to activate WPS.
II-7. Reset to Factory Default Settings
18
If you experience problems with your EW-7288APC, you can reset the device
back to its factory settings. This resets all settings back to default.
1. Press and hold the WPS/Reset button found on the back panel for at least
10 seconds, until the LED displays on and red.
2. Release the button and the LED will display white and then flash purple.
3. Wait for the EW-7288APC to restart. The EW-7288APC is ready for setup
when the LED is flashing red (no Ethernet cable connected) or displays on
and green (Ethernet cable connected).
![](/img.php?id=2274377&img=bg13.png)
19
III. Browser Based Configuration Interface

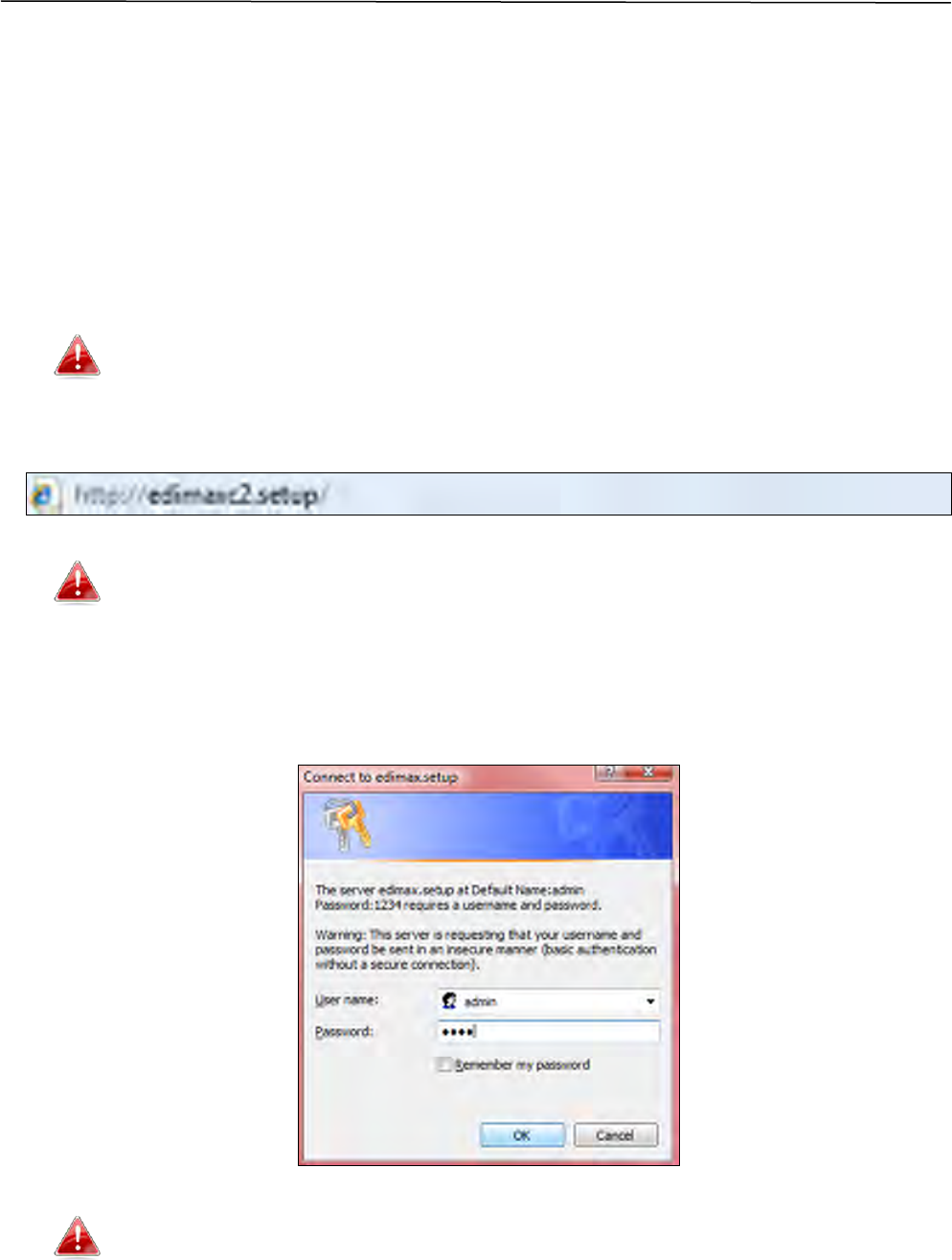

III-1. Login
After setup you can access the browser based configuration interface to
configure or change the settings of the EW-7288APC.
Enter http://edimax**.setup into the URL bar of a web browser on a network
device which is connected to the EW-7288APC.
** are the last two characters of the EW-7288APC’s MAC address.
The MAC address is displayed on the label on the bottom of the
EW-7288APC.
If you can not access edimax.setup, connect the EW-7288APC to a
computer using an Ethernet cable and try again.
You will be prompted for a username and password. The default username is
“admin” and the default password is “1234”. For more information, refer to
the user manual.
You can access the browser based configuration interface using
the device’s IP address instead of using the URL
http://edimax**.setup.
![](/img.php?id=2274377&img=bg14.png)
20
You will arrive at the “Status and Information” screen. Use the menu down
the left side to navigate.
Screenshots displayed are examples.The information shown on
your screen will vary depending on your configuration.
![](/img.php?id=2274377&img=bg15.png)
21

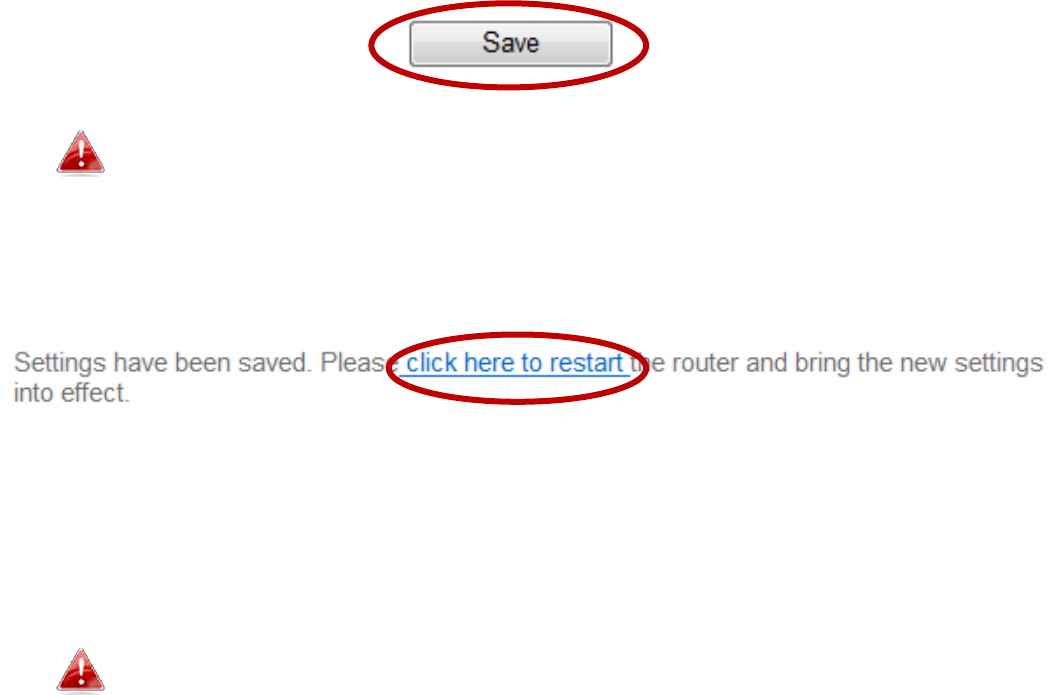

III-2. Save Settings
1. After you configure any settings, click the “Save” button at the bottom of
the screen to save your changes.
The device needs to restart in order to bring any changes into
effect.
2. Then, click “click here to restart” in order to restart the device and bring
the changes into effect.
3. To make several changes at once, use the “Save” button after each
change and then click “click here to restart” after your final change. Only
one restart is necessary as long as each change is saved with the “Save
Settings” button.
After you click “click here to restart”, all saved changes will come
into effect.
![](/img.php?id=2274377&img=bg16.png)
22
III-3. Main Menu
The main menu displays different options depending on your device’s
operating mode.
Access Point
Wi-Fi Bridge
![](/img.php?id=2274377&img=bg17.png)
23
III-3-1. Home
The “Status and Information” page displays basic
system information about the device, arranged into
categories.
Screenshots displayed are examples.The information shown on
your screen will vary depending on your configuration.
![](/img.php?id=2274377&img=bg18.png)
24

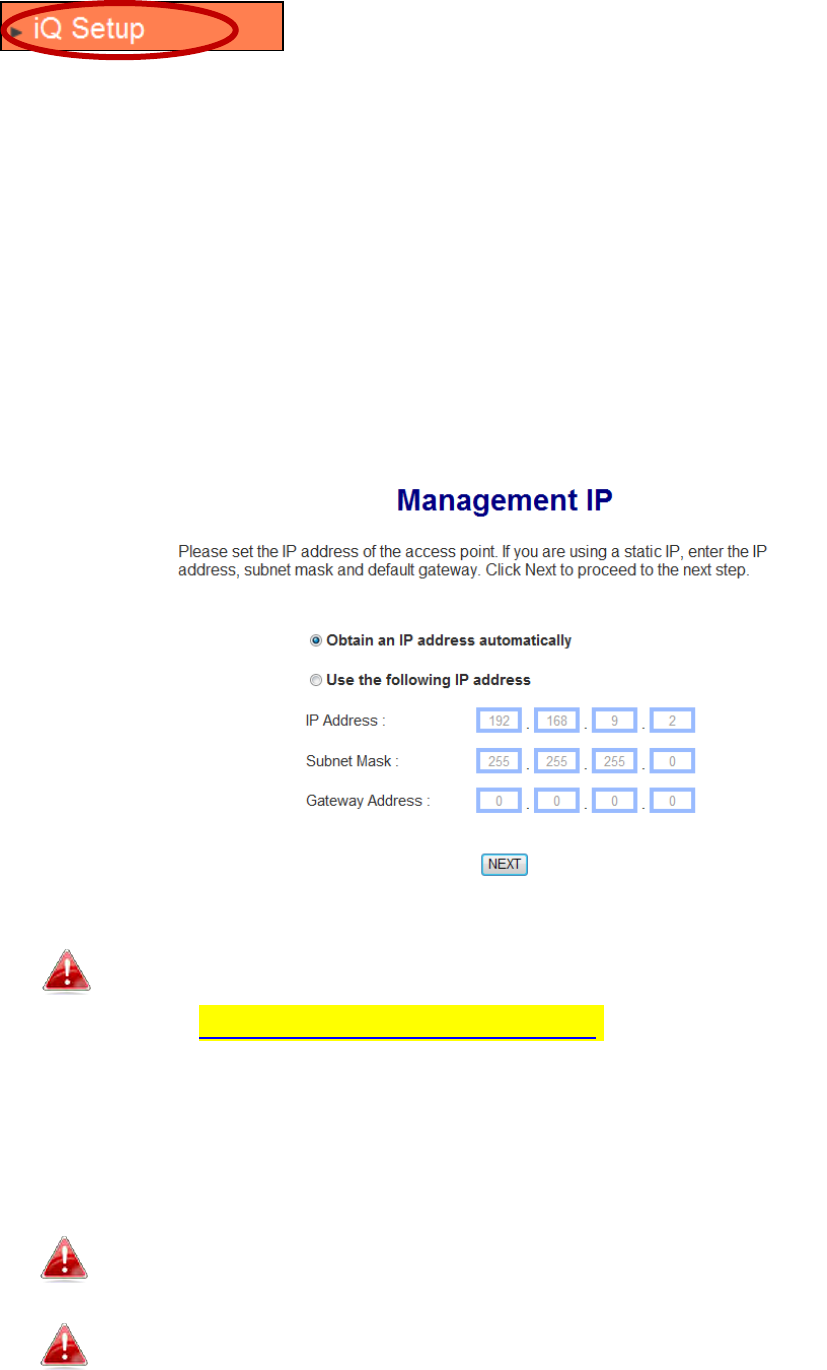

III-3-2. iQ Setup
You can run the iQ Setup wizard to configure the
basic settings of the EW-7288APC. Refer to the
appropriate instructions below for each mode if you need help.
Access Point Mode
In access point mode, iQ Setup provides a quick way to configure your
EW-7288APC’s IP address as well as SSID & password.
1. Select “Obtain an IP address automatically” or “Use the following IP
address” for your EW-7288APC. If you are using a static IP, enter the IP
address, subnet mask and default gateway. Click “NEXT” to proceed to the
next step.
“Obtain an IP address automatically” is the recommended setting
for most users. For more guidance on static IP addresses, please
refer to IV-1. Configuring your IP address.

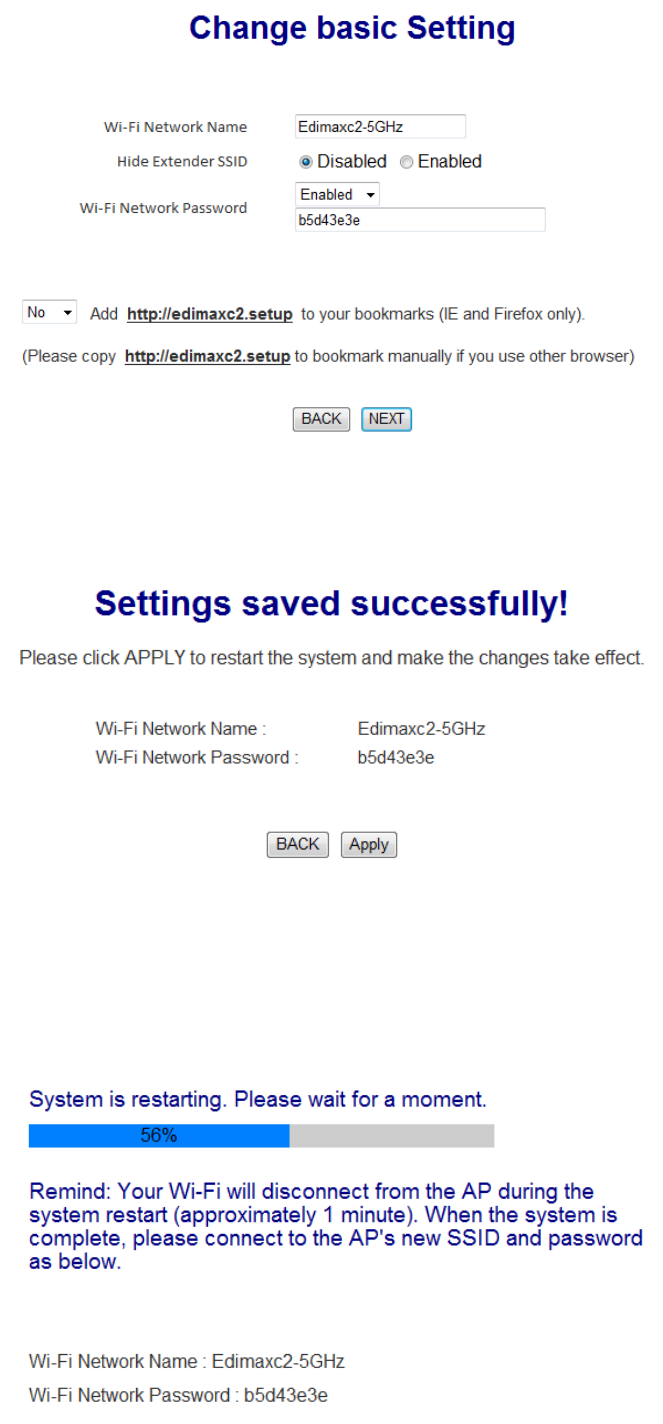

2. Enter a new SSID/Wi-Fi network name & password for your EW-7288APC
if you wish, and choose to enable or disable a hidden SSID and password,
then click “NEXT”.
A hidden SSID will not be visible to your Wi-Fi devices and must be
entered manually in order to connect.
It is not recommended to disable your Wi-Fi password.
![](/img.php?id=2274377&img=bg19.png)
25
3. Check that the settings are correct and click “Apply” to continue.
4. Please wait a moment until the EW-7288APC is ready.
![](/img.php?id=2274377&img=bg1a.png)
26
5. A final congratulations screen will indicate that setup is complete. You can
now connect to the device’s new SSID which is displayed on the screen, and
close the browser window.
Wi-Fi Bridge Mode
In Wi-Fi bridge mode, iQ Setup here is the same as the initial setup wizard.
Please refer back to II-2. Wi-Fi Bridge Mode Step 5 onwards.
![](/img.php?id=2274377&img=bg1b.png)
27

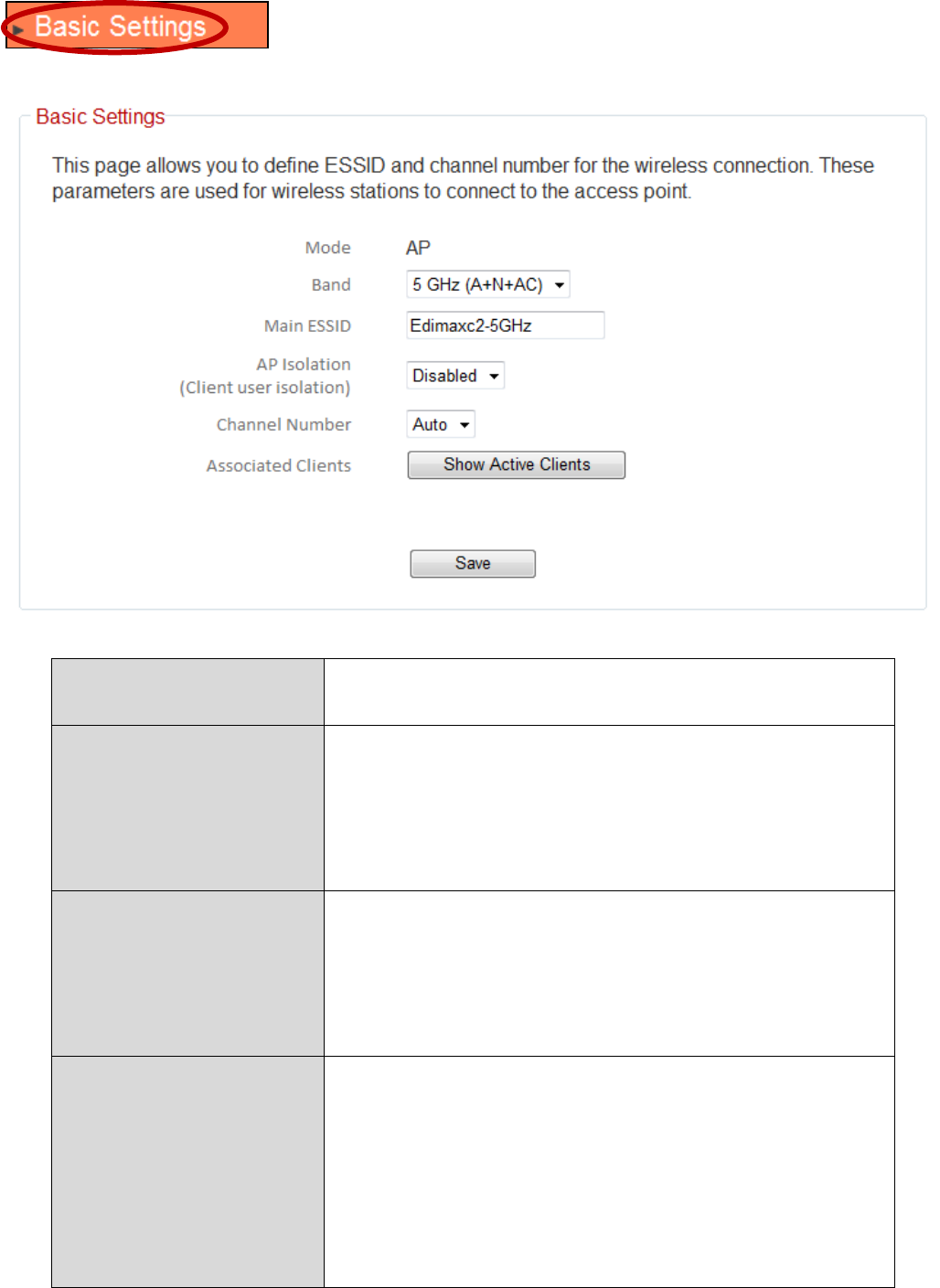

III-3-3. Basic Settings
The “Basic Settings” screen displays settings for your
primary 5GHz Wi-Fi network.
Mode
Displays the device’s mode:“AP” or access
point.
Band
Select the wireless standard used for the
EW-7288APC’s 5GHz Wi-Fi. “(A+N+AC)”
means that 802.11a, 802.11n, and 802.11ac
wireless clients can connect to the
EW-7288APC.
Main SSID
This is the name of your Wi-Fi network for
identification, also sometimes referred to as
“SSID”. The SSID can consist of any
combination of up to 32 alphanumerical
characters.
AP Isolation
Enable or disable AP isolation. This prevents
wireless clients connected to the
EW-7288APC from communicating with each
other and improves security. Typically, this
function is useful for corporate environments
or public hot spots and can prevent brute
force attacks on clients’ usernames and
![](/img.php?id=2274377&img=bg1c.png)
28
passwords.
Channel Number
Select a wireless radio channel or use the
default “Auto” setting from the drop-down
menu.
Wireless Clients
Click “Show List” to display a new window
showing information about wireless clients.
Please disable any pop-up blockers if you
have difficulty using this function.
![](/img.php?id=2274377&img=bg1d.png)
29

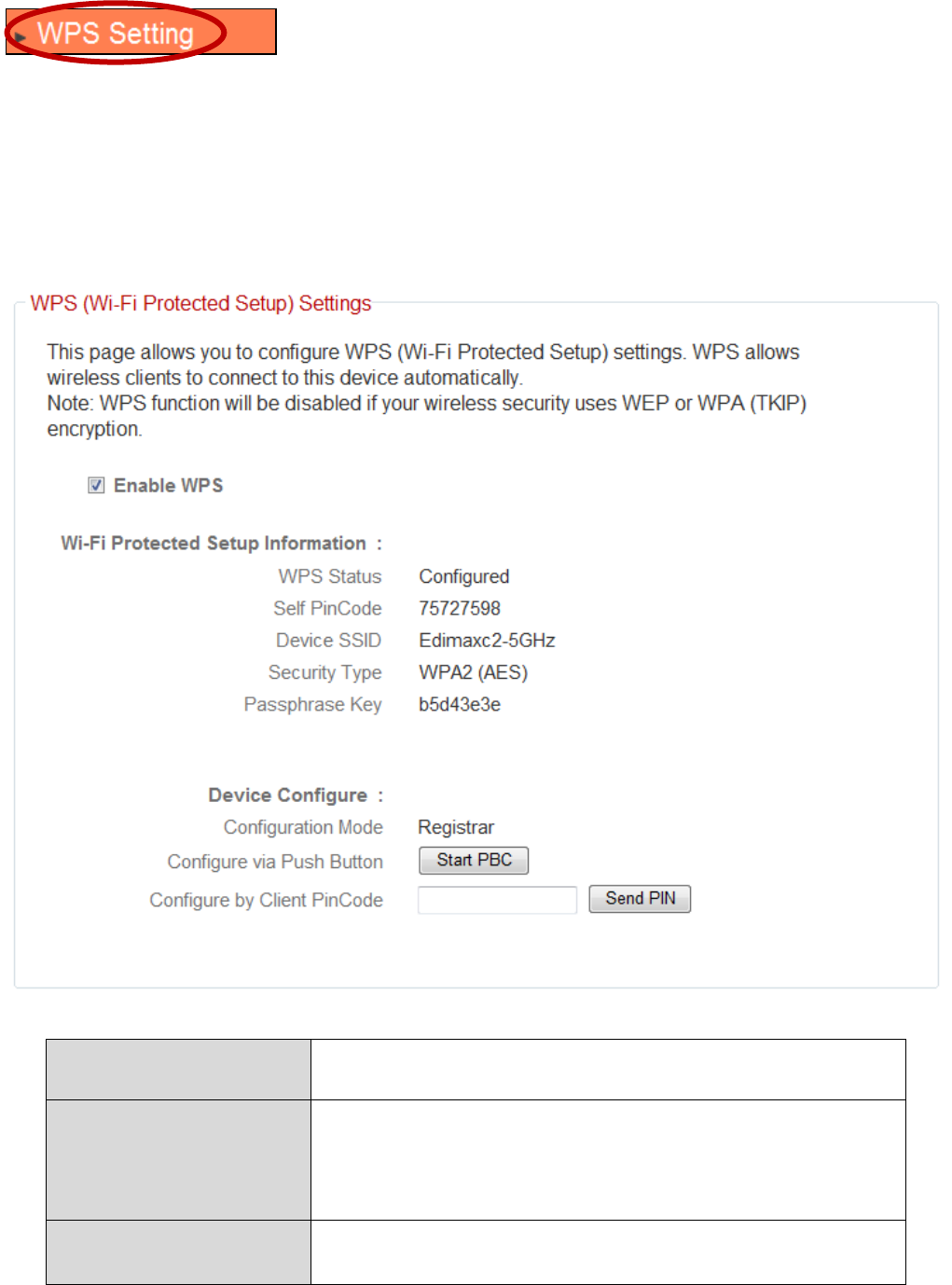

III-3-4. WPS Setting
Wi-Fi Protected Setup is a simple way to establish
connections between WPS compatible devices. WPS
can be activated on compatible devices by pushing a WPS button on the
device or from within the device’s firmware/configuration interface. When
WPS is activated in the correct manner and at the correct time for two
compatible devices, they will automatically connect. PIN code WPS includes
the use of a PIN code between the two devices for verification.
Enable WPS
Check/uncheck this box to enable/disable
WPS.
WPS Status
Displays “Configured” or “unConfigured”
depending on whether WPS and SSID/security
settings for the device have been configured or
not, either manually or using the WPS button.
Self PIN Code
Displays the WPS PIN code of the device.
![](/img.php?id=2274377&img=bg1e.png)
30
Device SSID
Displays the SSID of the EW-7288APC.
Security Type
Displays the wireless security authentication
mode of the device.
Passphrase Key
Displays the wireless security authentication
key.
Configuration
Mode
The configuration mode of the device’s WPS
setting is displayed here. “Registrar” means
the device acts as an access point for a wireless
client to connect to and the wireless client(s)
will follow the device’s wireless settings.
Configure via Push
Button
Click “Start PBC” (Push-Button Configuration)
to activate WPS on the access point. WPS will
be active for 2 minutes.
Configure via Client
PIN Code
Enter the wireless client’s PIN code here and
click “Start PIN” to activate PIN code WPS.
Refer to your wireless client’s documentation if
you are unsure of its PIN code.
![](/img.php?id=2274377&img=bg1f.png)
31

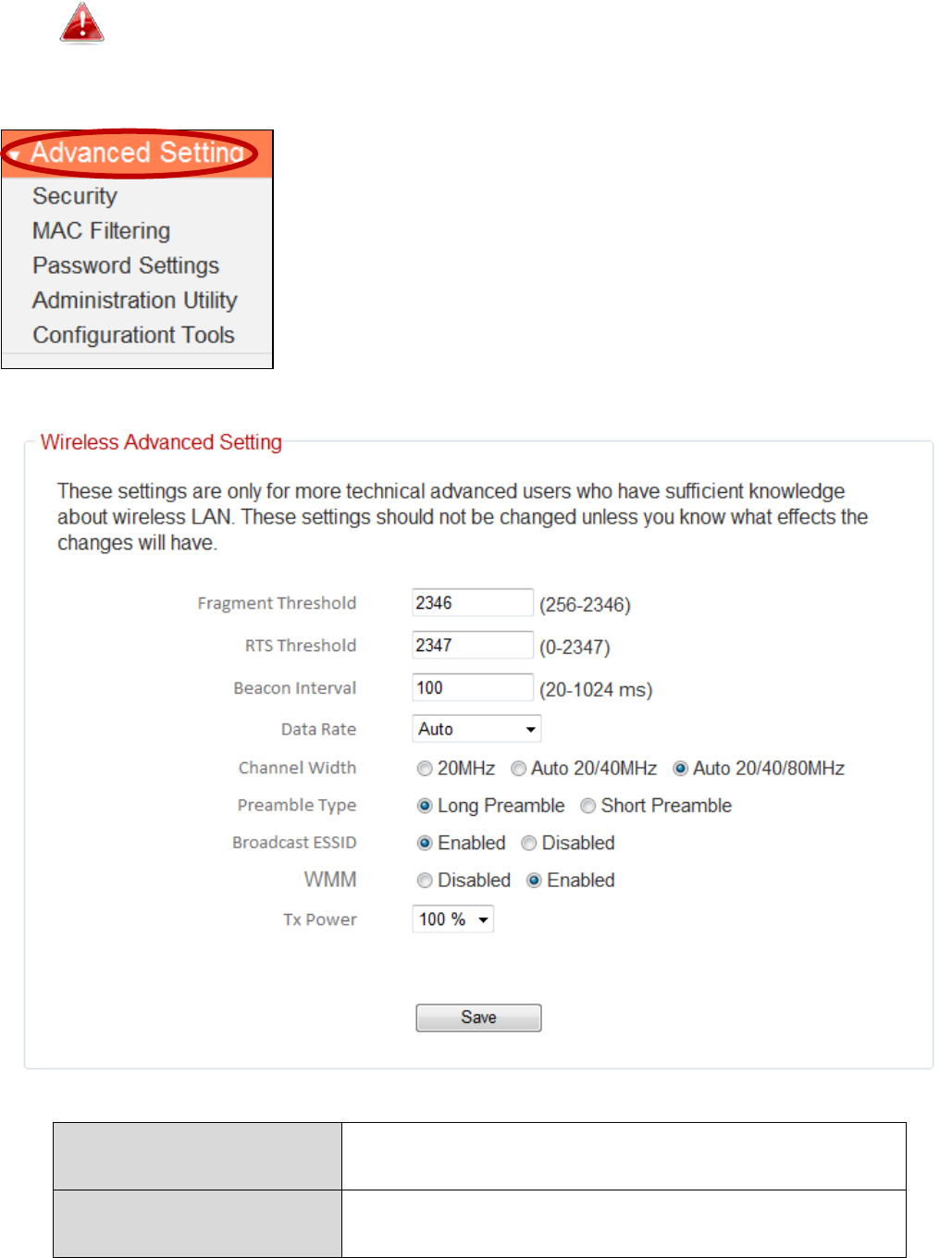

III-3-5. Advanced Setting
The “Advanced Setting” menu varies according to operating
mode.
Access Point Mode:
The “Advanced Settings” screen allows you configure
technical settings. These settings are for experienced
users only, please do not change any of the values on
this page unless you are already familiar with these
functions. Other advanced features of your
EW-7288APC can be configured from the submenu,
such as wireless security and MAC filtering.
Fragment Threshold
Set the Fragment threshold of the wireless
radio. The default value is 2346.
RTS Threshold
Set the RTS threshold of the wireless radio.
The default value is 2347.
![](/img.php?id=2274377&img=bg20.png)
32
Beacon Interval
Set the beacon interval of the wireless radio.
The default value is 100.
Data Rate
Set the wireless data transfer rate. The
default is set to Auto.
Channel Width
Select wireless channel width (bandwidth
used by wireless signals from the device) –
the recommended value is 20/40/80MHz.
Preamble Type
Set the wireless radio preamble type. The
default value is “Long Preamble”.
Broadcast SSID
Enable or disable to broadcast SSID or not.
WMM
WMM (Wi-Fi Multimedia) technology can
improve the performance of certain network
applications, such as audio/video streaming,
network telephony (VoIP) and others. When
WMM is enabled, the device will prioritize
different kinds of data and give higher
priority to applications which require instant
responses for better performance.
Tx Power
Set the power output of the wireless radio.
You may not require 100% output power.
Setting a lower power output can enhance
security since potentially malicious/unknown
users in distant areas will not be able to
access your signal.

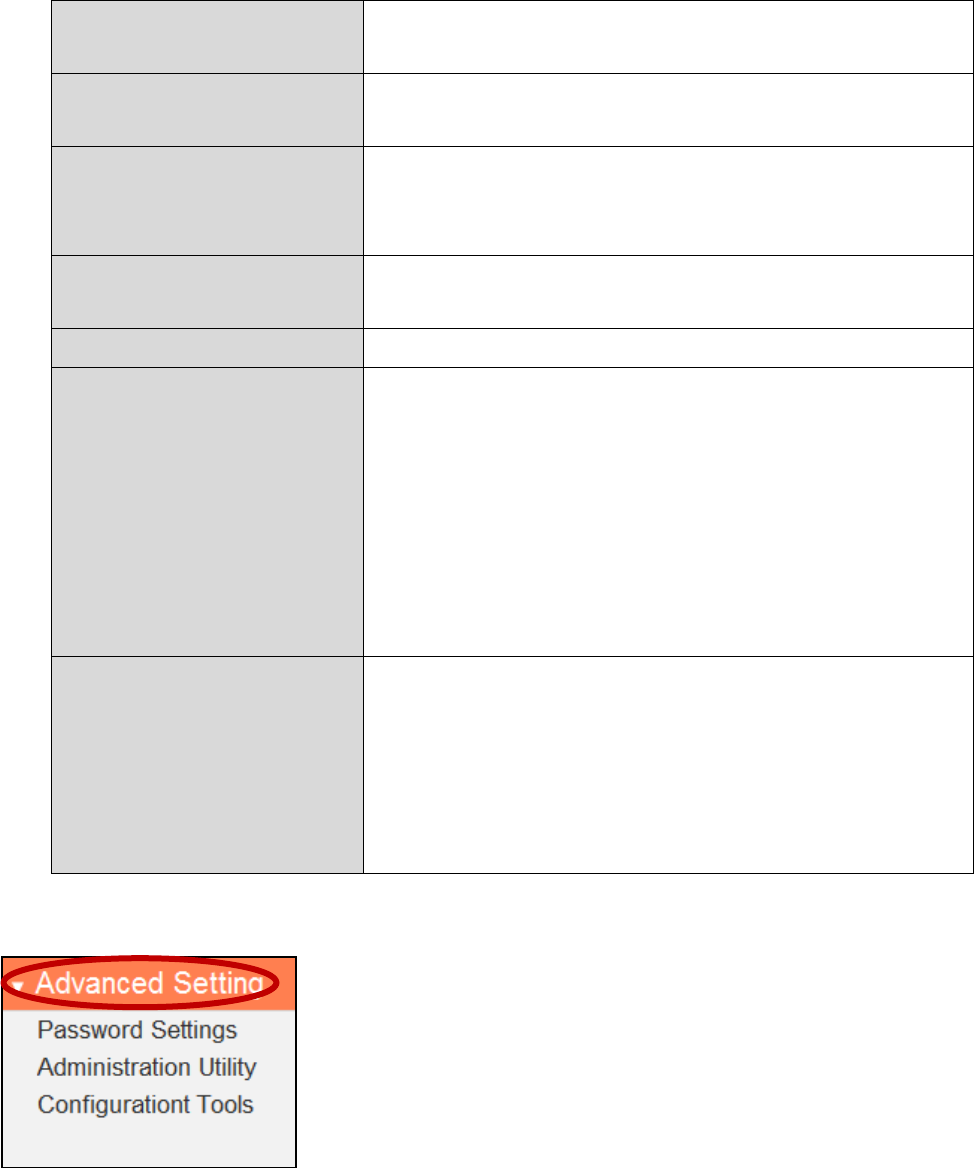

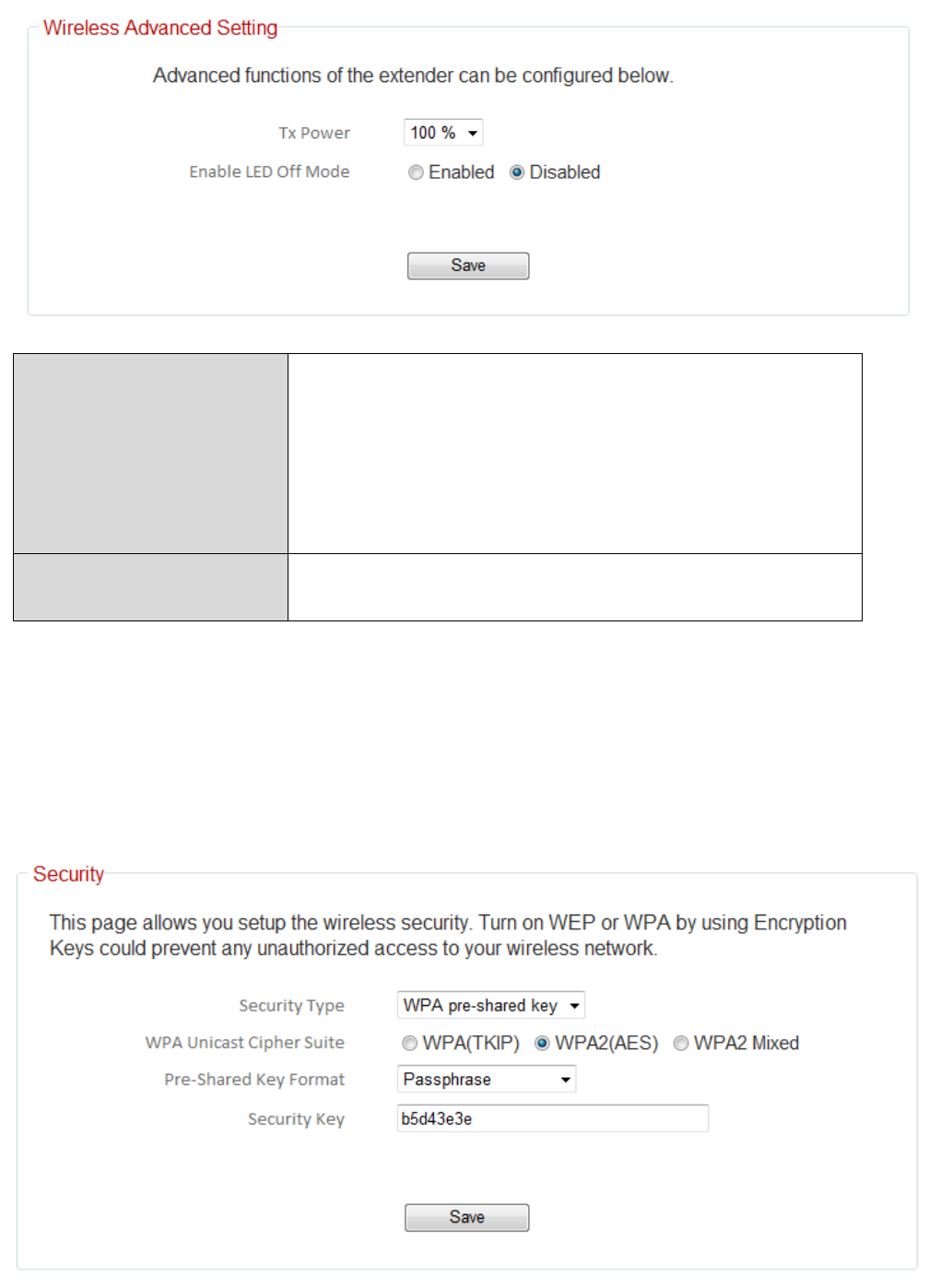

Wi-Fi Bridge Mode:
The “Advanced Settings” page allows you to adjust
the power output and LED operation of the
EW-7288APC. The submenu options listed under
“Advanced Settings” allow you to configure password
and administrative IP functions, as well as
restart/restore and upgrade firmware.
![](/img.php?id=2274377&img=bg21.png)
33
Tx Power
Set the power output of the wireless radio.
You may not require 100% output power.
Setting a lower power output can enhance
security since potentially malicious/unknown
users in distant areas will not be able to
access your signal.
Enable LED Off
Mode
Enable or disable the EW-7288APC’s LED.
III-3-5-1. Security
The EW-7288APC provides various security options (wireless data encryption).
When data is encrypted, information transmitted wirelessly cannot be read by
anyone who does not know the correct encryption key.
Select an encryption type from the drop-down menu:
![](/img.php?id=2274377&img=bg22.png)
34
“WPA Pre-shared Key” is the recommended and most secure
encryption type.

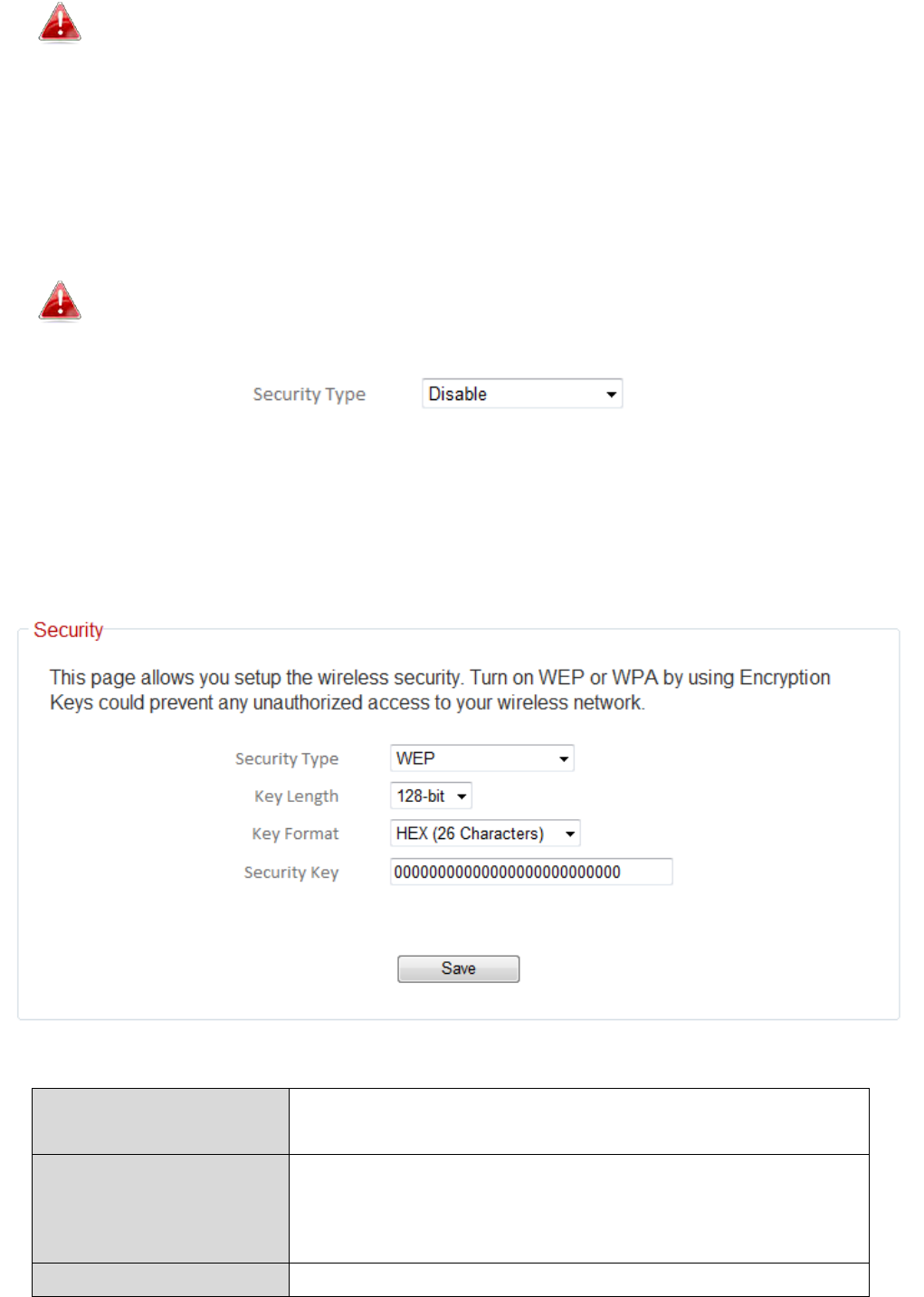

III-3-5-1-1. Disable
Encryption is disabled and no password/key is required to connect to the
EW-7288AP.
Disabling wireless encryption is not recommended. When
disabled, anybody within range can connect to your device’s SSID.
III-3-5-1-2. WEP
WEP (Wired Equivalent Privacy) is a basic encryption type. For a higher
level of security consider using WPA encryption.
Key Length
Select 64-bit or 128-bit. 128-bit is more secure
than 64-bit.
Key Format
Choose from “ASCII” (any alphanumerical
character 0-9, a-z and A-Z) or “Hex” (any
characters from 0-9, a-f and A-F).
Security Key
Enter your encryption key/password according
![](/img.php?id=2274377&img=bg23.png)
35
to the format you selected above. A complex,
hard-to-guess key is recommended. Check the
“Hide” box to hide your password from being
displayed on-screen.
III-3-5-1-3. WPA Pre-Shared Key
WPA pre-shared key is the recommended and most secure encryption
type.
WPA Unicast
Cipher Suite
Select from WPA (TKIP), WPA2 (AES) or WPA2
Mixed. WPA2 (AES) is safer than WPA (TKIP),
but not supported by all wireless clients. Please
make sure your wireless client supports your
selection. WPA2 (AES) is recommended
followed by WPA2 Mixed if your client does not
support WPA2 (AES).
Pre-shared Key
Format
Choose from “Passphrase” (8-63
alphanumeric characters) or “Hex” (up to 64
characters from 0-9, a-f and A-F).
Security Key
Please enter a key according to the format you
selected above. A complex, hard-to-guess key
is recommended. Check the “Hide” box to hide
your password from being displayed on-screen.
III-3-5-2. MAC Filtering
![](/img.php?id=2274377&img=bg24.png)
36
MAC filtering is a security feature that can help to prevent unauthorized users
from connecting to your EW-7288APC.
This function allows you to define a list of network devices permitted to
connect to the EW-7288APC. Devices are each identified by their unique MAC
address. If a device which is not on the list of permitted MAC addresses
attempts to connect to the EW-7288APC, it will be denied.
To enable this function, check the box labeled “Enable Wireless Access
Control”.
MAC address entries will be listed in the “MAC Address Filtering Table”. Select
an entry using the “Select” checkbox.
MAC Address
Authorized MAC addresses are listed here.
Comment
Comments associated with each MAC address
are listed here.
Delete Selected
Delete the selected MAC address from the
list.
Delete All
Delete all entries from the MAC address
filtering table.
![](/img.php?id=2274377&img=bg25.png)
37
MAC address
Enter a MAC address of computer or network
device manually without dashes or colons e.g.
for MAC address ‘aa-bb-cc-dd-ee-ff’ enter
‘aabbccddeeff’.
Comment
Enter a comment for reference/identification
consisting of up to 16 alphanumerical
characters.
Add
Click “Add” to add the MAC address to the
MAC address filtering table.
![](/img.php?id=2274377&img=bg26.png)
38

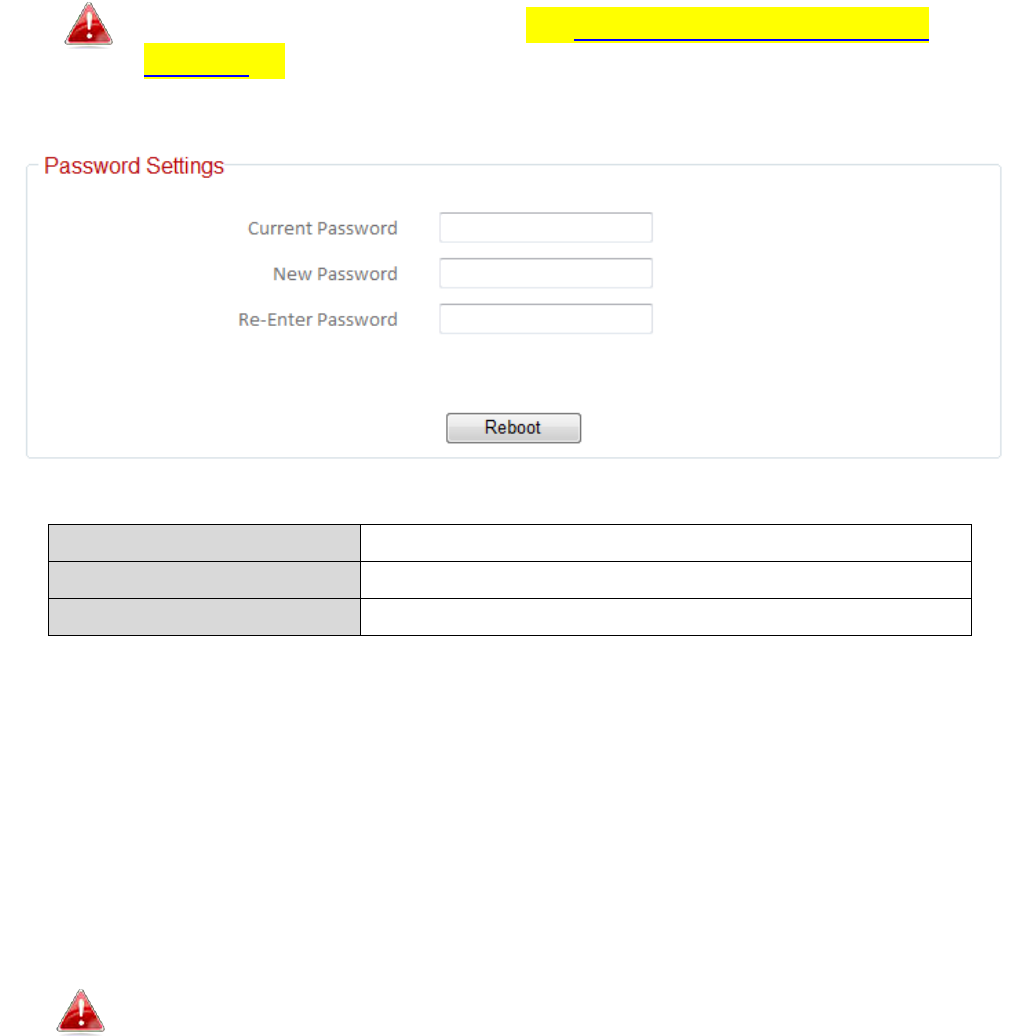

III-3-5-3. Password Settings
You can change the password used to login to the browser-based
configuration interface here. It is advised to do so for security purposes.
Please make a note of the new password. In the event that you
forget the password and are unable to login to the browser
based configuration interface, see II-7. Reset to factory default
settings for how to reset the device.
Current Password
Enter your current password.
New Password
Enter your new password.
Confirmed Password
Confirm your new password.

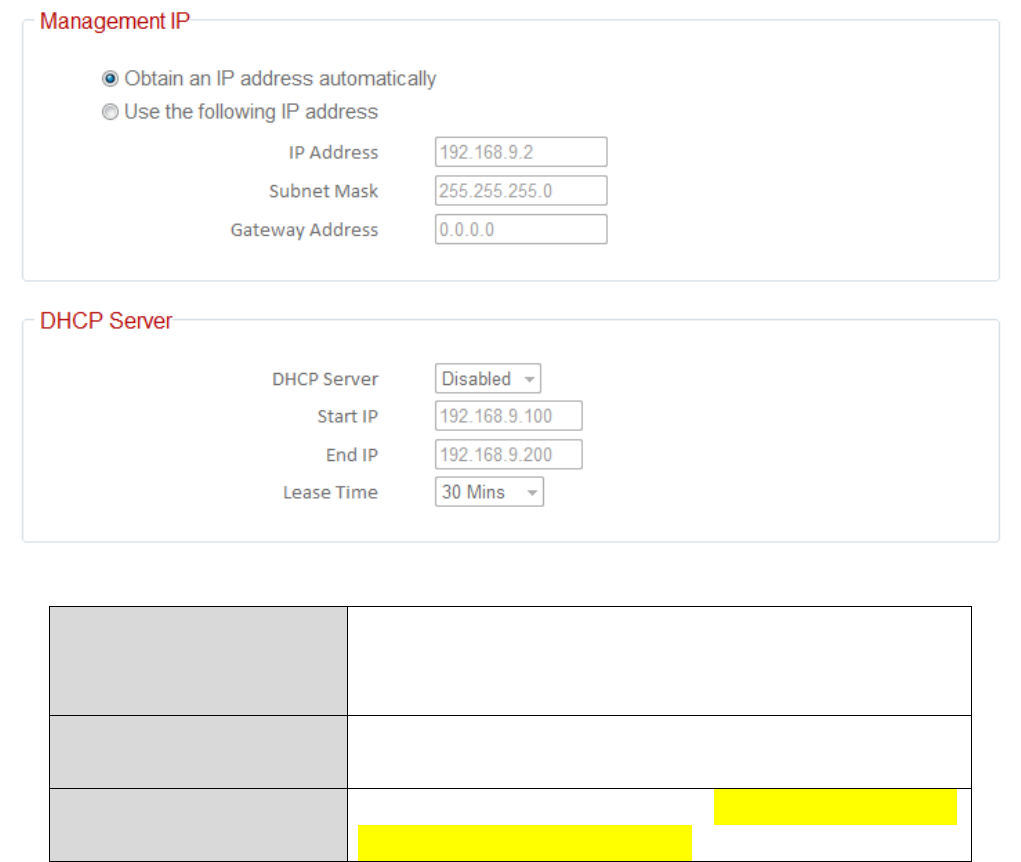

III-3-5-4. Administration Utility
You can configure your Local Area Network (LAN) on this page. You can enable
the router to dynamically allocate IP addresses to your LAN clients, and you
can modify the IP address of the device. The device’s default IP address is
192.168.9.2.
You can access the browser based configuration interface using
the device’s IP address instead of using the URL
http://edimax**.setup.
![](/img.php?id=2274377&img=bg27.png)
39
IP Address
Specify the IP address here. This IP address
will be assigned to the BR-6208AC and will
replace the default IP address.
Subnet Mask
Specify a subnet mask. The default value is
255.255.255.0
Gateway Address
Specify a gateway address. For static IP users,
the default value is blank.
![](/img.php?id=2274377&img=bg28.png)
40

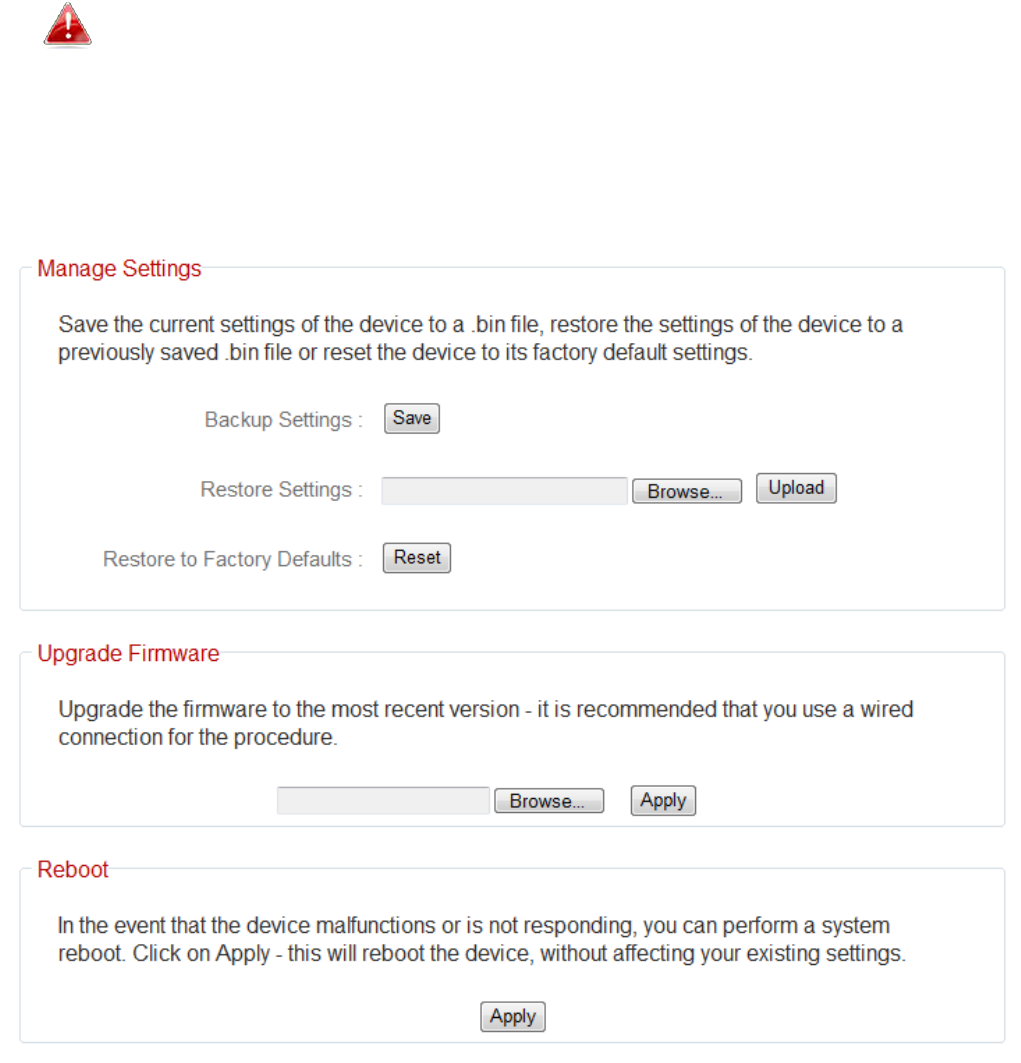

III-3-5-5. Configuration Tools
The “Configuration Tools” menu allows you to backup the EW-7288APC’s
settings, restore the settings to a previous version or restore the EW-7288APC
back to its factory default state. You can also upgrade the firmware and
reboot the device.
Do not switch off or disconnect the device during a firmware
upgrade, as this could damage the device. It is recommended that
you use a wired Ethernet connection for a firmware upgrade.
In the event that the router malfunctions or is not responding, then it is
recommended that you restart the device.
Manage Settings
to backup the EW-7288APC’s settings, restore the settings to a previous
version or restore the EW-7288APC back to its factory default state.
![](/img.php?id=2274377&img=bg29.png)
41
Backup Settings
Click “Save” to save the current settings on your
computer as config.bin file.
Restore Settings
Click “Browse” to find a previously saved
config.bin file and then click “Upload” to replace
your current settings.
Restore to
Factory Defaults
Click “Reset” to restore settings to the factory
default. A pop-up window will appear and ask
you to confirm and enter your log in details.
Enter your username and password and click
“Ok”. See below for more information.
Upgrade Firmware
You can upgrade the system firmware to a more recent version. You can
download the latest firmware from the Edimax website. After the upgrade,
the system will restart.
Browse
Open a new window to locate and select the
firmware file in your computer.
Reboot
In the event that the extender malfunctions or is not responding, then it is
recommended that you restart the device.
Rebooting the EW-7288APC will not affect the current
configuration/settings of the device.
Apply
Click “Apply” to reboot the device. A status
bar will indicate the progress of the reboot
and you will see a confirmation screen when
the reboot is complete.
![](/img.php?id=2274377&img=bg2a.png)
42
IV. Appendix
IV-1. Configuring your IP address
For first time access to the URL http://edimax**.setup please ensure your
computer is set to use a dynamic IP address. This means your computer can
obtain an IP address automatically from a DHCP server. You can check if your
computer is set to use a dynamic IP address by following IV-1-1. How to check
that your computer uses a dynamic IP address.
** are the last two characters of the EW-7288APC’s MAC address.
The MAC address is displayed on the label on the bottom of the
EW-7288APC.
Static IP users can also temporarily modify your computer’s IP address to be
in the same IP address subnet e.g. 192.168.9.x (x = 3 – 254) as the
EW-7288APC in order to access http://edimax**.setup.
The EW-7288APC’s default IP address is 192.168.9.2.
The procedure for modifying your IP address varies across different operating
systems; please follow the guide appropriate for your operating system in
IV-1-2. How to modify the IP address of your computer.
Static IP users please make a note of your static IP before you
change it.
You can assign a new IP address to the device which is within the subnet of
your network during setup or using the browser based configuration interface
(refer to III-3-3. Basic Settings). Then you can access the URL
http://edimax**.setup in future without modifying your IP address.
Please remember to change your IP address back to its original
value after the device is properly configured.
![](/img.php?id=2274377&img=bg2b.png)
43
IV-1-1. How to check that your computer uses a dynamic IP address
Please follow the instructions appropriate for your operating system.

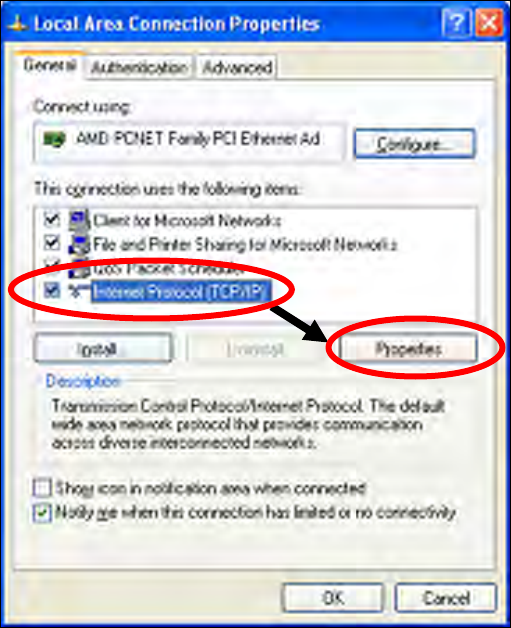

IV-1-1-1. Windows XP
1. Click the “Start” button (it should be located in the lower-left corner of
your computer), then click “Control Panel”. Double-click the “Network and
Internet Connections” icon, click “Network Connections”, and then
double-click “Local Area Connection”. The “Local Area Connection Status”
window will then appear, click “Properties”.

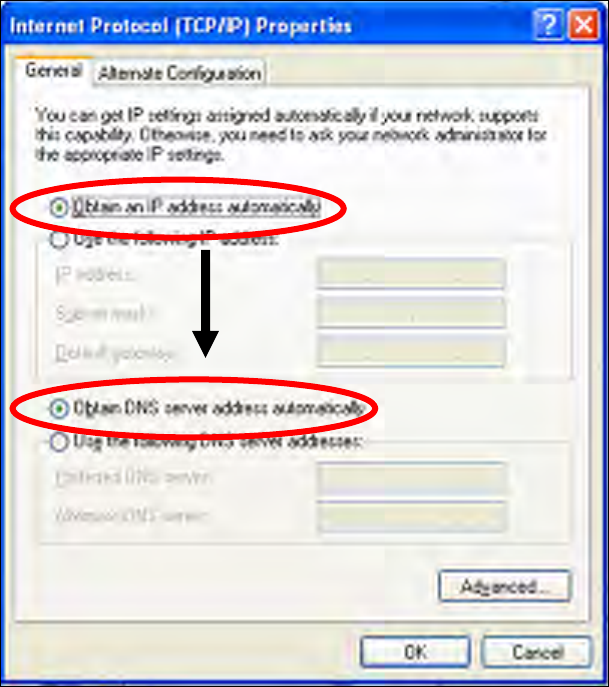

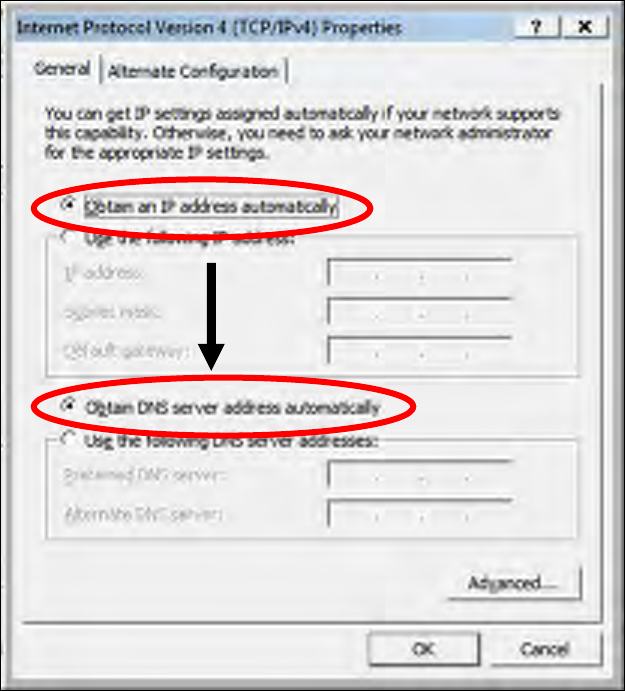

2. “Obtain an IP address automatically” and “Obtain DNS server address
automatically” should be selected.
![](/img.php?id=2274377&img=bg2c.png)
44
![](/img.php?id=2274377&img=bg2d.png)
45

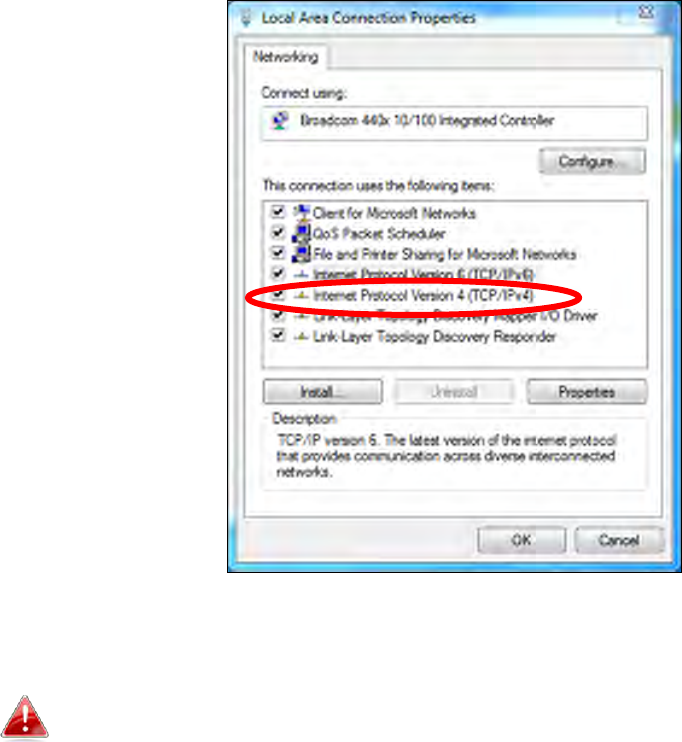

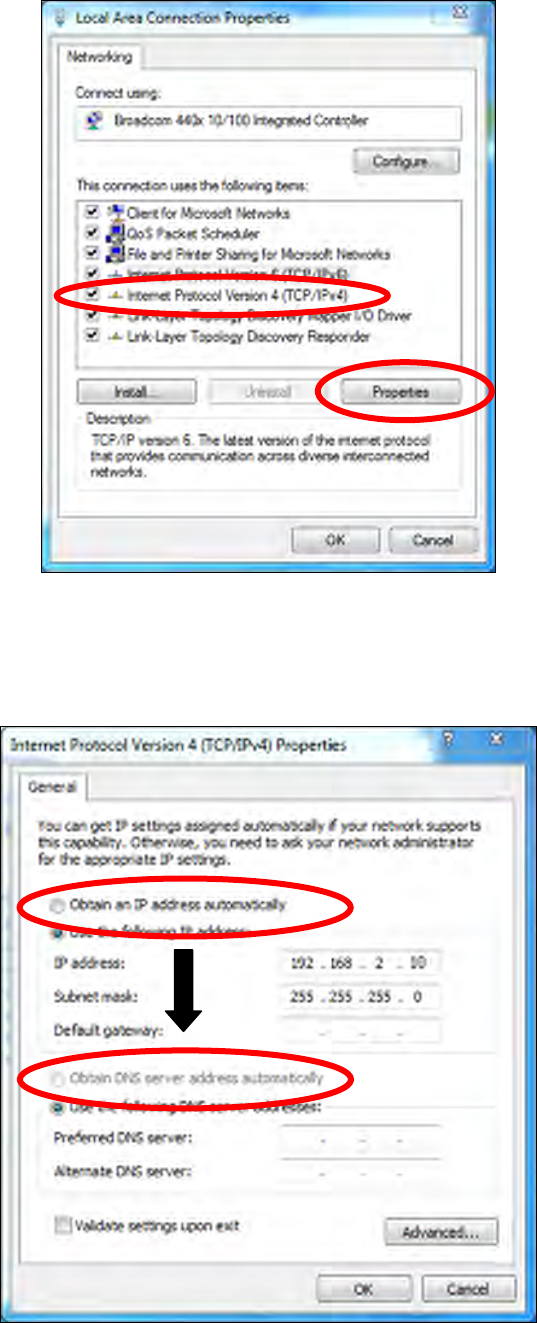

IV-1-1-2. Windows Vista
1. Click the “Start” button (it should be located in the lower-left corner of
your computer), then click “Control Panel”. Click “View Network Status and
Tasks”, then click “Manage Network Connections”. Right-click “Local Area
Network”, then select “Properties”. The “Local Area Connection Properties”
window will then appear, select “Internet Protocol Version 4 (TCP / IPv4)”,
and then click “Properties”.
2. Select “Obtain an IP address automatically” and “Obtain DNS server
address automatically” should be selected.
![](/img.php?id=2274377&img=bg2e.png)
46
![](/img.php?id=2274377&img=bg2f.png)
47
IV-1-1-3. Windows 7

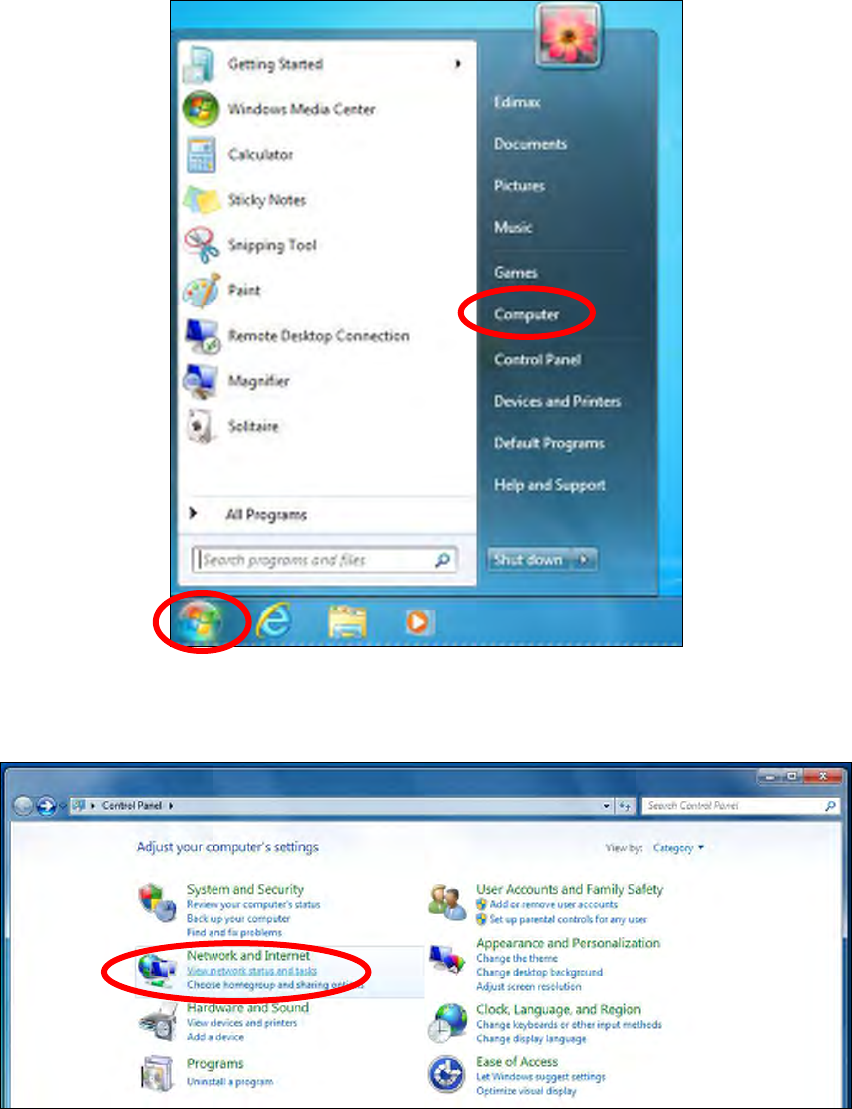

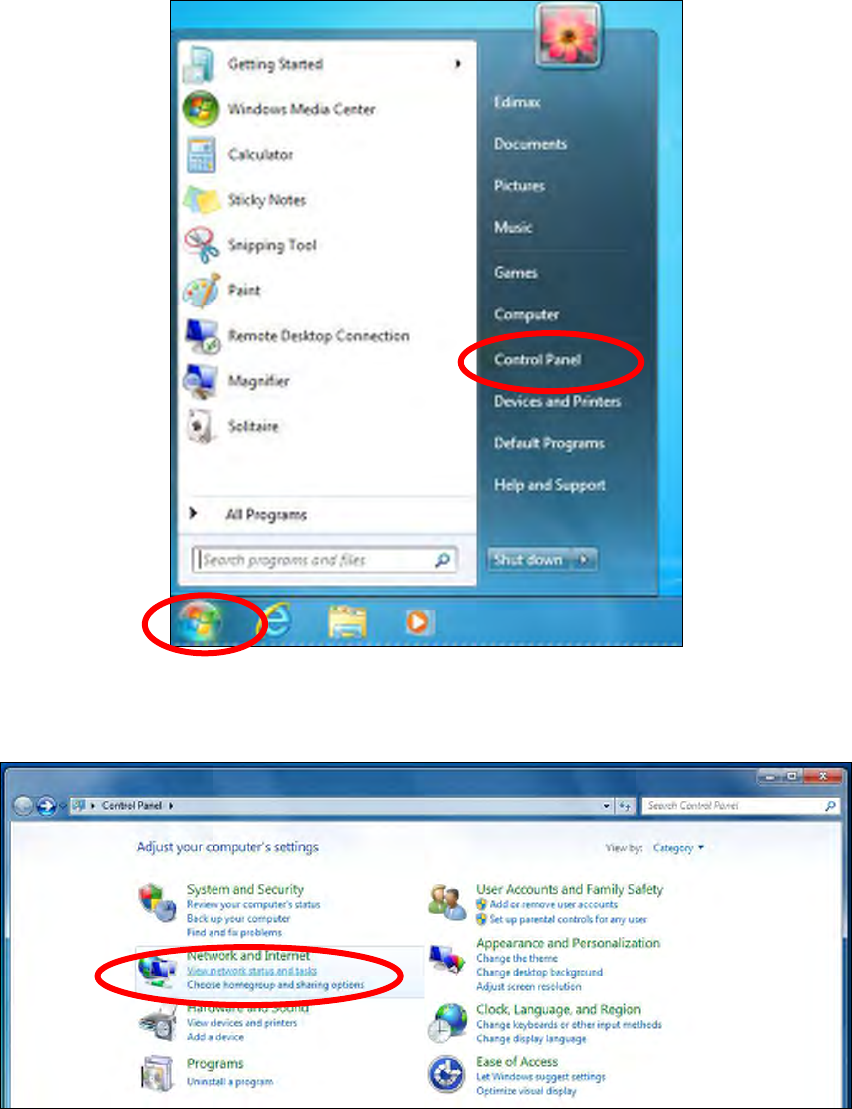

1. Click the “Start” button (it should be located in the lower-left corner of
your computer), then click “Control Panel”.

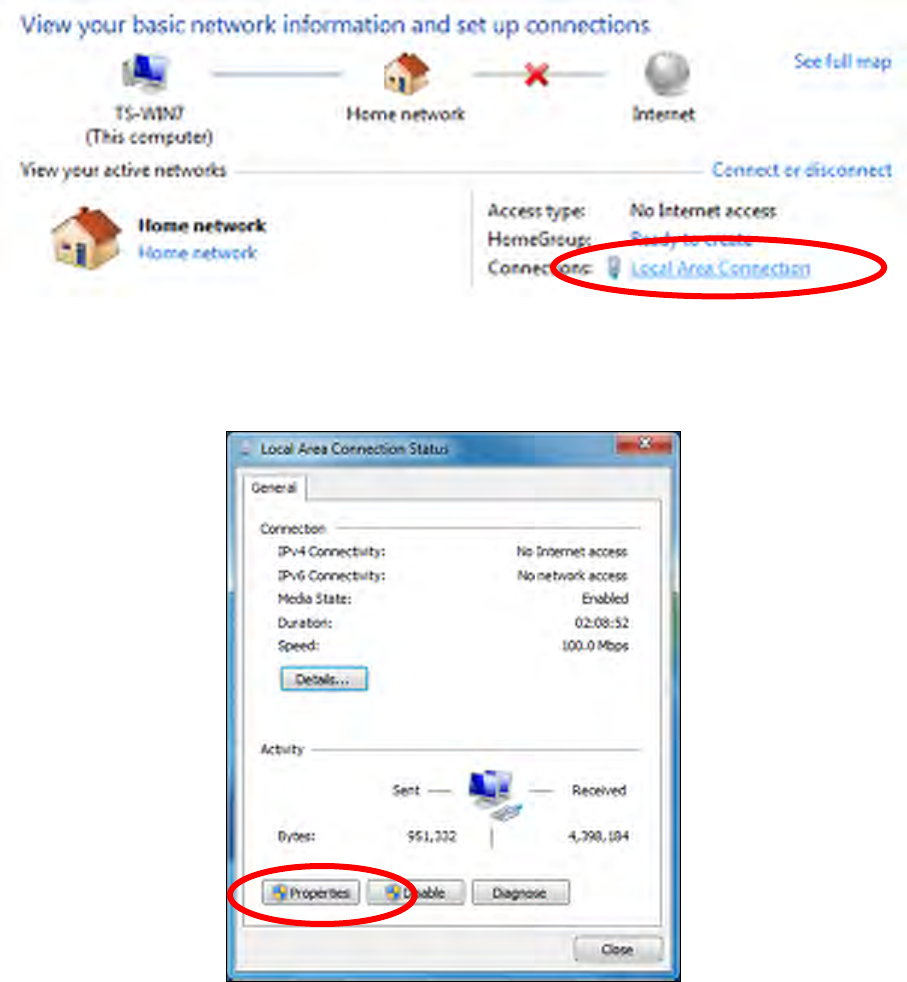

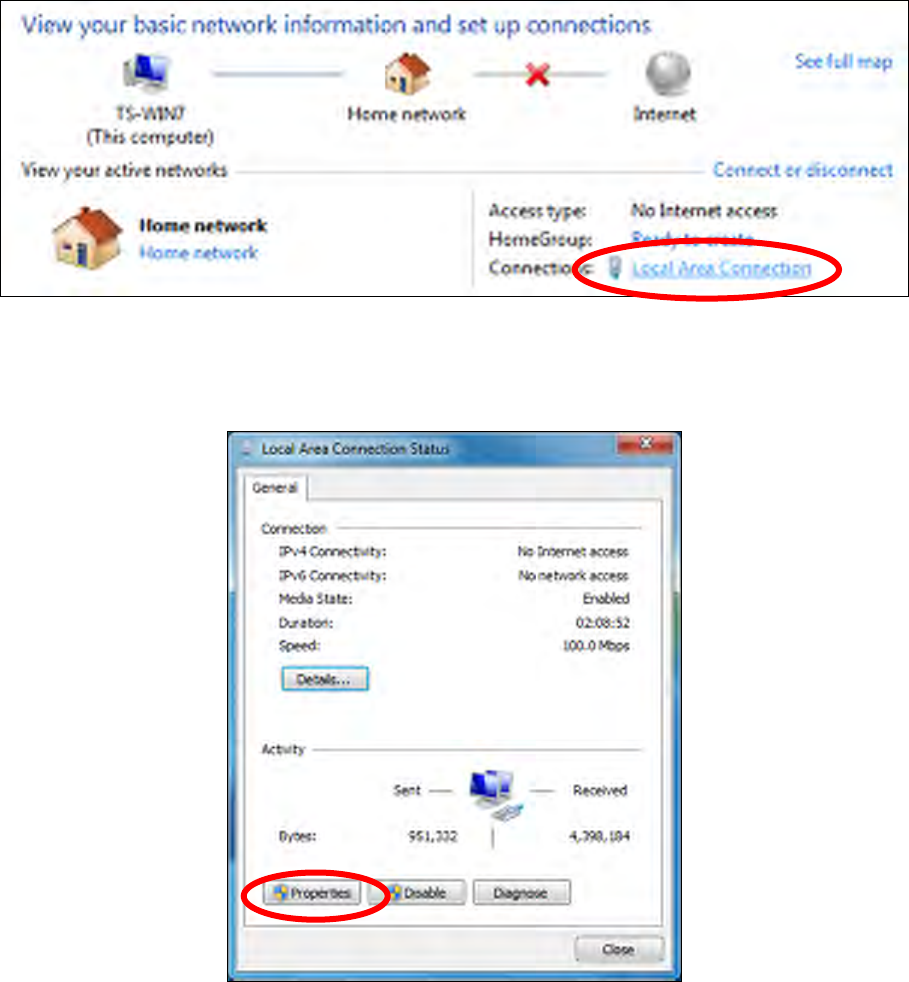

2. Under “Network and Internet” click “View network status and tasks”.
3. Click “Local Area Connection”.
![](/img.php?id=2274377&img=bg30.png)
48

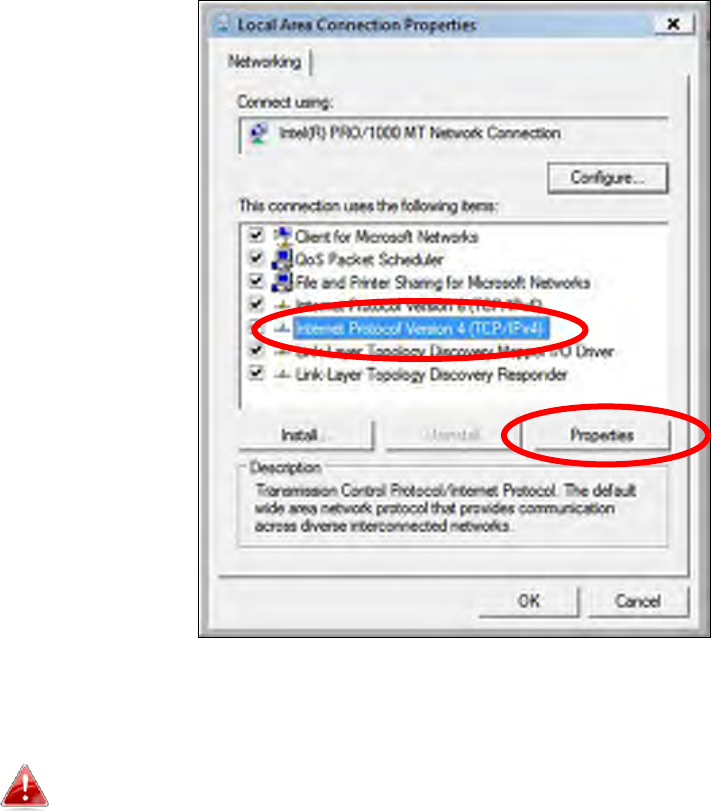

4. Click “Properties”.

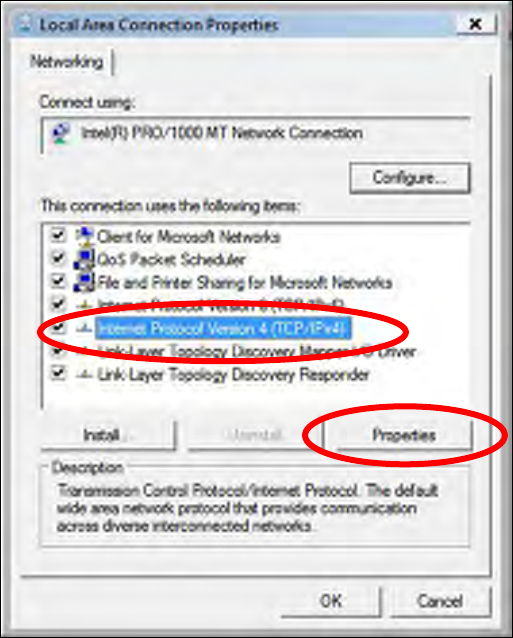

5. Select “Internet Protocol Version 4 (TCP/IPv4) and then click “Properties”.
![](/img.php?id=2274377&img=bg31.png)
49
6. Select “Obtain an IP address automatically” and “Obtain DNS server
address automatically” should be selected.
![](/img.php?id=2274377&img=bg32.png)
50

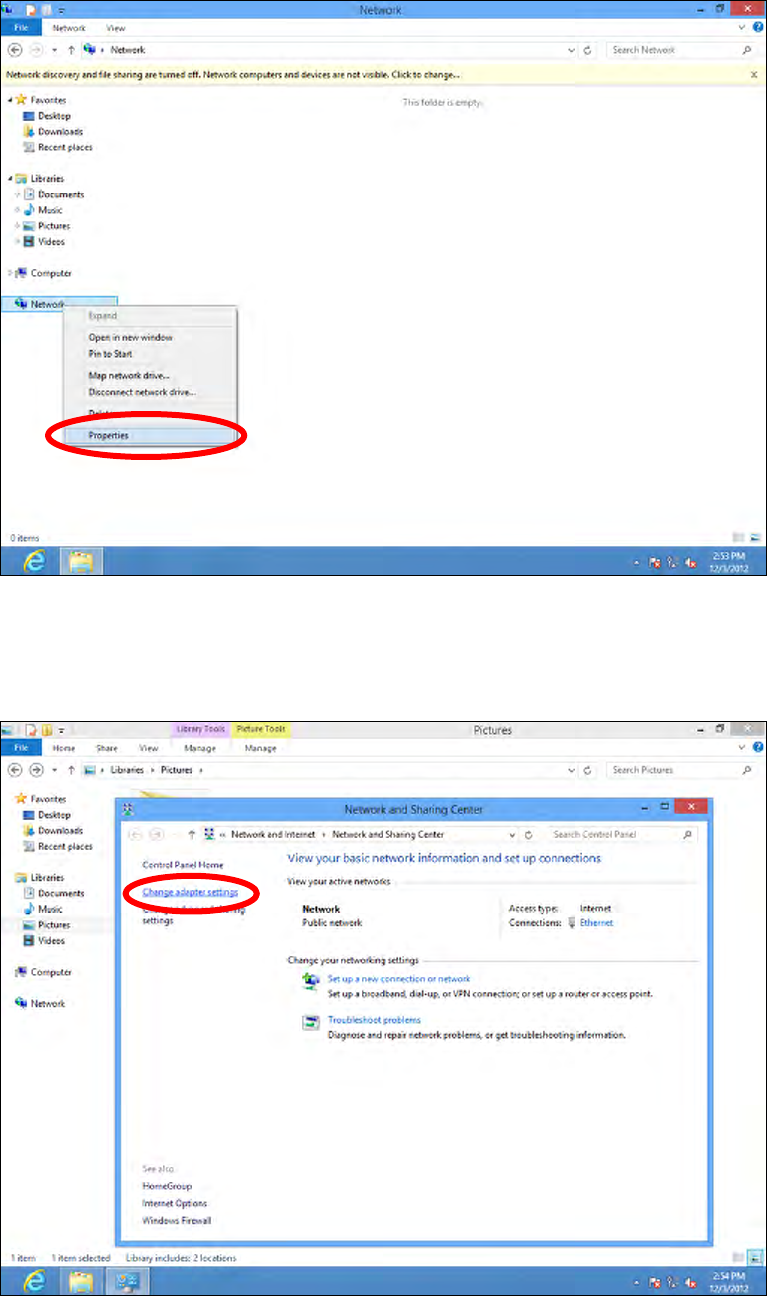

IV-1-1-4. Windows 8

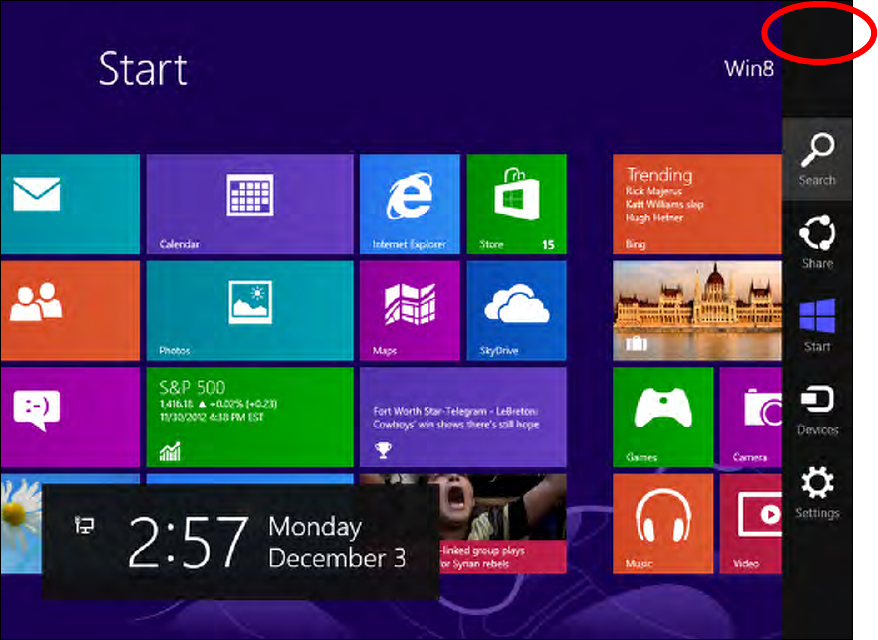

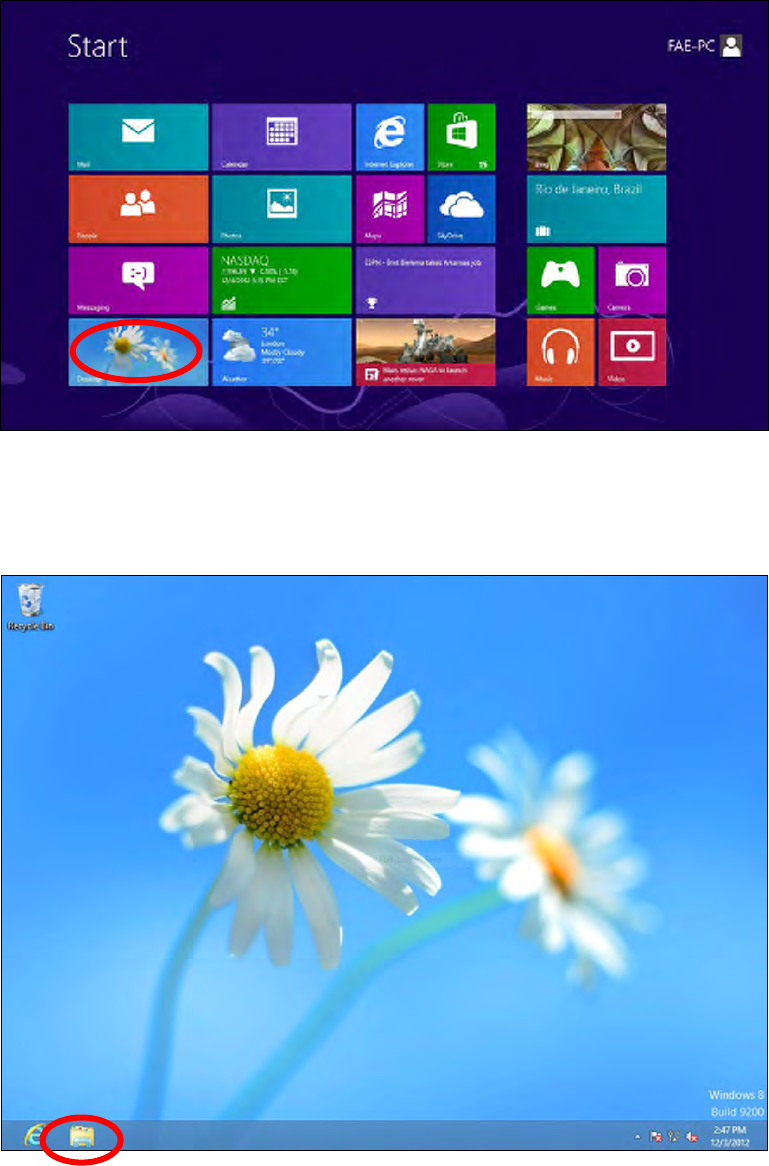

1. From the Windows 8 Start screen, you need to switch to desktop mode.
Move your curser to the bottom left of the screen and click.
2. In desktop mode, click the File Explorer icon in the bottom left of the
screen, as shown below.

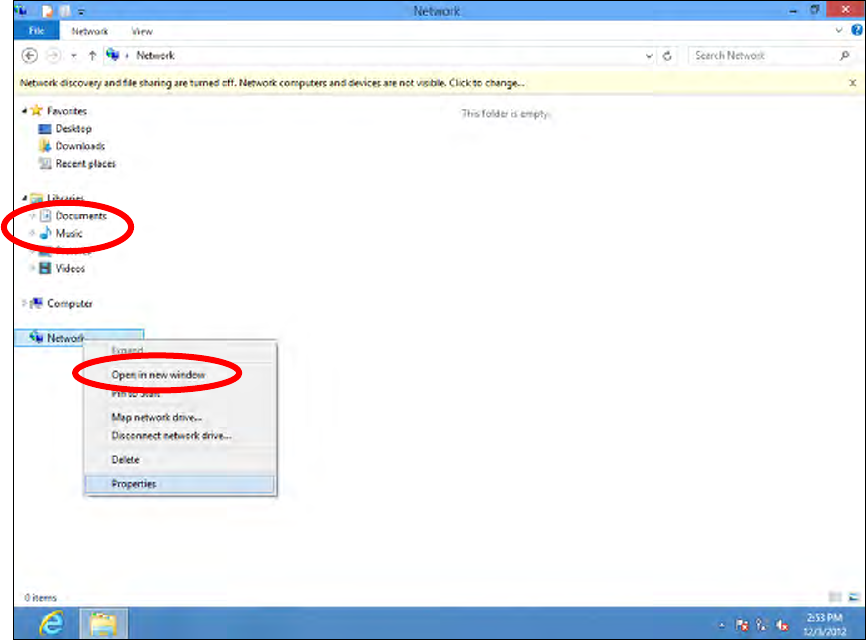

3. Right click “Network” and then select “Properties”.
![](/img.php?id=2274377&img=bg33.png)
51

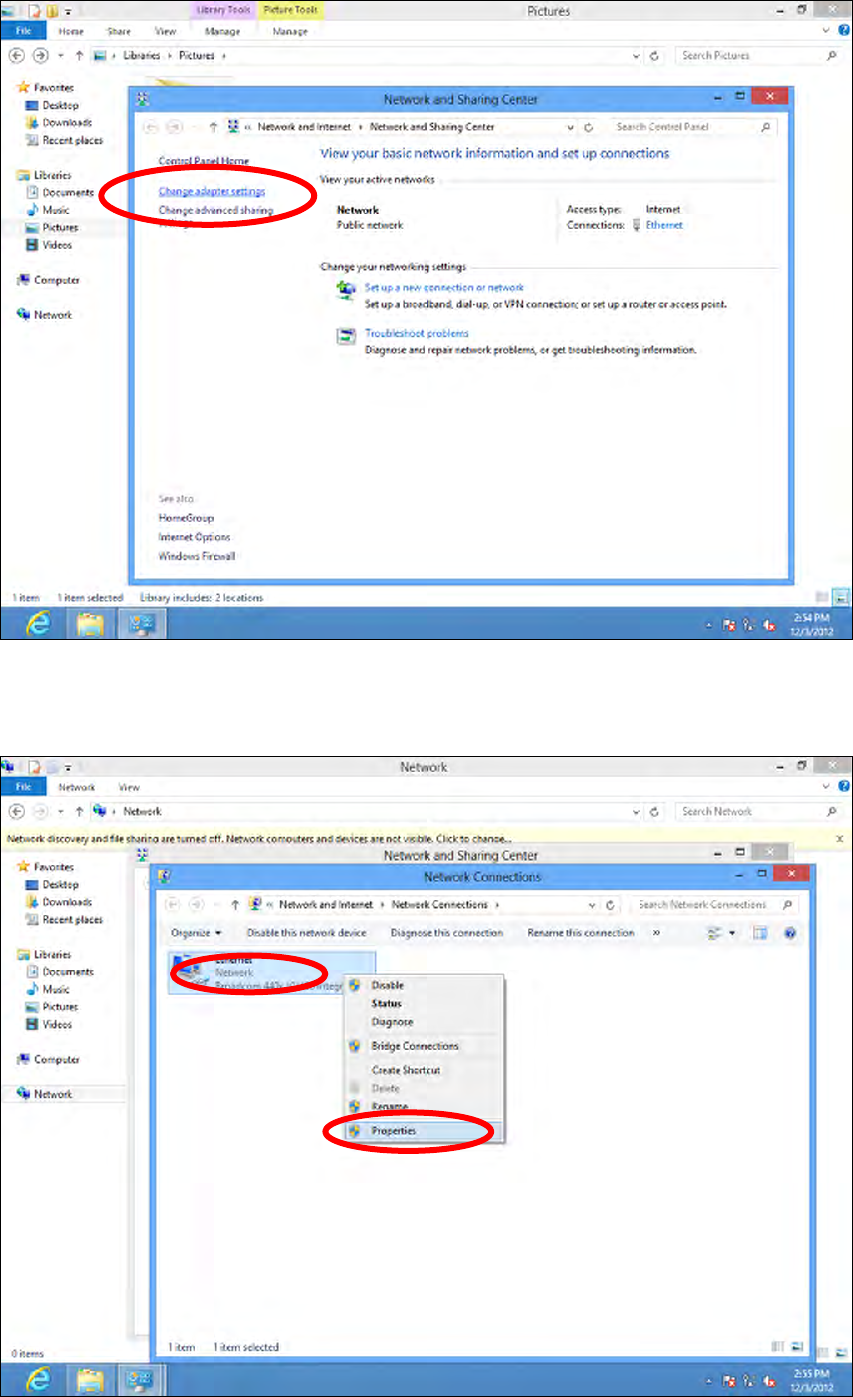

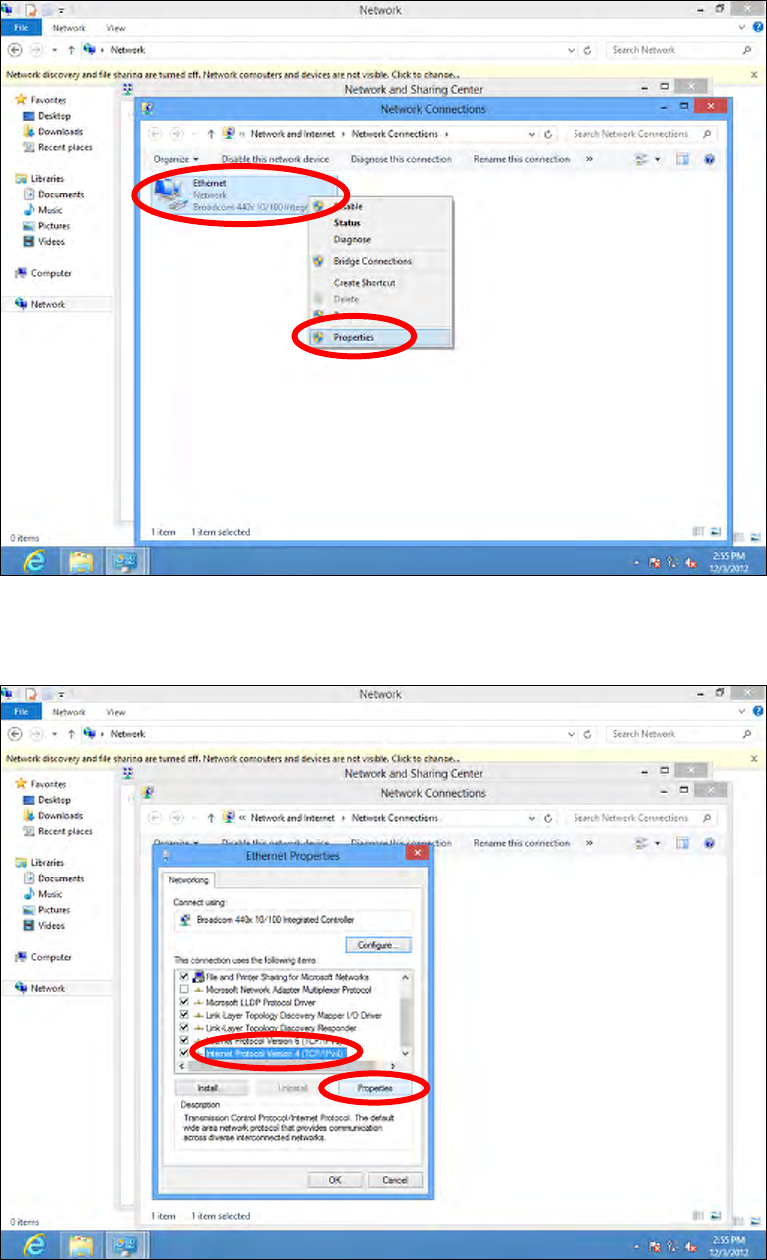

4. In the window that opens, select “Change adapter settings” from the left
side.
5. Choose your connection and right click, then select “Properties”.
![](/img.php?id=2274377&img=bg34.png)
52

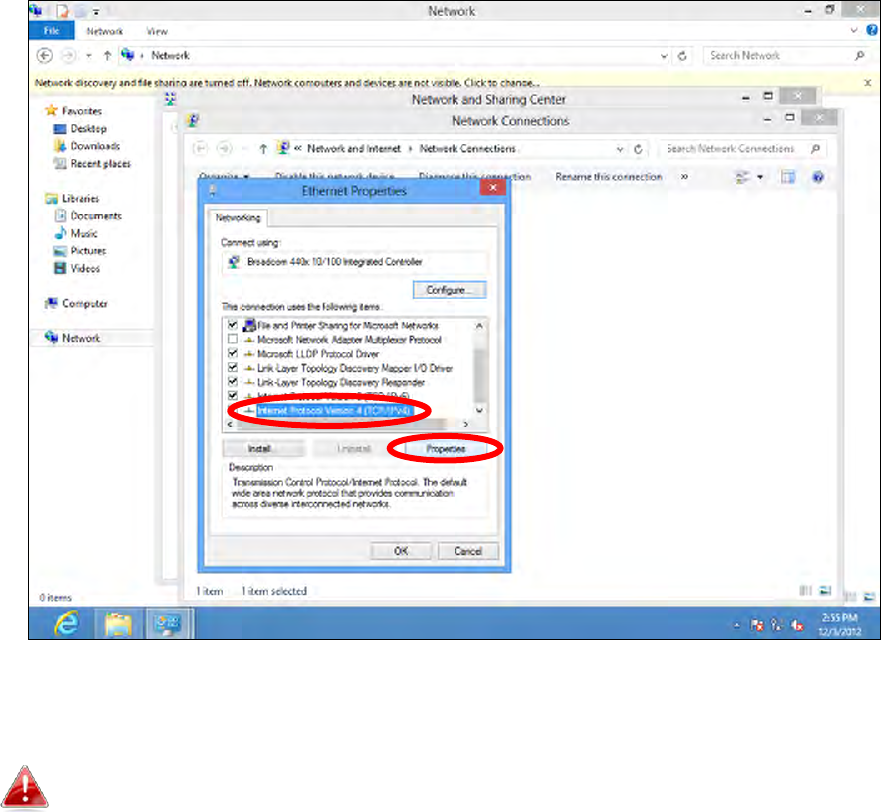

6. Select “Internet Protocol Version 4 (TCP/IPv4) and then click “Properties”.
7. Select “Obtain an IP address automatically” and “Obtain DNS server
address automatically” should be selected.
![](/img.php?id=2274377&img=bg35.png)
53
![](/img.php?id=2274377&img=bg36.png)
54

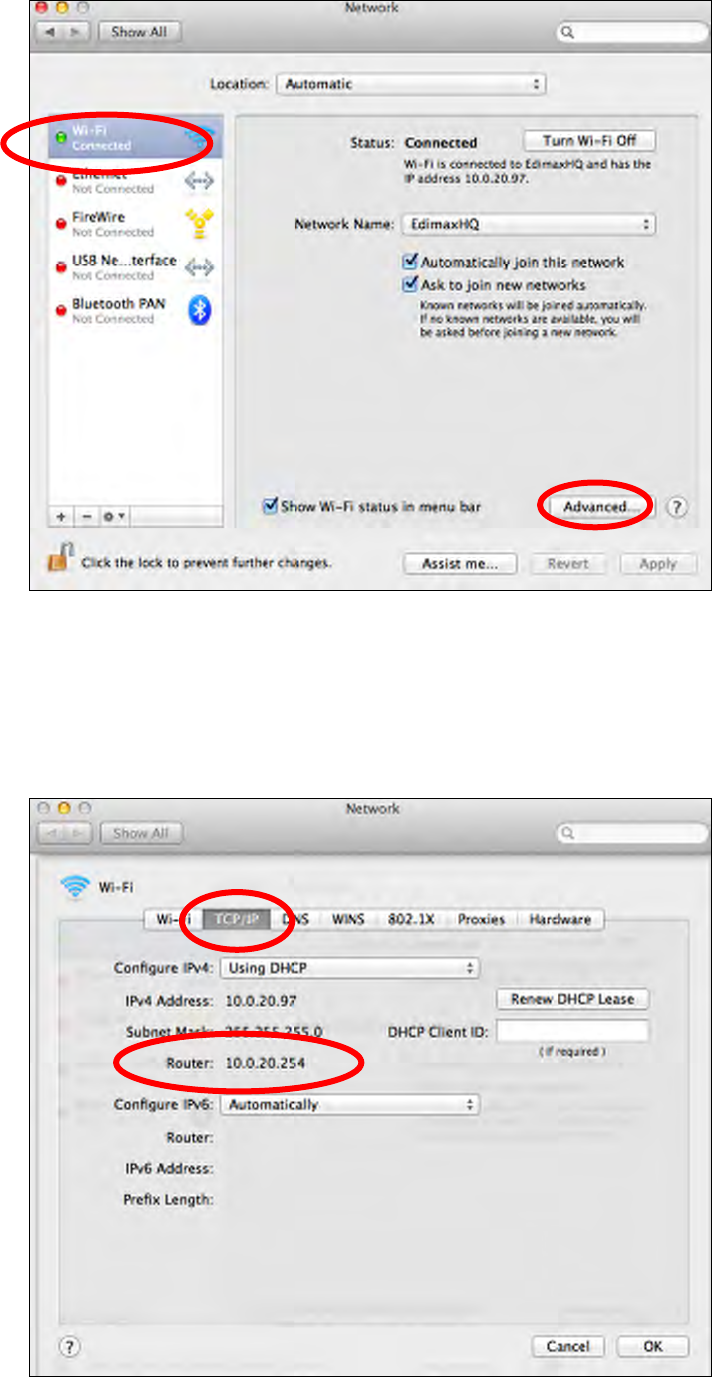

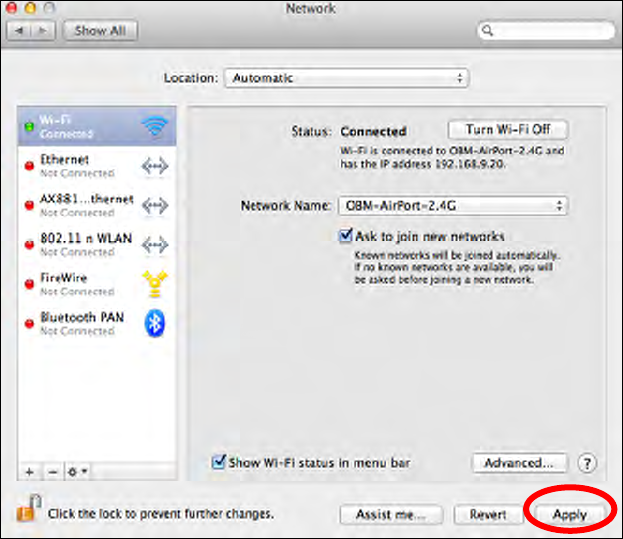

IV-1-1-5. Mac OS

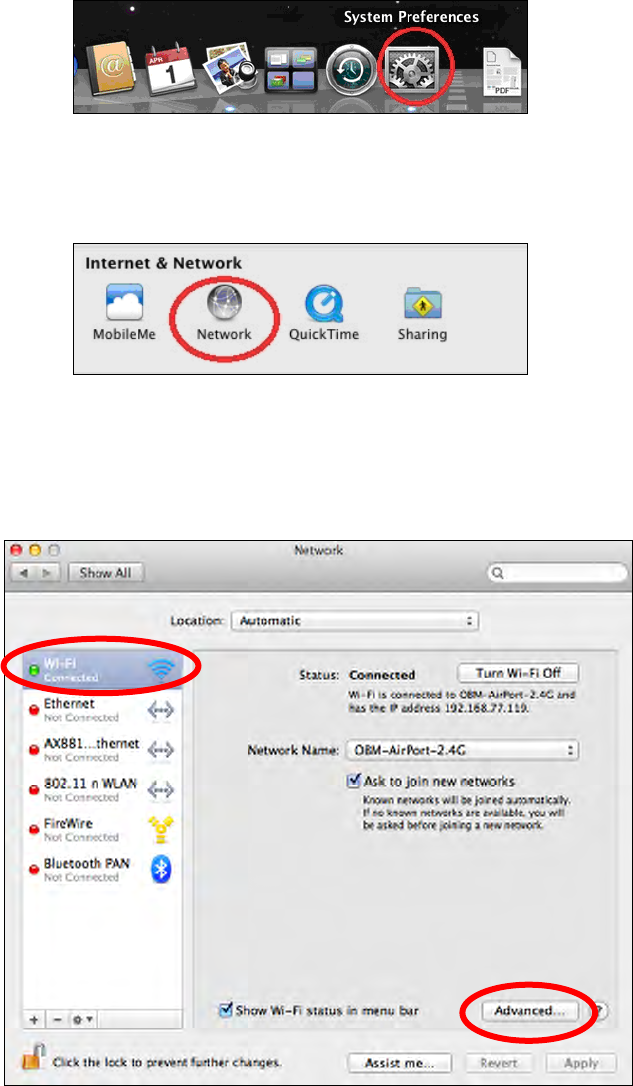

1. Have your Macintosh computer operate as usual, and click on “System
Preferences”.
2. In System Preferences, click on “Network”.
3. Click on “Wi-Fi” in the left panel and then click “Advanced” in the lower
right corner.

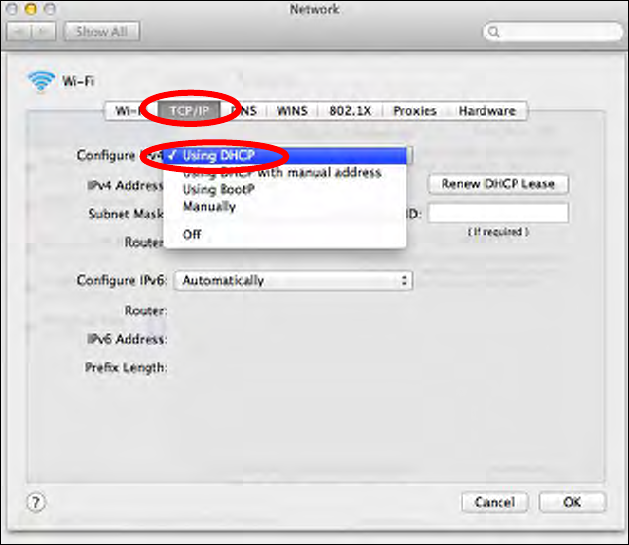

4. Select “TCP/IP” from the top menu and “Using DHCP” in the drop down
menu labeled “Configure IPv4” should be selected.
![](/img.php?id=2274377&img=bg37.png)
55
![](/img.php?id=2274377&img=bg38.png)
56
V-1-2. How to modify the IP address of your computer
Please follow the instructions appropriate for your operating system. In the
following examples we use the IP address 192.168.9.20 though you can use
any IP address in the range 192.168.9.x (x = 3 – 254) in order to access iQ
Setup/browser based configuration interface.
Please make a note of your static IP before you change it.
V-1-2-1. Windows XP
1. Click the “Start” button (it should be located in the lower-left corner of
your computer), then click “Control Panel”. Double-click the “Network and
Internet Connections” icon, click “Network Connections”, and then
double-click “Local Area Connection”. The “Local Area Connection Status”
window will then appear, click “Properties”.

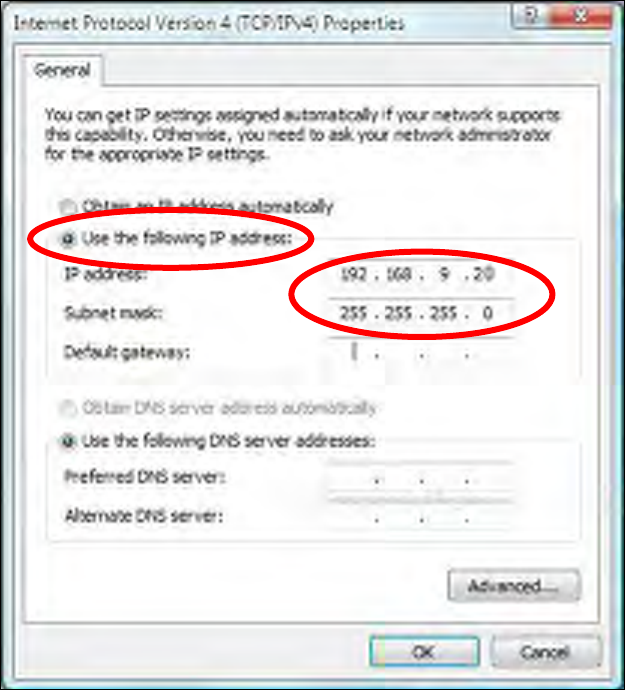

2. Select “Use the following IP address”, then input the following values:
Your existing static IP address will be displayed in the “IP
address” field before you replace it. Please make a note of this IP
![](/img.php?id=2274377&img=bg39.png)
57
address, subnet mask, default gateway and DNS server
addresses.
IP address: 192.168.9.20
Subnet Mask: 255.255.255.0
Click ‘OK’ when finished.
![](/img.php?id=2274377&img=bg3a.png)
58
V-1-2-2. Windows Vista
1. Click the “Start” button (it should be located in the lower-left corner of
your computer), then click “Control Panel”. Click “View Network Status and
Tasks”, then click “Manage Network Connections”. Right-click “Local Area
Network”, then select “Properties”. The “Local Area Connection Properties”
window will then appear, select “Internet Protocol Version 4 (TCP / IPv4)”,
and then click “Properties”.
2. Select “Use the following IP address”, then input the following values:
Your existing static IP address will be displayed in the “IP
address” field before you replace it. Please make a note of this IP
address, subnet mask, default gateway and DNS server
addresses.
IP address: 192.168.9.20
Subnet Mask: 255.255.255.0
Click ‘OK’ when finished.
![](/img.php?id=2274377&img=bg3b.png)
59
V-1-2-3. Windows 7
1. Click the “Start” button (it should be located in the lower-left corner of
your computer), then click “Control Panel”.
![](/img.php?id=2274377&img=bg3c.png)
60
2. Under “Network and Internet” click “View network status and tasks”.
3. Click “Local Area Connection”.
![](/img.php?id=2274377&img=bg3d.png)
61
4. Click “Properties”.
5. Select “Internet Protocol Version 4 (TCP/IPv4) and then click “Properties”.
![](/img.php?id=2274377&img=bg3e.png)
62
6. Select “Use the following IP address”, then input the following values:
Your existing static IP address will be displayed in the “IP
address” field before you replace it. Please make a note of this IP
address, subnet mask, default gateway and DNS server
addresses.
IP address: 192.168.9.20
Subnet Mask: 255.255.255.0
Click ‘OK’ when finished.
![](/img.php?id=2274377&img=bg3f.png)
63
![](/img.php?id=2274377&img=bg40.png)
64
V-1-2-4. Windows 8
1. From the Windows 8 Start screen, you need to switch to desktop mode.
Move your curser to the bottom left of the screen and click.
2. In desktop mode, click the File Explorer icon in the bottom left of the
screen, as shown below.
![](/img.php?id=2274377&img=bg41.png)
65
3. Right click “Network” and then select “Properties”.
4. In the window that opens, select “Change adapter settings” from the left
side.
![](/img.php?id=2274377&img=bg42.png)
66
5. Choose your connection and right click, then select “Properties”.
6. Select “Internet Protocol Version 4 (TCP/IPv4) and then click “Properties”.
![](/img.php?id=2274377&img=bg43.png)
67
7. Select “Use the following IP address”, then input the following values:
Your existing static IP address will be displayed in the “IP
address” field before you replace it. Please make a note of this IP
address, subnet mask, default gateway and DNS server
addresses.
IP address: 192.168.9.20
Subnet Mask: 255.255.255.0
Click ‘OK’ when finished.
![](/img.php?id=2274377&img=bg44.png)
68
V-1-2-5. Mac
1. Have your Macintosh computer operate as usual, and click on “System
Preferences”
2. In System Preferences, click on “Network”.
3. Click on “Wi-Fi” in the left panel and then click “Advanced” in the lower
right corner.

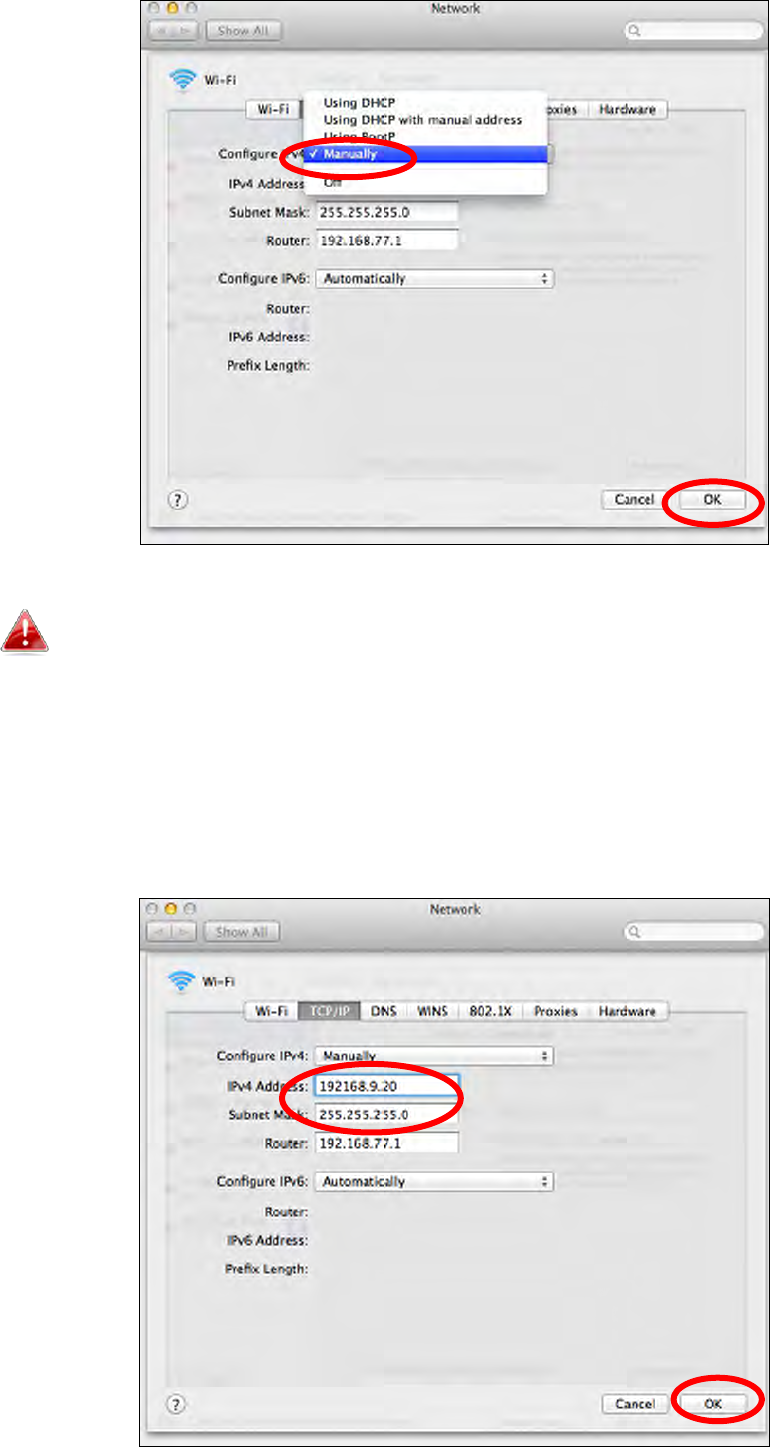

4. Select “TCP/IP” from the top menu and select “Manually” from the drop
down menu labeled “Configure IPv4”, then click “OK”.
![](/img.php?id=2274377&img=bg45.png)
69
Your existing static IP address will be displayed in the “IP
address” field before you replace it. Please make a note of this IP
address, subnet mask, default gateway and DNS server
addresses.
5. In the “IPv4 Address” and “Subnet Mask” field enter IP address
192.168.9.20 and subnet mask 255.255.255.0. Click on “OK”.
![](/img.php?id=2274377&img=bg46.png)
70
6. Click “Apply” to save the changes.
![](/img.php?id=2274377&img=bg47.png)
71
V-1-3. How to Find Your Network Security Key
To find your network security key, please follow the instructions appropriate
for your operating system.
If you are using Windows XP or earlier, please contact your ISP or
router manufacturer to find your network security key.
V-1-3-1. Windows 7 & Vista
1. Open “Control Panel” and click on “Network and Internet” in the top
menu.
2. Click on “View network status and tasks” which is under the heading
“Network and Sharing Center”.
3. Click on “Manage wireless networks” in the left menu.
![](/img.php?id=2274377&img=bg48.png)
72
4. You should see the profile of your Wi-Fi network in the list. Right click on
your Wi-Fi network and then click on “Properties”.
5. Click on the “Security” tab, and then check the box labeled “Show
characters”. This will show your network security key. Click the “Cancel”
button to close the window.
![](/img.php?id=2274377&img=bg49.png)
73
V-1-3-2. Mac
1. Open a new Finder window, and select “Applications” from the menu on
the left side. Open the folder labeled “Utilities” and then open the
application “Keychain Access”.

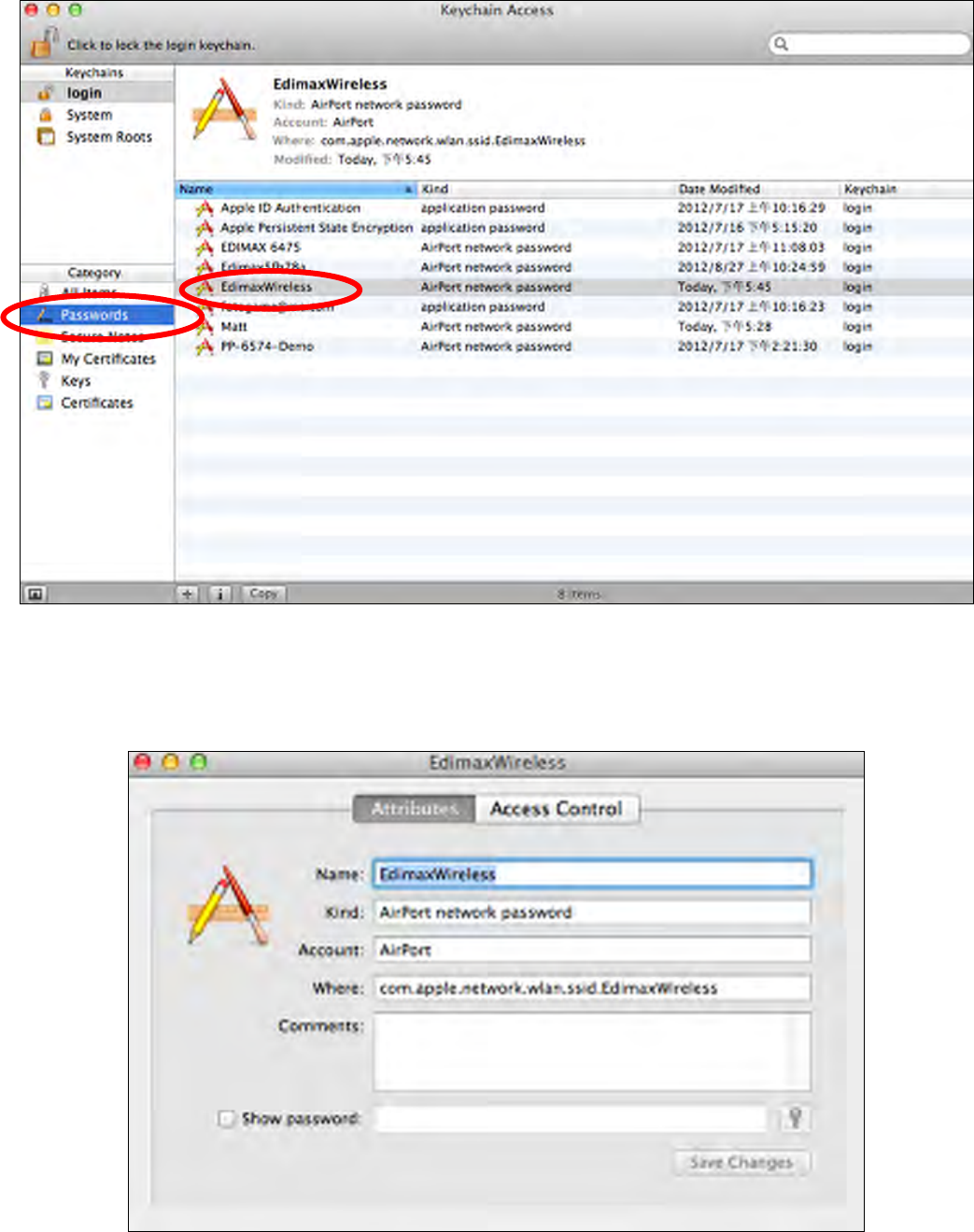

2. Select “Passwords” from the sub-menu labeled “Category” on the left side,
as shown below. Then search the list in the main panel for the SSID of your
network. In this example, the SSID is “EdimaxWireless” – though your SSID
will be unique to your network.
![](/img.php?id=2274377&img=bg4a.png)
74
3. Double click the SSID of your network and you will see the following
window.

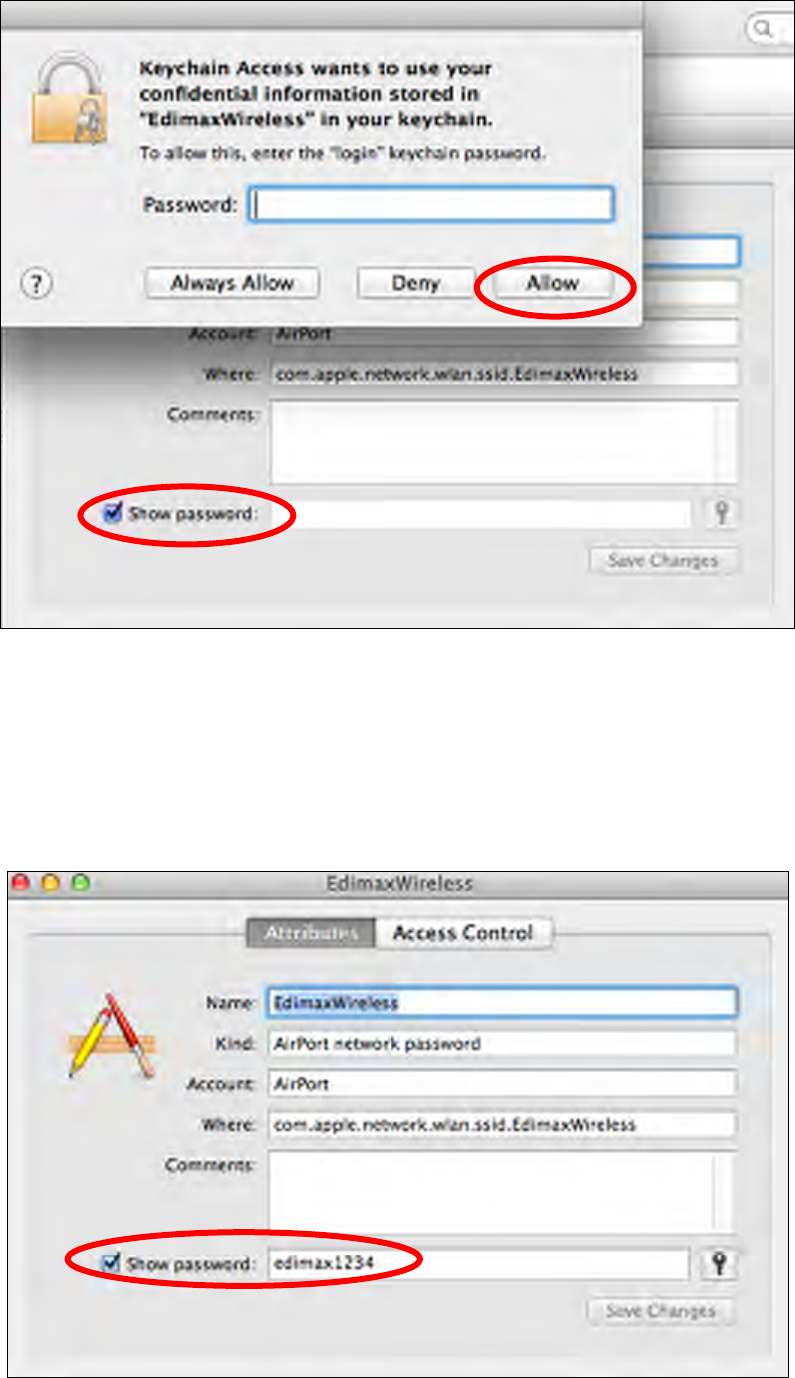

4. Check the box labeled “Show password” and you will be asked to enter
your administrative password, which you use to log into your Mac. Enter
your password and click “Allow”.
![](/img.php?id=2274377&img=bg4b.png)
75
Your network security password will now be displayed in the field next to
the box labeled “Show password”. In the example below, the network
security password is “edimax1234”. Please make a note of your network
security password.
![](/img.php?id=2274377&img=bg4c.png)
76
V-1-4. How to Find Your EW-7288APC’s IP Address
To find your EW-7288APC’s IP address, please follow the instructions
appropriate for your operating system.
V-1-4-1. Windows XP, Vista & 7

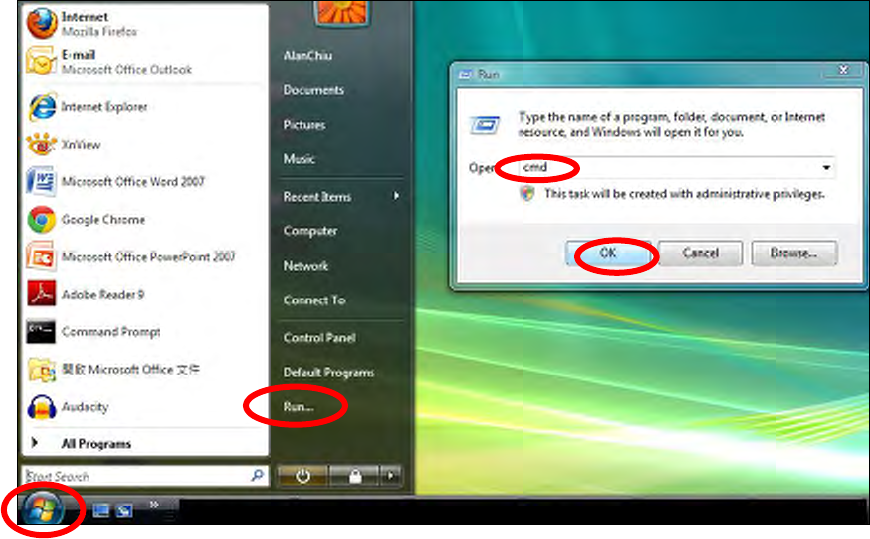

1. Go to “Start”, select “Run” and type “cmd”, then press Enter or click “OK”.

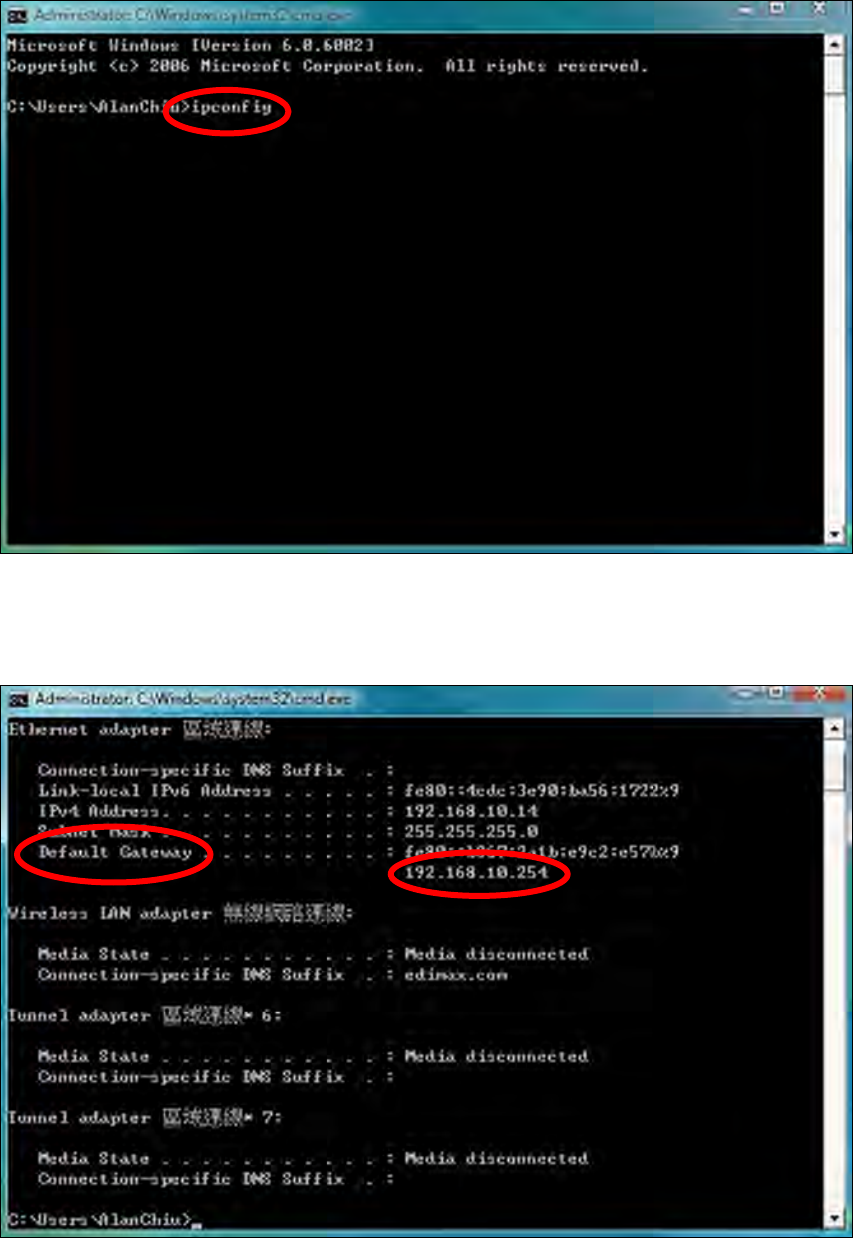

2. A new window will open, type “ipconfig” and press Enter.
![](/img.php?id=2274377&img=bg4d.png)
77
3. Your router’s IP address will be displayed next to “Default Gateway”.
![](/img.php?id=2274377&img=bg4e.png)
78
V-1-4-2. Windows 8
1. From the Windows 8 Start screen, move your curser to the top right
corner of the screen to display the Charms bar.

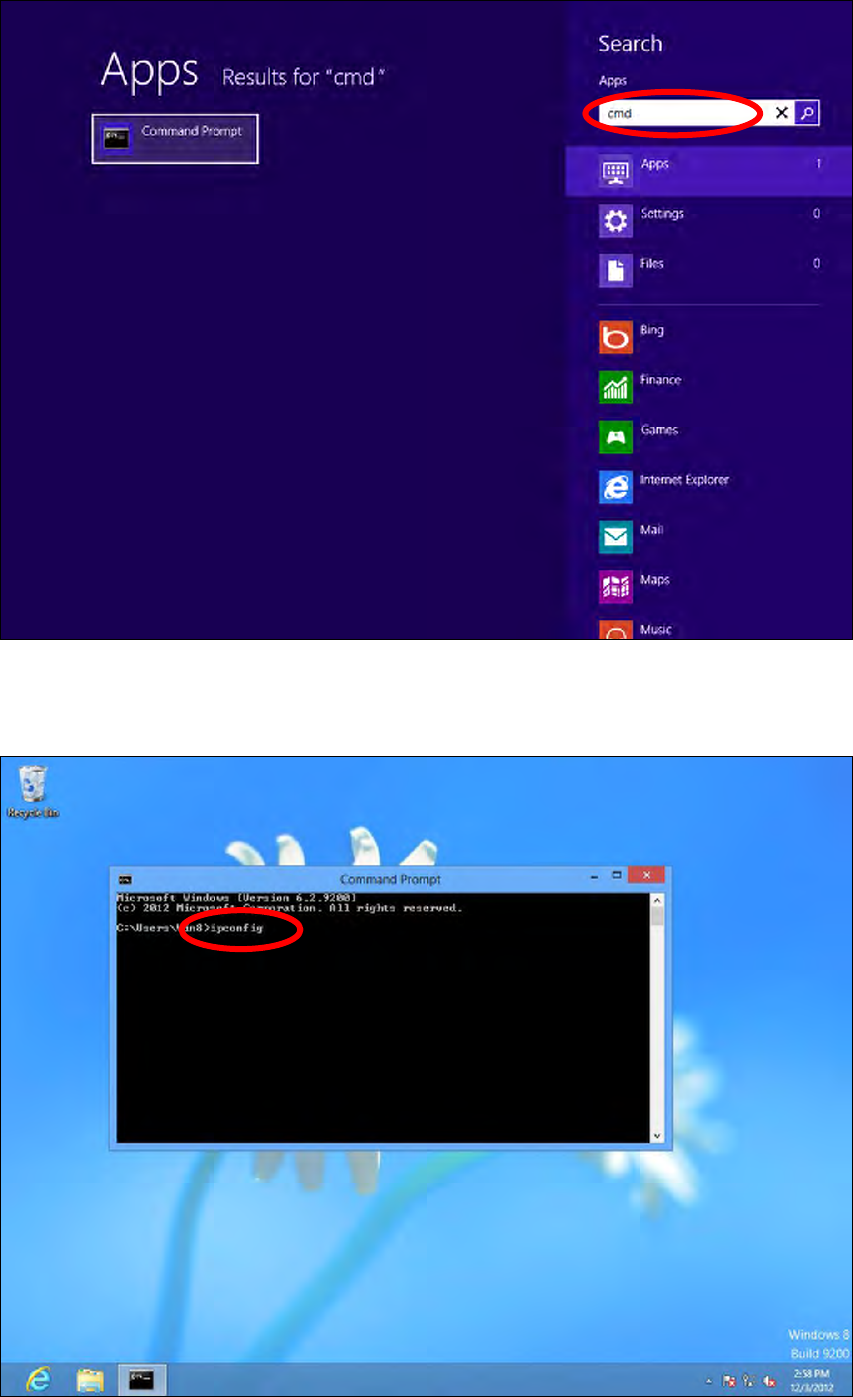

2. Click “Search” and enter “cmd” into the search bar. Click the “Command
Prompt” app which be displayed on the left side.
![](/img.php?id=2274377&img=bg4f.png)
79
3. A new window will open, type “ipconfig” and press Enter.
![](/img.php?id=2274377&img=bg50.png)
80

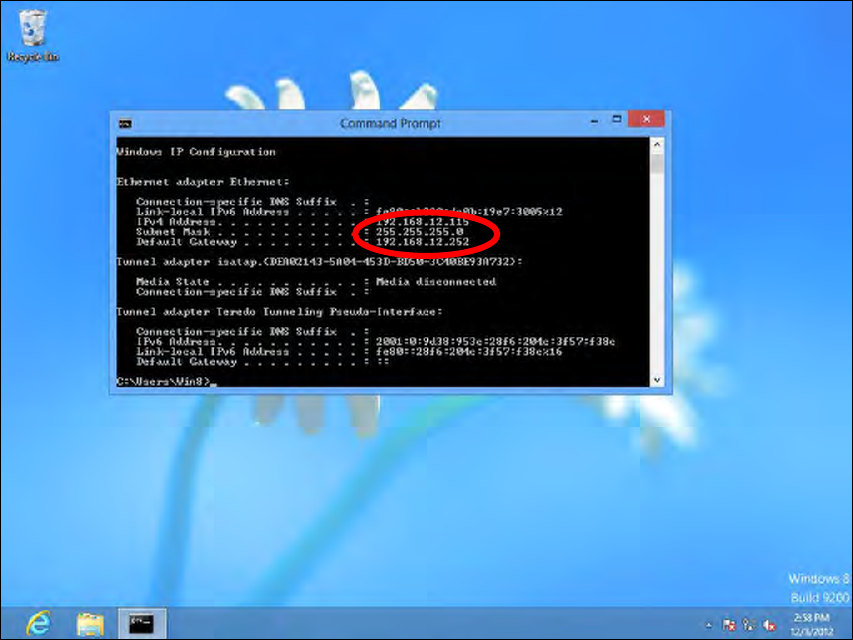

4. Your router’s IP address will be displayed next to “Default Gateway”.
![](/img.php?id=2274377&img=bg51.png)
81
V-1-4-3. Mac
1. Launch “System Preferences” and click on “Network”.

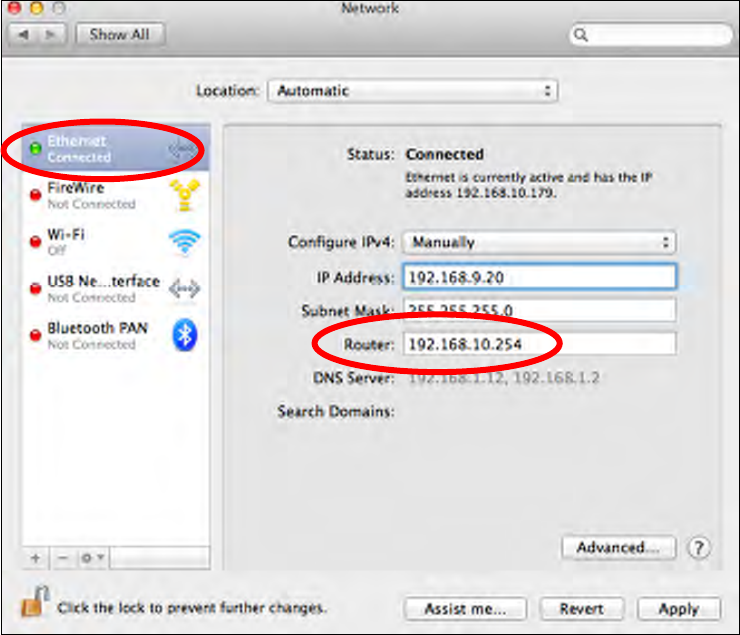

2. If you are using an Ethernet cable to connect to your network, your
router’s IP address will be displayed next to “Router”.
3. If you are using Wi-Fi, click “Wi-Fi” in the left panel, and then “Advanced”
in the bottom right corner.
![](/img.php?id=2274377&img=bg52.png)
82
4. Click the “TCP/IP” tab and your router’s IP address will be displayed next
to “Router”.
![](/img.php?id=2274377&img=bg53.png)
83
V-2. Connecting to a Wi-Fi network
For help connecting to your device’s EdimaxEXT.Setup SSID for initial setup,
or to connect to your device’s new Wi-Fi network (SSID) after setup is
complete, follow the guide below:
Below is an example of how to connect using Windows Vista – the
process may vary slightly for other versions of Windows.

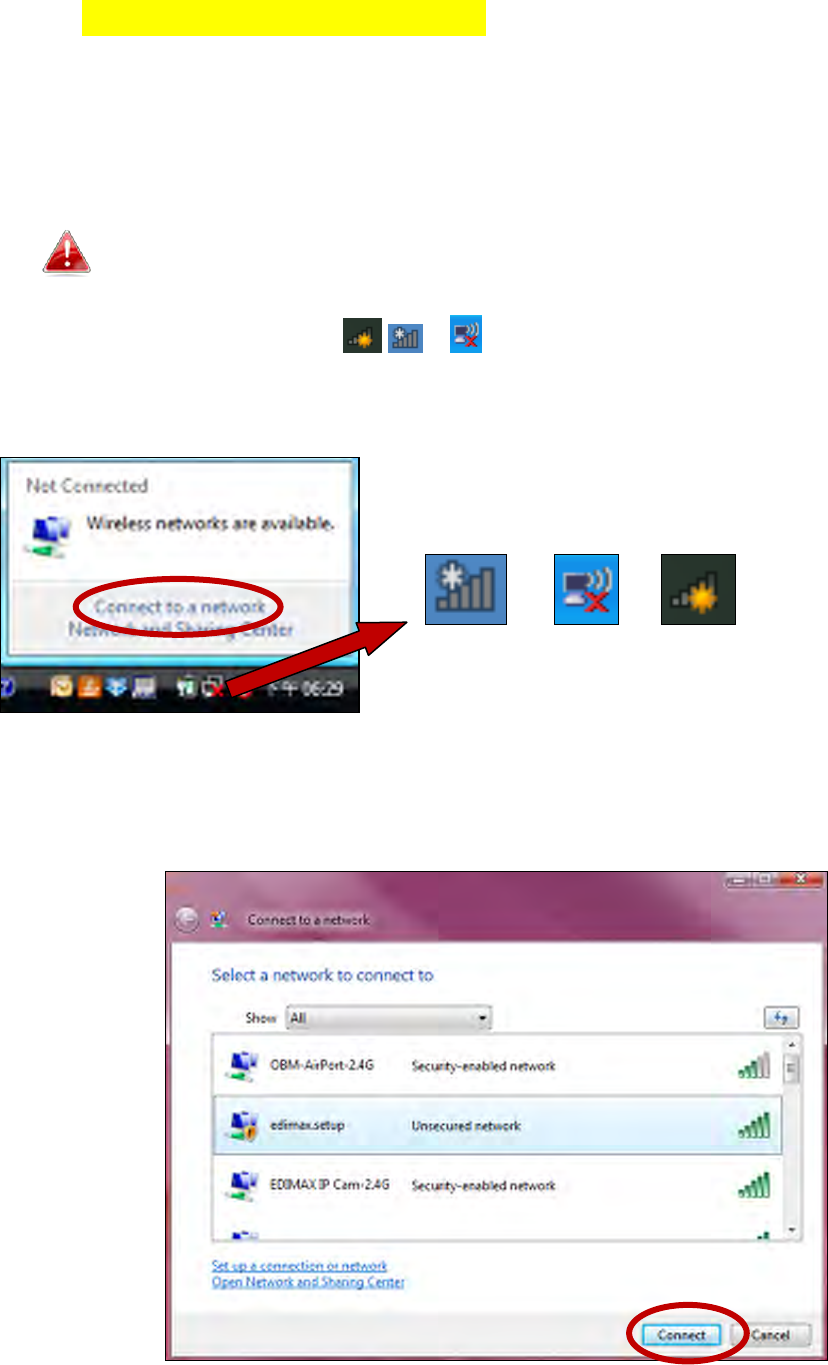

1. Click the network icon ( , or ) in the system tray and select “Connect
to a network”.
2. Search for the SSID of your EW-7288APC and then click “Connect”. If you
set a password for your network, you will then be prompted to enter it.
![](/img.php?id=2274377&img=bg54.png)
84

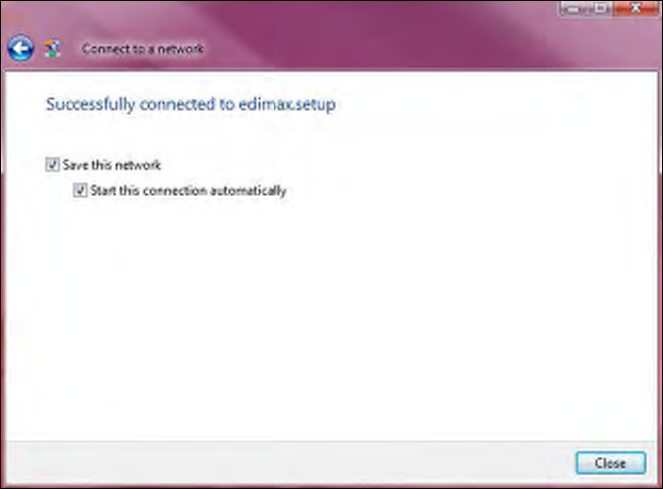

3. After correctly entering your password, you will be successfully connected
to the EW-7288APC’s wireless network.
![](/img.php?id=2274377&img=bg55.png)
85
IV-3. Troubleshooting
1. Is my EW-7288APC dual-band?
a. No, the EW-7288APC is a 5GHz network device and cannot provide, extend or
bridge 2.4GHz Wi-Fi.
2. Does the EW-7288APC work with a 2.4GHz router?
a. Yes, the EW-7288APC can connect to your 2.4GHz router via Ethernet cable in
access point mode, and provide an additional 5GHz Wi-Fi network. In Wi-Fi
bridge mode, an existing 5GHz router is required.
3. In Wi-Fi Bridge mode, how do I connect to a network which has a
hidden SSID?
a. During iQ Setup, check the box labeled “Connect to hidden SSID” and you can
manually enter a SSID in the “SSID” field as shown below, along with the
relevant encryption information.
SSID
Enter the SSID (network name) of your existing,
hidden network.
Extender device SSID
Enter an SSID for the EW-7288APC or use a
default which consists of your existing router’s
SSID (above) +"_5EX".
Encryption
Select and enter the encryption information for
your existing, hidden network.
![](/img.php?id=2274377&img=bg56.png)
86
4. I can’t access the Internet.
a. Ensure that all cables are connected properly. Try a different Ethernet cable.
b. Check if you can access the browser based configuration interface. If not, please
ensure your Wi-Fi device is set to use a dynamic IP address. If you are unsure
how to do this, try using a computer and refer to the user manual for guidance.
c. Connect a computer directly to your modem and check if you can access the
Internet. If you can’t, please contact your Internet service provider for
assistance.
5. I can’t open the browser based configuration interface.
a. Please ensure your Wi-Fi device is set to use a dynamic IP address. If you are
unsure how to do this, try using a computer and refer to the user manual for
guidance.
6. How do I reset my device to factory default settings?
a. To reset the device back to its factory default settings, press and hold the
WPS/Reset button for over 10 seconds, until the LED displays on and red. Please
wait a few minutes for the product to restart. When the device restarts, all
settings will be reset. Default settings are displayed on the product label on the
bottom of the device, as shown below:
Wi-Fi SSID
This is the default Wi-Fi network name for the
device. Search for this name (SSID) and connect to
it in order to set up your EW-7288APC.
![](/img.php?id=2274377&img=bg57.png)
87
Wi-Fi Password
This is the default password required to connect
to the default SSID (above).
IP
The 192.168.9.2 is the default IP of EW-7288APC.
Enter this IP address in a web browser to run iQ
Setup (Wi-Fi Bridge mode). After setup, the
EW-7288APC will have a different IP address.
7. I forgot my password.
a. Reset the router to its factory default settings and use the default username
admin and default password 1234. Default settings are displayed on the product
label on the bottom of the device, as shown in 6.
8. My EW-7288APC has a weak wireless signal.
Weak signals are usually caused by interference from other devices or obstacles
blocking the EW-7288APC’s wireless signal:
a. Keep the device away from other radio devices such as microwaves or cordless
phones.
b. Do not put the device in the corner of a room or under/nearby metal.
c. Ensure there are as few obstacles as possible between the EW-7288APC and
your wireless network device.
In Wi-Fi bridge mode, the EW-7288APC’s weak wireless signal may be in turn
caused by a weak signal from your existing router. It’s important to choose a good
location for the EW-7288APC in relation to your existing wireless router. The best
location is roughly in the middle between your existing wireless router and the area
you would like to be covered by the EW-7288APC. If you are too far away from your
existing router, then it is difficult for the EW-7288APC to receive a wireless signal.
9. What is the function of the LAN port?
The LAN port has a slightly different function depending on the operating mode
of the device:
a. In access point mode, the LAN port is for a direct connection to your existing
router.
b. In Wi-Fi bridge mode, the LAN port is for a direct connection to a wired network
device, in order to provide Wi-Fi connectivity.
88
V. Glossary
Default Gateway (Wireless bridge): Every non-access point IP device needs to
configure a default gateway’s IP address. When the device sends out an IP
packet, if the destination is not on the same network, the device has to send
the packet to its default gateway, which will then send it out towards the
destination.
DHCP: Dynamic Host Configuration Protocol. This protocol automatically gives
every computer on your home network an IP address.
DNS Server IP Address: DNS stands for Domain Name System, which allows
Internet servers to have a domain name (such as www.Broadbandaccess
point.com) and one or more IP addresses (such as 74.125.128.104). A DNS
server keeps a database of Internet servers and their respective domain
names and IP addresses, so that when a domain name is requested (as in
typing "Broadbandaccess point.com" into your Internet browser), the user is
sent to the proper IP address. The DNS server IP address used by the
computers on your home network is the location of the DNS server your ISP
has assigned to you.
Ethernet: A standard for computer networks. Ethernet networks are
connected by special cables and hubs, and move data around at up to 10/100
million bits per second (Mbps).
IP Address and Network (Subnet) Mask: IP stands for Internet Protocol. An IP
address consists of a series of four numbers separated by periods, that
identifies a single, unique Internet computer host in an IP network. Example:
192.168.2.1. It consists of 2 portions: the IP network address, and the host
identifier.
The IP address is a 32-bit binary pattern, which can be represented as four
cascaded decimal numbers separated by “.”: aaa.aaa.aaa.aaa, where each
“aaa” can be anything from 000 to 255, or as four cascaded binary numbers
separated by “.”: bbbbbbbb.bbbbbbbb.bbbbbbbb.bbbbbbbb, where each “b”
can either be 0 or 1.
A network mask is also a 32-bit binary pattern, and consists of consecutive
leading 1’s followed by consecutive trailing 0’s, such as
![](/img.php?id=2274377&img=bg59.png)
89
11111111.11111111.11111111.00000000. Therefore sometimes a network
mask can also be described simply as “x” number of leading 1’s.
When both are represented side by side in their binary forms, all bits in the IP
address that correspond to 1’s in the network mask become part of the IP
network address, and the remaining bits correspond to the host ID.
For example, if the IP address for a device is, in its binary form,
11011001.10110000.10010000.00000111, and if its network mask is,
11111111.11111111.11110000.00000000
It means the device’s network address is
11011001.10110000.10010000.00000000, and its host ID is,
00000000.00000000.00000000.00000111. This is a convenient and efficient
method for access points to route IP packets to their destination.
LAN: Local Area Network. A LAN is a group of computers and devices
connected together in a relatively small area (such as a house or an office).
Your home network is considered a LAN.
MAC Address: MAC stands for Media Access Control. A MAC address is the
hardware address of a device connected to a network. The MAC address is a
unique identifier for a device with an Ethernet interface. It is comprised of
two parts: 3 bytes of data that corresponds to the Manufacturer ID (unique
for each manufacturer), plus 3 bytes that are often used as the product’s
serial number.
Access point: A access point is an intelligent network device that forwards
packets between different networks based on network layer address
information such as IP addresses.
Subnet Mask: A subnet mask, which may be a part of the TCP/IP information
provided by your ISP, is a set of four numbers (e.g. 255.255.255.0) configured
like an IP address. It is used to create IP address numbers used only within a
particular network (as opposed to valid IP address numbers recognized by the
Internet, which must be assigned by InterNIC).
TCP/IP, UDP: Transmission Control Protocol/Internet Protocol (TCP/IP) and
User Datagram Protocol (UDP). TCP/IP is the standard protocol for data
transmission over the Internet. Both TCP and UDP are transport layer protocol.
TCP performs proper error detection and error recovery, and thus is reliable.
UDP on the other hand is not reliable. They both run on top of the IP (Internet
Protocol), a network layer protocol.
90
WAN: Wide Area Network. A network that connects computers located in
geographically separate areas (e.g. different buildings, cities, countries). The
Internet is a wide area network.
Web-based management Graphical User Interface (GUI): Many devices
support a graphical user interface that is based on the web browser. This
means the user can use the familiar Netscape or Microsoft Internet Explorer
to Control/configure or monitor the device being managed.
![](/img.php?id=2274377&img=bg5b.png)
91
COPYRIGHT
Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written
permission from Edimax Technology Co., Ltd.
Edimax Technology Co., Ltd. makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any warranties,
merchantability, or fitness for any particular purpose. Any software described in this
manual is sold or licensed as is. Should the programs prove defective following their
purchase, the buyer (and not this company, its distributor, or its dealer) assumes the
entire cost of all necessary servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Edimax Technology Co., Ltd. reserves the right
to revise this publication and to make changes from time to time in the contents hereof
without the obligation to notify any person of such revision or changes.
The product you have purchased and the setup screen may appear slightly different from
those shown in this QIG. The software and specifications are subject to change without
notice. Please visit our website www.edimax.com for updates. All brand and product
names mentioned in this manual are trademarks and/or registered trademarks of their
respective holders.
92
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
This device and its antenna must not be co-located or operating in conjunction with any other antenna or
transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. Any changes or modifications not expressly
approved by the party responsible for compliance could void the authority to operate equipment.
Federal Communications Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND
THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal equipment and the mutual
recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC
(Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However, special
attention must be paid to the dangers of electric shock and static electricity when working with electrical
equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to
ensure the safe use of the equipment.
EU Countries Intended for Use
The ETSI version of this device is intended for home and office use in Austria, Belgium, Bulgaria, Cyprus, Czech,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Turkey, and United Kingdom. The ETSI
version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and
Switzerland.
EU Countries Not Intended for Use
None
![](/img.php?id=2274377&img=bg5d.png)
93
EU Declaration of Conformity
English: This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC, 2009/125/EC.
Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la
directive 1999/5/CE, 2009/125/CE.
Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními
směrnic 1999/5/ES, 2009/125/ES.
Polski: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami
określonymi Dyrektywą UE 1999/5/EC, 2009/125/EC.
Română: Acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale
Directivei 1999/5/CE, 2009/125/CE.
Русский: Это оборудование соответствует основным требованиям и положениям Директивы
1999/5/EC, 2009/125/EC.
Magyar: Ez a berendezés megfelel az alapvető követelményeknek és más vonatkozó irányelveknek
(1999/5/EK, 2009/125/EC).
Türkçe: Bu cihaz 1999/5/EC, 2009/125/EC direktifleri zorunlu istekler ve diğer hükümlerle ile
uyumludur.
Українська: Обладнання відповідає вимогам і умовам директиви 1999/5/EC, 2009/125/EC.
Slovenčina: Toto zariadenie spĺňa základné požiadavky a ďalšie príslušné ustanovenia smerníc
1999/5/ES, 2009/125/ES.
Deutsch: Dieses Gerät erfüllt die Voraussetzungen gemäß den Richtlinien 1999/5/EC, 2009/125/EC.
Español: El presente equipo cumple los requisitos esenciales de la Directiva 1999/5/EC,
2009/125/EC.
Italiano: Questo apparecchio è conforme ai requisiti essenziali e alle altre disposizioni applicabili
della Direttiva 1999/5/CE, 2009/125/CE.
Nederlands: Dit apparaat voldoet aan de essentiële eisen en andere van toepassing zijnde bepalingen
van richtlijn 1999/5/EC, 2009/125/EC.
Português: Este equipamento cumpre os requesitos essênciais da Directiva 1999/5/EC, 2009/125/EC.
Norsk: Dette utstyret er i samsvar med de viktigste kravene og andre relevante regler i Direktiv
1999/5/EC, 2009/125/EC.
Svenska: Denna utrustning är i överensstämmelse med de väsentliga kraven och övriga relevanta
bestämmelser i direktiv 1999/5/EG, 2009/125/EG.
Dansk: Dette udstyr er i overensstemmelse med de væ sentligste krav og andre relevante
forordninger i direktiv 1999/5/EC, 2009/125/EC.
Suomi: Tämä laite täyttää direktiivien 1999/5/EY, 2009/125/EY oleelliset vaatimukset ja muut
asiaankuuluvat määräykset.
-----------------------------------------------------------------------------------------------------------
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should not be treated as household or general waste. It
should be handed over to the applicable collection point for the recycling of electrical and electronic
equipment, or returned to the supplier for disposal.
![](/img.php?id=2274377&img=bg5e.png)
94
Declaration of Conformity
We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the
equipment described below complies with the requirements of the European R&TTE
directives.
Equipment:
AC450 5GHz Band Extender
Model No.:
EW-7288APC
The following European standards for essential requirements have been followed:
Directives 1999/5/EC
Spectrum
:
ETSI EN 300 328 V1.8.1 (2012-06);
ETSI EN 301 893 V1.7.1 (2012-06)
EMC
:
EN 301 489-1 V1.9.2 (2011-09);
EN 301 489-17 V2.2.1 (2012-09);
Safety (LVD)
:
IEC 60950-1:2005 (2nd Edition);Am 1:2009
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
Recommendation19 99/5/EC
EMF
:
EN 62311:2008
Directives 2006/95/EC
Safety (LVD)
:
IEC 60950-1:2005 (2nd Edition);Am 1:2009
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
Edimax Technology Co., Ltd.
No. 3, Wu Chuan 3rd Road,
Wu-Ku Industrial Park,
New Taipei City, Taiwan
Date of Signature:
April, 2014
Signature:
Printed Name:
Albert Chang
Title:
Director
Edimax Technology Co., Ltd.
![](/img.php?id=2274377&img=bg5f.png)
95
