Elpas Solutions B08 Tamper Sensor, Tag User Manual

Elpas Solutions Ltd. Tamper Sensor, Tag

Contents

User Manual

Wrist Tag Instruction Manual and Specsheet
FCC Compliance
The FCC Wants You to Know
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by tuning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment
and receiver.
c) Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
d) Consult the dealer or an experienced radio/TV
technician.
FCC Warning
Modifications not expressly approved by manufacturer could void
the user authority to operate the equipment under FCC rules.

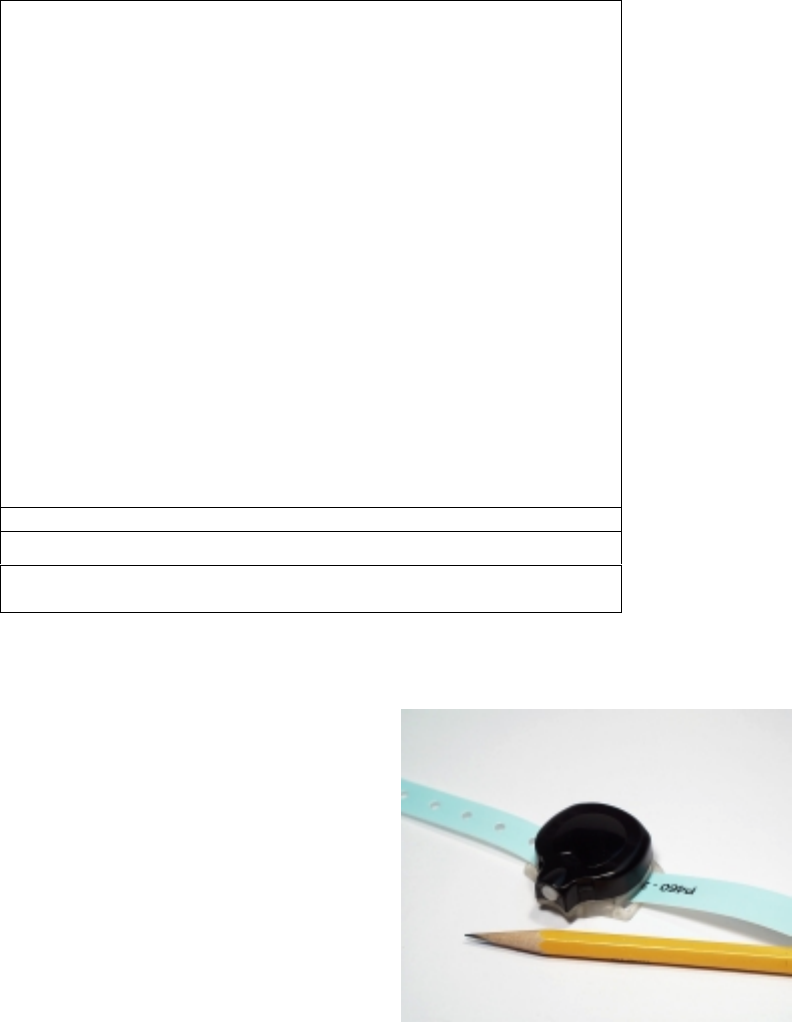

IR and RF Wrist Tag
P/N: PWB00901 (433.92 MHz)
IR/RF Wrist Tag
Description
A small, wrist-worn portable tag, capable of transmitting ID-coded IR beams, and in
addition, RF signals in the frequency of 433.92 MHz. The tag is used for the purpose
of locating patients in enclosed environments.
General
Electrical power
source One 3-Volt lithium battery
Data rate 19,200 bits per second
Message
protocol 4 bytes proprietary format
Message
duration 2.08 ms
Battery type CR 2032 Renata
Battery life One year, assuming movement 12 hr / day
Battery status
indication Battery status transmitted with every RF and IR message.
Badge ID Unique factory programmed (ID code, transmit rate,
motion sensor activation and deactivation, etc.)
Button press 4 transmissions (200 ms apart) at 0.4 sec intervals with
the motion bit on (B1 indicates button press)
Dimensions 47 x 37.1 x 14.7 mm. Height from band holders - 17.6 mm
Weight
(including
battery)
25 gram.
Temperature:
Operating -10 to 70°C
Temperature:
Storage -20 to 60°C
Humidity:
Operating 5 to 95% RH @ 70° C
Humidity:
Storage 5 to 95% RH @ 85° C
Water
resistance Waterproof
Accessories One disposable hospital band (included)
IR Transmission
Modulation ASK (Amplitude Shift Keying of IR carrier)
Peak optical
transmitted
power
500mW
Peak
transmission
wavelength
880nm
Peak radiant
intensity 120 mW/Sr
Frequency of
transmission Carrier at 455 KHz
Transmission
rate Motionless: IR is transmitted on every 3rd RF
transmission, (RF is transmitted 200ms after IR).
In Motion: every 4sec (200 ms apart)
Transmission
angle 360° badge plane. ±60° to badge perpendicular axis.
RF Transmission
RF 433.92 MHz
Modulation ASK (Amplitude Shift Keying of 433.92 MHz carrier)
Average
effective
radiated power
In motion: less than –35 dbm. Motionless: less than –45
dbm
Stability + / - 20ppm
Peak ERP -15 dbm (max)
Transmission
pattern Omnidirectional
FCC and CE
compliance FCC Part 15.231 Level C
I-ETS 300 220-1
Using the Wrist Tag
The following is a set of procedures to ensure proper use of the Wrist Tag.
To use the Wrist Tag:
1. Attach the strap of the Wrist Tag around the patient’s wrist.
2. Keep the IR transmission area clear.
3. Press button to activate it.
4. The RDRs within the facility pick up the signals.
Battery Replacement
The battery is located inside the Wrist Tag. In order to replace the battery, you need
to open the back side of the Wrist Tag with a Phillips screwdriver (preferably an
electric one) with point size "0". For example, the APEX #4910. A new battery can
then be inserted, after which the screws must be replaced.
