EA_Gas Module
Installation Instructions
Introduction
The EA_Gas Module is designed for use with most residential diaphragm meters. Modules for residential meters are available in three
distinct types:
• Type A = American Meter Company® products
• Type R & R415 = Rockwell / Equimeter / Invensys®
• Type S = Sprague / Schlumberger / Actaris / Metris®
Tools, equipment and materials
All or some of the following items may be needed in order to install the module, depending upon the type of meter/index and the
condition of the old index cover and gaskets:
•EA_Gas Module
• Elster’s EA_Installer handheld with software
• Index screws (2 each)1
• Meter mounting bolts (3 or 4 each, depending upon the meter type)1
• Index cover (if old one is not reusable)
• Index cover gasket1
• Putty knife or scraper (to remove old gaskets)
• #2 Phillips screwdriver
• Awl (to remove existing tamper seals)
• Tamper seals (2 each)1
• Pressure compensation factor value, if needed (obtain from Elster)
Preparation and installation
Preparing
Prior to removing the existing index and index cover, verify that the module style is compatible with the meter style.
1Supplied with the module.
![](/img.php?id=1357125&img=bg2.png)
IL42-5015A September 2010
2

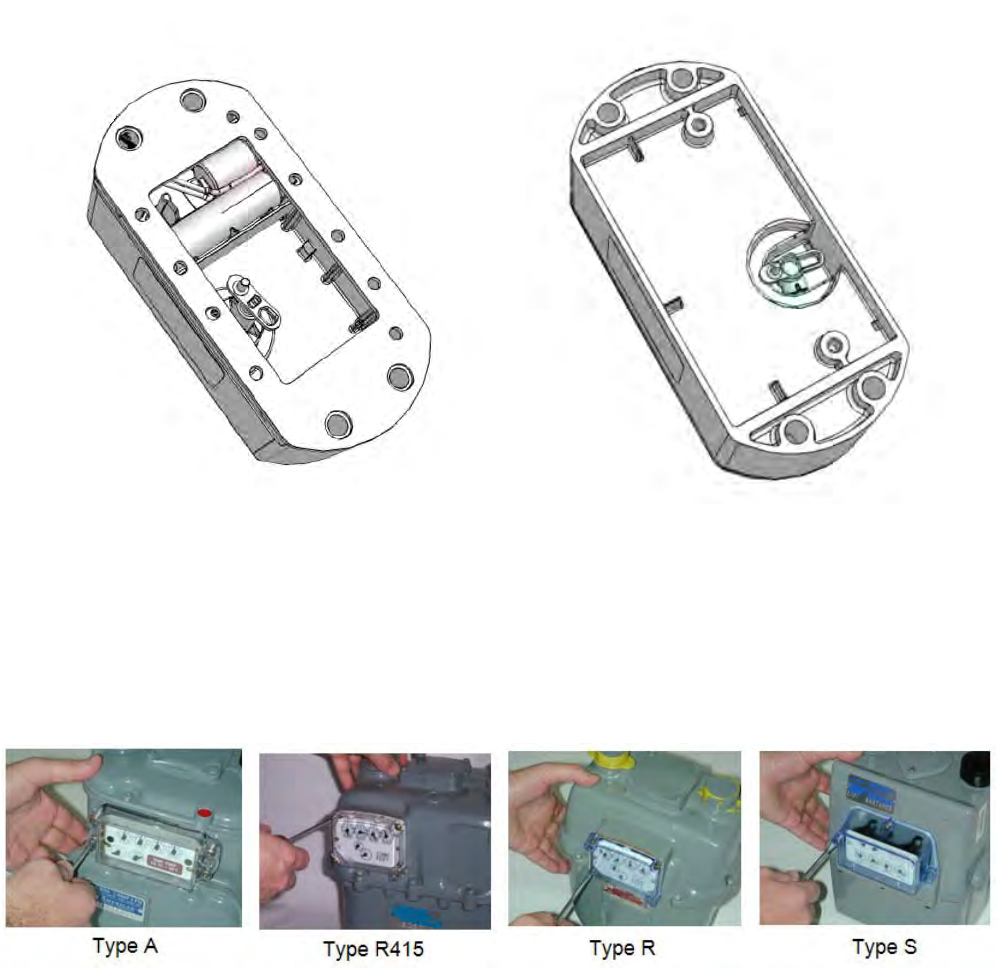

Figure 1. EA_Gas module for Type A meter index
Installing index onto module
1. Remove the existing index cover and index (or module) from the meter.
Use an awl to remove the existing tamper seals.
2. Clean any debris from index and cover.
3. Using a scraper or putty knife, remove the gasket and any adhesive material from the meter.
4. Align index wriggler with module wriggler (battery side), as shown below.
EA_Gas module (front side)
EA_Gas module (battery side)
![](/img.php?id=1357125&img=bg3.png)
September 2010 IL42-5015A
3

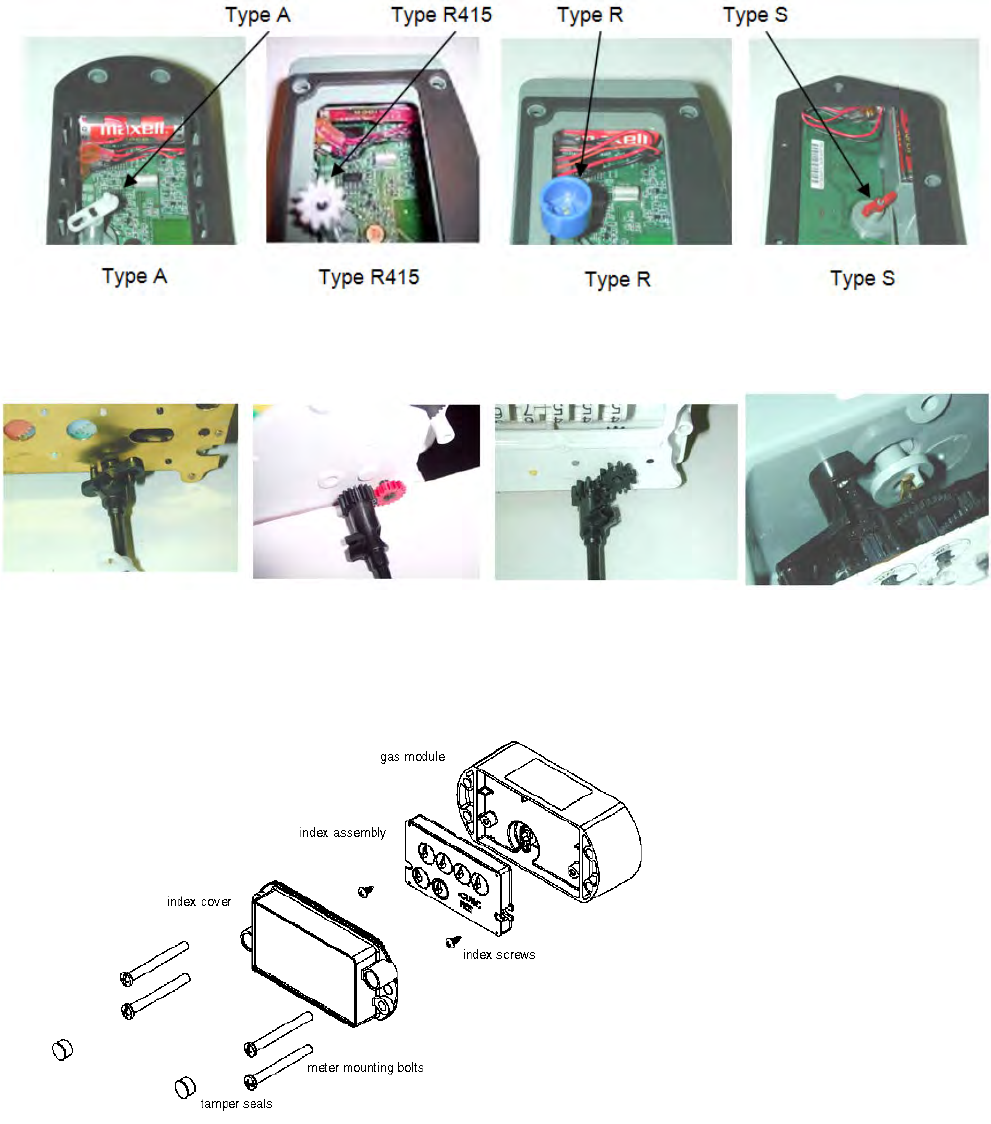

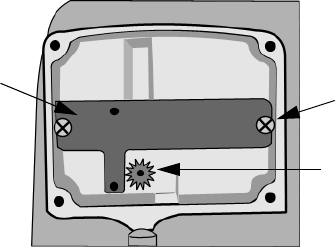

Figure 2. Gas module battery compartment and wriggler
Figure 3. Alignment of wrigglers
5. Attach the index to module using the appropriate two (2) index screws.
Figure 4. Exploded installation view of the gas meter index with gas module
Caution: Do not over tighten index screws.
Type A Type R415 Type R Type S
![](/img.php?id=1357125&img=bg4.png)
IL42-5015A September 2010
4
Checking mechanical operation
This procedure will verify the attached index rotates freely and without resistance.
1. Rotate the index drive dial 3 times clockwise.
2. If it turns easily, rotate the drive dial 3 times counterclockwise to remove counts or subcounts from the mechanical index.
If it does not turn easily:
a. Rotate the drive dial 3 times counterclockwise to remove subcounts from the mechanical index.
b. Unscrew the index/module assembly and repeat from step 4 of “Installing index onto module” on page 2.
Note: Subcounts added to the electronic index during this procedure will be cleared when the index reading is programmed into the
module.
3. Verify that the gasket material on the index cover is free of rips or tears.
4. If the gasket cover is ripped or torn, removed the damaged gasket from the index cover and replace with a new gasket.
Mounting the module-index assembly
Note: Be sure to have your module/index assembly, screwdriver, index cover and index cover gasket within easy reach before starting
this procedure.
1. For Rockwell 415 modules Only: Install the meter adapter to the meter using the two 6/32” screws supplied in the assembly.
Note: Make sure the gears on the adapter and meter are properly meshed.
Figure 5. Rockwell gas meter with meter adapter (P/N 52870G031) and index wriggler
2. Visually align module wriggler with meter wriggler or meter adapter (drive dog).
• If wriggler cannot be put in a fixed position, position it correctly by rotating the drive dial with your finger.
3. Mate the module wriggler with the meter wriggler or meter adapter (drive dog) and hold the mated assembly against the
meter.
4. While holding the assembly against the meter, gently try to turn the drive wheel clockwise, then counterclockwise.
• If the drive wheel meets resistance in both directions, it is properly mated. Proceed to step 5.
• If it meets no resistance in either direction, and can rotate freely through an angle of 360 degrees and beyond, then make
sure the meter is completely free of old gasket material and forcefully press the module into the meter. Repeat this step
(step 4). If the unit still does not correctly engage with the meter, return it to Elster Integrated Solutions.
•For American Meter modules Only: If the American Meter module meets resistance in one direction then turns 360
degrees the other way before again meeting resistance, it is not properly mated. Repeat from step 1.
Caution: It is very important that the wriggler on the module is correctly
engaged onto the meter. If it is not, it could produce an
erroneous indication during utility leak test procedures that
monitor drive dial (proving dial) movement. Incorrectly
engaged wrigglers could also cause meter damage. CORRECT
EXECUTION OF STEPS 1, 2 and 3 IS CRITICAL.
5. While holding the module firmly in place so as to not lose the wriggler alignment, place the index cover and index cover gasket
onto the module/ index assembly.
6/32” screw
meter adapter
gears meshed
correctly
![](/img.php?id=1357125&img=bg5.png)
September 2010 IL42-5015A
5
• Verify the index cover is properly oriented with its vent holes at the bottom.
• See figure below for orientation cues.

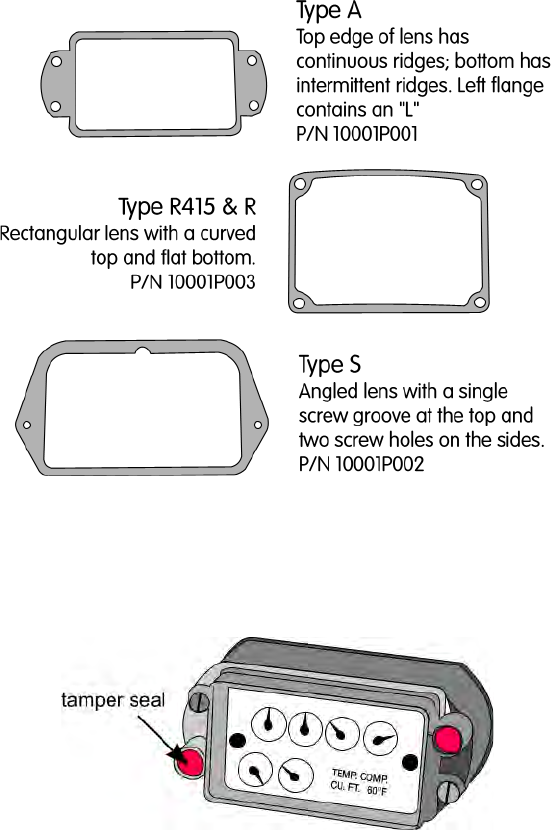

Figure 6. Gaskets by meter type
6. Using the appropriate mounting bolts provides, screw the module/index/cover assembly to the meter and tighten bolts using a
torque driver set to 20 in-lbs (with +/- 4 in-lbs tolerance) to secure assembly to meter.
7. Install the tamper seals into the index cover receptacles.
Figure 7. Meter index assembly with tamper seals
Programming the module using the EA_Installer
Although modules may contain default or utility-specified values that are programmed during manufacturing, it is important to program
certain data only after the module has been installed in the field:
• Modules can accumulate subcounts during shipping, handling and installation due to the movement of its wriggler.
• The module’s tamper sensing switch must be told which orientation should be considered its normal (not tampered) condition.
• During a field module retrofit the meter’s existing index is reused and that index reading must be programmed into the module.
Therefore, all modules (even those mated with indexes set at 0000) should be programmed after installation on the meter.
Note: If required, be sure to have the module’s pressure compensation factor. Contact Elster Support at (919) 250-5700.
For specific instructions for installing and programming modules using Elster’s EA_Installer handheld please refer to the
Elster Handhelds
User Guide, Chapter 7, “Installing RTMs
.”
![](/img.php?id=1357125&img=bg6.png)
IL42-5015A September 2010
6
To use the EA_Installer handheld to install EA_Gas Modules, a route must first be set up in Route Manager with a Route Type = Install. This
route will contain the meter number, customer name, service address and other account information. Typically this route is imported from
a CIS system where the route is being used as a manual read route.
Appointments can be assigned to accounts in the Install route from Route Manager.
After the route is downloaded to the handheld device you can select the route from the handheld device Route Select screen. The
selected route should have a type of Install.
Installing EA_Gas Modules using EA_Installer
To install EA_Gas Modules:

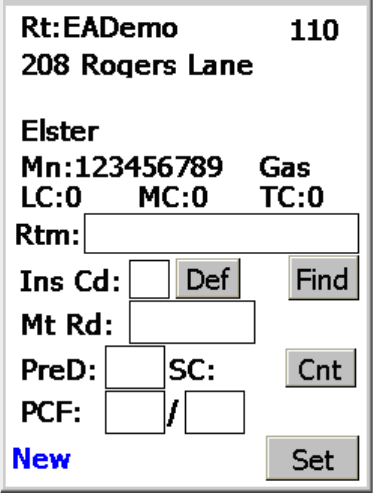

1. On the EA_Installer, from the Account installation screen, click Find or press <F>.

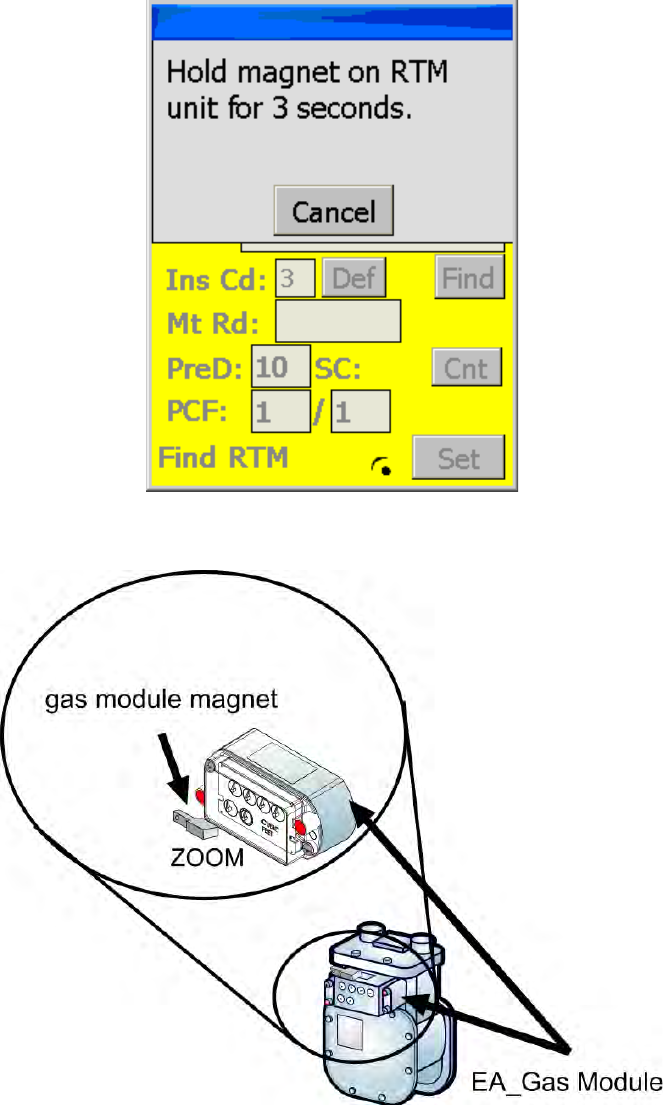

The screen prompts you to hold a magnet on the RTM nearest to the wriggler for 3 seconds.
![](/img.php?id=1357125&img=bg8.png)
IL42-5015A September 2010
8
Note: Verify that the LAN ID on the display matches the LAN ID on the module. The LAN ID follows the hyphen after the Utility ID. For
example, 242-0000000016, has the Utility ID of 242 and a LAN ID of 0000000016.
After the 3 seconds, the module broadcasts the module’s RTM number and is recognized by the handheld.
Note: The EA_Installer handheld is programmed with the utility ID at the factory. This prevents the handheld from communicating with
modules or RTMs with different utility IDs.

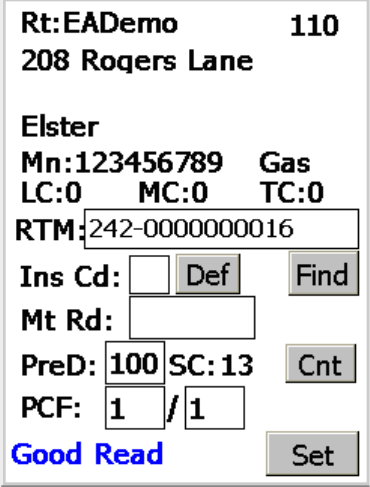

The handheld displays the following information for the module:
• RTM number
•PreDiv
![](/img.php?id=1357125&img=bg9.png)
September 2010 IL42-5015A
9
• Sub-counts
•PCF
• Status message
The handheld prompts you to read the subcounts.
4. To check subcounts:
a. Press Cnt or <C>.
The current module subcount will be returned.
When you have verified the subcounts are recording correctly, proceed to the
next step.

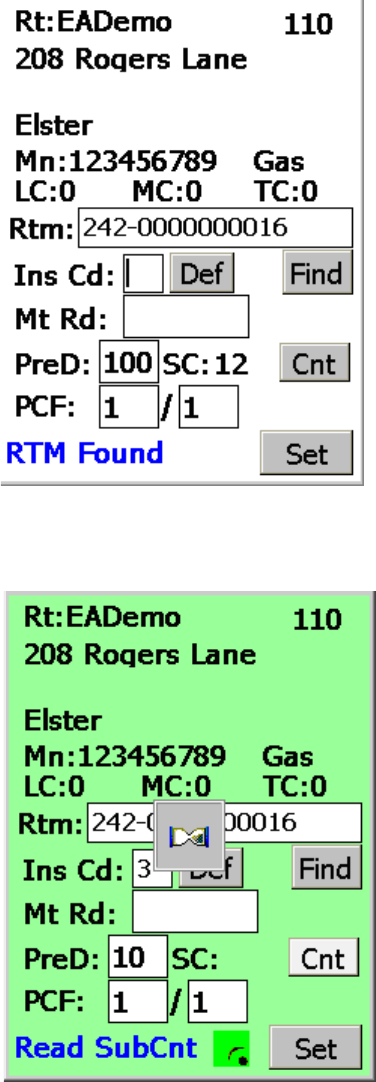

5. To program the RTM:
a. Click Def or press <D>.
![](/img.php?id=1357125&img=bga.png)
IL42-5015A September 2010
10

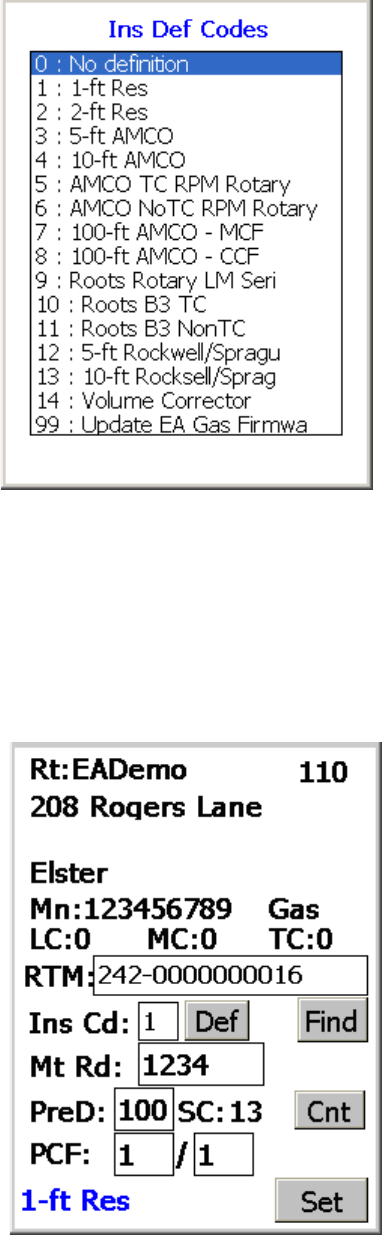

The screen displays the Ins Def Codes (Installation Definition Codes).
b. Select the appropriate Installation Definition Code from the list.
Note: Code 99 is reserved for upgrading the module firmware using a file obtained from Elster Customer Support. Use this code only if
directed to by Elster.
Refer to the
Route Manager User Guide
for details on configuring Installation
Definition Codes.
Note: The Installation Supervisor must insure the attributes such as predivider are correctly established for each of the Installation
Definition Codes and that installers are trained to determine which code is to be used for a particular meter.
c. Enter the visual read index value in the Mt Rd.
![](/img.php?id=1357125&img=bgb.png)
September 2010 IL42-5015A
11
d. If you wish to use the default values, select the Installation Definition Code = 0.
e. If the displayed predivider, PreD, is incorrect, enter the correct value.
f. If a meter has a pressure compensated index (that is, red face index) enter the PCF ratio that is appropriate for that index.
Note: If required, be sure to have the module’s pressure compensation factor. Contact Elster Support at (919) 250-5700.
g. Click Set or press <S>.
The interrogator will read, check and set the parameter values.

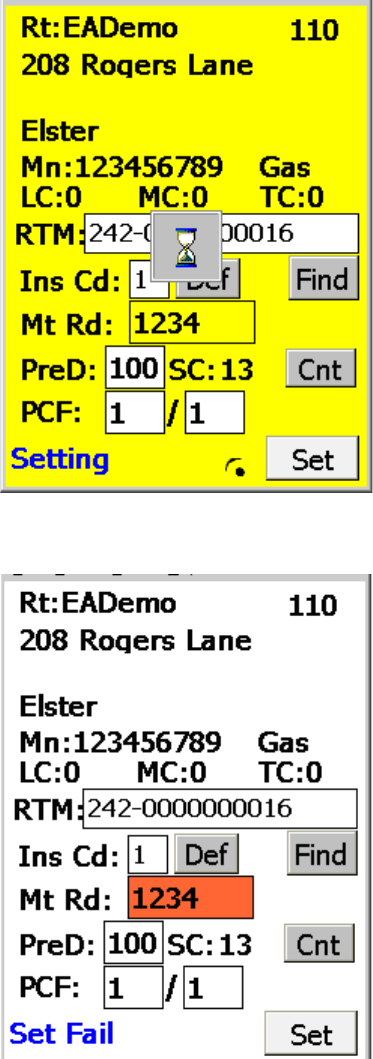

The final status will be displayed as either
Set Pass
or
Set Fail
.
![](/img.php?id=1357125&img=bgc.png)
IL42-5015A September 2010
12

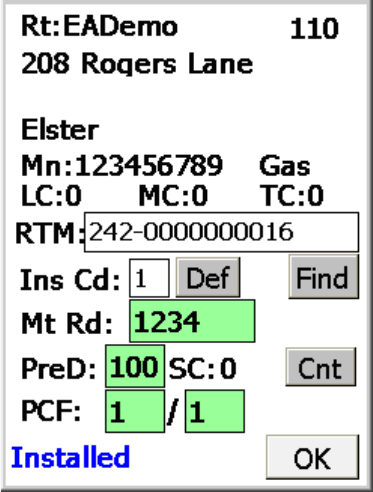

After a successful installation:
• The RTM subcount value will be set to zero.
• The status will be displayed as Installed.
• The date and time will be set.
6. Press OK to move to the next account.
