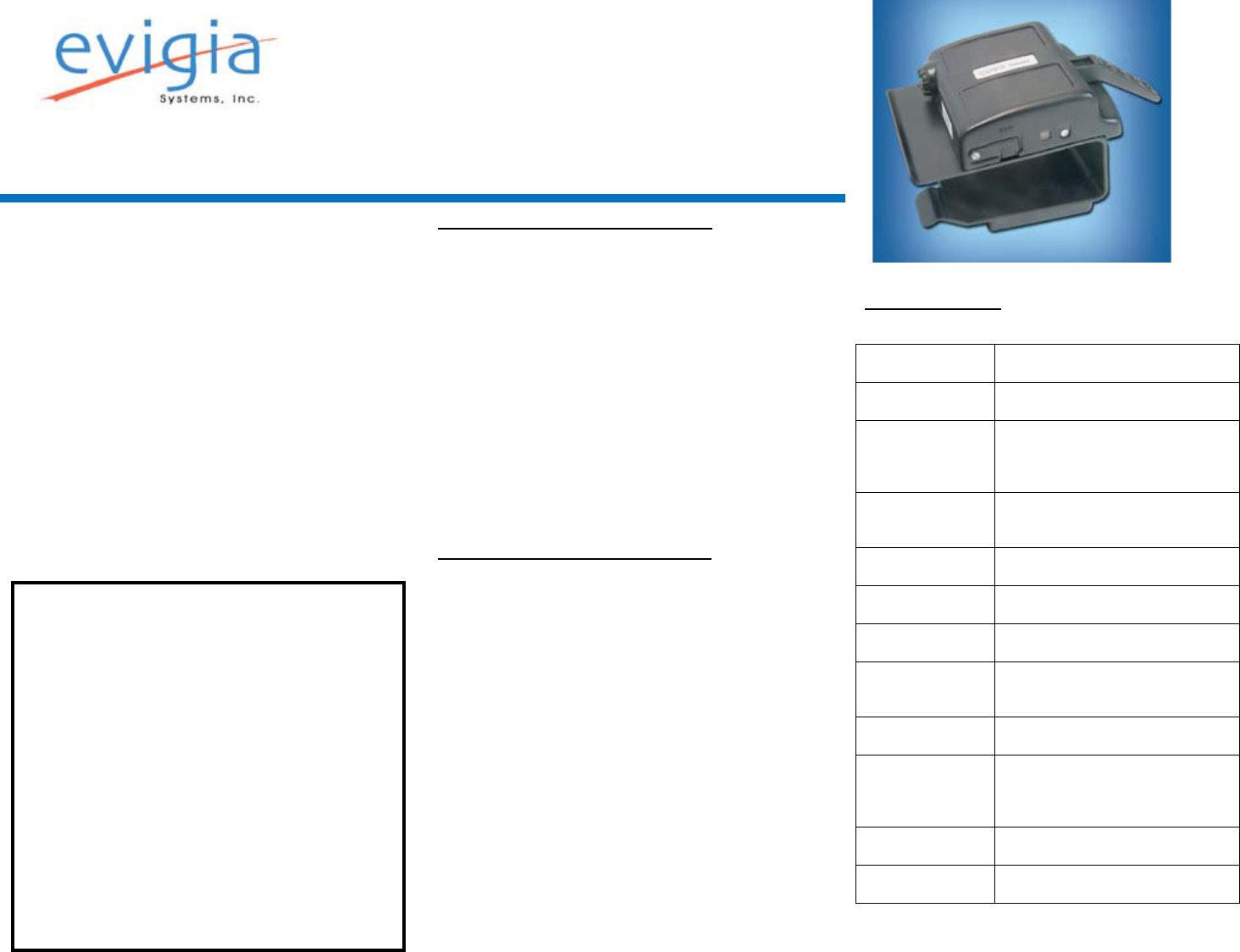

Container Security
Container Security Container Security
Container Security Transponder
TransponderTransponder
Transponder
EV3
EV3EV3
EV3-
--
-C
CC
CS
SS
ST
TT
T
In addition to the more conventional
transponder capabilities, this container security
transponder includes the additional sensory
functions of temperature, humidity, light and
breach. Coupled with its innovative mounting
capability onto shipping container, a highly
secured shipping network can be established
with low additional overhead costs.
This device operates in a master/slave
configuration with an interrogator. In all cases,
the interrogator acts as the master unit
initiating commands from the transponder.
Once, the device has been successfully woken
up, it will respond to data transmission from the
interrogator by sending packets of data.
OPERATION OF THE TRANSPONDER
1. Remove the battery cap by turning counter-
clockwise;
2. Insert battery to the battery compartment
with positive terminal toward inside;
3. Replace the battery cap and secure it by
turning clockwise;
4. The transponder will beep once when it is
powered up.
5. Now the transponder is ready to be
deployed.
MOUNTING OF THE TRANSPONDER
1. Securely attach the transponder to shipping
container;
2. Set the door latch switch to “Normal”
position and close the container;
SPECIFICATIONS
RFID Protocol ISO 18000-7:2008
Frequency 433.92MHz
Power A’ Size 3.6V primary
lithium (Li-SOCl2), user
replaceable
Battery Life >4.5 years at 2 collections
per day
Range 350 feet unobstructed
Dimensions 7.7˝L x 7.75˝W x 3.96˝H
Weight 19.2 oz (544.3 g)
Operating
Temperature -30⁰C to +70⁰C
Dust / Moist IP 64
Beeper Audible beeper for tag
location and status
indication
Memory 512 Kbytes
Compliance FCC, HERO
This device complies with part 15 of the FCC Rules and with
RSS-210 of Industry Canada. Operation is subject to the
following two conditions: (1) this device must not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
WARNING: Changes or modifications not expressively
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
