Convertible Tablet PC
1
Copyright©2004
All Rights Reserved - Printed in Taiwan
User’s Guide
Original Issue: 2005/01
This manual will guide you in the set up and use of your new Convertible
Tablet PC. Information in this manual has been carefully checked for accuracy
and is subject to change without notice.
No part of this manual may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, photocopy,
recording, or otherwise, without prior written permission.
Software Licenses
The software described in this document is furnished under a License
Agreement, which is included with the product. This Agreement
specifies the permitted and prohibited uses of the product.
Trademarks
Microsoft, Windows, the Windows logo, Windows XP
Convertible Tablet PC Edition, Microsoft Internet Explorer,
MS, MSN, Outlook, and Microsoft Office are either registered
trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
All other product names and any registered and unregistered
trademarks in this document are used for identification
purposes only and remain the exclusive property of their
respective owners.
Electrical Restrictions
WARNING: This equipment is designed for connection to a grounded
![](/img.php?id=517768&img=bg2.png)
Convertible Tablet PC
2
(earthed) outlet. The grounding type plug is an important safety feature.
To reduce the risk of electrical shock, damage to your equipment, or loss of
data, do not disable this feature.
Power Cord Set Requirements
The power cord set (appliance coupler, flexible cord, and wall plug) you
received with this Convertible Tablet PC meets the requirements for use in
the country where you purchased the equipment.
Power cord sets for use in other counties must meet the requirements of the
country where you use this Convertible Tablet PC. For more information
on power cord set requirement, contact your local authorized dealer,
reseller, or service provider.
Country-Specific Requirements
Power Cord Set Requirement
Country Accredited
Agency
Applicable
Note
Australia
EANSW
1
Austria
OVE
1
Belgium
CEBC
1
Canada
CSA
2
Denmark
DEMKO
1
Finland
FIMKO
1
France
UTE
1
Germany
VDE
1
Italy
IMQ
1
Japan
JIS
3
The
KEMA
1
Norway
NEMKO
1
Sweden
SEMKO
1
Switzerland
SEV
1
United
BSI
1
![](/img.php?id=517768&img=bg3.png)
Convertible Tablet PC
3
United
UL
2
•
Flexible cord must be <HAR> Type HO5VV-F, 3-conductor. 1.0 mm2
conductor size. Power cord set fittings (appliance coupler and wall plug)
must bear the certification mark of the agency responsible for evaluation in
the country where it will be used.
•
Flexible cord must be Type SVT or equivalent. No. 18 AWG, 3-conductor.
Wall plug must be a two-pole grounding type with a NEMA 5-15P (10A.
125V) or NEMA 6-15P (15A 250V) configuration.
•
Appliance coupler, flexible cord, and wall plug must bear a “T” mark and
registration number in accordance with the Japanese Dentori Law. Flexible
cord must be Type VCT or VCTF, 3-conductor, 0.75mm2 conductor size.
Wall plug must be a two-pole grounding type with a Japanese Industrial
Standard C8303 (15A, 125V) configuration.
General Requirements
The requirements listed below are applicable to all countries:
• The length of the power cord set must be at least
6.0 feet (1.8 m) and a maximum of 14.76 feet (4.5 m).
• All power cord sets must be approved by an
acceptable accredited agency responsible for evaluation in the country
where the power cord set will be used.
• The power cord set must have a minimum current
capacity of 10A and a normal voltage rating of 125 or 250 volts AC, as
required by each country’s power system.
• The appliance coupler must meet the mechanical
configuration of an EN 60320. / IEC 320 Standard Sheet C13 connector,
for mating the appliance inlet on this Convertible Tablet PC.
![](/img.php?id=517768&img=bg4.png)
Convertible Tablet PC
4
Battery (Lithium)
The following caution statement is located in the service and operating
manual or on the label adjacent to the battery.
1. English
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.
2. French
IL Y A DANGER D'EXPLOSION S'IL Y A REMPLACEMENT INCORRECT DE
LA BATTERIE. REMPLACER UNIQUEMENT AVEC UNE BATTERIE DU
MÊME TYPE OU D'UN TYPE RECOMMANDÉ PAR LE CONSTRUCTEUR.
METTER AU RÉBUT LES BATTERIES USAGÉES CONFORMÉMENT AUX
INSTRUCTIONS DU FABRICANT.
3. German
VORSICHT ! Explisionsgefahr bei unsachgemäßen Austausch der Batterie.
Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen
Typ.Entsorgung gebrauchter Batterien nach Angaben des Herstellers.
4. Swedish
Explosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller en ekvivalent typ som rekommenderas av
apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.
5. Danish
Lithiumbatteri- Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kum ske med batteri af samme fabrikat og type.
Lever det brugte batteri tilbage til leverandoren.
6. Norwegian
Ekspolsjonsafe ved feilaktig skifte av batteri.
Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabriknten.
Brukte batterier kasseres i henhold til fabrikantens instruksjoner.
7. Finnish
Paristo voi räjähtää, jos se on virheellisesti asennettu.
Vaihda paristo ainostaan laitevalmistajan suosittelemaan tyyppiin.
Hävitä käyteet paristo valmistajan ohjeiden mukaisesti.
![](/img.php?id=517768&img=bg5.png)
Convertible Tablet PC
5
FCC Information
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance
with the instructions, may case harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet in a circuit different
from that to Which, the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void
the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
![](/img.php?id=517768&img=bg6.png)
Convertible Tablet PC
6
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
European Notice
For the following equipment: Convertible Tablet PC
is herewith confirmed to comply with the requirements set out in the
Council Directive on the Approximation of the Laws of the Member
States relating to Electromagnetic Compatibility (89/336/EEC), Low
Voltage
Directive (73/23/EEC) and the Amendment Directive
(93/68/EEC), the procedures given in European Council Directive
99/5/EC and 89/3360EEC.
The equipment was passed. The test was performed according to the
following European standards:
EN 300 328-2 V.1.2.1 (2001-12)
EN 301 489-1 V.1.3.1 (2001-09) / EN 301 489-17 V.1.1.1 (2000-09)
EN 50371: 2002
EN 60950: 2000
802.11b Restrictions:
- European standards dictate maximum radiated transmit power of 100mW
EIRP
and frequency range 2.400-2.4835GHz;
- In France, the equipment must be restricted to the 2.4465-2.4835GHz
frequency range and must be restricted to indoor use."
![](/img.php?id=517768&img=bg7.png)
Convertible Tablet PC
7
IC warning statement
This Class B digital apparatus complies with Canada RSS-210.
Cet appareil numérique de la classe B est conforme à la norme CNR-210
du Canada
The abbreviation, IC, before the registration number signifies that
registration was performed based on a Declaration of Conformity
indicating that Industry Canada technical specifications were met. It does
not imply that Industry Canada approved the equipment. (DoC)
The term “IC:” before the certification/registration number only signifies
that the Industry Canada technical specifications were met.
SAR Exposure
This device has been tested for compliance with FCC RF Exposure (SAR)
limits in typical flat configurations.
![](/img.php?id=517768&img=bg8.png)
Convertible Tablet PC
1

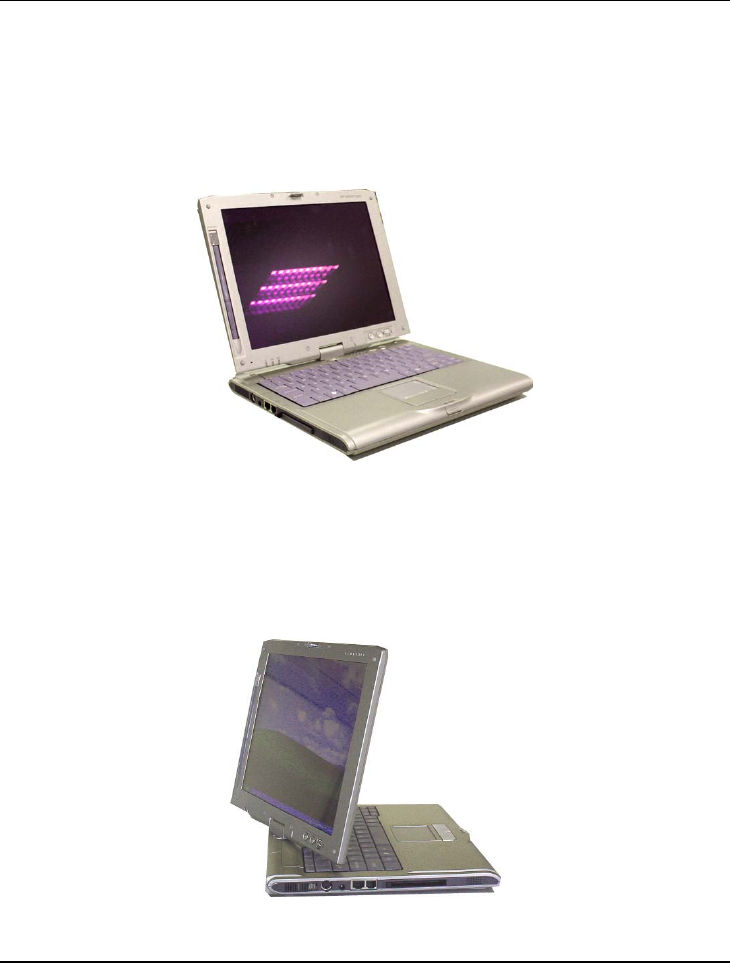

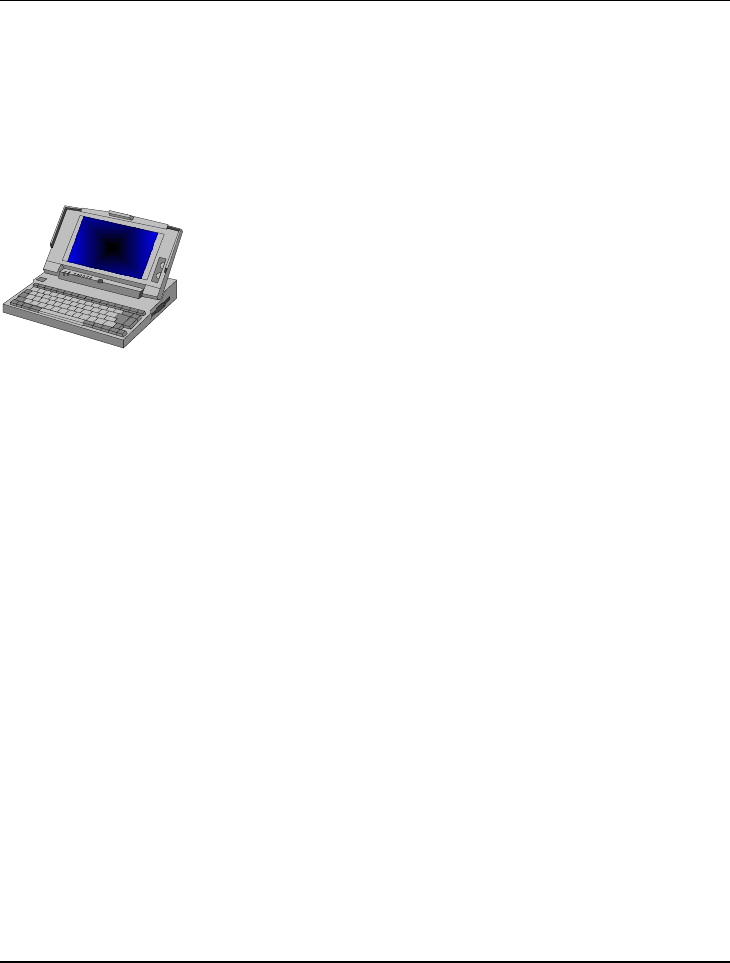

About Your Convertible Tablet PC
Congratulations on your new Professional
Convertible Tablet PC purchase.. This Convertible
Tablet PC incorporates the best features with the
latest technologies.
This Convertible Tablet PC is a fully functional
computer combining the technology of a
notebook PC and Tablet PC computer.

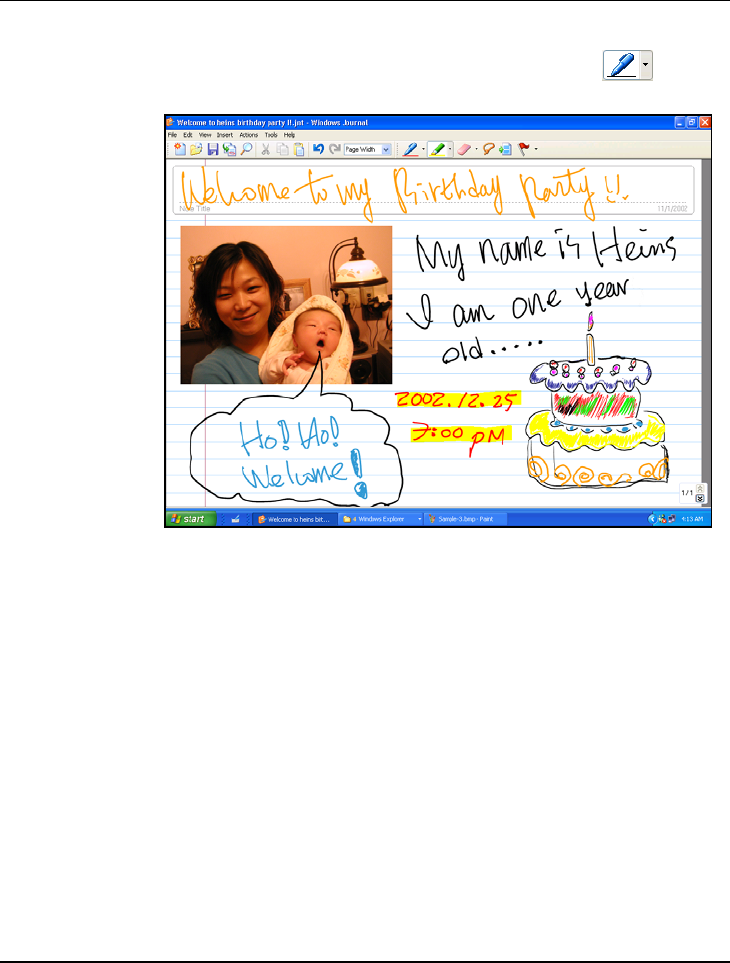

With ink technology and Windows XP Tablet PC Edition,

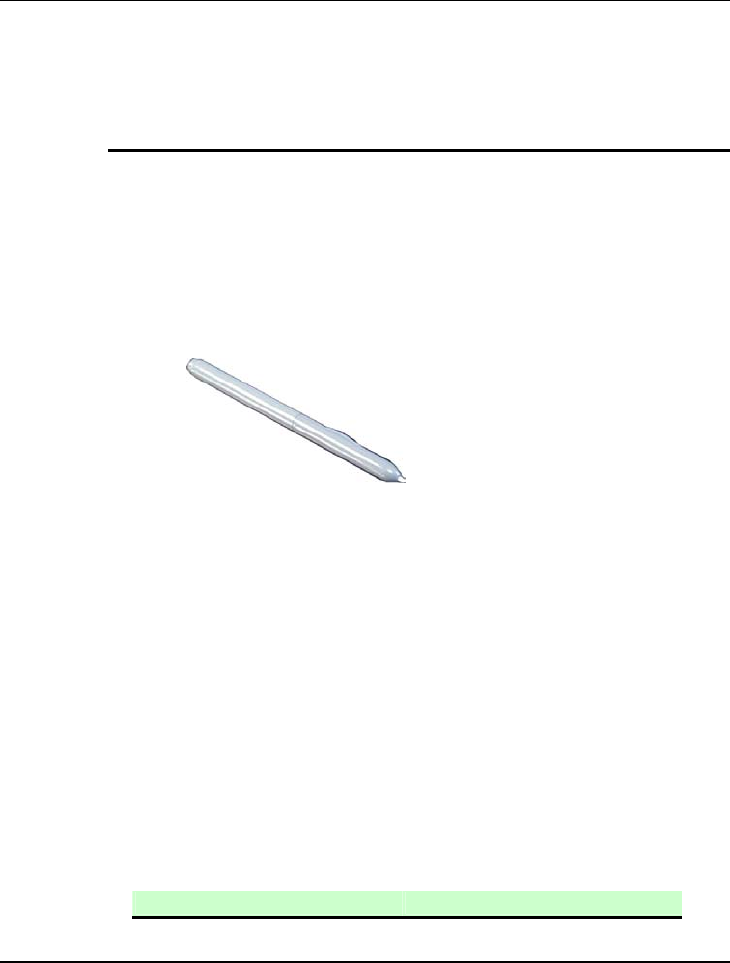

you can use a pen (digitizer) to write or draw directly onto the
screen. Your new Convertible Tablet PC not only drives
today’s multimedia applications but is also ready for
tomorrow’s exciting new applications.
![](/img.php?id=517768&img=bg9.png)
Convertible Tablet PC
2
About This User’s Guide
Welcome to your Convertible Tablet PC User’s Guide. This manual covers what
you need to know about your Convertible Tablet PC. This
manual assumes that you understand the basic concepts of
Windows and the PC. In no time, you will be able to do great
and fun things with your Convertible Tablet PC.
This manual is divided into eight chapters.
Chapter 1 Introduction to your Convertible Tablet PC’s
features.
Chapter 2 Provides step-by-step instructions to help you
begin using your Convertible Tablet PC as quickly as possible.
Chapter 3 Describes how to operate the standard features of
your Convertible Tablet PC.
Chapter 4 Introduces how to operate the Convertible Tablet
PC.
Chapter 5 Illustrates how to connect external devices to
your Convertible Tablet PC.
Chapter 6 Explains how to use the System BIOS Setup
program.
Chapter 7 Explains how to use the internal device options of
Your Convertible Tablet PC.
Chapter 8 Offers instructions on how to care and maintain
your Convertible Tablet PC .
![](/img.php?id=517768&img=bga.png)
Convertible Tablet PC
1
Table of Contents
ABOUT YOUR CONVERTIBLE TABLET PC ................................ 1
ABOUT THIS USER’S GUIDE ........................................................................ 2
1 INTRODUCTION ............................................................................. 5
1.1 FEATURE HIGHLIGHT ...................................................................... 6
1.2 UNPACKING THE CONVERTIBLE TABLET PC ................................... 7
1.3 THE INSIDE OF THE CONVERTIBLE TABLET PC ............................... 8

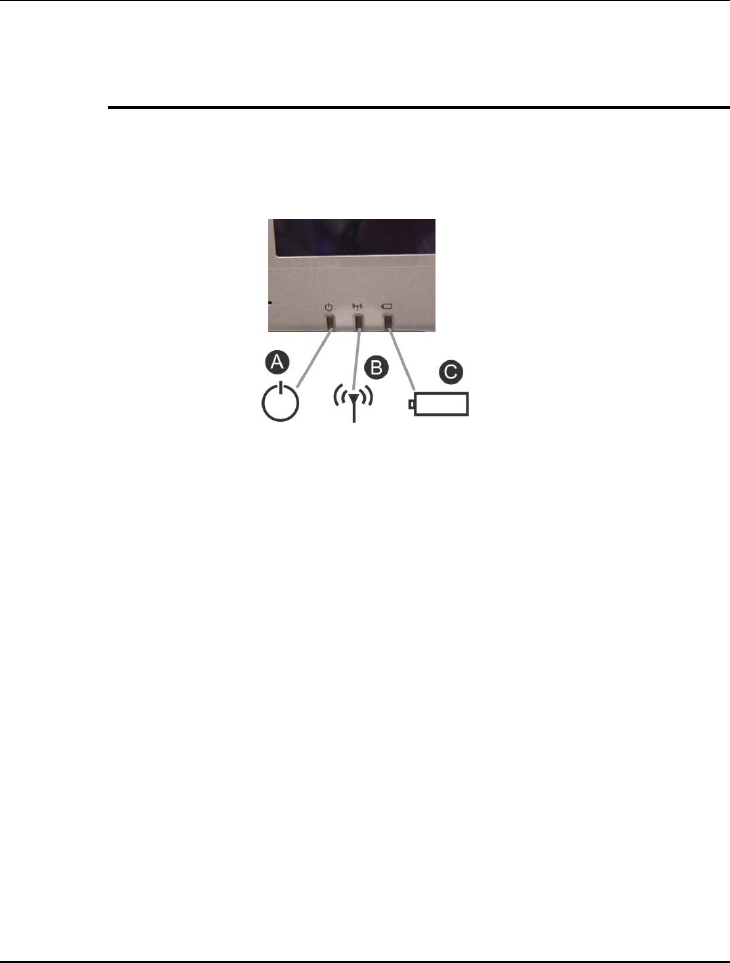

Power/Wireless LAN Status Icons ................................................ 12
Tablet Buttons Function ............................................................... 13

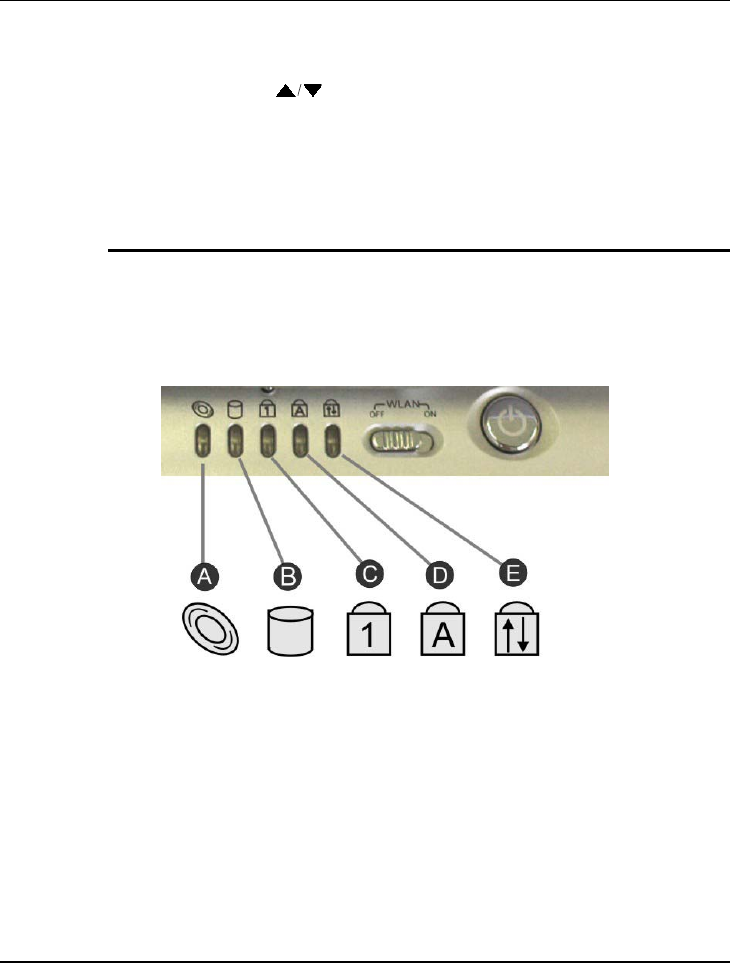

Status LED Icons....................................................................... 14

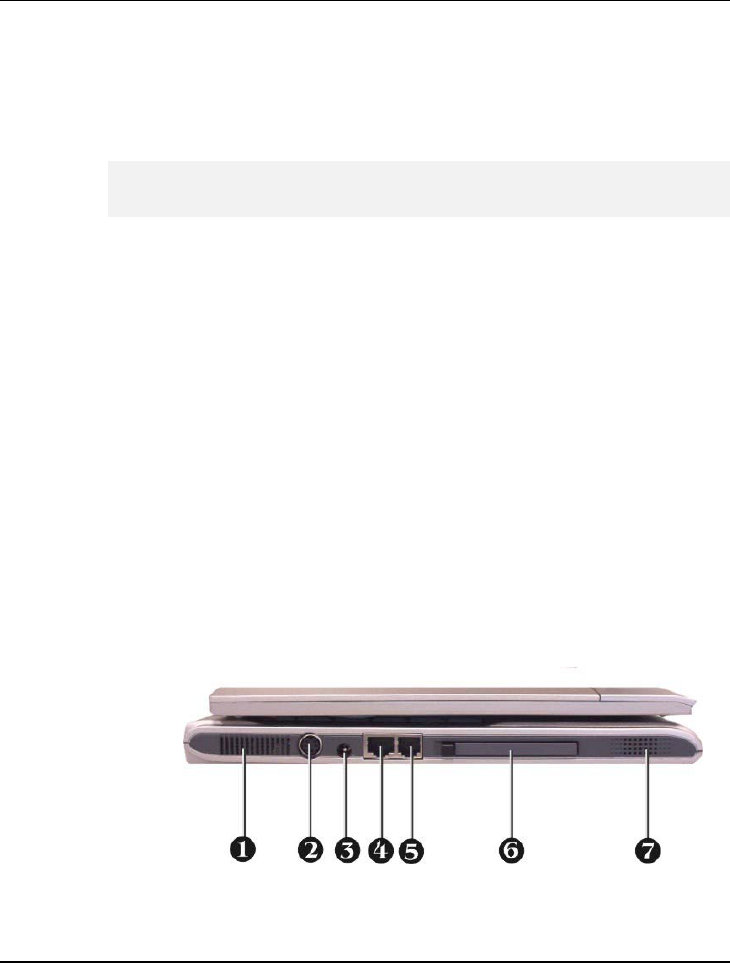

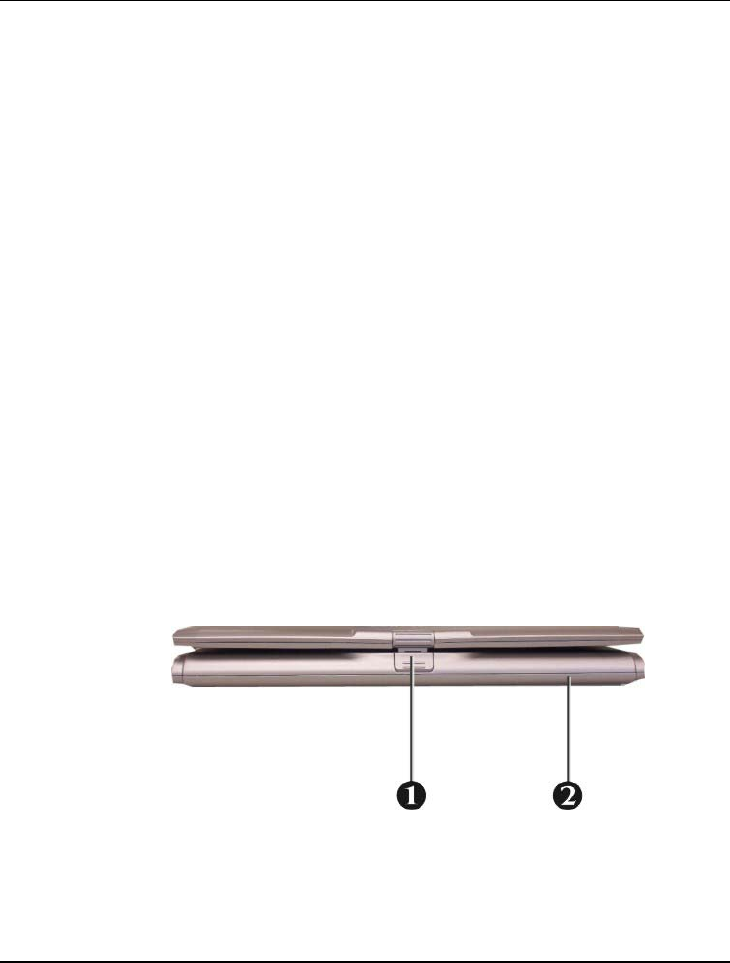

1.4 THE FRONT SIDE OF THE CONVERTIBLE TABLET PC ..................... 15

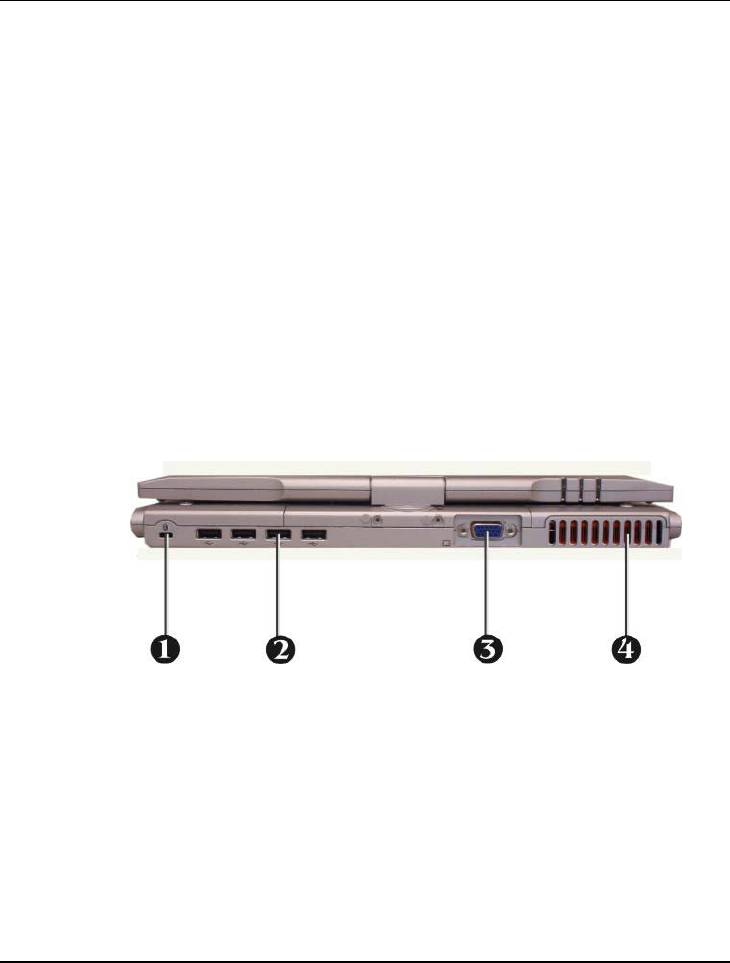

1.5 THE REAR SIDE OF THE CONVERTIBLE TABLET PC ....................... 16
1.6 THE LEFT SIDE OF THE CONVERTIBLE TABLET PC ........................ 17
1.7 THE RIGHT SIDE OF THE CONVERTIBLE TABLET PC...................... 18

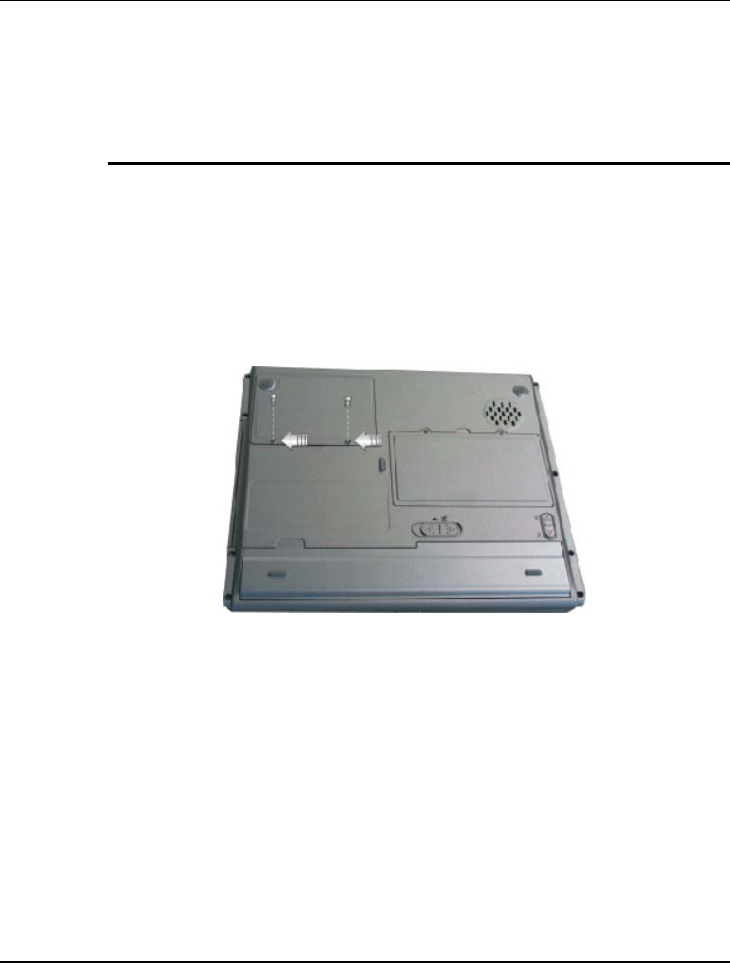

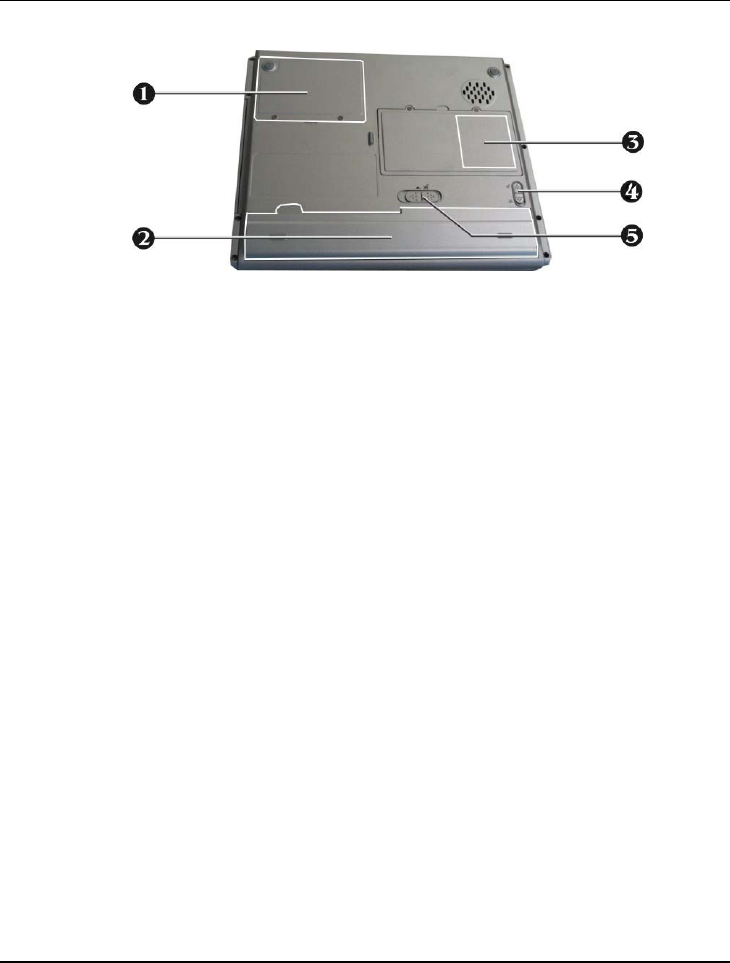

1.8 THE UNDERSIDE OF THE CONVERTIBLE TABLET PC...................... 19
1.9 CONVERTIBLE TABLET PC ACCESSORIES...................................... 21
2 GETTING STARTED ...................................................................... 23
2.1 PREPARING THE POWER SUPPLY.................................................... 24

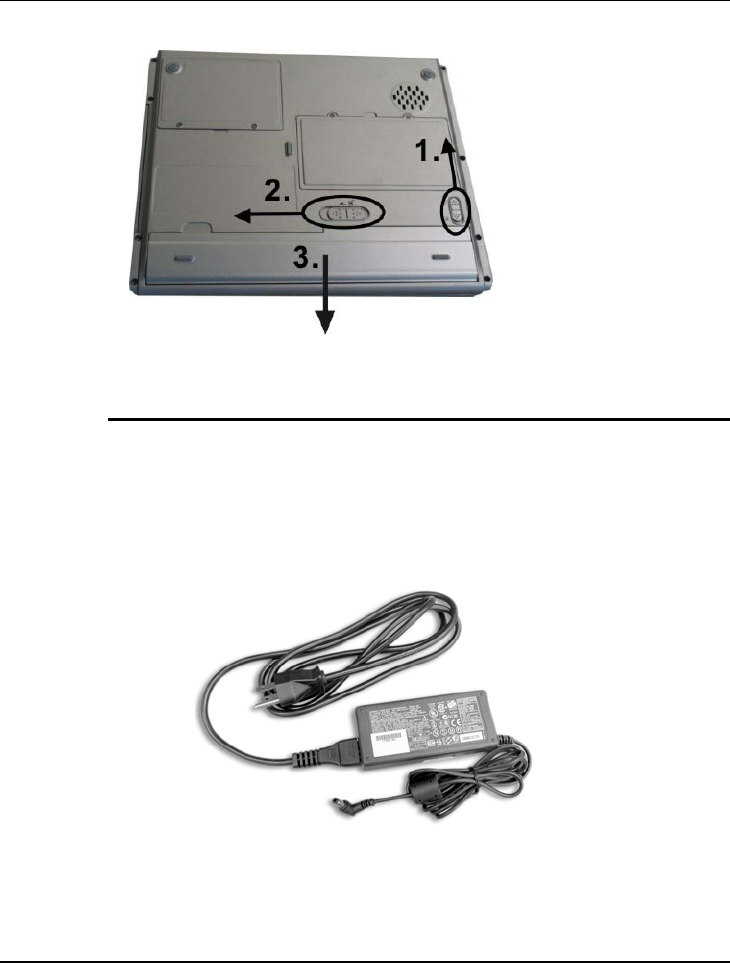

Using Battery................................................................................ 24
Using the AC-DC Adapter............................................................ 25
Extending Battery Life .................................................................. 26
2.2 STARTING YOUR CONVERTIBLE TABLET PC ................................. 26
Adjusting the Display Controls..................................................... 30
2.3 USING STYLUS AND TABLET BUTTONS.......................................... 31
Using Your Compatible Stylus...................................................... 31

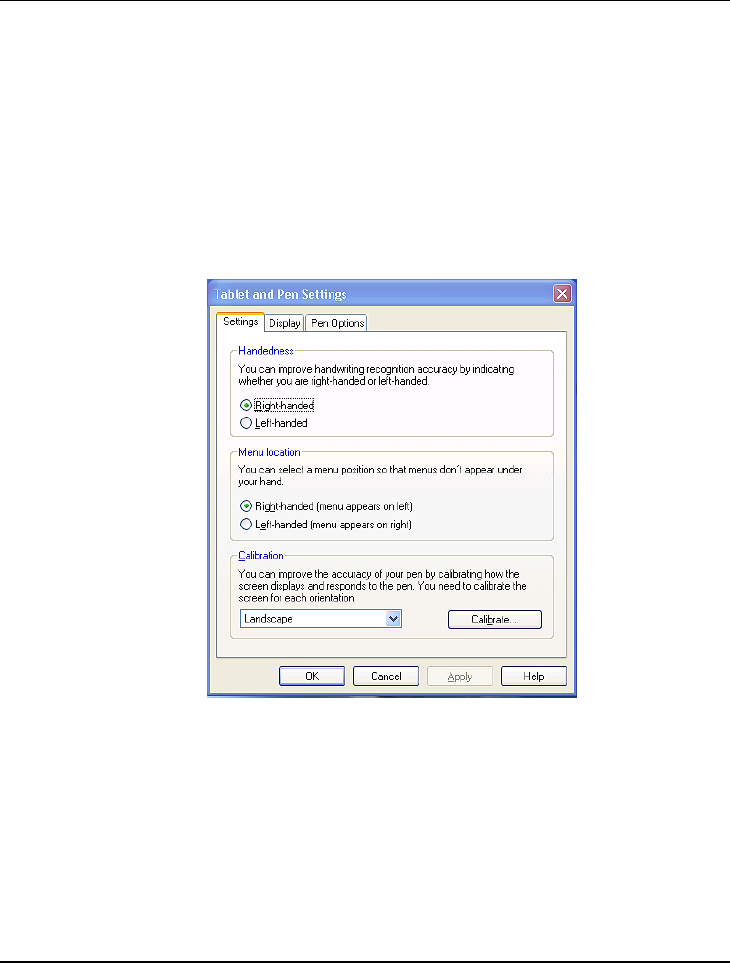

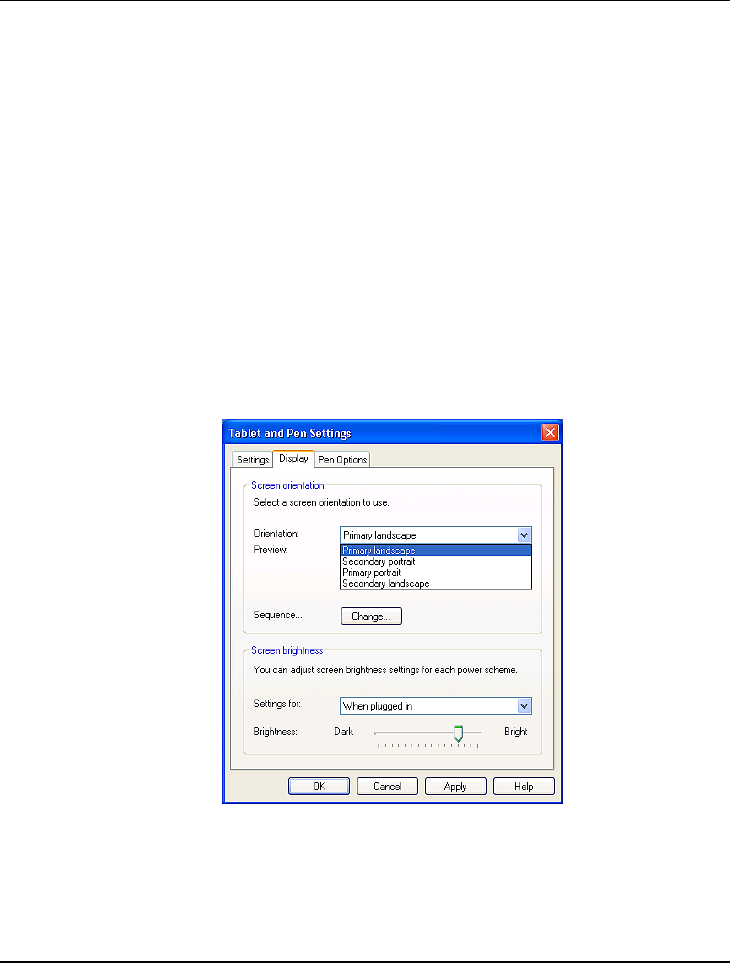

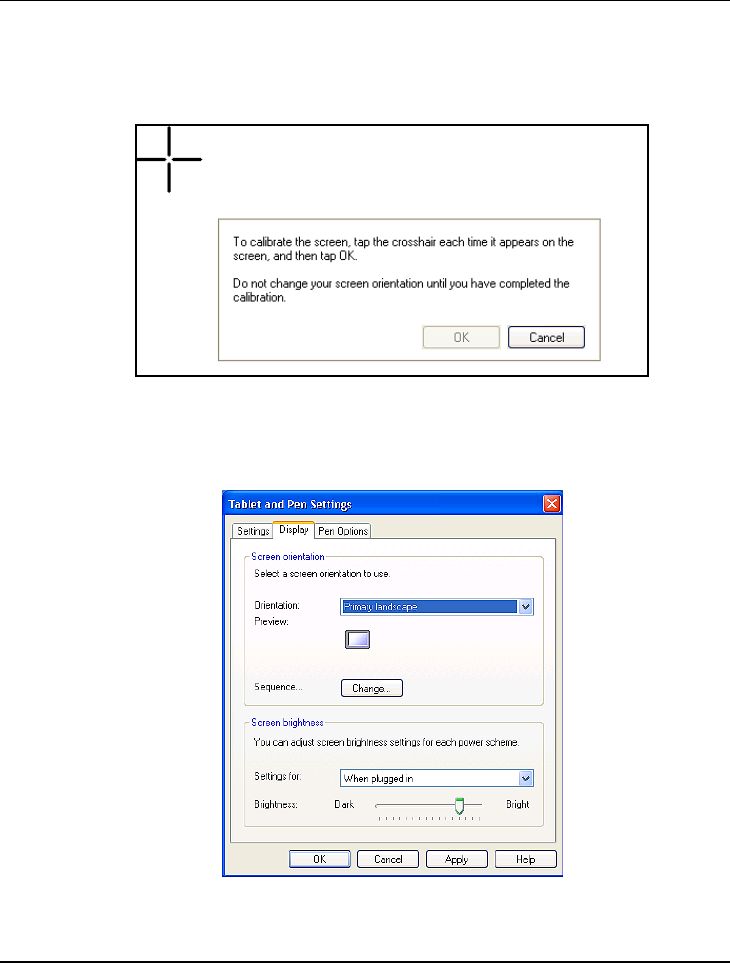

Tablet and Pen Settings ................................................................ 33
Tablet Buttons............................................................................... 38
![](/img.php?id=517768&img=bgb.png)
Convertible Tablet PC
2
3 USING YOUR TABLET PC............................................................ 47

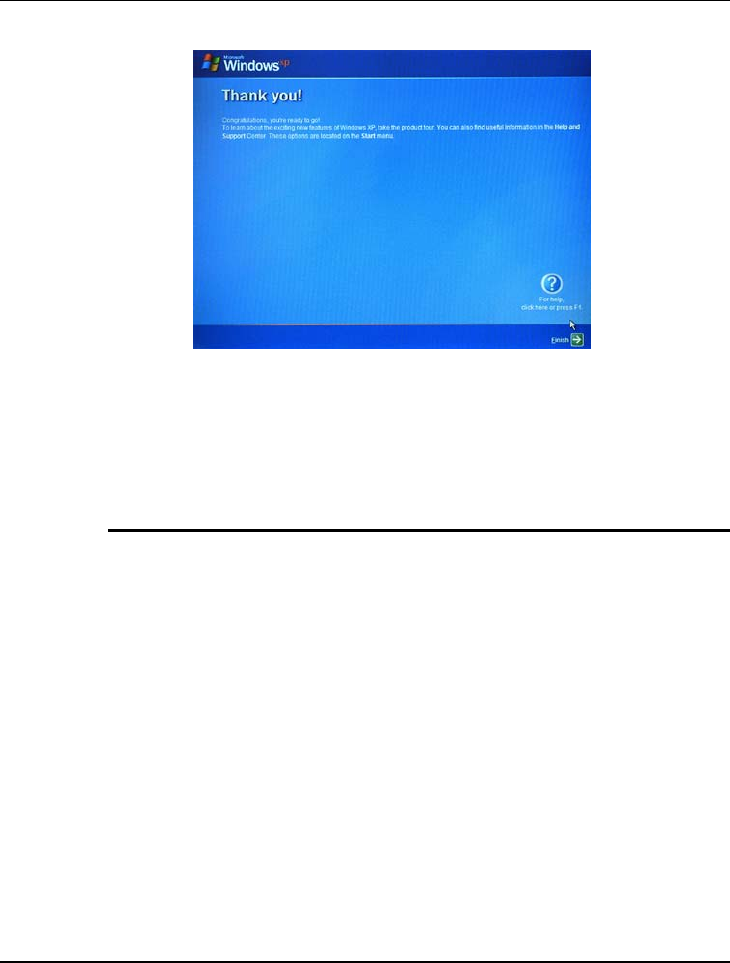

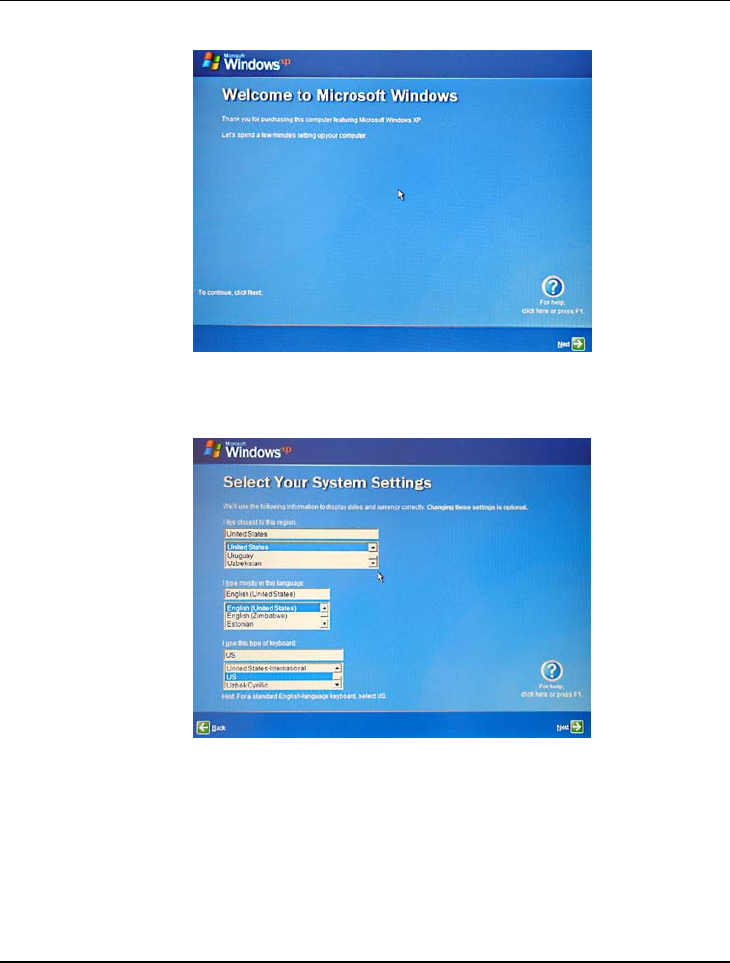

3.1 STARTING YOUR OPERATING SYSTEM........................................... 48

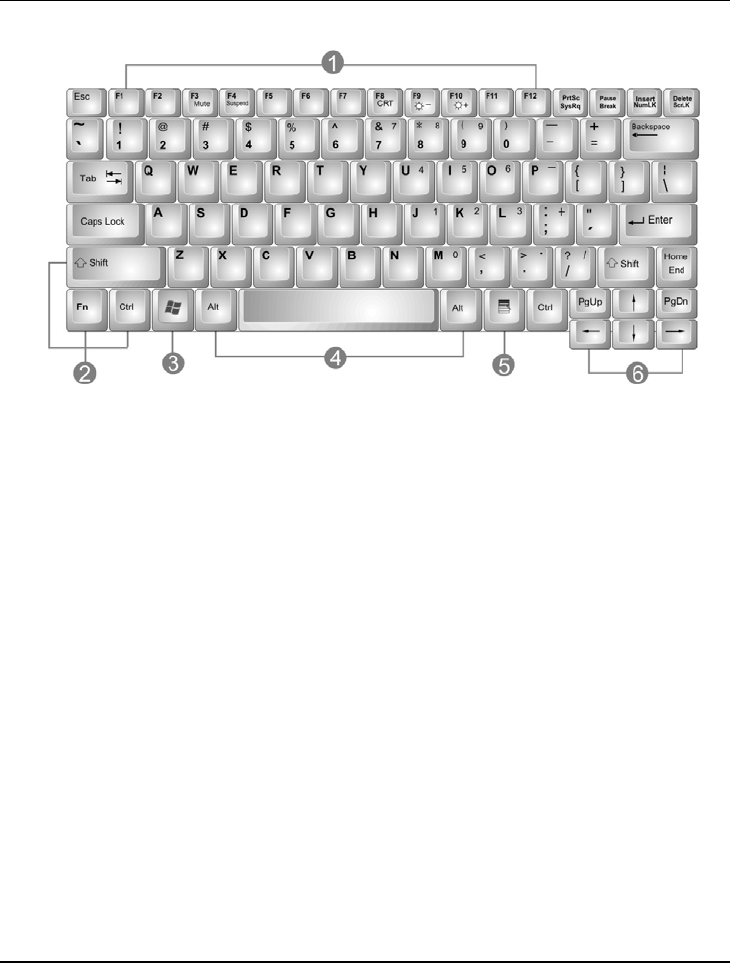

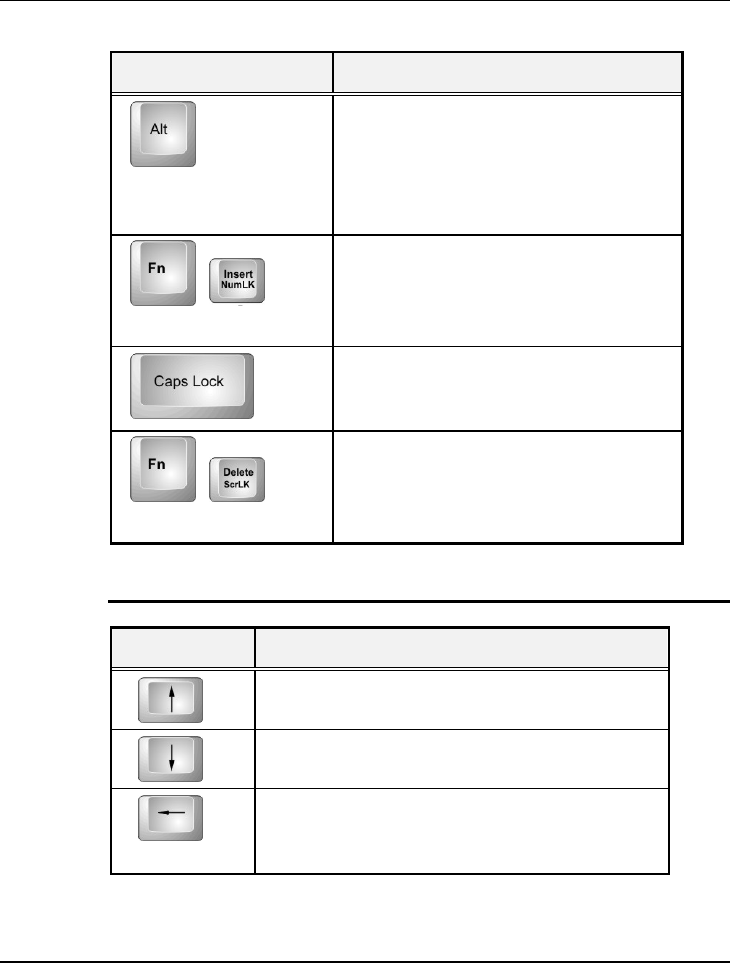

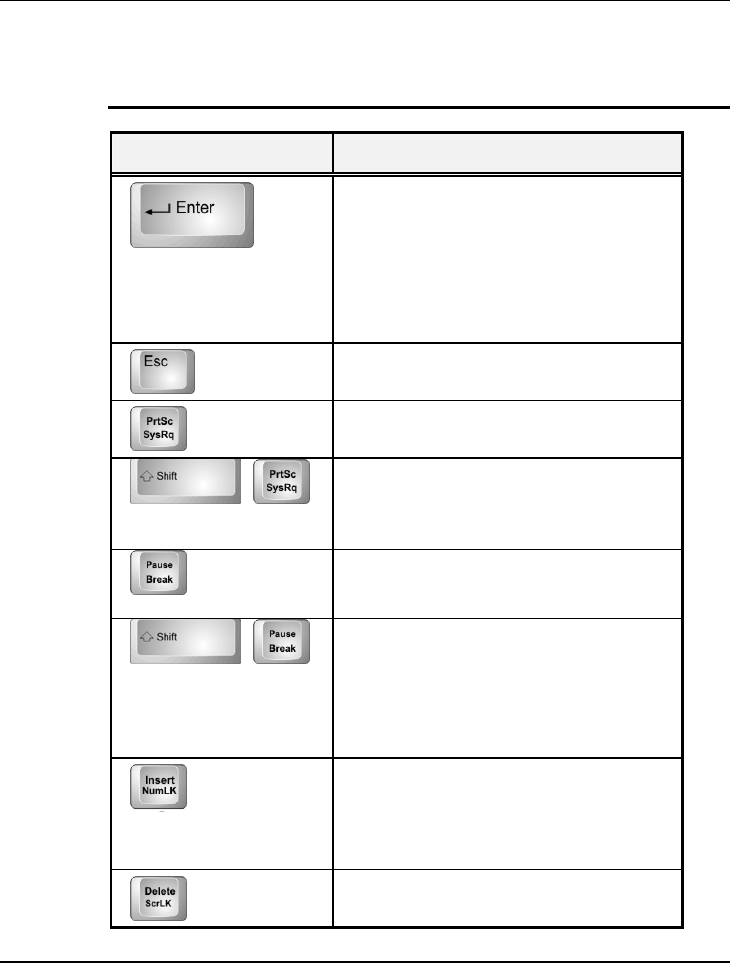

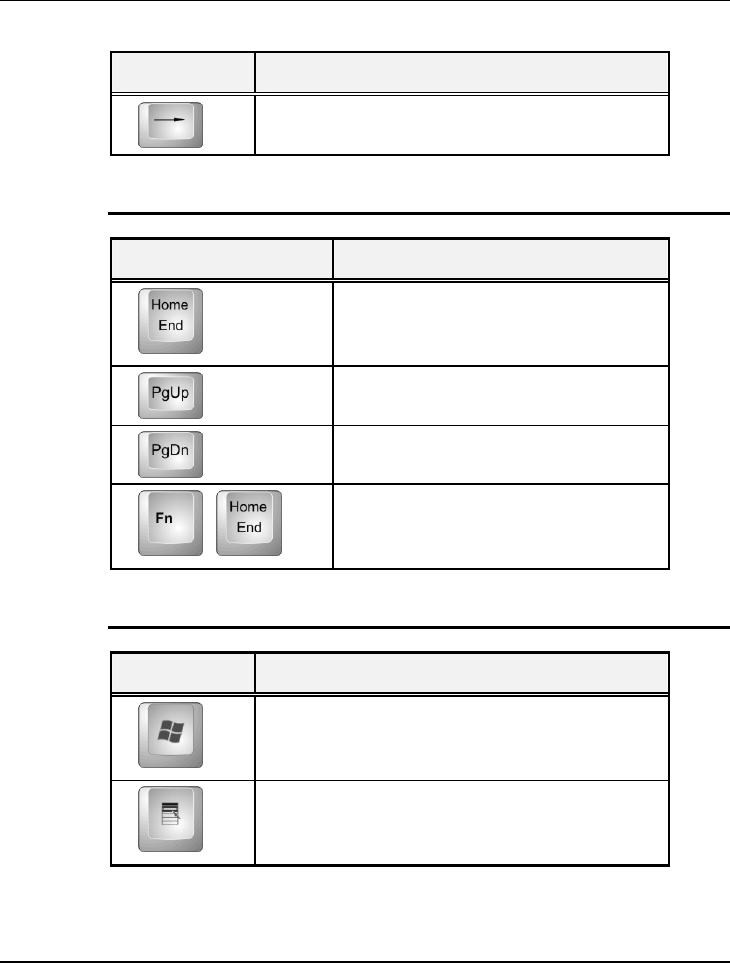

3.2 UNDERSTANDING THE KEYBOARD FUNCTIONS.............................. 48
Basic Keyboard Functions............................................................ 51
Cursor Control Keys..................................................................... 53
Screen Control Keys ..................................................................... 54
Windows Hot Keys........................................................................ 54
Special Function Keys .................................................................. 55

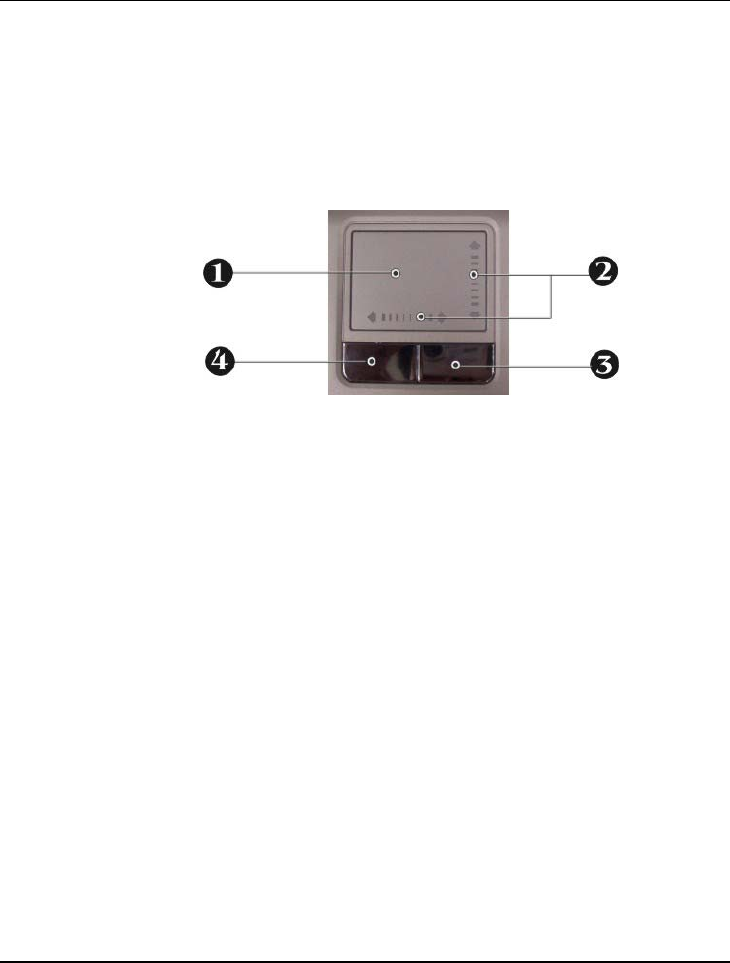

3.3 USING THE TOUCH PAD POINTING DEVICE ...................................... 55
3.4 CONFIGURING YOUR SCREEN DISPLAY ......................................... 57
Possible Display Configurations.................................................. 57
Changing the Display Properties under Windows ....................... 58
3.5 KNOWING THE POWER SAVING FEATURES .................................... 58
3.6 USING YOUR CONVERTIBLE TABLET PC ......................................... 59

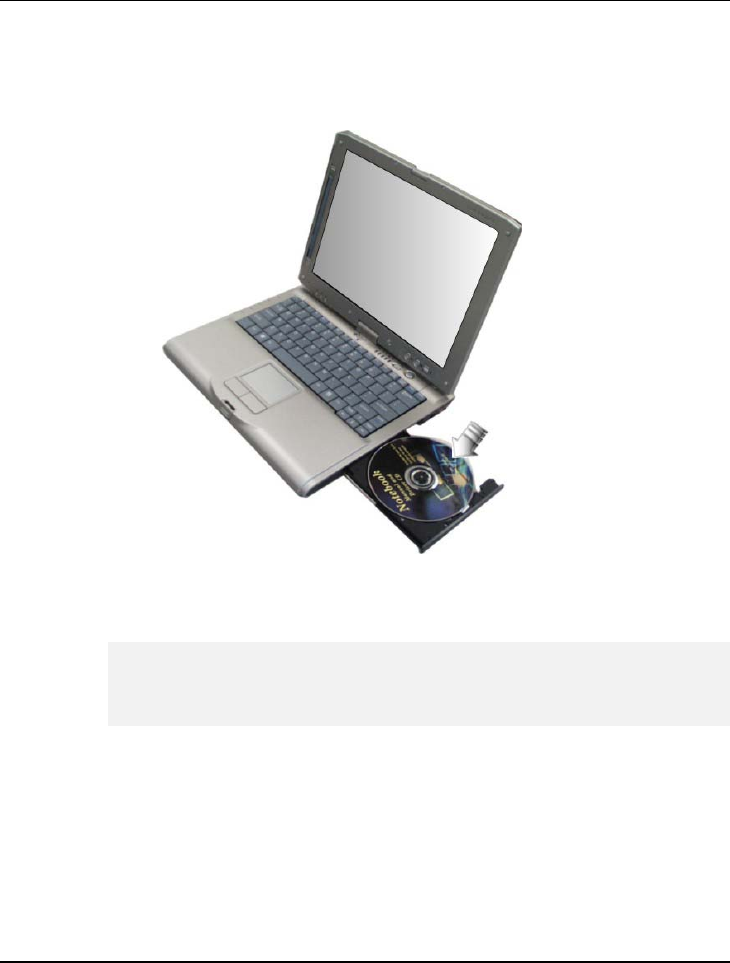

3.7 HOW TO ACCESS THE COMBO DRIVE............................................. 61
4 ENJOY YOUR CONVERTIBLE TABLET PC ............................ 65

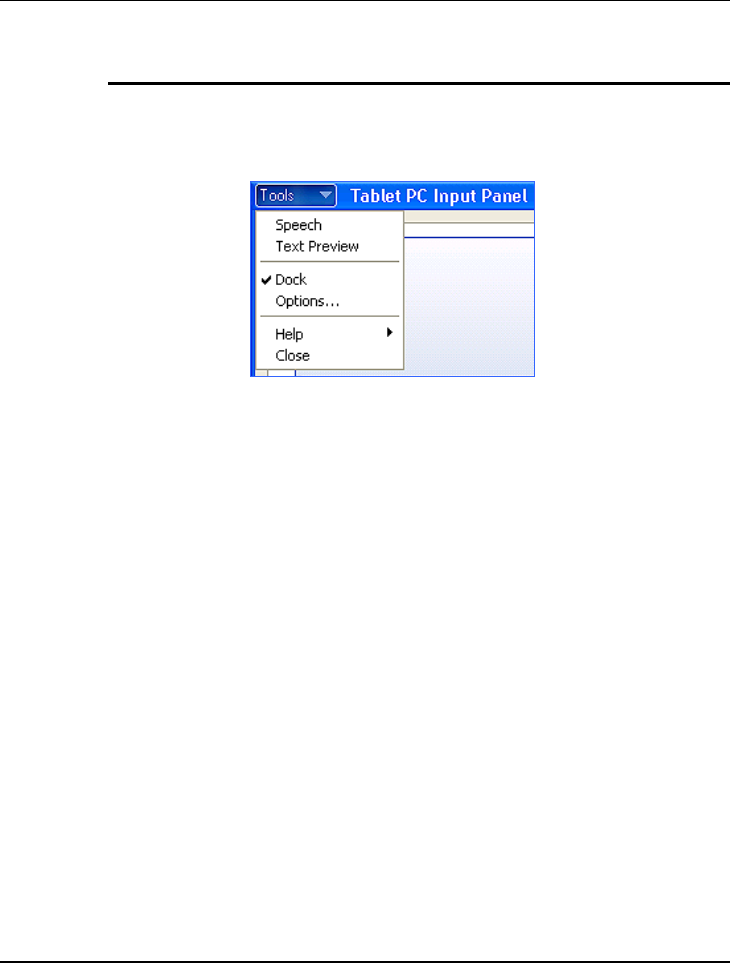

4.1 USING CONVERTIBLE TABLET PC INPUT PANEL ........................... 66

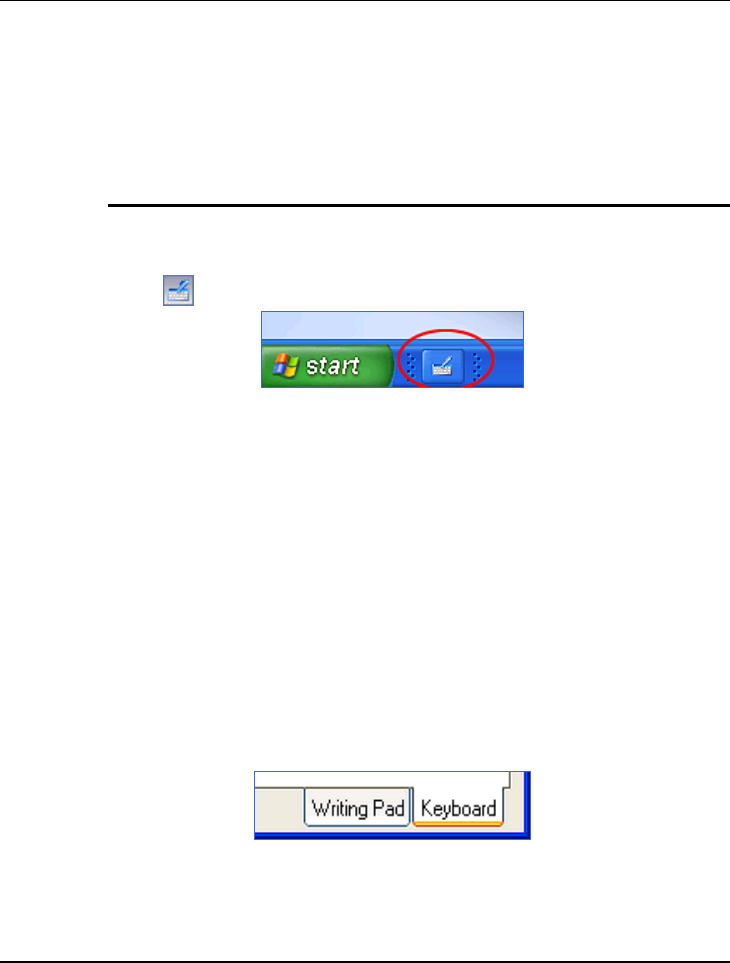

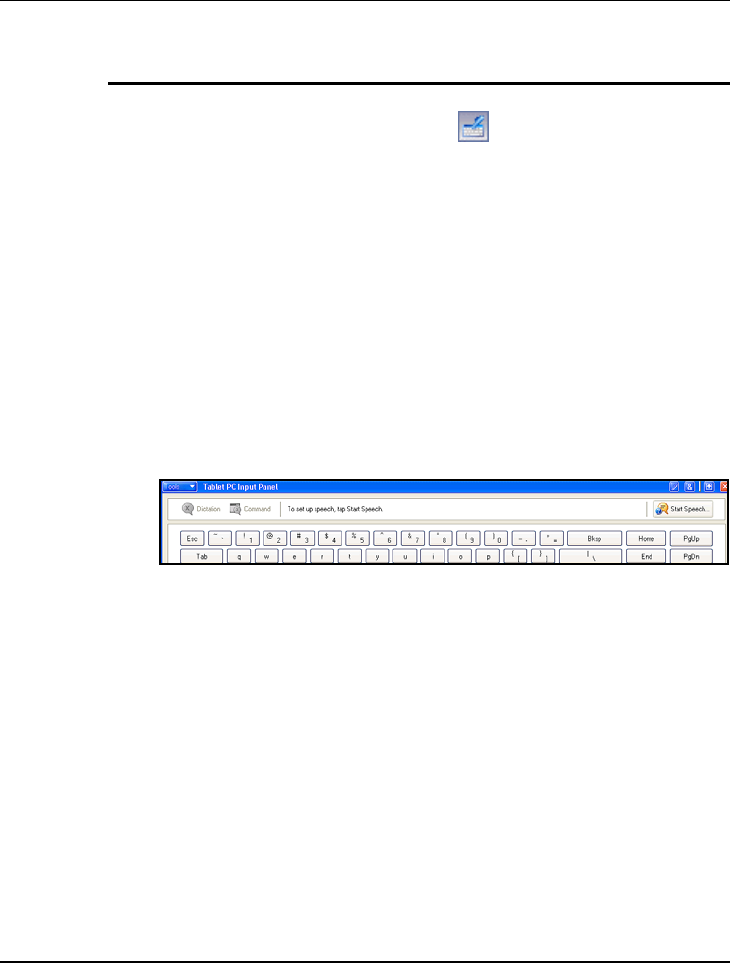

Launching the Tablet PC Input Panel .......................................... 66

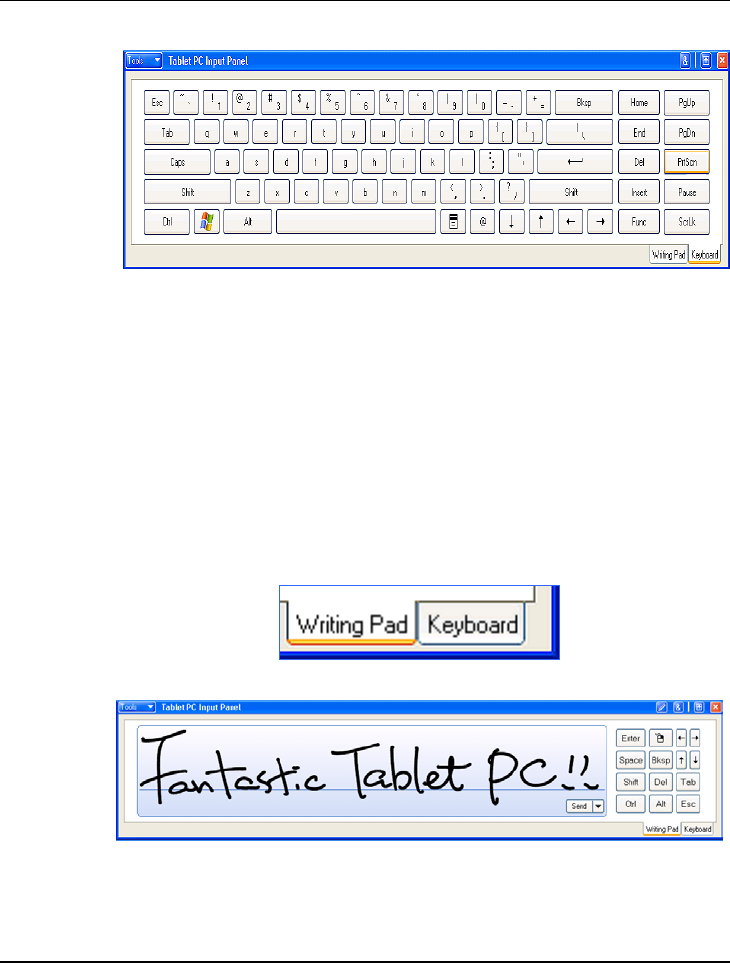

Tablet Input Panel Settings........................................................... 68

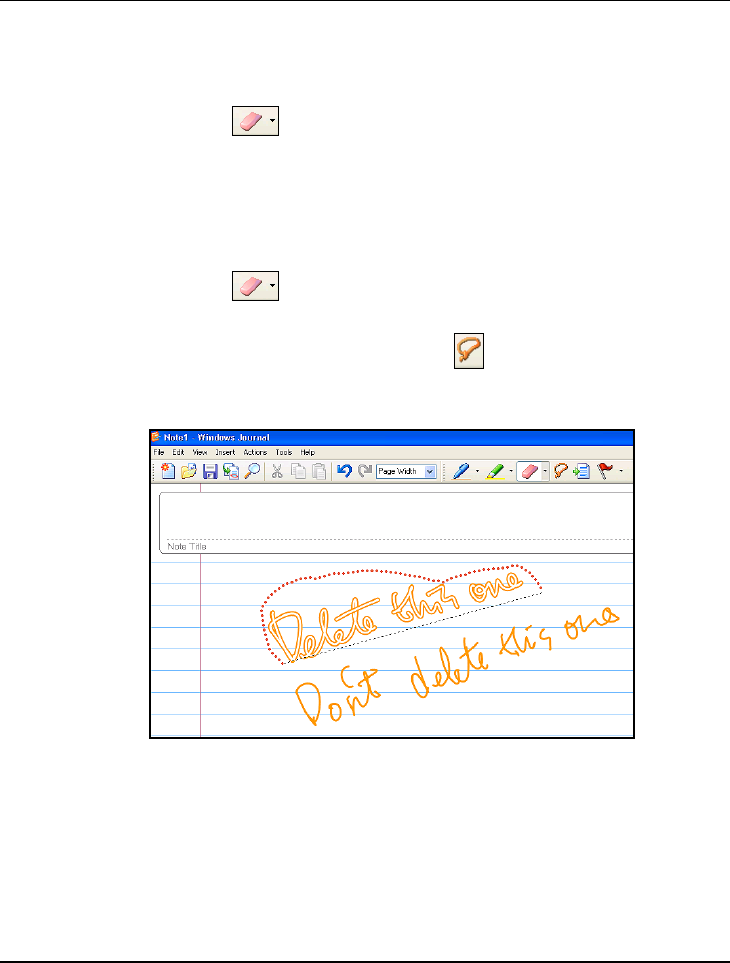

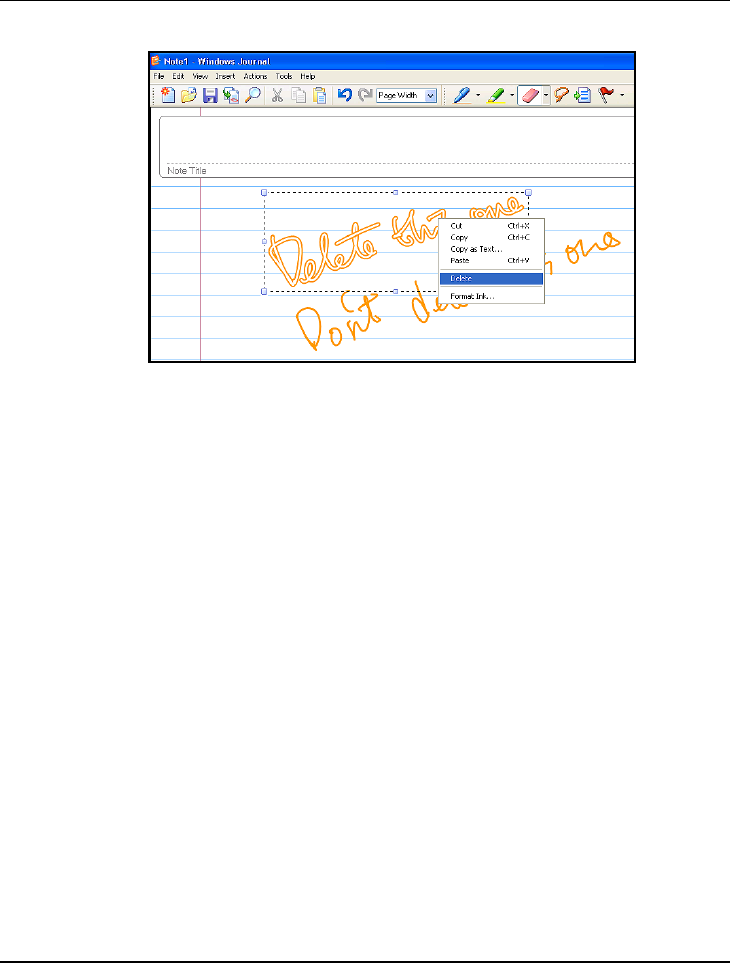

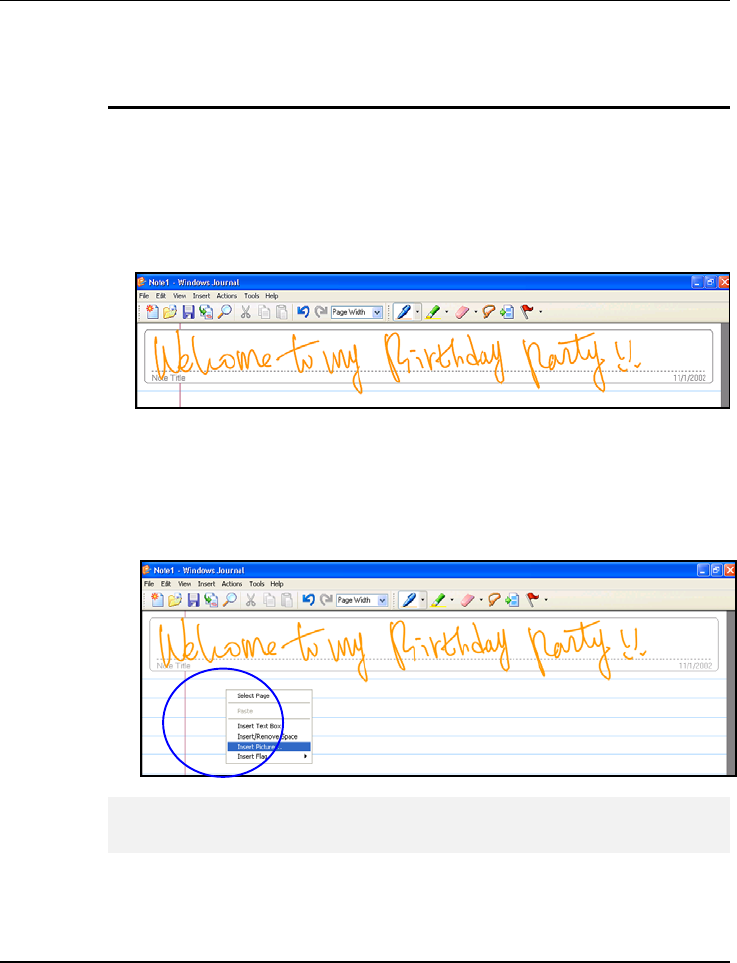

4.2 USING WINDOWS JOURNAL ........................................................... 69
What is Windows Journal?........................................................... 69
Launch Windows Journal ............................................................. 69
Let’s Practice ! .......................................................................... 76

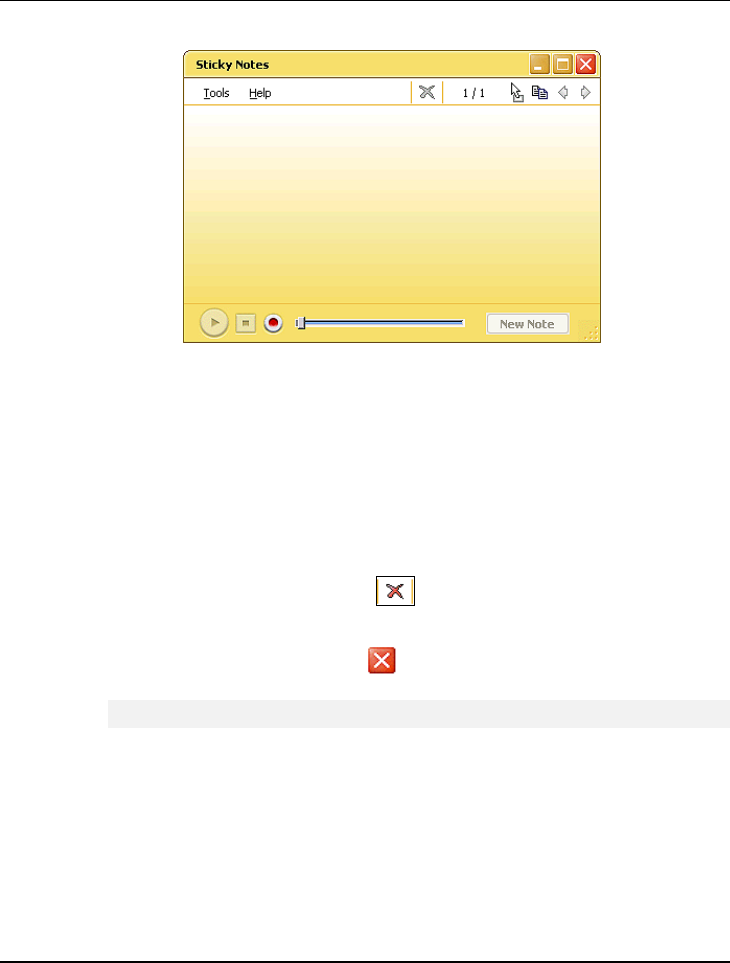

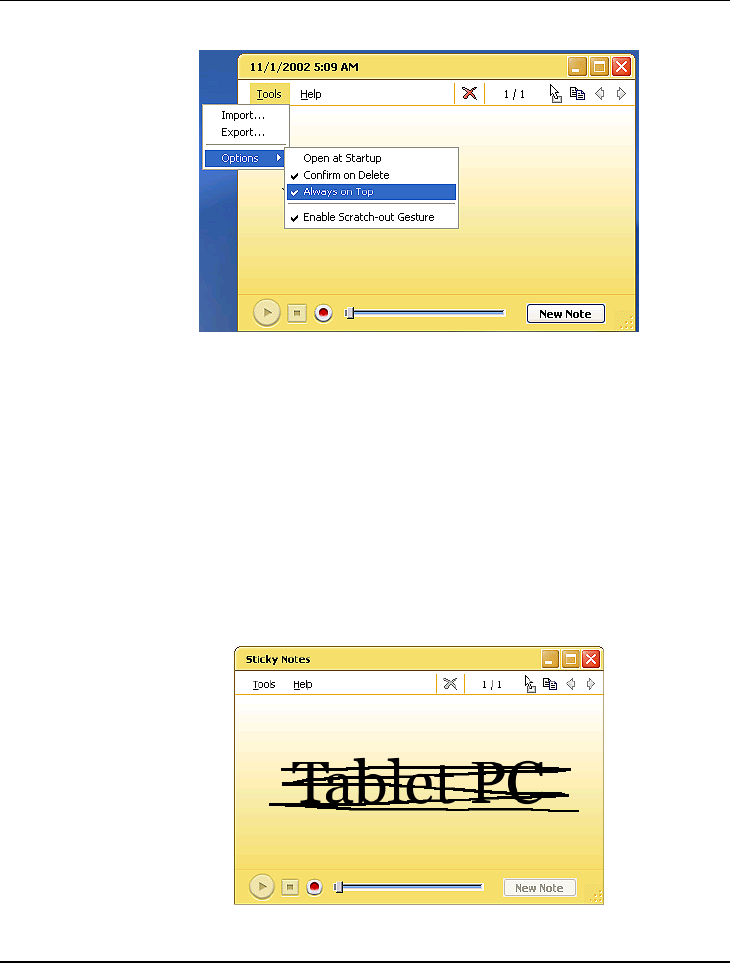

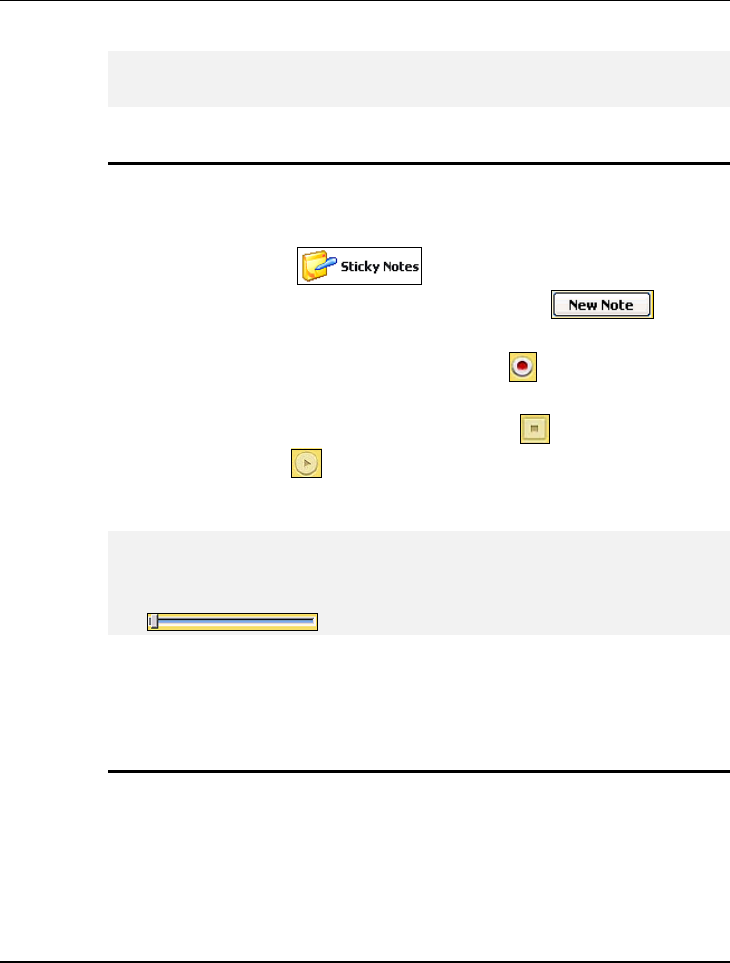

4.3 USING STICKY NOTES.................................................................... 78
Launch Sticky Notes...................................................................... 78
Create and play a voice note ........................................................ 81

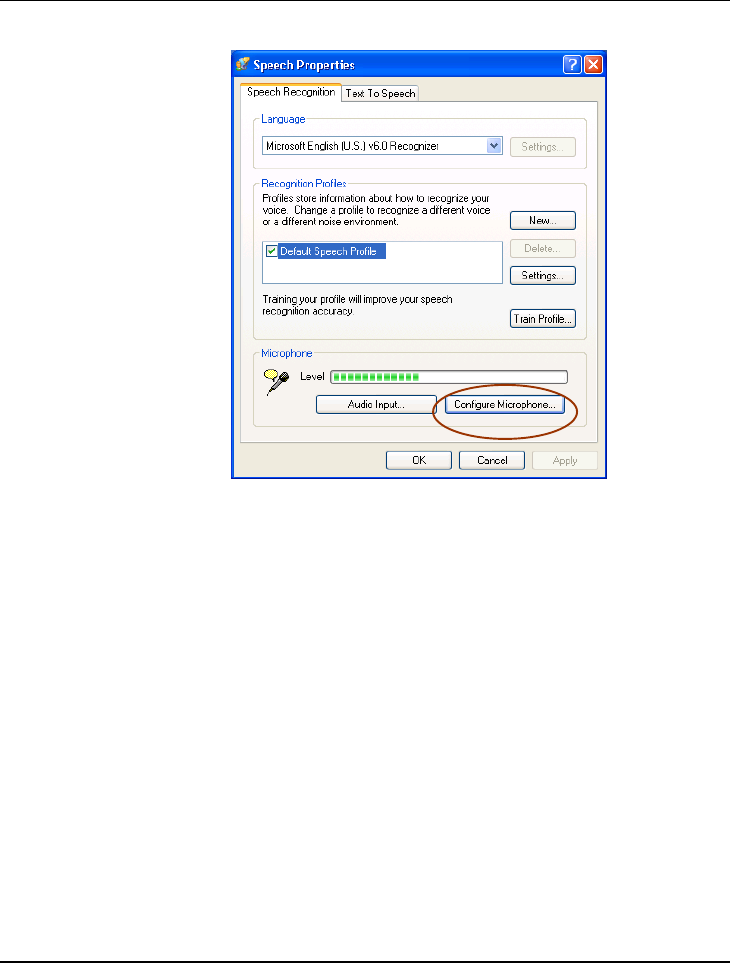

4.4 USING SPEECH............................................................................... 81

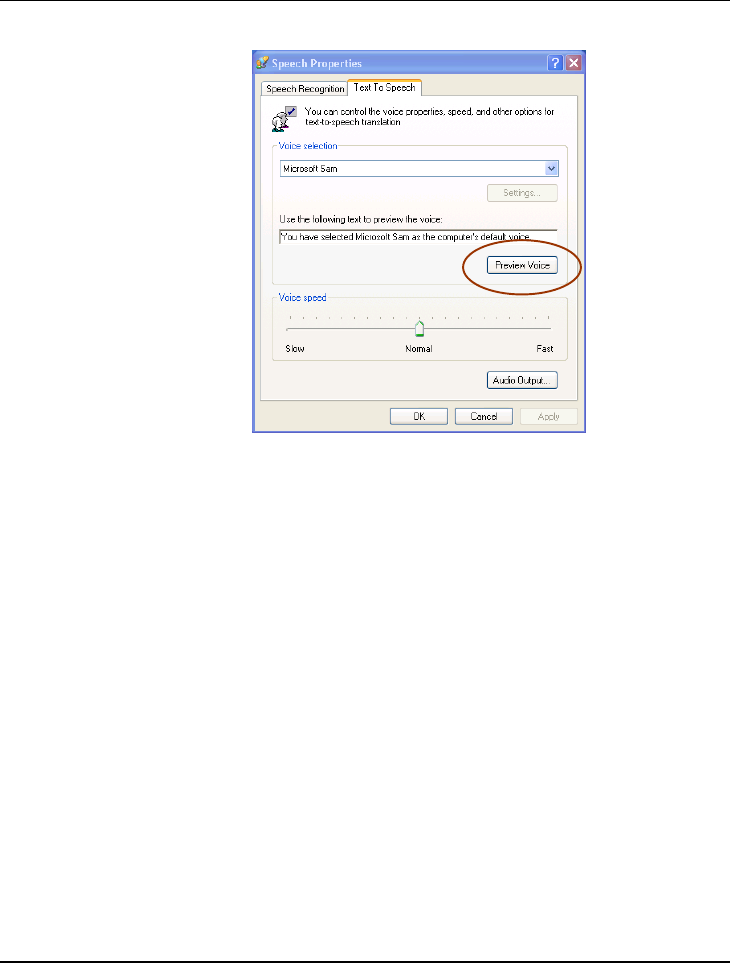

What is Speech?............................................................................ 81
Launch Speech.............................................................................. 82
Launch Speech in Tablet Input Panel........................................... 85
![](/img.php?id=517768&img=bgc.png)
Convertible Tablet PC
3
4.5 PLAYING VIDEO AND MPEG FILES ............................................... 85
4.6 USING DVD .................................................................................. 86
5 CONNECTING TO PERIPHERALS ............................................. 89

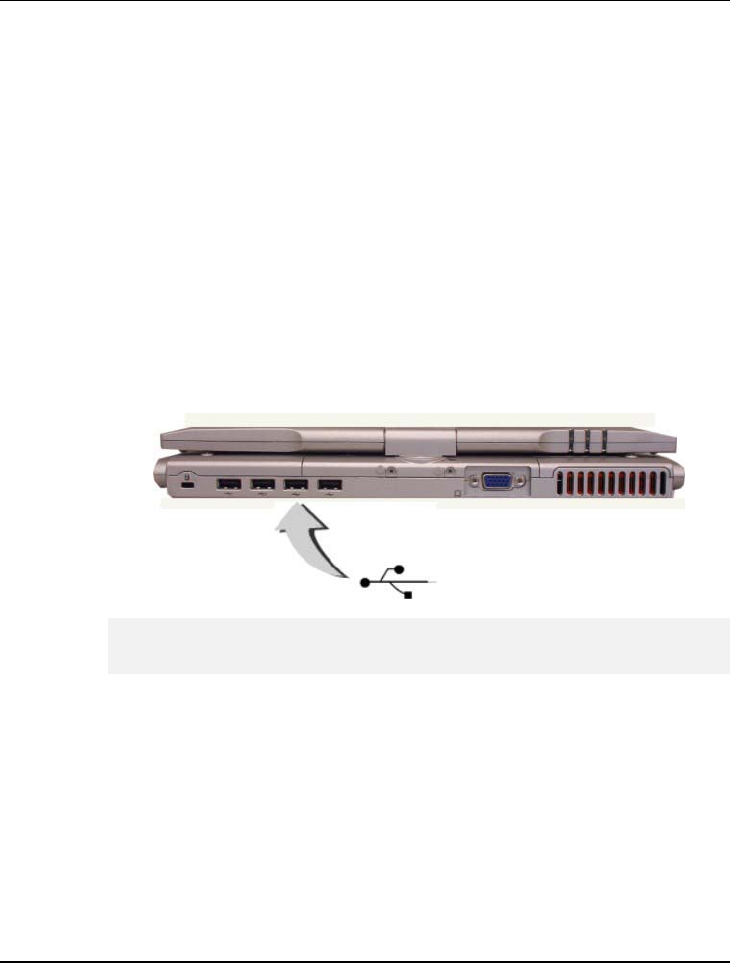

5.1 USING THE USB PORT................................................................... 90

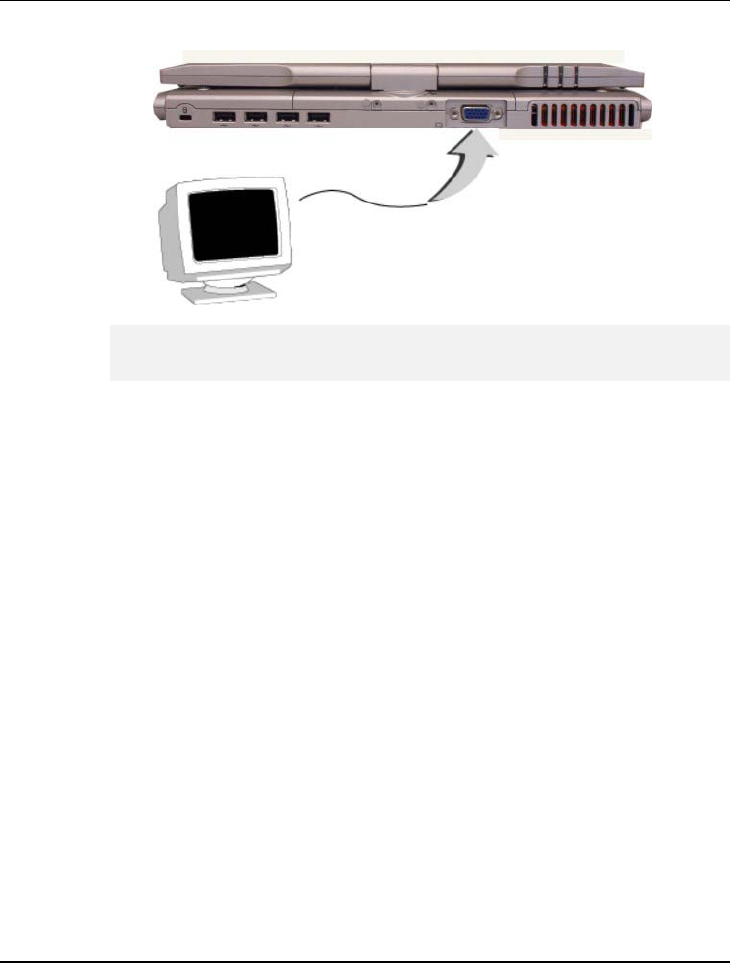

5.2 USING AN EXTERNAL MONITOR PORT.................................................. 90

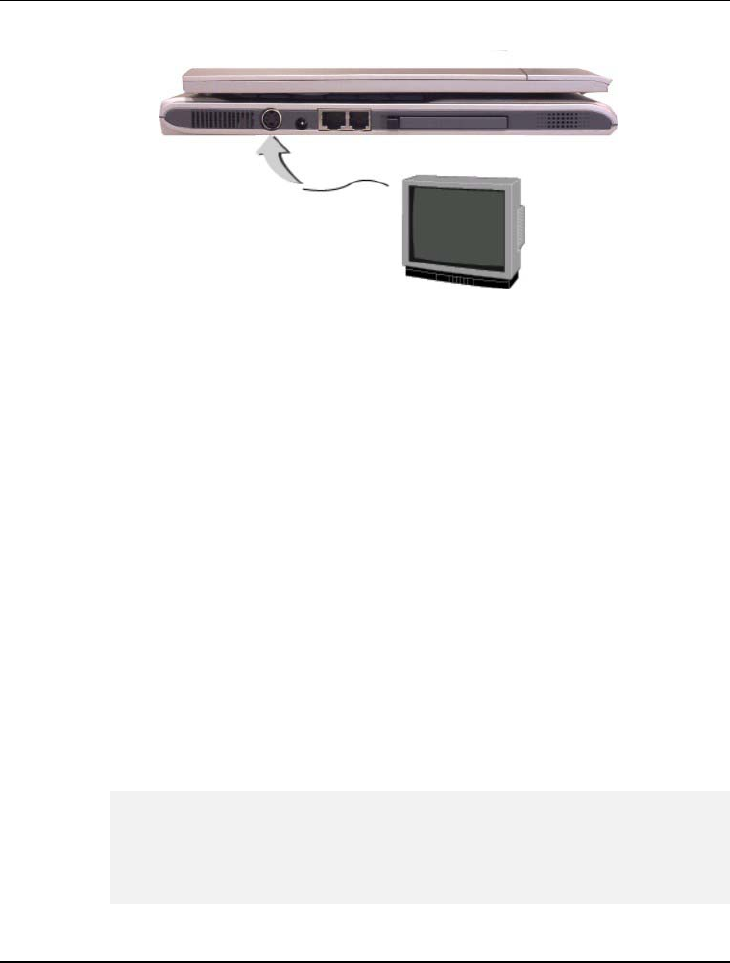

5.3 USING THE TV PORT ..................................................................... 92
5.4 USING THE EXTERNAL AUDIO SYSTEM.......................................... 93
5.5 USING THE LAN PORT .................................................................. 94
5.6 USING THE WIRELESS LAN........................................................... 95

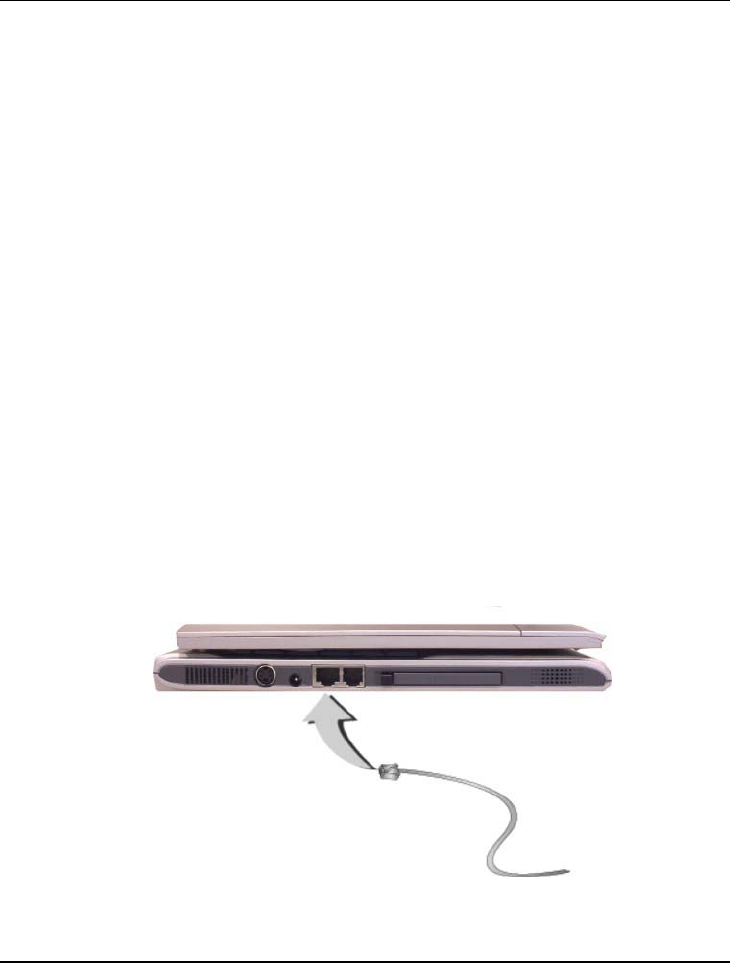

5.7 USING THE MODEM PORT .............................................................. 95
6 CUSTOMIZING YOUR CONVERTIBLE TABLET PC................... 99
6.1 RUNNING THE BIOS SETUP PROGRAM ........................................ 100
7 USING OPTIONS ........................................................................... 105
7.1 SYSTEM UPGRADE ....................................................................... 106
Memory Upgrade........................................................................ 106
Installing Memory Module ......................................................... 106

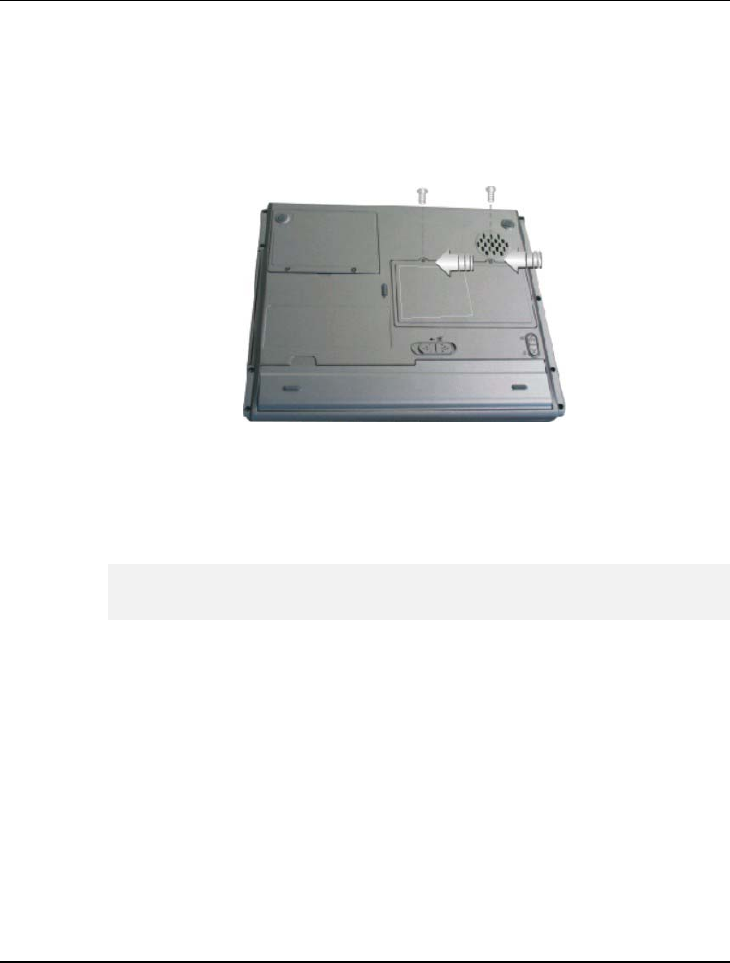

Upgrading Hard Disk................................................................. 108
8 CARING FOR YOUR CONVERTIBLE TABLET PC .............. 111
8.1 IMPORTANT SAFETY INSTRUCTIONS ............................................ 112
8.2 CLEANING YOUR CONVERTIBLE TABLET PC............................... 114
8.3 MAINTAINING THE LCD QUALITY .............................................. 115
8.4 MAINTAINING YOUR HARD DISK ................................................ 115
8.5 BATTERY CARE GUIDELINES ....................................................... 116
8.6 WHEN YOU TRAVEL .................................................................. 116
APPENDIX A SYSTEM SPECIFICATION.................................... 119
Processor Unit............................................................................ 120
System Memory........................................................................... 120
![](/img.php?id=517768&img=bgd.png)
Convertible Tablet PC
4
LCD Display............................................................................... 120
VGA System ................................................................................ 120
Storage........................................................................................ 120
Audio System............................................................................... 121
PCMCIA SLOT ........................................................................... 121
Touch Pad................................................................................... 121
Keyboard .................................................................................... 121
Flash BIOS ................................................................................. 121
I/O Ports ..................................................................................... 121
Wireless devices.......................................................................... 122
AC/DC Power Supply Adapter ................................................... 122
Battery ........................................................................................ 122
Housing Material........................................................................ 122
Weight and Dimension................................................................ 122
APPENDIX B TROUBLESHOOTING ........................................ 123
General Problems....................................................................... 123
Possible Text-To-Speech Problems ............................................ 125
Possible Speech Recognition Problems...................................... 126
APPENDIX C USING THE RECOVERY CD............................. 129
Restoring Your Original OS Preinstalled................................... 129
![](/img.php?id=517768&img=bge.png)
Introduction1
5
1 Introduction
Your Convertible Tablet PC is a full Windows
compatible portable personal computer and is the next
evolutionary stage in the development of the
computer.
Being part of a broad industry Tablet PC initiative, this
latest feature in mobile computing and Tablet PC
technology is evolving today's notebook computers
into the future today.
Your Convertible Tablet PC builds on the capabilities
of Microsoft® Windows® XP Tablet PC Edition to
extend the functionality of PCs, and runs on a whole
wide range of general business, personal productivity,
entertainment, and professional applications.
![](/img.php?id=517768&img=bgf.png)
Introduction1
6
1.1 Feature Highlight
The Convertible Tablet PC is an astounding mobile computing device with
a range of input and communication options. This Convertible Tablet PC is
integrated with a full-width keyboard and can be used as a full-function
notebook.
Before we identify each part of your Convertible Tablet PC, we will first
introduce you to other notable features of your PC.
Processing Unit
• Your Convertible Tablet PC runs on an AMD Mobile Athlon
XP-M microprocessor. It is integrated with 640 KB of
high speed Cache memory.
• Your Convertible Tablet PC is fully compatible with an entire
library of PC software based on Microsoft’s Windows XP.
LCD Screen Display
Provides 12.1" XGA TFT LCD and Digitizer with stylus pen.
Wireless LAN
Built-in 802.11b+g Wireless LAN
Memory
This Convertible Tablet PC provides two memory slots for installing
200-pin SO-DIMMs up to 1024MB using two 512MB SO-DIMMs.
![](/img.php?id=517768&img=bg10.png)
Introduction1
7
PCMCIA SLOT
USB 2.0
Provides four USB 2.0 ports for fast data transmission.
Audio System
Full-duplex 16-bit stereo audio system output. Sound Blaster compatible.
Flash BIOS
Flash BIOS allows you to easily upgrade the System BIOS using a Flash utility
program.

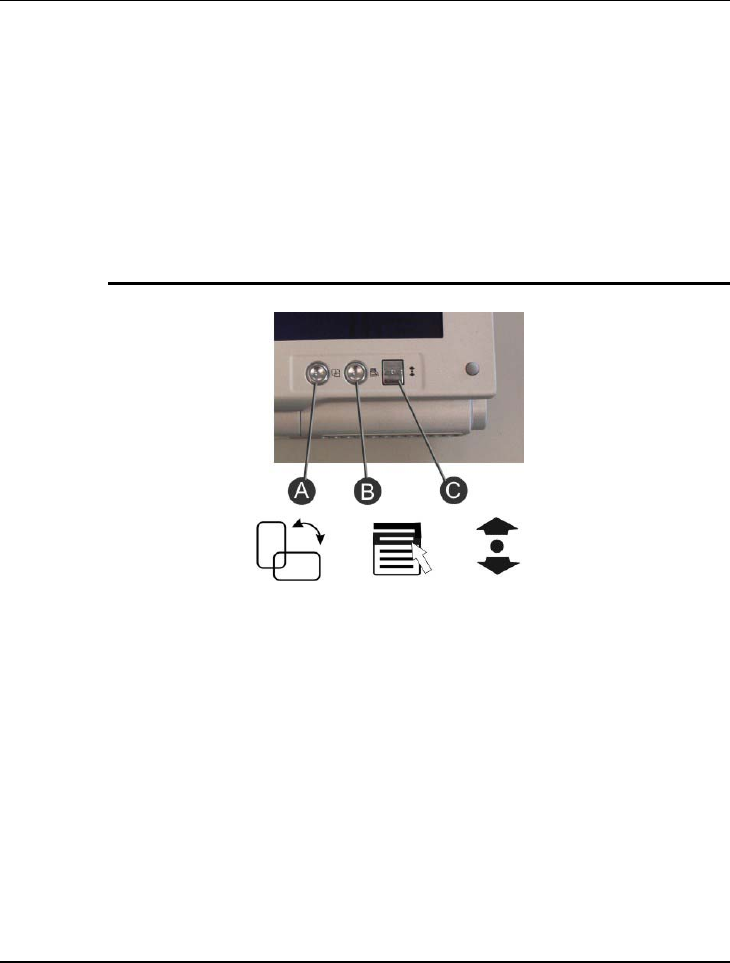

Tablet Buttons
Three Tablet Buttons are located on the lower right corner of the display panel.
They provide special functions to rotate the screen, launch the Main-Menu, and
execute custom defined functions.
1.2 Unpacking the Convertible Tablet PC
Your Convertible Tablet PC comes securely packaged in a sturdy cardboard
shipping carton. Upon receiving your Convertible Tablet PC, open the carton
and carefully remove the contents. The shipping carton should contain the
following items:
Convertible Tablet PC Unit with stylus pen
Custom AVERATEC Soft padded shell
AC Adapter and AC Power Cord
Li-Ion Battery Pack
Recovery CD
![](/img.php?id=517768&img=bg11.png)
Introduction1
8
Carefully inspect each component to make sure that nothing is missing and/or
damaged. If any of these items is missing or damaged, notify your retailer or
reseller immediately. Be sure to save the shipping materials and the carton in
case you need to ship the Convertible Tablet PC or if you plan to store the
computer away sometime in the future.

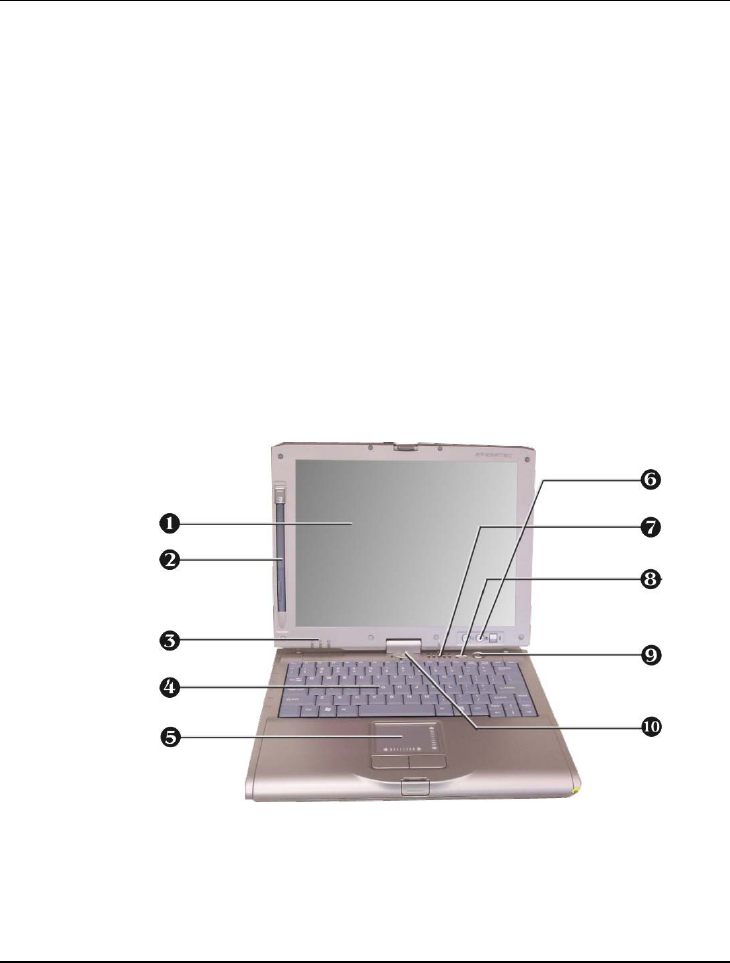

1.3 The Inside of the Convertible Tablet PC
The Convertible Tablet PC is compact with features on every side. First,
look at the inside of the system. The following sections describe it’s features.
1. TFT Tablet LCD Display 2. Stylus Pen
3. Power/Wireless Indicator 4. Keyboard
5. Touchpad Pointing Device 6. Tablet Buttons
![](/img.php?id=517768&img=bg12.png)
Introduction1
9
7. Status LED Indicator 8. Wireless LAN On/Off Switch
9. Power On/Resume Button 10. Swivel Hinge
• TFT Tablet LCD Display:
The 12.1’’ TFT Tablet LCD integrates a touch panel and
provides a 1024x768 XGA screen resolution with32-bit true
color. Portrait and landscape mode support makes this
Convertible Tablet PC more versatile and ideal for Internet
browsing and writing.
• Stylus Pen
The Electro-Magnetic Digitizer (EMD) stylus pen that is
included with this Convertible Tablet PC is used to activate
the touch screen surface. This stylus pen comes in an actual
pen size and the button on it emulates the right button of a
mouse.
•
Please do not use anything other than the tip of the included stylus pen to
interact with the display or you may damage the display surface.
• Power/Wireless Indicator
Indicates if the system is turned on and if the system is
transmitting data via the Wireless LAN. This LED is
positioned so that you can see the status whether the LCD
panel is opened or closed. Detailed description of this
function appears later in this guide.
• Keyboard
Standard QWERTY-key layout and full-sized 85 keys
keyboard with Windows system hot-keys, embedded numeric
keypad, 6 hot keys, inverted "T" cursor arrow keys, and
separate page screen control keys.
• Touch Pad Pointing Device
![](/img.php?id=517768&img=bg13.png)
Introduction1
10
The Touch Pad Pointing Device features a scroll function and
two Touch Pad buttons. The two click buttons located at each
side support tapping selection and dragging functions. These
functions work like a standard computer mouse. Simply
move your fingertip over the Touch Pad to control the
position of the cursor. Use the selection buttons below the
Touch Pad to select menu items.
• Tablet Buttons
Provides you three easy buttons for rotating screen, execute
main function, and select specific options for the system
easily. Description of this function appears in the latter part
of this section.
• Status LED Indicator
Keeps you informed of your Convertible Tablet PC current
operating status. Description of the status icons appears in the
latter part of this section.
• WLAN On/Off Switch
You can use this switch to turn on/off Wireless LAN function.
In order to meet FCC regulations, the Wireless LAN is set to
OFF when you first power ON your computer or when
resuming from Hibernation mode.
• Power On/Resume Button
Switches the computer power on and off, or resumes
whenever it is in Suspend mode.

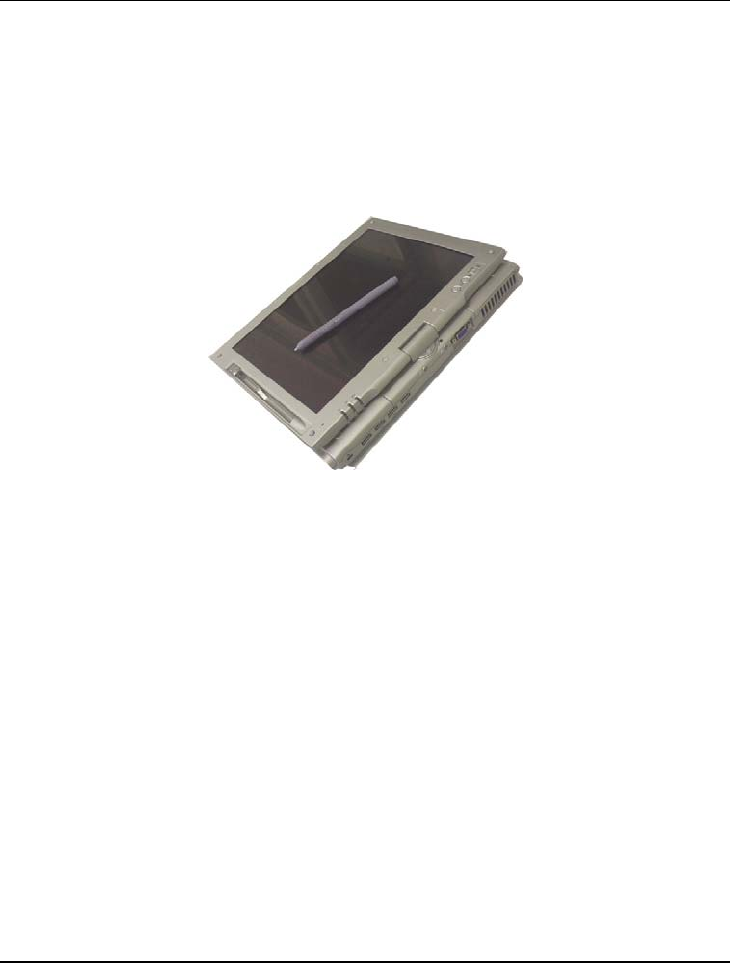

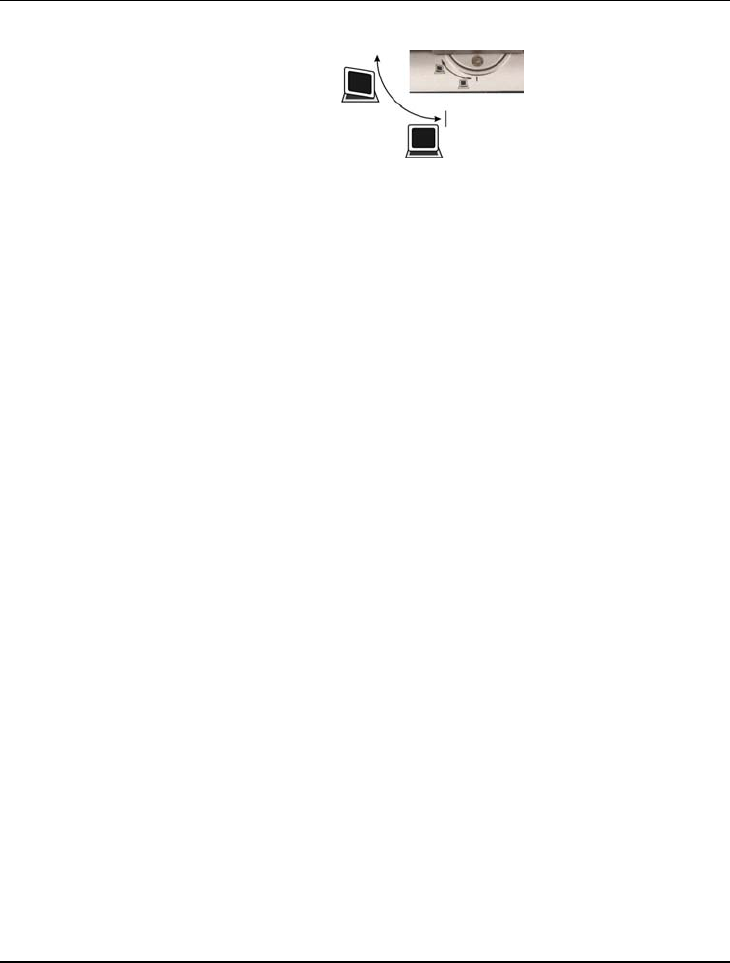

• Rotating Hinge
This Convertible Tablet PC is convertible with a strong hinge.
After you open the TFT-LCD panel, you can rotate this
TFT-LCD panel clockwise at arbitrary degree and angel, even
up to 180 degree. Then, settle down your TFT-LCD panel
horizontally, and the computer acts like a standard
Convertible Tablet PC.
![](/img.php?id=517768&img=bg14.png)
Introduction1
11
.
![](/img.php?id=517768&img=bg15.png)
Introduction1
12
POWER/WIRELESS LAN STATUS ICONS
The Power/Wireless LAN LED keeps you informed of the current
operating status. Each LED is marked with an icon to designate the system
status.
1. Power Indicator 2. Wireless LAN access
3. Battery Charging LED
• Power Indicator
Lets you know that power to the system is turned on.
Steady Green Light indicates when the system is powered on
Blinking Green Light indicates when the system is in Suspend mode.
• Wireless LAN access
LED will show a steady green light, indicating the wireless
LAN module is installed and turned on. When LED shows a
blinking green light, it indicates the system is accessing or
retrieving data by wireless device.
• Battery Charging LED
Lights that indicate battery charge status.
![](/img.php?id=517768&img=bg16.png)
Introduction1
13
Steady Green Light indicates the battery is fully charged
Steady Orange Light indicates that the battery is charging.
Blinking Orange Light indicates that the battery power is critically
low.
Light off indicates that no battery is installed.
TABLET BUTTONS FUNCTION
A. Screen Rotation Button B. First Menu Button
C. Direction/Enter Button

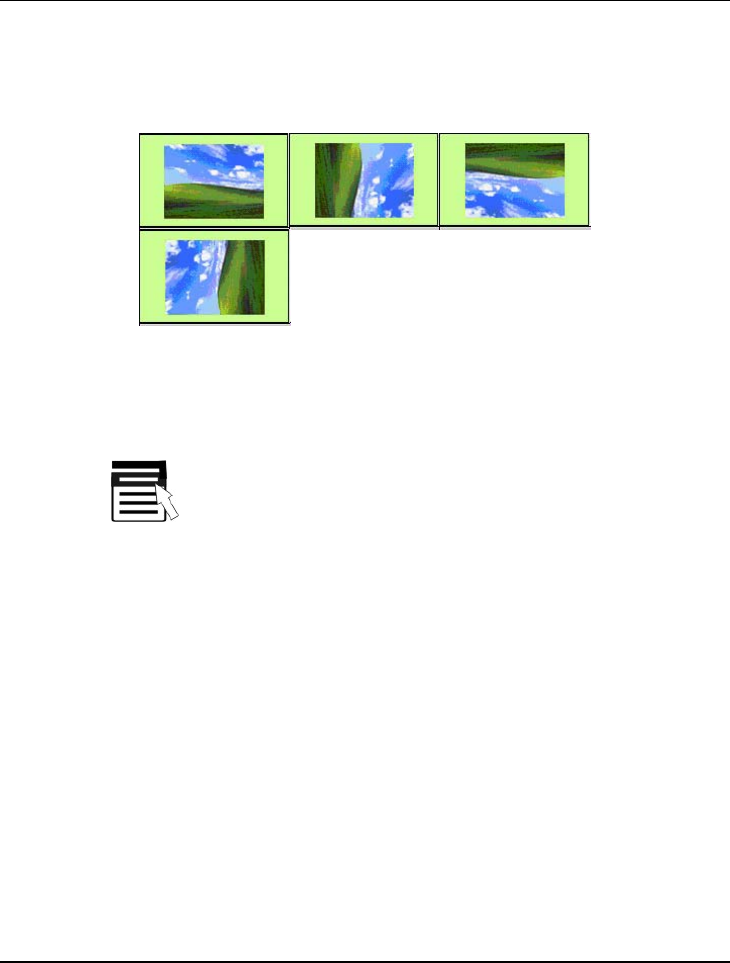

• Screen Rotation Button
This function permits you to shift the screen between
Landscape and Portrait viewing modes. It is easy to adjust
the screen layout.
• First Menu Button

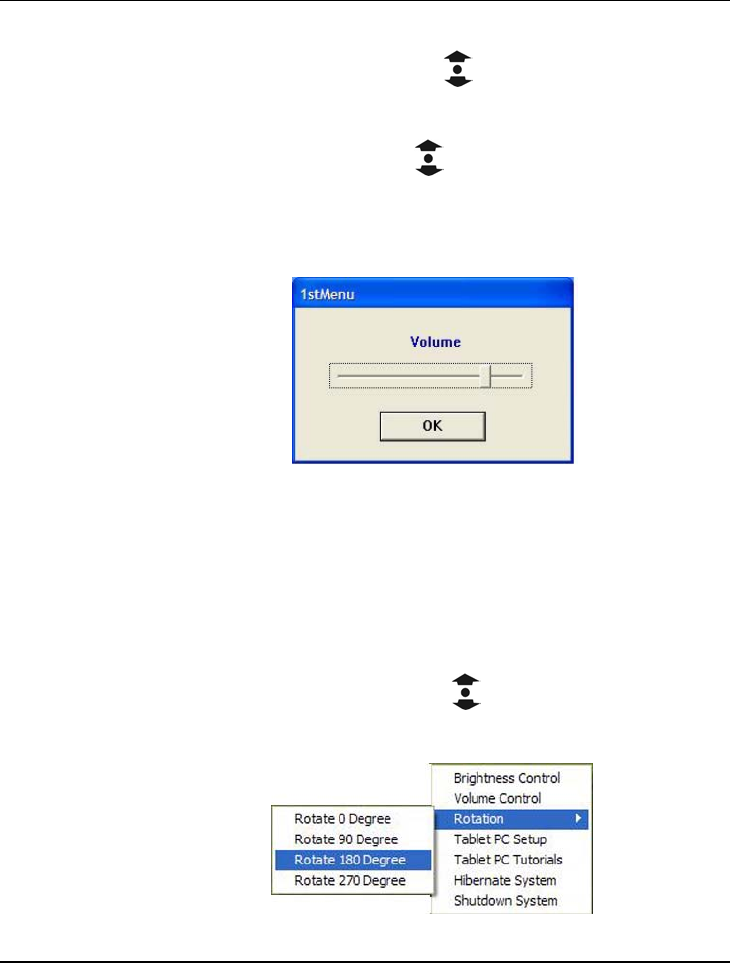

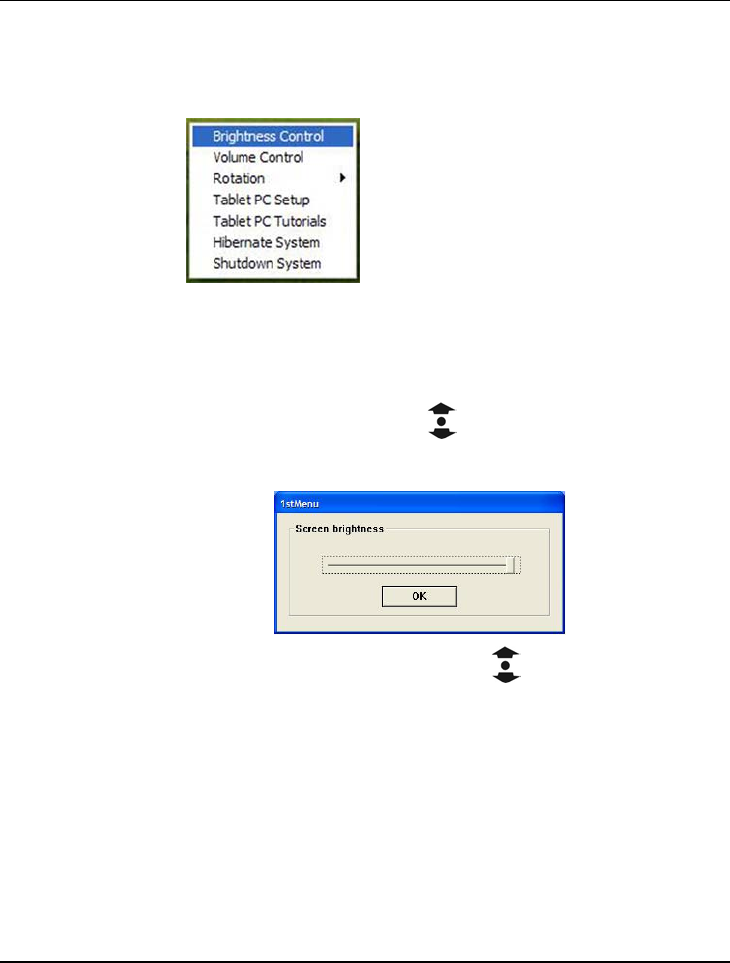

The First Menu button allows you to access an array of
controls such as: Brightness Control, Volume Control,
Rotation, Shutdown system, etc. You can change the values
you need by configuring them within the Control Panel.
![](/img.php?id=517768&img=bg17.png)
Introduction1
14
• Direction/Enter Button
The up/down ( ) arrow buttons let you choose the options
that appear within the First Menus list of options. To
execute your option, press the button with the central
round-rectangular icon.
STATUS LED ICONS
The Status LED Panel keeps you informed of the Convertible Tablet PC’s
current operating status. Each LED is marked with an icon to designate the
system status.
A. Optical Drive Access B. Drive Access
C. Num Lock D. Caps Lock
E. Scroll Lock
• Optical Drive Access
When LED light is green it indicates that the system is
accessing the CD-RW/DVD Combo drive.
• Drive Access
When the LED light is green it indicates that the system is
![](/img.php?id=517768&img=bg18.png)
Introduction1
15
accessing the Hard Disk.
• Num Lock
When the LED light is green it indicates that the Num Lock
key on the keyboard is activated. When activated, the
embedded numeric keypad will be enabled.
• Caps Lock
When LED light is green it indicates that the Caps Lock
key on the keyboard is activated. When activated, all
alphabet keys typed in will be in uppercase or capital letters.
• Scroll Lock
When LED light is green it indicates that the Scroll Lock key
on the keyboard is activated. The Scroll Lock key has
different functions depending on the software you are using.
1.4 The Front Side of the Convertible
Tablet PC
The function at the front of your Convertible Tablet PC is described as
following.
1. Panel Latch 2. Battery
• Panel Latch
![](/img.php?id=517768&img=bg19.png)
Introduction1
16
The LCD panel is locked when it is closed. Press the lower
clasp to release the panel and slowly lift it up to open the
LCD panel.
• Battery
The battery provides the power for the Convertible Tablet PC
when there is no AC power available. Please refer to chapter
2.1 on how to attach and detach the battery.
1.5 The Rear Side of the Convertible
Tablet PC
The system ports at the back of your Convertible Tablet PC can connect
various devices. Each port is described as following.
1. Locking Device Keyhole 2. USB Port
3. Monitor Port 4. Air-Outlet Vent

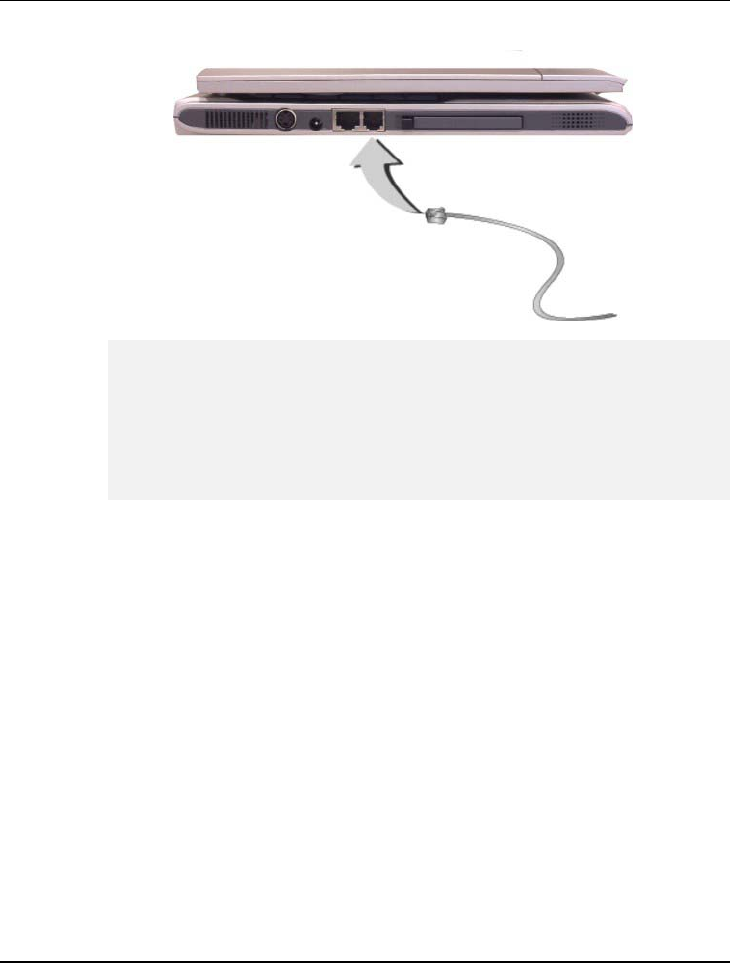

• Locking Device Keyhole
Allows you to attach a Kensington security system or a
compatible lock to secure your Convertible Tablet PC.
• USB Port
The Universal Serial Bus (USB) port allows you to connect
![](/img.php?id=517768&img=bg1a.png)
Introduction1
17
up to 127 USB-equipped peripheral devices (for example,
printers, scanners, floppy disk and so on) to your Convertible
Tablet PC.
•
While your Convertible Tablet PC is in suspend mode (stand by), mobile
phone or PDA can be recharged via these active USB ports.
• Monitor Port
Lets you attach an external monitor or projector for wider
display. You can run the LCD display and the external
monitor simultaneously or switch it to monitor only by using

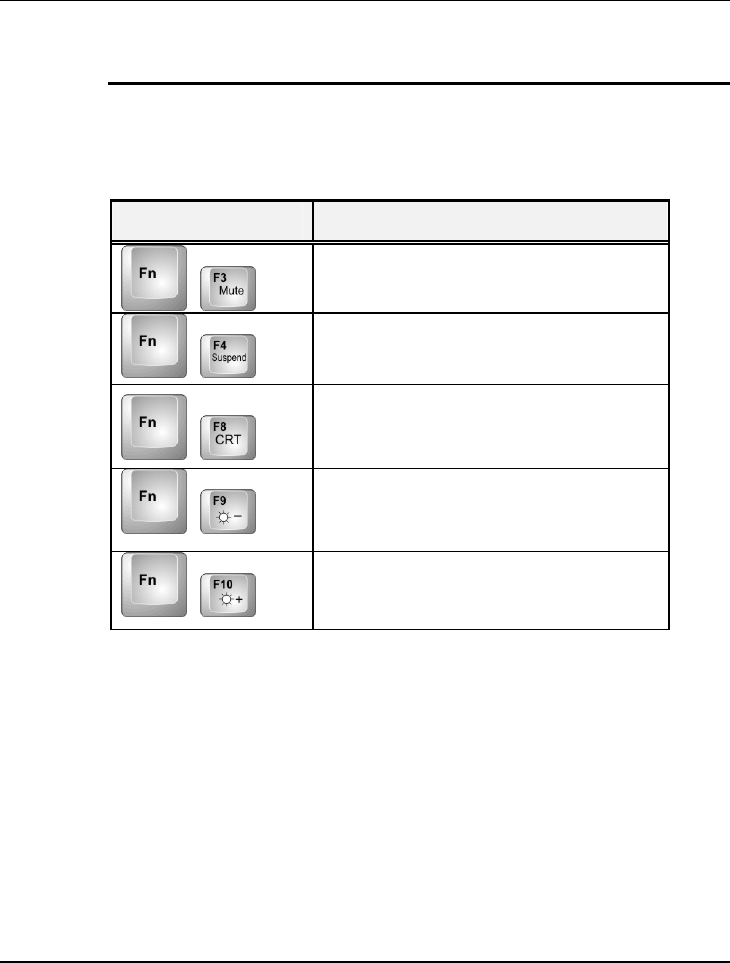

the display hot-key by pressing <Fn> +<F8>.
• Air-Outlet Vent
Emits heat out of your Convertible Tablet PC and keeps it
within operating temperature.
1.6 The Left Side of the Convertible
Tablet PC
The left side of your Convertible Tablet PC provides the features shown in
the following figure.
1. Air Intake 2. TV Out
3. DC Power Port 4. LAN Port
![](/img.php?id=517768&img=bg1b.png)
Introduction1
18
5. Modern Port 6. PCMCIA Slot
7. Built-in Stereo Speakers
Left Side Features
• Air Intake
Intakes air into your Convertible Tablet PC to keep it within
operating temperature.
• TV Out
Lets you connect to the S-Video input connector of your TV
for presentation or DVD viewing.
• DC Power Port
Lets you connect the AC power adapter to supply
continuous power to your notebook and recharge the battery.
• LAN Port
An internal 10Base-T/100Base-TX LAN module connects
your Convertible Tablet PC to other computers/networks
through a local area network (LAN).
• Modem Port
A 56K internal fax/data modem is installed. It keeps you
connected to the outside world through networks.
• PCMCIA Slot
• Built-in Stereo Speakers
Integrated left and right mini stereo speakers for sound and
audio output for multimedia presentations or listening
pleasure.

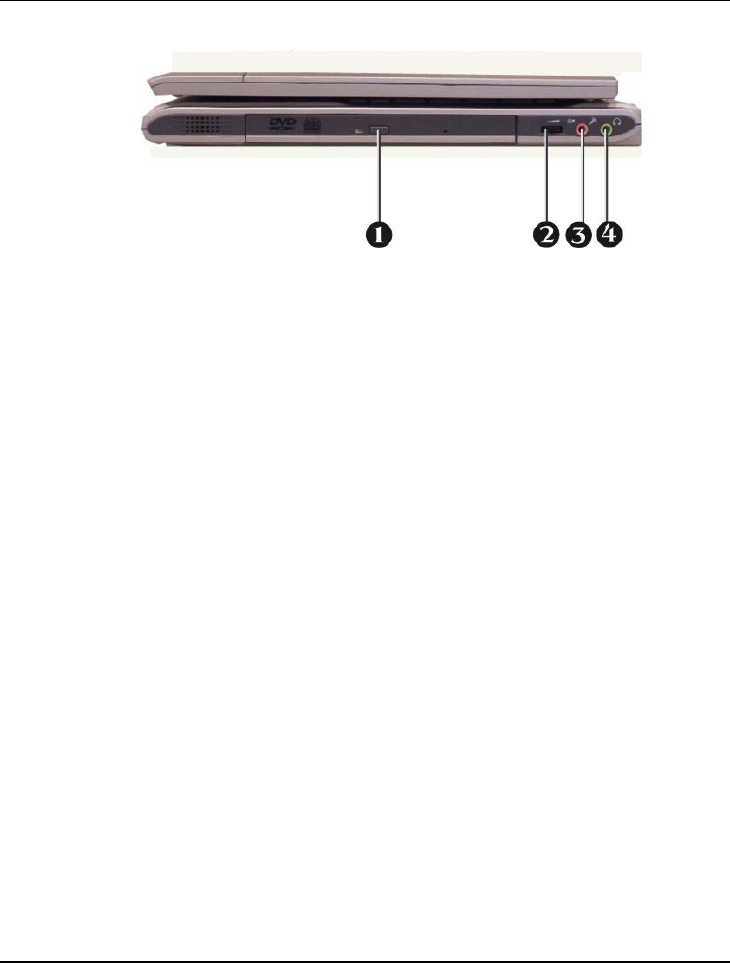

1.7 The Right Side of the Convertible
Tablet PC
The right side of the Convertible Tablet PC offers the features
shown in the following figure.
![](/img.php?id=517768&img=bg1c.png)
Introduction1
19
1. DVD+CD-RW Combo Drive 2. Volume Control
3. Microphone Jack 4 . Headphone Jack
Right Side Features
• DVD+CD-RW Combo Drive
Allows you to load and start programs from a compact disc
(CD) or a digital video disc (DVD) and play conventional
audio CDs. It also can make CD by using CD-R or CD-RW.
• Volume Control
Use this Thumb Wheel to adjust (increase or decrease) the
speaker volume.
• Microphone Jack
Allows you to connect an external microphone for
monophonic sound recording or voice-control function
directly into your notebook computer.
• Headphone Jack
Lets you plug in a stereo headphone, powered speakers, or
earphone set with 1/8 inch phono plug for listening.
1.8 The Underside of the Convertible
Tablet PC
The bottom of the Convertible Tablet PC offers the following features.
![](/img.php?id=517768&img=bg1d.png)
Introduction1
20
1. Hard Disk Compartment 2. Battery Bay
3. Mini-PCI Wireless Module 4. Lock Latch
5. Battery Release Latch
Bottom of the System
• Hard Disk Compartment
Open the cover of this compartment to replace the Hard
Disk Drive. Please refer to Chapter 7 for how to replace it.
• Battery Bay
Equipped with a Lithium-Ion (Li-Ion) battery pack.
• Mini-PCI Wireless Module
Inside the compartment, there is an 802.11g Mini-PCI
module. Mini-PCI cards are credit-card sized modules that
snap onto the motherboard.
• Lock Latch
Slide the latch to upper side to lock the battery pack. To
release the battery latch, slide the lock latch to lower side in
the unlock position.
• Battery Release Latch
Push the latches to the end of left side as indicated in icons to
release the battery pack.
![](/img.php?id=517768&img=bg1e.png)
Introduction1
21
1.9 Convertible Tablet PC Accessories
AC Adapter
The AC Adapter supplies external power to your Convertible Tablet PC
and charges the internal battery pack simultaneously. The AC adapter has
an auto-switching design that can connect to any 100VAC ~ 240VAC
power outlets. You just change the power cord if you are going to use your
Convertible Tablet PC in other countries with different connector outlets.
When you connect the AC adapter, it charges the battery whether or not the
Convertible Tablet PC is powered on.
Battery Pack
Aside from the AC adapter, your Convertible Tablet PC can also be
powered through the internal battery pack. The battery pack uses
rechargeable Lithium-Ion (Li-Ion) battery cells that provide long
computing hours when fully charged and power management enabled. You
should always leave the battery inside your Convertible Tablet PC even
when using the AC adapter as it also acts as a back-up power supply in
case power from the AC adapter is cut off. It is also very important to have
the battery pack always charged to prevent battery cell degradation.
![](/img.php?id=517768&img=bg20.png)
Getting Started 2
23
2 Getting Started
Your Convertible Tablet PC is designed
and pre-configured for easy setup and use.
This chapter describes the installation steps
you should follow to get your Convertible
Tablet PC up and running as quickly as
possible. You also can learn the procedures
on how to use the stylus and tablet
buttons. Your Convertible Tablet PC has
pre-installed all the needed drivers already.
There is no need to install extra drivers to
operate on your current system.
![](/img.php?id=517768&img=bg21.png)
Getting Started 2
24
2.1 Preparing the Power Supply
USING BATTERY
The primary source of this Convertible Tablet PC power is a battery pack.
The 6-cell 2200 mA Lithium-Ion battery allows up to 4 hours of battery life at
full operation.
The battery pack is visible and accessible from the underside of this
Convertible Tablet PC. It provides notebook power and can be recharged
while using the AC-DC adapter.
Removing the Battery Pack
To remove the battery pack, follow these steps:
1. Turn off the power for Convertible Tablet PC.
2. Slide the lock latch by sliding the latch to the arrow point direction as
shown in number 1 in the following graphics.
3. Slide the released latch as shown in number 2 to the end of left side.
4. Take out the battery pack with your finger to remove the battery pack,
•
Li-Ion battery is vulnerable, do not charge it with other power adapter, or it
may cause fire or explosion.
![](/img.php?id=517768&img=bg22.png)
Getting Started 2
25
Remove Battery Pack
USING THE AC-DC ADAPTER
If you prefer to operate Convertible Tablet PC on AC power, use the
AC-DC adapter that comes with this product. Simply connect the power
adapter into the DC-in jack on the Convertible Tablet PC, and then plug
the power adapter to a wall socket.
The DC-in jack connects the AC-DC adapter provided to recharge the
battery.
AC-DC Adapter (color and size may differ)
The AC adapter provides external power source to your Convertible Tablet
PC and charges the internal battery pack at the same time. The AC adapter
also has an auto-switching design that can connect to any 100VAC ~
![](/img.php?id=517768&img=bg23.png)
Getting Started 2
26
240VAC power outlets.

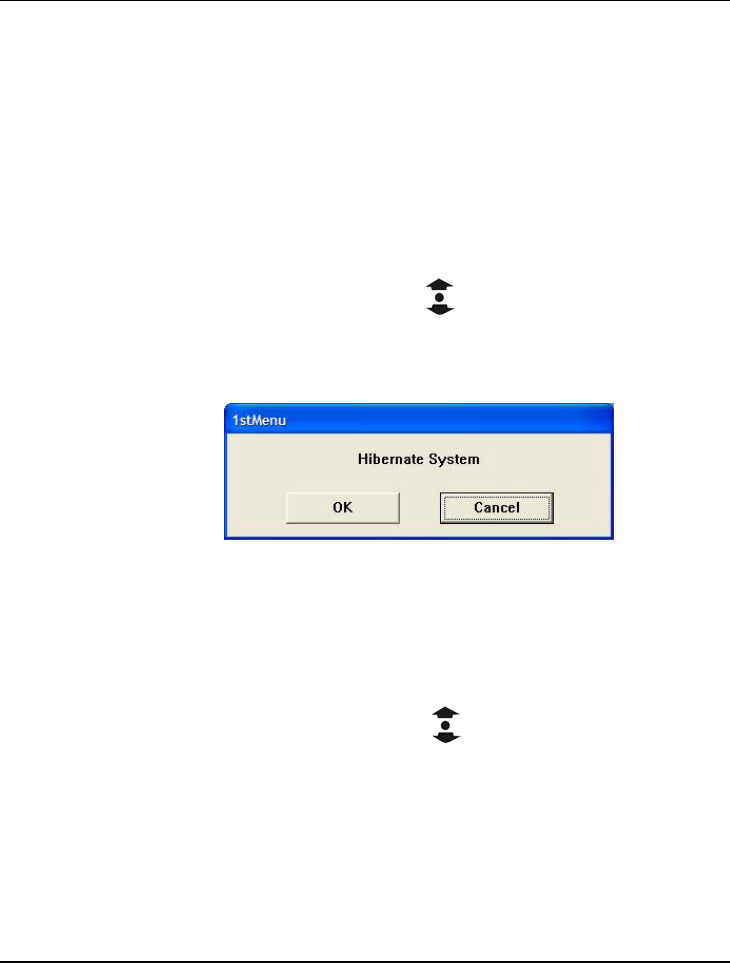

For Window XP, the suspend mode (Hibernate or Standby) can be chosen at
Power Options of Windows's Control Panel.
•
Be sure to save your data before replacing the battery pack or connecting
the AC adapter. Failure to do so can result in data loss.
EXTENDING BATTERY LIFE
It is important to be aware of ways in extending the life of the system main
battery while you are on the road. You should find a working place where
the external lighting is not too bright and turn down the screen brightness.
Also, you can choose the available mode on the Power Options item of
the Control Panel in Windows.
2.2 Starting Your Convertible Tablet PC
We have already installed Microsoft® Windows® XP Tablet PC Edition
your Convertible Tablet PC.
After turning on the Convertible Tablet PC, you will be prompted to enter
your personal information for product registration purposes. You will
also be able to setup product configurations for your Convertible Tablet
PC, such as date, Internet connection, administrator password, and user
accounts.
It may take several minutes to complete the whole process.
Please follow the procedures below to completeethe
configuration:
1. The message "Welcome to Microsoft Windows" will appear, click "Next" to
continue.
![](/img.php?id=517768&img=bg24.png)
Getting Started 2
27
Step 1
2. On "Select Your System Settings" screen, select the correct region, language
and keyboard to display correct dates and currency. Click "Next" to continue.
Step 2

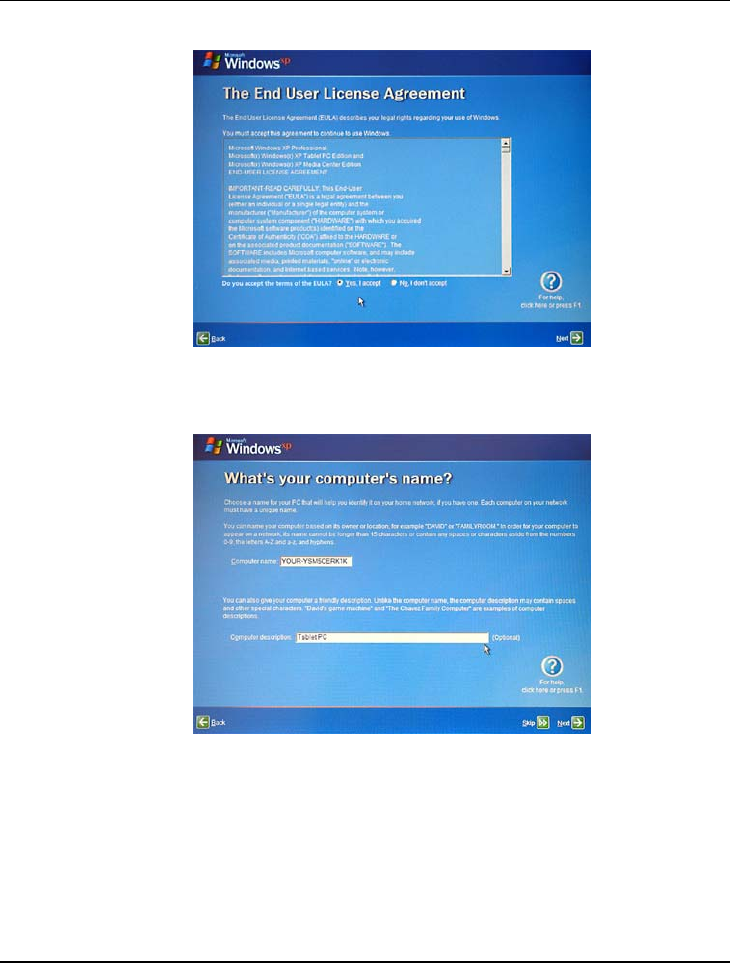

3. On "The End User License Agreement" screen, select "Yes, I accept" and
click "Next" to continue.
![](/img.php?id=517768&img=bg25.png)
Getting Started 2
28
Step 3
4. On "What's your computer's name" screen, please choose a name and
description for your Tablet PC. Click "Next" to continue.
Step 4
5. On "What's your Administrator password" screen, please enter your own
administrator password, which will help protect your Convertible Tablet PC
from unauthorized access. Click "Next" to continue.
![](/img.php?id=517768&img=bg26.png)
Getting Started 2
29
Step 5 + 6
6. Following the previous step, you will then be requested to enter more
information to set up your Internet connection, such as domain name and online
register. Please fill in the relative information and click "Next" to continue.
7. On "Who will use this computer" screen, please create five user accounts at
most to be the legal users for your Convertible Tablet PC. Click "Next" to
continue.
Step 7
8. When screen appears "Thank You ! ", your registration process is completed.
![](/img.php?id=517768&img=bg27.png)
Getting Started 2
30
Step 8
9. The next message, "Welcome to Microsoft Windows" will appear. Click
"Next" to continue.
ADJUSTING THE DISPLAY CONTROLS
The LCD brightness adjustment is controlled by pressing the <Fn> +<F9>
and <Fn> + <F10> keys respectively. You need to press these hot-key
controls after powering on your Convertible Tablet PC to suit your viewing
pleasure.
The Brightness hot-key control adjusts the brightness on the LCD. This
key control will not set the LCD completely dark or bright; rather will
provide sufficient lighting to the LCD to match the external lighting of the
surrounding. The brighter the room, the more you need to increase the
brightness of the LCD.
![](/img.php?id=517768&img=bg28.png)
Getting Started 2
31
2.3 Using Stylus and Tablet Buttons
USING YOUR COMPATIBLE STYLUS
To interact with your Convertible Tablet PC, use the Compatible Stylus
that is included with your PC. It is a unique tool that takes the place of a
mouse or a standard keyboard. Instead of using a standard keyboard or
mouse, you can use your stylus with Microsoft® Tablet PC Input Panel or
Microsoft® Windows® Journal to enter text with your own handwriting or
through a screen keyboard.
Using
the pen instead of a mouse
With the stylus, you can do many things that you are used to doing with the
mouse. You can point on the screen, click the left and the right mouse.
Use a single-tap anywhere that you would normally use a mouse with a
single-click. Use the same method, double-tap with the stylus, to
perform the same function of double-clicking a mouse.
There are four basic stylus functions. The pen actions that correspond to
mouse functions are as follows:
Stylus Action Equivalent Mouse Action
The Compatible Stylus
![](/img.php?id=517768&img=bg29.png)
Getting Started 2
32
Point/Hover Point
Tap Click
Double-tap Double-click
Drag Drag
Press and hold Right-click
Start Input Panel gesture Launch Input Panel
Right-click equivalents
The stylus can execute the same function as if you clicked the right mouse
button. When you press the stylus button and point to the screen for a
while, a pop-up menu will appear. The function when pressing this
button on your stylus is equivalent as pressing the right-click mouse.
Using the stylus button as a mouse right-click equivalent
You can use the stylus button to display shortcut menus or access other
program-specific right-click features. To activate or inactivate this function
for tablet pen button, please define it on the Tablet and Pen Settings icon
found in the Control Panel.
1. To use the stylus button for right-click function, press the
stylus button and hold it while you tap the screen on your
Convertible Tablet PC, and then release the stylus button.
2. To drag an item, press the stylus button, hold it and drag this
item to the position you want, and then release the button.
Using press and hold for right-click
You can perform mouse right-click equivalent "press and hold" with your
stylus. To activate or inactivate the "press and hold" function by using the
tablet pen button, please define it on the Tablet and Pen Settings icon
found in the Control Panel.
To perform "press and hold" function, point the screen with the stylus,
![](/img.php?id=517768&img=bg2a.png)
Getting Started 2
33
hold it until the mouse icon appears, and then lift the stylus.
Tips for using stylus
• Hold the stylus in the same way that you would hold a pen
or pencil when writing on paper.
• Rest the palm of your hand on the screen and hold the stylus
near the screen surface as you tap or perform other
actions.
• To tap successfully, tap and lift up your pen quickly on the
screen. Avoid pushing too hard with your pen.
• When tapping, watch the pointer as it moves on the screen,
not the tip of the stylus. This will help you more
accurately tap what you are aiming at on the screen.
• To get the best reaction with the LCD screen while using
the stylus, please tap the selected item vertically on the
screen.
TABLET AND PEN SETTINGS
The Tablet and Pen Settings is a very important and useful tool when you
start using this Convertible Tablet PC. At times, you may want to adjust your
stylus or change the orientation of the display screen, e.g., from landscape to
portrait. When you want to customize your tablet buttons or stylus button, just
like adjusting computer mouse settings, you can define it on the Tablet and
Pen Settings icon found in the Control Panel.
Settings Tablet
Change handedness settings
Adjusting the handedness settings will improve handwriting recognition
and also changes the location of menus so that your hand will not cover
![](/img.php?id=517768&img=bg2b.png)
Getting Started 2
34
them.
To set the right-handed or left-handed settings:
1. In the "Table and Pen settings" box, go to the Setting tab,
and select the "Right-handed" or "Left-handed" Under
"Handedness" category.
2. Select the "Right-handed (menu appears on left)" or
"Left-handed (menu appears on right)" under "Menu
Location" option.
Tablet and Pen Settings dialog box
Setting up stylus and calibration
If you find that the tip of the stylus does not accurately point at items on
the screen, then you can calibrate how the screen responds to the pen.
1. In "Table and Pen settings" box, go into the Calibration tab,
tap the Calibrate button under Calibration category.
2. The crosshair will be appeared at the four corners of the
![](/img.php?id=517768&img=bg2c.png)
Getting Started 2
35
screen. Tap on the center of the each crosshair accordingly.
3. After finishing the calibration, tap OK to exit.
Screen calibration
Display Tab
Display tab
![](/img.php?id=517768&img=bg2d.png)
Getting Started 2
36
Change screen orientation
Your Convertible Tablet PC screen is more versatile than a desktop or
laptop. You can easily change from the landscape to portrait view.
To set the screen orientation:
1. In the "Table and Pen settings" box, go to "Display" tab,
select the option on the "Orientation" drop-down list under
the "Screen Orientation" category.
2. Tap on "Change" button to setup the orientation sequence.
3. There are four preferential settings for the screen
orientations. You can select None, Primary Landscape,
Primary Portrait, Secondary Landscape or Secondary
Portrait for each of the four preferential setting.
Change screen orientation
![](/img.php?id=517768&img=bg2e.png)
Getting Started 2
37

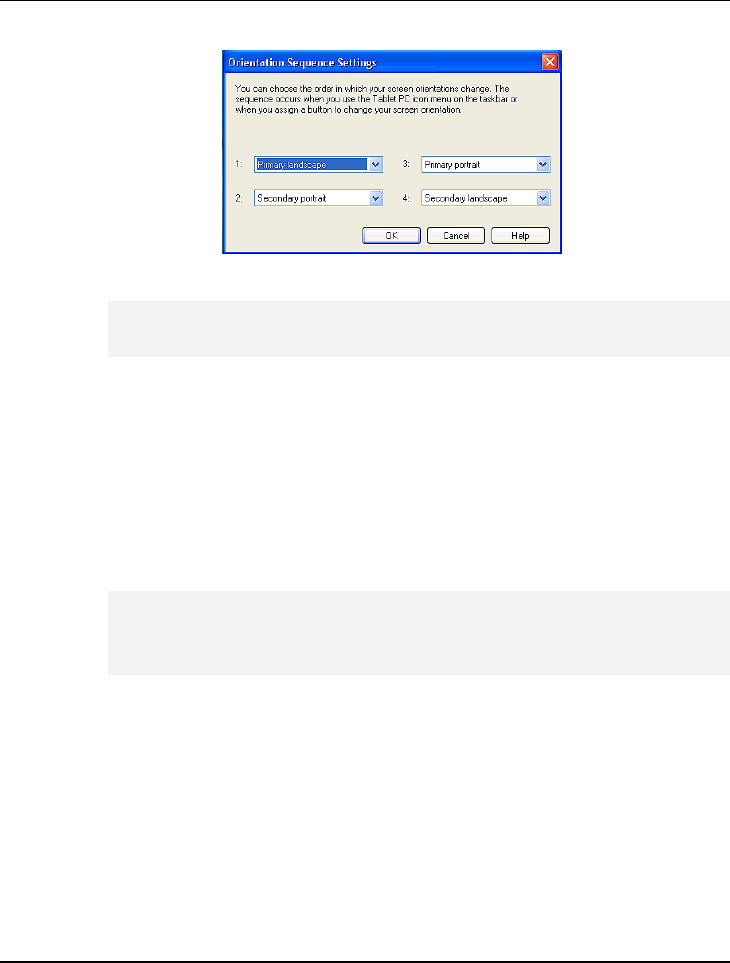

Change orientation sequence
•
You can also change the screen orientation according to the instructions in
“Using the Screen Rotation Button of the Tablet Buttons” in Section 1-3.
Adjust screen brightness
1. In the "Table and Pen settings" box, go to "Display" tab,
select the option either "When plugged in" or "Powered by
batteries" on the "Setting for" drop-down list under the
"Screen brightness" category.
2. Move the slider to the left or right to decrease or increase the
screen brightness.
•
You can also change the screen brightness according to the instructions in
“Using the 1st Menu Button- Brightness Control of the Tablet Buttons” in
this Section 2-3 later.
![](/img.php?id=517768&img=bg2f.png)
Getting Started 2
38

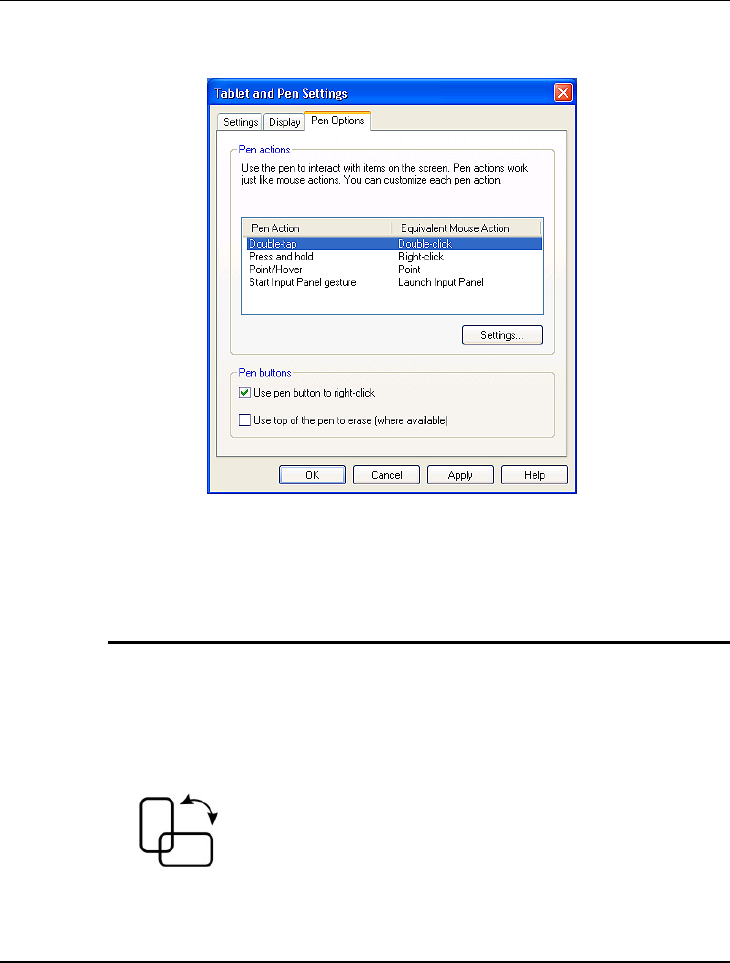

Pen Options Tab
Pen Options tab
You can adjust the stylus buttons with a right-click equivalent by clicking
the "Use pen button to right-click" checkbox.
TABLET BUTTONS
There are three convenient buttons called “Tablet Buttons” located on the
lower right corner of the TFT-LCD panel. The functions are described as
following:
Using the Screen Rotation Button
The "Screen Rotation Button" let you adjust your
Convertible Tablet PC Screen Orientation. By pressing
this button once, it will rotate the screen 90 degree
![](/img.php?id=517768&img=bg30.png)
Getting Started 2
39
clockwise. The flexibility of an adjustable screen layout
permits you to shift between Landscape and Portrait
viewing modes.
You can define the Screen Rotation to None, Once (900),
Twice (1800), Three times (2700), respectively
Using the 1
st
Menu Button
This Convertible Tablet PC comes with a 1st Menu Button for you
to access an array of controls such as: Brightness Control, Volume Control,
Rotation, Shutdown System, etc. You can change the values easily and need
not have to configure them in Control Panel or other programs anytime.
Menu options are described as following:
![](/img.php?id=517768&img=bg31.png)
Getting Started 2
40
Brightness Control
.
This option adjusts the brightness of the display. To adjust the LCD screen
brightness:
1. Press the 1st Menu button to invoke the first main menu.
2. Use the Direction/Enter Button ( ) to select Brightness Control.
3. Press the Enter button, and the Screen brightness dialog box appears.
4. Continue to use Direction/Enter Button ( ) to decrease or increase
the screen brightness.
5. When Screen brightness is suitable, press Enter/OK button for
confirmation.
Volume Control
This option adjusts the volume of the speakers. To adjust the volume:
1. Press the 1st Menu button to invoke the first main menu.
![](/img.php?id=517768&img=bg32.png)
Getting Started 2
41
2. Use the Direction/Enter Button ( ) to select Volume Control.
3. Press the Enter button, and the Volume dialog box appears.
4. Use Direction/Enter Button ( ) to decrease or increase the volume
of the speakers.
5. When the Volume is suitable, press Enter/OK button for confirmation.
Rotation
This function is similar to the function of the Screen Rotation Button. It
lets you change Convertible Tablet PC screen orientation. This flexibility
of an adjustable screen layout permits you to shift between landscape and
portrait viewing modes. To adjust the screen orientation:
1. Press the 1st Menu button to invoke the first main menu.
2. Use the Direction/Enter Button ( ) to select Rotation.
3. Press the Enter button to enter the sub-menu.
![](/img.php?id=517768&img=bg33.png)
Getting Started 2
42
4. Use the Direction/Enter Button ( ) to select the orientation you
want, then press the Enter button to confirm the changes.
•
The LCD integrated touch panel will only provide 16-bit high color
resolution while you are using rotation function.
Four options in the Rotation menu
Rotate 0 Degrees - keeps the screen in landscape viewing.
Rotate 90 Degrees - rotates the screen 90 degrees clockwise, in portrait
viewing.
Rotate 180 Degrees - rotates the screen 180 degrees clockwise, in
landscape viewing.
Rotate 270 Degrees - rotates the screen 270 degrees clockwise, in
portrait viewing.
Tablet PC Setup
If you find that the tip of the stylus does not accurately point at items on the
screen, then you can calibrate how the screen responds to the pen. This option
allows you to calibrate your stylus. To do the pen calibration:
1. Press the 1st Menu button to invoke the first main menu.
2. Use the Direction/Enter Button ( ) to select Tablet PC Setup.
3. Press the Enter button to brings up Tablet and Pen Settings dialog box.
4. In the Settings tab, tap the Calibrate button.
5. There will be crosshair appearing at the four corners of the screen. Tap on
the center of the each crosshair accordingly.
6. After finished the calibration, tap OK to exit.
![](/img.php?id=517768&img=bg34.png)
Getting Started 2
43
•
You can also tap the Tablet and Pen Settings icon in the Control Panel to do
the pen calibration. For more the information, please refer to “Tablet and
Pen Settings - Settings Tab - Setting up stylus and calibration” in this
section 2.4. Tablet and Pen Settings

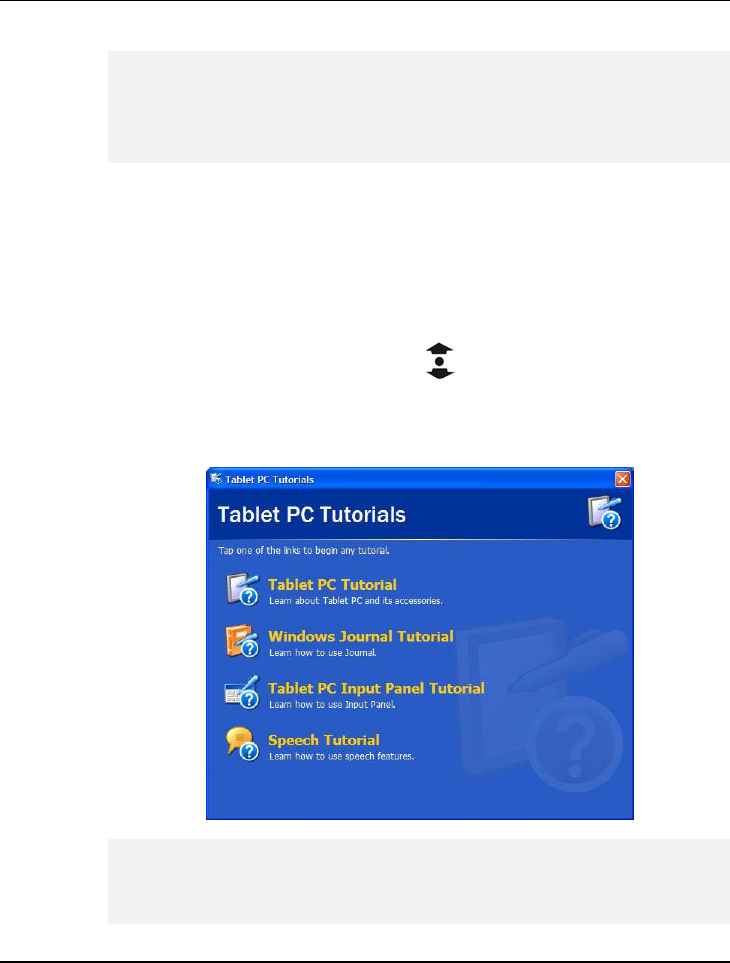

Tablet PC Tutorials
This option is a shortcut to the Convertible Tablet PC Tutorials, which give
you an introduction in what is new and different about using a tablet
computer.
1. Press the 1st Menu button to invoke the first main menu.
2. Use the Direction/Enter Button ( ) to select Tablet PC Tutorials.
3. Press the Enter button to brings up Tablet PC Tutorials main menu.
•
For more information about Windows Journal Tutorial, Tablet PC Input
Panel Tutorial, and Speech Tutorial. Please see the description for details in
Chapter 4.
![](/img.php?id=517768&img=bg35.png)
Getting Started 2
44
Hibernate System
If you select this menu, you will put the Convertible Tablet PC in the
hibernation mode. When your computer hibernates, it stores whatever it has in
memory on your hard disk and then shuts down. When your computer comes
out of hibernation, it returns to its previous state. To put the computer in
hibernation mode:
1. Press the 1st Menu button to invoke the first main menu.
2. Use the Direction/Enter Button ( ) to select Hibernate System
3. Press the Enter button to enter the sub-menu.
4. Press the OK button to hibernate system.

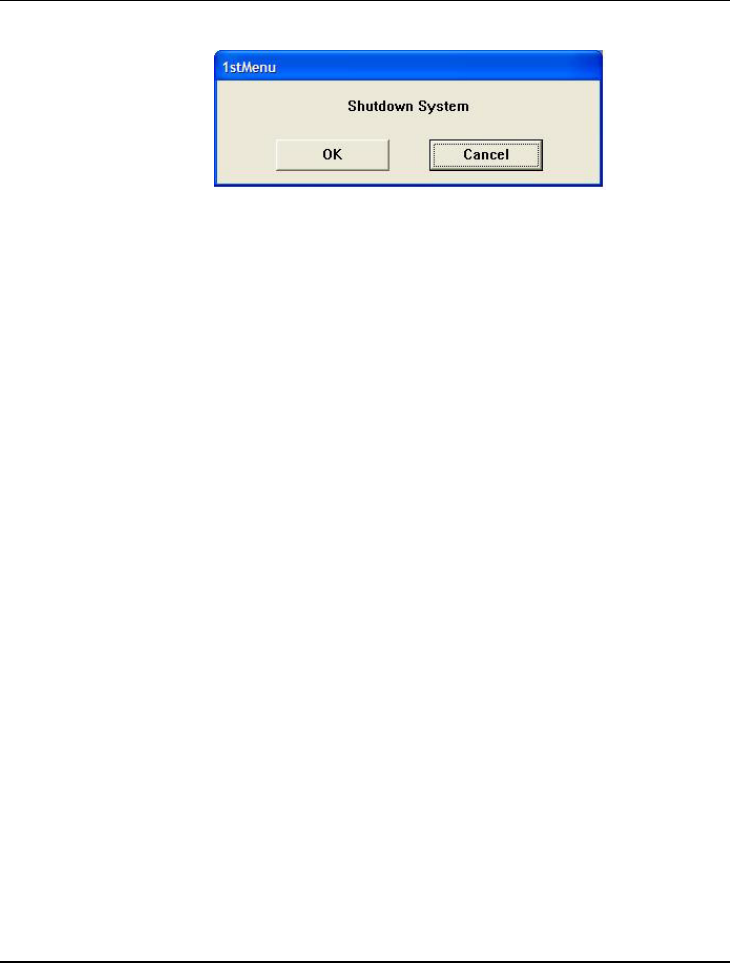

Shutdown System
This menu allows you to shutdown the Tablet PC and turn off the system. To
shutdown your Convertible Tablet PC:
1. Press the 1st Menu button to invoke the first main menu.
2. Use the Direction/Enter Button ( ) to select Shutdown System.
3. Press the Enter button to enter the sub-menu.
4. Press the OK button to shutdown the Tablet PC.
![](/img.php?id=517768&img=bg36.png)
Getting Started 2
45
.
![](/img.php?id=517768&img=bg38.png)
Using Your Notebook 3
47
3 Using Your Tablet PC
This chapter describes how to operate the
standard built-in features of the Convertible
Tablet PC that you normally would use in your
day-to-day computer work. If you are new to
Convertible Tablet PCs and to your operating
system, you should also read the manual on
how to operate your system. It is very
important to familiarize yourself with the
operating system. The succeeding chapters not
only guide you to go beyond the basics, but
also try other exciting features.
![](/img.php?id=517768&img=bg39.png)
Using Your Notebook 3
48
3.1 Starting Your Operating System
The operating system is a must ingredient in using your Convertible Tablet PC.
Without an operating system, it is like playing chess without the chessboard. It
is the platform for all your software application programs to run on. The most
popular operating system today is Microsoft Windows. This Convertible Tablet
PC is part of a broad industry Tablet PC initiative that builds on the capabilities
of Microsoft® Windows® XP Tablet PC Edition to extend the functionality of
PCs. Convertible Tablet PC is the evolution of today's laptops, extending their
capabilities with the addition of pen input, handwriting and speech
technologies.
3.2 Understanding the Keyboard
Functions
Your Tablet PC is equipped with an 85-key keyboard that provides all the
functionality of a full-sized 101 or 102-key IBM keyboard. Aside from the
standard typewriter-layout keyboard of your Tablet PC, there are a number
of extra features and function controls on the built-in keyboard including
Windows system hot keys.
![](/img.php?id=517768&img=bg3a.png)
Using Your Notebook 3
49
1. Function Keys 2. Control Keys
3. Windows Start Menu Key 4. Control Keys
5. Windows Shortcut Key 6. Cursor Control Keys
Keyboard
Key features and operations are described below:
1. Function Keys
Function keys are application-driven, like F1 through F12 can be
found on the keyboard. These keys work together with the Fn Key to
activate special functions. Some keys (printed in blue) are
preprogrammed with dual functions.
2. Control keys---Ctrl, Alt, Fn, and Shift are controls used in conjunction
with other keys to change their functions. To use control keys, press and
hold the control key while pressing another key. For example, “Press
Ctrl-C” means to hold down Ctrl key and type the letter C. Key
combinations work especially to the application you are running.
![](/img.php?id=517768&img=bg3b.png)
Using Your Notebook 3
50
3. Windows keys
Use the following two keys to facilitate your work:
Start Menu key
Displays the Start menu.
Shortcut/Application key
Provides quick access to shortcut menus. This key acts like a right
mouse button.
4. Cursor Control keys
Cursor control keys let you position the cursor on the screen where you
want. In the screen, the cursor is a blinking underline, block, or vertical
bar depending on the application. The cursor indicates where the next text
typed is inserted.
5. Typewriter keys
Typewriter keys (also called alphanumeric keys) are used to enter text and
characters. Keys with blue print on them behave differently when
combined with control keys.
![](/img.php?id=517768&img=bg3c.png)
Using Your Notebook 3
51
BASIC KEYBOARD FUNCTIONS
Keypad Function Description
<Enter> key. Execute a
command. Within many text
editing application programs, the
<Enter> key inserts a hard
carriage return, just like what
ordinary typewriter does.
<Esc> key. Press this key to cancel or
escape from a command or function.
<SysRq>. Used for multitasking
operating system.
+
<Shift> + <PrtSc> key. Known as the
Print Screen key. Press this key to map the
whole screen to share memory for your
specific usage.
<Break> To temporarily halt execution of
a command. Pressing any other key to
resume execution of a command.
+ <Shift>+<Pause> key. Press this
key to temporarily halt execution
of a command. Pressing any other
key to resume execution of a
command.
<Ins> key. Known as the Insert
key. Press this key to toggle the
keyboard data entry from insert to
type over mode.
<Del> key. Known as the Delete
k
ey. Press this key to delete the
![](/img.php?id=517768&img=bg3d.png)
Using Your Notebook 3
52

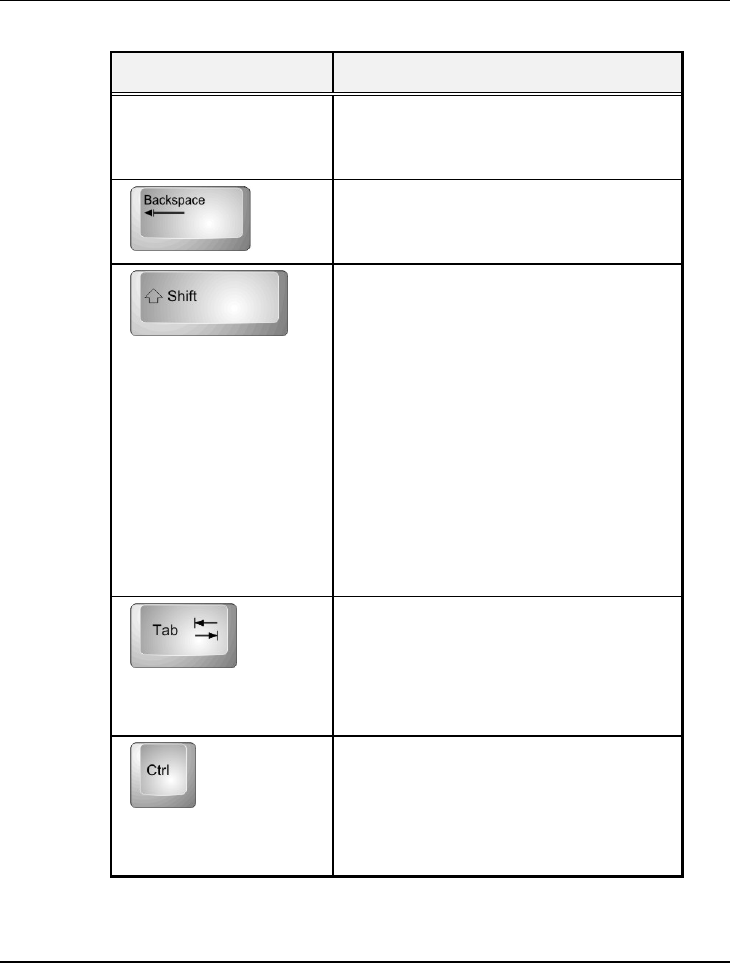

Keypad Function Description
character to the right of the
cursor, or delete marked texts or
items.
<Backspace> key. Press this key
to delete the character to the left
of the cursor.
<Shift> key. Press this key in
combination with alphabet letters
to produce uppercase letters in
typing. Use this key in
combination with those
two-character keys (found on the
second row of the keyboard) to
produce the upper marked keys.
Also used in most application
program in combination with
other keys to execute a certain
command.
<Tab> key. Press this key to
move the cursor to the next tab
stop on the right side. This key
works much the same as in
ordinary typewriter.
<Ctrl> key. Known as the Control
key. Used in most application
program in combination with
other keys to execute a certain
command.
![](/img.php?id=517768&img=bg3e.png)
Using Your Notebook 3
53
Keypad Function Description
<Alt> key. Known as the
Alternate key. Used in most
application program in
combination with other keys to
execute a certain command.
+
<Fn>+<NumLK>. Activates the
embedded 15-key numeric
keypad. The keys are color coded
blue.
<Caps Lock> key. Used in most
application program to always activate
uppercase alphabet characters.
+
<Fn>+<ScrLK> key. Used in
most application program to
scroll the screen without having
to move the cursor.
CURSOR CONTROL KEYS
Keypad Function Description
Up arrow key. Moves the cursor up one
line at a time.
Down arrow key. Moves the cursor
down one line at a time.
Left arrow key. Moves the cursor to the
left one space at a time.
![](/img.php?id=517768&img=bg3f.png)
Using Your Notebook 3
54
Keypad Function Description
Right arrow key. Moves the cursor to
the right one space at a time.
SCREEN CONTROL KEYS
Keypad Function Description
<Home> key. Moves the cursor
to the beginning of a screen or
line.
<PgUp> key. Moves the cursor
up one screen at a time
<PgDn> key. Moves the cursor
down one screen at a time
+
<Fn>+<End> key. Moves the
cursor to the end of a screen or
line.
WINDOWS HOT KEYS
Keypad Function Description
<Start> key. Pulls up the Windows Start
menu.
<Right Click> key. Performs a mouse
right-click function for Windows
system.
![](/img.php?id=517768&img=bg40.png)
Using Your Notebook 3
55
SPECIAL FUNCTION KEYS
The Tablet PC has special system function keys that activate key serving
dual functions. When pressed in conjunction with the <Fn> key, these keys
set specific system parameters and are sometimes referred to as "hot keys".
Keypad Function Description
+
Enable or Disables the built-in
system speaker.
+
Activate the system into the
suspend mode.
+
Switches display between LCD, CRT, or
LCD and CRT simultaneously.
+
Decreases the brightness of LCD
display incrementally.
+
Increases the brightness of LCD
display incrementally.
3.3 Using the Touch Pad Pointing Device
Your Convertible Tablet PC comes with a built-in Touch Pad pointing device
that is found on the center of the palm-rest surface.
The Touch Pad offers a number of options that let you customize how it
functions. To access these options, locate the Control Panel and double click
on the Mouse icon. The options let you control the size and color of the
cursor, cursor speed, the accepted double-click speed, and selection button
orientation.
![](/img.php?id=517768&img=bg41.png)
Using Your Notebook 3
56
The Touch Pad works as a mouse pointing device replacement that is used
under Windows-based operating system. You can use the standard Microsoft
driver that is compatible with the Touch Pad device and is normally used under
Windows-based operating system.
1. Touch Pad 2. Scroll function
3. Right Selection Button 4. Left Selection Button
Touch Pad Features
Here how to use the Touch Pad pointing device:
1. The rectangular surface acts like a miniature duplicate of your display
screen. To move the mouse cursor, place the finger lightly on the sensor
pad and move in the desired direction. If you reach the end of the pad, lift
your finger and place it back down on the other side of the pad.
2. To select an item, click on the item by pressing the left button control or
by simply tapping on the surface once. A light, quick tap always works
best. To execute an item, click the left button twice or do a quick double
tap on the surface.
![](/img.php?id=517768&img=bg42.png)
Using Your Notebook 3
57
3. To simulate holding the mouse button down (dragging an icon or
selection), use the tap-and-drag gesture. This feels much like a
double-click, except that the finger remains on the pad after the second
tap: Tap, lift, tap, hold and move. The simulated button remains held as
long as the finger remains on the pad.
4. To scroll up or down the screen, just slide up or down on the scroll
symbol printed on the Touch Pad to move the screen up or down.
•
Avoid spilling any liquid on the Touch Pad surface and always keep the
Glide pad surface and pointing finger dry from sweat built-up. Also do not
expose Glide pad to any magnetic source object.
3.4 Configuring Your Screen Display
This Tablet PC model provides 1024x768 resolution. You would also probably
want to set the amount of color output to display sharper images and photos.
POSSIBLE DISPLAY CONFIGURATIONS
The table below shows you the possible display resolution you can set when
using either the LCD display or the external monitor (CRT):
Display Possible Resolution Maximum Color
1024x768
XGA LCD
640x480
800x600
1024x768
Max 32-bit
colors
Max 32-bit
colors
Max 32-bit
colors
CRT Only 640x480
800x600
Max 32-bit
colors
![](/img.php?id=517768&img=bg43.png)
Using Your Notebook 3
58
1024x768 Max 32-bit
colors
Max 32-bit
colors
•
65,536 or 64K colors is also equivalent to 16-bit high color while 16 million or
16M colors is equivalent to 32-bit true color.
•
You can use the <Fn> + <F8> hot-key to switch the display between LCD
only, CRT only, or both LCD and CRT display.
CHANGING THE DISPLAY PROPERTIES UNDER
WINDOWS
To change the display properties of your screen under Windows system, just
right-click on the desktop area and select Properties or go to the Control Panel
and click on the Display icon. The Display Properties dialog box will appear
on your screen. Click on the Settings tab to set your desired configuration.
Make sure to follow the configuration table above.
3.5 Knowing the Power Saving Features
One of the great features in your Convertible Tablet PC aside from its
superior performance is the ability to save energy power. Your Convertible
Tablet PC is designed to incorporate intelligent and advanced power
management functions that turn off power of most components when
system is idle or not in use. This does not affect the performance of your
system as it monitors the activity of your Convertible Tablet PC and
resumes power and operating speed when activity is detected. This feature
not only gives you longer battery hours but cooler systems and
components as well. For more information on how to control the power
management features of your Convertible Tablet PC, refer to Power
![](/img.php?id=517768&img=bg44.png)
Using Your Notebook 3
59
Options function in Control Panel of Windows.
The definitions of power management mode are depicted as follows:
Full-On Mode
No device in the system is executed in power management, the system can
respond to all applications at maximum performance.
Suspend to Disk mode
When this mode is activated, the context of the entire system is saved to disk
and all components and devices are powered off, while all clocks are also
stopped (except Real Time Clock or RTC). You can activate this by setting the
Hibernate mode on the Power Options of the Control Panel in Windows.
To resume full-on state, you can press the power button.
System off Mode
All power, except the RTC (real time clock), has been turned off from the
system. This includes external AC power source and battery power source.
3.6 Using Your Convertible Tablet PC
Your Convertible Tablet PC is a fully functional computer with a design to
make your computer more convenient and mobile. The Convertible Tablet
PC is also designed with full consideration of user's natural and efficient
computing application. With the convertible screen and tablet operating
system, this computer becomes a versatile computer and looks stylish too.
Put your Convertible Tablet PC on a sufficiently large flat space with a
power outlet nearby. The surface where you put your Convertible Tablet
PC should be smooth, level, and sturdy.
![](/img.php?id=517768&img=bg45.png)
Using Your Notebook 3
60
Using As a Usual Notebook:
Press the lower clasp to release the panel and slowly lift up the LCD panel
to open the Convertible Tablet PC. In the beginning, you will find this
computer can be used like a usual notebook.
Use in normal notebook mode
For presentation
Rotate your TFT-LCD panel clockwise to your desired degree and angle.
In such way, information can be shared with others.
Rotate the Screen to specific angel for presentation
![](/img.php?id=517768&img=bg46.png)
Using Your Notebook 3
61
As a Tablet PC mode
Rotate your TFT-LCD panel clockwise to the end (up to 180 degree). Set
down your TFT-LCD panel horizontally, and secure the panel using the
latch. Remove the stylus from the pen slot. Now your computer is in Tablet
PC.
Use as Tablet PC mode by folding up TFT-LCD panel

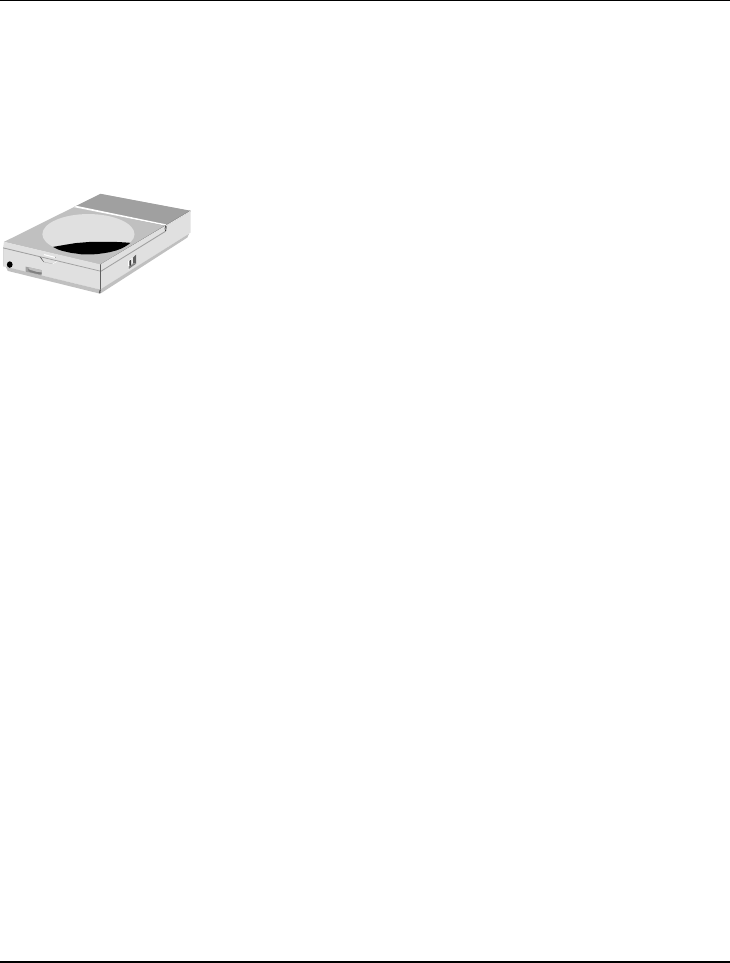

3.7 How to Access the Combo Drive
Your system is equipped with a CD-RW/DVD combo drive installed on the
right side of your Convertible Tablet PC. You would normally use the drive for
installing operating system and software application programs, burning CD’s
and watching DVD movies.
To insert and remove a disc on the drive:
1. Make sure the Convertible Tablet PC is turned on. Press the eject button
found on the door cover of the combo drive. The CD tray mechanism will
pop-out slightly and slowly pull out the whole length of the tray.
![](/img.php?id=517768&img=bg47.png)
Using Your Notebook 3
62
2. Place the disc on top of the CD tray with the label side facing up. Gently
press the compact disc onto the center spindle to secure the disc.
3. To remove the disc, press on the center spindle and pull up the disc from
the side until the disc snaps out of the spindle lock.
•
If the eject function is disabled by software or a power failure occurs, the
Emergency Eject Hole allows you to manually remove a CD from the
reader.
4. To close the combo drive, simply push the CD tray inside. The combo
drive LED will activate when the disc is detected. Wait until the LED has
turned off and then start to read the disc.

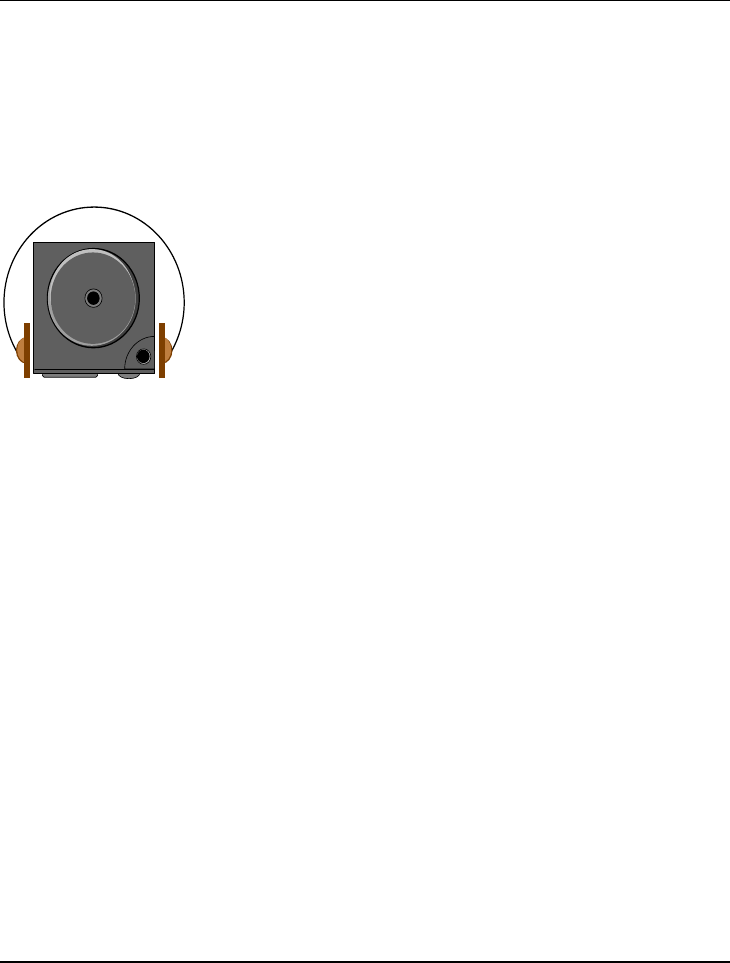

How to care the CD
When you handle CDs, pay attention to the following guidelines:
![](/img.php?id=517768&img=bg48.png)
Using Your Notebook 3
63
1. Always pick up the CD by its edges.
2. Avoid scratching or soiling either side of the CD.
3. Do not write with a ball-point pen or apply labels on either side of the
CD.
4. Keep the CD away from direct sunlight or high temperatures.
5. Clean fingerprints or dust from the CD by wiping it with a soft cloth.
The above points also apply to other optical storage media.
•
The Combo drive is a Class 1 Laser Product.
![](/img.php?id=517768&img=bg4a.png)
Enjoy Your Convertible Tablet PC 4
65
4 Enjoy Your Convertible Tablet PC
This chapter will help you learn special function of
Convertible Tablet PC.
This chapter shows you how to make full use of all
the multi-media features of your Convertible Tablet
PC. You will learn how to mix and match the
built-in sound system and how to use the Combo
drive to create an exciting full multi-media
presentation.
![](/img.php?id=517768&img=bg4b.png)
Enjoy Your Convertible Tablet PC 4
66
4.1 Using Convertible Tablet PC Input
Panel
LAUNCHING THE TABLET PC INPUT PANEL
Data can be entered from the touch screen by using the Stylus and Tablet PC
Input Panel. To launch the Tablet PC Input Panel, tap the Tablet PC Input
Panel icon next to the Start button on the lower left corner of the panel.
You can either enter data with handwriting panel or soft keyboard of the
Tablet PC Input Panel. To switch the handwriting box or soft keyboard, please
tap the Keyboard or Writing Pad.
Inputting with Keyboard
The software keyboard looks and acts like a standard keyboard. Use your stylus
to tap the keys. You can use the software keyboard to enter text anywhere that
you can use a standard keyboard to enter text. The software keyboard is
especially useful for entering small amounts of text that require a high degree
of accuracy, such as passwords and file names. Also, the software keyboard is
often the easiest tool for correcting spelling or punctuation.
Tap Keyboard and a soft keyboard will display.
![](/img.php?id=517768&img=bg4c.png)
Enjoy Your Convertible Tablet PC 4
67
Inputting with Writing Pad
The writing pad converts your handwriting into typed text and inserts it in a
location that you specify, such as a DOC document. In some programs, you
can choose to enter your handwriting instead of typed text. You can use the
writing pad to enter text anywhere that you can use a standard keyboard to
enter text. The writing pad is especially useful for brief writing tasks like writing
e-mail messages, recording phone messages, and taking meeting notes.
Tap Writing Pad and a handwriting panel will display.
![](/img.php?id=517768&img=bg4d.png)
Enjoy Your Convertible Tablet PC 4
68
TABLET INPUT PANEL SETTINGS
You can define your custom settings by tapping the Tools on the up-left
corner. There are six options: Speech, Text Preview, Dock, Options, Help,
and Close.
• Speech
To enable the two different speech modes: Dictation and Voice
command to speak to your convertible tablet pc either to dictate or give
commands. In the Dictation mode, your Convertible Tablet PC listens to
everything you say and changes your words to text. In the Voice
command mode, your Convertible Tablet PC listens for specific words
that correspond to an existing list of available voice commands.
• Text Preview
You can use the text preview pane to review and edit your text before you
insert it.
• Dock
Dock or float Convertible Tablet PC Input Panel.
• Options
You can execute the advanced settings for bringing up the Options
dialog box for. It contains the following tabs as:
Writing Pad
Writing Tools
Write Anywhere
![](/img.php?id=517768&img=bg4e.png)
Enjoy Your Convertible Tablet PC 4
69
Speech
Advanced
• Help
Shows you the help topics, tutorial, program information, version
number, and copyright.
• Close
Close the Tablet PC Input Panel.
4.2 Using Windows Journal
WHAT IS WINDOWS JOURNAL?
In Microsoft® Windows® Journal, you can use the tablet pen to write
information and save it in a note. You can convert your writing to typed text,
and enter typed text into your notes. Also, you can create drawings in your
notes and insert pictures.
LAUNCH WINDOWS JOURNAL
Tab on the Start button, point to Programs, Tablet PC and then tab
Window Journal to launch the program.
![](/img.php?id=517768&img=bg4f.png)
Enjoy Your Convertible Tablet PC 4
70

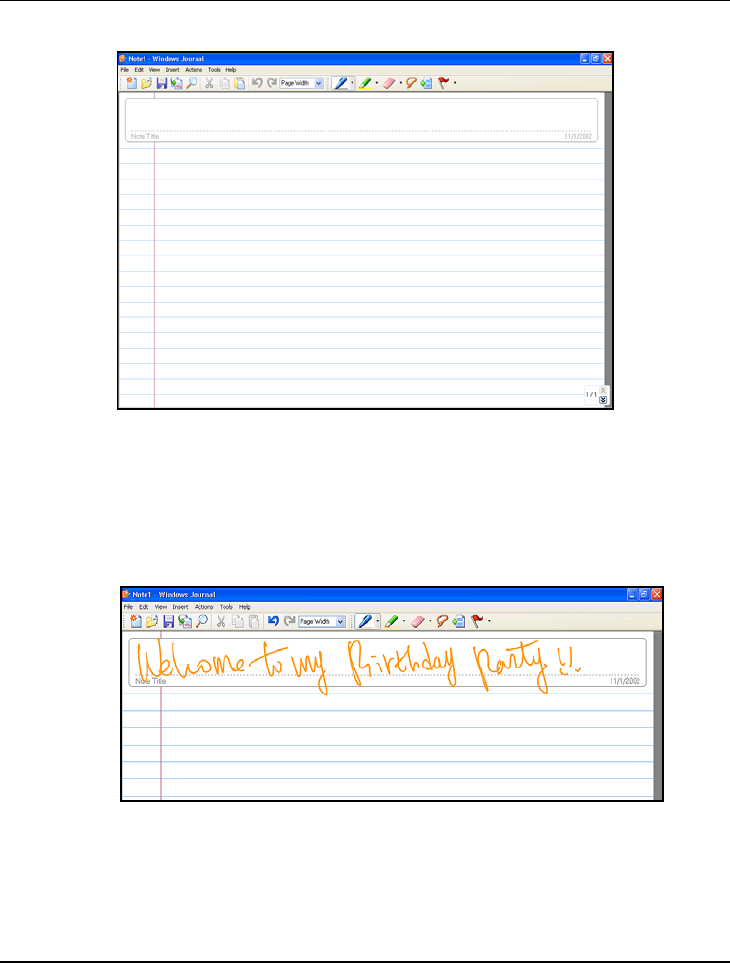

Full screen view of Windows Journal
Entering the Note Title
Write directly in the Journal document with the stylus, such as the title
“Welcome to my Birthday Party!!” in the “Note Title” area.
![](/img.php?id=517768&img=bg50.png)
Enjoy Your Convertible Tablet PC 4
71
Using a Pen
On the Pen toolbar, you can select one of several pens that have different
settings for ink color, ink thickness, and tip style. You can customize these pen
settings to suit your preferences.
Select a pen
1. On the Pen toolbar, tap the small arrow to the right of the
Pen button .
2. A list of pens appears.
3. Tap the pen that you want to use.

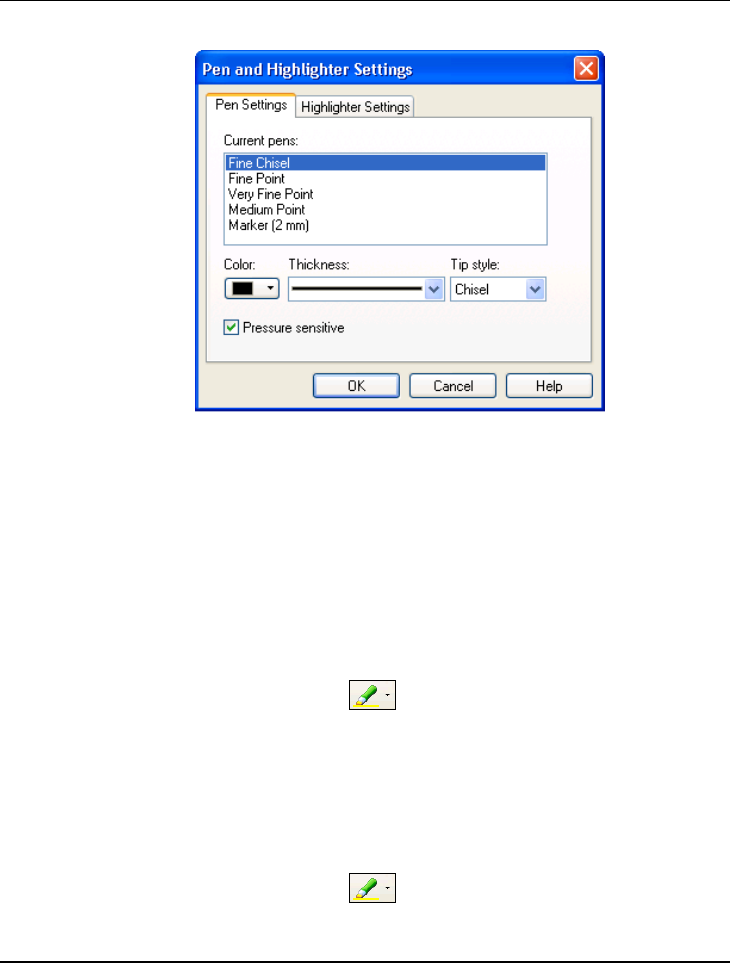

Change pen settings
You can change the settings for any pen.
1. On the Pen toolbar, tap the small arrow to the right of the
Pen button , and then tap Pen Settings
2. In the Current pens list, tap the pen for which you want to
change the settings.
3. Select the appropriate color, thickness, and tip style.
4. Tick the Pressure sensitive check box. This means when
you press harder with the tablet pen, the ink that you create
in your note becomes thicker.
![](/img.php?id=517768&img=bg51.png)
Enjoy Your Convertible Tablet PC 4
72
Pen Settings
Using a Highlighter
On the Pen toolbar, you can choose one of several highlighters that have
different settings for ink color, ink thickness, and tip style. You can
customize these highlighter settings to suit your preferences.
Select a highlighter
1. On the Pen toolbar, tap the small arrow to the right of the
Highlighter button .
2. A list of pens appears.
3. Tap the highlighter that you want to use.

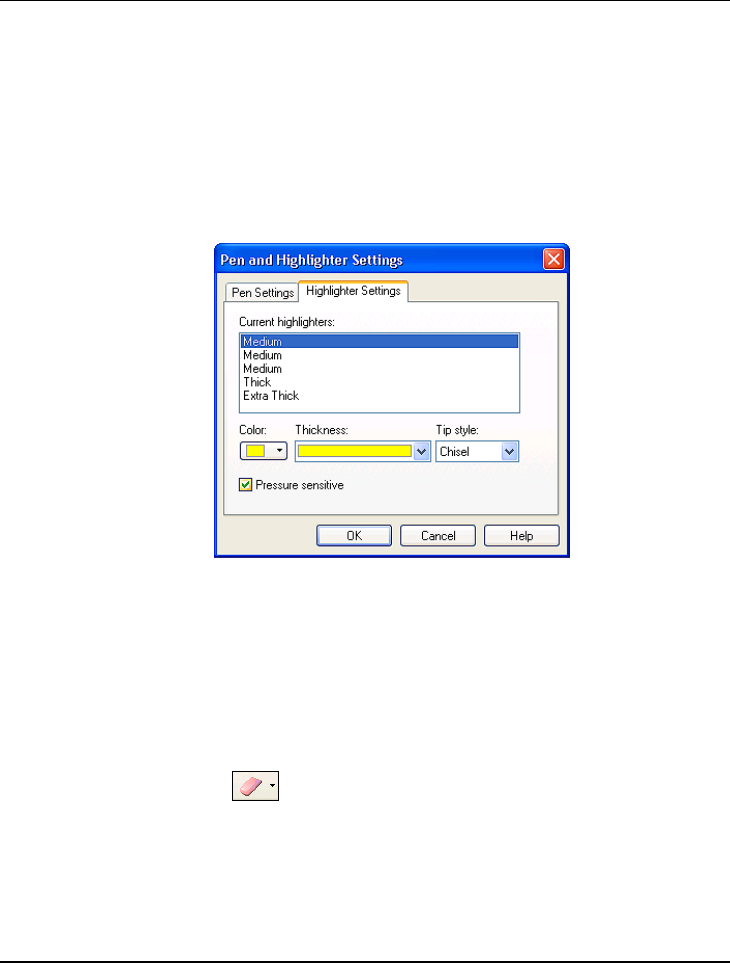

Change highlighter settings
You can change the settings for any pen with following steps:
1. On the Pen toolbar, tap the small arrow to the right of the
Highlighter button , and then tap Highlighter
![](/img.php?id=517768&img=bg52.png)
Enjoy Your Convertible Tablet PC 4
73
Settings.
2. In the Current highlighters list, tap the highlighter for
which you want to change the settings.
3. Select the appropriate color, thickness, and tip style.
4. Tick the Pressure sensitive check box. This means when
you press harder with the tablet pen, the ink that you create
in your note becomes thicker.
Highlighter Settings
Using the Eraser Tool
You can use to remove writing and drawing from your notes.
Select the eraser size
1. On the Pen toolbar, tap the arrow to the right of the Eraser
button , and tap the size of the eraser, Small, Medium,
or Large, that you want to use.
2. The eraser removes all of the ink that it touches.
3. The eraser does not affect pictures or text boxes.
![](/img.php?id=517768&img=bg53.png)
Enjoy Your Convertible Tablet PC 4
74
Erase an entire ink stroke
1. On the Pen toolbar, tap the arrow to the right of the Eraser
button , and tap Stroke.
2. Tap any part of the ink stroke that you want to erase.
3. The entire stroke is erased.
Erase portions of an ink stroke
1. On the Pen toolbar, tap the arrow to the right of the Eraser
button , and tap the size of the eraser, Small, Medium,
or Large, that you want to use.
2. Tap the Selection Tool button , and the drag the stylus
over the ink that you want to erase.
3. Select Delete from the pop-up menu.
Select the portion you want to delete
![](/img.php?id=517768&img=bg54.png)
Enjoy Your Convertible Tablet PC 4
75
Select Delete command
![](/img.php?id=517768&img=bg55.png)
Enjoy Your Convertible Tablet PC 4
76
LET’S PRACTICE !
Practice using your tablet screen by using the writing tablet.
Create a new note and enter the Note Title
You can enter the text as titled “Welcome to my birthday party !!”on the
Note Title area.
Insert a picture
To insert a picture, press and hold your stylus and then select Insert
Picture from the pop-up menu. You can also select Picture option from
the Insert menu on the toolbar.
• Microsoft® Windows® Journal supports the following picture file types as xxx.jpg,
xxx.jpeg, xxx.gif, xxx.bmp, xxx.png, xxx.wmf, and xxx.emf.
You can freely type text next to the picture with applying appropriate pen,
highlighter color, thickness, and tip style. To set this configuration, on the
![](/img.php?id=517768&img=bg56.png)
Enjoy Your Convertible Tablet PC 4
77
Pen toolbar, tap the small arrow to the right of the Pen button .

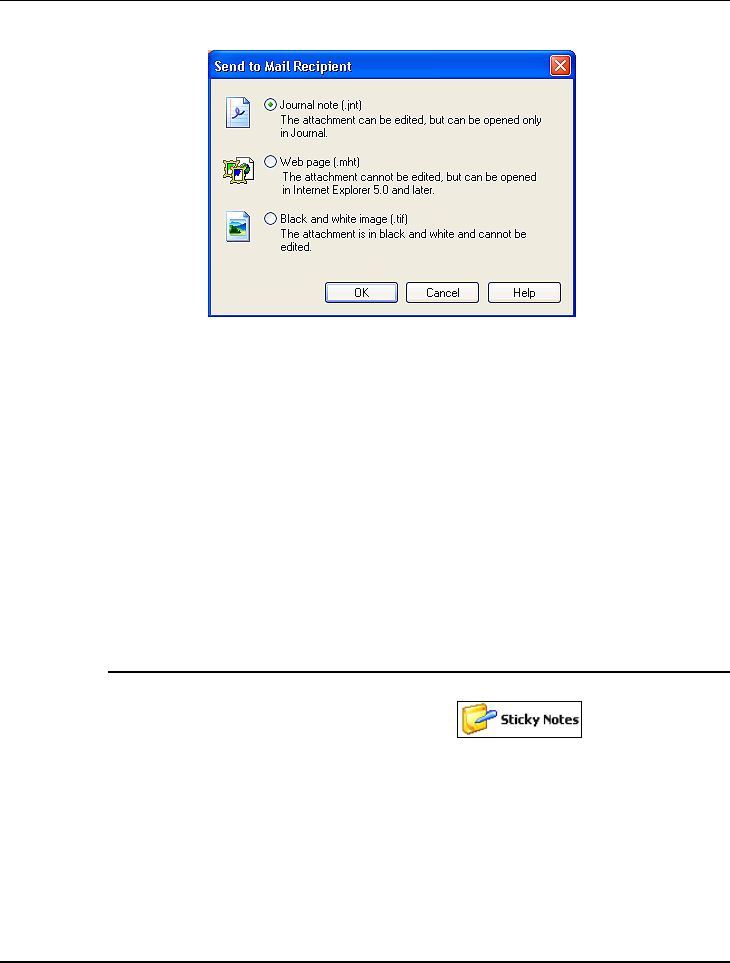

Send your Note via E-mail
1. To send your note via e-mail, select "Send to Mail
Recipient…" from the File menu on the toolbar.
2. The "Send to Mail Recipient" dialog box appears.
3. Select the attachment file format as: Journal note (.jnt),
Web page (.mht) or Black and white image (.tif) for your
sending.
![](/img.php?id=517768&img=bg57.png)
Enjoy Your Convertible Tablet PC 4
78
4.3 Using Sticky Notes
What is Sticky Notes?
With Microsoft® Sticky Notes, it allows you to quickly write notes and keep it
easily. You can use this function as the same way when you use a paper
sticky note to retain names, phone numbers, simple maps with directions, and
other information. You can also use a microphone to record information. A
sticky note can contain both writing and recording.
LAUNCH STICKY NOTES
To use the "Sticky Notes" function, first please tab on the Start button,
point to Programs, and then tab Sticky Notes to launch this
program.
![](/img.php?id=517768&img=bg58.png)
Enjoy Your Convertible Tablet PC 4
79
Full screen view of Sticky Notes
You can execute following functions in the Sticky Notes
• To make Sticky Notes open automatically in startup
On the Tools menu, point to Options, and then tap Open at Startup.
• Keep Sticky Notes always visible on the desktop
On the Tools menu, point to Options, and then tap Always on Top.
• Delete Sticky Notes
On the title bar, tap Delete button.
• Close Sticky Notes
On the title bar, tap Close button.
•
Your notes are automatically saved when you close Sticky Notes.
![](/img.php?id=517768&img=bg59.png)
Enjoy Your Convertible Tablet PC 4
80
• Remove an ink stroke
An ink stroke is a continuous movement of the stylus that starts when the
stylus touches the screen and ends when the stylus is lifted. You can easily
remove an ink stroke from a written note by using the scratch-out
gesture.
1. On the Tools menu, point to Options, and then tap Enable
Scratch-out Gesture.
2. Using the stylus to draw the line OVER the ink stroke
to make the scratch-out gesture activate on the text you
want to erase.
![](/img.php?id=517768&img=bg5a.png)
Enjoy Your Convertible Tablet PC 4
81
•
If your scratch-out gesture does not OVER the ink stroke that you want to
erase. There will be only some portion of the ink stroke deleted.
CREATE AND PLAY A VOICE NOTE
You can record a new voice note or add your voice to a written note. To
use this function, please follow the steps below:
1. Tab on the Start button, point to Programs, and then tab
Sticky Notes to appear the Sticky Notes.
2. In the lower-right corner, tap New Note button
to appear a new sticky notes.
3. In the lower-left corner, tap Record button and speak
with your computer microphone for recording the voice.
4. When you finish recording, tap Stop button.
5. Tap the Play button to play the voice that you
recorded previously.
•
When you tap Record, the date and time appear in the title bar.
•
You can record a maximum of 30 seconds. The position of the slider
indicates how much recording time remains.
4.4 Using Speech
WHAT IS SPEECH?
Speech capabilities for a computer system refer to the ability to play back text
in a spoken voice (referred to as text-to-speech or TTS), or to convert a spoken
voice into electronic text (referred to as speech recognition or SR). The two
capabilities are independent of each other. Many systems will have only TTS.
SR may be installed later either by loading a speech package, or more
![](/img.php?id=517768&img=bg5b.png)
Enjoy Your Convertible Tablet PC 4
82
commonly, through an application which has incorporated speech into it. For
example, a new word processor or office tool suite may include speech and it
will be loaded at that time.
LAUNCH SPEECH
For speech systems to work properly or for optimal results, the components
need to be set up correctly.
Set up a microphone
1. Plug a microphone into the microphone jack.
2. Open Speech in Control Panel.
3. Select the Speech Recognition tab.
4. Speak directly into the microphone. The sound level
should register in the Microphone Level indicator.
5. You can also tap "Configure Microphone" to invoke
Microphone Wizard for you to adjust your microphone
volume for use with speech recognition.
![](/img.php?id=517768&img=bg5c.png)
Enjoy Your Convertible Tablet PC 4
83
Set up speakers
1. You can plug an external speaker into the Line-out jack or
using the external speaker.
2. Open Speech in Control Panel.
3. On the Text-to-Speech tab, click Preview Voice to hear the
currently selected voice; the text will be spoken by
highlighting the words as they are spoken. If the speakers
are working properly, you will hear the spoken words.
![](/img.php?id=517768&img=bg5d.png)
Enjoy Your Convertible Tablet PC 4
84
Change languages
The language used by either speech recognition (SR) or text-to-speech
(TTS) is dependent on the respective engine. Only one engine of each
type (SR and TTS) can be active at a given time. You need to decide a
particular engine that meets your requirements and use that engine more
often. Once an engine is set, it is not usually necessary to change it.
To change an SR language:
1. Open Speech in Control Panel.
2. On the Speech Recognition tab, change the SR language
by selecting the option in Language drop-down list.
To change a TTS language:
1. Open Speech in Control Panel.
2. On the Text-to-Speech tab, change the TTS language by
changing the TTS engine.
![](/img.php?id=517768&img=bg5e.png)
Enjoy Your Convertible Tablet PC 4
85
LAUNCH SPEECH IN TABLET INPUT PANEL
To launch the speech via Tablet Input Panel, please follow the steps below:
1. Tap the Tablet PC Input Panel icon next to the Start
button on the lower left corner of desktop.
2. Tap the Tools on the up-left corner in the Tablet PC Input
Panel and select Speech.
3. There are two speech modes: Dictation and Voice
command for launching that lets you speak to your tablet
computer via dictate or give commands. In the Dictation
mode, your Convertible Tablet PC listens to everything
you say and changes your words to text. In the Voice
command mode, your computer listens for specific words
that correspond to an existing list of available voice
commands.
4. Tap "Start Speech" to start the speech program.
4.5 Playing Video and MPEG Files
Your Convertible Tablet PC is capable of running video motion files as well as
MPEG (Motion Picture Expert Group) files on CD, DVD, or CD-RW. By
using software MPEG program, you can watch real full-motion picture on your
Convertible Tablet PC. You can also run the Windows Media Player under the
Entertainment programs group as well to show all media device programs.
![](/img.php?id=517768&img=bg5f.png)
Enjoy Your Convertible Tablet PC 4
86

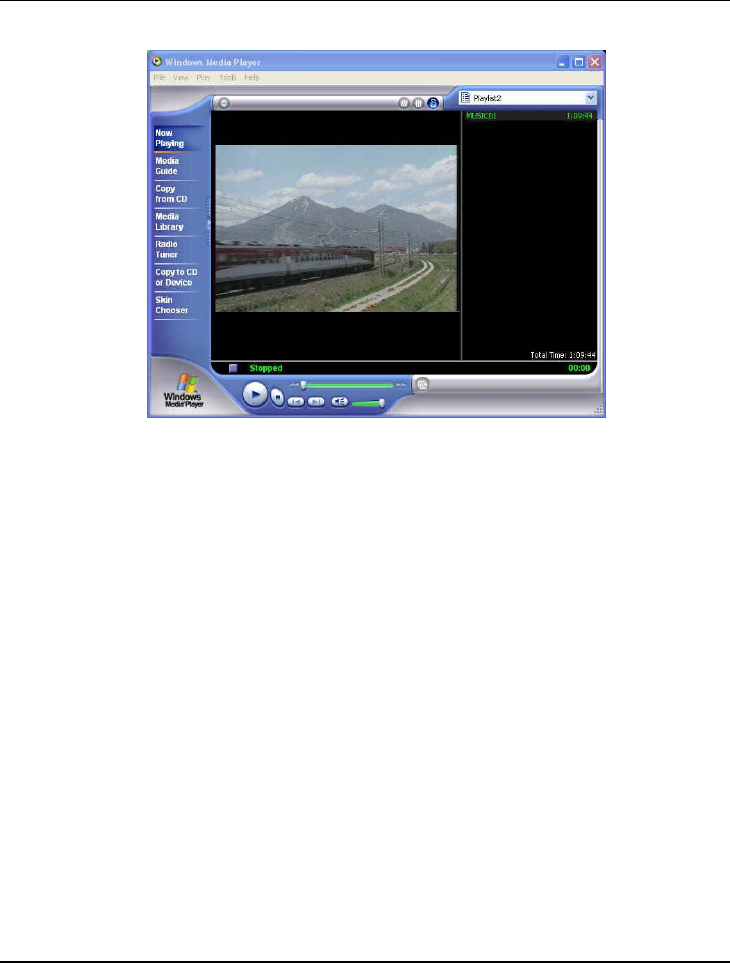

Windows Media Player
4.6 Using DVD
DVD is the breakthrough in superb full-motion picture playback. One disc
can contain at least 4.7GB of information, capable of holding one
full-length movie with soundtracks, subtitles, and different languages.
Much more, the DVD-ROM drive of your Tablet PC is backward
compatible with CD-ROM drive so it allows you to use any CD as well. It
also works the same as a CD-ROM.
4
.7 Using the DVD+CD-RW combo
DVD+CD-RW combo drive is a device that can write digital
data to CD-RW and CD-R compact disk (CD). With this device,
you can backup your own data to CD-R or CD-RW disc for
mass data storage and safe retaining. The CD-R disc can be
![](/img.php?id=517768&img=bg60.png)
Enjoy Your Convertible Tablet PC 4
87
written several times until the CD-R is full; the CD-RW disc,
furthermore, can write and erase data repeatedly. Please refer to
the related user manual about the CD-RW software.
•
Please pay attention to the copyright of the software or data you want to
backup. Backup or distribution of software or data may be illegal according
to the restrictions of the law.
![](/img.php?id=517768&img=bg61.png)
Enjoy Your Convertible Tablet PC 4
88
![](/img.php?id=517768&img=bg62.png)
Connecting to Peripherals 5
89
5 Connecting to Peripherals
This chapter describes how you attach peripheral
devices to your Convertible Tablet PC. You can
connect an external monitor/TV, attach USB device,
or any other peripheral device. You will learn how to
use these peripheral devices with the step-by-step
instructions depicted in this chapter.
![](/img.php?id=517768&img=bg63.png)
Connecting to Peripherals 5
90
5.1 Using the USB Port
USB or Universal Serial Port is a peripheral bus standard developed by
Compaq, DEC, IBM, Intel, Microsoft, NEC and Northern Telecom. Personal
computers equipped with USB will allow Convertible Tablet PC peripherals to
automatically configure as soon as they are physically attached - without the
need to reboot or run setup. USB will also allow multiple devices to run
simultaneously on a computer, with peripherals such as floppy drive, mouse,
digital cameras, scanners, printers, CD-RW drives, modems, keyboards, games
devices and acting as additional plug-in sites, or hubs.
•
Depending on your operational requirements, you may need to disable
other ports in order to release system resource for the USB port.
5.2 Using an External Monitor Port
Your Convertible Tablet PC has a 15-pin VGA port for supporting any
external CRT or LCD color monitor. You need a display signal cable
(usually provided with the monitor). One end of the cable must have a
15-pin connector for the system.
To connect an external monitor:
![](/img.php?id=517768&img=bg64.png)
Connecting to Peripherals 5
91
1. Turn off your Convertible Tablet PC and make sure the monitor power
switch is turned off.
•
The Convertible Tablet PC must be powered off or suspended while the
monitor is being connected. Although you can connect the external Monitor
without power off the Convertible Tablet PC and the external monitor,
however, it is harmful to both devices and it shortens the life of these
devices.
2. Connect the connector cable of the monitor to the VGA port at the back
of your Convertible Tablet PC. Secure the cable connection with the
screws provided.
3. Connect the monitor power cable and plug it into a properly grounded
wall outlet.
4. Turn on the power of the monitor.
5. Turn on your Convertible Tablet PC. Both the LCD panel and the
monitor screen will show the display. Your Convertible Tablet PC is set at
default to run at simultaneous display mode.
6. If you only want to show the display on the external monitor or projector
and shut off the LCD display, you can use the <Fn> + <F8> hot-key to
switch display type between LCD and external monitor. Keep pressing the
hot-key until you get the display to external monitor only.
![](/img.php?id=517768&img=bg65.png)
Connecting to Peripherals 5
92
•
Refer to Chapter 3 regarding the possible External CRT resolutions and
how to change the display properties.
5.3 Using the TV Port
Also found at the left of your computer is one S-Video port.
To display your computer screen on the TV:
1. Turn off your computer and plug one end of the S-Video cable to the end
to the input video jack of your television set.
2. Turn on your computer and your television set.
3. Click the Start button, then point to Settings, and click Control Panel.
![](/img.php?id=517768&img=bg66.png)
Connecting to Peripherals 5
93
4. Double-click on the Display icon and point to Setting tab.
5. Double-click Advanced button and point to Utility Manager tab.
6. Choose the Driver Mode Setting and set primary display to TV, then click
OK. Windows now automatically detect the TV port and enable this
function.
5.4 Using the External Audio System
At the right side of your Convertible Tablet PC, you will find the built-in audio
ports. You can connect Microphone jacks, earphone or powered speaker.
To connect to a audio jack:
1. Locate the audio port (Microphone, Headphone) that you want to use to
the target device.
2. Plug the jack into the port on the right side of the system.
•
If you use external speakers and experience the sound distortion or
feedback, please lower the volume. Some factors is caused by too close
locating the microphone and speakers from each other, moving away the
external audio device from the unit may help.
![](/img.php?id=517768&img=bg67.png)
Connecting to Peripherals 5
94
5.5 Using the LAN Port
This Convertible Tablet PC comes with an internal 10Base-T/100Base-TX
LAN module that connects your Convertible Tablet PC to other
computers/networks through a local area network (LAN) and supports data
transfer rates at 10Mbps and can be up to 100Mbps. The 10Base-T
standard also called Twisted Pair Ethernet is connected with RJ-45
connectors. The 100Base-TX is based on the older Ethernet standard.
Because it is 10 times faster than Ethernet, it is often referred to as Fast
Ethernet.
The built-in LAN module provides a standard RJ-45 connector.
To connect the twisted-pair cable to your LAN port:
1. Locate the twisted-pair cable in the accessories box in Convertible Tablet
PC shipping carton. Each end of the cable has a RJ-45 connector.
2. Connect one end of the cable into the network wall outlet or HUB.
3. Connect the other end of the cable into the Convertible Tablet PC RJ-45
LAN port.
![](/img.php?id=517768&img=bg68.png)
Connecting to Peripherals 5
95
5.6 Using the Wireless LAN
Wireless LAN is the major breakthrough in computer communication
technology. It lets user connect to the LAN environment without using any
wire to traditional RJ-45 jack. User can enjoy the wireless connection within the
range of Wireless Access Point (AP) of LAN.
WAP is the wireless transmission and receiving device, it generally
connects to the server of a LAN environment or act as a LAN hub with
wireless connection. Access point can be set in an office environment,
airport, major railway station, etc. that depends on the construction of each
country. In most case, you probably can use it in an office, please consult
with the network department of your company for more details.
This Convertible Tablet PC integrates built-in 802.11g wireless LAN
module. You can connect to Wireless Access Points without the need for
an external wireless LAN device.
5.7 Using the Modem Port
This Convertible Tablet PC comes equipped with a 56K internal fax/data
modem that allows you to communicate with others via fax, email, or to
connect to an online service or bulletin board.
The built-in fax/data modem provides on standard phone connector.
To connect the analog phone cable to your modem:
1. Locate the analog phone cable in the accessories box in Convertible Tablet
PC shipping carton. Each end of the cable has a RJ-11 connector.
2. Connect one end of the cable into a standard wall outlet.
3. Connect the other end of the cable into the Tablet PC modem port.
![](/img.php?id=517768&img=bg69.png)
Connecting to Peripherals 5
96
•
The speed of data transmission is dependent on the quality of the telephone
line. Digitally terminated lines improve the speed of data transmission.
Contact your service provider for more information.
•
The analog phone cable is an industry standard cable. Longer cables are
available at your local electronics store.
![](/img.php?id=517768&img=bg6a.png)
Connecting to Peripherals 5
97
![](/img.php?id=517768&img=bg6c.png)
Customizing Your Convertible Tablet PC 6
99
6 Customizing Your Convertible Tablet PC
Your Convertible Tablet PC uses the Phoenix
INSYDE BIOS Setup program that allows you to set
several system configuration in changing the way your
Convertible Tablet PC performs. This includes your
system time and date, disk drive configuration and
password setup. This information is then stored in the
CMOS RAM and will remain permanent unless you
change it again. This chapter discusses on how you
will activate the BIOS Setup program and change the
system configuration to suit your desired operation.
You must be careful to set the configuration properly
in order for your Convertible Tablet PC to run
smoothly. If you are not sure of any settings, contact
your Customer Care.
![](/img.php?id=517768&img=bg6d.png)
Customizing Your Convertible Tablet PC 6
100
6.1 Running the BIOS Setup Program
Your Convertible Tablet PC is likely to have been properly setup and
configured by your dealer prior to delivery. However, you may find it
necessary to use the computer’s BIOS (Basic Input-Output System) Setup
program to change system configuration information, such as the current
date and time, or your hard disk drive type. The Setup program can be
accessed when you power on the system and pressing the <F2> function
key.
The settings that you specify within the Setup program are recorded in a
special area memory called the CMOS RAM. This memory is backed up
by a battery so that is will not be erased when you turn off or reset the
system. Whenever you turn on the Convertible Tablet PC, the system will
read the settings stored in the CMOS RAM and compare them to the
equipment check conducted during the Power On Self Test (POST). If an
error occurs, an error message will be displayed on the screen, and you
will then be prompted to run the Setup Program.
As the POST (Power-On Self Test) executes during the boot up process,
the screen will display the following message:
Press <F2> to Enter SETUP
Press the <F2> key to run the BIOS Setup program. The BIOS Setup
program is organized into six main-menus. To move from one option to
another, you can use ← and → arrow keys for selection.
![](/img.php?id=517768&img=bg6e.png)
Customizing Your Convertible Tablet PC 6
101
Menu Bar
The top line of the screen. There are six main-menu on it.
• Startup
The Startup-main menu contains the options as: Date and
Time, Splash Boot Logo, Fast Boot, Set Admin
password, Set User password, and Version Info.
• Memory
The Startup-main menu contains the options as: Cache
Systems, Shared Memory, and Memory Frequency.
Cache System
Lets you set the value of cache system to Disabled or Write Back for
set L1 Cache and L2 Cache, respectively.
Shared Memory
Lets you set the value of shared memory to 32, 64, or 128 MB.
Memory Frequency
Lets you set the value of memory frequency to DDR 266MHz,
DDR333MHz, DDR 400MHz, or Auto.
![](/img.php?id=517768&img=bg6f.png)
Customizing Your Convertible Tablet PC 6
102
• Disks
The Disks-main menu contains the options as: IDE Settings,
HDD Password, and Virus Alert.
IDE Settings
Lets you set the value of IDE with the various parameters for HDD
Timing, I/O 32 bit transfer, HDD Block transfer, and Select
Device, respectively.
HDD password
Lets you set the password for your hard disk
Virus Alert
Lets you activate or inactivate the Virus Alert function when system
is attacked by the virus. You can press this option to appear the tick
mark in front of it for enabling this function.
• Spread
Lets you activate or inactivate the Spread function by
pressing this option to appear the tick mark in front of it.
• Boot
Lets you set the Boot Sequence in booting your system by
setting the options as: HardDisk (HDD), CD-ROM, Floppy
(FDD), and PXE.
• Exit
Lets you identify the status for exiting the BIOS Setup
program as: Save and Exit, Exit (No Save), Default
Settings, and Restore Settings.
![](/img.php?id=517768&img=bg70.png)
Customizing Your Convertible Tablet PC 6
103
6.2
![](/img.php?id=517768&img=bg72.png)
Using Options 7
105
7 Using Options
This chapter describes the advanced features and
expandable architecture in your Convertible Tablet
PC. You can upgrade your system for specific
requirements.
![](/img.php?id=517768&img=bg73.png)
Using Options 7
106
7.1 System Upgrade
This section provides some steps in performing a system upgrade for your
Convertible Tablet PC. The upgrade procedures include the following:
MEMORY UPGRADE
Your Convertible Tablet PC offers 200-pin SODIMM (Small
Outline Dual Inline Memory Module) at least 256 MB
DDR-SDRAM. The memory compartment is located inside
your computer. The table below lists the possible combinations
of different memory module and memory size.
•
Please contact dealer for changing or adding DDR-SDRAM module. It is
not available for users to change it by themselves.
Based Memory Installing Memory Total
256 MB 256 MB 512 MB
256 MB 512 MB 768 MB
512 MB 256 MB 768 MB
512 MB 512 MB 1024 MB
INSTALLING MEMORY MODULE
Your computer comes with standard 512 MB of DDR SDRAM. You can
increase system memory to a maximum of 1024 MB in the system, by
installing one small outline double inline memory modules (SO-DIMMs)
with installed base memory in the system.
To install the memory module:
![](/img.php?id=517768&img=bg74.png)
Using Options 7
107
1. Make sure the system is powered off, the battery also is removed and that
no peripheral devices are attached.
2. Turn the computer upside-down and locate the screw that secures the
DIMM door at the underside of the notebook.
3. Remove the screw and open the DIMM cover by your finger.
4. Locate the memory module into the empty memory module
sockets. (Your system comes with one memory module
already installed in the socket.)
•
Avoid touching the exposed components inside the system. Doing so may
damage the system.
5. Insert the connector of the memory module into the socket. Make sure the
notch of the memory module fits the nose of the socket.
Hold the memory module at a 30-degree angle and push its
connector into the memory socket of the notebook.
Press down on the edge of the memory module until the locking
tabs on both sides is locked.
6. Put the DIMM door back and secure the screw on the DIMM door.
7. Turn the system over.
![](/img.php?id=517768&img=bg75.png)
Using Options 7
108
To remove a memory module, push the locking tabs aside from the memory
module until the module pops up. Then, remove the memory module.
UPGRADING HARD DISK
Your Convertible Tablet PC offers one 2.5" format, 9.5mm height hard
disk. If the volume does not fit your need or it is crashed, you can upgrade
it by replacing with new hard disk. Please do the following steps to change
it.
1. Remove the screws and open the cover by lifting its upper
side cover.
2. Take out the hard disk from the compartment by finger
carefully
3. Remove the connector from the hard disk gently.
4. Remove the crane screws located at each side of the hard
disk.
5. Rotate and tighten the crane screws to the new hard disk.
6. Attach the connector to the new hard disk precisely.
7. Place the hard disk back to the compartment.
8. Cover the lid, then rotate and tighten the screws.
![](/img.php?id=517768&img=bg76.png)
Using Options 7
109
•
Please tighten the screws located at each side of the hard disk before
operating the hard disk. Any vibration may cause damage with the running
hard disk.
•
Please contact dealer or certified technician for changing the hard disk
drive. The damage of changing HDD resulting from users may not be
under warranty.
![](/img.php?id=517768&img=bg77.png)
Using Options 7
110
![](/img.php?id=517768&img=bg78.png)
Caring for Your Convertible Tablet PC 8
111
8 Caring for Your Convertible Tablet
PC
Your Convertible Tablet PC is a fully Windows
compatible portable personal computer with the latest
features in mobile computing and multimedia
technology. Lightweight and compact, your
Convertible Tablet PC runs on a wide range of
general business, personal productivity, and
professional applications. It is ideal for use in the
office, at home, and on the road.
Your Convertible Tablet PC also allows provides
several levels of customization and expansion that are
previously available only on desktop PCs.
![](/img.php?id=517768&img=bg79.png)
Caring for Your Convertible Tablet PC 8
112
8.1 Important Safety Instructions
This Convertible Tablet PC has been tested for conformance with the
international safety regulations. Like any electronic device, however, this
Convertible Tablet PC should be used with care. To protect yourself from
possible injury and to minimize the risk of damage to this Convertible
Tablet PC, read and follow these safety instructions:
• Read all of these instructions and follow all warnings and instructions
marked on this Convertible Tablet PC.
• Save these instructions for future use.
• Except as explained elsewhere in this manual, do not attempt to service
this Convertible Tablet PC yourself. Opening or removing covers that
are marked “Do Not Remove” might expose you to dangerous voltage
points or other risks. There are no user-serviceable parts inside. Refer
all servicing of marked components to qualified personnel.
• To reduce the risk of fire, use at least No. 26 AWG wire for the
telecommunication line cord.
• Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
• Do not use this product near water. For example, near a bathtub,
washbowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.
• Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage to it.
• Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be remote risk of electric shock from lightning.
• Do not use the telephone to report a gas leak in the vicinity of the leak.
![](/img.php?id=517768&img=bg7a.png)
Caring for Your Convertible Tablet PC 8
113
• Slots and openings in the cabinet and the back or bottom are provided for
ventilation; to ensure reliable operation of the product and to protect it
from overheating, these openings must not be blocked or covered.
• The product should never be placed near or over a radiator or heat
register, or in a built-in installation unless proper ventilation is provided.
• This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this
product where persons will tread on the cord.
• If an extension cord is used with this product, make sure that the total
ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the fuse
rating.
• Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short out parts that could
resulting a fire or electronic shocks. Never spill liquid of any kind on the
product.
• Always disconnect all telephone lines & all power cords from the wall
outlet before servicing or disassembling this product. And, refer it for
servicing to qualified service personal under the following conditions:
When the power cord or plug is damaged or frayed.
If liquid has been spilled into the product.
If the product has been exposed to rain or water.
![](/img.php?id=517768&img=bg7b.png)
Caring for Your Convertible Tablet PC 8
114
If the product does not operate normally when the operating
instructions are followed. Adjust only those controls that are
covered by the operating instructions, since improper adjustment of
other controls may result in damage and will often require extensive
work by a qualified technician to restore the product to normal
condition.
If the product has been dropped or cabinet has been damaged.
If the product exhibits a distinct change in performance, indicating a
need for service.
8.2 Cleaning Your Convertible Tablet
PC
To keep your Convertible Tablet PC working properly, please follow these
guidelines:
• Do not attempt to disassemble or modify your Convertible Tablet PC.
• Do not place anything on top of the device at any time to prevent screen
damage.
• Avoid using or storing in places where static electricity or electrical noise
is likely to occur.
• Avoid using or storing in places where there are sudden temperature
variations or condensation, or in direct sunlight.
• Keep the device away from excessive moisture and temperature extremes.
Do not expose the device to liquids or precipitation.
• Operate the device with the battery pack installed, even when using
external power. This ensures system will have the necessary power to
operate when disconnected from external power.
![](/img.php?id=517768&img=bg7c.png)
Caring for Your Convertible Tablet PC 8
115
8.3 Maintaining the LCD Quality
• Do not spray liquid directly on the screen or allow excess liquid to drip
down inside the device.
• Do not place anything on the screen at any time to prevent screen
damage, for example, drink or food.
• Do not scratch the surface of the screen with any hard objects.
• Keep the device away from direct sunlight or strong ultraviolet light for
extended periods of time.
• To clean the device, wipe the screen and the exterior with a soft, damp
cloth moistened only with water. Do not using soap or other cleaning
products on the screen, it will discolor the finish and damage the screen.
• To avoid damage to the glass LCD panel, do not press any heavy or sharp
objects against the panel. Severe glass damage could take place.
8.4 Maintaining Your Hard Disk
Losing your data has the same consequences as a system break down. Users
must make it a habit of doing hard disk maintenance every week or so. Here is
some maintenance you could do:
• Always back up your data files from your hard disk.
• Enable and update the virus detecting program to monitor virus that
could tamper your files.
• Never move or raise the Convertible Tablet PC while the hard disk is
being accessed, most especially don't jar the hard disk as this may cause a
hard disk crash.
![](/img.php?id=517768&img=bg7d.png)
Caring for Your Convertible Tablet PC 8
116
• Use hard disk maintenance programs like Disk Defragmenter of
Windows. This reorganizes your hard disk by eliminating fragmentation
and improving your hard disk access time.
• Install a system password in your Convertible Tablet PC so others won't
be able to use the hard disk.
8.5 Battery Care Guidelines
• Do not heat or attempt to disassemble a battery, and do not place a
battery in water or in a fire.
• Do not subject batteries to strong impacts, such as hitting them with a
hammer, stepping on them or dropping them.
• Do not drop, puncture or disassemble batteries.
• Do not attempt to open or service the battery pack.
8.6 When You Travel
Travel Care
• Take the AC-DC adapter that comes with Convertible Tablet PC with
you.
• Hand-carry Convertible Tablet PC in the Carrying Bag or a protective
case. Do not check it with your luggage.
• When using your Convertible Tablet PC in an airplane, make sure that the
wireless LAN is OFF.
![](/img.php?id=517768&img=bg7e.png)
Caring for Your Convertible Tablet PC 8
117
• Be aware of the possible effect of airport security devices on your device.
There are three types of airport security devices: X-ray machines,
magnetic detectors (the device you walk through), and security magnetic
wands. It is recommended that you prevent exposure of your device to
magnetic detectors and security magnetic wands.
Shipping Care
• Safeguard your data by making a backup copy.
• Turn off Convertible Tablet PC and disconnect all external devices.
• Pack Convertible Tablet PC and all external devices (e.g., power cords and
AC-DC adapter) in the original packing boxes or in similar packaging
with sufficient protective packing material.
![](/img.php?id=517768&img=bg80.png)
System Specification A
119
APPENDIX A
System Specification
This appendix gives information on the technical
and hardware specifications of your Convertible
Tablet PC. Please note that the information mentioned
here may not be exactly the same with your
Convertible Tablet PC as specification is subject to
change without notice or modifying this manual.
Designed with an advanced modular architecture, your
Convertible Tablet PC also allows you several levels
of customization and expansion options previously
available only on desktop PCs.
![](/img.php?id=517768&img=bg81.png)
System Specification A
120
PROCESSOR UNIT
• INTEL P-M Dothan 1.7 1.8G
• Built in 2MB cache memory
• INTEL Celeron M 360 1.4G
• Built in 1MB cache memory
SYSTEM MEMORY
• Two 200-pin memory slots
• User-upgradeable to maximum memory size 1 GB using DDR 256MB
and 512MB SO-DIMMs
• DDR266/333 SDRAM modules
LCD DISPLAY
• 12.1" XGA (1024x768 Resolution) Color TFT LCD
• Maximum 32-bit colors
VGA SYSTEM
• Simultaneous LCD and external monitor (CRT) display
• LCD Panel support: 1024x768 resolution, XGA, Max 32bit color
• CRT: 1024x768 resolution, XGA, Max 32bit color
STORAGE
• HDD form factor: 9.5 mm high, 2.5", 60 or 80 GB
• IDE Controller: Ultra DMA ATA-100
![](/img.php?id=517768&img=bg82.png)
System Specification A
121
• Optical Disk device: Combo DVD+CD-RW
AUDIO SYSTEM
• H/W Audio Sound Blaster compatible
• Built-in 2 high quality paper cone speaker (1.0W) -Ultra thin
• Audio input jacks for microphone (MIC)
• Audio output jack for external speaker or headphone (Line-Out)
• Volume Control: Adjust Volume by Thumb Wheel
PCMCIA SLOT
TOUCH PAD
Touch Pad with scroll function and left/right buttons.
KEYBOARD
• Full-sized 85-keys keyboard with Windows systems hot-keys, inverted
T-cursor keys, 6 hot keys, 12 function keys, and embedded numeric
keypad
FLASH BIOS
512K Flash ROM BIOS for easy BIOS upgrade
I/O PORTS
• 4 x Universal Serial Bus (USB 2.0)
![](/img.php?id=517768&img=bg83.png)
System Specification A
122
• 1 x 15-pin VGA (CRT)
• 1 x S-Video
• 1 x LAN port
• 1 x Modem port
WIRELESS DEVICES
Wireless LAN: 802.11b+g
AC/DC POWER SUPPLY ADAPTER
Universal auto-switching 65W (100V~240V) adapter
BATTERY
• Rechargeable 6-Cells Li-ion battery pack with Smart Battery function
• Target Battery Mark: 4 Hours
• 2 hours quick charge (computer turned off)
HOUSING MATERIAL
Top/Button: Magnesium-Aluminum
WEIGHT AND DIMENSION
• 11.65” (W) x 9.65” (D) x 1.35” (H, front)
• ~ 4.7 to 5 lbs.
![](/img.php?id=517768&img=bg84.png)
Troubleshooting B
123
Appendix B Troubleshooting
GENERAL PROBLEMS
Question: Convertible Tablet PC does not turn on when
not connected to AC power.
Solution:
The power may be too low, and the Power LED
Indicator starts blinking. Connect to AC power to
recharge battery and to run your Tablet PC
simultaneously.
Question: Battery runs out of power quickly.
Solution:
It is possible you are using your Convertible
Tablet PC in ways that drain the power quickly.
The Power LED Indicator starts blinking in low
power mode. Please plug the AC-DC adapter in
and start charging until the power is full.
type
Question: Auto power off
Solution:
Power is too low. Use the Stylus to tap on the
screen to see if the display activates. You can
plug the AC-DC adapter in to charge Convertible
Tablet PC.
Question:
Co
n
ve
rti
b
l
e
Ta
b
l
e
t P
C
l
oc
k
s
up
w
h
e
n r
u
nnin
g
![](/img.php?id=517768&img=bg85.png)
Troubleshooting B
124
applications, or runs slowly.
Solution:
Convertible Tablet PC is locked. . Close some
applications that are not in use, if this doesn’t
work, you can restart your system. Be sure to
save your data before you restart the system.
Question:
Convertible Tablet PC does not turn on or the
TFT LCD display appears to be off, even
though the power is on.
Solution:
The display brightness and contrast are too
low. Use the Brightness Control menu to
adjust the brightness level of screen image.
Convertible Tablet PC is in Suspend mode.
Use the Stylus to tap on the screen to see if
the display activates.
Convertible Tablet PC has run out of power.
Plug the AC-DC adapter in to charge Tablet
PC.
Question: Screen is blank
Solution: Adjust the LCD display brightness and
contrast by using the Brightness Control
menu. The screen can be darkened or
lightened until Convertible Tablet PC
appears to be powered off.
Restart Convertible Tablet PC.
Charge the device by connecting to AC
power.
![](/img.php?id=517768&img=bg86.png)
Troubleshooting B
125
Question: Screen is dark
Solution: Prolonged exposure to direct sunlight can cause
your Convertible Tablet PC’s LCD screen to
temporarily darken. This is normal for LCD
SCREENS AND IS NOT PERMANENT.
Question: Display is difficult to see in sunlight or in dark
rooms
Solution: Use the Brightness Control menu to adjust
contrast and brightness level for optimal viewing.
POSSIBLE TEXT-TO-SPEECH PROBLEMS
Question: If no speech is heard after testing the system,
consider the following:
Solution: The speaker volume is not turned up or is
muted. Some speakers have external controls
for volume and muting. Make sure the
volume is turned up sufficiently or that
muting is off.
The speakers may not be selected as the
current output device. On the
Text-to-Speech tab, click Audio Output to
make sure that the speakers are selected.
The speakers might not be connected
properly. Consult the speaker hardware
documentation for additional information.
Th
e
t
e
xt-t
o
-
speec
h
e
n
g
in
e
ma
y
be
co
rr
up
t
ed.
![](/img.php?id=517768&img=bg87.png)
Troubleshooting B
126
To test for corruption, switch to another
engine. See Changing the text-to-speech
engine. If another engine is working
properly, reinstall the specific engine from
the original source. If no engine is working
properly, reinstall the SAPI component from
the original source or CD.
POSSIBLE SPEECH RECOGNITION PROBLEMS
Question: If no sound is detected after testing the system,
consider the following:
Solution: The microphone is muted. Some
microphones have an external control for
muting. Make sure the mute is turned off.
The microphone input level is set too low. On
the Speech Recognition tab, select
Configure Microphone. Follow the
directions in the subsequent Microphone
Wizard to set the input level.
The microphone may not be selected as the
current input device. On the Speech
Recognition tab, click Audio Input to make
sure that the microphone is selected.
It is possible that the microphone connections
are not properly secured. Make sure the
microphone wires are intact and unbroken.
Check the documentation for the
micro
p
hone's hardware for information
![](/img.php?id=517768&img=bg88.png)
Troubleshooting B
127
specific to the manufacturer.
The SR engine may be corrupted. To test for
corruption, switch to another engine if you
have one. See Changing the SR engine. If the
other engine is working properly, reinstall the
specific engine from the original source. If no
engine is working properly, reinstall the SAPI
component from the original source or CD.
![](/img.php?id=517768&img=bg8a.png)
Using the Recovery CD C
129
Setting up for the FIC Slate Vision recovery
program or Ctrl+Alt+Del to Exit!
Press any key to continue
Appendix C Using the Recovery CD
We suggest that you use the Recovery CD to restore the OS, applications,
and drivers preinstalled on your Convertible Tablet PC if your OS is
damaged or some important components in the OS are deleted accidentally.
•
All added files, programs, or other data on your hard disk would be deleted
while using the Recovery CD to restore your system. We strongly suggest
you MUST copy all your personal data or important files to diskettes or a
network drive before you start to use the Recovery CD.
RESTORING YOUR ORIGINAL OS PREINSTALLED
Use the Recovery CD to restore your original OS preinstalled as follows:
1. Copy all your personal data or important files to diskettes or a network
drive, and then shut down your Tablet PC.
2. Make sure your Convertible Tablet PC is fully powered off. Turn on your
Convertible Tablet PC and insert the Recovery CD into the CD-ROM
drive. The restoration procedures will be started automatically.
3. After your Convertible Tablet PC boots up, a blue screen with the
following message will be shown to verify if you want to execute the
restoration procedures:
![](/img.php?id=517768&img=bg8b.png)
Using the Recovery CD C
130
4. If you want to execute the restoration procedures, press any key. To stop
the restoration procedures, remove the Recovery CD from the CD-ROM
drive and press Ctrl+Alt+Del to exit and reboot.
5. After the restoration procedures of Recovery CD DISK 1 are completed,
please remove it from the CD-ROM drive and insert the Recovery CD
DISK 2 to continue. After you insert the Recovery CD DISK 2, press
the Enter button to continue.
6. Remove the Recovery CD DISK 2 after the restoration procedures are
competed. Press Ctrl+Alt+Del to exit or shut down the Convertible
Tablet PC and then turn it on again. Your Convertible Tablet PC will be
launched with the original OS, applications, and drivers preinstalled.
•
The restoration procedures may take up to 30 minutes.
