Model VERSA Litepad
User's Manual
![](/img.php?id=316182&img=bg2.png)
Model VERSA LitePad User's Manual
Page II
Specifications and information found in this manual are subject to change
without notice. Any changes therefore will be incorporated in future
editions. The manufacturer assumes no responsibility for errors or
omissions in this document.
Windows® XP is the trademark of Microsoft Corporation.
Pentium® and Celeron® are the trademarks of Intel Corporation.
Other trademarks are properties to their respective owners.
NOTICE
TRADEMARKS
![](/img.php?id=316182&img=bg3.png)
Model VERSA LitePad User's Manual
Page III
The following standards are adopted throughout this manual:
Boldface type is also used to highlight important information in this
document.
The messages which appear on the Computer screen will be boxed
when they are referenced.
Whenever extra caution is called for, the information will be boxed in a
dark frame preceded by "Note:" or "Warning:"
Usually after performing a step-by-step instruction, you will be asked to:
Press the Esc key
Which means you should press the key located at the upper left-
hand corner of the keyboard.
Standards
![](/img.php?id=316182&img=bg4.png)
Model VERSA LitePad User's Manual
Page IV
This page is left blank intentionally.
![](/img.php?id=316182&img=bg5.png)
Model VERSA LitePad User's Manual Contents
Page V
CHAPTER 1 INTRODUCTION ........................................................ 1-1
1.1 STANDARD FEATURES........................................................................................1-1
CHAPTER 2 BEFORE YOU BEGIN ................................................2-1
2.1 CHECKING WHAT YOU RECEIVED......................................................................2-1
2.2 PANORAMIC VIEW OF YOUR SYSTEM ...............................................................2-2
2.3 FRONT VIEW OF YOUR SYSTEM .......................................................................2-3
2.4 REAR VIEW OF YOUR SYSTEM .........................................................................2-4
2.5 THE STEREO/MONO JETS ..................................................................................2-5
2.6 THE NINE BUTTONS..........................................................................................2-6
2.7 THE FOUR LEDS...............................................................................................2-7
CHAPTER 3 AGENCY REGULATORY NOTICES ......................3-1
3.1 SAFETY INSTRUCTIONS .....................................................................................3-1
3.2 AGENCY NOTICE ..............................................................................................3-6
CONTENTS
![](/img.php?id=316182&img=bg6.png)
Contents Model VERSA LitePad User's Manual
Page VI
This page is left blank intentionally.
![](/img.php?id=316182&img=bg7.png)
Model VERSA LitePad User's Manual Introduction
Page 1-1
Chapter 1 Introduction
1.1 Standard Features
SYSTEM
■ Intel Mobile Tualatin Pentium III 933MHz ULV uFCBGA with L1 cache 128KB /
L2 cache 512KB.
■ Core Logic: Intel NorthBridge ALi Napa2-T and Intel SouthBridge ALi 1535+.
■ One S.O DIMM SDRAM memory socket to support memory from 256MB to
512MB memory.
■ 512KB Flash ROM contains BIOS and is easily user upgradeable.
DISPLAY
■ 10.4” XGA TFT LCD panel.
STORAGE DEVICE
■ Industry standard 20GB 1.8” 5mm HDD supported with Ultra DMA 33/66/100.
■ External USB FDD drive.
■ External USB CD-RW drive, or
External USB CD-ROM drive.
Keyboard
■ External USB keyboard (supported by MS-DOS).
![](/img.php?id=316182&img=bg8.png)
Introduction Model VERSA LitePad User's Manual
Page 1-2
CONNECTIVITY and EXPANSION
■ One VGA connector.
■ Three type II USB ports.
■ One microphone-in connector.
■ One headphone-out connector.
■ One RJ45 connector.
■ One DC-Out jack for USB CD-ROM/CD-RW drive connection.
■ One DC-in jack.
■ One type II CF card slot.
POWER
One battery slot to support Lithium Ion (Li-Ion) battery pack.
Offline battery charging time is around 4 hours for Li-Ion battery pack.
Full range 100 to 240V auto-switch AC adapter; 100Vac input voltage on load
power consumption < or = 1W.
PHYSICAL
Weight : 0.9kg.
Height/Width/Depth : 224mm/297mm/15mm.
Note: Weight and height might change due to different configurations and models.
![](/img.php?id=316182&img=bg9.png)
Model VERSA LitePad User's Manual Introduction
Page 1-3
ENVIRONMENT
Operating Temperature : 5ºC to 25ºC.
Non-Operating Temperature : -20ºC to 60ºC.
Humidity : 10% to 90% non-condensing.
Shock : 5G operating, 60G non-operating.
Vibration : 3-200Hz @ 1.0G operating.
: 3-200Hz @ 1.5G non-operating.
Warning: Don't expose your computer to excessive heat or coldness (frost).
Don't drop, spill fluids or open the exterior of the case. This can
damage the computer and void the warranty.
OPERATING SYSTEM
Microsoft Windows XP® Pro with tablet.
OPTION
■ Standard S.O. DIMM SDRAM 256MB memory module for expansion from
256MB to 512MB.
■ Optional external USB FDD drive.
■ Optional external USB CD-RW drive.
■ Optional external USB CD-ROM drive.
![](/img.php?id=316182&img=bga.png)
Introduction Model VERSA LitePad User's Manual
Page 1-4
This page is left blank intentionally.
![](/img.php?id=316182&img=bgb.png)
Model VERSA LitePad User's Manual Before You Begin
Page 2-1
Chapter 2 Before You Begin
Please read this chapter before you start using your computer.
2.1 Checking What You Received
Your computer package should contain the following items:
Note: You should keep the original factory carton and packing materials in case
you need to ship the unit back for servicing.
a) a) The Computer.
b) Accessories:
Headset
Stand
Case
![](/img.php?id=316182&img=bgc.png)
Before You Begin Model VERSA LitePad User's Manual
Page 2-2

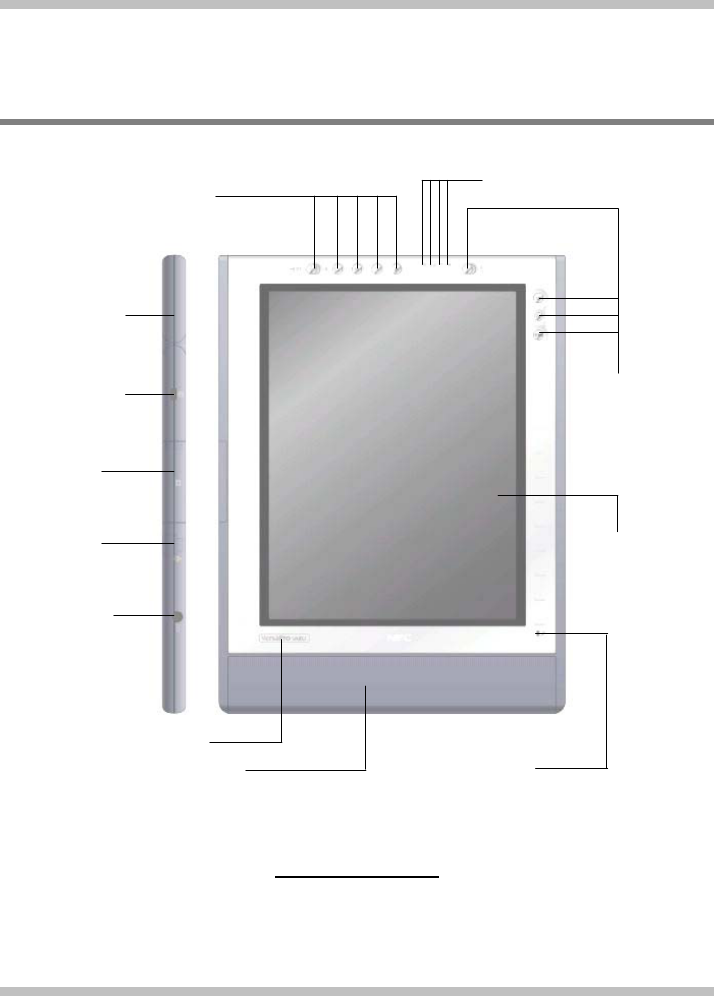

2.2 Panoramic View of Your System
fff f
Panoramic View
Wireless
LAN Antenna
Kensington
Lock
CRT
LAN
DC In
The Four
Buttons
LCD Protected
Cove
r
Internal
Microphone
Logo Badge
Battery Pack
The Four LEDs
The Five Buttons
![](/img.php?id=316182&img=bgd.png)
Model VERSA LitePad User's Manual Before You Begin
Page 2-3

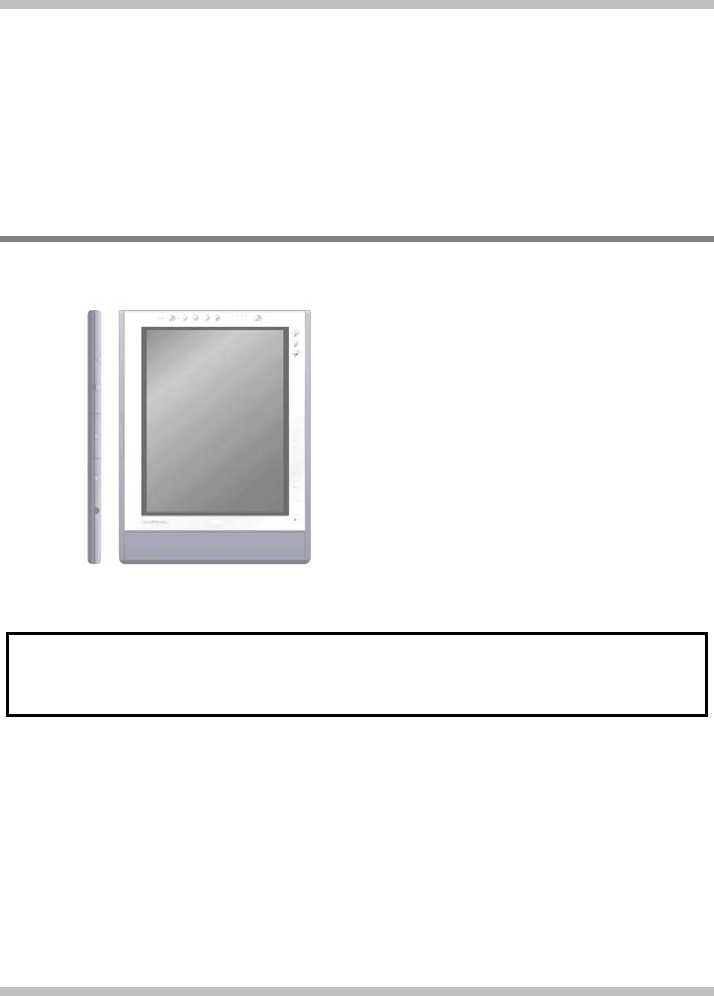

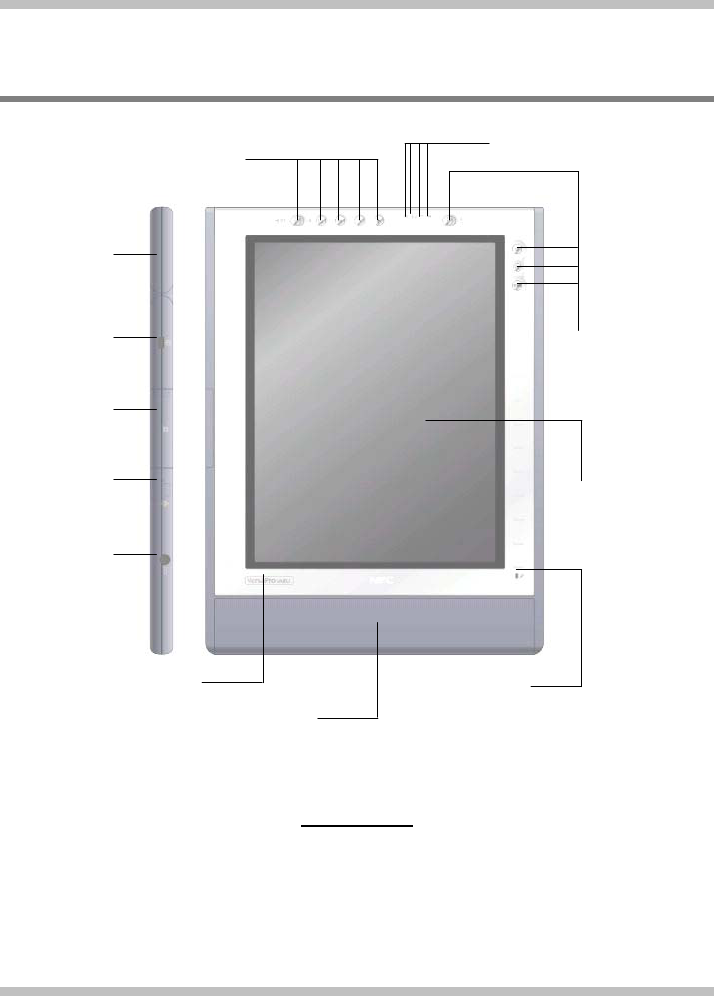

2.3 Front View Of Your System
Front View
Wireless
LAN Antenna
Kensington
Lock
CRT
LAN
DC-In
The Four
Buttons
LCD Protect
Cove
r
Internal
Micro
p
hone
Battery Pack
Logo Badge
The Four LEDs
The Five Buttons
![](/img.php?id=316182&img=bge.png)
Before You Begin Model VERSA LitePad User's Manual
Page 2-4

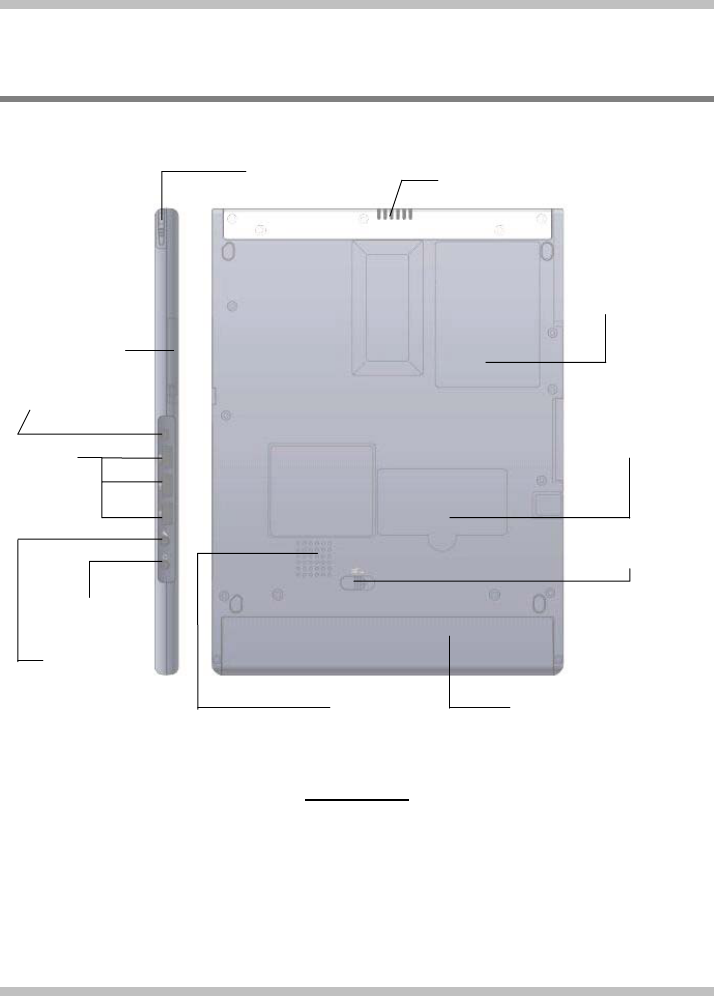

2.4 Rear View Of Your System
Rear View
Pen
CF Slot
DC-Out for
USB Drive
Three
USB
Ports
Microphone
Headphone
The HDD
S.O.DIMM
Slot
Speaker
Battery Lock
Ventilation Holes
Battery Pack
![](/img.php?id=316182&img=bgf.png)
Model VERSA LitePad User's Manual Before You Begin
Page 2-5

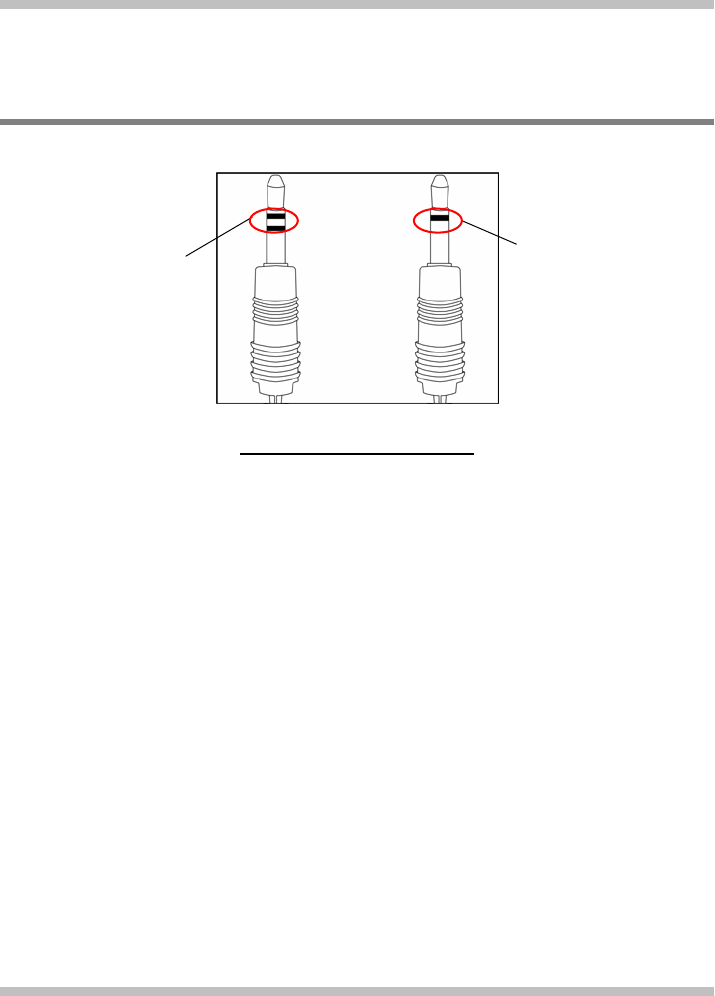

2.5 The Stereo/Mono Jets
Two Types of Audio Jet
Stereo Connector: Your
Line-In jet should have this
type of connector as
shown here.
Mono Connector: Your
Microphone jet should
have a connector as
shown here.
![](/img.php?id=316182&img=bg10.png)
Before You Begin Model VERSA LitePad User's Manual
Page 2-6

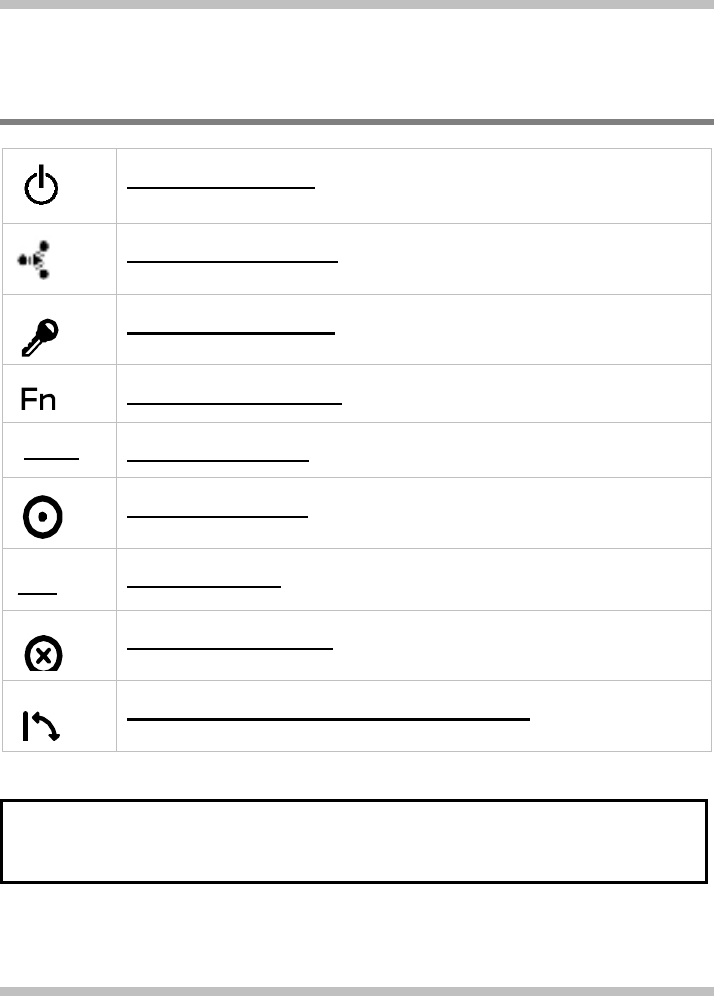

2.6 The Nine Buttons
The Power Button
The Wireless Button
The Security Button
The Function Button
Down The Down Button
The Enter Button
Up The UP Button
The Escape Button
The Change Screen Orientation Button
Note: The nine buttons are located between the bottom right panel and side panel
of the system unit.
![](/img.php?id=316182&img=bg11.png)
Model VERSA LitePad User's Manual Before You Begin
Page 2-7

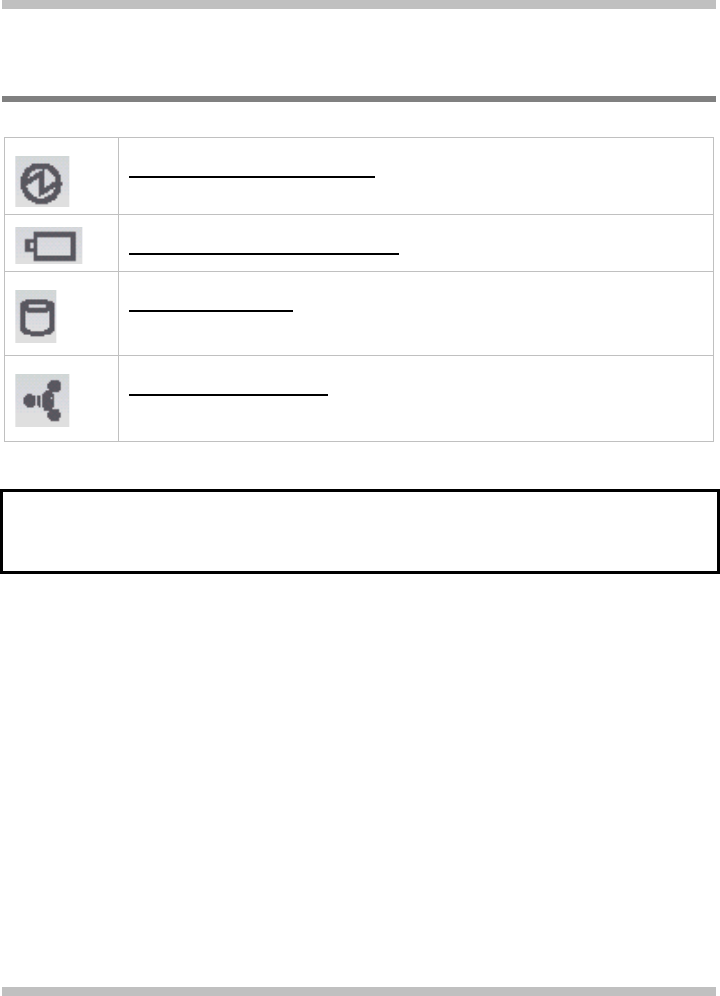

2.7 The Four LEDs
The Power Status LEDs
The Battery Charge LEDs
The HDD LEDs
The Wireless LEDs
Note: The four LEDs are located between the bottom right panel and side panel of
the system unit.
![](/img.php?id=316182&img=bg12.png)
Before You Begin Model VERSA LitePad User's Manual
Page 2-8
This page is left blank intentionally.
![](/img.php?id=316182&img=bg13.png)
Model VERSA LITEPAD User’s Manual Agency Regulatory Notices
Page 3-1
Chapter 3 Agency Regulatory Notices
3.1 Safety Instructions
CAUTION: Please read these safety instructions carefully.
CAUTION: Please keep this User's Manual for future reference.
CAUTION: Please disconnect this equipment from AC outlet before
cleaning. DO NOT use liquid or sprayed detergent for cleaning. Use a clean
moistened cloth.
CAUTION: The wall socket used should be positioned near the
equipment and should be easily accessible.
CAUTION: Please keep this equipment free from humidity.
CAUTION: Place the equipment on a reliable surface at all times. A drop
or fall can cause severe damage.
![](/img.php?id=316182&img=bg14.png)
Agency Regulatory Notices Model VERSA Litepad User's Manual
Page 3-2
WARNING: The openings on the enclosure are for air ventilation and
are meant to protect the equipment from overheating. DO NOT COVER
THE VENTILATION OPENINGS.
CAUTION: Verify the voltage of the power source before connecting the
unit to any power outlet.
WARNING: DO NOT step on or place anything over the power cord.
CAUTION: All cautions and warnings on the equipment should be
noted.
WARNING: If the equipment is not used for a long period of time,
disconnect the equipment from the power source to avoid damage from
power spikes.
WARNING: NEVER pour any liquid into any openings; a fire or
electrical shock is possible.
WARNING: for safety reasons; other than pre-designated ports and
doors, only qualified service personnel should open the equipment.
![](/img.php?id=316182&img=bg15.png)
Model VERSA LITEPAD User’s Manual Agency Regulatory Notices
Page 3-3
CAUTION: If one of the following situations should arise, the
equipment should be checked by an authorized technician:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to excessive moisture.
d. The equipment does not work well or you cannot get it to work
according to user's manual.
e. The equipment has been dropped or damaged.
f. The equipment has obvious signs of breakage.
CAUTION: DO NOT LEAVE THIS EQUIPMENT IN
TEMPERATURES BELOW -20ºC(-4ºF) OR ABOVE 60ºC(140ºF). IT
MAY CAUSE DAMAGE TO THE EQUIPMENT.
WARNING: THE CD-ROM/DVD-ROM IN THIS COMPUTER
EMPLOYS A LASER SYSTEM.
a. To ensure proper use of this product, please read the relevant
instructions carefully and retain for future reference.
b. Should the unit ever require maintenance, contact your local dealer.
c. Use of controls, adjustments or the performance of procedures other
than those specified may result in hazardous radiation exposure.
d. To prevent direct exposure to Laser Beam, do no try to open the
enclosure.
CAUTION: The internal CD-ROM/DVD-ROM drive is classified as a
CLASS 1 LASER PRODUCT. Label is located on the outside of the CD-
ROM/DVD-ROM drive with the following wordings:
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
![](/img.php?id=316182&img=bg16.png)
Agency Regulatory Notices Model VERSA Litepad User's Manual
Page 3-4
CAUTION: Use only approved AC Adapter with your computer. Using
the wrong type of AC Adapter may cause serious damage to your computer.
CAUTION: The AC Adapter can accept a line voltage ranging from
100V to 240V and is compatible with most international power sources. If
you are unsure whether your power source is compatible, please contact the
local dealer for assistance.
WARNING: This computer contains an internal lithium battery-powered
real-time circuit. There is a risk of explosion and injury if the battery is
incorrectly replaced or handled. Do not attempt to recharge, disassembled,
immerse in water, or dispose of it in fire. Replacement should be done by
your note dealer.
CAUTION: For Continued Protection Against Risk of Fire, Replace
Only with same Type and Rating of Fuse.
CAUTION: If the computer is not sold to German area, please use only
the local recognized power supply cords that are recommended by the
manufacturer.
CAUTION: The device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received, including interference
that may cause undesired operation.
![](/img.php?id=316182&img=bg17.png)
Model VERSA LITEPAD User’s Manual Agency Regulatory Notices
Page 3-5
CAUTION: This Transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
CAUTION: FCC RF Radiation Exposure Statement: The equipment
complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
CAUTION: Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user authority to
operate the equipment.
Warning: According to FCC’s rule, the product is for indoor operation
only.
![](/img.php?id=316182&img=bg18.png)
Agency Regulatory Notices Model VERSA Litepad User's Manual
Page 3-6
3.2 Agency Notice
Declaration of Conformity - United States Only
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
For questions regarding this declaration, contact:
ARIMA Computer (Texas) Corporation
9600 West Gulf Bank Road,
Houston, TX 77040, USA
Or, call: (713) 983-0103
To identify this product, refer to the model number found on the product.
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.
![](/img.php?id=316182&img=bg19.png)
Model VERSA LITEPAD User’s Manual Agency Regulatory Notices
Page 3-7
Modifications
The FCC requires the user to be notified that any changes or modifications made to this
device that are not expressly approved by the manufacturer responsible for compliance
may void the user’s authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI
connector hoods to maintain compliance with FCC Rules and Regulations.
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
European Union Notice
Product with the CE Marking complies with the EMC Directive (89/336/EEC) and the
Low Voltage Directive (73/23/EEC) issued by the Commission of the European
Community and if this product has telecommunication functionality, the R&TTE
Directive (1999/5/EC).
Compliance with these directive implies conformity to the following European Norms
(in parentheses are the equivalent international standards and regulations):
• EN55022 (CISPR 22) Electromagnetic Interference
• EN301489-1(IEC61000-4-2,3,4,5,6,8,11) Electromagnetic Immunity
• EN301489-17(IEC61000-4-2,3,4,5,6,8,11) Electromagnetic Immunity
• EN300328
• EN301893
• EN61000-3-2 (IEC61000-3-2) Power Line Harmonics
• EN61000-3-3 (IEC61000-3-3) Power Line Flicker
• EN60950 (IEC60950) Product Safety
![](/img.php?id=316182&img=bg1a.png)
Agency Regulatory Notices Model VERSA Litepad User's Manual
Page 3-8
Declaration of Conformity – European Union Only
For questions regarding this declaration, contact:
ARIMA Computer (Texas) Corporation
9600 West Gulf Bank Road,
Houston, TX 77040, USA
Or, call: (713) 983-0103
To identify this product, refer to the model number found on the product

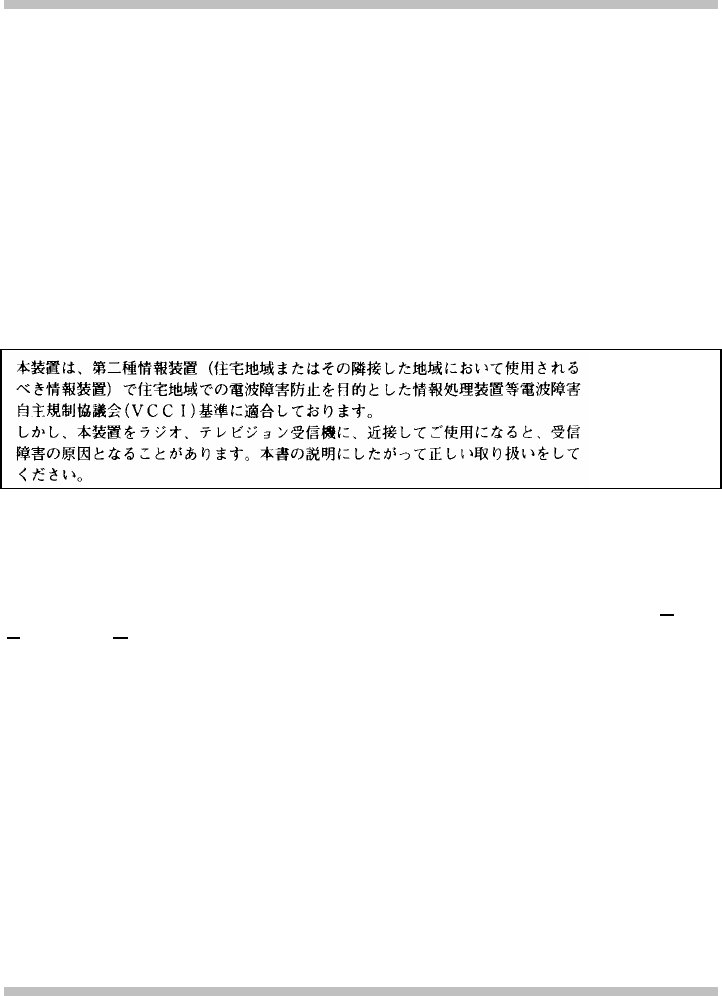

Japanese Notice
U.S. Regulations Governing the Use of Modems
This equipment complies with Part 68 of the FCC Rules. On this equipment is a label
that contains, among other information, the FCC registration number and Ringer
Equivalence Number (REN) for this equipment. You must, upon request, provide this
information to your telephone company.
The Telephone Company may discontinue your service temporarily if your telephone
equipment causes harm to the telephone network. If possible, they will notify in
advance. But, if advance notice is not practical, you will be notified as soon as possible.
You will be informed of your right to file a complaint with the FCC.
Your telephone company may make changes in its facilities, equipment, operations, or
procedures that could affect proper operation of your equipment. If they do, you will be
notified in advance to give you an opportunity to maintain uninterrupted telephone
service.
The FCC prohibits this equipment to be connected to party lines or coin-telephone
service.
![](/img.php?id=316182&img=bg1b.png)
Model VERSA LITEPAD User’s Manual Agency Regulatory Notices
Page 3-9
In the event that this equipment should fail to operate properly, disconnect the
equipment from the phone line to determine if it is causing the problem. If the problem
is with the equipment, discontinue use and contact your dealer or vendor.
The FCC also requires the transmitter of a FAX transmission be properly identified (per
FCC Rules Part 68, Sec 68.381 ((C) (3)).

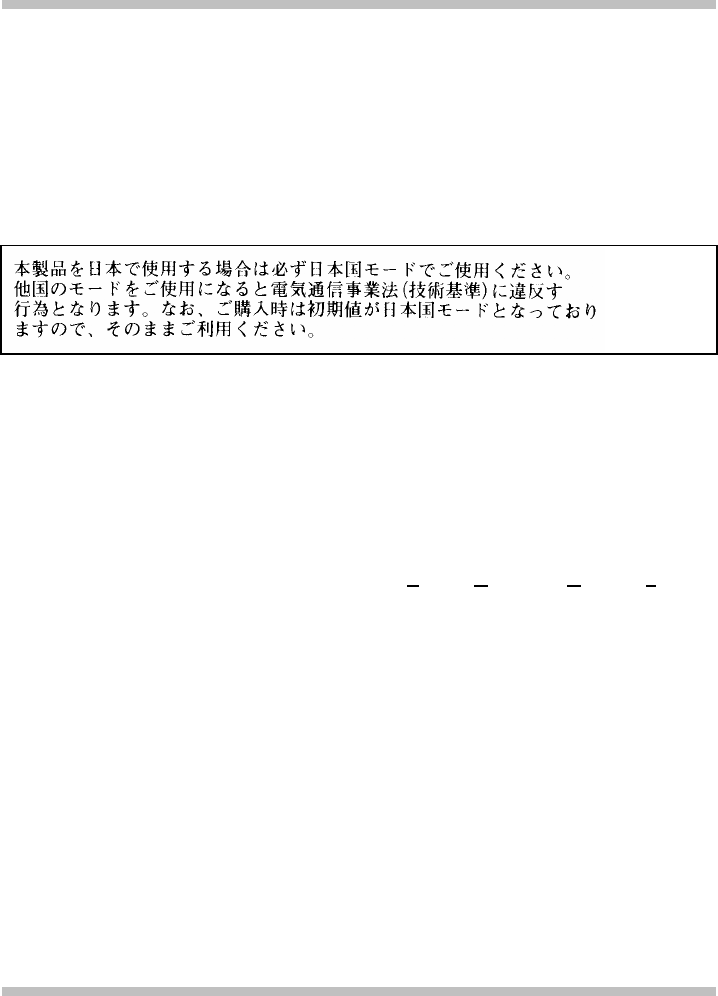

Japanese Modem Notice
U.K. Modem Compliance Information
This modem is approved by the secretary of state at the Department of Trade and
Industry for connection to a single exchange line of the public switched telephone
network run by certain licensed public telecommunication operators or system
connected there to (Direct exchange lines only, not shared service or 1-1 carrier
systems).
This modem is also suitable for connection to Private Automatic Branch Exchange
(PABX’s) which returns secondary proceed indication.
If this modem is to be used with a PBX which has extension wiring owned by BT,
connection of the modem the PBX can only be carried out by BT; or by the authorized
maintainer of the PBX unless the authorized maintainer has been given 14 days written
notice that the connection is to be made by another person; and that period of
notification has expired.
This modem is suitable for use only on telephone lines proved with Loop Disconnect or
Multi-Frequency Dialing Facilities.
Users of this modem are advised that the approval is for connection to the PSTN via the
telephone line interface supplied with it. Connection of a modem to the PSTN by any
other means will invalidate the approval.
![](/img.php?id=316182&img=bg1c.png)
Agency Regulatory Notices Model VERSA Litepad User's Manual
Page 3-10
There is no guarantee of correct working in all circumstances. Any difficulties should
be referred to your supplier.
Some network operators require that intended users of their network request permission
to connect and for the installation of an appropriate socket.
The Ringer Equivalence Number (REN) of this modem is 1. REN is guide to the
maximum number of apparatus that can simultaneously be connected to one telephone
line. The REN value of each apparatus is added together, and should not exceed 4.
Unless otherwise marked, a telephone is assumed to have a REN of 1.
This modem is only approved for use of the following facilities:
• Storage of telephone numbers for retrieval by a predator mined code.
• Detection of initial proceed indication.
• Automatic calling/ automatic answering.
• Tone detection.
• Loud-speaking facility.
This modem is not approved for connection to U.K./private speech-band services. This
modem does not support an automatic re-dial function. Any other usage will invalidate
the approval of your modem, if as a result, it then ceases to confirm to the standards
against which approval was granted. The approval of this modem is invalidated if the
apparatus subject to modification in any material way not authorized by the BABT or if
it is used with, or connected to external software that have not been formally accepted
by BABT.
![](/img.php?id=316182&img=bg1d.png)
Model VERSA LITEPAD User’s Manual Agency Regulatory Notices
Page 3-11
This page is left blank intentionally.
