FortiAP 14C
QuickStart Guide
April 05, 2013
20-000-195859-20130405
Copyright© 2013 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®,
and FortiGuard®, are registered trademarks of Fortinet, Inc., and other
Fortinet names herein may also be trademarks of Fortinet. All other
product or company names may be trademarks of their respective
owners. Performance metrics contained herein were attained in internal
lab tests under ideal conditions, and performance may vary. Network
variables, different network environments and other conditions may affect
performance results. Nothing herein represents any binding commitment by
Fortinet, and Fortinet disclaims all warranties, whether express or implied,
except to the extent Fortinet enters a binding written contract, signed by
Fortinet’s General Counsel, with a purchaser that expressly warrants that the
identified product will perform according to the performance metrics herein.
For absolute clarity, any such warranty will be limited to performance in the
same ideal conditions as in Fortinet’s internal lab tests. Fortinet disclaims in
full any guarantees. Fortinet reserves the right to change, modify, transfer,
or otherwise revise this publication without notice, and the most current
version of the publication shall be applicable.
![](/img.php?id=1945798&img=bg4.png)
Wall Mount KitEthernet CablePower Adapter
QuickStart Guide
FortiAP 14C
QuickStart Guide
Fortinet’s FortiAP wireless thin access points deliver secure, identity-driven
WiFi client access that creates a fortified WLAN network that is centrally
managed by a FortiGate or FortiWiFi platform.
Your box contains the following:
FortiAP 14C
QuickStart Guide with Wall Mount Template
Power Adapter
Ethernet Cable
Wall Mount Kit
Page 1
Note: Accessories may not be exactly as shown.
Package Contents
![](/img.php?id=1945798&img=bg5.png)
Using the provided hardware, the FortiAP unit can be mounted on wall.
To mount the unit on a wall:
1. Select an appropriate location and mark the location on the wall where
the anchors will be located.
2. Insert the anchors provided in the wall mount kit into the wall in the marked
locations. If necessary, drill holes into the wall with an appropriately sized
drill bit prior to inserting the anchors.
3. Screw the provided M3x16L screws into the two anchors, leaving
enough of the screws exposed to ensure that the unit can be mounted
on them.
4. Mount the FortiAP unit onto the screws and ensure that it is mounted
securily.
You can now proceed with connecting your FortiAP unit.
Page 2
Mounting Your FortiAP Unit
M3x16L Screw
Anchor
![](/img.php?id=1945798&img=bg6.png)
Page 3

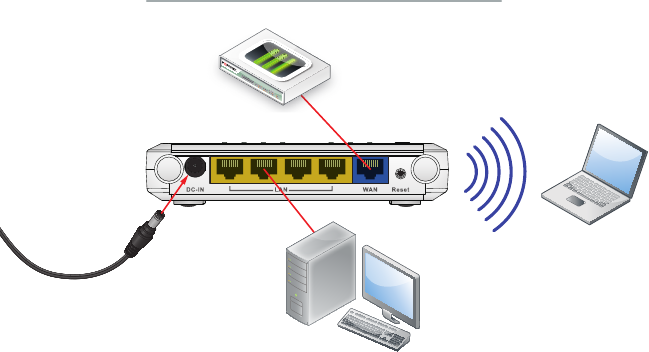

To connect the FortiAP unit:
1. Insert the provided Ethernet cable into the WAN port on the FortiAP unit.
2. Insert the other end of the Ethernet cable into your FortiGate or FortiWiFi
unit, or into the AP/Bridge port on your PoE adapter.
3. Connect an Ethernet cable to each computer you wish to connect to
the FortiAP unit.
4. Insert the DC plug of the power adapter into the DC power jack on the
FortiAP unit, and then insert the other end into an appropriate power
outlet.
The Power LED will light up.
Note: This product is intended to be supplied by a Listed Direct Plug-In
Power Unit marked LPS or Class 2 and rated 5V DC, 1 A.
1
2
3WiFi
Connection
4
Connecting Your FortiAP Unit
![](/img.php?id=1945798&img=bg7.png)
Page 4
The FortiAP unit is designed to require no configuration in most
networks. Zero Configuration mode works if the unit is directly
connected to the FortiGate or FortiWiFi performing the Wireless LAN
Controller (WLC) functions, or on the same layer-2 network and subnet
as the FortiGate or FortiWiFi unit.
If the FortiAP wireless controller’s IP address cannot be determined
using Zero Configuration mode, or if the network uses static IP
addresses, it can be configured to use a static IP address.
To enable the FortiAP using Zero Configuration:
1. After connecting the FortiAP unit as described in the previous chapter,
the unit goes through its boot procedure and requests an IP address
from the DHCP server.
2. If the IP address is retrieved successfully, the FortiAP enters discovery
mode to locate a FortiGate or FortiWiFi wireless controller. The
discovery modes are:
• Broadcast
• Multicast
• DHCP option 138
3. Verify that the FortiAP has successfully connected to the controller.
In the FortiGate Web-based Manager, go to WiFi Controller > Managed
Access Points > Managed FortiAP. A successfully discovered unit
displays an orange circle with a question mark.
4. Select the access point and click Edit.
5. In the State field, select Authorize.
Configuring Your FortiAP Unit
![](/img.php?id=1945798&img=bg8.png)
Page 5
6. In the AP Profile field, select Change, then select a profile from the
list and click OK.
The configuration is downloaded from the wireless controller to the
FortiAP and the WiFi LED lights up.
To enable the FortiAP with a static IP address:
1. Connect the FortiAP device to a separate, private switch or hub, or
directly connect it to your management computer via a cross-over
cable.
2. Configure the management computer to be on the same subnet as
the internal interface of the FortiAP unit:
a. Browse to the Network and Sharing Center > Change Adapter
Settings > Local Area Connection Properties > Internet Protocol
Version 4 (TCP/IPv4) Properties.
b. Change the IP address of the management computer to
192.168.1.3 and the netmask to 255.255.255.0.
3. To access the unit’s Web-based Manager, start a browser of your
choice and browse to http://192.168.1.2.
4. Type admin in the Name field, leave the Password field blank, and
select Login.
5. In the Network Configuration section of the System Information tab:
a. Set Address Mode to Static,
b. Enter the FortiAP unit’s IP address in the Local IP Address field,
c. Enter 255.255.255.0 in the Local Network Mask field, and
d. Enter the gateway IP address in the Gateway IP field.
![](/img.php?id=1945798&img=bg9.png)
6. In the WTP Configuration section, set AC Discovery Type to Static
and enter the FortiGate wireless controller’s IP address in the AC IP
Address 1 field.
7. Apply the configuration by selecting Apply.
8. Move the FortiAP to the intended deployment location and connect
the Ethernet cable as described in the Connecting chapter.
9. Log in to the FortiGate controller Web-based Manager, and go to
WiFi Controller > Managed Access Points > Managed FortiAP.
A successfully discovered unit displays an orange circle with a
question mark in the Status column.
10. Select the access point and click Edit.
11. In the State field, select Authorize.
12. In the Edit FortiAP dialog box, select Enable Wireless Radio. Leave
the remaining settings at their default values. The configuration is
downloaded from the FortiGate unit to the FortiAP device.
For more information, see the Deploying Wireless Networks Guide,
available on Fortinet’s technical documentation website,
http://docs.fortinet.com.
Page 6
![](/img.php?id=1945798&img=bga.png)
Page 7
# Interface Type Description
1 Power 5V DC, 1.0A
100-240V AC, 0.3A max, 50/60Hz adapter
2 LAN Ports RJ-45 Fast Ethernet ports for connecting to the
internal network.
3 WAN Port RJ-45 Fast Ethernet port for connecting to
a FortiGate or FortiWiFi unit, or to the
Internet.
4 Reset
Button
Reset the FortiAP unit to factory default
settings.
Wireless
Radio
WiFi 802.11 b/g/n, single band 2.4GHz
1 2 43
Technical Specifications
![](/img.php?id=1945798&img=bgb.png)
Page 8
# LED State Description
1 Power Green The unit is on.
Off The unit is off.
2 WiFi
Green Wireless radio is enabled.
Flashing Green Wireless activity.
Off Wireless interface is down.
3WAN
Green Ethernet link detected.
Flashing Green Port is transmitting and receiving
data.
Off No link established.
4LAN Ports
1 - 4
Green Port is connected.
Flashing Green Port is transmitting and receiving
data.
Off No link established.
1 2 43
LED Specifications
![](/img.php?id=1945798&img=bgc.png)
Please review the following cautions and warnings.
Environmental and mounting specications
Operating temperature: 0 - 40°C (32 - 104°F)
Storage temperature: -40 - 70°C (-40 - 158°F)
Humidity: 0 to 90% non-condensing
Operating Altitude: <2250m (7400ft)
Elevated Operating Ambient: If installed in a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be greater than room ambient. Therefore,
consideration should be given to installing the equipment in an environment compatible with the
maximum ambient temperature (Tma) specified by the manufacturer.
Circuit Overloading: Consideration should be given to the connection of the equipment to the
supply circuit and the effect that overloading of the circuits might have on overcurrent protection
and supply wiring. Appropriate consideration of equipment nameplate ratings should be used
when addressing this concern.
This product is intended to be supplied by a Listed Direct Plug-In Power Unit marked LPS or
Class 2 and rated 5V DC, 1A.
Federal Communication Commission (FCC) – USA
This device complies with Part 15 of FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received; including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in residential installation. This equipment generates, uses, and
can radiate radio frequency energy, and if it is not installed and used in accordance with the
instruction manual, it may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Page 9
Cautions and Warnings
Page 10
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Caution: Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
Industry Canada Equipment Standard for Digital Equipment (ICES) – Canada
CAN ICES-3 (B) / NMB-3 (B)
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired
operation.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1)
le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter
tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement
indésirable.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20
cm de distance entre la source de rayonnement et votre corps.
Caution: The device for the band 5150-5250 MHz is only for indoor usage to reduce potential
for harmful interference to co-channel mobile satellite systems. High-power radars are allocated
as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that
these radars could cause interference and/or damage to LE-LAN devices.
Page 11
Avertissement: Les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés
uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable
aux systèmes de satellites mobiles utilisant les mêmes canaux. De plus, les utilisateurs devraient
aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs
principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz
et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
European Conformity (CE) - EU
This is a Class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
Grounding
Ensure your Fortinet product is connected and properly grounded to a lightning and surge
protector. WAN or LAN connections that enter the premises from outside the building should be
connected to an Ethernet CAT5 (10/100 Mb/s) surge protector.
Shielded Twisted Pair (STP) Ethernet cables should be used whenever possible rather than
Unshielded Twisted Pair (UTP).
Do not connect or disconnect cables during lightning activity to avoid damage to your Fortinet
product or personal injury.
Electrostatic discharge (ESD) can damage Fortinet equipment. Only perform the procedures
described in this document from an ESD workstation. If no such station is available, you can
provide some ESD protection by wearing an anti-static wrist strap and attaching it to an available
ESD connector or other bare metal object.
Caution: For devices that contain a battery there is a risk of explosion if battery is replaced by
an incorrect type. Recycle used batteries according to your local regulations.
![](/img.php?id=1945798&img=bgf.png)
Page 12
Documentation and Links
The following Fortinet web pages provide information and resources for your Fortinet
product:
1. Customer Service & Support: https://support.fortinet.com
On this page you can create a support account with Fortinet, register and manage
your products, download updates, firmware images and release notes, and create
technical support tickets.
2. Technical Documentation: http://docs.fortinet.com
This page provides the most up-to-date versions of Fortinet publications for the entire
family of Fortinet products.
3. Knowledge Base: http://kb.fortinet.com
This page provides Fortinet technical documentation, such as troubleshooting, how-
to articles, example configurations , FAQs, technical notes, and more.
4. Technical Discussion Forums: https://support.fortinet.com/forum
This page allows you to communicate with other customers and Fortinet partners
about Fortinet products, services, and configuration issues in a forum environment.
5. Training Services: http://training.fortinet.com
This page provides course descriptions, availability, schedules, and locations of
training programs in your area.
6. FortiGuard Threat Research and Response: http://www.fortiguard.com
This page provides up-to-date information on vulnerabilities and threats, and includes
a virus scanner, Internet Protocol (IP) signature look-up, web filtering tools, and
related information.
Tools and Documentation CD
The tools and documents on this CD are current as of shipping time.
Comments on Technical Documentation
Please send comments or information about any errors or omissions in this or any
Fortinet technical documents to techdoc@fortinet.com.
Page 13
![](/img.php?id=1945798&img=bg10.png)
Page 13
If you did not yet register your Fortinet product, please register your product now.
Register
Register your Fortinet product in order to receive:
•TechnicalSupport•Newproductfeatures•Protectionfromnewthreats
Enregistrer
Vous devez enregistrer le produit pour recevoir:
•Supporttechnique•Nouvellesfonctionnalitéesduproduit•Protectioncontrede
nouvelles menaces
Registra
La reistrazione ti permette di usufruire di:
•SupportoTecnico•Nuovefunzionalita•Proteezionedalleultimeminaccce
Registrar
Debe registrar el producto para recibir:
•Apoyotécnico•Nuevasfuncionalidadesdelproducto•Proteccióncontra
ataques
登録のお願い
本日、フォーティネット製品の登録をしてください。
登録すると次のメリットがあります。
テクニカルサポート • 新機能の追加 • 新しい脅威への防御
请马上注册
您的飞塔产品
您在注册以后才能得到技术支持、新产品特点信息、最新威胁防护
Web: https://support.fortinet.com/
Toll free: 1 866 648 4638
Phone: 1 408 486 7899
Fax: 1 408 235 7737
Email: register@fortinet.com
Register Your Product
![](/img.php?id=1945798&img=bg11.png)
The parties to this agreement are you, the end customer, and either (i) where you have purchased your Product within the Americas, Fortinet, Inc.,
or (ii) where you have purchased your Product outside of the Americas, Fortinet Singapore Private Limited (each referred to herein as “Fortinet”)
.CAREFULLY READ THE FOLLOWING LEGAL AGREEMENT (THE OR THIS “AGREEMENT” OR “EULA”). USE OF FORTINET PRODUCT(S) AND ANY UPDATES
THERETO, INCLUDING HARDWARE APPLIANCE PRODUCTS, SOFTWARE AND FIRMWARE INCLUDED THEREIN BY FORTINET, AND STAND-ALONE SOFT-
WARE PRODUCTS SOLD BY FORTINET (TOGETHER, THE “PRODUCTS”) CONSTITUTES ACCEPTANCE BY YOU OF THE PROVISIONS IN THIS AGREEMENT.
FORTINET SHALL NOT BE BOUND BY ANY ADDITIONAL AND/OR CONFLICTING PROVISIONS IN ANY ORDER, RELEASE, ACCEPTANCE OR OTHER WRITTEN
CORRESPONDENCE OR OTHER WRITTEN OR VERBAL COMMUNICATION UNLESS EXPRESSLY AGREED TO IN A WRITING SIGNED BY THE GENERAL
COUNSEL OF FORTINET. YOUR INSTALLATION OR USE OF ANY PRODUCT REPRESENTS AGREEMENT TO THE TERMS HEREIN, AS AMENDED OR UPDATED
FROM TIME TO TIME IN FORTINET’S DISCRETION BY FORTINET PUBLISHING AN AMENDED OR UPDATED VERSION. IF YOU DO NOT AGREE TO ALL OF
THE TERMS OF THIS AGREEMENT, DO NOT START THE INSTALLATION PROCESS OR USE THE PRODUCTS. IF YOU DO NOT AGREE TO THE PROVISIONS
OF THIS AGREEMENT, YOU SHOULD IMMEDIATELY, AND IN NO EVENT LATER THAN FIVE (5) CALENDAR DAYS AFTER YOUR RECEIPT OF THE PRODUCT
RETURN THE PRODUCTS TO THE LOCATION WHERE YOU OBTAINED THEM FOR A FULL REFUND FROM THE PARTNER SELLING TO YOU.
1. License Grant.
This is a license, not a sales agreement, between you and Fortinet. The term “Software”, as used throughout this Agreement, includes all Fortinet
and third party rmware and software provided to you with, or incorporated into, Fortinet appliances and any stand-alone software provided to you
by Fortinet, with the exception of any open source software contained in Fortinet’s Products which is discussed in detail in section 15 below, and the
term “Software” includes any accompanying documentation, any updates and enhancements of the software or rmware provided to you by Fortinet,
at its option. Fortinet grants to you a non-transferable (except as provided in section 5 (“Transfer”) and section 15 (“Open Source Software”) below),
non-exclusive, revocable (in the event of your failure to comply with these terms or in the event Fortinet is not properly paid for the applicable Product)
license to use the Software solely for your internal business purposes (provided, if a substantial portion of your business is to provide managed service
provider services to your end-customers, you may use the Software embedded in FortiGate and supporting hardware appliances to provide those
services, subject to the other restrictions in this Agreement), in accordance with the terms set forth in this Agreement and subject to any further restric-
tions in Fortinet documentation, and solely on the Fortinet appliance, or, in the case of blades, CPUs or databases, on the single blade, CPU or database
on which Fortinet installed the Software or, for stand-alone Software, solely on a single computer running a validly licensed copy of the operating sys-
tem for which the Software was designed, or, in the case of blades, CPUs or databases, on a single blade, CPU or database. For clarity, notwithstanding
anything to the contrary, all licenses of Software to be installed on blades, CPUs or databases are licensed on a per single blade, solely for one blade
and not for multiple blades that may be installed in a chassis, per single CPU or per single database basis, as applicable. The Software is “in use” on
any Fortinet appliances when it is loaded into temporary memory (i.e. RAM). You agree that, except for the limited, specic license rights granted in this
section 1, you receive no license rights to the Software.
2. Limitation on Use.
You may not attempt to, and, if you are a corporation, you are responsible to prevent your employees and contractors from attempting to, (a) modify,
translate, reverse engineer, decompile, disassemble, create derivative works based on, sublicense, or distribute the Software; (b) rent or lease any
rights in the Software in any form to any third party or make the Software available or accessible to third parties in any other manner; (c) except as
provided in section 5, transfer assign or sublicense right to any other person or entity, or (d) remove any proprietary notice, labels, or marks on the
Software, Products, and containers.
3. Proprietary Rights.
All rights, title, interest, and all copyrights to the Software and any copy made thereof by you and to any Product remain with Fortinet. You acknowledge
that no title to the intellectual property in the Software or other Products is transferred to you and you will not acquire any rights to the Software or
other Products except for the specic license as expressly set forth in section 1 (“License Grant”) above.
4. Term and Termination.
Except for evaluation and beta licenses or other licenses where the term of the license is limited per the evaluation/beta or other agreement or in the
ordering documents, the term of the license is for the duration of Fortinet’s copyright in the Software. Fortinet may terminate this Agreement, and the
licenses and other rights herein, immediately without notice if you breach or fail to comply with any of the terms and conditions of this Agreement. You
agree that, upon such termination, you will cease using the Software and any Product and either destroy all copies of the Fortinet documentation or
return all materials to Fortinet. The provisions of this Agreement, other than the license granted in section 1 (“License Grant”), shall survive termination.
5. Transfer.
Page 14
Product License Agreement
If you are a Fortinet contracted and authorized reseller or distributor of Products, you may transfer (not rent or lease unless specically agreed to in
writing by Fortinet) the Software to one end user on a permanent basis, provided that: (i) you ensure that your customer and the end user receives a
copy of this Agreement, is bound by its terms and conditions, and, by selling the Product or Software, you hereby agree to enforce the terms in this
Agreement against such end user, (ii) you at all times comply with all applicable United States export control laws and regulations, and (iii) you agree to
refund any fees paid to you by an end user who purchased Product(s) from you but does not agree to the terms contained in this Agreement and there-
fore wishes to return the Product(s) as provided for in this Agreement. Further, if you are a non-authorized reseller of Products, you are not authorized
to sell Product(s) or Software, but, regardless, by selling Product(s) or Software, you hereby agree you are bound by the restrictions and obligations
herein and are bound to: (i) ensure that your customer and the end user receive a copy of this Agreement and are bound in full by all restrictions and
obligations herein (ii) enforce the restrictions and obligations in this Agreement against such customer and/or end user, (iii) comply with all applicable
United States export control laws and regulations and all other applicable laws, and (iv) refund any fees paid to you by a customer and/or end user
who purchased Product(s) from you but does not agree to the restrictions and obligations contained in this Agreement and therefore wishes to return
the Product(s) as provided for in this Agreement. Notwithstanding anything to the contrary, distributors, resellers and other Fortinet partners (a) are not
agents of Fortinet and (b) are not authorized to bind Fortinet in any way.
6. Limited Warranty.
Fortinet provides this limited warranty for its product only to the single end-user person or entity that originally purchased the Product from Fortinet
or its authorized reseller or distributor and paid for such Product. The warranty is only valid for Products which are registered on Fortinet’s Support
Website: https://support.fortinet.com; or on the TalkSwitch support website: http://global.talkswitch.com; or such other website as provided by Fortinet.
For the below software warranty to start, registration must take place within three hundred sixty-ve (365) days from the date the Product was origi-
nally shipped from Fortinet’s facilities or the warranty is null and void and will not be honored. For the hardware warranty, such warranty starts on the
earlier of the date of Product registration on Fortinet’s Support Website or ninety (90) days from the date that the Product was originally shipped from
Fortinet’s facilities. It is the Fortinet distributor’s and reseller’s responsibility to make clear to the end user the date the product was originally shipped
from Fortinet, and it is the end user’s responsibility to understand the original ship date from the party from which the end user purchased the product.
All warranty claims must be submitted in writing to Fortinet before the expiration of the warranty term or such claims are waived in full, i.e. ninety (90)
days from the earlier of registration or the automatically started term for hardware and spare parts claims and three hundred sixty-ve (365) days
from registration within three hundred sixty-ve (365) days from shipment for software claims. Fortinet provides no warranty for any beta, donation or
evaluation Products, for any spare parts not purchased directly from Fortinet by the end-user, for any accessories, or for any stand-alone software.
Fortinet warrants that the hardware portion of the Products, including spare parts unless noted otherwise (“Hardware”) will be free from material
defects in workmanship as compared to the functional specications for the period set forth as follows and applicable to the Product type (“Hardware
Warranty Period”): a three hundred sixty-ve (365) day limited warranty for the Hardware excluding spare parts, and, for spare parts, solely a ninety
(90) days limited warranty. Fortinet’s sole obligation shall be to repair or replace the defective Hardware at no charge to the original owner. This
obligation is exclusive of transport fees, labor or installation costs, and any other cost which are not directly associated to the Product. Such repair or
replacement will be rendered by Fortinet at an authorized Fortinet service facility as determined by Fortinet. The replacement Hardware need not be
new or of an identical make, model, or part; Fortinet may, in its discretion, replace the defective Hardware (or any part thereof) with any reconditioned
Product that Fortinet reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware. The Hardware
Warranty Period for the repaired or replacement Hardware shall be for the greater of the remaining Hardware Warranty Period or ninety days from the
delivery of the repaired or replacement Hardware. If Fortinet determines in its reasonable discretion that a material defect is incapable of correction or
that it is not practical to repair or replace defective Hardware, the price paid by the original purchaser for the defective Hardware will be refunded by
Fortinet upon return to Fortinet of the defective Hardware. All Hardware (or part thereof) that is replaced by Fortinet, or for which the purchase price is
refunded, shall become the property of Fortinet upon replacement or refund.
Fortinet warrants that the software portion of Hardware Products will substantially conform to Fortinet’s then current functional specications for the
Software, as set forth in the applicable documentation for a period of ninety (90) days (“Software Warranty Period”), if the Software is properly installed
on approved Hardware and operated as contemplated in its documentation. Fortinet’s sole obligation shall be to repair or replace the non-conforming
Software with software that substantially conforms to Fortinet’s functional specications. Except as otherwise agreed by Fortinet in writing, the
replacement Software is provided only to the original licensee, and is subject to the terms and conditions of the license granted by Fortinet for the Soft-
ware. The Software Warranty Period shall extend for an additional ninety (90) days after any replacement software is delivered. If Fortinet determines in
its reasonable discretion that a material non-conformance is incapable of correction or that it is not practical to repair or replace the non-conforming
Software, the price paid by the original licensee for the non-conforming Software will be refunded by Fortinet; provided that the non-conforming
Software (and all copies thereof) is rst returned to Fortinet. The license granted respecting any Software for which a refund is given automatically
terminates immediately upon refund. For purpose of the above hardware and software warranties, the term “functional specications” means solely
those specications authorized and published by Fortinet that expressly state in such specications that they are the functional specications referred
to in this section 6 of this Agreement, and, in the event no such specications are provided to you with the Software or Hardware, there shall be no
warranty on such Software.
7. Disclaimer of Other Warranties and Restrictions.
EXCEPT FOR THE LIMITED WARRANTY SPECIFIED IN SECTION 6 ABOVE, THE PRODUCT AND SOFTWARE ARE PROVIDED “AS-IS” WITHOUT ANY WAR-
RANTY OF ANY KIND INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY, IMPLIED OR EXPRESS WARRANTY OF MERCHANTABILITY, OR WAR-
RANTY FOR FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY
Page 15
WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO NINETY (90) DAYS FROM THE DATE OF ORIGINAL
SHIPMENT FROM FORTINET. EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO THE QUAL-
ITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE PURCHASER OF THE PRODUCT. NOTWITHSTANDING ANYTHING TO THE CONTRARY,
THE HARDWARE WARRANTY PERIOD DISCUSSED ABOVE DOES NOT APPLY TO CERTAIN FORTINET PRODUCTS, INCLUDING FORTIFONE WHICH HAS A
NINETY (90) DAY LIMITED WARRANTY AND FORTITOKEN WHICH HAS A 365 DAY WARRANTY FROM THE DATE OF SHIPMENT FROM FORTINET’S FACILI-
TIES, AND THE SOFTWARE WARRANTY DOES NOT APPLY TO CERTAIN FORTINET PRODUCTS, INCLUDING FORTIGATE-ONE AND VDOM SOFTWARE.
The warranty in Section 6 above does not apply if the Software, Product or any other equipment upon which the Software is authorized to be used (a)
has been altered, except by Fortinet or its authorized representative, (b) has not been installed, operated, repaired, or maintained in accordance with
instructions supplied by Fortinet, (c) has been subjected to abnormal physical or electrical stress, misuse, negligence, or accident; or (d) is licensed for
beta, evaluation, donation, testing or demonstration purposes or for which Fortinet does not charge a purchase price or license fee. In the case of beta,
testing, evaluation, donation or free Software or Product, the end user acknowledges and agrees that such Software or Product may contain bugs or
errors and could cause system failures, data loss and other issues, and the end user agrees that such Software or Product is provided “as-is” without
any warranty whatsoever, and Fortinet disclaims any warranty or liability whatsoever. An end user’s use of evaluation or beta Software or Product is
limited to thirty (30) days from original shipment unless otherwise agreed in writing by Fortinet.
8. Governing Law.
This Agreement and the warranty herein shall be governed by the laws of the state of California, without regards to the conicts of laws principles
thereof.
9. Limitation of Liability.
TO THE MAXIMUM EXTENT PERMITTED BY LAW AND NOTWITHSTANDING ANYTHING TO THE CONTRARY, FORTINET IS NOT LIABLE UNDER ANY CON-
TRACT, NEGLIGENCE, TORT, STRICT LIABILITY, INFRINGEMENT OR OTHER LEGAL OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRODUCT OR
SERVICE OR ANY DAMAGES OF ANY KIND WHATSOEVER, WHETHER DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED
TO, DAMAGES FOR LOSS OF GOODWILL, LOSS OF PROFIT, LOSS OF OPPORTUNITY, LOSS OR DAMAGE RELATED TO USE OF THE PRODUCT OR SERVICE
IN CONNECTION WITH HIGH RISK ACTIVITIES, DAMAGE TO PERSONAL OR REAL PROPERTY, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNCTION,
COMPUTER SECURITY BREACH, COMPUTER VIRUS INFECTION, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH
ANY PRODUCT INCLUDING ANY PRODUCT RETURNED TO FORTINET FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING
TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THE LIMITED WARRANTY IN SECTION 6 ABOVE, EVEN IF FORTINET HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF
THE DEFECTIVE OR NON-CONFORMING PRODUCT AS SPECIFICALLY STATED IN SECTION 6 ABOVE.
10. Import / Export Requirements; FCPA Compliance.
You are advised that the Products may be subject to the United States Export Administration Regulations and other import and export laws; diversion
contrary to United States law and regulation is prohibited. You agree to comply with all applicable international and national laws that apply to the
Products as well as end user, end-use, and destination restrictions issued by U.S. and other governments. For additional information on U.S. export
controls see www.bis.doc.gov. Fortinet assumes no responsibility or liability for your failure to obtain any necessary import and export approvals.
You represent that neither the United States Bureau of Industry and Security nor any other governmental agency has issued sanctions against you or
otherwise suspended, revoked or denied your export privileges. You agree not to use or transfer the Products for any use relating to nuclear, chemical
or biological weapons, or missile technology, unless authorized by the United States Government by regulation or specic written license. Additionally,
you agree not to directly or indirectly export, import or transmit the Products contrary to the laws or regulations of any other governmental entity that
has jurisdiction over such export, import, transmission or use. Furthermore, you represent that you understand, and you hereby agree to comply with,
all requirements of the U.S. Foreign Corrupt Practices Act and all other applicable laws. For beta, testing, evaluation, donation or free Products and/or
related services, you hereby agree, represent and warrant to Fortinet that (a) receipt of the Products and/or services comply with all policies and you
have obtained all necessary approvals for such Products and/or services, (b) the Products and/or services are not provided in exchange for Fortinet
maintaining current business or for new business opportunities, and (c) the Products and/or services are not being received for the benet of, and are
not being transferred to, any government entity, representative or afliate.
11. U.S. Government End Users.
The Software and accompanying documentation are deemed to be “commercial computer software” and “commercial computer software documenta-
tion,” respectively, pursuant to DFAR Section 227.7202 and FAR Section 12.212, as applicable. Any use, modication, reproduction, release, perfor-
mance, display or disclosure of the Software and accompanying documentation by the United States Government shall be governed solely by the terms
of this Agreement and shall be prohibited except to the extent expressly permitted by the terms of this Agreement and its successors.
12. Tax Liability.
You agree to be responsible for payment of any sales or use taxes imposed at any time on this transaction.
13. General Provisions.
Except as specically permitted and required in section 5 (“Transfer”) above, you agree not to assign this Agreement or transfer any of the rights or
obligations under this Agreement without the prior written consent of Fortinet. This Agreement shall be binding upon, and inure to the benet of, the
successors and permitted assigns of the parties. The United Nations Convention on Contracts for the International Sales of Goods is expressly excluded.
In the event of any claim arising out of this Agreement, the parties hereby submit to the jurisdiction of the federal and state courts located in Santa
Page 16 Page 17
Page 16
Clara County, California, as applicable. This Agreement and other Fortinet agreements may be amended or supplemented only by a writing that refers
explicitly to the agreement signed on behalf of both parties, or, for this Agreement, as otherwise expressly provided in the lead-in above Section 1
above, provided, notwithstanding anything to the contrary and except for this Agreement which may be amended or updated as expressly provided
in the lead-in above Section 1 above, for any amendment or other agreement to be binding on Fortinet, such amendment or other agreement must
be signed by Fortinet’s General Counsel. No waiver will be implied from conduct or failure to enforce rights nor effective unless in a writing signed
on behalf of the party against whom the waiver is asserted. If any part of this Agreement is found unenforceable, that part will be enforced to the
maximum extent permitted and the remainder shall continue in full force and effect. You acknowledge that you have read this Agreement, understand
it, and agree to be bound by its terms and conditions.
14. Privacy.
By entering into this Agreement, you agree and consent that Fortinet may collect, retain and use personal information supplied, including name, ad-
dress, and e-mail address of individuals and payment details and other information. Personal information will be used primarily to provide services and
product functionality to end users. Fortinet may also use personal information for additional communication, subject to an opt-out notice provided by
you in writing per below. Fortinet may engage other companies and individuals to perform functions on its behalf, such as payment processing, order
fulllment, marketing programs and customer service. Fortinet may share personal information with such subcontractors in order to perform these
and other functions, but such subcontractors may not use your personal information for other purposes, unless you agree. By entering into this Agree-
ment, you agree and consent to the transfer the supplied personal information to Fortinet’s ofces in the United States and elsewhere, for the purposes
stated above. For more detailed information on the collection, use and transfer of your personal information, and for information on how to opt out of
or unsubscribe from the communications described above, please read the Fortinet privacy policy on the Fortinet web site (www.Fortinet.com).
15. Open Source Software.
Fortinet’s products may include software modules that are licensed (or sublicensed) to the user under the GNU General Public License, Version 2, of
June 1991 (“GPL”) or GNU Lesser General Public License, Version 2.1, of February 1999 (“LGPL”) or other open source software licenses which, among
other rights, permit the user touse, copy, modify and redistribute modules, or portions thereof, and may also require attribution disclosures and access
to the source code (“Open Source Software”). The GPL requires that for any Open Source Software covered under the GPL, which is distributed to
someone in an executable binary format, that the source code also be made available to those users. For any Open Source Software covered under
the GPL, the source code is made available on this CD or download package. If any Open Source Software licenses require that Fortinet provide
rights to use, copy or modify a Open Source Software program that are broader than the rights granted in this agreement, then such rights shall take
precedence over the rights and restrictions herein. Fortinet will provide, for a charge reecting our standard distribution costs, the complete machine-
readable copy of the modied software modules. To obtain a complete machine-readable copy, please send your written request, along with a check in
the amount of US $25.00, to General Public License Source Code Request, Fortinet, Inc., 1090 Kifer Rd, Sunnyvale, CA 94086 USA. In order to receive
the modied software modules, you must also include the following information: (a) Name, (b) Address, (c) Telephone number, (d) E-mail Address, (e)
Product purchased (if applicable), (f) Product Serial Number (if applicable). All open source software modules are licensed free of charge. There is no
warranty for these modules, to the extent permitted by applicable law. The copyright holders provide these software modules “AS-IS” without warranty
of any kind, either expressed or implied. In no event will the copyright holder for the open source software be liable to you for damages, including
any special, incidental or consequential damages arising out of the use or inability to use the software modules, even if such holder has been advised
of the possibility of such damages. A full copy of this license, including additional open source software license disclosures and third party license
disclosures applicable to certain Fortinet products, may obtained by contacting Fortinet’s Legal Department at legal@fortinet.com.
GNU GENERAL PUBLIC LICENSE GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms
of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Pro-
gram or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modications
and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modication”.) Each licensee is addressed
as “you”.
Activities other than copying, distribution and modication are not covered by this License; they are outside its scope. The act of running the Program
is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been
made by running the Program). Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and
appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and
to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for
the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such
modications or work under the terms of Section 1 above, provided that you also meet all of these conditions:
Page 17
a) You must cause the modied les to carry prominent notices stating that you changed the les and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be
licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modied program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the
most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else,
saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of
this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not
required to print an announcement.)
These requirements apply to the modied work as a whole. If identiable sections of that work are not derived from the Program, and can be reason-
ably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute
them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the
whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regard-
less of who wrote it.. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is
to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work
not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the
other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1
and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections1 and 2
above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing
source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above
on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for non-
commercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)
Source code for a work means the preferred form of the work for making modications to it. For an executable work, complete source code means all
the source code for all modules it contains, plus any associated interface denition les, plus the scripts used to control compilation and installation
of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source
or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component
itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering
equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled
to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy,
modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have
received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the
Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the
Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying,
distributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor
to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise
of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are
imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the condi-
tions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations,
then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the
Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the
section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this
section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices.
Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of
that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose
that choice.
Page 18
Page 19
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright
holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribu-
tion is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this
License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be
similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version
number. If the Program species a version number of this License which applies to it and “any later version”, you have the option of following the
terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version
number of this License, you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for
permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make excep-
tions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the
sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY AP-
PLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS”
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU.
SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO
MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF
DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH
ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized
party saying it may be distributed under the terms of this Lesser General Public License (also called “this License”). Each licensee is addressed as
“you”.
A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some
of those functions and data) to form executables.
The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means
either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with mod-
ications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modication”.)
“Source code” for a work means the preferred form of the work for making modications to it. For a library, complete source code means all the
source code for all modules it contains, plus any associated interface denition les, plus the scripts used to control compilation and installation of the
library.
Activities other than copying, distribution and modication are not covered by this License; they are outside its scope. The act of running a program
using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent
of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library
does.
1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium, provided that you conspicu-
ously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this
License and to the absence of any warranty; and distribute a copy of this License along with the Library. You may charge a fee for the physical act of
transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such
modications or work under the terms of Section 1 above, provided that you also meet all of these conditions:
a) The modied work must itself be a software library.
b) You must cause the les modied to carry prominent notices stating that you changed the les and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.
Page 20
d) If a facility in the modied Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as
an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply
such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.
These requirements apply to the modied work as a whole. If identiable sections of that work are not derived from the Library, and can be reasonably
considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them
as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole
must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of
who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise
the right to control the distribution of derivative or collective works based on the Library. In addition, mere aggregation of another work not based on
the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under
the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you
must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2 instead of to this License.
(If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do
not make any other change in these notices.
Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies
and derivative works made from that copy. This option is useful when you wish to copy part of the code of the Library into a program that is not a
library.
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sec-
tions 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under
the terms of Sections 1 and 2 above on a medium customarily used for software interchange.
If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from
the same place satises the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the
object code.
5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is
called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this
License.
However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because it contains portions
of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License. Section 6 states terms for distribution
of such executables.
When a “work that uses the Library” uses material from a header le that is part of the Library, the object code for the work may be a derivative work
of the Library even though the source code is not.
Whether this is true is especially signicant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be
true is not precisely dened by law.
If such an object le uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or
less in length), then the use of the object le is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object
code plus portions of the Library will still fall under Section 6.) Otherwise, if the work is a derivative of the Library, you may distribute the object code
for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with
the Library itself.
6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce a work containing
portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modication of the work for your own use
and reverse engineering for debugging such modications. You must give prominent notice with each copy of the work that the Library is used in it
and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright
notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also,
you must do one of these things:
a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used
in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete
machine-readable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce
a modied executable containing the modied Library. (It is understood that the user who changes the contents of denitions les in the Library will
not necessarily be able to recompile the application to use the modied denitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library
already present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modied
version of the library, if the user installs one, as long as the modied version is interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specied in Subsection 6a, above, for a
charge no more than the cost of performing this distribution.
Page 21
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specied materials
from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.
For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the execut-
able from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or
binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component
itself accompanies the executable. It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not
normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you
distribute.
7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered
by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library
facilities is otherwise permitted, and provided that you do these two things:
a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be
distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to nd the accompa-
nying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to
copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties
who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compli-
ance.
9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the
Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library
(or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or
modifying the Library or works based on it.
10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor
to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients’
exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions
are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the
conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obliga-
tions, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of
the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Library.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the
section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this
section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices.
Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of
that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose
that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright
holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution
is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this
License.
13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions
will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing ver-
sion number. If the Library species a version number of this License which applies to it and “any later version”, you have the option of following the
terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license
version number, you may choose any version ever published by the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the
author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we some-
times make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of
promoting the sharing and reuse of software generally.
15. The warranty disclaimer contained in Sections 11 and 12 of the preceding GPL License is incorporated herein.
![](/img.php?id=1945798&img=bg1b.png)
![](/img.php?id=1945798&img=bg1c.png)
111.7mm
88.0mm
3.46in
84.6mm
