Franklin Technology U210 USB Modem User Manual
Franklin Technology Inc. USB Modem
User manual
![](/img.php?id=1163646&img=bg1.png)
3Gstick U210
User Manual
{Image Should be changed}
![](/img.php?id=1163646&img=bg2.png)
2
CONTENTS
1. BEFORE USING U210 ..................................................................................... 3
About This User’s Manual ................................................................................. 3
Product Overview ........................................................................................... 3
Product Package Contents ................................................................................ 3
Introduction to U210 USB Modem ..................................................................... 4
Product Specifications ..................................................................................... 4
Product handling ............................................................................................ 5
Configuration ................................................................................................. 5
2. INSTALLATION AND SETUP FOR EASYLINKY™ ............................................... 5
Installing Software.......................................................................................... 5
Setup Program – for Windows .......................................................................... 6
Setup Program – for Mac OS X ......................................................................... 9
3. STARTING EASYLINKY™ .............................................................................. 12
Features ...................................................................................................... 12
Getting Started ............................................................................................ 13
Connecting .................................................................................................. 13
4. USING EASYLINKY™ .................................................................................... 14
Session ....................................................................................................... 14
Tools .......................................................................................................... 15
Options ....................................................................................................... 16
Help ........................................................................................................... 19
Additional Features ....................................................................................... 19
5. INSTALLING U210 ....................................................................................... 20
Recommended System Requirements .............................................................. 20
Remove the Modem from your Computer ......................................................... 21
Using the USB Modem Extension USB cable ...................................................... 21
Trouble Shooting .......................................................................................... 21
CARE AND MAINTENANCE .............................................................................. 21
WARRANTY .................................................................................................. 22
SAR INFORMATION ....................................................................................... 23
SAFETY INFORMATION .................................................................................. 24
U.S.A. ......................................................................................................... 24
![](/img.php?id=1163646&img=bg3.png)
3
1. BEFORE USING U210
About This User’s Manual
This user manual contains all the necessary information regarding the device installation
and how to use the modem for your internet navigation. Please make sure that you are
familiar with the device operation by carefully reading this user manual before using the
U210 EVDO USB modem.
Instructions
y Install the EasyLinky™ software by inserting the U210 USB Device into your PC. The
installation software is included in the U210 modem memory. When you insert the U210
into your computer, the installation process will automatically begin.
y It is highly recommended that you read the safety precautions described in this manual
before using the U210.
Documents Included on your Modem Memory
y Broadband Usage Conditions, Terms & Conditions
y User Manual
Product Overview
Welcome and thank you for choosing U210 USB Modem for your wireless internet
connection.
The U210 is a high-speed wireless device that enables your computer to connect to 3G
high-speed wireless network. The U210 provides simple yet powerful user interface that
is easy to install and use.
Product Package Contents
The following items are included in the product package. If any of the items listed below
are missing, please contact the local retail store where you purchased the product.
![](/img.php?id=1163646&img=bg4.png)
Intro
d
The U
2
model
s
9
9
9
With U
2
where
v
Prod
u
y Po
w
re
d
y An
t
se
n
y Ex
t
pe
r
y US
B
y Su
p
y Uti
l
y Su
p
y Su
p
Ea
s
{Image
{Image
d
uction
2
10 is desi
g
s
. The U21
0
Access th
e
Send and
Access yo
2
10, you a
v
er wired I
n
u
ct
Spec
i
w
er mana
g
d
uction fun
c
t
enna desi
g
n
sitivity to
n
t
ension US
r
formance,
B
Modem t
p
ports PCS
l
izes Qualc
o
p
ports hig
h
p
port Win
d
s
yLinky™ c
o
U21
0
Should be
Quick
S
Should be
to
U210
g
ned for th
0
allows yo
u
e
Internet,
receive e-
m
ur corpora
t
re always
c
n
ternet acc
e
i
fication
g
ement: T
h
c
tions prov
g
n: Its effi
c
n
etwork si
g
B cable co
and to res
o
hat suppor
t
(1900 MHz
o
mm QSC
6
h
-speed ne
t
d
ows XP,
o
nnection
m
0
Device
changed}
S
tart Guide
changed}
USB M
o
e USB por
t
u
to
m
ail
t
e network
c
onnected
w
e
ss is not
r
s
h
e U210 u
t
ided by th
e
c
ient and i
n
g
nals.
nnector:
T
o
lve cleara
t
s Type A
U
), and Cell
u
6
085 chips
e
t
work tech
n
Vista, 7
m
anager s
o
o
dem
t
on your
c
through V
P
w
hether y
o
r
eadily avai
t
ilizes pow
e
USB inter
f
n
novative
d
T
his extens
nce issues
U
SB Port in
t
u
lar (800
M
e
t
n
ologies
and App
o
ftware an
d
{Image
S
{Image
S
c
omputer,
w
P
N
o
u are awa
y
lable.
er manag
e
f
ace for m
a
d
esign opti
ion cable
m
if there is
a
t
erface.
M
Hz) and A
W
le Macint
o
d
driver.
Carr
y
S
hould be
c
USB Exte
n
S
hould be
c
w
hich is a
v
y
from ho
m
e
ment and
a
ximum po
w
mizes dat
a
m
ay be u
s
a
ny.
W
S dual
T
r
o
sh syste
m
y
ing Pouch
c
hanged}
n
sion Cable
c
hanged}
v
ailable in
m
m
e, on the
system o
v
w
er saving
a
transfer
r
s
ed to incr
e
i-bands.
m
s with i
4
m
ost PC
road, or
v
erhead
s.
r
ate and
e
ase RF
nstalled
![](/img.php?id=1163646&img=bg5.png)
5
Product handling
y Do not place any adhesive labels on the USB connector. It may leave a sticky residue
that can cause problems inside the PC USB port.
y The U210 USB device should easily slide into the USB port. Do not force the U210
into the USB port as it may cause damage to the modem and/or the port.
y Keep the U210 in a dry and clean place. (Storage temperature: -22°F to 149°F [-
30°C to 65°C]). Keep your device away from liquids, dust and excessive heat.
Configuration
To use the U210 on your computer, you need to install the EasyLinky™ connection
manager software included in the modem memory and configure the U210 USB device.
See the next section for more information on software installation and USB device
configuration.
The following section will guide you through the installation and setup process for
EasyLinky™ connection manager software. Before getting started, you should become
familiar with the documentation that came with your USB Modem.
2. INSTALLATION AND SETUP FOR EASYLINKY™
This section will guide you through the installation and setup process for EasyLinky™
connection manager software.
Before getting started, you should become familiar with the documentation that came
with your USB Modem.
Installing Software
Warnings
9 Make sure to complete the unplugging/ejection process before removing the U210.
9 If you remove the device improperly, the modem may be damaged.
Notes
9 If you have inserted the device properly, Windows will inform you of the new
hardware. Wait until Windows completes the “Found New Hardware” task.
9 In Windows 2000, several windows similar to “Found New Hardware” window can
appear and disappear automatically. In Windows XP, several tool tips similar to the
“Found New Hardware” function will appear and disappear in the system tray
automatically. In Windows Vista, several tool tips similar to the “Installing device
![](/img.php?id=1163646&img=bg6.png)
6
driver software” function will appear and disappear in the system tray automatically.
Once hardware detection is complete, you will be prompted to start activation.
9 It is normal to hear a short beep sound each time you insert or remove the U210.
9 It is an audible notification that your PC recognizes the new hardware.
Getting Started (Windows)
To install the EasyLinky™ software:
① Turn on your computer then close all applications.
② Insert the U210 modem into your USB port.
③ Your computer will recognize U210 modem and start the installation sequence
automatically. If the program does not launch automatically, go to my computer and
select the ‘3Gstick’ drive and double click ‘start.exe’ program.
④ Follow the steps in the next section.
Setup Program – for Windows

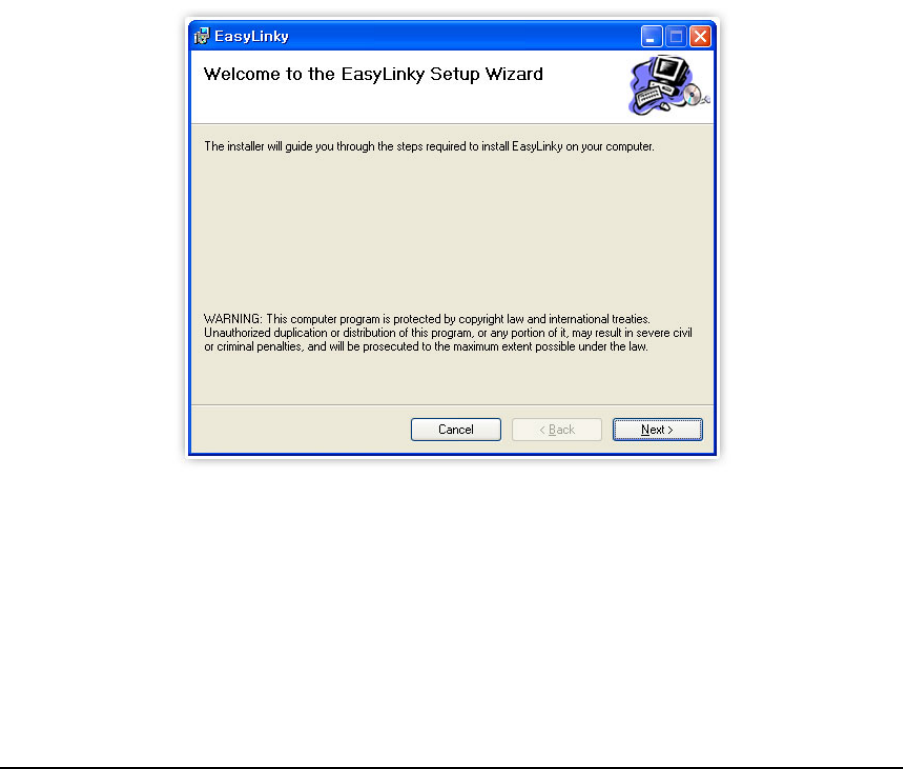

STEP 1: The “Welcome to the EasyLinky Setup Wizard” screen appears. Click the [Next]
button to continue with the installation process.

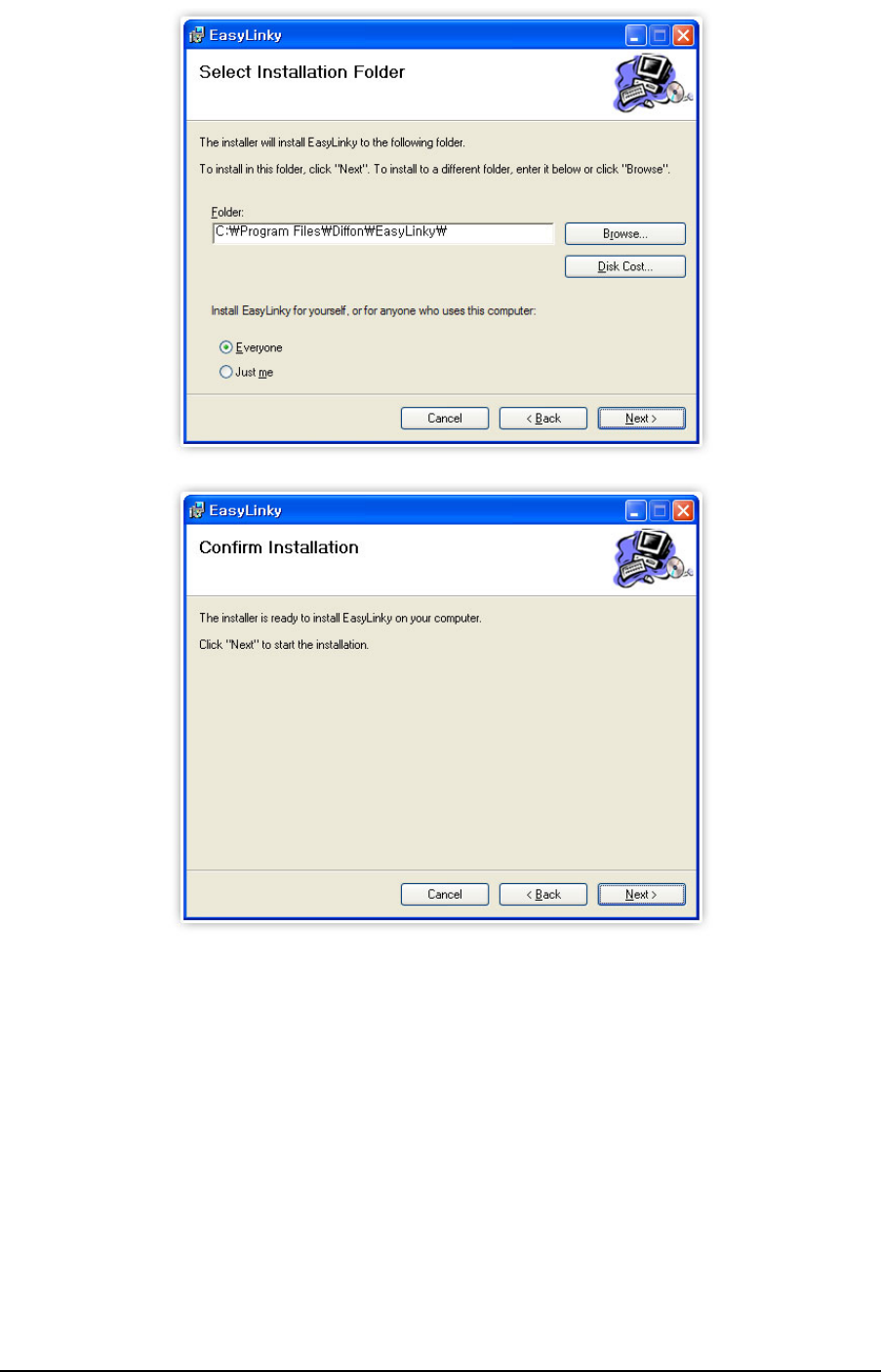

STEP 2: You are now ready to select the location on your computer where EasyLinky™
will be installed. It is recommended that you do not modify the default destination folder.
Click the [Next] button to continue.
![](/img.php?id=1163646&img=bg7.png)
7
STEP 3: During this step the components of EasyLinky product are being installed onto
your computer. Installation will occur to the destination folder specified in Step 2.
![](/img.php?id=1163646&img=bg8.png)
8
STEP 4: Installation of EasyLinky is now complete. Click the [Close] button to leave the
EasyLinky setup program and begin using your new software.

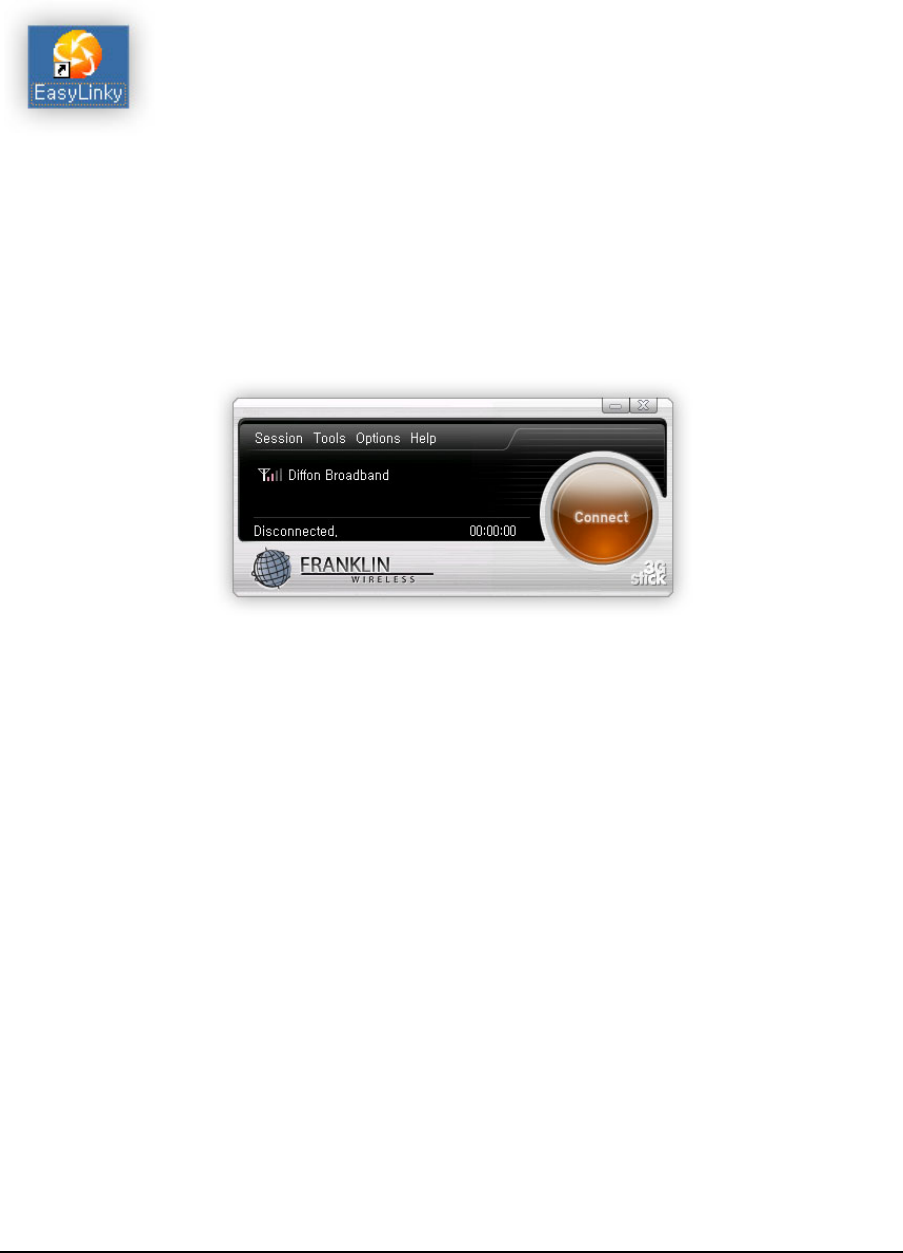

*The setup program will automatically create a EasyLinky shortcut on your desktop.
STEP 5: Please wait while U210 is installed and ready to use.
![](/img.php?id=1163646&img=bg9.png)
9
Setup Program – for Mac OS X

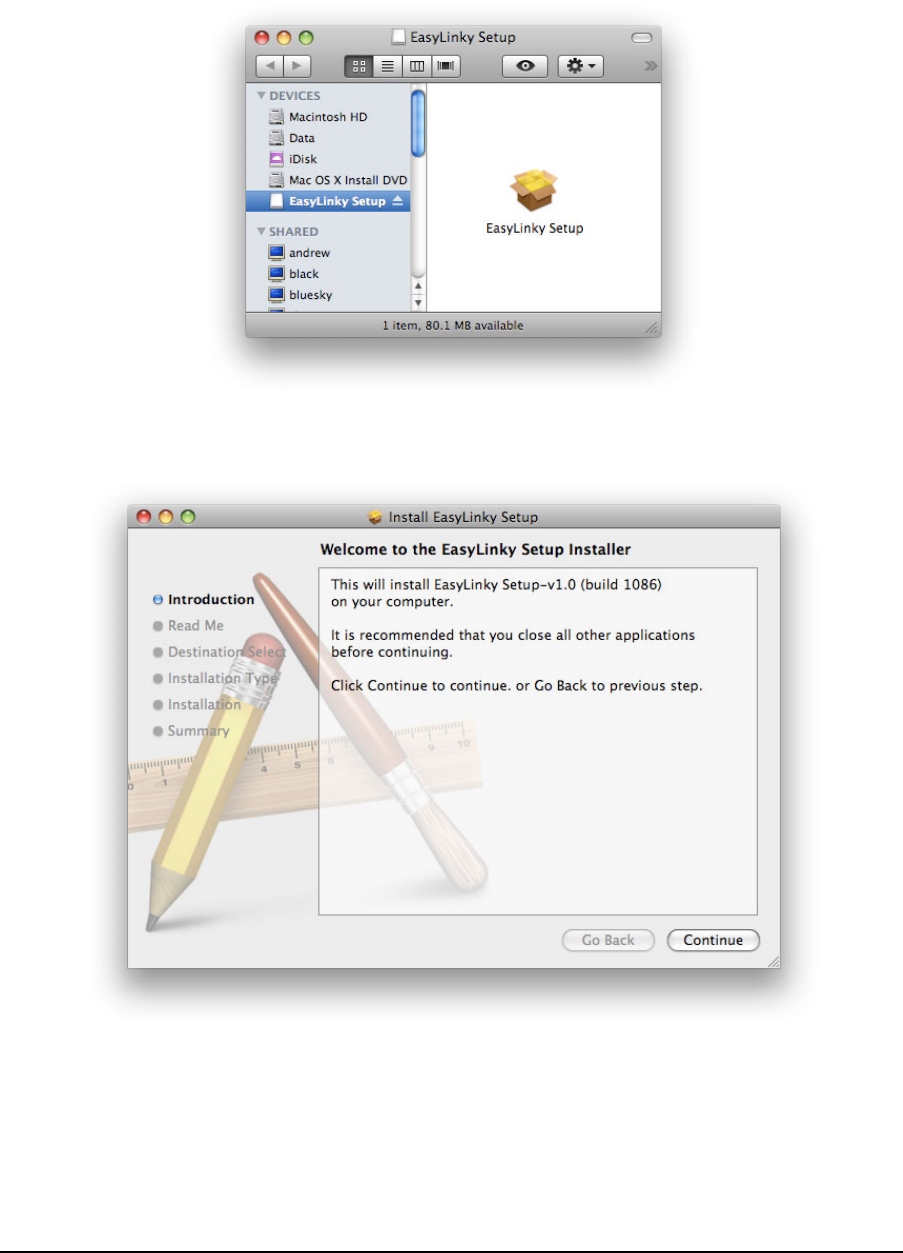

STEP 1: Insert U210 into the PC, then U210 CD disk drive should be automatically
mounted. Double click U210 CD icon on the Desktop. Double click the EasyLinky Setup
icon to launch the installer.
STEP 2: Click [Continue] button in the welcome window to proceed with the installation.

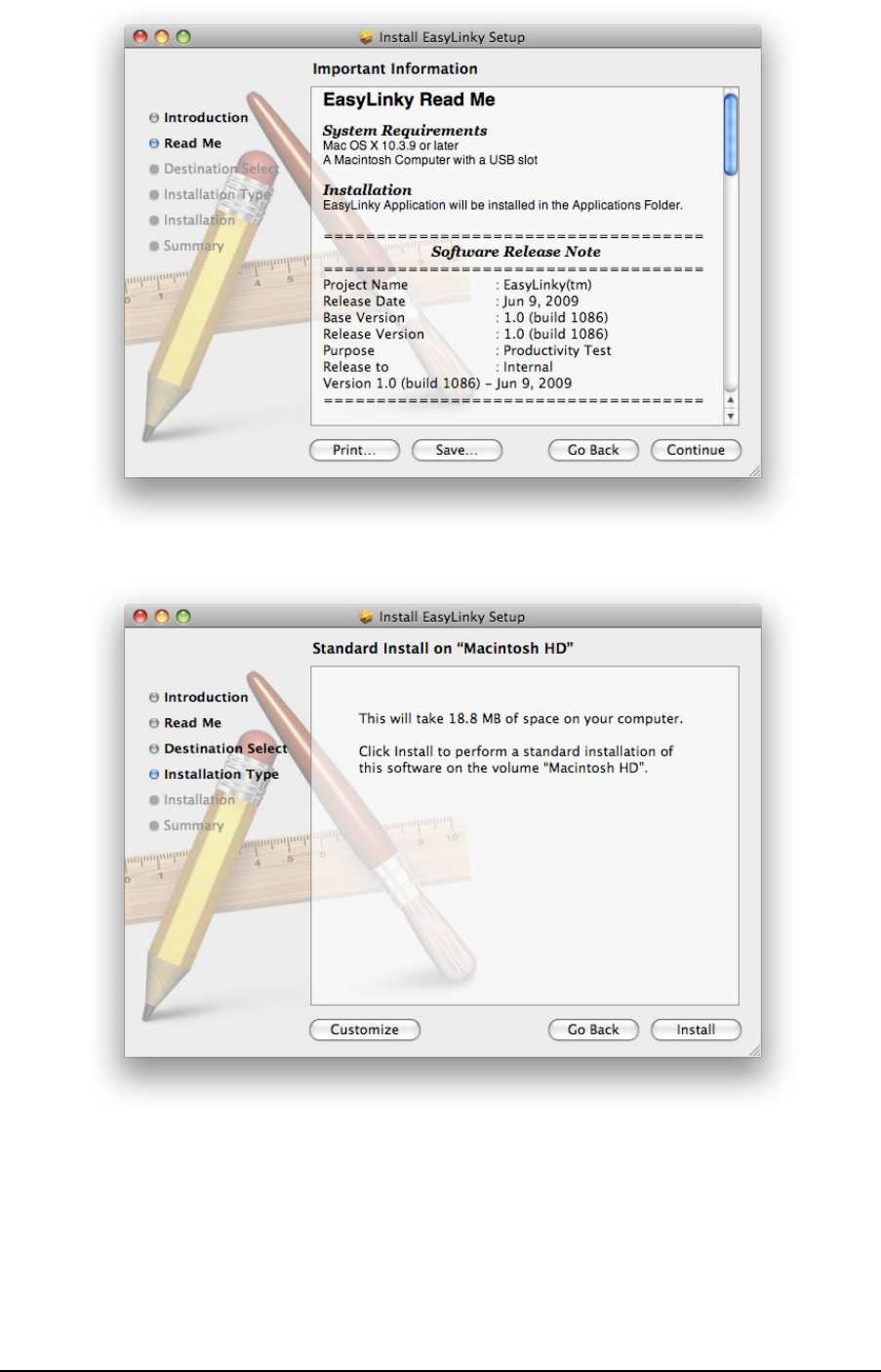

STEP 3: The Read Me file appears. Click the [Continue] button.
![](/img.php?id=1163646&img=bga.png)
10
STEP 4: Click “Install” to begin the standard installation on system volume
STEP 5: Finally, the Setup Wizard shows confirm window, click the [OK] button to
continue.
![](/img.php?id=1163646&img=bgb.png)
11
Enter the Name/Password used to log into the computer then click ‘OK’.
STEP 6: EasyLinky installation begins.

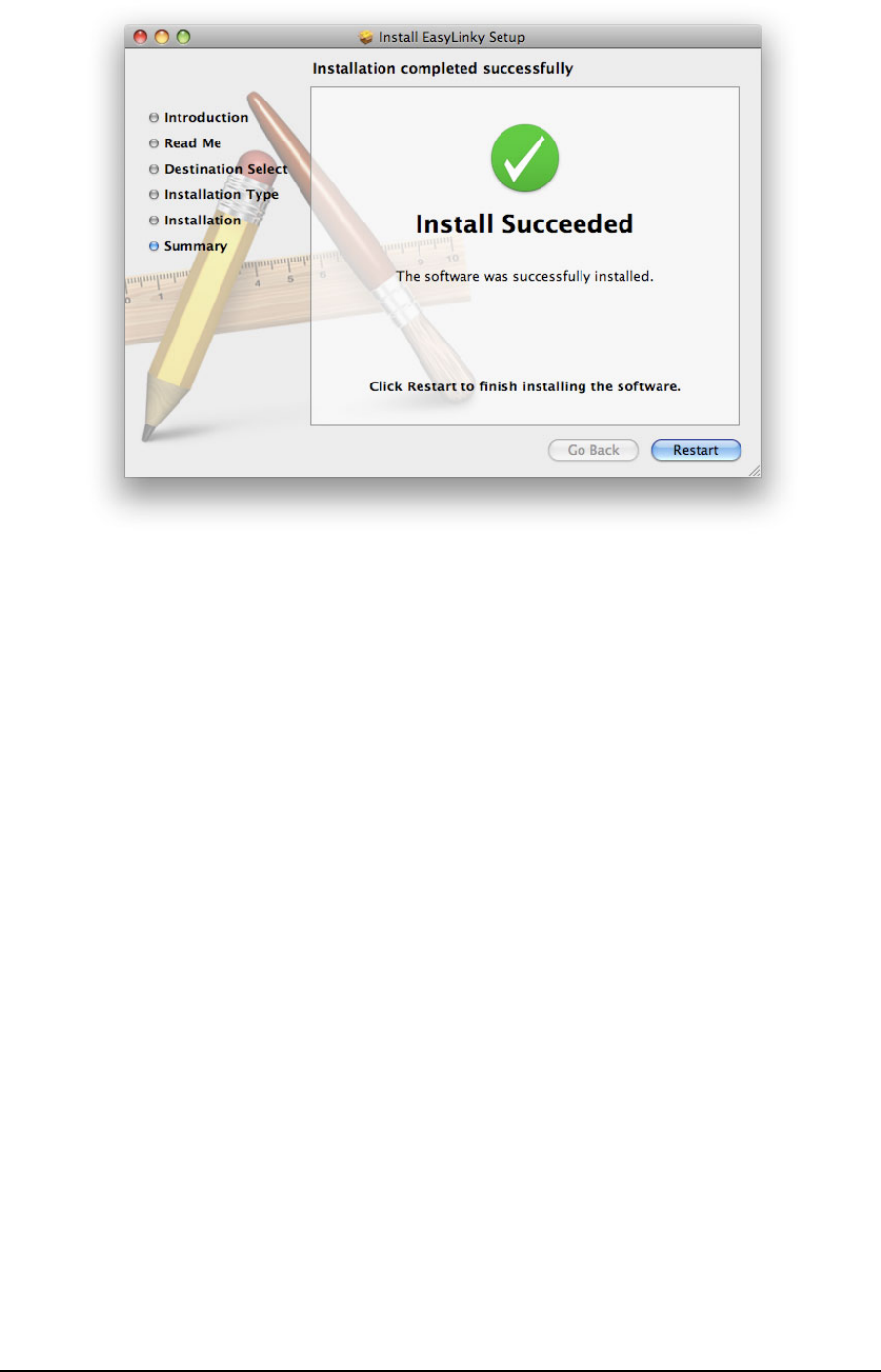

STEP 7: Installation is now complete. Click ‘Restart’ button to close the setup wizard.
Then OS is restarted.
![](/img.php?id=1163646&img=bgc.png)
12
3. STARTING EASYLINKY™
EasyLinky™ is a connection manager application for U210 USB modem. It allows you to
manage and monitor the Internet connection between your computer and the wireless
network. It has user friendly interface and is equipped with many useful features that
will enhance your internet navigation experience.
Features
WWAN(Wireless Wide Area Network, 1xEV-DO/1xRTT/CDMA) Specific Features:
y Configures your computer to use your USB Modem
y Creates a Data Connection for your USB Modem
y Copies utility to create wireless copies of your dial-up connections, if supported by
your device
y Test function for WWAN device
※ A WWAN capable device is required to use the WWAN features. Individual WWAN
features are also device dependent as described in the WWAN section above.
Other Features:
y Logs connections used, duration of the usage, and bytes sent and received.
y See the section “Additional Features” for more information about the features of
EasyLinky™ connection manager.
![](/img.php?id=1163646&img=bgd.png)
13
Getting Started
Double click on the EasyLinky icon on your desktop or click on the Windows Start menu
and select EasyLinky from the list of programs.
About the Wireless Networks View
EasyLinky will open the Broadband Networks window as shown below. This view is where
you manage your Broadband connections. The Broadband Networks window displays all
the available network connections.
At a glance you can see the signal strength. Your current connection state and the
elapsed time of the connection are displayed along the bottom of the status bar.
Connecting to the Internet
Once your device is properly configured, connecting to the Internet is as simple as
clicking the “Connect” button.
Once connected, the “Connect” button will change to “Disconnect”.
Simply click this “Disconnect” button to end your current connection. To connect to any
other network shown, select it, and then click the “Connect” button.
The Status Bar
Information regarding your current network connection can be seen in the status bar
along the bottom of EasyLinky interface. For more information on this status bar, see the
section “The Status Bar” in the “Additional Features” section.
EasyLinky will display status information at the bottom during the connection process as
well as while connected.
When it is not connected, the status text in the lower left corner will display “Not
connected” for the currently selected network. The timer will display “00:00:00”. Once
![](/img.php?id=1163646&img=bge.png)
14
connected, the status text will display “Connected” and the timer will begin to run.
Right clicking on the tray icon provides various options and double clicking on it will
always show the application. Placing your mouse pointer on it will display the current
connection status.
Based on your preferences, your browser can be launched automatically upon connection.
Using the “Data” connection:
By default EasyLinky enables the software for data connections.
If your connection fails when you try to connect, please try to reconnect.
Dormancy:
The data session can go to dormant mode if you are not sending or receiving any data
for an extended period of time. As soon as you resume sending or receiving data, the
data session will return to an active state automatically.
4. USING EASYLINKY™
The Session Menu
z Connect / Disconnect: Use this button to connect or disconnect the wireless
networks.

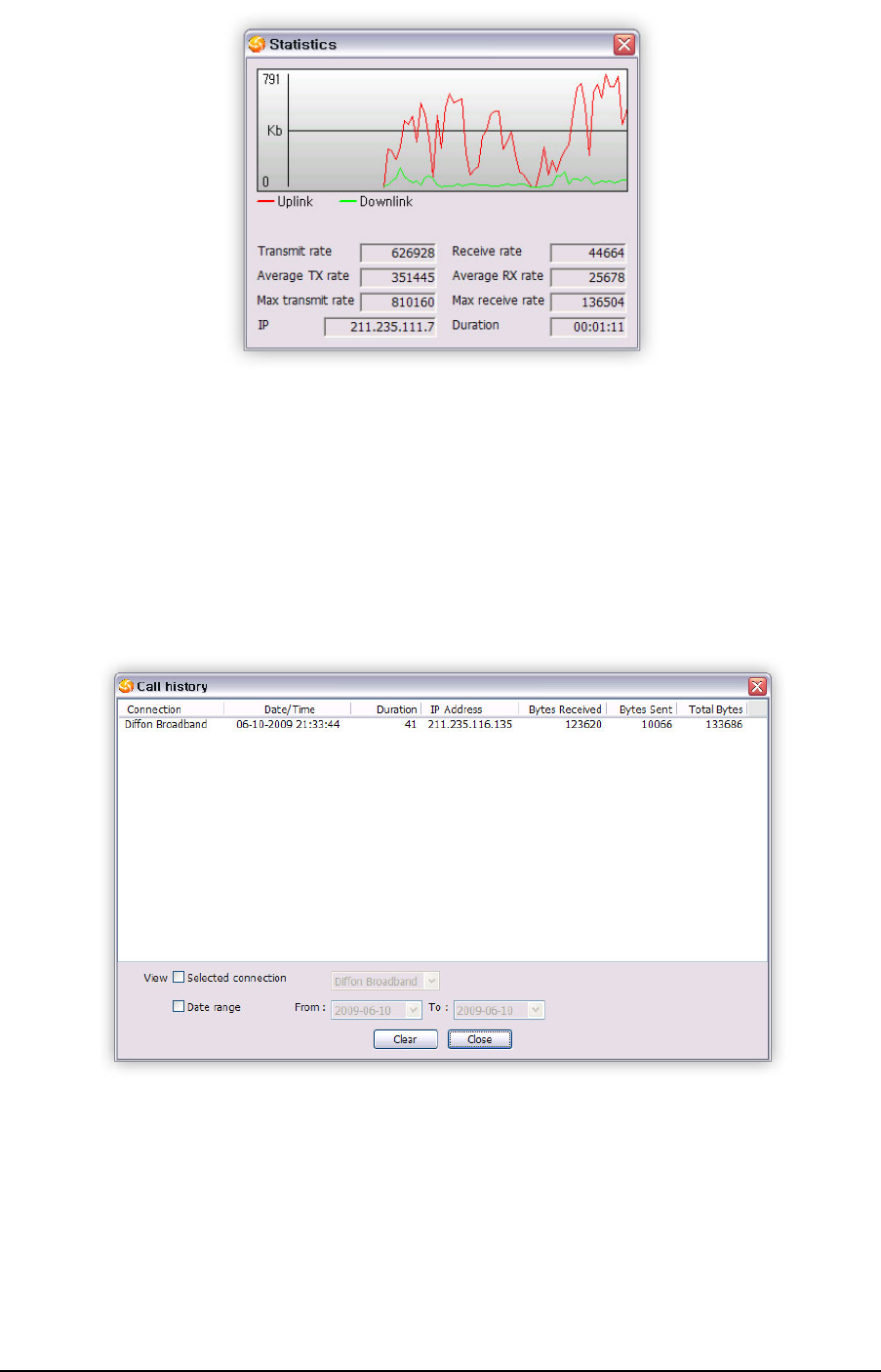

z Statistics: At any time during your connection you can check your current
connection speed and throughput stats in the Statistics window. To see this window,
select “Statistics” from the “Session” menu.
![](/img.php?id=1163646&img=bgf.png)
15
z Exit: Close the EzsyLinky™ Software
The Tools Menu
z Log: This feature provides a concise session log of your network activity. Click on a
column heading to sort the log. This window also displays the total number of
sessions as well as the total connected time. The information displayed in the Usage
log can be customized using the controls that appear just below the list.
9 To view only the connection history of a specific network type, check the
“Selected connection” checkbox and select the desired type from the drop-down
list.
9 To view only the connections made during a specific interval, check the “Date
range” checkbox and specify the date in the “From:” and “To:” fields.
9 To clear the log, press the Clear button. Note that clearing the log cannot be
undone.
![](/img.php?id=1163646&img=bg10.png)
16

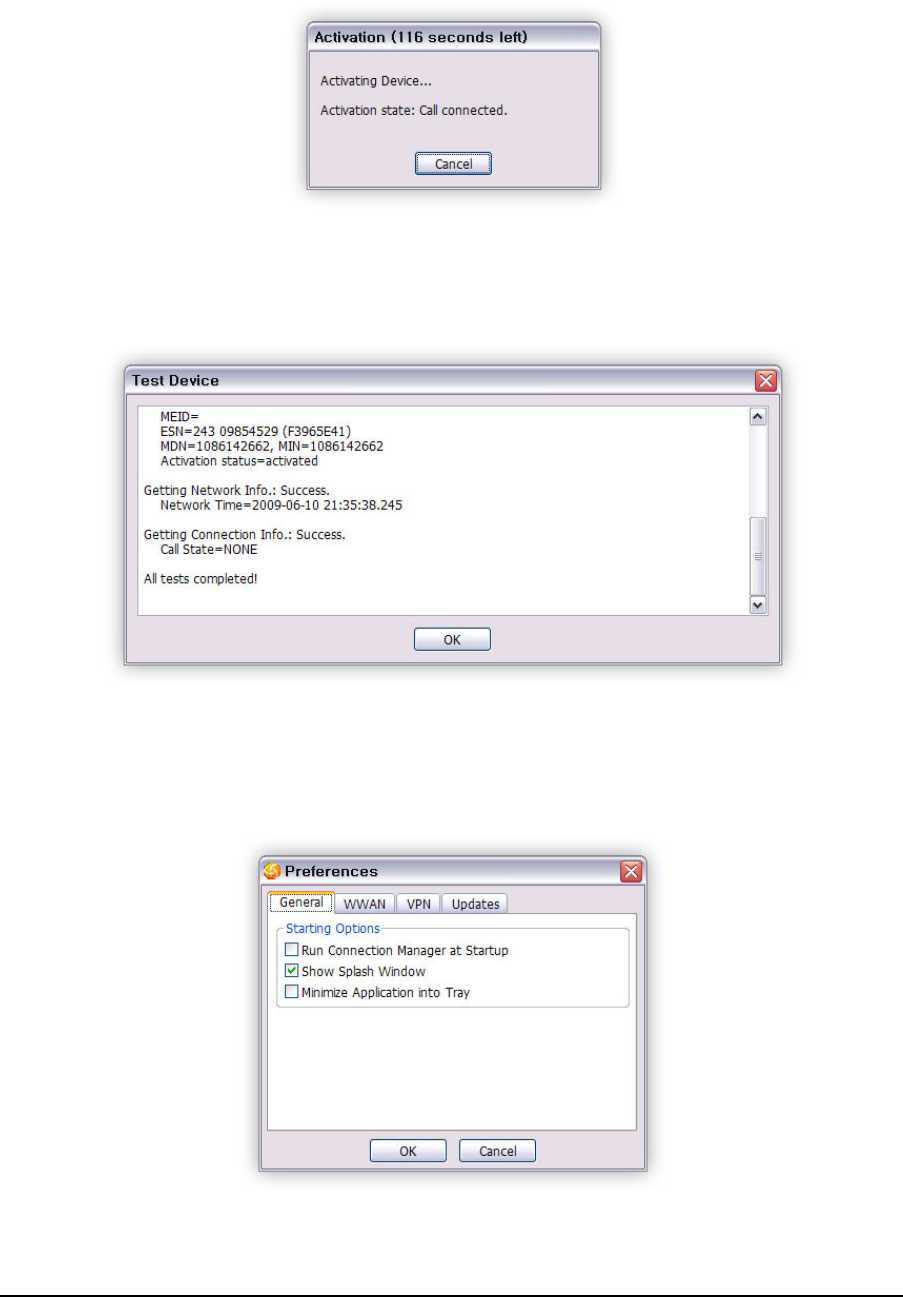

z Activation: Programs the activation code, phone number, and IMSI(MIN) to the USB
Modem.
z Test Device: Retrieve and display detailed information about your WWAN device
(1xEV-DO/1xRTT/CDMA USB Modem) such as CM port, model, MEID, MDN, etc. This
information can be valuable when troubleshooting a problem.
The Options Menu
[Preferences]
(1) General Tap
z Starting Options
![](/img.php?id=1163646&img=bg11.png)
17
9 Run Connection Manager at Startup: If this option is checked the EasyLinky
starts automatically when Windows starts.
9 Show Splash Window: Display splash window when EasyLinky starts.
9 Minimize Application into Tray: When you minimize the application it will now
appear in the Windows task bar. To restore the application click on EasyLinky
tray icon, and select[Open].

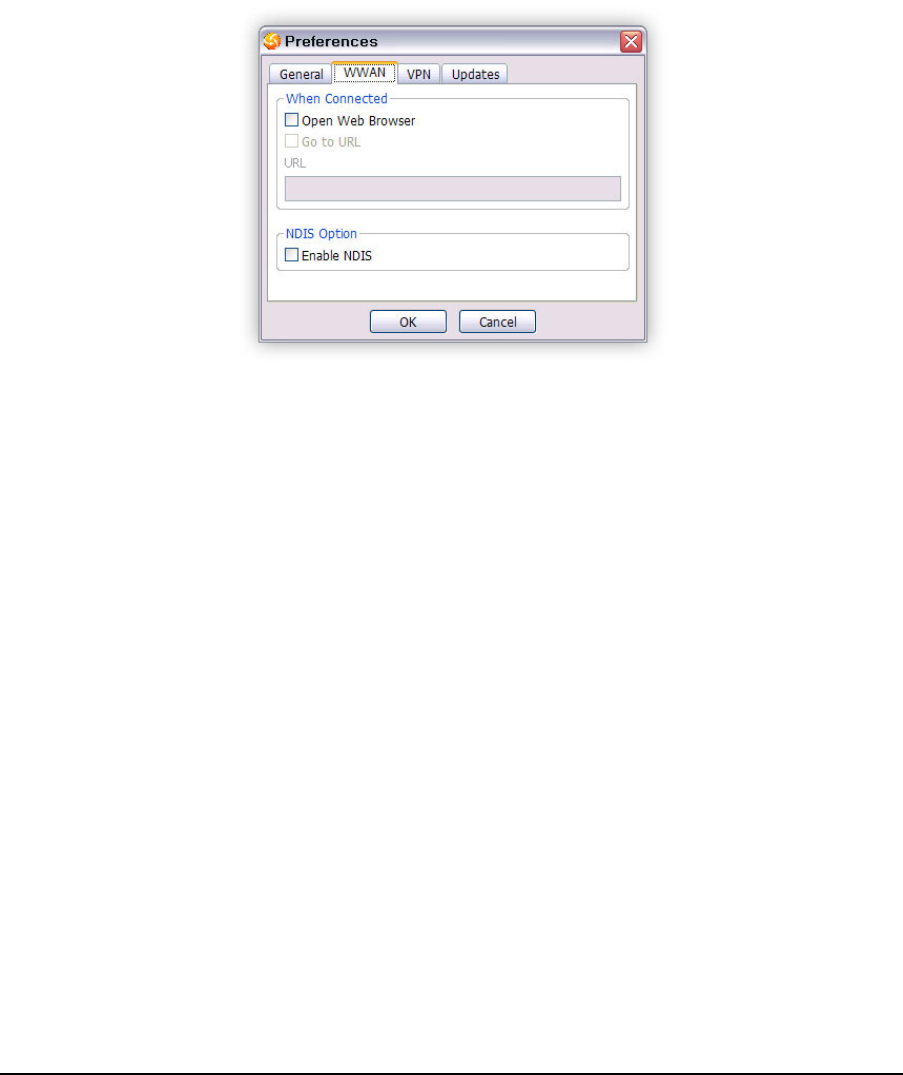

(2) WWAN Specific Settings
z When Connected: This is used to set various WWAN connection settings.
9 Open Web Browser: If it is checked, y, EasyLinky will launch the default web-
browser automatically when the data connection is established successfully.
9 Go to URL: Use this option to enable web-browser go to web site you defined
using URL field below.
9 URL: Website URL for starting page of web browser started automatically upon
connecting to the EasyLinky network.
z NDIS (Network Driver Interface Specification) Option
9 Enable NDIS: When enabled, this feature allows automatic internet connection
without user interaction
(3) VPN Settings
![](/img.php?id=1163646&img=bg12.png)
18

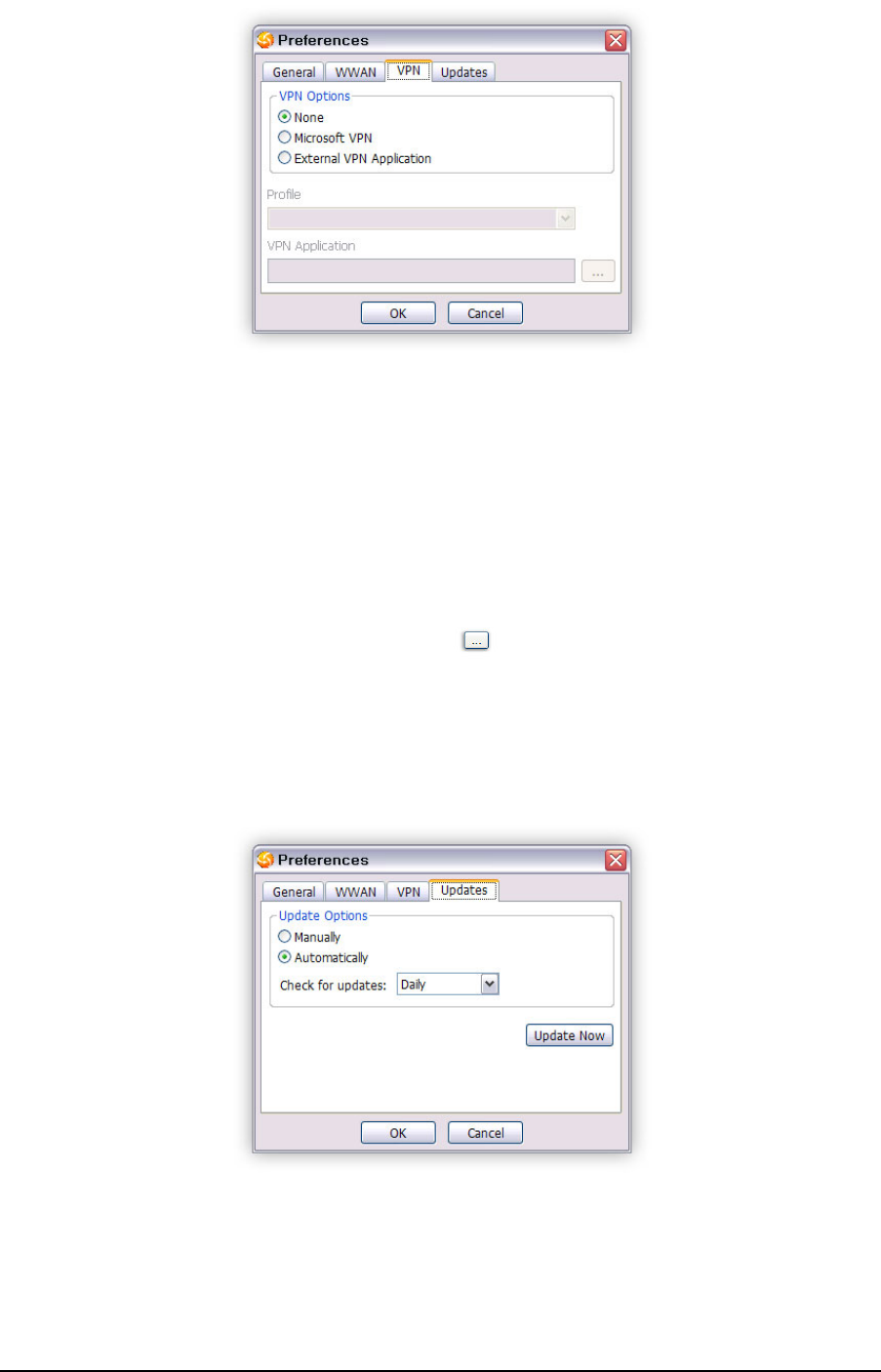

z VPN Options
9 None: Do not use VPN.
9 Microsoft VPN: Use VPN client of Microsoft Windows.
9 External VPN Application: Use other VPN client application provided another
vendor.
9 Profile (Microsoft VPN only): Select Microsoft VPN Profile.
9 External VPN Application: Specify other VPN client application. To choose the
application from your local disk, click“ ” button.
(4) Update settings
This feature allows EasyLinky software to check for software updates and it can be
updated manually or automatically.
z Update Option
9 Manually: If you choose this option, the software will only check for update
when you select “Update Now” button or select “Help”, then “Check for updates”
from main screen.
![](/img.php?id=1163646&img=bg13.png)
19
9 Automatically: You can allow the software to automatically check for updates,
daily, weekly, or monthly. It only checks when the application is running and
when it detects that you are connected and able to access the Internet.
[Language]
You can change language setting between English and Spanish.
The Help Menu
z Contents: It provides contents for additional information.
z Check for Updates: Select this option to check for the available latest software.
z About: Displays copyright and U210 device information
Additional Features
In addition to the basic features mentioned in previous sections, EasyLinky has the
additional features listed below.
z Status Bar
The details of your current connection can be seen in the status bar at the bottom of
EasyLinky interface. This status bar is always visible when the interface is fully
expanded.
z Connection Status
The text on the status bar reflects your current state. During an active connection,
this text will change to “Connected”. If you are not connected, it will display
“Disconnected”.
![](/img.php?id=1163646&img=bg14.png)
20
z WWAN USB Modem Status Area: The text can change to the following:
9 No Device: Your WWAN USB Modem is removed from the laptop.
9 Device not activated: Your USB Modem needs to be activated. Select
“Activation” from the Tools menu.
z Throughput
The amount of data that you have sent and received since the current network
connection was initiated can be seen by holding the mouse over.
z Elapsed Time
The amount of time that has elapsed since the current network connection was
initiated is tracked on the lower left side of the status bar.
5. INSTALLING U210
Recommended System Requirements
To successfully install and use the U210 USB device in your PC, the following system
specifications are required.
Item
Required Specification
Operating system Windows® 2000/XP/Vista
Mac OS X 10.3.9 or higher
USB Port Type A USB port
![](/img.php?id=1163646&img=bg15.png)
21
Processor/Memory Minimum required system to support the above OS
Disk space 32 MB
Dial-up networking DUN bound to TCP/IP
Remove the Modem from your Computer
9 Remove the U210 from your laptop. When removing the modem, always grip the
sides of the modem and pull carefully.
Using the USB Modem Extension USB cable
9 The U210 modem package includes an extension USB cable. Although the USB cable
is not required for use with your U210 modem, it offers increased performance for
your modem under certain operating conditions. Connect the USB cable to USB ports
of your computer.
Trouble Shooting
The following is a partial listing of errors and possible solutions. Please refer to the Inline
Help and the EasyLinky Manager User Manual for a full listing.
9 Ensure that the EasyLinky Connection Manager has been correctly installed on your
computer.
9 Ensure that your USB modem has been activated.
9 Ensure that the USB modem is fully plugged into the USB slot.
9 Ensure that the LED light is on; otherwise connect and then reconnect the USB
modem.
CARE AND MAINTENANCE
Your device is a product of superior design and craftsmanship and should be treated with care. The suggestions
below will help you protect your warranty coverage.
(a) Keep the device dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that
will corrode electronic circuits.
(b) Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be
damaged.
(c) Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage
batteries, and warp or melt certain plastics.
(d) Do not store the device in cold areas. When the device returns to its normal temperature, moisture can
form inside the device and damage electronic circuit boards.
(e) Do not attempt to disassemble the device.
(f) Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine
mechanics.
![](/img.php?id=1163646&img=bg16.png)
22
(g) Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
(h) Do not paint the device. Paint can clog the moving parts and prevent proper operation.
(i) Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or
attachments could damage the device and may violate regulations governing radio devices.
All of the above suggestions apply equally to your device, battery, charger, or any enhancement. If any device
is not working properly, take it to the nearest authorized service facility for service.
WARRANTY
Manufacture’s Limited One-Year Warranty:
Franklin Wireless (the company) warrants to the original retail purchaser of this device, that should product or
any part thereof, during normal consumer usage conditions, be defective in material or workmanship that
results in product failure within the first twelve (12) month period from the date of purchase, such defects will
be repaired or replaced (with new or refurbished) product at the Company’s discretion, without charge for parts
and labor directly related to the defect(s). This warranty extends to consumers who purchase the product in
the United States or Canada and it’s not transferable or assignable. This warranty does not apply to:
(a) Product subject to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration,
misuse, improper installation or repair or improper storage;
(b) Products whose mechanical serial number or electronic serial number has been removed, altered, or
defaced;
(c) Damage from exposure to moisture, humidity, excessive temperature or extreme environment conditions;
(d) Damage resulting from connection to, or use of any accessory or other product not approved or
authorized by the company;
(e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts;
(f) Product damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery
leakage, blown fuse, theft or improper usage of any electrical source.
The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for
inadequate signal reception by the antenna or for communications range or operation of the cellular system as
a whole.
When sending your wireless device to Franklin Wireless’ authorized distributions for repair or service, please
note that any personal data or software stored on the device may be inadvertently erased or altered. Therefore,
we strongly recommend you make a back up copy of all data and software contained on your device before
submitting it for repair or service. This includes all contact lists, downloads (i.e. third-party software
applications, games and graphics) and any other data added to your device. Franklin Wireless is not
responsible for and does not guarantee restoration of any third-party software, personal information or
memory data contained in, stored on, or integrated with any wireless device, whether under warranty or not,
returned to Franklin Wireless’ authorized distributors for repair or service. To obtain repairs or replacement
within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated
bill of sale), the consumer’s return address, daytime phone number and/or fax number and complete
description of the problem, transportation prepaid, to the Company at the address shown below or to the place
of purchase for repair or replacement processing. In addition, for reference to an authorized Warranty station
in your area, please call (800)959-3558 in the United States.
![](/img.php?id=1163646&img=bg17.png)
23
The extent of the company’s liability under this warranty is limited to the repair or replacement provided above
and, in no event, shall the company’s liability exceed the purchase price paid by purchaser for the product.
Any implied warranties, including any implied warranty of merchant ability or fitness for a particular purpose,
shall be limited to the duration of this written warranty. Any action for breach of any warranty must be brought
within a period of 18 months from date of original purchase, but in no case shall the company be liable for a
special consequential or incidental damages for breach of this or any other warranty, express or implied,
whatsoever. The company shall not be liable for the delay in pending service under this warranty or loss of use
during the time the produce is being repaired or replaced.
No person or representative is authorized to assume for the Company any liability other than expressed herein
in connection with the sale of this product.
Some states or provinces do not allow limitations on how long an implied warranty lasts on the exclusion or
limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you.
This Warranty gives you specific legal rights, and you may also have other rights, which vary from state to
state or province to province.
Franklin’s Authorized Service Center Address:
9823 Pacific Heights Blvd. Suite
San Diego, CA 92121
SAR INFORMATION
THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the
emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of
the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF
energy for the general population. The guidelines are based on standards that were developed by independent
scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a
substantial safety margin designed to assure the safety of all persons, regardless of age and health. The
exposure standard for wireless mobile phones employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the
phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR level of the phone while operating can be well
below the maximum value. This is because the phone is designed to operate at multiple power levels so as to
use only the power required to reach the network. In general, the closer you are to a wireless base station
antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested
and certified to the FCC that it does not exceed the limit established by the government adopted requirement
for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body)
as required by the FCC for each model. The highest SAR value for this model modem when tested for use near
the body, as described in this user guide, is 1.19 W/Kg. While there may be differences between the SAR levels
of various phones and at various positions, they all meet the government requirement for safe exposure. The
FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC
and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID:
XHG-U210. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular
![](/img.php?id=1163646&img=bg18.png)
24
Telecommunications Industry Association (CTIA) web-site at http://www.wow-com.com.
* In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg)
averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional
protection for the public and to account for any variations in measurements.
SAFETY INFORMATION
SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn your phone OFF when in any area with a potentially explosive atmosphere and obey
all signs and instructions. Sparks in such areas could cauls e an explosion or fire resulting in bodily injury or
even death. INTERFERENCE TO MEDICAL DIVICES Certain electronic equipment may be shielded against RF
signal from you wire-less phone. (pacemakers, Hearing Aids, and so on) Turn your phone OFF in health c are
facilities when any regulations posted in these areas instruct you to do so. RF signals may affect improperly
installed or inadequately shielded electronic system in motor vehicles. EXPOSURE TO RF ENERGY Use only the
supplied or an approved replacement antenna. Do not touch the antenna unnecessarily when the phone is in
use. Do not move the antenna close to, or couching any exposed part of the body when making a call. NEAR
BODY OPERATION This device was tested for typical near body operations with the back of the phone kept 0.5
cm from the body. To maintain compliance with FCC RF exposure requirements, it must have a minimum
distance including the antenna of 0.5 cm from the body during normal operation
U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules These limits are designed to provide reasonable
protection against harmful Interference in a residential installation This equipment generates, uses, and can
radiate radio frequency energy and, if Not installed and used in accordance with the instructions, may cause
harmful Interference to radio communications. However, there is no guarantee that interference will not occur
in a particular Installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
y Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
y Connect the equipment into an outlet of a circuit different from that to which the receiver is connected.
y Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for Compliance could void the user’s
authority to operate the equipment. Connecting of peripherals requires the use of grounded shielded signal
cables.
