User Manual Rev0426
![](/img.php?id=1959081&img=bg1.png)
Link Procedure
Each transmitter has an individually
assigned, unique ID code. In order to start
operation, the receiver must be linked
with the ID code of the transmitter with
which it is being paired. Once the link is
made, the ID code is stored in the receiver
and no further linking is necessary unless
the receiver is to be used with another
transmitter.
1Place the transmitter and the
receiver close to each other within
half (0.5) meter.
2Place the transmitter into the linking
mode, and turn on the receiver.
3During countdown, push the receiver
tact switch for approximately 2
seconds. The LED will begin to blink
red. After the receiver LED switches
from blinking red to green →red
steady light, If the transmitter and
receiver are linked normally, set the
power switch to the OFF position
and then return it to the PWR ON
position. If the receiver LED lights
green, linking was successful.
Actually check servo operation.
*Please refer to the table below for
LED status and receiver condition.
*Refer to the transmitters operation
manual for complete details on how to
place the transmitter into the linking
mode.
*If there are many T-FHSS systems
turned on in close proximity, your
receiver might have difficulty
establishing a link to your transmitter.
This is a rare occurrence. However,
should another T-FHSS transmitter/
receiver be linking at the same time,
your receiver could link to the wrong
transmitter. This is very dangerous
if you do not notice this situation. In
order to avoid the problem,we strongly
recommend you to double check
whether your receiver is really under
control by your transmitter.
WARNING
After the linking is done, please cycle receiver power and check if the
receiver to be linked is really under the control by the transmitter to be linked.
Do not perform the linking procedure with motor's main wire connected or
with the engine operating as it may result in serious injury.

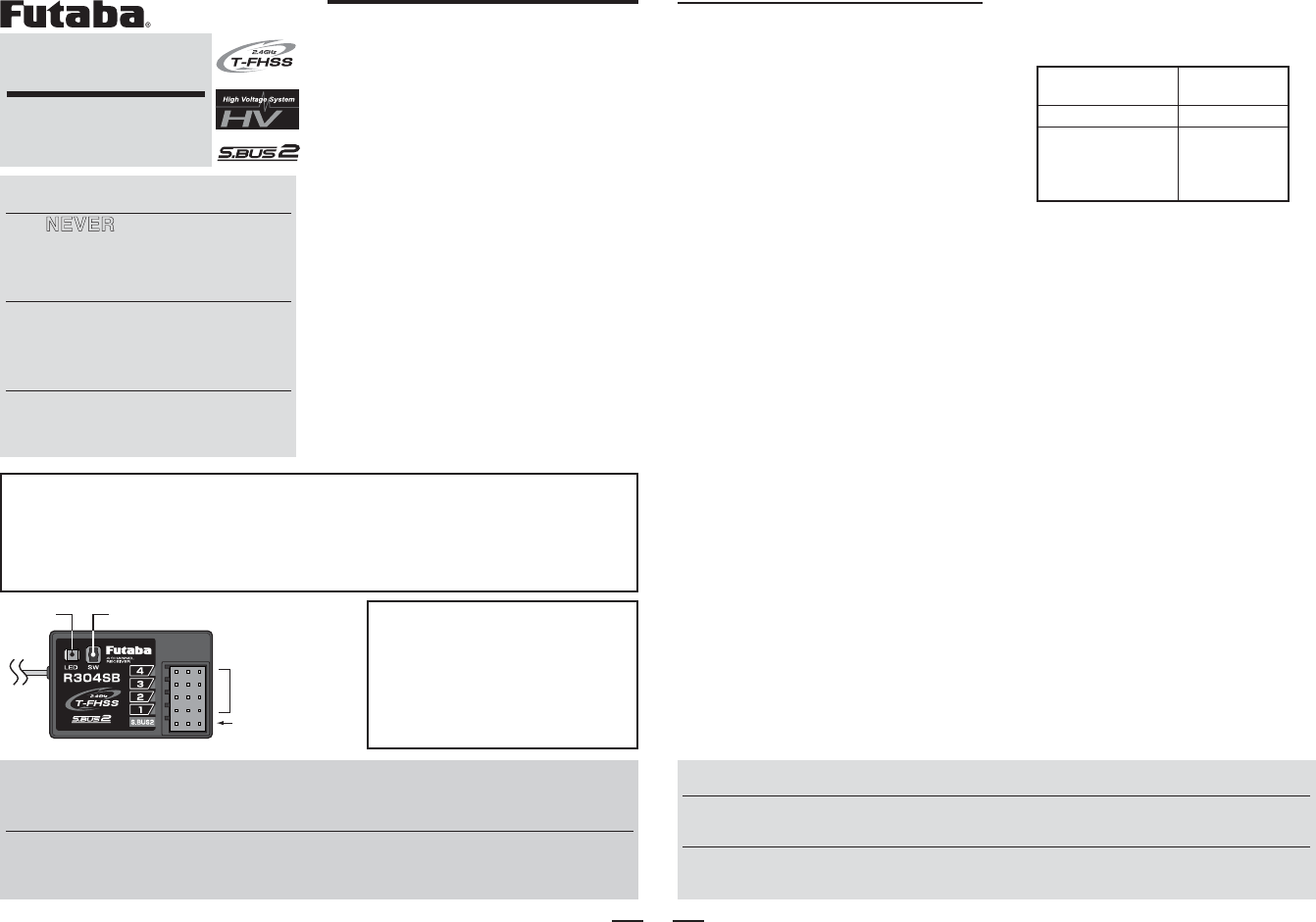

Link switchLED
S.BUS2 / (Battery)
CH output
(1 to 4) / (Battery)
Operating Precautions:
Once the R304SB detects the
T-FHSS normal mode or T-FHSS high
speed mode, the detected mode is
locked as long as the power is ON.
When need to change the mode,
please cycle power.
Note: The R304SB is compatible with the T-FHSS system
transmitters.
The receiver type setting of the transmitter is set in T-FHSS.
*Futaba T-FHSS system does not work with current Futaba S-FHSS/FHSS/FASST-
est/FASST system.
Usage condition on "High Speed mode"
CAUTION
When using the high-speed mode, use a Futaba digital servo (including
brushless servo). Analog servos cannot be used.
s4HEUSEOFANALOGSERVOSMAYCAUSESERVOTROUBLE
1M23N28502
T-FHSS-2.4GHz System
S.BUS2, 4-Channel
Receiver for Model Car
Thank you for purchasing the R304SB
receiver. The R304SB is designed for use with
the Futaba T-FHSS system transmitter.
The R304SB receiver has adopted the newly
developed bidirectional communication
system "T-FHSS".
s4ELEMETRYSYSTEM
With the telemetry system, the running
status can be displayed at the transmitter.
The telemetry data can be checked at the
transmitter by connecting the telemetry sensor
sold separately to the S.BUS2 connector of the
R304SB receiver.
s.ORMALMODE(IGH3PEEDMODE
The "Normal mode" accepts any type of servos
or the peripheral. The "High Speed mode"
only accepts the digital servos, including BLS
series, and most peripheral equipments such
as the brushless ESCs. Please pay special
attention to the information contained within
this manual and transmitter's manual in order
to have a pleasant running experience.
R304SB
WARNING
NEVER use dry batteries for
the power supply of the R304SB
as this may cause difficulties with
the receiver's operation.
Wrap the receiver with
something soft,such as foam
rubber,to avoid vibration. Do not
splash water over the receiver.
Since the receiver generates a
certain amount of heat, install
the place with good ventilation.
No signal recep-
tion LED: Red
Receiving signals LED: Green
Unrecover-
able failure
(EEPROM,etc.)
LED: Red
and Green
turn on alter-
nately
1
![](/img.php?id=1959081&img=bg2.png)
FUTABA CORPORATION
1080 Yabutsuka, Chosei-mura, Chosei-gun, Chiba-ken, 299-4395, Japan
Phone: +81 475 32 6982, Facsimile: +81 475 32 6983
©FUTABA CORPORATION 2013, 4 (1)
Compliance Information Statement
(for U.S.A.)
This device, trade name Futaba Corporation of America, model number R304SB, complies
with part15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
(3) This module meets the requirements for a mobile device that may be used at separation
distances of more than 20cm from human body.
To meet the RF exposure requirements of the FCC this device shall not be co-located with
another transmitting device.
The responsible party of this device compliance is:
Futaba Service Center
3002 N Apollo Drive Suite 1, Champaign, IL 61822 U.S.A.
TEL (217)398-8970 or E-mail: support@futaba-rc.com (Support)
R304SB Specifications:
(T-FHSS system, S.BUS2, 4-channel receiver)
s2ECEIVINGON'(ZBAND
s3YSTEMT-FHSS system
At Normal/High speed mode (auto detection)
s
Power requirement Rated voltage: 4.8V-7.4V / Usable voltage: 3.5-8.4V
s &3AND"ATTERY&3FUNCTION)TISSETACCORDINGTOTHETRANSMITTERUSED
s "ATTERY&3VOLTAGE3ETITWITHTHETRANSMITTERARBITRARILY
s3IZEXXvXXMM
s7EIGHTOZG
2
Receiver HUB
Temperature
sensor
RPM sensor
Voltage sensor
Switch
Battery
Telemetry sensors
(Option)
Steering servo
Throttle servo
CH4 CH1
Collect many telemetry
sensors by HUB and connect
them to S.BUS2 port.
S.BUS2
CH2
,WFRQQHFWVZLWKSRUWZKLFKLVQRWXVHGك
*When all the ports are used, connect
a battery using HUB or Y-harness.

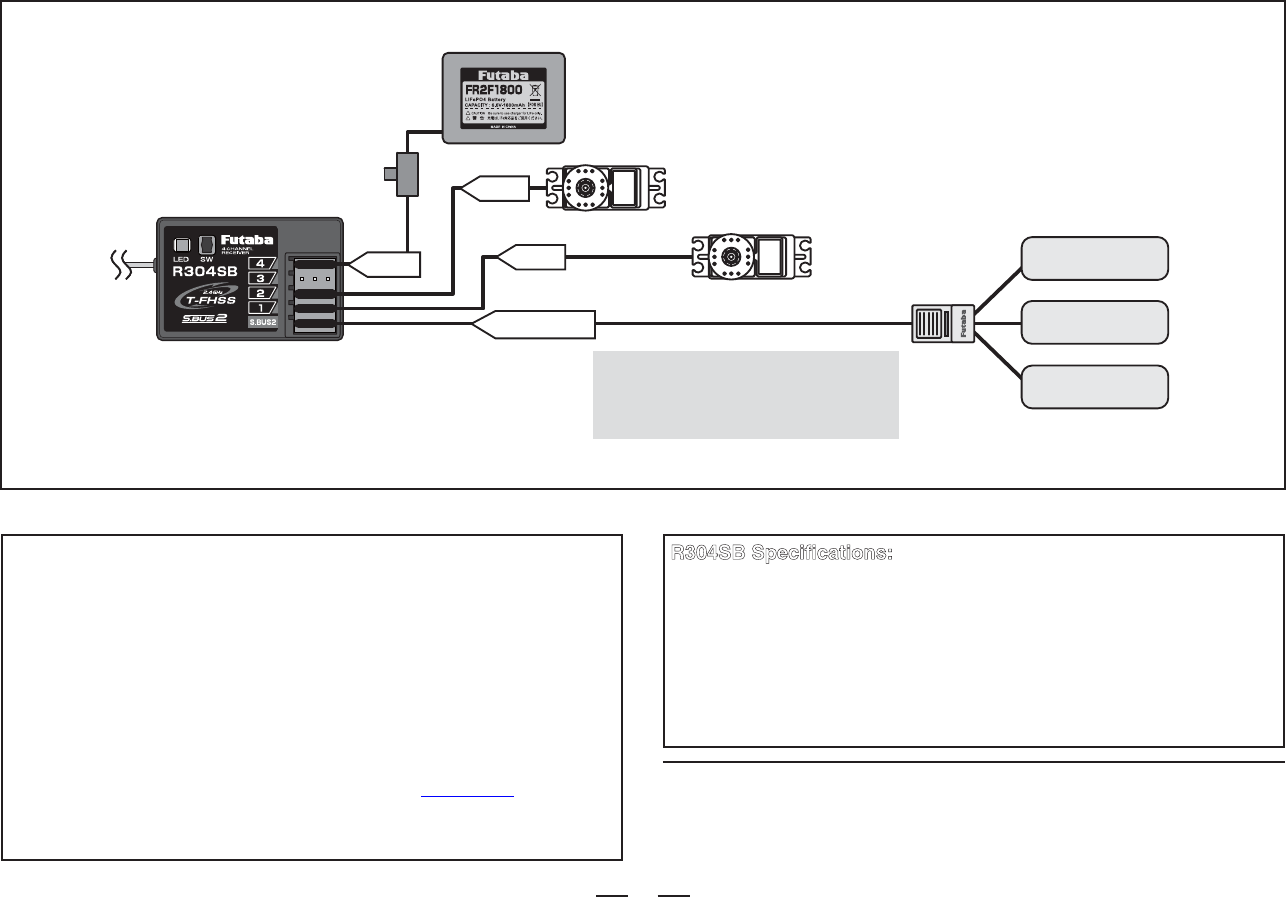

The Example of Connection
This device, trade name Futaba Corporation of America, model number R304SB, complies
with part15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
CAUTION:
To assure continued FCC compliance:
1. Any changes or modifications not expressly approved by the grantee of this device could void the
user's authority to operate the equipment.
2. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
The responsible party of this device compliance is:
Futaba Service Center
3002 N Apollo Drive Suite 1, Champaign, IL 61822 U.S.A.
TEL (217)398-8970 or E-mail: support@futaba-rc.com (Support)
