User Manual
![](/img.php?id=418313&img=bg1.png)
GN-WMKG
IEEE 802.11b/g CardBus Wireless LAN Card
User’s Manual
http://www.gigabyte.com.tw
Rev. 1.0 First Edition
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance,any changes or modifications not
expressly approved by the party responsible for compliance could void the user's authority
to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Contents
CHAPTER 1 PRODUCT OVERVIEW 1
1-1. INTRODUCTION...........................................................................................................1
1-2. FEATURES .................................................................................................................1
1-3. PHYSICAL DIMENSIONS/PACKAGING.............................................................................1
1-4. LED INDICATING LIGHT...............................................................................................2
1-5. SYSTEM REQUIREMENTS ............................................................................................2
CHAPTER 2 INSTALLING THE WLAN CARD 3
2-1. INSTALLING THE DRIVER & UTILITY (WIN 98SE/ME).....................................................3
2-2. INSTALLING THE DRIVER & UTILITY (WIN 2000/XP) ......................................................7
CHAPTER 3 USING THE UTILITY 11
3-1. PROFILE .................................................................................................................11
3-2. LINK STATUS...........................................................................................................14
3-3. SITE SURVEY ..........................................................................................................15
3-4. STATISTICS .............................................................................................................16
3-5. ADVANCE................................................................................................................16
3-6. ABOUT....................................................................................................................18
CHAPTER 4 TROUBLESHOOTING 19
I CANNOT CONNECT TO AN AP ...................................................................................19
I CAN CONNECT TO AN AP BUT I CANNOT CONNECT TO THE INTERNET...........................19
I ALWAYS HAVE POOR LINK QUALITY AND LOW SIGNAL ..................................................19
CHAPTER 5 SPECIFICATION 20
1
Chapter 1 Product Overview
1-1. Introduction
This 802.11b/g Wireless Local Area Network (WLAN) card is composed of the MAC,
Baseband, and radio components, CARDBUS interface, and two built-in antennas. It
operates in 2.4GHz frequency bands, providing fast (up to 54Mbps) and secure (support
AES, 802.1x & WEP and WAP) connections to 802.11b and 802.11g networks from a
single card.
This product features the compact size, low power consumption, and power management
functions, and provides a high-speed wireless data communication. Therefore, this
product is ideally suitable for being integrated into the personal mobile and handheld
platform.
1-2. Features
Conforms to 802.11b/802.11g specification.
Transmits data rate up to the maximum speed of 54Mbps.
Dynamically scales the data rate.
Automatic power management to reduce battery consumption.
Built-in diversity antenna.
Seamless roaming between 802.11b and 802.11g networks.
Supports AES (Advance Encryption System), enterprise-class 802.1x security and
multiple levels of WEP encryption (64-bit /128-bit), and WPA (Wi-Fi Protected
Access)..
Driver supports Windows 98SE/Me/2000/XP.
1-3. Physical Dimensions/Packaging
Dimensions: 120mm* 54mm* 6mm
Before the installation procedures, please ensure the components are not damaged during
the shipping. The shipment of the GN-WMAG includes:
One GN-WMKG Wireless LAN Card
One Installation CD (including User’s Guide and Driver)
One User Guide
Please contact your local distributor or authorized reseller immediately for any missing or
damaged components. If you require returning the damaged product, you must pack it in
the original packing material or the warranty will be voided.
![](/img.php?id=418313&img=bg5.png)
2
1-4. LED Indicating Light
Power OFF ON ON
Link ON Blink
Meaning No power applied to card Looking for network
association the card has an
active connection
LED Blinking GIGABYTE GIGABYTE
Condition of the
Receiver Link Power
1-5. System Requirements
1-5-1. Supported Platform:
IBM PC/AT compatible computer
1-5-2. Supported Operation System:
Windows 98SE/Me/2000/XP
![](/img.php?id=418313&img=bg6.png)
3
Chapter 2 Installing the WLAN Card
2-1. Installing The Driver & Utility (Win 98SE/ME)
Step 1: Insert our setup CD into your CDROM drive, the following window will pop up.
Step 2: Please plug-in your “Gigabyte” WLAN card device.
Step 3: Click “Next”.

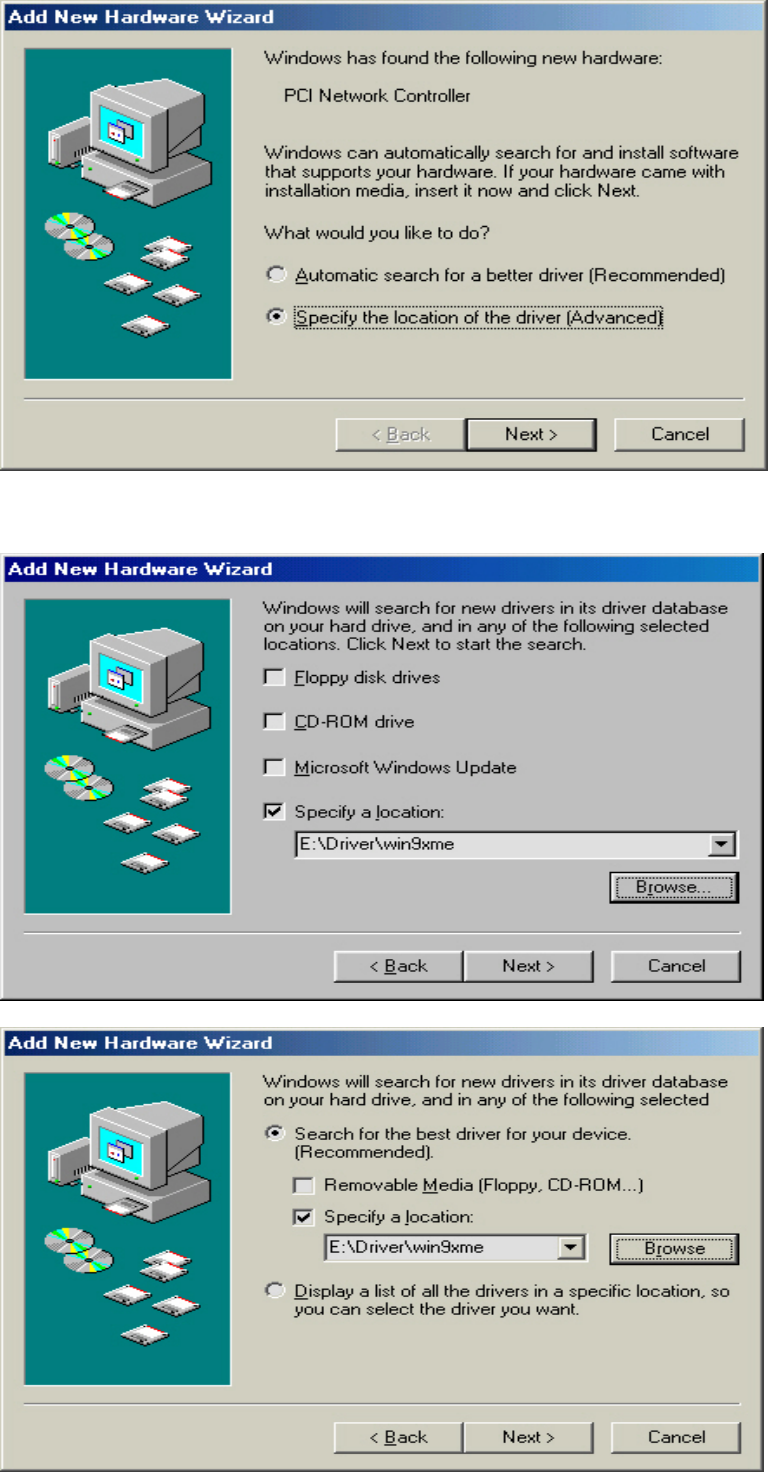

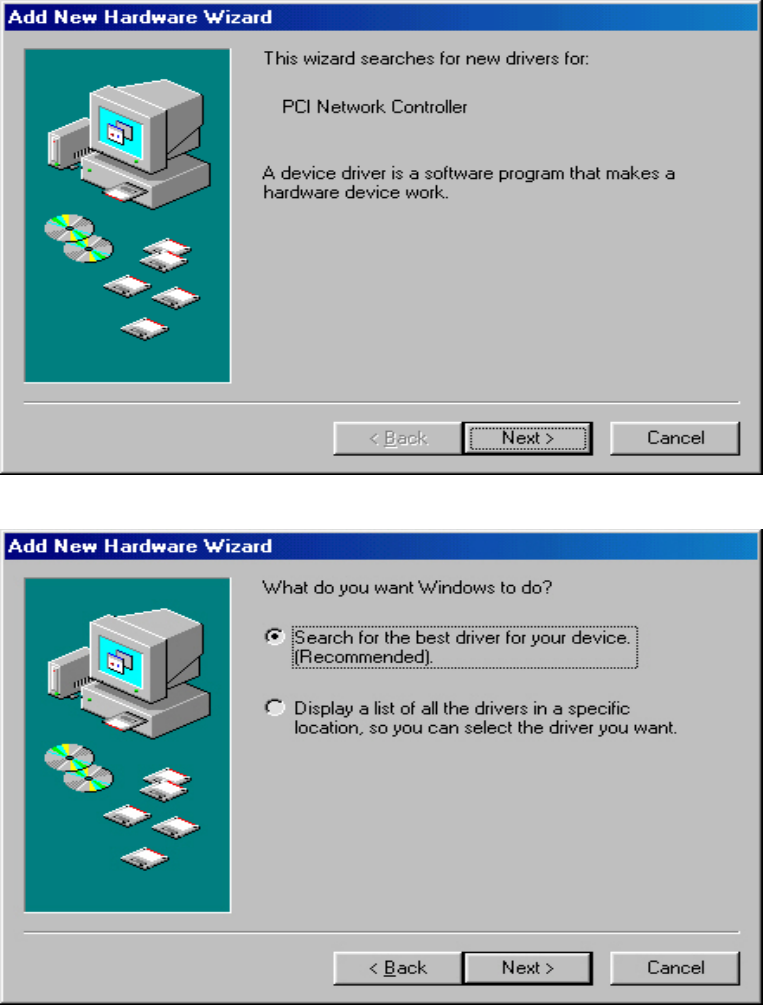

Step 4: Click “Search for the best driver for your device” and Click “Next”.
Win 98 ES
![](/img.php?id=418313&img=bg7.png)
4
Win ME
Step 5: Click “Specify a location”, Click “CD-ROM:\Driver\win9xme”and Click “Next”.
Win 98 ES
Win ME
![](/img.php?id=418313&img=bg8.png)
5

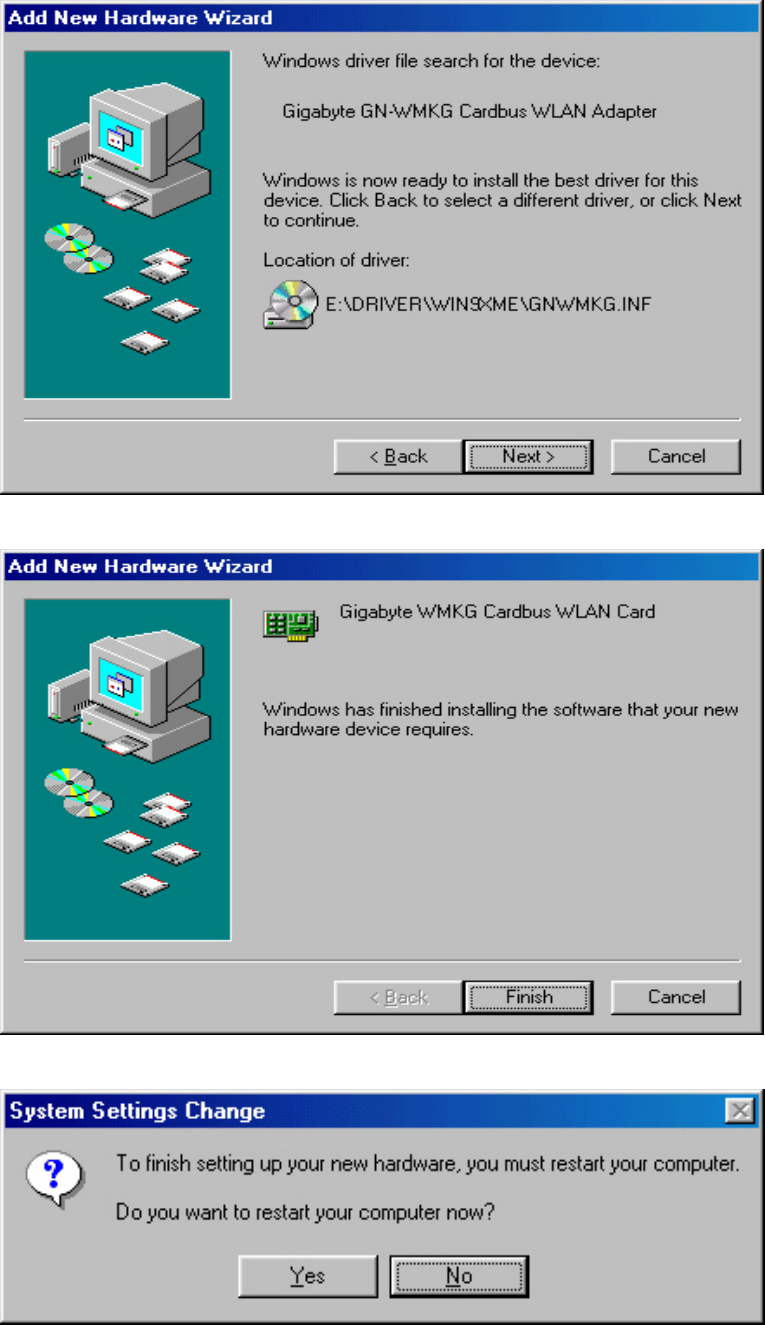

Step 6: Click “Next”.
Step 7: Click “Finish”.
Step 8: Click “No”.
![](/img.php?id=418313&img=bg9.png)
6

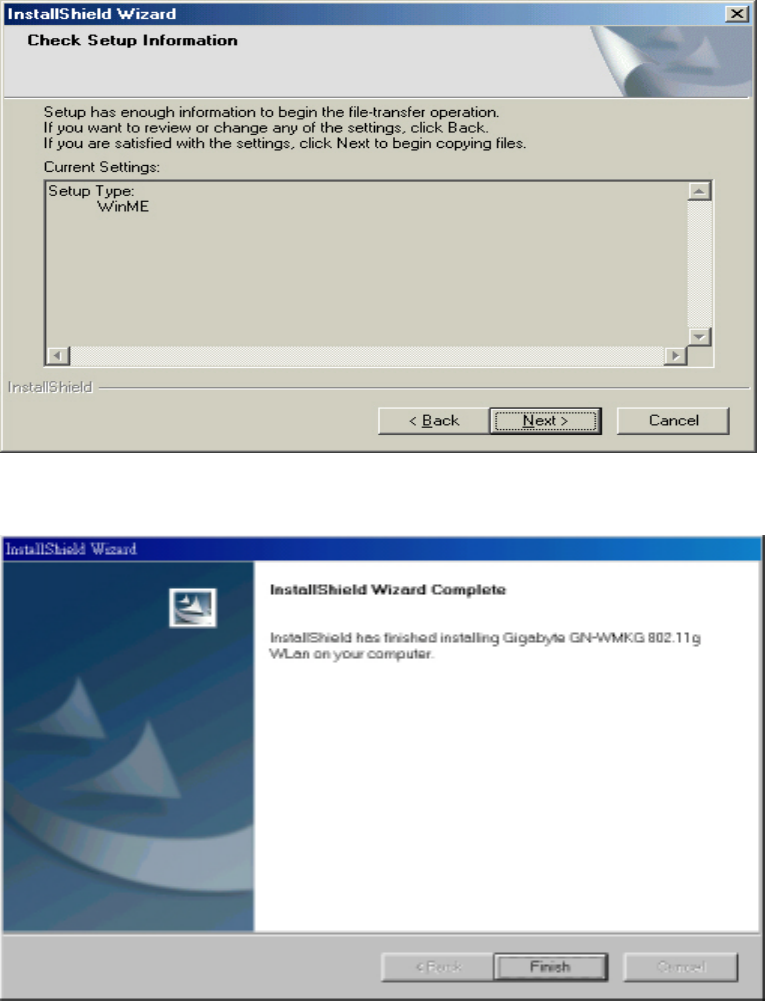

Step 9: Click “Install Wireless LAN Driver”.
Step 10: Click “Next”.
Step 11: Click “Next”.
Win 98 ES
![](/img.php?id=418313&img=bga.png)
7
Win ME
Step 12: Click “Finish”.
2-2. Installing The Driver & Utility (Win 2000/XP)
Step 1: Please make sure that you don’t plug your card yet.

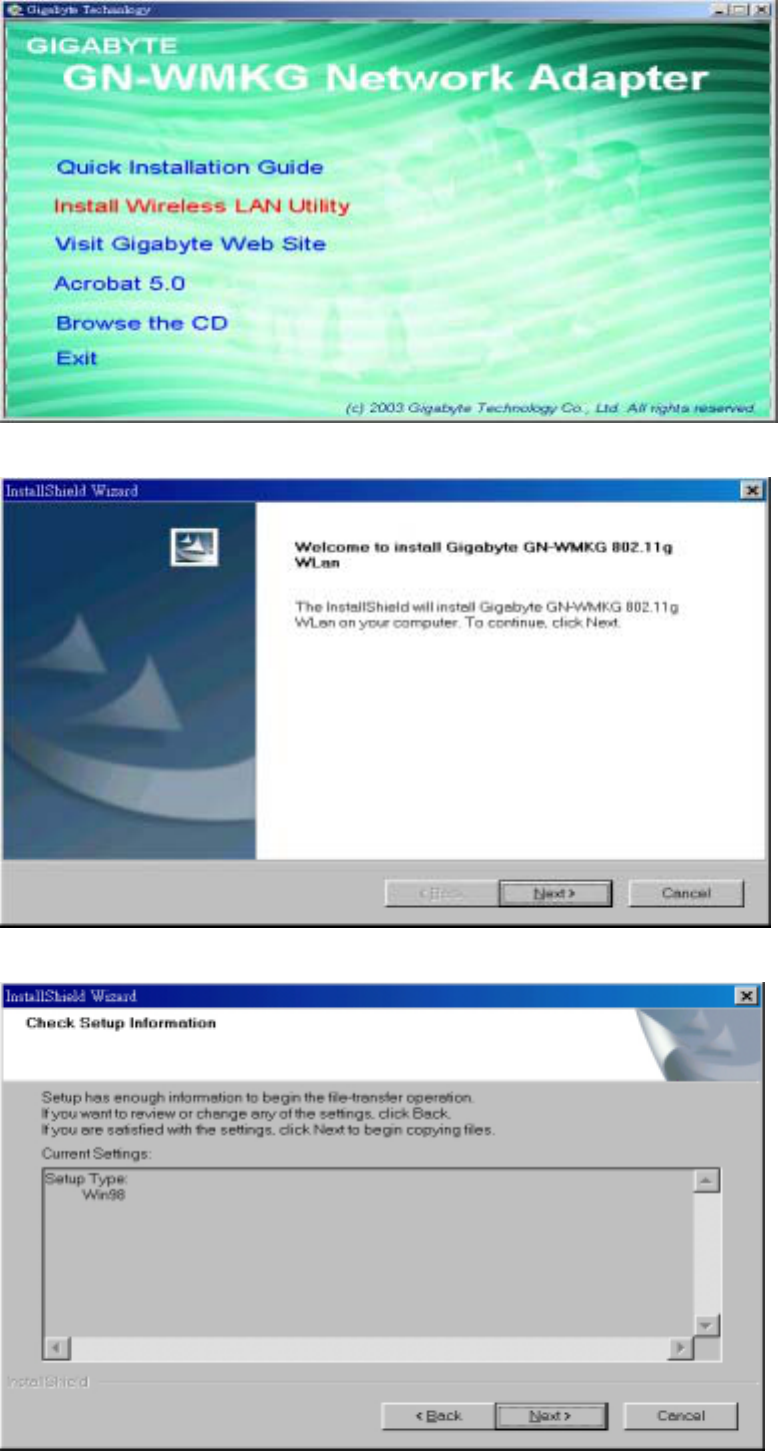

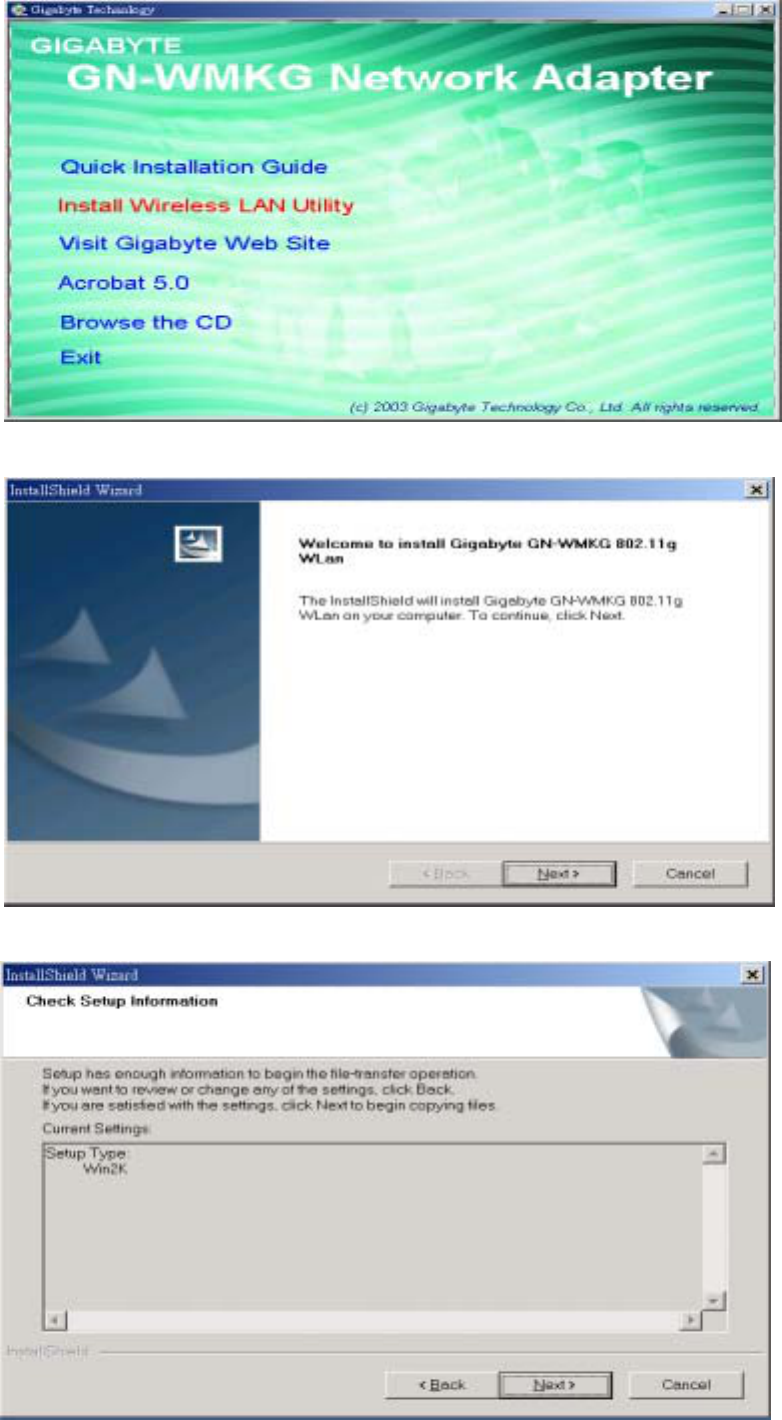

Step 2: Insert our setup CD into your CDROM drive, the following window will pop up.
Step 3: Click “Install Wireless LAN Driver”.
![](/img.php?id=418313&img=bgb.png)
8

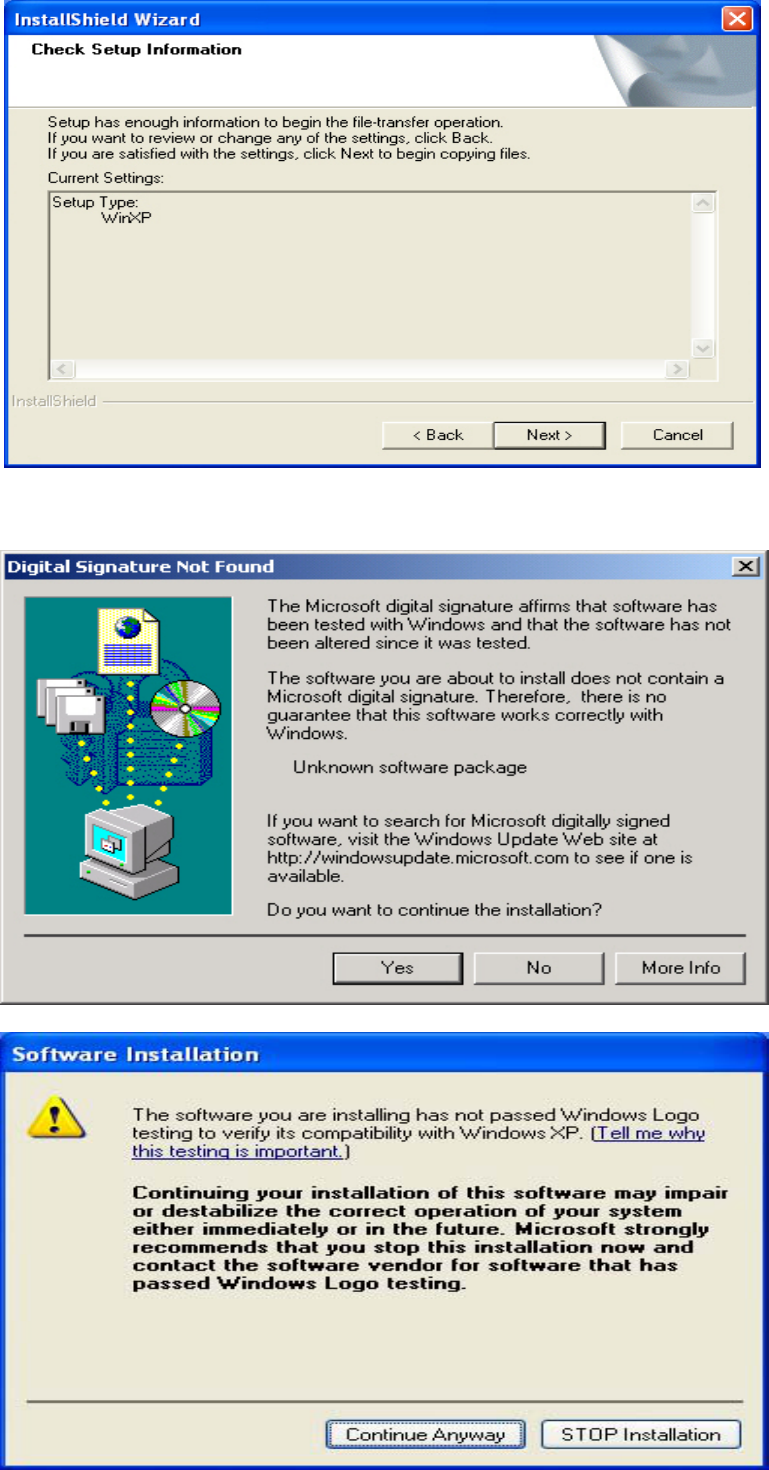

Step 4: Click “Next”.
Step 5: Click “Next”.
Win 2000
![](/img.php?id=418313&img=bgc.png)
9
Win XP
Step 6: Click “Yes” (Win 2000).
Win 2K
Win XP
![](/img.php?id=418313&img=bgd.png)
10

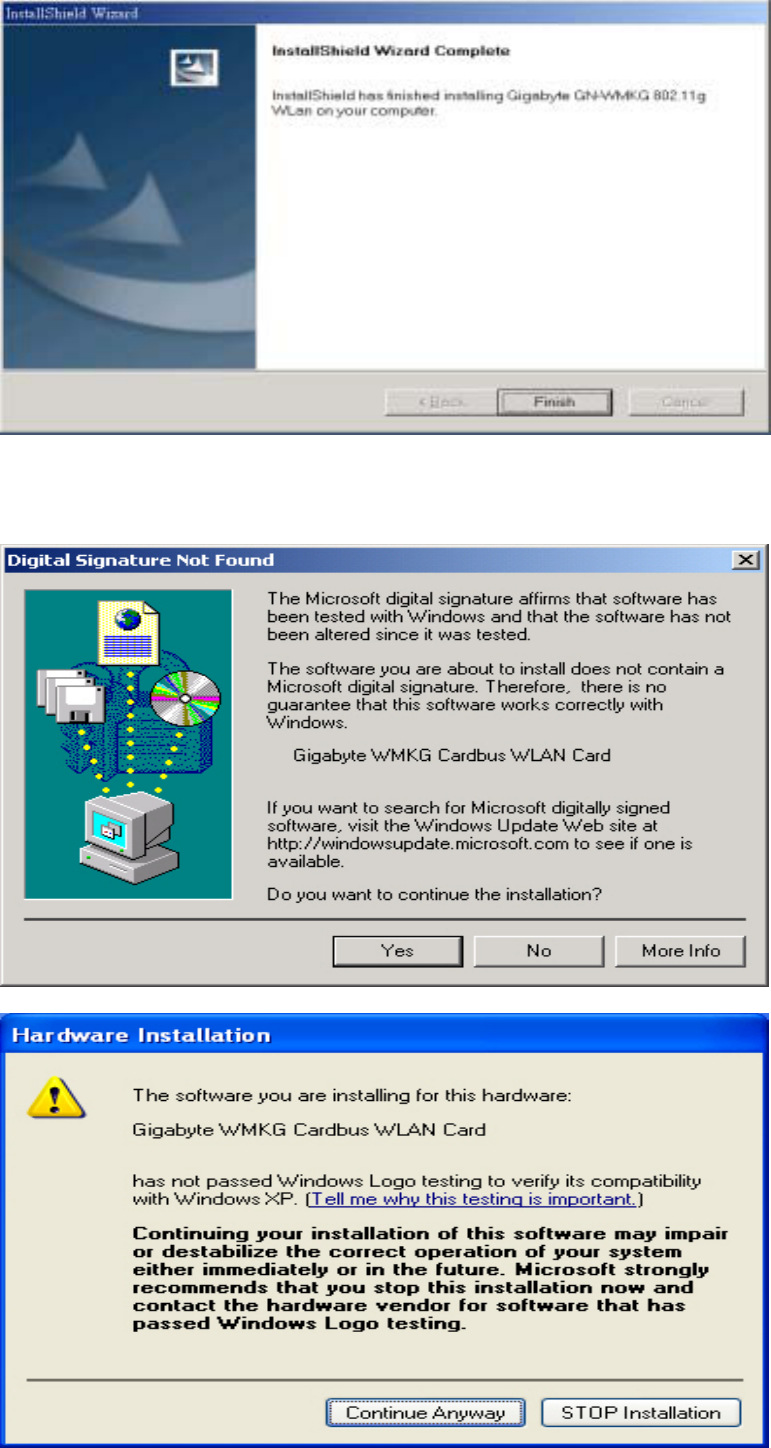

Step 7: Click “Finish”.
Step 8: Please plug-in your “Gigabyte” WLAN card device.
Step 9: Click “OK” and Rebooted you computer.
Win 2K
Win XP
![](/img.php?id=418313&img=bge.png)
11
Chapter 3 Using The Utility
The Configuration & Monitor Utility is a powerful application that helps you to configure the
card and monitor the statistics of the communication link. Unlike the standard method of
configuring the card via the operating system utilities (e.g. Control Panel), this application
permits the dynamic modification of the configuration parameters while the card is
operating. It also offers some more configuration options. It appears as an icon on the
Windows system tray whenever the card is running (see Figure 3-1). The icon can tell you
the received signal strength by four small green lights. You can open it by double-clicking
on this icon.

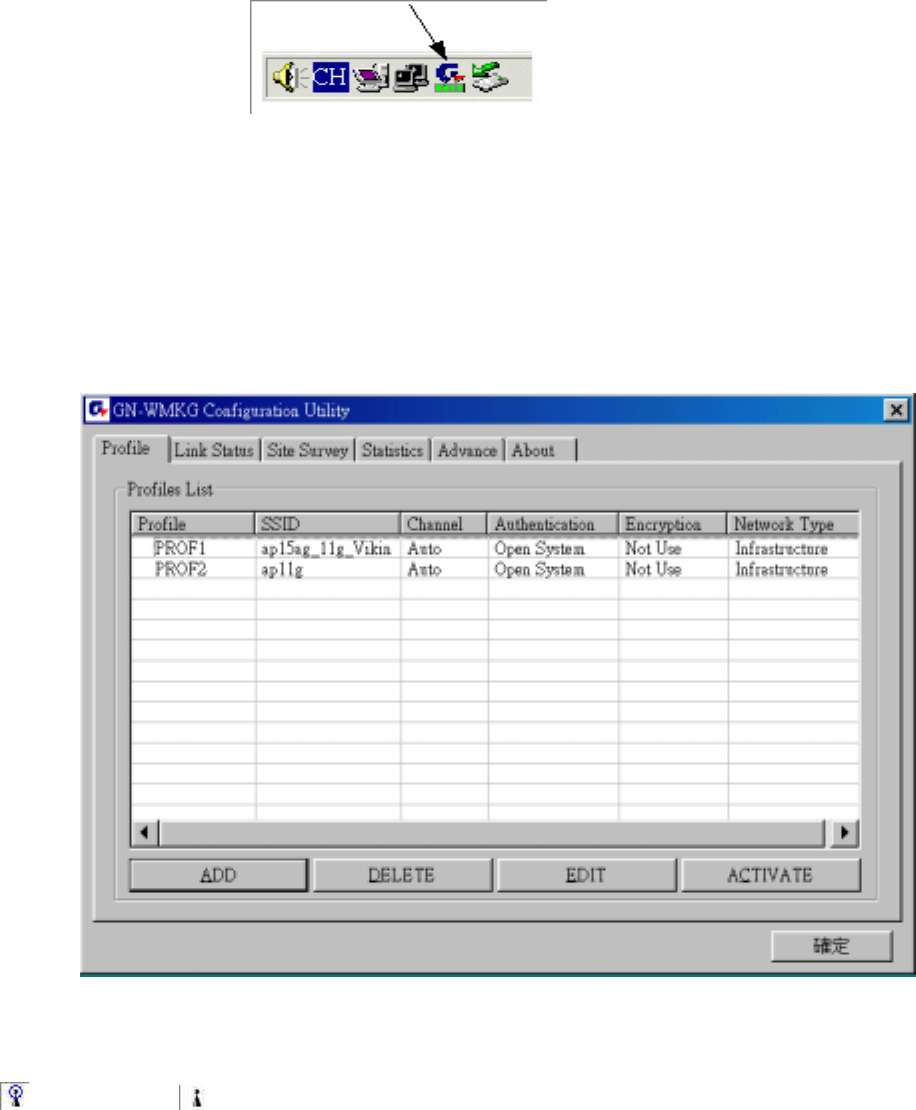

Figure 3-1. The icon of the Configuration & Monitor Utility
You can open the utility by double-clicking on this icon. Or through 「Start」\「Programs」\「GIGABYTE
GN-WMKG」\「GN-WMKG Utility」
3-1. Profile
The “Profile” tab shows you the current association information about the card’s
connection with a wireless network. (see Figure 3-2).
Figure 3-2. Current profile status of the wireless LAN card
Other items reports the following information:
Profile Name: You can save various wireless settings for different environments.
: Use Profile, : Available Profile.
![](/img.php?id=418313&img=bgf.png)
12
SSID: Wireless network name. This is the wireless network name expressed as text string
that all members within the same network share. Devices that don’t share the same
network name cannot communicate with each other.
Channel: The current channel number used by the WLAN card.
Authentication: Use Open System(No WEP key) or Shared Key(WEP key) to
authenticate the peer side when association was initiated.
Encryption: The current Encryption setting (No security, WEP encryption, WPA-PSK),.
Network Type: Set the station operation mode to "802.11 Ad Hoc" for network
configurations that do not have an access point, or to "Infrastructure" for configurations
with an access point.
ADD: You can set up a new file by clicking "ADD".
DELETE: Click "Delete" if you wish to delete the selected profile.
EDIT: You can specify a profile name to modify all parameters.
ACTIVATE: To activate the profile with which the Access point or station you want to
associate. The activated profile is the default profile this WLAN card firstly applies to when
this utility program starts running.

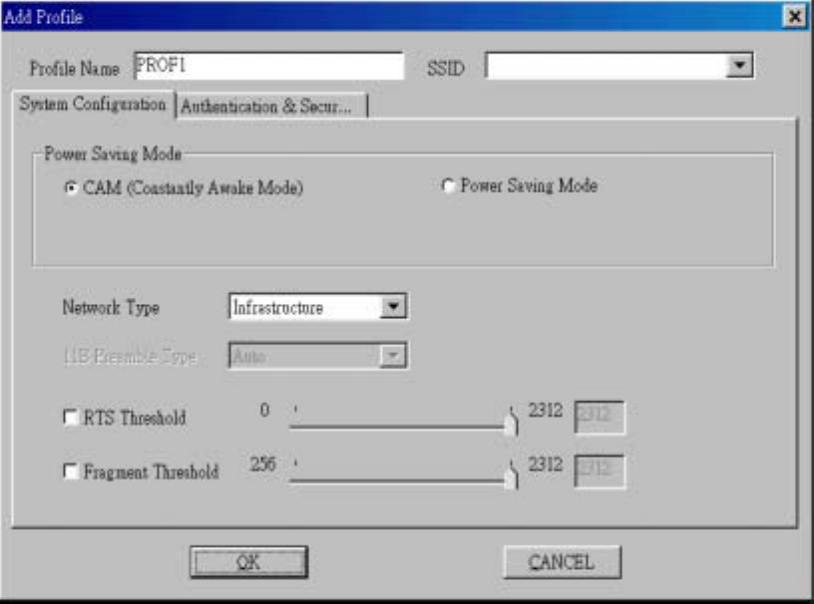

3-1-1. Basic setting:
System Configuration: One of the settings in the Profile Page; this settings includes
Power Saving Mode selection, Antenna Diversity, Network Type, RTS Threshold, and
Fragment Threshold, etc. (see Figure 3-3)
Figure 3-3. Configuration
![](/img.php?id=418313&img=bg10.png)
13
3-1-2. Authentication & Security setting:
Authentication & Security: One of the settings in the Profile Page; this settings includes
Authentication type selection, Encryption key input type & length of the
encrypted/decrypted payload information, and WEP key index selection. (see Figure 3-4)

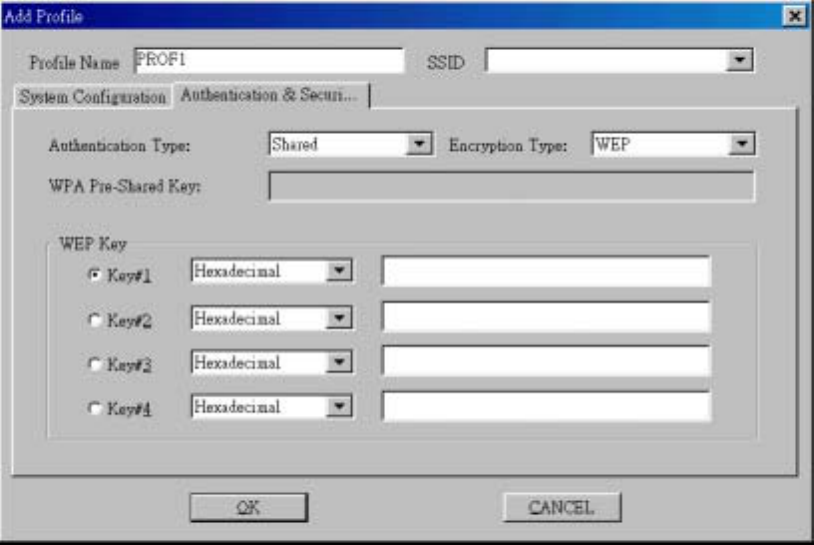

Figure 3-4. Authentication & Security Configuration
This card provides Three security options: No security, WEP encryption, WPA-PSK
security architecture.
3-1-2-1. No security (None):
Allows the communication between the WLAN card and access point without data
encryption.
3-1-2-2. Use WEP for authentication and encryption:
To prevent unauthorized user to access the data on wireless stations, the WLAN Card
offers a secure data encryption, known as WEP (Wired Equivalent Privacy). When you
select this item, the target 802.11 device must has the same encryption keys and be
configured to use encryption in order to communicate with each other. To configure your
WEP encryption, please click “Encryption Type “then the following window will pop up
(see Figure 3-4).
To configure your encryption key, please follow these steps:
1. Select a Key Entry Method (Hexadecimal or ASCII).
2. Enter one unique encryption key and its key length.
3. Enter one to four different shared keys and their individual key length.
For 64-bit encryption, enter 10 digitals by Hex or 5 characters by ASCII.
For 128-bit encryption, enter 26 digitals by Hex or 13 characters by ASCII.
4. Select only a key to encrypt your transmission data.
5. Click “OK” to save these settings.
3-1-2-3. Use WPA-PSK Security (WPA Pre-Shared Keys):
![](/img.php?id=418313&img=bg11.png)
14
When you select this item, the target 802.11 device must has the same encryption keys
and be configured to use encryption in order to communicate with each other. To configure
your WPA-PSK encryption, please click “Authentication “then the following window will
pop up (see Figure 3-5).

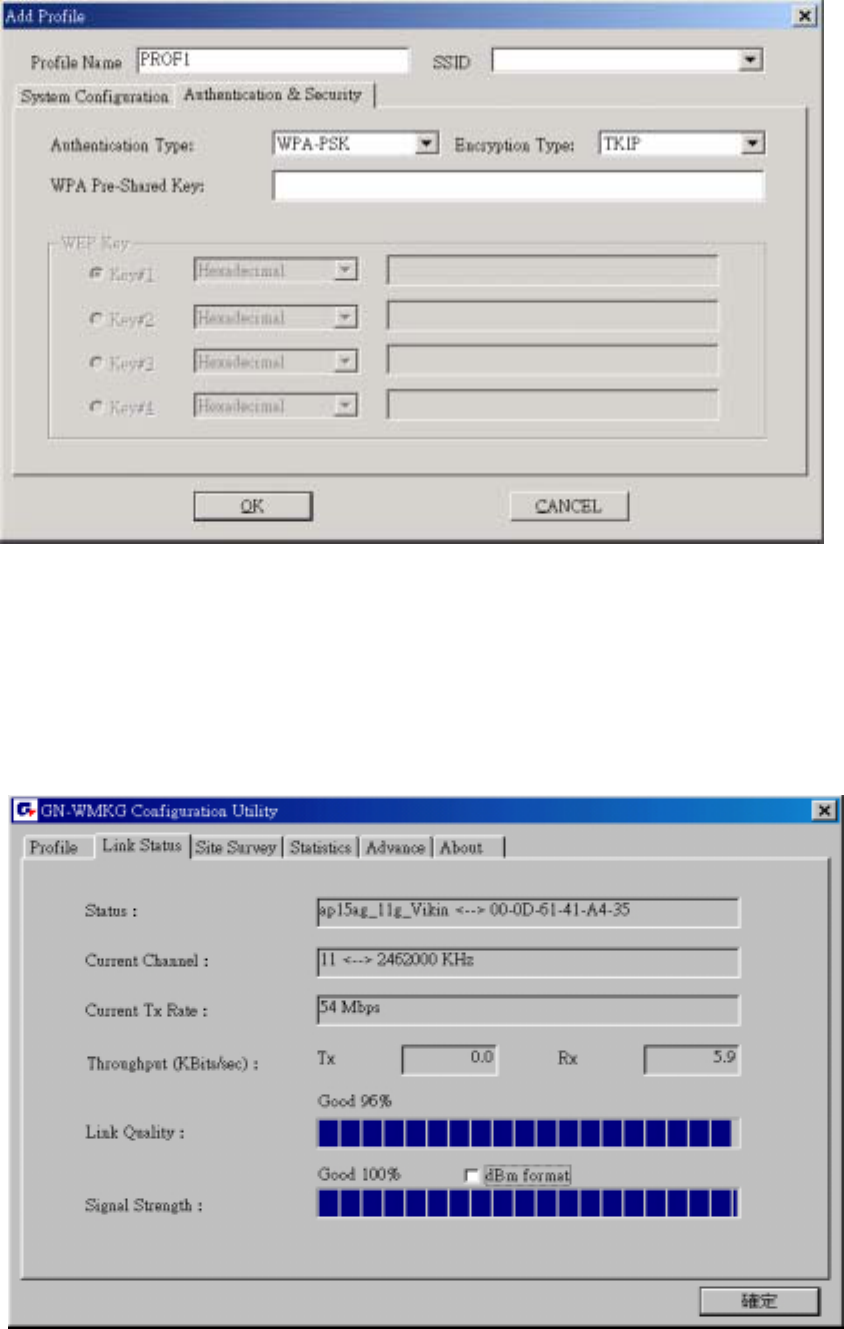

Figure 3-5. Configure WPA-PSK Key
3-2. Link Status
The “Link Status” tab shows you the current association information about the card’s
connection with a wireless network. In the middle of the screen, you can see Link Quality
and Signal Strength for this card (see Figure 3-6).
Figure 3-6. Current link status of the wireless LAN card
![](/img.php?id=418313&img=bg12.png)
15
Other items reports the following information:
Throughput: Display current total number of Tx/Rx packets in KBits/sec.
Link Quality: The percentage of the radio link quality while communicates with the
associated Access Point or peer station.
Signal Strength: The percentage of the signal strength while communicates with the
associated Access Point or peer station.
3-3. Site Survey
The “Site Survey” tab shows you the list of reachable access points and/or peer-to-peer
stations (see Figure 3-7).
You can select one of them to connect to by double-clicking or pushing “CONNECT”
button on an entry.

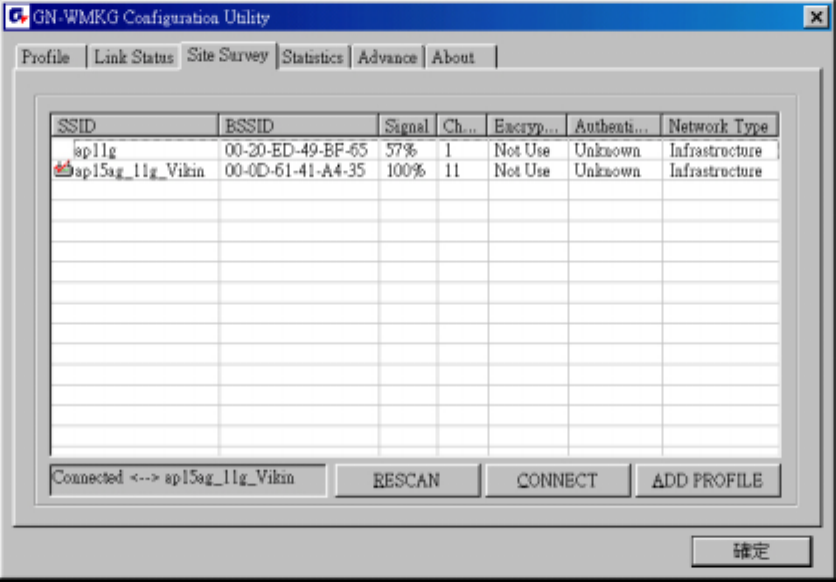

Figure 3-7. Reachable access points and/or peer-to-peer stations
Other items reports the following information:
SSID: Wireless network name.
BSSID: Basic service set identification.
Signal: Signal strength detected in the station site for each Access Point or peer station.
Channel: The current channel number used by the WLAN card.
Authentication: The current Authentication setting.
Encryption: The current Encryption setting.
![](/img.php?id=418313&img=bg13.png)
16
Network Type: The current network type.
Rescan: Rescan the available network and then refresh the result.
Add to Profile: Add the selected entry and save into Profile Page.
3-4. Statistics
The “Statistics” tab shows you the number of packets sent and received by the card(see
Figure 3-8).

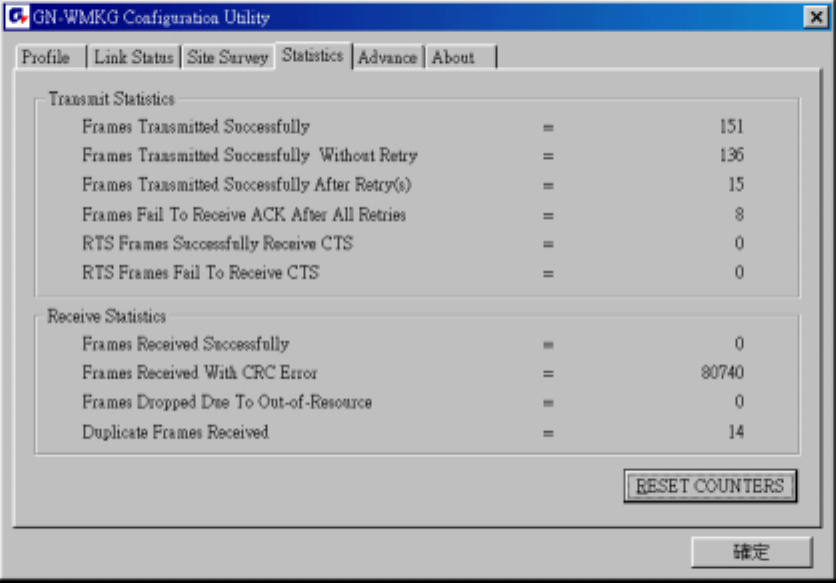

Figure 3-8. The statistic number of packets sent and received by the card
3-5. Advance
The “Advance” Tab contains several fields where operating parameters of the driver can
be viewed or changed. Just click “APPLY” button, changes to any of the parameters in this
panel can be applied to the driver without the need to reset the WLAN card. (see Figure
3-9).
![](/img.php?id=418313&img=bg14.png)
17

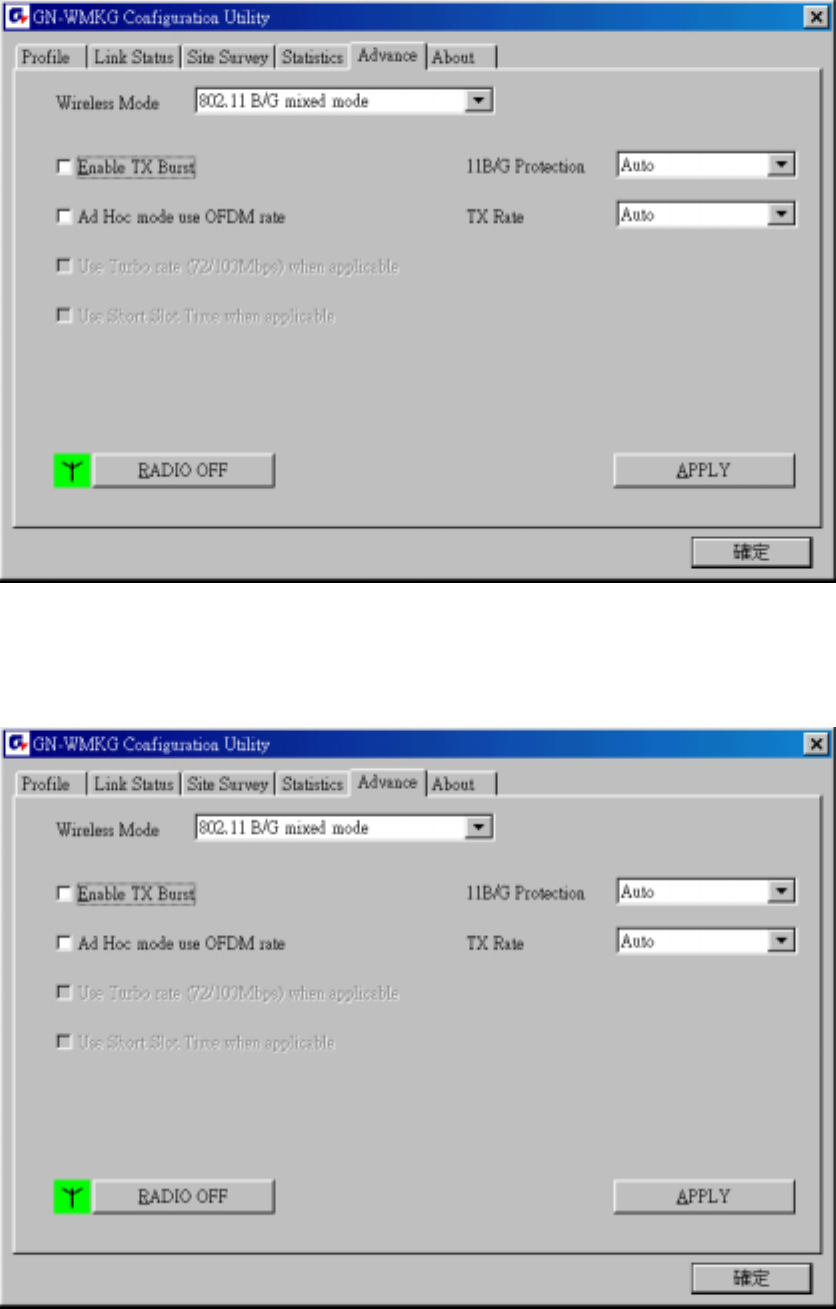

Figure 3-9. Advance configuration screen
If you want to turn off the card’s radio, click 「RADIO OFF」of the screen, (see Fig 3-10)
Just click it「RADIO ON」 again to turn on the radio. (see Figure 3-9).
Figure 3-10. Advance configuration screen
Wireless Mode: Wireless Mode: Select wireless mode. 802.11b only and 802.11 b/g
mixed mode are supported.
Enable TX Burst: Ralink’s proprietary frame burst mode.
![](/img.php?id=418313&img=bg15.png)
18
Ad Hoc Mode use OFDM rate: you can select OFDM wireless modes for the “Ad Hoc
Mode” communication link.
11B/G Protection: ERP protection mode of 802.11G definition. User can
chosse from Auto, On, and Off.
1. Auto: STA will dynamically change as AP announcement.
2. On: Always send frame with protection.
3. Off: Always send frame without protection.
TX Rate: Manually force the Transmit using selected rate. Default is auto.
3-6. About
The “About” tab shows you the information of the card’s driver(see Figure 3-11).

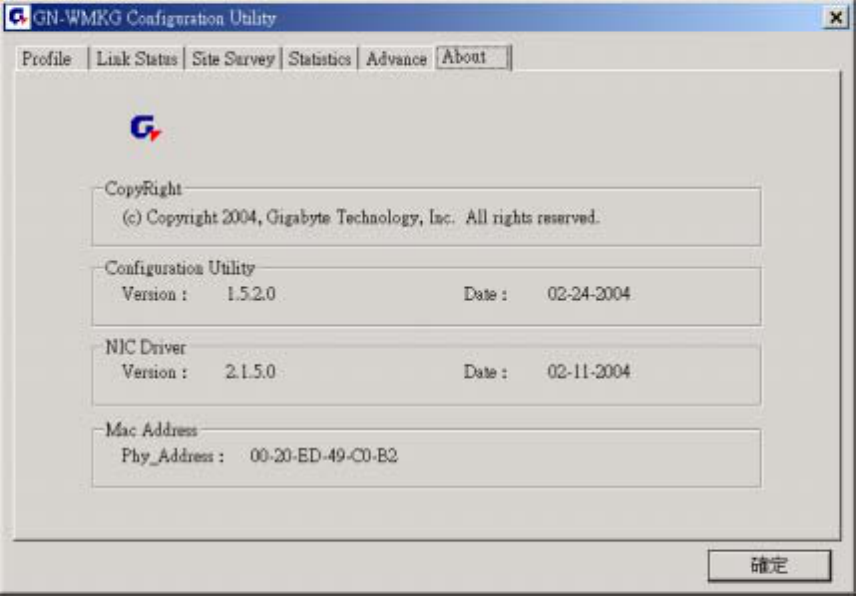

Figure 3-11. Driver’s information
19
Chapter 4 Troubleshooting
This troubleshooting guide provides answers to some common problems which you may
encounter while installing or using GIGABYTE WLAN card products.
These problems requires simple troubleshooting that you can perform by yourself.
Contact the WLAN Technical Support if you encounter problems not mentioned in this
section.
I cannot connect to an AP
Check if the WLAN has the some Service Set Identifier (SSID) as that of The AP.
Check if the WLAN card and the AP have the same Encryption. if WEP or WPA
encryption is enabled, set the same WEP or WPA keys for the WLAN and AP.
Check if the MAC address of the WLAN card is added in the AP Authorization
Table. Inquire this with your LAN administrator.
I can connect to an AP but I cannot connect to the internet
Check if the WLAN card and the AP have the same Encryption. if WEP or WPA
encryption is enabled, set the same WEP or WPA keys for the WLAN and AP.
Make sure the network protocol parameters (IP address, subnet mask, gateway,
and DNS) of your computer are correctly set.
Check the proxy settings of the WEB browser.
I always have poor link quality and low signal
Keep the WLAN card away from microwave ovens and large metal objects to
avoid radio interference.
Shorten the distance between the WLAN card and the AP or station.
![](/img.php?id=418313&img=bg17.png)
20
Chapter 5 Specification
1. System
Host Interface CARDBUS (32-bit) card Type II
Operating Voltage 3.3VDC ± 5%
2. RF Performance
802.11g(BACKWARD COMPATIBLE TO 802.11b)
Frequency Bands 2412-2484 MHz (subject to local regulations)
Modulation Technology OFDM and DSSS
Modulation Techniques 64QAM, 16QAM, QPSK, BPSK, CCK, DQPSK, DBPSK
Date Rates 54, 48, 36, 18,12, 9, 11, 6, 5.5, 2, and 1 Mbps, auto fallback
Typical Power Consumption Receive: 240 mA
Transmit: 400 mA
Peak Output Power 20 dBm @ Nominal Temp Range
Receive sensitivity -68dBm @54Mbps; -85dBm@11Mbps
Antenna Two Printed antennas for supporting antenna diversity
3.Safety Regulation and Operating Environment
FCC Part 15 (USA) DGT (Taiwan)
EMC certification CE (Europe)
Temperature Range Operating: 0 ~ 55 deg C, Storing: -20 ~ 65 deg C
Humidity Max. 90% Non-condensing
4. Software Support
Driver Windows 98SE/Me/2000/XP
Security WPA-PSK(TKIP,AES); 802.1X client for Windows XP
,64/128 bit WEP
Roaming Seamless roaming among 802.11b/g access points.
Management Utility Monitors the network situation.
5. Mechanical
Dimensions 120 x 54 x 6 mm
Weight 40± 1 g
Packaging Packaging specially used by Gigabyte.
LED indicators Link, Power
Subject to Change without Notices
