Installation Guide Manual Version 0.3

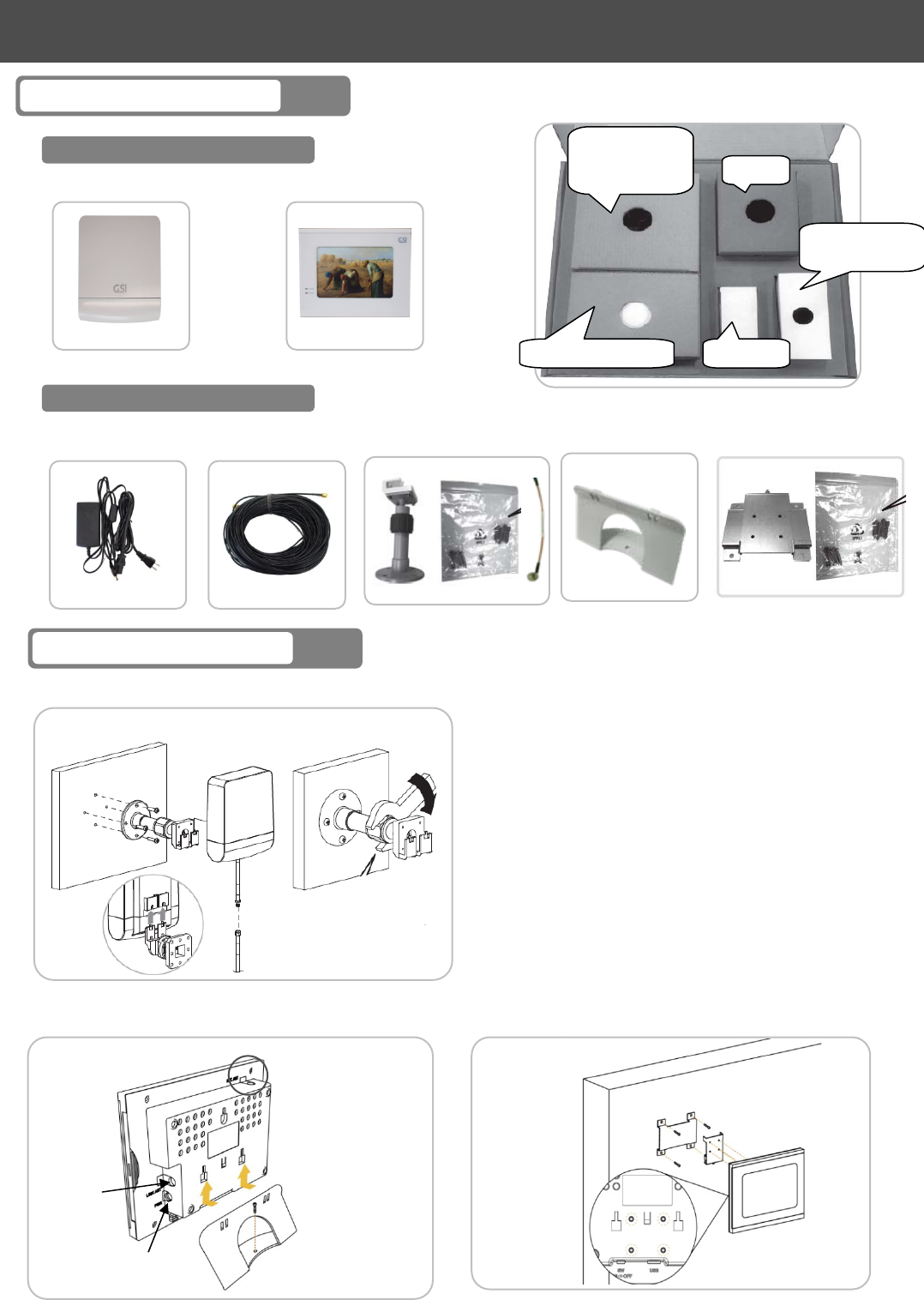

Package
* DAU (Donor Antenna Unit)
SMR Installation
Donor Antenna Unit
◊AC/DC Adaptor * 197 ft Link Cable
SMR Unit ◊梱包箱構成図
- Plug & Play
- Auto Level Control, Auto Gain Control, Auto Isolation Check
- Input Level -67dBm ~ -37dBm
- Output Power of SAU +13dBm
◊Standard Operation
Accessories
* DAU Bracket & Jumper Cable * SAU Stand Bracket * SAU Bracket
* SAU (Service Antenna Unit)
STAND
SAU
[Front]
SAU
[Back]
◊Service Antenna Unit (SAU)
◊Donor Antenna Unit (DAU)
◊Service Antenna Unit (SAU)
External Port
AC/DC adaptor
Link Cable
•Link Cable
•AC Cord
•Stand Bracket •DAU
•SAU & Bracket Set •Adaptor
•DAU Bracket
•Jumper Cable
![](/img.php?id=1479303&img=bg2.png)

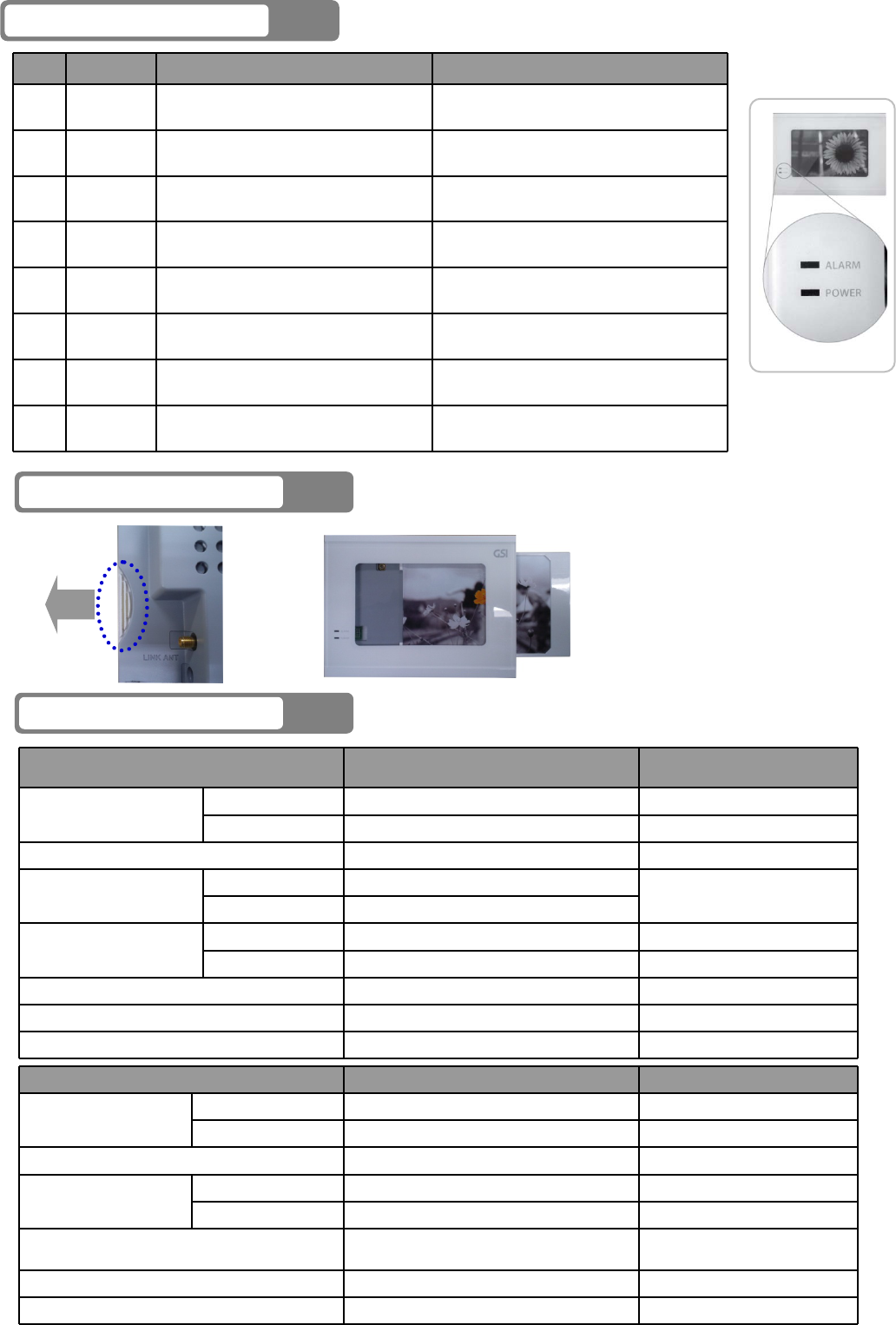

LED Iindicators
NO Items LED Indications Explanations
1Checking
Alarm ÆGREEN LED Blinking
Power ÆGREEN LED Blinking Auto Setup
2Normal
Alarm ÆGreen LED ON
Power ÆGreen LED ON Standard operation
3Alarm
Alarm ÆGREEN LED Blinking
Power ÆOFF Low Input Signal from DAU
4Alarm
Alarm ÆGREEN LED Blinking Repeatedly
Power ÆGREEN LED Blinking Repeatedly Isolation Re-Check
5Alarm
Alarm ÆOFF
Power ÆRED LED ON Low Input Voltage (Feeding to DAU)
6Alarm
Alarm ÆRED LED ON
Power ÆRED LED ON Link Fail between DAU and SAU
7Alarm
Alarm ÆRed LED Blinking Repeatedly
Power ÆRed LED Blinking Repeatedly Shutdown Condition
8Alarm
Alarm ÆRED LED Blinking
Power ÆRED LED Blinking Lack of Isolation between DAU and SAU
Picture Frame
◆Picture Size: 4 X 6 [inch]Pull Out
ITEM SPECIFICATIONS REMARKS
DAU 6.22 ×5 ×1.96 H*W*D [inch]
Size
SAU 5.7 ×7.67 ×1.65 H*W*D [inch]
Weight 1.63 lbs each DAU, SAU
Length 196.85 ft RG174/1.5D(2.6mm)
Link Cable
Connector SMA(M) DAU to SAU direction
Power Consumption ≤18W external adaptor
12V/3.5A
Operating Temperature +14°F ~ +122°F
Humidity 0% ~ 95%
ITEM SPECIFICATIONS REMARKS
Frequency Range
Down Link 746 – 756 MHz
Up Link 777 – 787 MHz
Band Width 10MHz
Gain
Down Link 50 ~80dB ±1dB
AGC dynamic Range: 30dB
Up Link 50~ 80dB ±1dB
Composite Output Power
Down Link +13dBm/Total
Up Link +13dBm/Total
Shutdown Level +15dBm±2dB Over 5sec standing
Group Delay < 6usec
EVM (Error Vector Magnitude) DL: < 8% @CPL15dB, UL:12.5% @CPL15dB
Specifications
![](/img.php?id=1479303&img=bg3.png)
Warning: Exposure to Radio Frequency Radiation The radiated output power
of this device is far below the FCC radio frequency exposure limits.
Nevertheless, the device should be used in such a manner that the potential
for human contact during normal operation is minimized. In order to avoid
the possibility of exceeding the FCC radio frequency exposure limits, human
proximity to the antenna should not be less than 20cm during normal
operation. The gain of the antenna is 0 dBi. The antenna(s) used for this
transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Warning: In order to avoid the possibility of exceeding the FCC radio frequency exposure limits,
human proximity to the antenna should not be less than 20cm during normal operation.
The gain of the antenna is 0 dBi.
