GMR 18
marine radar
installation instructions
190-00800-02_0A.indd 1 1/15/2007 3:54:50 PM
![](/img.php?id=750216&img=bg2.png)
© 2007 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 East 151
st
Street,
Olathe, Kansas 66062, USA
Tel. (913) 397.8200 or (800) 800.1020
Fax (913) 397.8282
Garmin (Europe) Ltd.
Unit 5, The Quadrangle,
Abbey Park Industrial Estate,
Romsey, SO51 9DL, UK
Tel. +44 (0) 870.8501241 (outside the UK)
0808 2380000 (within the UK)
Fax +44 (0) 870.8501251
Garmin Corporation
No. 68, Jangshu 2
nd
Road,
Shijr, Taipei County, Taiwan
Tel. 886/2.2642.9199
Fax 886/2.2642.9099
All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any
storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto
a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed
copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any
revision hereto is strictly prohibited.
Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content
without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and
supplemental information concerning the use and operation of this and other Garmin products.
Garmin
®
is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. This trademark may not be used without the express permission
of Garmin.
January 2007 Part Number 190-00800-02 Rev. A Printed in Taiwan
190-00800-02_0A.indd 2 1/15/2007 3:54:50 PM
![](/img.php?id=750216&img=bg3.png)
GMR 18 Marine Radar Installation Instructions 1
Welcome
Thank you for choosing the Garmin GMR 18. The GMR 18 utilizes the performance of Garmin radar and provides overlay and color
information when combined with a marine multi-function display (MFD).
Product Registration
Help us better support you by completing our online registration today! Connect to our Web site at www.garmin.com/registration/.
Use this area to record the serial number (8-digit number located on the bottom of the GMR 18) in case your GMR 18 needs service. Keep the
original sales receipt, or a photocopy, in a safe place.
Serial Number: ___ ___ ___ ___ ___ ___ ___ __
Contact Garmin
Contact Garmin if you have any questions while using your GMR 18. In the USA contact Garmin Product Support by phone:
(913) 397-8200 or (800) 800-1020, Monday–Friday, 8 AM–5 PM Central Time; or go to www.garmin.com/support/, and click Product
Support.
In Europe, contact Garmin (Europe) Ltd. at
+44 (0) 870.8501241 (outside the UK) or
0808 2380000 (within the UK).
NOTE: The Garmin GMR 18 has no user-serviceable parts. If you encounter a problem with your unit, please take it to an authorized Garmin
NMEA dealer or contact Garmin Product Support for repairs.
Packing List
Before installing and getting started with your unit, please check to see that your package includes the following items. If any parts are
missing, please contact your Garmin dealer immediately.
Standard Package:
• GMR 18 radar unit
• Power—marine network cable
• Installation manual
• Mount kit hardware
• Grommet for marine cable
190-00800-02_0A.indd 1 1/15/2007 3:54:50 PM
![](/img.php?id=750216&img=bg4.png)
2
12.5°
12.5° 12.5°
12.5°
INSTAllATIoN
Scanner Installation
The following section covers the installation and setup of the GMR 18 marine radar. The GMR 18 only operates with components of the
Garmin Marine Network, and MFD's (mulit-function displays). See your Garmin dealer or the Garmin Web site for more details. To complete
the installation, you need the appropriate fasteners, tools, and mounts. These items should be available at most marine dealers. Always wear
safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding. When drilling or cutting, always check fi rst to see what is
on the other side of the surface. If you experience diffi culty with the installation, contact Garmin Product Support or seek the assistance of a
professional installer.
Installation Guidelines
To maximize the performance of the radar, please observe the following installation guidelines:
• An ideal scanner mounting location is high above the ship’s keel line with a minimal part of the vessel’s structure or rigging blocking
the radar beam. Obstructions in the path of the radar beam may cause blind and shadow sectors, or generate false echoes. The higher the
installation position, the further the scanner can detect targets.
• Avoid mounting the scanner on the same level as smoke stacks, horizontal spreaders, or crosstrees on a mast. Do not install the scanner
near heat sources where it may be subjected to smoke or hot air from smoke stacks or heat from lights.
• The mounting surface or platform should be sturdy enough to support the weight of the scanner (15.8 lbs/7.17 kg), fl at as possible, and
parallel with the vessel’s water line.
• It is recommended that the radar scanner be mounted out of range of personnel (horizontal beam width above head height). When the
scanner is transmitting, do not look directly at the antenna at close range, eyes are the most sensitive part of the body to electromagnetic
energy. When properly installed and operated, the use of this radar conforms to the requirements of ANSI/IEEE C95.1-1992 Standard for
Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields.
• A “Compass Safe Distance” must be maintained between the compass and the scanner. The Compass Safe Distance is measured from the
center point of the compass to the nearest point on the scanner.
Standard compass = 1 m
Standby Steering and Emergency compasses = 0.6 m
• Mount other electronics and cables more than 2 m (7 ft) from the path of a radar beam. A radar beam can normally be assumed to spread
25° vertically above and below the scanner’s radiating element. For vessels with higher bow angles at cruise speed, it may be helpful to
lower the angle so the beam points slightly downwards to the waterline while at rest. Shims may be used as necessary.
• Install the scanner away from antennas for other electronics. GPS antennas should be either above or below the radar beam path of the
scanner. Mount at least 1 m (3 ft) from any equipment transmitting or cables carrying radio signals, such as VHF radios, cables and
antennas. In the case of SSB radios, the distance should be increased to 2 m (7 ft). IEC 60936-1 clause 3-27.1 states maximum distances
from the antenna at which RF (radio frequency) levels can be expected.
(100W/m squared = 48" [121.92 cm]) (10W/m squared = 108" [274.32 cm])
• The radar scanner transmits electromagnetic energy. It is important that the radar is turned off or the DC power input is disconnected
when personnel are required to come close to the scanner to perform work on the scanner assembly or associated equipment.
GMR 18 Radar Installation Manual
190-00800-02_0A.indd 2 1/15/2007 3:54:52 PM
![](/img.php?id=750216&img=bg5.png)
GMR 18 Marine Radar Installation Instructions 3
Installation
The following order of mounting the scanner and attaching the Power/Network cables may vary depending on the installation location and
mount used.

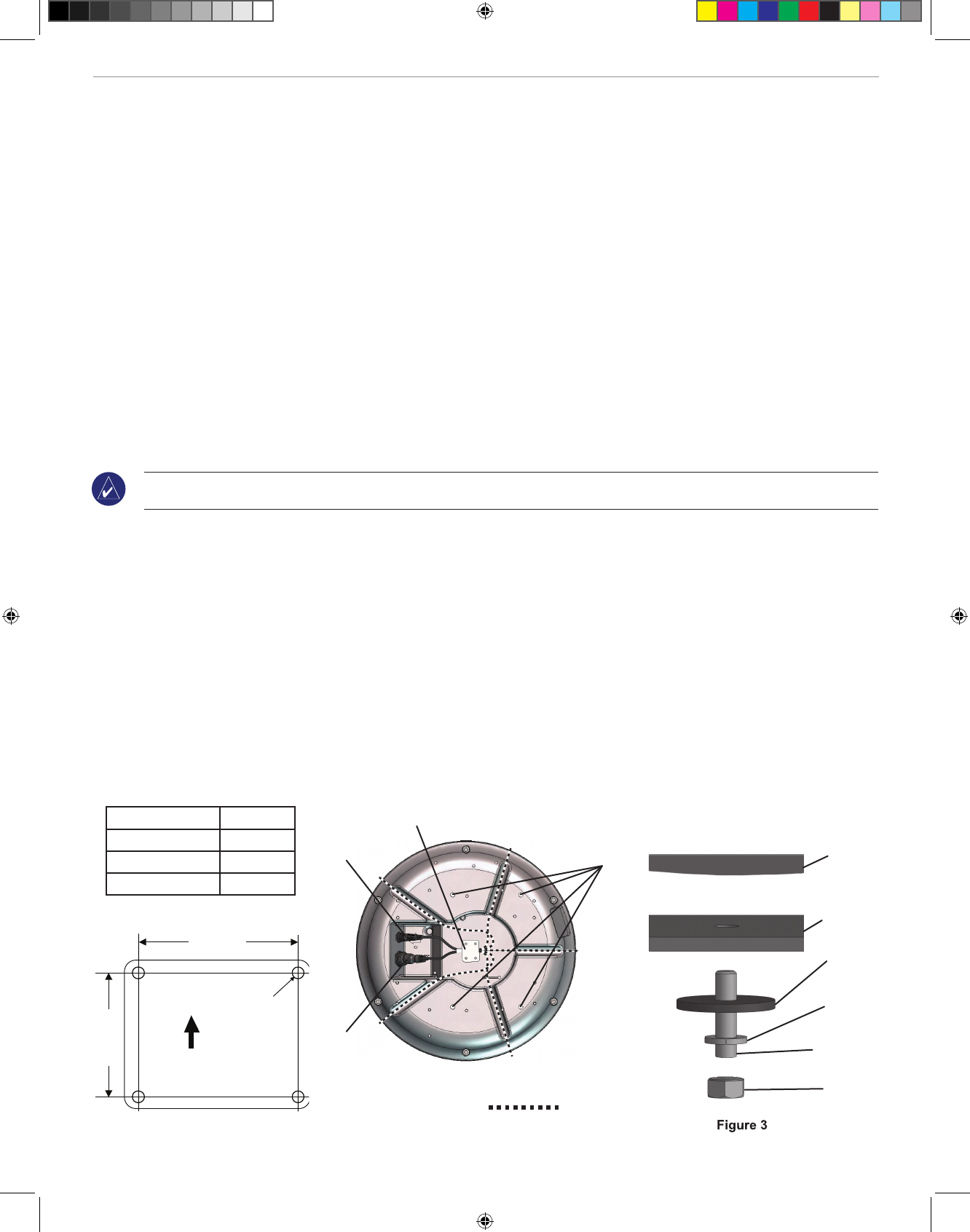

Mounting the Scanner
1. When a suitable mounting location has been determined, verify that the mounting hole locations are aligned fore and aft, then drill four
9.5 mm (0.37") mounting holes referencing Figure 1 below. (This step is not necessary if you are using a pre-drilled Garmin compatible
or Raymarine® mount.)
2. Align the notch and locking ring on the power cable to the power connector. Press the 2-pin power cable to the power connector and the
RJ-45 marine network cable to the RJ-45 socket (Figure 2). Turn the power cable locking ring clockwise until it stops. Tighten the RJ-45
locking ring clockwise until it is fi rmly sealed.
3. The power/network cable may be pressed into one of the fi ve guide grooves molded into the bottom of the scanner case and secured
under the cable hold-down plate (Figure 2). Avoid excessive bending or twisting of the cable. See the following “Cable Runs” section for
more information.
4. Position the scanner on the mounting surface with the triangular mark on the case aligned to the front of the vessel. Apply a bead of
marine sealant around each of the mounting holes on the mounting surface.
5. Install the four (4) M8 x 1.25 x 60 threaded rods into the Mounting Holes on the bottom of the scanner. There should be no more than
50 mm (2") extruding from the scanner when they are installed properly.
6. Fasten the scanner to the mounting surface using the M8 x 1.25 x 60 threaded rods (installed in the previous step), spring washers, fl at
washers, and M8 Hex nuts as shown in Figure 3. The nuts should be torqued to between 13.7-18.6 Nm (10-14 lb ft).
NOTE: The supplied M8 x 1.25 x 60 threaded rods can be used on mounting thicknesses of 5-30 mm (1 1/8") (recommended). For surfaces over
30 mm (1 1/8"), locally supplied longer threaded rods are needed.
Cable Runs
Route the cable as needed, depending on the type of mount you are using. DO NOT cut the cable! It may be necessary to drill a 31.7 mm
(1.25") hole for routing the power/network cable. Garmin provides a rubber cable grommet which may be used to cover the cable installation
hole. The grommet does NOT provide a waterproof seal. To waterproof the grommet, apply a marine sealant. Additional cable grommets can be
purchased through Garmin or a Garmin dealer.
When installing the power/network cable, observe the following:
• To ensure safety, use the appropriate tie-wraps, fasteners, and sealant to secure the cable along a route and through any bulkhead or deck.
Avoid running the cable near moving objects, high-heat sources, or through doorways and bilges.
• Avoid installing the cable next to or parallel to other cables, such as radio antenna lines, or power cables. This is essential to avoid
interference to or from other equipment. If this is not possible, shield the cable with metal conduit or a form of EMI shielding.
• Install the power portion of the cable as close to the battery source as possible. A minimum of 10 VDC is required at the 15 m cable
connector during radar turn-on and operation. See the Wire Gauge Table below for the recommended wire gauge between radar cable and
battery.
Ship's Bow
141.5 mm
(5.57")
233.0 mm
(9.17")
9.5 mm
(0.37")
Figure 3Figure 2
Figure 1
Wire Gauge Table
Distance Gauge
2 meters (6.5 ft) 16 AWG
4 meters (13 ft) 14 AWG
6 meters (19 ft) 12 AWG
Mounting
Holes
Power
Connector
Network
Connector
Cable Routing
Options
Plate
Mounting
Bracket
Flat
Washer
Spring
Washer
M8 x 60
Threaded Rod
Figure 3
Scanner
M8 Nut
190-00800-02_0A.indd 3 1/15/2007 3:54:54 PM
![](/img.php?id=750216&img=bg6.png)
4GMR 18 Marine Radar Installation Instructions

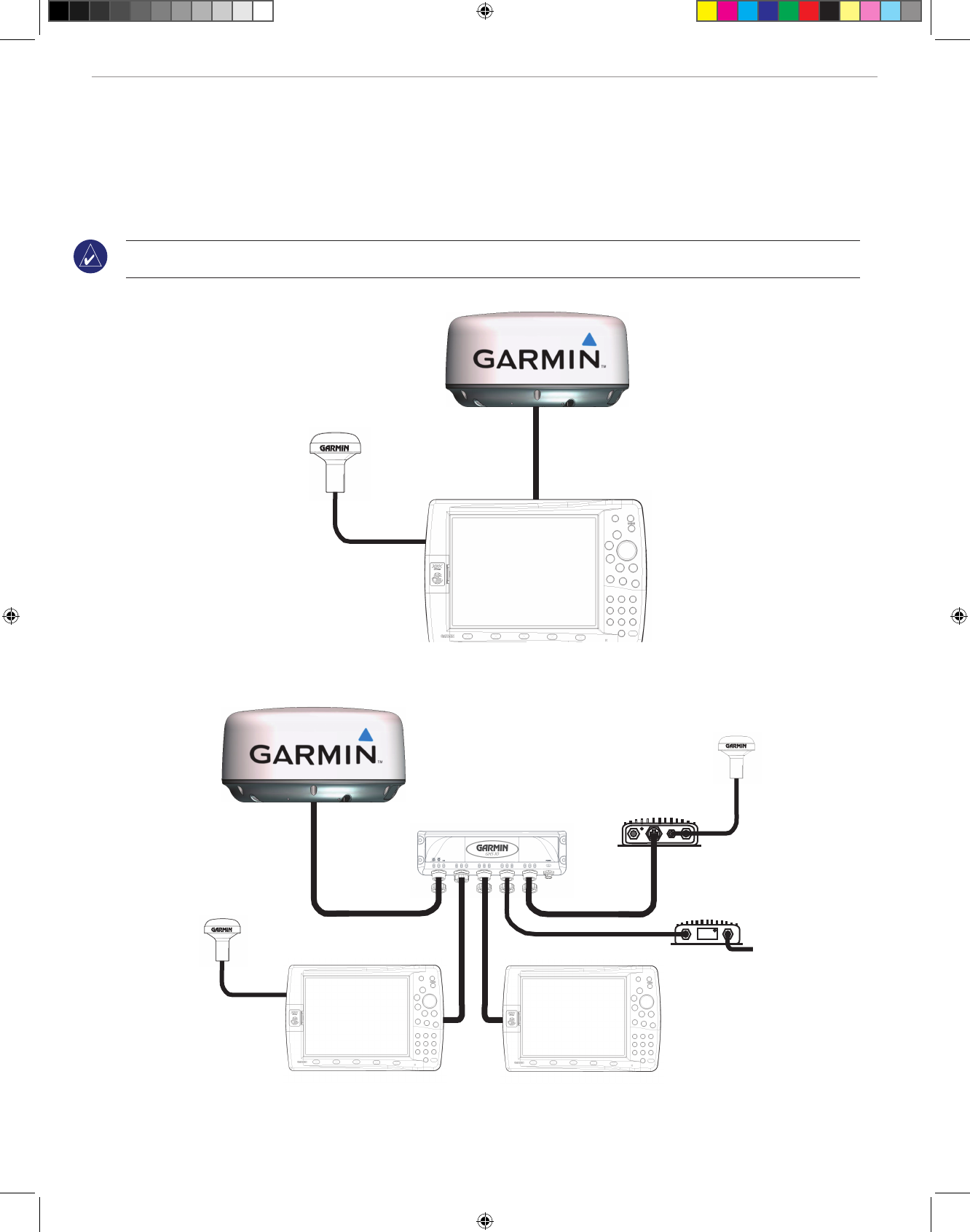

Final Wiring Connections
Making the nal wiring connections
1. Connect the Black ground (-) wire to the vessel’s negative power terminal.
2. Connect the Red power (+) wire (with fuse holder) to the vessel’s positive power terminal.
3. For a stand-alone network (MFD and radar only), attach the RJ-45 marine network cable to the RJ-45 socket on the back of the MFD.
For an expanded network (MFD, radar, GMS 10), attach the RJ-45 marine network cable to an open RJ-45 socket on the GMS 10
network power expander. Tighten the RJ-45 locking ring clockwise until it is fi rmly sealed.
GPS 17
Garmin
Chartplotter
GMR 18 MARINE
RADAR
Stand Alone Network
Expanded Network
GPS 17
Garmin GMS 10
Marine Network Port Expander
GMR 18
Marine Radar
Garmin GDL 30/30A
Marine Weather/Audio
Satellite Receiver
GA 31
to transducer
GSD 22
Sounder Module
Garmin
Chartplotter
Garmin
Chartplotter
NOTE: Each component of the expanded network must be installed according to its installation instructions. These diagrams only show how a
GMR 18 radar interacts with a network and do not show proper wiring for other network components.
190-00800-02_0A.indd 4 1/15/2007 3:54:55 PM
![](/img.php?id=750216&img=bg7.png)
GMR 18 Marine Radar Installation Instructions 5
Powering on the System
To power on the scanner:
1. On the MFD (multi-function display), press the red Power key. The scanner is automatically powered on with the MFD. The Welcome
Page appears showing the GMR 18 as a detected network connection.
2. Press ENTER when I Agree turns yellow, then press PAGE until the Radar Page appears.
3. During Standby mode, a countdown appears on the Radar Page and the status bar as the scanner prepares to operate.
4. With the scanner Ready, press and hold the FCTN key until Do you want to begin radar transmission? appears.
5. When safe (personnel are clear of the radar beam path), highlight Yes, and press ENTER. The scanner spins up and becomes
operational.
Bearing Offset
It may be necessary to adjust the bearing of the radar picture shown on the screen. First, using a magnetic compass, take an optical bearing of a
stationary target located within viewable range. Measure the target bearing on the radar. If the bearing deviation is more than +/- 1°, then do the
following to correct for the offset:
1. From the Radar Page, press the ADJ key to display the Adjustment Menu.
2. From the Adjustment Menu, select Setup, and press ENTER. Using the ROCKER, select the Advanced tab.
3. Using the Rocker, highlight the Front of Boat Offset slider, and press ENTER.
4. Press Left on the Rocker to adjust to a negative value, or press Right to adjust to a positive value. The preview window changes as you
adjust the slider.
5. Once an offset has been determined, press ENTER to save, then press QUIT to return to the Radar Page. Your new Garmin marine
radar is now ready to use! Refer to the Owner’s Manual of your Garmin Chartplotter for details about operating the scanner.
190-00800-02_0A.indd 5 1/15/2007 3:54:55 PM
![](/img.php?id=750216&img=bg8.png)
6GMR 18 Marine Radar Installation Instructions
Specications
Unit Dimensions: 18" (457 mm) D x 8.9" (226 mm) H
Radar Scanner Weight: Unit 15.8 lbs (7.17 kg); cable 8.4 lbs (3.81 kg)
Range Scales (Range Rings): 1/8 nm (1/32 nm) to 36 nm (9 nm)
Power Output: 4 kW
Power Input Source: 10.5-35 VDC 28 W
Operating Temperature Range: 5° F (-15° C) to 158° F (70° C), and a relative humidity up to 95% at 95° F (35° C)
Beamwidth: Horizontal beamwidth of 5° nominal / Vertical beamwidth of 25° nominal
Range: 36 nm
Wind Velocity: Wind speed up to 100 Kts
Antenna RPMs: 24/30 rpm
Range Ring Accuracy: 20m or ± 1.5% of range scale, whichever is greater
Bearing Accuracy: 1°
Minimum Range: 20 meters
Range Discrimination: 20 meters
Sensitivity and Tune Controls: Gain, Sea Clutter, Rain Clutter, and Frequency Tune
Radar/Chart Synchronization: Overlay mode. Split overlay with standard radar presentation.
Off Center Function: Look ahead, Auto Shift, and Manual
RF Transmit Frequency: 9410 ± 30 MHz
190-00800-02_0A.indd 6 1/15/2007 3:54:55 PM
![](/img.php?id=750216&img=bg9.png)

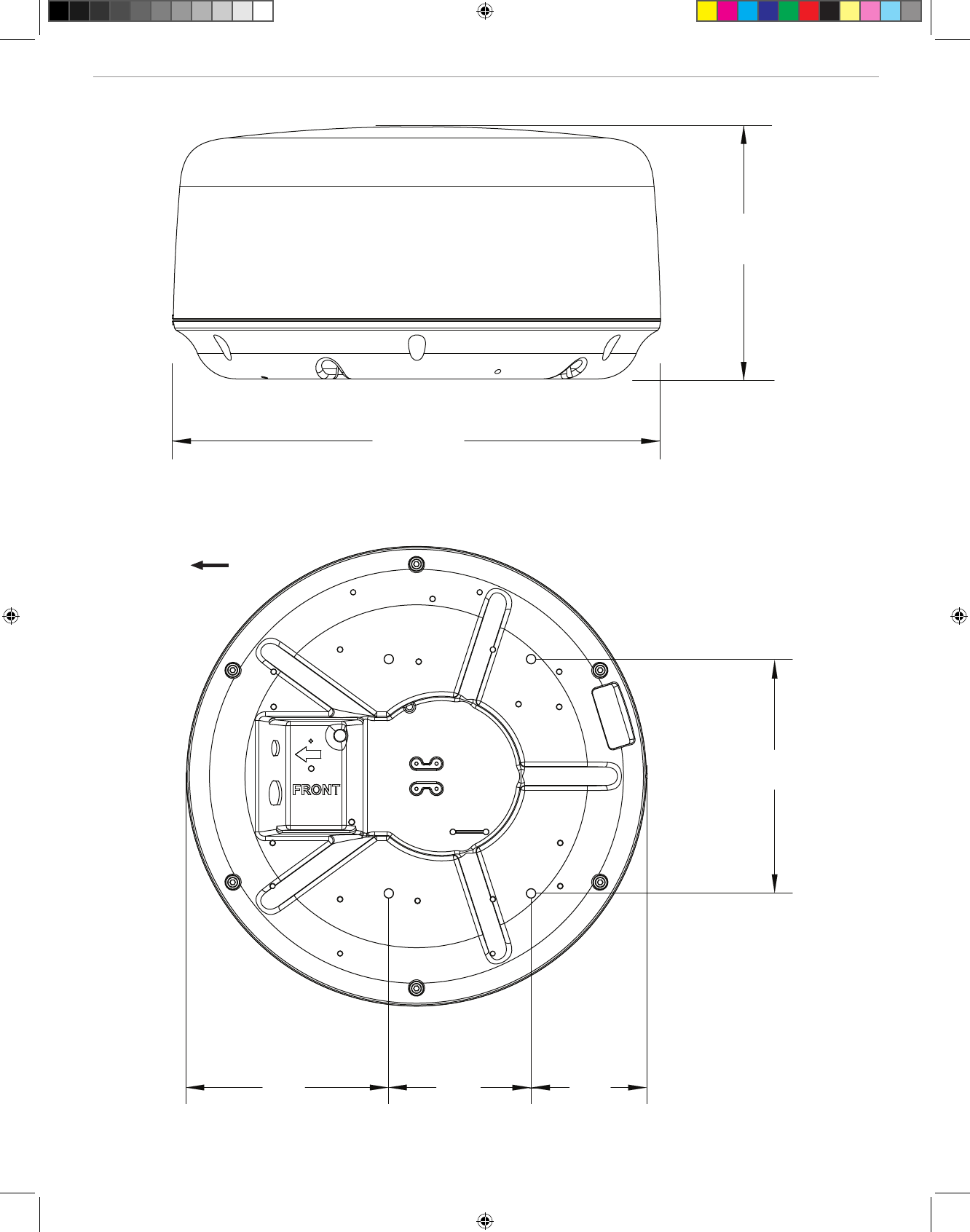

GMR 18 Marine Radar Installation Instructions 7
(236.4 mm)
9.31"
(457 mm)
18"
(233.0 mm)
9.17"
(114 mm)
4.49"
(141.5 mm)
5.57"
(201.5 mm)
7.93"
Towards Bow
190-00800-02_0A.indd 7 1/15/2007 3:54:55 PM
![](/img.php?id=750216&img=bga.png)
8GMR 18 Marine Radar Installation Instructions
Warnings
Failure to avoid the following potentially hazardous situations could
result in an accident or collision resulting in death or serious injury.
• The radar scanner transmits electromagnetic energy.
Ensure that the scanner has been installed according to the
recommendations given in this guide, and that all personnel
are clear of the scanner before switching to transmit mode.
• When navigating, carefully compare information displayed on
the unit to all available navigation sources, including information
from visual sightings, and maps. For safety, always resolve any
discrepancies or questions before continuing navigation.
• Use this unit only as a navigational aid. Do not attempt to use the unit
for any purpose requiring precise measurement of direction, distance,
location, or topography.
WARNING: This product, its packaging, and its components contain chemicals known to the State of California to cause cancer, birth defects, or reproductive harm.
This Notice is provided in accordance with California’s Proposition 65. See www.garmin.com/prop65 for more information.
FCC Compliance
The GMR 18 complies with Part 80 of the FCC rules. It has received a grant of equipment authorization, issued under the authority of the FCC.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
190-00800-02_0A.indd 8 1/15/2007 3:54:56 PM
![](/img.php?id=750216&img=bgb.png)
GMR 18 Marine Radar Installation Instructions 9
Software License Agreement
BY USING THE GMR 18, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE
LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY.
Garmin grants you a limited license to use the software embedded in this device (the “Software”) in binary executable form in the normal
operation of the product. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin.
You acknowledge that the Software is the property of Garmin and is protected under the United States of America copyright laws and
international copyright treaties. You further acknowledge that the structure, organization, and code of the Software are valuable trade secrets of
Garmin and that the Software in source code form remains a valuable trade secret of Garmin. You agree not to decompile, disassemble, modify,
reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on
the Software. You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of
America.
Limited Warranty
All Garmin marine radomes and open array scanners are warranted to be free from defects in materials or workmanship for two years from the
date of purchase. Within this period, Garmin will, at its sole option, repair or replace any components that fail in normal use. Such repairs or
replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation
cost. This warranty does not cover failures due to abuse, misuse, accident, or unauthorized alteration or repairs.
THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES
EXPRESS, IMPLIED, OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, WHICH MAY VARY FROM STATE TO STATE.
IN NO EVENT SHALL GARMIN BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES,
WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE
PRODUCT. Some states do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you.
Garmin retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole discretion.
SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
To obtain warranty service, contact your local Garmin authorized dealer or call Garmin Product Support for shipping instructions and an RMA
tracking number. Securely pack the unit and a copy of the original sales receipt, which is required as the proof of purchase for warranty repairs.
Write the tracking number clearly on the outside of the package. Send the unit, freight charges prepaid, to any Garmin warranty service station.
Online Auction Purchases: Products sold through online auctions are not eligible for rebates or other special offers from Garmin. Online
auction confirmations are not accepted for warranty verification. To obtain warranty service, an original or copy of the sales receipt from the
original retailer is required. Garmin will not replace missing components from any package purchased through an online auction.
International Purchases: A separate warranty is provided by international distributors for units purchased outside the United States. This
warranty is provided by the local in-country distributor and this distributor provides local service for your unit. Distributor warranties are only
valid in the area of intended distribution. Units purchased in the United States or Canada must be returned to the Garmin service center in the
United Kingdom, the United States, Canada, or Taiwan for service.
Garmin International, Inc. Garmin (Europe) Ltd. Garmin Corporation
1200 East 151st Street, Unit 5, The Quadrangle, No. 68, Jangshu 2nd Road,
Olathe, Kansas 66062, USA Abbey Park Industrial Estate, Shijr, Taipei County, Taiwan
Tel. (913) 397-8200 or Romsey, SO51 9DL, UK Tel. 886/2.2642.9199
(800) 800-1020 Tel. +44 (0) 870.8501241 (outside the UK) Fax 886/2.2642.9099
Fax (913) 397-8282 0808.2380000 (within the UK)
Fax +44 (0) 870.8501251
190-00800-02_0A.indd 9 1/15/2007 3:54:56 PM
![](/img.php?id=750216&img=bgc.png)
190-00800-02_0A.indd 10 1/15/2007 3:54:56 PM
![](/img.php?id=750216&img=bgd.png)
For the latest free software updates (excluding map data) throughout the life of your
Garmin products, visit the Garmin Web site at www.garmin.com.
© 2007 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 East 151st Street, Olathe, Kansas 66062, USA
Garmin (Europe) Ltd.
Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, UK
Garmin Corporation
No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan
www.garmin.com
Part Number 190-00800-02 Rev. A
190-00800-02_0A.indd 11 1/15/2007 3:54:56 PM
