1-2 Getting Started
Getting the Computer Running
Unpacking
After unpacking the shipping carton, you should find these standard items:
Notebook computer
Accessories:
− AC adapter
− AC power cord
− Stylus or digitizer pen (optional)
− Tether
− Carrying Strap
− AG/AR (anti-glare/anti-reflection) film, which is already attached to
the screen
− Screen cleaning cloth
− Driver disc
− Document(s)
Inspect all the items. If any item is damaged or missing, notify your dealer
immediately.
![](/img.php?id=2123410&img=bg9.png)
Getting Started 1-3
Connecting to AC Power
It is suggested that you use AC power when you start up the computer for
the very first time.

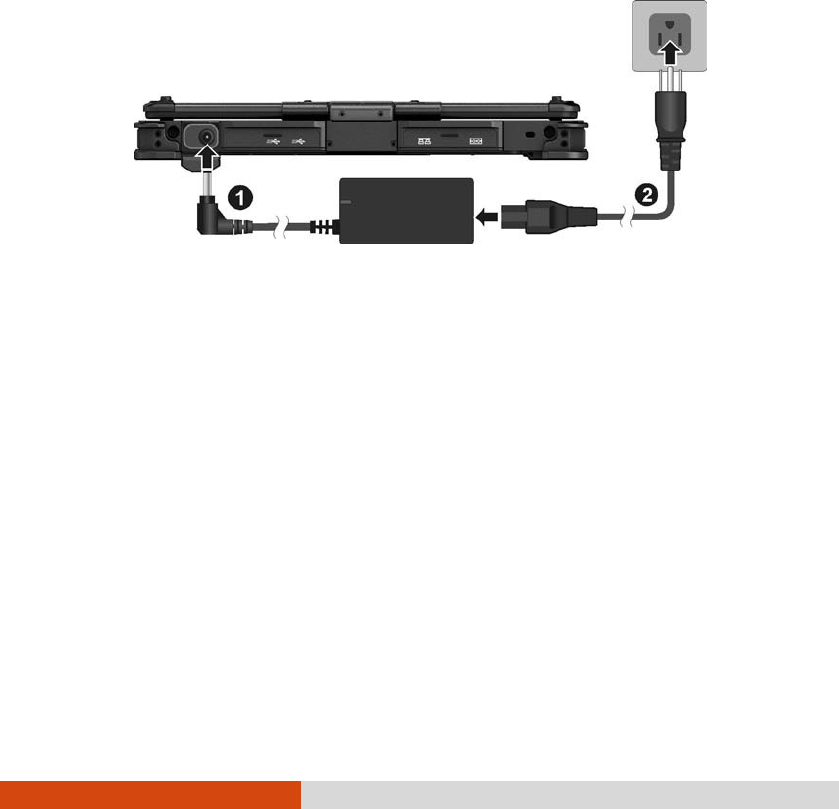

1. Plug the DC cord of the AC adapter to the power connector of the
computer ().
2. Plug the female end of the AC power cord to the AC adapter and the
male end to an electrical outlet ().
3. Power is being supplied from the electrical outlet to the AC adapter and
onto your computer. Now, you are ready to turn on the computer.
CAUTION: Use only the AC adapter included with your computer. Using
other AC adapters may damage the computer.
NOTE: When the AC adapter is connected, it also charges the battery pack.
For information on using battery power, see Chapter 3.
![](/img.php?id=2123410&img=bga.png)
1-4 Getting Started
Opening and Closing the Cover
To open the top cover:

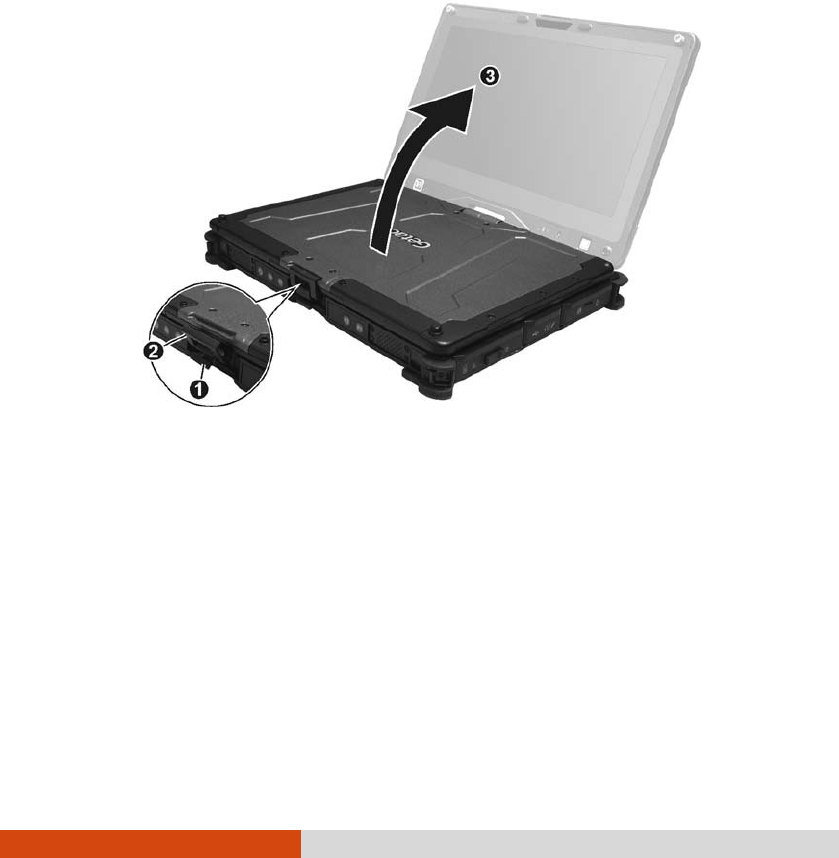

1. Pull loose the cover latch () and release the clamp ().
2. Lift up the cover (). You can tilt the cover forward or backward for
optimal viewing clarity.
To close the top cover:
1. Close the display.
2. Lift the cover latch and engage the clamp on the display. Then, push in
the cover latch to click it into place.
![](/img.php?id=2123410&img=bgb.png)
Getting Started 1-5
Operating in Tablet Mode

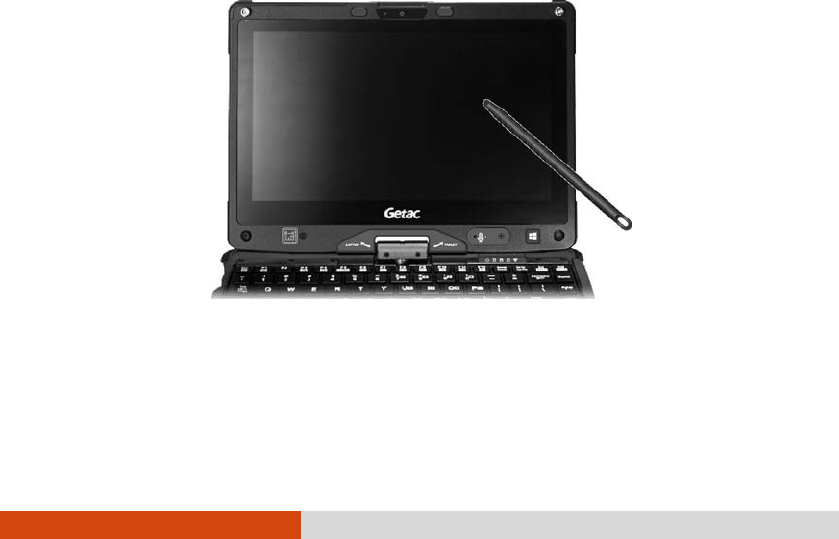

In addition to being used as a regular notebook computer (Laptop mode),
your computer can also be operated in Tablet mode. In Tablet mode, you
operate the computer with a stylus or digitizer pen, or a fingertip, instead of
a keyboard or mouse.

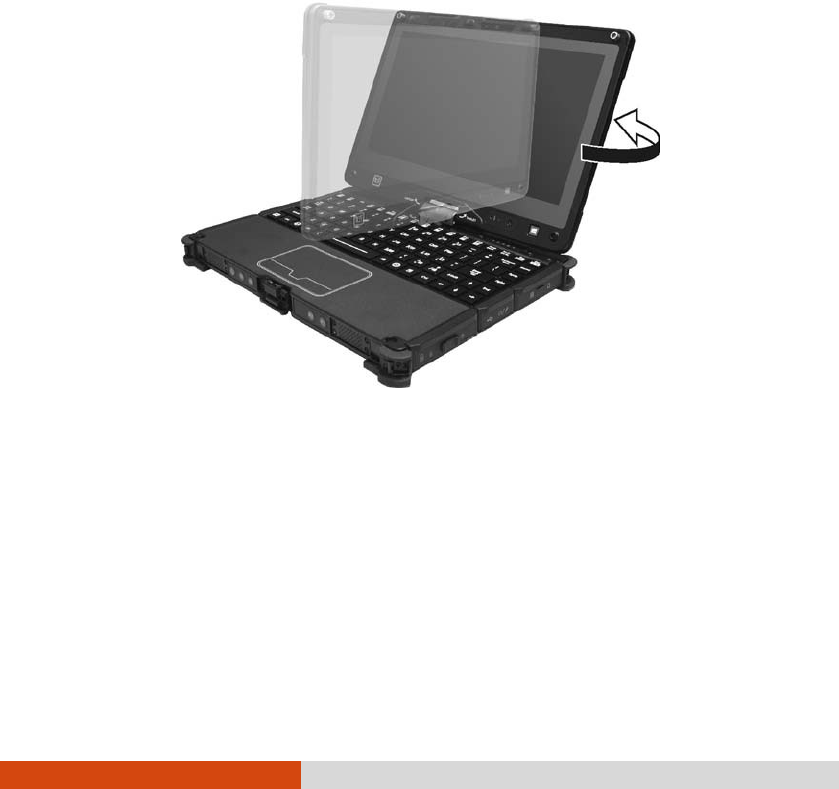

1. Open the top cover so that it is almost perpendicular with the keyboard
of the computer.

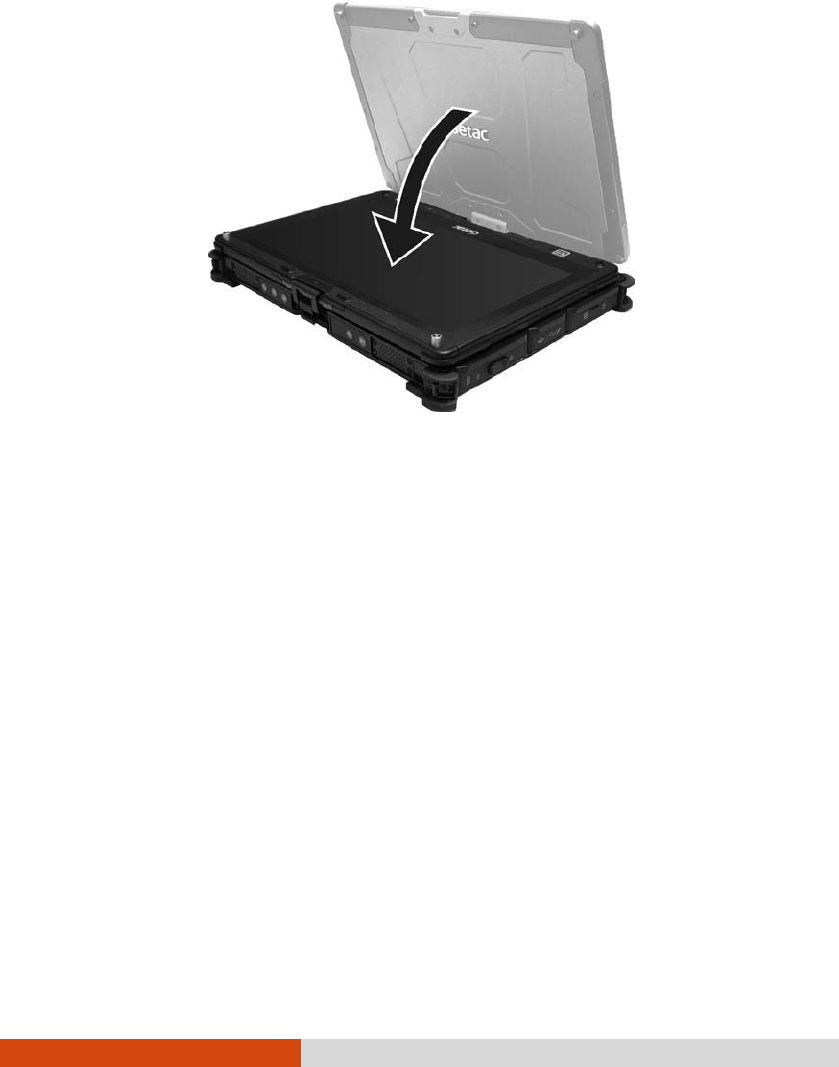

2. Turn the display counter-clockwise by 180o.
CAUTION: The allowed rotation range is between counter-clockwise by 180o
and clockwise by 45 o. Do not force beyond the limitation.
3. Close the computer with the display facing up.
![](/img.php?id=2123410&img=bgd.png)
Getting Started 1-7
Turning On and Off the Computer
Turning On
Press the power button ( ). The Windows operating system should start.
Turning Off
When you finish a working session, you can stop the system by turning off
the power or leaving it in Sleep or Hibernation mode:
To... Do this...
Windows 8 Windows 7
Power off
(Shutdown)
1. Open the Charms Bar of
Windows 8 by swiping in from
the right side of the screen.
2. Tap Settings and then tap
(Power).
3. Tap Shut down in the Power
menu that pops up.
Use the Windows Start
menu in the lower left and
follow the shutdown
procedure.
Sleep Press the power button* or use
the Power menu to put the
computer in Sleep mode.
Press the power button*
or use the Windows Start
menu to put the computer
in Sleep mode.
Hibernate By default, this option is not
shown in the Power menu. If you
want to use the feature, set up
according in Windows Control
Panel.
Use the Windows Start
menu to put the computer
in Hibernation mode.
* “Sleep” is the default setting of the power button. You may change what
the power button does in Windows Control Panel.
![](/img.php?id=2123410&img=bge.png)
1-8 Getting Started
Taking a Look at the Computer
NOTE: Depending on the model you purchased, the appearance of your
computer may not be exactly the same as those shown in this manual.
CAUTION: You need to open the protective covers to access the connectors.
When not using a connector, make sure to close the cover completely for
water- and dust-proof integrity. (Engage the locking mechanism if existing.)
Front Components
Ref
Component Description See Also
Strap Holder Two buckles hold the carrying strap. P. 1-17
Stereo
Speaker
Sends out sound and voice from your
computer.
Power Button Turns the power on or off. (The default “off”
state is “Sleep mode.”)
P. 1-7
Up Button Increases the sound volume.
When Function Lock is on:
Increases the LCD brightness.
![](/img.php?id=2123410&img=bgf.png)
Getting Started 1-9
Ref
Component Description See Also
Down
Button
Decreases the sound volume.
When Function Lock is on:
Decreases the LCD brightness.
Top Cover
Latch
Locks the top cover. P. 1-4
P2 Button Starts the Getac Camera program and serves
as the shutter release button.
P. 6-6
When Function Lock is on:
Enables or disables the touchscreen feature.
P1 Button Switches on or off Function Lock (FL), which
changes the P2, Up, and Down buttons to an
alternative function. When FL is on, the
icon appears on Windows taskbar.
When pressed longer:
Serves as the Ctrl+Alt+Del keyboard keys.
P. 8-10
Can be changed to another set of predefined
functions using the Button Manager utility.
Carrying Strap Provides a convenient way to carry the
computer.
P. 1-17
Stylus /
Digitizer pen
Serves as the input device by tapping on the
touchscreen to make selections and enter
information.
P. 2-2
![](/img.php?id=2123410&img=bg10.png)
1-10 Getting Started
Rear Components

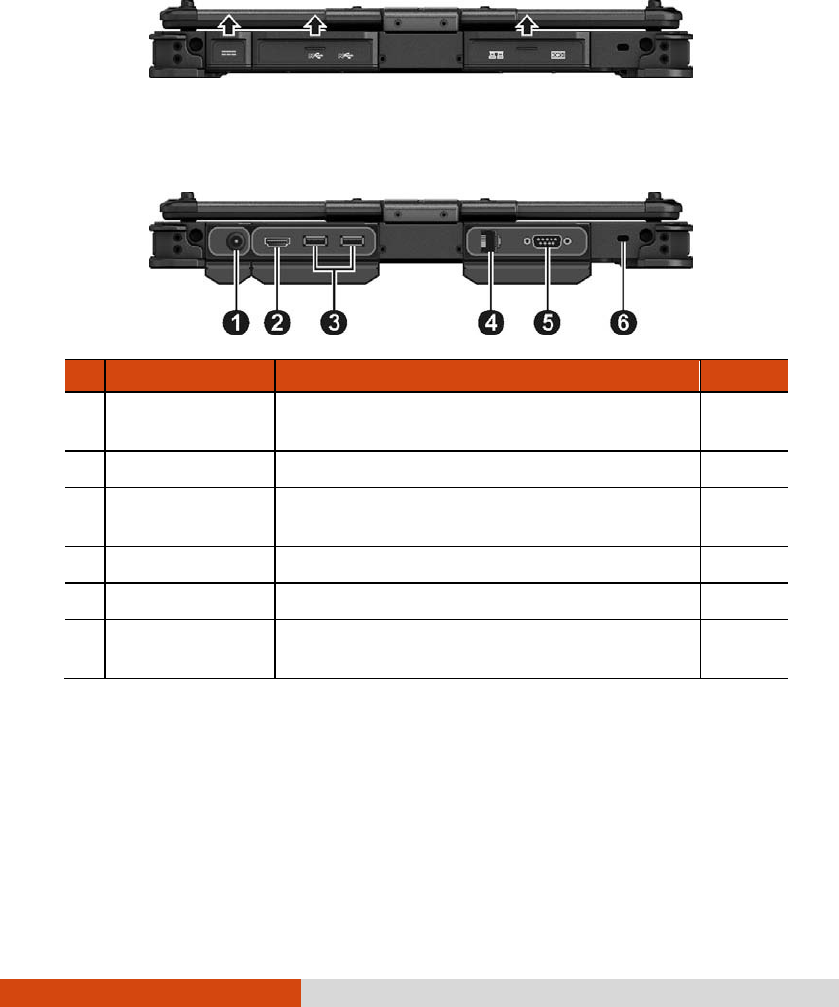

To access a connector, open its protective cover by lifting up the tab of the
cover. When closing the cover, push the tab downward until the cover clicks
into place.
Ref
Component Description See Also
Power
Connector
Connects the AC adapter. P. 1-3

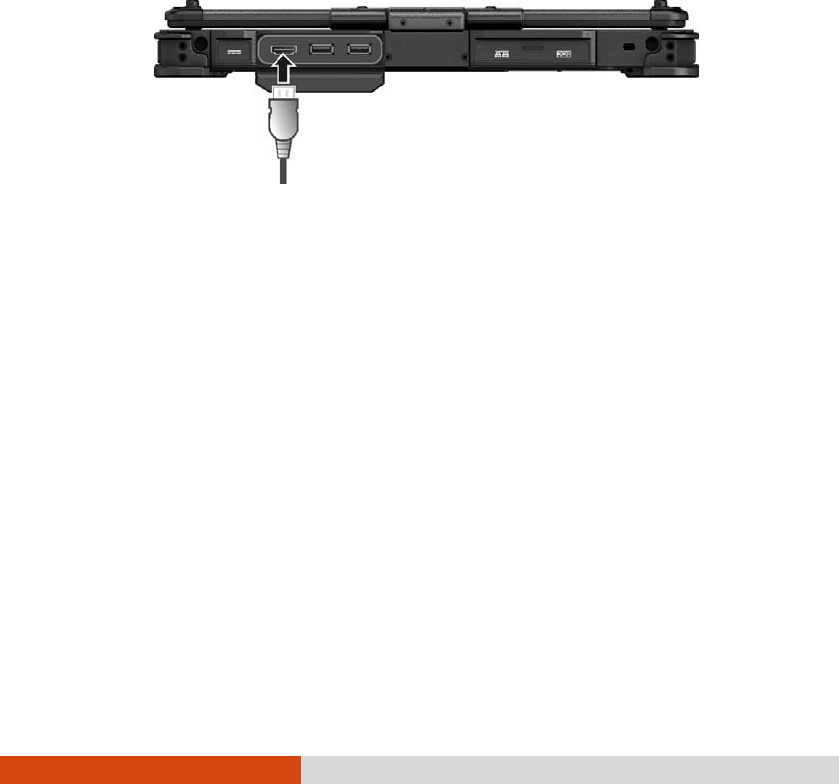

HDMI Connector Connects a HDMI monitor or TV set. P. 4-2

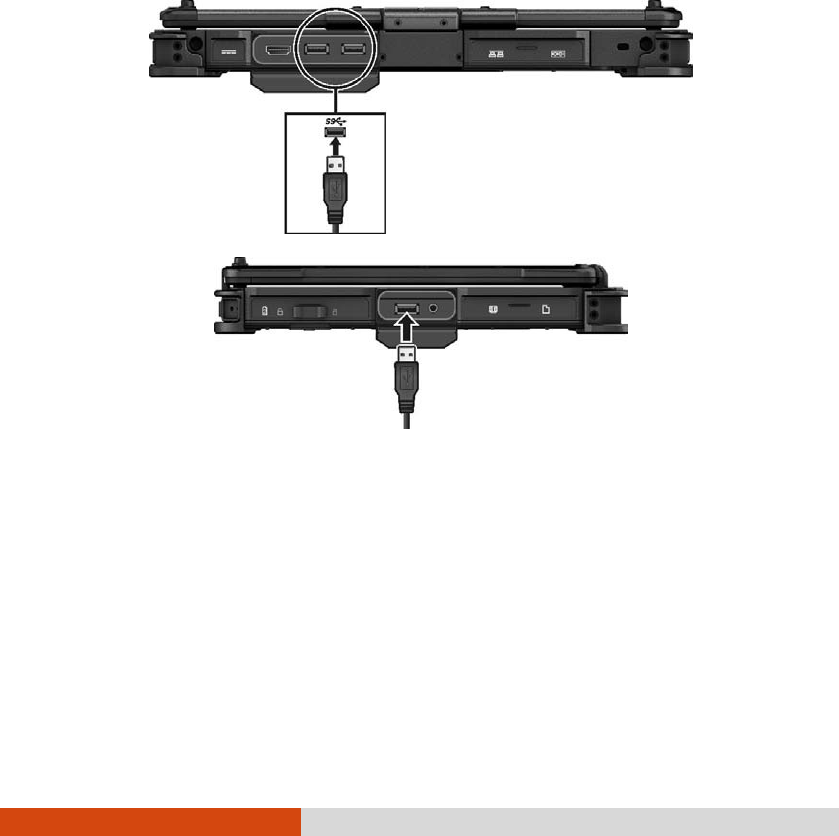

USB 3.0 Port Connects a USB device, such as a flash disk,
printer, digital camera, joystick, and more.
P. 4-3
RJ-45 Connector Connects the LAN cable. P. 2-14
Serial Port Connects a serial device. P. 4-3

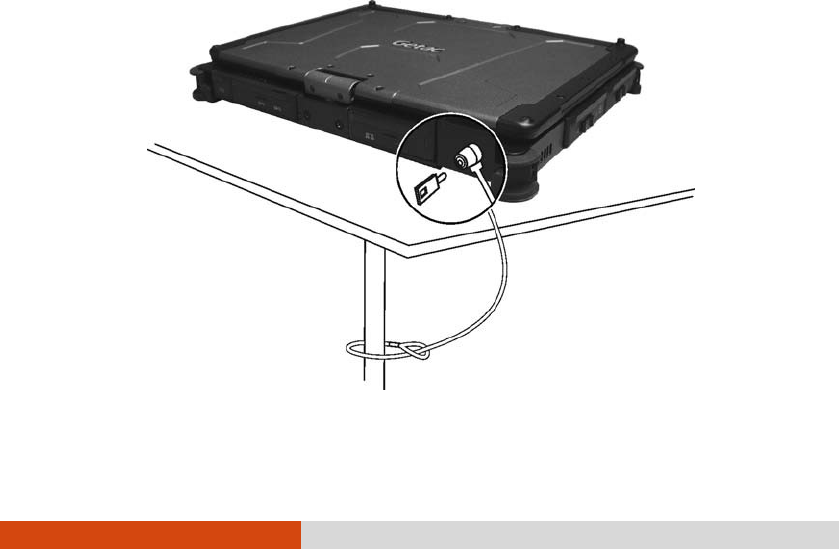

Kensington Lock Locks the computer to a stationary object
for security.
P. 7-2
![](/img.php?id=2123410&img=bg11.png)
Getting Started 1-11
Right-Side Components
To access a connector, open its protective cover by lifting up the tab of the
cover. When closing the cover, push the tab downward until the cover clicks
into place.

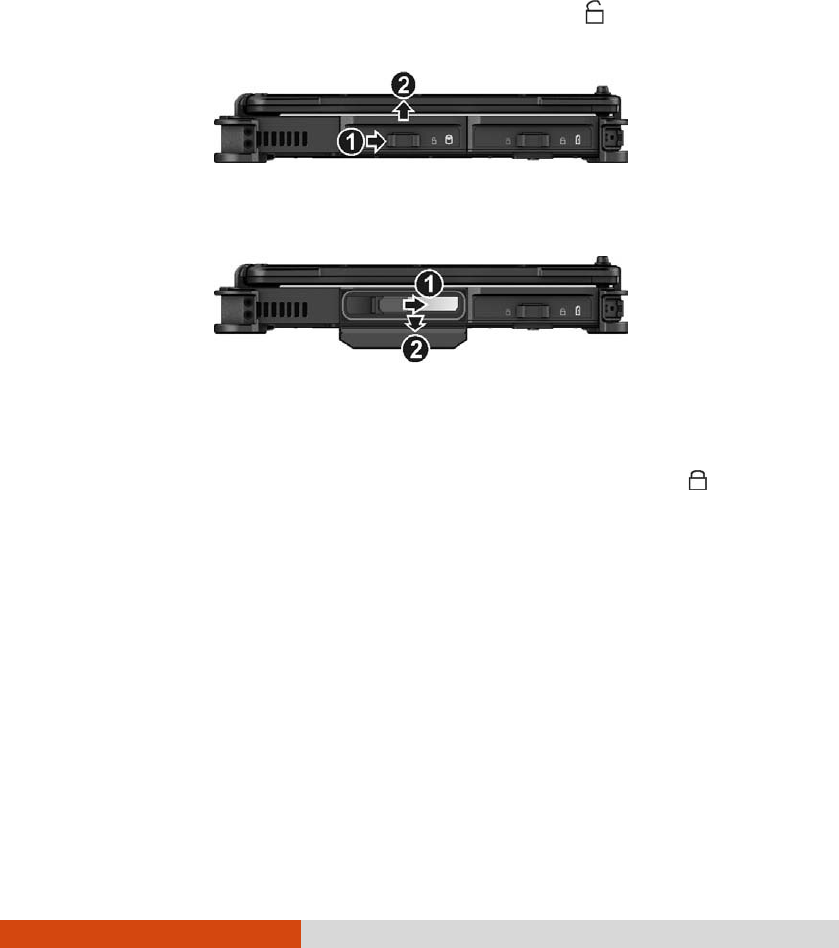

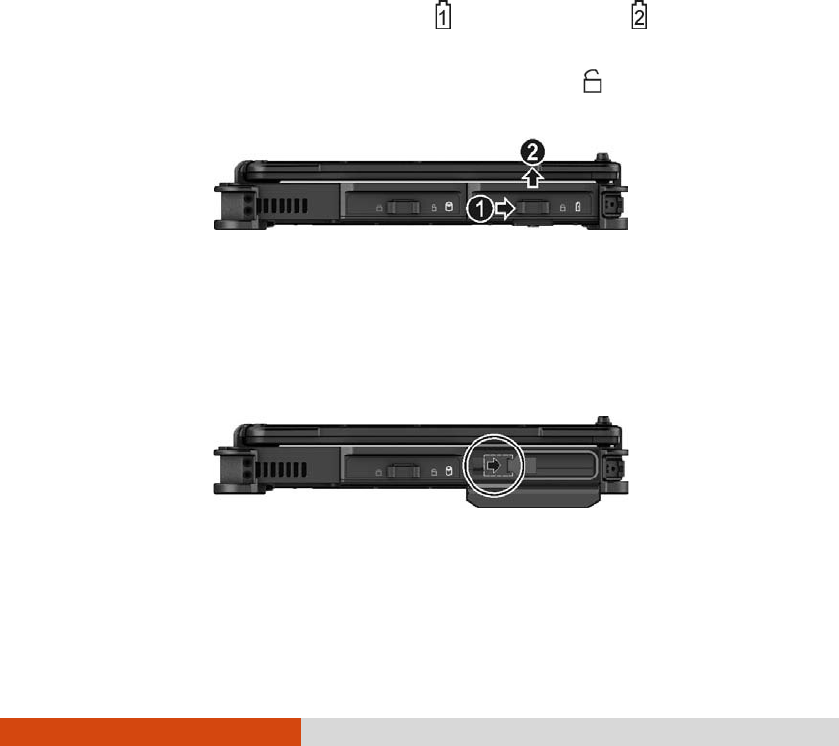

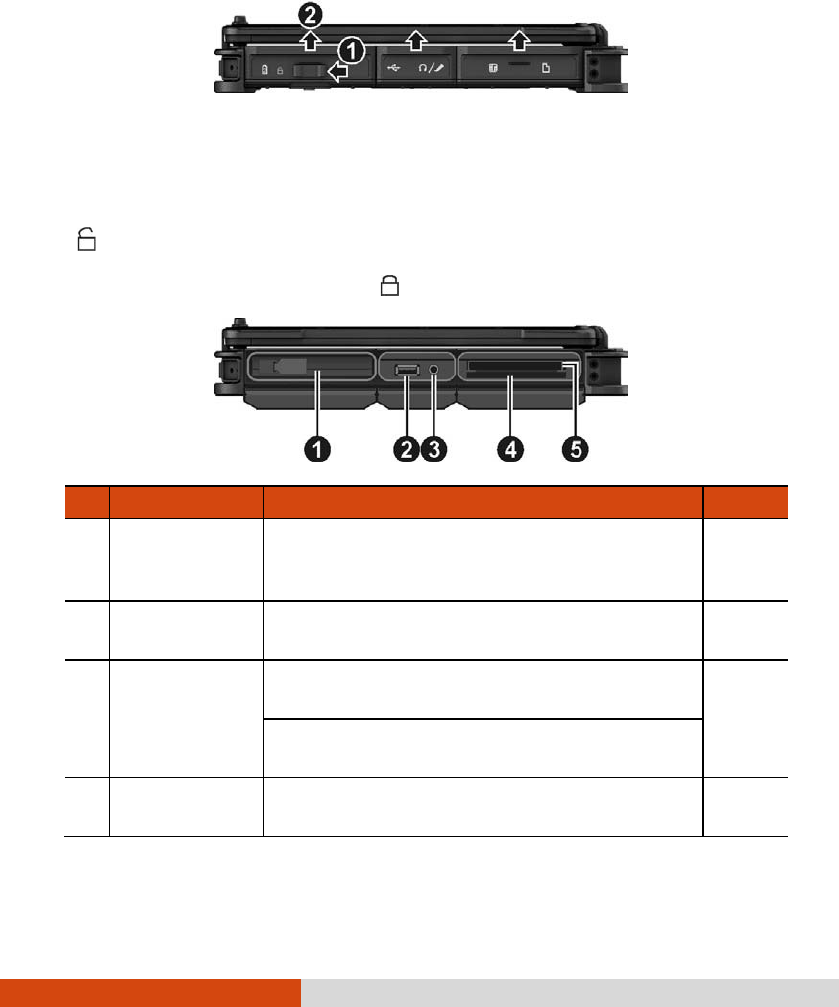

To access a device bay, slide the cover latch toward the unlocked position
( ) and then lift up the tab to release the cover. When closing the cover,
push the tab downward until the cover clicks into place and then slide the
latch toward the locked position ( ).
Ref Component Description See Also
Battery Pack Inside is the battery pack (Battery 2) that
supplies power to your computer when
external power is not connected.
P. 3-3
USB 2.0 Port Connects a USB device, such as a flash disk,
printer, digital camera, joystick, and more.
P. 4-3
Combo Audio
Connector
Connects a set of headphones or external
speakers with amplifier
P. 4-5
Supports a headset microphone with 4-pole
TRRS 3.5mm jack.
Smart Card
Slot
Accepts a smart card for additional security
feature.
P. 4-6
![](/img.php?id=2123410&img=bg12.png)
1-12 Getting Started
Ref Component Description See Also
ExpressCard
Slot
Accepts an ExpressCard for additional
functions.
P. 4-7
Left-Side Components
To access a device bay, slide the cover latch toward the unlocked position
( ) and then lift up the tab to release the cover. When closing the cover,
push the tab downward until the cover clicks into place and then slide the
latch toward the locked position ( ).
Ref Component Description See Also
Hard Disk
Drive
Inside is the hard disk drive. P. 4-9
Battery Pack Inside is the battery pack (Battery 1) that
supplies power to your computer when
external power is not connected.
P. 3-3
![](/img.php?id=2123410&img=bg13.png)
Getting Started 1-13

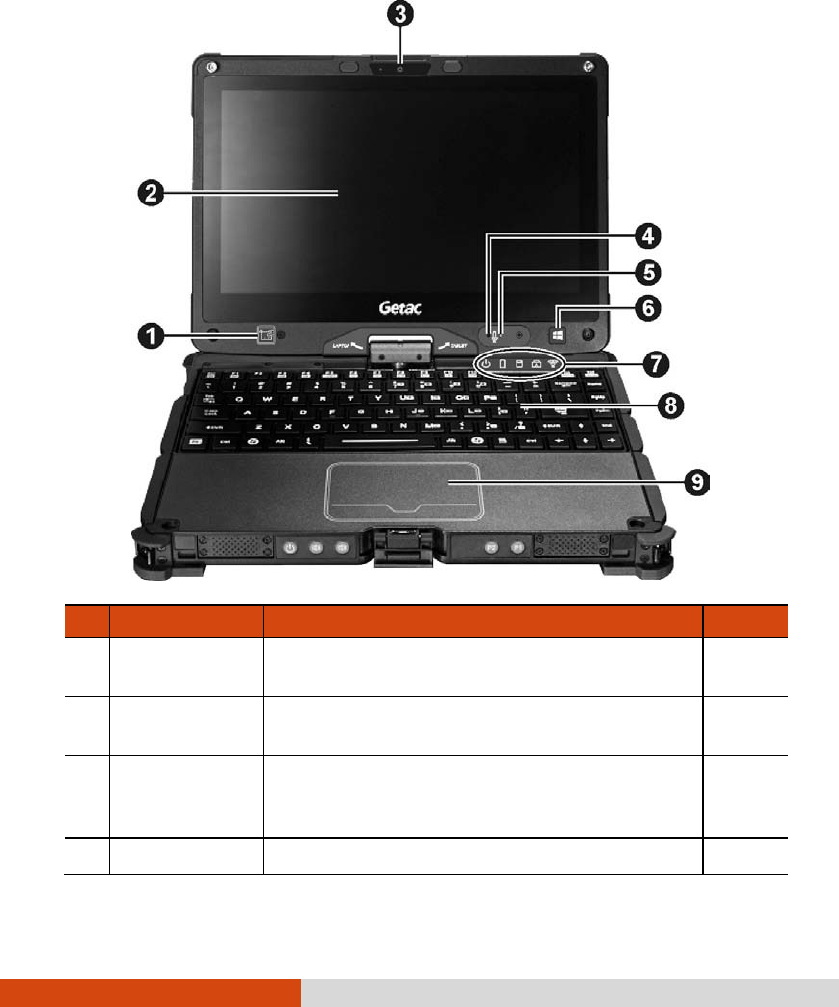

Top-open Components
Ref Component Description See Also
RFID Antenna
(optional)
Scans and reads RFID (Radio-frequency
identification) tags.
P. 6-6
Touchscreen Displays and receives information for the
computer.
P. 2-10
Camera Lens
(optional)
Allows you to use your computer’s camera
function. When the camera lens is in use, the
LED beside it lights up.
P. 6-5
Microphone Receives sound and voice to record voice.
![](/img.php?id=2123410&img=bg14.png)
1-14 Getting Started
Ref Component Description See Also
Light Sensor Detects the surrounding lighting condition
for automatic adjustment of the LCD
brightness and optional keyboard backlight.
Windows
Logo Button
For Windows 8:
Goes to the Start screen. Or if you're already
on Start, pressing this button brings you to
the last application you were in.
For Windows 8 (when pressed longer):
Opens or closes the OSD Control Panel.
P. 6-2
For Windows 7:
Opens or closes the OSD Control Panel.
P. 6-2
Indicators Show the current status of the computer’s
devices.
Power Lights green when the computer is turned
on.
P. 1-7
Blinks green when the computer is in Sleep
mode.
Battery
Charge
Lights green when the battery is fully
charged.
P. 3-3
Lights amber when the battery is being
charged.
Blinks red when the battery’s capacity is below
10%.
P. 3-5
Blinks amber when the battery charging is in
an abnormal state. Replace the battery in
case this happens.
Hard Disk
Drive In-Use
Lights green when the computer is accessing
the hard disk drive.
Caps Lock Lights green when Caps Lock is on. P. 2-2
![](/img.php?id=2123410&img=bg15.png)
Getting Started 1-15
Ref Component Description See Also
RF (Radio
Frequency)
Lights green when the RF radio of any RF
feature (WLAN/BT/WWAN) is on.
Keyboard Serves as the data input device. P. 2-2
Touchpad Serves as the pointing device. P. 2-7

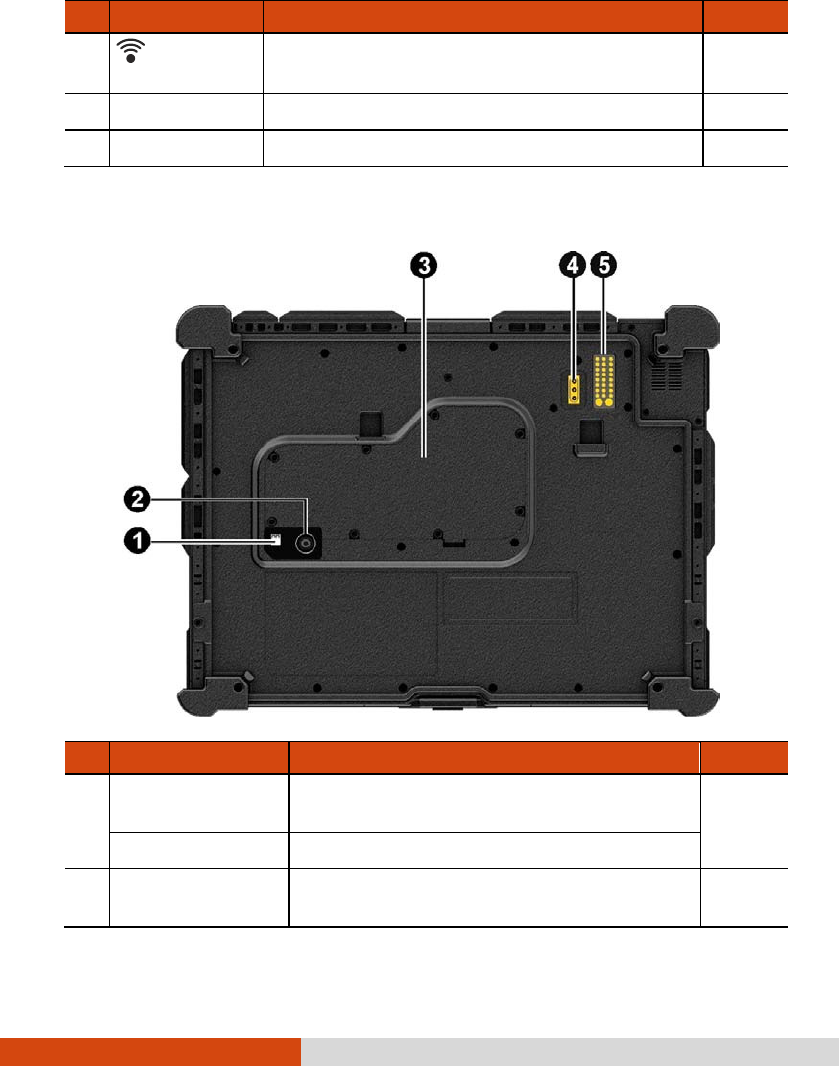

Bottom Components
Ref Component Description See Also
Camera Indicator
(optional)
Lights up when the camera lens beside it is
in use.
Flash (optional) Provides extra light when taking pictures.
Camera Lens
(optional)
Allows you to use the camera function. P. 6-5
![](/img.php?id=2123410&img=bg16.png)
1-16 Getting Started
Ref Component Description See Also
Memory Slots Inside are the memory slots for expanding
the memory size of your computer.
P. 4-9
SIM Card Slot
(optional)
Inside is the SIM card slot. P. 2-18
Antenna Pass-
through
(optional)
Connects to the docking station for using
external WWAN/GPS/WLAN antenna.
Can be tri type or dual type (WWAN+GPS
or WLAN+GPS) depending on your model.
Docking
Connector
Inside is the docking connector for
connecting an office dock or vehicle dock
(purchased separately).
![](/img.php?id=2123410&img=bg17.png)
Getting Started 1-17
Installing the Accessories
Attaching the Carrying Strap

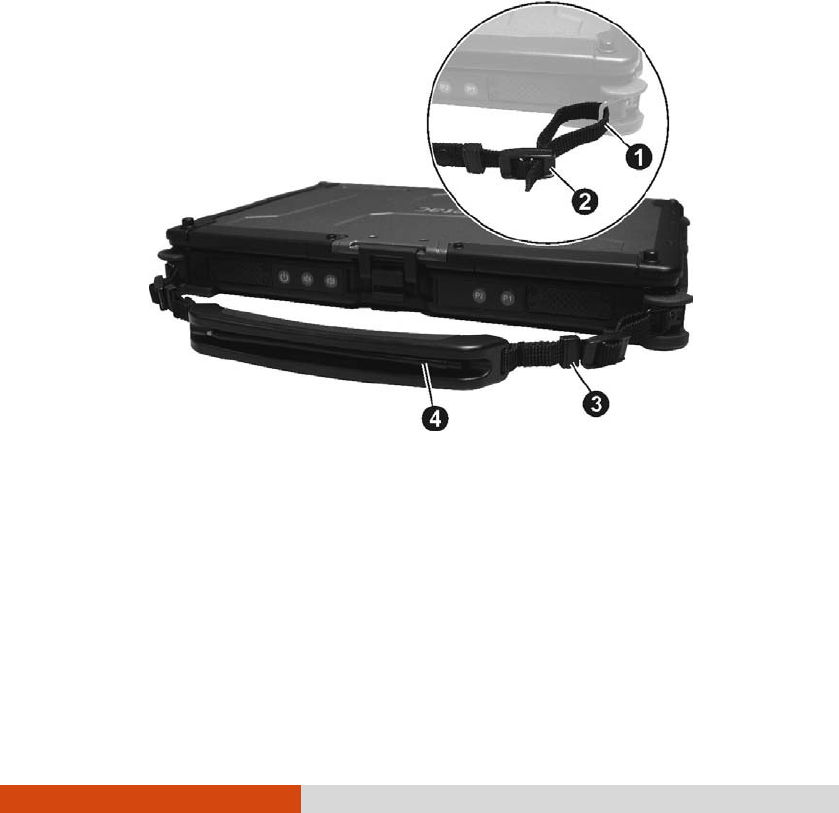

Insert one end of the strap into one strap holder () on your computer and
feed it through the slider buckle (). Use the fastener () to fix the strap
end in place. Secure the other end of the strap to the computer in the same
way.
The strap provides a slot for storing the stylus or digitizer pen ().
![](/img.php?id=2123410&img=bg18.png)
1-18 Getting Started
Using the Tether

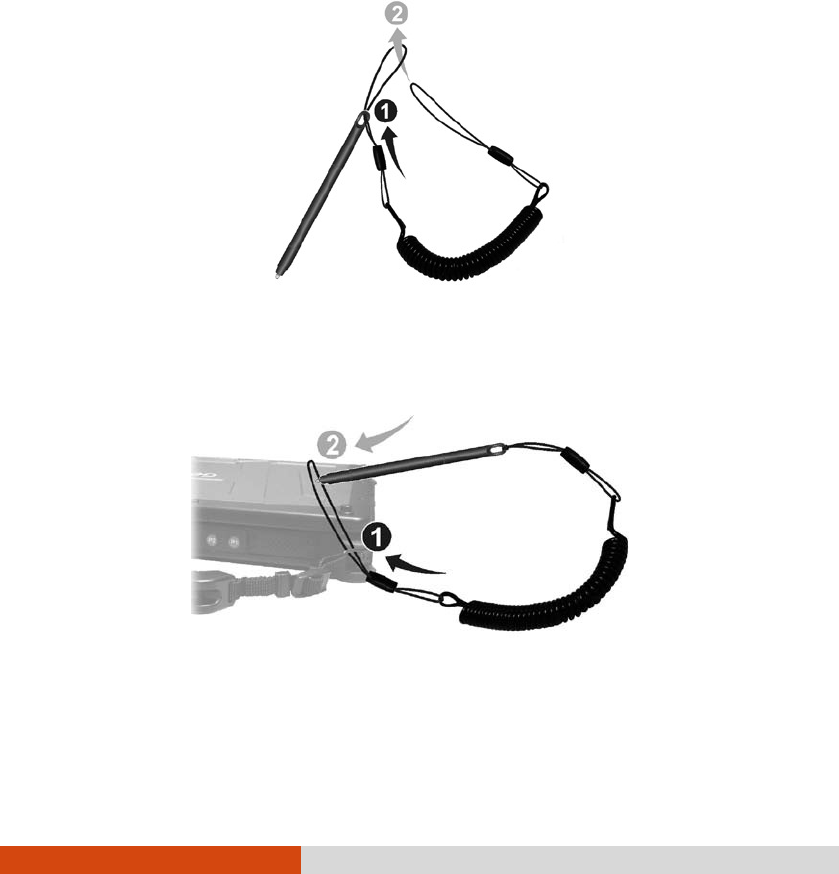

A tether is provided for attaching the stylus to your computer.
1. Insert one of the tether’s loop ends through the hole of the stylus (as
indicated by below). Then, insert the other end through the first loop
(as indicated by below) and pull it tight.
2. Insert the other loop end to the strap holder on computer (as indicated
by below). Then, insert the stylus end through the loop (as indicated
by below) and pull it tight.
![](/img.php?id=2123410&img=bg19.png)
Getting Started 1-19
Attaching the Handgrip Strap (Optional)

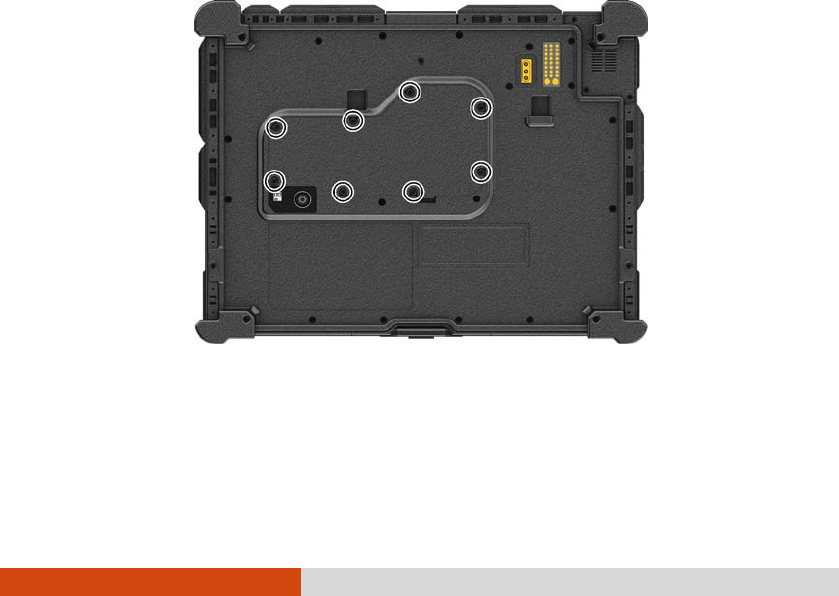

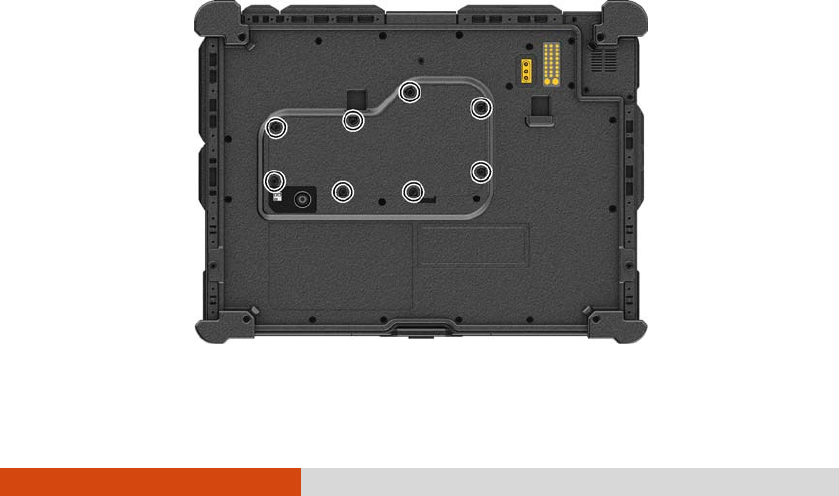

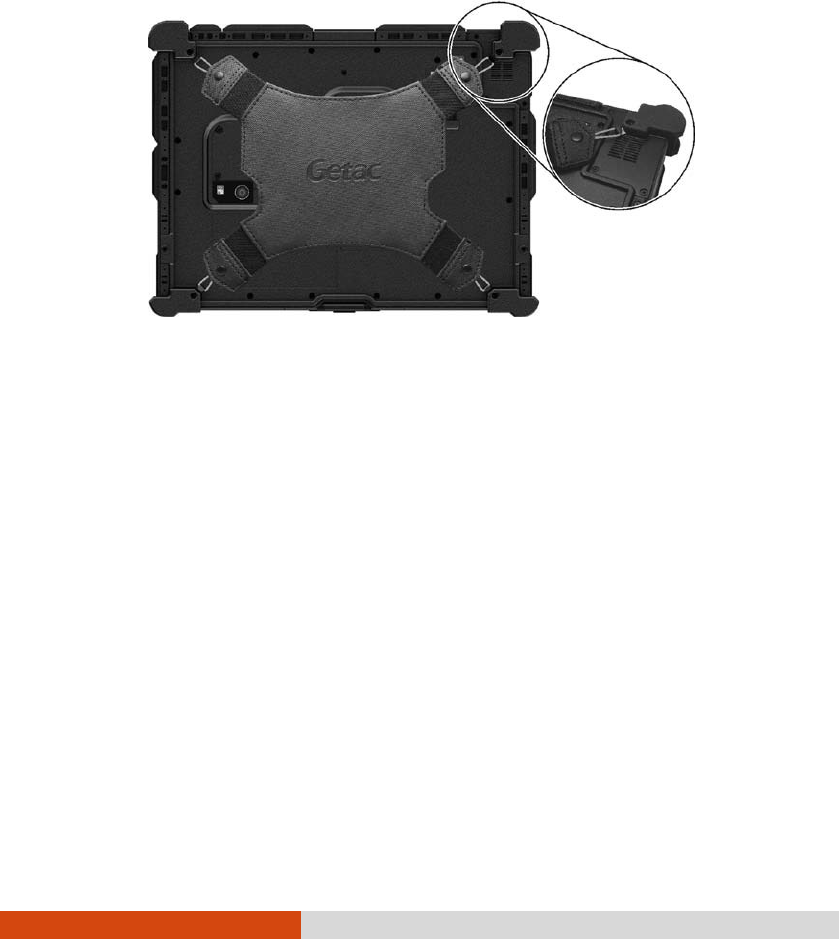

To use the handgrip strap, attach its four loops to the four bottom hooks on
your computer. Make sure the loops are securely hooked.
When you need to operate and hold your computer at the same time, insert
your hand through the strap for a firm grip.
![](/img.php?id=2123410&img=bg1b.png)
Operating Your Computer 2-1
Chapter 2
Operating Your
Computer
This chapter provides information about the use of the computer.
If you are new to computers, reading this chapter will help you learn the
operating basics. If you are already a computer user, you may choose to read
only the parts containing information unique to your computer.
CAUTION:
Do not expose your skin to the computer when operating it in a very hot
or cold environment.
The computer can get uncomfortably warm when you use it in high
temperatures. As a safety precaution in such a circumstance, do not
place the computer on your lap or touch it with your bare hands for
extended periods of time. Prolonged body contact can cause discomfort
and potentially a burn.
![](/img.php?id=2123410&img=bg1c.png)
2-2 Operating Your Computer
Using the Internal Keyboard
Your keyboard has all the standard functions of a full-sized computer
keyboard plus an Fn key added for specific functions.
The standard functions of the keyboard can be further divided into four
major categories:
Typewriter keys
Cursor-control keys
Numeric keys
Function keys
Typewriter Keys
Typewriter keys are similar to the keys on a typewriter. Several keys are
added such as the Ctrl, Alt, Esc, and lock keys for special purposes. When the
lock keys (Caps Lock and Num Lk) are pressed, their corresponding indicators
light up.
The Control (Ctrl) / Alternate (Alt) key is normally used in combination with
other keys for program-specific functions. The Escape (Esc) key is usually used
for stopping a process. Examples are exiting a program and canceling a
command. The function depends on the program you are using.

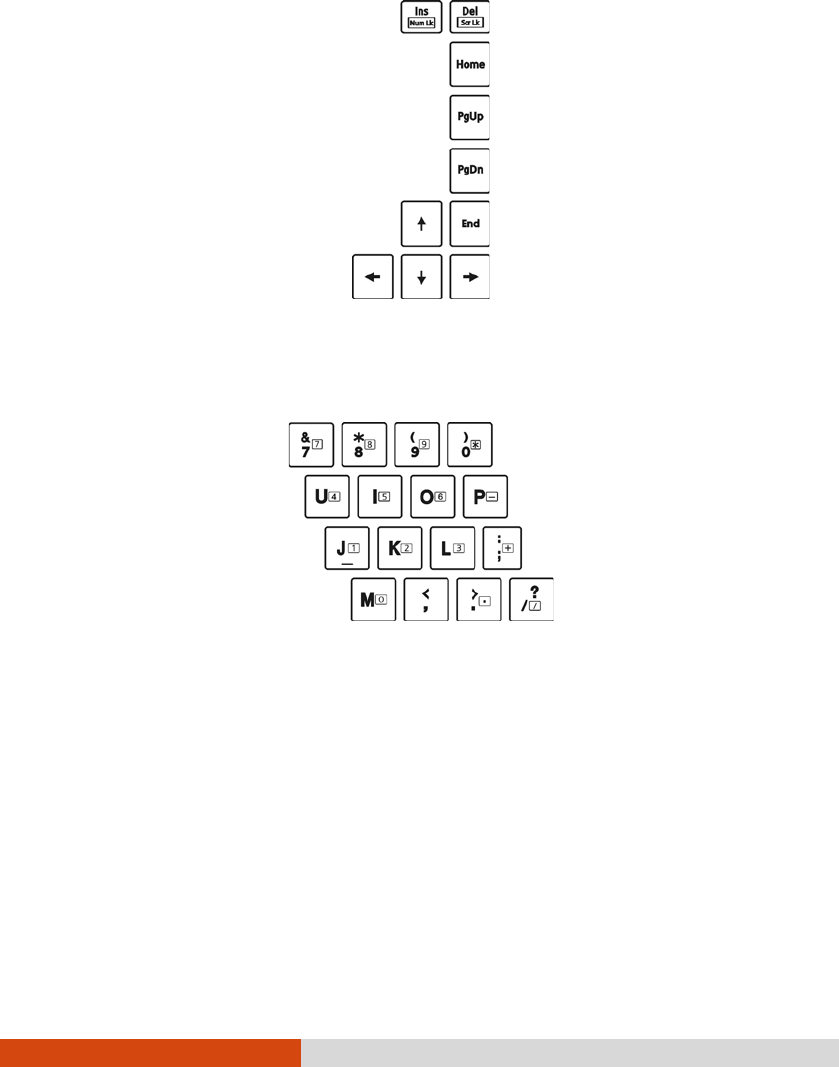

Cursor-Control Keys
Cursor-control keys are generally used for moving and editing purposes.
NOTE: The word “cursor” refers to the indicator on the screen that lets you
know exactly where on your screen anything you type will appear. It can
take the form of a vertical or horizontal line, a block, or one of many other
shapes.
![](/img.php?id=2123410&img=bg1d.png)
Operating Your Computer 2-3
Numeric Keypad
A 15-key numeric keypad is embedded in the typewriter keys as shown next:
Numeric keys facilitate entering of numbers and calculations. When Num
Lock is on, the numeric keys are activated; meaning you can use these keys to
enter numerals.
NOTE:
When the numeric keypad is activated and you need to type the English
letter in the keypad area, you can turn Num Lock off or you can press Fn
and then the letter without turning Num Lock off.
Some software may not be able to use the numeric keypad on the
computer. If so, use the numeric keypad on an external keyboard
instead.
![](/img.php?id=2123410&img=bg1e.png)
2-4 Operating Your Computer
Function Keys
On the top row of the keys are the function keys: F1 to F12. Function keys
are multi-purpose keys that perform functions defined by individual
programs.
Fn Key
The Fn key, at the lower left corner of the keyboard, is used with another
key to perform the alternative function of a key. The letter “Fn” and the
alternative functions are identified by the color of blue on the keytop. To
perform a desired function, first press and hold Fn, then press the other key.
Hot Keys
Hot keys refer to a combination of keys that can be pressed any time to
activate special functions of the computer. Most hot keys operate in a cyclic
way. Each time a hot key combination is pressed, it shifts the corresponding
function to the other or next choice.

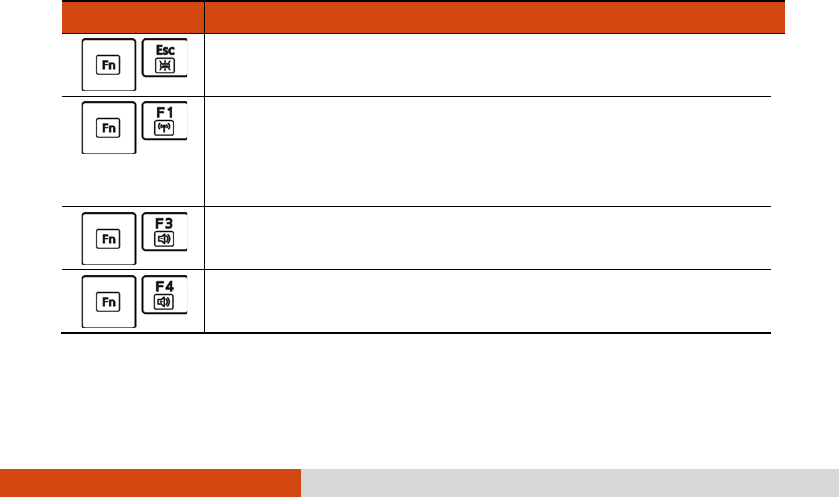

You can easily identify the hot keys with the icons imprinted on the keytop.
The hot keys are described next.

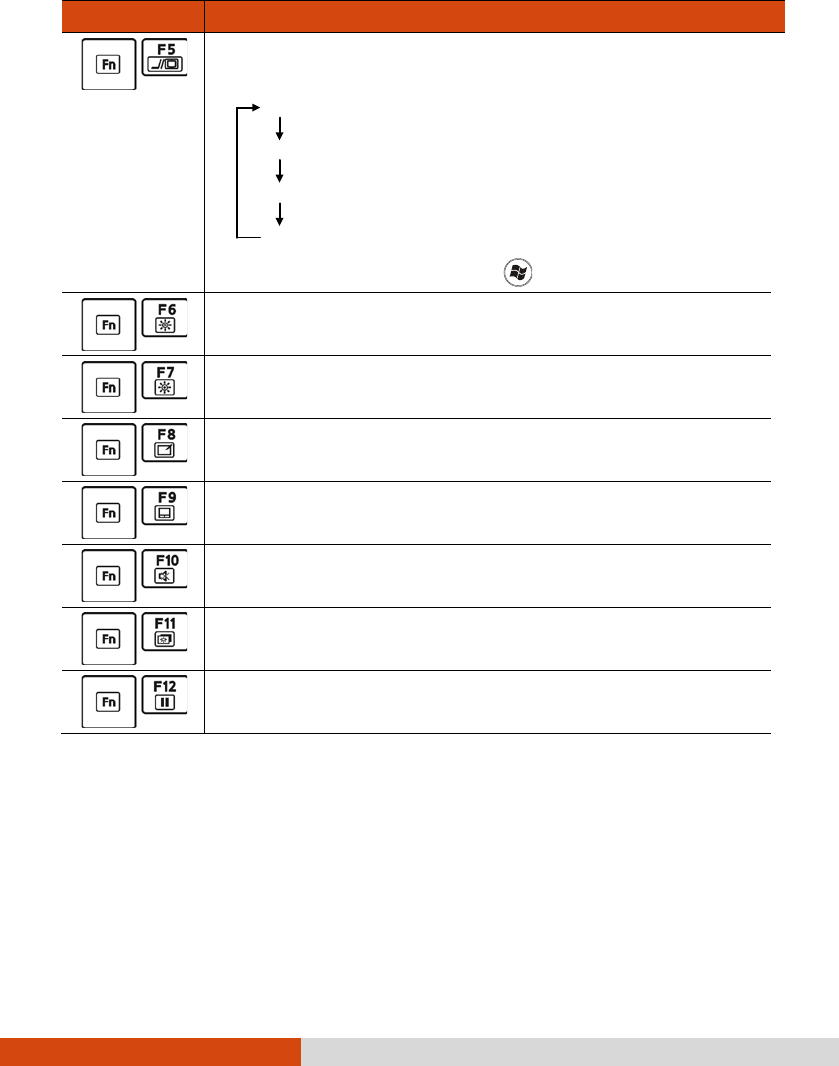

Key Description
Switches the keyboard backlight on and off (option).
Switches the RF (radio frequency) radio on and off.
When off, all wireless modules (such as WLAN, BT, and
WWAN) cannot be used. When on, individual settings of
the module work.
Decreases the sound volume.
Increases the sound volume.
![](/img.php?id=2123410&img=bg1f.png)
Operating Your Computer 2-5
Key Description
Switches the display output to
the next choice if an external
display is connected. Choices are:
LCD only
LCD + External display (Duplicate)
LCD + External display (Extend)
External display only
The hot keys are equivalent to Windows logo key + P.
Decreases the LCD brightness.
Increases the LCD brightness.
Switches the touchscreen on or off (option).
Switches the touchpad off or on.
Switches the system sound output off (mute) or on.
Switches the display on or off.
Serves as the sleep button that you can define with
Windows’ Power Options.
![](/img.php?id=2123410&img=bg20.png)
2-6 Operating Your Computer
Windows Keys
The keyboard has two keys that perform Windows-specific functions:
Windows Logo key and Application key.
The Windows Logo key opens the Start menu and performs software-
specific functions when used in combination with other keys. The
Application key usually has the same effect as a right mouse click.
![](/img.php?id=2123410&img=bg21.png)
Operating Your Computer 2-7
Using the Touchpad
CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing
so may damage the touchpad surface.
NOTE:
Press Fn+F9 to toggle the touchpad on or off.
For optimal performance of the touchpad, keep your fingers and the
pads clean and dry. When tapping on the pad, tap lightly. Do not use
excessive force.
The touchpad is a pointing device that allows you to communicate with the
computer by controlling the location of the pointer on the screen and
making selection with the buttons.

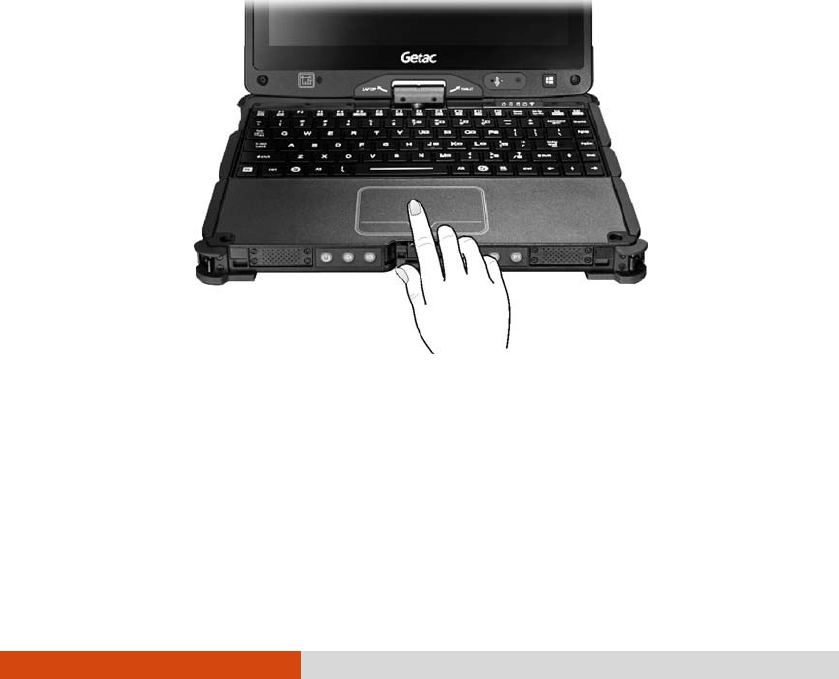

The touchpad consists of a rectangular pad (work surface) and a left and
right buttons. To use the touchpad, place your forefinger or thumb on the
pad. The rectangular pad acts like a miniature duplicate of your display. As
you slide your fingertip across the pad, the pointer (also called cursor) on the
screen moves accordingly. When your finger reaches the edge of the pad,
simply relocate yourself by lifting the finger and placing it on the other side
of the pad.
![](/img.php?id=2123410&img=bg22.png)
2-8 Operating Your Computer
Here are some common terms that you should know when using the
touchpad:
Term Action
Point Move your finger on the pad until the cursor points to
the selection on the screen.
Click Press and release the left button.
–or–
Tap gently anywhere on the pad.
Double-click Press and release the left button twice in quick
succession.
–or–
Tap twice on the pad rapidly.
Drag and
drop
Press and hold the left button, then move your finger
until you reach your destination (drag). Finally, release
the button (drop) when you finish dragging your
selection to the destination. The object will drop into
the new location.
–or–
Gently tap twice on the pad and on the second tap,
keep your finger in contact with the pad. Then, move
your finger across the pad to drag the selected object to
your destination. When you lift your finger from the
pad, the selected object will drop into place.
The touchpad also supports the core touch gestures for Windows 8 as
described below.

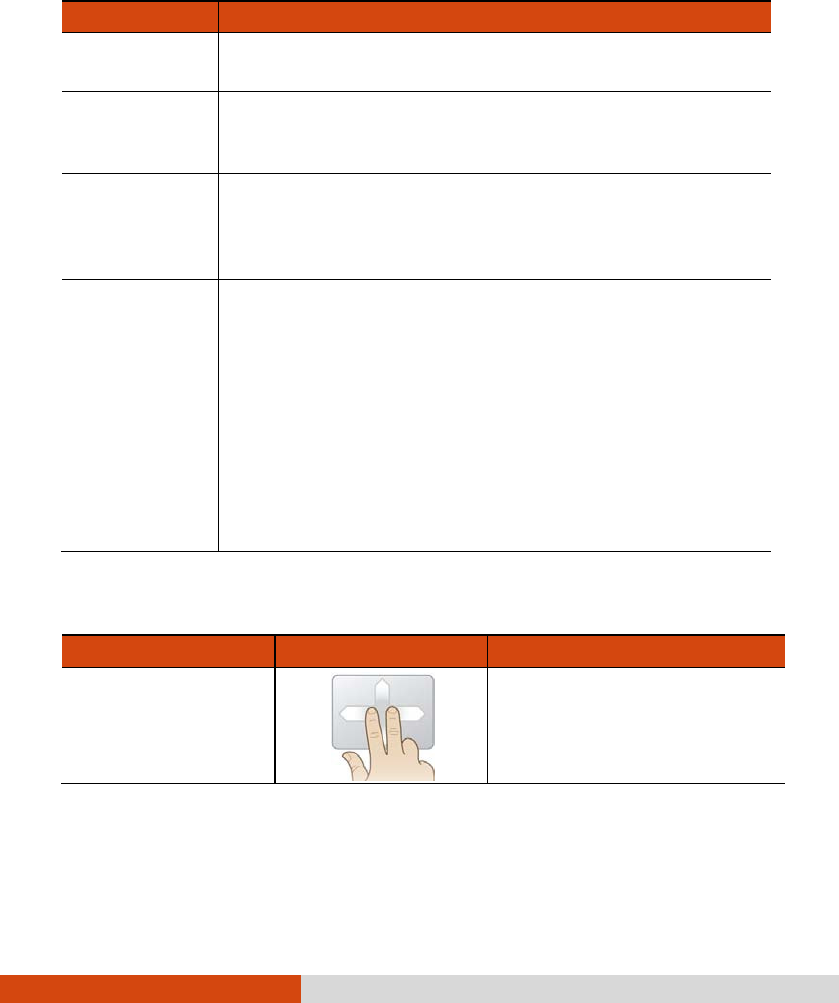

Gestures Actions Descriptions
Two-finger slide
Horizontal or vertical scroll
![](/img.php?id=2123410&img=bg23.png)
Operating Your Computer 2-9
Gestures Actions Descriptions
Two-finger pinch
Zoom

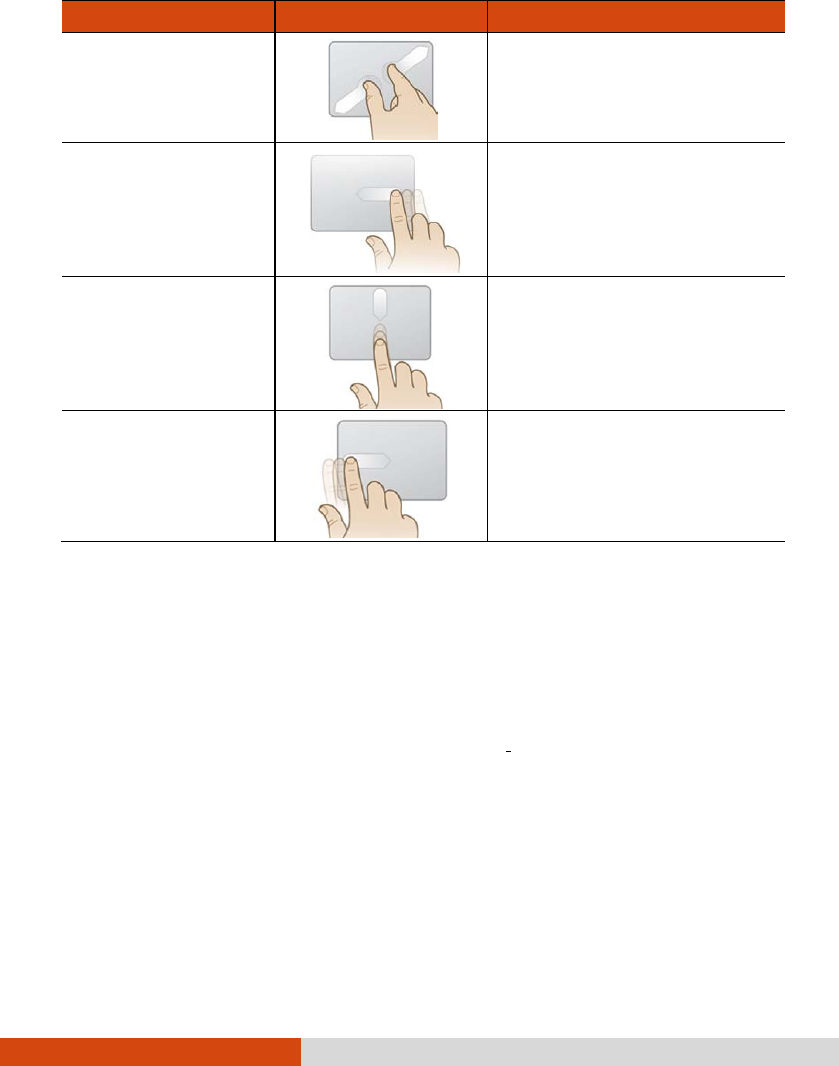

Swipe in from the
right edge
Open the Charms bar.
Swipe down from
the top edge
Perform the same function
as a right-click.
Swipe in from the
left edge
Switch to the previous
application.
Configuring the Touchpad
You may want to configure the touchpad to suit your needs. For example, if
you are a left-handed user, you can swap the two buttons so that you can
use the right button as the left button and vice versa. You can also change
the size of the on-screen pointer, the speed of the pointer, and so on.
To configure the touchpad, go to Control Panel.
![](/img.php?id=2123410&img=bg24.png)
2-10 Operating Your Computer
Navigating on the Screen

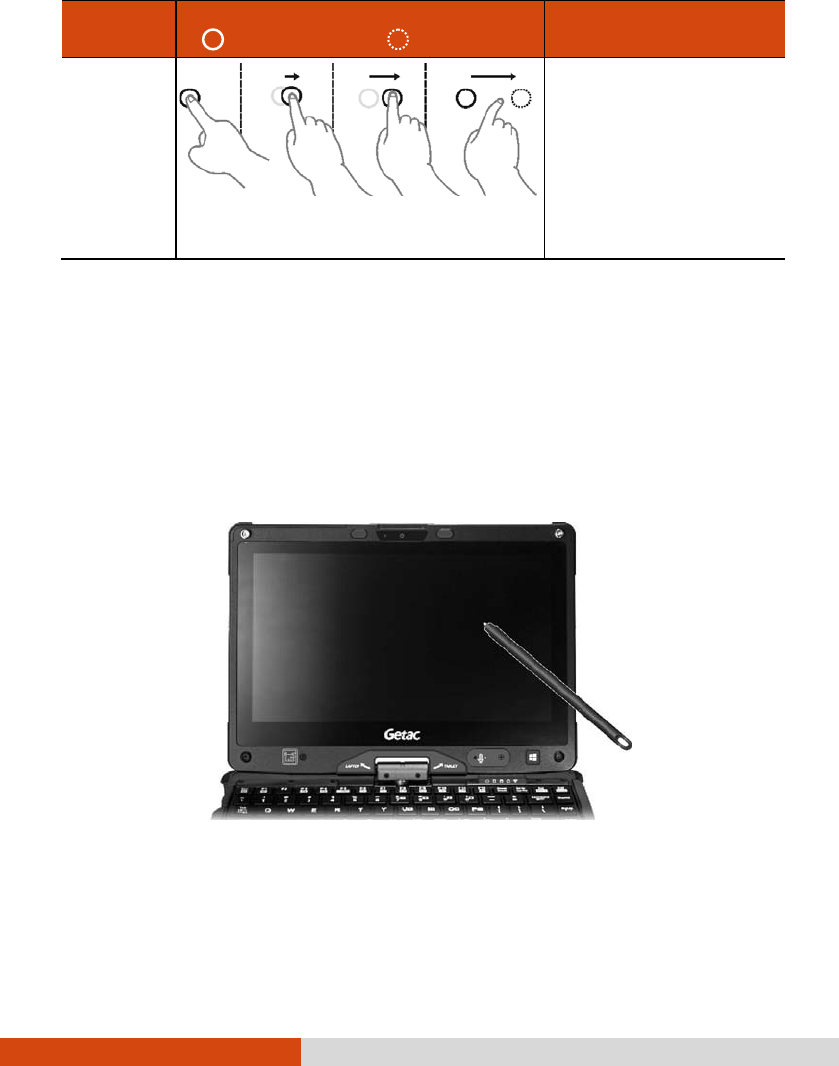

The screen of your computer is touch-sensitive. You can control the location
of the cursor/pointer on the screen using the included stylus/digitizer pen or
your finger to communicate with the computer.
CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the
touchscreen. Doing so may damage the touchscreen surface. Use the
included stylus/digitizer pen or your finger.
NOTE: An AG/AR film has been attached to the screen before shipment. The
film is a consumable, which will be worn out by possible scratches. You can
purchase a new one when replacement is required.
Using the Touchscreen
NOTE: Instead of a hard tip, your stylus has a soft tip so that it does not
scratch the AG/AR film. It is normal for the soft tip to wear out after a long
period of use. You can purchase a new one when needed.
The following table shows how you use the touchscreen to obtain equivalent
mouse functions.
![](/img.php?id=2123410&img=bg25.png)
Operating Your Computer 2-11
Term/Action Equivalent
Mouse Function
Tap: Touch the screen once. Click/Point
Double-tap: Touch the screen twice rapidly. Double-click
Tap and hold: Tap and hold until a popup menu
appears.
Right-click
Drag: Hold the stylus (or finger) on the screen and drag
across the screen until reaching your destination.
Drag
Using Multi-touch Gestures
You can interact with your computer by placing two fingers on the screen.
The movement of the fingers across the screen creates “gestures,” which
send commands to the computer.

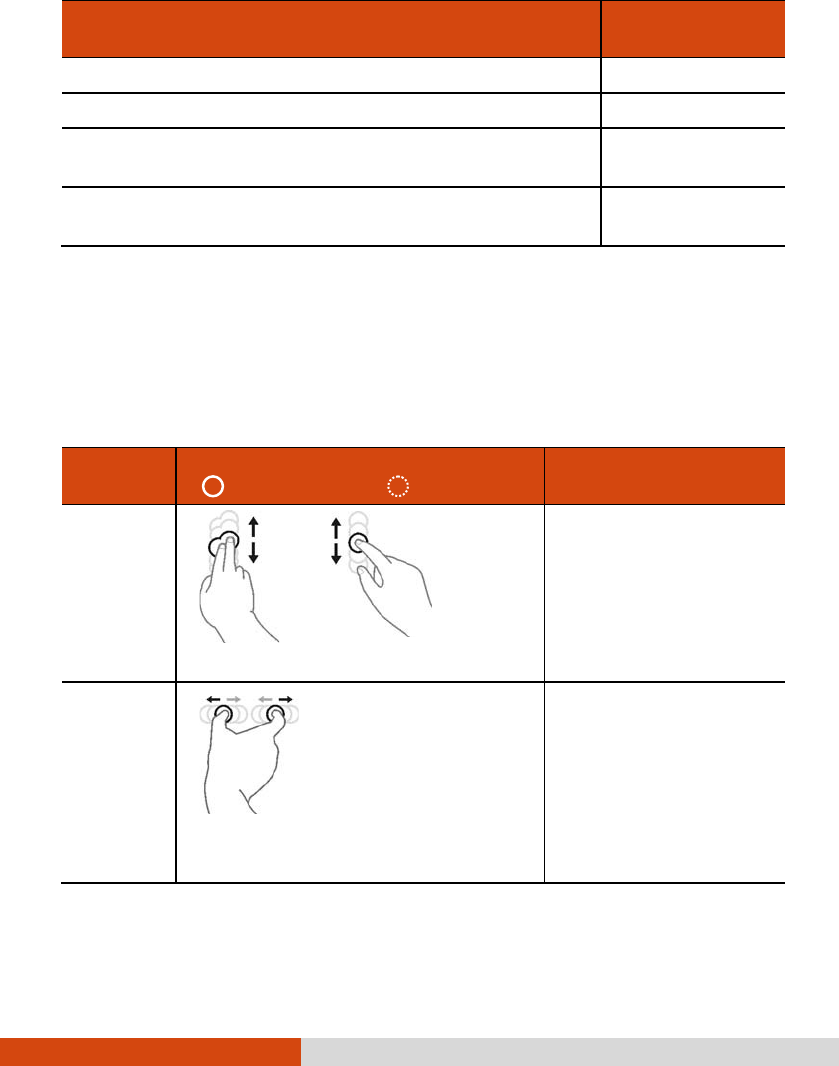

Here are the multi-touch gestures that you can use:
Gestures Actions
( = finger down; = finger up) Descriptions
Pan
(Scroll)
or
Drag 1 or 2 fingers up or down.
Use panning to see
another part of a page
that has scroll bars.
Zoom
(Pinch)
Move two fingers apart/toward each
other.
Use zooming to make
an item (a photo for
example) on the screen
larger or smaller. The
gesture works in
applications that
support mouse wheel
zooming.
![](/img.php?id=2123410&img=bg26.png)
2-12 Operating Your Computer
Gestures Actions
( = finger down; = finger up) Descriptions

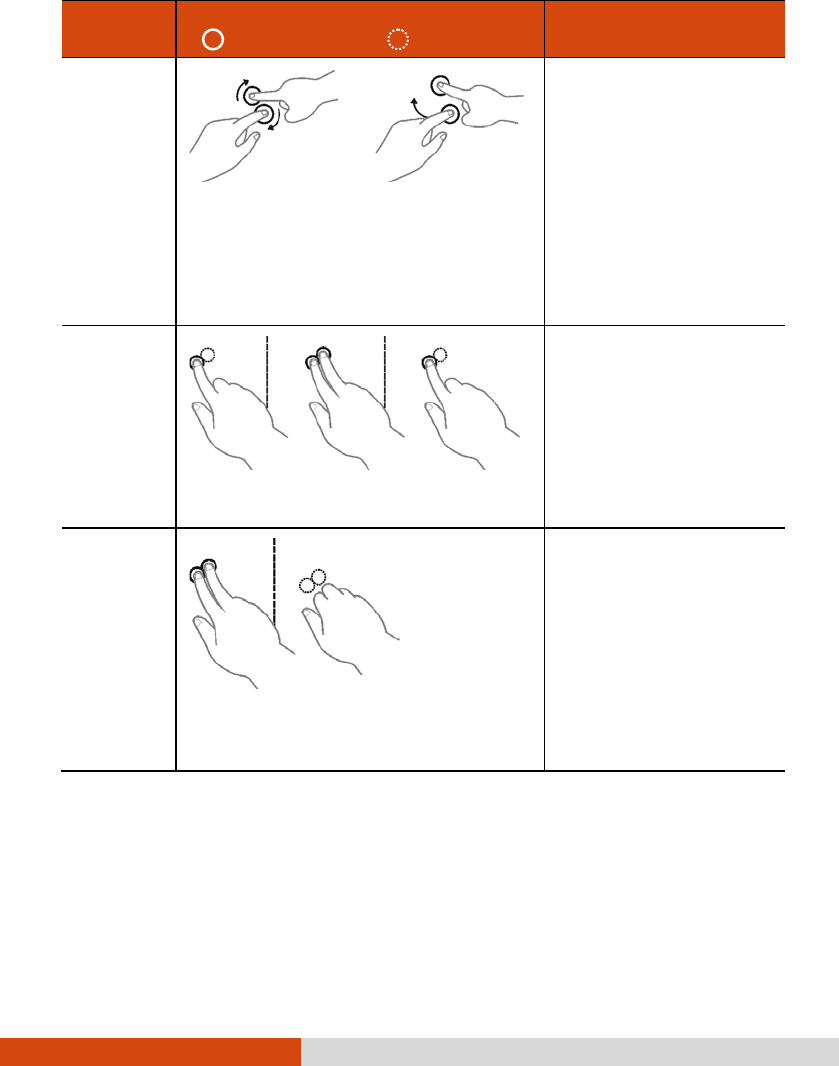

Rotate
or
Move two fingers in opposing
directions.
-or-
Use one finger to pivot around
another.
Use rotating to move a
picture or other item
on the screen in a
circular direction
(clockwise or counter-
clockwise). The gesture
works in applications
that support the
specific gesture.
Press and
Tap
Press on target and tap using a
second finger.
Use press and tap to
access the shortcut
menu.
Two-
finger
Tap
Tap two fingers at the same time
(where the target is in the midpoint
between the fingers).
The function is defined
by applications that
support the specific
gesture.
![](/img.php?id=2123410&img=bg27.png)
Operating Your Computer 2-13
Gestures Actions
( = finger down; = finger up) Descriptions
Flicks
Make quick drag gestures in the
desired direction.
Flick left or right to
navigate back and
forward in a browser
and other applications.
The gesture works in
most applications that
support back and
forward.
Using the Dual Mode Display (Optional)
Dual mode display (if your model has the feature) incorporates both
touchscreen and digitizer functions.
The display is set to Touchscreen mode by default. Touchscreen mode
provides all the functionalities that an ordinary touchscreen has. When the
computer receives signals from the digitizer pen, the display automatically
switches to Digitizer mode.
You can move the cursor by bringing the digitizer pen close to the screen,
without actually touching the screen’s surface.
![](/img.php?id=2123410&img=bg28.png)
2-14 Operating Your Computer
Using the Network Features
Using the LAN
To connect the network cable to the LAN module, connect one end of the
LAN cable to the RJ-45 connector on the computer and the other end to the
network hub.
Using the Wireless LAN
The WLAN module of your computer supports IEEE 802.11a/b/g/n/ac.
Turning On/Off the WLAN Radio
To turn on the WLAN radio:
1. Make sure that the Airplane mode is switched off. You can control the
Airplane mode using one of the below methods.
• Press Fn+F1.

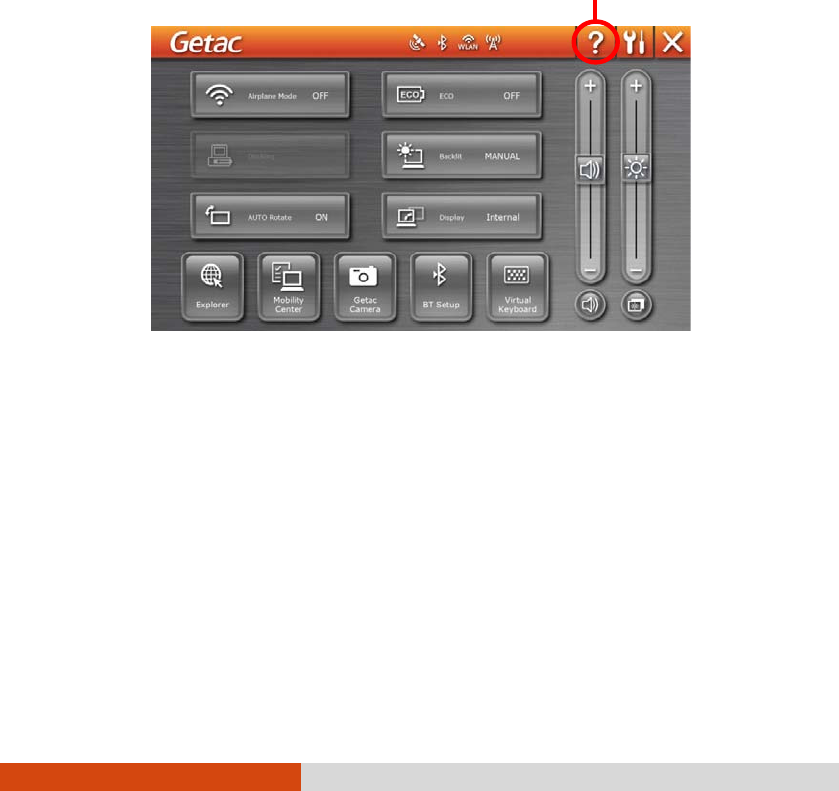

• Use the Airplane Mode button in the OSD Control Panel.
• For Windows 8: Open the Charms Bar, tap Settings Change PC
Settings Wireless. Slide the Airplane mode switch to the Off
position.
2. If you have previously turned off the WLAN radio, use one of the below
methods to turn it on.
• For Windows 8: Open the Charms Bar of Windows. Tap Settings
Change PC Settings Wireless. Slide the Wi-Fi switch to the On
position.
![](/img.php?id=2123410&img=bg29.png)
Operating Your Computer 2-15

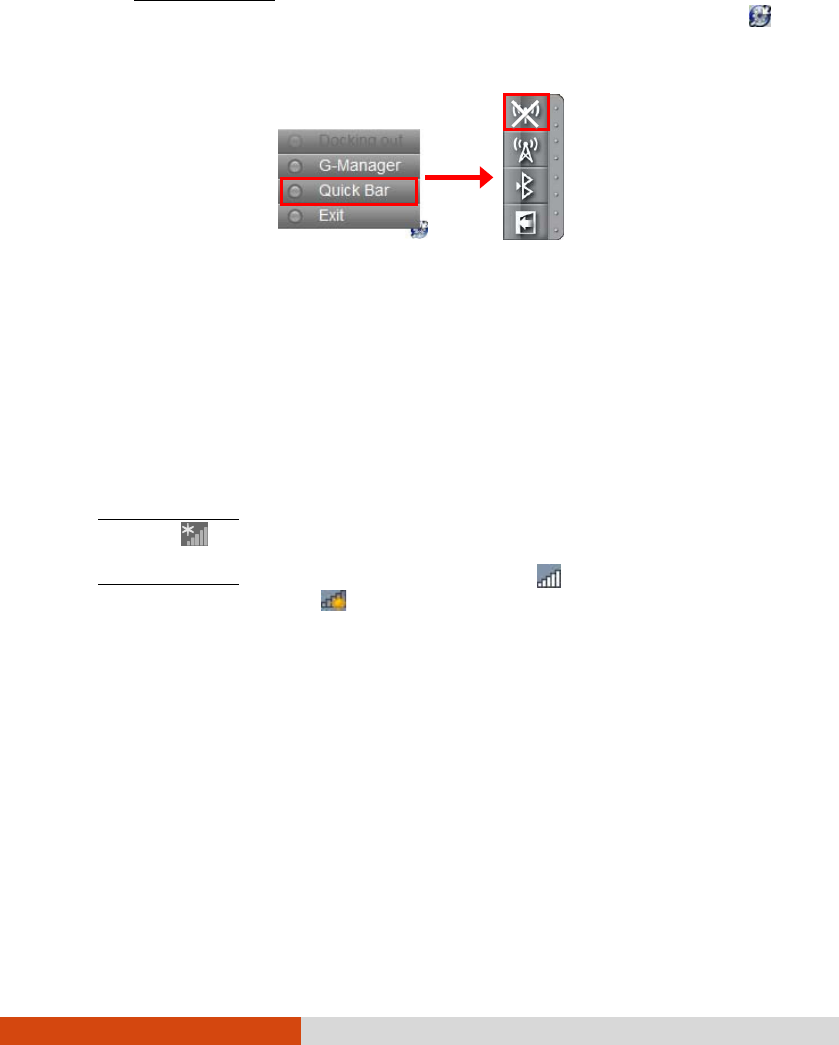

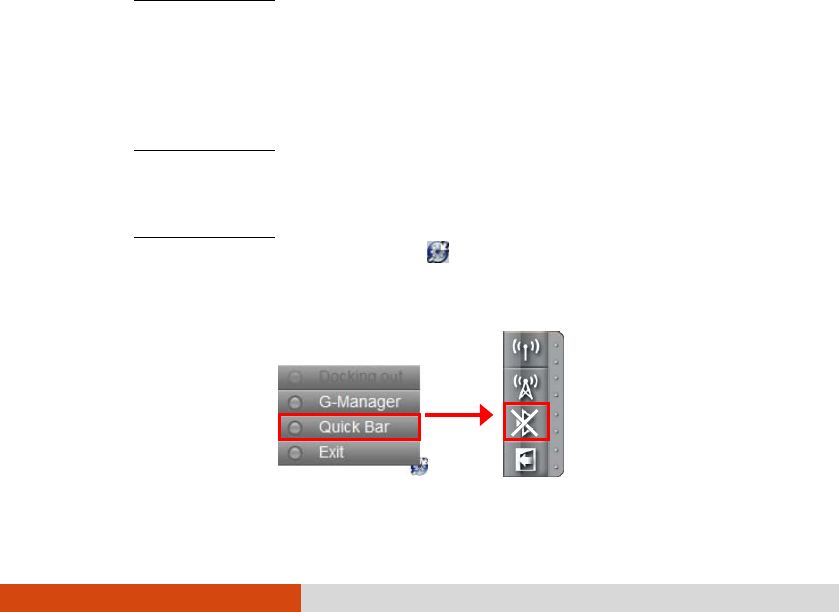

• For Windows 7: Use either Windows Mobility Center or Getac Quick
Bar. To open Getac Quick Bar, tap and hold the Getac Utility icon
on Windows taskbar and select Quick Bar. Tap the WLAN button in
the Quick Bar (an X over the button means the radio is currently off).
To turn off the WLAN radio:
You can turn off the WLAN radio the same way you turn it on.
If you want to quickly turn off all wireless radio, simply switch on Airplane
mode.
Connecting to a WLAN Network
1. Make sure that the WLAN function is enabled (as described above).
2. For Windows 8: Open the Charms Bar of Windows. Tap Settings and
then tap .
For Windows 7: Tap the Wireless Network icon on the taskbar. (An
orange light in the icon indicates connections are available.)
3. In the list of available wireless networks, tap a network, and then tap
Connect.
4. Some networks require a network security key or passphrase. To connect
to one of those networks, ask your network administrator or Internet
service provider (ISP) for the security key or passphrase.
For more information on setting a wireless network connection, refer to
Windows online help.
NOTE: You can use Intel® PROSet Wireless to take full advantage of the
Wi-Fi capabilities of your computer. See the Help of the utility for
instructions.
![](/img.php?id=2123410&img=bg2a.png)
2-16 Operating Your Computer
Using the BT Feature
The BT 4.0 technology allows short-range (about 50 meters) wireless
communications between devices without requiring a cable connection.
Data can be transmitted through walls, pockets and briefcases as long as two
devices are within range.
Turning On/Off the BT Radio
To turn on the BT radio:
1. Make sure that the Airplane mode is switched off. You can control the
Airplane mode using one of the below methods.
• Press Fn+F1.
• Use the Airplane Mode button in the OSD Control Panel.
• For Windows 8: Open the Charms Bar, tap Settings Change PC
Settings Wireless. Slide the Airplane mode switch to the Off
position.
2. If you have previously turned off the BT radio, use one of the below
methods to turn it on.
• For Windows 8: Open the Charms Bar of Windows. Tap Settings
Change PC Settings Wireless. Slide the BT switch to the On
position.
• For Windows 7: Use Getac Quick Bar. To open Getac Quick Bar, tap
and hold the Getac Utility icon on Windows taskbar and select
Quick Bar. Tap the BT button in the Quick Bar (an X over the button
means the radio is currently off).
![](/img.php?id=2123410&img=bg2b.png)
Operating Your Computer 2-17
To turn off the BT radio:
You can turn off the BT radio the same way you turn it on.
If you want to quickly turn off all wireless radio, simply switch on Airplane
mode.
Connecting to another BT Device
1. Make sure that the BT function is enabled (as described above).
2. Make sure that the target BT device is turned on, discoverable and
within close range. (See the documentation that came with the BT
device.)
3. For Windows 8: Open the Charms Bar of Windows. Tap Settings
Change PC Settings Devices. Tap Add a device.
For Windows 7: Tap and hold the BT icon on Windows taskbar. Tap Add
a Device.
4. Select the device you want to connect from the search results.
5. Depending on the type of BT device that you want to connect to, you
will need to enter the pertinent information.
For detailed information on using the BT feature, see Windows’ online Help.
![](/img.php?id=2123410&img=bg2c.png)
2-18 Operating Your Computer
Using the WWAN Feature
(Optional)
A WWAN (Wireless Wide Area Network) uses mobile telecommunication
cellular network technologies to transfer data. The WWAN module of your
computer supports 3G and 4G LTE.
NOTE: Your model only supports data transmission. Voice transmission is
not supported.
Installing a SIM Card
1. Turn off the computer and disconnect the AC adapter.
2. Carefully place the computer upside down.
3. Remove the 8 screws to open the compartment cover.

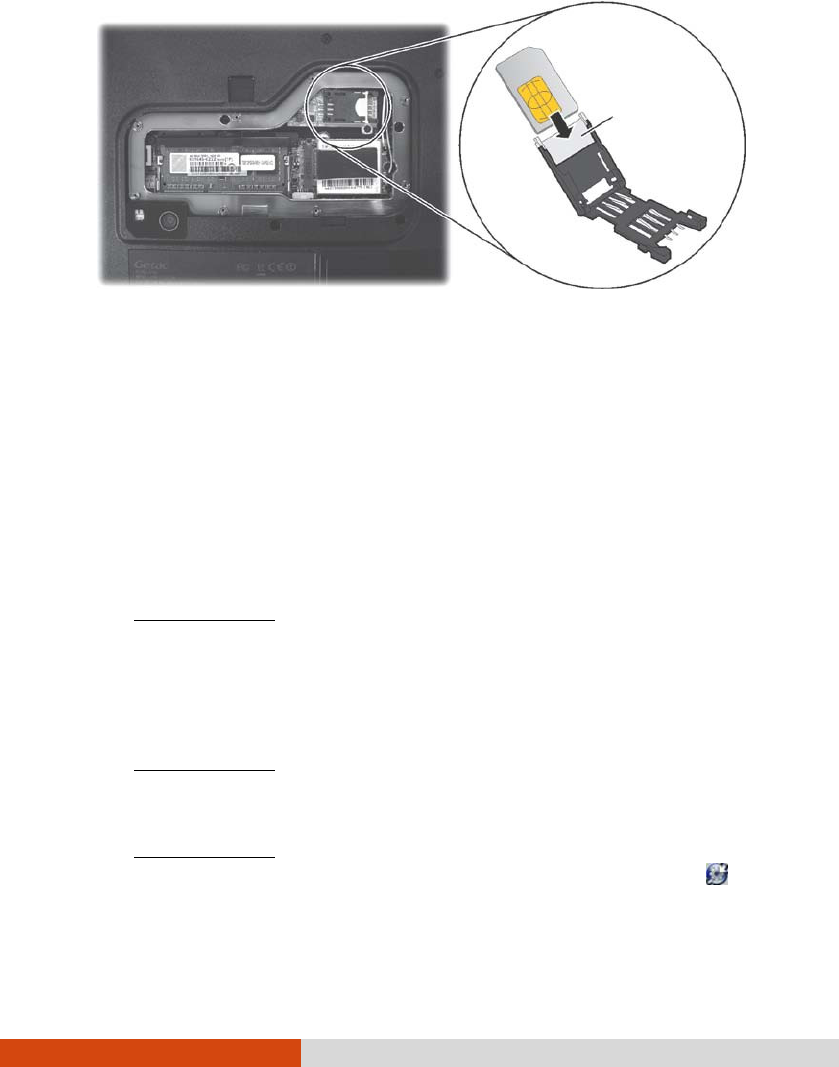

4. Locate the SIM card slot.
Slide the locking tab of the SIM card slot inward to unlock. Lift the slot
up and, noting the orientation, insert the SIM card into the slot. Close
the slot and slide the locking tab outward to secure the card in place.
![](/img.php?id=2123410&img=bg2d.png)
Operating Your Computer 2-19
5. Close the compartment cover and secure with 8 screws.
Turning On/Off the WWAN Radio
To turn on the WWAN radio:
1. Make sure that the Airplane mode is switched off. You can control the
Airplane mode using one of the below methods.
• Press Fn+F1.
• Use the Airplane Mode button in the OSD Control Panel.
• For Windows 8: Open the Charms Bar, tap Settings Change PC
Settings Wireless. Slide the Airplane mode switch to the Off
position.
2. If you have previously turned off the WWAN radio, use one of the below
methods to turn it on.
• For Windows 8: Open the Charms Bar of Windows. Tap Settings
Change PC Settings Wireless. Slide the Mobile Broadband switch
to the On position.
• For Windows 7: Use the WWAN utility software or Getac Quick Bar.
To open Getac Quick Bar, tap and hold the Getac Utility icon on
Windows taskbar and select Quick Bar. Tap the WWAN button in the
Quick Bar (an X over the button means the radio is currently off).
Locking tab
![](/img.php?id=2123410&img=bg2e.png)
2-20 Operating Your Computer
To turn off the WWAN radio:
You can turn off the WWAN radio the same way you turn it on.
If you want to quickly turn off all wireless radio, simply switch on Airplane
mode.
Setting up a WWAN Connection
1. Make sure that the SIM card is inserted and the WWAN function is
enabled (as described above).

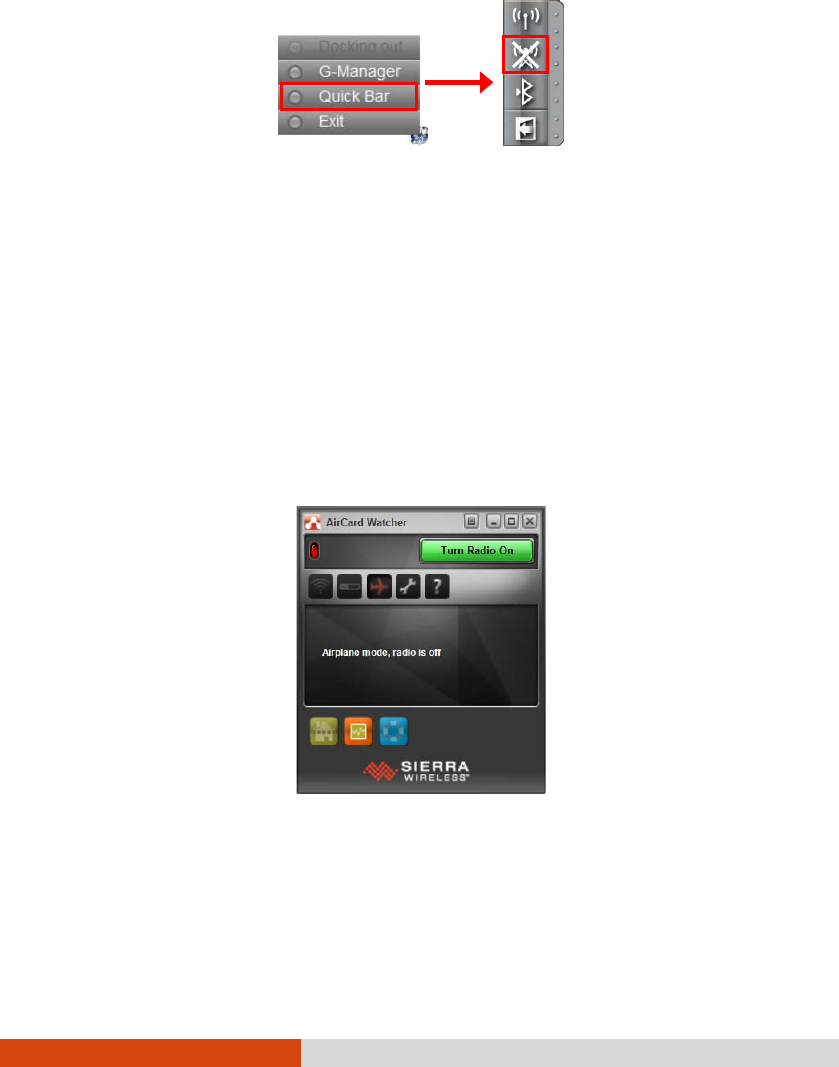

2. Start the WWAN utility software (AirCard Watcher). The screen as below
appears.
3. You can use the WWAN utility software to configure and use WWAN
connections. See the online help for information.
![](/img.php?id=2123410&img=bg30.png)
3-2 Managing Power
AC Adapter
CAUTION:
The AC adapter is designed for use with your computer only. Connecting
the AC adapter to another device can damage the adapter.
The AC power cord supplied with your computer is for use in the
country where you purchased your computer. If you plan to go overseas
with the computer, consult your dealer for the appropriate power cord.
When you disconnect the AC adapter, disconnect from the electrical
outlet first and then from the computer. A reverse procedure may
damage the AC adapter or computer.
When unplugging the connector, always hold the plug head. Never pull
on the cord.
The AC adapter serves as a converter from AC (Alternating Current) to DC
(Direct Current) power because your computer runs on DC power, but an
electrical outlet usually provides AC power. It also charges the battery pack
when connected to AC power.
The adapter operates on any voltage in the range of 100~240 V AC.
![](/img.php?id=2123410&img=bg31.png)
Managing Power 3-3
Battery Pack
Your computer has two battery packs. The battery pack is the internal power
source for the computer. It is rechargeable using the AC adapter.
NOTE: Care and maintenance information for the battery is provided in the
“Battery Pack Guidelines” section in Chapter 7.
Charging the Battery Pack
NOTE:
Charging will not start if the battery’s temperature is outside the allowed
range, which is between 0 °C (32 °F) and 50 °C (122 °F). Once the
temperature meets the requirements, charging automatically resumes.
During charging, do not disconnect the AC adapter before the battery
has been fully charged; otherwise you will get a prematurely charged
battery.
To charge the battery pack, connect the AC adapter to the computer and an
electrical outlet. The Battery Charge Indicator ( ) on the computer glows
amber to indicate that charging is in progress. You are advised to keep the
computer power off while the battery is being charged. When the battery is
fully charged, the Battery Charge Indicator glows green.
The two battery packs are charged in parallel. It takes approximately 5 hours
to fully charge the two battery packs when the power is off and approximately
6 hours when the power is on (may need a longer charging time at lower
temperatures).
CAUTION: After the computer has been fully recharged, do not immediately
disconnect and reconnect the AC adapter to charge it again. Doing so may
damage the battery.
NOTE: The battery level may automatically lessen due to the self-discharge
process (0.21% per day), even when the battery pack is fully charged (100%).
This happens no matter if the battery pack is installed in the computer.
![](/img.php?id=2123410&img=bg32.png)
3-4 Managing Power
Initializing the Battery Pack
You need to initialize a new battery pack before using it for the first time or
when the actual operating time of a battery pack is much less than expected.
Initializing is the process of fully charging, discharging, and then charging. It
can take several hours.
A software tool called “Gauge Reset” is provided for the purpose. Use the
G-Manager program and select the Battery tab to find the tool.
Checking the Battery Level
NOTE: Any battery level indication is an estimated result. The actual
operating time can be different from the estimated time, depending on
how you are using the computer.
The operating time of a fully charged battery pack depends on how you are
using the computer. When your applications often access peripherals, you
will experience a shorter operating time.
The two battery packs are discharged in parallel.
By Operating System
You can check the approximate battery level using the battery meter function
of the operating system. To read the battery level in Windows, tap the battery
icon on the taskbar.
By Gas Gauge

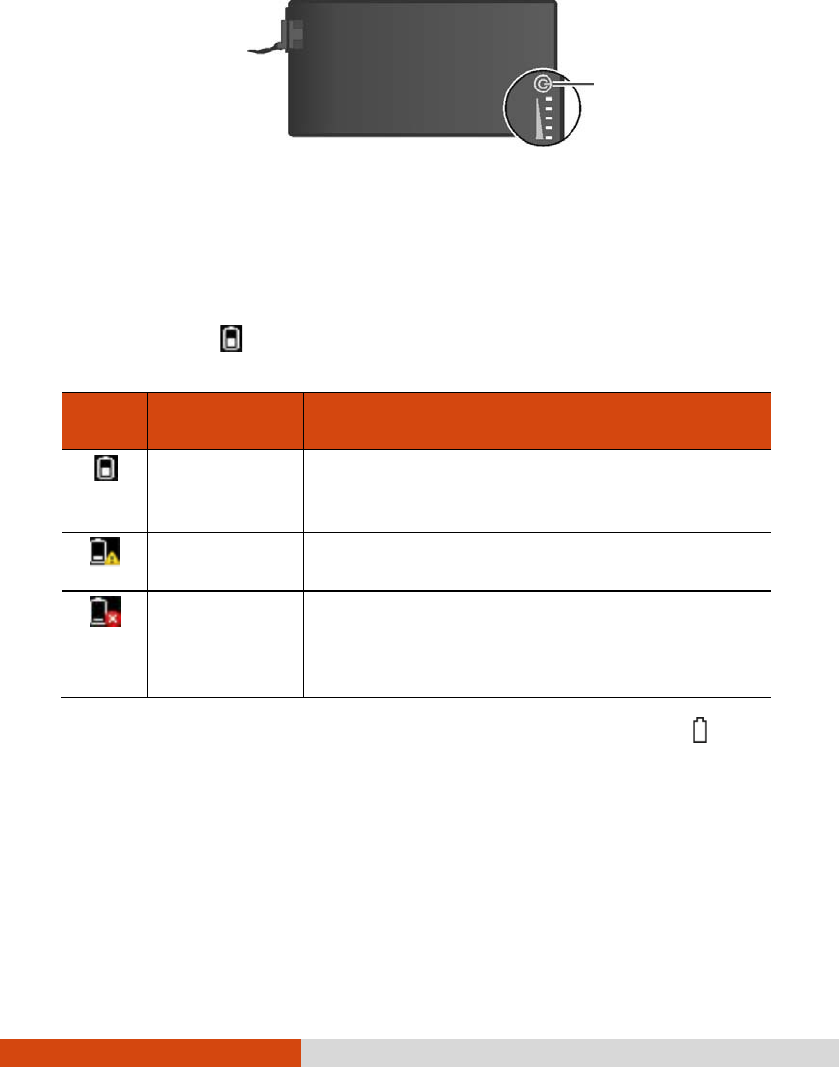

On the exterior side of the battery pack is a gas gauge for displaying the
estimated battery charge. When the battery pack is not installed in the
computer and you want to know the battery charge, you can press the
switch with a pointed device to see the corresponding value of indicator
segment that light green.
![](/img.php?id=2123410&img=bg33.png)
Managing Power 3-5
The value of the corresponding green segment indicates the relative
percentage of the battery charge. The battery pack is fully discharged when
you see no segment glowing green.
Battery Low Signals and Actions
The battery icon changes appearance to display the current state of the
battery.
Battery
Icon Battery Level Description
Discharging The icon shows the charge remaining in
10-percent increments until the charge reaches
the low-battery level.
Low The battery charge has reached the low-battery
level (10% by default).
Critically low The battery charge has reached the critical
battery level (5% by default). By default,
Windows will display a notification and put
your computer into Hibernation.
When the battery is low, the computer’s Battery Charge Indicator ( ) also
blinks red to alert you to take actions.
Always respond to low-battery by connecting the AC adapter, placing your
computer in Hibernation mode, or turning off the computer.
Switch
![](/img.php?id=2123410&img=bg34.png)
3-6 Managing Power
Replacing the Battery Pack
CAUTION:
There is danger of explosion if the battery is incorrectly replaced.
Replace the battery only with the computer manufacturer’s battery
packs. Discard used batteries according to the dealer’s instructions.
Do not attempt to disassemble the battery pack.
NOTE: You can hot swap one battery pack while the other one is supplying
the power.
To replace the battery pack, follow these steps:
1. Depending on which battery pack ( on the left side or on the right
side) you want to replace, open the respective cover.

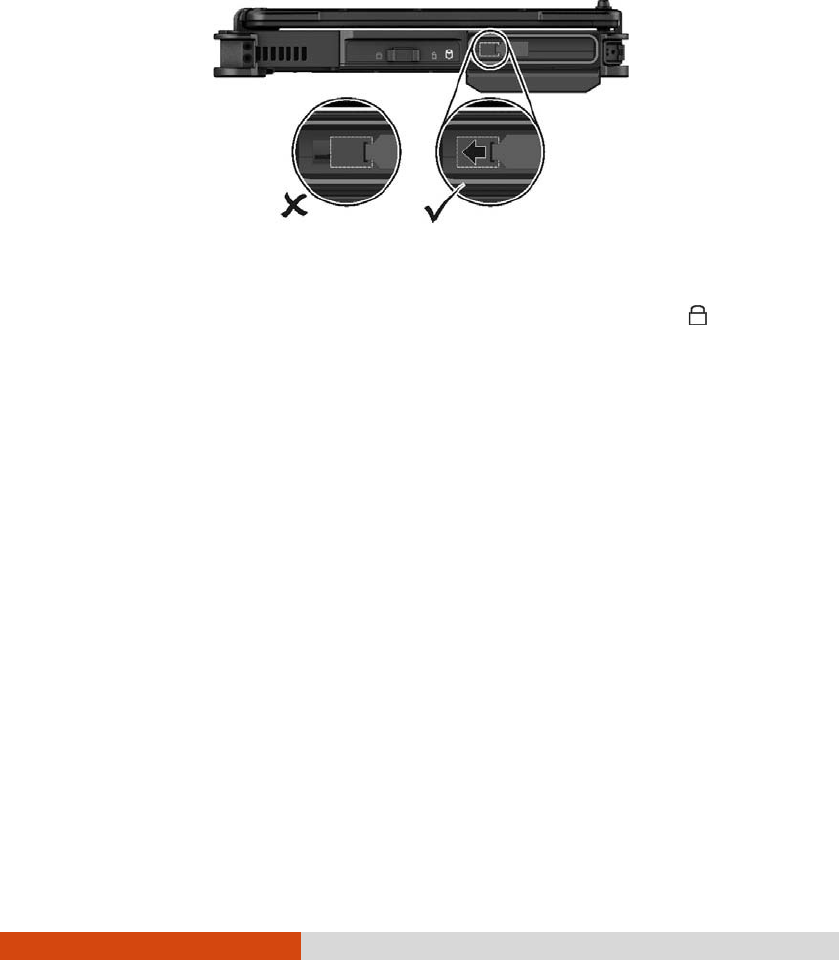

Slide the cover latch toward the unlocked position ( ) () and then lift
up the tab () to release the cover.
(Battery 1 as the example)
2. Slide the battery latch toward the right to unlock.
CAUTION: To unlock or lock, always hold the battery latch itself to move it.
Never use the ribbon strip to pull the battery latch because this wrong
method can cause a broken strip or an incorrect battery pack installation.
(Battery 1 as the example)
3. Remove the battery pack out of the slot by pulling the ribbon strip.
![](/img.php?id=2123410&img=bg35.png)
Managing Power 3-7
4. Noting the orientation, insert the new battery pack all the way into the
slot.
5. Slide the battery latch toward the left to the locked position.
(Battery 1 as the example)
6. When closing the cover, push the tab downward until the cover clicks
into place and then slide the latch toward the locked position ( ).
![](/img.php?id=2123410&img=bg36.png)
3-8 Managing Power
Power-Saving Tips
Aside from enabling your computer’s power saving mode, you can do your
part to maximize the battery’s operating time by following these
suggestions.
Do not disable Power Management.
Decrease the LCD brightness to the lowest comfortable level.
Shorten the length of time before Windows turn off the display.
When not using a connected device, disconnect it.
Turn off the wireless radio if you are not using the wireless module (such
as WLAN, BT, or WWAN).
Turn off the computer when you are not using it.
![](/img.php?id=2123410&img=bg38.png)
4-2 Expanding Your Computer
Connecting an HDMI Display
Monitor
If you want the benefits of a larger display screen with higher resolution,
you can connect an external display monitor to your computer.
Your computer supports an HDMI connector. HDMI (High-Definition
Multimedia Interface) is an audio/video interface that transmits
uncompressed digital data and therefore delivers true HD quality.
You can switch the display output by using Fn+F5, Windows Control Panel,
or OSD Control Panel.
![](/img.php?id=2123410&img=bg39.png)
Expanding Your Computer 4-3
Connecting a USB Device
Your computer has three USB ports (two USB 3.0 ports at the rear and one
USB 2.0 port at the right side) for connecting USB devices, such as a digital
camera, scanner, printer, modem, and mouse.
USB 3.0 supports a transfer rate up to 5 Gbit/s and USB 2.0 a transfer rate up
to 480 MB/s.
USB 3.0
USB 2.0
![](/img.php?id=2123410&img=bg3b.png)
Expanding Your Computer 4-5

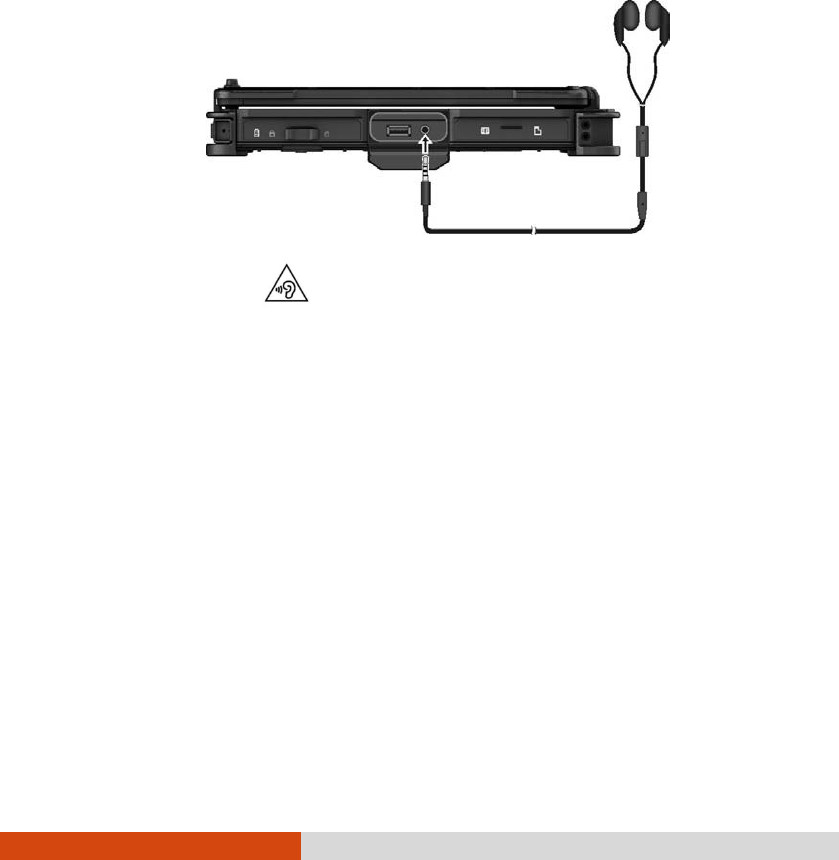

Connecting an Audio Device
For higher audio quality, you can send sound through an external audio
device.
The combo connector is the “4-pole TRRS 3.5mm” type (Apple iPhone
Recessed) so you can connect a compatible headset microphone.
SAFETY WARNING:
To prevent possible hearing damage, do not listen at high volume levels for
long periods.
![](/img.php?id=2123410&img=bg3c.png)
4-6 Expanding Your Computer
Using Smart Cards
Your computer has a smart card slot.
With an embedded microcontroller, smart cards have the unique ability to
store large amounts of data, carry out their own on-card functions (e.g.,
encryption and mutual authentication), and interact intelligently with a
smart card reader.

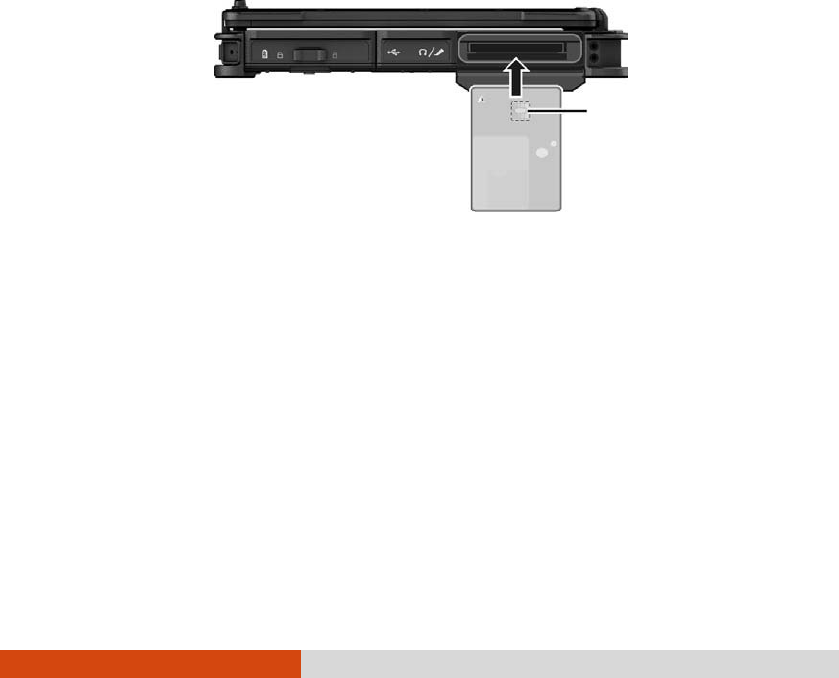

To insert a smart card:
1. Locate the smart card reader. Open its protective cover by lifting up the
tab of the cover.
2. Slide the smart card, with its label and embedded computer chip facing
up into the slot (the lower one).
3. When closing the cover, push the tab downward until the cover clicks
into place.
NOTE: An ExpressCard in the lower slot hinders the removal of the smart
card. In this case, first remove the ExpressCard so that you can remove the
smart card.
To remove a smart card:
1. Make sure that the software is not accessing the smart card.
2. Open the cover.
3. Slightly push the card to release and then pull it out of the slot.
4. Close the cover.
Chip
![](/img.php?id=2123410&img=bg3d.png)
Expanding Your Computer 4-7
Using ExpressCards
Your computer has an ExpressCard slot.
The ExpressCard slot can accommodate a 54 mm (ExpressCard/54) or 34 mm
(ExpressCard/34) wide ExpressCard. Typical ExpressCards support a very
extensive range of applications including memory, wired and wireless
communication cards, and security devices.
To insert an ExpressCard:
1. Locate the ExpressCard slot. Open its protective cover by lifting up the
tab of the cover.
2. Slide the ExpressCard, with its label facing up, all the way into the slot
(the upper one) until the rear connectors click into place.
3. When a new card is seated, the computer will detect it and try to install
the appropriate driver. Follow the on-screen instructions to complete the
process.
4. When closing the cover, push the tab downward until the cover clicks
into place.
To remove an ExpressCard:
1. Double-click on the Safely Remove Hardware icon found on the
Windows taskbar and the Safely Remove Hardware window appears on
screen.
2. Select (highlight) the ExpressCard from the list to disable the card.
![](/img.php?id=2123410&img=bg3f.png)
Expanding Your Computer 4-9
Replacing the Hard Disk Drive
1. Turn off the computer and disconnect the AC adapter.
2. Slide the cover latch toward the unlocked position ( ) () and then lift
up the tab () to release the cover.
3. Using the ribbon strip, first pull the small latch toward the right to
unlock () and then pull the hard disk drive out of the computer ().
4. Noting the orientation, insert the new hard disk drive all the way into
the slot until the small latch clicks into place.
5. When closing the cover, push the tab downward until the cover clicks
into place and then slide the latch toward the locked position ( ).
![](/img.php?id=2123410&img=bg40.png)
4-10 Expanding Your Computer
System Memory Upgrade
You can upgrade your computer by expanding system memory.
CAUTION:
It is not recommended that you buy and install RAM modules by
yourself. If you want to expand system memory, please ask Getac service
center to install DRAM modules for you so that full compatibility can be
guaranteed.
RAM modules are extremely sensitive to static electricity. There are cases
where static electricity generated by the human body has adversely
affected such modules. When inserting or removing a RAM module, do
not touch the terminals or internal components, insert objects other
than the module, or allow foreign particles to enter. Doing so has been
known to cause damage, fire, or electrical shock.
To install the RAM module:
1. Disconnect the AC adapter and remove the battery pack.
2. Carefully place the computer upside down.
3. Remove the 8 screws to open the compartment cover.
![](/img.php?id=2123410&img=bg41.png)
Expanding Your Computer 4-11

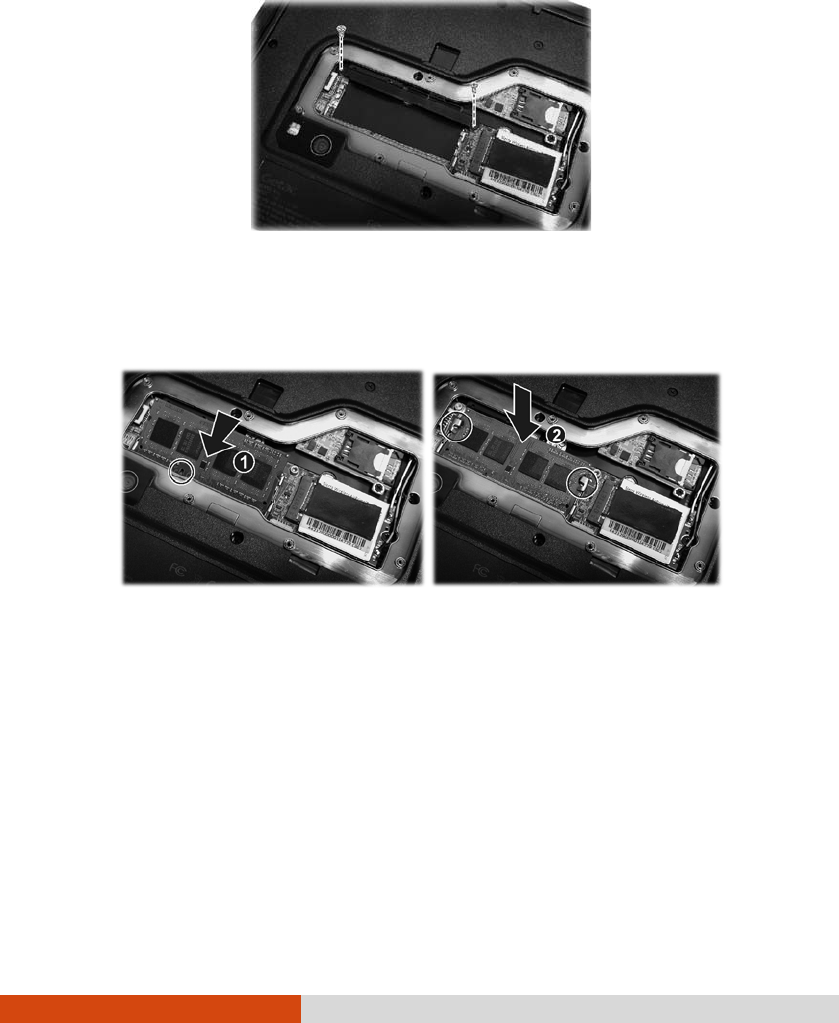

4. Remove the plastic bar by unfastening two screws.
5. To install the RAM module, match the module's notched part with the
socket's projected part and firmly insert the module into the socket at a
20-degree angle ().
Then push down until the retaining clips lock the
module into position ().
CAUTION: If the RAM module is difficult to insert or difficult to push down,
do not force it. Check once more to ensure that the module is positioned
correctly.
6. Replace the plastic bar and secure with two screws.
7. Close the compartment cover and secure with 8 screws.
8. Replace the battery pack.
![](/img.php?id=2123410&img=bg43.png)
Using BIOS Setup 5-1
Chapter 5
Using BIOS Setup
BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output
System) settings of the computer. BIOS is a layer of software, called
firmware, that translates instructions from other layers of software into
instructions that the computer hardware can understand. The BIOS settings
are needed by your computer to identify the types of installed devices and
establish special features.
This chapter tells you how to use the BIOS Setup Utility.
![](/img.php?id=2123410&img=bg44.png)
5-2 Using BIOS Setup
When and How to Use
You need to run BIOS Setup Utility when:
You see an error message on the screen requesting you to run BIOS
Setup Utility.
You want to restore the factory default BIOS settings.
You want to modify some specific settings according to the hardware.
You want to modify some specific settings to optimize the system
performance.
To run BIOS Setup Utility:
Method 1 for Windows 8 models: Open the Charms Bar of Windows.
Click Settings Change PC Settings General. Under Advanced
startup, click Restart now. In the boot options menu, click Troubleshoot
Advanced options UEFI Firmware Settings. Click Restart to restart
the system and enter UEFI (BIOS).
Method 2 for Windows 8 models: Restart the computer using the Restart
option in Windows Power menu. Or, perform a full shutdown by holding
down Shift while clicking the Shutdown option in Windows Power menu
and then start up the computer. In either way, press the F2 key during
the brief time period – shortly after the computer powers on but before
it begins to load Windows.
For Windows 7 models: Press the F2 key when the prompt appears on
the screen during system startup.
NOTE: The actual setting items on your model may differ from those
described in this chapter.
![](/img.php?id=2123410&img=bg45.png)
Using BIOS Setup 5-3
Menu Descriptions
Information Menu
The Information menu contains the basic configuration information of the
system. There are no user-definable items in this menu.
NOTE: The “Asset Tag” information appears when you have entered the
asset number for this computer using the asset management program. The
program is provided in the Asset tag folder of the Driver disc.
Main Menu
The Main menu contains the various system settings.
System Date sets the system date.
System Time sets the system time.
Wireless LAN specifies the on/off state of the wireless LAN radio when
the system starts up. When set to
Last
State
, the on/off state remains the
same as the last state before you turn off the system.
Bluetooth specifies the on/off state of the Bluetooth radio when the
system starts up. When set to
Last
State
, the on/off state remains the
same as the last state before you turn off the system.
Legacy USB Support enables or disables the system’s support for Legacy
USB device in DOS mode. (This item appears only on Windows 7 models.)
CSM Support enables or disables CSM (Compatibility Support Mode).
You can set this item to Yes for backward compatibility with legacy BIOS
services. (This item appears only on Windows 8 models.)
UEFI Boot enables or disables booting using UEFI (Unified Extensible
Firmware Interface). UEFI is a new type of firmware after the BIOS
firmware. (This item appears only on Windows 8 models.)
Legacy Boot enables or disables booting using legacy BIOS. This item is
accessible only when the CSM Support item is set to Yes. (This item
appears only on Windows 8 models.)
![](/img.php?id=2123410&img=bg46.png)
5-4 Using BIOS Setup
Advanced Menu
The Advanced menu contains the advanced settings.
Wake Up Capability
Any-key Wake Up From S3 allows any key to wake up the system from
S3 (Sleep) state.
USB Wake-Up From S3 allow a USB device activity to wake up the system
from S3 (Sleep) state. (This feature works for Windows 7 only.)
AC Initiation sets if connecting AC power will automatically start or
resume the system.
SATA Mode set to
AHCI
if your hard disk supports AHCI. AHCI allows you
to take advantage of Advanced Host Controller Interface features. The
options are
IDE
and
AHCI
.
CAUTION: Incorrect SATA mode settings can result in hard disk drive boot
failure.
AMT Configuration
Intel(R) AMT enables or disables Intel® Active Management Technology
BIOS extension execution. AMT allows the system administrator to access
an AMT featured computer remotely.
Enter Intel MEBx Setup determines whether the prompt for entering
Intel MEBx Setup appears or not during POST.
Virtualization Technology Setup
Intel(R) Virtualization Technology enables or disables Intel® VT (Intel
Virtualization Technology) feature which provides hardware support for
processor virtualization. When enabled, a VMM (Virtual Machine
Monitor) can utilize the additional hardware virtualization capabilities
provided by this technology.
Intel(R) VT for Directed I/O (VT-d) enables or disables VT-d (Intel®
Virtualization Technology for Directed I/O). When enabled, VT-d helps
enhance Intel platforms for efficient virtualization of I/O devices.
Graphics Setup
DVMT Pre-Allocated sets the amount of pre-allocated (fixed) graphics
memory for use by the internal graphics device.
![](/img.php?id=2123410&img=bg47.png)
Using BIOS Setup 5-5
DVMT Total Gfx Mem sets the amount of total graphics memory
(pre-allocated + fixed + DVMT) for use by the internal graphics device.
Device Configuration enables or disables several hardware components.
The items available for setting depend on your model.
Security Menu
The Security menu contains the security settings, which safeguard your
system against unauthorized use.
NOTE:
You can set the user password only when the supervisor password has
been set.
If both the supervisor and user passwords are set, you can enter any of
them for starting up the system and/or entering BIOS Setup. However,
the user password only allows you to view/change the settings of certain
items.
Account’s Password Status
Supervisor/User Password Is shows whether you have set the
supervisor/user password or not for the system.
Set Supervisor/User Password sets the supervisor/user password. You
can set the supervisor/user password to be required for starting up the
system and/or entering BIOS Setup.
Password on Boot allows you to enable or disable the entering of
password for booting up your system. (This item appears only on
Windows 7 models.)
Secure Boot Configuration (This item appears only on Windows 8
models.)
Secure Boot Option enables or disables Secure Boot. Secure Boot is a
feature that helps prevent unauthorized firmware, operating systems, or
UEFI drivers from running at boot time.
Reset to Default resets secure boot variables to manufacturing default.
Change to Customization changes the platform to setup mode and
disables Secure Boot.
![](/img.php?id=2123410&img=bg48.png)
5-6 Using BIOS Setup
HDD Security Status
HDD 0 Password State shows whether you have set the hard disk
password or not.
Set HDD 0 Password sets the password for locking the Primary Master
hard disk drive. After setting a password, the hard disk drive can only be
unlocked by the password no matter where it is installed.
TPM Setup Menu
TPM Support enables or disables TPM (Trusted Platform Module)
support. TPM (Trusted Platform Module) is a component on your
computer’s mainboard that is specifically designed to enhance platform
security by providing a protected space for key operations and other
security critical tasks.
Current TPM State shows the current TPM state.
TPM Action allows you to select between
No Change
,
Clear
,
Enable and
Activate
, and
Disable and Deactivate
.
Intel Trusted Execution Technology enables utilization of additional
hardware capabilities provided by Intel® Trusted Execution Technology.
Boot Menu
The Boot menu sets the sequence of the devices to be searched for the
operating system.
The bootable devices will be automatically detected during POST and shown
here, allowing you to set the sequence that the BIOS uses to look for a device
from which to load the OS.
Exit Menu
The Exit menu displays ways of exiting BIOS Setup Utility. After finishing
with your settings, you must save and exit so that the changes can take
effect.
Exit Saving Changes saves the changes you have made and exits BIOS
Setup Utility.
Exit Discarding Changes exits BIOS Setup Utility without saving the
changes you have made.
![](/img.php?id=2123410&img=bg4c.png)
6-2 Using Getac Software
OSD Control Panel
The OSD (On Screen Display) Control Panel provides a user-friendly interface
for you to quickly activate or operate certain functions on your computer
with a simple tap of the screen.
To open the OSD Control Panel, start the program named OSDC. You can
also press the Windows Logo button (long press if you have a Windows 8
model) on your computer to open it. The following screen appears.
For detailed information on the program, see the program’s online help.
Help
![](/img.php?id=2123410&img=bg4d.png)
Using Getac Software 6-3
G-Manager
G-Manager is a unified user interface utility that allows you to view,
manage, or configure your computer features.
With G-Manager, you can perform all or some of the tasks listed below.
View system information.
Check the battery status and configure the battery.
Configure ECO modes (or called power profiles).
View light sensor information (select models only).
Set if your system will switch to the external antenna when connected to
the docking station (select models only).
Configure how your system works with the vehicle ignition (select
models only).
Monitor the system.
View the GPS information (select models only).
Tap and hold the Getac Utility icon located on Windows taskbar and
select G-Manager to start the program. The G-Manager window appears,
containing several tabs.
NOTE: Depending on your model, the actual items appearing on the screen
may differ from those shown in this manual.
![](/img.php?id=2123410&img=bg4f.png)
Using Getac Software 6-5
Getac Camera (Optional)
Getac Camera is a geo-tagging camera program, which allows you to stamp
geographical information on photos as watermarks and embed such
information into JPEG files as EXIF 2.2 metadata.
NOTE:
Getac Camera works with Virtual-GPS (a separate application
program).
Before starting Getac Camera, close any other program that uses the
camera; otherwise, Getac Camera can only provide limited functions.

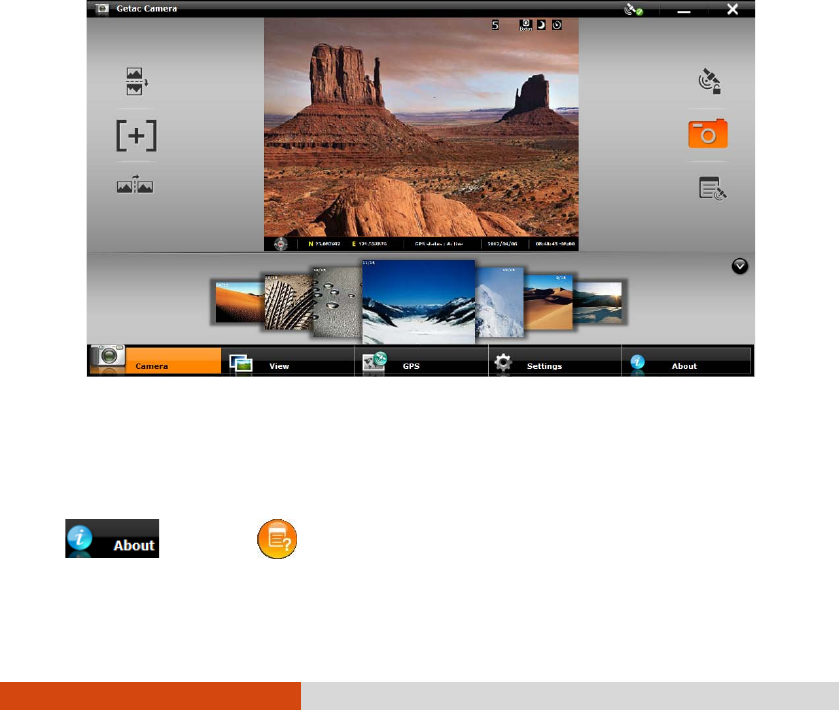

Start Getac Camera. The Getac Camera window appears as shown below.
The GPS positioning will be automatically activated. When the GPS
positioning is completed, you will see the geographical information in the
watermark area on the image.
For detailed information on the program, see the program’s online help. Tap
and then .
![](/img.php?id=2123410&img=bg50.png)
6-6 Using Getac Software
Getac Smart Tag (Optional)
If your model has the RFID reader/writer module, you can use Getac Smart
Tag to read UID numbers from RFID tags (14443-A, 14443-B, and 15693
types).

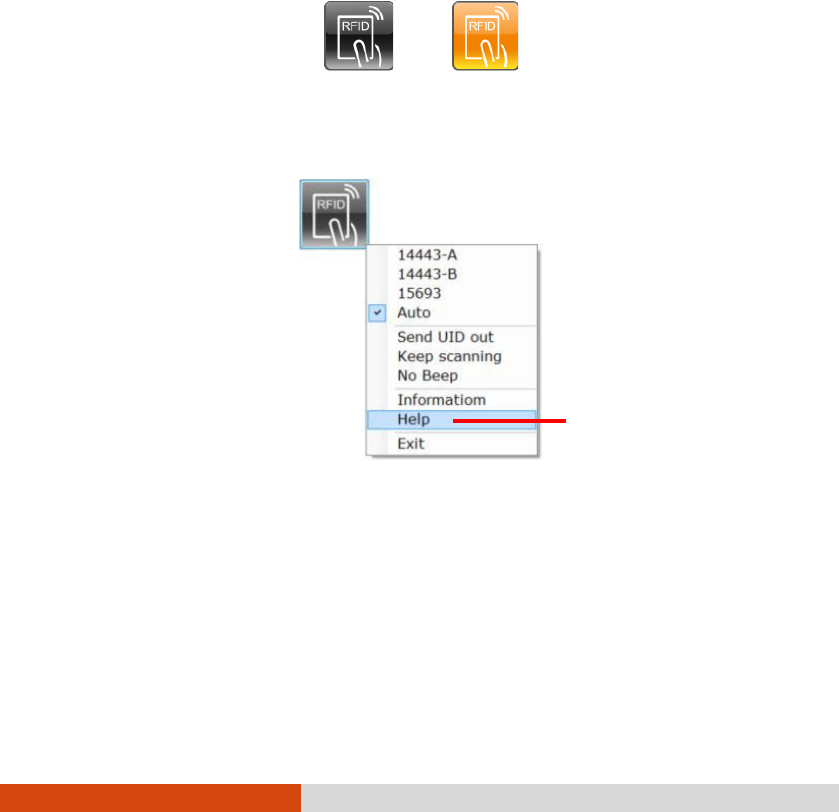

Start Getac Smart Tag. The Getac Smart Tag floating button appears and is
always on top of the screen. Tap the floating button to start scanning. While
scanning is in progress, the button’s color is orange.
Idle Scanning
To configure the program, open the options menu by tapping and holding
the floating button.
For detailed information on the program, see the program’s online help.
Help
![](/img.php?id=2123410&img=bg52.png)
7-2 Caring for the Computer
Protecting the Computer
To safeguard the integrity of your computer data as well as the computer
itself, you can protect the computer in several ways as described in this
section.
Using an Anti-Virus Strategy
You can install a virus-detecting program to monitor potential viruses that
could damage your files.
Using the Cable Lock
You can use a Kensington-type cable lock to protect your computer against
theft. The cable lock is available in computer stores.
To use the lock, loop the lock cable around a stationary object such as a
table. Insert the lock to the Kensington lock hole and turn the key to secure
the lock. Store the key in a safe place.
![](/img.php?id=2123410&img=bg53.png)
Caring for the Computer 7-3
Taking Care of the Computer
Location Guidelines
For optimal performance, use the computer where the recommended
temperature is between 0 °C (32 °F) and 55 °C (131 °F). Actual operating
temperature depends on product specifications.
Avoid placing the computer in a location subject to high humidity,
extreme temperatures, mechanical vibration, direct sunlight, or heavy
dust. Using in extreme environments for long periods can result in
product deterioration and a shortened product life.
Operating in an environment with metallic dust is not allowed.
Place the computer on a flat and steady surface. Do not stand the
computer on its side or store it in an upside-down position. A strong
impact by dropping or hitting may damage the computer.
Do not cover or block any ventilation openings on the computer. For
example, do not place the computer on a bed, sofa, rug, or other similar
surface. Otherwise, overheating may occur that results in damage to the
computer.
As the computer can become very hot during operation, keep it away
from objects that are vulnerable to heat.
Keep the computer at least 13 cm (5 inches) away from electrical
appliances that can generate a strong magnetic field such as a TV,
refrigerator, motor, or a large audio speaker.
Avoid moving the computer abruptly from a cold to a warm place. A
temperature difference of more than 10 °C (18 °F) may cause
condensation inside the unit, which may damage the storage media.
![](/img.php?id=2123410&img=bg54.png)
7-4 Caring for the Computer
General Guidelines
Do not expose your skin to the computer when operating it in a very hot
or cold environment.
Do not place heavy objects on top of the computer as this may damage
the display.
The screen surface is easily scratched. Avoid touching it with a sharp
object such as a pen or pencil.
LCD image sticking occurs when a fixed pattern is displayed on the
screen for a prolonged period of time. You can avoid the problem by
limiting the amount of static content on the display. It is recommended
that you use a screen saver or turn off the display when it is not in use.
To maximize the life of the backlight in the display, allow the backlight
to automatically turn off as a result of power management.
Cleaning Guidelines
Never clean the computer with its power on.
Use a soft cloth moistened with water or a non-alkaline detergent to
wipe the exterior of the computer.
Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or
detergent on the display.
Dust or grease on the touchpad can affect its sensitivity. Clean the pad by
using adhesive tape to remove the dust and grease on its surface.
If water or liquid is split onto the computer, wipe it dry and clean when
possible. Though your computer is water-proof, do not leave the
computer wet when you can dry it.
If the computer gets wet where the temperature is 0°C (32°F) or below,
freeze damage may occur. Make sure to dry the wet computer.
![](/img.php?id=2123410&img=bg55.png)
Caring for the Computer 7-5
Battery Pack Guidelines
Recharge the battery pack when it is nearly discharged. When
recharging, make sure that the battery pack is fully charged. Doing so
may avoid harm to the battery pack.
The battery pack is a consumable product and the following conditions
will shorten its life:
– when frequently charging the battery pack
– when using, charging, or storing the battery in high temperature
condition
To avoid hastening the deterioration of the battery pack thereby
prolonging its useful life, minimize the number of times you charge it so
as not to frequently increase its internal temperature.
Charge the battery pack between 10 °C ~ 30 °C (50 °F ~ 86 °F) temperature
range. A higher environment temperature will cause the battery pack’s
temperature to rise. Avoid charging the battery pack inside a closed
vehicle and in hot weather condition. Also, charging will not start if the
battery pack is not within the allowed temperature range.
It is recommended that you do not charge the battery pack more than
once a day.
It is recommended that you charge the battery pack with the computer’s
power off.
To maintain the battery pack’s operating efficiency, store it in a cool
dark place removed from the computer and with 30 % ~ 40 % charge
remaining.
Important guidelines when using the battery pack.
When installing or removing the battery pack take note of the following:
– avoid installing or removing the battery pack when the computer is
in Sleep mode. Abruptly removing the battery pack may cause
loss of data or the computer may become unstable.
– avoid touching the battery pack terminals or damage may occur,
thereby causing improper operation to it or the computer.
The computer’s input voltage and surrounding temperature will directly
affect the battery pack’s charge and discharge time:
![](/img.php?id=2123410&img=bg56.png)
7-6 Caring for the Computer
– charging time will be prolonged when the computer is turned on.
To shorten the charging time, it is recommended that you place the
computer in Sleep or hibernation mode.
– a low temperature will prolong the charging time as well as hasten
the discharge time.
When using battery power in an extremely low temperature
environment, you may experience shortened operating time and
incorrect battery level reading. This phenomenon comes from the
chemical characteristics of batteries. The appropriate operating
temperature for the battery is -10 °C ~ 50 °C (14 °F ~ 122 °F).
Do not leave the battery pack in storage for more than six months
without recharging it.
Touchscreen Guidelines
Use the finger or the included stylus on the display. Using a sharp or
metallic object other than your finger or stylus may cause scratches and
damage the display, thereby causing errors.
Use a soft cloth to remove dirt on the display. The touchscreen surface
has a special protective coating that prevents dirt from sticking to it. Not
using a soft cloth may cause damage to the special protective coating on
the touchscreen surface.
Turn off the computer power when cleaning the display. Cleaning the
display with the power on may cause improper operation.
Do not use excessive force on the display. Avoid placing objects on top of
the display as this may cause the glass to break thereby damaging the
display.
Using the touchscreen during low temperature (less than 5 oC) may cause
a slower response time, this is normal. A normal response time may be
restored upon returning to room temperature.
When there is noticeable discrepancy in the operation of the touchscreen
function (wrong location on intended operation or improper display
resolution), refer to the Windows online Help for instructions on
recalibrating the touchscreen display.
![](/img.php?id=2123410&img=bg57.png)
Caring for the Computer 7-7
When Traveling
Before traveling with your computer, make a backup of your hard disk
data into flash disks or other storage devices. As an added precaution,
bring along an extra copy of your important data.
Make sure that the battery pack is fully charged.
Make sure that the computer is turned off.
Disconnect the AC adapter from the computer and take it with you. Use
the AC adapter as the power source and as a battery-charger.
Hand-carry the computer. Do not check it in as luggage.
If you need to leave the computer in the car, put it in the trunk of the car
to avoid exposing the computer to excessive heat.
When going through airport security, it is recommended that you send
the computer and flash disks through the X-ray machine (the device you
set your bags on). Avoid the magnetic detector (the device you walk
through) or the magnetic wand (the handheld device used by security
personnel).
If you plan to travel abroad with your computer, consult your dealer for
the appropriate AC power cord for use in your country of destination.
![](/img.php?id=2123410&img=bg5a.png)
8-2 Troubleshooting
Preliminary Checklist
Here are helpful hints to follow before you take further actions when you
encounter any problem:
Try to isolate which part of the computer is causing the problem.
Make sure that you turn on all peripheral devices before turning on the
computer.
If an external device has a problem, make sure that the cable
connections are correct and secure.
Make sure that the configuration information is properly set in the BIOS
Setup program.
Make sure that all the device drivers are correctly installed.
Make notes of your observations. Are there any messages on the screen?
Do any indicators light? Do you hear any beeps? Detailed descriptions
are useful to the service personnel when you need to consult one for
assistance.
If any problem persists after you follow the instructions in this chapter,
contact an authorized dealer for help.
![](/img.php?id=2123410&img=bg5b.png)
Troubleshooting 8-3
Solving Common Problems
Battery Problems
The battery does not charge (Battery Charge indicator does not light
amber).
Make sure that the AC adapter is properly connected.
Make sure that the battery is not too hot or cold. Allow time for the
battery pack to return to room temperature.
If the battery doesn't charge after it has been stored in very low
temperatures, try disconnecting and reconnecting the AC adapter to
solve the problem.
Make sure that the battery pack is installed correctly.
Make sure that the battery terminals are clean.
The operating time of a fully charged battery becomes shorter.
If you often partially recharge and discharge, the battery might not be
charged to its full potential. Initialize the battery to solve the problem.
The battery operating time indicated by the battery meter does not
match the actual operating time.
The actual operating time can be different from the estimated time,
depending on how you are using the computer. If the actual operating
time is much less than the estimated time, initialize the battery.
BT Problems
I cannot connect to another device with BT wireless technology.
Make sure that both devices have activated BT feature.
Make sure that the distance between the two devices is within the limit
and that there are no walls or other obstructions between the devices.
![](/img.php?id=2123410&img=bg5c.png)
8-4 Troubleshooting
Make sure that the other device is not in “Hidden” mode.
Make sure that both devices are compatible.
Display Problems
Nothing appears on the screen.
During operation, the screen may automatically turn off as a result of
power management. Press any key to see if the screen comes back.
The brightness level might be too low. Increase the brightness.
The display output might be set to an external device. To switch the
display back to the LCD, press the Fn+F5 hot key or change the display
through the Display Settings Properties.
The characters on the screen are dim.
Adjust the brightness and/or contrast.
The display brightness cannot be increased.
As a protection, the display brightness will be fixed at a low level when
the surrounding temperature is too high or too low. It is not a
malfunction in this situation.
Bad dots appear on the display at all times.
A small number of missing, discolored, or bright dots on the screen are
an intrinsic characteristic of TFT LCD technology. It is not regarded as a
LCD defect.
Clouding (or called “mura”) happens on the screen when you exert
forces on the left or right side of the LCD frame.
This is a normal phenomenon, not a defect.
![](/img.php?id=2123410&img=bg5d.png)
Troubleshooting 8-5
Hardware Device Problems
The computer does not recognize a newly installed device.
The device may not be correctly configured in the BIOS Setup program.
Run the BIOS Setup program to identify the new type.
Make sure if any device driver needs to be installed. (Refer to the
documentation that came with the device.)
Make sure if the device needs any jumper or switch settings. (Refer to the
documentation that came with the device.)
Check the cables or power cords for correct connections.
For an external device that has its own power switch, make sure that the
power is turned on.
Hard Disk Drive Problems
The hard disk drive error message appears on the screen.
The hard disk drive has defects. Ask your dealer for help.
The hard disk drive operations seem slow.
The data files stored on the hard disk drive may be fragmented. Use a
tool such as Window’s Disk Defragmenter to defragment the files.
Keyboard and Touchpad Problems
The keyboard does not respond.
Try connecting an external keyboard. If it works, contact an authorized
dealer, as the internal keyboard cable might be loose.
Water or liquid is spilt into the keyboard.
Immediately turn off the computer and unplug the AC adapter. Then
turn the keyboard upside down to drain the liquid out of the keyboard.
Make sure to clean up any part of the spill you can get to. Though the
![](/img.php?id=2123410&img=bg5e.png)
8-6 Troubleshooting
keyboard of your computer is spill-proof, liquid will remain in the
keyboard enclosure if you don’t remove it.
The touchpad does not work, or the pointer is difficult to control
with the touchpad.
Make sure that the touchpad is clean.
LAN Problems
I cannot access the network.
Make sure that the LAN cable is properly connected to the RJ-45
connector and the network hub.
Make sure that the network configuration is appropriate.
Make sure that the user name or password is correct.
Power Management Problems
The computer does not enter Sleep or Hibernation mode
automatically.
If you have a connection to another computer, the computer does not
enter Sleep or Hibernation mode if the connection is actively in use.
Make sure that the Sleep or Hibernation time-out is enabled.
The computer does not enter Sleep or Hibernation mode
immediately.
If the computer is performing an operation, it normally waits for the
operation to finish.
The computer does not resume from Sleep or Hibernation mode.
The computer automatically enters Sleep or Hibernation mode when the
battery pack is empty. Do any one of the following:
− Connect the AC adapter to the computer.
− Replace the empty battery pack with a fully charged one.
![](/img.php?id=2123410&img=bg5f.png)
Troubleshooting 8-7
Software Problems
An application program does not work correctly.
Make sure that the software is correctly installed.
If an error message appears on the screen, consult the software
program’s documentation for further information.
If you are sure the operation has stop, reset the computer. (See
“Resetting the Computer” later in this chapter.)
Sound Problems
No sound is produced.
Make sure that the volume control is not set too low. Increase the
volume.
Make sure that the sound is not muted.
Make sure that the computer is not in Sleep mode.
If using an external speaker, make sure that the speaker is properly
connected.
Distorted sound is produced.
Make sure that the volume control is not set too high or too low. In most
cases, a high setting can cause the audio electronics to distort the sound.
Startup Problems
When you turn on the computer, it does not respond and the Power
Indicator does not light green.
If you are using an external AC power, make sure that the AC adapter is
correctly and securely connected. If so, make sure that the electrical
outlet works properly.
If you are using the battery power, make sure that the battery is not
discharged.
![](/img.php?id=2123410&img=bg60.png)
8-8 Troubleshooting
When you turn on the computer, it stops after POST.
Reset your computer. (See “Resetting the computer” later in this
chapter.)
Wireless LAN Problems
I cannot use the wireless LAN feature.
Make sure that the wireless LAN feature is turned on.
Transmission quality is poor.
Your computer may be in an out-of-range situation. Move your
computer closer to the Access Point or another wireless LAN device it is
associated with.
Check if there is high interference around the environment and solve the
problem as described next.
Radio interference exists.
Move your computer away from the device causing the radio
interference such as microwave oven and large metal objects.
Plug your computer into an outlet on a different branch circuit from that
used by the affecting device.
Consult your dealer or an experienced radio technician for help.
I cannot connect to another wireless LAN device.
Make sure that the wireless LAN feature is turned on.
Make sure that the SSID setting is the same for every wireless LAN device
in the network.
Your computer is not recognizing changes. Restart the computer.
Make sure that the IP address or subnet mask setting is correct.
![](/img.php?id=2123410&img=bg61.png)
Troubleshooting 8-9
I cannot communicate with the computer in the network when
Infrastructure mode is configured.
Make sure that the Access Point your computer is associated with is
powered on and all the LEDs are working properly.
If the operating radio channel is in poor quality, change the Access Point
and all the wireless station(s) within the BSSID to another radio channel.
Your computer may be in an out-of-range situation. Move your
computer closer to the Access Point it is associated with.
Make sure that your computer is configured with the same security
option (encryption) to the Access Point.
Use the Web Manager/Telnet of the Access Point to check whether it is
connected to the network.
Reconfigure and reset the Access Point.
I cannot access the network.
Make sure that the network configuration is appropriate.
Make sure that the user name or password is correct.
You have moved out of range of the network.
Turn off power management.
Other Problems
The date/time is incorrect.
Correct the date and time via the operating system or BIOS Setup
program.
After you have performed everything as described above and still have
the incorrect date and time every time you turn on the computer, the
RTC (Real-Time Clock) battery is at the end of its life. Call an authorized
dealer to replace the RTC battery.
![](/img.php?id=2123410&img=bg62.png)
8-10 Troubleshooting
Resetting the Computer
You may have to reset (reboot) your computer on some occasions when an
error occurs and the program you are using hangs up.
If you are sure the operation has stopped and you cannot use the “restart”
function of the operating system, reset the computer.
Reset the computer by any one of these methods:
Press Ctrl+Alt+Del on the keyboard. Or press and hold the P1 button for
more than 2 seconds. This opens the Ctrl-Alt-Del screen where you can
select actions including Restart.
If the above action does not work, press and hold the power button for
more than 5 seconds to force the system to turn off. Then turn on the
power again.
![](/img.php?id=2123410&img=bg63.png)
Troubleshooting 8-11
System Recovery
System Restore, Refresh, or Reset (for
Windows 8 Models)
If you're having problems with your Windows 8 computer, you can try to
restore, refresh, or reset it.
To restore your computer to an earlier point in time:
1. Enter Recovery in the search box.
2. Tap Settings, and then tap Recovery.
3. Tap Open System Restore.
To refresh your computer without affecting your files:
1. Open the Charms Bar of Windows.
2. Tap Settings Change PC Settings General.
3. Under Refresh your PC without affecting your files, tap Get started.
To remove everything and reinstall Windows:
1. Open the Charms Bar of Windows.
2. Tap Settings Change PC Settings General.
3. Under Remove everything and reinstall Windows, tap Get started.
![](/img.php?id=2123410&img=bg64.png)
8-12 Troubleshooting
System Recovery (a Tool for Windows 7
Models)
Use System Recovery when:
The Windows 7 operating system does not start at all.
You want to restore the system to the factory state.
WARNING:
Using this feature will reinstall Windows to your system and configure it
to the system’s factory default settings. All data on the hard disk drive
will be lost.
Make sure that power is not interrupted during the recovery process. An
unsuccessful recovery may result in Windows startup problems.
To run System Recovery:
1. Connect the AC adapter.
2. Turn on the computer. During system startup when the following screen
appears, press Ctrl + Alt + F2 keys for four second.
4. In the screen that appears, select Recovery to start the recovery process.
![](/img.php?id=2123410&img=bg65.png)
Troubleshooting 8-13

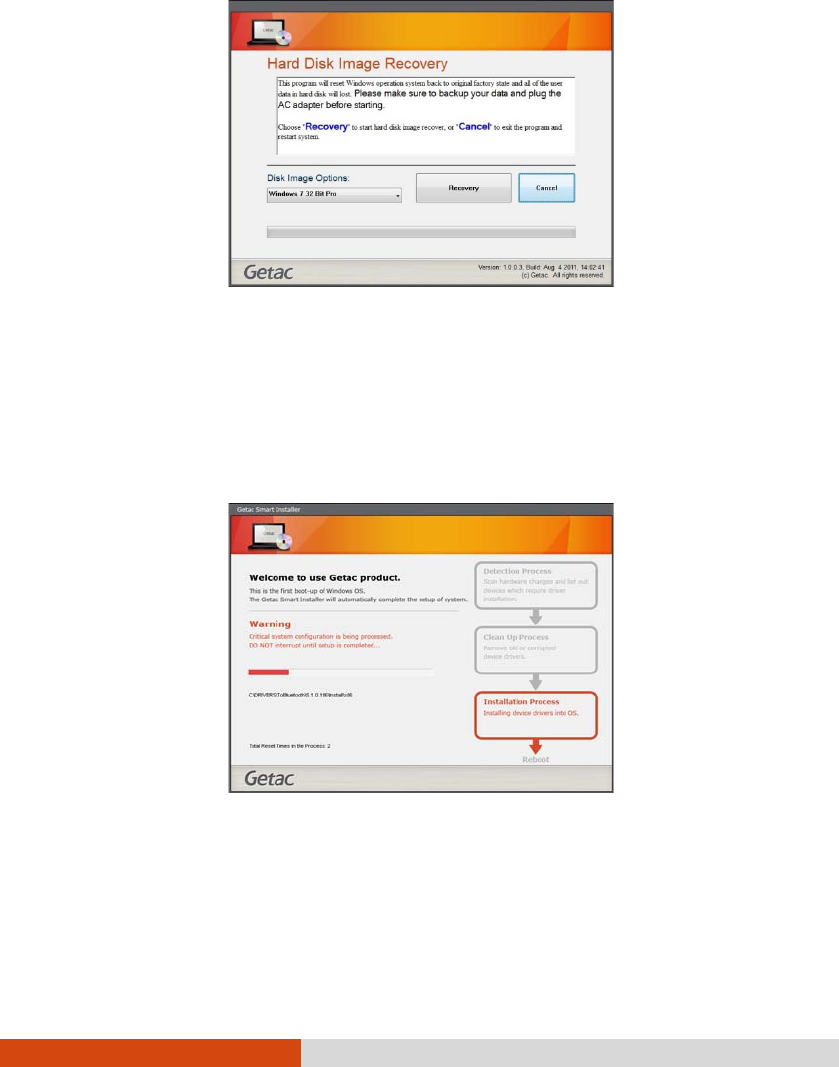

5. The progress bar shows the percentage completed. When it reaches
100%, the system turns off.
6. Turn on the computer. The Windows setup wizard starts. Follow the
onscreen prompts to continue.
7. When the system restarts, the installer screen appears. The installer will
perform system hardware detection and driver installation.
8. When completed, the system restarts and displays Windows desktop.
![](/img.php?id=2123410&img=bg67.png)
Specifications A-1
Appendix A
Specifications
NOTE: Specifications are subject to change without any prior notice.
Parts Specifications
CPU Haswell Intel® Core™ i3/i5/i7 processor
BIOS Phoenix, Flash EEPROM, supporting UEFI, NIST,
ACPI, and TPM
RAM 4GB/8GB DDR3L 1600MHz SO-DIMM
Video Controller UMA - Intel® GT2
Display Panel 11.6-inch (16:9) TFT LCD, HD 1366x768 or FHD
1920x1080, sunlight readable, 800 Nits maximum
brightness
Audio Features Azalia, High Definition audio
Speaker 1.5W x 1
Microphone Integrated microphone
Keyboard Standard keys with numeric pad keys, 12 function
keys, special Fn (Function) key and Windows keys,
with water-proof membrane or backlight (option)
Pointing device ClickPad, glide touchpad with multi-touch
Hard disk drive 64/128/256 GB SSD (Solid-State Disk)
Card slots ExpressCard/34/54
Smart Card
I/O ports USB 3.0 x 2, USB 2.0, RS232, HDMI, combo audio
(4-pole TRRS 3.5mm type), RJ-45, Docking
![](/img.php?id=2123410&img=bg68.png)
A-2 Specifications
Parts Specifications
LAN 10/100/1000 Mbps Ethernet
Wireless LAN + BT IEEE 802.11ac, compatible with 802.11a/b/g/n,
BT 4.0 + EDR
GPS (option) NMEA0183
WWAN (option) 3G/4G LTE
Camera (option) Front: HD
Rear: 5M pixel, autofocus, LED, video capture
RFID Reader (option) Contactless, UART, supporting ISO14443A/B and
15693
Security Kensington lock
TPM 1.2
Power
AC adapter Universal 65 W; input: 100∼240 V, 50/60 Hz;
output: 19V
Battery pack x 2 Lithium-ion Prismatic type, 3-cell
Dimension (LxW×D) 299 x 223 x 34mm (11.77 × 8.78 × 1.34 inch)
Weight 2 kg (4.41 lb)
![](/img.php?id=2123410&img=bg69.png)
Regulatory Information B-1
Appendix B
Regulatory
Information
This appendix provides regulatory statements and safety notices on your
computer.
NOTE: Marking labels located on the exterior of your computer indicate the
regulations that your model complies with. Please check the marking labels
and refer to the corresponding statements in this appendix. Some notices
apply to specific models only.
![](/img.php?id=2123410&img=bg6a.png)
B-2 Regulatory Information
On the Use of the System
Class B Regulations
USA
Federal Communications Commission Radio Frequency Interference
Statement
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
Please note:
The use of a non-shielded interface cable with this equipment is prohibited.
![](/img.php?id=2123410&img=bg6b.png)
Regulatory Information B-3
Canada
Canadian Department of Communications
Radio Interference Regulations Class B Compliance Notice
This Class B digital apparatus meets all requirements of the Canada
Interference-Causing equipment regulations.
Cet appareil numérique de Classe B respecte toutes les exigences du
Règlement Canadien sur le matériel brouileur.
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la classe B
prescrites dans le Règlement sur le brouillage radioélectrique édicté par le
ministère des Communications du Canada.
ANSI Warning
Equipment approved for ANSI/ISA 12.12.01, Nonincendive Electrical
Equipment for use in Class 1, Division 2, Group A, B, C, and D.
Maximum ambient temperature: -25°C∼55°C
WARNING: To prevent ignition of a hazardous atmosphere, batteries
must only be changed or charged in an area known to be non-hazardous.
EXPLOSION HARZARD WARNING: External connections/hubs through the
connectors as mentioned (USB connector, Ethernet connector, phone
connector, video port, serial port, power supply connector, microphone
jack, headphones jack, and buttons/switches) and super multi DVD/combo
drive are not to be used in a hazardous location.
Power adapter shall not be used in hazardous locations.
![](/img.php?id=2123410&img=bg6c.png)
B-4 Regulatory Information
Safety Notices
About the Battery
Caution Texts Concerning Lithium Batteries
DANISH
ADVARSEL! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det
brugte batteri tilbage til leverandøren.
NORWEGIAN
ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme
batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte
batterier kasseres i henhold til fabrikantens instruksjoner.
SWEDISH
VARNING: Explosionsfara vid felaktigt batteribyte. Använd samma batterityp
eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera
använt batteri enligt fabrikantens instruktion.
FINNISH
VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda
paristo ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty
paristo valmistajan ohjeiden mukaisesti.
ENGLISH
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the equipment
manufacturer. Discard used batteries according to manufacturer's
instructions.
DEUTSCH
VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie.
Ersatz nur durch denselben oder einen vom Hersteller empfohlenen
gleich-wertigen Typ. Entsorgung gebrauchter Batterien nach Angaben des
Herstellers.
FRENCH
ATTENTION: II y a danger d’explosion s’il y a remplacement incorrect de la
batterie. Remplacer uniquement avec une batterie du même type ou d’un
![](/img.php?id=2123410&img=bg6d.png)
Regulatory Information B-5
type équivalent recommandé par le constructeur. Mettre au rebut les
batteries usagées conformément aux instructions du fabricant.
Attention (for USA Users)
The product that you have purchased contains a rechargeable battery. The
battery is recyclable. At the end of its useful life, under various state and
local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in your
area for recycling options or proper disposal.
About the AC Adapter
Use only the AC adapter supplied with your computer. Use of another
type of AC adapter will result in malfunction and/or danger.
Do not use the adapter in a high moisture environment. Never touch the
adapter when your hands or feet are wet.
Allow adequate ventilation around the adapter when using it to operate
the device or charge the battery. Do not cover the AC adapter with
paper or other objects that will reduce cooling. Do not use the AC
adapter while it is inside a carrying case.
Connect the adapter to a proper power source. The voltage requirements
are found on the product case and/or packaging.
Do not use the adapter if the cord becomes damaged.
Do not attempt to service the unit. There are no serviceable parts inside.
Replace the unit if it is damaged or exposed to excess moisture.
![](/img.php?id=2123410&img=bg6e.png)
B-6 Regulatory Information
On the Use of the RF Device
USA and Canada Safety Requirements and
Notices
IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not
be co-located or operating in conjunction with any other antenna or
transmitter.
Radio Frequency Interference Requirements and SAR
This device meets the government’s requirements for exposure to radio
waves.
This device is designed and manufactured not to exceed the emission limits
for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government.
This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
EMC Requirements
This device uses, generates and radiates radio frequency energy. The radio
frequency energy produced by this device is well below the maximum
exposure allowed by the Federal Communications Commission (FCC).
This device complies with the limits for a Class B digital device pursuant to
Part 15 subpart C of the FCC Rules and Regulations. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
The FCC limits are designed to provide reasonable protection against
harmful interference when the equipment is installed and used in
accordance with the instruction manual and operated in a commercial
![](/img.php?id=2123410&img=bg6f.png)
Regulatory Information B-7
environment. However, there is no guarantee that interference will not
occur in a particular commercial installation, or if operated in a residential
area.
If harmful interference with radio or television reception occurs when the
device is turned on, the user must correct the situation at the user’s own
expense. The user is encouraged to try one or more of the following
corrective measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION: The Part 15 radio device operates on a non-interference basis with
other devices operating at this frequency. Any changes or modification to
said product not expressly approved by the manufacturer could void the
user’s authority to operate this device.
Canada Radio Frequency Interference Requirements
To prevent radio interference to the licensed service, this device is intended
to be operated indoors and away from windows to provide maximum
shielding. Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
Pour empêcher que cet appareil cause du brouillage au service faisant l'objet
d'une licence, il doit être utilisé à l'intérieur et devrait être placé loin des
fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son
antenne d'émission) est installé à l'extérieur, il doit faire l'objet d'une
licence.
![](/img.php?id=2123410&img=bg70.png)
B-8 Regulatory Information
European Union CE Marking and Compliance
Notices
Statements of Compliance
English
This product follows the provisions of the European Directive 1999/5/EC.
Danish
Dette produkt er i overensstemmelse med det europæiske direktiv
1999/5/EC.
Dutch
Dit product is in navolging van de bepalingen van Europees Directief
1999/5/EC.
Finnish
Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.
French
Ce produit est conforme aux exigences de la Directive Européenne
1999/5/EC.
German
Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie
1999/5/EC.
Greek
To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας 1999/5/EC.
Icelandic
Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer
1999/5/EC.
Italian
Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.
Norwegian
Dette produktet er i henhold til bestemmelsene i det europeiske direktivet
1999/5/EC.
![](/img.php?id=2123410&img=bg71.png)
Regulatory Information B-9
Portuguese
Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.
Spanish
Este producto cumple con las normas del Directivo Europeo 1999/5/EC.
Swedish
Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.
Restrictions
This device is restricted to indoor use when operating in the 5150 to 5350
MHz frequency range.
