Users Manual
![](/img.php?id=3531835&img=bg1.png)
SHB3175
BASS+
User manual
Register your product and get support at
www.philips.com/support
![](/img.php?id=3531835&img=bg3.png)
1EN
Contents
Contents
1 Important safety instructions 2
Hearing Safety 2
General information 2
2 Your Bluetooth wireless
headphones 3
What's in the box 3
Other devices 3
Overview of your Bluetooth
wireless headphones 3
3 Get started 5
Charge your headphones 5
Pair the headphones with your
mobile phone 5
4 Use your headphones 6
Connect the headphones to a
Bluetooth device 6
Manage your calls and music 6
Wear your headphones 7
Compact folding 8
5 Technical data 9
6 Notice 10
Declaration of conformity 10
Disposal of your old product
and battery 10
Compliance with EMF 10
Trademarks 11
7 Frequently asked questions 12
![](/img.php?id=3531835&img=bg4.png)
2EN
1 Important
safety
instructions
Hearing Safety
Danger
•To avoid hearing damage, limit the time you
use headphones at high volume and set the
volume to a safe level. The louder the volume,
the shorter the safe listening time is.
Be sure to observe the following
guidelines when using your headset.
• Listen at reasonable volumes for
reasonable periods of time.
• Be careful not to adjust the volume
continuously upwards as your
hearing adapts.
• Do not turn up the volume so high
that you can’t hear what’s around
you.
• You should use caution or
temporarily discontinue use in
potentially hazardous situations.
• Excessive sound pressure from
earphones and headphones can
cause hearing loss.
• Using headphones with both
ears covered while driving is not
recommended and may be illegal in
some areas while driving.
• For your safety, avoid distractions
from music or phone calls while in
trac or other potentially dangerous
environments.
General information
To avoid damage or malfunction:
Caution
•Do not expose headphones to excessive heat.
•Do not drop your headphones.
•Headphones shall not be exposed to dripping
or splashing.
•Do not allow your headphones to be
submerged in water.
•Do not use any cleaning agents containing
alcohol, ammonia, benzene, or abrasives.
•If cleaning is required use a soft cloth, if
necessary dampened with a minimum amount
of water or diluted mild soap, to clean the
product.
•The integrated battery shall not be exposed
to excessive heat such as sunshine, re or the
like.
•Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
About operating and storage
temperatures and humidity
• Operate or store in a place where
temperature is between -15ºC (5ºF)
and 55ºC (131ºF) (up to 90% relative
humidity.
• Battery life may be shorter in high or
low temperature conditions.
![](/img.php?id=3531835&img=bg5.png)
3EN
2 Your
Bluetooth
wireless
headphones
Congratulations on your purchase, and
welcome to Philips! To fully benet
from the support that Philips oers,
register your product at www.philips.
com/welcome.
With this Philips wireless headphones,
you can:
• enjoy convenient wireless
handsfree calls;
• enjoy and control wireless music;
• switch between calls and music.
What's in the box
Philips Bluetooth wireless headphones
BASS+ Over-Ear (SHB3175)
USB charging cable (for charging only)
Audio cable
Quick start guide
Other devices
A mobile phone or device (e.g.
notebook, PDA, Bluetooth adapters,
MP3 players etc) which supports
Bluetooth and is compatible to the
headphones (see ‘Technical data” on
page 9).
Overview of your
Bluetooth wireless
headphones
7
3
1
2
4
5
6
![](/img.php?id=3531835&img=bg6.png)
4EN
a
Music/call/track control button
b LED indicator
c
On/off button
d Microphone
e
Pairing/Mute button
f Micro USB charging slot
g +/-
Volume control button
h Audio jack
8
![](/img.php?id=3531835&img=bg7.png)
5EN
3 Get started
Charge your headphones
Note
•Before you use your headphones for the
rst time, charge the battery for 5 hours for
optimum battery capacity and lifetime.
•Use only the original USB charging cable to
avoid any damage.
•Finish your call before charging the
headphones, as connecting the headphones
for charging will power the headphones o.
•You can operate the headphones normally
during charging.
Connect the supplied USB charging
cable to:
• the micro USB charging slot on
the headphones and;
• the charger/USB port of a
computer.
» LED turns white during
charging and turns o when the
headphones is fully charged.
Tip
•Normally, a full charge takes 3 hours.
Pair the headphones with
your mobile phone
Before you use the headphones with
your mobile phone for the rst time,
pair it with a mobile phone. A successful
pairing establishes a unique encrypted
link between the headphones and
mobile phone. The headphones store
the last 8 devices in the memory. If
you try to pair more than 8 devices, the
earliest paired device is replaced by the
new one.
1 Make sure that the headphones are
fully charged.
2 Press and hold for 2 seconds to
turn the headphones on.
3 Press and hold until the blue and
white LED ashes alternately.
» The headphones remain in
pairing mode for 5 minutes.
4 Make sure that the mobile phone is
turned on and its Bluetooth feature
is activated.
5 Pair the headphones with the
mobile phone. For detailed
information, refer to the user
manual of your mobile phone.
The following example shows you
how to pair the headphones with your
mobile phone.
1 Activate the Bluetooth feature
of your mobile phone, select
BASS+ Over-Ear.
2 Enter the headset password "0000"
(4 zeros) if prompted. For those
mobile phones featuring Bluetooth
3.0 or higher, no need to enter a
password.
BASS+ Over-Ear
SHB4405
![](/img.php?id=3531835&img=bg8.png)
6EN
4 Use your
headphones
Connect the headphones
to a Bluetooth device
1 Turn on your mobile
phone/Bluetooth device.
2 Press and hold for 2 seconds to
turn the headphones on.
» The blue LED ashes.
» The headphones are
reconnected to the
last connected mobile
phone/Bluetooth device
automatically. If the last one is
not available, the headphones
try to reconnect to the second
last connected device.
Tip
•If you turn on the mobile phone/Bluetooth
device or activate the Bluetooth feature
after turning on the headphones, you have
to reconnect the headphones and mobile
phone/Bluetooth device manually.
Note
•If the headphones fail to connect to any
Bluetooth device within range in 5 minutes, it
will switch o automatically to save the battery
life.
Manage your calls and
music
On/o
Task Button Operation
Turn the
headphones
on.
Press and
hold for 2
seconds.
Turn the
headphones
o.
Press and
hold for 6
seconds.
» The white
LED is on
and fades
out.
Music control
Task Button Operation
Play or pause
music.
Press once.
Adjust
volume.
+/-Press
once/press
and hold.
Skip forward. Press twice.
Skip
backward.
Press and
hold for 2
seconds.
Call control
Task Button Operation
Pick up/hang
up a call.
Press once.
» 1 beep.
Reject an
incoming call.
Press and
hold for 2
seconds.
» 1 beep.
Switch caller
during a call.
Press and
hold for 2
seconds.
![](/img.php?id=3531835&img=bg9.png)
7EN
Mute/unmute
the microphone
in a call.
Press once.
» 1 beep.
Voice control
Task Button Operation
Siri/Google
Now.
Press and hold
for 2 seconds.
Other headphones indicator status
Headphones
status
Indicator
The headphones
are connected
to a Bluetooth
device, while the
headphones in
standby mode
or while you are
listening to music.
The blue LED
ashes for every 8
seconds.
The headphones
are ready for
pairing.
The LED ashes
blue and white
alternately.
The headphones
are on but not
connected to a
Bluetooth device.
The blue LED
ashes quickly.
If no connection
can be made, the
headphones will
turn itself o within
5 minutes.
Low battery level. The white LED
ashes 3 times for
every 150 seconds
until it is out of
power.
Battery is fully
charged.
The white LED is
o.
Wired connection
You can also use the headphones
with the audio cable provided when
the battery is too low. Make sure the
headphones turned o before using
the audio cable. Connect the supplied
audio cable to the headphones and
external audio device.
Wear your headphones
Adjust the headband to t your head.
![](/img.php?id=3531835&img=bga.png)
8EN

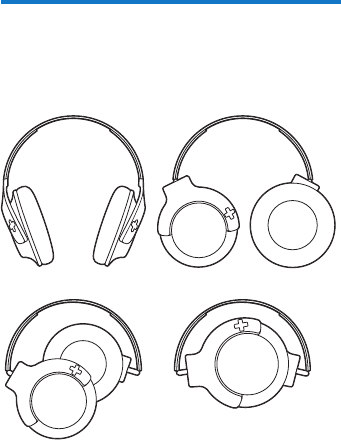

Compact folding
After use, twist the headphones for easy
storage.
1 2
3 4
![](/img.php?id=3531835&img=bgb.png)
9EN
5 Technical
data
• Music time: 12 hours
• Talk time: 12 hours
• Standby time: 166 hours
• Normal time for a full charge: 3
hours
• Rechargeable lithium polymer
battery (240 mAh)
• 3.5 mm audio jack for corded
headphones mode
• Bluetooth 4.1, Bluetooth mono
support (Headset Prole - HSP,
Hands-Free Prole - HFP),
Bluetooth stereo supported
(Advanced Audio Distribution
Prole - A2DP; Audio Video Remote
Control Prole - AVRCP)
• Frequency range: 2.402-2.480GHz
• Transmitter power: <20dBm
• Operating range: Up to 10 meters
(33 feet)
• Digital echo & noise reduction
• Auto power o
Note
•Specications are subject to change without
notice.
![](/img.php?id=3531835&img=bgc.png)
10 EN
6 Notice
Declaration of conformity
Hereby, Gibson Innovations declares
that this product is in compliance
with the essential requirements
and other relevant provisions of
Directive 2014/53/EU. You can nd the
Declaration of Conformity on www.p4c.
philips.com.
Disposal of your old
product and battery
Your product is designed and
manufactured with high quality
materials and components, which can
be recycled and reused.
This symbol on a product means that
the product is covered by European
Directive 2012/19/EU.
This symbol means that the product
contains a built-in rechargeable
battery covered by European Directive
2013/56/EU which cannot be disposed
of with normal household waste. We
strongly advise you to take your product
to an ocial collection point or a Philips
service centre to have a professional
remove the rechargeable battery.
Inform yourself about the local separate
collection system for electrical and
electronic products and rechargeable
batteries. Follow local rules and
never dispose of the product and
rechargeable batteries with normal
household waste. Correct disposal of
old products and rechargeable batteries
helps prevent negative consequences
for the environment and human health.
Remove the integrated battery
Note
•Make sure the headphones are disconnected
from the USB charging cable before removing
the battery.
If there is no collection/recycling system
for electronic products in your country,
you can protect the environment by
removing and recycling the battery
before disposing the headphones.
Compliance with EMF
This product complies with all
applicable standards and regulations
regarding exposure to electromagnetic
elds.
Environmental information
All unnecessary packaging has been
omitted. We have tried to make the
packaging easy to separate into three
materials: cardboard (box), polystyrene
foam (buer) and polyethylene (bags,
protective foam sheet.)
![](/img.php?id=3531835&img=bgd.png)
Your system consists of materials
which can be recycled and reused
if disassembled by a specialized
company. Please observe the local
regulations regarding the disposal
of packaging materials, exhausted
batteries and old equipment.
Trademarks
Bluetooth
The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by Gibson Innovations Limited is
under license.
Siri
Siri is a trademark of Apple Inc.,
registered in
the U.S. and other countries.
Google
Google and the Google Logo are
registered trademarks of Google Inc.
![](/img.php?id=3531835&img=bge.png)
12
My Bluetooth headphones are
connected to a Bluetooth stereo
enabled mobile phone, but music only
plays on the mobile phone speaker.
Refer to the user manual of your mobile
phone. Select to listen to music through
the headphones.
The audio quality is poor and crackling
noise can be heard.
The Bluetooth device is out of range.
Reduce the distance between your
headphones and Bluetooth device, or
remove obstacles between them.
The audio quality is poor when
streaming from the mobile phone is
very slow, or audio streaming does not
work at all.
Make sure your mobile phone not only
supports (mono) HSP/HFP but also
supports A2DP (see ‘Technical data”
on page 9).
I hear but cannot control music on my
Bluetooth device (e.g. play/pause/skip
forward/backward).
Make sure the Bluetooth audio source
supports AVRCP (see ‘Technical data”
on page 9).
My headphones do not work when the
audio cable is connected.
Microphone function will be
deactivated if a 3.5mm audio cable is
connected to the headset. In such case,
your headphones are only for music
enjoyment.
For further support, visit www.philips.
com/support.
7 Frequently
asked
questions
My Bluetooth headphones do not
switch on.
The battery level is low. Charge the
headphones.
I cannot pair my Bluetooth headphones
with a mobile phone.
The Bluetooth is disabled. Enable
the Bluetooth feature on your mobile
phone and turn on the mobile phone
before you turn on the headphones.
Pairing does not work.
Make sure the headphones are in
pairing mode.
• Follow the steps described in
this user manual (see ‘Pair the
headphones with your mobile
phone” on page 5).
• Make sure that the LED light ashes
blue and white alternately before
you release . Do not stop holding
the button if you see the blue LED
only.
The mobile phone cannot nd the
headphones.
•The headphones may be
connected to a previously paired
device. Turn o the connected
device or move it out of range.
•Pairing may have been reset or the
headphones have been previously
paired with another device. Pair
the headphones with the mobile
phone again as described in
the user manual (see ‘Pair the
headphones with your mobile
phone” on page 5).
![](/img.php?id=3531835&img=bgf.png)
2017 © Gibson Innovations Limited. All rights reserved.
This product has been manufactured by, and is sold under the responsibility
of Gibson Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in
relation to this product.
Philips and the Philips’ Shield Emblem are registered
trademarks of Koninklijke Philips N.V.
UM_SHB3175_00_EN_V0.1
WK1721
![](/img.php?id=3531835&img=bg10.png)
正面 反面
尺寸为:89*141.5mm
