Gospell Smarthome Electronic T5880HAA HD WiFi Camera User Manual
Shenzhen Gospell Smarthome Electronic Co., Ltd. HD WiFi Camera
User Manual
![](/img.php?id=3598528&img=bg1.png)

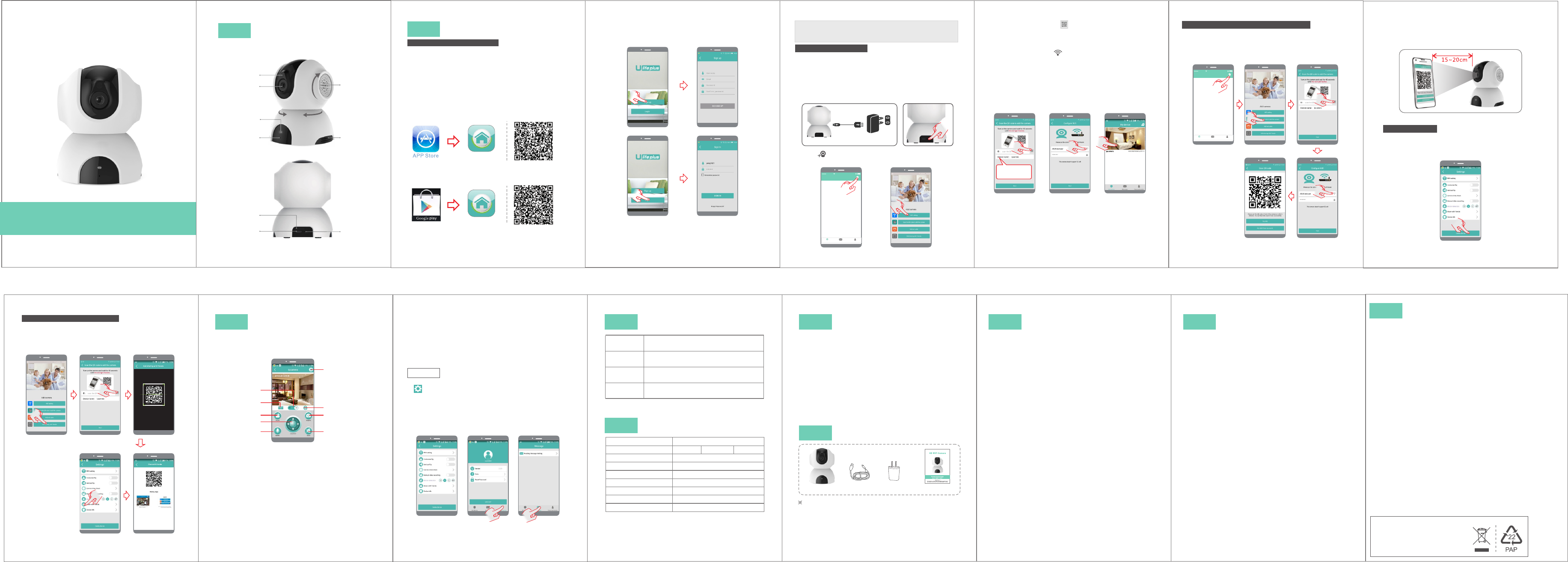

Folding Schematic Front side
640
T5880
中性
2016-12-06
电子档1:1
英文说明书
新版本
变更时间 变更前
1.0
变更后
说明:
公差:+/-1mm
16P
Model: T5880Y/T5881
Quick Start Guide
![](/img.php?id=3598528&img=bg2.png)
-1-
Version No.: 1.0
Before using the product, please read the guide carefully to avoid
any damages to the product in virtue of faulty operation or misuse.
Appearance
Microphone
Micro SD
card slot
SET key
Indicator light
I
HD W iFi Camera
90°
340°
USB port
Speaker
Ventilation
hole
Light sensor
Camera Lens
-2--3--4--5-
Installation
II
※Take the operation of Android client-end as example,
and refer to Android client-end for IOS client-end.
(Fig. 2)
1.Requirements of version: Android 4.4, iOS 8.0, and
later versions.
2. 2.4G wireless router should connect to the Internet;
smartphone should connect the Wi-Fi of the router.
When connecting to the camera, both the smartphone
and camera should be within the range of this
wireless router.
3.Download and install client-end APP
3. Click to add equipment; (Fig. 3)
Prompt: please use a valid and useable mailbox during
user registration, for recovering the password.
(Fig. 1)
1. Please connect the camera to power and switch it on;
after switching on, its indicator light will be turned on
and the camera will start auto-check. After finishing the
auto-check, there will be “ding-dong” sound ringing.
(Fig. 1)
2.
machine will enter configuration mode.(Fig. 2)
Press SET for 1 second, and after a “beep” sound, the
6.Please click the icon to choose the name of your
phone router, type in the right WiFi password, then click
"Next".(Fig.6)
7.After two beeps, camera starts to configure the Wi-Fi
connection. When the light turns green, it indicates the
connection is established. After successful connection,
the app will pop up list of connected cameras (Fig. 7).
Choose the item to enter real-time monitor.
U-life Plus
A.Open the App Store on iPhone/iPad, search for
"U-life Plus" and install.Or scan the QR code to install
it directly.
U-life Plus
B.Enter the "Google Play" store on Android smartphone.
Search for "U-life Plus" and install.Or scan the QR
code to install it directly.
Camera Power adapter Power source
5.Click the QR code icon and scan the QR code of the
camera ID on the camera. The default name of the
camera is “ipcamera” and can be modified. Finally,
click "Next". (Fig. 5)
4.Click “WiFi adding". (Fig. 4)
Pre-Installation Preparation
Model: T5880Y/T5881
Quick Start Guide
Add camera for multi-users.
1.If your cell phone APP has added camera and
connected successfully, next time when others adds,
he/she needs to click “Add sharing with friends” to
scan the QR code you provided. (Fig.11 series)
2.Point camera to the two-dimension code page on cell
phone at a distance of about 15~20cm (as shown in
Figure 9). If it beeps, scanning succeeds, and then
click on I heard it to finish device binding operations.
(Fig. 9)
-6--7-
-9--11--12--13--14-
-10-
Function Features
Technical Parameters
Image sensor CMOS
Camera resolution
Rotation angle 340°horizontal, 90°vertical
Night vision range ≤5m
Operation voltage DC+5V/2A
※
Packing List
III
V VII
Camera Power adapter Quick Guide
The picture is only for reference and the real object shall prevail
No additional notice will be made in case of any
minor change. Our company reserves the right of
final interpretation.
Operation humidity 15% ~ 85% RH
Size (LxWxH) 80x80x106mm
Net weight 245g
Operation temperature -10℃ ~ + 50℃
IV V IVII IIX
1280x720 1280x960
●
●High resolution provides excellent picture quality.
● Smart motion alerts on your phone so you know if
anything happens.
● Advanced video recording on the micro SD card.
(Maximally support the cyclic recording of 32GB micro
SD card.)
● Motorized Pan/Tilt.
● Night vision up to 5 meters.
● Talk & Listen. See your dog on the couch and tell him
to get off.
● Quick, easy setup.
24/7 live video streaming.
Monitor View and Operations
With a successful connection, monitor view supports
real-time monitoring, taking photos, recording videos,
intercommunication, modifying setting and other
operations.
Notes:
1.Photos and videos taken in the app will be saved in
smartphone.
2.Automatic photos and videos of movement detection
will be saved in micro-SD card of camera.
Indicates that power failure or network not
connected.
Red indicator
remains
Red indicator
flashes
Indicates that camera is connecting to
network.
Green
indicator
flashes
Indicates that network connected
successfully (no Internet).
Green
indicator
remains
Indicates the camera is connected to server
and working well.
Camera Indicator Instruction
Troubleshooting
i ) Ensure that there is no MAC filter on router or add
MAC address to router whitelist
2. Red indicator remains, network connection is failed.
a) Ensure that the password of Wi-Fi is correct.
b) Ensure that the network connects to Internet freely.
c) Ensure that the camera is in range of Wi-Fi hotspot.
3. Green indicator flashes, connection to server failed.
a) Ensure that Wi-Fi signal is strong enough and
bandwidth is enough for connection. Move near to
Wi-Fi hotspot or increase the bandwidth.
b) Ensure that camera is not under interferon of other
2.4GHz signal.
2.Movement detection: when movement is detected
within the scope of camera, the camera will record video
and take photos automatically. Videos and photos will
be saved in micro-SD card.
5.Push message: when movement is detected, alarm
message can be sent to server and pushed to your
phone.
6.Remote monitoring: after the camera is connected to
Internet successfully, app can view the monitor via
Internet, anytime, anywhere.
USB cable
Tips
1.Suggest using qualified micro-SD card to avoid
incompatibility. Format micro-SD card before using.
1. Wi-Fi cannot be connected
a) Ensure that the antenna of camera is fixed well.
b) Ensure that camera is in range of router. Keep the
distance less than 40fts between router and indoor
camera, less than 65fts for outdoor camera.
c) Ensure that SSID and password of Wi-Fi contains no
special characters. Modify the SSID and password of
Wi-Fi with only English characters, no special
characters.
d) Ensure that SSID and password are no longer than
16 characters
e) Ensure that SSID is broadcasted.
g) Ensure that Wi-Fi encryption method is WPA2-PSK/
WPA-PSK or AES.
h) Ensure that Wi-Fi signal is 2.4GHz.
(Fig. 12)
1.Click to switch between standard definition and high
definition of real-time video.
2.Click to enter multi-video view, monitor at most 4 real-
time video.
3.Click to start recording video, click again to stop
recording. Video will be saved in smartphone.
4.Drag to adjust camera view angle.
5.Click and hold the button to transmit voice to camera.
While holding the button, the audio from camera will be
mute.
6.Click to enter setting
7.Click to view and download photos & videos saved in
camera micro-SD card.
8.Click to take a photo. Photo will be saved in smartphone.
9.Click to mute the audio from camera. Click again to
cancel.
5
1
3
4
7
8
6
2
9
2.Open the app, enter “personal center” page to check
app version info etc. (Fig. 14)
3.Open the map, enter “message” page to set message
pushing. (Fig .15)
※ This camera is compatible with universal app, actual
function is subject to camera.
(Fig. 13)
Settings
(Fig. 14) (Fig. 15)
1.On the real-time monitoring interface, click the setting
icon for entering into the camera setting menu. The
user can set up the relevant functions for the “Camera
time check’ and others.(Fig .13)
8.When this machine has a crash fault or other abnormal
conditions influencing the usage, it is recommended to
cut out the power and restart; or press SET key for 5
seconds, which can restore factory settings, and then
please reconnect the router.
f ) Ensure that the DHCP is enabled on router.
1920x1080 j )
We suggest rebooting the router, and the "security
settings, encryption method" of WiFi password
should never choose "auto-select".
k)
Reset the camera to set up connection again. Press
and hold SET key for 5 seconds.
3.Sharing with Friends: Share two-dimension code of the
device with your friends.
4.Cancel sharing with friends: Delete the camera and
cancel sharing with friends. (You have to re-add the
camera to use it again)
(Fig. 3) (Fig. 4)
(Fig. 5) (Fig. 6) (Fig. 7)
中国移 动 上午11:50
My Ce nter
Dec ice Li st Mes sage
My de vice
The default
ipcamera can
be modified.
(Fig.8 series)
中国移 动 上午11:50
My Ce nter
Dec ice Li st Mes sage
My de vice
1.Power camera on > Press SET for 1 second > Click Add
by scanning the QR code to add the camera > Scan
device ID > Enter the name and password for access to
WiFi. Perform operations as instructed. (Figure 8 series)
4.Open APP, register an ID first, then please login.
(special characters (such as "%","\","<>" etc...)
are not allowed.)
7.Special characters are accessible only under English
mode, and other punctuation mark used in other
language inconsistent with that under English mode
cannot be input. Available special characters include
" @, #, &, *, ~, {, }, -, =, +, /, ?, (, )", and unavailable
special characters include "%", "\", "<>".
Adding mode by scanning the QR code
Adding mode by WiFi
There are two ways to add the camera function in
Mobile APP, namely, "adding mode by WiFi " and
"adding mode by scanning the QR code ".
-8-
(Fig.11 series)
Fig.10
Scanning
1.In setting page of app (Fig. 10), click “Delete device”
to remove the connected camera, can remove the
bonding with the account. then others can add the
camera freely.
Delete device
FCC/CE Certification Information
X
The Maximum Permissible Exposure (MPE) level has been calculated based on a
distance of d=20 cm between the device and the human body. To maintain compliance
with RF exposure requirement, use product that maintain a 20cm distance between the
device and human body. Hereby, we declares that this device is in compliance with the
essential requirements and other relevant provisions of Directive 2014/53/EN.
Notice: Observe the national local regulations in the location where the device is to be
used. This device may be restricted for use in some or all member states of the
European Union (EU)
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
EU Environmental Provisions
E-waste cannot be mixed with
household garbage; corresponding
local government sector or recycling
stations shall be responsible for
circular process.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
