Grandstream Networks D302ED110 RFID USB Reader User Manual QUOTATION
Grandstream Networks, Inc. RFID USB Reader QUOTATION
user manual
![](/img.php?id=3374455&img=bg1.png)
Product INFO
Document number: 201702210002
Customer name: Grandstream Networks, Inc.
Material no.:
Product name: ID RFID Card USB Reader
Supplier: Grandstream Networks, Inc.
Gauge: D302E(D110)
Deliver date: 2017.2.21 Quantity: 3PCS
![](/img.php?id=3374455&img=bg2.png)
ID RFID Card USB Reader D302E
Overview
D302E ID card USB Desktop reader, is based on the 125 k LF protocol development of
contactless smart card serial number card. It take our own design high-performance rf card read
circuit design; With high integration, strong anti-interference ability, small volume, stable
performance, cost-effective, easy to use. Portable USB communication interface, suitable for
access control, attendance, charge, security, petrol and other rfid applications.
Characteristic
ssuing organ bringing read card antenna, working frequency of 125 KHZ
Effective distance within 0 ~ 3 cm (according to different working environment and a
different set of CARDS)
Within the effective from data receiving time is less than 65 ms
USB interface power supply + 5 v power supply, the standby current 20 ma, working
current is less than 35 ma
USB data output format
Technical parameters
Model
D302E
Support the card
Generic ID card
Working frequency
125KHz
Power supply
DC 5V(±4%)
Electricity flow
Standby current 20 ma, card read current less than 35 ma
Operating distance
0-40 mm effective distance and the use of ID card and card reader
to use related to the environment
Communication
interface
The USB communication interface
Working temperature
-10℃ ~ +70℃
Storage temperature
-20℃ ~ +80℃
Product size
108.5mm*108.5mm*24mm(The tolerance±3mm)Line length1.5m
Feature description
USB interface connected power supply, no ask driver
Built-in antenna without external, active found card mode
![](/img.php?id=3374455&img=bg3.png)
A card read a success, prompt and flashing green light at a time
Open any text or typing the window as the current window, swipe the card card
number will be displayed in the window inside the mouth, test without using any
software
This card support Windows Android linux System
Instructions
Machine connected to the computer via USB mini line, open a computer in the text
documents, put the card into the card area, the machine will be through the keyboard
form output card number, card number for ten decimal data format, output 1, 2, 3, 4, such
as: positive card number 0008824272 00 86 A5 D0 machine output
If in the hairpin software operation, to open the card software, select the edit box,
card, access to the card number, card number added to the database, and then for rights
management of this card number, card operation is completed
packaging 155*113*40mm
![](/img.php?id=3374455&img=bg4.png)

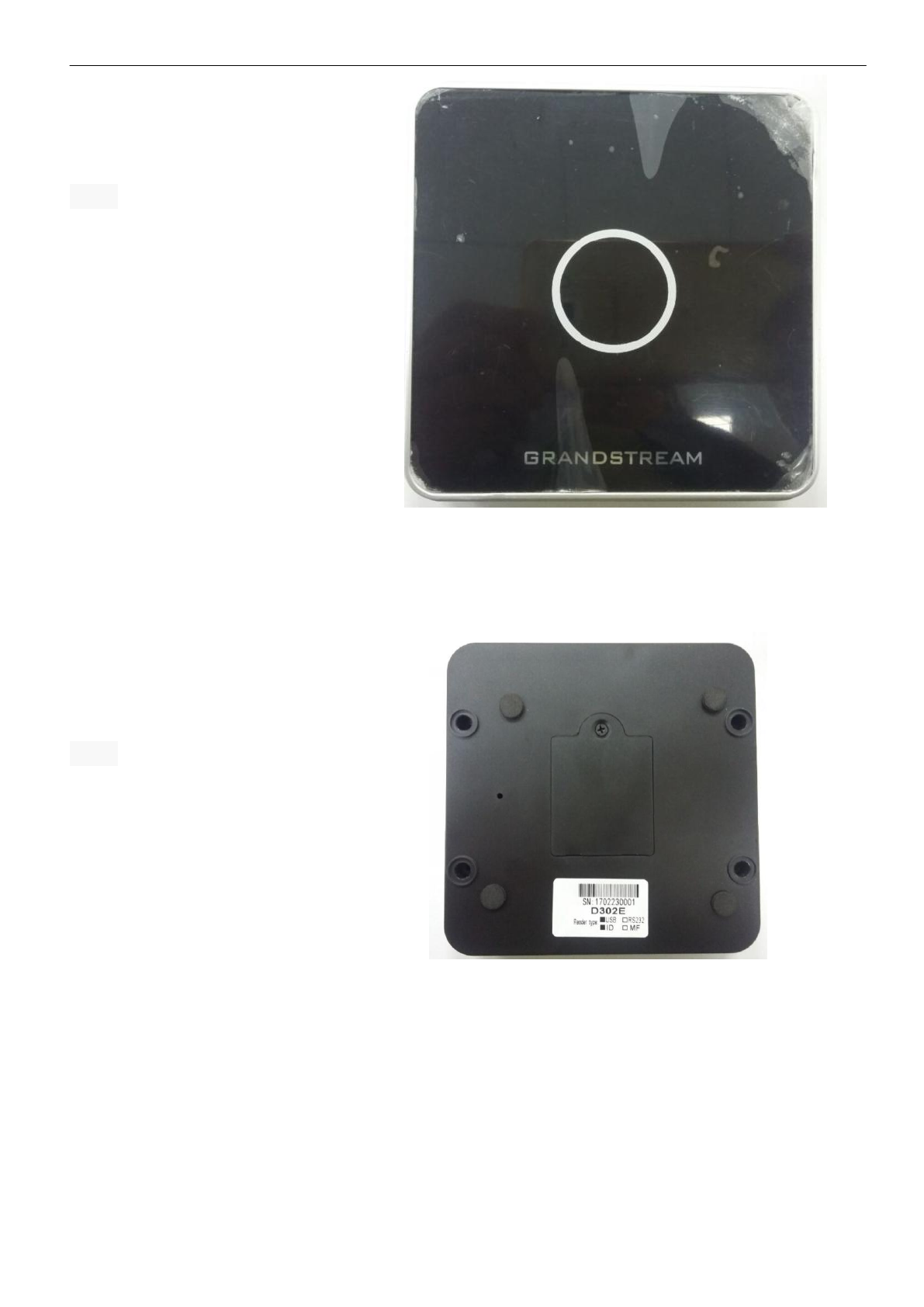

front
back
![](/img.php?id=3374455&img=bg5.png)
FCC Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Changes or modifications not expressly approved by the party responsible for
compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
