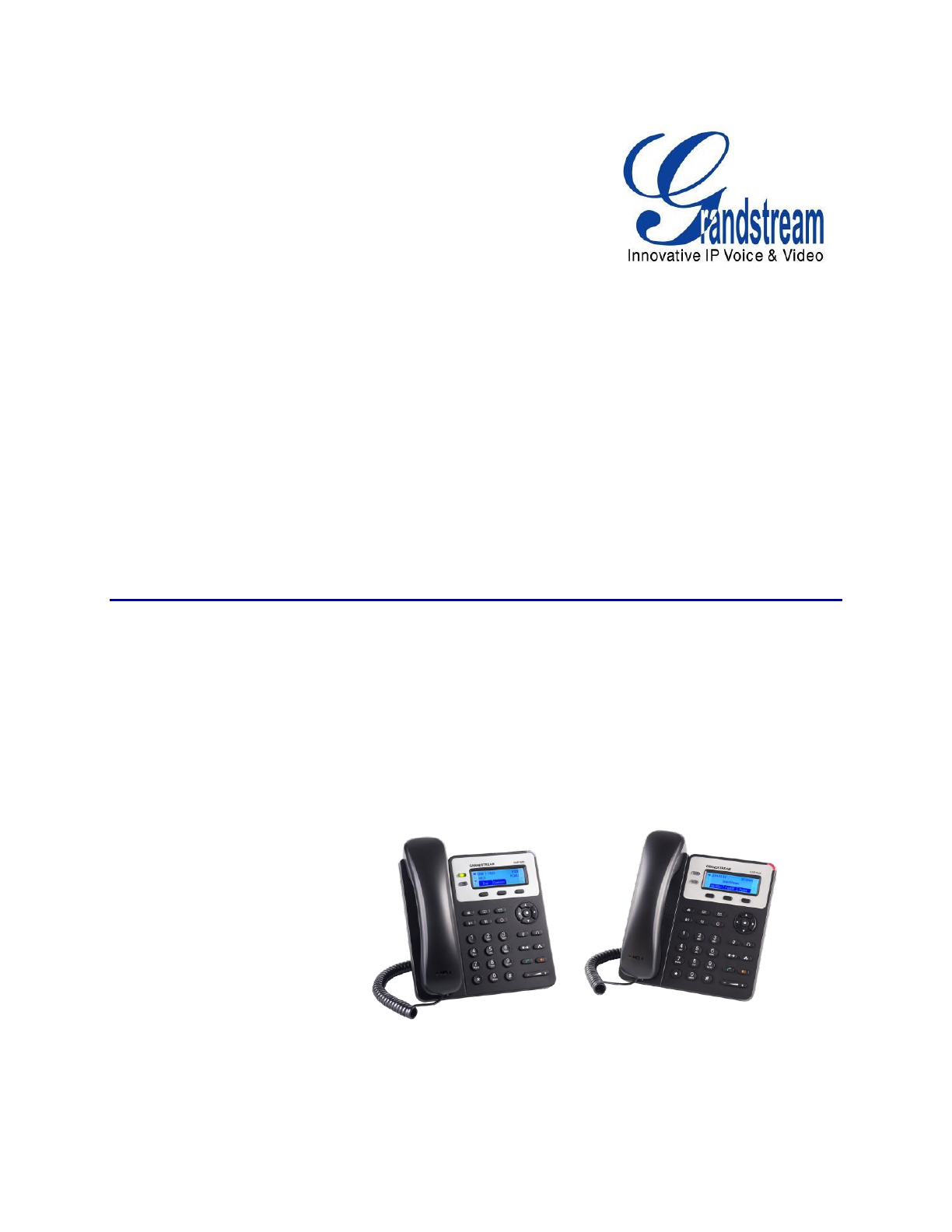

GXP1610/GXP1620/GXP1625 USER GUIDE
Grandstream Networks, Inc.
GXP1610/GXP1620/GXP1625
IP Small Business IP Phone
User Guide
![](/img.php?id=3042549&img=bg2.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 1 of 31
GXP1610/GXP1620/GXP1625 User Guide
Index
DOCUMENT PURPOSE ............................................................................. 5
GNU GPL INFORMATION .......................................................................... 6
WELCOME ................................................................................................. 7
PRODUCT OVERVIEW .............................................................................. 9
FEATURE HIGHTLIGHTS ..................................................................................................................... 9
GXP1610/GXP1620/GXP1625 TECHNICAL SPECIFICATIONS .......................................................... 9
INSTALLATION ........................................................................................... 9
EQUIPMENT PACKAGING ................................................................................................................. 12
CONNECTING YOUR PHONE ........................................................................................................... 12
SAFETY COMPLIANCES .................................................................................................................... 13
WARRANTY ......................................................................................................................................... 13
GETTING TO KNOW GXP1610/GXP1620/GXP1625 ............................... 13
IDLE SCREEN ..................................................................................................................................... 14
USING THE KEYPAD .......................................................................................................................... 16
MAKING PHONE CALLS..................................................................................................................... 18
HANDSET, SPEAKER AND HEADSET MODE ........................................................................... 18
SIP ACCOUNTS AND LINES ....................................................................................................... 18
COMPLETING CALLS.................................................................................................................. 18
MAKING CALLS USING IP ADDRESSES ................................................................................... 20
ANSWERING PHONE CALLS ............................................................................................................ 22
RECEIVING CALLS...................................................................................................................... 22
DO NOT DISTURB ....................................................................................................................... 22
DURING A PHONE CALL .................................................................................................................... 22
CALL RECORDING ...................................................................................................................... 22
CALL WAITING/CALL HOLD ....................................................................................................... 23
MUTE ............................................................................................................................................ 23
CALL TRANSFER ........................................................................................................................ 23
3-WAY CONFERENCING ............................................................................................................ 24
VOICE MESSAGES (MESSAGE WAITING INDICATOR) ........................................................... 26
VOICEMAIL .................................................................................................................................. 26
SHARED CALL APPEARANCE (SCA) ........................................................................................ 26
![](/img.php?id=3042549&img=bg3.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 2 of 31
CALL FEATURES ................................................................................................................................ 27
CONNECTING TO DEVICES ................................................................... 29
EHS HEADSET .................................................................................................................................... 29
RESTORE FACTORY DEFAULT SETTINGS ........................................... 30
EXPERIENCING THE GXP1610/GXP1620/GXP1625 .............................. 31
![](/img.php?id=3042549&img=bg4.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 3 of 31
Table of Tables
GXP1610/GXP1620/GXP1625 User Guide
Table 1: GXP1610/GXP1620/GXP1625 TECHNICAL SPECIFICATIONS ....................... 错误!未定义书签。
Table 2: GXP1610/GXP1620/GXP1625 Equipment Packaging ................................................................. 12
Table 3: GXP1610/GXP1620/GXP1625 Connectors .................................................................................. 12
Table 4: LCD DISPLAY DEFINITIONS ........................................................................................................ 14
Table 5: GXP1610/GXP1620/GXP1625 LCD Icons .................................................................................... 15
Table 6: GXP1610/GXP1620/GXP1625 Front View Definitions ................................................................. 16
Table 7: GXP1610/GXP1620/GXP1625 Call Features ............................................................................... 27
![](/img.php?id=3042549&img=bg5.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 4 of 31
Table of Figures
GXP1610/GXP1620/GXP1625 User Guide
Figure 1: GXP1610/GXP1620/GXP1625 Back View .................................................................................. 12
Figure 2: GXP16XX Idle Screen ................................................................................................................. 14
Figure 3: GXP1610/GXP1620/GXP1625 Front View .................................................................................. 16
![](/img.php?id=3042549&img=bg6.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 5 of 31
DOCUMENT PURPOSE
This User Guide describes the basic concept and tasks necessary to use and configure your
GXP1610/GXP1620/GXP1625. This document covers the topics of phone installation, making basic calls
and using basic call features. To learn the advanced features and configurations, please visit
http://www.grandstream.com/support to download the latest "GXP1610/GXP1620/GXP1625
Administration Guide".
![](/img.php?id=3042549&img=bg7.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 6 of 31
GNU GPL INFORMATION
GXP1610/GXP1620/GXP1625 firmware contains third-party software licensed under the GNU General
Public License (GPL). Grandstream uses software under the specific terms of the GPL. Please see the
GNU General Public License (GPL) for the exact terms and conditions of the license.
Grandstream GNU GPL related source code can be downloaded from Grandstream Web site from:
http://www.grandstream.com/support/faq/gnu_gpl.
![](/img.php?id=3042549&img=bg8.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 7 of 31
WELCOME
Thank you for purchasing Grandstream Small Business IP phone GXP1610/GXP1620/GXP1625. It is a
next generation small-to-medium business IP phone: the GXP1620/GXP1625 features 2 lines with 2 SIP
accounts, superior HD wideband audio, 132 x 48 backlit graphical LCD; the GXP1610 supports 2 lines
with 1 SIP account, 132 x 48 graphical LCD. The GXP1610/GXP1620/GXP1625 delivers rich features of
3 XML programmable context-sensitive soft keys, dual network ports with PoE (GXP1625 only), EHS
(Electronic Hook-Switch) with Plantronics headsets, and 3-way conference, superb full-duplex hands-free
speakerphone with advanced acoustic echo cancellation, advanced security protection for privacy, and
compatible with Grandstream UCM Features. It is a perfect choice for small-to-medium businesses
looking for a high quality, feature rich IP phone with affordable cost.
Caution:
Changes or modifications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this User Manual, could void your manufacturer warranty.
Warning:
Please do not use a different power adaptor with the GXP1610/GXP1620/GXP1625 as it may cause
damage to the products and void the manufacturer warranty.
This document is subject to change without notice. The latest electronic version of this user manual is
available for download here:
http://www.grandstream.com/support
Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for
any purpose without the express written permission of Grandstream Networks, Inc. is not permitted.
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
![](/img.php?id=3042549&img=bg9.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 8 of 31
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
![](/img.php?id=3042549&img=bga.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 9 of 31
PRODUCT OVERVIEW
FEATURE HIGHTLIGHTS
132*48 pixel backlit graphical LCD display(GXP1610 doesn’t support backlit)
2 dual-color line keys, 3 XML programmable context-sensitive soft keys, 3-way conference
HD wideband audio(GXP1620/GXP1625 only), superb full-duplex hands-free speakerphone with
advanced acoustic echo cancellation and excellent double-talk performance
Large phonebook (up to 1000 contacts) and call history (up to 200 records)
Automated personal information service (e.g., local weather, etc), personalized music ring
tone/ring back tone, flexible customizable screen content & format using XML, and advanced
Web and enterprise applications, local weather service.
2 dual switched 10/100 Mbps ports, integrated PoE (GXP1625 only)
Automated provisioning using TR-069 or encrypted XML configuration file, SRTP and TLS for
advanced security protection, 802.1x for media access control
Perfectly compatible with Grandstream UCM Features
Innovative UI design(easy and useable multi-language support )
Use with Grandstream’s UCM6100 series IP PBX appliance for Zero-Config provisioning, 1-touch
call recording and more
GXP1610/GXP1620/GXP1625 TECHNICAL SPECIFICATIONS
Table 1: GXP1610 Technical Specifications
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP,
ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP,
STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Network Interfaces
Dual switched auto-sensing 10/ 100 Mbps Ethernet ports
Graphic Display
132*48 LCD display
Feature Keys
2 line keys with dual-color LED and 1 SIP account.3 XML programmable
context sensitive soft keys. 5 (navigation, menu) keys. 13 dedicated
function keys for PAGE/INTERCOM, PHONEBOOK, MESSAGE, HOME,
HOLD, RECORD, MUTE, HEADSET, TRANSFER, CONFERENCE,
SEND and REDIAL, SPEAKERPHONE, VOLUME
Voice Codecs
Support for G.711µ/a, G.722 (wide-band), G.723,G.726-32, G.729 A/B,
iLBC, Opus (pending) , in-band and out-of-band DTMF (In audio,
RFC2833, SIP INFO)
Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), 3-way conference,
call park/pickup, downloadable phone book (XML, LDAP, up to 1000
items), call waiting, call history (up to 200 records), off-hook auto dial,
auto answer, click-to-dial, flexible dial plan, hot desking, personalized
music ringtones, server redundancy & fail-over
![](/img.php?id=3042549&img=bgb.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 10 of 31
Headset Jack
RJ9 headset jack (allowing EHS with Plantronics headsets)
Base Stand
Yes, allow 2 angle positions available, Wall Mountable
QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level access control, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP,
HTTPS, 802.1x media access control
Multi-language
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, simplified and traditional Chinese, Korean, Japanese, and more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using
TR-069 or AES encrypted XML configuration file
Power & Green Energy
Efficiency
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
Temperature and
Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical
Dimension: 209mm(L)x 184.5mm(W)x 76.2mm(H) (with handset)
Unit Weight: 0.74kg Package Weight: 1.1kg
Package Content
GXP1610 phone, handset with cord, base stand, universal power supply,
network cable, Quick Installation Guide, brochure, GPL license
Compliance
FCC: Part 15 (CFR 47) Class B
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950
Table 2: GXP1620/GXP1625 Technical Specifications
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP,
ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP,
STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Network Interfaces
Dual switched 10/ 100 Mbps ports, integrated PoE (GXP1625 only)
Graphical Display
132*48 pixel backlit graphical LCD display
Feature Keys
2 line keys with dual-color LED and 2 SIP account. 3 XML programmable
context sensitive soft keys. 5 (navigation, menu) keys. 13 dedicated
function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND
and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE,
HOLD, PAGE/INTERCOM, RECORD, HOME
Voice Codecs
Support for G.711µ/a, G.722 (wide-band), G.723, G.726-32, G.729 A/B,
iLBC, Opus (pending), in-band and out-of-band DTMF (In audio,
RFC2833, SIP INFO)
Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup,
3-way conference, shared-call-appearance (SCA) / bridged-line-
appearance (BLA), downloadable phone book (XML, LDAP, up to 1000
items), call waiting, call history (up to 200 records), off-hook auto dial,
auto answer, click-to-dial, flexible dial plan, hot desking, personalized
music ringtones, server redundancy & fail-over.
Headset Jack
RJ9 headset jack (allowing EHS with Plantronics headsets)
HD Audio
Yes, HD handset and speakerphone with support for wideband audio
Base Stand
Yes, 2 angle positions available, Wall Mountable
QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
![](/img.php?id=3042549&img=bgc.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 11 of 31
Security
User and administrator level access control, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP,
HTTPS, 802.1x media access control
Multi-language
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, simplified and traditional Chinese, Korean, Japanese, and more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using
TR-069 or AES encrypted XML configuration file
Power & Green Energy
Efficiency
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
PoE IEEE802.3 af Class 2, 3.84W-6.49W(GXP1625 only)
Temperature and
Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical
Dimension: 209mm(L)x 184.5mm(W)x 76.2mm(H) (with handset)
Unit Weight: 0.73kg Package Weight: 1.1kg
Package Content
GXP1620/GXP1625 phone, handset with cord, base stand, universal
power supply, network cable, Quick Installation Guide, brochure, GPL
license
Compliance
FCC: Part 15 (CFR 47) Class B
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950
![](/img.php?id=3042549&img=bgd.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 12 of 31
INSTALLATION
EQUIPMENT PACKAGING
Table 3: GXP1610/GXP1620/GXP1625 Equipment Packaging
Main Case
1
Handset
1
Phone Cord
1
5V DC Power Adaptor
1
Ethernet Cable
1
Phone Stand
1
Quick Installation Guide
1
CONNECTING YOUR PHONE
Figure 1: GXP1610/GXP1620/GXP1625 Back View
Table 4: GXP1610/GXP1620/GXP1625 Connectors
Slots for Phone Stand
Slots for the phone stand if placing the phone on a flat surface
PC Port
10/100M Ethernet to connect PC
LAN Port
10/100M Ethernet to connect LAN, integrated PoE(GXP1625 only)
DC 5V Power Port
5V/600mA power port to connect to power adaptor
HEADSET Port
To connect to RJ9 or EHS headphones
HANDSET Port
To connect handset RJ9
Cord Slot
To place and fix the phone cords
![](/img.php?id=3042549&img=bge.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 13 of 31
To set up the GXP1610/GXP1620/GXP1625, follow the steps below:
1. Attach the phone stand or wall mount to the back of the phone where there are slots;
2. Connect the handset and main phone case with the phone cord;
3. Connect the LAN port of the phone to the RJ45 socket of a hub/switch or a router (LAN side of the
router) using the Ethernet cable;
4. Connect the 5V DC output plug to the power jack on the phone; plug the power adapter into an
electrical outlet. If PoE switch is used in step 3, this step could be skipped;
5. The LCD will display provisioning or firmware upgrade information. Before continuing, please wait for
the date/time display to show up;
6. Using the keypad configuration menu or phone's embedded Web server (Web GUI) by entering the IP
address in Web browser, you can further configure the phone.
SAFETY COMPLIANCES
The GXP1610/GXP1620/GXP1625 phone complies with FCC/CE and various safety standards. The
GXP1610/GXP1620/GXP1625 power adapter is compliant with the UL standard. Use the universal power
adapter provided with the GXP1610/GXP1620/GXP1625 package only. The manufacturer’s warranty
does not cover damages to the phone caused by unsupported power adapters.
WARRANTY
If the GXP1610/GXP1620/GXP1625 phone was purchased from a reseller, please contact the company
where the phone was purchased for replacement, repair or refund. If the phone was purchased directly
from Grandstream, contact the Grandstream Support for a RMA (Return Materials Authorization) number
before the product is returned. Grandstream reserves the right to remedy warranty policy without prior
notification.
Warning:
Use the power adapter provided with the phone. Do not use a different power adapter as this may
damage the phone. This type of damage is not covered under warranty.
![](/img.php?id=3042549&img=bgf.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 14 of 31
GETTING TO KNOW GXP1610/GXP1620/GXP1625
IDLE SCREEN
GXP1610/GXP1620/GXP1625 screen displays differently depending on whether the phone is idle or in
use (active). The following table describes the items displayed on the GXP1610/GXP1620/GXP1625 idle
screen.
Figure 2: GXP16XX Idle Screen
The following table describes the items displayed on the GXP1610/GXP1620/GXP1625 idle screen.
Table 5: LCD DISPLAY DEFINITIONS
DATE AND TIME
Displays the current date and time. It can be synchronized with Internet time
servers.
NETWORK ICON
Shows the status of network. It will indicate whether the network is down or
starting.
STATUS ICON
Shows the status of the phone for registration status, call features and etc, using
icons as shown in the next table.
LINE STATUS
INDICATOR
Displays the name of the account that is in use.
SOFTKEYS in Idle
Screen
The softkeys are context sensitive and will change depending on the status of
the phone. Typical functions assigned to softkeys are:
NextScr
Toggles between different idle screens. For example, for
GXP1610/GXP1620/GXP1625, pressing most left soft key (switch screen)
will toggle among default idle screen, weather information, IP address and
Account information.
Redial
Redial the last dialed number when there is existed dialed call log.
FwdAll
Unconditionally forwards the phone line (account 1) to another phone.
Missed
![](/img.php?id=3042549&img=bg10.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 15 of 31
Shows up unanswered calls to this phone.
SOFTKEYS in Call
Screen
The softkeys are context sensitive and will change depending on the call
status of the phone. Here are the main softkeys in call screen.
Redial
Redials the last dialed number after off hook when there is existed call log.
Dial
Dials the call out after off hook and entering the number.
Answer
Answers the incoming call when the phone is ringing.
Reject
Rejects the incoming call when the phone is ringing.
EndCall
Ends the active call.
Transfer
Transfer softkey will show up after pressing TRAN button and entering
transfer target number. Press Transfer softkey to do blind transfer.
Split
In auto-attended transfer mode, after establishing the second call, press
Split to quit transfer and go back to normal talking status.
ConfCall
Conferences the active calls.
ReConf
Re-establish the conference among the calls on hold.
SPECIAL
SOFTKEYS
(Only for
GXP1610/GXP1620/
GXP1625 when
integrated with
UCM61xx)
Call Parking: Please refer to UCM61xx Online User Manual for more
information.
CallPark
When the phone dials out, the Call Park softkey will display on screen. To
park the call, press the "CallPark" softkey and select a green MPK to park
the call on available parking lot.
Table 6: GXP1610/GXP1620/GXP1625 LCD Icons
Registration Status.
Solid: Registered
Hollow: Unregistered
![](/img.php?id=3042549&img=bg11.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 16 of 31
Handset Status.
OFF - handset on hook
ON - handset off hook
Speaker Status.
OFF - speaker off
ON - speaker on
Headset Status.
OFF - headset off
ON - headset on
Mute Status.
OFF - The active call is not muted
ON - The active call is muted
Call Forward Status.
OFF - Call Forward feature disabled
ON - Call Forward feature enabled
DND Status.
OFF - Do Not Disturb disabled
ON - Do Not Disturb enabled
SRTP Status.
OFF - SRTP is not used
ON - SRTP is being used
USING THE KEYPAD

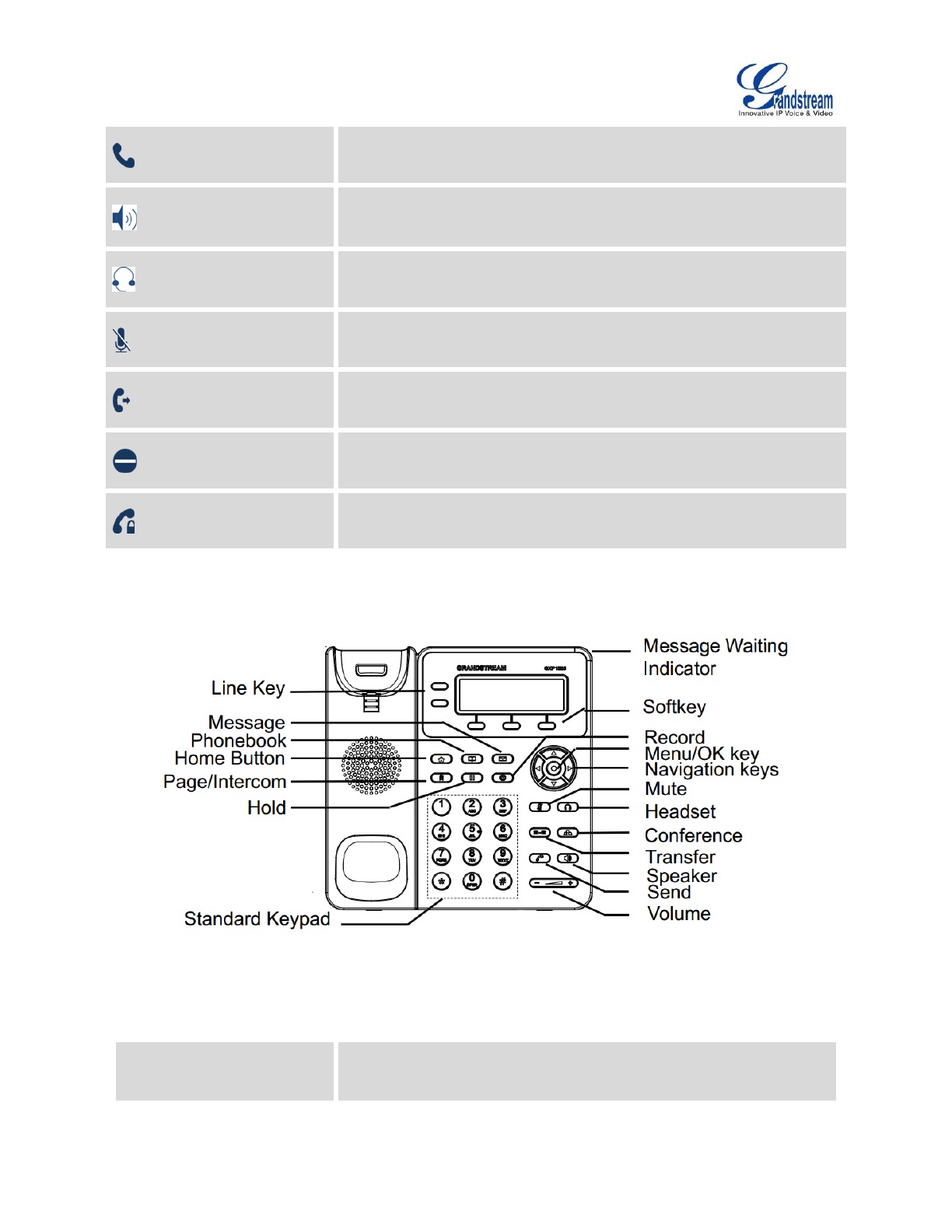

Figure 3: GXP1610/GXP1620/GXP1625 Front View
Table 7: GXP1610/GXP1620/GXP1625 Front View Definitions
LINE Key
Switch between line 1 and line 2.
Solid Green:Calling, Talking
Flash Green:Call on hold
![](/img.php?id=3042549&img=bg12.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 17 of 31
Flash Red:Incoming call
Soft Key
The soft keys are context sensitive and will change depending on the
status of the phone
Messages. Press to view messages.
Phonebook. Press to view phonebook.
Home. Press to go to idle screen, when stay in submenu.
Page/Intercom
If the intercom number has set, call this number directly.
If the intercom number has not set, press this key will have
no effect.
Hold. Place active call on hold, or resume the call on hold.
Record. Press to enable/disable record feature in an active call or on
conference.
Standard Keypad
To dial phone numbers.
Press numeric keys "0-9" to enter phone numbers.
Press "*" to enter voice menu or input special characters, or
long press it to lock the keypad.
Press "#" to dial out numbers or input special characters.
Navigation Keys.
When entered the menu:
Press the UP/DOWN keys to scroll through menu options.
Press the LEFT key to go back to the previous menu.
The RIGHT key has no function.
In Idle:
Press the UP key to view missed calls.
Press the DOWN key to view dialed calls.
Press the RIGHT key to view answered calls.
Menu/OK Key.
In Idle:
Press to enter the main menu.
Confirm the current selection or the inputted info
Off hook:
Switch between outgoing call and paging call.
Mute. To mute/unmute an active call
When DND is on:
Enable/disable DND when the phone is in idle
Enable/disable Mute when in an active call
Headset. Press to switch between headset and handset mode in an
active call.
Transfer. Transfer an active call to another number.
Conference. Establish 3-way conference with other 2 parties.
Handset.
Send. Enter the digits and then press Send to dial out.
Redial. Redial when there is a previously dialed call.
Speaker.
Press to switch between speaker and handset mode in an active
call.
![](/img.php?id=3042549&img=bg13.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 18 of 31
Message Waiting Indicator
Message Waiting Indicator.
Red LED Indicator to display the current phone status
Flashing Red. Missed call (s), New voice mail(s), New SIP
Message (s)
Fast Flashing Red. Upgrade
MAKING PHONE CALLS
HANDSET, SPEAKER AND HEADSET MODE
The GXP1610/GXP1620/GXP1625 allows users to switch among handset, speaker or headset when
making calls. Press the Hook Switch to switch to handset; press the Headset button to switch to headset;
or press the Speaker button to switch to speaker.
SIP ACCOUNTS AND LINES
GXP1620/GXP1625 can support up to 2 independent SIP accounts; and GXP1610 can support 1 SIP
account. Each account is capable of independent SIP server, user and NAT settings. Each of the LINE
button is "virtually" mapped to an individual SIP account. In off hook state, select an idle line and the dial
tone will be heard.
To make a call, select the line you wish to use. The corresponding LINE LED will light up in green. The
user can switch lines before dialing any number by pressing the LINE buttons.
For example: If 2 independent accounts are registered on GXP1620/GXP1625, when LINE 1 is pressed,
the LINE 1 LED will light up in green. If LINE 2 is pressed, the LINE 2 LED will light up in green and the
subsequent call will be made through SIP account 2.
Incoming calls to a specific account will attempt to use its corresponding LINE if it is not in use. When the
"virtually" mapped line is in use, the GXP1610/GXP1620/GXP1625 will flash the other available LINE in
red. A line is ACTIVE when it is in use and the corresponding LED is red.
COMPLETING CALLS
There are several ways to complete a call.
On hook dialing. Enter the number when the phone is on hook and then send out.
When the phone is in idle, enter the number to be dialed out;

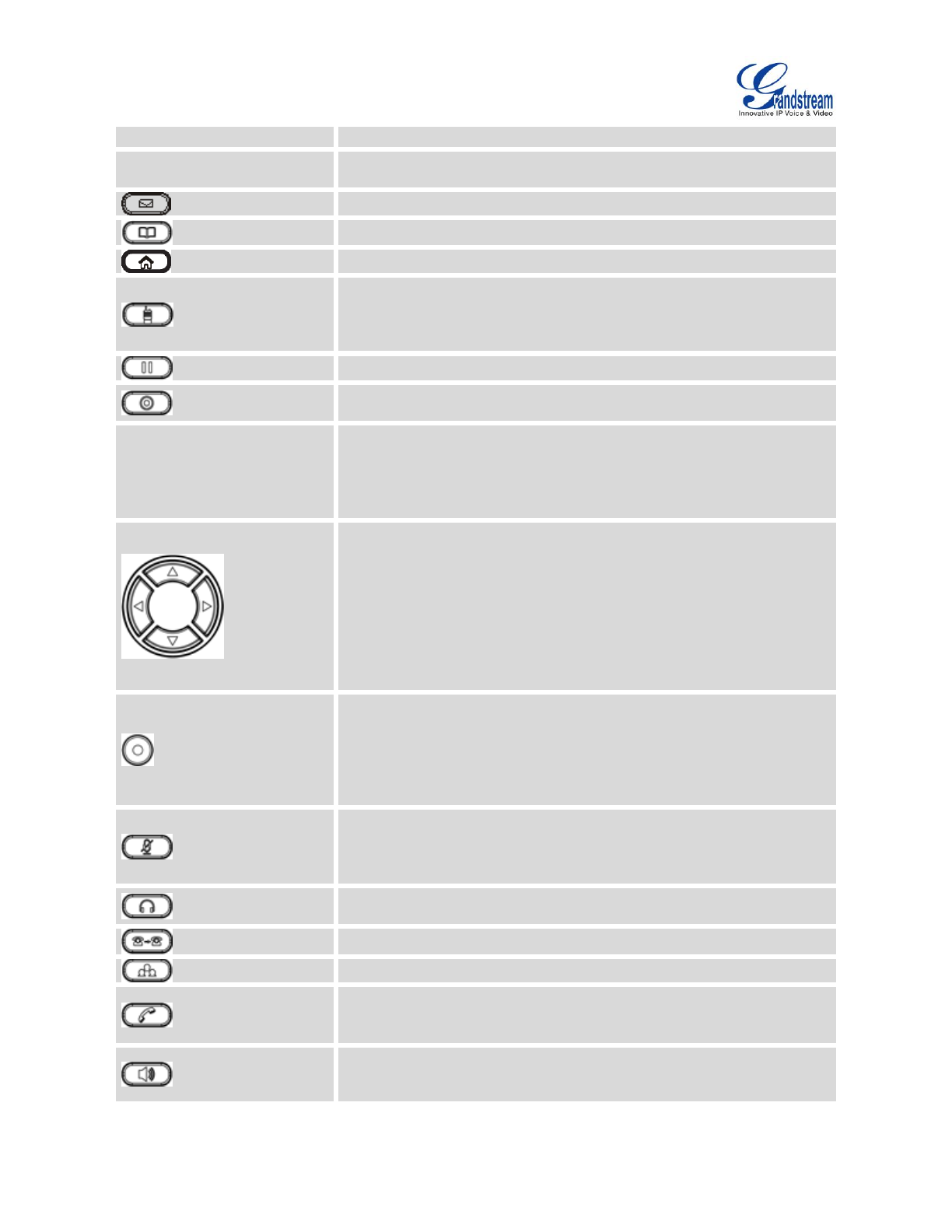

![](/img.php?id=3042549&img=bg14.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 19 of 31
Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Select an available LINE key;
The call will be dialed out.
Off hook and dial. Off hook the phone, enter the number and send out.
Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Press an available LINE key to activate speaker;
You shall hear dial tone after off hook;
Enter the number;
Press SEND key or # to dial out.
Redial. Redial the last dialed number.
Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Press an available LINE key to activate speaker; or
When the phone is in idle;
Press SEND key, or the REDIAL soft key.
Via Call History. Dial the number logged in phone's call history.
Press MENU button to bring up the main menu;
Enter Call History;
Select the entry you would like to call using the navigation arrow keys;
Press SEND button to dial out.
Via Phonebook. Dial the number from the phonebook.
Press Contacts button;
Under Contacts, enter Local Phonebook/ Broadsoft Phonebook using the navigation arrow key;
Select the contact you would like to call using the navigation arrow key;
Press SEND button to dial the selected contact.
Speed Dial from Line Key. Dial the number configured as Speed Dial on Line Key.
Go to phone's Web GUI->Settings->Programmable Keys, configure the Line Key's Key Mode as
Speed Dial. Select the account to dial from, enter the Name and User ID (the number to be dialed
out) for the Line Key. Click on "Update" at the bottom of the Web GUI page;
Off hook the phone, or directly press the Speed Dial key to dial out.
Call Return. Dial the last answered call.
![](/img.php?id=3042549&img=bg15.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 20 of 31
Go to phone's Web GUI->Settings->Programmable Keys, configure the Line Key's Key Mode as
Call Return. Select the account to dial from, no Name or User ID has to be set on for Call Return;
Off hook the phone, or directly press the Call Return key to dial out.
Via Paging/Intercom.
Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Press an available LINE key to activate speaker;
You shall hear dial tone after off hook;
Press MENU button to switch the call screen from "Dialing" to "Paging";
Enter the number;
Press SEND key or # to dial out.
Note:
After entering the number, the phone waits for the No Key Entry Timeout (Default timeout is 4
seconds, configurable via Web GUI) before dialing out. Press SEND or # key to override the No Key
Entry Timeout;
If digits have been entered after handset is off hook, the SEND key will works as SEND instead of
REDIAL;
By default, # can be used as SEND to dial the number out. Users could disable it by setting "User #
as Dial Key" to "No" from Web GUI->Account X->Call Settings;
For Paging/Intercom, if the SIP Server/PBX supports the feature and has Paging/Intercom feature
code set up already, users do not necessarily need toggle to paging mode in the call screen. Simply
dial the feature code with extension as a normal call.
When dial out via paging, user can see the “call-info” header contains “answer-after=0” and “the
“alert-info” header contains “info=alert-autoanswer;delay=0” in the outgoing INVITE.
MAKING CALLS USING IP ADDRESSES
Direct IP Call allows two phones to talk to each other in an ad-hoc fashion without a SIP proxy. VoIP calls
can be made between two phones if:
Both phones have public IP addresses; or
Both phones are on the same LAN/VPN using private or public IP addresses; or
Both phones can be connected through a router using public or private IP addresses (with necessary
port forwarding or DMZ).
To make a direct IP call, please follow the steps below:
![](/img.php?id=3042549&img=bg16.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 21 of 31
When phone is at idle state, press any number key or * key to bring up “Onhook Dialing” page;
Press round menu key or "DirectIP" soft key;
Input the target IP address (Please see example below) ;
Press "OK" soft key to dial.
For example:
If the target IP address is 192.168.1.60 and the port is 5062 (i.e., 192.168.1.60:5062), input the following:
192*168*1*60#5062. The * key represents the dot (.), the # key represents colon (:). Wait for about 4
seconds and the phone will initiate the call.
Quick IP Call Mode:
The GXP1610/GXP1620/GXP1625 also supports Quick IP Call mode. This enables the phone to make
direct IP calls using only the last few digits (last octet) of the target phone's IP address. This is possible
only if both phones are under the same LAN/VPN. This simulates a PBX function using the CSMA/CD
without a SIP server. Controlled static IP usage is recommended.
To enable Quick IP Call Mode, go to phone's Web GUI->Advanced Settings->Call Features, set "Use
Quick IP - call mode" to "Yes". Clicking on "Save and Apply" on the bottom of Web GUI page to take the
change. To make Quick IP Call, take the phone off hook first. Then dial #xxx where x is 0-9 and xxx<255.
Press # or SEND and a direct IP call to aaa.bbb.ccc.XXX will be completed. "aaa.bbb.ccc" is from the
local IP address regardless of subnet mask. The number #xx or #x are also valid. The leading 0 is not
required (but it's OK).
For example:
192.168.0.2 calling 192.168.0.3 -- dial #3 followed by # or "SEND";
192.168.0.2 calling 192.168.0.23 -- dial #23 followed by # "SEND";
192.168.0.2 calling 192.168.0.123 -- dial #123 followed by # "SEND";
192.168.0.2: dial #3 and #03 and #003 results in the same call -- call 192.168.0.3.
Note:
The # will represent colon ":" in direct IP call rather than SEND key as in normal phone call;
If you have a SIP server configured, direct IP call still works. If you are using STUN, direct IP call will
also use STUN;
Configure the "User Random Port" to "No" when completing direct IP calls.
![](/img.php?id=3042549&img=bg17.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 22 of 31
ANSWERING PHONE CALLS
RECEIVING CALLS
Single incoming call. Phone rings with selected ring tone. The corresponding LINE key will flash in
red. Answer call by taking handset off hook, or using Speaker/Headset, or pressing the flashing LINE
key;
Multiple incoming calls. When another call comes in while having an active call, the phone will
produce a Call Waiting tone (stutter tone). The other LINE key will flash in red. Answer the incoming
call by pressing the flashing LINE key. The current active call will be put on hold automatically.
DO NOT DISTURB
Do Not Disturb can be enabled/disabled from phone's LCD by following the steps below:
Press the Menu button and select "Preference" using navigation keys;
Press Menu button again to get into Preference options;
When "Do Not Disturb" is highlighted, press Left/Right key to disable/enable DND;
Press “Save” soft key to save the change.
When Do Not Disturb feature is turned on, the DND icon will appear on the right side of the LCD. The
incoming call will not be accepted or the call will directly go into voicemail.
DURING A PHONE CALL
CALL RECORDING
During an active call, users could record the conversation to the UCM 62XX Series server and download
the record to PC and listen to it with the help of the server administrator.
In the process of establishing the call, when get through, press the RECORD key to start
recording.
Press again to stop recording.
Note:
Recording feature is only available when using the Grandstream UCM series IP PBX appliance. The
record file will be saved automatically to UCM. Please contact the UCM server administrator to login UCM
to download the file.
![](/img.php?id=3042549&img=bg18.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 23 of 31
CALL WAITING/CALL HOLD
Hold. Place a call on hold by pressing the HOLD button. The active LINE key will blink in green;
Resume. Resume call by pressing the blinking LINE key;
Multiple calls. Automatically place active call on hold or switch between calls by pressing the LINE
key. Call waiting tone (stutter tone) will be audible on new incoming call during the active call.
MUTE
During an active call, press the MUTE button to mute/unmute the microphone. The LCD will show the
Mute icon on the top of screen, when the call is muted.
CALL TRANSFER
GXP1610/GXP1620/GXP1625 supports Blind Transfer, Attended Transfer and Auto-Attended Transfer.
Blind Transfer.
During the first active call, press TRANSFER and dial the number to transfer to;
Press SEND key or # to complete transfer of active call.
Attended Transfer.
During the first active call, press LINE key. The first call will be put on hold;
Enter the number for the second call in the new line and establish the call;
Press TRANSFER;
Press the other LINE key which is on hold to transfer the call.
Auto-Attended Transfer.
Set "Auto-Attended Transfer" to "Yes" under Web GUI->Settings->Call Features. And then click
"Save and Apply" on the bottom of the page;
Establish one call first;
![](/img.php?id=3042549&img=bg19.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 24 of 31
During the call, press TRANSFER. A new line will be brought up and the first call will be
automatically placed on hold;
Dial the number and press SEND or # to make a second call. (Once the number is entered, a
"Transfer" soft key will show. If "Transfer" soft key is pressed instead of SEND or #, a blind
transfer will be performed);
Press TRANSFER again. The call will be transferred.
For Auto-Attended Transfer, after dialing out the number for the second call, a "Split" soft key will
show. If the second call is not established yet (ringing), pressing "Split" will hang up the second
call. If the second call is established (answered), pressing "Split" will resume the second call and
keep the first call on hold.
Note:
To transfer calls across SIP domains, SIP service providers must support transfer across SIP
domains.
3-WAY CONFERENCING
GXP1610/GXP1620/GXP1625 can host up to 3-way conference call with other parties (PCMU/PCMA).
Initiate a conference call.
Establish calls with 2 parties respectively;
While 1 call is active, the other call will be put on hold with its LINE key blinking in green;
Press CONF key;
Press the desired LINE key on hold, the conference will be established;
Cancel Conference.
If after pressing the CONF key, the user decides not to conference, press Cancel soft key or the
current active LINE key (LED in solid green);
This will resume the 2-way conversation with the current line.
Split and Re-conference.
During the conference, press HOLD key. The conference call will be split and the calls will be put
on hold separately with the LINE keys blinking in green;
Select one LINE key and press to resume the 2-way conversation;
If users would like to re-establish conference call, before 1 separate LINE is selected, press the
![](/img.php?id=3042549&img=bg1a.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 25 of 31
ReConf soft key right after the conference call is held/split;
End Conference.
Users could press the EndCall soft key or simply hang up the call to terminate the conference call.
GXP1610/GXP1620/GXP1625 supports Easy Conference Mode, which can be used combined with the
traditional way to establish the conference.
Initiate a conference call.
Establish 1 call;
Press CONF key and a new line will be brought up using the same account;
Dial the number and press SEND key to establish the second call;
Press CONF key or press the ConfCall softkey to establish the conference.
Split and Re-conference.
During the conference, press HOLD key. The conference call will be split and both calls will be put
on hold separately with 2 LINE keys blinking in green;
Select one LINE key and press to resume the 2-way conversation;
If users would like to re-establish conference call, before 1 separate LINE is selected, press the
ReConf softkey right after the conference call is split.
Cancel Conference.
If users decides not to conference after establishing the second call, press EndCall softkey
instead of the ConfCall softkey/CONF key;
This will end the second call and the screen will show the first call on hold.
End Conference.
Users could press the EndCall softkey or simply hang up the call to terminate the conference call. If the
remote party hangs up the call itself, it will be disconnected from the conference but other parties on
GXP1610/GXP1620/GXP1625 will stay in the existed conference.
Note:
The party that starts the conference call has to remain in the conference for its entire duration, you
can put the party on mute but it must remain in the conversation.
The option "Disable Conference" has to be set to "No" to establish conference.
When using Easy Conference Mode, use SEND key to dial out the second call instead of using #,
![](/img.php?id=3042549&img=bg1b.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 26 of 31
even when # could be used as SEND in normal phone calls.
Note:
For 3-way conference, the host hangs up the phone will end the conference. If users wants to keep
the rest 2 parties stay in conference after the host hangs up ,go to Web GUI- >Account- > Call
Settings > Transfer on conference Hangup, check "Yes" and save the change.
VOICE MESSAGES (MESSAGE WAITING INDICATOR)
A blinking red MWI (Message Waiting Indicator) on the top right corner of the phone indicates a message
is waiting. Dial into the Voicemail box to retrieve the message by entering the voice mail number of the
server or pressing the Voicemail button (Voice Mail User ID has to be properly configured as the voice
mail number under Web GUI->Account x->General Settings). An IVR will prompt the user through the
process of message retrieval.
VOICEMAIL
A blinking red LED indicator on the top right corner of the GXP1610/GXP1620/GXP1625 indicates a
message is waiting. Go to Web GUI- >Account - >General Settings to configure Voice Mail UserID.
To retrieve the voicemail:
Press the hard key to dial into the voicemail box;
Select the account and confirm to access the dial-up interface, make operations according to the
voice prompt.
Enter the account and password which is configured on SIP PBX.
The steps above are for the situation that both accounts are configured, if configured only one account,
there is no need for users to select account but go to the dial-up interface directly.
For each account, the Voicemail User ID can be set up under Web GUI->Account X->General Settings:
"Voice Mail UserID". This is the number that will be dialed out to access voicemail message when tapping
on the account in Voice Mail screen.
SHARED CALL APPEARANCE (SCA)
The GXP1610/GXP1620/GXP1625 phone supports shared call appearance by Broadsoft standard. This
feature allows members of the SCA group to shared SIP lines and provides status monitoring (idle, active,
progressing, hold) of the shared line. When there is an incoming call designated for the SCA group, all of
![](/img.php?id=3042549&img=bg1c.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 27 of 31
the members of the group will be notified of an incoming call and will be able to answer the call from the
phone with the SCA extension registered.
All the users that belong to the same SCA group will be notified by visual indicator when a user seizes the
line and places an outgoing call, and all the users of this group will not be able to seize the line until the
line goes back to an idle state or when the call is placed on hold (with the exception of when multiple call
appearances are enabled on the server side).
In the middle of the conversation, there are two types of hold: Public Hold and Private Hold. When a
member of the group places the call on public hold, the other users of the SCA group will be notified of
this by the red-flashing button and they will be able to resume the call from their phone by pressing the
line button. However, if this call is placed on private-hold, no other member of the SCA group will be able
to resume that call.
To enable shared call appearance, the user would need to register the shared line account on the phone.
In addition, they would need to navigate to "Settings"->"Programmable Keys" on the Web UI and set the
line key mode as "Shared Line". If the user requires more shared call appearances, the user can
configure multiple line buttons to be "shared line" buttons associated with the account.
CALL FEATURES
The GXP1610/GXP1620/GXP1625 supports traditional and advanced telephony features including caller
ID, caller ID with caller Name, call forward and etc.
Table 8: GXP1610/GXP1620/GXP1625 Call Features
*30
Anonymous Calls (for all subsequent calls)
Dial *30.
*31
Cancel Anonymous (for all subsequent calls)
Dial *31.
*50
Enable Call Waiting (for all subsequent calls)
Dial *50.
Note: The subsequent incoming call will hear a busy tone other
than enter call waiting when the current call is in active.
*51
Disable Call Waiting (for all subsequent calls)
Dial *51.
*67
Selective Anonymous Call(per Call).To enable selective
anonymous call:
Dial *67 and then enter the number to dial out;
![](/img.php?id=3042549&img=bg1d.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 28 of 31
Dial out.
Note: Once set, the firstly dialed call is anonymous.
*82
Call with Caller ID Enabled (per call)
Off hook the phone;
Dial *82 and then enter the number to dial out.
*70
Call with Call Waiting Disable (per Call)
Dial *70 and then enter the number to dial out;
Dial out.
Note: Once set, the fisrt call need not to enter call waiting as
being supposed to.
*71
Call with Call Waiting Enabled (per Call)
Dial *71 and then enter the number to dial out;
Dial out.
*72
Unconditional Call Forward. To set up unconditional call forward:
Dial *72 and then enter the number to forward the call;
Dial out.
Note: Once set, all calls will be forwarded to another preset
number and your phone will not ring.
*73
Cancel Unconditional Call Forward. To cancel the unconditional call
forward:
Dial *73.
*90
Busy Call Forward. To set up busy call forward:
Dial *90 and then enter the number to forward the call;
Dial out.
*91
Cancel Busy Call Forward. To cancel the busy call forward:
Dial *91;
*92
Delayed Call Forward. To set up delayed call forward:
Dial *92 and then enter the number to forward the call;
Dial out.
*93
Cancel Delayed Call Forward. To cancel the delayed call forward:
Dial *93.
Note: Once set, the incoming call will be forwarded to another
preset number if no one answers the phone.
Note:
If the following feature codes don’t work on your phone, please contact Administrator to turn on the
Enable Call Features on phone’s Web GUI. Enable Call Features is under phone’s Web GUI->Account-
>Call Settings tab.
![](/img.php?id=3042549&img=bg1e.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 29 of 31
CONNECTING TO DEVICES
EHS HEADSET
The GXP1610/GXP1620/GXP1625 supports normal RJ11 headset and Plantronics EHS headset. To use
Plantronics EHS headset, go to the GXP1610/GXP1620/GXP1625 web GUI->Maintenance->Device
Manager: Headset Type. Select "Plantronics EHS" and reboot the phone to take effect.
1. Connect EHS Headset (Plantronics) to GXP1610/GXP1620/GXP1625. Insert headset connector into
the RJ11 headset port on the back of GXP1610/GXP1620/GXP1625;
2. To use headset mode, press headset button on the GXP1610/GXP1620/GXP1625. A headset
icon will show on the GXP1610/GXP1620/GXP1625 status bar. The EHS headset will ring when
there is an incoming call.
![](/img.php?id=3042549&img=bg1f.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 30 of 31
RESTORE FACTORY DEFAULT SETTINGS
Warning:
Restoring the Factory Default Settings will delete all configuration information on the phone. Please
backup or print all the settings before you restore to the factory default settings. Grandstream is not
responsible for restoring lost parameters and cannot connect your device to your VoIP service provider.
Please follow the instructions below to reset the phone:
RESTORE TO FACTORY DEFAULT VIA THE LCD MENU
Press MENU button to bring up the keypad configuration menu;
Select "Config" and enter;
Select "Factory Reset";
A warning window will pop out to make sure a reset is requested and confirmed;
Press the "OK" softkey to confirm and the phone will reboot. To cancel the Reset, press "Cancel"
softkey instead.
RESTORE TO FACTORY DEFAULT VIA THE WEB GUI
Login GXP1610/GXP1620/GXP1625 Web GUI;
At the top right corner of the web page, click “Factory Reset” button to reset the device.
![](/img.php?id=3042549&img=bg20.png)
Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 31 of 31
EXPERIENCING THE GXP1610/GXP1620/GXP1625
Please visit our Website: http://www.grandstream.com to receive the most up- to-date updates on
firmware releases, additional features, FAQs, documentation and news on new products.
We encourage you to browse our product related documentation, FAQs and User and Developer Forum
for answers to your general questions. If you have purchased our products through a Grandstream
Certified Partner or Reseller, please contact them directly for immediate support.
Our technical support staff is trained and ready to answer all of your questions. Contact a technical
support member or submit a trouble ticket online to receive in-depth support.
Thank you again for purchasing Grandstream Enterprise Application phone, it will be sure to bring
convenience and color to both your business and personal life.
Compliance
FCC Notice
This device complies with part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
