WELCOME
Thank you for purchasing Grandstream’s HT503, the affordable, feature rich, Analog Telephone
Adaptor/IAD. The HT503 combines a sleek design with the latest technology to offer more advanced
telephony features and significantly better integrated router performance than its predecessor – the
HT488. It is the second ATA/IAD in the HandyTone 50x series. The HT503 functions as a true 3-in-1
gateway for PSTN network, analog telephone FXS interface and IP network. It enables remote call
origination and termination from/to PSTN and supports the feature of “hop-on/hop-off” calling.
This manual will help you learn how to operate and manage your HT503 Analog Telephone Adaptor/IAD
and make the best use of its many upgraded features including simple and quick installation, 3-way
conferencing, and remote call origination and “hop-on/hop-off” calling using the programmable PSTN
FXO port. This HT503 is very easy to manage and configure, and is specifically designed to be an easy
to use and affordable VoIP solution for both the residential user and the remote user.
This document is subject to changes without notice. The latest electronic version of this user manual can
be downloaded from the following location:
http://www.grandstream.com/products/ht_series/ht503/documents/ht503_usermanual_english.pdf
SAFETY COMPLIANCS
The HT503 adaptor complies with FCC/CE and various safety standards. The HT503 power adaptor is
compliant with UL standard. Only use the universal power adapter provided with the HT503 package.
The manufacturer’s warranty does not cover damages to the phone caused by unsupported power
adaptors.
WARRANTY
If you purchased your HT503 from a reseller, please contact them for replacement, repair or refund. If
you purchased the product directly from Grandstream, contact your Grandstream Sales and Service
Representative for an RMA (Return Materials Authorization) number before you return the product.
Grandstream reserves the right to remedy warranty policy without prior notification.
Caution: Changes or modifications to this product not expressly approved by Grandstream, or operation
of this product in any way other than as detailed by this User Manual, could avoid your manufacturer
warranty.
This document contains links to Grandstream GUI Interfaces. Please remember to download these
examples from http://www.grandstream.com/products/ht_series/ht503/documents/ht503_gui.zip for
![](/img.php?id=2076073&img=bg8.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 8 of 59
your reference.
This document is subject to change without notice. The latest electronic version of this user manual is
available for download from the following location:
http://www.grandstream.com/products/ht_series/ht503/documents/ht503_usermanual_english.pdf
Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print,
for any purpose without the express written permission of Grandstream Networks, Inc. is not
permitted.
![](/img.php?id=2076073&img=bg9.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 9 of 59
CONNECT YOUR HT503
EQUIPMENT PACKAGING
The HT503 ATA package contains:
One HT503 Main Case
One Universal Power Adaptor
One Ethernet Cable
One HT503 Vertical Stand
CONNECTING THE HT503
The HT503 is designed for easy configuration and easy installation. Configure the HT503 following the
directions in the Configuration section of this manual.
1. Connect a standard touch-tone analog telephone to the PHONE port.
2. Insert a standard RJ11 telephone cable into the LINE port and connect the other end of the
telephone cable to a wall jack.
3. Insert the Ethernet cable into the WAN port of HT503 and connect the other end of the Ethernet
cable to an uplink port (a router or a modem, etc.)
4. Connect a PC to the LAN port of HT503 if it is being used as a router.
5. Insert the power adapter into the HT503 and connect it to a wall outlet.
The HT503 Analog Telephone Adaptor is an all-in-one VoIP integrated device designed to be a total
solution for networks providing VoIP services. The HT503 VoIP features and functions are available using
a regular analog telephone.
![](/img.php?id=2076073&img=bga.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 10 of 59
HT503
Front View
HT503
Back View
Display LEDs
(Green)
RJ-45 Ports
10/100 Mbps
Reset
Power
Supply
(12V)
RJ11
FXS Port
RJ11
FXO Port

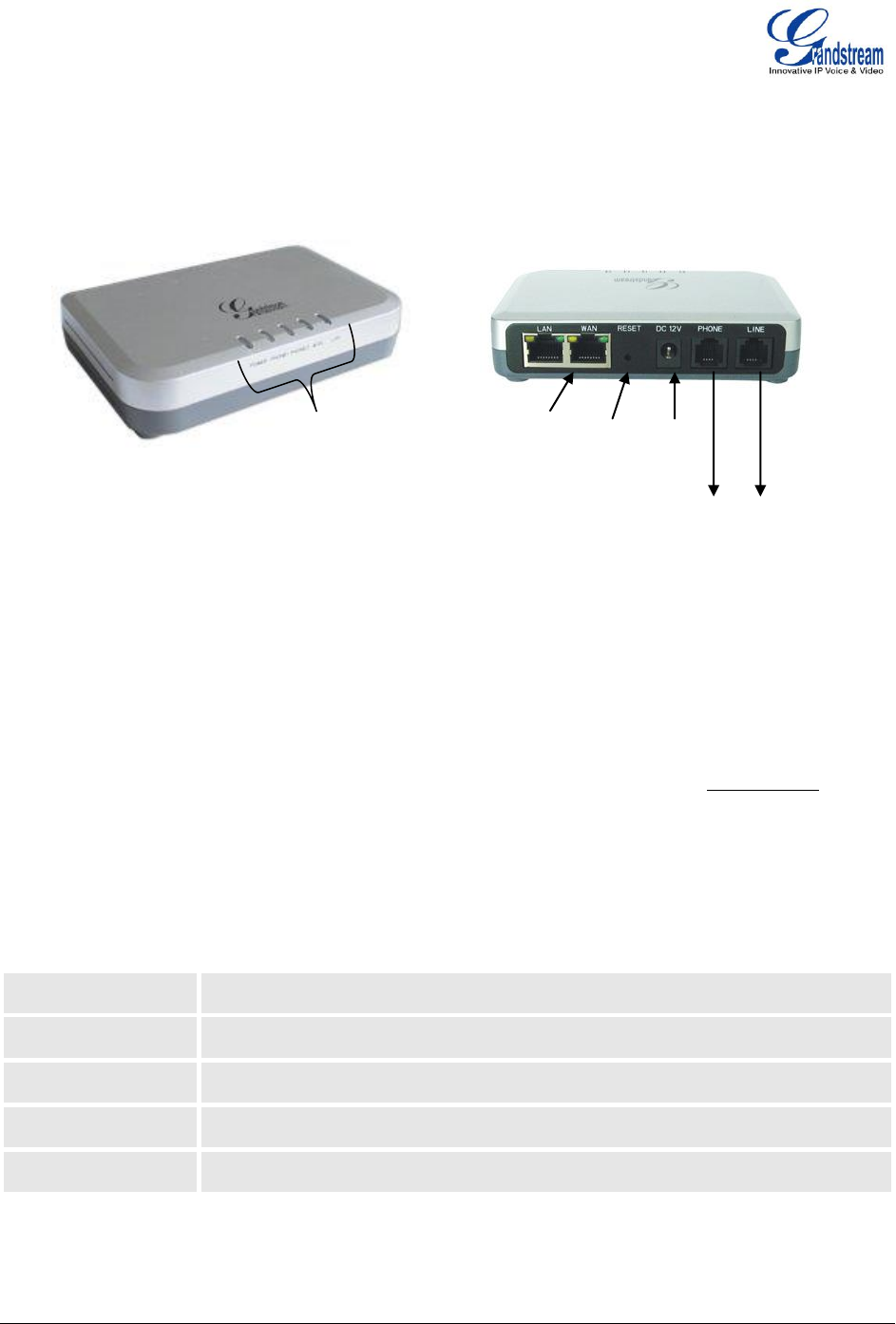

FIGURE 1: CONNECTING THE HT503
The HT503 has one FXS port and one FXO port. The PHONE port next to the power supply is an FXS
port. The LINE port on the back right of the HT503 is an FXO port. Both the FXS port and the FXO port
can have a separate SIP account. This is a key feature of HT503 as it supports simultaneous calls on
both the FXS port and FXO port. Telephone calls can be originated from or terminated on the PSTN
network remotely via the FXO port.
TABLE 1: DEFINITIONS OF THE HT503 CONNECTORS
12VDC, 0.5A
Power adapter connection
LAN Port (RJ-45)
Connect the LAN port with an Ethernet cable to your PC.
WAN Port (RJ-45)
Connect the WAN port to the internal LAN network or router.
PHONE (RJ-11)
FXS port to be connected to analog phones / fax machines.
LINE (RJ-11)
FXO port should be connected to the PSTN line
![](/img.php?id=2076073&img=bgb.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 11 of 59
TABLE 2: HT503 LED DEFINITIONS
POWER LED
Indicates Power. Remains ON when power is connected
WAN LED
Indicates LAN (or WAN) port activity
LAN LED
Indicates PC (or LAN) port activity
PHONE/ LINE LED
Indicates the status of the FXS and FXO ports on the back panel.
Busy – ON (Solid Green) Available – OFF
Slow blinking FXS LEDs indicates voicemail for that port.
Note: Slow blinking of POWER, WAN, and LAN LEDs together indicate firmware upgrade/provisioning state.

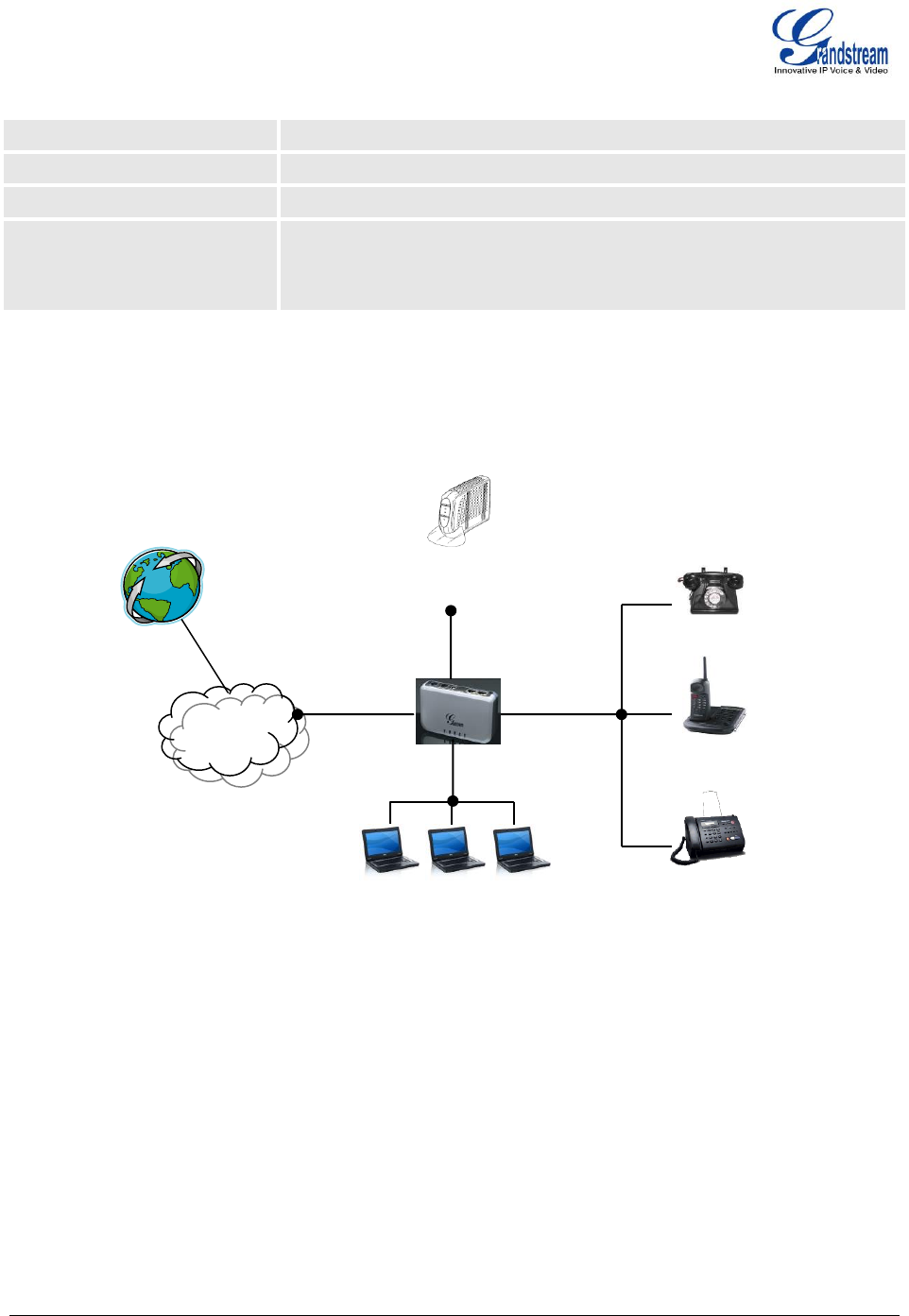

FIGURE 2: INTERCONNECTION DIAGRAM OF THE HT503
Internet ADSL/Cable
Modem Ethernet
Fax
Cordless
Phone
Analog Phone
WAN
LAN
FXS
FXO
PSTN
Cloud
![](/img.php?id=2076073&img=bgc.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 12 of 59
PRODUCT OVERVIEW
The HT503 is an affordable, high-quality, integrated IP telephony solution for both the residential
customers and the ‘road-warriors’ who need advanced call features between traditional PSTN network
and IP network. The HT503 enables IP connectivity for any phone or fax using the FXS port and a web-
based GUI for easy configuration and installation. It functions as a true FXO gateway that enables remote
call origination and termination from/to PSTN and supports the feature of “hop-on/hop-off” using the
programmable FXO port.
SOFTWARE FEATURES OVERVIEW
The HT503 features 2 SIP account profiles and supports advanced telephony features including caller ID,
call waiting, call transfer, 3-way conferencing (with either IP or PSTN calls), and multi-language voice
prompts. From a technical standpoint, the HT503 offers a power-outage survivable life line and internet-
disconnect survivable fail-over-to-PSTN support, dual 10/100Mbps Ethernet ports with integrated high-
performance NAT router, a flexible dial plan and a broad range of popular voice codecs.
TABLE 3: HT503 TECHNICAL SPECIFICATIONS
Interfaces
1 FXS telephone port (RJ11), 1 FXO PSTN line port (RJ11) with lifeline support
Two (2) 10M/100 Mbps ports (RJ45) with integrated Nat router
Protocol Support
TCP/UDP/IP, RTP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, PPPoE,
STUN & TELNET protocols
LED Indicators
Power, WAN, LAN, PHONE, and LINE
RESET Button
Factory Reset Button
Device Management
Web interface or via secure (AES encrypted) central configuration file for mass
deployment
Support device configuration via built-in IVR, Web browser or central configuration file
through TFTP, HTTP or HTTPS
Support Layer 2 (802.1Q, VLAN, 802.1p) and Layer 3 QoS (ToS, DiffServ, MPLS)
Auto/manual provisioning system
NAT-friendly remote software upgrade (via TFTP/HTTP/HTTPS) for deployed devices
including behind firewall/NAT
Syslog support
![](/img.php?id=2076073&img=bgd.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 13 of 59
DHCP Server/Client
Yes
Audio Features
Advanced Digital Signal Processing (DSP)
Dynamic negotiation of codec and voice payload length
Support for G.723, G.729/E, G.711, G.726-40/32/24/16, iLBC, T.38 codecs
In-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
Silence Suppression, VAD (voice activity detection), CNG (comfort noise generation),
ANG (automatic gain control)
Adaptive jitter buffer control
Packet delay & loss concealment (PLC) & G.168 compliant Line Echo Cancellation
Support volume amplification
Support configurable Call Progress Tones
Call Handling Features
Caller ID display or block, Call waiting caller ID, Call waiting/flash, Call transfer, hold, call
forward, do not disturb, 3-way conferencing
Network and
Provisioning
Manual or dynamic host configuration protocol (DHCP) network setup; RTP and NAT
support traversal via STUN
Fax over IP
T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax
Pass-through, Fax Data pump V.17, V.19, V.27ter, V.29 for T.38 fax relay
Security
DIGEST authentication and encryption using MD5 and MD5-sess
Physical Design
Stylish and compact design; small universal power supply, ideal for travel
![](/img.php?id=2076073&img=bge.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 14 of 59
HARDWARE SPECIFICATION
The table below lists the hardware specification of HT503.
TABLE 4: HT503 HARDWARE SPECIFICATION
LAN interface
1xRJ45 10/100 Mbps Port
WAN interface
1xRJ45 10/100 Mbps Port
FXS telephone port
1 x FXS (RJ11)
FXO telephone port
(PSTN Port)
1x PSTN pass-through and life line port
LED
Power, WAN, LAN, PHONE, and LINE (Green)
Universal Switching
Power Adaptor
Input: 100–240 VAC, 50-60 Hz
Output: 12VDC, 0.5A, UL certified
Dimension
25mm x 115mm x 75mm (when laying flat);
115mm x 25mm x 75mm (standing up)
Weight
Approximately 0.6lbs (0.3kg)
Temperature
Operational: 32° - 104°F or 5° – 45°C
Storage: 10°–130°F
Humidity
10% - 90%
(non-condensing)
Compliance
![](/img.php?id=2076073&img=bgf.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 15 of 59
BASIC OPERATIONS
UNDERSTANDING HT503 VOICE PROMPT
HT503 has a built-in voice prompt menu for simple device configuration. The voice prompt menu is
designed for the FXS port only. To enter the voice prompt menu, press *** from the analog phone
connected to the FXS port.
TABLE 5: HT503 IVR MENU DEFINITIONS
Menu
Voice Prompt
Options
Main Menu
“Enter a Menu Option”
Press “*” for the next menu option
Press “#” to return to the main menu
Enter 01-05, 07,10,12-17,47 or 99 menu options
01
“DHCP Mode”,
“Static IP Mode”
Press “9” to toggle the selection
If using “Static IP Mode”, configure the IP address information using
menus 02 to 05.
If using “Dynamic IP Mode”, all IP address information comes from
the DHCP server automatically after reboot.
02
“IP Address “ + IP address
The current WAN IP address is announced
If using “Static IP Mode”, enter 12 digit new IP address. You need
to reset the HT to take affect the new IP address.
03
“Subnet “ + IP address
Same as menu 02
04
“Gateway “ + IP address
Same as menu 02
05
“DNS Server “ + IP address
Same as menu 02
07
Preferred Vocoder
Press “9” to move to the next selection in the list:
PCM U / PCM A
iLBC
G.726
G.723
G.729
10
MAC Address
Announces the MAC address.
12
WAN Port Web Access
Press “9” to toggle between enable / disable
![](/img.php?id=2076073&img=bg10.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 16 of 59
13
Firmware Server IP Address
Announces current Firmware Server IP address. Enter 12 digit new
IP address.
14
Configuration Server IP
Address
Announces current Config Server Path IP address. Enter 12 digit
new IP address.
15
Upgrade Protocol
Upgrade protocol for firmware and configuration update. Press “9”
to toggle between TFTP / HTTP / HTTPS
16
Firmware Version
Firmware version information.
17
Firmware Upgrade
Firmware upgrade mode. Press “9” to toggle among the following
three options:
- always check
- check when pre/suffix changes
- never upgrade
47
“Direct IP Calling”
Enter the IP address to make a direct IP call, after dial tone. (See
“Make a Direct IP Call”.)
86
Voice Mail
Number of voice mails
99
“RESET”
Press “9” to reboot the device; or
Enter encoded MAC address to restore factory default setting (See
“Restoring Factory Settings”)
“Invalid Entry”
Automatically returns to main menu
NOTE:
“*” shifts down to the next menu option
“#” returns to the main menu
“9” functions as the ENTER key in many cases to confirm an option
All entered digit sequences have known lengths - 2 digits for menu option. For IP address, the "*"
key represent the dot "." (Like 192.168.0.26 should be key in like 192*168*0*26). Once all of the
digits are collected, the input will be processed.
Key entry cannot be deleted but the phone may prompt error once it is detected
![](/img.php?id=2076073&img=bg11.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 17 of 59
PLACING A PHONE CALL
PHONE OR EXTENSION NUMBERS
There are currently two methods to make an extension number call:
a) Dial the numbers directly and wait for 4 (default) seconds.
b) Dial the numbers directly, and press # (assuming that “use # as dial key” is selected in the web
configuration).
Examples:
To dial another extension on the same proxy, such as 1008, simply pick up the attached phone,
dial 1008 and then press the # or wait for 4 seconds.
To dial a PSTN number such as 6266667890, you may need a prefix number followed by the
phone number. Please check with your VoIP service provider for this information. If your phone is
assigned a PSTN-like number such as 6265556789, you will most likely follow the rule 1 + (the
number) – 16266667890. Press # or wait for 4 seconds.
DIRECT IP CALLS
Direct IP calling allows two parties, that is, a FXS Port with an analog phone and another VoIP Device, to
talk to each other in an ad hoc fashion without a SIP proxy.
Elements necessary to completing a Direct IP Call:
Both HT503 and other VoIP Device, have public IP addresses, or
Both HT503 and other VoIP Device are on the same LAN using private IP addresses, or
Both HT503 and other VoIP Device can be connected through a router using public or private IP
addresses (with necessary port forwarding or DMZ).
HT503 supports two ways to make Direct IP Calling:
Using IVR
1. Pick up the analog phone then access the voice menu prompt by dial “***”
2. Dial “47” to access the direct IP call menu
3. Enter the IP address using format ex. 192*168*0*160 after the dial tone.
![](/img.php?id=2076073&img=bg12.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 18 of 59
Using Star Code
1. Pick up the analog phone then dial “*47”
2. Enter the target IP address using same format as above.
Note: NO dial tone will be played between step 1 and 2.
Destination ports can be specified by using “*” (encoding for “:”) followed by the port number.
Examples:
a) If the target IP address is 192.168.0.160, the dialing convention is
*47 or Voice Prompt with option 47, then 192*168*0*160.
followed by pressing the “#” key if it is configured as a send key or wait 4 seconds. In this case,
the default destination port 5060 is used if no port is specified.
b) If the target IP address/port is 192.168.1.20:5062, then the dialing convention would be:
*47 or Voice Prompt with option 47, then 192*168*0*160*5062 followed by pressing the “#” key
if it is configured as a send key or wait for 4 seconds.
NOTE: When completing direct IP call, the “Use Random Port” should set to “NO”. You can not make
direct IP calls between FXS1 to FXS2 since they are using same IP.
CALL HOLD
This function is applicable on the FXS port for VoIP calls only. While in conversation, pressing the “flash”
button on the connected phone (if the phone has that button) places the remote end on hold. Pressing the
“flash” button again releases the previously held party and the conversation can resume. If no “flash”
button is available, then on-off hook quickly (hook flash) will do the same thing. You may lose the call if
‘hook flash’ is not quick enough.
CALL WAITING
This function is applicable on FXS port for VoIP calls only. If the call waiting feature is enabled, the user
will hear a special stutter tone if there is another call on the line. Press the flash button to place the
current party on hold and switch to the other call. Pressing the flash button toggles between two active
calls. The HT503 also provides CWCID (call waiting caller ID) information which includes caller ID
information in addition to the special stutter tone. The analog phone must support this feature for it to
work on the HT503. Both call waiting functions (call waiting and CWCID) are activated and deactivated
from the configuration pages menu.
![](/img.php?id=2076073&img=bg13.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 19 of 59
CALL TRANSFER
The HT503 supports both blind transfer and attended transfer.
BLIND TRANSFER
This function is applicable using the FXS port for VoIP calls only. Assume that parties A and B are in
conversation. Party A wants to Blind Transfer Party B to C:
3. A presses FLASH on the analog phone to hear the dial tone.
4. Then A dials *87, then dials C’s number, and then presses #
5. A can hang up.
NOTE: “Enable Call Feature” has to be set to “Yes” in web configuration page.
ATTENDED TRANSFER
This function is applicable on the FXS port for VoIP calls only. Assume that parties A and B are in
conversation. Party A wants to Attend Transfer Party B to C:
1. A presses FLASH on the analog phone to get a dial tone;
2. A then dial C’s number followed by #.
3. If C answers the call, A and C are in conversation. Then A can hang up to complete transfer.
4. If C does not answer the call, A can press “flash” back to talk to B.
NOTE: When Attended Transfer fails and A hangs up, the HT503 will ring user A back again to remind A
that party B is still on the call. Party A can pick up the phone to resume a conversation with party B.
3-WAY CONFERENCING
The HT503 supports Bellcore Style 3-way conferencing.
Assume that parties A and B are in conversation. Party A (using the HT503) wants to bring C into a 3-
way conference:
1. A presses FLASH (on the analog phone, or Hook Flash for old model phones) to get a dial
tone.
![](/img.php?id=2076073&img=bg14.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 20 of 59
2. A dials C’s number then # (or wait for 4 seconds).
3. If C answers the call, then A presses FLASH to bring B, C in the conference.
4. If C does not answer the call, A can press FLASH back to talk to B.
5. If A presses FLASH during the conference, C will be dropped out.
6. If A hangs up, the conference will be terminated for all three parties when configuration
“Transfer on Conference Hangup” is set to “No”. If the configuration is set to “Yes”, A will
transfer B to C so that B and C can continue the conversation.
PSTN PASS THROUGH
HT503 supports PSTN pass through using the FXS port. The user can place and receive PSTN calls
using analog phone connected to FXS port.
To receive PSTN calls, pick up the phone when it rings;
To complete a PSTN call, press the PSTN access code (*00 is default, or any number configured
in the web configuration) to switch to the PSTN line, listen for a dial tone, then dial the number.
If the 503 loses power or lost registration with SIP server, device will switch to mode when PSTN
line will be transparently connected directly to phone connected to FXS port. It will function as a
jack, enabling a direct connection to the PSTN Line.
![](/img.php?id=2076073&img=bg15.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 21 of 59
VOIP-TO-PSTN CALLS
This function is available using the FXO port. The FXO port functions as a bridge between the Internet
and PSTN. The user can remotely use a PSTN line to initiate a call.
TO MAKE A VOIP-TO-PSTN CALL:
1. Dial the FXO SIP account phone number to establish the VoIP session. The caller will hear the
ring back tone once. Then the caller hears either a special continuous tone or a dial tone. The
special continuous tone is played if the pin code is configured, otherwise, the caller will hear a dial
tone.
2. Enter the PIN code (if configured under the BASIC configuration page). The caller will hear a dial
tone and be connected to the PSTN line if the PIN code is valid. If the PIN code is invalid, the
continuous tone is played to prompt caller to enter the PIN code again. The user may try up to 3
times to enter a correct PIN code. After three (3) tries, the HT503 hangs up.
3. After the caller hears a dial tone from PSTN line, the caller can place the next call.
4. The user can hit the # key to identify the end of the pin code or wait 4 seconds for a new dial tone
and then dialing the PSTN number.
Note:
Users can choose whether or not to apply password protection for VoIP-to-PSTN calls. A PIN (Pin
for PSTN calls) consists of up to 8 numeric digits and can be configured using the BASIC
SETTINGS of the web configuration page. By default, there is no password protection. (I.e. there
is no authentication required for callers on the use of PSTN line through HT503).
When a PIN is configured for VOIP-to-PSTN call flow, the VoIP device that calls into the HT503
FXO account needs to configure RFC2833 or SIP Info for DTMF digit transmission.
The special continuous tone is the prompt to enter a valid PIN code. If a caller doesn’t enter a
valid PIN, the HT503 times out after 10 seconds. Users may press the “#” key to indicate the end
of an input or wait 4 seconds.
On the web configuration page, if the “Forward to PSTN” is configured, the second stage dialing
format is eliminated, so after dialing into the FXO SIP account number, the PSTN number will be
called automatically
![](/img.php?id=2076073&img=bg16.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 22 of 59
PSTN-TO-VOIP CALLS
This function is available using the FXO port. The FXO port functions as a bridge between the Internet
and PSTN and enables calls to be passed from the PSTN network to VoIP. The user can make VoIP calls
remotely by dialing into the FXO line port on HT503.
To Make a PSTN-to-VoIP Call:
1. Make an incoming call to the PSTN line on FXO port. The phone will ring for 4 times by default
(this setting is configurable on the FXO port configuration page).
2. If no one answers the call after 4 rings (default configuration), then the caller hears either a
special continuous tone (prompting a PIN number) or a dial tone.
3. Enter a valid PIN (if configured under the BASIC configuration page). The caller will hear dial
tone and be bridged to VoIP. If an incorrect PIN is input, the continuous tone prompts caller to
enter a valid PIN. The caller may try 3 times to enter a valid PIN, if it is invalid the HT503 will
hang up.
4. The caller can dial a VoIP number followed by # (or wait for 4 seconds); the VoIP call will be
initiated from the SIP account configured on the FXO port.
NOTE:
Users can choose whether or not to apply password protection for VoIP-to-PSTN calls. A PIN (Pin
for PSTN calls) consists of up to 8 numeric digits and can be configured using the BASIC
SETTINGS of the web configuration page. By default, there is no password protection. (I.e. there
is no authentication required for callers on the use of PSTN line through HT503).
When a PIN is configured for VOIP-to-PSTN call flow, the VoIP device that calls into the HT503
FXO account needs to configure RFC2833 or SIP Info for DTMF digit transmission.
The special continuous tone is the prompt to enter a valid PIN code. If a caller doesn’t enter a
valid PIN, the HT503 times out after 10 seconds. Users may press the “#” key to indicate the end
of an input or wait 4 seconds.
On the web configuration page, if the “Forward to VoIP” is configured, the second stage dialing
format is eliminated, so after dialing into the FXO SIP account number, the PSTN number will be
called automatically
![](/img.php?id=2076073&img=bg17.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 23 of 59
ROUTE CALLS TO PSTN
The FXO port enables access to the PSTN network. By default, the HT503 is in VoIP mode at off-hook.
If “Route Call to PSTN” is configured, certain calls will be initiated from the FXO PSTN line port. This call
feature is especially useful for emergency calls or local telephone calls.
To use this feature, users need to specify a special rule using the dial plan parameter located under FXS
Port configuration page. If the dialed digits match the specified prefix, outbound calls will be initiated from
the PSTN line.
Note: The route to PSTN feature is only applicable to a phone connected to the FXS Port. The
configuration is done using the “dial plan” feature under the FXS tab. An example of the configuration is
{L: 911x+}. This shows that only calls that start with 911 are immediately forwarded to the PSTN line. All
other numbers will not be routed to the PSTN. An normal # would be: {L: 617x+|x+} or {x+| L: 617x+}
For example, if “Route Call to PSTN” is configured as {L: 626x+}, all outgoing calls starting with 626 will
be initiated from the PSTN line.
FORWARD CALLS TO PSTN
Any VOIP call may be forwarded to a specified PSTN number. FXO port should be registered with some
preconfigured number (for example 1111). Any VoIP extension can dial this FXO account number and will
be automatically forwarded to preconfigured PSTN extension.
For example, if the end-user has configured a cell phone number in the field “Forward to PSTN” under
BASIC SETTINGS configuration page, all calls will be forwarded to the cell phone number after 4 rings.
FORWARD CALLS TO VOIP
By default, each incoming PSTN call is received over the FXS port. The end-user may forward such a
call to any preconfigured VoIP extension, in case the call is not answered in a certain number of rings.
The Default value of the parameter “Number of Rings” is 4. This parameter located under “FXO Port”
configuration page. If during 4 rings, the incoming from the PSTN call is not answered, the call will be
forwarded to another VoIP number previously configured in the field:”Forward to VoIP”. This parameter
![](/img.php?id=2076073&img=bg18.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 24 of 59
can also be found under BASIC SETTINGS configuration page.
ONE STAGE DIALING
This feature is applicable for VoIP to PSTN calls. Any VoIP extension may dial directly to a local PSTN
number if the one-stage dialing feature is activated. This feature is configured under the FXO
Configuration page and requires SIP Server configuration and support. The special dial plan feature must
be activated in the SIP Server. An outbound call will be sent directly to the assigned FXO port account,
where there the HT503 will initiate a call to the local CO. The RequestURI header in the INVITE message
contains the phone number used to initiate the call to the local CO.
FAX SUPPORT
HT503 supports FAX in two modes: 1) T.38 (Fax over IP) and 2) fax pass through. T.38 is the preferred
method because it is more reliable and works well in most network conditions. If the service provider
supports T.38, please use this method by selecting Fax mode to be T.38 (default). If the service provider
does not support T.38, pass-through mode may be used. To send or receive faxes in fax pass through
mode, users must select all the Preferred Codecs to be PCMU/PCMA (G.711-µ/a).
![](/img.php?id=2076073&img=bg19.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 25 of 59
CALL FEATURES
TABLE 6: HT503 CALL FEATURE DEFINITIONS
Key
Call Features
*02
Forcing a Codec (per call) *027110 (PCMU), *027111 (PCMA), *02723 (G723), *02729 (G729),
*0272616 (G726-r16), *0272624 (G724-r24), *0272632 (G726-r32), *0272640 (G726-r40),
*027201 (iLBC)
*03
Disable LEC (pe call) Dial “*03” + ” number ”. No dial tone is played in the middle.
*16
Enable SRTP
*17
Disable SRTP
*30
Block Caller ID (for all subsequent calls)
*31
Send Caller ID (for all subsequent calls)
*47
Direct IP Calling. Dial “*47” + “IP address”. No dial tone is played in the middle. Detail see Direct
IP Calling section on page 12.
*50
Disable Call Waiting (for all subsequent calls)
*51
Enable Call Waiting (for all subsequent calls)
*67
Block Caller ID (per call). Dial “*67” + ” number ”. No dial tone is played in the middle.
*82
Send Caller ID (per call). Dial “*82” + ” number ”. No dial tone is played in the middle.
*69
Call Return Service: Dial *69 and the phone will dial the last incoming phone number received.
*70
Disable Call Waiting (per call). Dial “*70” + ” number ”. No dial tone is played in the middle.
*71
Enable Call Waiting (per call). Dial “*71” + ” number ”. No dial tone is played in the middle.
*72
Unconditional Call Forward: Dial “*72” and then the forwarding number followed by “#”. Wait for
dial tone and hang up. (dial tone indicates successful forward)
*73
Cancel Unconditional Call Forward. To cancel “Unconditional Call Forward”, dial “*73”, wait for
dial tone, then hang up.
*78
Enable Do Not Disturb (DND): When enabled all incoming calls are rejected.
*79
Disable Do Not Disturb (DND): When disabled, incoming calls are accepted.
*87
Blind Transfer
*90
Busy Call Forward: Dial “*90” and then the forwarding number followed by “#”. Wait for dial tone
then hang up.
*91
Cancel Busy Call Forward. To cancel “Busy Call Forward”, dial “*91”, wait for dial tone, then
hang up.
*92
Delayed Call Forward. Dial “*92” and then the forwarding number followed by “#”. Wait for dial
tone then hang up.
*93
Cancel Delayed Call Forward. To cancel Delayed Call Forward, dial “*93”, wait for dial tone, then
hang up.
![](/img.php?id=2076073&img=bg1a.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 26 of 59
Flash/Hook
Toggles between active call and incoming call (call waiting tone). If not in conversation, flash/hook
will switch to a new channel for a new call.
#
Pressing pound sign will server as Re-Dial key.
![](/img.php?id=2076073&img=bg1b.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 27 of 59
CONFIGURATION GUIDE
CONFIGURING HT503 THROUGH VOICE PROMPT
DHCP MODE
Follow Table 4 with voice menu option 01 to enable HT503 to use DHCP.
STATIC IP MODE
Follow Table 4 with voice menu option 01 to enable HT503 to use STATIC IP mode, then use option 02,
03, 04 to set up HT503’s IP, Subnet Mask, Gateway respectively.
FIRMWARE SERVER IP ADDRESS
Select voice menu option 13 to configure the IP address of the firmware server.
CONFIGURATION SERVER IP ADDRESS
Select voice menu option 14 to configure the IP address of the configuration server.
UPGRADE PROTOCOL
Select voice menu option 15 to choose firmware and configuration upgrade protocol. User can choose
between TFTP, HTTP and HTTPS.
FIRMWARE UPGRADE MODE
Select voice menu option 17 to choose firmware upgrade mode. There are three options:
1) always check, 2) check only when pre/suffix changes, and 3) never upgrade
WAN PORT WEB ACCESS
Select voice menu option 12 to enable WAN Port Wed Access of the device configuration pages.
CONFIGURING HT503 WITH WEB BROWSER
HT503 ATA has an embedded Web server that will respond to HTTP GET/POST requests. It also has
embedded HTML pages that allow users to configure the HT503 through a Web browser such as
Microsoft’s IE, AOL’s Netscape or Mozilla Firefox installed on Windows or Unix OS. (Macintosh OS is not
included).
![](/img.php?id=2076073&img=bg1c.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 28 of 59
ACCESS THE WEB CONFIGURATION MENU
The HT503 HTML configuration page can be accessed via LAN or WAN ports.
• From the LAN port:
1. Directly connect a computer to the LAN port
2. Open a command window on the computer
3. Type in “ipconfig /release”, the IP address etc becomes 0
4. Type in “ipconfig /renew”, the computer gets an IP address in 192.168.2.x segment by
default
5. Open a web browser, type in the default IP address of the LAN port. http://192.168.2.1. You
will see the log in page of the device.
• From the WAN port:
1. Follow table 4 to find the WAN side IP address.
2. Open a web browser, type in the WAN side IP address – for example:
http://HT503-WAN-IP-Address
Note:
• WAN side HTTP access is disabled by default for security reason. You can enable HTTP access
on the configuration page by setting “WAN side HTTP access” to be YES.
• Initial access to the configuration pages is always from the LAN port. The instructions are listed
above.
• The IVR announces 12 digits IP address, you need to strip out the leading “0” in the IP address.
For ex. IP address: 192.168.001.014, you need to type in http://192.168.1.14 in the web browser.
Once the HTTP request is entered and sent from a web browser, the user will see a log-in screen. There
are two default passwords for the login page:
User Level:
Password:
Web pages allowed:
End User Level
123
Only Status and Basic Settings
Administrator Level
admin
Browse all pages
The password is case sensitive with maximum length of 25 characters. The factory default password for
![](/img.php?id=2076073&img=bg1d.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 29 of 59
End User and administrator is “123” and “admin” respectively. Only an administrator can access the
“ADVANCED SETTING”, “FXS PORT” and “FXO PORT” configuration pages.
NOTE: If you cannot log into the configuration page by using the default password, please check with
the VoIP service provider. It is most likely the VoIP service provider has provisioned the device and
configured for you therefore the password has already been changed.
Only an administrator can access the “ADVANCED SETTING”, “FXS PORT” and “FXO PORT”
configuration pages. Please reference the GUI pages using the following link:
http://www.grandstream.com/products/ht_series/ht503/documents/ht503_gui.zip.
DEFINITIONS
This section will describe the options in the Web configuration user interface. As mentioned, a user can
log in as an administrator or end-user.
Functions available for the end-user are:
STATUS: Displays the network status, account status, software version and MAC-address of the
phone
BASIC SETTINGS: Basic preferences such as date and time settings, multi-purpose keys and
LCD settings can be set here.
Additional functions available to administrators are:
ADVANCED SETTINGS: To set advanced network settings, codec settings and XML
configuration settings.
FXS PORT: To configure the FXS port.
FXO PORT: To configure the FXO port.
TABLE 7: STATUS PAGE
MAC Address
The device ID, in HEX format. This is very important ID for ISP troubleshooting. Both
LAN and WAN MAC addresses are located here. The LAN MAC address is used for
provisioning and is written on the label in the original box as well as on the label located
on the back panel of the device.
WAN IP Address
This field shows IP address of the HT503.
![](/img.php?id=2076073&img=bg1e.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 30 of 59
Product Model
This field contains the product model info, such as HT503.
Software Version
Program: This is the main software release. This number is always used for firmware
upgrade. Current release is 1.0.7.6 Boot and Loader are seldom changed.
Bootloader: current version is 1.0.0.9.
Core: current version 1.0.7.1
Base: current version is 1.0.7.6
CPE: current version is 1.0.1.19
System Uptime
This shows system up time since last reboot.
PPPoE Link Up
This shows whether the PPPoE is up if connected to DSL modem
NAT
This shows what kind of NAT the HT503 is connected to. It is based on STUN protocol.
If the detected NAT is symmetric NAT, STUN will not work and Outbound Proxy needed
to make HT503 functioning correctly.
Port Status
Displays information regarding the individual FXS ports.
Port
Hook
Registration
DND
Forward
Busy
Forward
Delayed
Forward
FXS
On Hook
Registered
Yes
613
FXO
Idle
Registered
No
614
• Both FXS port and FXO port are registered with this SIP Server.
• FXS Port user has set Do Not Disturb.
• FXS Port user has set his calls to be forwarded unconditionally to ext 613.
FXO Port user has set his calls to forward to 614 when his phone is busy.
TABLE 8: BASIC SETTINGS
End User Password
This contains the password for end user to access the Web Configuration Menu. User
can put new password here. This field is case sensitive with maximum of 25 characters
Web Port
This is the device’s internal HTTP server port. Default is 80.
Telnet Server
Default is set to YES. Telnet access is allowed to the device in this case. Used only for
special purposes such as debugging and troubleshooting. List of available commands
will be shown by pressing >help command from telnet console.
IP Address
• If DHCP mode is enabled, then all the field values for the Static IP mode are not
used (even though they are still saved in the Flash memory.) The HT503 will acquire
its IP address from DHCP in the network.
• PPPoE settings are usually for DSL/ADSL modem users. The HT503 will attempt to
establish a PPPoE session if PPPoE account is set.
![](/img.php?id=2076073&img=bg1f.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 31 of 59
• If Static IP mode is selected, the IP address, Subnet Mask, Default Router IP
address, DNS Server 1 (mandatory), DNS Server 2 (optional) fields need to be
configured.
DHCP hostname
This option specifies the name of the client. This field is optional but may be required by
some Internet Service Providers. Default is blank.
DHCP vendor class ID
This option is used by clients and servers to exchange vendor-specific information.
Default is blank.
PPPoE account ID
PPPoE username. Necessary if your ISP requires you to use a PPPoE (Point to Point
Protocol over Ethernet) connection
PPPoE password
PPPoE account password
PPPoE Service name
This field is optional. If your ISP uses a service name for the PPPoE connection, enter
the service name here. Default is blank.
Preferred DNS
The address of your preferred DNS server.
Time Zone
This parameter controls how the displayed date/time will be adjusted according to the
specified time zone.
Self-Defined Time Zone
The syntax is: std offset dst [offset], start [/time], end [/time]
Default is set to: MTZ+6MDT+5,M3.2.0,M11.1.0
MTZ+6MDT+5,
This indicates a time zone with 6 hours offset with 1 hour ahead which is U.S central
time. If it is positive (+) if the local time zone is west of the Prime Meridian and
negative (-) if it is east.
Prime Meridian (A.K.A: International or Greenwich Meridian)
M3.2.0,M11.1.0
The 1st number indicates Month: 1,2,3.., 12 (for Jan, Feb, .., Dec)
The 2nd number indicates the nth iteration of the weekday: (1st Sunday, 3rd Tuesday…)
The 3rd number indicates weekday: 0,1,2,..,6( for Sun, Mon, Tues,..,Sat)
Therefore, this example is the DST which starts from the second Sunday of March to
the 1st Sunday of November.
Language
Languages supported with the voice prompt.
Device Mode
This parameter controls whether the device is working in NAT router mode or Bridge
mode. Save the setting and reboot prior to configuring the HT503.
NAT Maximum Ports
The number of ports that can be managed while in NAT router mode.
Range: 0 – 4096, default is 1024. Typically one port per connection.
NAT TCP Timeout
NAT TCP idle timeout in seconds. Connection will be closed after preconfigured,
timeout if not refreshed.
![](/img.php?id=2076073&img=bg20.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 32 of 59
Range: 0 - 3600
NAT UDP Timeout
NAT TCP idle timeout in seconds. Connection will be closed after preconfigured,
timeout if not refreshed.
Range: 0 – 3600, default is 300

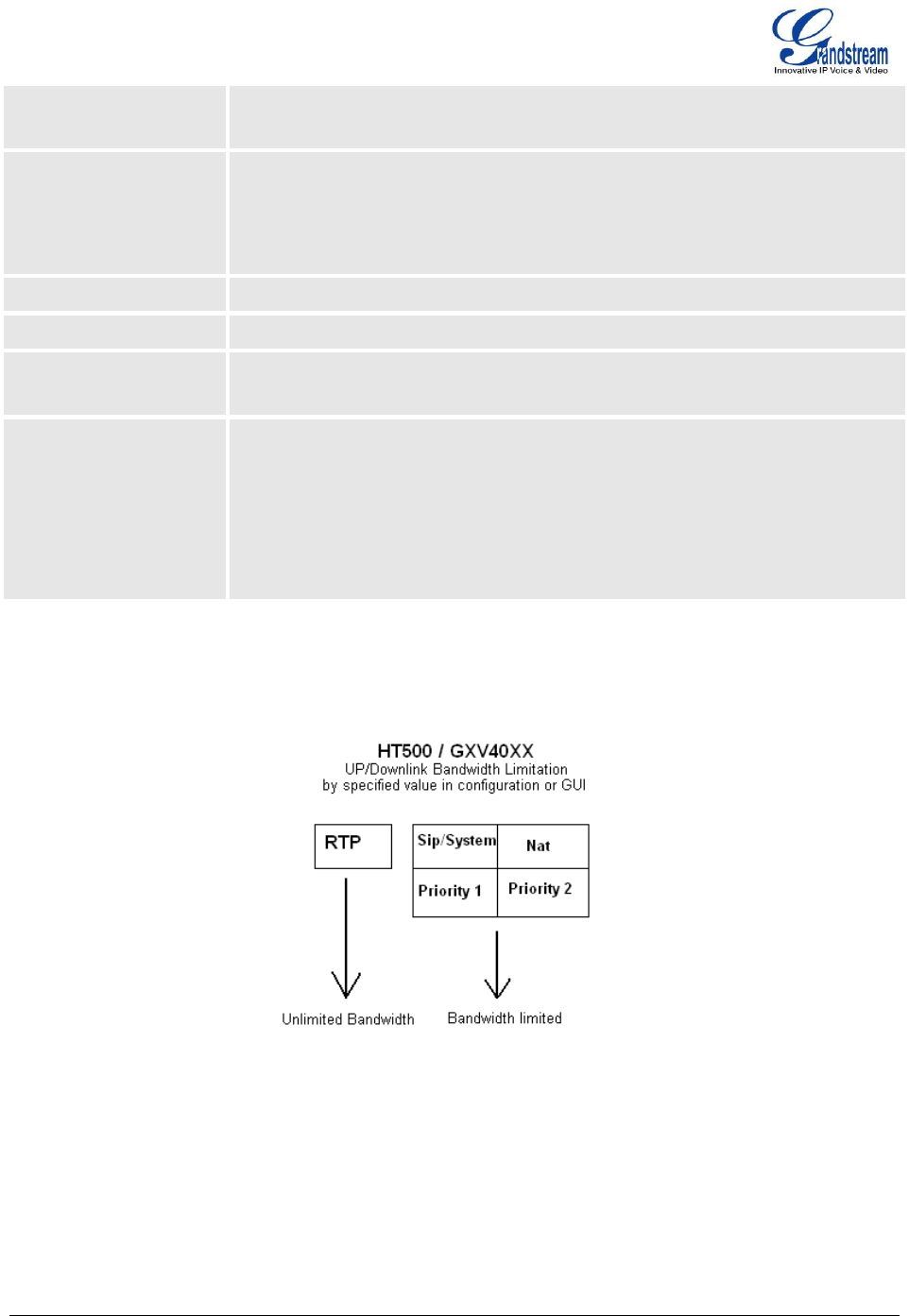

Uplink Bandwidth
The maximum uplink bandwidth permitted by the device. This function is disabled by
default. The total bandwidth can be set as: 128K, 256K, 512K, 1M, 2M, 3M, 4M, 5M,
10M or 15M. The primary function of this setting is to limit the uplink bandwidth for the
device internal system, signaling and NATed traffic. Example: if 512k is configured,
there will be at least 512kbps limited for internal system, signaling and NATed traffic.
Voice or RTP stream will never be limited. See figure 3.
Downlink Bandwidth
The maximum downlink bandwidth permitted by the device. This function is disabled
by default. The total bandwidth can be set as: 128K, 256K, 512K, 1M, 2M, 3M, 4M, 5M,
10M or 15M. The primary function of this setting is to limit the download bandwidth for
the device internal system, signaling and NATed traffic. Example: if 128 is configured,
there will be at least 128kbps limited for internal system, signaling and NATed traffic.
Voice or RTP stream will never be limited. See figure 3.
Enable UPnP
When set to “Yes”, the HT503 acts as an UPnP gateway for your UPnP enabled
applications. UPnP = “Universal Plug and Play”
Reply to ICMP on WAN
Port
When set to “Yes”, the HT503 responds to the PING command from other computers,
but is also made vulnerable to DOS attacks. Default is No.
WAN Side HTTP/Telnet
Access
When set to “Yes”, the user can access the web configuration pages through the WAN
port, instead of through the PC port. Warning: this configuration is less secure than the
default option. Default is No.
Cloned WAN MAC
Address
This allows the user to change/set a specific MAC address on the WAN interface.
Note: Set in Hex format
LAN DHCP Base IP
Base IP for the LAN port, which functions as default gateway for its LAN. Default value
is 192.168.2.1
Note: When the device detects WAN IP is conflicting with LAN IP, the LAN base IP
address will be changed based on the network mask -- the effective subnet will be
increased by 1. For example; 192.168.2.1 will be changed to 192.168.3.1 if net mask is
255.255.255.0. Then the device will reboot
LAN DHCP Start IP
Default is 100
LAN DHCP End IP
Default is 199
LAN Subnet Mask
Sets the LAN subnet mask. Default value is 255.255.255.0
DHCP IP Lease Time
The length of time the IP address is assigned to the LAN clients. Value is set in units of
hours. Default value is 120 hrs (5 days).
DMZ IP:
This function forwards all WAN IP traffic to a specific IP address if no matching port is
used by HT503 or in the defined port forwarding.
![](/img.php?id=2076073&img=bg21.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 33 of 59
Port Forwarding:
Allows users to forward a matching (TCP/UDP) port to a specific LAN IP address with a
specific (TCP/UDP) port.
PSTN access code
The code to access the PSTN line (Maximum 5 digits). Default is “*00”. Any time user
can make PSTN calls from the analog phone connected to FXS port. By default, user
may pick up the phone, dial *00, and after obtaining PSTN line ( user will hear regular
dial tone) normal PSTN dialing is allowed.
PIN for PSTN calls
PIN code to bridge from VoIP to PSTN (Maximum 8 digits, No Default)
PIN for VoIP calls
PIN code to bridge from PSTN to VoIP (Maximum 8 digits, No Default)
Unconditional Call
Forward to PSTN
Calls are unconditionally forwarded to the specified PSTN phone number for all
incoming VoIP calls on FXO port.
Unconditional Call
Forward to VoIP
Calls are unconditionally forwarded to the specified VoIP phone number for all incoming
PSTN calls. Each incoming call from the PSTN will first ring the analog phone
connected to FXS port. This call from the PSTN network will be forwarded to the
preconfigured VoIP extension if it is not answered. User can configure the number of
rings before forwarding calls to the VoIP extension. Configure number of rings using
the “number of rings” parameter located in the FXO Port Configuration page.
FIGURE 3: UPLINK/DOWNLINK BANDWIDTH LIMITATION
Advanced User configuration includes not only the end user configuration, but also advanced
configurations such as: SIP configuration, Codec selection, NAT Traversal Setting and other
miscellaneous configuration.
TABLE 9: ADVANCED SETTINGS
![](/img.php?id=2076073&img=bg22.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 34 of 59
Admin Password
Administrator password. Only the administrator can configure the “Advanced Settings”
page. Password field is purposely blanked for security reason after clicking update and
saved. The maximum password length is 25 characters.
Layer 3 QoS
This field defines the layer 3 QoS parameter which can be the value used for IP
Precedence or Diff-Serv or MPLS. Default value is 48.
Layer 2 QoS
Layer 2 QoS settings. Default setting is blank. VLAN supported equipment is required
when configuring these settings.
STUN Server
IP address or Domain name of the STUN server.
Keep-alive interval
This parameter specifies how often the HT503 sends a blank UDP packet to the SIP
server in order to keep the NAT “pin hole” open. Default is 20 seconds.
Use STUN to detect
network activity
Use STUN keep-alive to detect WAN side network problems. If keep-alive request does
not yield any response for configured number of times, the device will restart the TCP/IP
stack. If the STUN server does not respond when the device boots up, the feat
ure is disabled.
Firmware Upgrade and
Provisioning
Enables the HT503 to download firmware or configuration files through either TFTP or
HTTP servers. The default method is HTTP.
Via TFTP
This is the IP address of the configured TFTP server. If this is configured, the HT503
retrieves the new configuration file or new code image from the specified TFTP server
at boot time. After 5 attempts, the system will timeout and will start the boot process
using the existing code image in the Flash memory. If a TFTP server is configured and
a new code image is retrieved, the new downloaded image is saved into the Flash
memory.
Note: Firmware upgrades may take up to 10 minutes depending on your network
environment. On a LAN it usually takes about 2 minutes. Please do NOT interrupt the
TFTP upgrade process (especially the power supply) as this will damage the device.
Depending on the network environment this process can take up to 15 or 20 minutes.
Via HTTP
The URL for the HTTP server used for firmware upgrade and configuration via HTTP.
For example, http://provisioning.mycompany.com:6688/Grandstream/1.0.6.8
“:6688” is the specific TCP port where the HTTP server is listening; Omit if using default
port 80. Note: If Auto Upgrade is set to No, F/W will download at boot time.
Via HTTPS
The URL of the HTTP server used for firmware upgrade and configuration via a secure
HTTP connection.
For example, https://provisioning.mycompany.com
Note: the HTTPS default port is 443.
Firmware Server Path
IP address or domain name of firmware server.
Config Server Path
IP address or domain name of configuration server.
![](/img.php?id=2076073&img=bg23.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 35 of 59
XML Config File
Password
The password used for encrypting the XML configuration file using OpenSSL.
This is required for the phone to decrypt the encrypted XML configuration file.
HTTP/HTTPS User Name
The user name for the HTTP/HTTPS server.
HTTP/HTTPS Password
The password for the HTTP/HTTPS server.
Firmware File Prefix
Default is blank. If configured, HT503 will request the firmware file with the prefix. This
setting is useful for ITSPs. End user should keep it blank.
Firmware File Postfix
Default is blank. End users should keep it blank.
Config File Prefix
Default is blank. End users should keep it blank.
Config File Postfix
Default is blank. End users should keep it blank.
Allow DHCP option 66 to
override server
If set to “Yes”, configuration and upgrade server information can be obtained using
DHCP option 66 from DHCP server located in customer’s environment
Automatic Upgrade
Choose “Yes” to enable automatic upgrade and provisioning. When set to No, HT503
will only do upgrade once at boot up.
When “Check every day” or “Check every week” is checked, user can specify “Hour of
the day(0-23)” or “Day of the week(0-6)”. Default time is Monday 1AM.
There are three options to choose from: “Always check for New Firmware at Boot up”,
“Check New Firmware only when F/W pre/suffix changes”, and “Always Skip the
Firmware Check”.
Authenticate Conf File
This protects the configuration from an unauthorized change. If set to “Yes, the
configuration file is authenticated before acceptance.
Firmware Key
Key for firmware encryption. (32 digits in hexadecimal format. End users should keep it
blank.
SIP TLS Certificate
The user specify SSL certificate used for SIP over TLS in X.509 format.
SIP TLS Private Key
The user specify SSL private key used for SIP over TLS in X.509 format.
SIP TLS Private Key
Password
User specify password to protect the private key above.
ACS URL
User specify the Auto Configuration Server’s URL (TR-069 protocol)
ACS Username
User specify the ACS Username
ACS Password
User specify the ACS password
Periodic Inform Enable
Default is No. If set to YES, device will send inform packets to the ACS
Periodic Inform Interval
Frequency that the inform packets will be sent out to the ACS
Connection Request
Username
Set a user name for the ACS to connect to this device
Connection Request
Password
Set a password for the ACS to connect to this device
Connection Request
Port
Set a port number for the ACS to connect to this device, default is 7547
CPE SSL Certificate
Configure the SSL authentication of Customer-premises equipment
![](/img.php?id=2076073&img=bg24.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 36 of 59
CPE SSL Private Key
Configure the SSL Private Key of Customer-premises equipment
System Ring Cadence
Configuration option for FXS port ring cadence for all incoming calls. (Syntax:
c=on1/off1-on2/off2-on3/off3; )
Note : Maximum supported cadences is 3
Call Progress Tones
Using these settings, users can configure tone frequencies according to their
preference. By default they are set to North American frequencies.
These tones should be configured with known values to avoid uncomfortable high pitch
sounds. ON is the period of ringing (“On time” in ‘ms’) while OFF is the period of
silence. In order to set a continuous tone, OFF should be zero. Otherwise it will ring ON
ms and a pause of OFF ms and then repeat the pattern.
Example for North America Dial Plan:
f1=350@-13,f2=440@-13,c=0/0;
Syntax: f1=freq@vol, f2=freq@vol, c=on1/off1-on2/off2-on3/off3;
(Note: freq: 0 - 4000Hz; vol: -30 - 0dBm)
Note : Maximum supported cadences is 3
Prompt Tone Access
Code
Key pattern to get Prompt Tone. Maximum 20 digits. No Default.
Lock Keypad Update
If set to “Yes”, the configuration update via keypad is disabled. Note: some informative
options still will be available for users after configuring to Yes. Changing existing
configuration will be impossible.
Disable Voice Prompt
Disables the voice prompt configuration. Default is “No. ” If set to “Yes” accessing
integrated voice menu will be impossible.
Disable Direct IP Calling
Disables the Direct IP Call function. Default is “No.” ” If set to “Yes” to make direct IP
call will be impossible.
Life Line Mode
Life line feature ensures user can place/receive a PSTN call in an emergency situation.
1. If set to “Auto”, in case of power loss or loss of SIP registration, the PSTN line
will be seamlessly connected to analog phone connected to FXS port.
2. If set to “Always Connected” the PSTN line will be always connected to the
phone connected to FXS port. VoIP calls will not be allowed in this
configuration.
3. If set to “Always Disconnected”, user can only place VoIP calls, regardless of
any power loss and/or SIP registration problems. User will be unable to
place/receive any PSTN calls.
NTP server
URL or IP address of the NTP server, Used to synchronize the date/time.
NTP Update Interval
Updates the Network Time Protocol (Values range from 5 – 1440 minutes)
Syslog Server
The IP address or URL of syslog server, especially useful for ITSP
![](/img.php?id=2076073&img=bg25.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 37 of 59
Syslog Level
Select the ATA to report the log level. Default is NONE. The level is either one of
DEBUG, INFO, WARNING or ERROR. Syslog messages are sent based on the
following events:
product model/version on boot up (INFO level)
NAT related info (INFO level)
sent or received SIP message (DEBUG level)
SIP message summary (INFO level)
inbound and outbound calls (INFO level)
registration status change (INFO level)
negotiated codec (INFO level)
Ethernet link up (INFO level)
SLIC chip exception (WARNING and ERROR levels)
memory exception (ERROR level)
The Syslog uses USER facility. In addition to standard Syslog payload, it contains the
following components: GS_LOG: [device MAC address][error code] error message
Ex. May 19 02:40:38 192.168.1.14 GS_LOG: [00:0b:82:00:a1:be][000] Ethernet link is
up
Send SIP Log
If Syslog is enabled and Send SIP Log is set to YES, then SIP messages will also be
delivered via Syslog. Default is set to NO.
Download Device
Configuration
This is a special feature that enables the user to create a text file backup of your
existing configuration.
TABLE 10: FXS PORT SETTINGS
Account Active
When set to yes the FXS port is activated.
SIP Server
This field contains the URL string or the IP address (and port, if different from 5060) of
the SIP proxy server. e.g., the following are some valid examples: sip.my-voip-
provider.com, or sip:my-company-sip-server.com, or 192.168.1.200:5066
Failover SIP Server
This Field contains the URL or the IP address of a second SIP server, this one will be
used in case the device loses the connection with the first server.
Outbound Proxy
IP address or Domain name of Outbound Proxy, or Media Gateway, or Session Border
Controller. Used by ATA for firewall or NAT penetration in different network environment.
If symmetric NAT is detected, STUN will not work and ONLY Outbound Proxy will work.
SIP Transport
User can select UDP or TCP or TLS.
NAT Traversal (STUN)
This setting decides whether the NAT traversal mechanism is activated. It should be set
to “Yes” if the device is behind a NAT router. If no outbound proxy is configured, a
STUN server needs to be set to activate STUN detection mechanism. Usually ITSP will
![](/img.php?id=2076073&img=bg26.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 38 of 59
provide these settings. If this field is set to “Yes”, then the device will periodically send
a dummy UDP packet to the SIP server to pinhole the NAT.
SIP User ID
User account information, provided by VoIP service provider (ITSP), usually has the
form of digit similar to phone number or actually a phone number. This field contains
the user part of the SIP address for this phone. e.g., if the SIP address is
sip:my_user_id@my_provider.com, then the SIP User ID is: my_user_id.
Do NOT include the preceding “sip:” scheme or the host portion of the SIP address in
this field.
Authenticate ID
ID used for authentication, usually same as SIP user ID, but could be different and
decided by ITSP.
Authentication Password
Password for ATA to register to (SIP) servers of ITSP. Purposely left blank once saved
for security. Maximum length is 25.
Name
SIP service subscriber’s name which will be used for Caller ID display
DNS mode
One from the 3 modes available for “DNS Mode” configuration:
-A Record (for resolving IP Address of target according to domain name)
-SRV (DNS SRV resource records indicates how to find services for various protocols)
-NAPTR/SRV (Naming Authority Pointer according to RFC 2915)
-Use Configured IP (Use the three configured IP address instead of any DNS query)
One mode can be chosen for the client to look up server.
The default value is “A Record”
Primary IP
Configure the primary IP for DNS Mode: Use Configured IP
Backup IP1
Configure the first backup IP for DNS Mode: Use Configured IP
Backup IP2
Configure the second backup IP for DNS Mode: Use Configured IP
Tel URI
The default setting is “Disabled”. If the phone has an assigned PSTN Number, this field
should be set to “User=Phone” then a “User=Phone” parameter will be attached to the
“From header” in the SIP request to indicate the E.164 number. If server supports TEL
URI format, then this option needs to be selected.
SIP Registration
This parameter controls whether the HT503 needs to send REGISTER messages to
the proxy server. The default setting is “Yes”.
Unregister on Reboot
Default is No. If set to yes, the device will first send registration request to remove all
previous bindings. Use only if proxy supports this remove bindings request.
Outgoing Call w/o
Registration
This parameter allows users place outgoing calls even when not registered (if allowed
by ITSP) but it’s unable to receive incoming calls.
Register Expiration
This parameter allows the user to specify the time frequency (in minutes) the
HandyTone ATA refreshes its registration with the specified registrar. The default
interval is 60 minutes (or 1 hour). The maximum interval is 65535 minutes (about 45
days).
![](/img.php?id=2076073&img=bg27.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 39 of 59
Reregister before
Expiration
This parameter allows the user to specify the reregisteration time before expiration.
Local SIP port
This parameter defines the local SIP port the HT503 will listen and transmit. The default
value for FXS port is 5060.
Local RTP port
This parameter defines the local RTP port pair used by the HandyTone ATA. The
default value for FXS port is 5004.
Use Random Port
Default is No. If set to Yes, the device will pick randomly-generated SIP and RTP ports.
This is usually necessary when multiple HandyTone ATAs are behind the same NAT.
Refer to Use Target
Contact
Default is No. If set to “Yes”, then for Attended Transfer, the “Refer-To” header uses the
transferred target’s Contact header information.
Transfer on conference
hangup
Default is No. In which case if conference originator hangs up the conference will be
terminated. When option YES is chosen, originator will transfer other parties to each
other so that B and C can choose either to continue the conversation or hang up.
Disable Bellcore Style 3-
Way Conference
Default is No. you can make a Conference by pressing ‘Flash’ key. If set to Yes, you
need to dial *23 + second callee number.
Remove OBP from Route
Header
Default is No. If set to Yes, the Outbound Proxy will be removed from the route header.
Support SIP instance ID
Default is Yes. If set to Yes, the contact header in REGISTER request will contain SIP
Instance ID as defined in IETF SIP Outbound draft.
Validate incoming SIP
message
Default is No. If set to yes all incoming SIP messages will be strictly validated
according to RFC rules. If message will not pass validation process, call will be
rejected.
Check SIP User ID for
incoming INVITE
Default is No. Check the incoming SIP User ID in Request URI. If they don’t match, the
call will be rejected. If this option is enabled, the device will not be able to make direct
IP calls.
SIP T1 Timeout
T1 is an estimate of the round-trip time between the client and server transactions.
If the network latency is high, select larger value for more reliable usage.
SIP T2 Interval
Maximum retransmission interval for non-INVITE requests and INVITE responses.
DTMF Payload Type
This parameter sets the payload type for DTMF using RFC2833
Preferred DTMF method
(in listed order)
The HT503 supports up to 3 different DTMF methods including in-audio, via RTP
(RFC2833) and via Sip Info. The user can configure DTMF method in a priority list.
Disable DTMF
Negotiation
Default is No. If set to yes, use above DTMF order without negotiation
Send Flash Event
Default is No. If set to yes, flash will be sent as DTMF event.
Enable Call Features
Default is Yes. (If Yes, call features using star codes will be supported locally)
Offhook Auto-Dial
This parameter allows users to configure a User ID or extension number to be
automatically dialed when offhook. Please note that only the user part of a SIP address
needs to be entered here. The HT503 will automatically append the “@” and the host
portion of the corresponding SIP address.
![](/img.php?id=2076073&img=bg28.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 40 of 59
Note: User will need this IP address when accessing the IVR via the web configuration
page.
Offhook Auto-Dial Delay
Configure the delay time for offhook auto-dial function. Range is 0-60 seconds,
default is 0.
Proxy-Require
SIP Extension to notify SIP server that the unit is behind the NAT/Firewall.
Use NAT IP
NAT IP address used in SIP/SDP message. Default is blank
Use SIP User-Agent
Header
Used to replace SIP User-Agent Header (No Default)
Distinctive Ring Tone
Custom Ring Tone 1 to 3 with associate Caller ID: when selected, if Caller ID is
configured, then the device will ONLY uses this ring tone when the incoming call is from
the Caller ID. System Ring Tone is used for all other calls. When selected but no
Caller ID is configured, the selected ring tone will be used for all incoming calls.
Distinctive ring tones can be configured not only for matching whole number, but also
for matching prefixes. In this case symbol * (star) will be used.
If server supports Alert-Info header and standard ring tone set (Bellcore) or distinctive
ring tone 1-10 is specified, then the ring tone in the Alert-Info header from server will be
used.
For example:
If configured as *617, Ring Tone 1 will be used in case of call arrived from
Massachusetts. Any other incoming call will ring using cadence defined in parameter
System Ring Cadence located under Advanced Settings Configuration page.
Disable Call Waiting
Default is No.
Disable Call Waiting
Caller ID
Default is No. This is to disable the caller ID when a call waiting information arrives.
Disable Call Waiting
Tone
Default is No. This is to disable the stutter Call Waiting Tone when a Call Waiting
information arrives. The CWCID information will still be displayed.
Disable Reminder Ring
for On-Hold Call
Default is No. The reminder ring for the on-hold call will not be played when this is set
to Yes.
Disable Visual MWI
If set to “YES”, the MWI information will not be transferred to the analog phone
connected to the FXS port.
Ring Timeout
Sets the time in which an incoming call will stop ringing when not picked up.
Default value is 20 seconds. In case this feature activated using * codes (*92 code),
the call will be forwarded after this preconfigured amount of time.
No Key Entry Timeout
Default is 4 seconds.
Early Dial
Default is No. Use only if proxy supports 484 response. This parameter controls
whether the phone will send an early INVITE each time a key is pressed when a user
![](/img.php?id=2076073&img=bg29.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 41 of 59
dials a number. If set to “Yes”, an INVITE is sent using the dial-number collected thus
far. Otherwise, no INVITE is sent until the “(Re-)Dial” button is pressed or after about 5
seconds have elapsed. The “Yes” option should be used ONLY if there is a SIP proxy
configured and the proxy server supports 484 Incomplete Address response.
Otherwise, the call will likely be rejected by the proxy (with a 404 Not Found error).
Note: This feature is NOT designed to work with and should NOT be enabled for direct
IP-to-IP calling.
Dial Plan Prefix
Sets the prefix added to each dialed number.
Use # as Dial key
This allows users to configure the # key as the “Send” (or “Dial”) key. If set to “Yes”, “#”
will send the number. In this case, this key is essentially equivalent to the “Dial” key. If
set to “No”, the “#” key can be included as part of a number.
Dial Plan
Dial Plan Rules:
1. Accept Digits: 1,2,3,4,5,6,7,8,9,0 , *, #, A,a,B,b,C,c,D,d
2. Grammar: x - any digit from 0-9;
xx+ - at least 2 digits number;
xx. – at least 1 digit number.
^ - exclude;
[3-5] - any digit of 3, 4, or 5;
[147] - any digit 1, 4, or 7;
<2=011> - replace digit 2 with 011 when dialing
< =1> - add a leading 1 to all numbers dialed, vice versa will remove
a 1 from the number dialed
| - or
• Example 1: {[369]11 | 1617xxxxxxx}
Allow 311, 611, 911, and any 10 digit numbers of leading digits 1617
• Example 2: {^1900x+ | <=1617>xxxxxxx}
Block any number of leading digits 1900 and add prefix 1617 for any dialed 7 digit
numbers
• Example 3: {1xxx[2-9]xxxxxx | <2=011>x+}
Allow any length of number with leading digit 2 and 10 digit-numbers of leading
digit 1 and leading exchange number between 2 and 9; If leading digit is 2,
replace leading digit 2 with 011 before dialing.
3. Default: Outgoing - {x+}
Example of a simple dial plan used in a Home/Office in the US:
{ ^1900x. | <=1617>[2-9]xxxxxx | 1[2-9]xx[2-9]xxxxxx | 011[2-9]x. | [3469]11 }
![](/img.php?id=2076073&img=bg2a.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 42 of 59
Explanation of example rule (reading from left to right):
• ^1900x. - prevents dialing any number started with 1900
• <=1617>[2-9]xxxxxx - allows dialing to local area code (617) numbers by dialing
7 numbers and 1617 area code will be added automatically
• 1[2-9]xx[2-9]xxxxxx |- allows dialing to any US/Canada Number with 11 digits
length
• 011[2-9]x. - allows international calls starting with 011
• [3469]11 - allow dialing special and emergency numbers 311, 411, 611 and 911
Note: In some cases user wishes to dial strings such as *123 to activate voice mail or
other application provided by service provider. In this case * should be predefined
inside dial plan feature and the Dial Plan will be: { [x*]+ }.
Subscribe for MWI
Default is No. When set to “Yes” a SUBSCRIBE for Message Waiting Indication will be
sent periodically.
Send Anonymous
When set to “Yes”, the “From” header along with Privacy and P_Asserted_Identity
headers in outgoing INVITE messages will be set to anonymous, blocking Caller ID.
Anonymous Call
Rejection
Default is No. If set to “Yes”, incoming calls with anonymous Caller ID will be rejected
with a 486 busy message.
Special Feature
Default is Standard. Choose the selection to meet some special requirements from
Softswitch vendors.
Session Expiration
Grandstream implemented SIP Session Timer. The session timer extension enables
SIP sessions to be periodically “refreshed” via a SIP request (UPDATE, or re-INVITE.
Once the session interval expires, if there is no refresh via a UPDATE or re-INVITE
message, the session will be terminated. Session Expiration is the time (in seconds) at
which the session is considered timed out, if no successful session refresh transaction
occurs beforehand. The default value is 180 seconds.
Min-SE
The minimum session expiration (in seconds). The default value is 90 seconds.
Caller Request Timer
If selecting “Yes” the phone will use session timer when it makes outbound calls if
remote party supports session timer.
Callee Request Timer
If selecting “Yes” the phone will use session timer when it receives inbound calls with
session timer request.
Force Timer
If selecting “Yes” the phone will use session timer even if the remote party does not
support this feature. Selecting “No” will allow the phone to enable session timer only
when the remote party support this feature.
To turn off Session Timer, select “No” for Caller Request Timer, Callee Request Timer,
and Force Timer.
![](/img.php?id=2076073&img=bg2b.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 43 of 59
UAC Specify Refresher
As a Caller, select UAC to use the phone as the refresher, or UAS to use the Callee or
proxy server as the refresher.
UAS Specify Refresher
As a Callee, select UAC to use caller or proxy server as the refresher, or UAS to use
the phone as the refresher.
Send Re-INVITE After
Fax
Default is No, If set to “Yes”, device will send an INVITE with audio vocoders upon
completition of Fax to continue session in audio only.
Enable Silence
Detection for Fax
Disconnect
For fax machines that do not send a Disconnect when fax is done. This option
Enables/Disables the detection of silence in order to know the fax has finished. The
silence period is non-configurable and fixed to 7 seconds.
Enable 100rel
The use of the PRACK (Provisional Acknowledgement) method enables reliability to be
offered to SIP provisional responses (1xx series). This is very important if PSTN inter-
networking is to be supported. A user’s request to use reliable provisional responses is
invoked by the 100rel tag which is appended to the value of the required header of
initial signaling messages.
Use First Matching
Vocoder in 200OK SDP
Default is No. If set to “Yes”, device will include only the first match vocoder in its
200OK response, otherwise it will include all match vocoders in same order received in
INVITE.
Force INVITE
Session Timer can be refreshed using INVITE method or UPDATE method. Select
“Yes” to use INVITE method to refresh the session timer.
Preferred Vocoder
The HT503 supports up to 5 different Vocoder types including G.711 A-/U-law, G.726
(Supports bit rates 16, 24, 32 and 40), G.723.1, G.729A/B/E and iLBC. The user can
configure Vocoders in a preference list that will be included with the same preference
order in SDP message. The first Vocoder is entered by choosing the appropriate option
in “Choice 1”. The last Vocoder is entered by choosing the appropriate option in
“Choice 8”.
Voice Frames per TX
This field contains the number of voice frames to be transmitted in a single packet.
When setting this value, the user should be aware of the requested packet time (used
in SDP message) as a result of configuring this parameter. This parameter is
associated with the first vocoder in the above vocoder Preference List or the actual
used payload type negotiated between the 2 conversation parties at run time.
Default is 2, from 1 to 4 for G711/G726/G729 only
For example: if this field is set to be 2 and if the first vocoder chosen is G729 or G711
or G726, then the “ptime” value in the SDP message of an INVITE request will be 20ms
(2 x10ms)
If the configured voice frames per TX exceeds the maximum allowed value, the ATA will
not accept it and will use and save the precedent configured allowed value for the
corresponding first vocoder choice.
![](/img.php?id=2076073&img=bg2c.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 44 of 59
G723 Rate
This defines the encoding rate for G723 vocoder. Default setting is 6.3kbps.
iLBC Frame Size
This sets the iLBC size in 20ms or 30ms
iLBC Payload Type
This defines payload type for iLBC. Default value is 97. The valid range is between 96
and 127.
AAL2-G726-16 Payload
Type
Defines payload type for AAL2-G726-16. Default value is 100. Range is from 96 to
127.
AAL2-G726-24 Payload
Type
Defines payload type for AAL2-G726-24. Default value is 99. Range is from 96 to 127.
AAL2-G726-32 Payload
Type
Defines payload type for AAL2-G726-24. Default value is 104. Range is from 96 to
127.
AAL2-G726-40 Payload
Type
Defines payload type for AAL2-G726-40. Default value is 103. Range is from 96 to
127.
G729E Payload Type
Defines payload type for G729E. Default value is 102. Range is from 96 to 127
VAD
Default is No. VAD allows detecting the absence of audio and conserves bandwidth by
preventing the transmission of “silent packets” over the network.
Symmetric RTP
Default is No. When set to “Yes” the device will change the destination to send RTP
packets to the source IP address and port of the inbound RTP packet last received by
the device.
Fax Mode
T.38 (Auto Detect) FoIP by default, or fax Pass-Through (must use PCMU/PCMA)
Fax Tone Detection Mode
Default is Callee. This decides whether Caller or Callee sends out the re-invite for T.38
or Fax Pass-Through.
Jitter Buffer Type
Select either Fixed or Adaptive based on network conditions.
Jitter Buffer Length
Select Low, Medium, or High based on network conditions.
High (initial 200ms, min 40ms, max 600ms) Note: not all vocoders can meet
the high requirement
Medium (initial 100ms, min 20ms, max 200ms)
Low (initial 50ms, min 10ms, max 100ms)
SRTP Mode
Secure RTP protocol used for media transmission over VoIP. Disabled by default.
Other modes are: enabled but not forced & enabled and forced.
SLIC Setting
Dependent on standard phone type (and location).
Called ID Scheme
Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, & NTT Japan
Caller ID TX Level (dB)
A value of level for Caller ID information sent by a FXS port to phone connected to it.
(-40 – 0dB. Default -20dB)
Polarity Reversal
If set to “Yes”, polarity will be reversed upon call establishment and termination.
Default is No.
Loop Current Disconnect
Set it to “Yes” of the traditional PBX you are using with HT503 uses this method for
signaling call termination. Default is No.
Loop Current Disconnect
A configurable period of time in which the FXS port will drop off voltage on the line to
![](/img.php?id=2076073&img=bg2d.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 45 of 59
Duration
indicate to the local party that the call is disconnected from the remote side.
(100-10000 ms. Default 200 ms)
Enable Hook Flash
Default is Yes. If set to “No”, FLASH button could only be used for terminating calls.
Hook Flash Timing
The time period when the cradle is pressed (Hook Flash) to simulate a FLASH. Adjust
this time value to prevent unwanted activation of the Flash/Hold and automatic phone
ring-back.
On Hook Timing
On-hook timing is the minimum time for an on-hook event to be validated.
Gain
Voice path volume adjustment.
• Rx is a gain level for signals transmitted by FXS
• Tx is a gain level for signals received by FXS.
Default = 0dB for both parameters. Loudest volume: +6dB Lowest volume: -6dB.
User can adjust volume of call on either end using the Rx Gain Level parameter and
the Tx Gain Level parameter located on the FXS Port Configuration page.
If call volume is too low when using the FXS port (ie. the ATA is at user site), adjust
volume using the Rx Gain Level parameter under the FXS Port Configuration page.
If voice volume is too low at the other end, user may increase the far end volume using
the Tx Gain Level parameter under the FXS Port Configuration page.
Disable Line Echo
Canceller (LEC)
Default is No. If set to “Yes” LEC will be disabled per call base. Recommended for
FAX/Data calls.
Ring Tones
This function lets you configure ring or tone frequencies according to preference. By
default tones are set to North American frequencies. Frequencies should be configured
with known values to avoid high pitch sounds.
TABLE 11: FXO PORT SETTINGS
Account Active
When set to “Yes” the FXO port is activated.
SIP Server
SIP Server’s IP address or Domain name provided by VoIP Service Provider.
Failover SIP Server
This Field contains the URL or the IP address of a second SIP server, this one will be
used in case the device loses the connection with the first server.
Prefer Primary SIP
Server
Default is no. If set to yes it will register to Primary Server if registration with Failover
server expires
Outbound Proxy
IP address or Domain name of Outbound Proxy, or Media Gateway, or Session Border
Controller. Used by HT503 for firewall or NAT penetration in different network
environments. If symmetric NAT is detected, STUN will not work and ONLY way to
correct the problem is to use the outbound proxy.
SIP Transport
User can select UDP, TCP or TLS
![](/img.php?id=2076073&img=bg2e.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 46 of 59
NAT Traversal (STUN)
This parameter defines whether or not the HT503 NAT traversal mechanism is
activated. If set to “Yes” with a STUN server also specified, the HT503 will perform
according to the STUN client specification. Using this mode, the embedded STUN
client will detect if and what type of firewall/NAT is being used.
If the detected NAT is a Full Cone, Restricted Cone, or a Port-Restricted Cone, the
HT503 will use its mapped public IP address and port in all of its SIP and SDP
messages. If the NAT Traversal field is set to “Yes” with no specified STUN server, the
HT503 will periodically (every 20 seconds or so) send a blank UDP packet (with no
payload data) to the SIP server to keep the “hole” on the NAT open.
SIP User ID
User account information, provided by VoIP service provider (ITSP). Usually in the form
of digit similar to phone number or actually a phone number.
Authenticate ID
The SIP service subscriber’s ID used for authentication. Can be identical to or different
from SIP User ID.
Authenticate Password
SIP service subscriber’s account password.
Name
SIP service subscriber’s name for Caller ID display.
DNS mode
One from the 3 modes available for “DNS Mode” configuration:
-A Record (for resolving IP Address of target according to domain name)
-SRV (DNS SRV resource records indicates how to find services for various protocols)
-NAPTR/SRV (Naming Authority Pointer according to RFC 2915)
One mode can be chosen for the client to look up server.
The default value is “A Record”.
Tel URI
The default setting is “Disabled”. If the phone has an assigned PSTN Number, this field
should be set to “User=Phone” then a “User=Phone” parameter will be attached to the
“From header” in the SIP request to indicate the E.164 number. If server supports TEL
URI format, then this option needs to be selected.
SIP Registration
Controls whether the HT503 needs to send REGISTER messages to the proxy server.
The default setting is Yes.
Unregister on Reboot
Default is No. If set to Yes, the SIP user’s registration information will be cleared on
reboot.
Outgoing Call Without
Registration
Default is No. If set to “Yes,” user can place outgoing calls even when not registered (if
allowed by ITSP) but is unable to receive incoming calls.
Register Expiration
This parameter allows the user to specify the time frequency (in minutes) the HT503
refreshes its registration with the specified registrar. The default interval is 60 minutes
(or 1 hour). The maximum interval is 65535 minutes (about 45 days).
SIP registration failure
retry wait time
This parameters allows the user to specify the time frame (in seconds) the HT503 will
wait before sending another SIP registration INVITE in case the first INVITE fails.
Local SIP Port
Defines the local SIP port the HT503 will listen and transmit. The default value for FXS
port is 5062.
![](/img.php?id=2076073&img=bg2f.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 47 of 59
Local RTP Port
This parameter defines the local RTP port pair used by the HandyTone ATA. The
default value for FXO port is 5012.
Use Random Port
This parameter forces the random generation of both the local SIP and RTP ports when
set to Yes. This is usually necessary when multiple HT503 units are behind the same
NAT.
Refer to Use Target
Contact
Default is No. If set to YES, then for Attended Transfer, the “Refer-To” header uses the
transferred target’s contact header information.
Remove OBP from Route
Header
Default is No. If set to Yes, the Outbound Proxy will be removed from the route header.
Support SIP instance ID
Default is Yes. If set to Yes, the contact header in REGISTER request will contain SIP
Instance ID as defined in IETF SIP Outbound draft.
Validate incoming
message
Default is No. If set to yes all incoming SIP messages will be strictly validated
according to RFC rules. If message will not pass validation process, call will be
rejected.
Check SIP User ID for
incoming INVITE
Default is No. Check the incoming SIP User ID in Request URI. If they don’t match, the
call will be rejected. If this option is enabled, the device will not be able to make direct
IP calls.
SIP T1 Timeout
T1 is an estimate of the round-trip time between the client and server transactions.
If the network latency is high, select larger value for reliable usage.
SIP T2 Interval
Maximum retransmission interval for non-INVITE requests and INVITE responses.
DTMF Payload Type
Sends DTMF using RFC2833
Preferred DTMF method
(in listed order)
The HT503 supports up to 3 different DTMF methods including in-audio, via RTP
(RFC2833) and via Sip Info. User can configure DTMF method in a priority list.
Disable DTMF
Negotiation
Default is No. If set to yes, use above DTMF order without negotiation
Proxy Require
SIP Extension to notify SIP server that the unit is behind a NAT/Firewall.
Use NAT IP
NAT IP address used in SIP/SDP message. Default is blank.
Use SIP User-Agent
Header
Used to replace SIP User-Agent Header (No Default)
Ring Timeout
Sets the time in which an incoming from PSTN call will stop ringing when not picked up.
Early Dial
Default is No. Use only if proxy supports 484 response. This parameter controls
whether the phone will send an early INVITE each time a key is pressed when a user
dials a number. If set to “Yes”, an INVITE is sent using the dial-number collected thus
far. Otherwise, no INVITE is sent until the “(Re-)Dial” button is pressed or after about 5
seconds have elapsed. The “Yes” option should be used ONLY if there is a SIP proxy
configured and the proxy server supports 484 Incomplete Address response.
Otherwise, the call will likely be rejected by the proxy (with a 404 Not Found error).
Note: This feature is NOT designed to work with and should NOT be enabled for direct
![](/img.php?id=2076073&img=bg30.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 48 of 59
IP-to-IP calling.
Dial Plan Prefix
Sets the prefix added to each dialed number.
Use # as Dial Key
This allows users to configure the # key as the “Send” (or “Dial”) key.
If set to “Yes”, “#” will send the number. In this case, this key is essentially equivalent
to the “Dial” key.
If set to “No”, the “#” key can be included as part of a number.
Dian Plan
Dial plans work only for incoming calls from PSTN network. In case unconditional call
forward to VoIP is configured, dial plan feature will not work. In case of normal dialing
to VoIP, after dialing PSTN number,
If using the ‘hop on/hop off’ feature, the dial plan rules affect only the last called number
(i.e. the number called after receiving dial tone from the ATA).
Dial Plan Rules:
4. Accept Digits: 1,2,3,4,5,6,7,8,9,0 , *, #, A,a,B,b,C,c,D,d
5. Grammar: x - any digit from 0-9;
a. xx+ - at least 2 digits number;
b. xx. – at least 2 digits number;
c. ^ - exclude;
d. [3-5] - any digit of 3, 4, or 5;
e. [147] - any digit 1, 4, or 7;
f. <2=011> - replace digit 2 with 011 when dialing
• Example 1: {[369]11 | 1617xxxxxxx} –
Allow 311, 611, 911, and any 10 digit numbers of leading digits 1617
• Example 2: {^1900x+ | <=1617>xxxxxxx} –
Block any number of leading digits 1900 and add prefix 1617 for any dialed 7
digit numbers
• Example 3: {1xxx[2-9]xxxxxx | <2=011>x+} –
Allow any length of number with leading digit 2 and 10 digit-numbers of
leading digit 1 and leading exchange number between 2 and 9; If leading digit
is 2, replace leading digit 2 with 011 before dialing.
6. Default: Outgoing - {x+}
Example of a simple dial plan used in a Home/Office in the US:
{ ^1900x. | <=1617>[2-9]xxxxxx | 1[2-9]xx[2-9]xxxxxx | 011[2-9]x. | [3469]11 }
Explanation of example rule (reading from left to right):
• ^1900x. - prevents dialing any number started with 1900
![](/img.php?id=2076073&img=bg31.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 49 of 59
• <=1617>[2-9]xxxxxx - allows dialing to local area code (617) numbers by dialing
7 numbers and 1617 area code will be added automatically
• 1[2-9]xx[2-9]xxxxxx |- allows dialing to any US/Canada Number with 11 digits
length
• 011[2-9]x. - allows international calls starting with 011
[3469]11 - allow dialing special and emergency numbers 311, 411, 611 and 911
Note: In some cases user wishes to dial strings such as *123 to activate voice mail or
other application provided by service provider. In this case * should be predefined
inside dial plan feature and the Dial Plan will be: { [x*]+ }.
Subscribe for MWI
Default is No. When set to “Yes” a SUBSCRIBE for Message Waiting Indication will be
sent periodically.
Anonymous Call
Rejection
Default is No. If set to “Yes”, incoming calls with anonymous Caller ID will be rejected
with a 486 busy message.
Special Feature
Default is Standard. Choose the selection to meet some special requirements from
Softswitch vendors.
Session Expiration
Grandstream implemented SIP Session Timer. The session timer extension enables
SIP sessions to be periodically “refreshed” via a SIP request (UPDATE, or re-INVITE.
Once the session interval expires, if there is no refresh via a UPDATE or re-INVITE
message, the session will be terminated.
Session Expiration is the time (in seconds) at which the session is considered timed
out, if no successful session refresh transaction occurs beforehand. The default value
is 180 seconds.
Min-SE
The minimum session expiration (in seconds). The default value is 90 seconds.
Caller Request Timer
If selecting “Yes” the phone will use session timer when it makes outbound calls if
remote party supports session timer.
Callee Request Timer
If selecting “Yes” the phone will use session timer when it receives inbound calls with
session timer request.
Force Timer
If selecting “Yes” the phone will use session timer even if the remote party does not
support this feature. Selecting “No” will allow the phone to enable session timer only
when the remote party support this feature.
To turn off Session Timer, select “No” for Caller Request Timer, Callee Request Timer,
and Force Timer.
UAC Specify Refresher
As a Caller, select UAC to use the phone as the refresher, or UAS to use the Callee or
proxy server as the refresher.
UAS Specify Refresher
As a Callee, select UAC to use caller or proxy server as the refresher, or UAS to use
![](/img.php?id=2076073&img=bg32.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 50 of 59
the phone as the refresher.
Force INVITE
Session Timer can be refreshed using INVITE method or UPDATE method. Select
“Yes” to use INVITE method to refresh the session timer.
Invite Ring-No-Answer
Timeout
Default is 40 seconds, the range is between 5 and 300 seconds.
Enable 100rel
The use of the PRACK (Provisional Acknowledgement) method enables reliability to be
offered to SIP provisional responses (1xx series). This is very important if PSTN inter-
networking is to be supported. A user’s request to use reliable provisional responses is
invoked by the 100rel tag which is appended to the value of the required header of
initial signalling messages.
Preferred Vocoder
The HT503 supports up to 5 different Vocoder types including G.711 A-/U-law, G.726
(Supports bit rates 16, 24, 32 and 40), G.723.1, G.729A/B/E and iLBC. The user can
configure Vocoders in a preference list that will be included with the same preference
order in SDP message. The first Vocoder is entered by choosing the appropriate option
in “Choice 1”. The last Vocoder is entered by choosing the appropriate option in
“Choice 8”.
Voice frame per TX
This field contains the number of voice frames to be transmitted in a single packet.
When setting this value, the user should be aware of the requested packet time (used
in SDP message) as a result of configuring this parameter. This parameter is
associated with the first vocoder in the above vocoder Preference List or the actual
used payload type negotiated between the 2 conversation parties at run time.
Default is 2, from 1 to 4 for G711/G726/G729 only
For example, if this field is set to be 2 and if the first vocoder chosen is G729 or G711
or G726, then the “ptime” value in the SDP message of an INVITE request will be 20ms
(2 x10ms)
If the configured voice frames per TX exceeds the maximum allowed value, the ATA will
not accept it and will use and save the precedent configured allowed value for the
corresponding first vocoder choice.
G723 Rate:
This defines the encoding rate for G723 vocoder. Default setting is 6.3kbps.
iLBC Frame Size:
This sets the iLBC size in 20ms or 30ms
iLBC Payload Type:
This defines payload type for iLBC. Default value is 97. The valid range is between 96
and 127.
AAL2-G726-16 Payload
Type
Defines payload type for AAL2-G726-16. Default value is 100. Range is from 96 to
127.
AAL2-G726-24 Payload
Type
Defines payload type for AAL2-G726-24. Default value is 99. Range is from 96 to 127.
![](/img.php?id=2076073&img=bg33.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 51 of 59
AAL2-G726-32 Payload
Type
Defines payload type for AAL2-G726-24. Default value is 104. Range is from 96 to
127.
AAL2-G726-40 Payload
Type
Defines payload type for AAL2-G726-40. Default value is 103. Range is from 96 to
127.
VAD
Default is No. VAD allows detecting the absence of audio and conserves bandwidth by
preventing the transmission of “silent packets” over the network.
Symmetric RTP
Default is No. When set to “Yes” the device will change the destination to send RTP
packets to the source IP address and port of the inbound RTP packet last received by
the device.
Fax Mode
T.38 (Auto Detect) FoIP by default, or fax Pass-Through (must use PCMU/PCMA)
Fax Tone Detection Mode
Default is Callee. This decides whether Caller or Callee sends out the re-invite for T.38
or Fax Pass-Through.
Jitter Buffer Type
Select either Fixed or Adaptive based on network conditions.
Jitter Buffer Length
Select Low, Medium, or High based on network conditions.
SRTP Mode
Secure RTP protocol used for media transmission over VoIP. Disabled by default.
Other modes are: enabled but not forced & enabled and forced.
Caller ID Scheme
Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, & NTT Japan
FSK Caller ID minimum
RX Level (dB)
An adjustable value for the Caller ID signal to help this device to recognize Caller ID
from different networks. (-96 -0dB. Default -40dB)
FSK Caller ID Seizure
Bits
Default is: 70bits. Range is from 0 to 800bits.
FSK Caller ID mark bits
Default is: 40bits. Range is from 1 to 800bits.
Caller ID Transport Type
According to customer’s choice CID information will be transferred from PSTN network
to VoIP network using following rules:
1. via SIP from - PSTN CID is in the SIP From field
2. via P-Asserted-Identity - SIP From field uses the pre-configured account user
Id. PSTN CID is in the P-Asserted-Identity field
3. Send anonymous - SIP From field uses "anonymous". PSTN CID is put in the
P-Asserted-Identity field
4. Disable - PSTN CID will not be sent. SIP From field uses the pre-configured
account user ID
Hook Flash Timing
The time period when the cradle is pressed (Hook Flash) to simulate a FLASH. Adjust
this time value to prevent unwanted activation of the Flash/Hold and automatic phone
ring-back.
Gain
Voice path volume adjustment.
• RX is a gain level for signals transmitted by FXO (FXO-To-VoIP volume ) ,
• TX is a gain level for signals received by FXO( FXO-To-PSTN volume).
![](/img.php?id=2076073&img=bg34.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 52 of 59
Default = 0dB for both parameters. Loudest volume: +6dB; Lowest volume: -6dB.
User can adjust volume of call on either end using the Rx Gain Level parameter and
the Tx Gain Level parameter located on the FXO Port Configuration page. These
parameters affects call volume ONLY for calls placed to/from PSTN and VoIP networks.
If call volume is too low when using VoIP extension, adjust volume using the Rx Gain
Level parameter under the FXO Port Configuration page.
If voice volume is too low at the other end (PSTN side), user may increase the far end
volume using the Tx Gain Level parameter under the FXO Port Configuration page.
Enable Current
Disconnect
Default is Yes. This value should be used in case the PSTN provider uses line power
drop to indicate call completion to the end point. In this case the HT503 will search for
a power drop for a preconfigured time frame to disconnect such calls from a VoIP
extension.
Current Disconnect
Threshold (ms)
This is a preconfigured value of duration for a line power drop used by specific service
providers. For example, for a configured value of 500ms the device will ignore any
random voltage drops on the line if duration of such drop is less than 500ms and the
call will NOT be considered as terminated. This is useful to prevent unnecessary call
drops in some low quality PSTN lines.
Enable PSTN Disconnect
Tone Detection
If set to Yes, arrived Busy Tone is used as the disconnect signal.
PSTN Disconnect Tone
In certain countries, the central office will send a special busy tone to indicate when a
call is disconnected from the remote side. User can pre-configure this tone on the ATA.
The user should know the frequency values and cadences of these tones.
Here is an example for the syntax for a busy tone in the U.S.A:
(Syntax: f1=freq@vol, f2=freq@vol, c=on1/off1-on2/off2-on3/off3;)
(Note: freq: 0 - 4000Hz; vol: -30 - 0dBm)
(Default: Busy Tone - f1=480@-24,f2=620@-24,c=500/500;)
Note : Maximum supported cadences is 3
AC Termination Model
You can select the AC termination by Country or by Impedance.
Country-Based
15 Countries are selectable in this version of the F/W.
Impedance-Based
Select the Impedance used by the PSTN service provider.
Number of Rings
Default is 4. This setting specifies number of phone rings (on the phone connected to
the FXS port) before a PSTN incoming call is bridged to VoIP
Note: The number of rings feature serves as a PSTN answer delay, and should be set
to a larger value to allow enough time for the HT503 to decode the Caller ID signal set
by the central office.
PSTN Ring Thru FXS
If Yes, the phone connected to the FXS port will ring a configured amount of times (see
above). If not, the phone connected to the FXS port will not ring.
![](/img.php?id=2076073&img=bg35.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 53 of 59
PSTN Ring Thru Delay
(sec)
If the PSTN Ring Thru Delay is set to Yes, all incoming PSTN calls through FXO will
ring the phone connected to the FXS port, after this delay or after caller id is detected
(whichever comes first).
DTMF Digit Length (ms)
Digit length and Dial Pause are port digit dialing configurations; FXO needs to dial out
digits for VOIP to PSTN 1 stage calls, and unconditional call forward to PSTN, and
route to PSTN. Digit Length is the play time for each digit.
Note: In order to receive the caller ID information, the delay should be set to a value
larger than the delay required to complete the PSTN caller ID delivery.
DTMF Dial Pause (ms)
Dial pause is the time between 2 digits for the same scenario as explained above.
First Digit Timeout (sec)
Used for PSTN to VoIP calls. PSTN users need to enter the FIRST digit within the first
digit timeout period. Otherwise the call will be dropped.
Inter Digit Timeout
When dialing from the PSTN to VoIP, subsequent digits have to be input within the
period of inter-digit timeout. Otherwise the dial plan thinks it is the end of the digit input.
Wait for Dial Tone
Wait for Dial tone is used for one stage VoIP to PSTN calls. If set to Yes, the device will
first obtain a PSTN line and a dial tone from a central office. After obtaining the dial
tone, the digits dialed will be sent to the central office.
Stage Method (1/2)
This configuration is applicable for VoIP to PSTN calls and indicates one or two stage
dialing methods.
SAVING THE CONFIGURATION CHANGES
After user makes a change to the configuration, press the “Update” button in the Configuration Menu. The
web browser will then display a message window to confirm saved changes, press “Apply” button to
confirm.
Grandstream recommends reboot or power cycle the IP phone after saving changes
REBOOTING FROM REMOTE
Press the “Reboot” button at the bottom of the configuration menu to reboot the phone remotely. The web
browser will then display a message window to confirm that reboot is underway. Wait 30 seconds to log in
again.
![](/img.php?id=2076073&img=bg36.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 54 of 59
CONFIGURATION THROUGH A CENTRAL SERVER
Grandstream HT503 can be automatically configured from a central provisioning system.
When HT503 boots up, it will send TFTP or HTTP/HTTPS requests to download configuration files,
“cfg000b82xxxxxx” and “cfg00082xxxxxx.xml”, where “000b82xxxxxx” is the LAN MAC address of the
HT503. If the download of “cfgxxxxxxxxxxxx.xml” is not successful, the provision program will issue
request a generic configuration file “cfg.xml”. Configuration file name should be in lower case letters.
The configuration data can be downloaded via TFTP or HTTP/HTTPS from the central server. A service
provider or an enterprise with large deployment of HT503 can easily manage the configuration and
service provisioning of individual devices remotely from a central server.
Grandstream provides a central provisioning system GAPS (Grandstream Automated Provisioning
System) to support automated configuration of Grandstream devices. GAPS uses enhanced (NAT
friendly) TFTP or HTTP (thus no NAT issues) and other communication protocols to communicate with
each individual Grandstream device for firmware upgrade, remote reboot, etc.
Grandstream provides GAPS service to VoIP service providers. Use GAPS for either simple redirection
or with certain special provisioning settings. At boot-up, Grandstream devices by default point to
Grandstream provisioning server GAPS, based on the unique MAC address of each device, GAPS
provision the devices with redirection settings so that they will be redirected to customer’s TFTP or
HTTP/HTTPS server for further provisioning.
Grandstream also provides configuration tools (Windows and Linux/Unix version) to facilitate the task of
generating device configuration files. The Grandstream configuration tools are free to end users. The
configuration tools and configuration templates are available for download from
http://www.grandstream.com/support/tools .
![](/img.php?id=2076073&img=bg37.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 55 of 59
SOFTWARE UPGRADE
Software upgrade can be done via TFTP, HTTP or HTTPS. The corresponding configuration settings are
in the ADVANCED SETTINGS configuration page.
FIRMWARE UPGRADE THROUGH TFTP/HTTP/HTTPS
To upgrade via TFTP, HTTP or HTTPS, the “Firmware Upgrade and Provisioning upgrade via” field needs
to be set to TFTP, HTTP or HTTPS, respectively. “Firmware Server Path” needs to be set to a valid URL
of a TFTP or HTTP server; server name can be in either FQDN or IP address format. Here are examples
of some valid URL.
e.g. firmware.mycompany.com:6688/Grandstream/1.0.9.1
e.g. firmware.grandstream.com
NOTES:
Firmware upgrade server in IP address format can be configured via IVR. Please refer to the
CONFIGURATION GUIDE section for instructions. If the server is in FQDN format, it must be set
via the web configuration interface.
Grandstream recommends end-user use the Grandstream HTTP server. Its address can be found
at http://www.grandstream.com/support/firmware. Currently the HTTP firmware server address is
firmware.grandstream.com. For large companies, we recommend to maintain their own TFTP/
HTTP/HTTPS server for upgrade and provisioning procedures.
Once a “Firmware Server Path” is set, user needs to update the settings and reboot the device. If
the configured firmware server is found and a new code image is available, the HT503 will
attempt to retrieve the new image files by downloading them into the HT503 ’s SRAM. During this
stage, the HT503’s LEDs will blink until the checking/downloading process is completed. Upon
verification of checksum, the new code image will then be saved into the Flash. If
TFTP/HTTP/HTTPS fails for any reason (e.g. TFTP/HTTP/HTTPS server is not responding, there
are no code image files available for upgrade, or checksum test fails, etc), the HT503 will stop the
TFTP/HTTP/HTTPS process and simply boot using the existing code image in the flash.
Firmware upgrade may take as long as 15 to 30 minutes over Internet, or just 5 minutes if it is
performed on a LAN. It is recommended to conduct firmware upgrade in a controlled LAN
![](/img.php?id=2076073&img=bg38.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 56 of 59
environment if possible. For users who do not have a local firmware upgrade server,
Grandstream provides a NAT-friendly HTTP server on the public Internet for firmware upgrade.
Grandstream’s latest firmware is available http://www.grandstream.com/support/firmware.
Oversea users are strongly recommended to download the binary files and upgrade firmware
locally in a controlled LAN environment.
Alternatively, user can download a free TFTP or HTTP server and conduct local firmware upgrade.
A free windows version TFTP server is available for download from
http://support.solarwinds.net/updates/New-customerFree.cfm. Our latest official release can be
downloaded from http://www.grandstream.com/y-firmware.htm.
INSTRUCTIONS FOR LOCAL FIRMWARE UPGRADE:
1. Unzip the file and put all of them under the root directory of the TFTP server.
2. Put the PC running the TFTP server and the HT503 device in the same LAN segment.
3. Please go to File -> Configure -> Security to change the TFTP server's default setting from
"Receive Only" to "Transmit Only" for the firmware upgrade.
4. Start the TFTP server, in the phone’s web configuration page
5. Configure the Firmware Server Path with the IP address of the PC
6. Update the change and reboot the unit
End users can also choose to download the free HTTP server from http://httpd.apache.org/ or use
Microsoft IIS web server.
CONFIGURATION FILE DOWNLOAD
Grandstream SIP Device can be configured via Web Interface as well as via Configuration File through
TFTP or HTTP/HTTPS. “Config Server Path” is the TFTP or HTTP/HTTPS server path for configuration
file. It needs to be set to a valid URL, either in FQDN or IP address format. The “Config Server Path” can
be same or different from the “Firmware Server Path”.
A configuration parameter is associated with each particular field in the web configuration page. A
parameter consists of a Capital letter P and 2 to 3 (Could be extended to 4 in the future) digit numeric
numbers. i.e., P2 is associated with “Admin Password” in the ADVANCED SETTINGS page. For a
detailed parameter list, please refer to the corresponding firmware release configuration template.
![](/img.php?id=2076073&img=bg39.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 57 of 59
When a Grandstream device boots up or reboots, it will issue a request for a configuration file
“cfgxxxxxxxxxxxx”, where “xxxxxxxxxxxx” is the MAC address of the device, i.e., “cfg000b820102ab”. In
addition, device will also requests a XML configuration file “cfgxxxxxxxxxxxx.xml”. If the download of
“cfgxxxxxxxxxxxx.xml” is not successful, the provision program will issue a request for a generic
configuration file “cfg.xml”. Configuration file name should be in lower case letters.
For more details on Grandstream Device provisioning, please refer to:
http://www.grandstream.com/general/gs_provisioning_guide_public.pdf
FIRMWARE AND CONFIGURATION FILE PREFIX AND POSTFIX
Firmware Prefix and Postfix allows device to download the firmware name with the matching Prefix and
Postfix. This makes it possible to store ALL of the firmwares with different version in one single directory.
Similarly, Config File Prefix and Postfix allows device to download the configuration file with the matching
Prefix and Postfix. Thus multiple configuration files for the same device can be stored in one directory.
In addition, when the field “Check New Firmware only when F/W pre/suffix changes” is selected, the
device will only issue firmware upgrade request if there are changes in the firmware Prefix or Postfix.
MANAGING FIRMWARE AND CONFIGURATION FILE DOWNLOAD
When “Automatic Upgrade” is set “Yes, every” the auto check will be done in the minute specified in this
field. If set to “daily at hour (0-23)”, Service Provider can use P193 (Auto Check Interval) to have the
devices do a daily check at the hour set in this field with either Firmware Server or Config Server. If set to
“weekly on day (0-6)” the auto check will be done in the day specified in this field. This allows the device
periodically check if there are any new changes need to be taken on a scheduled time. By defining
different intervals in P193 for different devices, Server Provider can spread the Firmware or Configuration
File download in minutes to reduce the Firmware or Provisioning Server load at any given time.
Automatic Upgrade:
No Yes, every
10080
minutes (60-5256000).
Yes, daily at hour
1
(0-23). Yes, weekly on day
1
(0-6).
![](/img.php?id=2076073&img=bg3a.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 58 of 59
RESTORE FACTORY DEFAULT SETTING
WARNING! Restoring the Factory Default Setting will DELETE all configuration information of the phone.
Please BACKUP or PRINT out all the settings before you approach to following steps. Grandstream will
not take any responsibility if you lose all the parameters of setting and cannot connect to your VoIP
service provider.
FACTORY RESET
There are two (2) methods for resetting your unit:
RESET BUTTON
Reset default factory settings following these four (4) steps:
1. Unplug the Ethernet cable.
2. Locate a needle-sized hole on the back panel of the gateway unit next to the power
connection.
3. Insert a pin in this hole, and press for about 7 seconds.
4. Take out the pin. All unit settings are restored to factory settings.
IVR COMMAND
Reset default factory settings using the IVR Prompt (Table 5):
1. Dial “***” for voice prompt.
2. Enter “99” and wait for “reset” voice prompt.
3. Enter the encoded MAC address (Look below on how to encode MAC address).
4. Wait 15 seconds and device will automatically reboot and restore factory settings.
Encode the MAC Address
![](/img.php?id=2076073&img=bg3b.png)
FIRMWARE VERSION 1.0.9.1 HT503 USER MANUAL Page 59 of 59
1. Locate the MAC address of the device. It is the 12 digit HEX number on the bottom of the
unit.
2. Key in the MAC address. Use the following mapping:
0-9: 0-9
A: 22 (press the “2” key twice, “A” will show on the LCD)
B: 222
C: 2222
D: 33 (press the “3” key twice, “D” will show on the LCD)
E: 333
F: 3333
For example: if the MAC address is 000b8200e395, it should be keyed in as “0002228200333395”.
NOTE:
1. Factory Reset will be disabled if the “Lock keypad update” is set to “Yes”.
2. Please be aware by default the HT503 WAN side HTTP access is disabled. After a factory reset, the
device’s web configuration page can be accessed only from its LAN port.
3. If the HT503 was previously locked by your local service provider, pressing the RESET button will
only restart the unit. The device will not return to factory default settings.
4. Please be aware if the RESET button was pressed and released in less than 7 seconds, the HT503
will only reboot, it won’t return to factory default settings.
![](/img.php?id=2076073&img=bg3c.png)
HT503 USER MANUAL
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
