user manual
![](/img.php?id=3281413&img=bg1.png)
User Manual
Language: English
Version: 1.2
![](/img.php?id=3281413&img=bg2.png)
2 I 19
Table of Contents
1 Indications for Use .......................................................................................................... 3
1.1 Symbols .................................................................................................................. 3
1.2 Safety ...................................................................................................................... 4
1.3 Warning ................................................................................................................... 4
1.4 Intended Use ........................................................................................................... 4
2 Delivery Contents ........................................................................................................... 5
3 Installation EASYSCAN Software ................................................................................... 6
3.1 Features .................................................................................................................. 6
3.2 System Requirements ............................................................................................. 6
3.3 Installation of EASYSCAN App ............................................................................... 6
4 EASYSCAN Link ............................................................................................................ 8
5 Correlation...................................................................................................................... 8
6 Listening ........................................................................................................................11
6.1 Using the Ground Mic function: ..............................................................................11
6.2 Using a Listening Stick ...........................................................................................12
6.3 Creating a Leak Event ............................................................................................13
7 Browse Data ..................................................................................................................13
8 Settings .........................................................................................................................13
8.1 Download Maps .....................................................................................................14
9 Help ..............................................................................................................................16
9.1 Send Problem Report .............................................................................................16
9.2 Sharing measurements ..........................................................................................16
9.3 About .....................................................................................................................16
9.4 Further Help ...........................................................................................................16
10 Detailed Instructions of Kit Setup ...............................................................................17
11 Technical Data ...........................................................................................................18
12 Disposal .....................................................................................................................18
13 Imprint .......................................................................................................................19
14 Conformity .................................................................................................................19
15 Important Information .................................................................................................19
![](/img.php?id=3281413&img=bg3.png)
3 I 19
1 Indications for Use
It is essential to read the operating instructions carefully and completely before using the first
time the equipment and software. They contain important information on safety, installation
and use. Keep these instructions in a safe place.
1.1 Symbols
Warning of dangerous situations that can cause injury and
damage to the devices.
Warning
The ZONESCAN Correlating Noise Logger contains a very
powerful magnet. The operation of cardiac pacemakers and
implanted defibrillators can be influenced. People with cardiac
pacemakers and implanted defibrillators are not permitted
anywhere near this product.
Important notes and tips are a sign Info provided. Follow
these guidelines.
Never put in your household waste bin.
![](/img.php?id=3281413&img=bg4.png)
4 I 19
1.2 Safety
The operating and maintenance personnel must read the instructions carefully
before using the equipment. Knowing all the information contained therein - in
particular the warning and safety instructions - is needed to safely operate the
equipment, and to protect yourself and others against possible dangers. Ignoring the
warning, safety and operating instructions can result in injury, damage, or a considerable
shortening of the equipment life time. Do not make any changes or alterations to our
products. Never open the device, otherwise any warranty and conformity expires. To protect
the battery, the Link must be recharged every 3 months. For questions concerning replacing
the battery, please contact your Gutermann distributor. When using the software or the
equipment, make sure you adhere to any applicable regulations, in particular traffic
regulations.
1.3 Warning
The ZONESCAN Correlating Noise Logger contains a very powerful magnet. The
operation of cardiac pacemakers and implanted defibrillators can be influenced.
People with cardiac pacemakers and implanted defibrillators are not permitted anywhere
near this product.
1.4 Intended Use
Gutermann products, hardware, software, and accessories are exclusively intended for
industrial use and exclusively intended for leak detection on water pipes of the public water
supply. In particular, these products are not intended to be used on waste water and gas
pipes. Gutermann is not liable for any damages caused by misuse, improper operation, and
as a result of non-compliance with safety instructions and warnings.
![](/img.php?id=3281413&img=bg5.png)
5 I 19

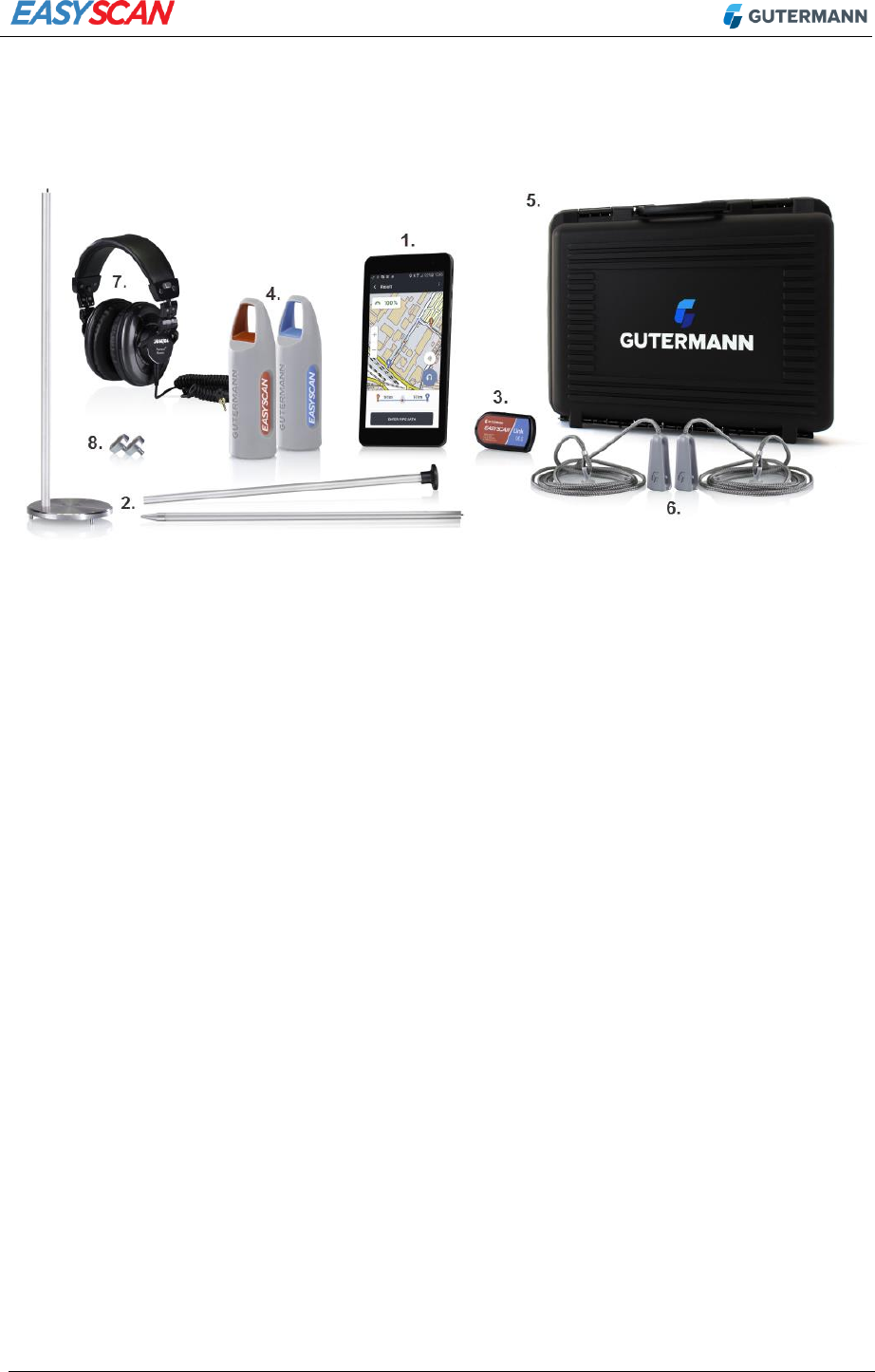

2 Delivery Contents
The EASYSCAN System contains the following components:
1. Smartphone or tablet computer with Android OS (optional)
2. Ground Plate and 3 Rods
a. Pointed rod
b. Extension rod
c. Handle rod
3. EASYSCAN Link including USB battery charge cable
4. EASYSCAN Red and Blue Correlating Sensors
5. Robust carrying case
6. Sensor Clips
7. Around-the-Ear Headphones (optional)
8. Magnets
![](/img.php?id=3281413&img=bg6.png)
6 I 19
3 Installation EASYSCAN Software
This guide helps with installing and running the EASYSCAN software for Android OS. For
help with getting started please refer to chapters 4, 10, or the enclosed Quick Start Guide.
3.1 Features
EASYSCAN currently has the following features:
Programming of EASYSCAN Correlating Sensors via Link
Show Sensors in map
Listening Feature
Free offline maps available for download
View saved correlations and listenings in Histroical data section
3.2 System Requirements
The program works on devices with the following requirements:
Minimum: Tablet computer (or smartphone) with
- Android OS 4.22 or higher
- GPS
Recommended:
- Screen size > 4’’
- Quad core processor
3.3 Installation of EASYSCAN App
When you are ready to install the app on your Android device before the first use of the
product, go to the Google Play Store, search for “EASYSCAN Water”, and download the
EASYSCAN App.

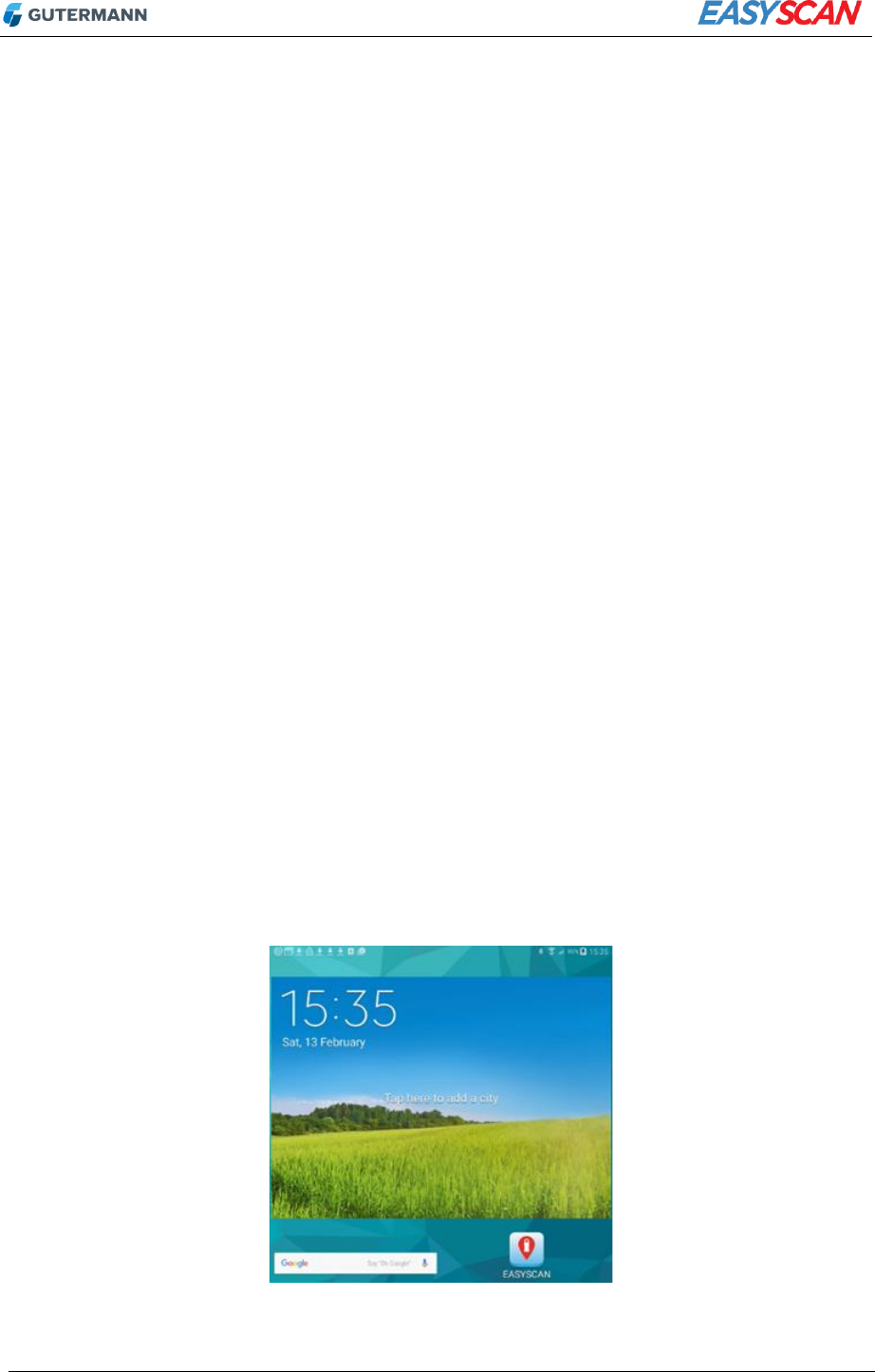

After the installation, you can start EASYSCAN with the icon on the home screen:
![](/img.php?id=3281413&img=bg7.png)
7 I 19
A one time setup of the link and sensors are required. On the intial screen enter your
Company Name and Link Serial Number which can be found in the red panel of the
link.

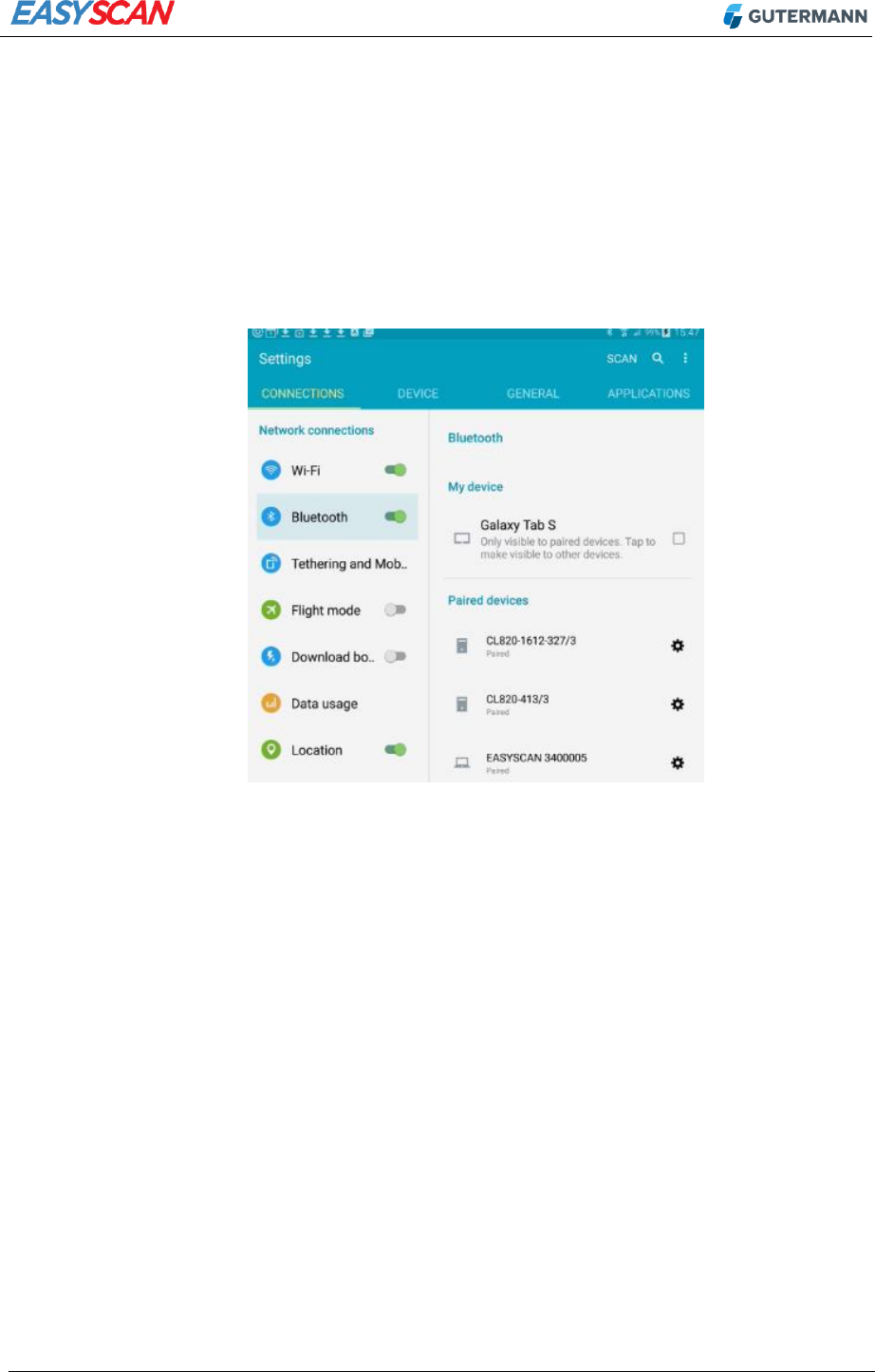

The next screen choose “Open Bluetooth Settings” , Switch on the Link and SCAN for
the EASYSCAN ******* Link and pair (no PIN required). Use the back arrow to return
to EASYSCAN then select “Pair Device”.
The final setup screen requires both Blue and Red sensor serial numbers entered
then tap “finish”
![](/img.php?id=3281413&img=bg8.png)
8 I 19

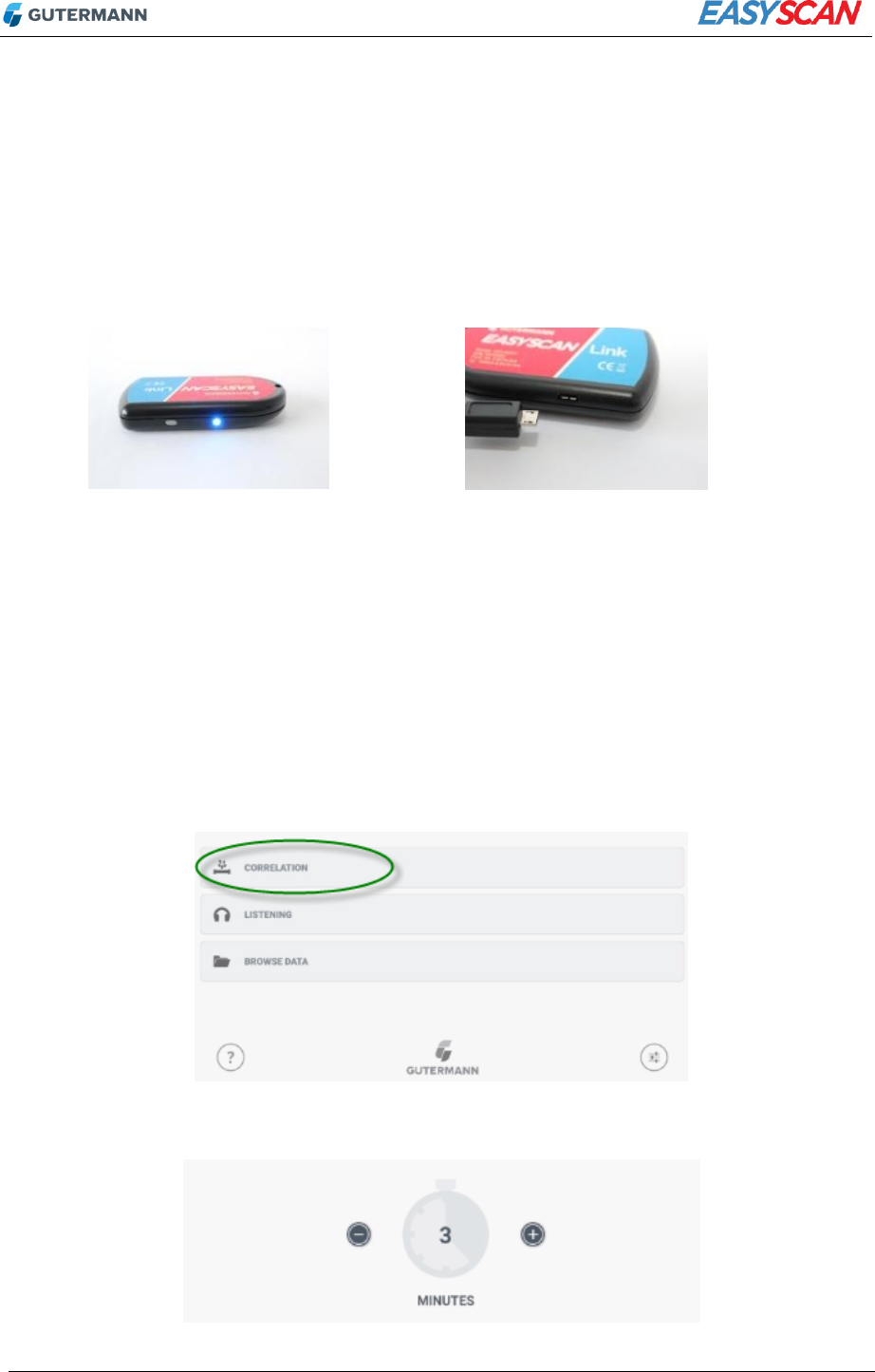

4 EASYSCAN Link
On/off: The link can be switched on and off by using the push-button on the side. The
LED will blink every 2 seconds when the link is on.
Charge: Connect the link with the USB cable to a USB 2.0 or higher port to charge.
The LED will blink fast to indicate the charging process.
Battery status: The status can be seen in the top icon bar on your android device.
The link needs to be connected to your device for this.
Easyscan link with push-button and LED
Easyscan link cable and socket
5 Correlation
Hardware: For a description of how to prepare your hardware for the correlation operation,
please refer to section 9 of this manual.
In your App:
Tap on the Correlation Symbol in the Main Screen
Use the +/- symbols to enter a time delay before correlation starts then tap OK. Note:
allow enough time to open the chamber covers and attach the sensors to both fittings.
![](/img.php?id=3281413&img=bg9.png)
9 I 19

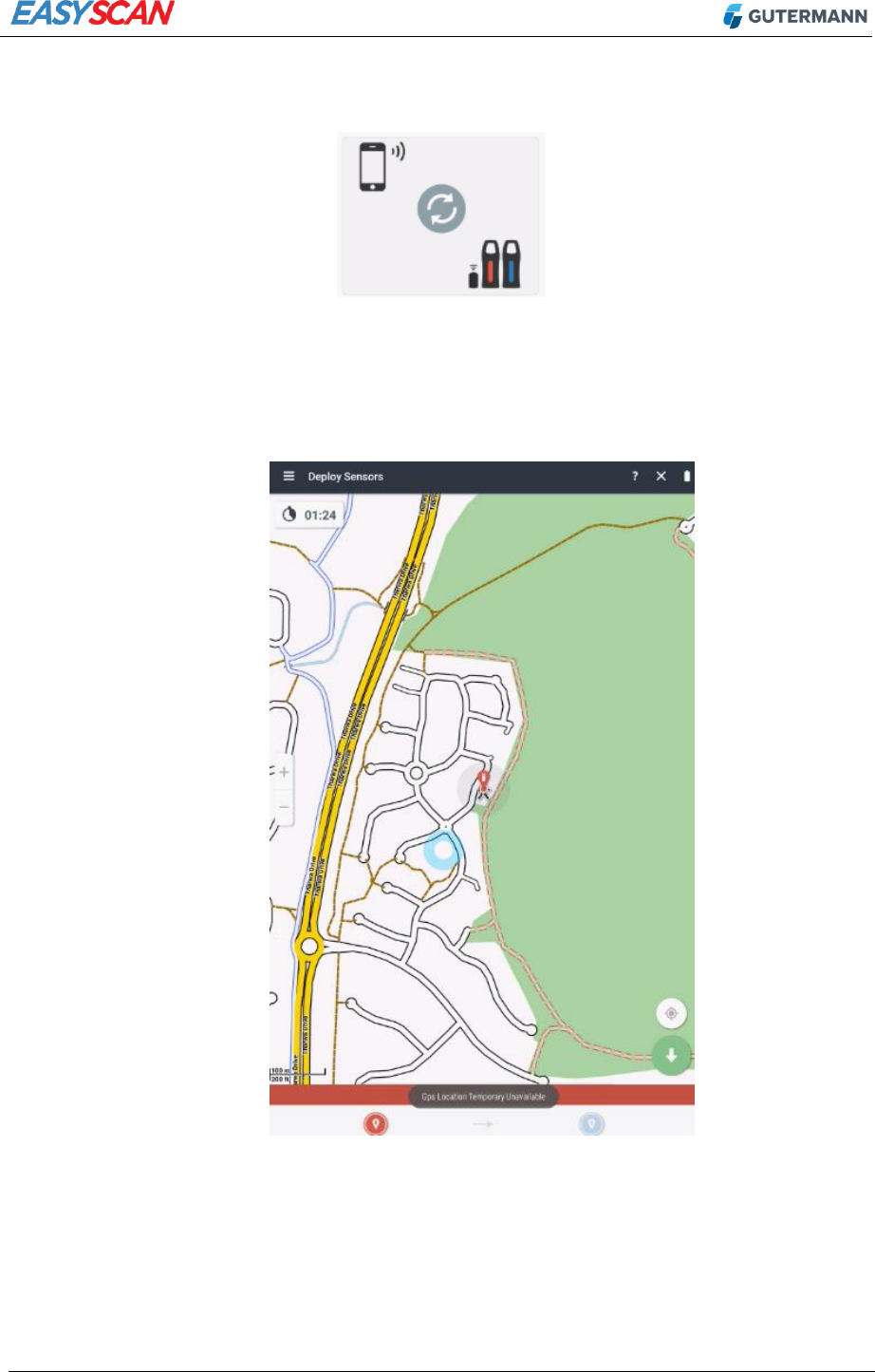

Switch the Link on and tap Synchronise
Deploy the Red Sensor first using the tablet to plot the sensor position. If the GPS
position is not accurate enough, you can move the map with your finger (zooming in
increases position accuracy). Then tap the green arrow to confirm. Repeat for the
Blue sensor and the correlation starts.
A timer counts down until the measurement is completed
The EASYSCAN App will instruct the user to collect the Sensors.
Once collected tap next to download the data.
Choose the pipe type straight or bent (mixed material) and enter the pipe type plus
diameter.

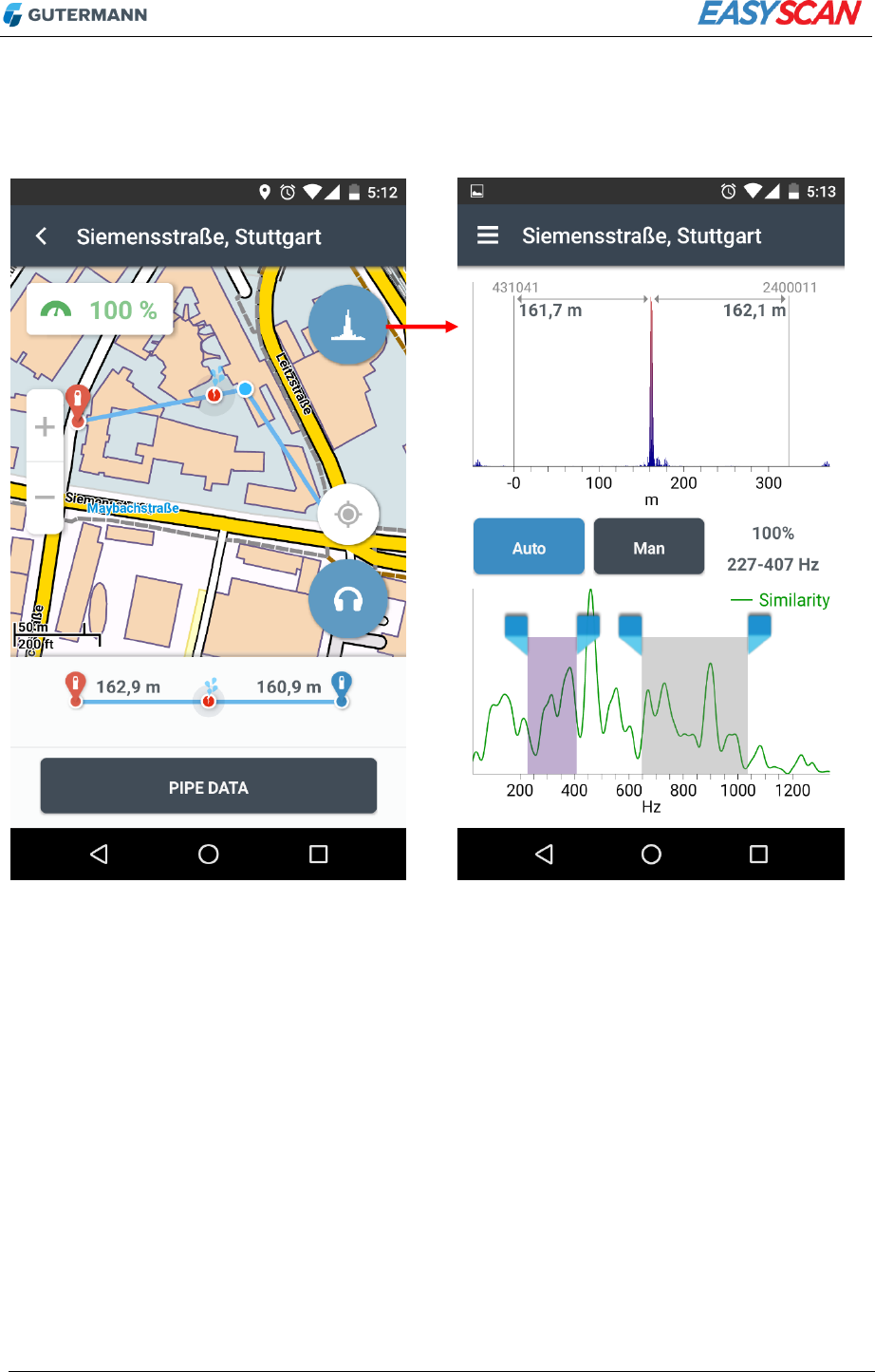

The result is displayed with a correlation quality % in the top lift of the screen and
the distance from Red and Blue sensors in the bottom of the screen as shown
![](/img.php?id=3281413&img=bga.png)
10 I 19
below. Tap the headphone symbol if you wish to pin point the leak, or the chart
symbol to filter the correlation manually.
The Correlation Filter screen on the right hand-side shows the correlation chart on the top
with the leak position as a peak over the length of the pipe. With the buttons in the middle
you can switch automatic or manual filtering on/off. The bottom chart shows the similarity of
the acoustic signal between the red and blue sensors over the frequency. A high value
indicates a good frequency range for filtering, which you can also select manually by moving
the handles.
![](/img.php?id=3281413&img=bgb.png)
11 I 19
6 Listening
Hardware: For a description of how to prepare your hardware for the listening operation,
please refer to section 9 of this manual.
In your App:

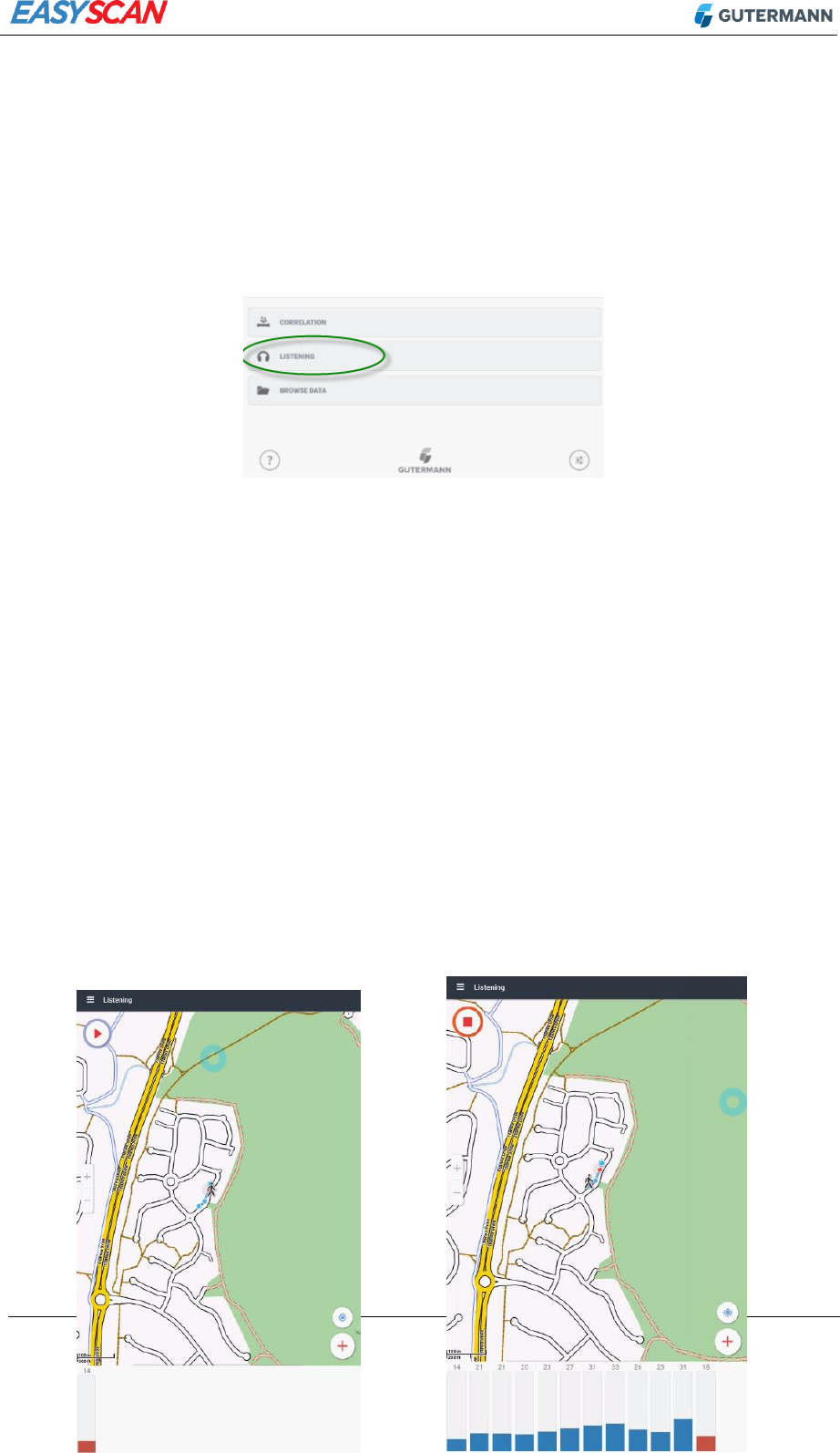

Tap “Listening”
The EASYSCAN system is a listening stick or a ground microphone. Simply tap on
“Listening” on the main screen then attach a sensor to the ground plate using the
magnet. Then choose the appropriate rod configuration to create the microphone
required.
6.1 Using the Ground Mic function:

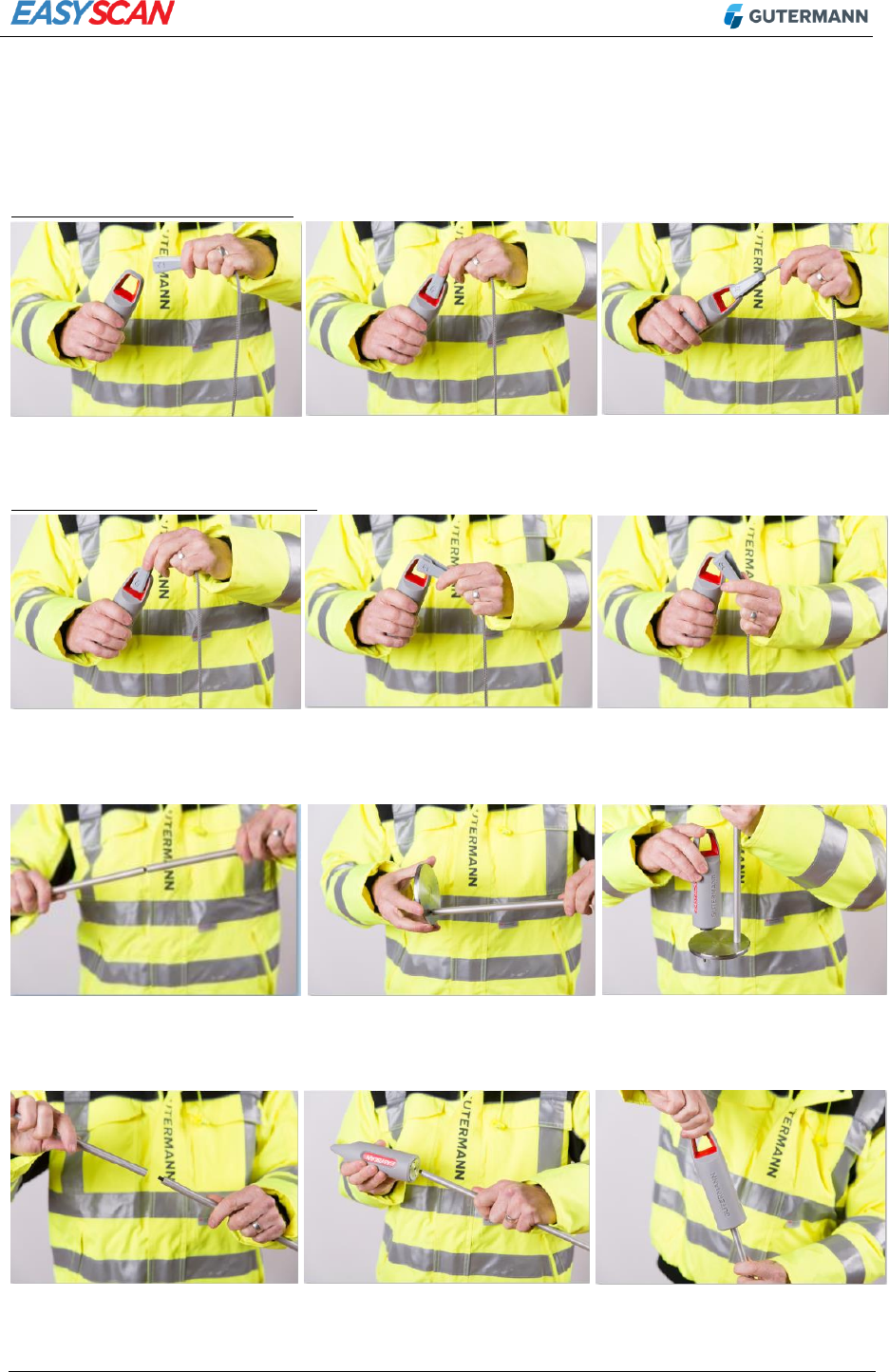

Use the rod with the handle plus extension rod and screw to the top of the ground
plate.
Either Red or Blue sensor can be selected in the lower part of the screen. By default,
the sensor which has more battery left is selected.
Attach the chosen Sensor to the Ground Plate with the magnet.
Tap the ground mic symbol
A map window opens, use the red record symbol in the top right corner to listen.
A 5 second sample of sound is recorded and looped over until stop is pressed. A
noise
level is
display
ed in
the
lower
part of
the
screen.
![](/img.php?id=3281413&img=bgc.png)
12 I 19
To pin point the leak using the noise level feature place mic on the ground surface
(above the pipe) and press play, listen for 5 seconds then press stop, move to the
next spot above the pipe and press play, listen for 5 seconds and press stop.
Repeat the process until the highest number has been found. The highest noise
level and the highest pitch is likely to be the leak.
6.2 Using a Listening Stick
![](/img.php?id=3281413&img=bgd.png)
13 I 19

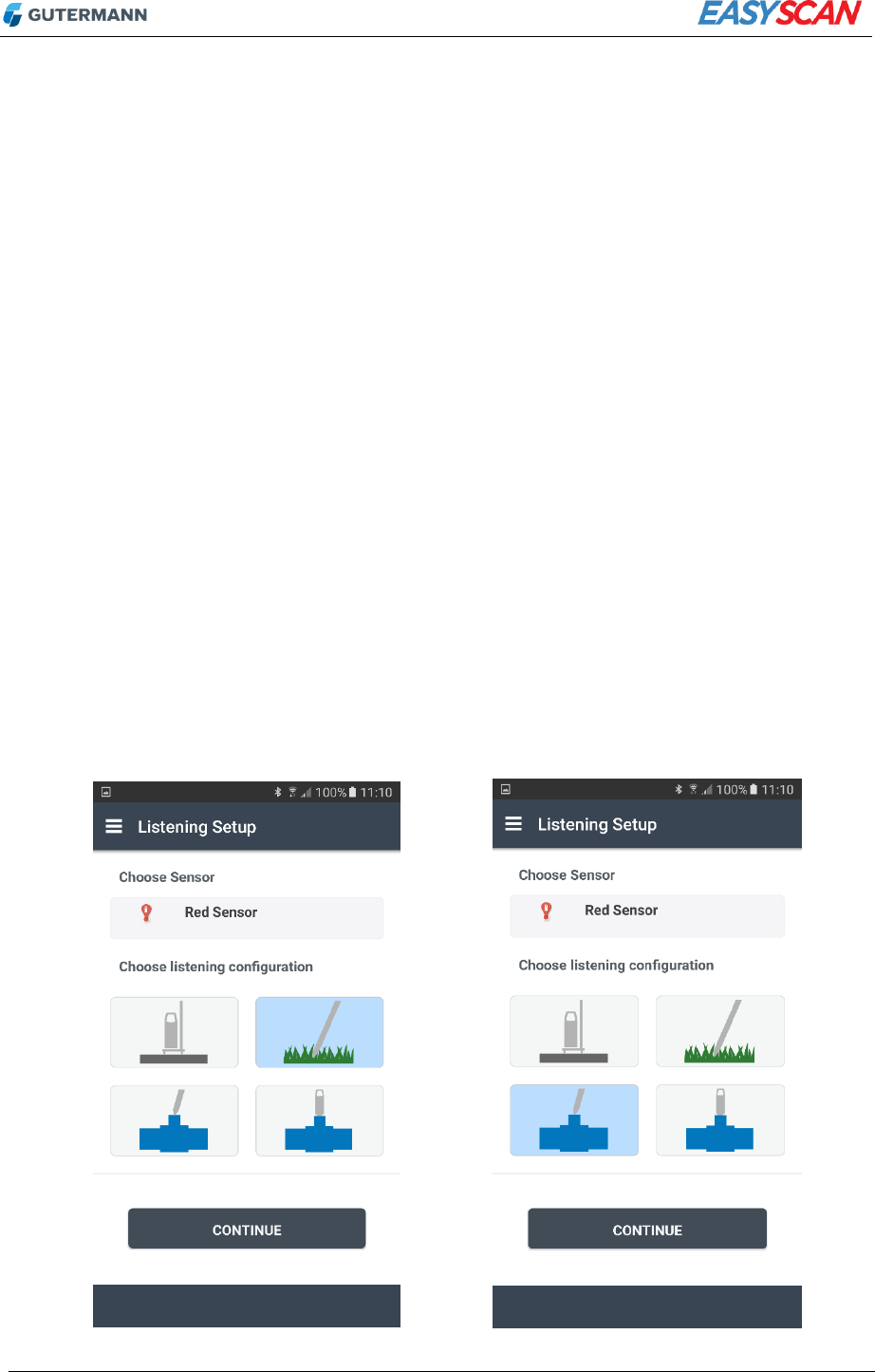

Configure the rods to create a listening stick then either tab the middle symbol when
listening through soft ground or the lower symbol if listening on fittings such as
valves, hydrants or meter services. Repeat the process as described above.
6.3 Creating a Leak Event
You can save a listening permanently (and later load in from “Browse Data”). For this,
you create a Leak Event tapping the “+” button at the bottom right corner of the
screen.
As an EAYSCAN PREMIUM member you can later upload those Leak Events to your
myEASYSCAN.net cloud account.
It is important to know that a correlation can only be saved as leak event if it was
subsequently re-confirmed as leak using the listening function.
7 Browse Data

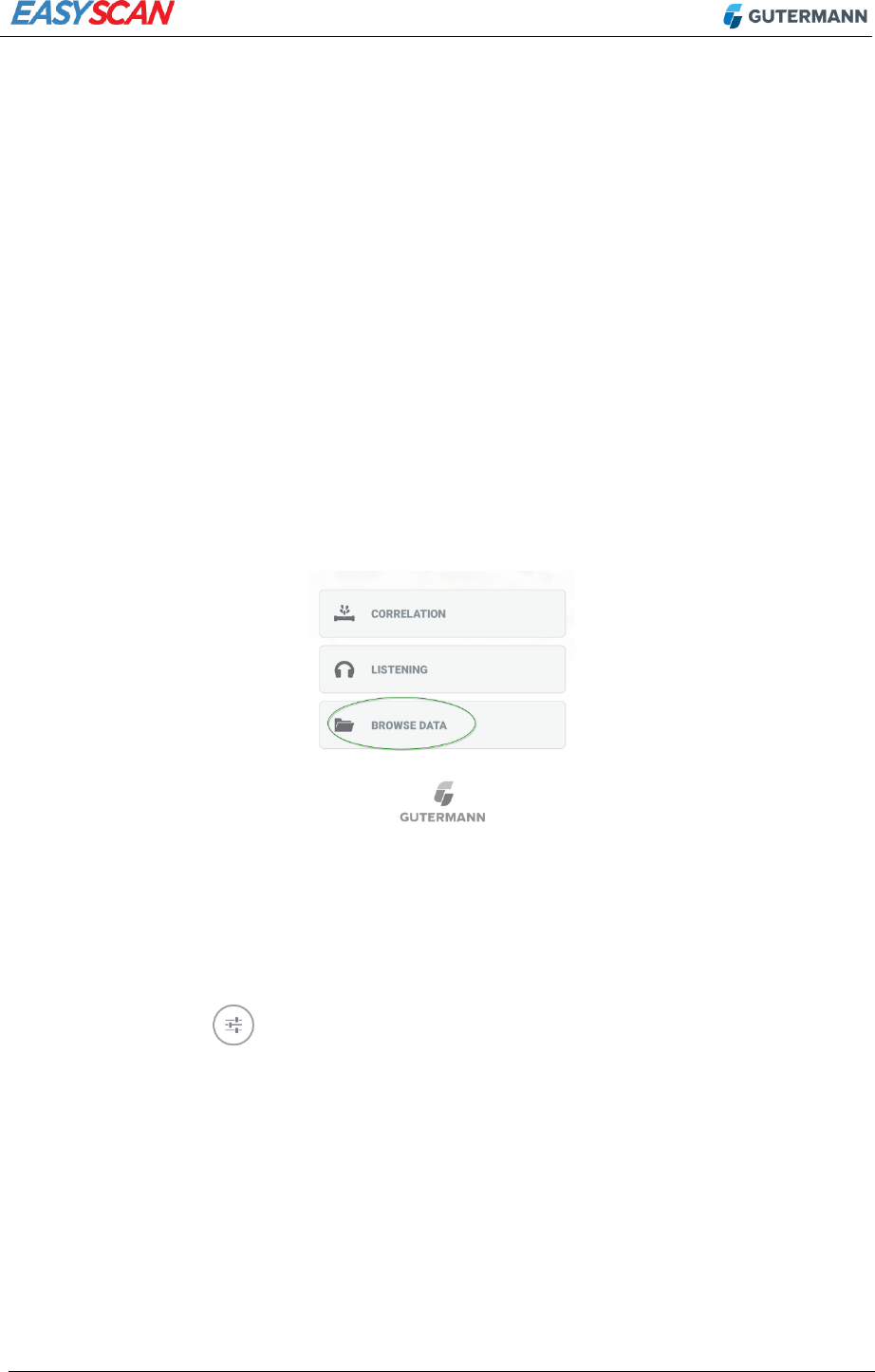

All saved correlations are stored in the Browse Data section. Tap this option, then on
the next screen choose the correlation you wish to review. The saved correlations are
normally stored under street name and suburb.

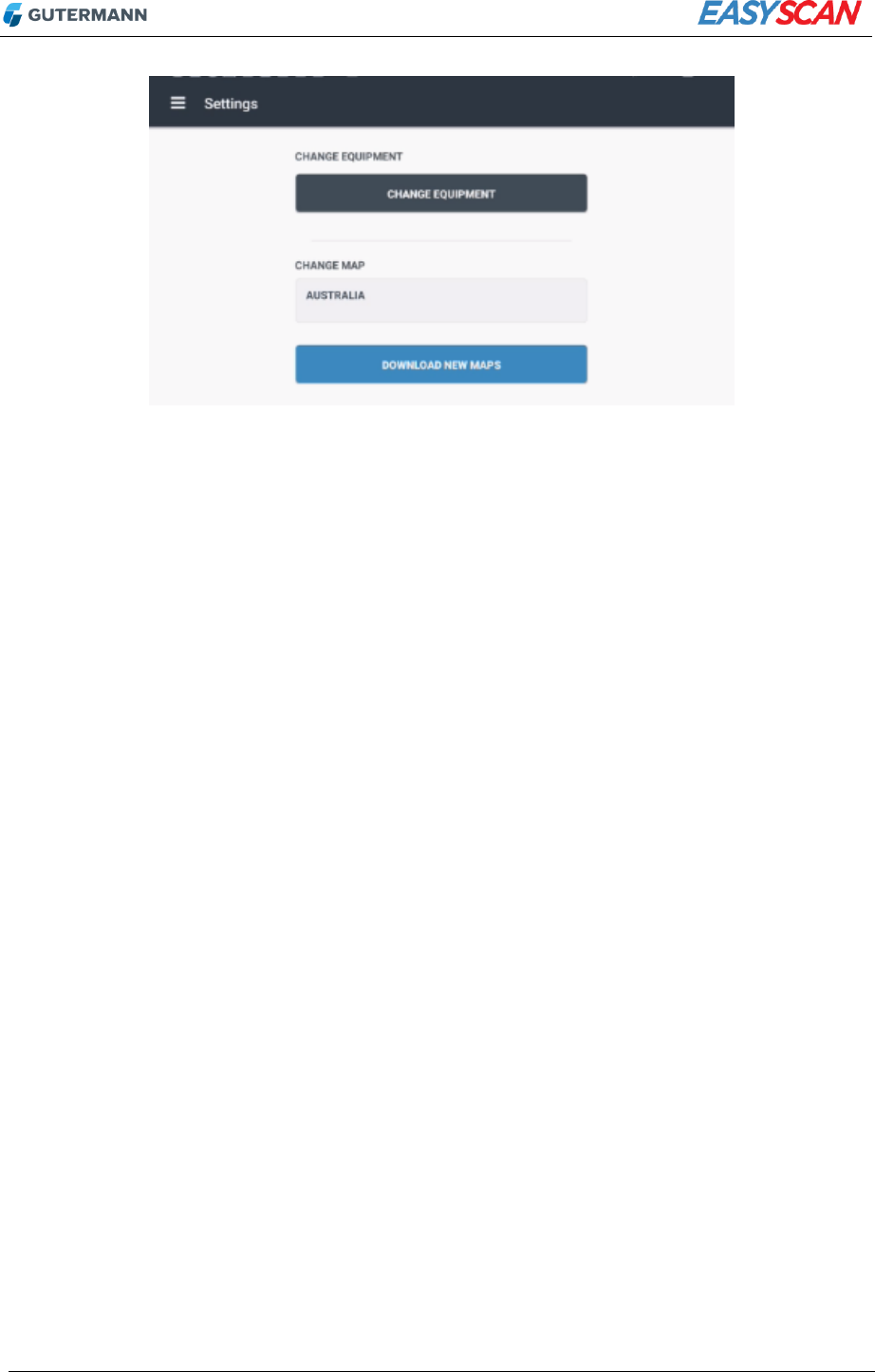

8 Settings
The settings button is in the bottom right hand corner of the main screen.
Within Settings there are 2 options, Change Equipment and Download New Map
Select Change Equipment if the Link or one of the Sensors is replaced. The process
is the same as the initial setup and guides you through.
![](/img.php?id=3281413&img=bge.png)
14 I 19

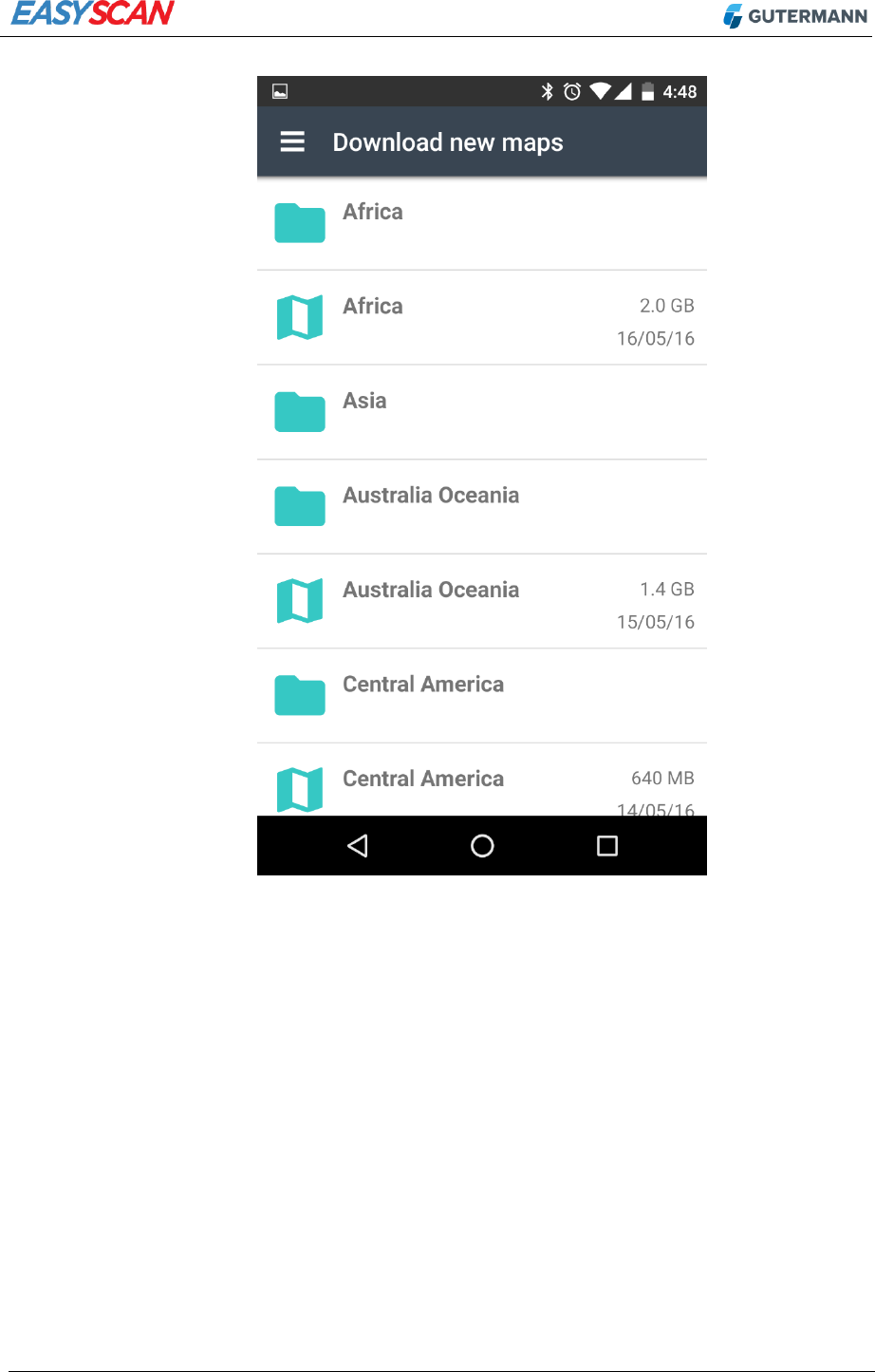

8.1 Download Maps
By default, EASYSCAN uses online Open Street Maps. However, this requires
network access. In addition, the map server can be slow which causes grey tiles in
the map.
To download an offline map, you need a fast internet connection. Then choose the
map required in the list of countries as shown below.
![](/img.php?id=3281413&img=bgf.png)
15 I 19
![](/img.php?id=3281413&img=bg10.png)
16 I 19

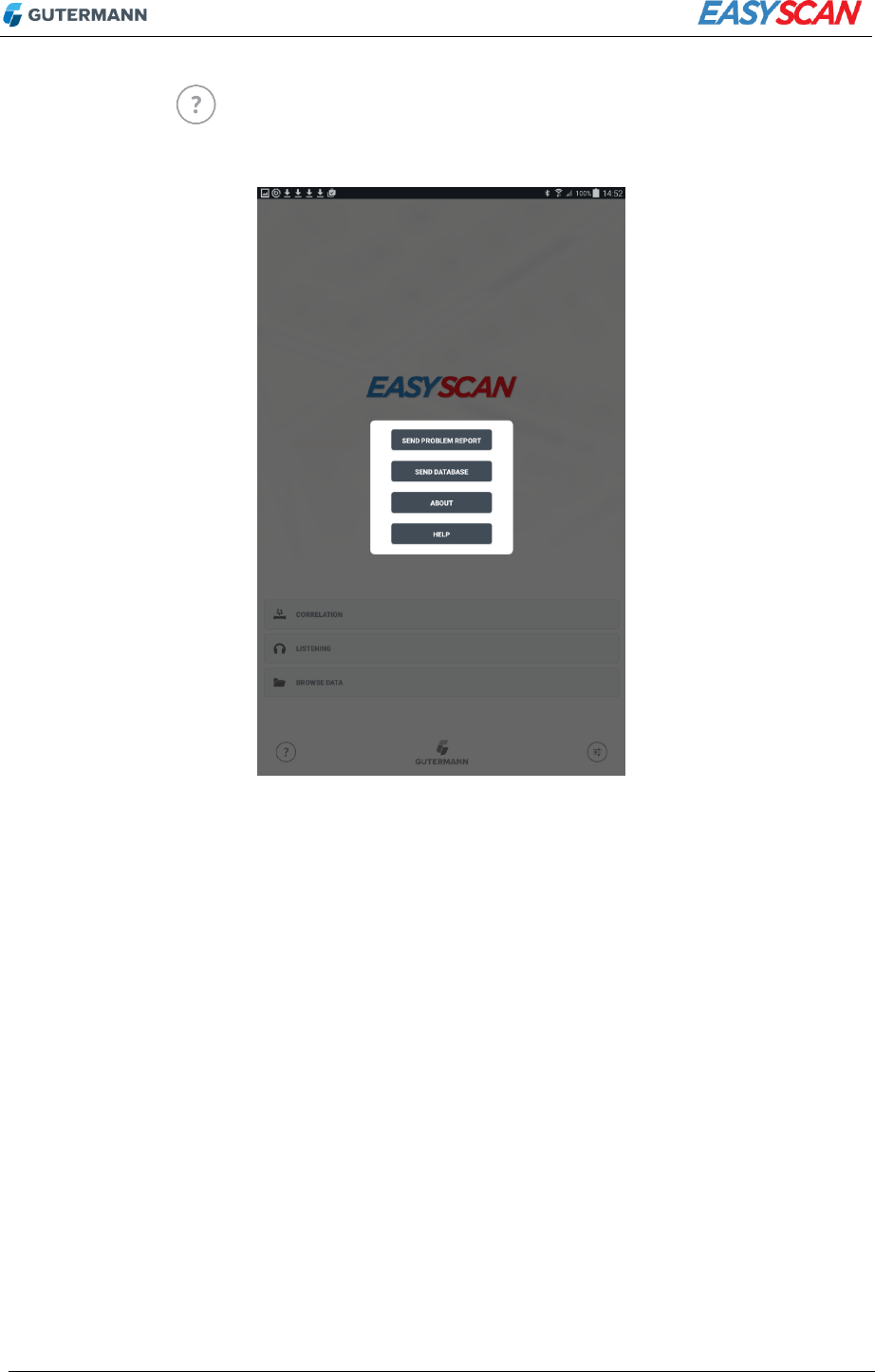

9 Help
The help button is on the bottom left of the main screen.
9.1 Send Problem Report
If the user has any issues with the EASYSCAN System then simply use the “Send
Problem Report” option to email support with the problem. Fill out the steps within
the email which lead up to the problem, fault or crash, then hit Send.
9.2 Sharing measurements
EASYSCAN has the ability to share measurements with Gutermann Support who
will be able to advise on a problem. Tap the Send Database and send via email.
9.3 About
This gives the version number and map license link.
9.4 Further Help
Takes you to the Gutermann Contacts webpage where you have all the office
details around the globe. Contact your nearest office for Technical support
![](/img.php?id=3281413&img=bg11.png)
17 I 19
10 Detailed Instructions of Kit Setup
For the Correlation Operation:
Connect the clip to the sensor:
1. Push clip vertically over the top of
the sensor handle
2. Push the clip down until you hear
a second click
3. Pull the clip back up until the
sensor handle is blocked in the clip
hooks (and you hear a click)
Release the sensor from the clip:
1. Push the clip down to release the
sensor handle from the hooks
2. Turn the clip carefully sideways
on the handle
3. Release the clop by pushing the
hooks over the handle edge
For the Ground Microphone Operation:
1. Screw the handle rod into the
extension rod
2. Screw the extension rod into the
ground plate
3. Place the sensor with magnet
onto the ground plate (centered)
For the Listening Stick Operation:
1. Screw the pointed rod into the
extention rod
2. Screw the extension rod into the
sensor as shown
3. Screw the rods tightly to improve
stability
![](/img.php?id=3281413&img=bg12.png)
18 I 19
11 Technical Data
EASYSCAN SENSOR
Models numbers:
GESA401 (red sensor EU)
GESB401 (blue sensor EU)
GESA501 (red sensor North America)
GESB501 (blue sensor North America)
Technical Data:
Casing: Rubber shrouded high-quality Aluminum casing
Ingress Protection: IP68, submersible up to 2 meters
Temperature Range: -30ºC to +70ºC
Battery Life: Depending on user-specific usage, but optimized in firmware
Dimensions: 174 mm x Ø 51 mm (height x diameter)
Weight: 375 grams
Data Transmission: Proprietary radio, country-specific public frequency
EASYSCAN LINK
Models numbers:
GELK401 (Link for EU)
GELK501 (Link for North America)
Technical Data:
Casing: ABS Plastic.
Ingress Protection: IP40
Temperature Range: discharging 0°C to +50°C, charging 0°C to +40°C
Battery Life: Depending on user-specific usage, but optimized in firmware
Dimensions: 85 x 48 x 15 mm.
Weight: 60 grams
Data Transmission: Proprietary radio, country-specific public frequency
ZONESCAN 820 Logger
Models numbers:
Model 4-1-C1 (EU, internal antenna),
Model 4-2-C1 (EU, external antenna),
Model 5-1-C1 (North America, internal antenna)
Model 5-2-C1 (North America, external antenna)
ZONESCAN 820 Repeater
Models numbers:
Model 4-1-C1 (EU)
Model 5-1-C1 (North America)
12 Disposal
Never put electrical appliances in a household waste bin. Always collect them separately and perform an
environmentally friendly recycling. When disposing of electrical appliances always comply with national
and regional waste disposal regulations. If an orderly disposal of our products is not possible, send the
unit to us. We dispose our products environmentally friendly. Address see imprint.
![](/img.php?id=3281413&img=bg13.png)
19 I 19
13 Imprint
Gutermann Technology GmbH
Gottlieb-Daimler-Str. 10
88214 Ravensburg, Germany
Subject to changes
14 Conformity
This device complies with part 15 of the FCC Rules and with Industry Canada's licence-
exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Minimum distance between the device and the operator should be at least 20cm when the
device is operational.
15 Important Information
Please refer to all warnings and information in the manual and on the products. By using this
Manual, you acknowledge that you are aware of and have read the warnings and information
provided in the manual.
Put the logger on the valve or pipe. Make sure that the magnet on the bottom of the
logger has a stable, dirt-free contact with the metal. A clean connection is needed for
good measurements.
Always clean the sensors and mechanical accessories with a clean towel after use
before stowing them away in the carry case.
Tel: +49 751 3590 1682
Fax: +49 751 3590 1699
www.gutermann-water.com
info@gutermann-water.com
