Users Manual
1
THANK YOU!
We are grateful for your purchase of HYT product. We believe this easy–to-use
radio will provide you with dependable and reliable communications. This HYT
portable two-way radio is a precision device. Treat it with care, and you will enjoy
years of reliable operation.
MODELS COVERED IN THIS MANUAL
TC3000 VHF Radio
TC3000 UHF Radio
2
Contents
User Safety, Training, and General Information
Compliance with RF Energy Exposure Standards
Important Note: FCC Information
FCC Compliance
Precautions
Product Inspection
Battery Information
Accessory Installation
Battery
Antenna
Belt Clip
Earplug Cover
External Earphone/Microphone (optional)
Getting Started
Features and Operation
Turn on/off the radio
Adjust the Volume
Select Channel
Transmit
Receive
Monitor
Repeater/Talk Around
Repeater/ Reverse Frequency
Selectable Power
Scan
Music Call
Emergency ANI/Emergency Siren
VOX Feature
Built-in Modem
Low Battery Alert
2-Tone/HDC1200 Selective Call
Troubleshooting Guide
Care and Cleaning
Optional Accessories
Frequency Chart
3
User Safety, Training, and General Information
READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION
BEFORE USING YOUR HYT PORTABLE TWO-WAY RADIO.
Compliance with RF Energy Exposure Standards
Your HYT two-way radio is designed and tested to comply with a number of national and
international standards and guidelines (listed below) regarding human exposure to radio
frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP
exposure limits for occupational/controlled RF exposure environment at duty cycles of
up to 50% talk-50% listen and should be used for occupational use only. In terms of
measuring RF energy for compliance with the FCC exposure guidelines, your radio
radiates measurable RF energy only while it is transmitting (during talking), not when it
is receiving (listening) or in standby mode.
Note: The approved batteries supplied with this radio are rated for a 5-5-90 duty cycle
(5% talk-5% listen-90% standby), even though this radio complies with the FCC
occupational RF exposure limits at duty cycles of up to 50% talk.
Your HYT two-way radio complies with the following of RF energy exposure
standards and guidelines:
z United States Federal Communications Commission, Code of Federal Regulations;
47CFR part 2 sub-part J
z American National Standards Institute (ANSI)/Institute of Electrical and Electronic
Engineers (IEEE) C95. 1-1992
z Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition
z International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998
Operational Instructions and Training Guidelines
To ensure optimal performance and compliance with the occupational/controlled
environment RF energy exposure limits in the above standards and guidelines, users
should transmit no more than 50% of the time and always adhere to the following
procedures:
Transmit and Receive
To transmit (talk), push the Push-To-Talk (PTT) button; to receive, release the PTT
button.
Hand-held radio operation
Hold the radio in a vertical position with the microphone one to two inches (2.5 to 5 cm)
away from the lips.
![](/img.php?id=794420&img=bg4.png)
4
Body-worn operation
z Always place the radio in an HYT approved clip, holder, holster, case, or body
harness for this product. Use of non-HYT-approved accessories may exceed
FCC RF exposure guidelines.
Antennas & Batteries
Use only HYT approved, supplied antenna or HYT approved replacement antenna.
Unauthorized antennas, modifications, or attachments could damage the radio and may
violate FCC regulations.
z Use only HYT approved, supplied batteries or HYT approved replacement batteries.
Use of non- HYT -approved batteries may exceed FCC RF exposure guidelines.
Approved Accessories
For a list of HYT approved accessories, see the accessories page of this user manual or
visit the following website which lists approved accessories: http://www.hty.com.cn
![](/img.php?id=794420&img=bg5.png)
5

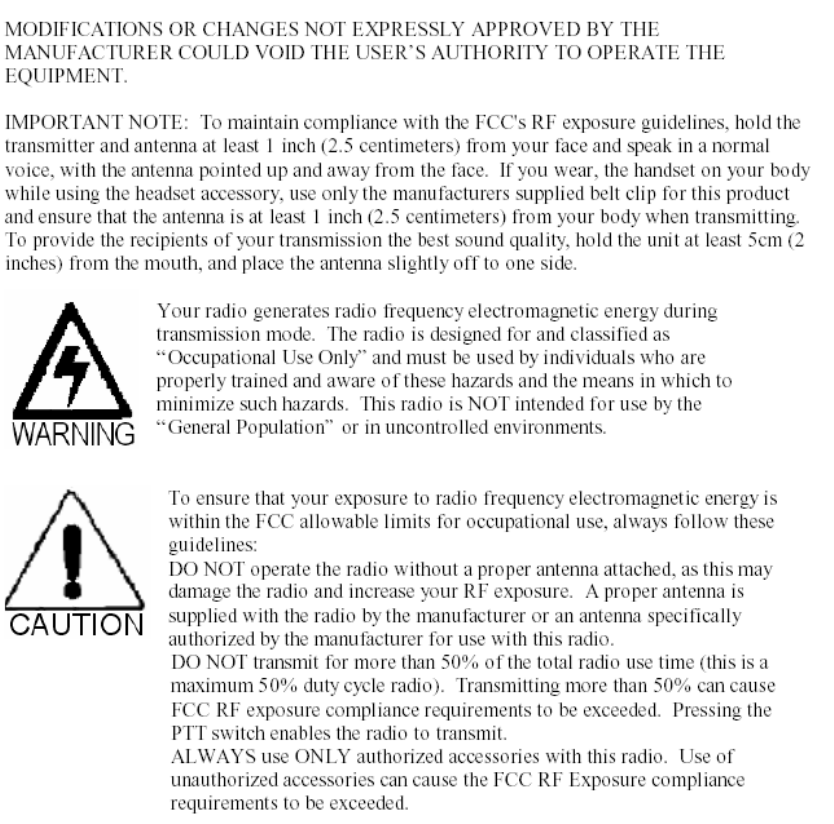

Important note: FCC Information
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
6
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Requirements
Your radio must be properly licensed Federal Communications Commission prior to use.
Your HYT Wireless dealer can assist you in meeting these requirements. Your dealer will
program each radio with your authorized frequencies, signaling codes, etc., and will be
there to meet your communications needs as your system expands.
Precautions
• Only qualified technicians are allowed to maintain this product.
• Do not use the radio or charge a battery in explosive areas such as coal gas, dust,
steam, etc.
• Switch OFF the radio while refueling or parking at gas station.
• Do not modify or adjust this radio without permission.
• Do not expose the radio to direct sunlight over a long time, nor place it close to
heating source.
• Do not place the radio in excessively dusty, humid areas, nor on unstable surfaces.
• Stubby antenna especially suits communication in close quarters, while long and
fine antenna provides better communication quality and avoids any uncomfortable-
ness when wearing the radio on waist.
• The communication range will be impacted in rainy or cloudy days or when you are
in forest.
Safety: It is important that the operator is aware of and understands hazards common
to the operation of any radio.
![](/img.php?id=794420&img=bg7.png)
7
Product Inspection
Thank you for your use of HYT portable two-way radio TC3000. Before use, you are
recommended to inspect the product as follows.
First check the shipping carton for any signs of damage. If any damage has occurred,
please contact your dealer immediately. Confirm the supplied product against the
packing slip to assure accuracy.
Available Accessories
Item Qty. (pcs)
Antenna * 1
Belt Clip 1
Strap 1
Battery 1
Desktop Charger 1
AC Adapter 1
Declaration of Conformity* 1
Owner’s Manual 1
*Notes:
① Frequency is marked on the color circle of the antenna.
Red circle indicates UHF and green indicates VHF.
If frequency is not marked on the color circle, please refer to the label on the main
unit for details.
② Only available for European market.
8
Battery Information
Initial use of the battery
The battery is not fully charged at the factory. Please charge the new battery before
initial use. In general, the battery should be charged for 12 hours before initial use,
which is suitable for Ni-Cd, Ni-MH or Li-ion battery charged with slow or rapid charger. It
is recommended to take this step during the first three times of use. When the battery
power is low, it needs to be charged.
Applicable Battery Packs
Charge only the HYT approved battery packs. Other batteries may burst and cause
personal injury.
Safety attention
1. Conductive metals including jewelry, key, etc, may result in short circuit, discharge,
generation of a large quantity of heat, or leakage when coming into contact with
battery contacts or electrodes. To avoid damage to articles or human injury, treat any
battery with care.
2. Do not short out the battery terminals or dispose of the battery in fire. Never attempt
to disassemble the battery. If discarded, the battery should be thrown into dedicated
battery recycle box.
Normal operation
★ Please charge the battery indoor to ensure the optimal charging effect.
★ In general, the battery can be removed if the charger indicator turns from red to
green.
★ Turn off the radio when charging the battery inside the radio.
★ Do not charge the battery if its power hasn’t been used up (if the power used up, the
radio will give alert tone), otherwise, the battery life will be shortened.
★ Do not return fully charged batteries to the charger for an “extra boost”. This action
will significantly reduce cycle life.
To prolong battery life
★ Battery performance will be greatly decreased under -20℃ temperature. Please use
back-up battery in cold weather. The cold battery unable to work in this situation may
work under room temperature, so keep it for later use.
★ The dust on the battery contact may affect the life cycle of the battery. Please use
clean dry cloth to wipe it before the insertion of the battery into the radio.
Battery storage notice
1. Due to the self-discharge, the battery which will not be used for a long time should
![](/img.php?id=794420&img=bg9.png)
9
be stored after full charge to avoid the damage to the battery because of
over-discharge.
2. Take out the battery stored for about 6 months to charge it, to avoid the influence of
electrolyte over-discharge on battery capacity.
3. Notice the ambient humidity and temperature for the battery storage. Please store it
in cool dry area with room temperature, to decrease self-discharge.

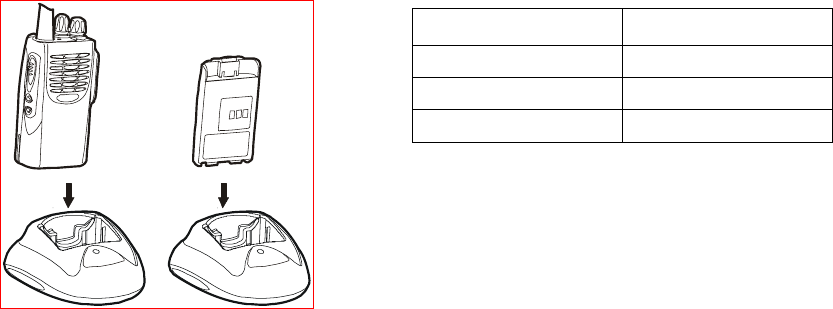

Battery charging
When radio LED flashes red and three Beeps sound every 30 seconds after the battery
is installed, that means battery power is low. Please charge the battery.
You are recommended to use HYT-approved, supplied charger; Charger LED will
indicate the charging status.
1. Plug the power cable into the adapter.
2. Plug the DC socket of adapter into the DC jack on the rear of the charger.
3. Insert the battery or the radio with battery into the charger cup.
4. Plug the AC socket of adapter into an AC outlet.
5. Make sure that the battery connectors are in contact with the charging terminals; the
charger LED glows red and charging begins.
6. The charger LED glows green when the battery is fully charged in about 3 hours,
please remove the battery or the radio with battery from the charger.
*Notes: Charger LED may flash red if you put the battery into the charger, which is a
normal pre-charge process for the charger to protect the battery when the battery power
is low. It will turn to normal charge status (glow red) after 30 seconds.
LED Indication
Flashing red Low battery voltage
Red Charging
Green Fully charged
![](/img.php?id=794420&img=bga.png)
10
Accessory Installation
Battery
Attach the battery
Insert the two tabs on bottom of the battery into the slots at the bottom of the radio. Push
top of the battery towards the radio until a click is heard. (See figure 1)
Fig.1
Remove the battery
Turn off the radio. Push the battery latch on the middle of the radio to remove the upper
side of the battery away from the radio. And then remove the battery. (See figure2)
Fig.2

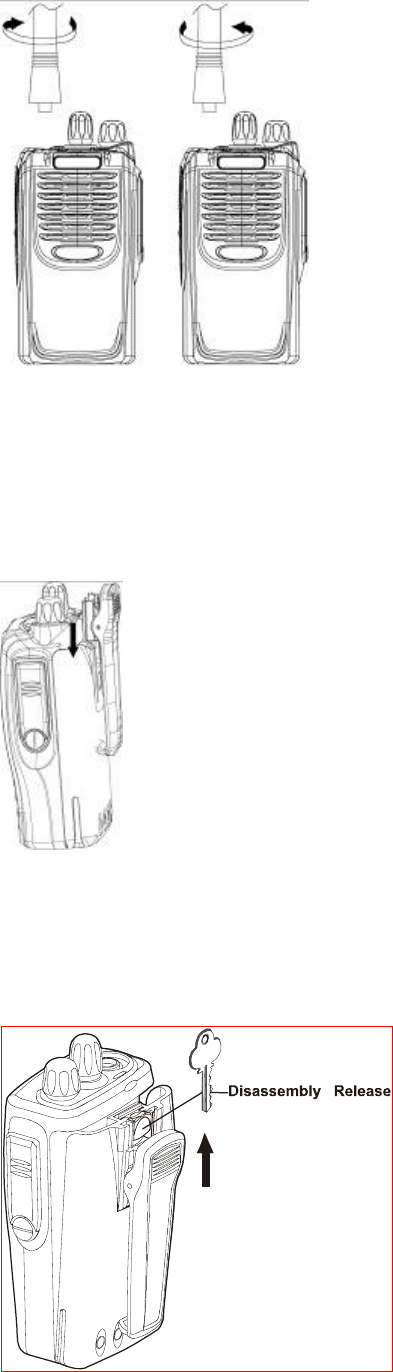

Antenna
Insert the threaded end of the antenna into the connector on top of the radio. Rotate the
antenna clockwise to fasten it. (See the following figure)
Rotate the antenna counterclockwise to remove it. (See the following figure)
Battery Latch
![](/img.php?id=794420&img=bgb.png)
11
Belt Clip
Attach Belt Clip
Align the slot of the belt clip with the T-slot at the battery cover and press the belt clip
downwards until it is locked. (See figure 3)
Fig.3
Remove the belt clip
Press the disassembly release upwards with a key until it releases and then push the
belt clip upwards with your thumb to remove it. (See figure 4)
Fig.4
Install Remove
![](/img.php?id=794420&img=bgc.png)
12

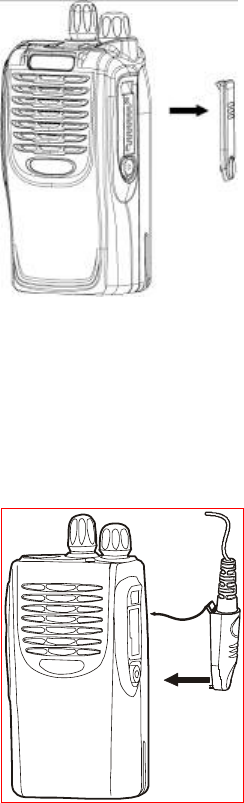

Earplug Cover
Rotate the screw at the bottom of the cover counter clockwise by a screwdriver until it is
out of the nut to remove the Earphone/Microphone jack cover. (See figure 5)
Fig.5

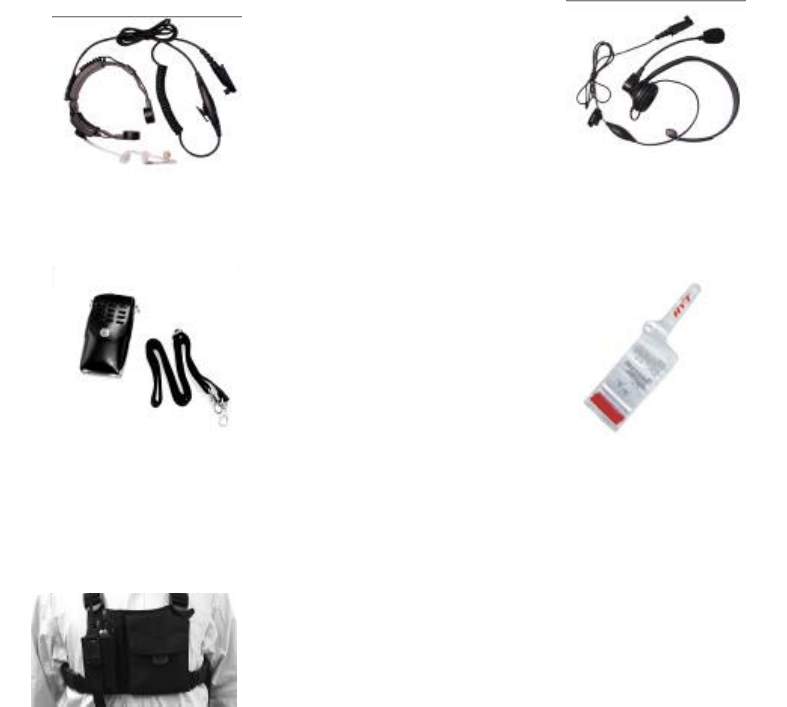

External Earphone/Microphone (Optional)
Insert the tab at the bottom of the earphone/microphone into the slot on top of the radio.
(See figure 6). Align the nuts at top of the earphone/microphone with the holes on the
radio and then turn them clockwise to fasten.
Fig.6
![](/img.php?id=794420&img=bgd.png)
13

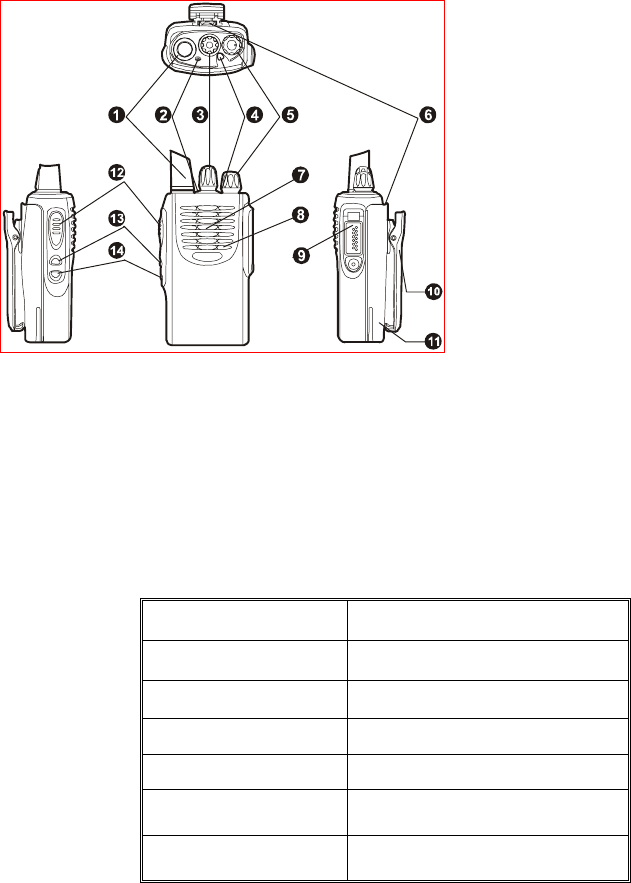

Getting Started
(1) Antenna
Used to transmit/receive signals.
(2) LED
Following table indicates LED indication and corresponding radio status.
LED Status
No display Standby
Green Receive
Red Transmit
Flashing green Scan
Flashing red Low battery voltage
Flashing orange Call waiting
(3) Channel Selector
Used to select wanted channel.
(4) Programmable key [A]
(5) Power/Volume Control Knob
Rotate the Power/Volume Knob clockwise until a “click” is heard to turn the radio on,
fully counter clockwise to turn the radio off. When the radio is on, turn the knob to
adjust volume.
(6) Battery Latch
Used to fasten the battery.
(7) Speaker
Used to output sounds.
![](/img.php?id=794420&img=bge.png)
14
(8) Microphone
Used to input sounds.
(9) External Jack
Used to connect with external earphone or programming cable.
(10) Belt Clip
Used to clip the radio on your belt.
(11) Battery Pack
(12) PTT key
Press and hold PTT, radio operates in transmit mode. Release PTT, radio returns to
receive mode.
(13) Programmable Key [B]
(14) Programmable Key [C]
The following table shows the key function when
1. Short press;
2. Long press;
3. Hold down and monitor.
Key function
Key Function Short Press Long press Hold Down
Emergency Siren Enable emergency siren Disable emergency siren -
Monitor - - Monitor
Scan Enable/Disable scan Enable/Disable scan -
Nuisance Delete Delete nuisance channel
in scan
Delete nuisance channel in
scan -
Select High/Low
Power Select High/Low Power Select High/Low Power -
Repeater/Talk Around Select Repeater or Talk
Around Mode
Select Repeater or Talk
Around Mode -
Repeater/Reverse
Frequency
Select Repeater or
Reverse Frequency Mode
Select Repeater or
Reverse Frequency Mode -
Music Call Transmit a Music Call Transmit a Music Call -
Call 1
Transmit selective call
signalling (2-Tone, HDC,
DTMF)
Transmit selective call
signalling (2-Tone, HDC,
DTMF)
-
Call 2
Transmit selective call
signalling (2-Tone, HDC,
DTMF)
Transmit selective call
signalling (2-Tone, HDC,
DTMF)
-
Vibration Toggle vibration on/off Toggle vibration on/off -
Please contact your dealer for more details about programmable key. Functions are
subject to addition without prior notice.
![](/img.php?id=794420&img=bgf.png)
15
Features and Operation
Note:
TC3000 provides a series of audible alert tones. A series of tones may be sounded with
the following conditions:

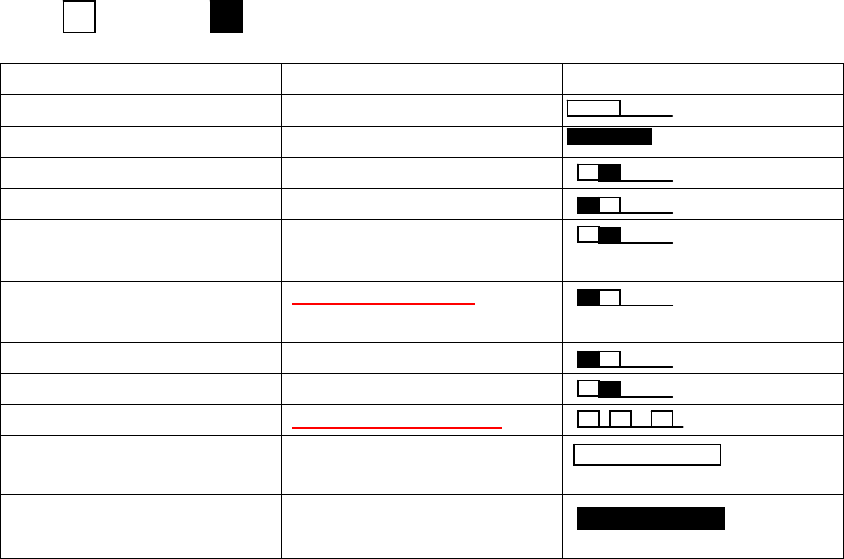

Alt Bourdon
Operation Description Audible Tone
Turn on the radio Power on-Ready
Turn on the radio Power on-Failure
Repeater/Talk Around Repeater
Repeater/Talk Around Talk Around
Repeater/Reverse
Frequency
Repeater
Repeater/Reverse
Frequency
Reverse Frequency
Select Power High Power
Select Power Low Power
Low Battery Alert Tone
Idle Channel Tone
PLL Unlock Tone
Turn On/Off the Radio
Rotate “Power/Volume” knob clockwise. An alert tone indicates that the self-test of the
radio has been completed satisfactorily. LED glows green at the same time. If self-test
fails and/or the selected channel is not set, you will also hear an alert tone.
Rotate “Power/Volume” knob counterclockwise until a click is heard to turn the radio off.
Adjust the Volume
Rotate “Power/Volume” knob to adjust the volume.
Select Channel
TC3000 provides 16 conventional channels. Some of the channels may be not
programmed and can’t be used. Please contact your dealer for more details.
Rotate “Channel Selector” knob to select wanted channel.
Transmit
1. Turn on the radio.
2. Rotate “Channel Selector” knob to select wanted channel.
![](/img.php?id=794420&img=bg10.png)
16
3. Press PTT and speak into the microphone with your mouth 2.5-5 centimeters away
from the radio. LED glows red during transmission.
4. Release PTT key to finish speaking.
Receive
1. Turn on the radio.
2. Rotate “Channel Selector” knob to select wanted channel.
3. Adjust the volume.
4. Then you can receive a valid call. LED glows green during receiving.
Monitor
1. Press MONI key to monitor the current channel.
2. Release MONI key to exit.
Repeater/Talk Around
When the repeater doesn’t work or you are out of the communication range of the
repeater and within the communication range of your group member, you can bypass
the repeater and talk directly to your group member.
Press programmed “Repeater/Talk Around” key to select between repeater and talk
around mode. An alert tone indicates that radio operates in talk around mode. A different
alert tone indicates that you are talking via a repeater.
Repeater/Reverse Frequency
When you are out of the communication range of the repeater and within the
communication range of your group member, you can talk with your group member by
reverse frequency if your group member is within the communication range of the
repeater.
Press programmed “Repeater/Reverse Frequency” key to select between repeater and
reverse frequency. An alert tone indicates that radio operates in reverse frequency mode.
A different alert tone indicates that you are talking via a repeater.
Note: “Repeater/Talk Around” and “Repeater/Reverse Frequency” can’t be set
simultaneously in one radio.
Selectable Power
Each channel of the radio is set as different power levels that are user selectable. (High
power is forbidden in certain channels).
1. High power allows your talk to be heard from further distance.
2. Low power helps to save battery power.
Press programmed “power select” key to select high/low power. An alert tone indicates
that the radio operates at high power and another alert tone indicates low power.
![](/img.php?id=794420&img=bg11.png)
17
Scan
Scan feature allows you to monitor all channels.
When scan feature is enabled, the radio will detect all channels. If an active channel is
detected, the radio will remain on that channel and you will be able to hear the
conversation.
Disable/Enable Scan Feature
1. Press scan key, scanning begins.
2. Press scan key again, scanning ends.
LED flashes green in scan mode.
Callback
Pressing PTT during scanning can callback on the callback channel. Please contact
your dealer for more details about callback channel.
Nuisance Delete
Nuisance delete feature allows you to temporarily delete an unwanted channel from the
scan list.
When the radio stops on the nuisance channel, press the programmed “nuisance delete”
key until an alert tone is sounded to delete this channel.
When scan feature is enabled again. The deleted channel will return to the scan list.
Note: Priority channel can’t be deleted.
Priority Channel Scan
This feature allows you to scan important channels. The dealer can program a channel
as priority channel through the programming software. Please contact your dealer for
more details.
Note: The radio will constantly monitor the priority channel when it stops on a
non-priority channel. If an activity is detected on the priority channel, the radio will move
to and remain on the priority channel.
Music Call
Press the programmed Music call key, the radio will sound a series of rings to call and
wake the radio that has the same channel and signaling to draw the user’s attention.
Emergency Siren
The radio can be programmed to transmit emergency ANI or emit emergency siren.
1. Press Emergency Siren key to activate Emergency Siren feature.
2. Press and hold Emergency Siren key to disable Emergency Siren feature.
VOX Feature
VOX feature can be programmed to the radio by your dealer through the programming
software. Plug an earphone into the radio to enable VOX feature.
18
1. VOX feature enables you to transmit automatically by speaking into the microphone.
2. Transmission stops automatically when you stop speaking.
3. Press PTT to disable VOX feature.
4. Turn the radio on again, VOX feature will be activated.
Built-in Modem
MSK modulator with speed of 1200/2400bit/s inside the radio supports data
transmission. Please contact your dealer for details.
Low Battery Alert
When the battery voltage becomes low, the red LED will flash and beeps sound. You
need to replace or recharge the battery.
2-Tone/HDC1200 Selective Call
The radio can call selected radios if selective call feature is enabled. Selective call
signalling includes 2-Tone and HDC signalling.
2-Tone
The radio enters call waiting mode when transmission ends or at receiving a valid
selective signalling. The LED flashes orange in call waiting mode. The radio will exit
from the call waiting mode when the call waiting reset time elapses, the MONI key is
pressed, or when the channel selector knob is rotated.
Please refer to your dealer for details.
HDC1200
HDC1200 is a kind of digital signalling achieved via MSK modulation. Both ordinary call
and system call are available via HDC1200. Ordinary call is divided into selective call
and alert call, including individual call, group call, fleet call and broadcast; While system
call refers to such calls in which a system is involved as stun, revive and radio check.
System Call
Stun
An authorized radio may remote stun other radios, causing it can receive revive
signalling only, but cannot transmit or receive any other signals.
Revive
An authorized radio may remote revive a stunned or killed radio.
Radio Check
The control center or an authorized radio may send a safety check message to radios.
The target radio automatically sends a transpond at receiving it.
Ordinary Call
Individual Call: Call between two individual radios.
19
Group Call: A call generated by an individual radio to a radio group.
Broadcast: A unidirectional call generated by an individual radio to a whole system.
You need to do some settings via programming software to use HDC1200.
¾ Select HCD1200 in “Optional Signalling" box in channel edit window. And select
corresponding call list for CALL1 and CALL2.
Set the selected system and call list.
Set the programmable keys for CALL1 and CALL2.
Set the squelch mode (logic relationship).
¾ As for individual calls, Caller Zone ID should be set the same as receiver Primary ID
in programming software. Both the caller and receiver will share the same response
when caller Primary ID and receiver zone ID are the same.
¾ As for system call, it is default as Individual call with response. The receiver
responds with its primary ID to the caller if the caller Zone ID and receiver Primary
ID are the same.
The operation mode in squelch mode is same as that of other optional signalling.
Please refer to your dealer for details.
![](/img.php?id=794420&img=bg14.png)
20
Troubleshooting Guide
Care and Cleaning
Do not carry your radio by the antenna or remote microphone;
Wipe the battery with a lint-free cloth to remove dirt, grease, or other material that
may prevent good electrical connection;
When not in use, keep the accessory jacks covered with the protective caps;
Clean the shell, controls and keys of your radio with neutral detergent and warm
water after a long period of usage. Avoid using strong chemicals.
Trouble Solution
No power
z Battery may be used up. Please replace or
recharge the battery.
z Battery may not be attached properly. Remove
the battery and attach again.
Power doesn’t last long even if fully
charged.
z Battery life cycle is over. Please replace it with a
new one.
Can’t talk to or hear other users in
your group.
z Make sure you are using the same frequency
and CTCSS tone as other users in your group.
z Other users may be too far away. Make sure
you are within the communication range.
Voice of other users (non-group
user) appears on the channel. z Please change your CTCSS tone. Be sure to
change the tone on all the other radios in your
group.
![](/img.php?id=794420&img=bg15.png)
21
Optional Accessories
Dual Pocket Rapid Charger CH20L01 Multi-unit Charger MCL01
(for Li-Ion batteries) (for Li-Ion batteries)
Receive-only Earpiece with Transparent
Acoustic Tube (use with Remote
Speaker Microphone SM08) ESS04
Remote Speaker
Microphone SM08N1
Receive-only Earpiece (for use with Remote
Speaker Microphone SM08) ESS01
Switch Power (exclusive to dual
pocket rapid charger) PS2001
Earbud with in-line VOX ESN01 Earbud with Transparent
Acoustic Tube EAN01
Earset with Boom Mic & in-line VOX EHN02 Earset with in-line Mic & VOX EHN01
![](/img.php?id=794420&img=bg16.png)
22
(适用于 TC3000 系列)
Throat-vibrating Earpiece with
Transparent Acoustic Tube ELN01 Headset ECN02
Leather Carry Case (applicable
to TC3000 series) LCBN09
Chest Pack LCBN03
Transparent Waterproof
Bag LCBY03
![](/img.php?id=794420&img=bg17.png)
23
Frequency Chart
Model:
Serial Number:
Key Function Table
Key Briefly Press Press and Hold
Key A
Key B
Key C
HYT endeavor to achieve the accuracy and completeness of this manual, but cannot
guarantee its accuracy at all times. All the above specifications and design are subject to
change by HYT without notice.
All the reproduction and translation of this manual without authorization of HYT is not
allowed.
Channel Transmit
Frequency
Transmit
CTCSS
Receive
Frequency
Receive
CTCSS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
