HYUNDAI MOBIS ADBB2A9AN Car Audio System User Manual
HYUNDAI MOBIS CO., LTD. Car Audio System Users Manual
Users Manual
![](/img.php?id=3397896&img=bg1.png)
CAR MULTIMEDIA SYSTEM
USER'S MANUAL
2016-11-18 오후 3:27:412016-11-18 오후 3:27:4
![](/img.php?id=3397896&img=bg2.png)
Read the following safety precautions
for your safety
Before using the product, read the contents of this user's manual
carefully and use this product safely.
※ The design and specifi cations of this product may change without prior
notifi cation for product and service improvement.
The actual features in the vehicle may differ from the illustrations.
For more accurate information about the vehicle, please refer to the
catalogue.
※ This Audio system contains open source software, including without
limitation, software distributed and/or modifi ed under the GNU General
Public license, Version 2, June 1991, and the GNU lesser General
Public License, Version 2.1, February 1999.
For additional information and to obtain related materials including
without limitation, the previous referred to licenses and software, please
contact us at MOBIS_OSSrequest@mobis.co.kr
Notations used within this User's Manual
WARNING
• Failure to observe the instructions within this category could result in death
or serious injury or damage to the vehicle.
CAUTION
• Information on matters that could potentially lead to injury or vehicle
damage/malfunction Information that could lead to higher user safety
i
Information
• Information and tips that provide additional user convenience in using the
product
NOTICE
• Information on specific features that facilitate proper product use and
functional understanding
• Information on terminology used within this manual
K_SC 17_DAUD2[MEX_EG]AV_PART0.indd 1K_SC 17_DAUD2[MEX_EG]AV_PART0.indd 1 2016-11-18 오후 3:28:122016-11-18 오후 3:28:1
![](/img.php?id=3397896&img=bg3.png)
iPod®
iPod® is a registered trademark of Apple Inc.
Bluetooth
®
Wireless Technology
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Kia is under license.
Other trademarks and trade names are those of their respective owners.
A Bluetooth® Wireless Technology enabled cell phone is required to use
Bluetooth® Wireless Technology.
K_SC 17_DAUD2[MEX_EG]AV_PART0.indd 4K_SC 17_DAUD2[MEX_EG]AV_PART0.indd 4 2016-11-18 오후 3:28:152016-11-18 오후 3:28:1
![](/img.php?id=3397896&img=bg4.png)
Warnings and Cautions
Key Product Features
Component Names and Functions
Starting the System for the First Time
part.1 Basic
K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-1K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-1 2016-11-18 오후 3:28:252016-11-18 오후 3:28:2
![](/img.php?id=3397896&img=bg5.png)
1-2 I Basic
Safety Warnings
• Do not stare at the screen while driving.
Staring at the screen for prolonged peri-
ods of time could lead to traffic accidents.
• Do not disassemble, assemble, or modify
the Multimedia system. Such acts could
result in accidents, fire, or electric shock.
• Heed caution not to spill water or intro-
duce foreign objects into the device.
Such acts could lead to smoke, fire, or
product malfunction.
• If you use phone related functions while
driving, you will find it difficult to concen-
trate on operating the vehicle and the
current traffic conditions, so the possibility
of an accident may increase. Please
use phone related functions only when
parked.
• Please refrain from use if the screen
is blank or no sound can be heard as
these signs may indicate product mal-
function. Continued use in such con-
ditions could lead to accidents (fires,
electric shock) or product malfunctions.
• Do not touch the antenna during thun-
der or lightening as such acts may lead
to lightning induced electric shock.
• Do not stop or park in parking-restricted
areas to operate the product. Such acts
could lead to traffic accidents.
• For most Audio and multimedia modes,
the display will not operate when the
vehicle is in motion. For your safety, first
park the vehicle to watch or view the
screen. (The screen will only operate
when the parking brake is ON for man-
ual transmission vehicles and when the
parking brake is ON or the gearshift is in
the P (PARK) position for automatic.)
• Some functions other than the one
mentioned above cannot be used while
driving. These functions operate only
when the vehicle is parked.
Basic
K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-2K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-2 2016-11-18 오후 3:28:272016-11-18 오후 3:28:2
![](/img.php?id=3397896&img=bg6.png)
Warnings and Cautions I 1-3
01
Safety Cautions
Pay attention to traffic conditions while
driving.
• Operating the device while driving could
lead to accidents due to a lack of atten-
tion to external surroundings. First park
the vehicle before operating the device.
In addition, the touch screen may not
work for some functions when the vehi-
cle is in motion. The touch screen fea-
ture will be supported once the vehicle
has stopped.
• Adjust the volume to levels that allow
the driver to hear sounds from outside
of the vehicle. Driving in a state where
external sounds cannot be heard may
lead to accidents.
• Pay attention to the volume setting when
turning the device on. A sudden output
of extreme volume upon turning the
device on could lead to hearing impair-
ment. (Adjust the volume to a suitable
levels before turning off the device.)
• If you want to change the position of
device installation, please inquire with
your place of purchase or service main-
tenance center. Technical expertise is
required to install or disassemble the
device.
• Turn on the car ignition before using this
device. Do not operate the Multimedia
system for long periods of time with the
ignition turned off as such operations
may lead to battery discharge.

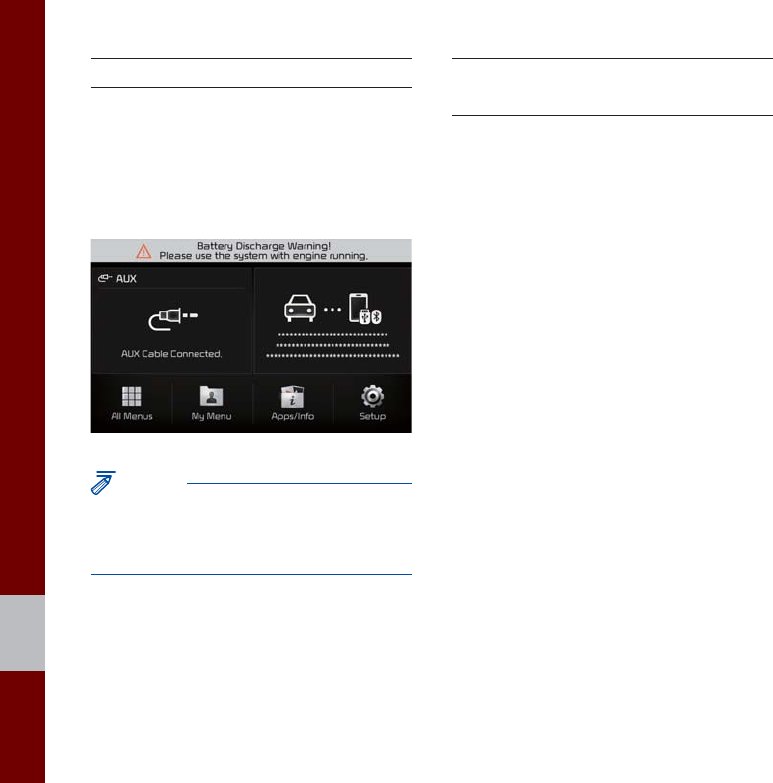

• Upon using the Multimedia system
for more than 10 minutes with the car
engine turned off, the following warning
will be displayed. After 10 minutes, the
warning will be displayed for 5 seconds
every 1 minute.
• Do not subject the device to severe
shock or impact. Direct pressure onto
the front side of the monitor may cause
damage to the LCD or touch screen.
• When cleaning the device, make sure
to turn off the device and use a dry and
smooth cloth. Never use tough materi-
als, chemical cloths, or solvents(alcohol,
benzene, thinners, etc.) as such mate-
rials may damage the device panel or
cause color/quality deterioration. When
experiencing product concerns, inquire
with your place of purchase or service
maintenance center.
• Prevent caustic solutions such as per-
fume and cosmetic oil from contacting
the dashboard because they may cause
damage or discoloration.
K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-3K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-3 2016-11-18 오후 3:28:272016-11-18 오후 3:28:2
![](/img.php?id=3397896&img=bg7.png)
1-4 I Basic
Key Product Features
This device is a Multimedia system equipped with a multifunc-
tional player that supports Radio (FM, AM), USB, iPod, AUX and
Bluetooth Audio features. The WIDE VGA LCD provides a high
quality resolution while the powerful and rich sound system adds
to the driving enjoyment.
Display
Wide TFT-LCD Display
• Provides high quality video through a Wide TFT-
LCD Display using an LED Back Light.
• Touch screen for maximum user convenience.

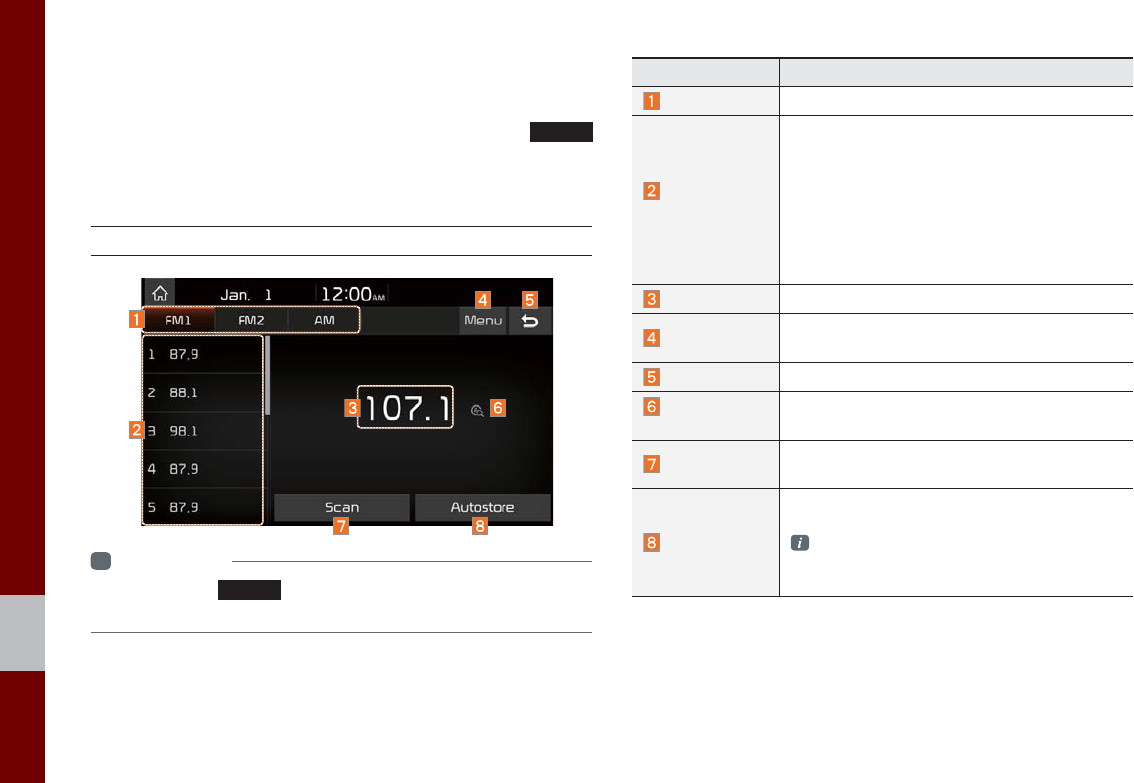

Radio
Digital Tuner Feature
• Digital Tuner using PLL method that supports
memory of 40 broadcast stations.
Radio broadcast station name
• Displays broadcast station names.
Multimedia
Player
Support for various Media Formats
• Support for various media formats, including
Radio, USB, iPod, AUX and Bluetooth
®
Audio
Streaming modes.
Miscellaneous
Bluetooth
®
Wireless Technology
• Convenient use of Bluetooth
®
Handsfree by
using buttons within the steering wheel control
Digital Screen Control Features
• Easy control of features through touch screen
options
Steering Wheel Control
• Control over audio features, Bluetooth
®
through
the steering wheel control for maximum conve-
nience.
K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-4K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-4 2016-11-18 오후 3:28:282016-11-18 오후 3:28:2
![](/img.php?id=3397896&img=bg8.png)
Component Names and Functions I 1-5
01
Component Names and Functions
Head Unit
Name Description
RADIO
Converts to FM/AM mode
• Each time the key is pressed, the mode is
changed in the following order: FM1 → FM2 →
AM → FM1.
MEDIA
Moves to MEDIA mode.
• If the media is not connected MEDIA mode will
not be activated.
TRACK
SEEK
When the key is pressed shortly (for less than 0.8
seconds),
• FM/AM mode: Plays the previous/next fre-
quency.
• MEDIA (USB/iPod) mode: Changes the track,
file or title (except for AUX).
When the key is pressed and held down (for over
0.8 seconds),
• FM/AM mode: Continuously changes the fre-
quency until the key is released.
• MEDIA (USB/iPod) mode: Rewinds or fast
forwards the track or file (except for Bluetooth
Audio, and AUX).
POWER/
VOL
• When power is off, press to turn power on.
• When power is on, press and hold for over 0.8
seconds to turn the power off.
• When power is on, press shortly for less than 0.8
seconds to turn Audio off.
• Turn left/right to adjust the volume.
K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-5K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-5 2016-11-18 오후 3:28:282016-11-18 오후 3:28:2
Name Description
HOME
Displays the HOME screen.
PHONE
Displays the Bluetooth phone mode.
Displays the function set by the user.

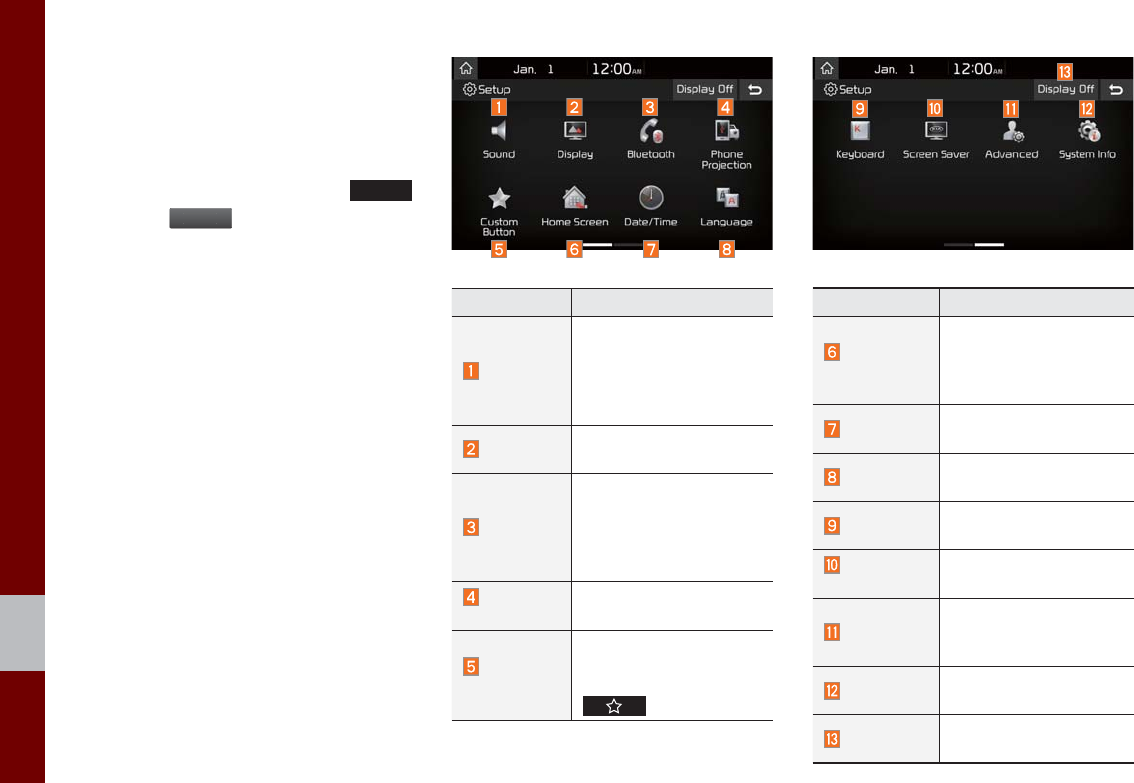

SETUP
Moves to the Setup screen.
TUNE
• FM/AM mode: Changes the frequency.
• MEDIA (USB/iPod) mode: Changes the track,
file or title (except for Bluetooth Audio, and
AUX).
RESET Resets the system settings. (Preset radio channels
and other data will not be deleted)
※ The actual feature in the vehicle may differ from the illustration.
![](/img.php?id=3397896&img=bg9.png)
Component Names and Functions I 1-7
01
Name Description
For more details, refer to Phone Projection guide.
MODE
• Each time this key is pressed, mode is changed
in the following order: FM1 → FM2 → AM → USB
or iPod → AUX → Bluetooth Audio → FM1
• If the media is not connected, the corresponding
modes will be disabled
• Press and hold the key (more than 0.8 seconds)
to turn the Audio system on/off
• When power is off, press the key to turn power
back on
VOL +
VOL -
Controls the volume
When keys are pressed quickly. (less than 0.8 seconds)
• FM/AM mode: searches broadcast frequencies
saved to Presets
• Media (USB/iPod) mode: changes the track, file
or title (except for AUX)
When keys are pressed and held. (more than 0.8
seconds)
• FM/AM mode: automatically searches broadcast
frequencies
• Media (USB/iPod) mode: quickly looks up songs
(excluding AUX and Bluetooth audio files)

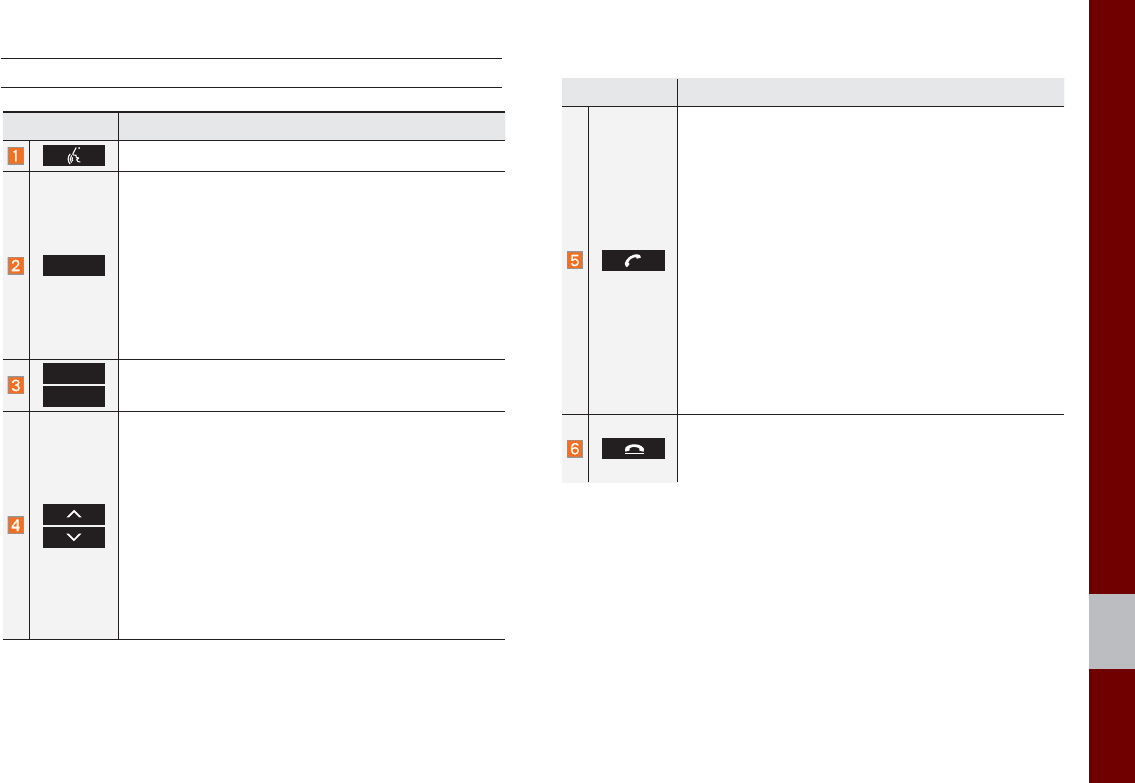

Steering Wheel Control
K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-7K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-7 2016-11-18 오후 3:28:492016-11-18 오후 3:28:4
Name Description
When pressed quickly. (less than 0.8 seconds)
• When pressed in the dial screen, makes a call
• When pressed in the incoming call screen,
answers the call
• When pressed during call waiting, switches to
waiting call (Call Waiting)
When pressed and held. (more than 0.8 seconds)
• When pressed in Bluetooth
®
Hands-free, redials
the last dialed call
• When pressed during a Bluetooth
®
Hands-free
call, switches call back to mobile phone (Private)
• When pressed while calling on the mobile phone,
switches call back to Bluetooth
®
Hands-free
(operates only when Bluetooth
®
Hands-free is
connected)
• When pressed during a call, ends the phone call
• When pressed in the incoming call screen, rejects
the call
※ The actual feature in the vehicle may differ from the illustration.
![](/img.php?id=3397896&img=bga.png)
Starting the System for the First Time I 1-9
01
Starting the System for
the First Time
Turning the System On/Off
Press the engine start button or set the
ignition key to On or ACC. Each time you
turn on the system, a boot logo and safety
warning will appear.
Pressing the power key on the head unit
will display the safety guide. To change the
system language select the
Language
button.
NOTICE
•Cannot operate the system while it is
booting up. It may take some time for all of
features of the system.
Pressing and holding the power key on the
head unit will turn off the system.

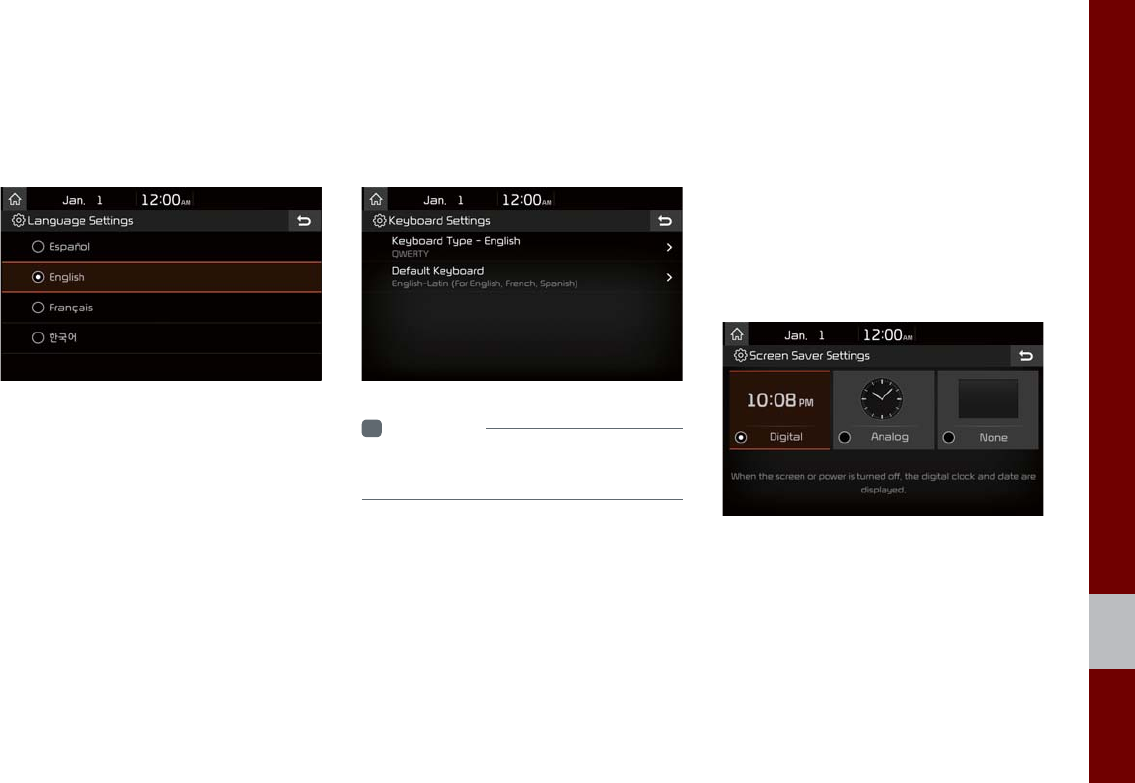

You can change Screen Saver Settings
in Setup to display a clock on the Screen
Saver.
i
Information
• If you turn off the system during a phone
call using the Hands-free feature, then the
call will automatically switch to your mobile
phone.
NOTICE
• Check the volume when turning on the
system. Before turning on the system, adjust
the volume to a reasonable level.
System Reset
The System Reset function restores the
system when it is not operating correctly.
Press and hold the RESET key for a sec-
ond or longer. (It is recommended that you
press the RESET key using a tool, such as
a pin or a clip.)
K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-9K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-9 2016-11-18 오후 3:29:432016-11-18 오후 3:29:4
![](/img.php?id=3397896&img=bgb.png)
1-10 I Basic
Battery Warning Message
Always use the system while the car
engine is running. If you turn on the sys-
tem while the engine is off, a battery warn-
ing message will appear. When the engine
starts, the message will disappear.
NOTICE
• If you use the system for a long time with
the engine off, the battery may become
completely discharged.
Restrictions on Features for
Safety Measures
Several features are limited while driving.
The restriction screen will disappear when
shifting gears into P or putting the parking
brake on.
K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-10K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-10 2016-11-18 오후 3:29:472016-11-18 오후 3:29:4
![](/img.php?id=3397896&img=bgc.png)
Starting the System for the First Time I 1-11
01
Home Screen
Controls Menu Confi guration for the Home Screen
Tap the icon on any screen to display the Home Screen below.
Features Description
Radio/
Media Widget
• Shows brief information on the radio or media
that is now playing.
• Tap the area to move to the mode that you are
listening to.
• Shows call-related information during a phone
call.
Connectivity
Widget
Shows any connected devices such as iPod and
Bluetooth.
All Menus Shows all of the items in the system menu.
My Menu Add your favorite menus to have quick and easy
access to them.
Apps/Info Moves to the Apps/Info screen.
Setup Moves to the Setup screen.
Information Display on the Status Bar
Displays the date and time, along with the system status shown by
the various icons to the right of the clock.
The icons in the following table indicate the various types of sys-
tem status details and events.
Icon Description
Displayed when the audio is muted.
Displays the remaining battery of the Bluetooth phone.
Displayed when connected to Bluetooth for handsfree.
Displayed when connected to Bluetooth for streaming audio.
Displayed when connected to Bluetooth for streaming audio and handsfree.
Displayed when downloading contacts or recent calls from the Bluetooth phone.
Displayed while on a call with the Bluetooth phone.
Displayed when the microphone of the Bluetooth phone is muted.
Displays the signal strength of the Bluetooth phone.
K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-11K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-11 2016-11-18 오후 3:29:482016-11-18 오후 3:29:4
![](/img.php?id=3397896&img=bgd.png)
1-12 I Basic

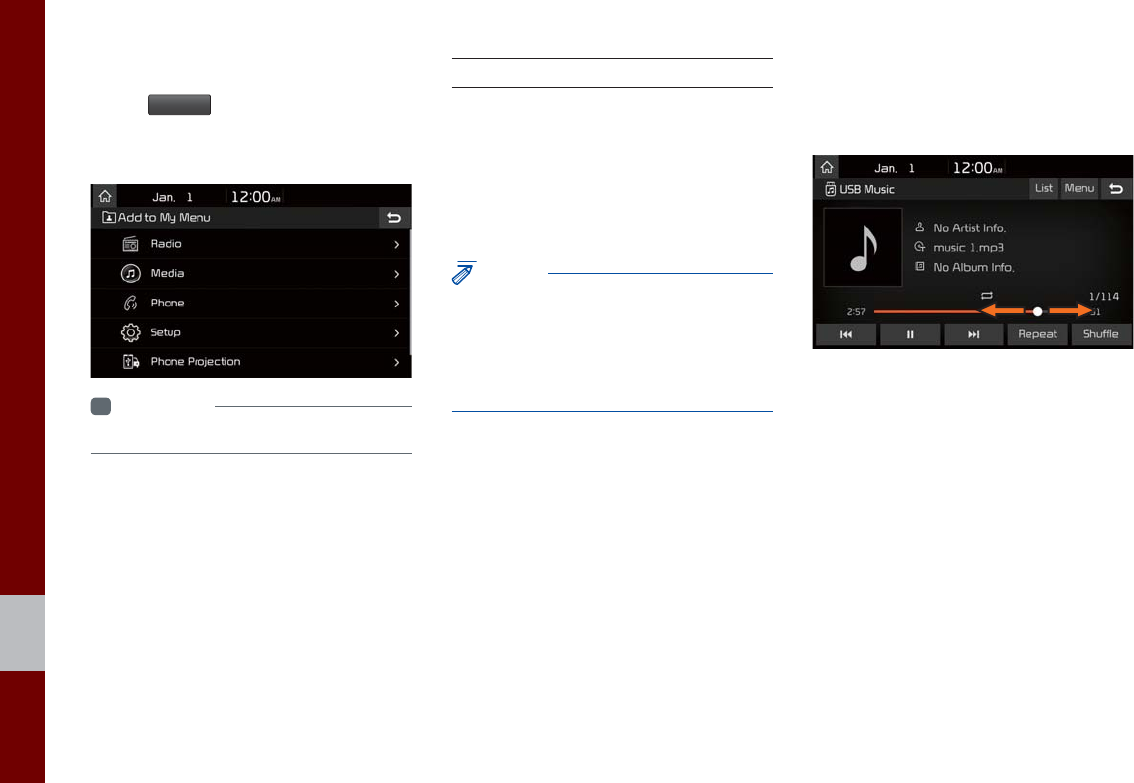

Adding a Feature to My Menu
Select
My Menu
on the Home Screen to
add the most frequently used menus,
change the menu order, or delete menus.
i
Information
• Up to 24 menus can be added to My Menu.
On-Screen Touch Controls
Learn how to touch the screen to operate
the system.
Select
Tap lightly on a menu or an item to select it.
NOTICE
• The system will not recognize your touch if
you wear a glove or other non-conductive
material. Touch the screen using your
fi nger, an electrostatic touch-screen glove,
or a stylus pen.
Drag & Drop
Select a menu or item you want, then drag
and drop it to where you want to place it.
Drag or touch the slider along the play bar
in the music screens to jump to the point
that you want to play from.
K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-12K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-12 2016-11-18 오후 3:29:552016-11-18 오후 3:29:5
![](/img.php?id=3397896&img=bge.png)
Starting the System for the First Time I 1-13
01

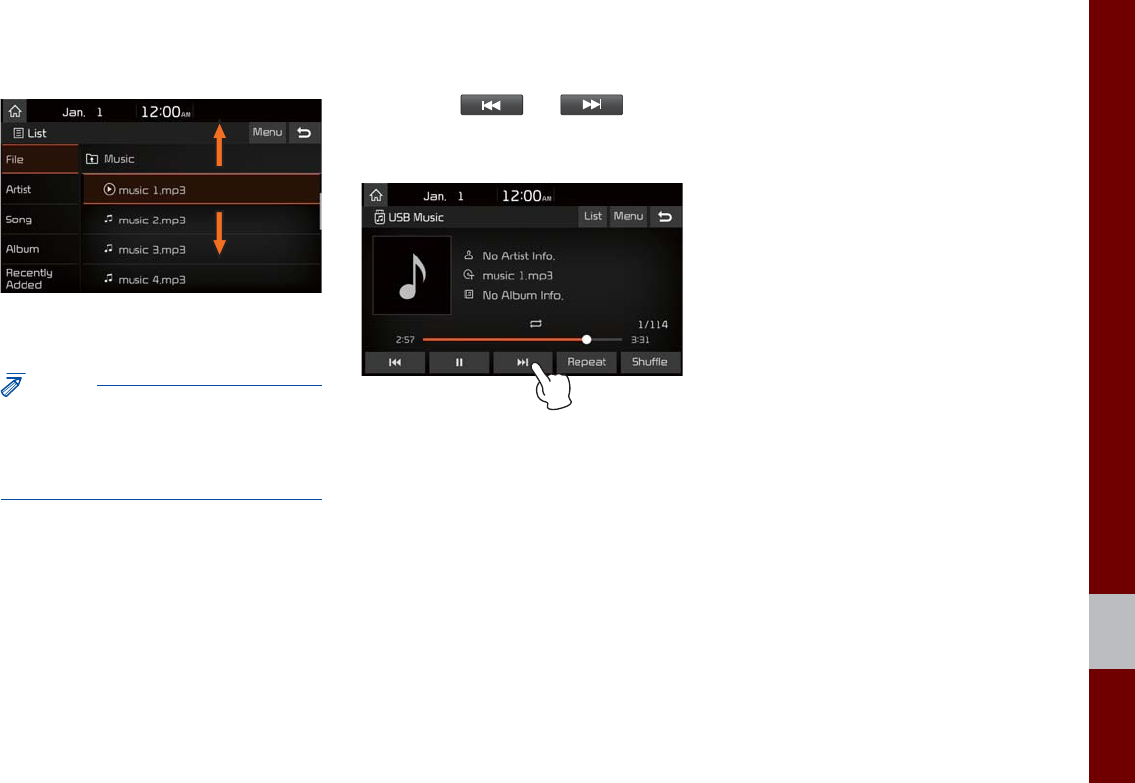

Flick (Quick Scrolling)
Quickly moves up and down in the list.
NOTICE
• Moving the list when there are many items
will display a handler on the right of the
display. You can easily move many items at
a time with the handler.
Press and Hold
Pressing the and buttons
in the music player will fast forward/rewind
the music.
K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-13K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-13 2016-11-18 오후 3:29:562016-11-18 오후 3:29:5
![](/img.php?id=3397896&img=bgf.png)
MEMO
K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-14K_SC 17_DAUD2[MEX_EG]AV_PART1.indd 1-14 2016-11-18 오후 3:29:592016-11-18 오후 3:29:5
![](/img.php?id=3397896&img=bg10.png)
FM/AM
USB
iPod
AUX
Bluetooth® Audio
part.2 Radio/Media
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-1K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-1 2016-11-18 오후 3:30:152016-11-18 오후 3:30:1
![](/img.php?id=3397896&img=bg11.png)
2-2 I Radio/Media
Radio/Media
FM/AM
You can access the radio player either by pressing the
RADIO
key or by selecting the Radio menu from All Menus on the Home
screen.
FM/AM Mode Display Controls
i
Information
• If you press the
RADIO
key when the power is off, the power will turn
on and a radio broadcast will be tuned from the current mode.
Features Description
Mode Display Displays the current operating mode.
Preset
Frequencies
• The stored preset frequencies are displayed
for user selection.
• After selecting frequency, press and hold
the preset button for over 0.8 seconds.
A beep sound will be heard and the frequency
is to be stored in the selected preset button.
• Flick the preset frequencies up/down to
scroll quickly through presets.
Frequency Displays the current frequency.
Menu • Sound Settings
Moves to the Sound Settings.
Back Button Converts to basic mode screen.
Scan/
Preset Scan
Displays an active mode from Scan and
Preset Scan modes.
Scan Shortly plays the broadcasts for the frequencies
with superior reception for 5 seconds per item.
Autostore
Saves frequencies with good reception to
Preset buttons.
While Autostore is operating, pressing the
Autostore button again will cancel the func-
tion and play the previous frequency.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-2K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-2 2016-11-18 오후 3:30:172016-11-18 오후 3:30:1
![](/img.php?id=3397896&img=bg12.png)
FM/AM I 2-3
02
Features Description
SEEK/TRACK
• Pressing this button briefly (less than 0.8 sec-
onds): Seeks the previous/next frequency.
• Pressing and holding this button (for more
than 0.8 seconds): Moves quickly through
all of the frequencies. The moment that you
release the button, the system seeks the next
available frequency.
TUNE
Turn the
TUNE
knob to manually seek avail-
able frequencies.
•FM: Increment/decrement by 200 kHz
•AM: Increment/decrement by 10 kHz
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-3K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-3 2016-11-18 오후 3:30:222016-11-18 오후 3:30:2
![](/img.php?id=3397896&img=bg13.png)
2-4 I Radio/Media
USB
Before Playing a USB MP3
Connect the USB device after turning on the engine. The USB
device may become damaged if it is already connected when the
ignition is turned on.
• Files that are not standard format music/image files will not be
played.
• For MP3/WMA/OGG files, only music files with compression
rates between 8Kbps ~ 320Kbps can be played.
• Heed caution to static electricity when connecting/disconnecting
external USB devices.
• Encoded MP3 Players will not be recognized when connected
as an external device.
• When connecting an external USB device, the device may not
properly recognize the USB is in some states.
• Only products formatted with byte/sectors under 64Kbyte will be
recognized.
• USB devices, formatted to the FAT12, FAT16, or FAT32 file sys-
tem, are recommended. File systems other than FAT12, FAT16,
FAT32, exFAT, and NTFS are not supported.
• Some USB devices may not be supported due to compatibility
issues.
• Take caution so that the USB connector does not come in con-
tact with body parts or objects.
• Repeated connecting/disconnecting of USB devices within short
periods of time may result in product malfunction.
• Make sure to connect/disconnect external USB devices with the
audio power turned off.
• The amount of time required to recognize the external USB
device may differ depending on the type, size, or file formats
stored on the USB.
• The use of USB devices for purposes other than playing music
and image files is prohibited.
• Do not use the USB I/F to charge batteries or USB accessories
that generate heat. Such acts may lead to worsened perfor-
mance or damage to the device.
• The device may not recognize the USB device if separately
purchased USB hubs and extension cables are being used.
Connect the USB directly with the multimedia terminal of the
vehicle.
• When using mass storage USB devices with separate logical
drives, only files saved to the root drive can be played.
• When application programs are installed to specific USBs, files
may not properly play.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-4K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-4 2016-11-18 오후 3:30:272016-11-18 오후 3:30:2
![](/img.php?id=3397896&img=bg14.png)
USB I 2-5
02
• The device may not operate normally if MP3 Players, cellu-
lar phones, digital cameras, or other electronic devices (USB
devices not recognized as portable disk drives) are connected
with the device.
• Charging through the USB may not work for some mobile
devices.
• The device may not support normal operation when using a
USB memory type besides Metal Cover Type USB Memory.
• The device may not support normal operation when using for-
mats such as HDD Type, CF, or SD Memory.
• Upon playing iPods, please use a dedicated iPod car cable.
• Normal operations cannot be guaranteed when other cables are
being used.
• The device will not support files locked by DRM. (Digital Rights
Management)
• USB memory sticks used by connecting an Adaptor (SD Type or
CF Type) may not be properly recognized.

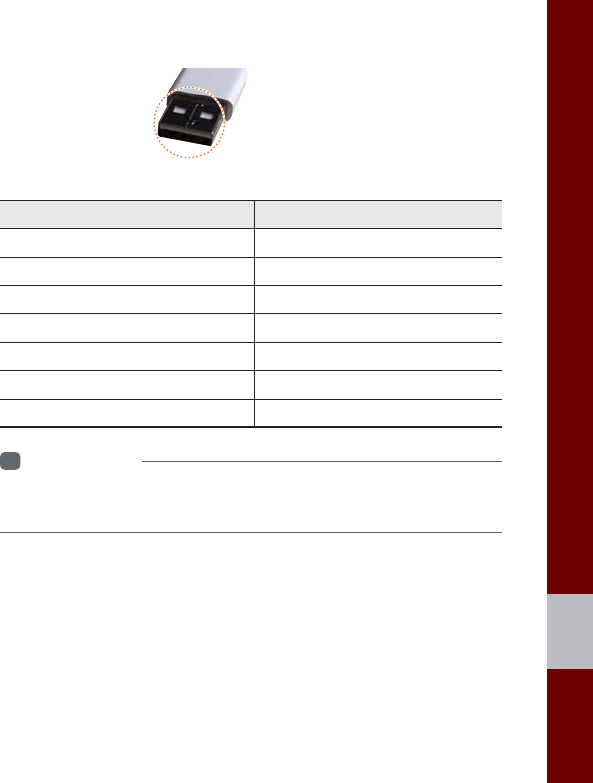

• Only use Plug type connector products, as shown in the figure
below.
• To play USB MP3, the USB device must be connected to the
USB port in the front multibox. The USB port in the center con-
sole storage (if equipped) is for charging only.
Product Name Manufacturer
XTICK LG
BMK BMK Technology
SKY-DRV Sky Digital
TRANSCEND JetFlash Transcend
Sandisk Cruzer SanDisk
Micro ZyRUS ZyRUS
NEXTIK Digiworks
i
Information
• Problems that occur through use of USB devices not listed within the
above table are not covered by the product warranty.

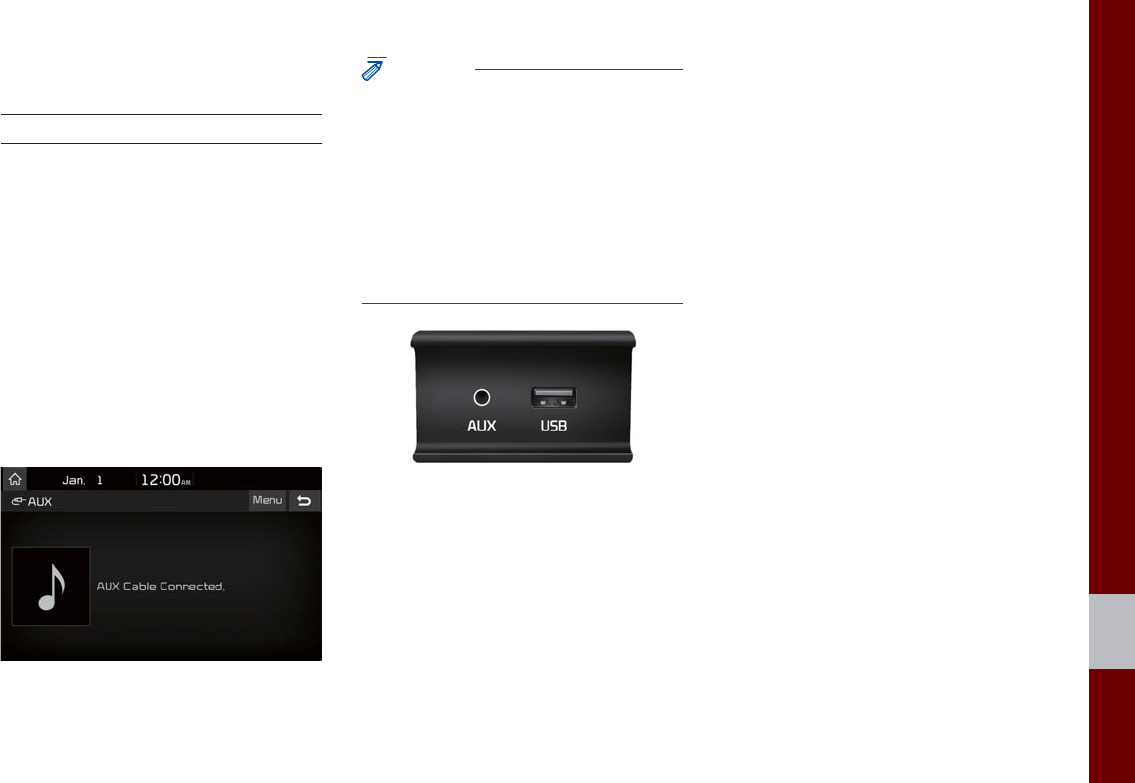

Plug Type Connector
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-5K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-5 2016-11-18 오후 3:30:272016-11-18 오후 3:30:2
![](/img.php?id=3397896&img=bg15.png)
2-6 I Radio/Media
Supported USB MP3 music specifi cations
Name Description
MP3 File
Specification Specification: MPEG1 AUDIO LAYER 3
Recommended
Bit Rates and
Sampling
Frequency
Acceptable sampling frequency: 32, 44.1, 48 (kHz)
Acceptable bit rate: 32, 40, 48, 56, 64, 80, 96, 112,
128, 160, 192, 224, 256, 320 (Kbps)
96, 128, 192 Kbps fixed bit rate/44.1kHz
ID3 Tag Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,
ID3v2.4 ID3 tags
Detailed
Specifications
Maximum directory layers: 20 layers
Maximum length of folder name/file name: 255Bytes
Supported characters for folder name/file name:
Alphanumeric characters, Korean standard charac-
ter set 2,350 characters, Simplified Chinese 4888
characters
Maximum number of folders which can be stored
onto one USB: 2000 folders (including ROOT)
Maximum number of files which can be stored onto
one USB: 8000
i
Information
• The sound quality of MP3 files that use bitrates exceeding 192 Kbps
cannot be guaranteed. When using files without fixed bit rates, some
features (FF/REW features) may not properly operate.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-6K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-6 2016-11-18 오후 3:30:362016-11-18 오후 3:30:3
![](/img.php?id=3397896&img=bg16.png)
USB I 2-7
02

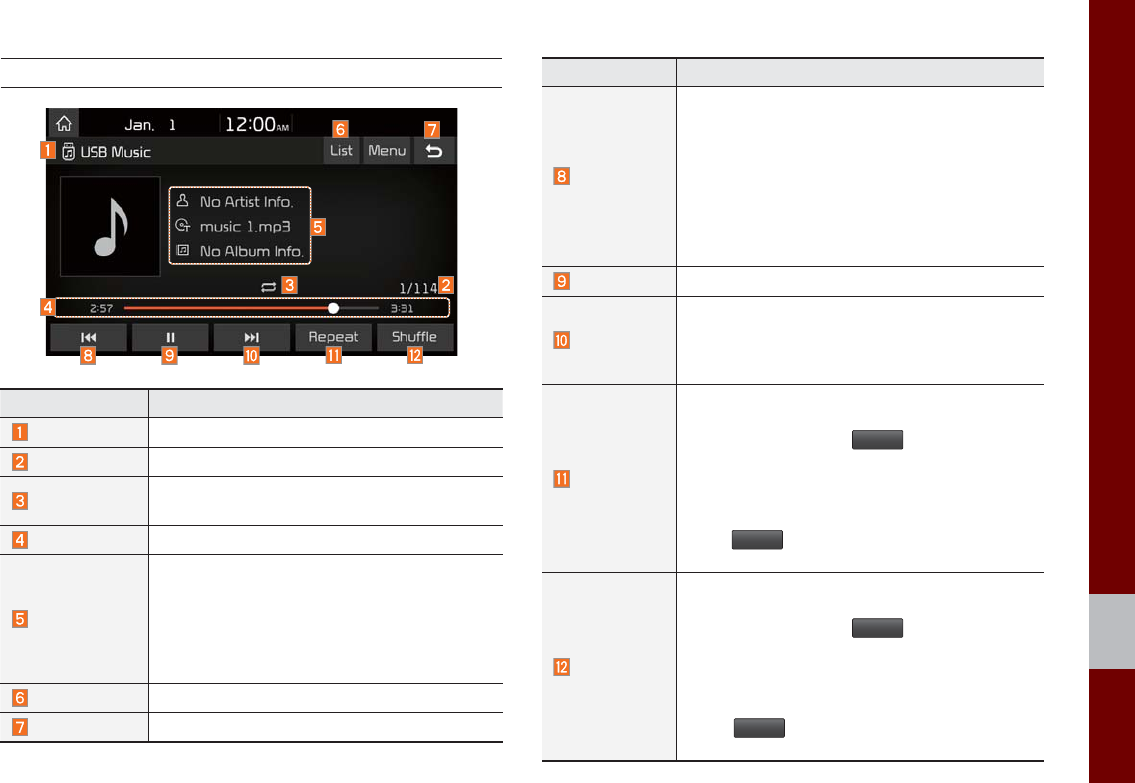

USB Music Mode Display Controls
Features Description
Mode Displays current operating mode
File Index Shows the current file/total files within the USB
Repeat/Shuffle From Repeat/Shuffle, displays the current oper-
ating function
Play Time Displays the current play time/total play time
Song Info
Displays the information of the current track
• When a track in the file tab on the list screen
is selected: Displays artist, title, album info
• When a track in the other tabs on the list
screen is selected: Displays artist, title, album
info
List Moves to the list screen
Back Button Converts to basic mode screen
Features Description
Previous File
If button is pressed (less than 0.8 seconds):
Moves to the previous file or play the current file
from the beginning (Depends on the play time)
• If play time is less than 3 seconds, moves to
previous file
• If play time is more than 3 seconds, play the
current file from the beginning
If button is pressed (more than 0.8 seconds): It
rewinds the track
Play/Pause Plays/pauses the current file
Next File
• If button is pressed (less than 0.8 seconds):
Moves to the next file
• If button is pressed (more than 0.8 seconds): It
fast-forwards the track
Repeat
Repeats the current file
• If select the song in the file tab on the list
screen: Select the
Repeat
button to switch
between repeating one song, repeating folder,
and turning repeat off
• If select the song in the other tabs (Playlist,
Artist, Song, Album) on the list screen: Select
the
Repeat
button to switch between repeating
one song and turning repeat off
Shuffle
Plays files in random order
• If select the song in the file tab on the list
screen: Select the
Shuffle
button to switch
between Shuffle Folder, Shuffle All, and turning
shuffle off
• If select the song in the other tabs (Playlist,
Artist, Song, Album) on the list screen: Select
the
Shuffle
button to switch between Shuffle
Category and turning shuffle off
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-7K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-7 2016-11-18 오후 3:30:362016-11-18 오후 3:30:3
![](/img.php?id=3397896&img=bg17.png)
2-8 I Radio/Media

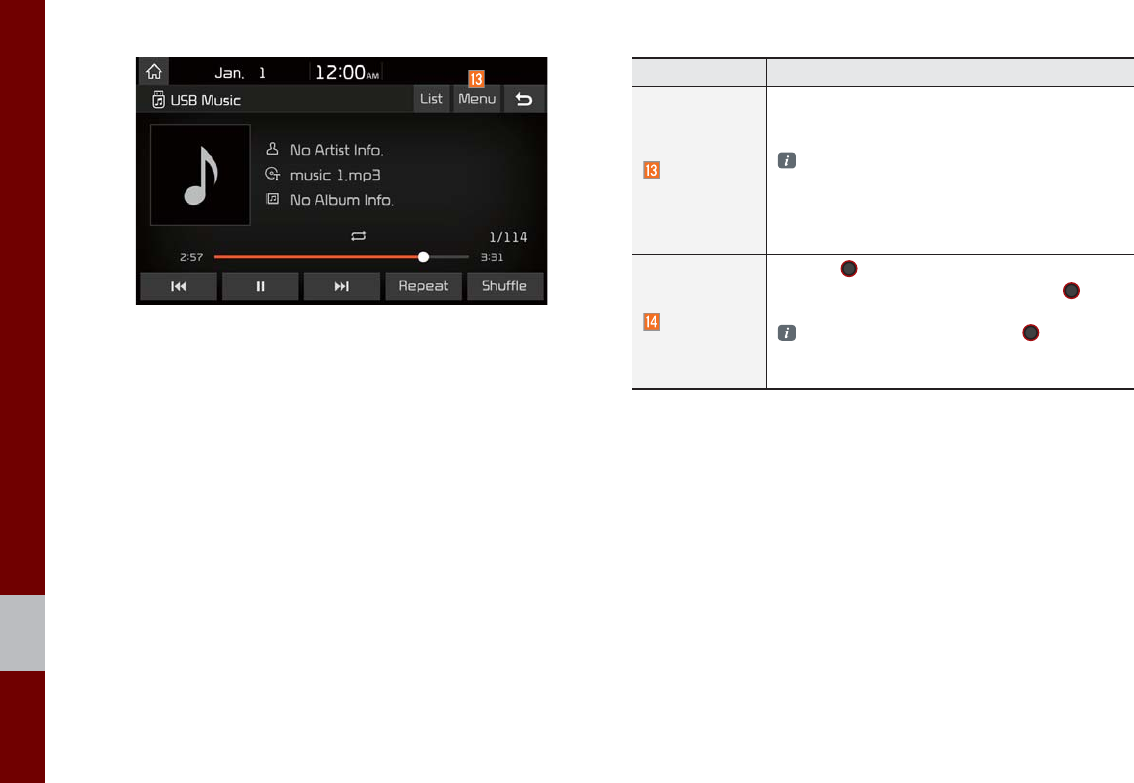

Features Description
Menu
• Delete Current File: A selected file can be
deleted. Deleted file can be found in the to_
Delete folder.
This function is only suppored when USB for-
mat is compatable with FAT16 or FAT32.
• Sound Settings: Moves to the Sound Settings
screen. You can change the settings of the
sound.
TUNE
Turn the
TUNE
knob to search a desired track.
If the desired track is displayed, press the
TUNE
knob to play the track.
If you do not anything with the
TUNE
knob
for 5 seconds of searching tracks, the track
info for the current track is restored.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-8K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-8 2016-11-18 오후 3:30:462016-11-18 오후 3:30:4
![](/img.php?id=3397896&img=bg18.png)
USB I 2-9
02

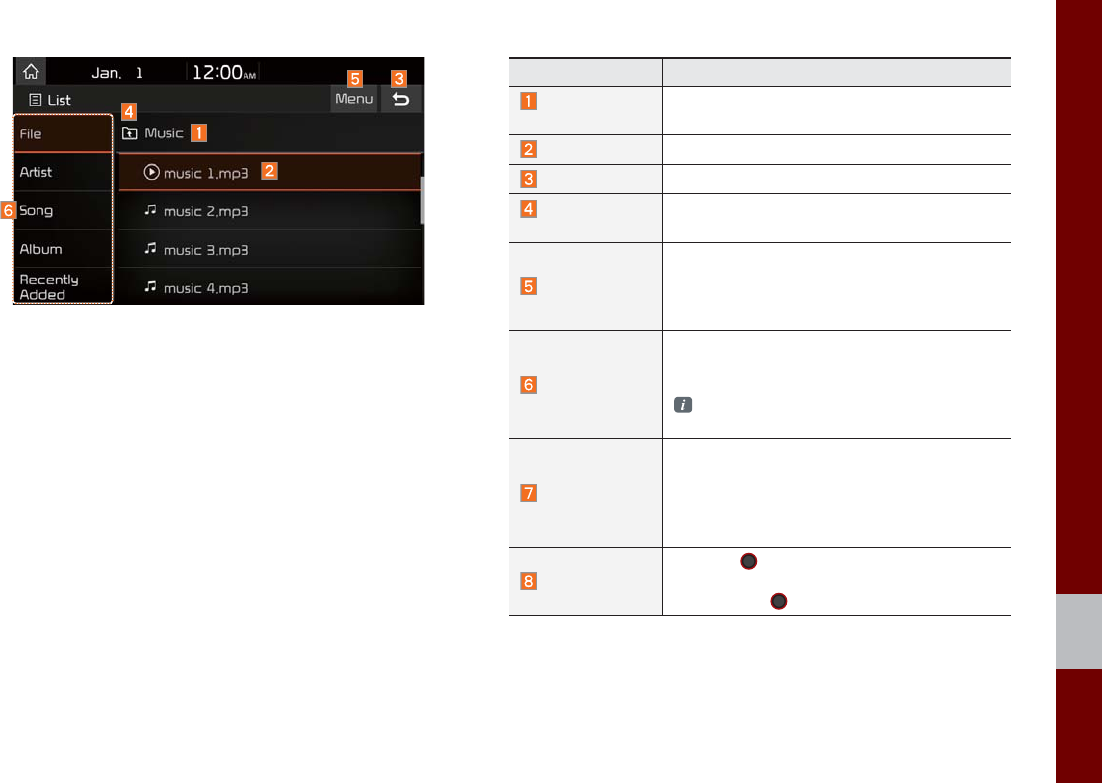

Features Description
Folder/ Category
Name Displays folder/category name in the list
Current Song Displays current playing file name
Back Button Converts to basic mode screen
Upper Folder/
Category Moves to Upper Folder
Menu
Now Playing: When moving to a different list
screen, moves to the list page where the cur-
rent file is located (Becomes disabled when the
current list includes the current file)
Search Menu
Search tracks by the list type. Search songs
according to File, Artist, Song, Album and
Recently Added.
If access the search menu while playing a
track, it moves to the previous search mode.
SEEK/TRACK
•If button is pressed (less than 0.8 seconds):
Plays previous/next track.
• If button is pressed (more than 0.8 seconds):
Moves to play screen, and then it will rewind
or fast-forward the track.
TUNE
Turn the
TUNE
knob to move the focus to
the previous/next list. If the desired track is dis-
played, press
TUNE
knob to play the track.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-9K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-9 2016-11-18 오후 3:30:502016-11-18 오후 3:30:5
![](/img.php?id=3397896&img=bg19.png)
2-10 I Radio/Media

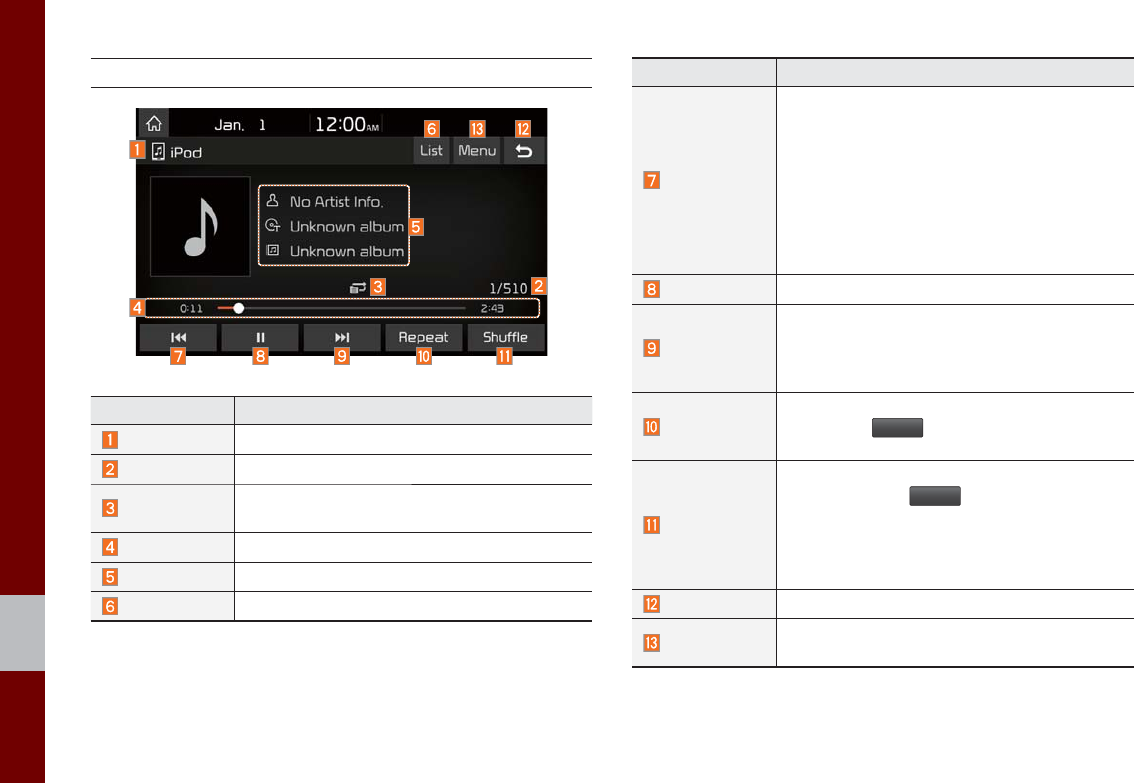

iPod
Using iPod Devices
• iPod is a registered trademark of Apple
Inc.
• iPod mode will not operate if the con-
nected iPod cannot be recognized due
to operation of unsupported versions
that do not support related protocols,
iPod abnormalities, or iPod device
defects. Some iPods with unsupported
communication protocols may not prop-
erly operate with the Multimedia system.
• For fifth generation iPod Nano devices,
the iPod may not be recognized when
the battery level is low. Please charge
the iPod for use.
• Search/play orders shown within the
iPod device may differ with the orders
shown within the Multimedia system.
• If the iPod malfunctions due to an iPod
device defect, reset the iPod and try
again. (To learn more, refer to your iPod
manual)
• If repeatedly connect and disconnect
iPod/iPhone to the Multimedia system
with USB cable in short time, it may
cause abnormal operation.
• The time for recognition of iPod/iPhone
may vary depending on device type,
firmware version and iOS version.
• For some iPod Touch and iPhone
devices, connecting Bluetooth® while the
iPod is operating may result in discon-
tinued iPod sound. When such devices
with Bluetooth® support are connected,
this problem occurs as the sound source
is changed from the Dock Connector
(USB connector cable) to Bluetooth.
• To prevent this symptom, Bluetooth
Audio function in the Multimedia system
is limited if iPod/iPhone is connected
to the system through both cable and
Bluetooth. To listen to the iPod sound,
use either iPod menu with USB connec-
tion or Bluetooth Audio with Bluetooth
connection.
• To listen to the iPod sound, reconnect
the USB cable or change the audio out-
put settings in iPod/iPhone to Dock.
• In order to use the iPod while operating
the keys, you must use a dedicated iPod
cable. (the cable that is supplied when
purchasing iPod/ iPhone products)
※ During ACC ON state, connecting the
iPod through the iPod cable (The cable
that is supplied when purchasing iPod/
iPhone product.) will charge the iPod
through the head unit.
※ The use of genuine iPod cables sup-
The use of genuine iPod cables sup-
plied by Apple is recommended. (The
plied by Apple is recommended. (The
use of other products may result in
use of other products may result in
noise or abnormal operation.)
noise or abnormal operation.)
※
To play iPod music through cable con-
nection, the iPod/USB cable must be
connected to the USB port in the front
multibox. The USB port in the center
console storage (if equipped) is for
charging only.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-10K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-10 2016-11-18 오후 3:30:542016-11-18 오후 3:30:5
![](/img.php?id=3397896&img=bg1a.png)
iPod I 2-11
02
• When connecting with the iPod cable,
make sure to fully insert the jack to pre-
vent communication interference. If the
iPod is connected to the vehicle while it
is playing, a high pitch tone may sound
for about 1~2 seconds immediately after
connection. If possible, connect the iPod
to the vehicle with the iPod stopped/
paused.
• Within iPhones, streaming audio and
iPod control may occasionally conflict.
If problems persist, remove the iPhone
and connect again.
• When connecting to iPod Nano/Classic,
the Kia Motor logo appears on the Apple
device. For the iPod Nano 6 genera-
tion, however, the logo image does not
appear since it is not supported. Also, all
iPhone and iPod Touch products do not
support this function.
• In Apple’s iOS 6.0 version or later,
Podcast and Audiobook media files are
designed to be played with the Podcasts
and iBooks applications specifically
designed for Apple products. If the Apple
device does not provide the Podcast and
Audiobook lists, the playlist may not be
displayed and played in the iPod mode.
• If the Apple Podcasts and iBooks apps
are not installed on the Apple device, but
the Apple device provides the Podcast
and Audiobook lists, you can play files in
other categories in iPod mode.
• The screen of multimedia system can
be different when you run other music
players (e.g. iHeartRadio) on your con-
nected device.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-11K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-11 2016-11-18 오후 3:30:542016-11-18 오후 3:30:5
![](/img.php?id=3397896&img=bg1b.png)
2-12 I Radio/Media
Caution
• While using a connected iPhone/iPod
Touch device, it may not operate nor-
mally if the user changed some func-
tions in the device.
• When calling with an iPhone connec-
tion, song may stop playing due to an
Apple device feature. If sound does
not resume after the call is terminated,
check the device status.
• If lots of songs have the same informa-
tion, skipping may occur when previous/
next song is executed due to an Apple
device feature. Also problems may occur
depending on device type or iOS version.
• If lots of songs have the same informa-
tion, it may occur difference of playing
songs between the Multimedia system
and Apple device. Reset the device or
delete the same songs in the Apple
device using iTunes.
• If you control pause, repeat, shuffle, or
seek songs when the play time is when
the play time is less than 3s before fin-
ished playing, it may occur difference of
playing song between the Multimedia
system and Apple device. Access to
iPod music from another mode or pause
a song and then play a song again in
Apple device.
• We recommend that your Apple device
uses the latest firmware since some
problems may occur due to an outdated
firmware or other software related issues.
Type 1G 2G 3G 4G 5G 6G 6.5G 7G
iPod Mini Not Supported
iPod Shuffle Not Supported
iPod Nano ○ ○○○ ○ ○ Not
released ○
iPod Touch ○
(iOS 1.1 not
supported)
○○○ ○ Not released
iPad ○ (Unable to charge, Not verified, Normal working not guaranteed)
iPad Mini ○ (Unable to charge, Not verified, Normal working not guaranteed)
iPod Classic Not Supported ○
(iPod with
Video)
○
(iPod
Classic)
○
(iPod
Classic)
Not
released
Type 3G 3GS 4 4S 5 5C 5S 6 6+
iPhone
Not verified,
Normal
working not
guaranteed
○○○○○○○○
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-12K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-12 2016-11-18 오후 3:30:542016-11-18 오후 3:30:5
![](/img.php?id=3397896&img=bg1c.png)
iPod I 2-13
02
Caution
• If the iPhone/iPod Touch supports
Bluetooth, it is unable to use Bluetooth
Audio if the Apple device that is con-
nected to the Multimedia system
through both USB connection and
Bluetooth. Disconnect the USB connec-
tion then use Bluetooth Audio.
• If iPod/iPhone connected to the
Multimedia system through both USB
and AUX. iPod/iPhone keeps output
sound via AUX, thus it may occur sound
will not output in iPod mode.
• If AUX cable connected to iPod/iPhone
but not connect to the Multimedia sys-
tem, it may occur sound will not output
in iPod mode due to iPod/iPhone’s fea-
ture. Especially, if you use AUX cable
like pictures, this problem may occur.
• Disconnect AUX cable from iPod/iPhone
first, then connect to the Multimedia
system via USB. Or change settings to
“Dock” in iPod/iPhone.
• If connect to the Multimedia system
while podcast or iTunes music down-
loading to iPod/iPhone, it may occur
some problems when you select song
in the list. Reconnect iPod/iPhone to the
Multimedia system when downloading
is finished or the file deleted.
• If connect to the Multimedia system
while sync, it may occur some problems.
Try to use iPod/iPhone connection after
sync complete. (To learn more, refer to
your iPod manual)
• iPhone and iPod Touch devices are
guaranteed to work normally on iOS
9.3.2 or below. However, they may not
work normally on future iOS versions
as their operations have not yet been
tested.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-13K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-13 2016-11-18 오후 3:30:552016-11-18 오후 3:30:5
![](/img.php?id=3397896&img=bg1d.png)
2-14 I Radio/Media
iPod Mode Display Controls
Features Description
Mode Displays current operating mode
Song Index Shows the current song/total songs
Repeat/Shuffle From Repeat/Shuffle, displays the current
operating function
Play Time Displays the current play time/total play time
Song Info Displays the artist/song title/album info
List Moves to the list screen
Features Description
Previous File
If button is pressed (less than 0.8 seconds):
Moves to the previous file or play the current file
from the beginning (Depends on the play time)
• If play time is less than 3 seconds, moves to
previous file
• If play time is more than 3 seconds, play the
current file from the beginning
If button is pressed (more than 0.8 seconds): It
rewinds the track
Play/Pause Plays/pauses the current file
Next File
• If button is pressed (less than 0.8 seconds):
Moves to the next file
• If button is pressed (more than 0.8 seconds):
It fast-forwards the track
Repeat
Repeats the current file
Select the
Repeat
button to switch between
repeating 1 track, and turning repeat off
Shuffle
Plays files in random order
When selecting
Shuffle
button, it changes to
shuffle category → deactivate shuffle then
repeat
• Shuffle Category: Shuffle song in the current
category
Back Button Move to home/previous mode screen
Menu
Sound Settings: Moves to the Sound Settings
screen. You can change the settings of the sound.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-14K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-14 2016-11-18 오후 3:30:552016-11-18 오후 3:30:5
![](/img.php?id=3397896&img=bg1e.png)
iPod I 2-15
02
Features Description
TUNE
Turn the
TUNE
knob to search a desired
track. If the desired track is displayed, press the
TUNE
knob to play the track.
If you do not anything with the
TUNE
knob
for 5 seconds of searching tracks, the track
info for the current track is restored.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-15K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-15 2016-11-18 오후 3:31:002016-11-18 오후 3:31:0
![](/img.php?id=3397896&img=bg1f.png)
2-16 I Radio/Media

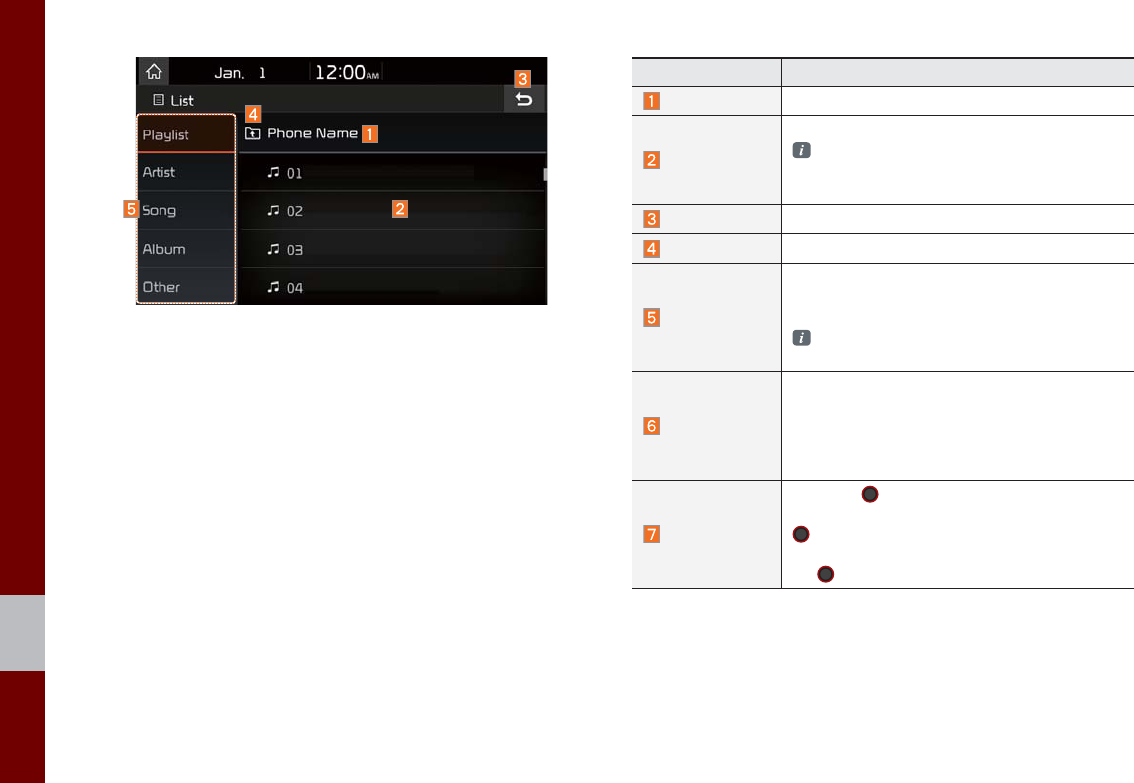

Features Description
Category Name Displays the category name
Category List
Displays the contents of selected category
If there are many items in the list, items are
added in order and the scroll bar on the right
is adjusted accordingly.
Back Button Converts to basic mode screen
Upper Category Moves to Upper Category
Search Menu
Search tracks by the list type. Search songs
according to Playlist, Artist, Song, Album,
Genre, Composer, Podcast and Audiobook.
If access the search menu while playing a
track, it moves to the previous search mode.
SEEK/TRACK
•If button is pressed (less than 0.8 seconds):
Plays previous/next track.
•If button is pressed (more than 0.8 seconds):
Moves to play screen, and then it will rewind
or fast-forward the track.
TUNE
Turn the
TUNE
knob to search a desired
track. If the desired track is displayed, press the
TUNE
knob to play the track.
If you do not anything with the knob for 5 seconds,
the TUNE knob search will be terminated.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-16K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-16 2016-11-18 오후 3:31:032016-11-18 오후 3:31:0
![](/img.php?id=3397896&img=bg20.png)
AUX I 2-17
02
AUX
Connecting an External Device
If an external device connector is con-
nected with the AUX terminal, then AUX
mode will automatically operate. Once the
connector is disconnected, the previous
mode will be restored.
• AUX mode can be used only when an
external audio player has been con-
nected.
• The AUX volume can also be controlled
separately through the connected
device.
NOTICE
• If only a cable is connected to the AUX
without an external device, the mode will be
changed to AUX, but noise may occur. When
an external device is not being used, remove
the connector jack.
• When the external device power is connected
to the power jack, playing the external device
may output noise. In such cases, disconnect
the power connection before use.
※
The actual feature in the vehicle may
differ from the illustration.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-17K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-17 2016-11-18 오후 3:31:072016-11-18 오후 3:31:0
![](/img.php?id=3397896&img=bg21.png)
2-18 I Radio/Media
Bluetooth
®
Audio

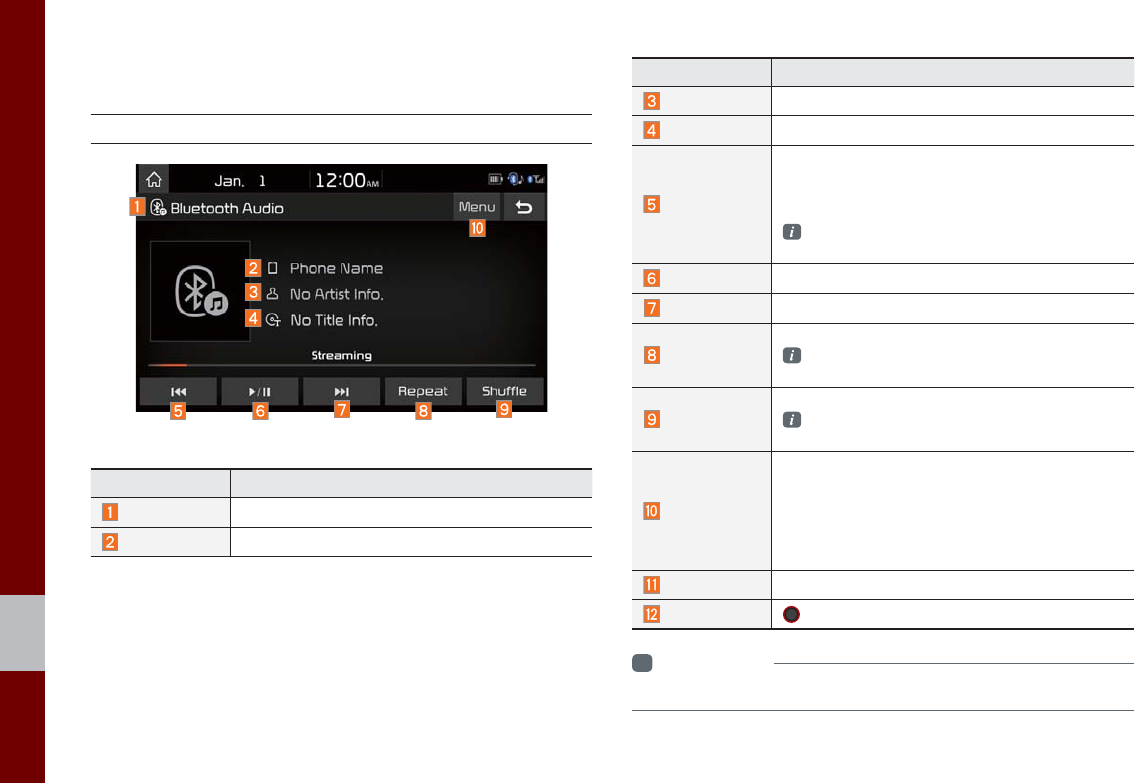

Bluetooth Audio Mode Display Controls
Features Description
Mode Displays the current operating mode
Phone Name Displays name of connected phone
Features Description
Artist Info Name of current artist
Title Name of current song
Previous File
•If play time is less than 3 seconds, moves to
the previous file
• If play time is over than 3 seconds, plays the
current file from the beginning
This function may differ depending on the
model of mobile phone
Play/Pause Plays/Pauses Bluetooth Audio
Next File Moves to the next file
Repeat
Repeats the current file.
This function may differ depending on the
model of mobile phone.
Shuffle
Plays files in random order.
This function may differ depending on the
model of mobile phone.
Menu
•Connections: Moves to the Bluetooth Settings
screen. You can pair a new device or change/
delete paired device(s).
•Sound Settings: Moves to the Sound Settings
screen. You can change the settings of the
sound.
SEEK/TRACK Plays the previous/next file
TUNE
TUNE
is not supported.
i
Information
•Artist info and Title may not be supported by mobile phone.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-18K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-18 2016-11-18 오후 3:31:102016-11-18 오후 3:31:1
![](/img.php?id=3397896&img=bg22.png)
Bluetooth® Audio I 2-19
02

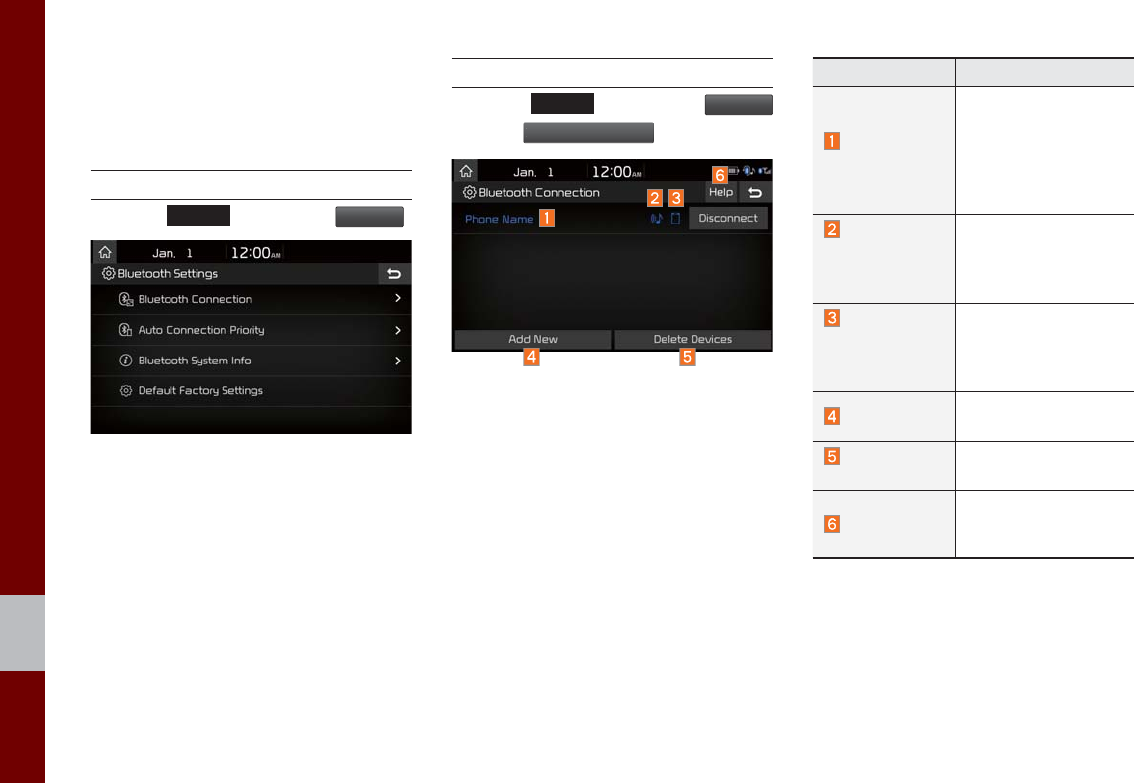

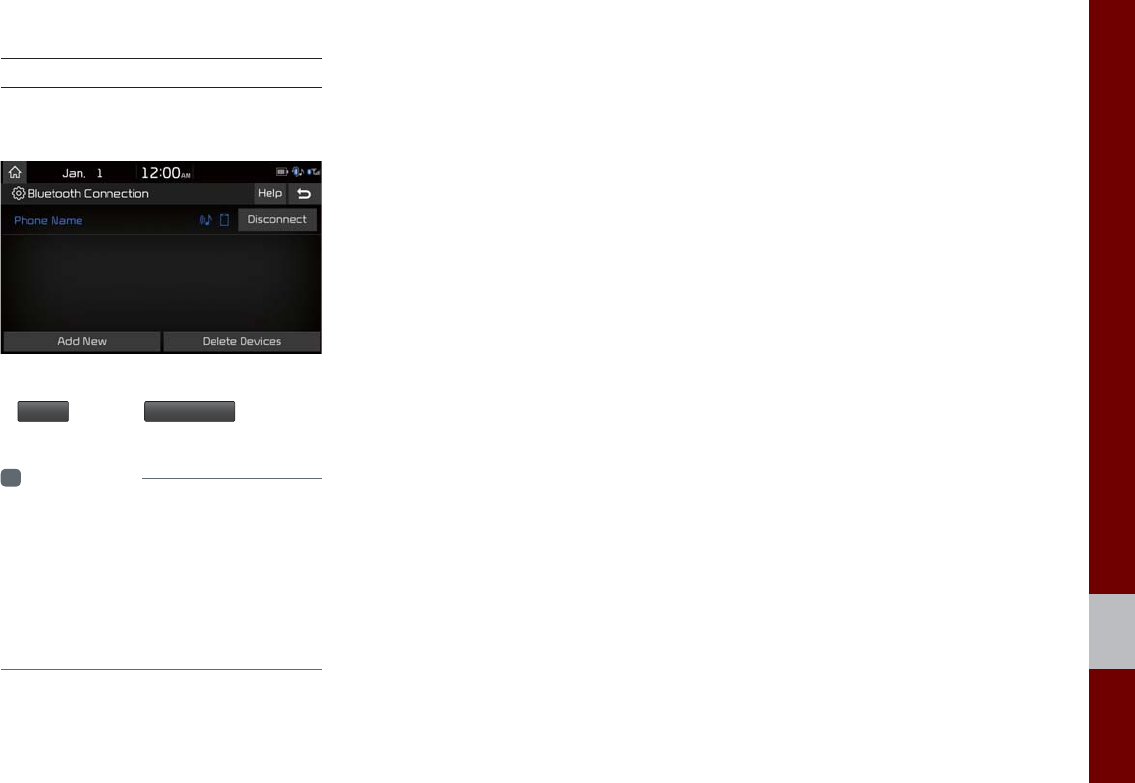

Bluetooth Connection Settings
Settings for pairing, connection and dis-
connection of a Bluetooth device.
• In Bluetooth Audio play screen, select
Menu
and then
Connections
.
i
Information
• If the music in the mobile phone is not
played after changing to audio streaming
mode, press the play button. Thus check if
the music is playing in the Bluetooth device
after changing to audio streaming mode.
Audio streaming may not be supported for
some mobile phones.
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-19K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-19 2016-11-18 오후 3:31:182016-11-18 오후 3:31:1
![](/img.php?id=3397896&img=bg23.png)
MEMO
K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-20K_SC 17_DAUD2[MEX_EG]AV_PART2.indd 2-20 2016-11-18 오후 3:31:192016-11-18 오후 3:31:1
![](/img.php?id=3397896&img=bg24.png)
Before Using the Bluetooth® Handsfree
Bluetooth Connection
Bluetooth Phone
part.3 Bluetooth
K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-1K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-1 2016-11-18 오후 3:31:522016-11-18 오후 3:31:5
![](/img.php?id=3397896&img=bg25.png)
3-2 I Bluetooth
Before Using the
Bluetooth
®
Handsfree
What is
Bluetooth
®
Wireless Technology?
•
Bluetooth
® Wireless Technology refers
to a short-distance wireless networking
technology which uses a 2.45GHz fre-
quency to connect various devices within
a certain distance.
• Supported within PCs, external devices,
Bluetooth® phones, PDAs, various elec-
tronic devices, and automotive environ-
ments,
Bluetooth
® Wireless Technology
to be transmitted at high speeds without
having to use a connector cable.
• Bluetooth® Handsfree refers to a device
which allows the user to conveniently
make phone calls with Bluetooth®
mobile phones through the Multimedia
system.
• The Bluetooth® Handsfree feature
may not be supported in some mobile
phones.
WARNING
- Distracted Driving
• Focus on the road while driving. The driver's
primary responsibility is in the safe and legal
operation of the vehicle. Drivers should not
use any hand held devices or other equipment
or vehicle systems that distract the driver
during vehicle operation.
• Do not stare at the multimedia screen for long
periods of time while driving. Staring at the
screen for prolonged periods of time can lead
to traffi c accidents and can result in personal
injuries.
Precautions for Safe Driving
• Bluetooth® is a feature that enables driv-
ers to practice safe driving. Connecting
the head unit with a Bluetooth® phone
allows the user to conveniently make
calls, receive calls, and manage the
phonebook. Before using
Bluetooth
®
Wireless Technology, carefully read the
contents of this user’s manual.
• Excessive use or operations while driv-
ing may lead to negligent driving prac-
tices and be the cause of accidents. Do
not operate the device excessively while
driving.
•
•
Viewing the screen for prolonged peri-
Viewing the screen for prolonged peri-
ods of time is dangerous and may lead
ods of time is dangerous and may lead
to accidents. When driving, view the
to accidents. When driving, view the
screen only for short periods of time.
screen only for short periods of time.
Bluetooth
K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-2K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-2 2016-11-18 오후 3:31:582016-11-18 오후 3:31:5
![](/img.php?id=3397896&img=bg26.png)
Before Using the Bluetooth
®
Handsfree I 3-3
03
CAUTIONS upon Connecting
Bluetooth® Phone
• Before connecting the head unit with
the mobile phone, check to see that the
mobile phone supports Bluetooth® fea-
tures.
• Even if the phone supports
Bluetooth
®
Wireless Technology, the phone will
not be found during device searches if
the phone has been set to hidden state
or the Bluetooth® power is turned off.
Disable the hidden state or turn on the
Bluetooth® power prior to searching/
connecting with the head unit.
• If Auto Connection is used, the Bluetooth®
phone is automatically connected when
the ignition is turned on, making it unnec-
essary to have to connect the phone with
the head unit every time.
• If you do not want automatic connection
with your Bluetooth® device, turn the
Bluetooth® feature off of the Bluetooth®
device.
• Park the vehicle when connecting the
head unit with the mobile phone.
• Bluetooth® connection may become inter-
mittently disconnected in some mobile
phones. Follow these steps to try again.
1. Turn the Bluetooth® function within the
mobile phone OFF/ON and try again.
2. Turn the mobile phone power OFF/
ON and try again.
3. Completely remove the mobile phone
battery, reboot, and then again.
4. Reboot the Multimedia System and
try again.
5. Delete all paired devices from both of
Phone and Head Unit sides and then
try again.
• The Handsfree call volume and quality
may differ depending on the mobile phone.
• Pairing Bluetooth® devices and use of
other Bluetooth® features are not sup-
ported when the vehicle is in motion. For
safety, please first park your vehicle.
• If you continue having issues with
downloading contacts, please check the
mobile phone status or inquire of the
mobile phone manufacturer.
K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-3K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-3 2016-11-18 오후 3:31:592016-11-18 오후 3:31:5
![](/img.php?id=3397896&img=bg27.png)
3-4 I Bluetooth
Bluetooth Connection
Pairing a New Device
Before you can use the Bluetooth feature,
you must first pair/connect your mobile
phone to your car.
Up to 5 Bluetooth devices can be paired.
Only one Bluetooth device can be con-
nected at a time.
Pairing a New Device by Selecting
Phone/Call
Press the
PHONE
key or key in
the steering wheel control. ▶ Pair your car
after your mobile phone detects the
Bluetooth device. ▶ Enter the passkey or
accept the authorization popup. ▶
Connect Bluetooth.
Pairing a New Device Through the
Phone Settings
Press the
SETUP
key. ▶ Select
Bluetooth
.
▶ Select
Bluetooth Connection
. ▶ Select
Add New
. ▶ Pair your car after your mobile
phone detects the Bluetooth device. ▶
Enter the passkey or accept the authoriza-
tion popup. ▶ Connect Bluetooth.
The default passkey is 0000.
The vehicle name above is an example.
Check the actual information on the product.
Connecting Bluetooth Devices
Connects the Bluetooth devices that you
add.
Connecting Devices by Selecting
Phone/Call
Press the
PHONE
key or key in
the steering wheel control. ▶ Select the
name of the device to connect. ▶ Connect
Bluetooth.
K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-4K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-4 2016-11-18 오후 3:31:592016-11-18 오후 3:31:5
![](/img.php?id=3397896&img=bg28.png)

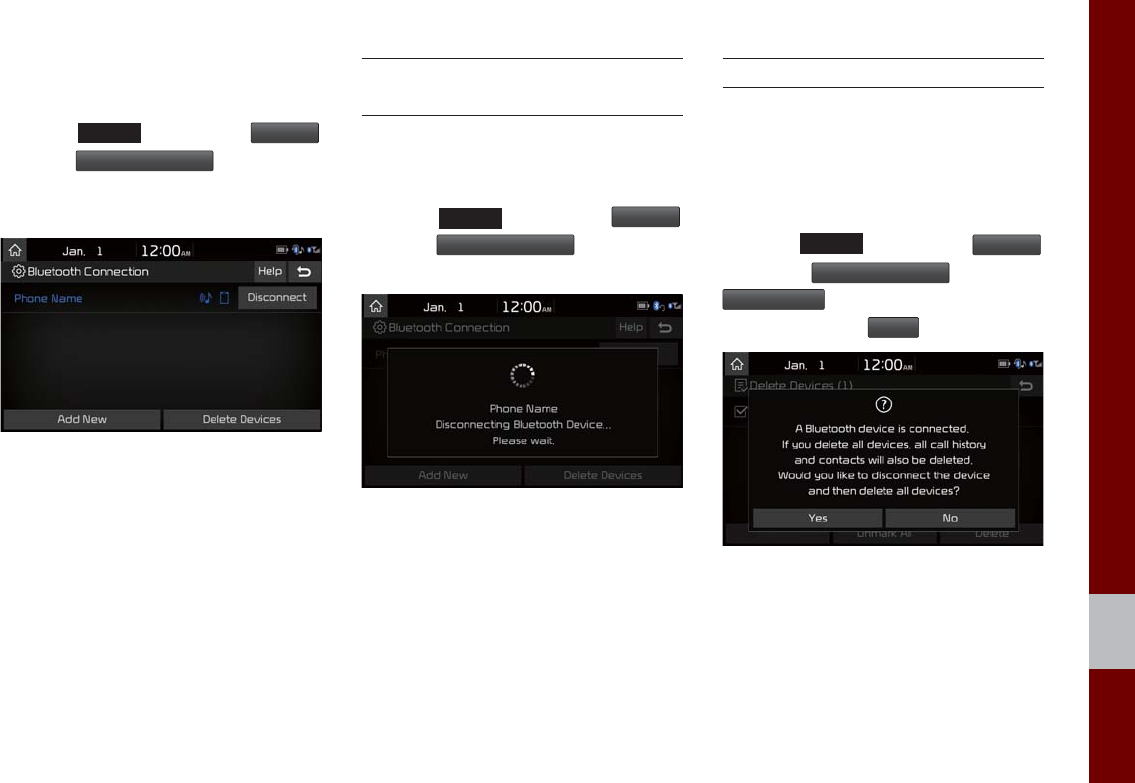

Bluetooth Connection I 3-5
03
Connecting Devices Through the
Phone Settings
Press the
SETUP
key. ▶ Select
Bluetooth
.
▶ Select
Bluetooth Connection
. ▶ Select the
name of the device to connect. ▶ Connect
Bluetooth.
Disconnecting
Bluetooth Devices
Disconnects Bluetooth devices that are
connected.
Press the
SETUP
key. ▶ Select
Bluetooth
.
▶ Select
Bluetooth Connection
. ▶ Select the
name of the device to disconnect.
Deleting Bluetooth Devices
Deletes the Bluetooth devices that you
added. Note that deleting a Bluetooth
device will delete all Call History and
Contact Info downloaded along with it.
Press the
SETUP
key. ▶ Select
Bluetooth
.
▶ Select
Bluetooth Connection
. ▶ Select
Delete Devices
. ▶ Select the device name
to delete. ▶ Select
Delete
.
K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-5K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-5 2016-11-18 오후 3:32:022016-11-18 오후 3:32:0
![](/img.php?id=3397896&img=bg29.png)

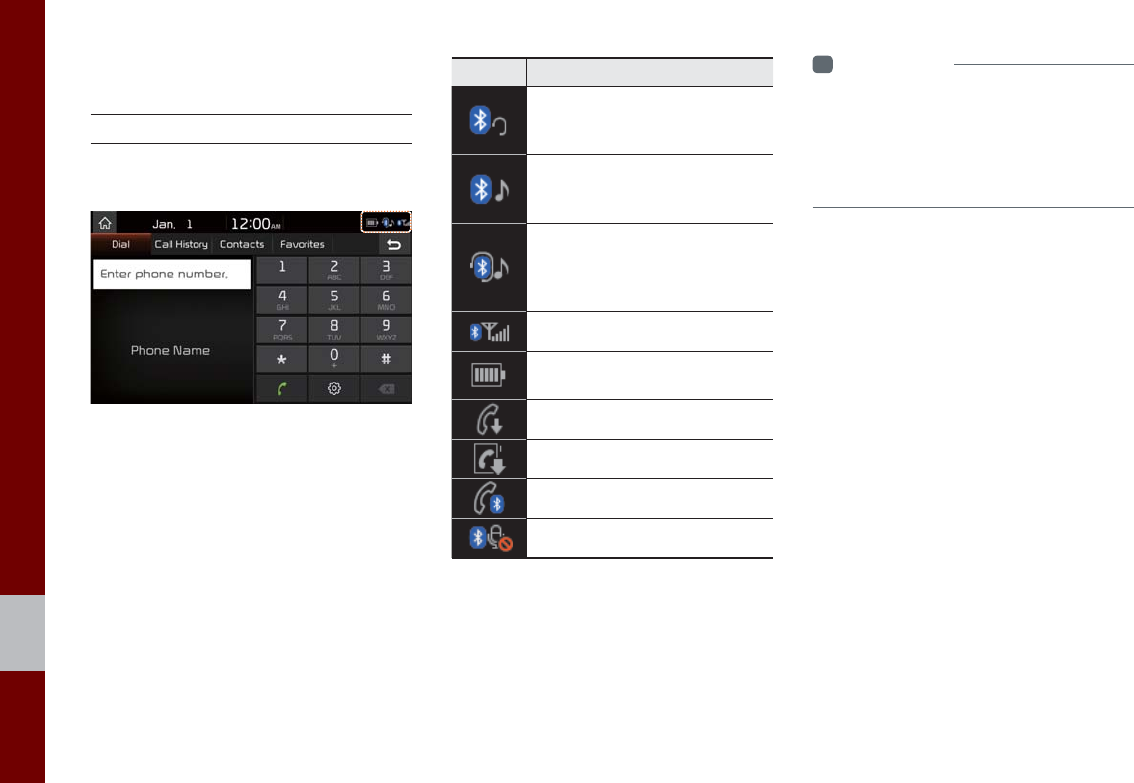

3-6 I Bluetooth
Bluetooth Phone
Phone Status Icons
Shows the current phone status in the
right top of the display.
Icons Description
You can use Bluetooth phones
when a Bluetooth Hands-free
connection is established.
You can use Bluetooth audio
features when a Bluetooth
audio connection is established.
You can use Bluetooth phones
and audio features when both
Bluetooth Hands-free and audio
connections are established.
Call signal strength indicator
Battery level of the Bluetooth
devices connected
Downloading Call History list
Downloading Contacts
In a Bluetooth phone call
Microphone muted
i
Information
• The battery level icon and the call signal
strength indicator may not be supported in
some Bluetooth devices.
• The battery level may differ from the actual
level remaining.
K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-6K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-6 2016-11-18 오후 3:32:042016-11-18 오후 3:32:0
![](/img.php?id=3397896&img=bg2a.png)

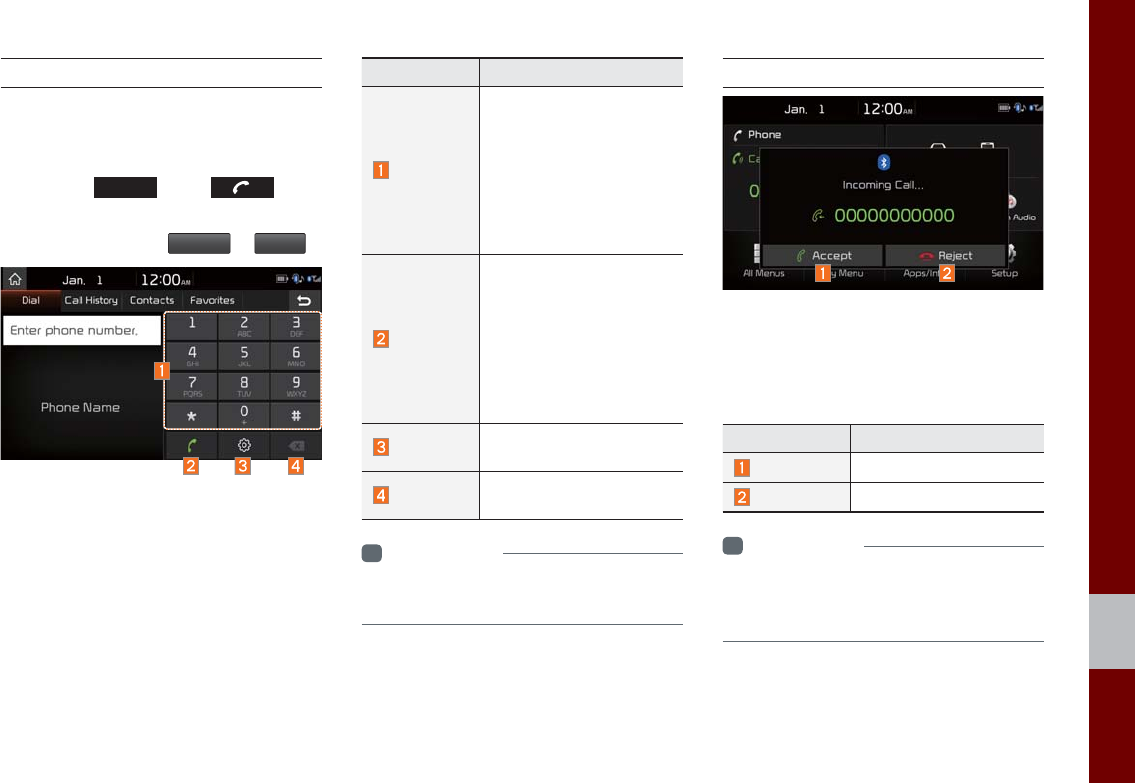

Bluetooth Phone I 3-7
03
Dial
Dials a call after the Bluetooth devices
are connected.
• Press the
PHONE
key or key in
the steering wheel control.
• You can also select
All Menus
▶
Phone
.
Name Description
Keypad
Use the keypad to enter
the phone number that
you want to call. Press
and hold the last number
of a speed dial to dial a
number that you added
to the Speed Dial list in
the phone
Call
Makes a call after you
dial a number and select
CALL. If the number is
listed in Dialed Calls, you
can select the number
and press CALL to auto-
matically dial that num-
ber again.
Settings Moves to a screen of
Phone Settings.
Delete Deletes the numbers that
you entered.
i
Information
• Some types of mobile phones may not
support the Speed Dial function.
Accept/Reject Call
If there is an incoming call after you
made a Bluetooth connection, a popup
message will appear.
Name Description
Accept Answers the call.
Reject Ignores the call.
i
Information
• In some mobile phones, the caller’s number
may not be displayed, and the Reject feature
may not be supported.
K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-7K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-7 2016-11-18 오후 3:32:052016-11-18 오후 3:32:0
![](/img.php?id=3397896&img=bg2b.png)
3-8 I Bluetooth
Using the Menu During
a Phone Call
When making a call, you can use the fol-
lowing menu items.
Name Description
Use Private
Switches a voice call
from the car Hands-free
to the mobile phone.
End Ends a call.
Contacts Displays the Contacts
list.
Outgoing
Volume
Displays the Mic Volume
settings. You can adjust
the in-call volume that
the other party hears
(level 1 - 5).
Keypad Moves to a screen for
entering numbers.
Switch
Switches to a call on
hold, if any. You can also
switch calls by select-
ing the number in the
Information Display. The
Switch function switches
the current call to a wait-
ing call in order to answer
a new incoming call.
i
Information
• If the caller’s number is listed in Contacts, the
caller’s name will be displayed. Otherwise,
only the number will be displayed. In some
mobile phones, the phone number may not
be displayed.
• In some Bluetooth devices, the Use Private
feature may not be supported.
• In some Bluetooth devices, the Switch feature
may not be supported.
• During a phone call on a Bluetooth Hands-
free, you cannot access other modes, such as
Radio and Setup.
• Depending on handset types, the in-call
volume the other party hears may differ. If the
other party hears your voice too low or too
loud, adjust the mic volume.
K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-8K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-8 2016-11-18 오후 3:32:122016-11-18 오후 3:32:1
![](/img.php?id=3397896&img=bg2c.png)

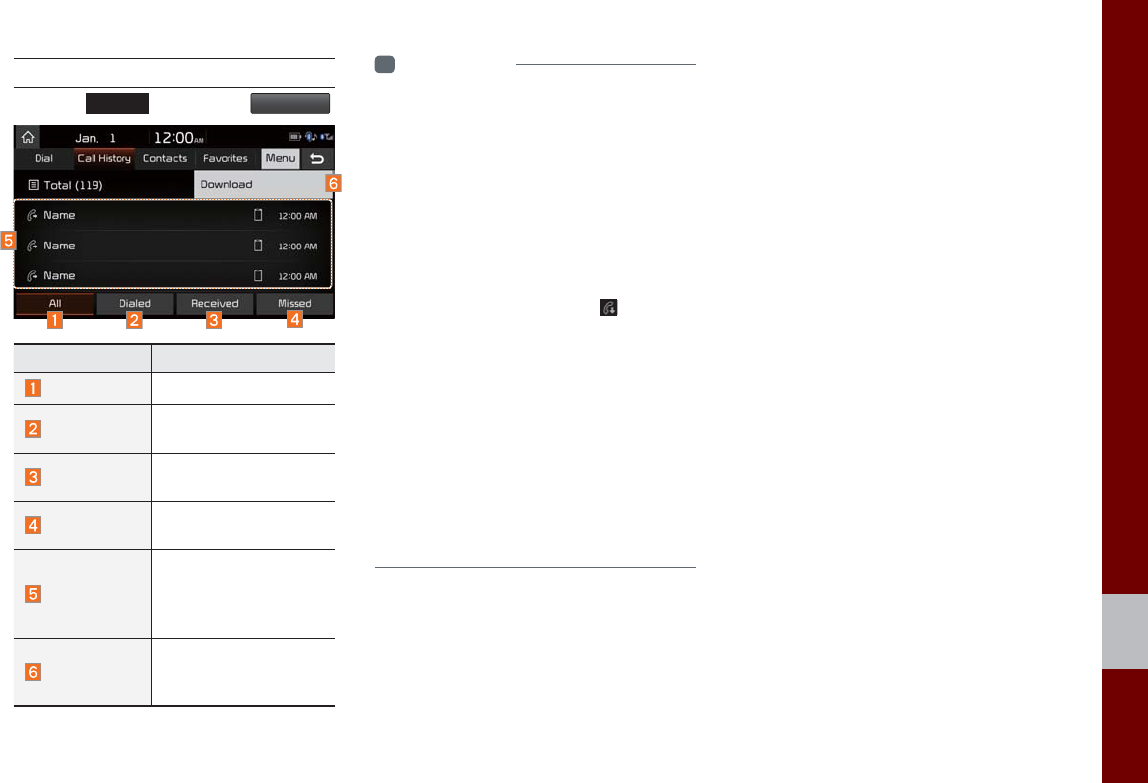

Bluetooth Phone I 3-9
03
Call History
Press the
PHONE
key, and then
Call History
.
Name Description
All Lists the all call history.
Dialed Lists the calls that you
made.
Received Lists the calls that you
have received.
Missed Lists the calls you
missed.
Call History
Displays all of your
call history. Select
from the list to dial the
number.
Download
Downloads the call his-
tory information from
your mobile phone.
i
Information
• In some mobile phones, call records may not
be added to your Call History.
• Calls from restricted ID’s are not added to
your Call History Information.
• Up to 50 calls can be added in each Dialed
Calls/Received Calls/Missed Calls list.
• The durations of each dialed/received call are
not displayed in your car’s Call History list.
• While the call history download is in progress,
the status bar displays an icon ( ).
• If the call history download is turned off on the
Bluetooth device, the call history download
will fail.
• Some devices require a device authentication
for downloading your call history. If download
fails, check if the Bluetooth settings or display
status are normal.
• Some devices do not support call history
download. Check if your Bluetooth device
supports download feature.
K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-9K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-9 2016-11-18 오후 3:32:152016-11-18 오후 3:32:1
![](/img.php?id=3397896&img=bg2d.png)

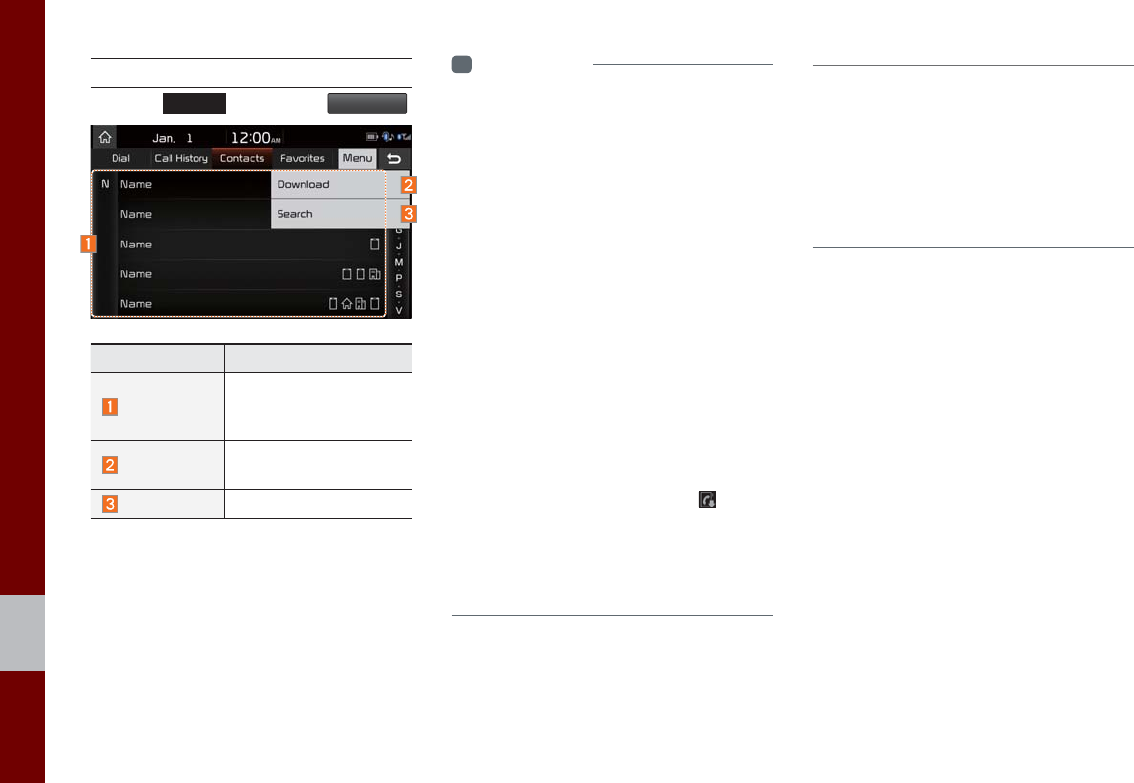

3-10 I Bluetooth
Contacts
Press the
PHONE
key, and then
Contacts
.
Name Description
Contacts List
The list of Contacts.
Select from the list to
dial the number.
Download Downloads contacts
from your mobile phone.
Search Searches Contacts.
i
Information
• Up to 5000 phone numbers can be
downloaded from a single, paired Bluetooth
device.
• You cannot edit or delete downloaded phone
numbers from your car.
• Contacts can be viewed only when the
Bluetooth device is connected.
• Even if the Bluetooth device is disconnected,
the downloaded data will remain. (Note that
deleting a paired phone will also delete all
downloaded Contacts and Call History data)
• Downloaded phone numbers may be lost
depending on the condition of the head unit.
Keep your important data in a safe place.
• Contacts from both the SIM card and your
mobile phone are downloaded at the same
time by default.
• The status bar displays a ( ) while
downloading contacts.
• The download will not be available if the
contacts download function is turned off on
your Bluetooth device.
• Some devices require a device authentication
for downloading your contacts. If download
fails, check your phone screen and confirm
the download if necessary.
• Some devices do not support contacts
download feature. Check if your Bluetooth
device supports contacts download.
K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-10K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-10 2016-11-18 오후 3:32:222016-11-18 오후 3:32:2
![](/img.php?id=3397896&img=bg2e.png)

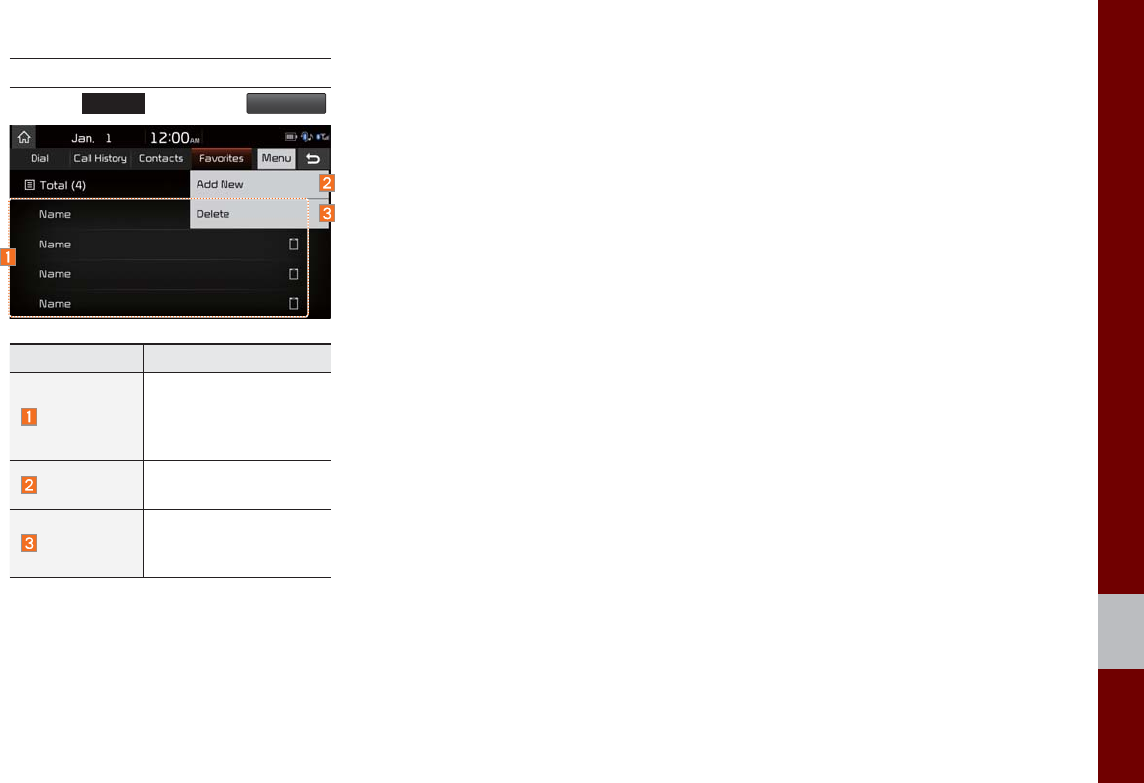

Bluetooth Phone I 3-11
03
Favorites
Press the
PHONE
key, and then
Favorites
.
Name Description
Favorites
Lists the phone num-
bers saved as Favorites.
Select from the list to
dial the number.
Add New Adds a new number to
Favorites.
Delete
Deletes numbers
that you select from
Favorites.
K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-11K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-11 2016-11-18 오후 3:32:262016-11-18 오후 3:32:2
![](/img.php?id=3397896&img=bg2f.png)
MEMO
K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-12K_SC 17_DAUD2[MEX_EG]AV_PART3.indd 3-12 2016-11-18 오후 3:32:302016-11-18 오후 3:32:3
![](/img.php?id=3397896&img=bg30.png)
Camera
part.4 Other Features
K_SC 17_DAUD2[MEX_EG]AV_PART4.indd 4-1K_SC 17_DAUD2[MEX_EG]AV_PART4.indd 4-1 2016-11-18 오후 3:32:442016-11-18 오후 3:32:4
![](/img.php?id=3397896&img=bg31.png)

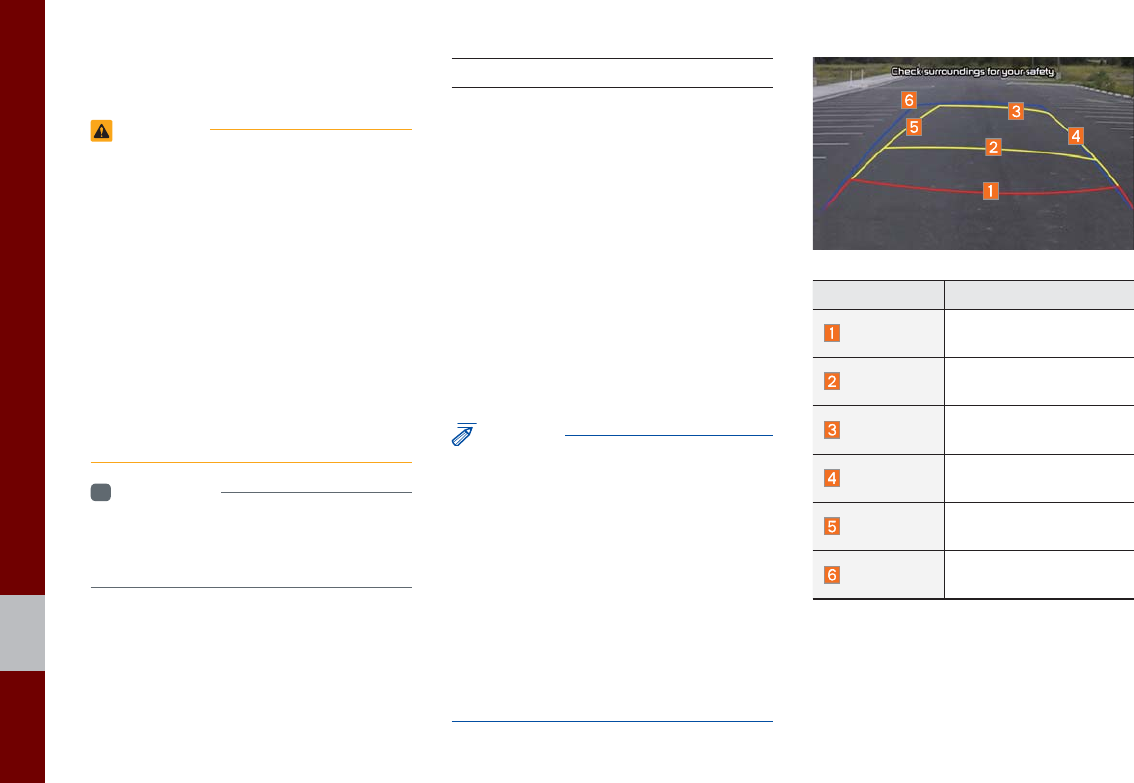

4-2 I Other Features
Camera
WARNING
- Backing Up & Using Camera
• Never rely solely on the rear view camera
when backing up. Prior to entering your
vehicle always do a visual check of the area
behind your vehicle, and before backing up be
aware of your surroundings and supplement
the rear view camera by looking over your
shoulders and checking your rear view mir-
rors. Due to the difficulty of ensuring that the
area behind you remains clear, always back
up slowly and stop immediately if you even
suspect that a person, and especially a child,
might be behind you.
i
Information
• A separate chipset is used for the camera
screen while booting up, so it may be different
after booting up.
Steering-linked camera
• This device is connected to a rear
detection camera to see behind the car
for safe reversing.
• The Rear View Camera turns on auto-
matically if you shift the gear to R when
the power is on or the engine has
started.
• While the device boots up, shift the gear
to “R” to activate the rear detection cam-
eras. Shift the gear to another position
to deactivate the rear detection camera.
NOTICE
• A wide-angle lens is installed as the rear
detection camera to get a wider view, so
there may be some difference between the
actual distance and the distance that appears.
on-screen. For safety, make sure to view
the back, right, and left sides of the car for
yourself.
• The color of the parking guidelines displayed
in the picture may differ from the actual
screen.
• When booted up, blinking may occur when
you switch to a UI screen.
Name Description
Red Line About 0.5 m from the
rear bumper
Yellow Line 1 About 1 m from the rear
bumper
Yellow Line 2 About 3 m from the rear
bumper
Yellow Line 3 Trajectory of the wheel
on the driver’s side
Yellow Line 4 Trajectory of the wheel
on the passenger side
Blue Line Neutral steering trajec-
tory
As you reverse your car and monitor the
area behind your car, the steering-linked
driving trajectory and the neutral driving
trajectory are both displayed.
Other Features
K_SC 17_DAUD2[MEX_EG]AV_PART4.indd 4-2K_SC 17_DAUD2[MEX_EG]AV_PART4.indd 4-2 2016-11-18 오후 3:32:452016-11-18 오후 3:32:4
![](/img.php?id=3397896&img=bg32.png)
Setup
Sound Settings
Display Settings
Bluetooth Settings
Custom Button Settings
Home Screen Settings
Date/Time Settings
Language Settings
Keyboard Settings
Screen Saver Settings
Advanced Settings
System Info
part.5 Setup
K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-1K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-1 2016-11-18 오후 3:33:072016-11-18 오후 3:33:0
![](/img.php?id=3397896&img=bg33.png)
5-2 I Setup
Setup
Setup
Setup is the screen to control Audio sys-
tem settings.
To enter the screen, press the
SETUP
key or the
Setu
p
icon in All Menus.
Features Description
Sound
Provides the sound con-
trol options for Position,
Bass, Mid, Treble,
Volume, Priority and
Advanced settings.
Display Provides the Mode/
Illumination settings.
Bluetooth
Provides the Bluetooth
Connection/Auto
Connection Priority/
Bluetooth System Info
settings.
Phone
Projection
For more details, refer to
Phone Projection guide.
Custom
Button
Provides settings that
configure the feature to
be accessed when the
key is pressed.
Features Description
Home
Screen
Provides the function
to customize the three
menu items at the bottom
of the Home Screen.
Date/Time Provides the Date and
Time settings.
Language Provides the Change
Language settings.
Keyboard
Provides settings to
switch keyboard layouts.
Screen
Saver
Provides the Clock/None
settings.
Advanced
Provides settings that
configure notifications
per feature, etc.
System Info Provides software and
default information.
Display Off Provides the Display Off
(touch activation) function.
K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-2K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-2 2016-11-18 오후 3:33:082016-11-18 오후 3:33:0
![](/img.php?id=3397896&img=bg34.png)
Setup I 5-3
05
Sound Settings
Adjusts the sound effects for the whole
system.
Features Description
Position
Select the Up/Down/Left/
Right button to control
sound positioning.
Select to concen-
trate the sound on the
center of vehicle.
Tone
Drag the slide bar to con-
trol Bass/Middle/Treble
settings.
Select
C
en
t
er
to initialize
the settings.
Features Description
Priority
Sets the volume priority
for Back-up warning and
resets Start-up volume.
Advanced
Select additional audio
options such as “Speed
Dependent Volume
Control” that automatically
controls Audio volume
according to vehicle speed.
Default Resets the sound to fac-
tory default settings.
Beep Select to activate a beep
when pressing buttons.
i
Information
• Advanced sound settings may differ according
to selected AMP option.
• The seat shape may differ according to
vehicle model.
Display Settings
Adjusts the level of illumination for the
entire system.
Features Description
Mode
Select any of LCD illumi-
nation change modes:
Automatic (changes
the level automatically),
Daylight, and Night.
Illumination
Set the levels of illumina-
tion for day and night.
Select
D
e
f
au
lt
to initialize
the settings.
Default Resets the display to fac-
tory default settings
Display Off Provides the Display Off
(touch activation) function.
K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-3K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-3 2016-11-18 오후 3:33:262016-11-18 오후 3:33:2
![](/img.php?id=3397896&img=bg35.png)
5-4 I Setup
Bluetooth Settings
Changes Bluetooth phone settings.
Bluetooth Settings
Press
the
SETUP
key ▶ Select
Bluetooth
.
Bluetooth Connection
Press the
SETUP
key ▶ Select
Bluetooth
▶ Select
Bl
u
et
oo
th C
o
nnecti
o
n
.
Features Description
Paired Device
List
Displays the paired
Bluetooth device list.
When selecting from
the list, the device is
connected or discon-
nected.
Bluetooth
Audio
Connection
Status
An icon appears
when you make a
Bluetooth Audio con-
nection.
Bluetooth
Hands-Free
Connection
Status
An icon appears
when you make a
Bluetooth Hands-free
connection.
Add New Register a new
Bluetooth device.
Delete
Devices
Select and delete a
paired device.
Help
Switches to the
Bluetooth Connection
Help screen.
K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-4K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-4 2016-11-18 오후 3:33:362016-11-18 오후 3:33:3
![](/img.php?id=3397896&img=bg36.png)

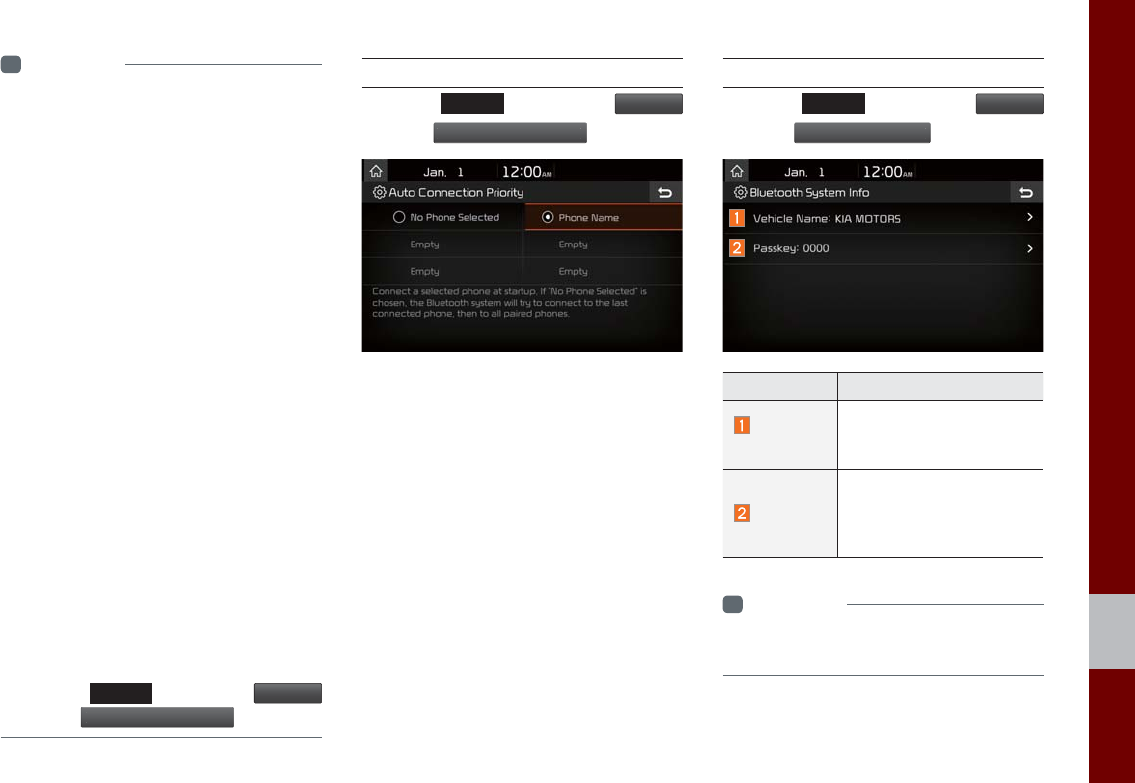

Setup I 5-5
05
i
Information
• Up to 5 Bluetooth devices can be paired.
• Only one Bluetooth device can be connected
at a time.
• During a Bluetooth device connection, another
device cannot be paired.
• When you delete a paired device, the Call
History and Contacts stored in the head unit
are also deleted.
• Bluetooth Hands-free and Bluetooth Audio
functions are supported.
• Hands-free and audio-supported devices,
such as a Bluetooth smartphone or audio, will
function normally.
• When a Bluetooth device is connected, if
the Bluetooth connection is unexpectedly
disconnected, due to being out of
communication range, the device powering
off, or a Bluetooth communication error, the
Bluetooth device automatically searches for
and connects to nearby Bluetooth devices.
• If the system is not stable, due to a vehicle-
Bluetooth device communication error, restore
the Default Factory Settings.
• For Default Factory Settings, the bluetooth
settings are reset to factory settings.
• Press the
SETUP
key ▶ Select
Bluetooth
▶ Select
D
e
f
au
lt
F
ac
t
ory
S
e
tti
ng
s
.
Auto Connection Priority
Press
the
SETUP
key ▶ Select
Bluetooth
▶ Select
Auto Connection Priorit
y
.
When the engine is running, the selected
Bluetooth device is automatically con-
nected. If you fail to connect the selected
device, the previously-connected device is
automatically connected, and if it also fails,
then it tries to connect all paired devices
sequentially.
Depending on auto connection priority,
connection to a device may take time.
Bluetooth System Info
Press the
SETUP
key ▶ Select
Bluetooth
▶ Select
B
luetooth S
y
stem Inf
o
.
Features Description
Vehicle
Name
You can change the
Bluetooth device name of
the vehicle.
Passkey
You can change the pass-
key used for Bluetooth
device authentication. the
initial passkey is 0000.
i
Information
• The vehicle name above is an example.
Check the actual information on the product.
K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-5K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-5 2016-11-18 오후 3:33:542016-11-18 오후 3:33:5
![](/img.php?id=3397896&img=bg37.png)

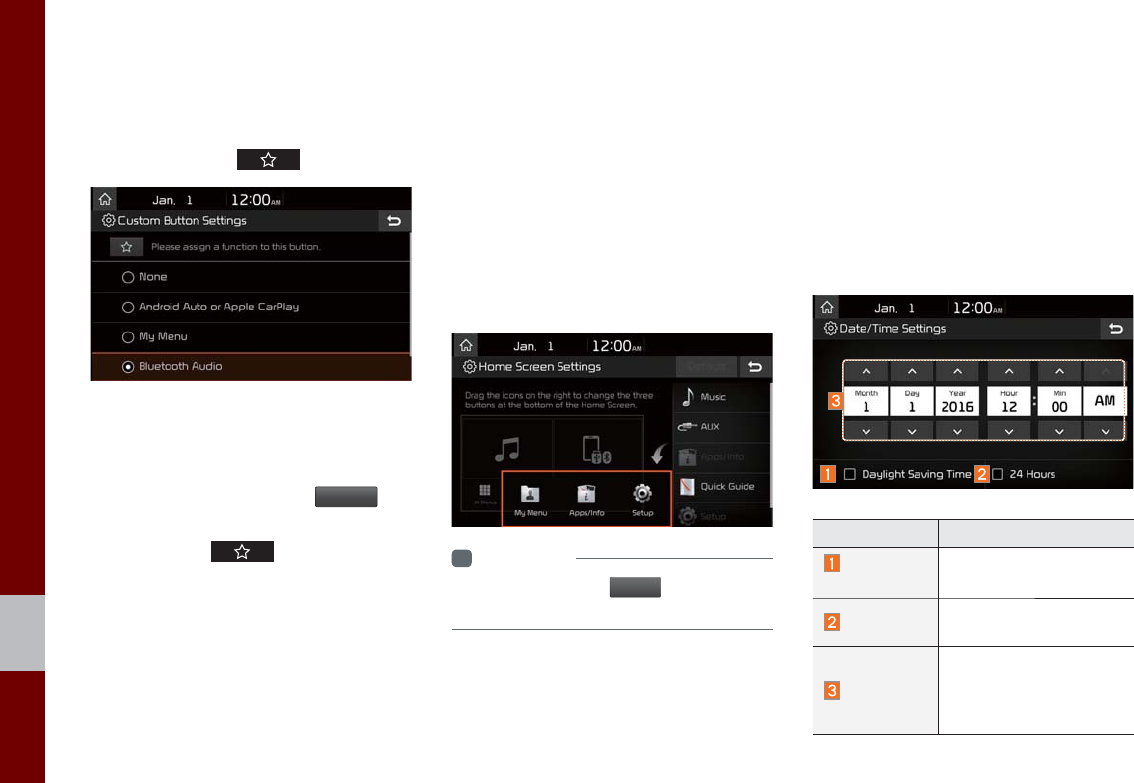

5-6 I Setup
Custom Button Settings
You can configure the feature to be
accessed when the key is pressed.
Setting it to a feature that you frequently
use will allow you to access the feature
quickly and conveniently anytime.
For example, setting it to
My Menu
will
enable you to access the My Menu screen
by pressing the key.
Home Screen Settings
You can customize the three menu items
at the bottom right of the Home Screen
into the ones you want.
On the Home Screen Settings screen,
drag the menu items on the right to the
area marked in red in the screen below.
i
Information
• You can select the
D
efaul
t
button to reset
to the factory default settings.
Date/Time Settings
Configure the settings for time and date.
Using the arrow buttons, you can change
the values. Date/Time settings do not
automatically change when crossing into
different time zones. The time must be
changed manually on this screen.
Features Description
Daylight
Saving Time
The daylight saving time
(DST) is applied.
24 Hours The time display is set in
24-hour format.
Direct entry
If you tap any value, you
can directly enter the
number in the following
screen.
K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-6K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-6 2016-11-18 오후 3:33:592016-11-18 오후 3:33:5
![](/img.php?id=3397896&img=bg38.png)
Setup I 5-7
05
Language Settings
You can configure the displayed system
language.
When the language is changed, the sys-
tem language is automatically changed.
Unique data including MP3 file name is
not changed.
Keyboard Settings
You can configure the keyboard layout for
each language.
i
Information
• Configured keyboard layouts are applied
to all input modes.
Screen Saver Settings
You can select any of the following screen
formats to be displayed when the screen
or power is turned off (Press and hold the
Power button).
• Digital clock and date
• Analog clock and date
• None
K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-7K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-7 2016-11-18 오후 3:34:042016-11-18 오후 3:34:0
![](/img.php?id=3397896&img=bg39.png)
5-8 I Setup

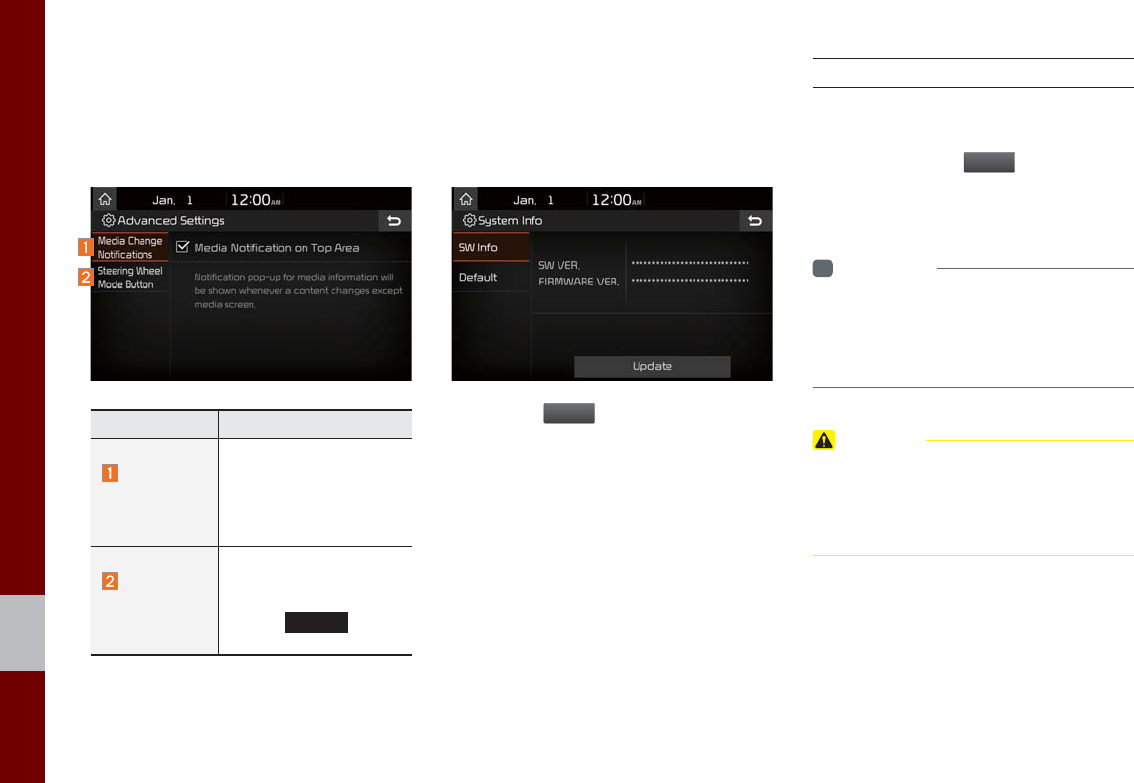

Advanced Settings
You can configure notifications per feature,
etc.
Features Description
Media
Change
Notifications
Sets whether to display
media information at the
top of the screen as the
next item is played when
not on the media screen.
Steering
Wheel Mode
Button
You can configure the
media to be accessed
when the steering
wheel’s
MODE
button
is pressed.
System Info
System version information and update
details are available.
Select the
Up
date
button to update the
system.
System Update
At the System Info screen, insert the USB
memory with the latest file downloaded,
and then select the
U
pdat
e
button to begin
updating. The system will then reboot
automatically.
i
Information
• This product needs supplemented software
updates and additional functions, which
collectively may take some time to complete,
depending on the amount of data.
CAUTION
• If the power is disconnected or the USB is
removed during an update, the data might be
damaged. Please do not turn off the vehicle
while an update is in progress.
K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-8K_SC 17_DAUD2[MEX_EG]AV_PART5.indd 5-8 2016-11-18 오후 3:34:062016-11-18 오후 3:34:0
![](/img.php?id=3397896&img=bg3a.png)
Product Specification
Troubleshooting
FAQ
part.6 Appendix
K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-1K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-1 2016-11-18 오후 3:34:222016-11-18 오후 3:34:2
![](/img.php?id=3397896&img=bg3b.png)
6-2 I Appendix
Product Specification
TFT-LCD
Screen Size 7 inch(152.4 X 91.44 mm)
Resolution 384000 pixels (Resolution: 800 x 480)
Operating
Method TFT(Thin Film Transistor) Active Matrix
Viewing Angle Left/Right, Top/Bottom: ALL 89°
Internal Lighting LED
Radio
Channels FM: 87.5 MHz ~ 107.9 MHz(Step: 200 kHz)
AM: 530 kHz ~ 1710 kHz(Step: 10 kHz)
Sensitivity FM: Under 10 dBu/AM: Under 35 dBu
Distortion Factor Within 2 %
Common
Name Car TFT LCD Display Audio Unit
Power Supply DC 14.4 V Operating
Power DC 9 V ~ DC 16 V
Current
Consumption 2.5 A Sleep
Current
1 mA
(Head Unit Only)
Operating
Temperature
-20 ~ +70 °C
(-4 ~ +158 °F)
Storage
Temperature
-30 ~ +80 °C
(-22 ~ +176 °F)
Dimensions 178 X 140.2 X 60 mm (Main BOX)
Weight 1.7 kg
Appendix
K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-2K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-2 2016-11-18 오후 3:34:232016-11-18 오후 3:34:2
![](/img.php?id=3397896&img=bg3c.png)
06
Appendix I 6-3
Bluetooth
® Wireless Technology
Frequency
Range 2402 ~ 2480 MHz
Supported
Bluetooth
®
Specification
3.0
Supported
Profile Handsfree(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)
Output -6~4 dBm (Power Class2, Conducted)
Number of
Channels 79 channels
CAUTION
• The producer and installer cannot provide services related to
life safety as the concerned radio equipment is liable to radio
interference.
K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-3K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-3 2016-11-18 오후 3:34:232016-11-18 오후 3:34:2
![](/img.php?id=3397896&img=bg3d.png)
6-4 I Appendix
Troubleshooting
1. Errors which occur during the operation or installation of the
device may be mistaken as a malfunction of the actual device.
2. If you are having problems with the device, try the suggestions
listed below.
3. If the problems persist, contact your Kia dealer.
Problem Possible Cause
There are small red,
blue, or green dots on
the screen
• Because the LCD is manufactured with
technology requiring high point density,
a pixel or lighting deficiency may occur
within 0.01% of total pixels
The sound or image is
not working
• Has the Switch for the vehicle been
turned to [ACC] or [ON]?
• Has the SYSTEM been turned OFF?
The screen is being
displayed but sound is
not working
• Has the volume been set to a low level?
• Has the volume been muted?
When the power is
turned on, the corners
of the screen are dark
• The display appearing somewhat dark
after prolonged periods of use is normal
with LCD panels. It is not a malfunction
• If the screen is very dark, contact your
nearest Kia dealer for assistance
Sound is working from
only one speaker
• Are the positions of Fader or Balance
sound controls adjusted to only one
side?
Problem Possible Cause
Sound does not work in
AUX mode
• Are the audio connector jacks fully
inserted into the AUX terminal?
The external device is
not working
• Is the external device connected with a
standard connector cable?
Upon turning power on,
the most recent mode
screen is not displayed
Within modes that play files by reading
external sources, such as USB, iPod, or
Bluetooth
®
streaming mode, the most
recently played mode screen prior to turn-
ing off power may not properly load
• If the corresponding device is not con-
nected, the mode operated prior to the
most recent mode will operate
• If the previous mode still cannot be
properly played, the mode operated
prior to that will operate
K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-4K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-4 2016-11-18 오후 3:34:232016-11-18 오후 3:34:2
![](/img.php?id=3397896&img=bg3e.png)
06
Appendix I 6-5
Problem Possible Cause Countermeasure
The power
does not
turn on
The fuse is
disconnected
• Replace with a suitable
fuse
• If the fuse is disconnected
again, please contact your
point of purchase or Kia
dealer
Device is not prop-
erly connected
• Check to see that the
device has been properly
connected
The system
does not
play
The vehicle battery
is low
• Charge the battery If the
problem persists, contact
your point of purchase or
Kia dealer
Problem Possible Cause Countermeasure
The image
color/tone
quality is
low
• The brightness,
saturation, hue,
and contrast levels
are not set properly
• Properly adjust the bright-
ness, saturation, hue, and
contrast levels through
Display Setup
Sound does
not work
• The volume level
is set to the lowest
level
• The connection is
not proper
• The device is
currently fast-for-
warding, rewinding,
scanning, or play-
ing in slow mode
• Adjust the volume level
• Check to see that the
device has been properly
connected
• The sound will not work
when the device is fast-for-
warding, rewinding, scan-
ning, or playing in slow
mode
The sound
or image
quality is
low
• Vibration is occur-
ring from where
the conversion
switch has been
installed
• Image color/tone
quality is low
• The sound may be
short-circuited and the
image distorted if the
device vibrates
• The device will return to
normal once vibrations
stop
K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-5K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-5 2016-11-18 오후 3:34:232016-11-18 오후 3:34:2
![](/img.php?id=3397896&img=bg3f.png)
6-6 I Appendix
Problem Possible Cause Countermeasure
The USB
does not
work
• USB memory is
damaged
• Please use the USB after
formatting it.
• USB memory has
been contami-
nated
• Remove any foreign sub-
stances on the contact sur-
face of the USB memory
and multimedia terminal
• A separately pur-
chased USB HUB
is being used
• Directly connect the USB
memory with the multime-
dia terminal on the vehicle
• A USB extension
cable is being
used
• Directly connect the USB
memory with the multime-
dia terminal on the vehicle
• A USB which is
not a Metal Cover
Type USB Memory
is being used
• Use standard USB Memory
• An HDD type, CF,
SD Memory is
being used
• Use standard USB Memory
• There are no
music files which
can be played
• Only MP3, WMA file
formats are supported.
Please use only the sup-
ported music file formats
Problem Possible Cause Countermeasure
The iPod is
not recog-
nized even
though it
has been
connected
• There are no titles
which can be
played
• Use iTunes to download
and save MP3 files into the
iPod
• The iPod firmware
version has not
been properly
updated
• Use iTunes to update
the firmware version and
reconnect the iPod with the
device
• The iPod device
does not recog-
nize downloads
• Reset the iPod and recon-
nect with the device
Bluetooth
does not
work or its
limited
functions
are
available
• Bluetooth on your
mobile phone is
set to OFF
• Set it to ON
• The Bluetooth
connection is not
made
• Make the connection
active
i
Information
• While operating the device, if an abnormality occurs that cannot be
corrected with the above described measures, press the
RESET
key to
reset the system.
• Press and hold the
RESET
key (over 1 second). The device power will
turn off and the system will reset.
K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-6K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-6 2016-11-18 오후 3:34:242016-11-18 오후 3:34:2
![](/img.php?id=3397896&img=bg40.png)
06
Appendix I 6-7
FAQ
About Pairing Mobile Phones
Q I cannot pair my mobile phone. What is the cause?
A Check to see that the mobile phone supports Bluetooth® func-
tion. Verify if Bluetooth on the cell phone is set to OFF. If so, set
it to ON. If the cell phone still can’t be registered, try again after
turning Bluetooth off and on, or delete the device registration on
the multimedia system and cell phone and then register the cell
phone again.
Q What is the difference between pairing a mobile phone and con-
necting a mobile phone?
A Pairing occurs through authenticating the head unit and mobile
phone. Mobile phones paired to the head unit can be connected
and disconnected until the paired mobile phone is deleted from
the system. Bluetooth® Handsfree features, such as making/
answering calls or managing contacts, are supported only in
mobile phones connected with the head unit.
Q What is a Passkey?
A A passkey is the password used to authenticate the connection
between the head unit and mobile phone. The passkey only
needs to be entered once when pairing the mobile phone for
the first time.
The initial passkey is 0000. You can change it with
SETUP
▶
Bluetooth
▶
B
luetooth S
y
stem Inf
o
▶
P
asske
y
menu options.
K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-7K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-7 2016-11-18 오후 3:34:242016-11-18 오후 3:34:2
![](/img.php?id=3397896&img=bg41.png)
6-8 I Appendix
About Making/Answering Phone Calls
Q How can I answer a call?
A When there is an incoming call, a notification pop-up will
become displayed. To answer the incoming call, select the
A
cce
pt
button on the screen or press the key on the
steering wheel control
.
To reject the call, select the
Re
j
ect
button on the screen or
press the key on the steering wheel control.
Q What should I do if I am talking on the Handsfree but want to
switch the call to the mobile phone?
A While on a call, press and hold (over 0.8 seconds) the
key on the
steering wheel control
or select the
U
se Pri
v
at
e
but-
ton at the bottom of the Phone screen to switch the call to your
mobile phone.
About
Bluetooth
® Wireless Technology/
Head Unit Use Environment
Q What is the range of my wireless connection?
A The wireless connection can be used within 15 yards.
Q How many mobile phones can be paired?
A It is possible to pair up to five mobile phones.
Q Why is call quality sometimes poor?
A
Check the reception sensitivity of the mobile phone when call
quality becomes worsened. The call quality may deteriorate when
the signal strength is low. Call quality may also worsen if metal
objects, such as beverage cans, are placed near the mobile
phone. Check to see if there are metal objects in the vicinity of
the mobile phone. The call sound and quality may differ depend-
ing on the type of mobile phone.
K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-8K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-8 2016-11-18 오후 3:34:242016-11-18 오후 3:34:2
![](/img.php?id=3397896&img=bg42.png)
06
Important Safety Information
Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual (“User’s
Guide”). Not following precautions found in this User’s Guide can lead to an accident or other serious consequences.
Keep User’s Guide in Vehicle
When kept in the vehicle, the User’s Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please
make certain that before using the system for the first time, all persons have access to the User’s Guide and read its instructions and
safety information carefully.
Warning
Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other
serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a
safe and legal manner before attempting these operations. This is important since while setting up or changing some functions as you may
to distract your attention away from the road and remove your hands from the wheel.
K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-9K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-9 2016-11-18 오후 3:34:252016-11-18 오후 3:34:2
![](/img.php?id=3397896&img=bg43.png)
Prolonged Views of Screen
Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before
attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous
if your attention has been diverted away from your driving task at a critical time.
Volume Setting
Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while
driving. Driving while unable to hear these sounds could cause an accident.
K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-10K_SC 17_DAUD2[MEX_EG]AV_PART6.indd 6-10 2016-11-18 오후 3:34:252016-11-18 오후 3:34:2
![](/img.php?id=3397896&img=bg44.png)
FCC Warning
FCC Part 15.19 Statements:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC Part 15.105 statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Part 15.21 statement
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
RF Exposure Statement (MPE)
The antenn a(s) must be installed such that a minimum separation distance of at least 20 cm is
maintained between the radiator (antenna) and all persons at all times. This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
06
