1. How to use HA-T006
- HA-T006 & HA-B006 is Remote Keyless System.
- This unit controll door lock/unlock/tail gate unlock with wireless.
- This unit consist of Transmitter(HA-T006)
2. Introduction of Transmitter(HA-T006)
- Transmitter has three buttons
- Transmitter use the battery
- Freqency is 315 MHz
- Modulation item is SAW Resonator
- Transmitter use Rolling code algorithm
3. Regulatory Information
- THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES
- Operation is subject to the following two conditions;
(1) this device may not cause harmful interface, and
An outline of Transmitter
(2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes and modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
![](/img.php?id=765995&img=bg4.png)
1. PRIMARY FUNTION
- Remote door lock/unlock/tail gate unlock
- LED turn on ( When button is pushed )
- Operating distance : 30 m over
- Id input(setting mode)
2. ELECTRICAL CHARACTERISTICS
Description of Transmitter
Operating voltage 3 VDC
TRANSMITTER
model name HA-T006
ETC AM modulation
Operating temperature - 20 ~ + 55 ℃
Consumption current Max 12 mA
Sensitivity -
Operating frequency
Power 10 mW under
315 MHz
![](/img.php?id=765995&img=bg5.png)

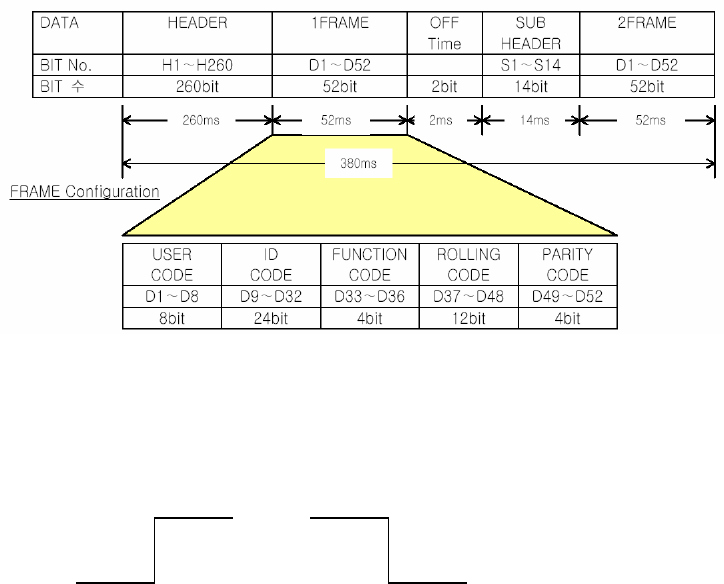

3. OPERATING DIAGRAM
1) TRANSMITTER
A) DATA FRAME
B) DATA FORMAT
C) TRANSMISSION SPECIFICATION
- BAUD RATE : 1 kbps
- CODING METHOD : MANCHESTER
- TRANSMISSION BIT COUNT : 380BIT
- TRANSMISSION TIME : 380 ms ± 15 %
LOGIC "1"LOGIC "0"
![](/img.php?id=765995&img=bg6.png)

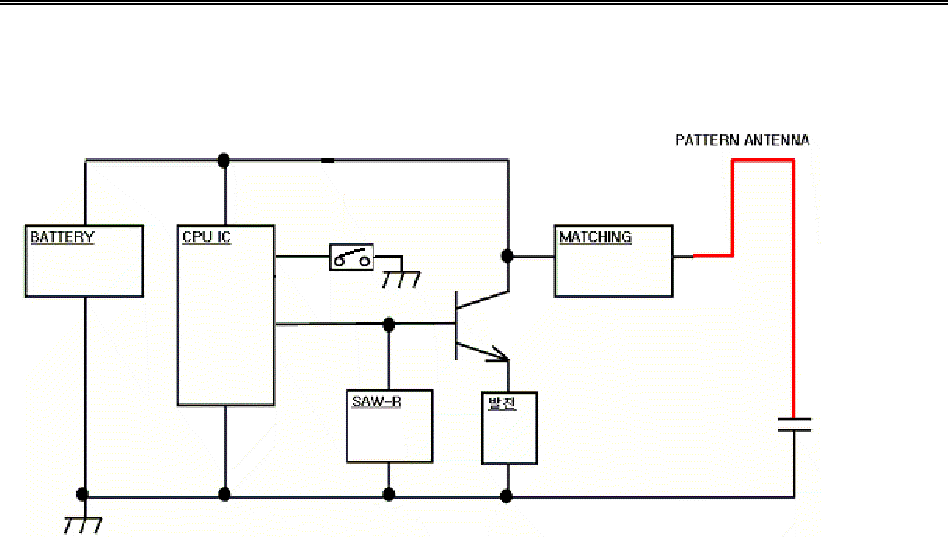

A. TRANSMITTER(HA-T006)
Block diagram from Transmitter
