Handheld Group 14244G Mobile Computer(PDA) BT/WLAN/GSM/WCDMA transmitter User Manual
Handheld Group AB Mobile Computer(PDA) BT/WLAN/GSM/WCDMA transmitter
User manual
![](/img.php?id=2305287&img=bg1.png)
.
NAUTIZ X4
Manual
NAUTIZ X4 Manual
1 handheld
CONTENTS [REFERENCE : THE BOOKMARK IS NOT CLEARLY DEFINED YET]
1. INTRODUCTION ·················································································································································· 4
Trademarks ··························································································································································· 4
About the NAUTIZ X4 Handy Terminal ····················································································································· 4
Accessories ··························································································································································· 5
2. SAFETY REGULATIONS HW ·································································································································· 5
2.1. General Safety Rules ··························································································································· 6
2.2. Power Supply ······································································································································ 6
2.3. Laser Safety ········································································································································ 6
2.4. LED Safety ·········································································································································· 8
2.5. FCC RF Exposure ································································································································· 8
2.6. CB Scheme ········································································································································· 8
2.7. FCC Part 15 Regulation ······················································································································· 8
2.8. Canadian Compliance ························································································································· 8
2.9. Radio Compliance ······························································································································· 9
2.10. WEEE Compliance ····························································································································· 10
2.11. China Compliance ····························································································································· 10
3. GETTING STARTED ············································································································································ 10

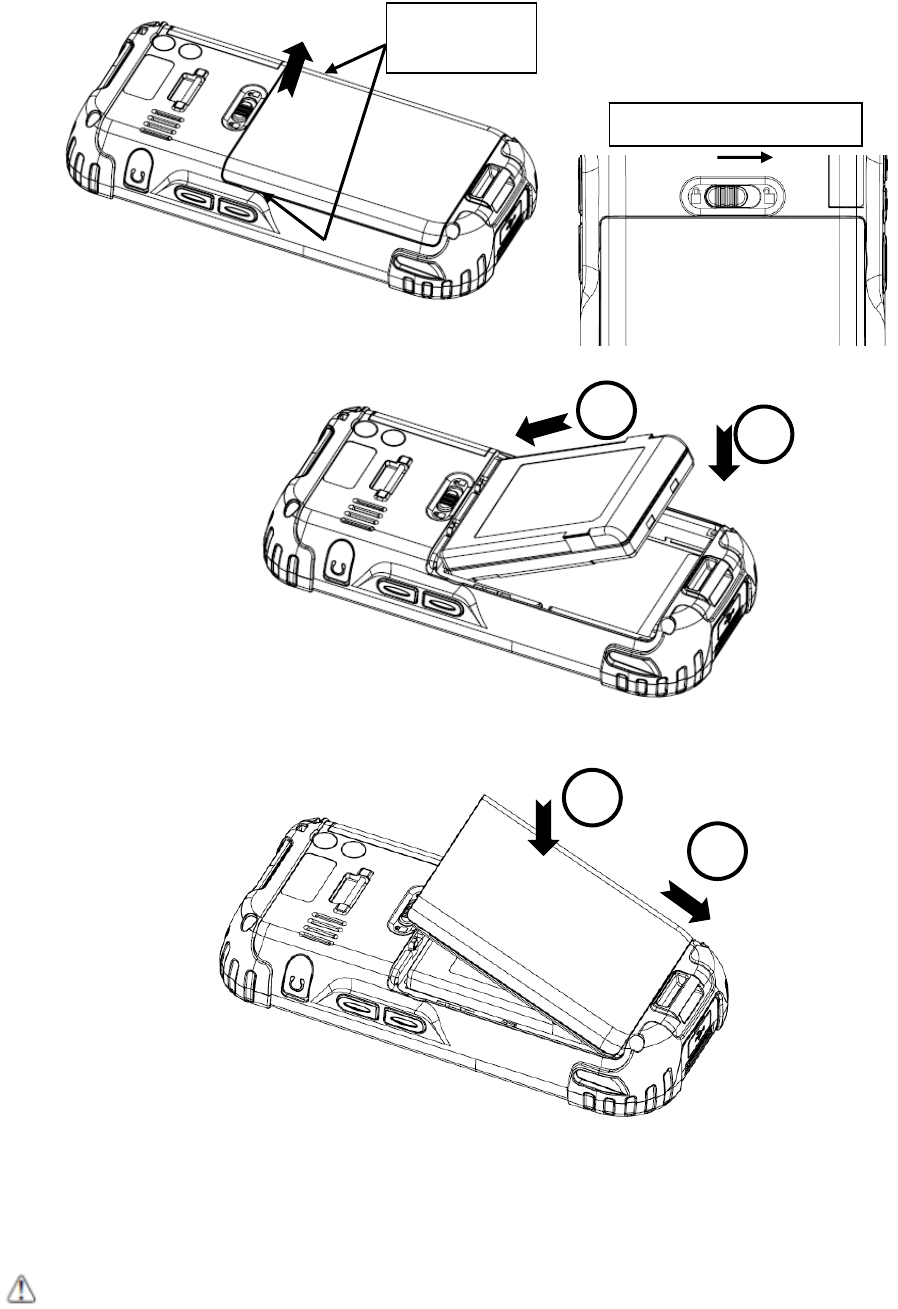

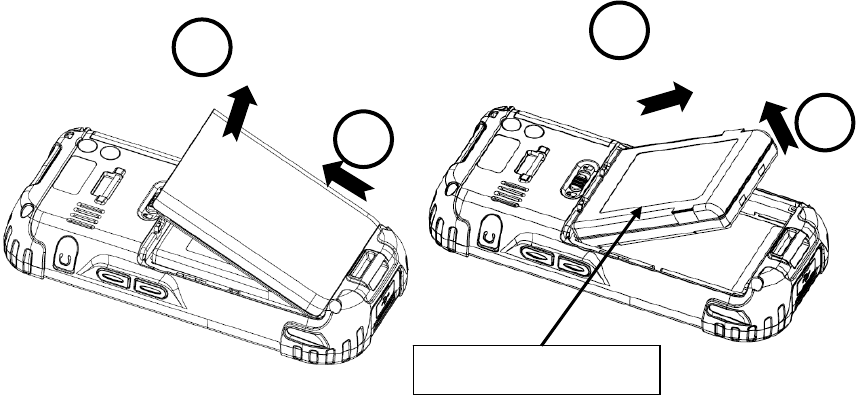

3.1. Install the Battery ······························································································································ 10

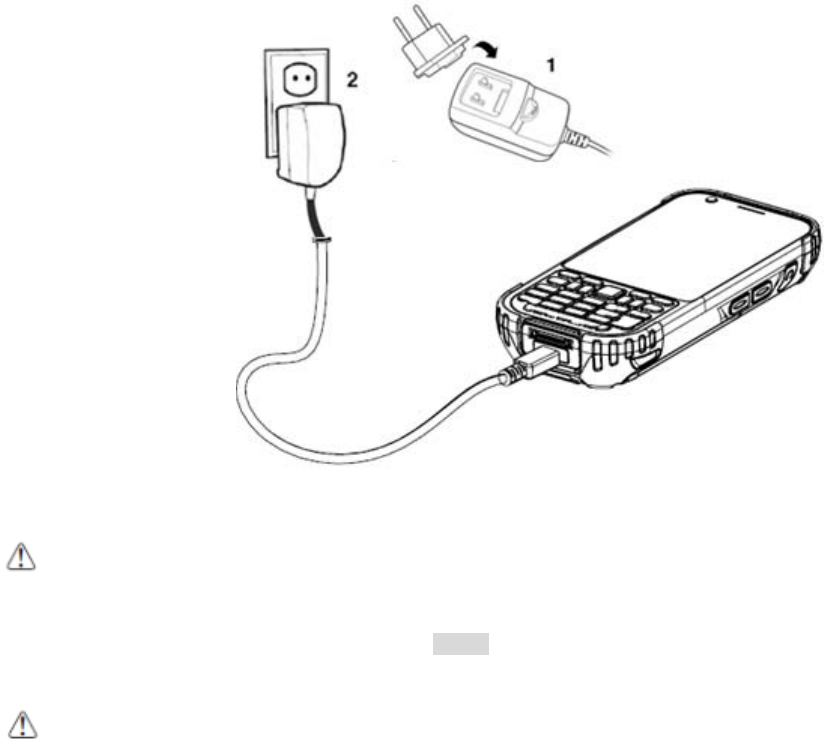

3.2. Charge the Batteries ·························································································································· 11
3.3. LED Indicators ··································································································································· 12
3.4. Guidelines for Battery Pack Use and Disposal ···················································································· 13
3.5. Turn Your Device On ··························································································································· 14
3.6. Desktop ············································································································································ 14

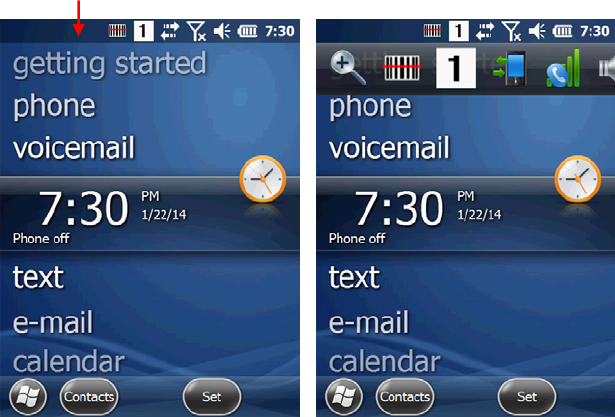

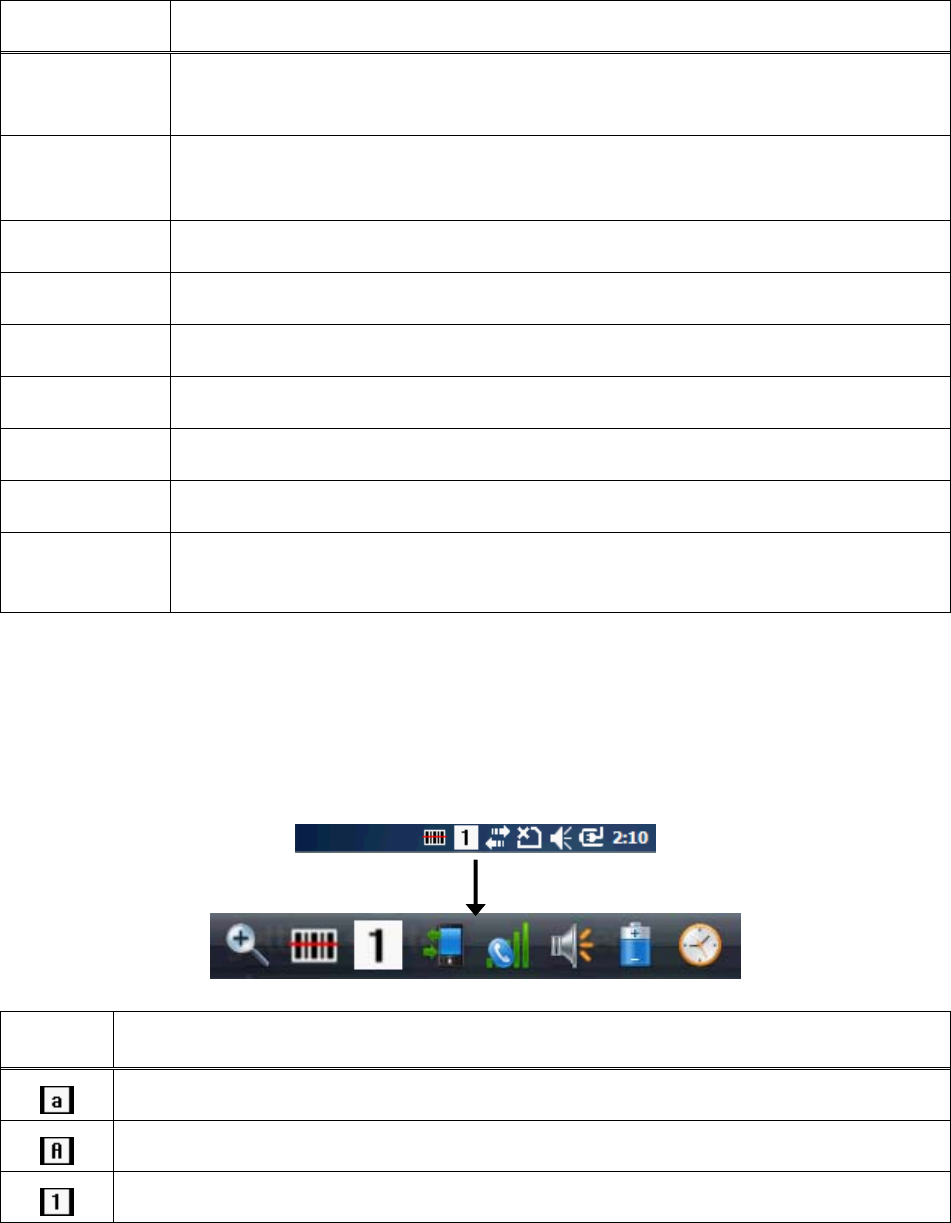

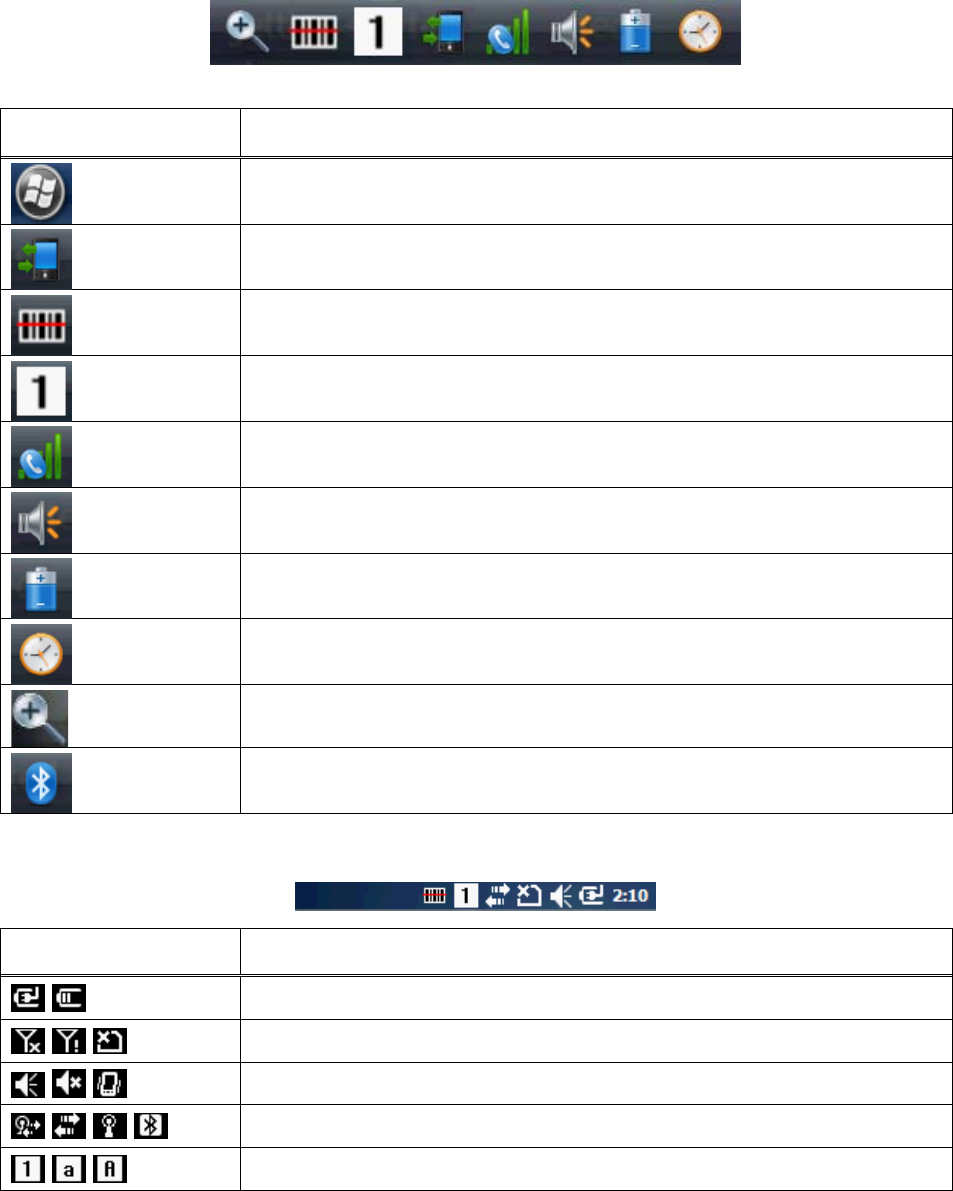

3.7. Indicator Icons ·································································································································· 15
3.8. Using the Stylus ································································································································ 15
3.9. Selecting Program ····························································································································· 16
3.10. Pop-Up Menus ·································································································································· 16
3.11. Using Windows Explorer ····················································································································· 16
4. GET TO KNOW YOUR DEVICE ····························································································································· 16
4.1. Feature of Your Device ······················································································································· 16
4.2. NAUTIZ X4 Handy Terminal ················································································································· 16

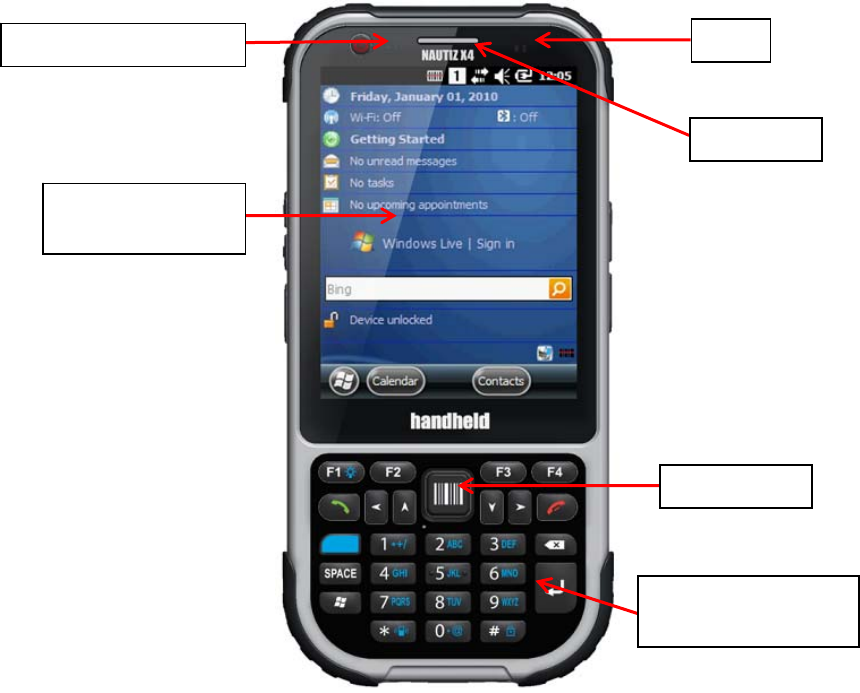

4.3. Front Panel Layout ····························································································································· 17
4.4. Display Backlight ······························································································································ 18
4.5. Keypad Backlight ······························································································································ 20
4.6. Using Screen Protectors ···················································································································· 20

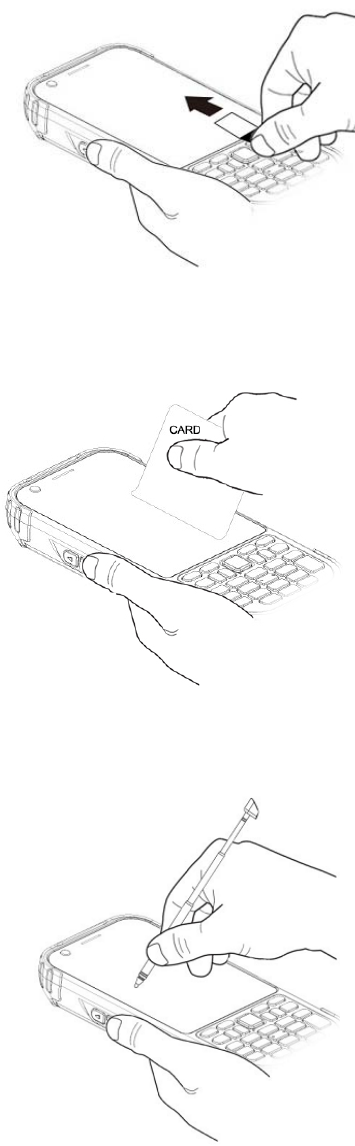

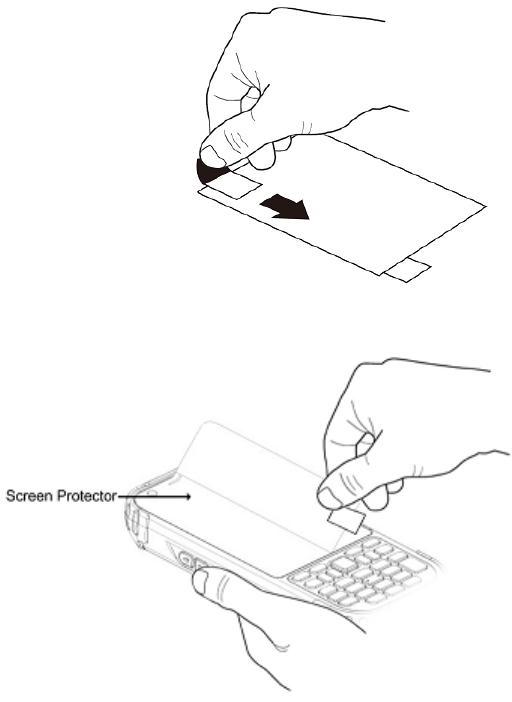

4.7. Installing Your Screen Protector ········································································································· 20

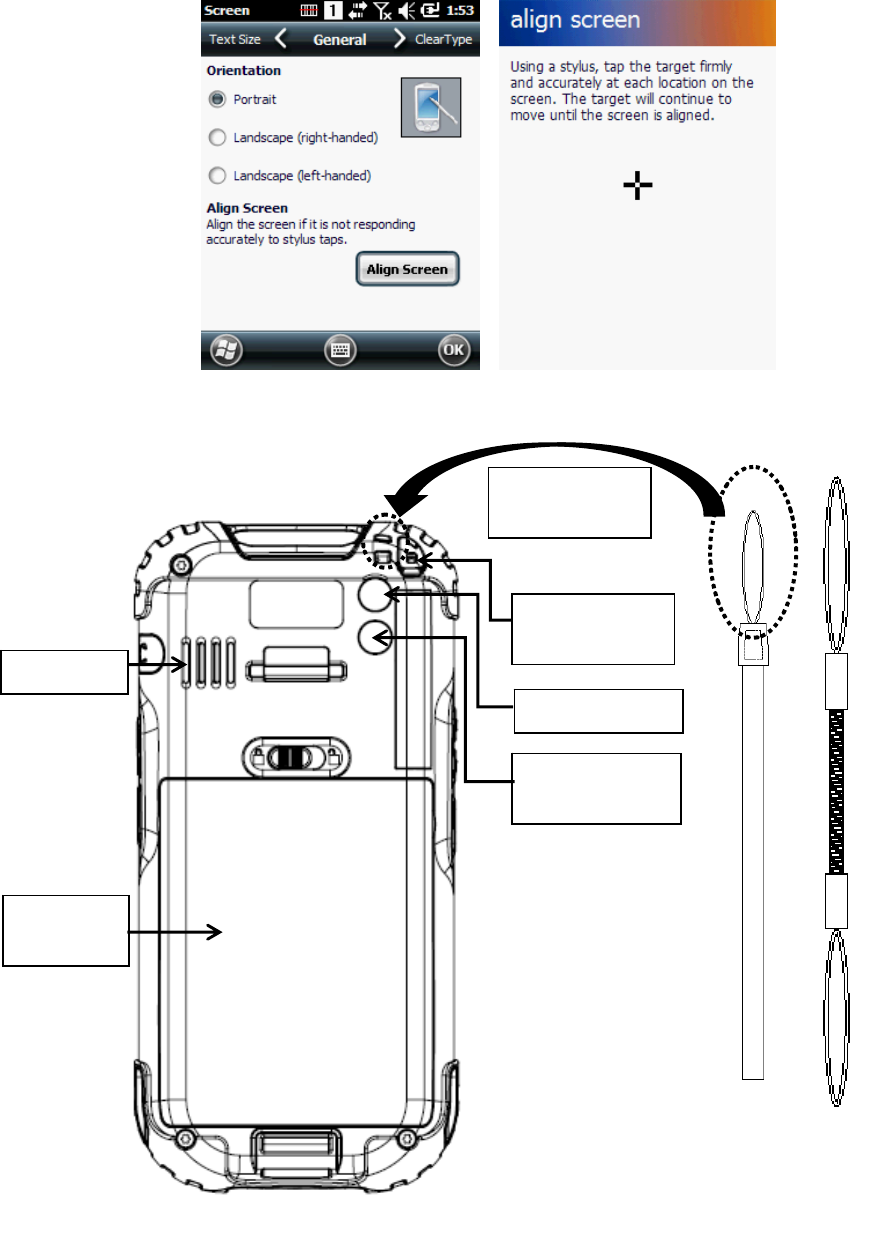

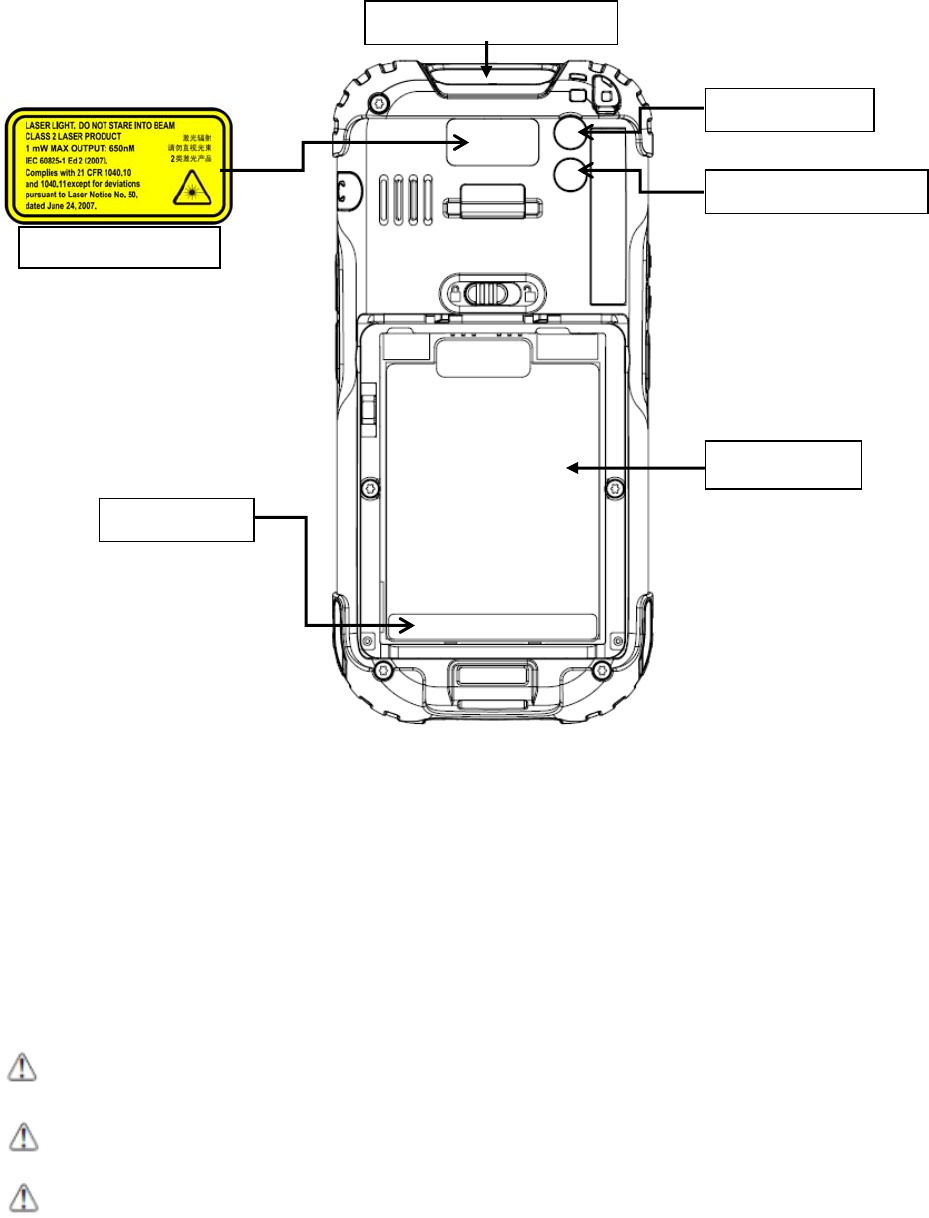

4.8. Back Panel Layout ····························································································································· 23
4.9. Left Side Panel Layout ······················································································································· 23
4.10. Installing Memory Cards ···················································································································· 25
4.11. Right Side Panel Layout ····················································································································· 26

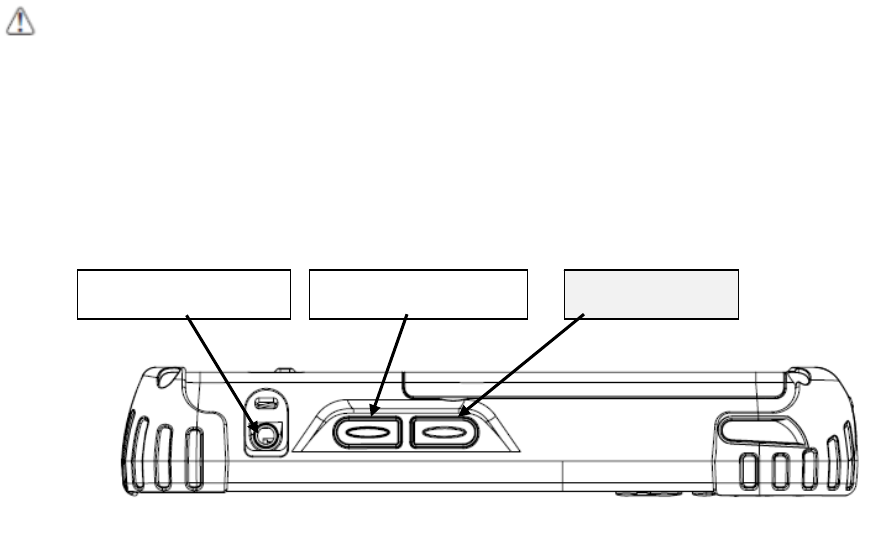

4.12. Top Panel Layout ······························································································································· 26
4.13. Bottom Panel Layout ························································································································· 27
4.14. Peripherals and Accessories ·············································································································· 28
4.15. USB ActiveSync Cable ······················································································································· 28
4.16. Li-ion Battery Packs ··························································································································· 28
4.17. Battery Power ···································································································································· 28
4.18. Main Battery Pack ····························································································································· 28
NAUTIZ X4 Manual
2 handheld
4.19. Managing Main Battery Power ··········································································································· 29
4.20. Resetting the Terminal ······················································································································· 30
4.21. Suspend Mode ·································································································································· 30
4.22. Memory Allocation ···························································································································· 30
4.23. Care and Cleaning of the Products ····································································································· 30
4.24. NAUTIZ X4 Technical Specifications ··································································································· 31
5. USING THE KEYPAD ·········································································································································· 32

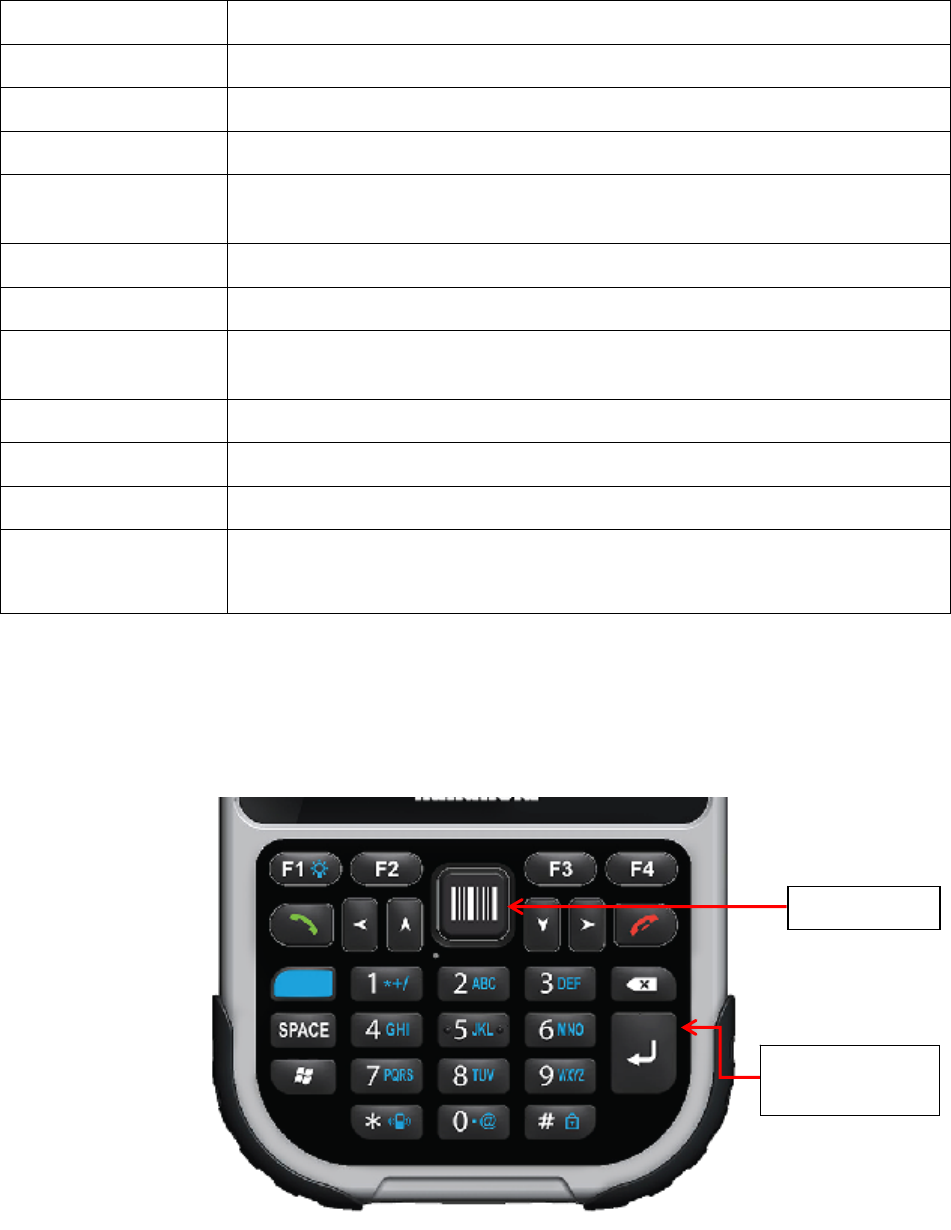

5.1. Numeric Keypad Layout ····················································································································· 32
5.2. Navigation Keys ································································································································· 32
5.3. Basic Keys ········································································································································ 33
5.4. Alpha/Numeric Modes ······················································································································ 33
5.5. Alpha Indicators on the Numeric Keys ································································································ 34
5.6. BLUE Key Combinations ············································ 오류! 책갈피가 정의되어 있지 않습니다.
5.7. Program Buttons ······························································································································· 35
6. USING THE IMAGE ENGINE ······························································································································· 34
6.1. Overview ··········································································································································· 35
6.2. Available Image Engines ···················································································································· 36

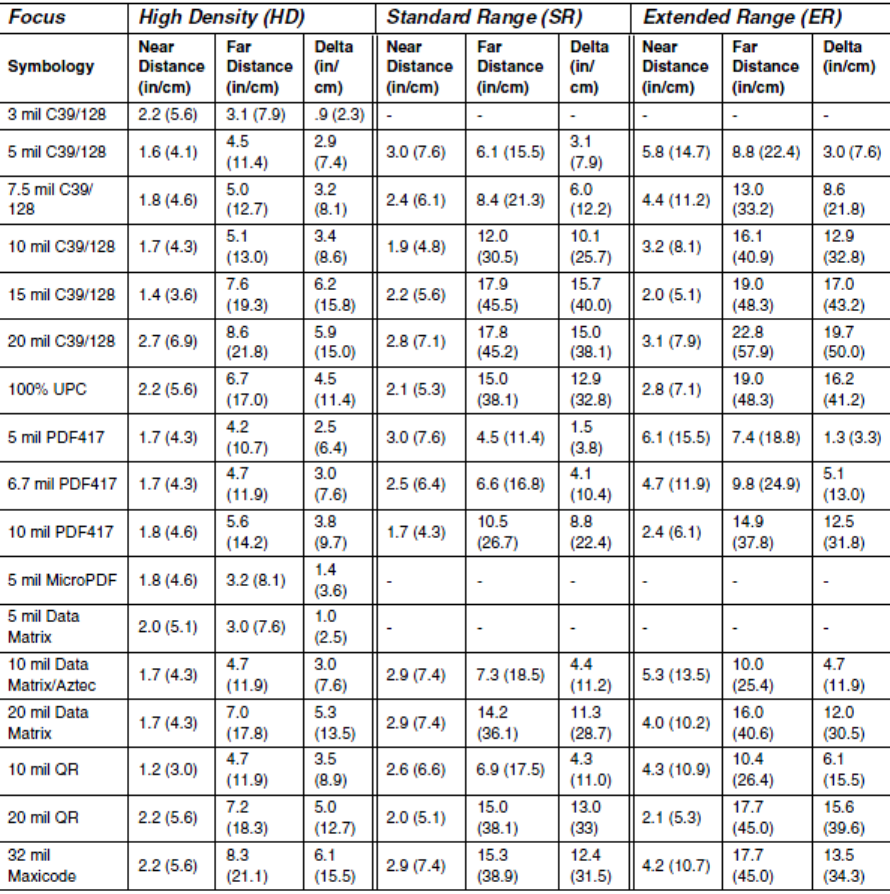

6.3. Depth of Field ···································································································································· 36
6.4. Supported Bar Code Symbologies ······································································································ 37
6.5. Activating the Engine ························································································································· 37
6.6. Using Demos ····································································································································· 38
6.7. Decoding ·········································································································································· 38
6.8. To Decode a Bar Code ······················································································································· 38

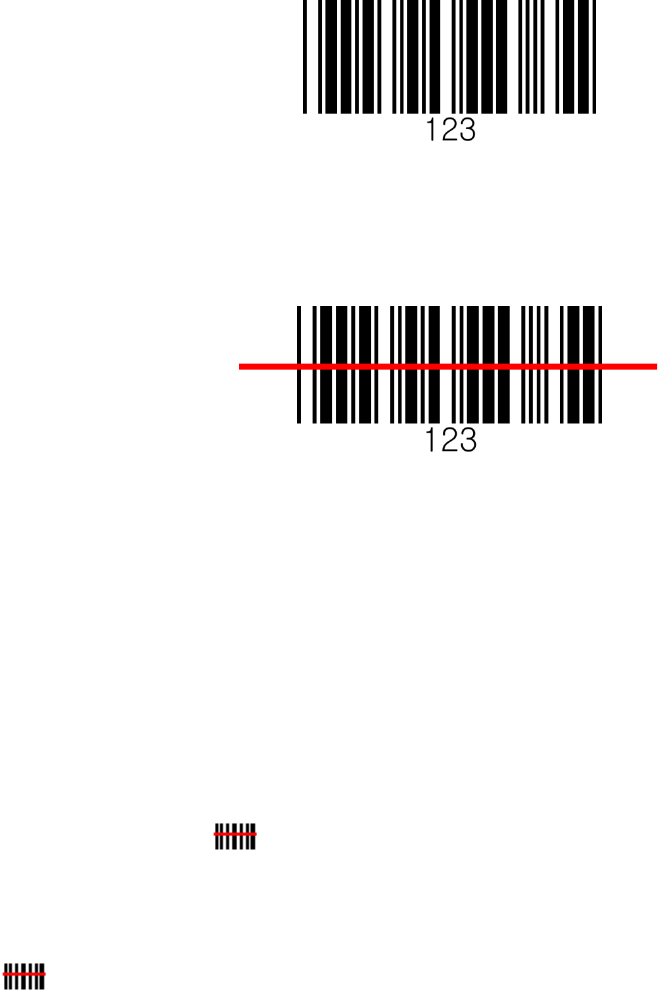

6.9. Sample Bar Codes ····························································································································· 38

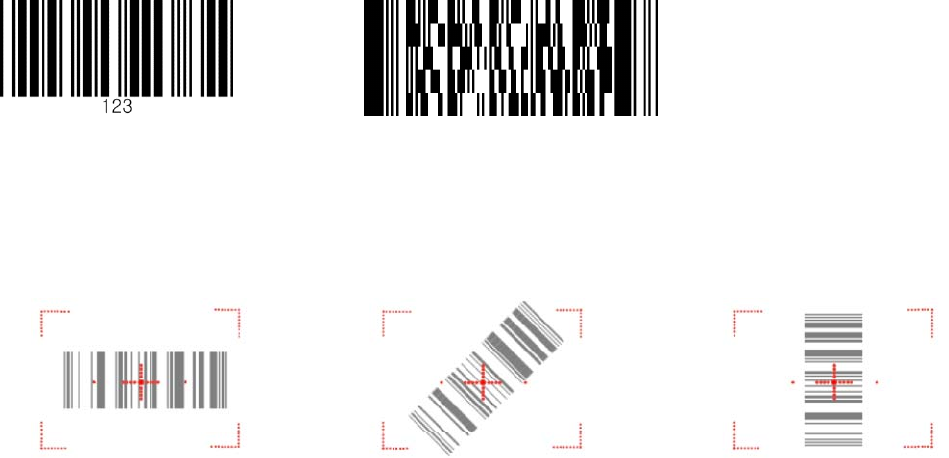

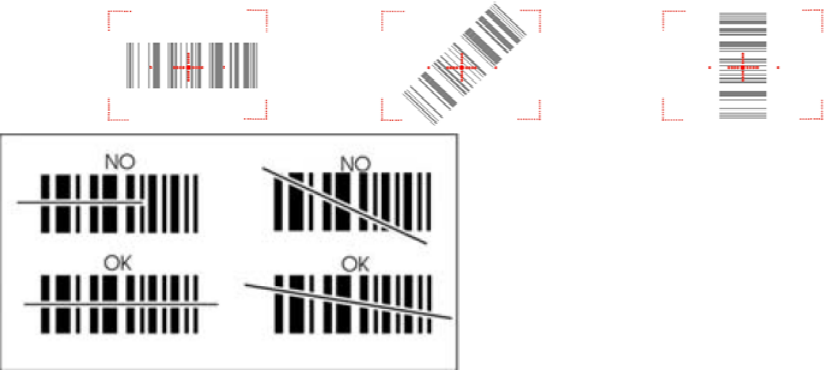

6.10. Omni-Directional Scanning Positions ································································································· 38
6.11. Capturing Images (IT5300SR Engine Only) ························································································· 39
7. USING THE LASER ENGINE ······························································································································· 39
7.1. Overview ··········································································································································· 39
7.2. Available Laser Engines ····················································································································· 39
7.3. Depth of Field ···································································································································· 39
7.4. Supported Bar Code Symbologies ······································································································ 40
7.5. Activating the Engine ························································································································· 40
7.6. Using Demos ····································································································································· 40
7.7. Decoding a Bar Code ························································································································· 40
7.8. Sample Bar Code ······························································································································ 41
7.9. Scanning Positions ···························································································································· 41

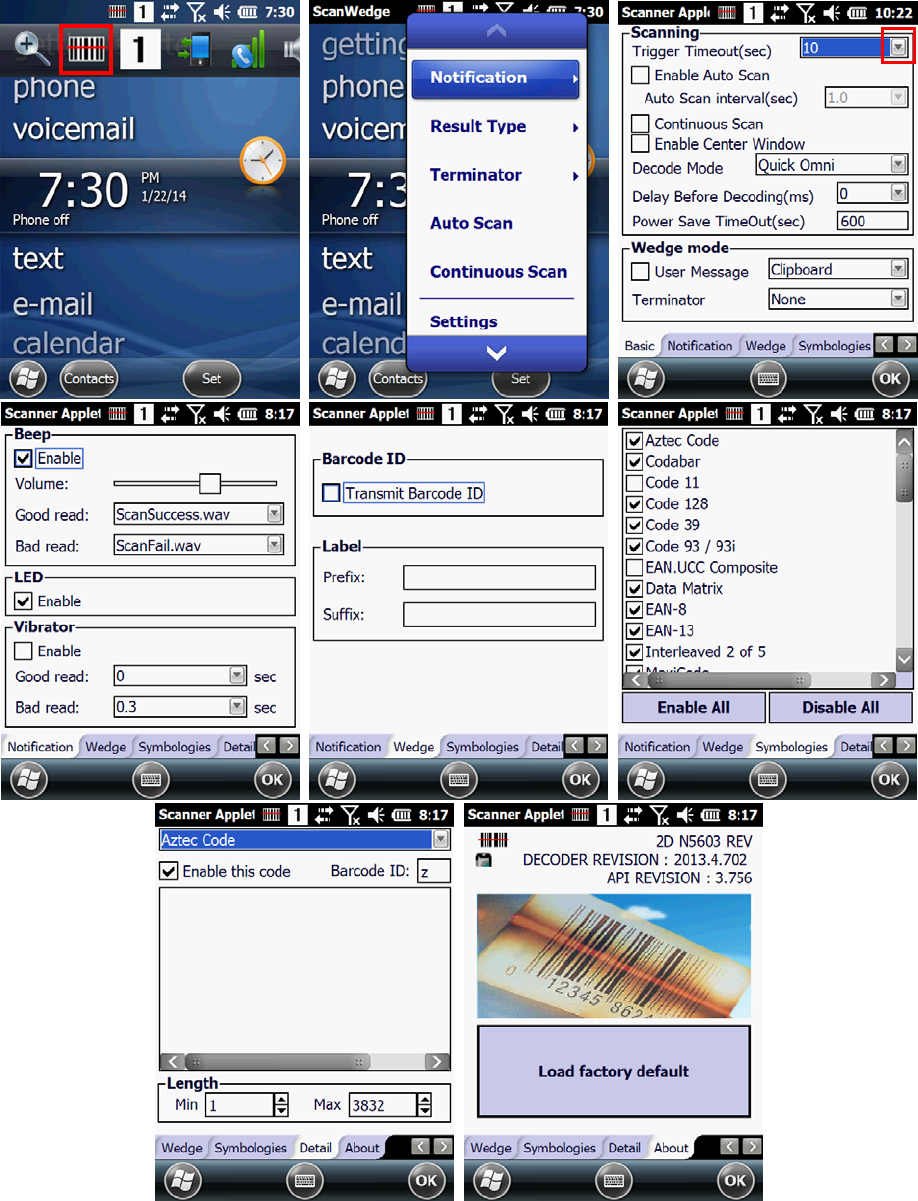

8. USING SCANWEDGE ········································································································································ 41
8.1. Overview ··········································································································································· 41

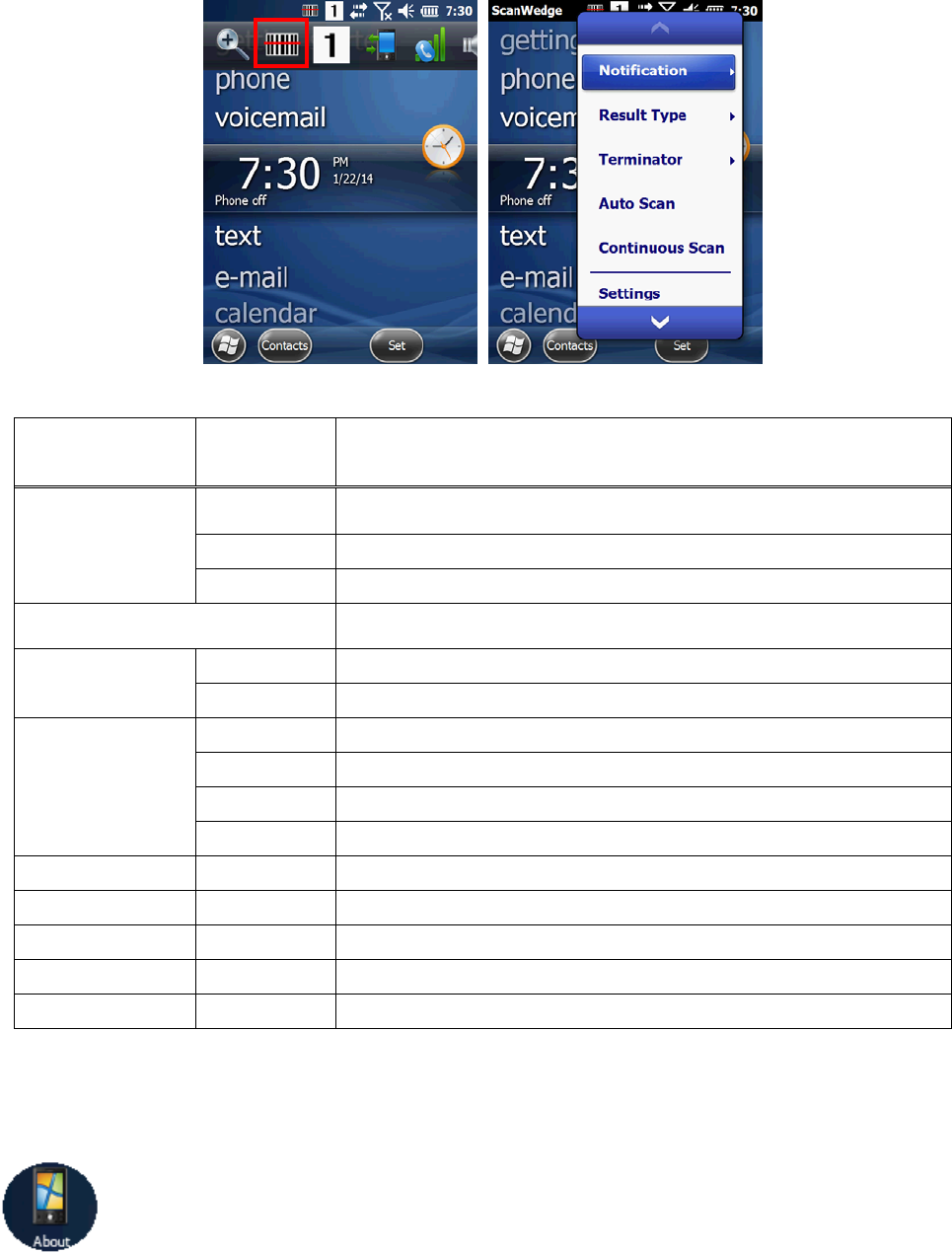

8.2. Enabling ScanWedge ························································································································· 41
9. USING CONTROL PANEL ··································································································································· 42
9.1. System Properties ····························································································································· 42
9.2. General ············································································································································· 43

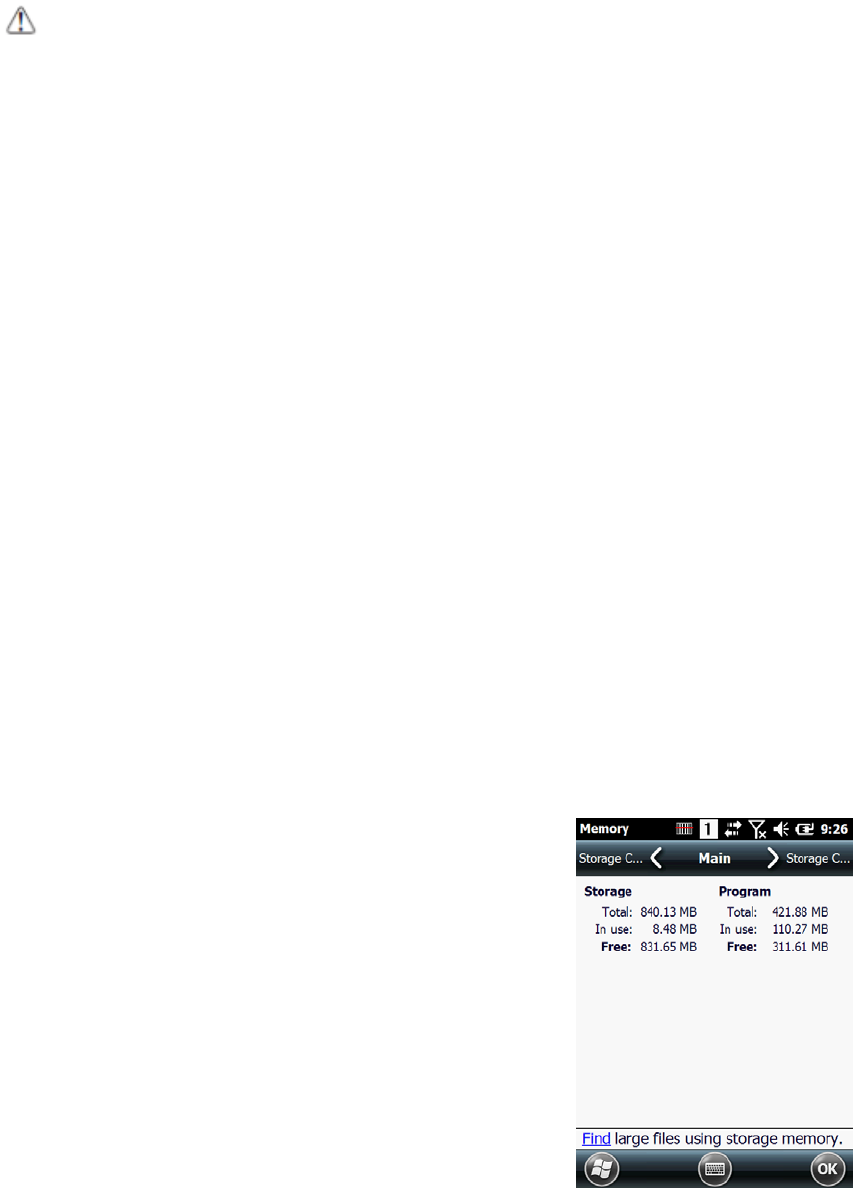

9.3. Memory ············································································································································ 43

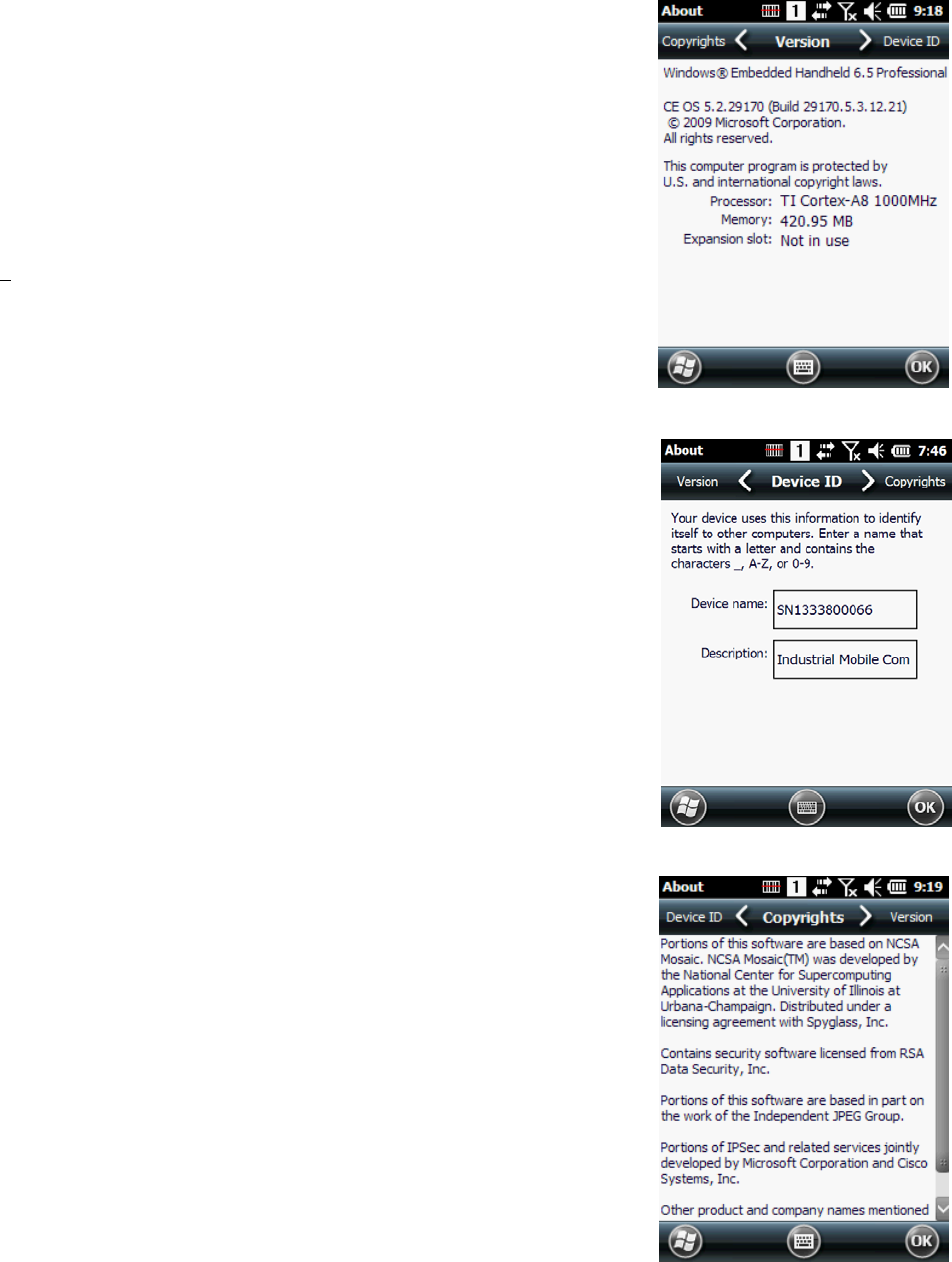

9.4. Device name ····································································································································· 43
9.5. Copyrights ········································································································································· 43

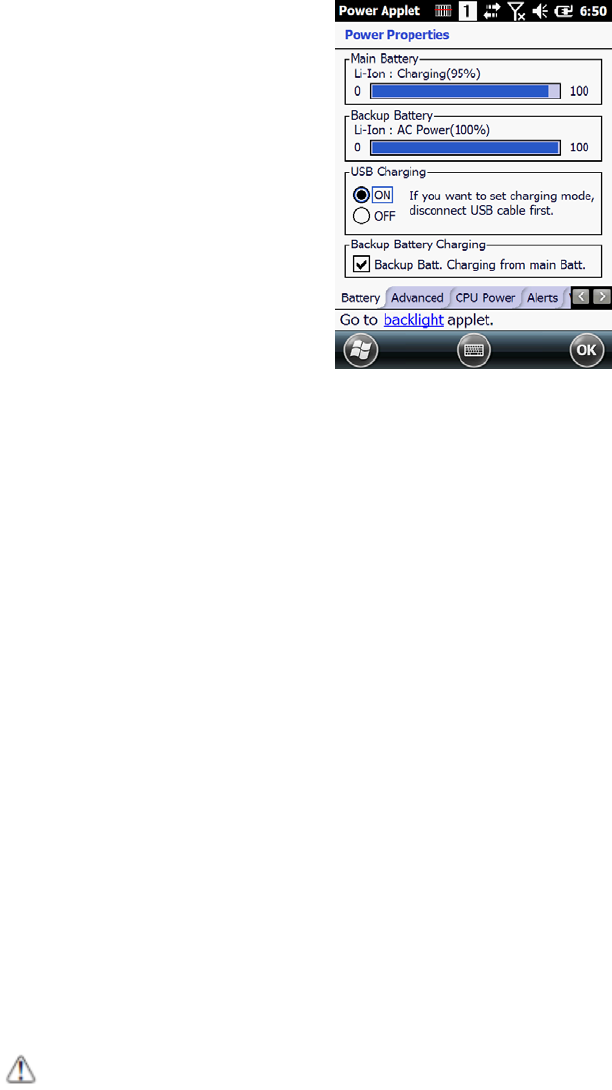

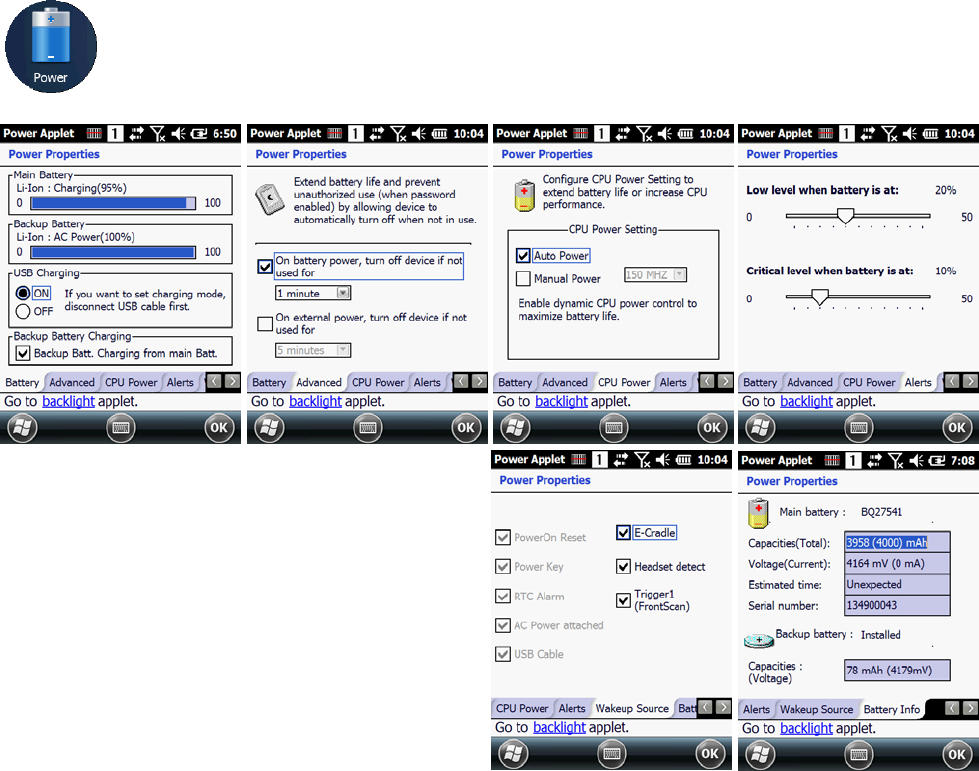

9.6. Power properties ······························································································································· 43
9.7. Battery tab ········································································································································ 43
NAUTIZ X4 Manual
3 handheld
9.8. Power off tab ····································································································································· 44
9.9. CPU Power Setting Tab ······················································································································ 45
9.10. Alerts Tab ·········································································································································· 45
9.11. Wakeup Source Tab ··························································································································· 45

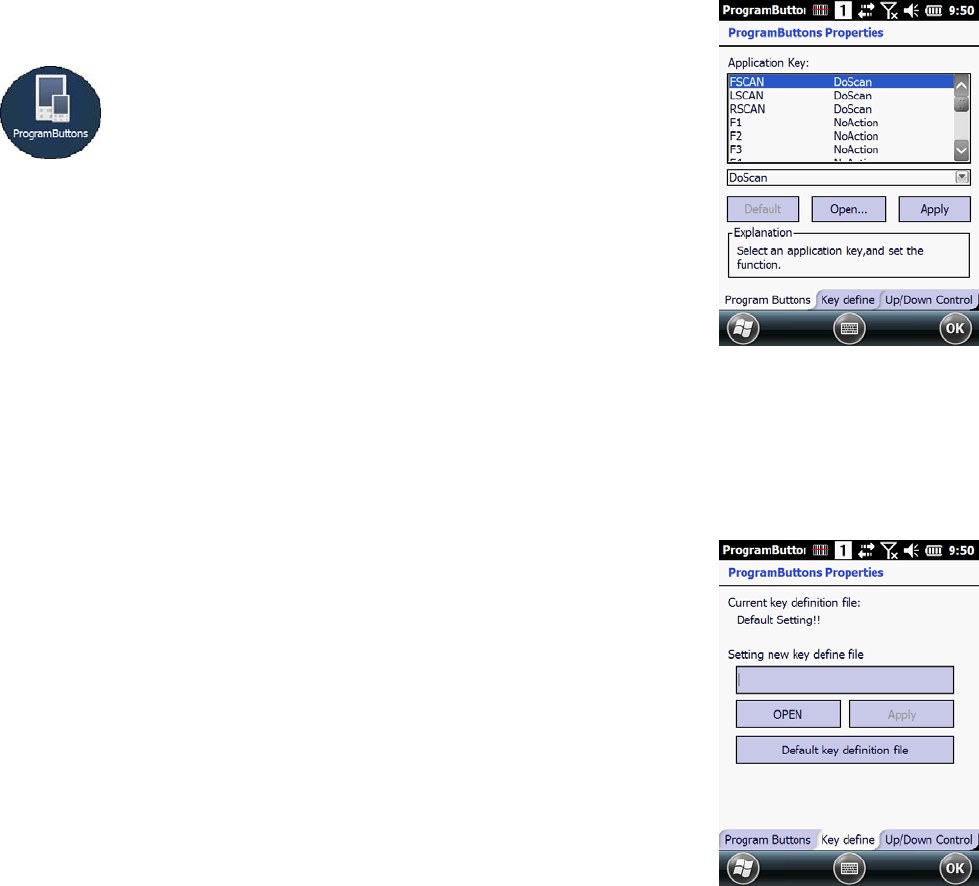

9.12. Program Button properties ················································································································ 45
9.13. Program Buttons Tab ························································································································· 46
9.14. Key define Tab ··································································································································· 46

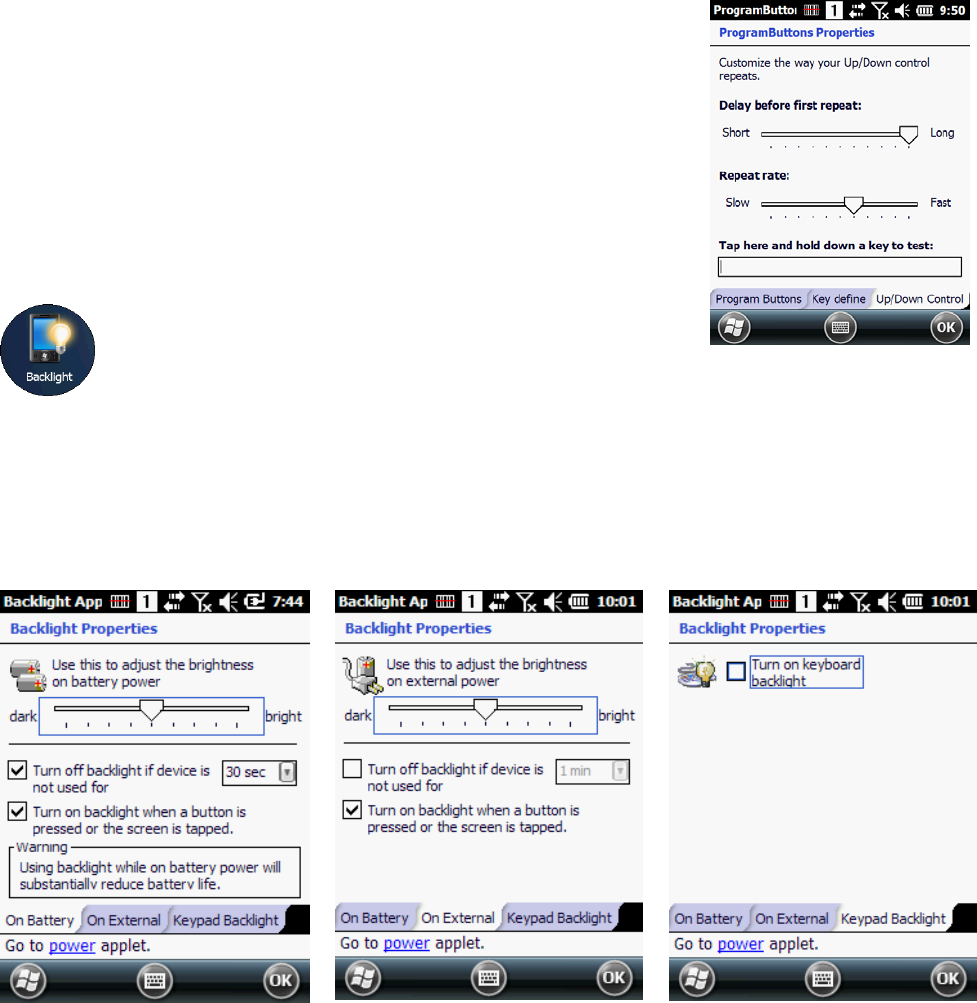

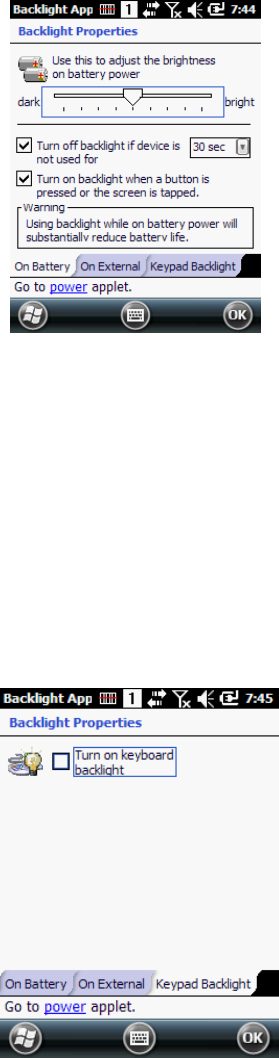

9.15. Backlight Properties ·························································································································· 46
9.16. Battery power Tab ······························································································································ 47
9.17. External power Tab ···························································································································· 47
9.18. Keyboard backlight Tab ····················································································································· 47
10. COMMUNICATION ············································································································································ 49
10.1. Communication Options ···················································································································· 49
10.2. Installing Additional Software ············································································································ 50

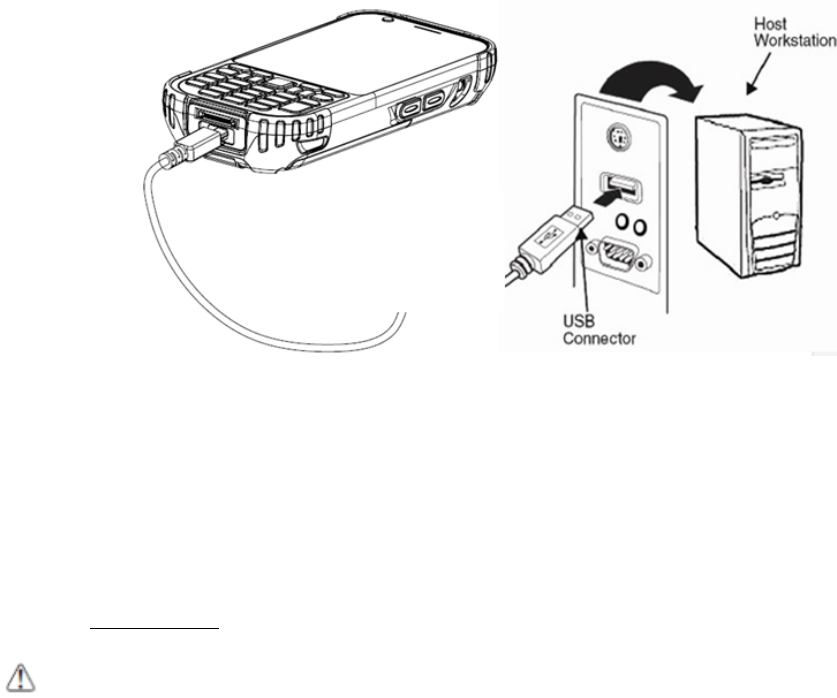

10.3. Connecting the USB ActiveSync Cable································································································ 50
10.4. ActiveSync Communication ··············································································································· 51
10.5. Communication Type ························································································································· 51
10.6. Hardware Requirements for Setup ····································································································· 52
10.7. Software Requirements for Communication ······················································································· 51
10.8. Setting Up the Host Workstation ········································································································ 51
10.9. Communicating with the Handy Terminal ···························································································· 52
10.10. Synchronizing with the Host Workstation ···························································································· 52

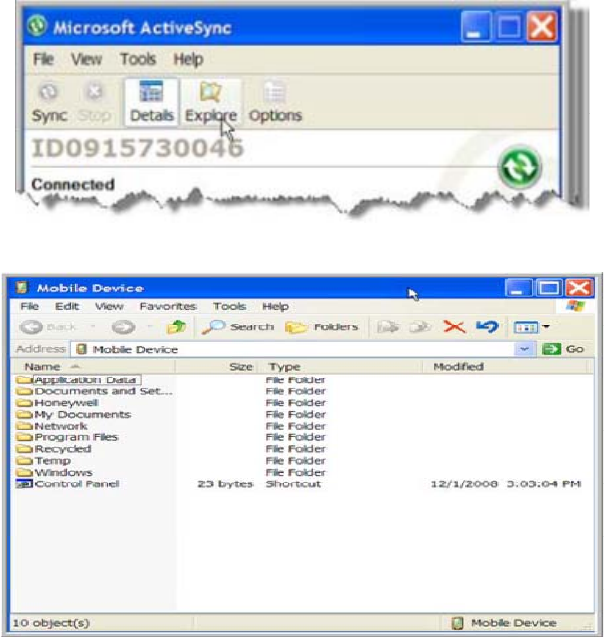

10.11. Exploring the Terminal from the Workstation ······················································································· 53
10.12. Adding Programs via ActiveSync ········································································································ 54
10.13. Wireless Radios ································································································································· 54
10.14. Connecting the Terminal to a Wireless Network ·················································································· 54
10.15. WLAN (802.11b/g/n Radio) ·············································································································· 55
10.16. Adding Programs from the Internet ····································································································· 55

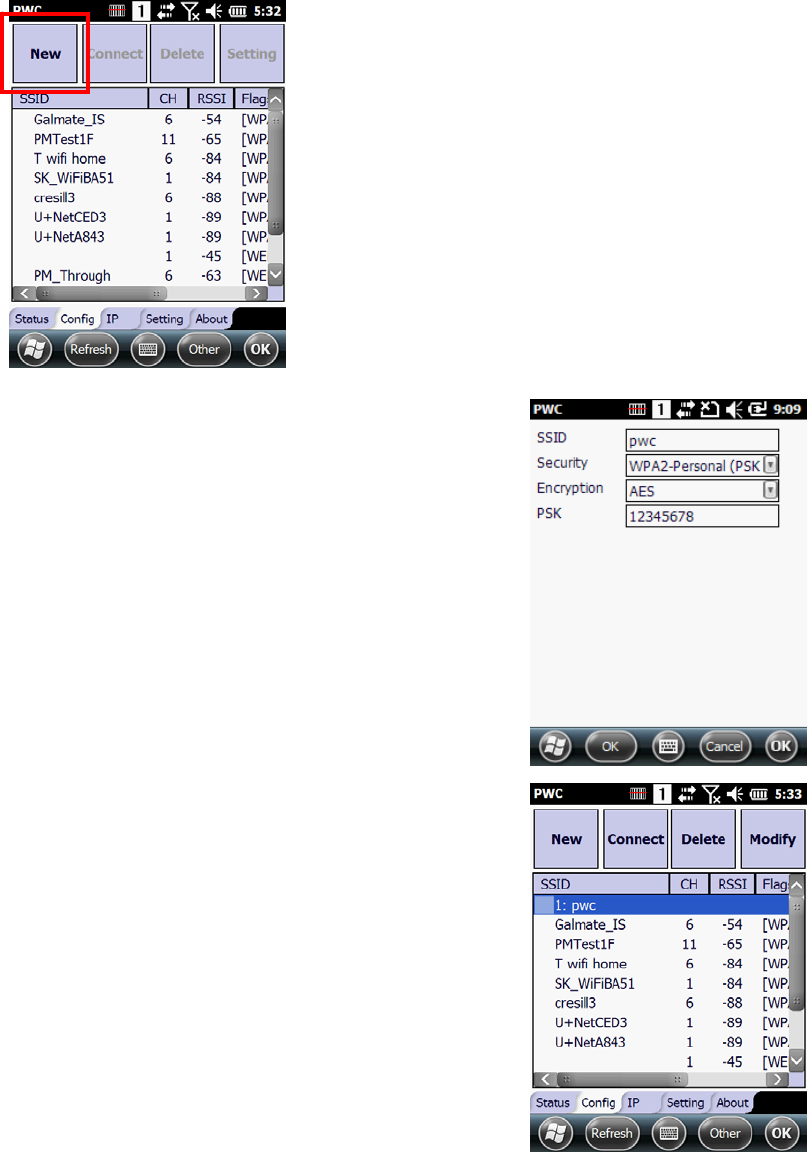

11. WLAN CLIENT ··················································································································································· 55

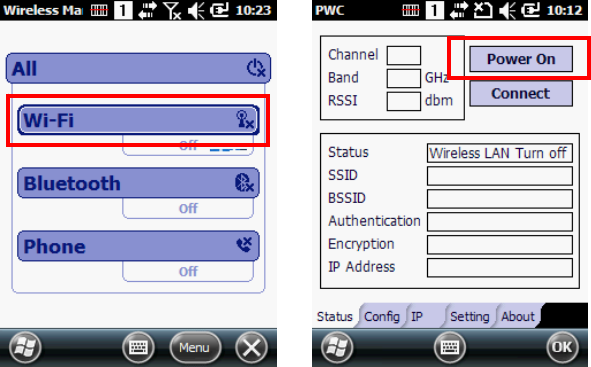

11.1. Enabling the WLAN Radio ·················································································································· 55

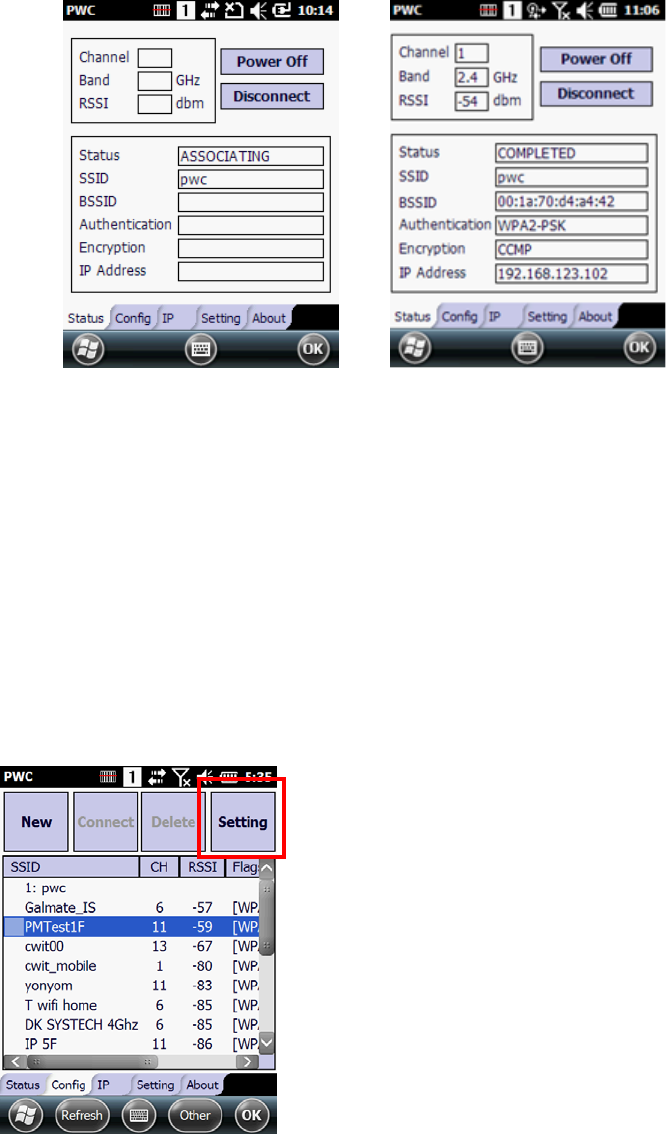

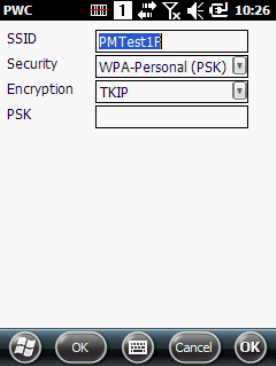

11.2. Establishing a Connection ················································································································· 56
11.3. Using the Scan feature ······················································································································ 56
12. BLUETOOTH HANDLER ····································································································································· 55
12.1. Enabling the Bluetooth Radio ············································································································ 55
12.2. Connecting to Other Devices ·············································································································· 56
12.3. Pairing Bluetooth Devices ·················································································································· 56
12.4. Setting Up a Bluetooth Printer ··········································································································· 56

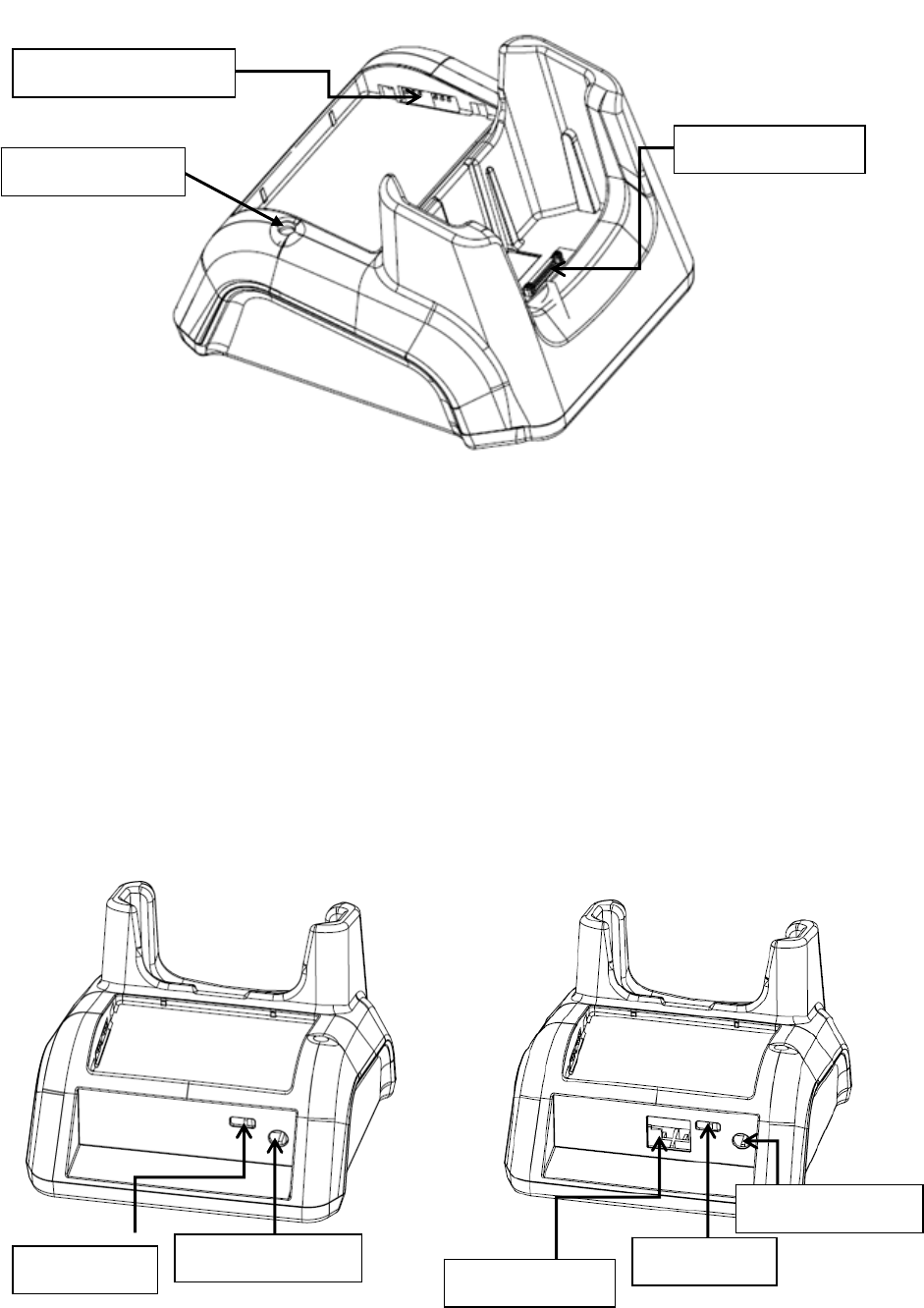

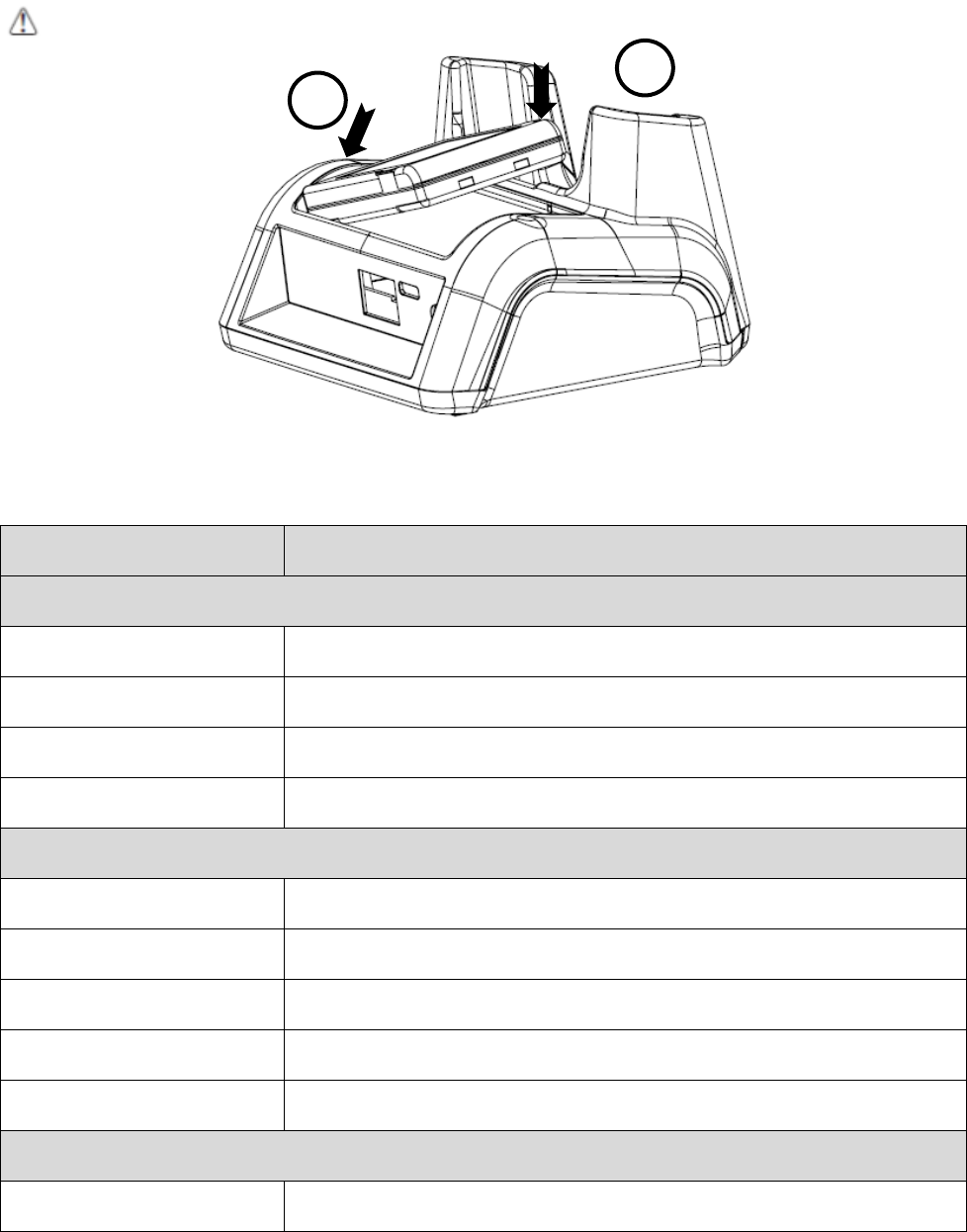

13. SINGLE SLOT DOCKING CRADLE/SINGLE SLOT ETHERNET CRADLE DEVICE ························································· 56
13.1. Overview ··········································································································································· 56
13.2. Battery Charging ······························································································································· 57
13.3. Power Supply ···································································································································· 57
13.4. Front Panel ······································································································································· 57
13.5. Back Panel ········································································································································ 58
13.6. Powering the Single Slot Docking Cradle or Single Slot Ethernet Cradle Device ··································· 59
13.7. Charging theBattery ·························································································································· 59
13.8. Technical Specifications ···················································································································· 59
![](/img.php?id=2305287&img=bg5.png)
NAUTIZ X4 Manual
4 handheld
1. Introduction
Thank you for purchasing NAUTIZ X4 handy terminal.
This manual generally provides you with the safety information and basic features and operations of the NAUTIZ X4 device.
Please read all safety precautions and this manual carefully before using your handy terminals and peripherals to ensure
safe and proper use.
Trademarks
The official name of Windows XP is Microsoft Windows XP Operating System.
The official name of Windows Vista is Microsoft Windows Vista Operating System.
The official name of Windows 7 is Microsoft Windows 7 Operating System.
Microsoft, Windows, Windows Embedded Handheld 6.5 Pro, ActiveSync, and the brand names and product names of other
Microsoft products are trademarks of Microsoft Corporation in the US and other countries.
Other company and product names given in this manual or displayed in this software may be the trademarks of their
respective companies.
About the NAUTIZ X4 Handy Terminal
The new NAUTIZ X4 is the latest generation handy terminal device, combining a pocket sized rugged form factor built on
Microsoft Windows Embedded Handheld 6.5 Pro operating system. The NAUTIZ X4 is designed for retail warehousing and
logistics applications where maximum performance and durability is required in compact handheld device.
The NAUTIZ X4 handy terminal is available in different types depending on the options.
Types :
1. 14244-GSM : 1D/2D, GSM/UMTS, Numeric/Qwerty Key
2. 14244-GSM-R : 1D/2D, GSM/UMTS, Numeric/Qwerty Key, RFID
3. 14244-CDMA : 1D/2D, CDMA, Numeric/Qwerty Key
Configuration of Part Name :
Model
name - Scanner
option
phone
option Keypad option
-
RFID option -
Language option
X
XX -
X
X
X
X
-
X
-
X
NX4 - 1D-N4313 G-GSM N-Numeric -
R-RFID -
E-English
- 2D-N5603 C-CDMA Q-Qwerty -
0-not install -
G-German
- -
-
F-French
- -
-
I-Italian
- -
-
S-Spanish
![](/img.php?id=2305287&img=bg6.png)
NAUTIZ X4 Manual
5 handheld
Accessories
P/N Description
NX4-1004 Standard battery
NX4-1007 Homebase office docking station (Single Slot Cradle)
NX4-1008 Ethernet base (Single Ethernet Cradle)
NX4-1015 Quad Battery Charger
NX4-1010 Micro-usb cable
NX4-1005 AC adapter
NX4-1023 Handstrap
NX4-1024 Wrist Lanyard
NX4-1011 Stylus
and tether

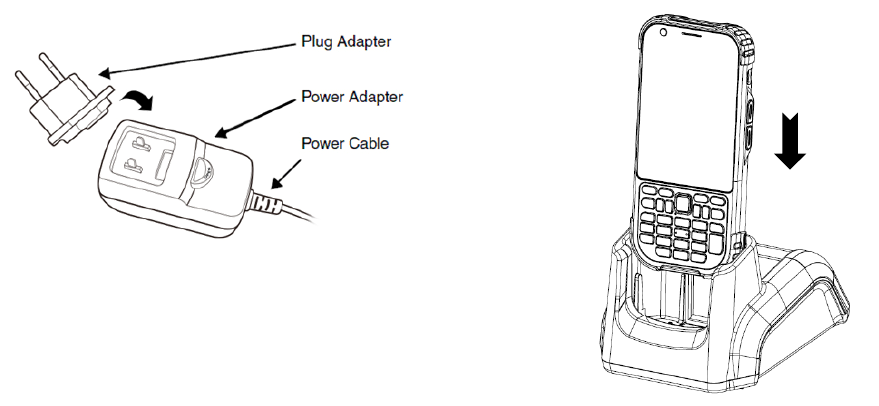

Cradles (including DC 5V 4A Adaptor)
Single Slot Cradle
Single Ethernet Cradle
Batteries
4000mAh Battery Pack, Standard Capacity
Power Supply
AC Adaptor, INPUT: AC100~240V 50/60Hz, OUTPUT: DC5V 1.8A with MicroUSB type
Cables
MicroUSB ActiveSync Cable
Others
Stylus Pen and tether
Wrist Lanyard
Handstrap
NAUTIZ X4 handy terminal contains the following items basically:
• Handy terminal
• MicroUSB ActiveSync Cable
• 5V/1.8A AC Adaptor with MicroUSB type
• AC Plugs
• Battery Pack
• Stylus Pen and tether
• Wirst Lanyard
• Handstrap
• LCD Screen Protection Film
• Quick Start Guide
☞NOTE:
Keep the original packaging for use when sending products to the technical assistance center. Damage caused by improper packaging is
not covered under the warranty
☞NOTE:
Rechargeable battery packs are not initially charged or discharged. Before you begin to use, you must charge the battery packs first. See
Paragraph 3.2.
2. Safety Regulations
Symbols in this manual
![](/img.php?id=2305287&img=bg7.png)
NAUTIZ X4 Manual
6 handheld
In this manual, some important items are described with the symbols shown below. Be sure to read these items before
using this equipment.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death
serious injury, or serious damage, or fire in the equipment or surrounding objects.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury, partial damage to the equipment or surrounding objects, or loss of data.
☞NOTE
Indicates information to which you should pay attention when operating the equipment.
This section outlines the safety precautions associated with using NAUTIZ X4 handy terminal.
☞NOTE:
NAUTIZ X4 handy terminals meet or exceed the requirements of all applicable standards organizations for safe operation. However, as
with any electrical equipment, the best way to ensure safe operation is to read this manual carefully before performing any type of connection to the
handy terminal and operate them according to the agency guidelines described in the manual.
2.1. General Safety Rules
CAUTION
Use only the components supplied by the manufacturer for the specific NAUTIZ X4 being used.
Do not attempt to disassemble the NAUTIZ X4 handy terminal, as it does not contain parts that can be repaired by the
user. Any tampering will invalidate the warranty.
When replacing the battery pack or at the end of the operative life of the NAUTIZ X4 handy terminal, disposal must be
performed in compliance with the laws in force in your country.
Before using the devices and the battery packs, read this manual carefully.
Do not submerge the NAUTIZ X4 handy terminal in liquid products.
2.2. Power Supply
The power supply for this device has met applicable KCC/CCC safety requirements.
Please adhere to the following safety instructions per UL guidelines:
• FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE
PROPERTY DAMAGE.
• IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS.
WARNING
• DANGER – TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.
Use only Handheld-approved power supply. Use of a non-Handheld-approved power supply may be dangerous and the
warranty does not cover damage to the device caused by non-Handheld-approved power supply. The package includes
international AC plugs. The AC plugs must be plugged in the power supply before the power supply itself is plugged on the
wall outlet. The power supply is intended to be correctly oriented in a vertical or horizontal or floor mount position.
2.3. Laser Safety
CAUTION
![](/img.php?id=2305287&img=bg8.png)
NAUTIZ X4 Manual
7 handheld
A Class 2 laser is safe because the blink reflex limit the exposure to no more than 0.25 seconds. It only applies to visible-
light lasers (400–700 nm). Class-2 lasers are limited to 1mW continuous wave, or more if the emission time is less than
0.25 seconds or if the light is not spatially coherent. Although staring directly at the laser beam momentarily causes no
known biological damage, avoid staring at the beam as one would with any very strong light source, such as the sun. Avoid
that the laser beam hits the eye of an observer, even though reflective surfaces such as mirrors, etc.
The laser light is visible to the human eye and is emitted from the window indicated in the figure.
If the above laser light label is attached to your device, it indicates the product contains a laser engine or laser
aimer that emits the laser light. The following information is provided to comply with the rules imposed by
international authorities and refers to the correct use of NAUTIZ X4 handy terminal.
Laser Safety Statement
This product has been tested in accordance with and complies with CDRH 21 CFR 1040.10 and 1040.11 and IEC 60825-
1 Ed 2 (2007) except for deviations pursuant to Laser Notice No 50, dated June 24, 2007. LASER LIGHT. DO NOT STARE
INTO BEAM. CLASS 2 LASER PRODUCTS. 1 mW MAX OUTPUT: 650nm.
For installation, use and maintenance, it is not necessary to open the device.
WARNING:
Do not attempt to open or otherwise service any components in the optics cavity. Opening or servicing any part of the optics
cavity by unauthorized personnel may violate laser safety regulations. The optics system is a factory only repair item.
WARNING:
Use of controls or adjustments or performance of procedures other than those specified herein may result in exposure to
hazardous visible laser light.
Laser output window
LED window
Camera window
S/N label
(
IMEI label
Laser Light
Label
NAUTIZ X4 Manual
8 handheld
WARNING:
Use of optical systems with the scanner will increase eye hazard. Optical instruments include binoculars, microscopes, eye
glasses and magnifying glasses.
2.4. LED Safety
The LED output on this device has met IEC62471 LED safety and certified to be under the limits of a CLASS 1 LED product.
2.5. FCC RF Exposure
This device complies with FCC RF exposure guidelines set forth for an uncontrolled environment.
For body worn operation, this device has been tested and meets the RF exposure guidelines for use with an accessory that
contains no metal and the positions the handset a minimum of 1.5 cm from the body. Use of other enhancements may not
ensure compliance with RF exposure guidelines. If you do not use a body-worn accessory and are not holding the device at
the ear, position the handset a minimum of 1.5 cm from your body when the device is switched on.
2.6. CB Scheme
This device complies with CB Scheme IEC 60950-1
2.7. FCC Part 15 Regulation
Pursuant to part 15 of the FCC Rules, you are cautioned that changes or modifications not expressly approved by Handheld
could void your authority to operate the NAUTIZ X4 handy terminal.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
In accordance with FCC 15.21, changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
The antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. To
maintain compliance with FCC RF exposure guidelines for body-worn operation, do not use accessories that contain
metallic components.
2.8. Canadian Compliance
![](/img.php?id=2305287&img=bga.png)
NAUTIZ X4 Manual
9
handheld
This radio transmitter has been approved by Industry Canada to operate with the antenna types listed below with the
maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included
in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this
device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or
lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than
that necessary for successful communication.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-
dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour
l'exploitation de l'émetteur.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un
type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques
de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que
la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une
communication satisfaisante.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
2.9. Radio Compliance
NAUTIZ X4 RF terminals are in conformity with all essential requirements of the R&TTE Directive (1999/5/EC).
This device is marked with in accordance with the Class II product requirements specified in the
R&TTE Directive, 1999/5/EC. The device is intended for use throughout the European Community; PAN European
Frequency Range: 2.402 ~ 2.480 GHz.
Restrictions for use in France are as follows:
• Indoor use: maximum power (EIRP*) of 100 mW for the entire 2.400 ~ 2.4835 GHz
• Outdoor use: Maximum power (EIRP*) of 100 mW for the 2.400 ~ 2.454 GHz band and maximum power (EIRP*)
of 10 mW for the 2.454 ~ 2.483 GHz band.
The CE mark on the device indicates that the system has been tested to and confirm with the provisions noted
within the 2004/108/EC Electromagnetic Compatibility Directive and the 2006/95/EC Low Voltage Directive,
1999/5/EC (R&TTE), and 2011/65/EU (RoHS)
.
Handheld shall not be responsible for use of our product with equipment (i.e., power supplies, personal
computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive.
![](/img.php?id=2305287&img=bgb.png)
NAUTIZ X4 Manual
10 handheld
2.10. WWAN
In radio systems configured with mobile computers and access points, the frequencies to be used must be allowed by the
spectrum authorities of the specific country in which the installation takes place. Be absolutely sure that the system
frequencies are correctly set to be compliant with the spectrum requirements of the country. The Radio modules used in
this product automatically adapt to the frequencies set by the system and do not require any parameter settings .The TYPE
field shows the correspondence between NAUTIZ X4 types and radio modules:
HSPA+
HSPA+, or Evolved High-Speed Packet Access, is a technical standard for wireless, broadband telecommunication. HSPA+
enhances the widely used WCDMA (UMTS) based 3G networks with higher speeds for the end user.
2.11. WEEE Compliance
Information for the user in accordance with the European Commission Directive 2012/19/EU of the European Parliament
and of the Council of 4 July 2012 on Waste Electrical and Electronic Equipment (WEEE)
This product has required the extraction and use of natural resources for its production. It may contain hazardous
substances that could impact health and the environment, if not properly disposed. In order to avoid the dissemination of
those substances in our environment and diminish the pressure on the natural resources, we encourage you to reuse,
recycle and recover the product. If the product is disposed according to the Directive, it will avoid potentially negative
consequences to the environment and human health which otherwise could be caused by incorrect disposal.
The product marked with crossed out wheeled bin must be disposed separately from municipal waste.
For more detailed information about disposal, reuse, and recycle system, contact your local or regional waste
administration.
3. Getting Started
3.1. Install the Battery
The HANDY TERMINAL is shipped with the battery packaged separate from the unit. Follow the steps below to install the
battery.
1. Remove the battery compartment door by moving the door’s locks right and lifting up the bottom of door.
![](/img.php?id=2305287&img=bgc.png)
NAUTIZ X4 Manual
11 handheld
2. Insert the battery well with the battery cells facing top.
3.
Replace the battery door to start from bottom to top door’s lock downwards.
☞NOTE:
Two points of Battery guide stopper must be pertinently inserted to rear cover battery guide stopper hole
☞NOTE:
The battery door must be installed prior to booting the unit.
WARNING:
Use only Handheld-approved Li-Ion battery packs. Unauthorized battery may result in damage not covered by the warranty.
3.2. Charge the Batteries
Battery door loc
k
1 2
Recess of
hanging
1
2
![](/img.php?id=2305287&img=bgd.png)
NAUTIZ X4 Manual
12 handheld
Handy Terminals ship with only main battery pack significantly charged of power. Charge the main battery pack with the
Handy Terminal charging cable for a minimum of 4 or 6 hours depending on your battery before initial use.
1. Attach the appropriate plug adapter to the plug of the power cable.
2. Insert the plug into the appropriate power source.
Plug the Handy Terminal power cable into the USB Jack on the side end of the unit.
WARNING:
Use only Handheld-approved peripherals, power cables, and power adapters. Unauthorized peripherals, cables, or power
adapters may cause batteries to explode or damage your device.
DO NOT attempt to charge damp/wet handy terminals or batteries. All components must be dry before connecting to an external power
source.
Batteries must be charged at a temperature ranging from 0~45Ԩ (±3Ԩ). If you don’t follow the guide, it might have a harmful effect on the
battery life.
CAUTION:
After the battery has been charged, disconnect the DC Power Jack from the terminal. If you stay on that plug in use, it is possible
to break the power code.
☞NOTE:
Rechargeable battery packs are not initially charged. Therefore the first operation to perform is to charge them.
☞NOTE:
If you remove the battery pack or it completely discharges, you have 30 minute window of time to insert a charged battery pack before the
battery completely discharges.
3.3. LED Indicators
The red LED is ON while charging the battery and the green LED is ON when the battery is fully charged.
Alternatively, it is also possible to recharge the battery pack by using the single slot cradle, the single Ethernet cradle or
the 4-slot battery charger.
![](/img.php?id=2305287&img=bge.png)
NAUTIZ X4 Manual
13 handheld
During the charging process the LED positioned at the upper side of the display is red constant. Once the charging process
has been completed this LED is green constant.
If the battery pack is removed from the handy terminal, it can be recharged by inserting it into the rear slot of the single slot
cradle, the single Ethernet cradle or the 4-slot battery charger.
3.4. Guidelines for Battery Pack Use and Disposal
The following are general guidelines for the safe use and disposal of batteries:
Store the terminal and the spare batteries between 20 to 30 ºC (68 to 86 ºF) in order to maintain optimal battery
performance.
Standard batteries must be charged at a temperature ranging from 0 to 45Ԩ(±3Ԩ).
The battery level may not be displayed correctly for some minutes after the disconnection if the handy terminal is
disconnected from power supply before the charging cycle is completed.
The handy terminal could get warm during charging. This is normal and does not mean a malfunction.
To achieve the best battery life, turn off the radios not in use.
Rechargeable battery packs is not initially charged. Therefore the initial operation to perform is to charge them. See
below.
By default, the battery pack is disconnected at the factory to avoid damage due to excessive draining. Annual
replacement of rechargeable battery pack avoids possible risks or abnormalities and ensures maximum
performance.
WARNING:
DO NOT attempt to charge damp/wet handy terminals or batteries. All components must be dry before connecting to an external
power source.
WARNING:
Never throw a used battery in the trash. It contains heavy metals and should be recycled according to local guidelines.
WARNING:
Storage of batteries for long time at fully charged status or at fully discharged status should be avoided.
Only in case of long storage, in order to avoid deep discharge of the battery, it's recommended to partially recharge the battery every two-
three months to keep the charge status at a medium level.
WARNING:
Installing, charging and/or any other action should be done by authorized personnel and following this manual.
The battery pack may get hot, explode, ignite, and/or cause serious injury if exposed to abusive conditions.
If the battery pack is replaced with an improper type, there is risk of explosion.
Do not place the battery pack in or near a fire or heat; do not place the battery pack in direct sunlight, or use or store the battery pack inside
unventilated areas in hot weather; do not place the battery pack in microwave ovens, dryer, high pressure containers, on induction
cookware or similar device. Doing so may cause the battery pack to generate heat, explode or ignite. Using the battery pack in this manner
may also result in a loss of performance and a shortened life expectancy.
Use only a Handheld approved power supply. The use of an alternative power supply will void the product warranty, may cause product
damage and may cause heat, explode or ignite.
The area in which the units are charged should be clear of debris and combustible materials or chemicals.
Do not use the battery pack in any other manner outside its intended use in Handy Terminal and peripherals.
WARNING
Do not short-circuit the battery pack contacts connecting the positive terminal and negative terminal. This might happen, for example,
when you carry a spare battery pack in your pocket or purse; accidental short–circuiting can occur when a metallic object such as a coin,
clip, or pen causes direct connection of the contacts of the battery pack (these look like metal strips on the battery pack). Short–circuiting
the terminals may damage the battery pack or the connecting object.
Do not apply voltages to the battery pack contacts.
Do not pierce the battery pack with nails, strike it with a hammer, step on it or otherwise subject it to strong impacts or shocks.
![](/img.php?id=2305287&img=bgf.png)
NAUTIZ X4 Manual
14 handheld
Do not disassemble or modify (i.e. bend, crush or deform) the battery pack. The battery pack contains safety and protection devices, which,
if damaged, may cause the battery pack to generate heat, explode or ignite.
In case of leakage of liquid from the battery, avoid contact with liquid the skin or eyes. If the contact occurs, immediately wash the affected
area with water and consult a doctor.
Do not solder directly onto the battery pack.
Do not expose the battery pack to liquids.
Avoid any knocks or excessive vibrations. If the device or the battery is dropped, especially on a hard surface, you should take it to the
nearest Authorised Repair Centre for inspection before continuing to use it.
Do not replace the battery pack when the device is turned on.
Do not remove or damage the battery pack’s label.
Do not use the battery pack if it is damaged in any part.
Battery pack usage by children should be supervised.
Collect and recycle waste batteries separately from the device in comply with European Directive 2006/66/EC, 2011/65/EU,
2012/19/EU and subsequent modifications, US and China regulatory and others laws and regulations about environment.
☞NOTE:
In order to guarantee an adequate operating autonomy, when replacing the battery pack the handy terminal checks the battery energy
level. If the battery is not sufficiently charged, handy terminal does not turn on.
In this case, either substitute the battery pack with a charged one (sufficiently charged) or insert handy terminal into a powered cradle or plug
it into the direct power supply.
3.5. Turn Your Device On
If you apply the power to your device, it turns on by itself. Do NOT press any keys or interrupt while turning on process.
When the process is complete, the Desktop appears, and the terminal is ready for use.
3.6. Desktop
☞NOTE:
You can access the Desktop any time by tapping the Change Views icon in the command bar and selecting
Desktop on the popup menu
Tap the touch screen once to zoon in the upper menu
![](/img.php?id=2305287&img=bg10.png)
NAUTIZ X4 Manual
15 handheld
3.7. Indicator Icons
The command bar, located at the upper of application screens, provides access to many system functions and programs.
Icons Meaning
Open the start menu
Access the Wireless Manager
Open the Scanner option menu
Indicates the Keypad value
Shows phone signal mode
Shows the volume
Indicates the Battery Control Panel (CPL)
Indicates Clock & Alarm CPL
zoom in/ out
Access the Bluetooth radio
Left and right arrows are used to scroll through additional icons
Icon Meaning
Indicates AC connection mode
Indicates WAN (Phone) connection mode
Indicates Sound connection mode
Indicates LAN / Bluetooth mode
Indicates Keypad mode
3.8. Using the Stylus
![](/img.php?id=2305287&img=bg11.png)
NAUTIZ X4 Manual
16 handheld
The terminal comes with a stylus included in a loop on the Lanyard. Use this stylus (or your finger) to select or enter
information on the touch screen. The stylus functions as a mouse; generally, a tap is the same as a click.
Tap Tap the touch screen once to open menu items and select options.
Drag Hold the stylus on the screen and drag across the screen to select text and images.
Tap & hold Tap and hold the stylus on an item and a pop-up menu appears. On the pop-up menu, tap the action of the task
you want to perform.
WARNING:
Use of objects, such as paper clips, pencils, or ink pens on the touch screen can damage the input panel and may cause damage
not covered by the warranty.
3.9. Selecting Program
Tap Start -> Programs. To open a program, tap the icon on the menu.
3.10. Pop-Up Menus
You can quickly choose an action for an item using the pop-up menus.
1. Tap and hold the stylus on the item name. The pop-up menu appears.
2. Lift the stylus and tap the action you want to perform.
The contents of pop-up menus change according to the program you are using.
3.11. Using Windows Explorer
Use Windows Explorer to navigate through the files on your system. Start menu -> File explorer
Move files by tapping and holding on the file, and then tapping Cut, Copy or Paste on the pop-up menus that appear.
4. Get to Know Your Device
4.1. Feature of Your Device
The following list outlines a few of the feature included in your device.
4.2. NAUTIZ X4 Handy Terminal
Operating Systems: Microsoft Windows Embedded Handheld 6.5 Pro
Micro Processor: Cortex-A8 1GHz
RAM Memory: 512MB
FLASH Memory: 1GB
3.5” VGA Display: 480x640 Transmissive TFT
Resistive Industrial Grade Touch Screen
Keyboards: Numeric, Qwerty
Micro SDHC Expansion Memory Card Interface: Support up to 32 GB
Power Supply : MicroUSB power adaptor
Interfaces : Micro-USB connector : USB 2.0 High Speed
![](/img.php?id=2305287&img=bg12.png)
NAUTIZ X4 Manual
17 handheld
HandyLink connector: USB 2.0 High speed Client, Host (USB Host for Ethernet Cradle), Charging
Scan Engine:
• 1D engine: N4313
• 2D engine: N560X
Battery: Li-ion battery, 3.7V/4000mAh/14.8Wh
IP65 certified enclosures
Audio: Integral Microphone, Earpiece, Loud, Speaker, 3.5pi 4pole Jack for Ear-Mic headset
BT: Bluetooth Radio 2.1+EDR with Internal Antenna
WLAN: 802.11 b/g/n Radio with Internal Antenna
Notification LEDs
1) Power indications, 2) Scan reading indications & OS notifications
Notification Vibration Motor
Camera : 5M pixel CMOS camera with AutoFocus and LED flash
Sensors : Light/Proximity sensor and Acceleration sensor
P/N : NX4-1DGN-0-E/ NX4-2DGQ-R-E/ NX4-2DGQ-0-E/ NX4-2DGN-R-E/ NX4-2DGN-0-E
GSM/GPRS/EDGE : Quad band, 850/900/1800/1900MHz
UMTS/HSPA+: Five band, 800/850/900/1900/2100MHz
P/N : NX4-1DCN-0-E
CDMA : Dual Band, US 800/1900MHz
GPS: Standalone and Assisted GPS
4.3. Front Panel Layout
Touch screen
display
Light/Proximity sensor
Receiver
LED
Scan key
Keyboard
(
33-key numeric)
![](/img.php?id=2305287&img=bg13.png)
NAUTIZ X4 Manual
18 handheld
LED Indicator
Shows the information needed to operate your device as follows:
Note: The LED is user-programmable.
LED Color Meaning
Red Lights when main battery is charging.
Blinks, when the battery is very low (<10%),
Lights when the battery is low (<20%),
Blinks as Red/ Green by turns when it is no battery or not recognized
Green Lights when the PDA resets
Lights when main battery charging has completed.
Blinks as Red / Green by turns when it is no battery or not recognized
Blue Lights when a scan Pass
Lights when PDA wakes up
Red Lights when a scan fails
Lights when PDA suspends
Keypad
33 numeric keypad (includes side scan and volume, power button).
55 qwerty keypad (includes side scan and volume, power button).
Microphone
The integrated microphone can be used for audio recording and phone call.
Touch Screen Display
The display is a LCD (Liquid Crystal Display) with a Capacity touch screen. The 3.5” VGA (Video Graphic Array) is
transmissive active matrix color and backlit. The resolution is 480 x 640; see Display Backlight on paragraph 4.4.
For touch screen input, use the stylus included with the terminal or your finger. The method you choose depends
on which one is most appropriate for your application. While there is a great deal of variation in different
applications, you generally achieve greater accuracy with the stylus for buttons or icons that are close together.
WARNING:
Use of objects, such as paper clips, pencils, or ink pens on the touch screen can damage the input panel and may cause damage
not covered by the warranty.
4.4. Display Backlight
![](/img.php?id=2305287&img=bg14.png)
NAUTIZ X4 Manual
19 handheld
The intensity of the backlight of the touch screen display may be changed, and the backlight may be programmed to turn
off after the terminal has been idle for a specified period of time.
To adjust the intensity of the backlight while on battery power, tap Start -> Settings -> System -> Backlight.
Screen Backlight - Battery/External Power
Move the slider to adjust the screen backlight while on battery power.
You may turn the screen backlight off if the device is not used for a designated period of time by checking the option and
designating the desired time period.
You may also turn on the screen backlight when a button is pressed or the screen is tapped by selecting the appropriate
checkbox.
☞NOTE:
Using the backlight option while on battery power substantially reduces battery life.
You may make the same changes when on external power by tapping the External tab.
4.5. Keypad Backlight
To turn on the keypad backlight, check the checkbox.
The duration of backlight of keypad synchronizes with LCD backlight’s.
![](/img.php?id=2305287&img=bg15.png)
NAUTIZ X4 Manual
20 handheld
4.6. Using Screen Protectors
Handheld defines proper use of the terminal touch panel display as using a screen protector and proper stylus. Screen
protectors maintain the ongoing integrity (i.e., prevent scratching) of the touch panel, which is why their use is
recommended for applications that require a high to medium level of interface with the touch panel.
Handheld also mandates use of the proper stylus, which is one that has a stylus tip radius of no less than 0.8mm. Use of
the stylus included with the terminal is recommended at all times.
4.7. Installing Your Screen Protector
When installing a screen protector, use a flat plastic card (e.g., credit card) to apply the screen protector smoothly and
remove any air bubbles.
1. Press the Power key to put the terminal in suspend mode.
2. Clean the touch panel thoroughly with a clean, non-abrasive, lint-free cloth, Make sure nothing is on the touch panel.
3. Blue tag with backing film: Peel off this mask before application.
4. Align the exposed edge of the screen protector along the left edge of the touch panel.
Make sure that it lies flush with edges of the touch panel.
☞NOTE:
To reposition the screen protector, lift up gently and reapply.
5. Yellow tag with cover film:
“Please peel off this mask after application completed.
![](/img.php?id=2305287&img=bg16.png)
NAUTIZ X4 Manual
21 handheld
6. Press gently but firmly. Use the card a necessary to smooth out any air pockets or bumps after allocation
7. Press the Power key to weak the terminal and check the touch panel with the stylus.
8. Verify that the screen accepts input from the stylus as usual. If not, re-apply the screen protector.
9. Press the Power key to put the terminal back in suspend mode.
10. Clean the surface of the screen protector with a clean, non-abrasive, lint-free cloth.
11. Press the Power key to wake the terminal again.
12. For maximum performance, recalibrate the screen Tap Start > Settings > System > Screen
![](/img.php?id=2305287&img=bg17.png)
NAUTIZ X4 Manual
22 handheld
13. Tap Recalibrate the follow the instructions on the screen.
4.8. Back Panel Layout
Wrist Lanyard
The HANDY TERMIANL comes with Wrist Lanyard. You can attach it to the device.
Battery
cover
LED window
Camera
w
indow
Speaker
Wire spring
mount hole
Lanyard
mount hole
![](/img.php?id=2305287&img=bg18.png)
NAUTIZ X4 Manual
23 handheld
Hand strap
The HANDY TERMIANL comes with Hand strap. You can attach it to the device.
Finger Saddle
This is a slightly depressed and angled area of the back housing that is designed to cradle or “saddle” your finger
while holding the terminal. This unique ergonomic design makes the terminal comfortable to hold and helps
prevent you from accidentally dropping the terminal.
Installed Battery
For information about installing the battery, see Install the Battery on paragraph 3.1.
For information about battery power, see Battery Power on paragraph 4.17.
Speaker
The integrated speaker sounds audio signals as you scan bar code labels and enter data, but emits no ambient
noise on system activity (i.e., processor, memory access, radio traffic, etc.). The speaker can also be used for
playing sounds (e.g., WAV or MP3 files).
The speaker meets the following SPL levels at 10cm:
• 500Hz–80dB
• 1kHz–90dB
• 4kHz–90dB
Stylus and tether
HANDY TERMINAL is shipped with a stylus inserted in a loop on the tether. Store the stylus in the Lanyard when
you’re not using it; see Using the Stylus on paragraph 3.8.

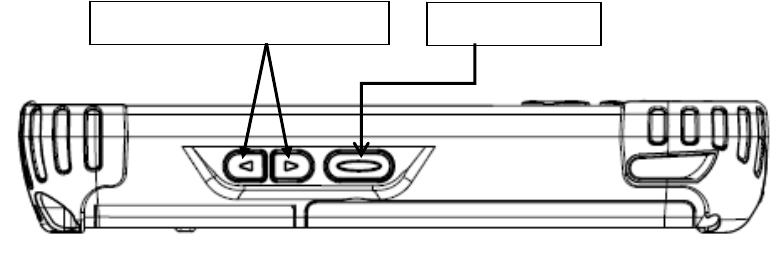

4.9. Left Side Panel Layout
Side Button
You can set the volume using the Volume Button and scan using the Scan button.
SCAN button
Volume Up/Down button
![](/img.php?id=2305287&img=bg19.png)
NAUTIZ X4 Manual
24 handheld
4.10. Installing Memory Cards
The HANDY TERMINAL supports Micro Secure Digital (SD) memory cards up to 32GB. Sandisk, Kingstone and ATP micro
SD recommended
To access the Micro SD card slot and insert the card, proceed as follows:
1. Press the Power key to put the terminal in Suspend Mode; see Suspend Mode on paragraph 4.23.
2. Remove the battery door on the back of the unit.
3. Remove the battery and open
4. Insert the SD card with the label facing upward.
☞NOTE:
To remove an installed SD card, tap on the edge lightly to unlock the card; the card will pop out just enough for you to grab its edge and
pull it out.
5. Tap the Power key to resume operation.
6. To verify that the operating system recognizes the new memory card, open Windows Explorer and navigate to My
Device\Storage Card.
WARNING:
Follow proper ESD precautions to avoid damaging the SD. Proper ESD precautions include, but are not limited to, working
on an ESD mat and ensuring that the operator is properly grounded.
Do not force the card. If you feel resistance, remove the card, check the orientation, and reinsert it.
Do not use the Micro SD card slot for any other accessories.
It is highly recommended to lock the card holder even if the card is not present.
4.11. Right Side Panel Layout
Side Button
You can use the Programs Buttons option in the Control Panel to change the functionality of the side buttons.
Scan function is assigned by default (Scan button).
EarJack
3.5pi 4pole Jack. This connector supports Ear-Mic headset
Ear jack socket Scan button Function button
![](/img.php?id=2305287&img=bg1a.png)
NAUTIZ X4 Manual
25 handheld

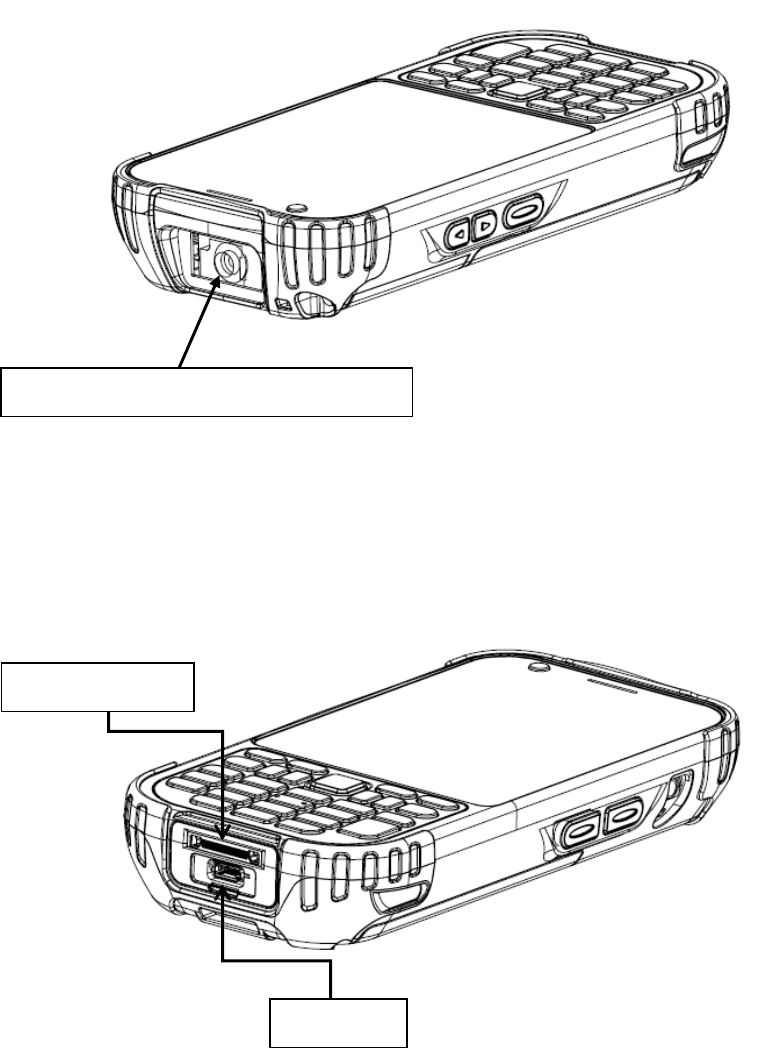

4.12. Top Panel Layout
Image Engine Window
The angled image engine reads and decodes most popular bar code symbolizes.
For more information, see Using the Image Engine on paragraph 6.
4.13. Bottom Panel Layout
HandyLink Connector
The HandyLink mechanical connector is designed to work exclusively with HANDY TERMINAL peripherals and
cables. This connector powers the terminal, charges the main battery, and facilitates communication. This
connector supports High speed USB 2.0 communication (up to 480 Mbps)
Through this connector, you can communicate with a host workstation via Microsoft
ActiveSync; see ActiveSync Communication on paragraph 10.4
The I/O connector supports the following signals:
Image engine window (with engine)
I/O connector
USB por
t
![](/img.php?id=2305287&img=bg1b.png)
NAUTIZ X4 Manual
26 handheld
Pin Description Direction
DC IN +5V IN
DC IN +5V IN
NC
GND
USB Host +5V Enable OUT
USB Host D+ IN/OUT
USB Host D- IN/OUT
USB Host Detect IN
GND
NC
GND
GND
CRADLE Detect IN
USB Client D+ IN/OUT
USB Client D- IN/OUT
USB Client +5V IN
☞NOTE: Signals referenced are for a DTE device.
USB Port
This connector supports High speed USB 2.0 communication (up to 480 Mbps)
Also external power from the MicroUSB Adaptor that is included with the terminal. When connected to the Handy
Terminal MicroUSB Adaptor, the terminal is powered and the main battery pack is charging.
4.14. Peripherals and Accessories
The following items are sold separately and enhance your HANDY TERMINAL’s capabilities.
Single Slot Cradle
This charging and communication cradle supports USB, enabling your terminal to interface with the majority of enterprise
systems. When a terminal is seated in a powered base, its battery pack charges in five hours for the standard capacity
4000mAh pack.
For more information, see Single Slot cradle/Single Ethernet cradle Device on paragraph 12.
Single Ethernet Cradle
The Single Ethernet cradle is used to charge the battery, to power the battery charging system in the terminal, and can be
used to communicate data from the terminal to a PC/laptop via the Ethernet port.
For more information, see Single Slot cradle/Single Ethernet cradle Device on paragraph 12.
4.15. USB ActiveSync Cable
NAUTIZ X4 Manual
27 handheld
The MicroUSB ActiveSync Cable is used when communicating between the terminal and a host computer to transfer data
via the USB interface.
4.16. Li-ion Battery Packs
The Li-ion battery pack provides the main power supply for the terminal.
4.17. Battery Power
The intelligent battery technology inside the terminal features of battery power:
• The battery pack
The battery works to prevent data loss when the terminal is used over long periods of time.
The battery must be charged to full capacity before using the HANDY TERMINAL for the first time!
Charge the main battery pack with the Handy Terminal charging cable for a minimum of 5 hours depending on your battery
before initial use.
4.18. Main Battery Pack
There are two Li-ion battery packs available for the HANDY TERMINAL:
Standard Capacity: Li-ion 3.7V/4000mAh/14.8Wh
The Li-ion battery pack is the primary power source for the Handy Terminal as well as for the internal backup battery.
Changing the Main Battery Pack
Before installing a battery pack, press the Power key to put the terminal in Suspend Mode so that operations are
suspended before removing the main power source. Always put the terminal in Suspend Mode prior to changing the battery.
The HANDY TERMINAL is shipped with the battery separate from the unit. You will need to loosen the Lanyard, remove the
battery door, insert the battery, and replace the battery door.
☞NOTE: The battery door must be installed prior to booting the unit.
![](/img.php?id=2305287&img=bg1d.png)
NAUTIZ X4 Manual
28 handheld
Charging Options
When the battery is installed in the terminal, you can use any of the peripherals listed below to charge the battery.
• AC Power Supply to USB Port direct.
• Single slot docking cradle/Single slot Ethernet cradle
• Insert the battery in the spare battery charging well in the back of either the Handy Terminal slot cradle or Handy
Terminal Ethernet cradle.
Charging Time
The standard capacity 4000mAh Li-ion battery pack requires five hours to charge to full capacity.
4.19. Managing Main Battery Power
Data and files saved on the Handy Terminal may be stored in RAM memory; therefore, maintain a continuous power supply
to the terminal to help prevent data loss. When you remove a battery pack, insert another charged battery pack in the
Handy Terminal. If the main battery pack is low, insert the terminal into a charging peripheral to power the terminal and
begin recharging the battery.
☞NOTE:
If the main battery is low and the terminal is in Suspend Mode, pressing the
Power
button does
not
wake the HANDY TERMINAL; you
must replace the discharged battery with a fully charged battery or apply AC power to the terminal.
Checking Battery Power
Tap the battery icon to open the Power Properties. The Battery tab opens displaying the charge status of the main battery
1
2 3
4
Main battery pack
![](/img.php?id=2305287&img=bg1e.png)
NAUTIZ X4 Manual
29 handheld
☞NOTE:
You can also check battery power by tapping
Start -> Settings -> System -> Power
.
4.20. Resetting the Terminal
There are three types of system resets: a Soft Reset, a Hard Reset, or a Factory Reset. The soft and hard resets preserve all
data stored in the file system.
Soft Reset (Warm Boot)
A soft reset re-boots the terminal without losing RAM data, terminates all running applications, reloads the OS, and
launches Autoinstall, which re-initializes any CAB or REG files in \AutoInstall\Cabfile folder.
You would perform a soft reset 1) when the terminal fails to respond, 2) after installing software applications that require a
reboot, or 3) after making changes to certain system settings, or 4) to install new CAB or REG files.
To perform a Soft Reset:
1. Press the Power button for 3 seconds and choose the Soft Reset on the power menu .
2. When the reset is complete, the Desktop appears.
Hard Reset (Cold Boot)
CAUTION:
A hard reset erases all of the data and applications stored in RAM memory, reloads the OS, and
launches Autoinstall, which installs any CAB or REG files in the \AutoInstall\Cabfile.
Hard resets automatically launch a soft reset as part of the boot process if there are CAB files present.
To Perform a Hard Reset:
1. Press the Power button for 3 seconds and choose the Hard Reset on the power menu.
2. When the reset is complete, the Desktop appears.
To perform a Hard Reset if the terminal has stopped responding, press and hold the Power button for 8 seconds until the
terminal starts to re-boot.
![](/img.php?id=2305287&img=bg1f.png)
NAUTIZ X4 Manual
30 handheld
Factory Reset
CAUTION:
To prevent data loss, back up all user data to an SD card or external memory device before performing
an upgrade or factory reset.
To Perform a Factory Reset:
1. Perform a Hard Reset
2. The terminal will reboot automatically and you will see first booting screen
3. Press “1277” when version information is displayed and then you will enter bootloader menu.
4. Press “12” to perform a factory reset.
5. When the clean boot is completed, do a touch calibration.
4.21. Suspend Mode
Suspend Mode suspends terminal operation. The terminal appears to be “off” when in Suspend Mode. The terminal is
programmed to go into Suspend Mode automatically when inactive for a specified period of time. You can set this time
period in the Power setting.
To suspend and resume operation, press the Power button. You may also press the front Scan key to wake a suspended
device unless the battery door has been removed and replaced.
☞NOTE:
You should always put the terminal in Suspend Mode when you change the battery pack; see Changing the Battery Pack on paragraph
4.18.
Troubleshooting Suspend/Resume
If the terminal does not wake when you press the Power button, the main battery might be too low to resume operation. To
check, remove the battery and install a fully charged battery or connect the terminal to a Handy Terminal charging
peripheral.
4.22. Memory Allocation
You can verify file storage and program memory in System Properties.
1. Tap Start -> Settings -> System -> Memory tab.
4.23. Care and Cleaning of the Products
When needed, clean the image engine window and the LCD display with a clean, non-abrasive, lint-free cloth. The terminal
can be cleaned with a damp cloth.
![](/img.php?id=2305287&img=bg20.png)
NAUTIZ X4 Manual
31 handheld
4.24. NAUTIZ X4 Technical Specifications
Model NAUTIZ X4
Operating System Microsoft Windows Embedded Handheld 6.5 Pro
Application Software Tools and Demos
Processor Cortex-A8 1GHz
Memory 512MB RAM X 1GB Flash
Storage Expansion User accessible Micro SD memory card slot.
Display 3.5 in. transmissive active matrix 65K color LCD with backlight, VGA (480 x 640)
Scan Engine 1D engine: N4313
2D engine : N560x
Keypad Numeric , Qwerty
Audio Built-in microphone and speaker
I/O High speed USB 2.0 from cradle (or I/O cable)
Battery Standard Li-ion battery 3.7V / 4000 mAh / 14.8 Wh
Expected Hours of
Operation 8.5+ hours (with scan and continuously transmitting if using new standard Li-ion battery)
Charging 5V input through MicroUSB port.
Expected Charge Time Standard Capacity: 4000mAh – approx. 5 hours
Charging Peripherals
MicroUSB Adaptor
Single Slot cradle–single-bay terminal charge/communicate
Single Ethernet cradle–single-bay terminal charge/communication base
(Via Ethernet connection)
Quad Battery Charger
WPAN Bluetooth Class II (10 m) v2.1 Enhanced Data Rate (EDR) with internal antenna.
WLAN Dual Mode 802.11 b/g/n (11 Mbps/54 Mbps) with internal antenna
WLAN Security Wi-Fi Certified, 802.1X, WPA2, EAP, WEP, LEAP, TKIP, MSD, EAP-TLS, EAP-TTLS,
WPAPSK, PEAP, CCXv4
WWAN
P/N : NX4-1DGN-0-E/ NX4-2DGQ-R-E/ NX4-2DGQ-0-E / NX4-2DGN-R-E/ NX4-2DGN-0-E
GSM/CDMA : Quad band, 850/900/1800/1900MHz
UMTS/HSPA+: Five band, 800/850/900/1900/2100MHz
P/N : NX4-1DCN-0-E
CDMA : Dual Band,US 800/1900MHz
GPS Standalone and Assisted GPS
![](/img.php?id=2305287&img=bg21.png)
NAUTIZ X4 Manual
32 handheld
Operating Temperature -20° to 55°C
Charging Temperature 0~45Ԩ (±3Ԩ))
Storage Temperature -25ºC to 70ºC
Humidity 95% humidity, non-condensing
Construction High impact resistant PC/ABS housings
Magnesium alloy internal chassis with component shock mounts
Drop 1.22m multiple drops to concrete, MIL-STD-810G, Method 516.6, Procedure
Tumble 3.3 ft (1.0m) tumbles (500 drops)
ESD Air: ± 15kV
Direct: ± 8kV
Environmental Independently certified to meet IP65 standards for moisture and particle resistance
Dimensions H; 157.4mm x W; 74.2mm x L; 25.8mm(top)
Weight 1) 1D ; 348
g
±
5g
(with
Accessaries)
2) 2D ; 352g ± 5g (with Accessaries)
Scanner / Decode
Capabilities
1D Laser model: N4313 laser engine. Decodes all standard 1D codes.
2D engine model: N560X 2D Imager. Decodes all standard 1D, 2D, Postal, and OCR codes.
5. Using the Keypad
5.1. Numeric Keypad Layout
5.2. Navigation Keys
Located in the center of the keypad for easy access with either hand, the navigation keys enable you to move the cursor up
and down lines and from character to character.
Keyboard
(29-key numeric)
Scan key
![](/img.php?id=2305287&img=bg22.png)
NAUTIZ X4 Manual
33 handheld
5.3. Basic Keys
Name Function
BLUE(ALPHA) Toggles the keypad between alpha (upper and lowercase) and numeric modes. Indicator changes
accordingly on the command bar.
Backspace Backspace moves the cursor back one space.
If you are typing text, a character is deleted each time you press the backspace key.
Window Shows the start menu directly.
Send Begin dialing. Start an action.
End Hang up. Cancels an action.
Enter Performs the same function as the Enter key on a workstation.
Power Suspends and resumes the terminal.
Scan Activates the image engine to scan a bar code or take an image.
Space Moves the cursor one space forward.
If you are typing text, it moves the text one space forward as well.
5.4. Alpha/Numeric Modes
The keypad defaults to numeric mode. Use the ALPHA key to toggle between numeric and alpha modes.
Pressing the ALPHA key once locks the keypad in numeric mode, alpha mode (lowercase), or alpha mode (uppercase).
The command bar on the screen displays an icon that indicates the alpha/numeric status of the keypad.
Icon Keypad Status
Lowercase alpha mode.
Uppercase alpha mode.
Numeric mode.
![](/img.php?id=2305287&img=bg23.png)
NAUTIZ X4 Manual
34 handheld
5.5. White Indicators on the Numeric Keys
(Please refer to Handheld Keyboard Specification v1.5 document)
The mode is changed as Numeric / Upper / Lower when you press the white key, you can type each number/ capital
letter/small letter in the sequence
Each number key display the characters typed when you press that key in alpha mode.
Note that when typing in alpha mode, you must use the same multi-press method you would use when typing letters on a
phone keypad. Each key press types the next letter in the sequence as displayed by the alpha indicator.
5.6. Program Buttons
Buttons can be programmed to execute different functions using the Program Button program in the Control Panel. The
following buttons on the HANDY TERMINAL are programmed for the listed function.
Key Combination Function
FSCAN Do Scan
LSCAN Do Scan
RSCAN Do Scan
F1 No Action
F2 No Action
F3 No Action
F4 No Action
SPACE Space
STARTMENU Start Menu Key
BACK SPACE Bksp Key
ENTER Return Key
VOL+ Volume up
VOL- Volume down
CAMERA Camera
BACKLIGHT Backlight
VIBRATOR Vibrator
LOCK Lock
6. Using the Image Engine
![](/img.php?id=2305287&img=bg24.png)
NAUTIZ X4 Manual
35
handheld
6.1. Overview
The HANDY TERMINAL contains an N560X 2D image engine that instantly reads all popular 1D and 2D bar codes and
supports omni-directional aiming and decoding or a N4313 1D laser engine that reads all popular 1D bar codes. The
image engine can also capture digital images, such as signatures and pictures.
☞
NOTE:
It may not read the barcode due to specular reflection if scanning from directly above. Try again after changing angle.
☞
NOTE:
It may not read the barcode, if this handy terminal is too close to or too far from the barcode even if the barcode is within the aiming range.
Move the handy terminal toward or away from the barcode slowly and try again. The aiming range is for reference only.
☞
NOTE:
It may not read the barcode if the barcode surface is curved. Scan the barcode at the center of the aiming range.
☞
NOTE:
It may not read the barcode if the barcode surface is dirty. Try again after cleaning the barcode.
☞
NOTE:
It may not read the barcode if the image engine window is dirty. Try again after wiping the window with a cotton swab or similar soft object
gently.
☞
NOTE:
It may not read the barcode according to the direct sunlight or the brightness of the surrounding. Try again away from the direct sunlight.
Try again after adjusting the brightness of the surrounding if indoors.
☞
NOTE: It may not read the barcode if it is blue on white background. Try again after changing angle or adjusting the brightness of
the surrounding.
☞
NOTE:
It may not read the barcode if it is black on silver background. Try again after changing angle or adjusting the brightness of
the surrounding.
☞
NOTE:
Bar codes printed on glossy or laminated paper are best read at angles greater than 5° in relation to the Laser Engine. This
prevents bright illumination reflections from being returned to the Laser Engine..
☞
NOTE:
Performance may be impacted by bar code quality and environmental conditions
☞
NOTE:
Misreading may occur, if the bar code isn’t positioned correctly. Recommended scanner beam positions are as follows
![](/img.php?id=2305287&img=bg25.png)
NAUTIZ X4 Manual
36 handheld
6.2. Available Image Engines
The HANDY TERMINAL is equipped with an N560X.
6.3. Depth of Field
Depth of Field for N560X
☞NOTE: Test Condition: Room Temperature (Approx. 23°C), 0 Lux.
New picture : N5600-IM Rev E.pdf base.
![](/img.php?id=2305287&img=bg26.png)
NAUTIZ X4 Manual
37 handheld
6.4. Supported Bar Code Symbologies
Symbology Type Symbology Name
1D Symbologies Codabar
Code 11
Code 128
Code 39
Code 93 / 93i
EAN-8
EAN-13
Interleaved 2 of 5
Reduced Space Symbology
UPC-A
UPC-E
MSI
Trioptic Code
Code 32 Pharmaceutical (PARAF)
Matrix 2 of 5
Telepen
GS1-128
ISBT 128
Straight 2 of 5 (Industrial)
UPC-A (Coupon Code)
UPC-E1
Straight 2 of 5 (IATA)
2D Symbologies Aztec Code
Data Matrix
MaxiCode
MicroPDF417
PDF417
QR Code and Micro QR Code
Han Xin
Composite Codes EAN.UCC Composite
Codablock F
TCIF Linked Code 39 (TLC39)
OCR OCR
Postal Codes
Postnet
British Post(BPO)
Canadian Post
Australian Post
Japanese Post
Planet Code
KIX (Netherlands) Post
China Post
Korea Post
4-CB(4-State Customer Barcode)
ID-Tag(UPU 4-State)
6.5. Activating the Engine
When a scanning application is open, press the Scan key to activate the image engine.
![](/img.php?id=2305287&img=bg27.png)
NAUTIZ X4 Manual
38
handheld
6.6. Using Demos
Handy Terminal Demos are software utilities loaded on all Handy Terminal terminals that demonstrate the advanced
features of the terminal. There are two Demos that feature the image engine: Image Demo and Scan Demo.
To access these demos, tap Start -> Demos.
• Select Scan Demo to verify decoding, or
• Select Image Demo to verify imaging (not available on device using the N4313 laser engine).
6.7. Decoding
The Handy Terminal supports Full-area Imaging decode mode.
Full-area Imaging
With full-area imaging the Handy Terminal supports omni-directional aiming meaning that a positive read can be
obtained from many positions. For details, see Omni-Directional Scanning Positions on paragraph 6.10.
6.8. To Decode a Bar Code
1. Tap Start -> Demos -> Scan Demo.
2. Position the Handy Terminal over one of the Sample Bar Codes on paragraph 6.9.
A range of 4–10 inches (10–25 cm) from the bar code is recommended.
3. Project the aiming brackets by pressing and holding the Scan key. The Scan LED lights red.
4. Center the aimer crosshair over the bar code. The aiming beam should be oriented in line with the bar code to achieve
optimal decoding; Omni-Directional Scanning Positions on paragraph 6.10.
5. When the bar code is successfully decoded, the decode LED lights green and the terminal beeps.
6.9. Sample Bar Codes
You can use the following bar codes to verify decoding:
Code 39 PDF 417
6.10. Omni-Directional Scanning Positions
The high-vis aiming pattern frames the bar code to provide you with the best scanning performance.
![](/img.php?id=2305287&img=bg28.png)
NAUTIZ X4 Manual
39 handheld
☞NOTE:
To achieve the best read, the aiming beam should be centered horizontally across the bar code.
The aiming pattern is smaller when the terminal is held closer to the code and larger when the terminal is held farther from
the code. Symbologies with smaller bars or elements (mil size) should be read closer to the unit whereas larger bars or
elements (mil size) should be read farther from the unit.
6.11. Capturing Images
The image-capture process is an intuitive, split-second operation for experienced users. By following basic guidelines,
however, new users can easily develop their own technique and, with practice, quickly learn to adapt to different
application environments.
Image Preview
When the imaging process is initiated, the touch screen displays a preview of the object. This is a live video
image of what the imager is currently viewing and has a slightly degraded appearance compared to the captured
image. This is normal; the captured image has a higher resolution.
File Formats
The Handy Terminal supports BMP file format only.
7. Using the Laser Engine
7.1. Overview
The HANDY TERMINAL (N4313 laser version) contains a laser diode that emits a beam toward an oscillating mirror that
scans through the code and the reflected light is bounced off of two mirrors back to the collector. The laser version reads
all popular 1D bar codes. See Overview on paragraph 6.1 also.
☞NOTE: Performance may be impacted by bar code quality and environmental conditions.
7.2. Available Laser Engines
The HANDY TERMINAL can be equipped with an N4313 laser engine (depending on the configuration purchased).
7.3. Depth of Field
Depth of Field for N4313
Code Size
Reference Range
Near
Distance
(in/cm)
Far
Distance
(in/cm)
Code 39 4 mil 5in / 12.7cm 5.4in / 13.8cm
Code 39 5 mil 4.1in / 11.7cm 7.2in / 18.4cm
![](/img.php?id=2305287&img=bg29.png)
NAUTIZ X4 Manual
40 handheld
Code 39 7.5 mil 4.1in / 10.4cm 10.7in / 27.4cm
Cede 39 10 mil 3.4in / 8.7cm 14.5in / 36.9cm
UPC 13 mil, 100% 1.9in / 4.7cm
16.8in / 42.8cm
Code 39 15 mil 1.9in / 4.7cm 19.9in / 50.4cm
Code 39 20 mil (*) 25.5in / 64.6cm
Code 39 40 mil (*) 26.7in / 67.5cm
Code 39 55 mil (*) 31.8in / 80.8cm
☞
NOTE: Test Condition: Room Temperature(Approx. 20°C), 450 ~ 500 Lux.
☞NOTE: * = dependent on width of bar code.
7.4. Supported Bar Code Symbologies
Symbology Type Symbology Name
1D Symbologies Codabar
Code 39
Interleaved 2of 5
Nec 2of5
Code 93
Straight 2of5 Industrial
Straight 2 of 5 IATA
Matrix 2 of 5
Code 11
Code 128
GS1 128
Telepen
UPC A
UPC E
EAN 13
EAN 8
MSI
Plessey
GS1 Databar Omnidirectional
GS1 Databar Limited)
GS1 Databar (Expanded
China Post
Trioptic
7.5. Activating the Engine
When a scanning application is open, press the Scan key to activate the laser engine.
7.6. Using Demos
Handy Terminal Demos are software utilities loaded on Handy Terminals that demonstrate the advanced features of the
terminal.
To access these demos, tap Start > Demos.
• Select Scan Demo to verify decoding
7.7. Decoding a Bar Code
1. Tap Start > Demos > Scan Demo.
2. Position the Handy Terminal over one of the Sample Bar Codes on paragraph 7.8.
![](/img.php?id=2305287&img=bg2a.png)
NAUTIZ X4 Manual
41 handheld
A range of 4-10 inches (10-25 cm) from the bar code is recommended.
3. Project the aiming beam by pressing and holding the Scan key. The Scan LED lights red.
4. Center the aimer beam horizontally over the bar code and highlight all of the vertical bars of the bar code. The aiming
pattern is smaller when the terminal is held closer to the code and larger when the terminal is held farther from the code.
Symbologies with smaller bars or elements (mil size) should be read closer to the unit whereas larger bars or elements
(mil size) should be read farther from the unit.
5. When the bar code is successfully decoded, the decode LED lights green and the terminal beeps.
7.8. Sample Bar Code
You can use the following bar code to verify decoding:
7.9. Scanning Positions
The aiming beam must be aimed across the entire bar code to provide you with the best scanning performance. The aiming
pattern is smaller when the terminal is held closer to the code and larger when the terminal is held farther from the code.
Symbologies with smaller bars or elements (mil size) should be read closer to the unit whereas larger bars or elements (mil
size) should be read farther from the unit.
8. Using ScanWedge
8.1. Overview
ScanWedge sends data from the installed scan engine(N4313 or N560X) to the foreground application as keystrokes or
clipboard. The foreground application is the open software application whose window is currently active on the display.
As a result, you can check decoded bar code data with Microsoft WordPad.
8.2. Enabling ScanWedge
ScanWedge is enabled by default in Handy Terminal
Tap the ScanWedge icon once . ScanWedge initializes and enables.
Command Bar Menu
Tap icon in taskbar to open the command bar menu.
![](/img.php?id=2305287&img=bg2b.png)
NAUTIZ X4 Manual
42 handheld
Menu Item Sub Item This item …
Notification
Beep Enables and
disables the audio notification for decode/data reception. There is
one sound for success and another sound for an error.
LED Enables and disables LED notification for decode/data reception.
Vibrator Enables and disables Vibrator notification for decode/data reception.
Specifies the method to use when sending the decoded message to the foreground
application
Result Type Keyboard Event Send decoded bar code data as Keyboard event(stroke)
Clipboard Send decoded bar code data to clipboard(copy & paste)
Terminator
None Add nothing at end of decoded bar code data
CRLF Add CRLF at end of decoded bar code data
Space Add Space at end of decoded bar code data
Tab Add Tab at end of decoded bar code data
Auto Scan - Enable Auto Scan feature
Continuous Scan - Enable Continuous Scan feature
Setting - Open Scanner setting applet
Disable Scanner - Disable Scanner trigger
Close - Close Scan wedge
9. Using Control Panel
9.1. System Properties
Refer to the System control panel for information related to the system.
![](/img.php?id=2305287&img=bg2c.png)
NAUTIZ X4 Manual
43 handheld
9.1.1. Version
1. Select
2. Start > Settings > System > About > Version tab to
determine the following information about your PDA:
Operating system
Processor
Memory
Expansion slot
9.1.2. Device ID
Your device uses this information to identify itself to
other computers.
Terminal Serial Number will be in Device Name section by default. You can
modify it
9.1.3. Copyrights
Portions of this software are based on NCSA Mosaic.
![](/img.php?id=2305287&img=bg2d.png)
NAUTIZ X4 Manual
44 handheld
9.2. Power properties
9.2.1. Battery tab
To see main battery level indicators open
Start > Settings > System > Power icon .
Set up the USB charging and On / Off
9.2.2. Advanced tab
To adjust power management settings,
1. Set idle time when on battery power before device suspends.
2. Set idle time when on external power before device suspends.
3. To exit, press OK from the command bar, or press the < ENT > key on the keypad.
☞
NOTE:
To save battery life it is recommended to set idle time as short as possible.
9.2.3. CPU Power Tab
To adjust CPU power settings,
1. Auto Power : Enable automatically CPU power control to maximize battery life.
2. Manual Power : CPU Clock can be fixed by User.
![](/img.php?id=2305287&img=bg2e.png)
NAUTIZ X4 Manual
45 handheld
9.2.4. Alerts Tab
Adjust the level of main battery for Low battery message and Critical battery message.
By default, 20% is set for Low battery message and 10% is set for Critical battery message.
9.2.5. Wakeup Source Tab
Enable Wake(Resume) resources from suspend(Sleep) mode
By default, all available resources are enabled.
9.2.6. Battery Info Tab
To see battery information,
Start > Settings > System > Power icon> Battery Info Tab
Indicate Capacities, Voltage, Estimated time, Serial number etc.
9.3. Program Button properties
9.3.1. Program Buttons Tab
1. Select
Start > Settings > Control Panel > Program buttons
2. Chose its type:
Default – button will be assigned default function.
No function – button does not have any functions.
Scan key – button is used as Scan key.
Application – click on Open button and select application to bind
with this key.
4. To exit, press OK from the command bar, or press the
< ENT > key on the keypad
9.3.2. Key define Tab
Apply and Set the key which is already defined
![](/img.php?id=2305287&img=bg2f.png)
NAUTIZ X4 Manual
46 handheld
9.3.3. Up/Down Control Tab
Customize the way the Up/Down control repeats
• Delay before first repeat (Short/Long)
• Repeat rate (Slow/Fast)
☞NOTE:
It is useful for a customer to want to remap keyboard.
9.4. Backlight Properties
Modify display and keyboard backlight brightness.
Also set backlight options (i.e. turn off time).
To modify backlight settings open:
Start > Settings > Control Panel > Backlight
9.4.1. Battery power Tab
Modify display backlight settings when device runs on batteries.
Set display brightness level
Set backlight timeout time.
Available options:
10 sec
30 sec
(by default)
1 min
2 min
3 min
4 min
![](/img.php?id=2305287&img=bg30.png)
NAUTIZ X4 Manual
47 handheld
5 min
Enable to turn on backlight when a button is pressed or the screen is tapped
☞
NOTE: To extend battery life it is recommended to set display backlight turn off time as short as possible.
☞NOTE: To extend battery life
it is recommended to set display backlight brightness level as low as possible.
9.4.2. External power Tab
Modify display backlight settings when device runs on external power.
Set display brightness level
Set backlight timeout time.
Available options:
Unchecked
(By default)
1 min
2 min
5 min
10 min
15 min
30 min
Enable to turn on backlight when a button is pressed or the screen is tapped
9.4.3. Keyboard backlight Tab
Enable Keyboard backlight when button is pressed
By default this is turned off.
9.5. Scanner Settings
To change the Scanner configuration parameter as follows:
Tap the Scanwedge icon in the System Tray to open the menu shown in image on the right and select Settings to open the
Scanner Settings applet or Start > Settings > System > Scanner Settings
![](/img.php?id=2305287&img=bg31.png)
NAUTIZ X4 Manual
48 handheld
![](/img.php?id=2305287&img=bg32.png)
NAUTIZ X4 Manual
49 handheld
9.5.1. Scanner Settings Applet
Tab Section Option Description
Basic
Scanning
Trigger timeout (sec)
Specifies the trigger time out in
seconds. If a barcode is not
decoded within the specified
timeout, the default Notifier
indicates that decoding is failed
Enable Auto Scan Enable Auto Scan with specified
interval.
Auto Scan interval (sec) Set Auto Scan interval time.
Continuous Scan Enable Continuous Scan without any
interval.
Enable Center Window
(IT5300SR device only)
Enable Center window. Bar
codes are decoded only if they are
within the specified windows
Decode Mode(IT5300SR
device only)
Standard:
Quick Omni
(By default)
:
Delay Before
Decoding(IT5300SR device
only)
Start to decoding after
specified
milliseconds
Values: 0(default), 100, 200, 300,
400, 500, 600, 700, 800,
900, 1000
Wedge mode
User Message
Select Result Type
User Message
Keyboard Event
Clipboard(default)
Terminator
Select the desired barcode end method
from the pull down list.
Values: None, CRLF, Space,
Tab
Power Save Options
(N4313 device only)
Power Save Mode
Select Power Save Mode
OFF
SLEEP
HIBERNATE(default)
Power Save TimeOut
(sec) 1~65535
Notification
Beep
If enabled
– plays audio sound
Volume Set sounds volume.
Good read Set sound to indicate good read.
Bad read Set sound to indicate bad read.
LED Enable Enable visual scan indicators.
Vibrator
Good read Set vibration time after
good read.
![](/img.php?id=2305287&img=bg33.png)
NAUTIZ X4 Manual
50 handheld
If enabled
- Turn on LED for good/bad scan
indicator
Bad read Set vibration time after
bad read.
Wedge
Barcode ID Transmit Barcode ID Enable to transmit predefined barcode
ID in Detail tab
Label
Prefix Enter Prefix to be sent prior to the
decoded/received data.
Suffix Enter Suffix to be sent after the
decoded/received data
Symbologies Select barcode types you want to read
There is “Enable All” and “Disable All” to enable/disable all symbologies
Tab Section Option Description
Details
Specifies or enable available
detail settings in
symbologies
Enable this code Tap/enable this checkbox to enable the
selected bar code type.
Barcode ID Enter the desired features you wish to
transmit as bar code ID
Length
Set the minimum and maximum lengths
from the pull-down lists. If the numbers
are the same, acceptable bar codes will
only be that length. Not all types will
have this option enabled.
Redundancy(N4313 device
only)
If you are encountering errors when
reading some bar codes, you may want
to adjust the redundancy count.
Redundancy adjusts the number of
times a bar code is decoded before
transmission, which may reduce the
number of errors. Note that the higher
the redundancy count, the longer it will
take to decode the bar code
About
Specifies Barcode engine type, Firmware revision, Decider revision, API revision
Load Factory Default
After modifying the current settings, if
you wish to return to the factory
defaults, tap the Load Factory Default
button.
NAUTIZ X4 Manual
51 handheld
10. Communication
10.1. Communication Options
Handy Terminal offers several communication options including Microsoft ActiveSync and wireless radios.
USB Connector
The MicroUSB connector on bottom side supports USB 2.0 High speed
HandyLink Connector (Wired Communication)
The mechanical connector on the bottom panel connects the terminal to various Handy Terminal communication
peripherals that connect to a host workstation via USB (1.1 or higher), thus enabling ActiveSync communication.
For more information, see ActiveSync Communication on paragraph 10.4.
Wireless Radios (Wireless Communication)
HANDY TERMINALs can be equipped with an 802.11b/g/n Bluetooth radio and WWAN.
For more information, see Wireless Radios on paragraph 10.14.
10.2. Installing Additional Software
Handy Terminal is shipped with the operating system, radio drivers, and custom software (CICO) already installed. These
are the default programs that install when your terminal first boots up. You can install additional software programs on the
terminal provided that the following parameters are met:
• The software program was created for a Windows CE device.
• The terminal has enough memory to store and run the program.
• The program has an EXE, CAB, or DLL extension.
When selecting programs, verify that the program and version of the program are designed for the Windows Embedded
Handheld 6.5 Pro and the terminal’s processor. You can verify your processor by tapping Start -> Settings -> System ->
About -> Version tab. Make a note of the information in the Processor field.
To install additional software, you can use the communication options described in this chapter.
• Adding Programs via ActiveSync (paragraph 10.13).
• Adding Programs from the Internet (paragraph 10.17).
10.3. Connecting the USB ActiveSync Cable
To facilitate USB communication between the Handy Terminal and the host workstation, you may connect your unit to a
host by using either the USB ActiveSync cable, the optional Single Slot Docking Cradle or the optional Single Slot Ethernet
Cradle. If you use the Communication Cable, slide the cable unit onto the bottom of the terminal lining up the terminal’s
micro-USB connector with the cable unit’s connector.
![](/img.php?id=2305287&img=bg35.png)
NAUTIZ X4 Manual
52 handheld
10.4. ActiveSync Communication
To synchronize, ActiveSync 4.1 or higher must be installed and configured for the appropriate communication type on the
host workstation and the Handy Terminal. Handy Terminals ship with
ActiveSync already installed. Therefore, if ActiveSync is already installed on the host workstation, you just need to connect
the Handy Terminal to the host workstation (via Handy Terminal peripheral) to initiate communication.
☞NOTE:
You can download the most current version of ActiveSync (for Windows XP) or Windows Mobile Device Center (Windows Vista, 7) from
www.microsoft.com.
WARNING:
When communicating via ActiveSync, your terminal is designed to be connected to the host workstation with a Handheld
communication peripheral. We recommend use of Handheld peripherals, power cables, and power adapters. Use of any non-Handheld
peripherals, cables, or power adapters may cause damage not covered by the warranty.
10.5. Communication Type
The HANDY TERMINAL supports the following type of communication via ActiveSync through its I/O connector on the
bottom panel:
USB The USB cable and hardware peripherals allow the Handy Terminal to communicate with a workstation through a USB port
or to a network through a USB hub. The Handy Terminal supports high-speed USB communication (USB 2.0); maximum data
transfer rate is 480 Mbps. The Handy Terminal defaults to USB communication out of the box.
10.6. Hardware Requirements for Setup
• AC Adaptor (if needed)
• USB ActiveSync Cable (for USB communication)
• ActiveSync v4.1 or higher (for Windows XP), Windows Mobile Device Center (for Vista and Windows 7) installed on the
host workstation
• Windows XP, Windows Vista, Windows 7 computer.
![](/img.php?id=2305287&img=bg36.png)
NAUTIZ X4 Manual
53 handheld
10.7. Software Requirements for Communication
To sync successfully, ActiveSync must be configured for the same communication type on both the host workstation and
the Handy Terminal. ActiveSync must be setup on your workstation before you initiate synchronization from the terminal for
the first time.
10.8. Setting Up the Host Workstation
Verify that ActiveSync is configured to use the appropriate communication type by selecting
File -> Connection Settings.
For USB communication, check Allow USB connections.
10.9. Communicating with the Handy Terminal
After setting up both the workstation and the terminal, ActiveSync connection should be automatic.
1. Connect the Handy Terminal to a communication peripheral, such as the Handy Terminal Docking cradle.
2. The Handy Terminal automatically opens ActiveSync or Windows Mobile Device Center to establish a connection.
10.10. Synchronizing with the Host Workstation
After setup, synchronization begins automatically whenever the terminal’s mechanical connector connects to a Handy
Terminal peripheral that is connected to a host workstation with ActiveSync installed.
10.11. Exploring the Terminal from the Workstation
When the terminal and desktop computer are connected, open the main ActiveSync window (on the desktop), and click
Explore.
The Mobile Device folder opens in Windows Explorer.
![](/img.php?id=2305287&img=bg37.png)
NAUTIZ X4 Manual
54 handheld
The Handy Terminal is now treated as a mass storage device, and transferring files is as simple as dragging and dropping
or copying and pasting as you would for moving files between folders on your hard drive.
10.12. Adding Programs via ActiveSync
WARNING:
When selecting programs, verify that the program and version of the program are designed for the Windows Embedded
Handheld 6.5 Pro and the terminal’s processor. You can verify your processor
by tapping
Start -> Settings ->
System -> About -> Version
tab. Make a note of the information in the Processor field.
Generally, software for Windows Embedded Handheld 6.5 Pro devices must be installed to the host workstation first, then
transferred to the Handy Terminal.
1. Download the program to the workstation from either the Internet or the install CD. You may see a single *.exe or
setup.exe file, a *.cab file, or *.dll. (There may also be several versions of files for different device types and processors.)
2. Read any installation instructions, Read Me files, or documentation that comes with the program.
Many programs provide special installation instructions.
3. Connect the terminal to the workstation via a Handy Terminal communication peripheral.
If the File is an Installer
An installer program is one that installs to the workstation and the terminal simultaneously; one process installs to both
devices.
1. On the workstation, the *.exe or *.setup.exe file. The installation wizard begins.
2. Follow the directions on the workstation screen.
The installation process includes transferring the software to the terminal via ActiveSync.
If the File is Not an Installer
Some programs cannot be installed on workstations because they are designed exclusively for Windows Embedded
Handheld 6.5 Pro devices. In these cases, the appropriate files must be stored on the host workstation and transferred to
the terminal via ActiveSync Explore.
☞NOTE:
If an error message stating that the program is valid but designed for a different type of computer appears when you try to install the
program on the workstation, the program is not an installer.
1. If you cannot find any installation instructions for the program in the Read Me file or documentation, open ActiveSync or
Windows Mobile Device Center on the workstation and click Explore.
2. On the workstation, navigate to the workstation folder containing the program file(s) and copy them to the Program Files
folder on the terminal.
If you want the program to persist through hard resets, save the program to the
Autoinstall \ Cabfile folder(\AutoInstall\Cabfile).
3. On the terminal Desktop, File Explorer in Windows Menu navigate to the folder where the program is located.
4. Tap on the program file to install it.
If you copied the file to the Autoinstall\Cabfile folder, you can choose to install the program by performing a hard reset.
The program installs as part of initialization.
NAUTIZ X4 Manual
55 handheld
5. After installation is complete, access the program by tapping Start -> Programs, and the program appears on the
Programs screen. Tap the icon to open the program.
10.13. Wireless Radios
There are four radio options: 802.11b/g/n Bluetooth, Phone and GPS.
1. 802.11 b/g/n (WLAN configuration): Integrated Wi-Fi (802.11b/g/n Radio), up to 72.2Mbps
2. Bluetooth (WPAN configuration): Integrated Bluetooth v2.1+EDR
3. Phone (WWAN configuration): 3G WWAN HSPA+Module
4. GPS: Module inherent to HSPA+ Module
☞NOTE:
NAUTIZ X4 does not provide all Bluetooth profiles.
10.14. Connecting the Terminal to a Wireless Network
You connect the terminal to a wireless network through the on-board radio (802.11b/g/n Bluetooth and/or Phone).
Each radio has its own configuration program and requires specific information about the wireless network to connect.
Successful connection depends on your network infrastructure about which you will need specific information from your
network administrator.
☞NOTE:
802.11 b/g/n radio module is off by default, in order to avoid wasting energy, you can switch it off using the Wireless Communications
applet
☞NOTE:
Suspending the terminal powers off the 802.11 b/g/n radio and drops the radio connection. When the terminal resumes, depending on
the radio power mode and security protocol selected, it may take up to 30 seconds for the 802.11 b/g/n radio drivers to re-associate the radio
to the network.
☞NOTE:
Area coverage and radio performance may vary, due to environmental conditions, access points types or interference caused by other
devices (microwave ovens, radio transmitters, etc.). If necessary, please turn off the WALN or Bluetooth.
☞NOTE:
Radio performance may vary if using WLAN, Bluetooths and Phone and phone imultaneously. If necessary, please turn off either WLAN or
Bluetooth and/or Phone..
10.15. WLAN (802.11 b/g/n Radio)
HANDY TERMINAL has a 2.4 GHz 802.11 b/g/n WLAN (Wireless Local Area Network) radio that uses Direct Sequence
Spread Spectrum (DSSS) technology. The radio is interoperable with other 802.11b/g/n, Wi-Fi compliant products
including access points (APs), workstations via PC card adapters, and other wireless portable devices.
By default, the 802.11b/g/n radio is powered-off (i.e., disabled) “out of the box” To power it on (i.e., enable), press the
vertical arrow (bottom right corner of screen) and select Turn Wireless LAN On. The enable/disable state of the radio will
survive subsequent soft and hard resets. The next step is to configure the connection parameters of the radio to connect to
a wireless network.
Configuring the WLAN Radio
The WLAN radio is configured in the Handheld WLAN Client, which you access by the program icon in the command bar.
![](/img.php?id=2305287&img=bg39.png)
NAUTIZ X4 Manual
56 handheld
10.16. Adding Programs from the Internet
When you have established a network connection (whether via Wireless LAN, Bluetooth, or activeSync), you can access the
Internet and download additional software programs.
When selecting programs, verify that the program and version of the program are designed for Windows Embedded
Handheld 6.5 Pro and the terminal’s processor. You can verify your processor by tapping Start -> Settings -> Control Panel
-> System -> General tab. Make a note of the information in the Processor field.
1. Open Internet Explorer and navigate to the program’s location. You may see a single *.exe or setup.exe file, or several
versions of files for different device types and processors.
2. Select the program version that matches your Handy Terminal and processor.
3. Read any installation instructions, Read Me files, or documentation that comes with the program.
Many programs provide special installation instructions.
4. Download the program to the terminal directly from the Internet.
You would normally store the program in the Program Files folder unless another location is required by the program.
5. On the terminal, the installer file; e.g., the *.exe file.
6. The installation wizard for the program begins.
7. Follow the directions on the screen to complete installation.
11. WLAN Client
11.1. Enabling the WLAN Radio
The WLAN Driver must be enabled for the radio to transmit a signal.
You cannot connect to a network unless the radio is enabled.
There are two ways in order to enable WLAN Driver,
Wi-Fi Turn on/off from Wireless Manager and from PWC Control.
1. Start -> Setting -> Connections -> Wireless Manager -> Select Wi-Fi.
2. Start -> PWC -> Power On button tap in Status page.
![](/img.php?id=2305287&img=bg3a.png)
NAUTIZ X4 Manual
57 handheld
11.2. Establishing a Connection
1. Tap Start -> PWC .
2. Tap the Config Tab on PWC.
3. Tap “New” button on top of Config Tab.
4. Type in SSID on Network Window.
5. Select a specific Security method from the drop-down list
according to the Access Point(AP)
6. Select Encryption method according to Security setting
7. Tap OK after type in keys or passwords.
8. you may find SSID appears on Config Tab list.
9. Select SSID and tap “Connect” button.
![](/img.php?id=2305287&img=bg3b.png)
NAUTIZ X4 Manual
58 handheld
10. The Status tab appears displaying the connection status.
11.3. Using the Scan feature
1. The active Config Tab queries for AP lists for devices in range of the terminal,
and AP results appears on the Scan window with SSID, Channel, Signal Strength, Flags information.
2. Tap the Access Point after you’ve selected an item.
once you tap the “Setting” button, it opens the Network Window.
3. If you select Access Point from queried lists, basic Security, Encryption will fill automatically with
previous set AP information.
You can select/enter additional information and tap ‘OK’.
![](/img.php?id=2305287&img=bg3c.png)
NAUTIZ X4 Manual
59 handheld
12. Bluetooth Handler
Bluetooth wireless technology is a short-range communications technology to connect portable and/or fixed devices while
maintaining high levels of security.
12.1. Enabling the Bluetooth Radio
1. Select the device panel indicated by the UP arrow in the lower, right portion of the display.
2. Tap Turn Bluetooth On.
The Bluetooth icon appears in the task bar.
☞NOTE:
In order to avoid wasting energy, the Bluetooth, module is off by default. If you need to have Bluetooth working, the module must be
powered on using the Wireless Communications applet.
☞NOTE:
Suspending the terminal powers off the Bluetooth radio and drops the Bluetooth connection. When the terminal resumes, it takes
approximately 10 seconds for the Bluetooth radio driver to re-initialize the radio.
☞NOTE:
Area coverage and Bluetooth radio performance may vary, due to environmental conditions or interference caused by other devices
(microwave ovens, radio transmitters, etc.).
12.2. Connecting to Other Devices
Before connecting to another device, make sure that the Bluetooth connection on the other device is enabled.
1. Tap on the Bluetooth icon in the task bar. The Bluetooth Handler appears on the screen.
2. Add New Device. The available services of all devices / profiles in range display in the Bluetooth Handler.
12.3. Pairing Bluetooth Devices
Connecting Bluetooth devices usually requires that they be paired; the same passkey must be entered for each device. If
you want to connect the HANDY TERMINAL to a device without any input method (e.g., printers, headsets), refer to the user
documentation that accompanied the device for pairing information.
1. Tap on the desired device / profile in the Bluetooth Handler.
2. Tap the Next Button on the bottom
![](/img.php?id=2305287&img=bg3d.png)
NAUTIZ X4 Manual
60 handheld
Once asked if you need to authenticate the device,
3. Enter 4 random digits and tap the Next button.
4. Enter the same digits on the other device when prompted.
5. After pairing, tap on the selected device / profile and select Active.
12.4. Setting Up a Bluetooth Printer
1. Make sure that the Bluetooth printer is on and activated.
2. If not done so already, turn Bluetooth On (by selecting the vertical arrow on the Command Bar).
3. Tap Scan Device, which runs a Bluetooth Inquiry, then SDP Query.
4. If you see your Bluetooth printer device displayed. You can press the Refresh button to search again.
13. Single Slot cradle/Single Ethernet cradle Device
☞NOTE:
The cradle is option accessory and needed to purchase separately with incidental expenses in the aftermarket
13.1. Overview
☞NOTE:
The information in this chapter applies to both the Single Slot cradle and Single Ethernet cradle devices unless otherwise indicated.
As the hub of your HANDY TERMINAL system, the Single Slot cradle charging and communication cradle supports full-
speed USB 2.0 with a workstation. The Single Ethernet cradle is identical to the Single Slot cradle except it supports
Ethernet communication as well as full-speed USB 2.0.
13.2. Battery Charging
The base completes a full charge of the battery pack in 5 hours for the standard capacity
4000mAh pack on the handy terminal. .
In addition to charging, the base powers the terminal’s intelligent battery charging system, which protects the battery from
being damaged by overcharging. The terminal senses when a battery pack is fully charged and automatically turns off the
charger. If the battery voltage drops below the charge threshold, the charger turns on again to maintain the battery at full
capacity. As a result, Handy Terminals may be stored in the base indefinitely without damage to the terminals, battery
packs, or peripherals. For prolonged storage, see Storage Guidelines on paragraph 4.20.
13.3. Power Supply
The power cable that ships with each terminal also powers the base.
WARNING:
We recommend use of Handheld peripherals, power cables, and power adapters. Use of any non-Handheld peripherals,
cables, or power adapters may cause damage not covered by the warranty.
We recommend use of Handheld Li-Ion battery packs. Use of any non-Handheld battery may damage not covered by warranty.
WARNING:
DO NOT attempt to charge damp/wet handy terminals or batteries. All components must be dry before connecting to an
external power source.
![](/img.php?id=2305287&img=bg3e.png)
NAUTIZ X4 Manual
61 handheld
13.4. Front Panel
Terminal Well
Place the Handy Terminal in the terminal well to communicate with a host device, power the terminal, and charge
the terminal’s battery. Make sure that the device is securely seated.
Rubber Feet
The bottom panel has four rubber feet to stabilize the unit on a flat surface. You can set the base on a dry, stable
surface, such as a desktop or workbench near an electrical outlet.
Charging LED
If the LED is red, the unit is charging; if it is green, the charge is complete.
13.5. Back Panel
Single Slot Cradle Single Ethernet Cradle
I/O connector
Battery connector
Charging LED
USB
por
t
DC power jac
k
Ethernet port USB por
t
DC power jac
k
![](/img.php?id=2305287&img=bg3f.png)
NAUTIZ X4 Manual
62 handheld
DC Power Jack
Connect the power cable to this power jack; see powering the Single Slot Cradle Device on paragraph 12.6.
USB Port
The USB port is full-speed (v2.0). Using the USB cable, you can connect the base to a USB-compliant device to
facilitate USB communication to and from the terminal. USB communication occurs through Microsoft
ActiveSync (v.4.1 or higher). For more information about ActiveSync setup, see ActiveSync Communication on
paragraph 10.4.
Ethernet Port (Single Ethernet cradle only)
Using an Ethernet cable, you can connect the Single Ethernet cradle to an Ethernet-compliant device to facilitate Ethernet
communication to and from the terminal. This equipment is for indoor use only. The communication wiring is limited to the
inside of a building.
13.6. Powering the Single Slot Cradle or Single Ethernet Cradle Device
The terminal requires DC 5V input for communication and battery charging; the power adapter on the power cable converts
the voltage from the power source to DC 5V. Only power adapter cables from Handheld convert the voltage appropriately.
The same power cable that ships with each terminal can be used to power the base. This cable contains a plug adapter for
each geography (US, UK, EU, etc.).
1. Attach the appropriate plug adapter to the power adapter.
2. Plug the power cable into the power source.
3. Plug the connector into the DC power jack on the back panel. The base is
now powered.
When a terminal is properly seated, the base powers the terminal, charges the terminal’s main battery pack, and launches
ActiveSync (see ActiveSync Communication on paragraph 10.4).
Handheld recommends that you leave the base connected to its power source at all times, so that it is always ready to use.
13.7. Charging the Battery
The base powers the terminal and fully charges the battery pack in 5 hours depending on the battery.
As battery packs charge, the charging circuitry follows the two-step charging process (CC-CV) that is recommended for Li-
Ion batteries.
![](/img.php?id=2305287&img=bg40.png)
NAUTIZ X4 Manual
63 handheld
The process monitors changes in temperature, current, and voltage.
The battery can be inserted in the battery charging well in back of the terminal connection. Angle the battery as shown.
Once the connectors engage, the LED lights. If the LED is red, the unit is charging; if it is green, the charge is complete
WARNING:
Do not short-circuit between each contact of the cradle. It may cause fire.
13.8. Technical Specifications for Cradle
Model NX4-1007 (Single Slot Cradle)
NX4-1008 (Single Ethernet Cradle)
Structural
Dimensions 136mm(L) x 116mm(W) x 84mm(H)
Weight Single Slot
cradle
-
309
g
Single Ethernet cradle - 317g
Material Polycarbonate
Color Black
Environmental
Operating Temperature -20° to 55°C
Storage Temperature -25° to +70°C
Charging Temperature 0~45Ԩ (±3Ԩ)
Electrical Static Discharge Air:
Direct:
± 15k
V
± 8 kV
Humidity 95% humidity (non-condensing)
Power Supply
Input (Universal)
(from the power source)
AC
100–240
Vac.
50/60Hz 0.9A
Ildd ith
Cdl
1
2
![](/img.php?id=2305287&img=bg41.png)
NAUTIZ X4 Manual
64 handheld
Output (to the cradle) DC 5V , 4A
Charging
Standard Charge Main battery: Standard Capacity:4000mAh – Approx. 5hours
Status LED Green:
charged
Red: charging
Communication
Interface MicroUSB connector supports data transmission of up to 480Mbps OR
Ethernet 10/100BASE-T(support only NX4-1008)
Agency Approvals
Power Supply
UL listed
TUV licensed
Power Supply compliant to FCC part 15, Class B
Charging CE Marking (EMC)
CISPR Pub 22
Fire Retardant UL 94- HB
